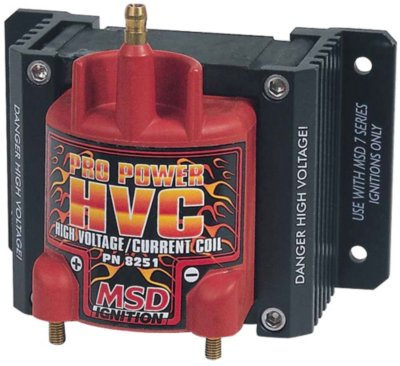

Universal-MSD Ignition Coil-E-core,Standard

  • List Price: $171.44
  • Our Price: $145.29
  • You Save: $26.15
  • Quantity
MSD PRO POWER HVC COIL -- 85:1 turns ratio, 0.04 ohm primary resistance, 86 ohm secondary resistance, 1 mH inductance, 45,000 maximum voltage, 1.1 amp peak current, 150 uS spark duration; With increased spark energy and voltage, along with multiple spark capabilities, help improve the combustion process of the fuel mixture to create an efficient burn; Improves throttle responses, smooth idle and quick starts, plus increased high rpm performance; For use with MSD 7 or 8 Series Ignitions only.
  • Design : E-core
  • Type : Standard
  • Product Fit : Universal
  • Quantity Sold : Sold Individually
  • Recommended Use : Street Performance
  • Anticipated Ship Out Time : 1-2 Business Days
  • Coil Color : Red
  • Coil Shape : Square
  • Height : 5.0 in.
  • Inductance : 1 mH
  • Internal Construction : Epoxy
  • Maximum Voltage : 45000 V
  • Notes : MSD 7/8-Series Ignition Systems
  • Peak Current : 1.1 amps
  • Primary Resistance : 0.04 ohm
  • Secondary Resistance : 86 Ohms
  • Spark Duration : 150 uS
  • Turns Ratio : 85:1 ratio
  • Warranty : 1-year MSD limited warranty
  • Wire Attachment Style : Male/Post
  • Part Number : 8251
  • Availability : In Stock
