Replacing the fuel injectors and related parts on a Mercedes-Benz 300SE (W126, M103 engine) is a doable DIY job if you’re moderately handy. Here’s a complete walkthrough to guide you through it safely and effectively--
Parts You’ll Likely ReplaceFor a thorough job, replace these:
-

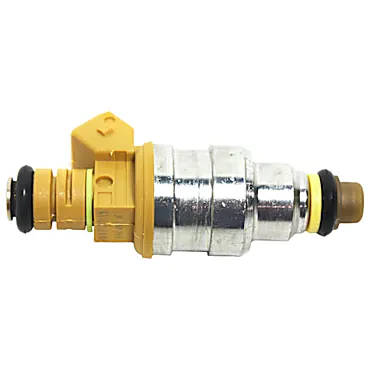

Fuel injectors (x6)
-
Injector seals/O-rings (upper and lower)
-
Injector holders/sleeves (if brittle or damaged)
-
Fuel distributor lines (optional, if leaking or rusted)
-
Injector clips (if yours are corroded or missing)
-
17mm open-end wrench (for injector lines)
-
10mm socket & ratchet
-
Torque wrench (optional but ideal)
-
Needle-nose pliers
-
Pick tool (for O-rings)
-
Vacuum or shop towels (to catch fuel drips)
-
Penetrating oil (for stuck parts)
-
Safety glasses & gloves
1. Disconnect Battery
-
Fuel can spray—disconnect the negative terminal to be safe.
-
Loosen the fuel distributor lines slightly (engine cold!) to bleed pressure, or crank the engine with the fuel pump relay pulled.
-
Unclip and remove the entire air filter assembly to expose the intake manifold and fuel lines.
-
Use your 17mm wrench to loosen the metal fuel lines leading from the distributor to each injector.
-
Be gentle—lines can be brittle with age.
-
The injectors are seated in plastic holders that push into the intake.
-
Use pliers or a small pry bar to gently pull the holders out.
-
If brittle or cracked, replace them.
-
Pull the injectors out of the holders.
-
Some will come out with the holder; others may stick.
-
Be careful not to drop anything into the intake ports.
-
Install new O-rings and seals on the new injectors.
-
If using new holders, pre-lube the seals with a little engine oil or fuel-safe grease for easier insertion.
-
Press the injectors into the holders (or holders into the intake first, then injectors).
-
Ensure they seat flush and evenly.
-
Carefully rethread the metal fuel lines onto the injector tops.
-
Do not cross-thread!
-
Snug them up but don’t overtighten.
-
Reverse your earlier steps, reconnect everything.
-
Prime the fuel system by turning the key to ON (not start) a few times.
-
Check all six injectors for any sign of leaks.
-
It's often a good idea to replace all 6 injectors at once—if one’s bad, the others aren’t far behind.
-
The job usually takes 2–3 hours, or a bit more if you're new to it.
-
Watch out for cracked plastic injector holders—many 300SEs still have the originals.
-
Keep a fire extinguisher nearby just in case (working with fuel).
