How to replace the rear shocks 2014 – 2019 Chevrolet Silverado 3

Chapter 1:

Remove the shock absorber

Step 1/5

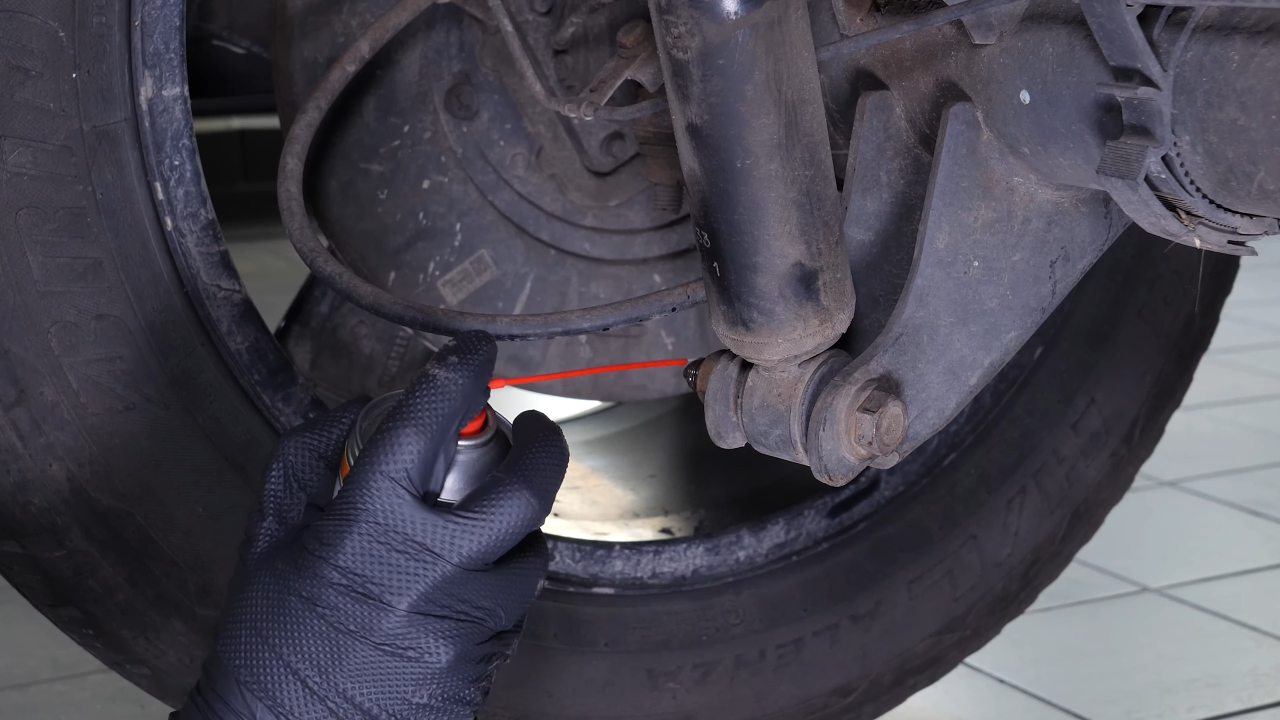

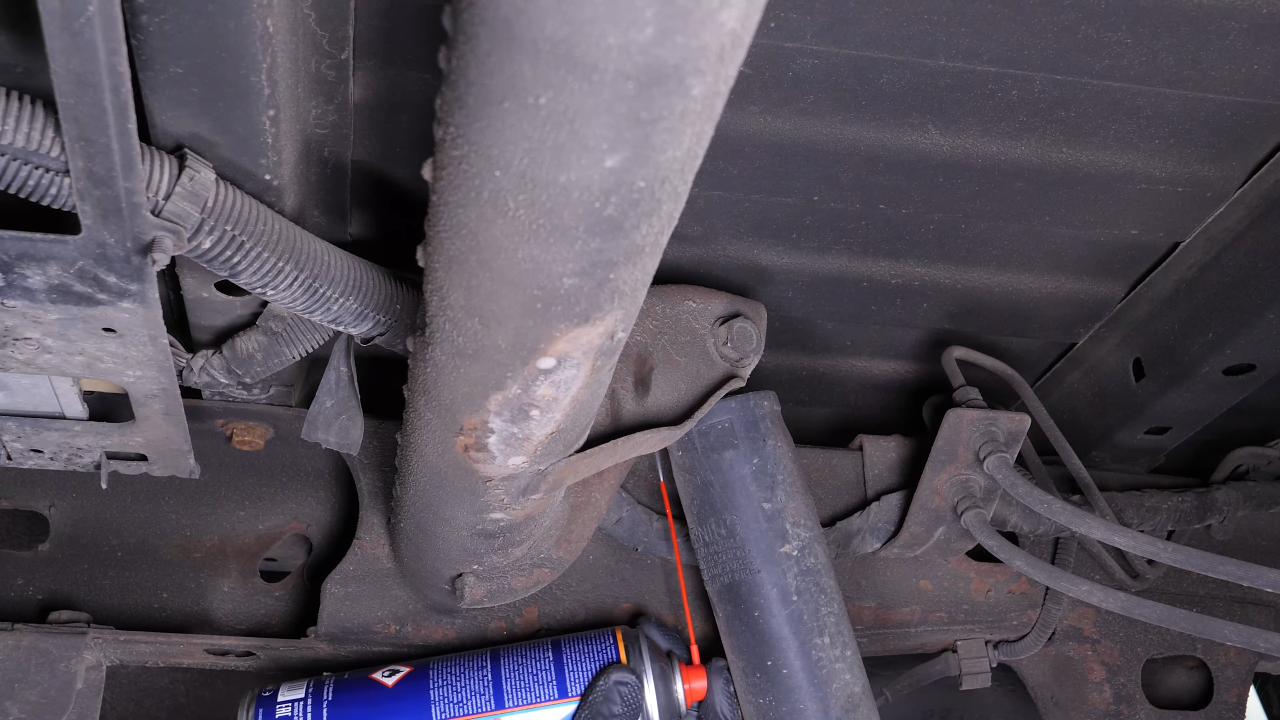

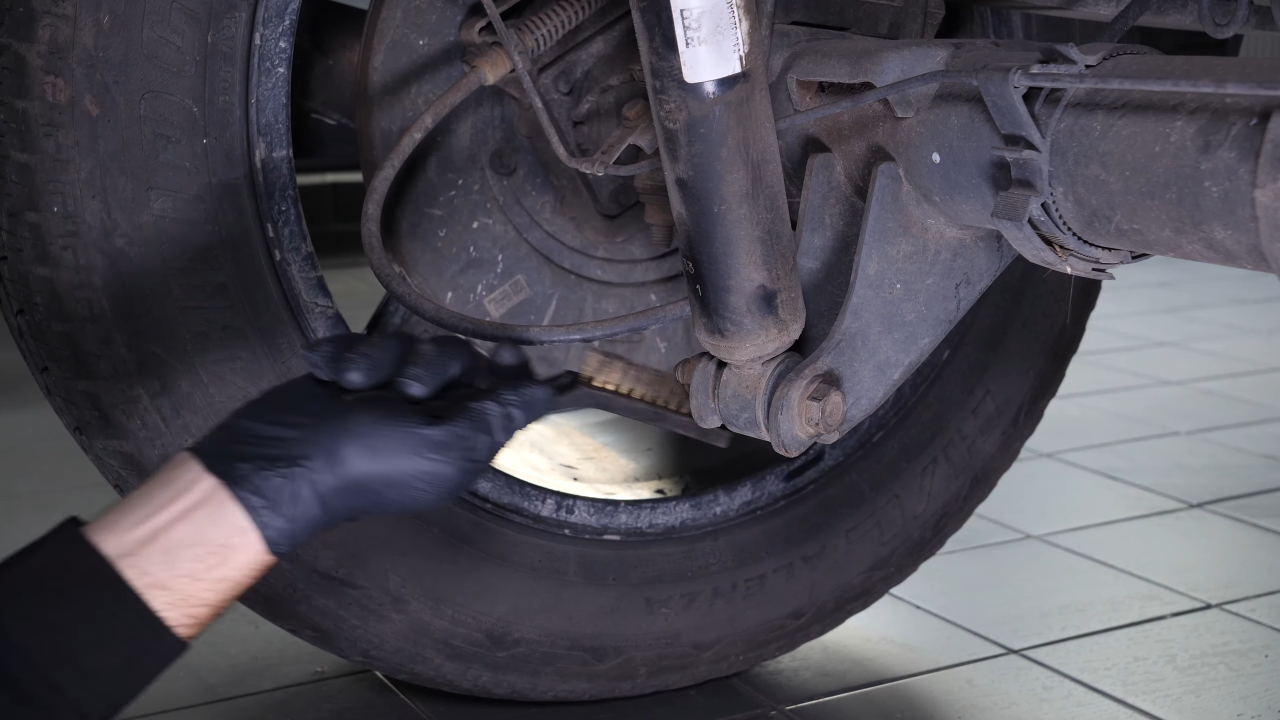

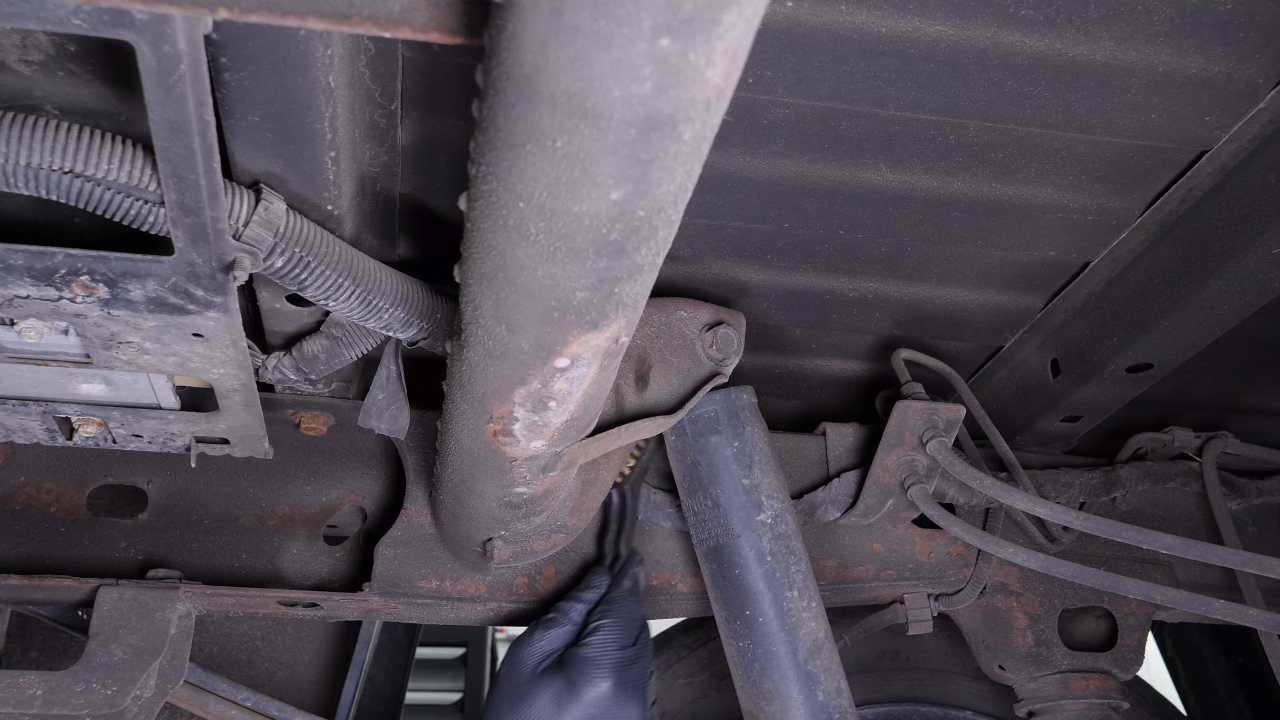

Brush off the bolts of the rear shock and spray the bolts with penetrating oil.

Chapter 1:

Step 2/5

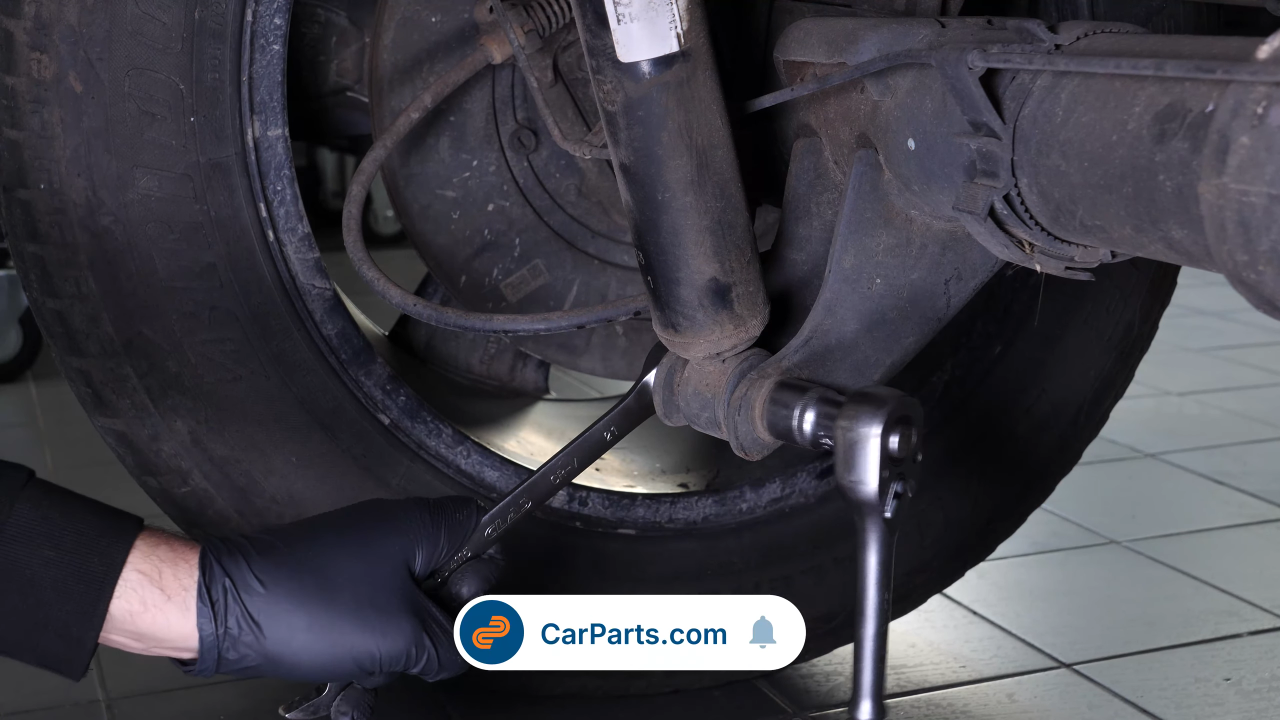

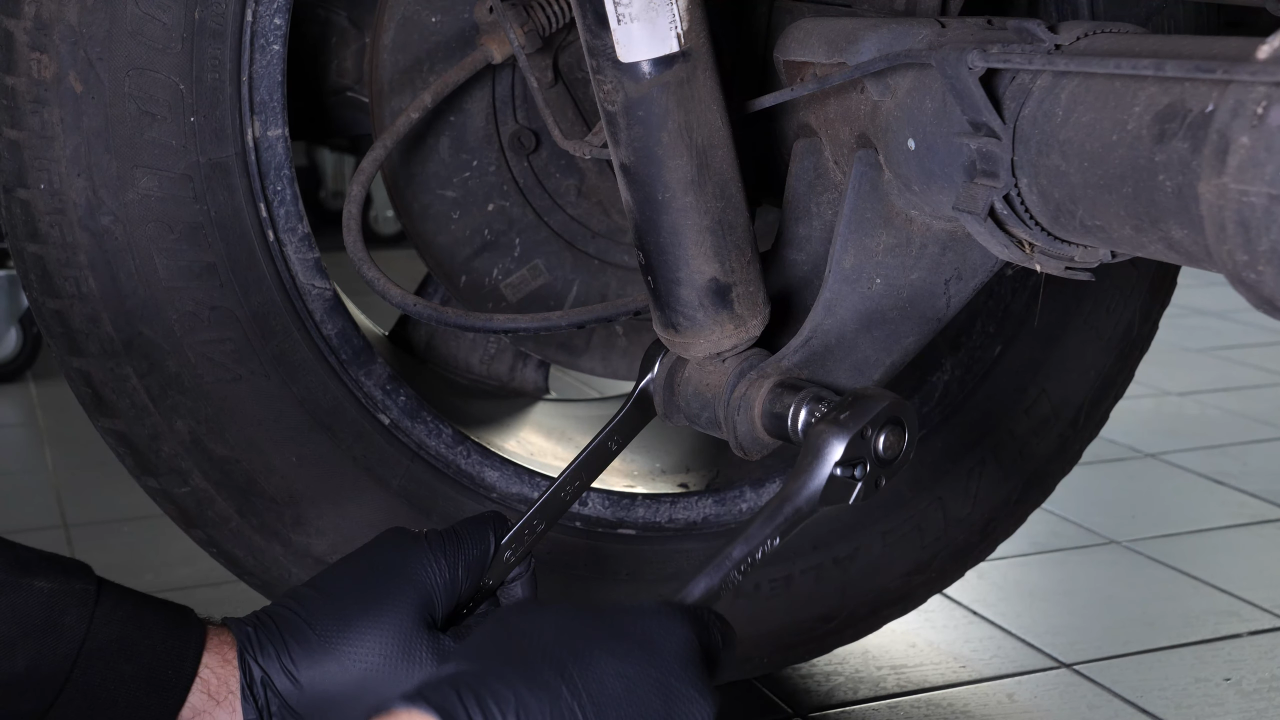

Using a ratchet and 21mm socket, unscrew the shock’s lower retaining bolt. Block the rotation of the holding nut with a 21mm wrench. Then remove the bolt.

Chapter 1:

Step 3/5

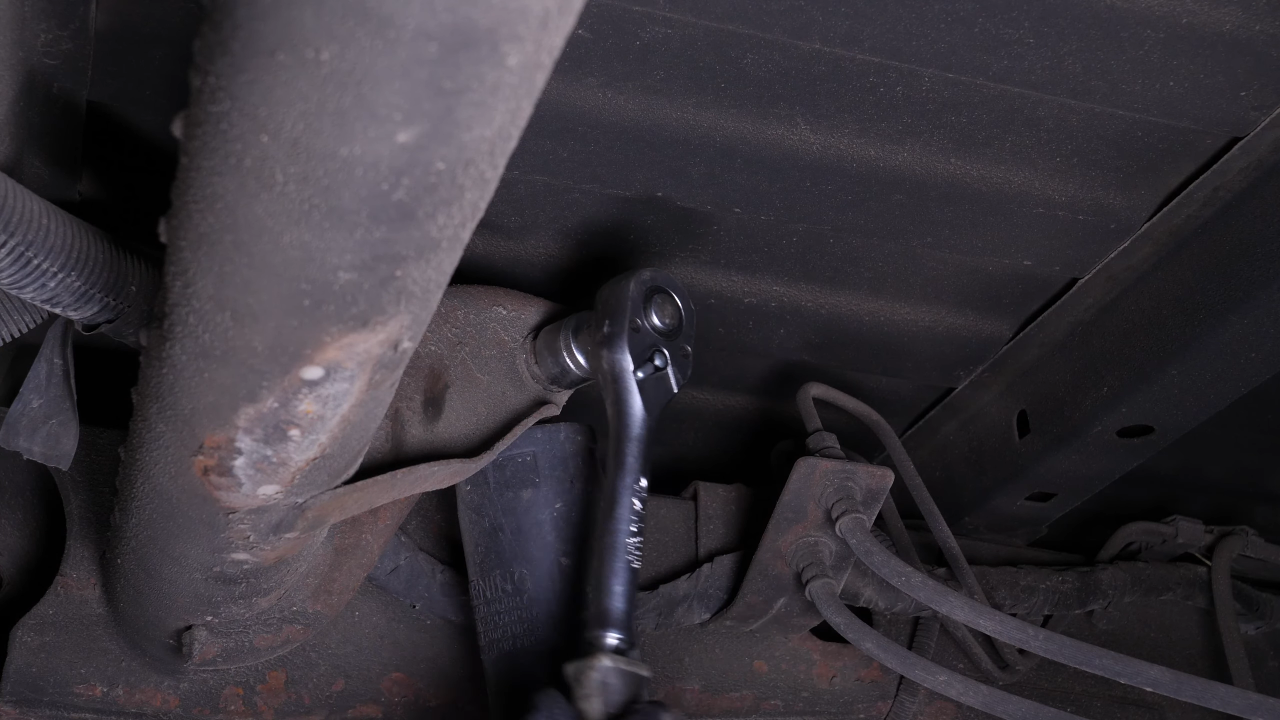

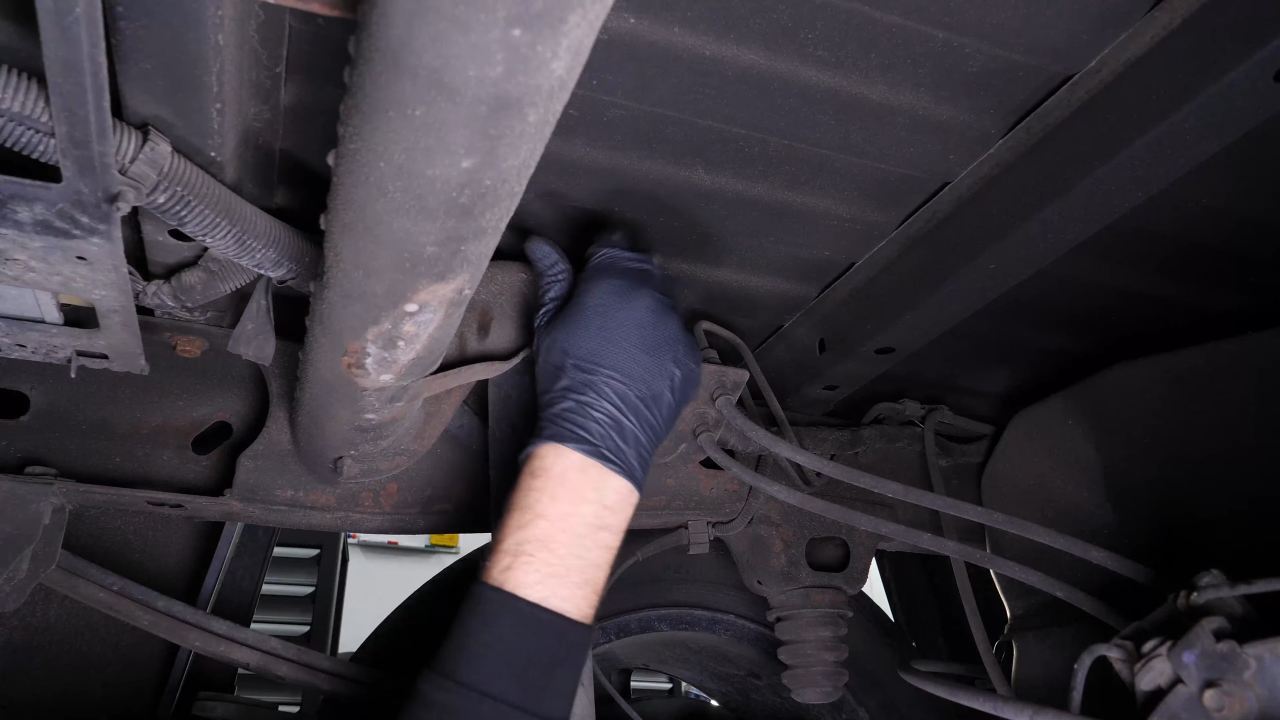

Using a ratchet and a 21 mm socket, unscrew the upper fastening bolt of the shock.

Chapter 1:

Step 4/5

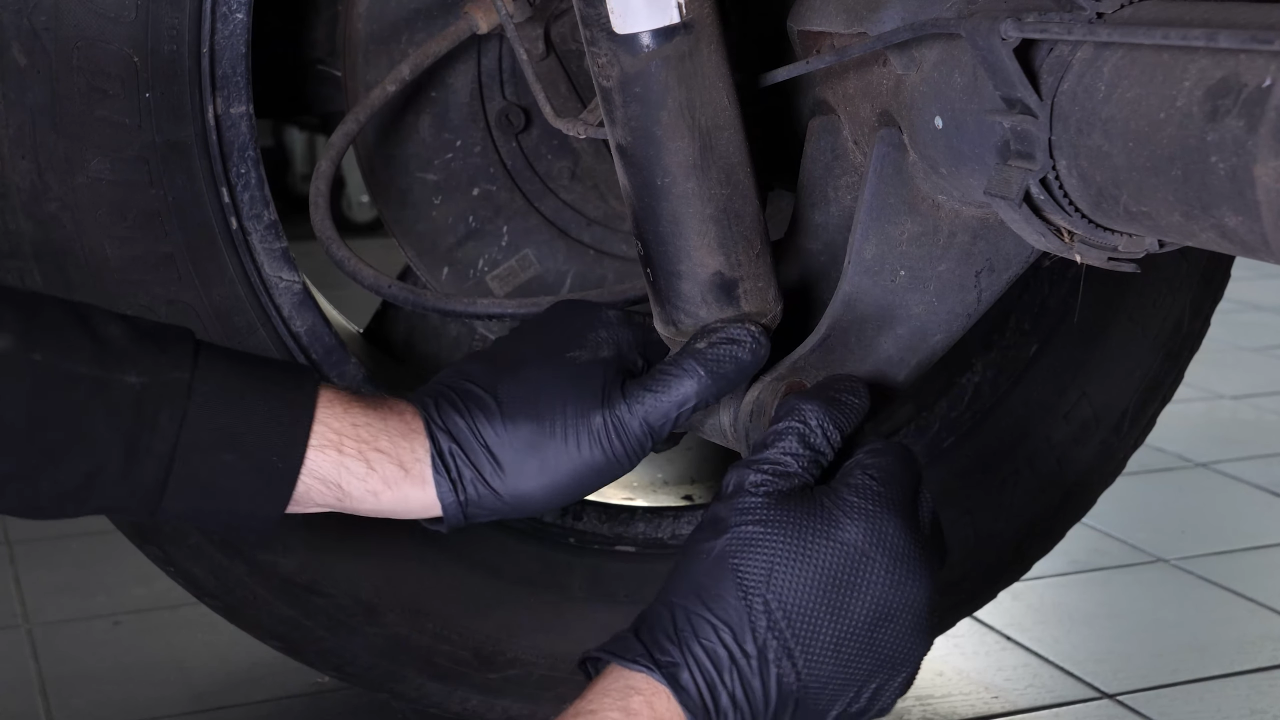

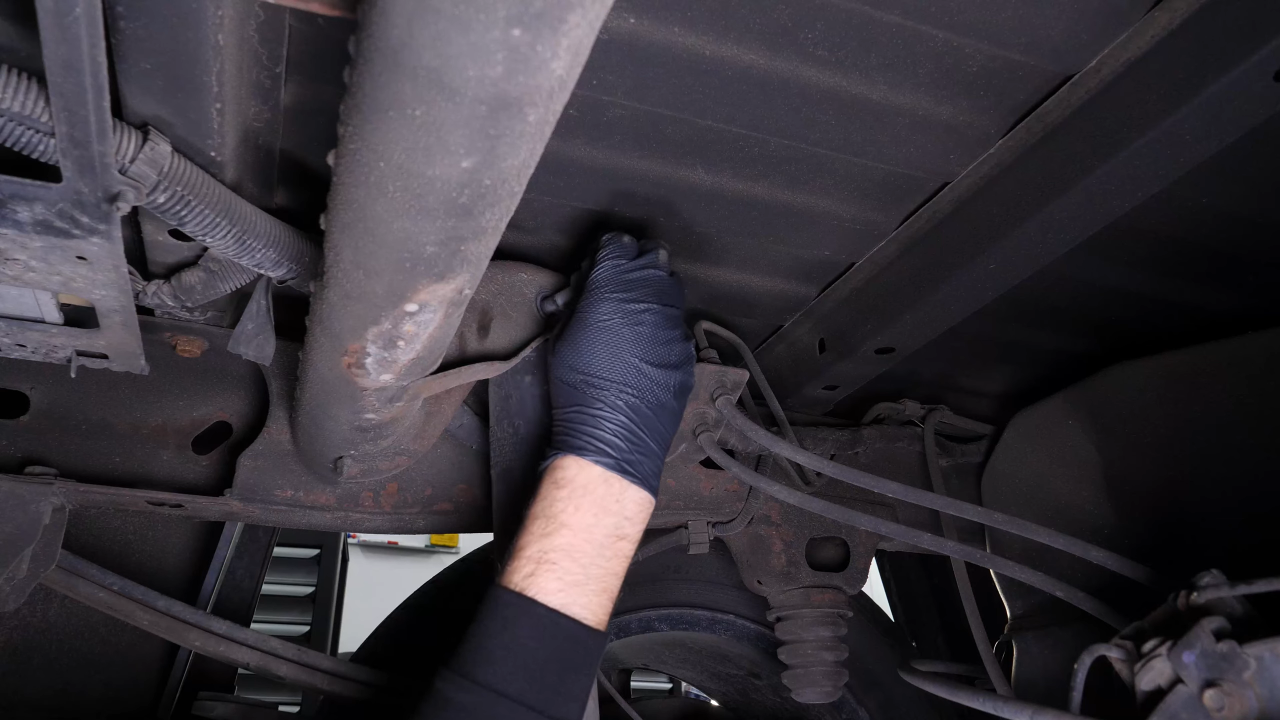

Hold the shock absorber with one hand and finish unscrewing the retaining bolt with the other.

Chapter 1:

Step 5/5

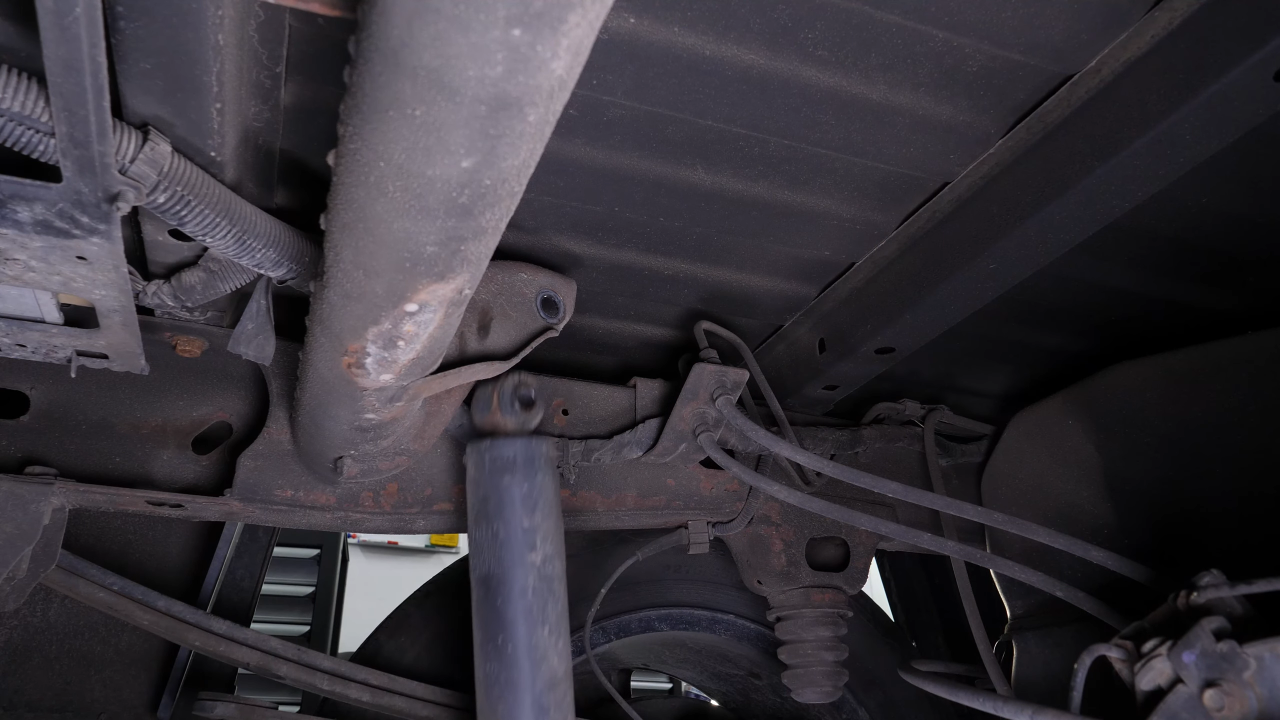

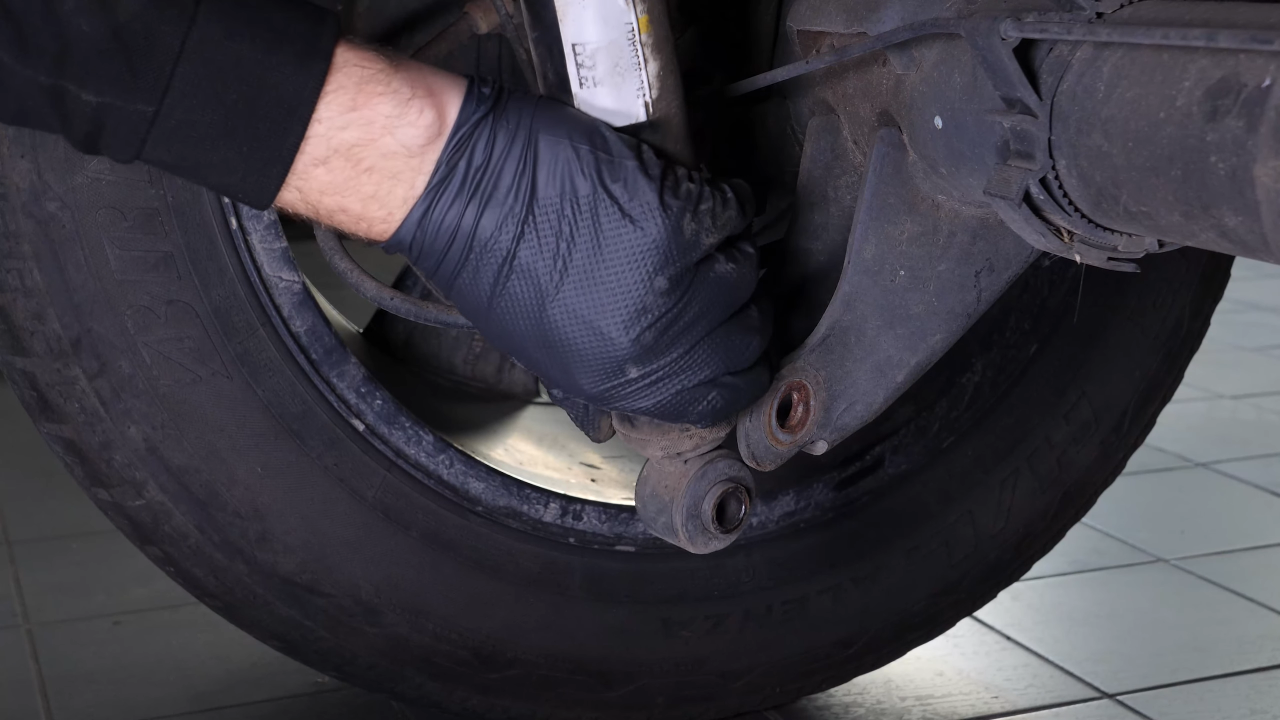

You can now take extract the shock.

Chapter 2:

Clean

Step 1/1

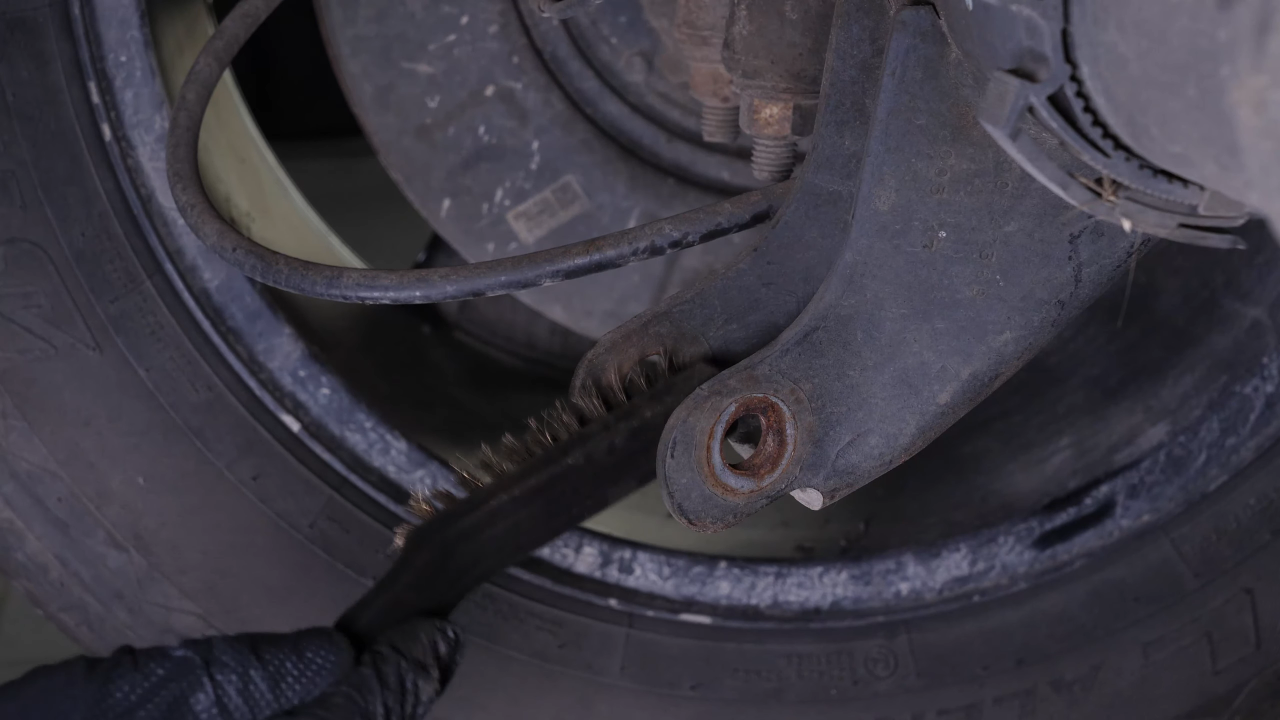

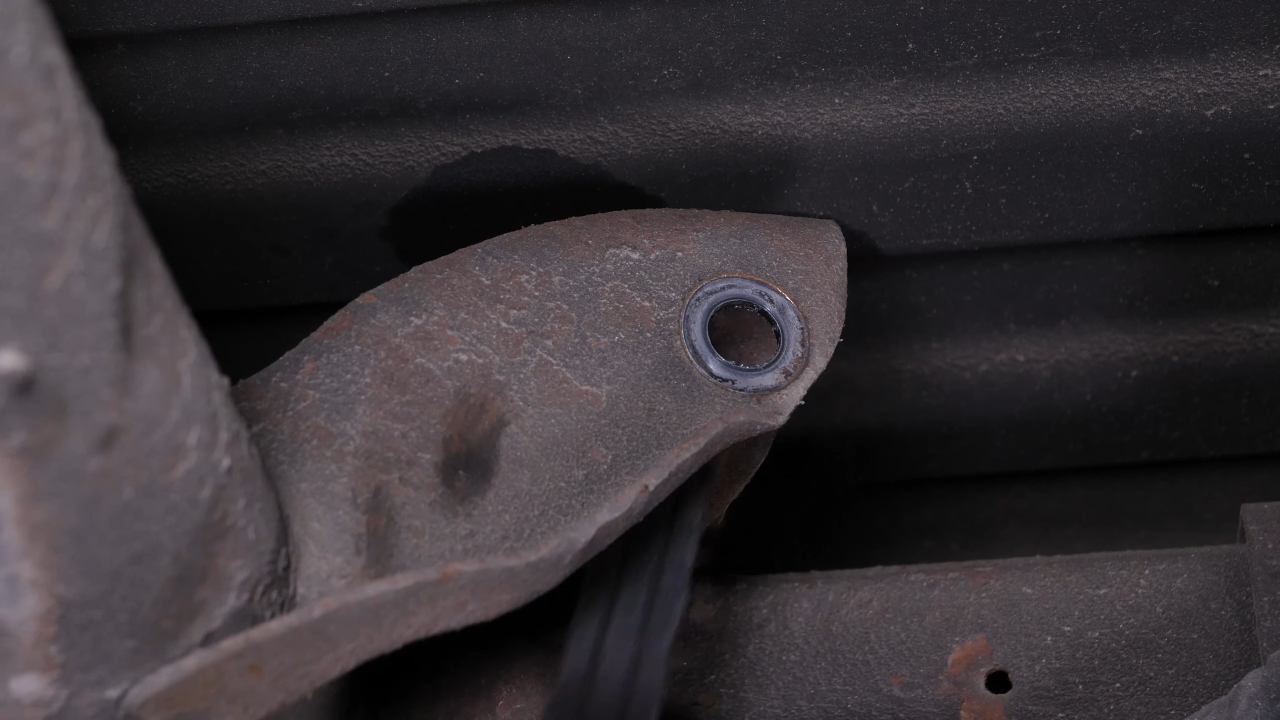

Using a wire brush, brush off the locations of the shock absorber to make it easier to install.

Chapter 3:

Prepare the new shock absorber

Step 1/3

Take your new shock.

Chapter 3:

Step 2/3

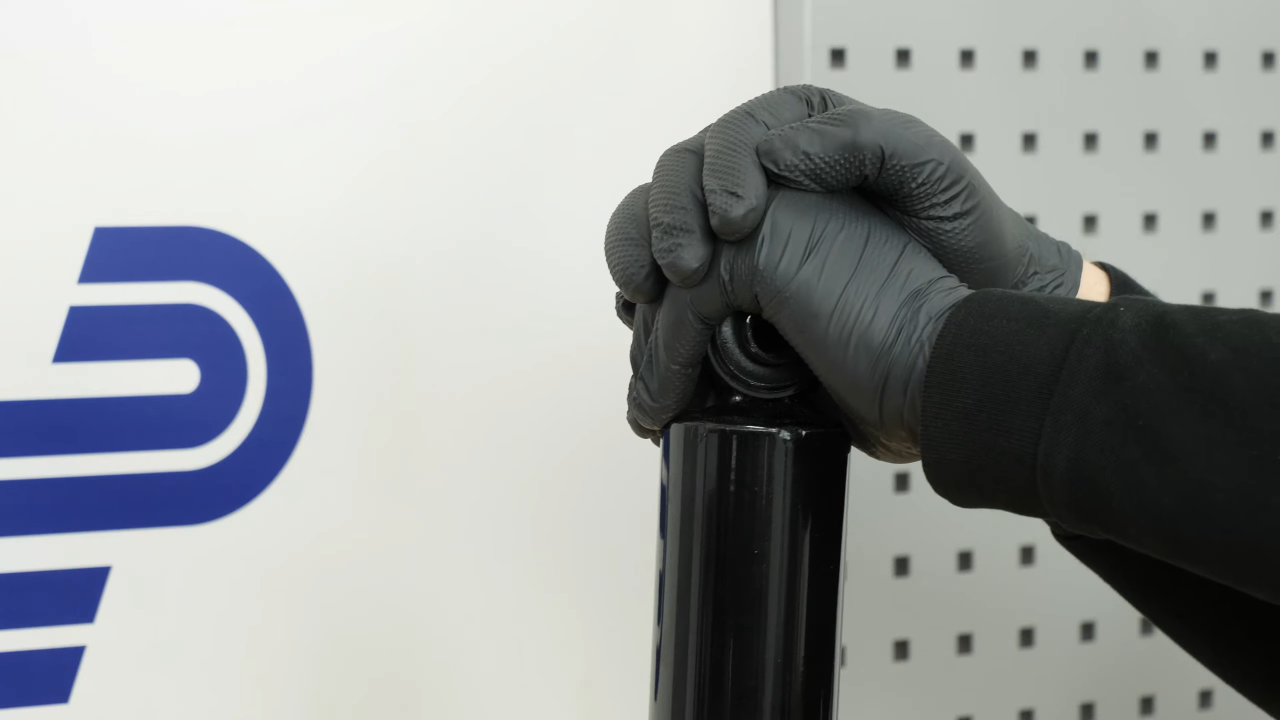

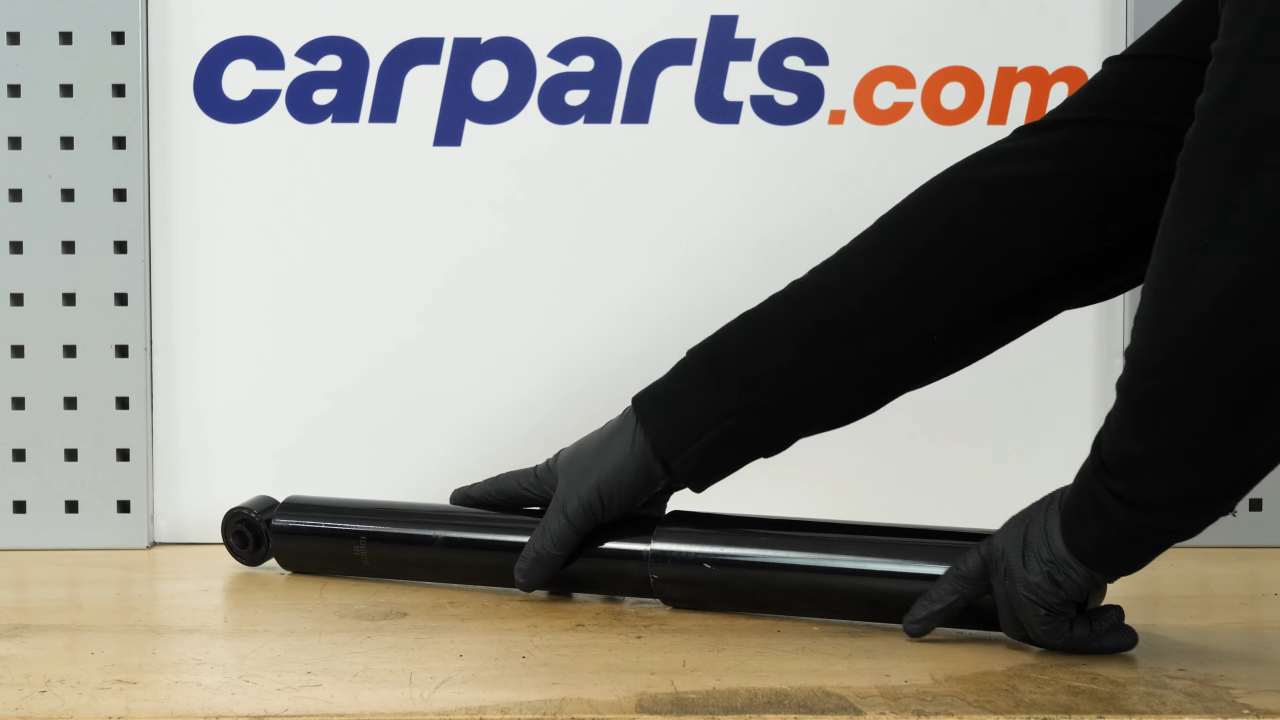

Before installing the new shocks, it is necessary to prime them by pressing the shock vertically, so that the gas and hydraulic fluid are separated.

Chapter 3:

Step 3/3

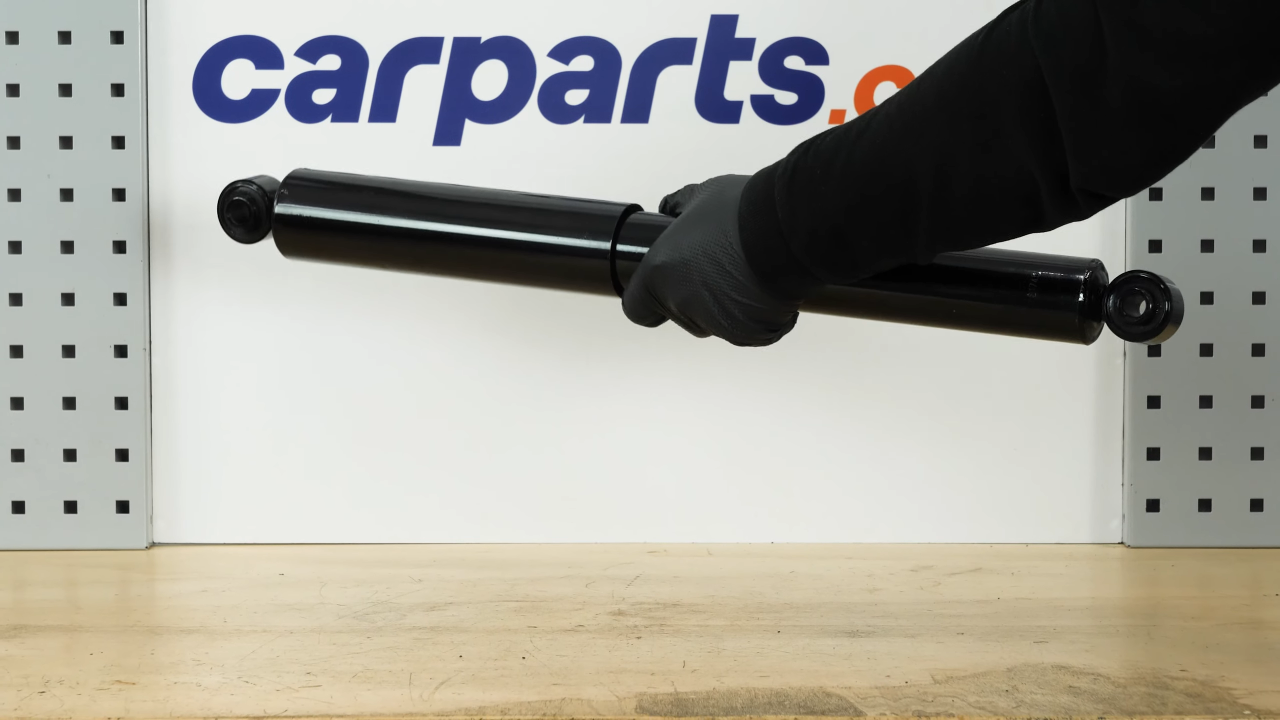

Your new rear shock is now ready to be installed.

Chapter 4:

Install the new shock

Step 1/6

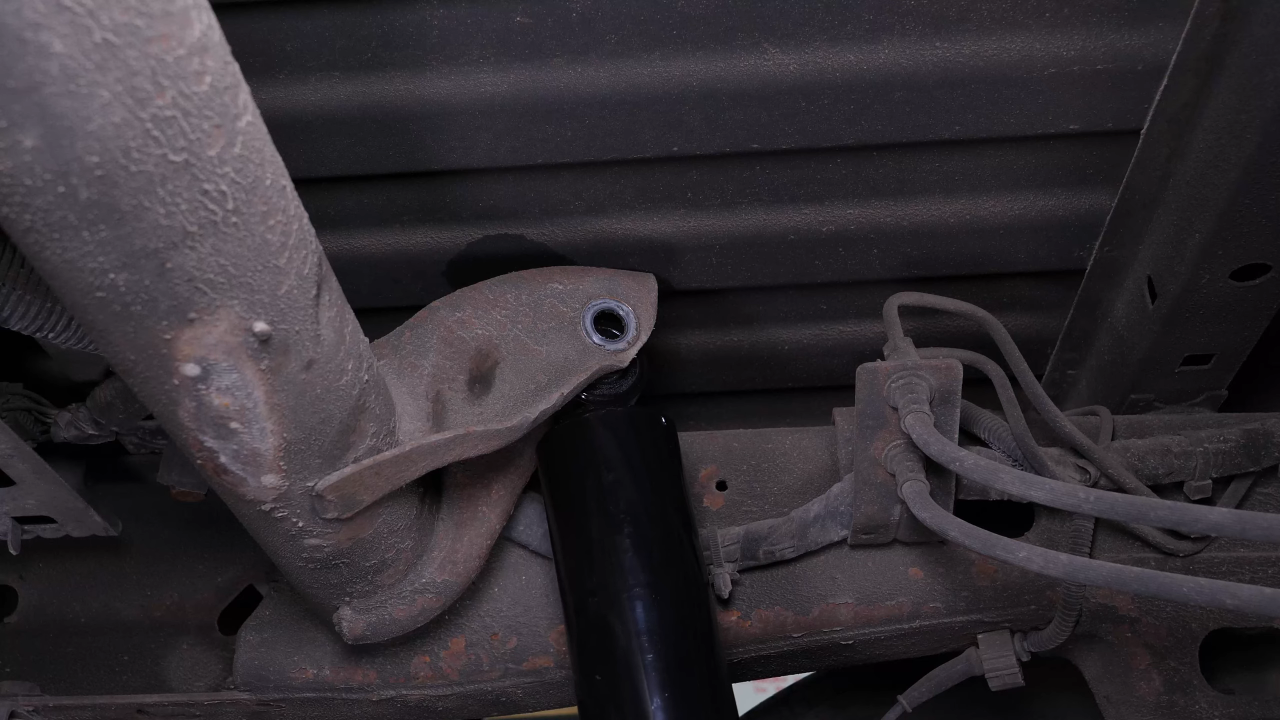

Insert the shock starting from the top part.

Chapter 4:

Step 2/6

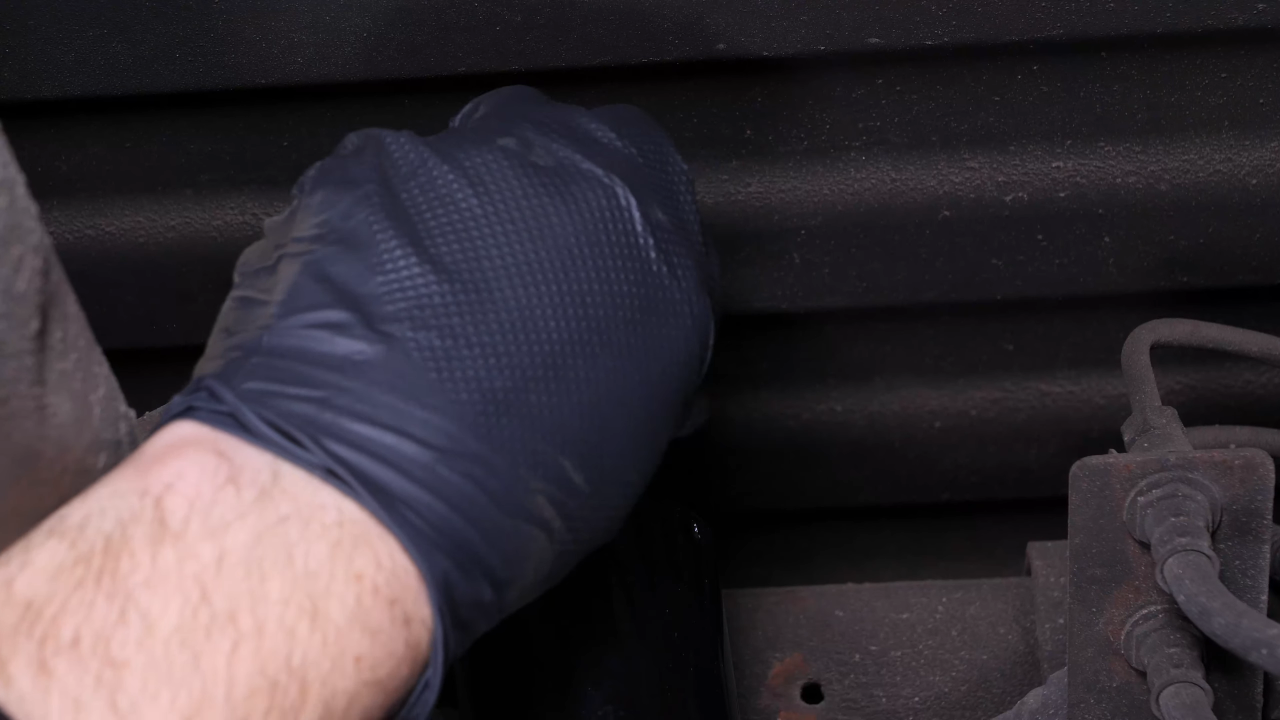

Screw the bolt back in roughly by hand.

Chapter 4:

Step 3/6

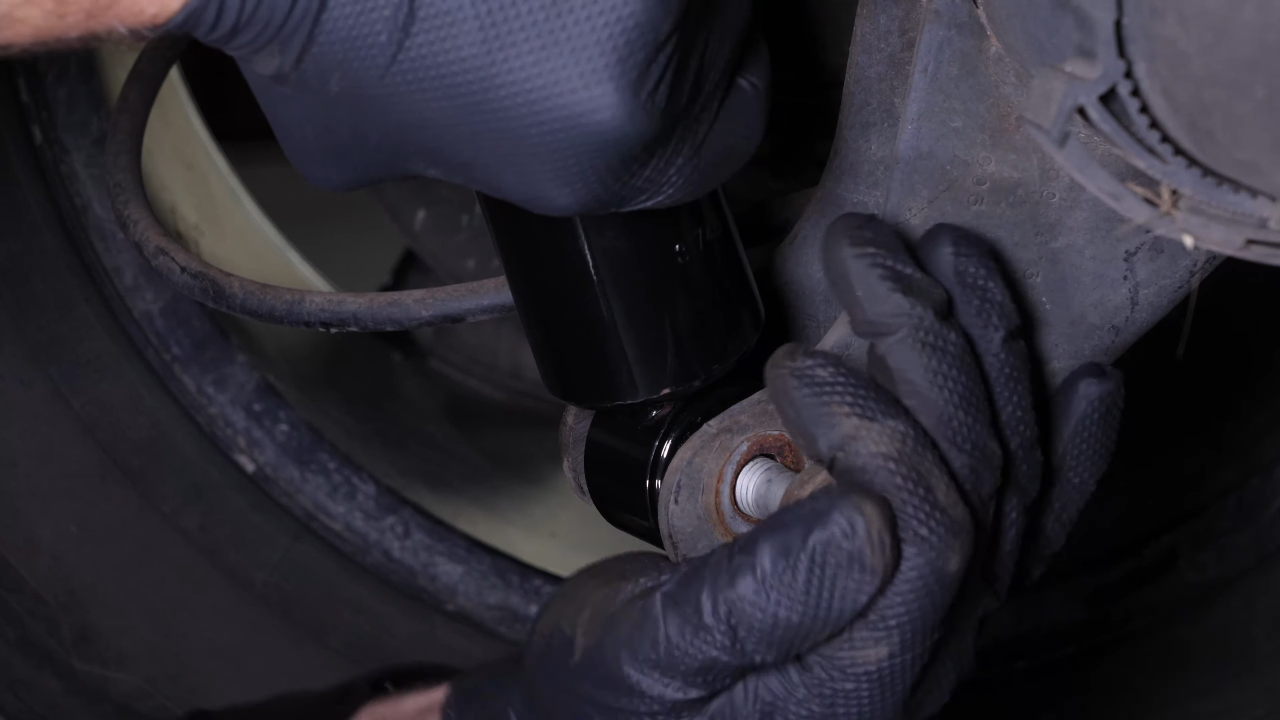

Insert the shock into its lower slot. Then, install the lower retaining bolt.

Chapter 4:

Step 4/6

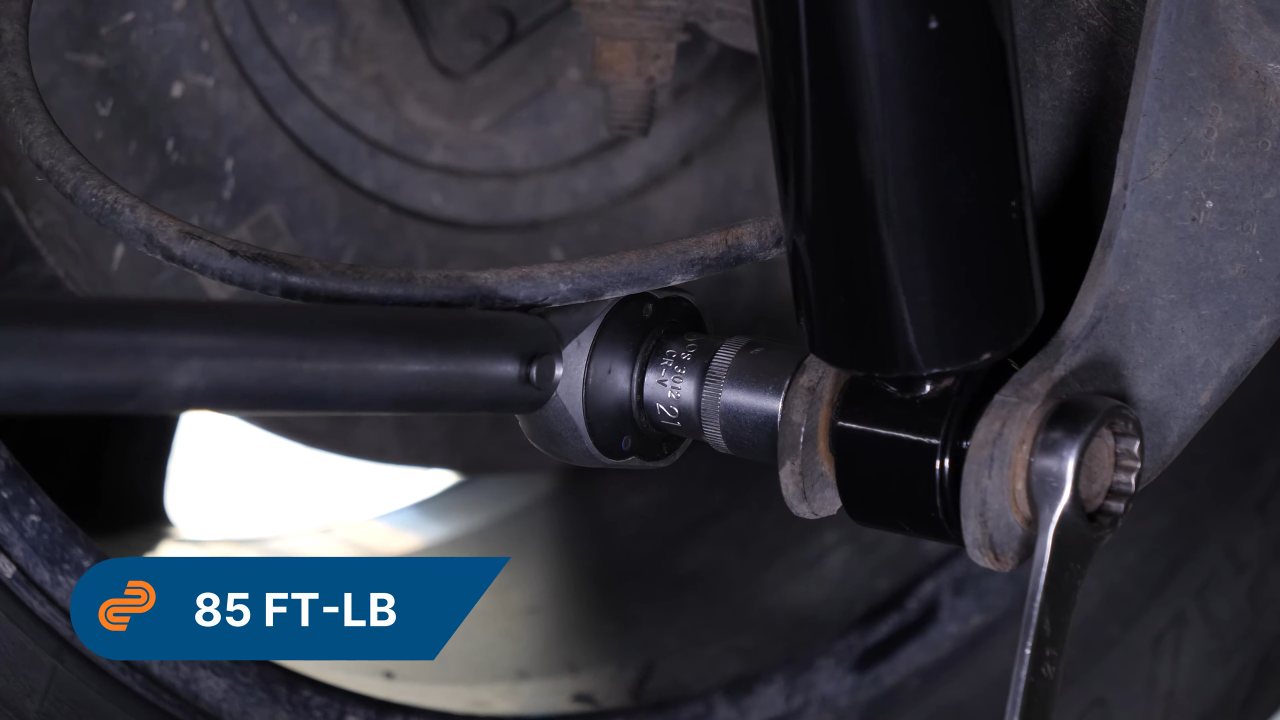

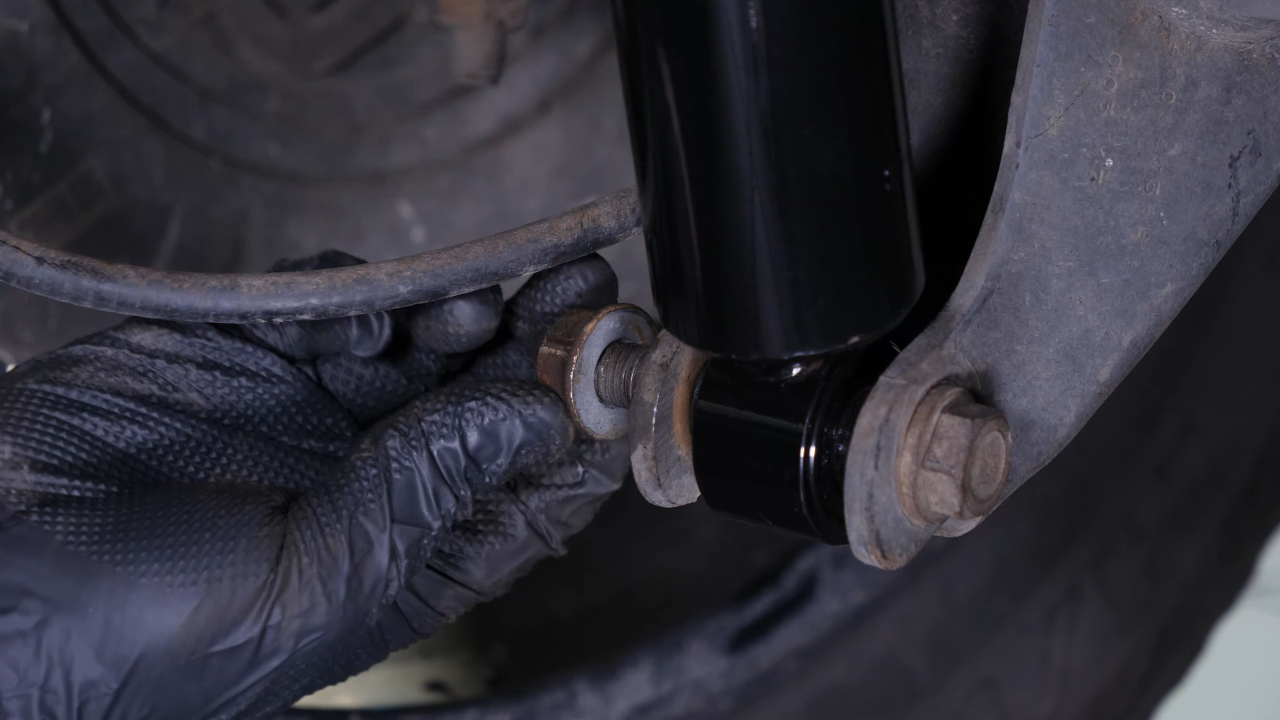

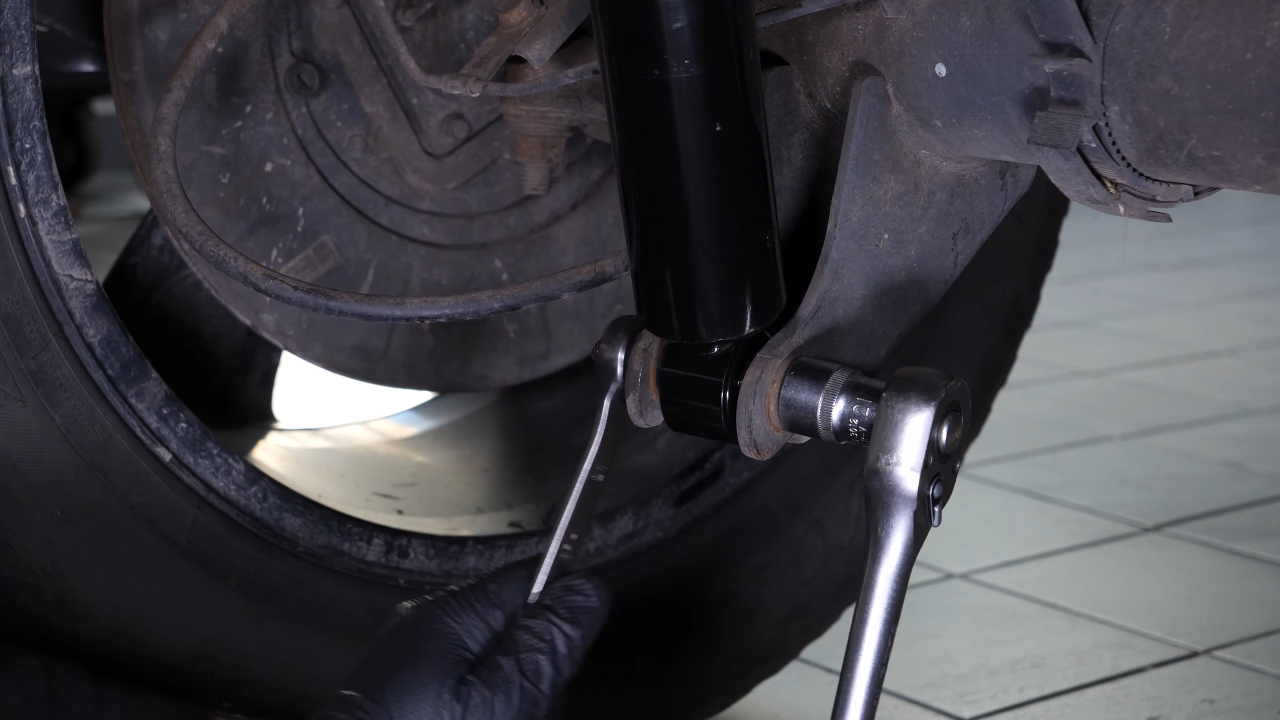

Once in place, screw the retaining nut back on. Finish tightening the lower nut using a torque wrench.

Chapter 4:

Step 5/6

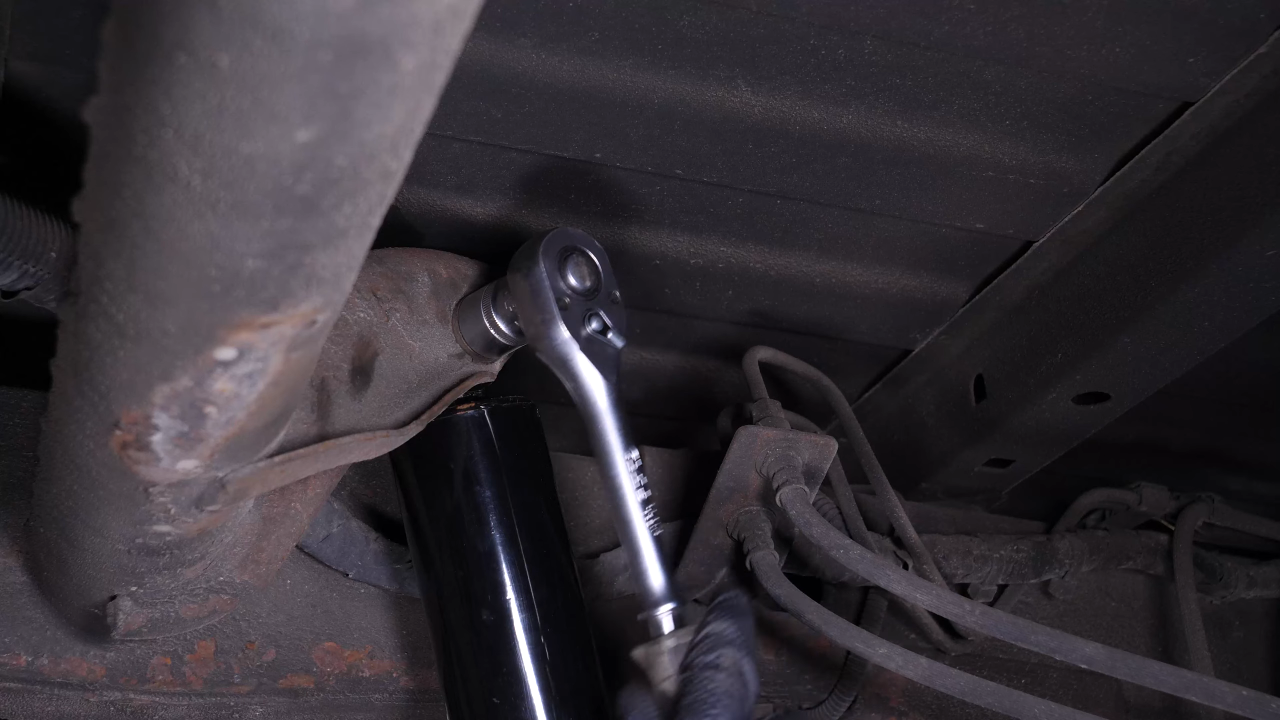

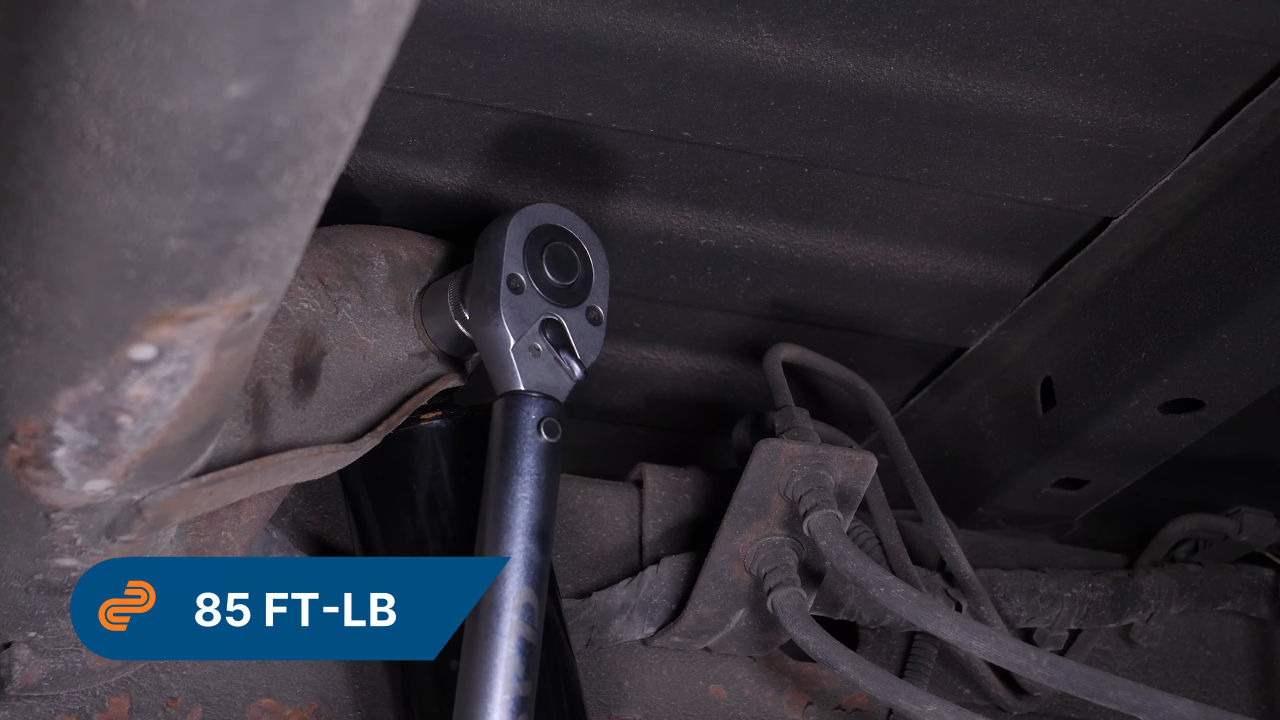

You can then screw the upper bolt back in using a ratchet. Finish tightening using a torque wrench.

Chapter 4:

Step 6/6

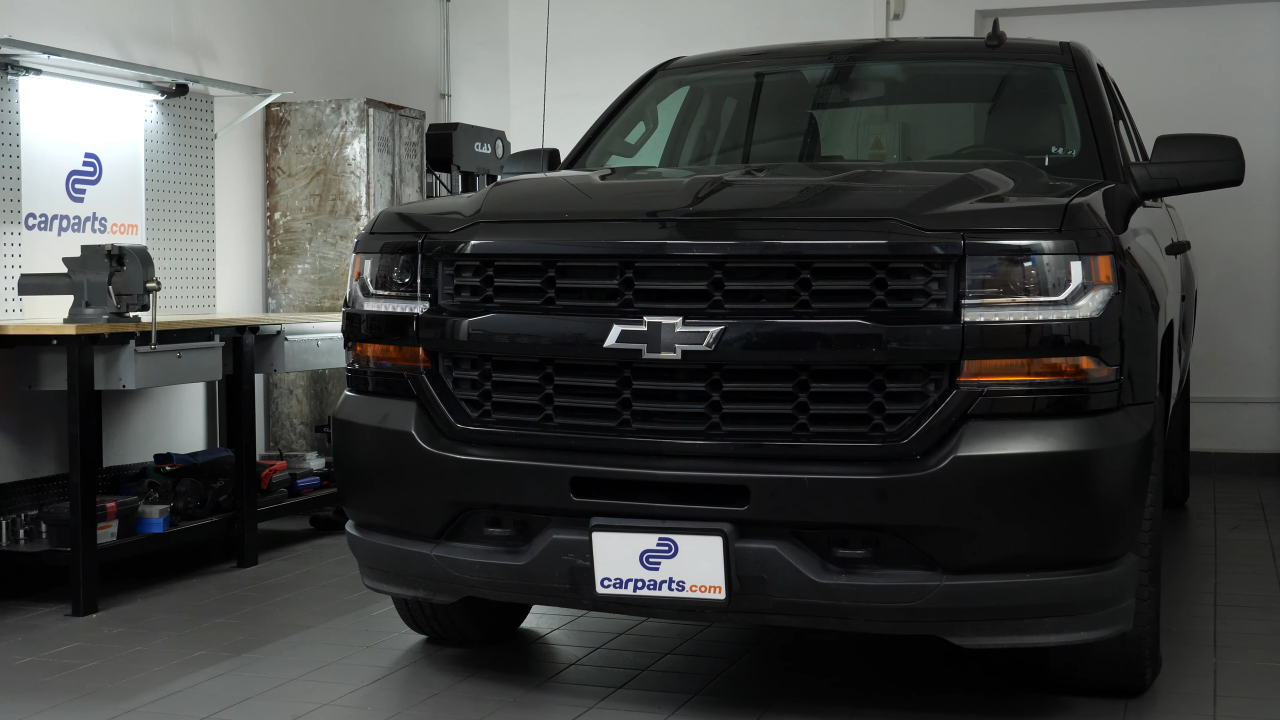

Operation complete.
