How to replace the spark plugs 2015 – 2020 Ford F-150 GEN 13

Chapter 1:

Set up

Step 1/2

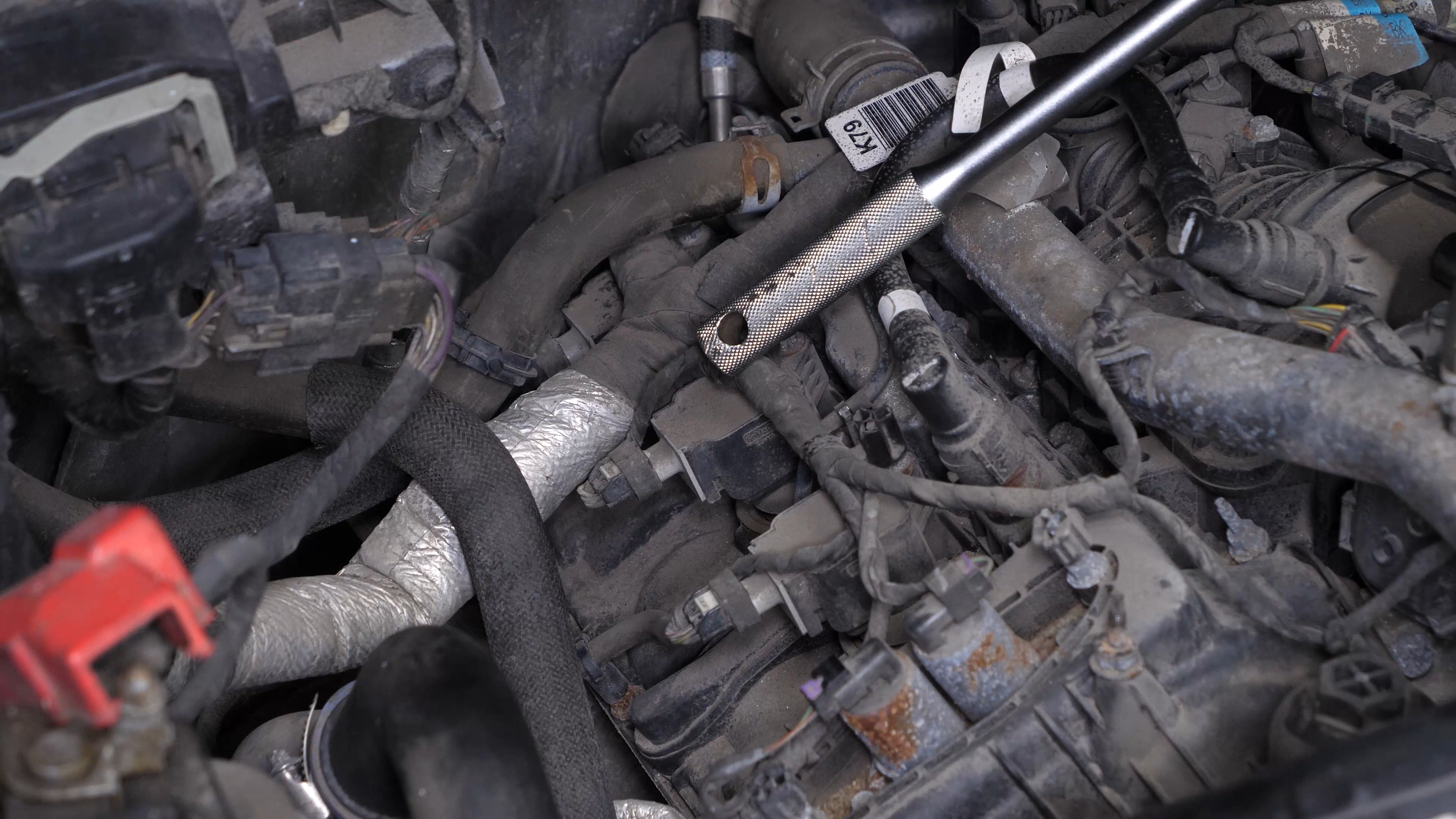

Using a multi-bit screwdriver and a 10 mm socket, unscrew the two bolts holding the engine cover.

Chapter 1:

Step 2/2

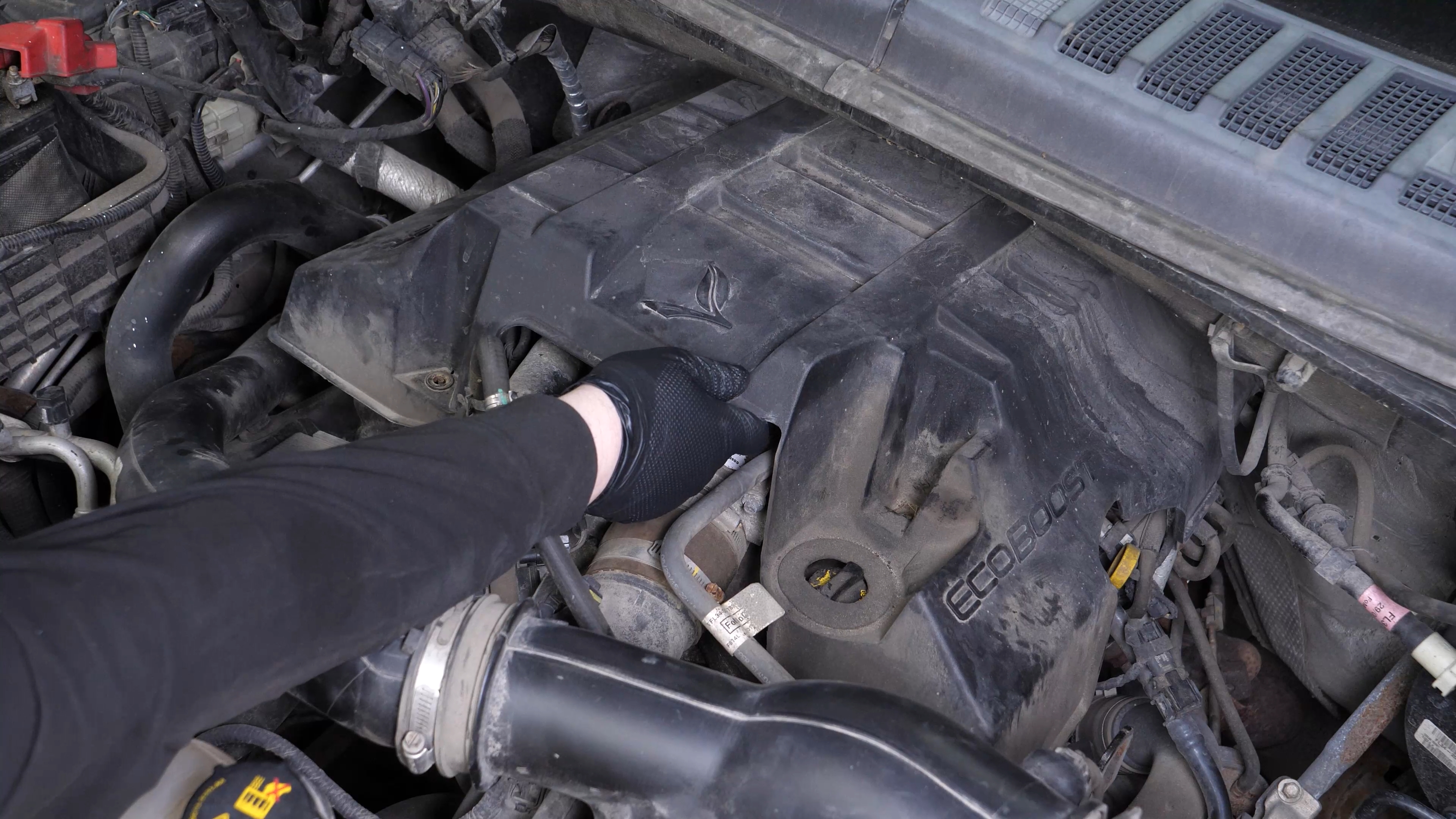

Remove the engine cover.

Chapter 2:

Visualise

Step 1/1

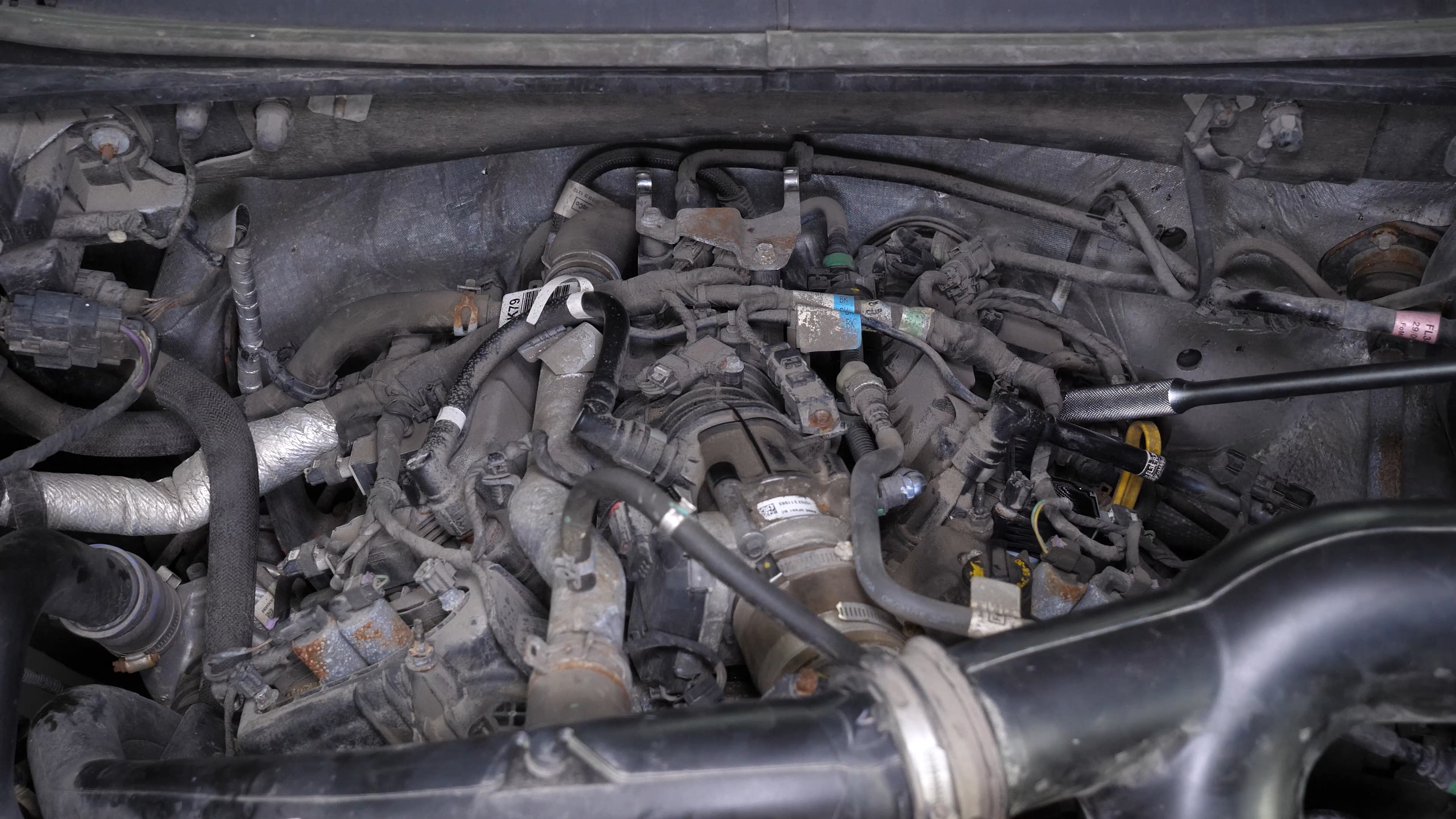

You can now see where the spark plugs are located. There are 3 spark plugs located on the passenger side and 3 located on the driver side.

Chapter 3:

Disconnect the ignition coil

Step 1/2

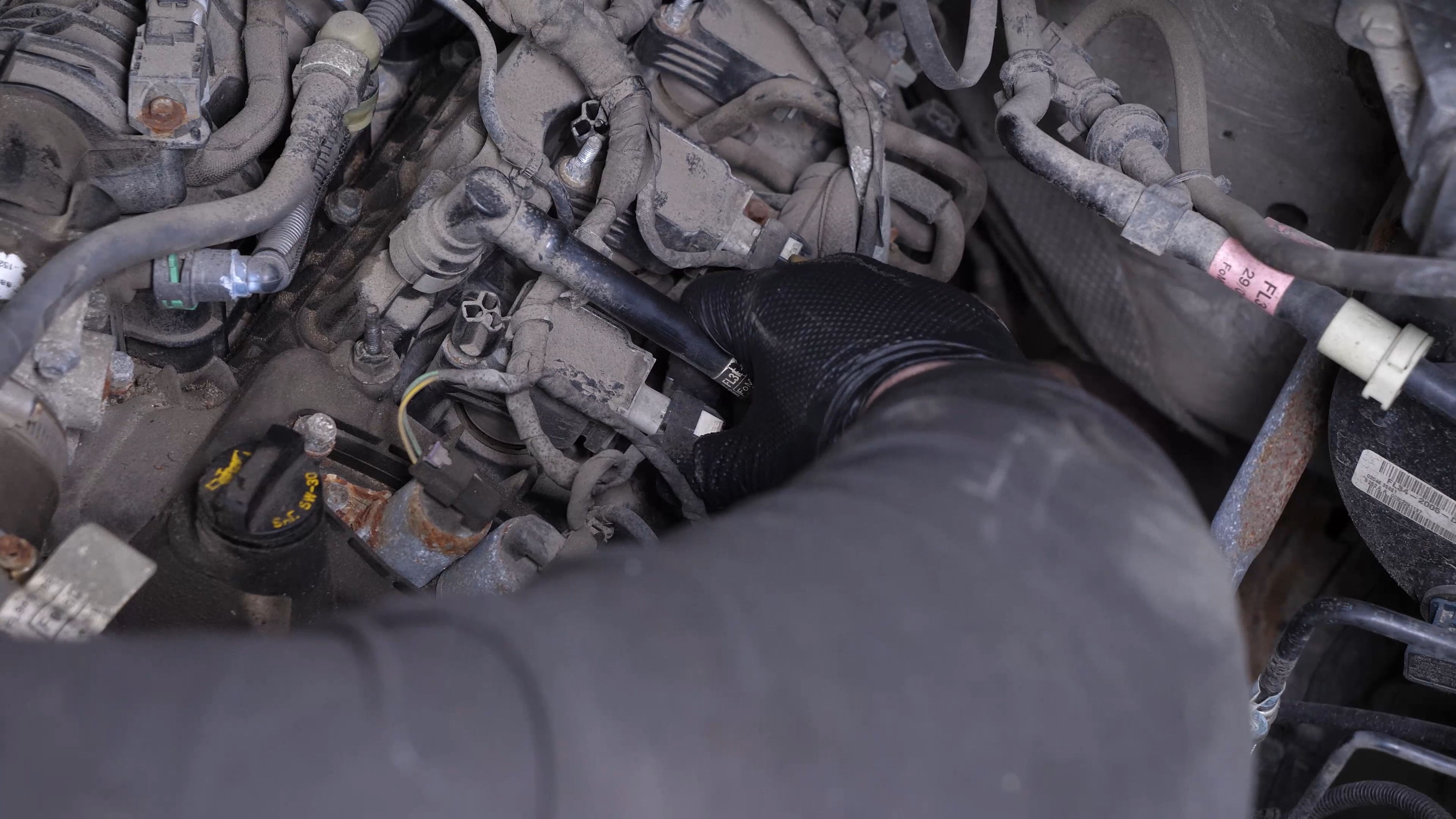

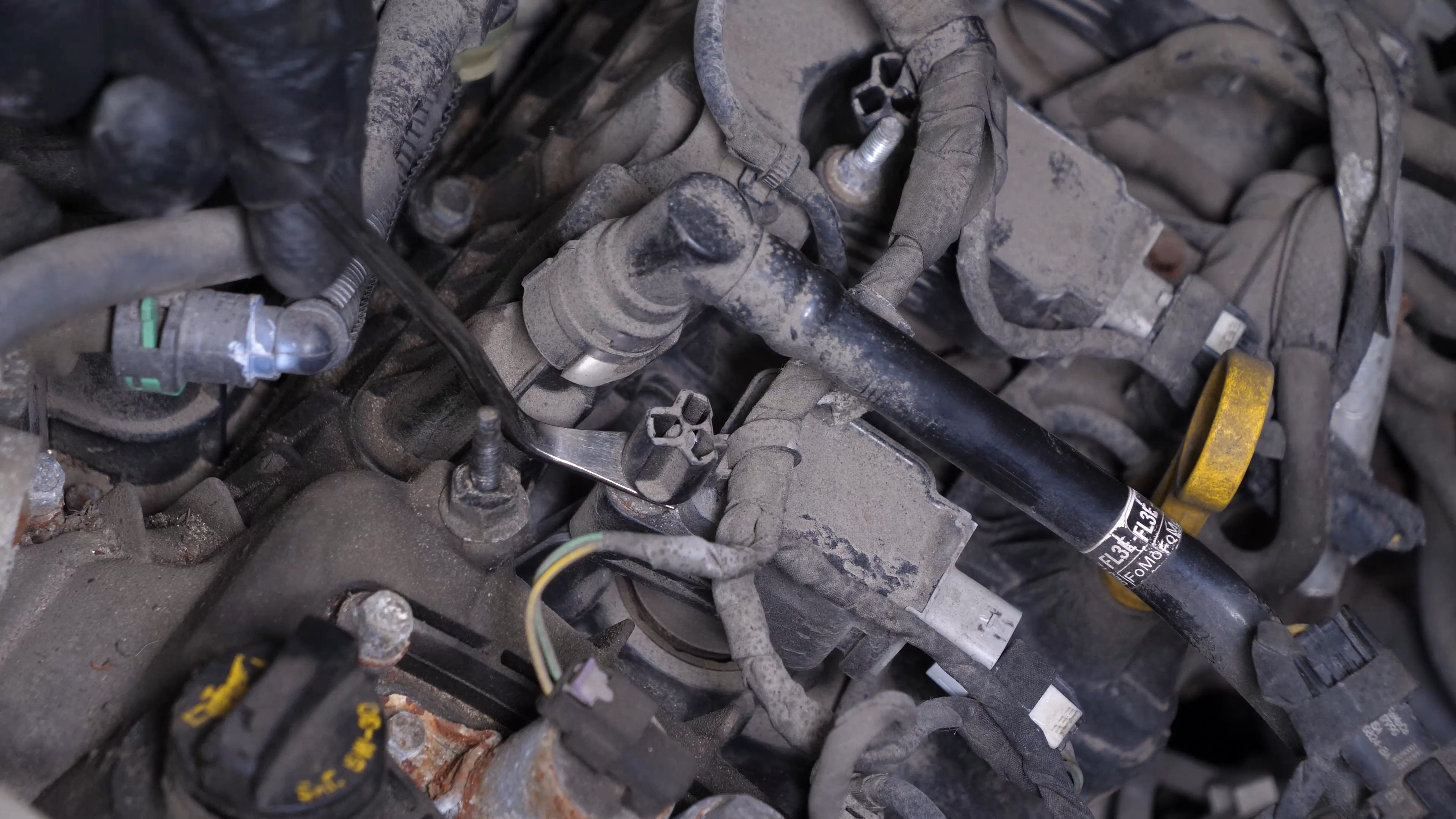

Disconnect the power from the ignition coil. To do this, start by pushing on the white tab, then on the connector. You can use a flat head screwdriver.

Chapter 3:

Step 2/2

Then, using a fork, remove the wiring harness retaining clip.

Chapter 4:

Remove the coil

Step 1/2

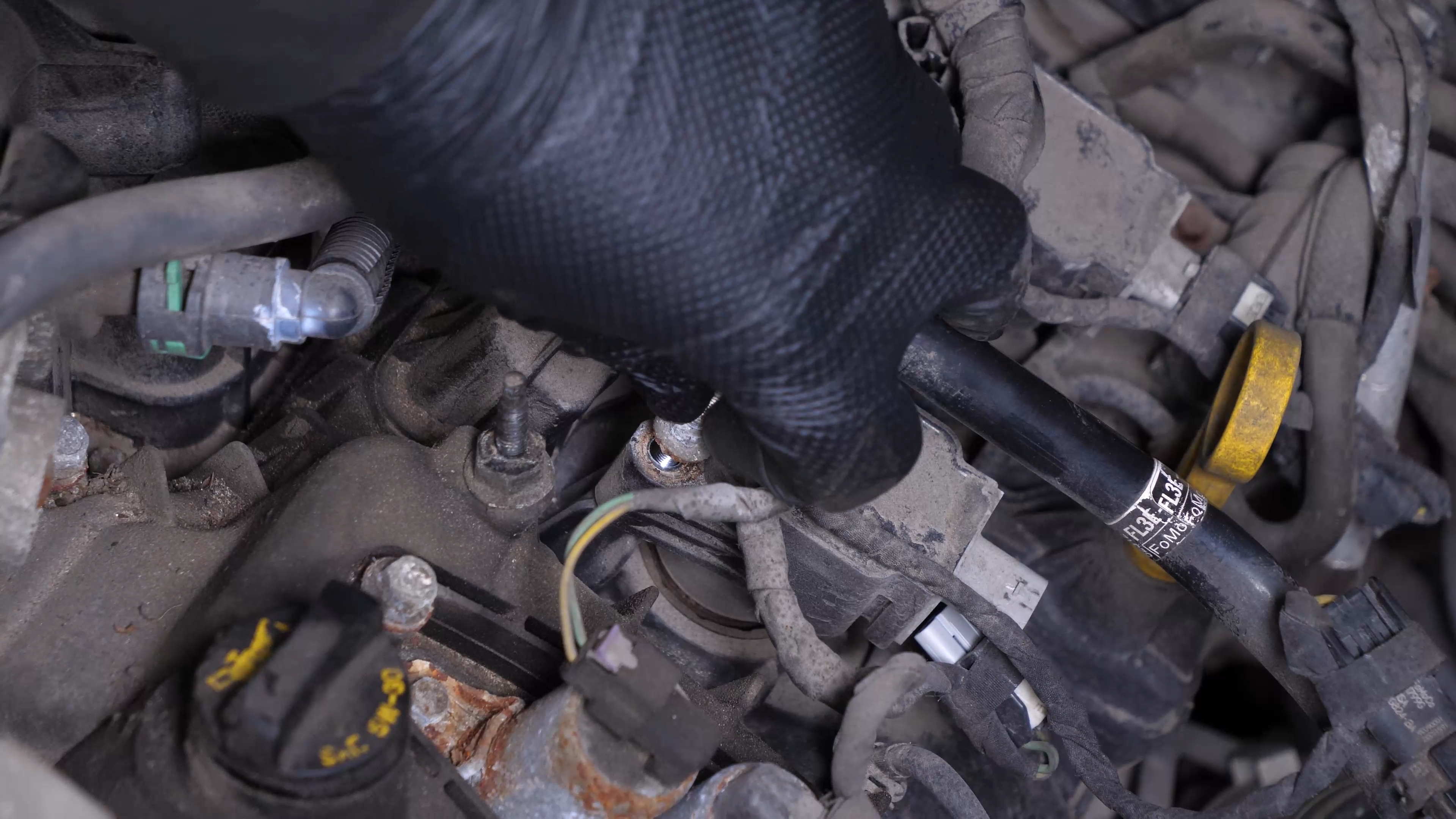

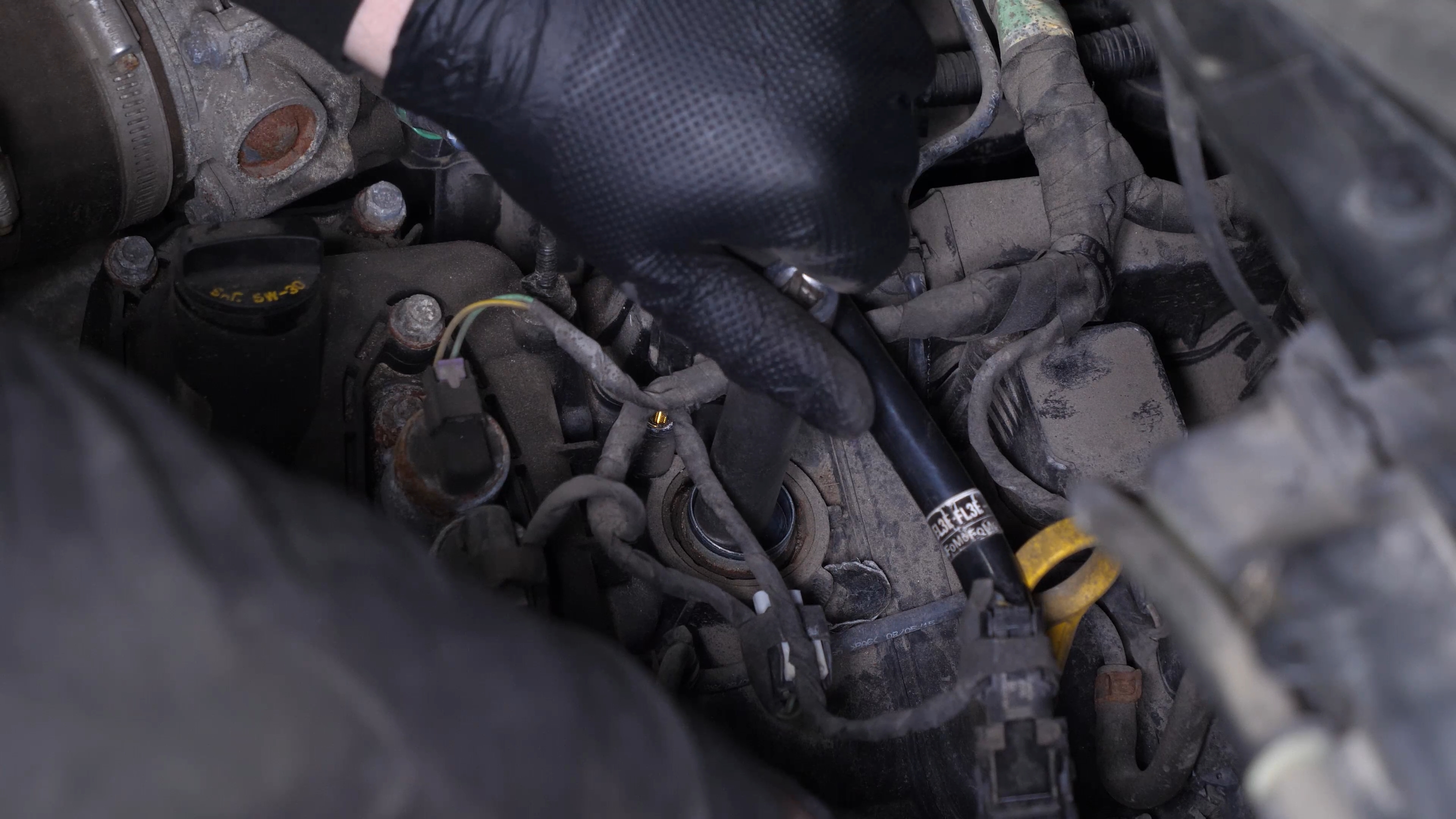

Using a ratchet, an extender and a long 8 mm socket, remove the bolt holding the coil.

Chapter 4:

Step 2/2

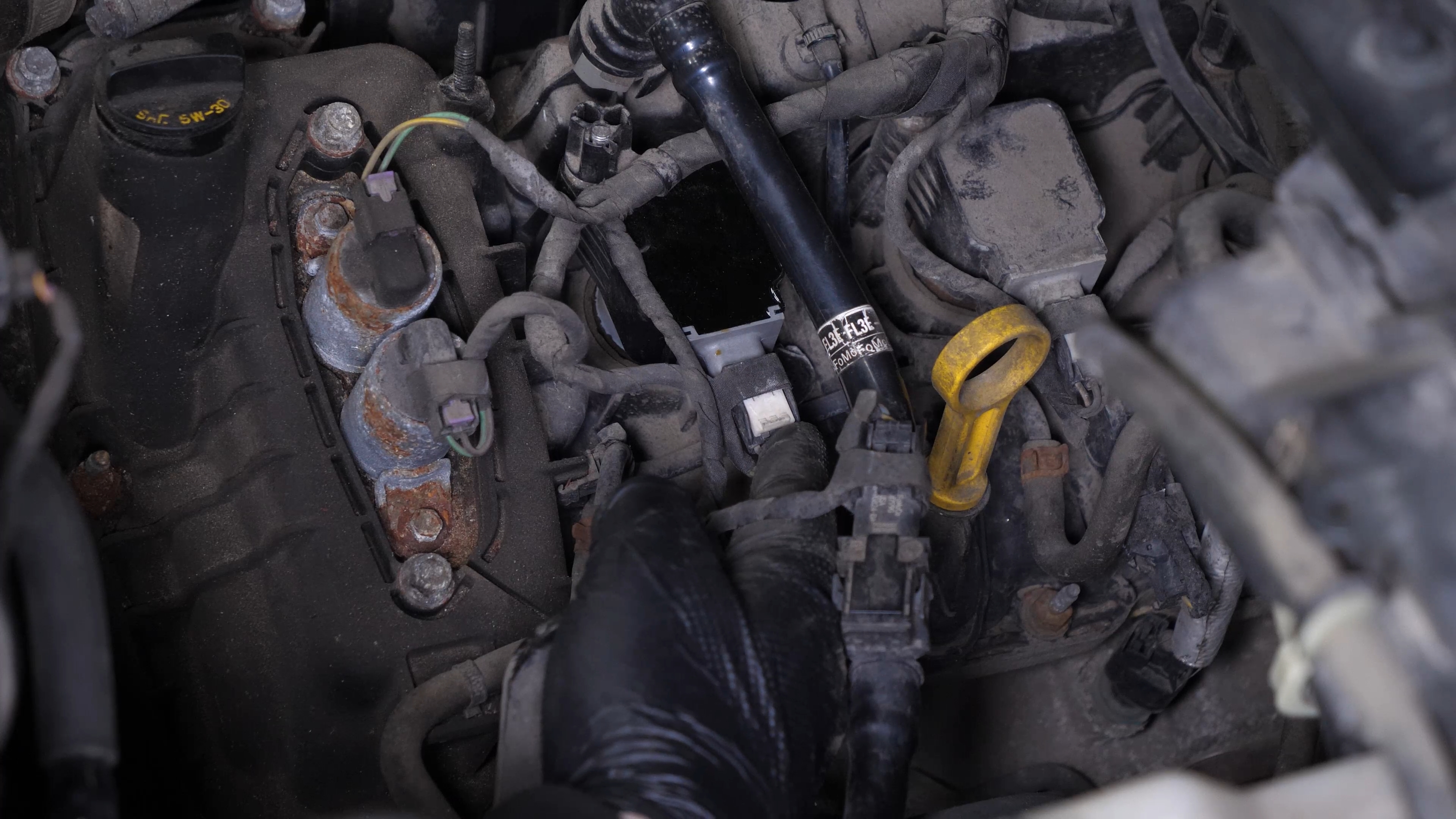

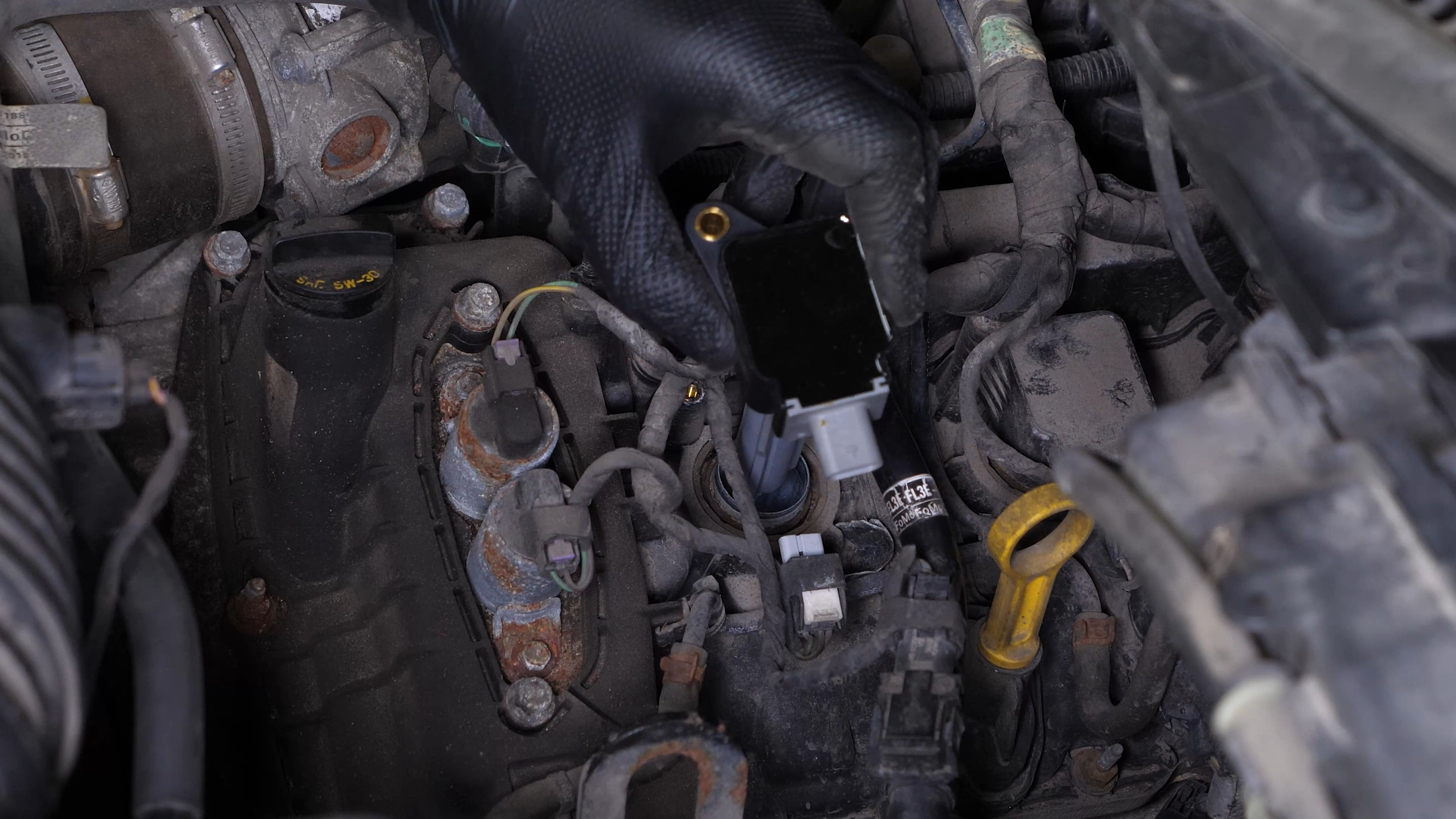

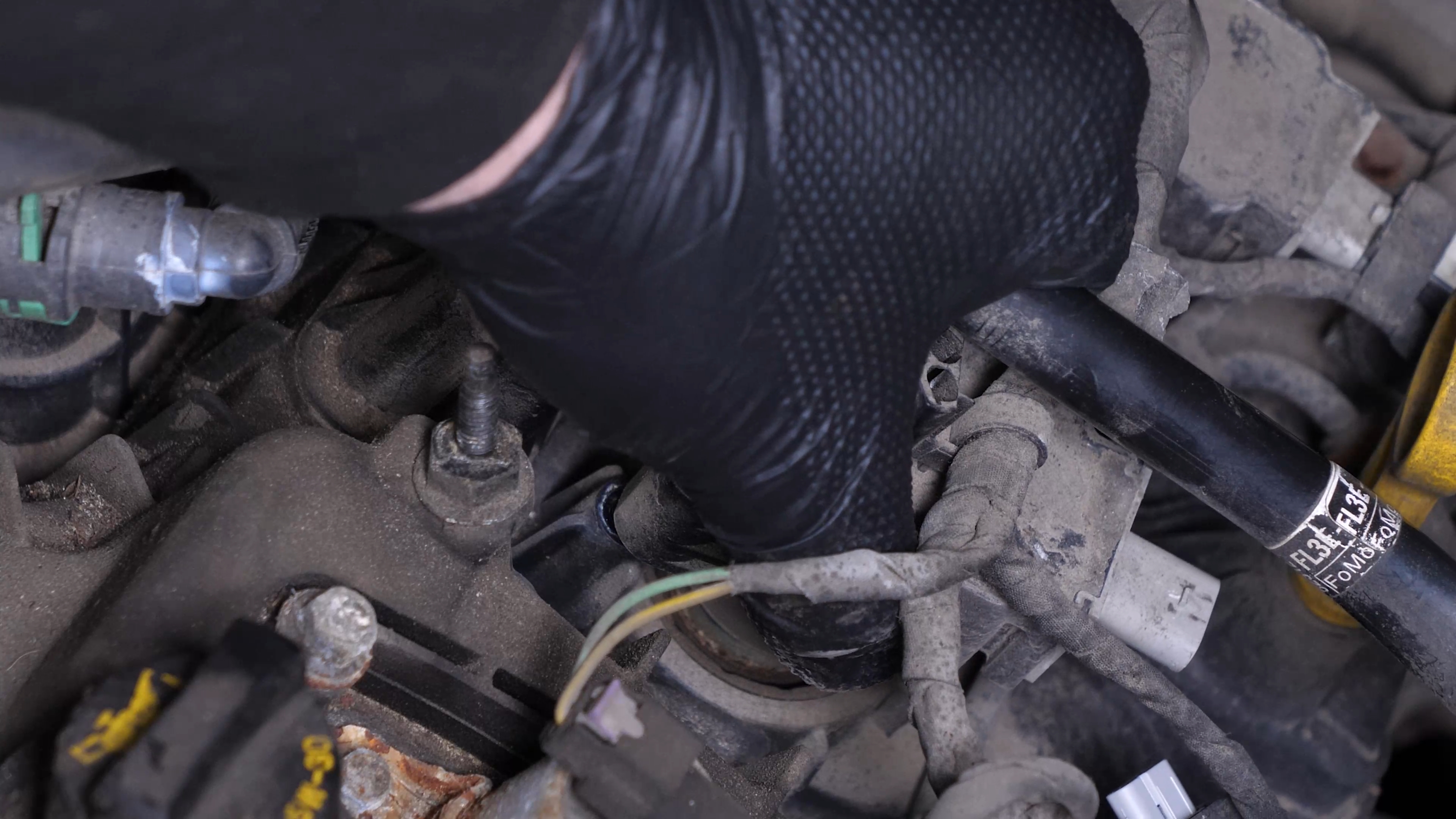

You can now carefully remove the coil, making small lateral back and forward movements.

Chapter 5:

Clean

Step 1/1

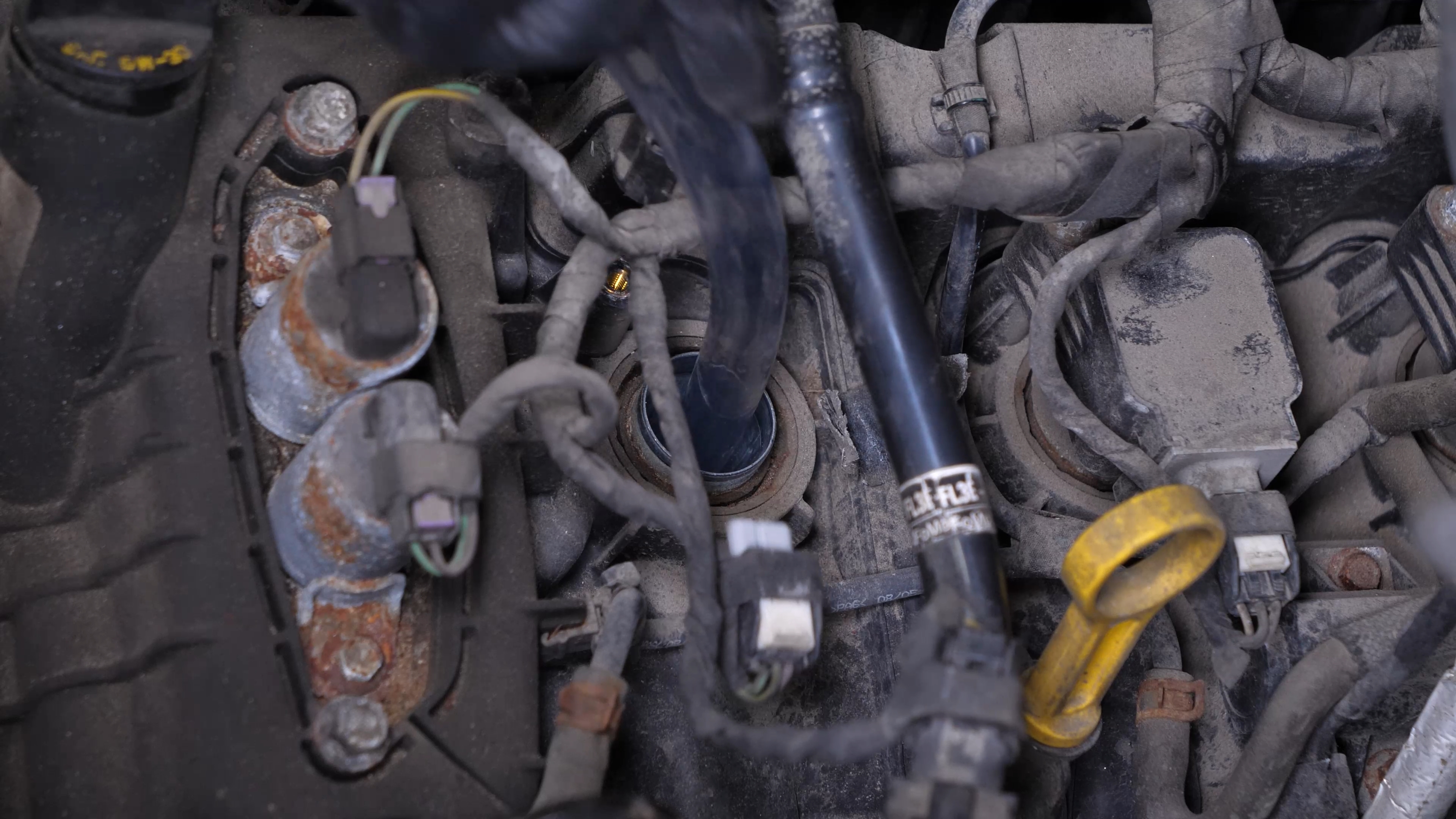

Tip: we recommend using a thin plastic tube taped to the end of a vacuum to properly clean around the spark plug. This prevents the dirt from falling into the motor.

Chapter 6:

Remove the spark plugs

Step 1/1

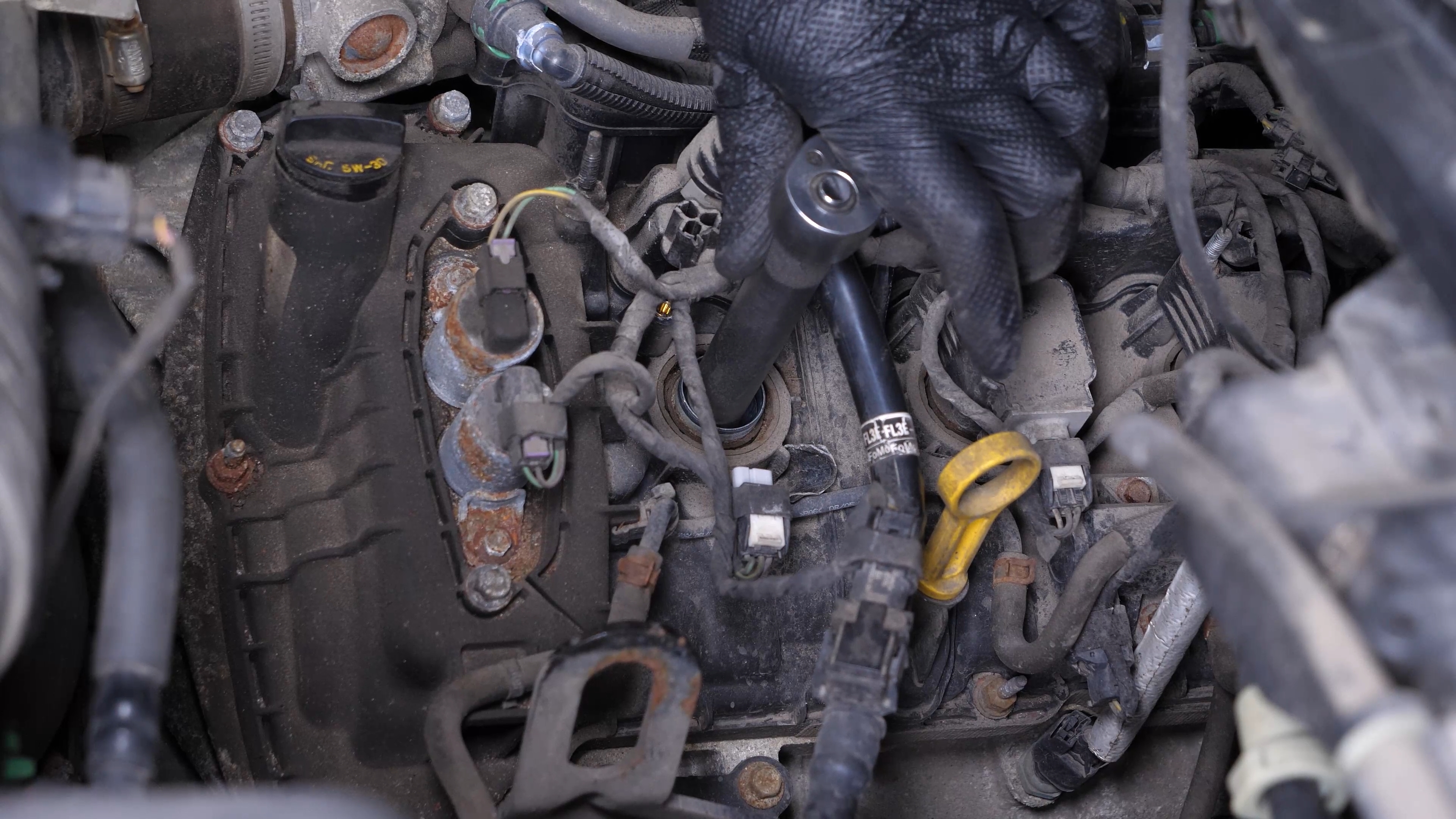

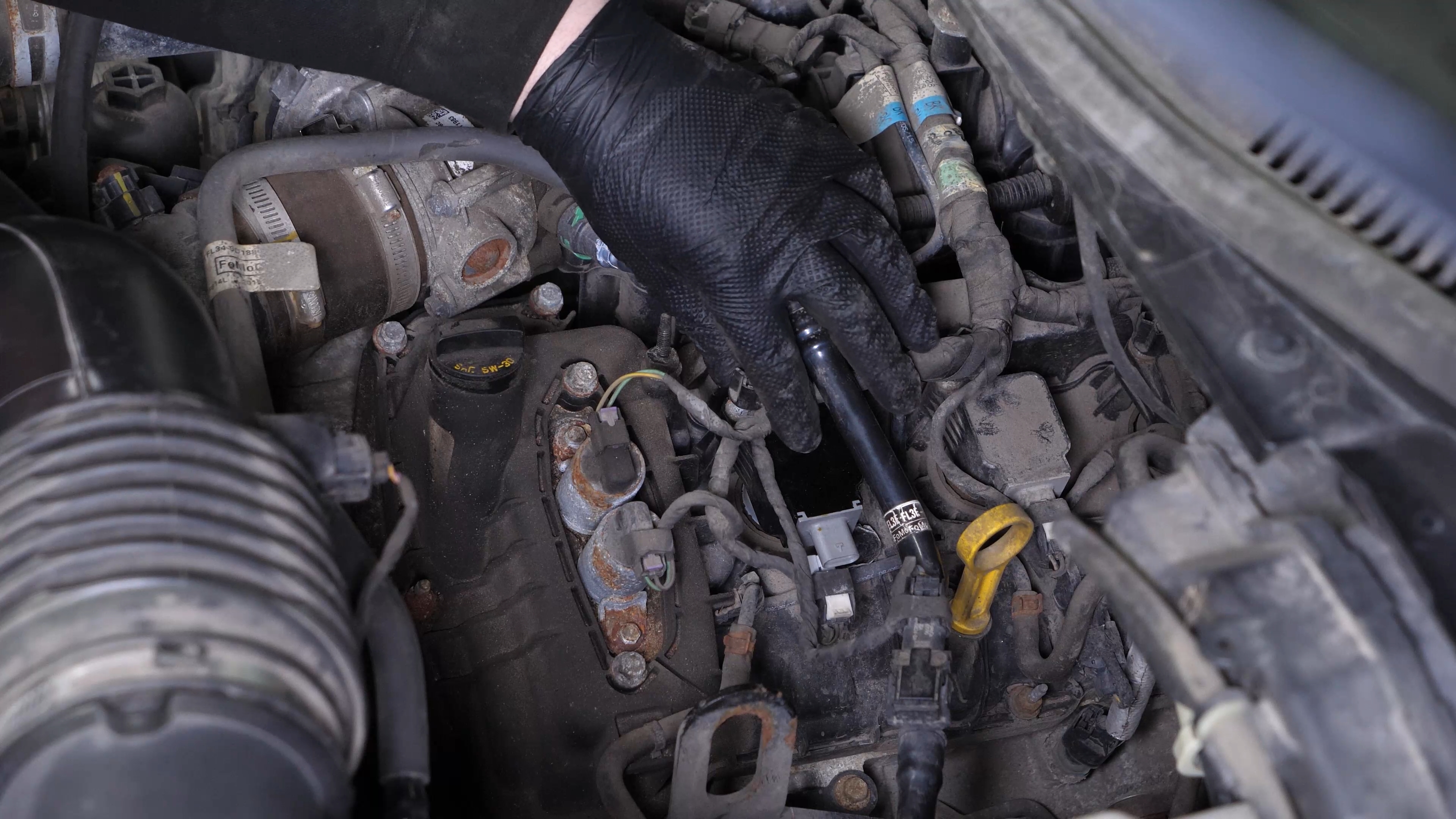

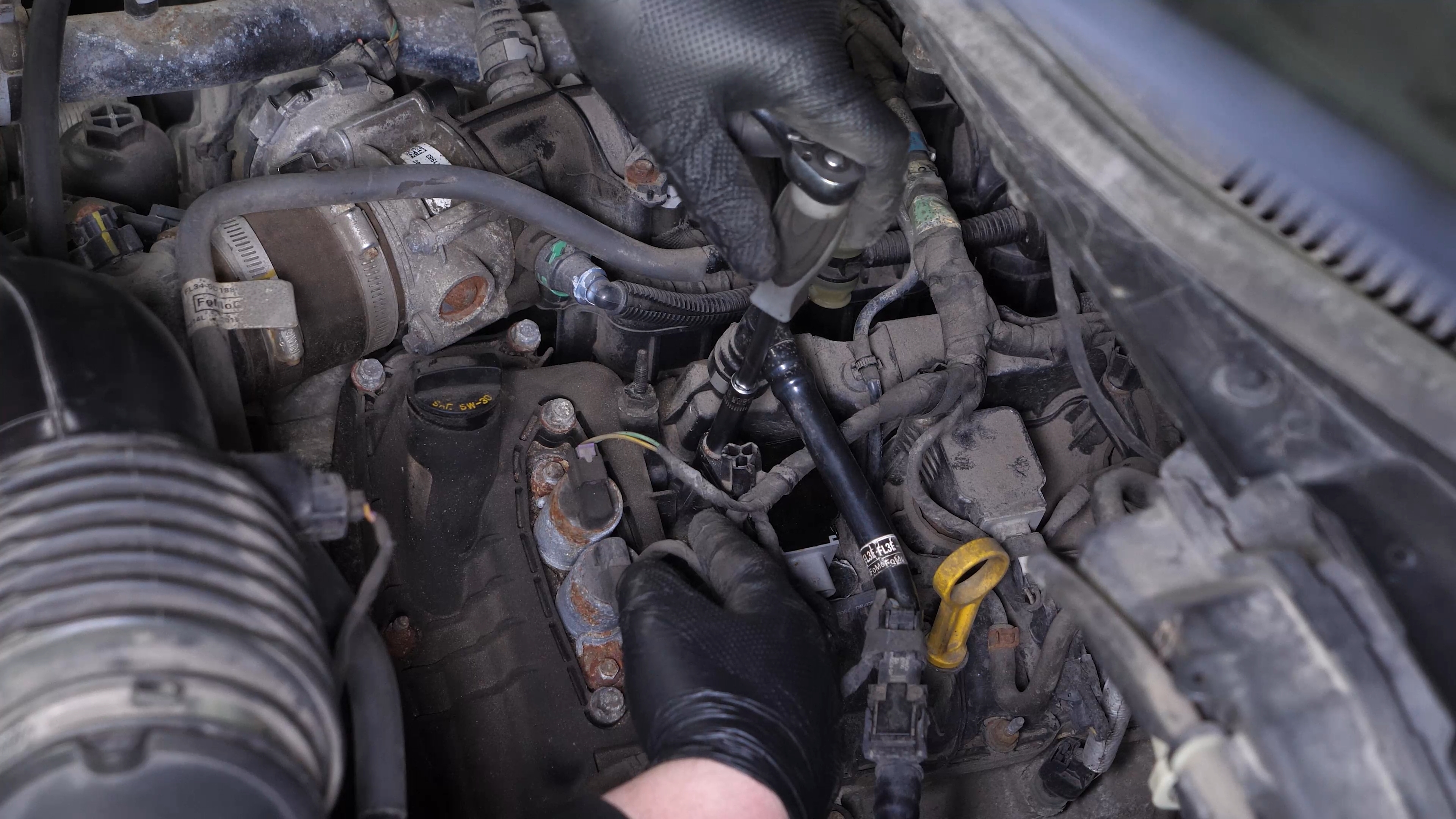

Using a socket wrench, an extender and a 9/16″ spark plug socket, loosen the spark plug. Finish unscrewing by hand. Remove the spark plug.

Chapter 7:

Install the new spark plugs

Step 1/2

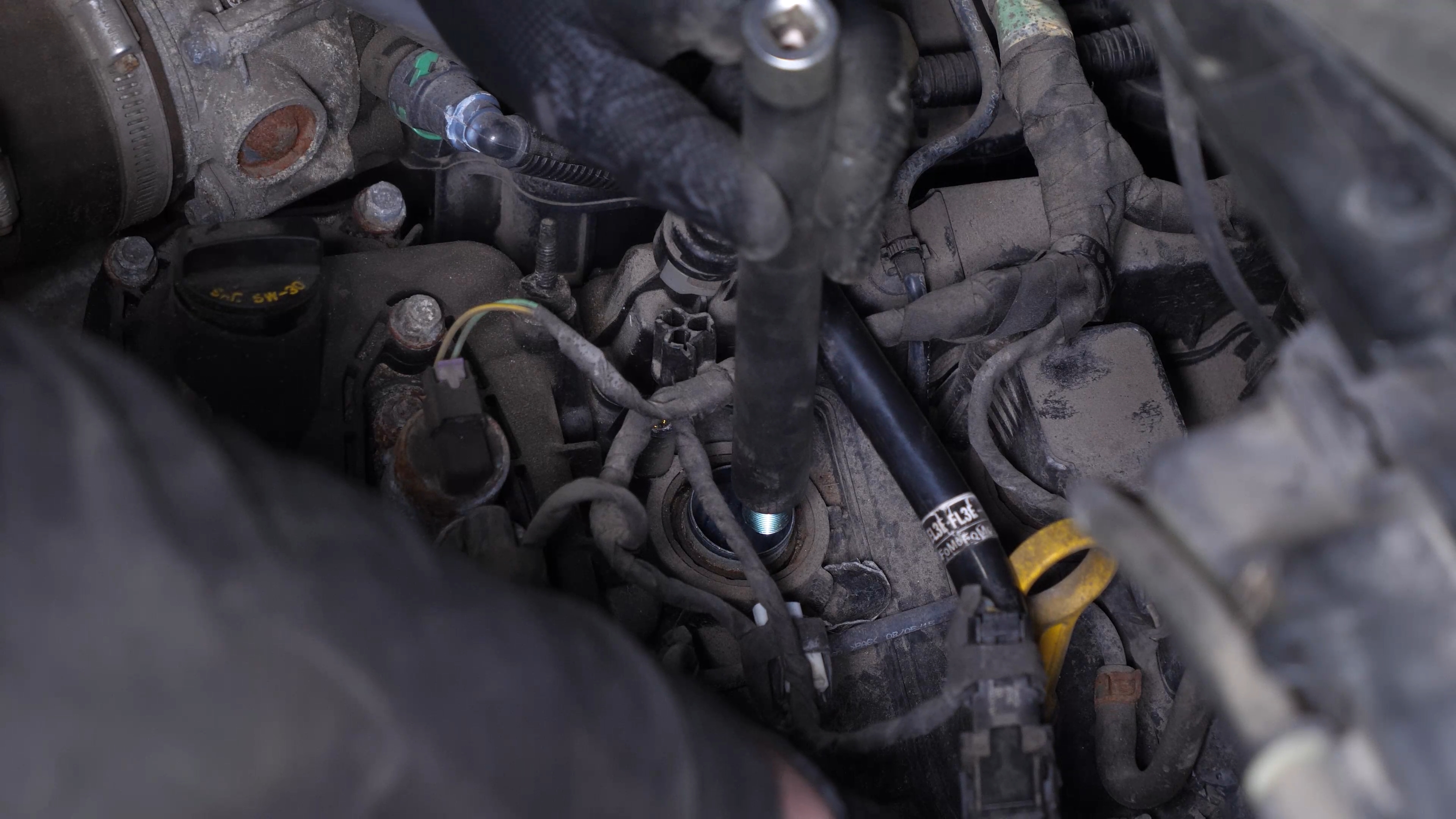

Grab the new spark plug. Put the new spark plug in place by inserting it directly into the spark plug socket, which will allow you to gently bring it to the screwing support.

Chapter 7:

Step 2/2

Always start screwing by hand, then finish by fixing it in place with a socket wrench.

Chapter 8:

Tightening tips

Step 1/1

There are several techniques for tightening spark plugs. You can use a torque wrench and employ the tightening torque recommended by the manufacturer. Or you can use an angular torque gauge to respect the recommended angle.

Chapter 9:

Install the coil

Step 1/3

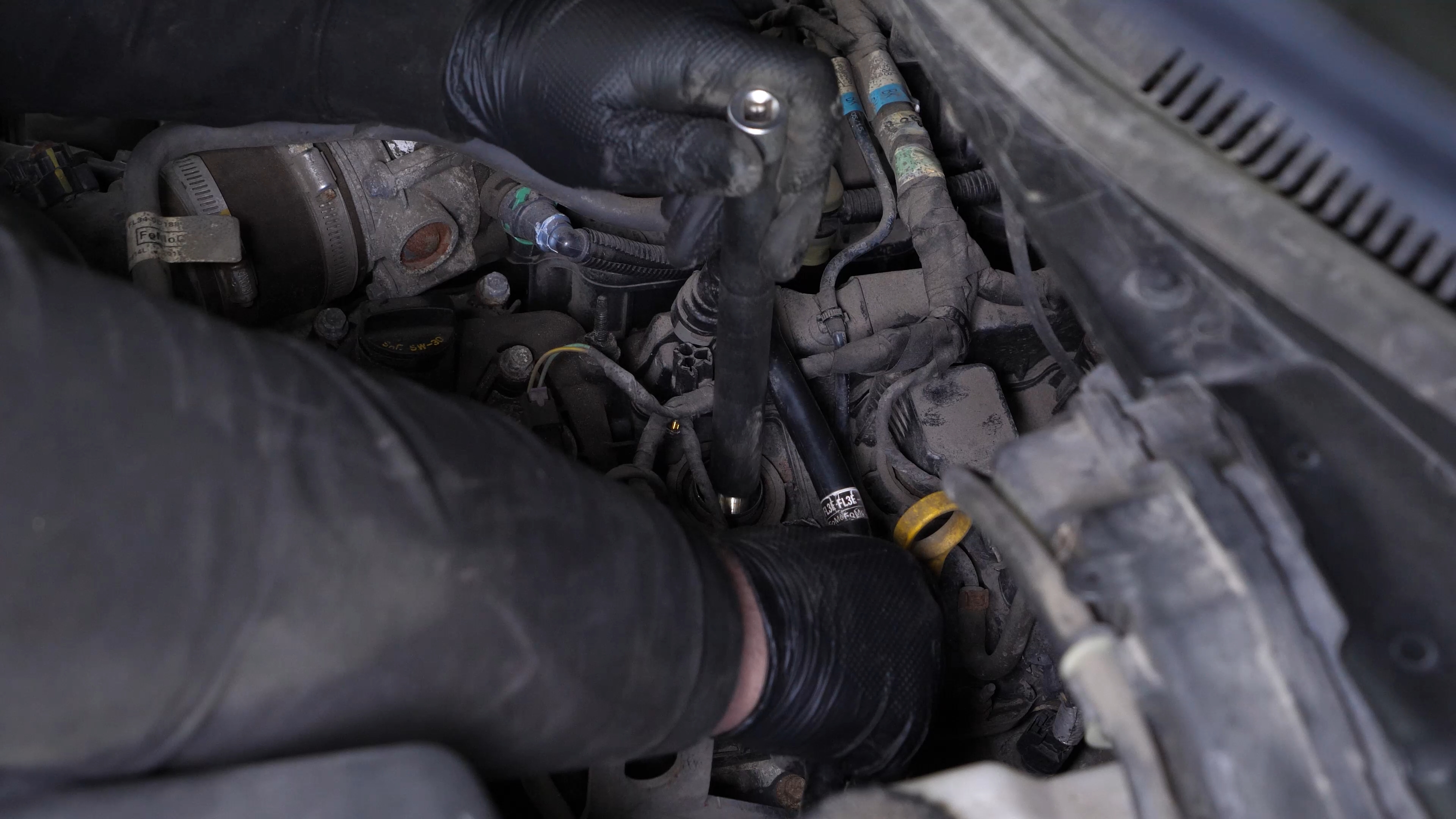

Put the coil back. While holding the assembly, screw the retaining bolt back in by hand.

Chapter 9:

Step 2/3

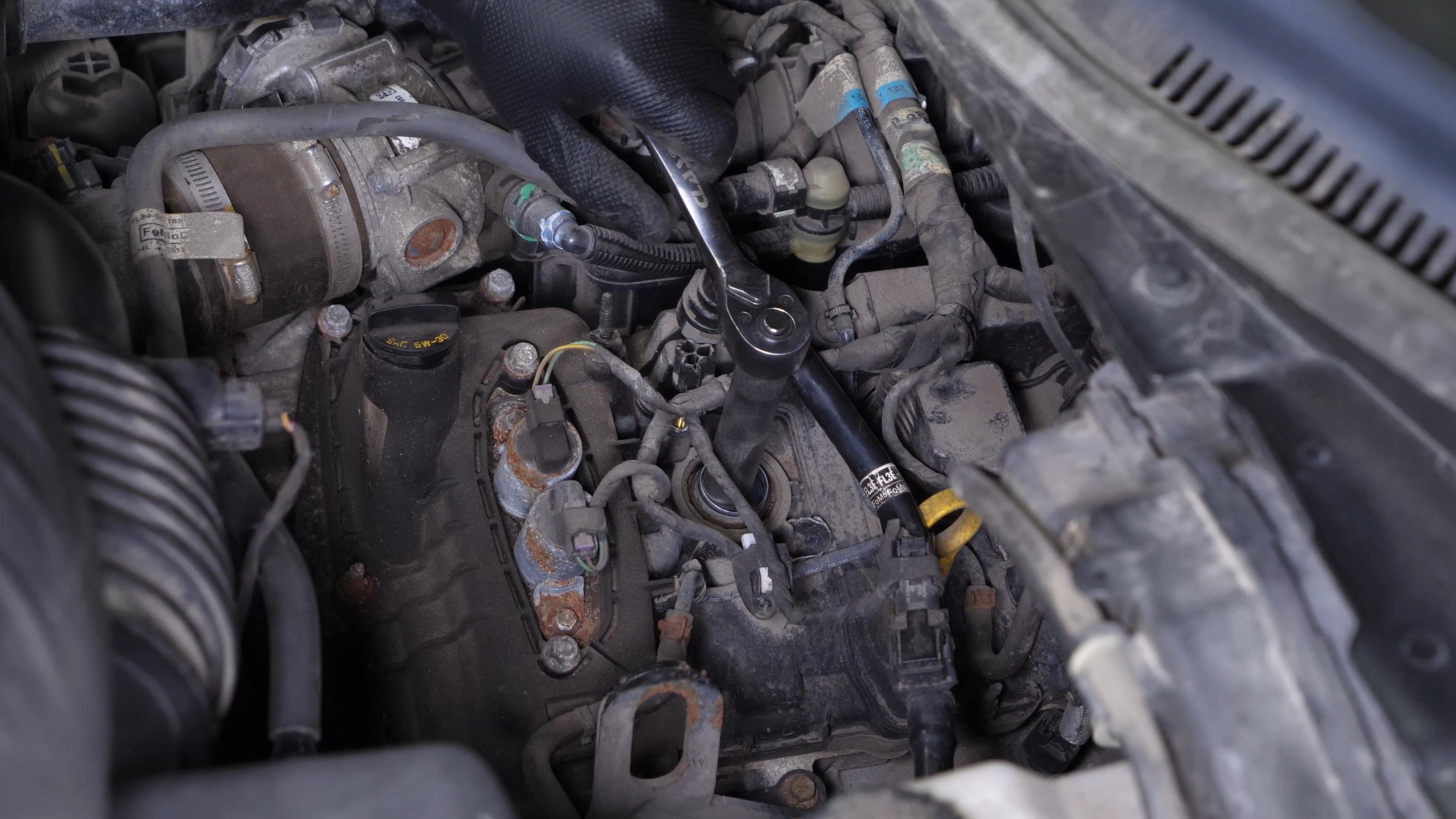

Screw it in until it makes contact using the ratchet.

Chapter 9:

Step 3/3

Finish tightening using a torque wrench.

Chapter 10:

Reconnect the ignition coil

Step 1/2

Then put the retaining clip back in place.

Chapter 10:

Step 2/2

Plug the electrical connector back in. And lock it.

Chapter 11:

Finish the operation

Step 1/1

You can now repeat the process on the other spark plugs.

Chapter 12:

Finalise the reassembly

Step 1/2

Put the engine cover back on. Then, screw the retaining bolts back in.

Chapter 12:

Step 2/2

Operation complete.
