How to replace the turn signal switch 2015 -2020 Ford F-150 GEN 13
To replace the turn signal switch on your F-150 GEN 13 this tutorial was tailor-made for you. You will be asked to remove the steering column cover, remove the turn signal switch, put the turn signal switch back as well as carry out a few other steps. You can carry out this tutorial of 4 chapters in 30 minutes. Bring your flat head screwdriver and your 10 mm socket and let’s get started!
Duration
30 minutes
Number of steps
4
Difficulty out of 5
1
Average savings
$50
Parts You Will Need
Tools You Will Need
Step-by-Step Installation
Chapter 1:
Remove the steering column cover
Step 1/2

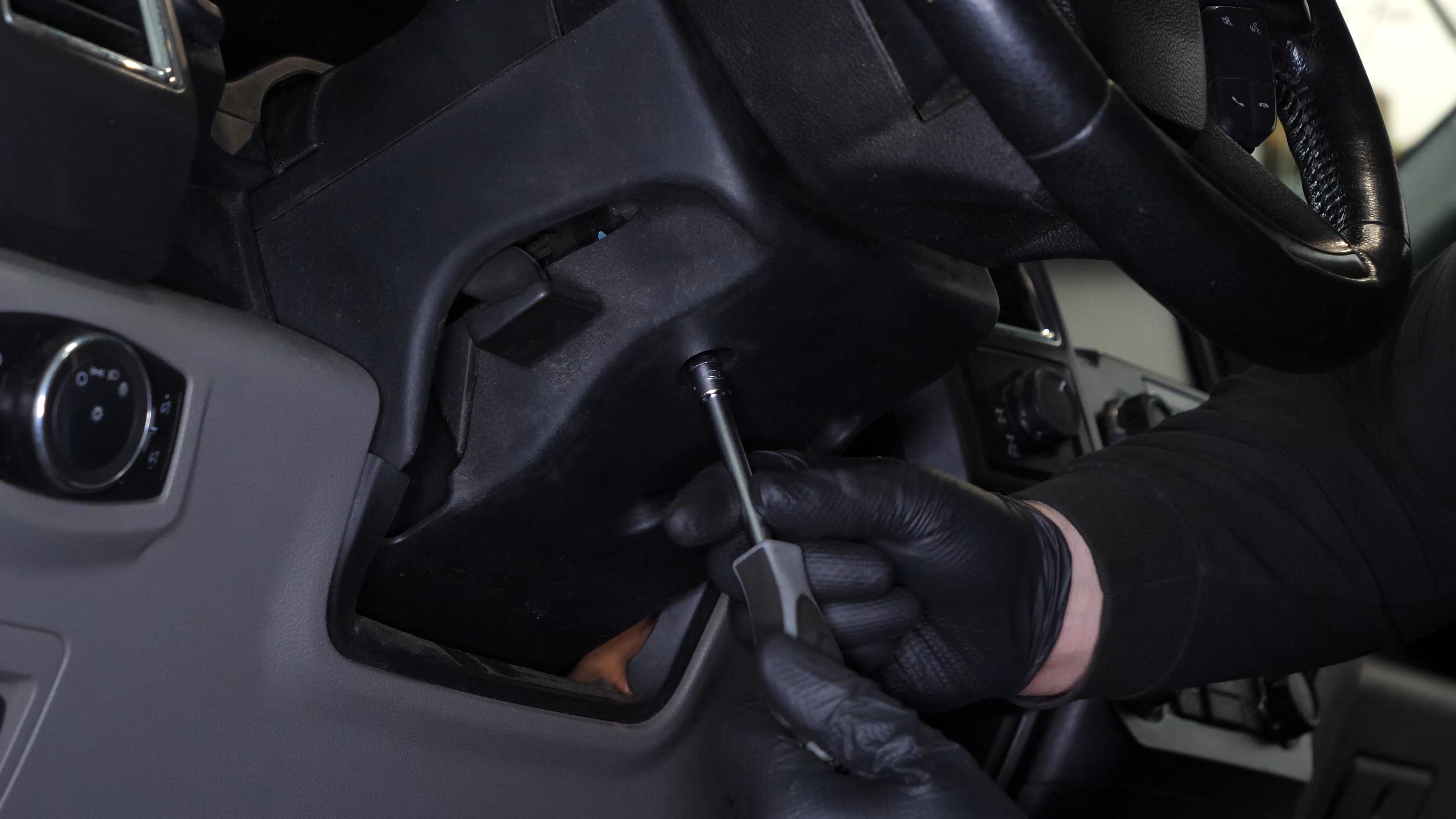

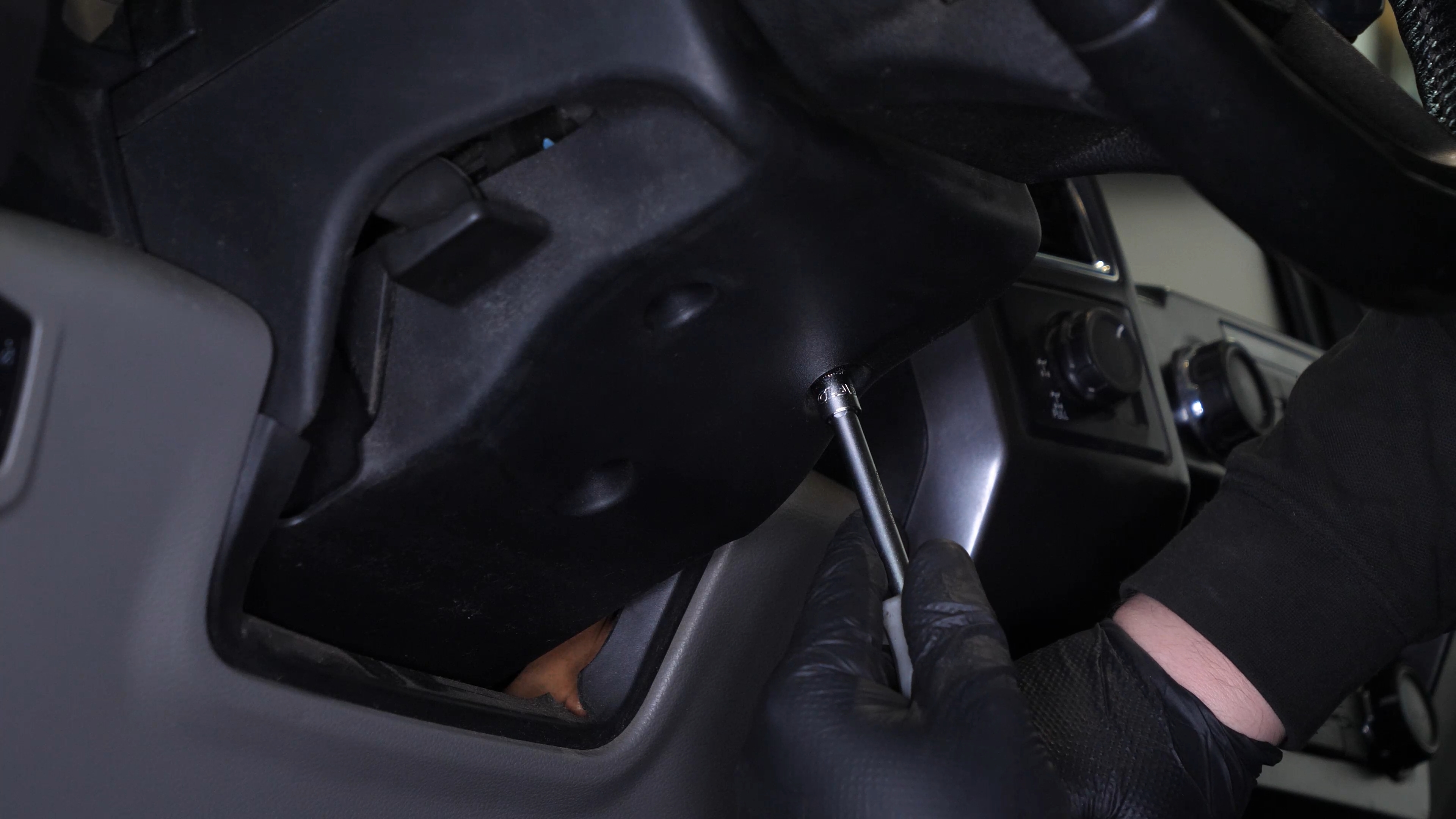

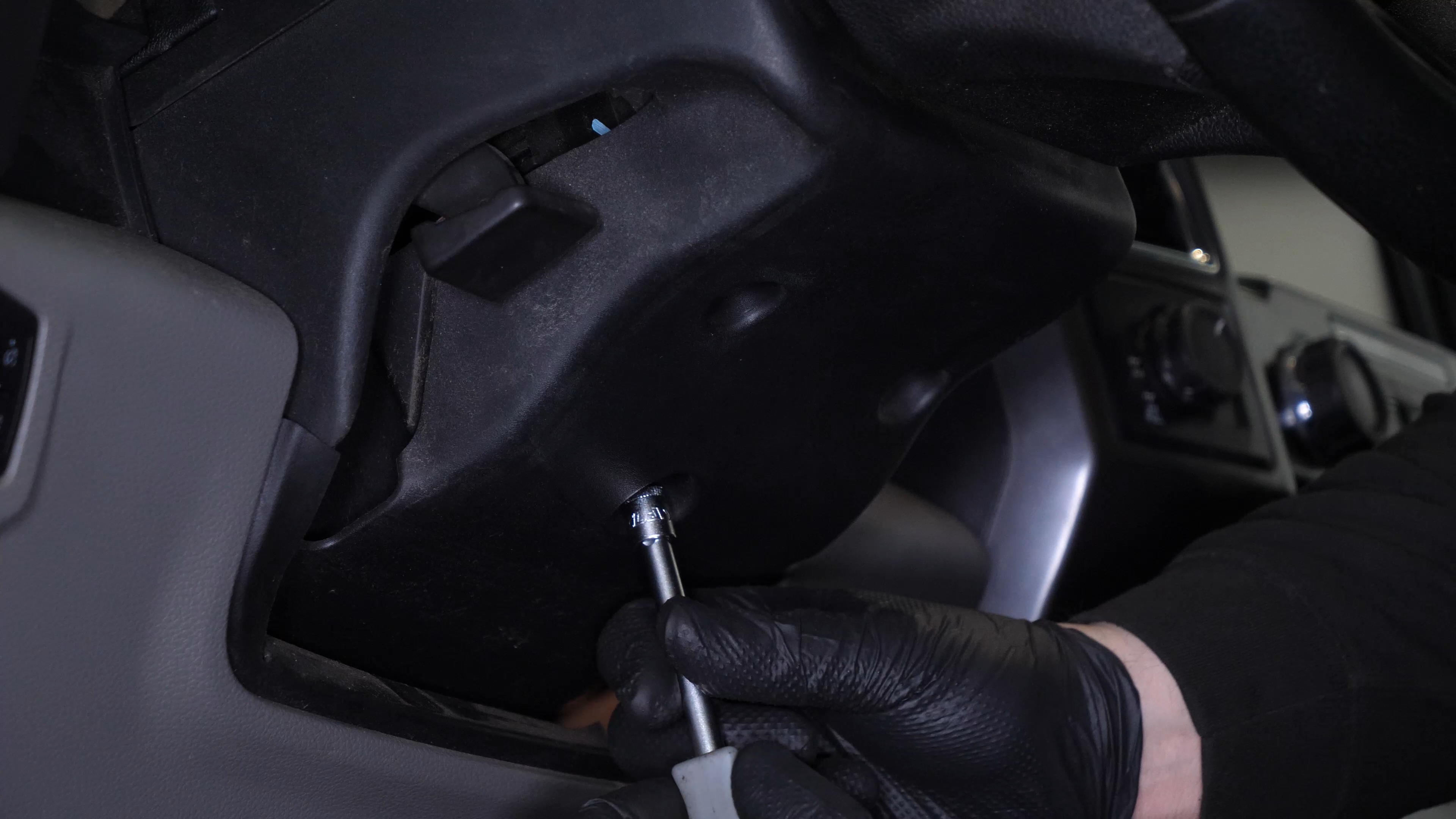

Using a multi-bit screwdriver and a 5.5mm socket, unscrew the 3 bolts holding the lower plastic trim of the steering column.
Chapter 1:
Step 2/2

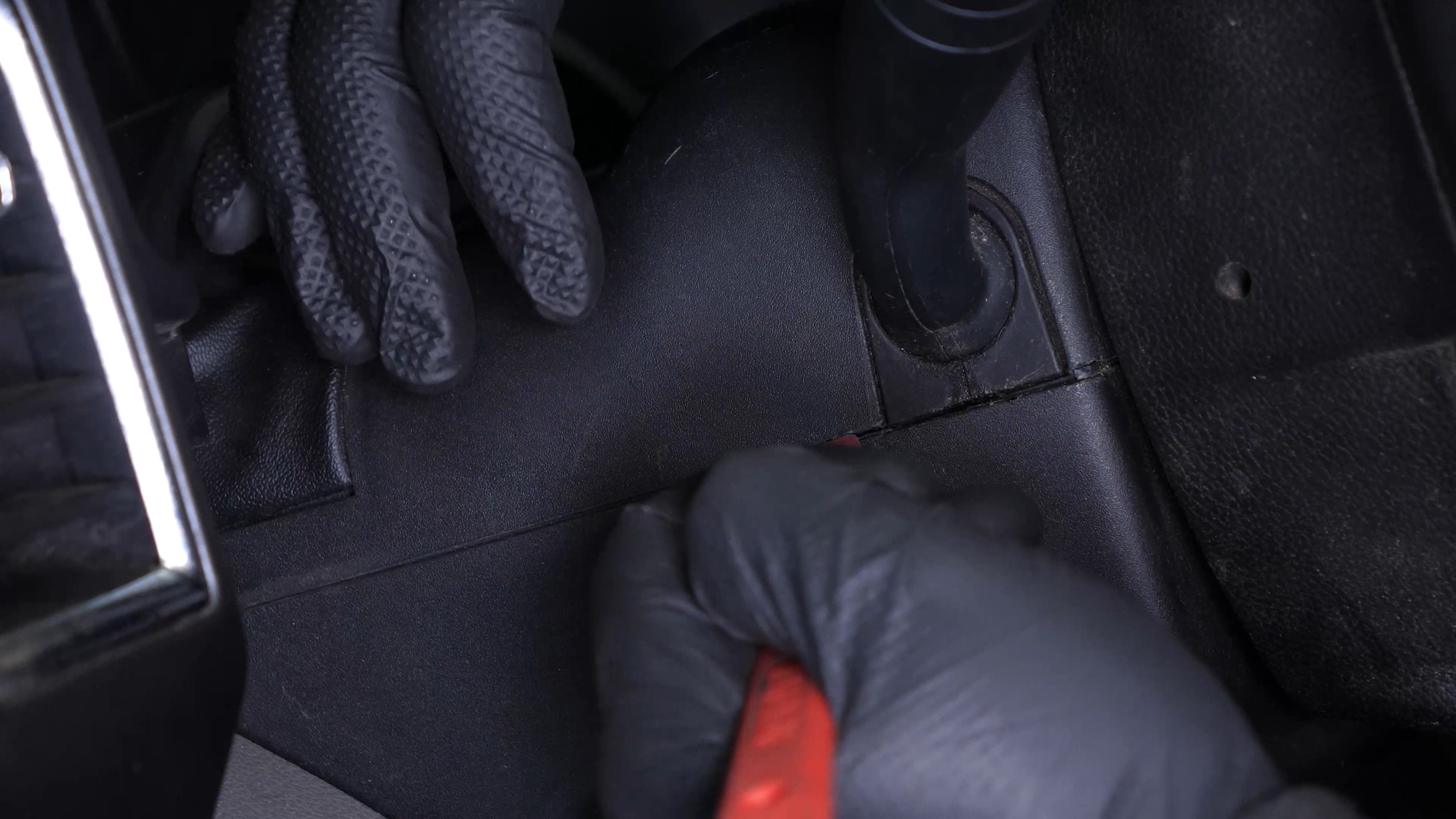

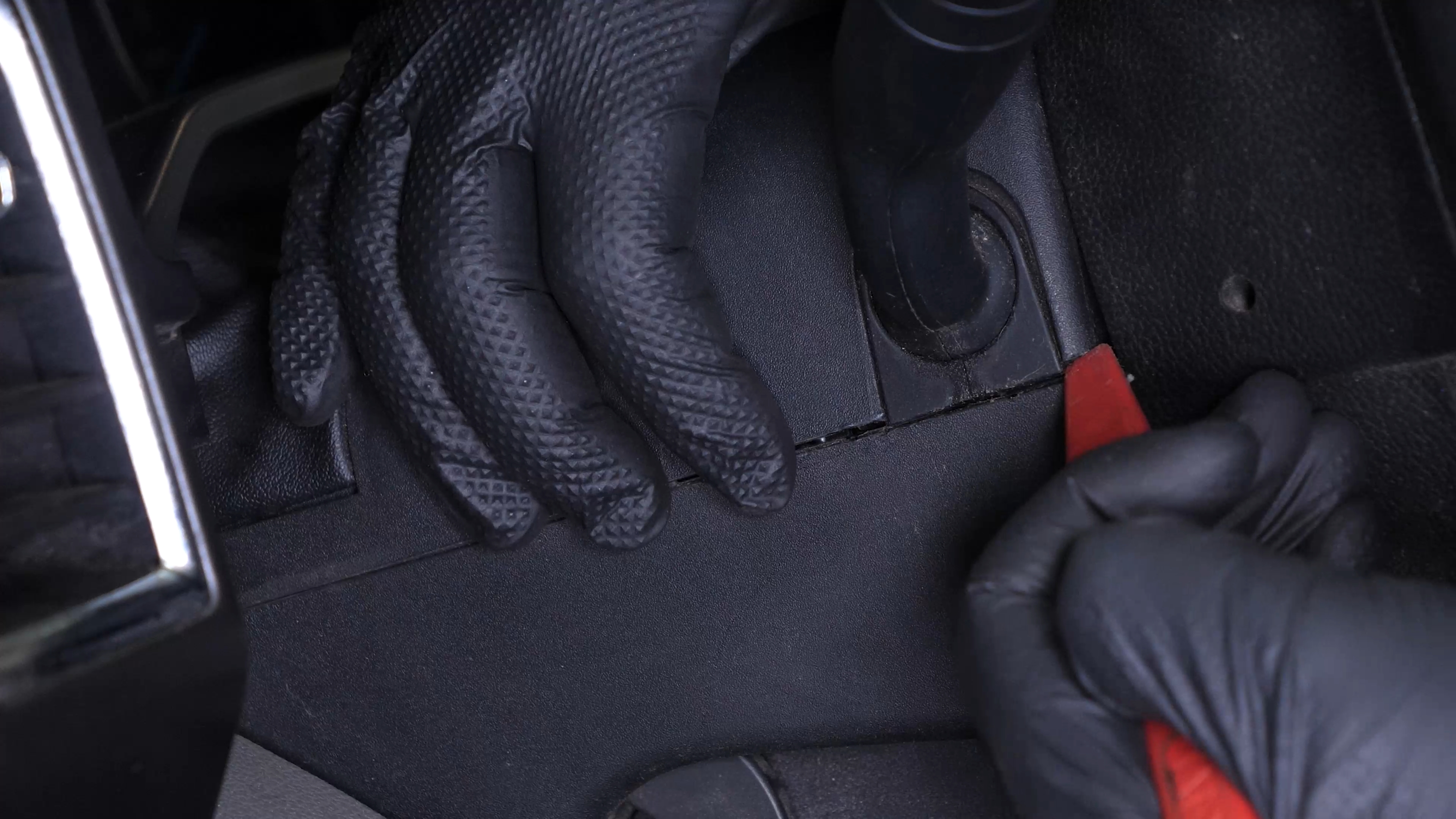

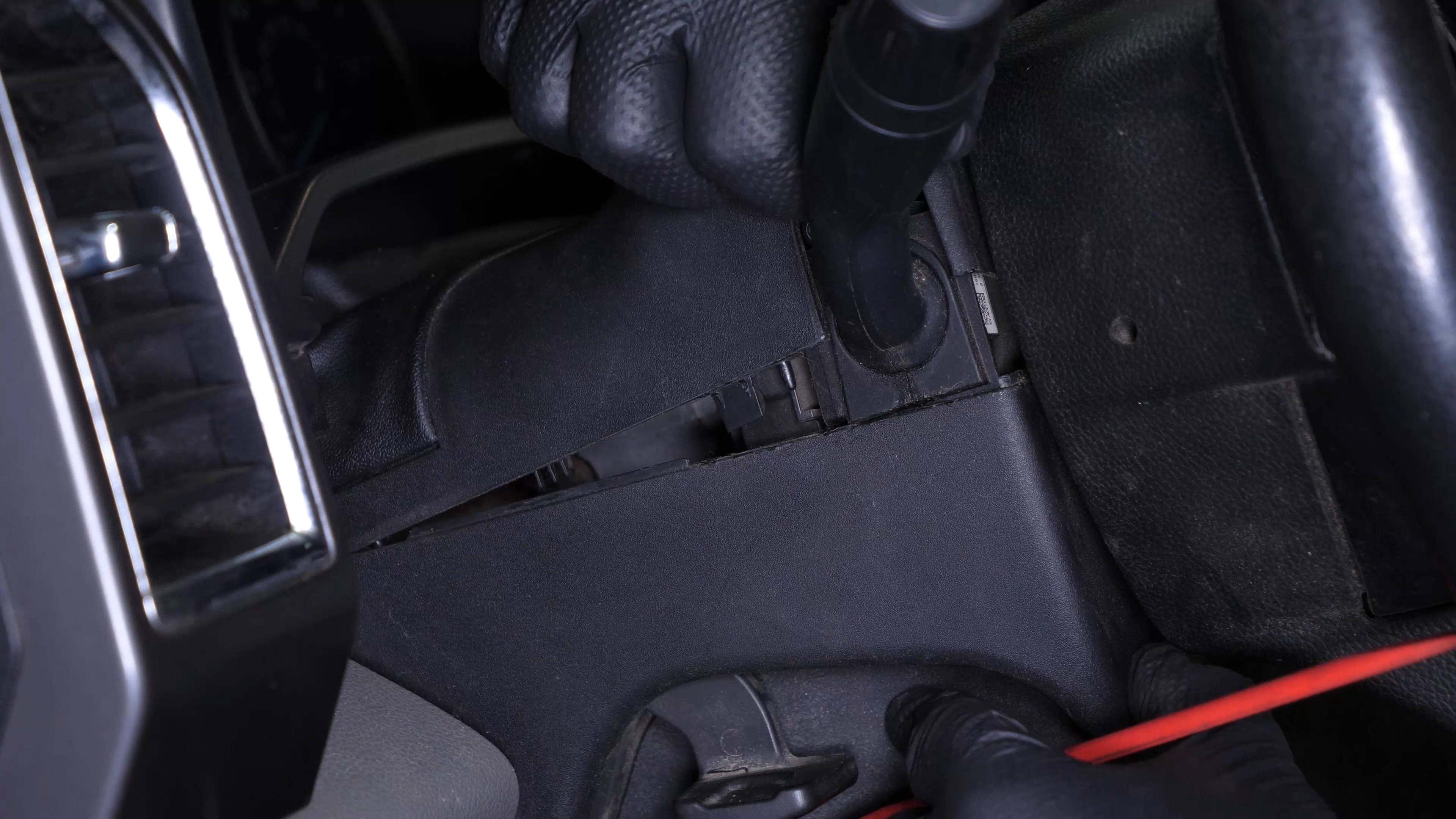

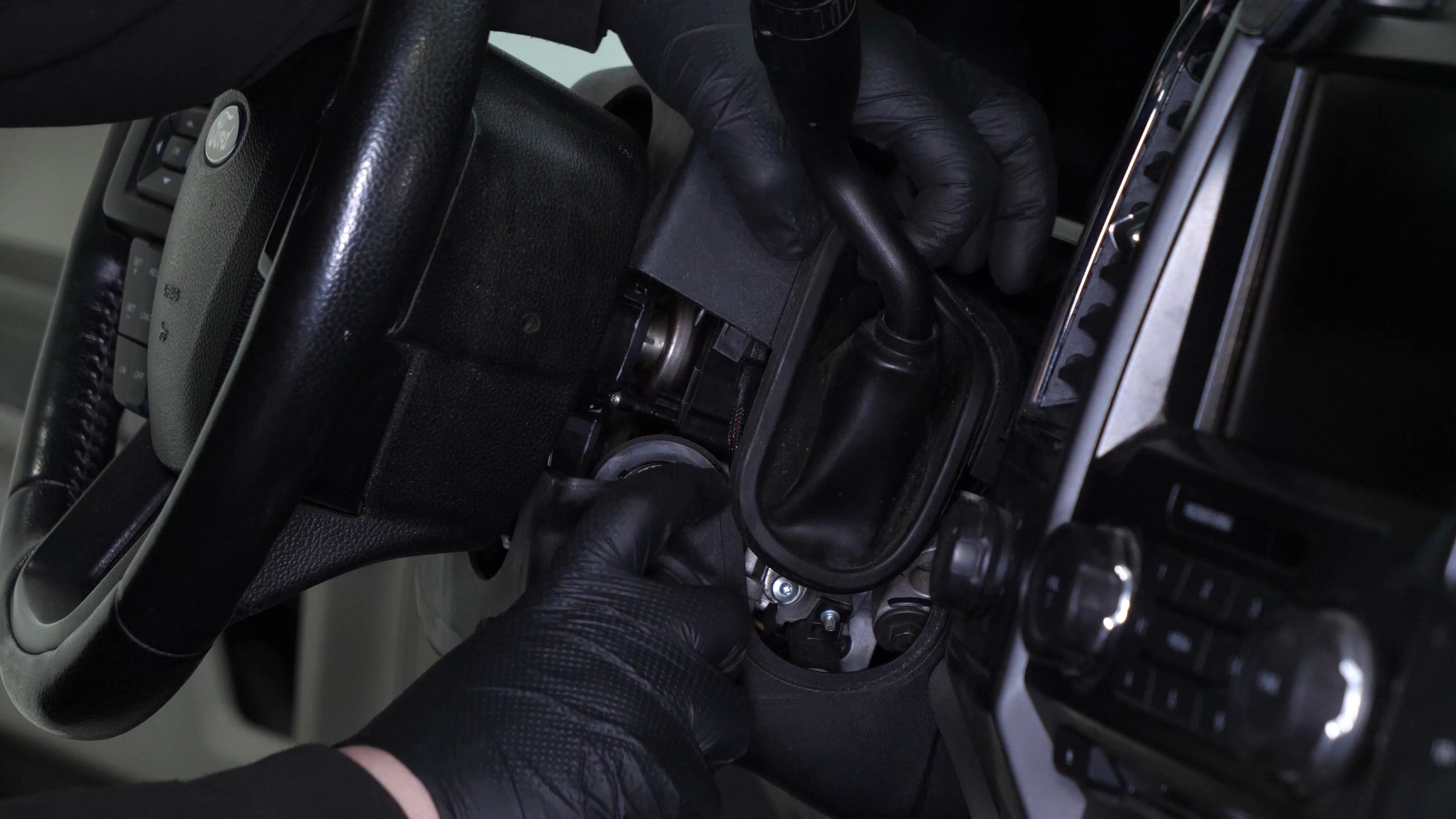

Using a car trim removal tool, pry off the plastic trim and lift it.
Chapter 2:
Remove the turn signal switch
Step 1/2

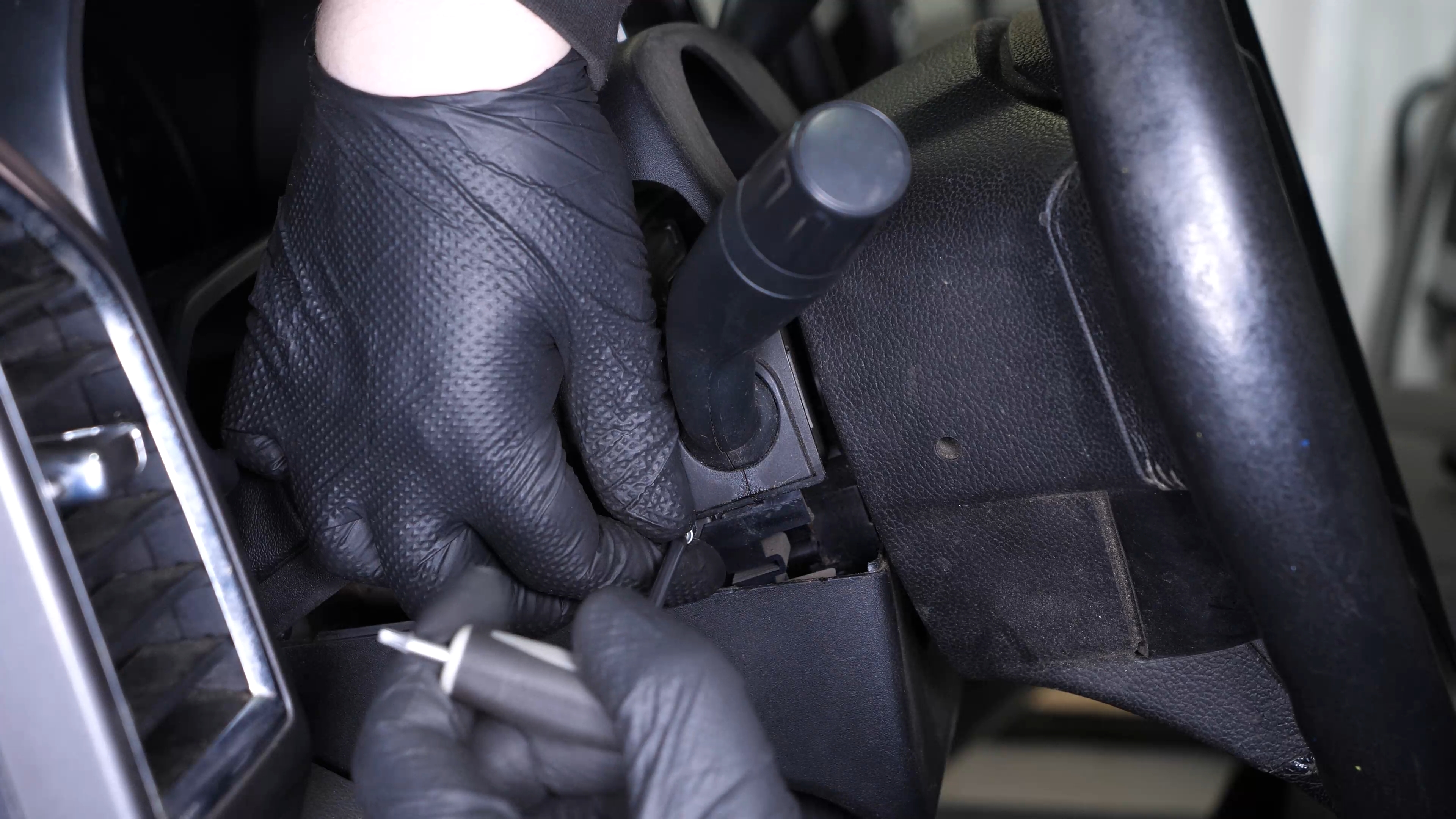

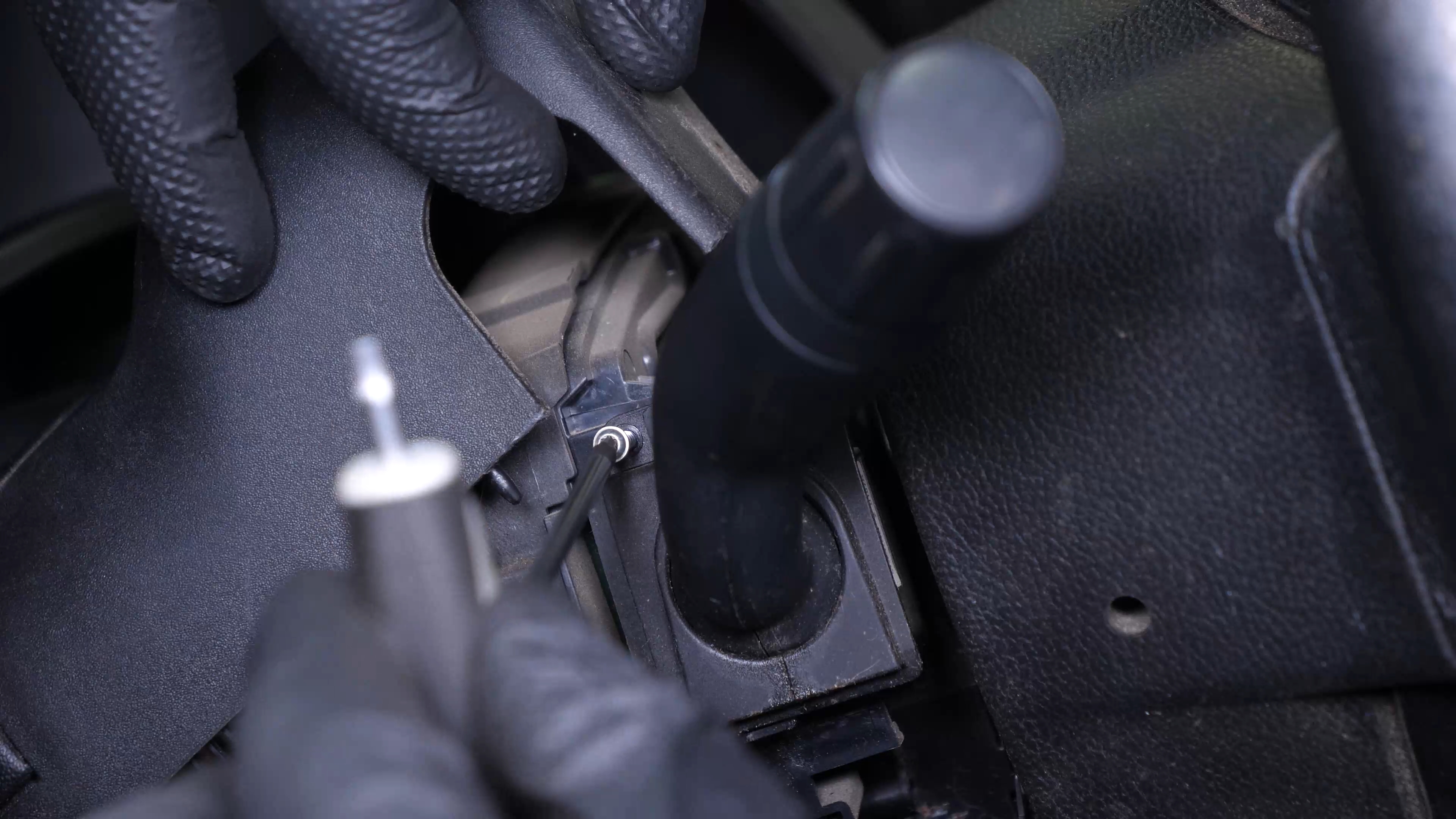

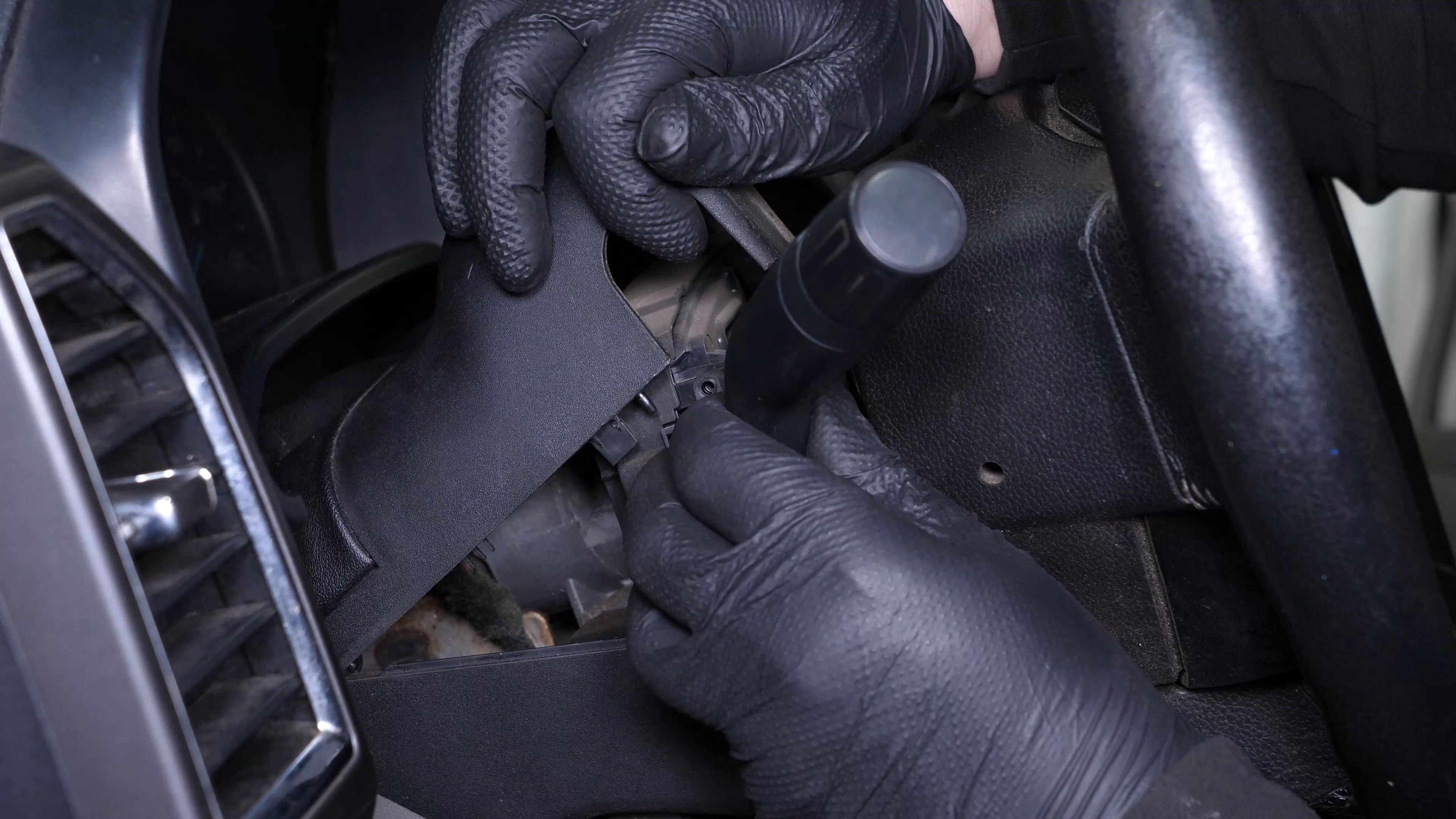

Using a multi-but screwdriver and a Torx T10 bit, unscrew the 2 screws holding the turn signal switch.
Chapter 2:
Step 2/2

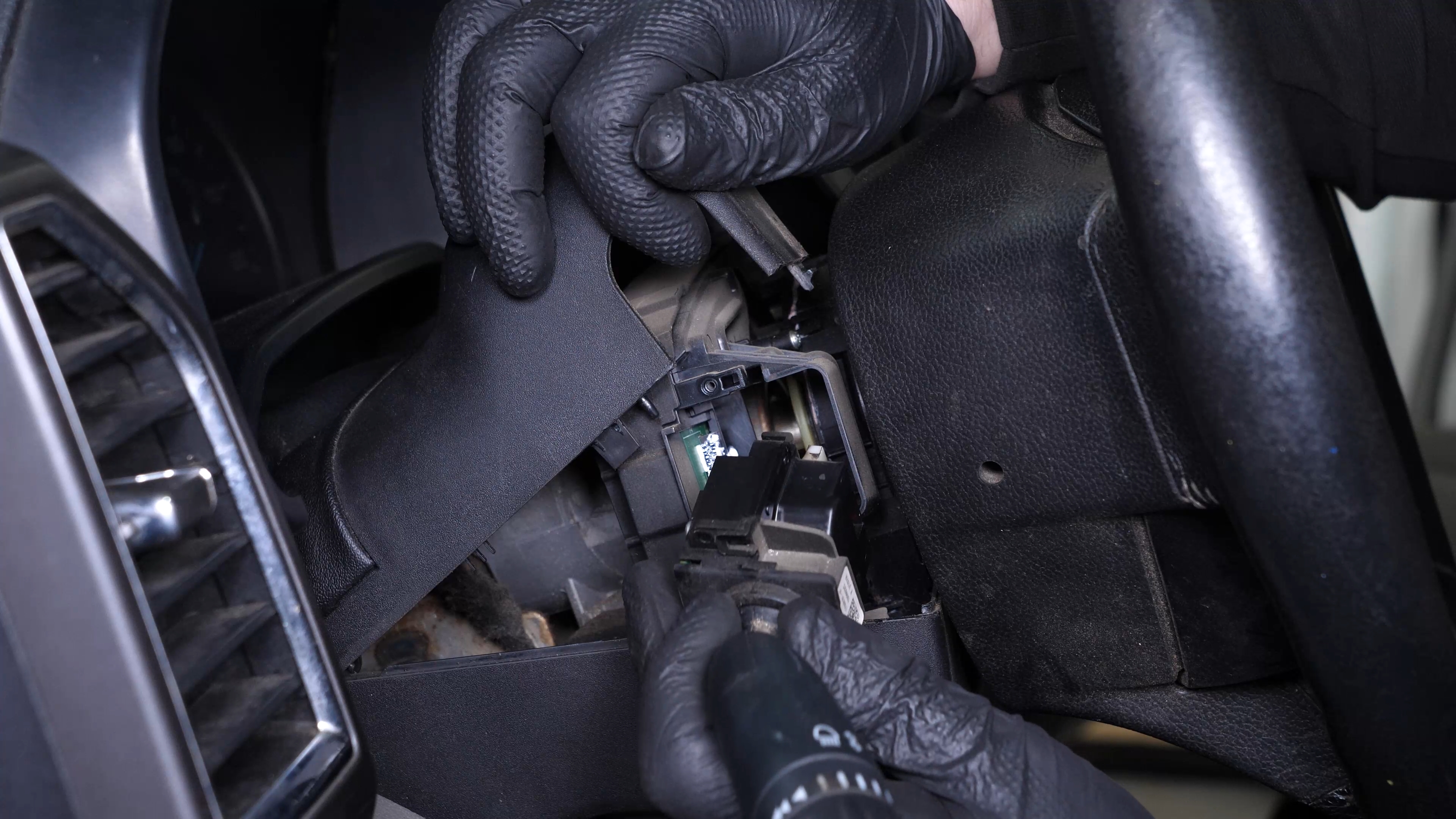

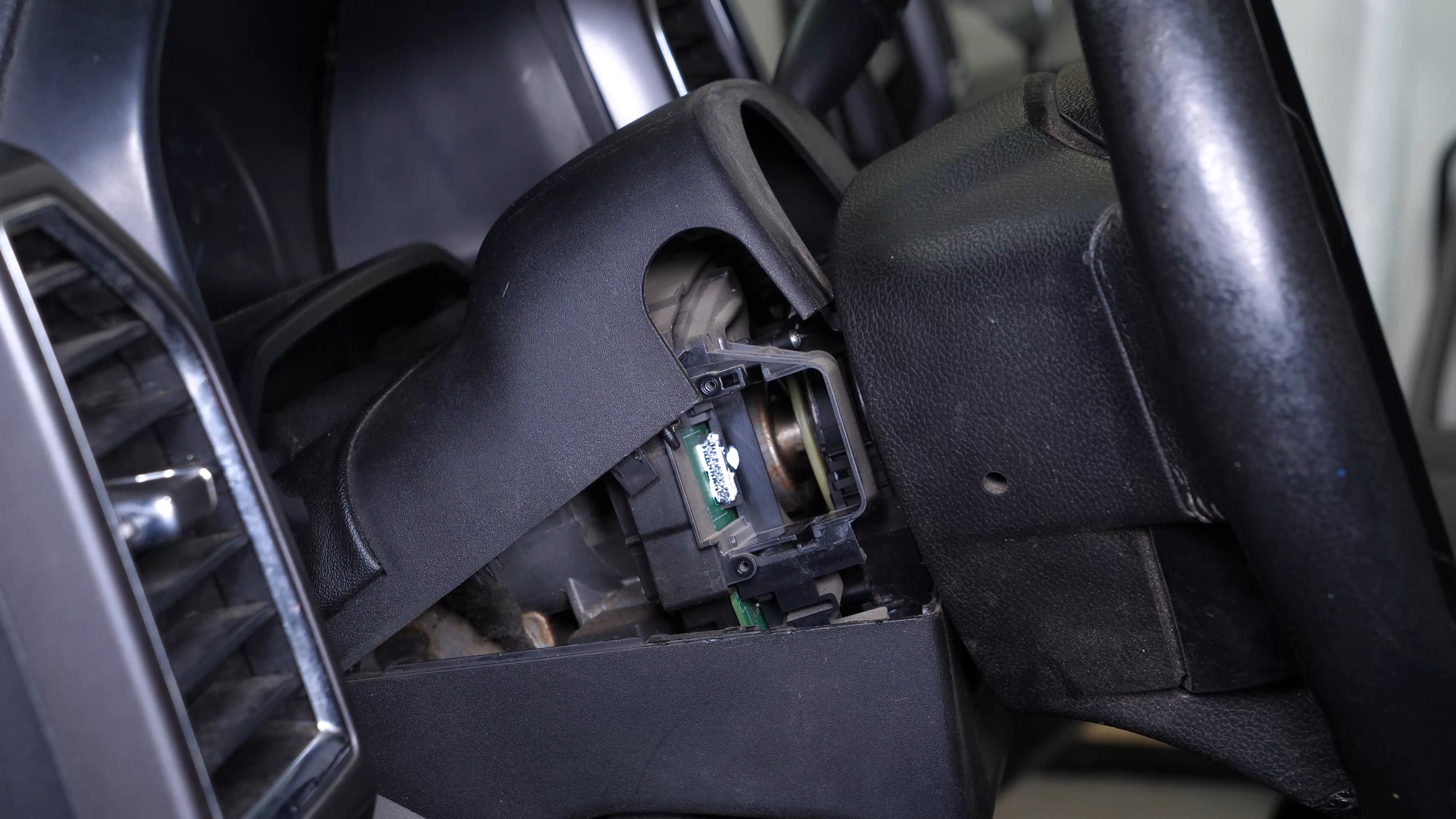

You can now remove the turn signal switch.
Chapter 3:

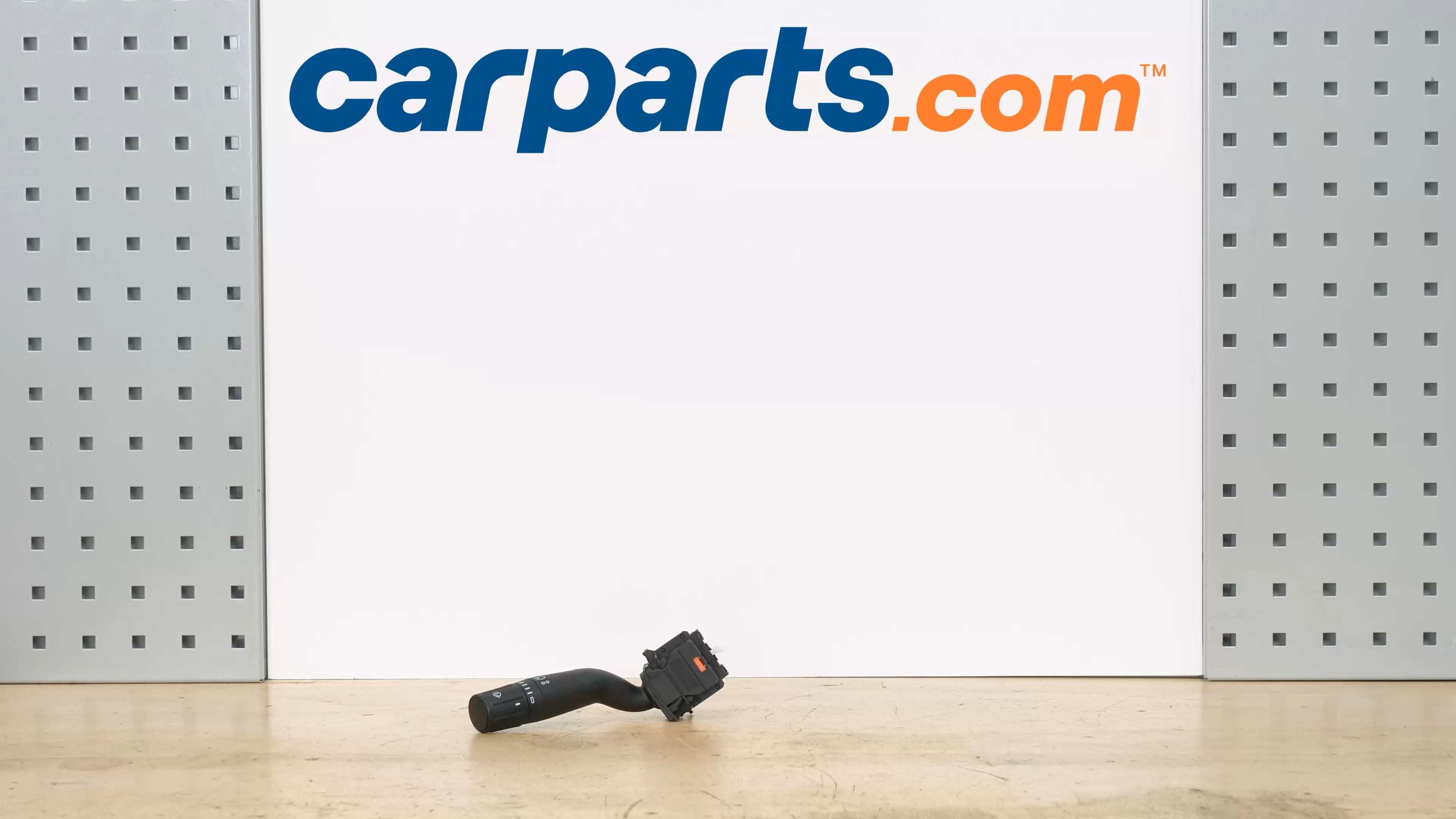

Put the turn signal switch back
Step 1/2

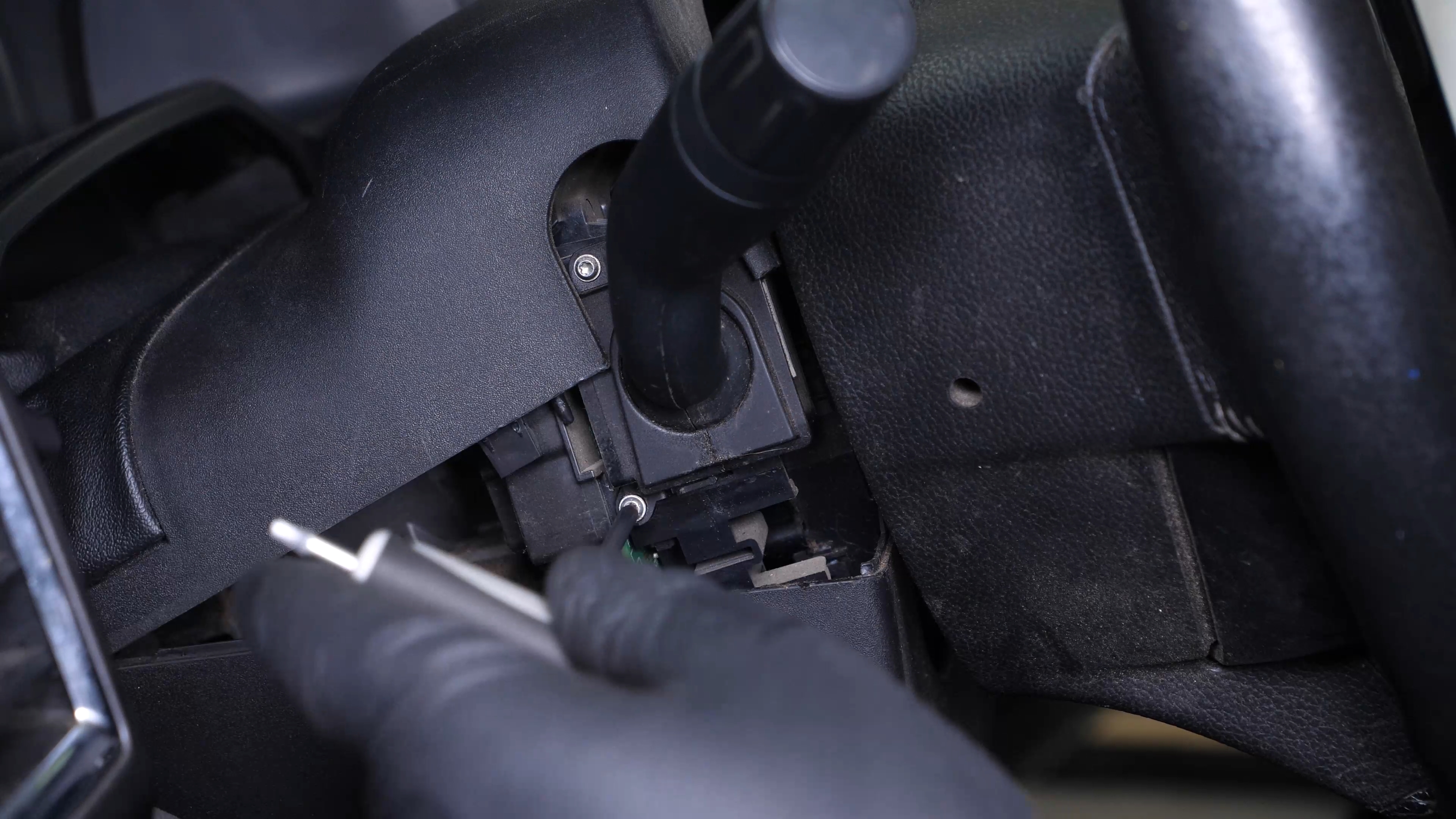

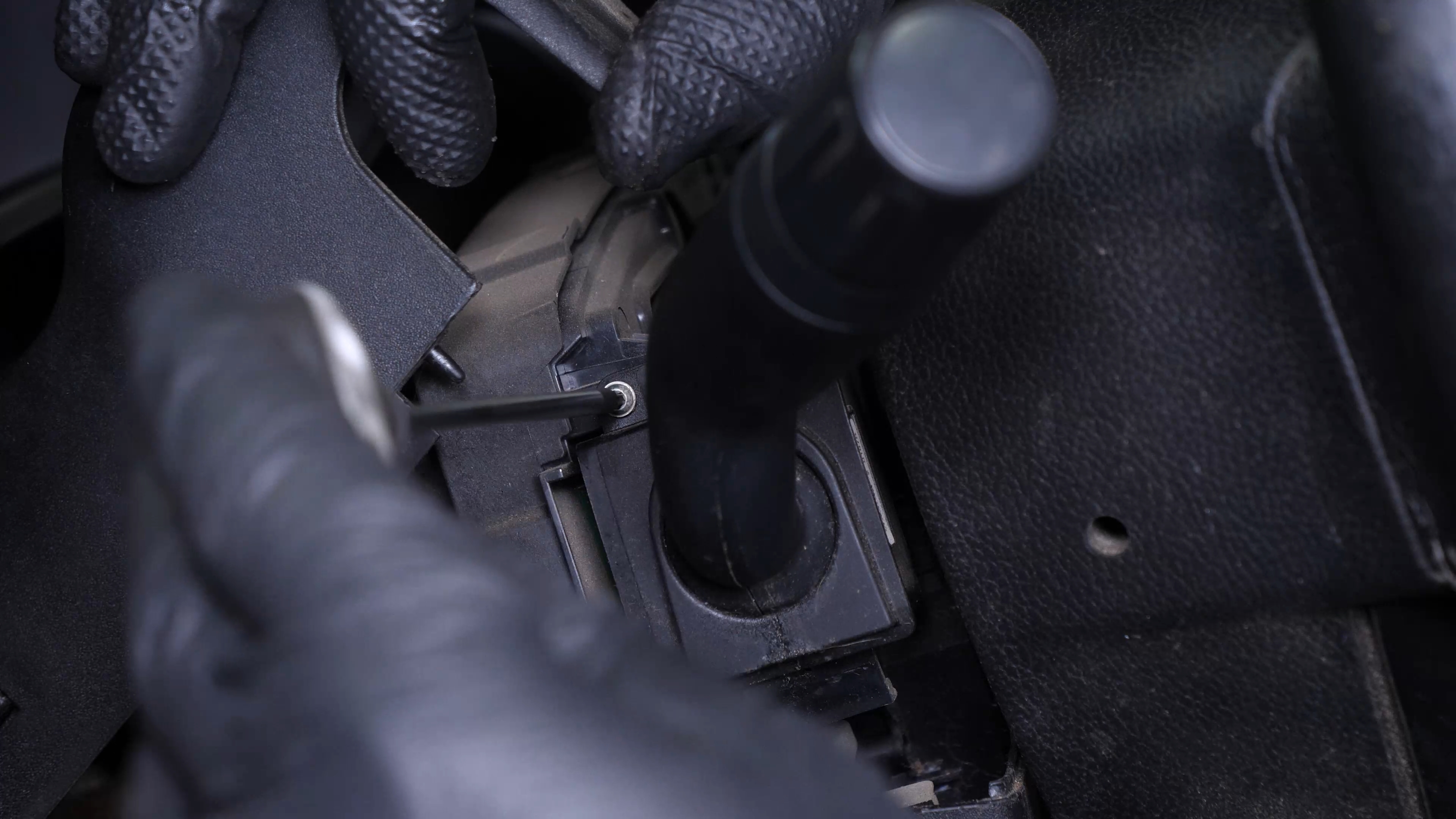

Insert the switch into its slot. Then screw the 2 retaining screws back in.
Chapter 3:
Step 2/2

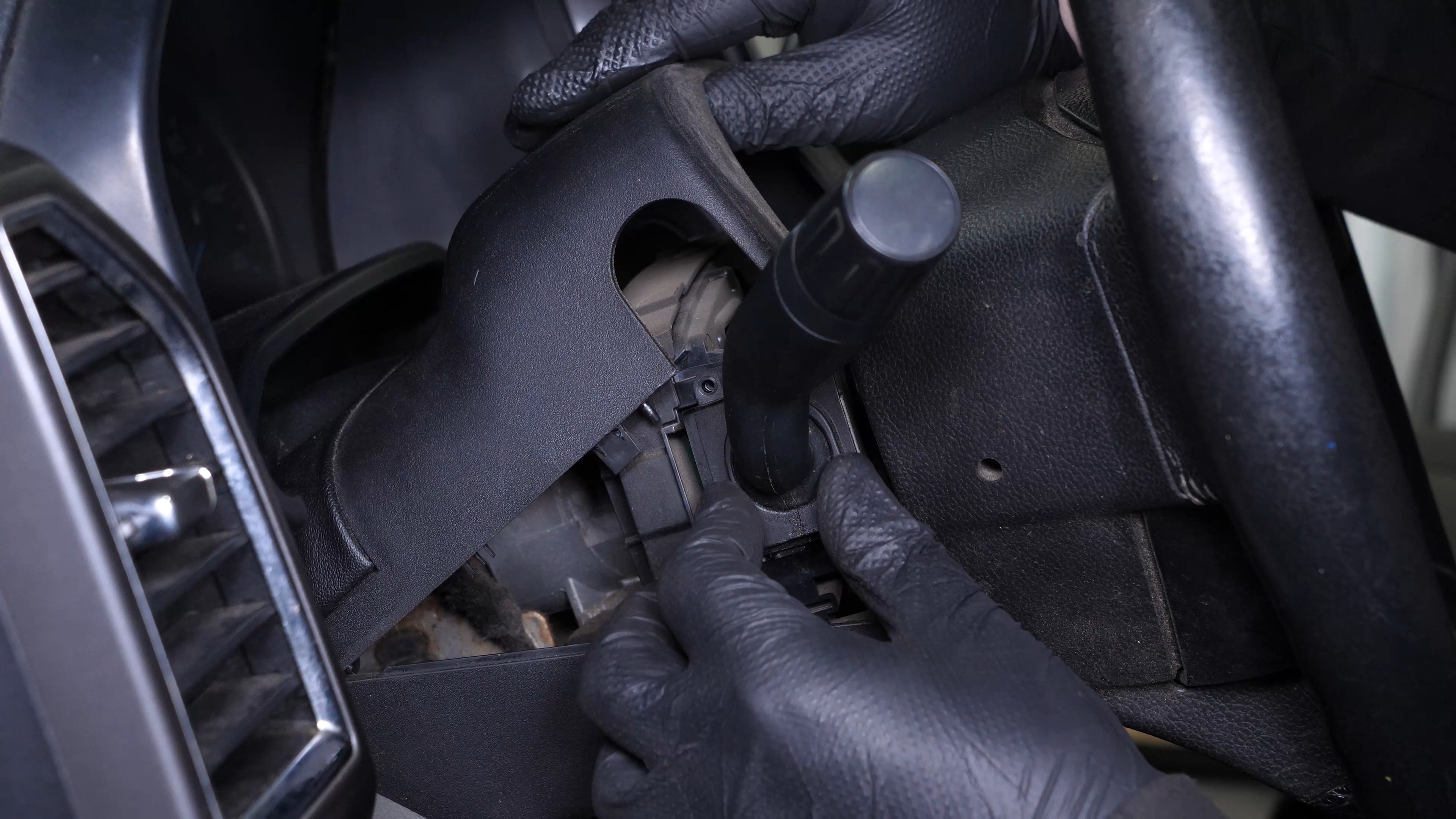

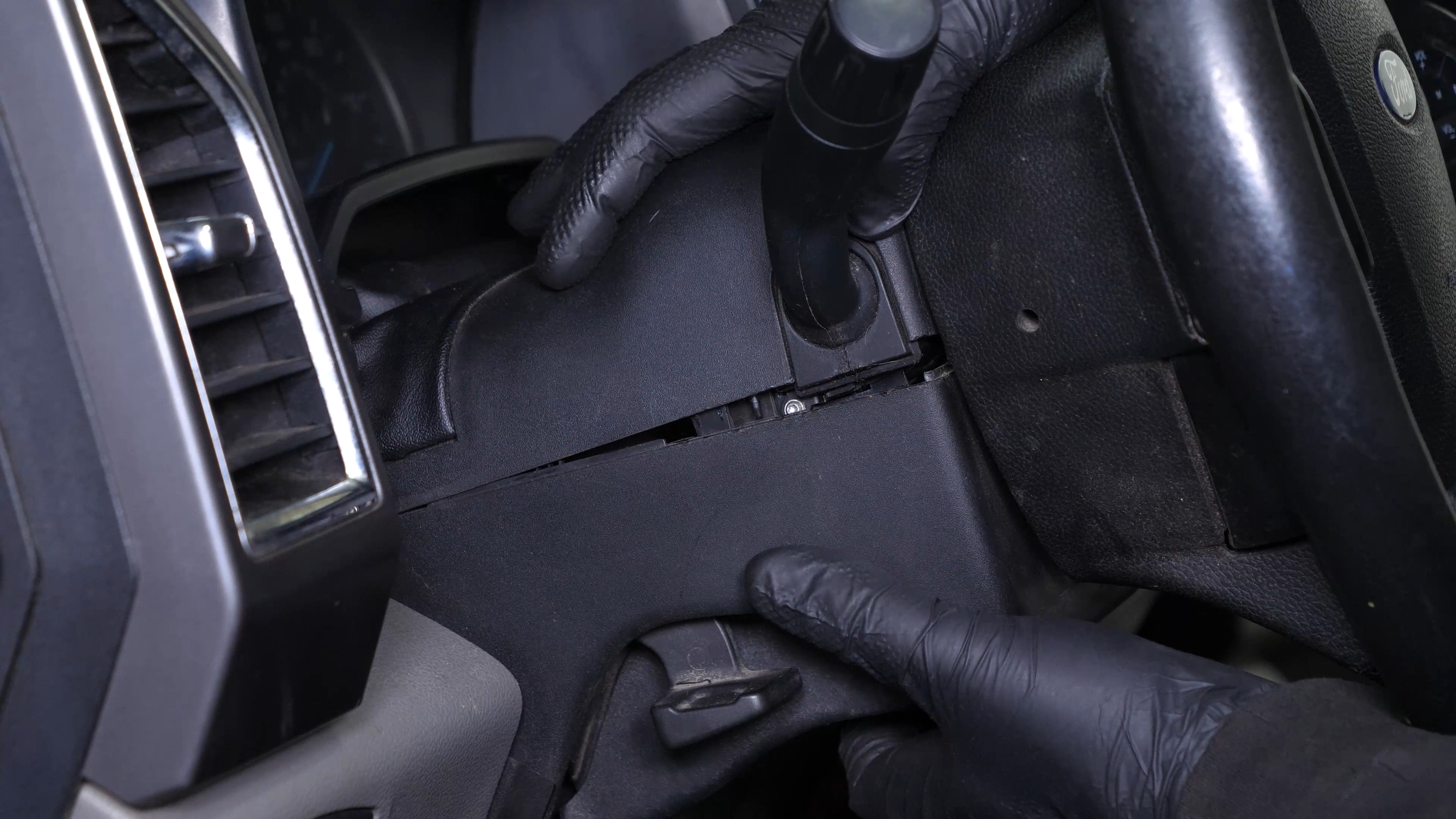

Replace the bottom plastic trim by fitting it into the lock.
Chapter 4:
Put the steering column cover back
Step 1/2

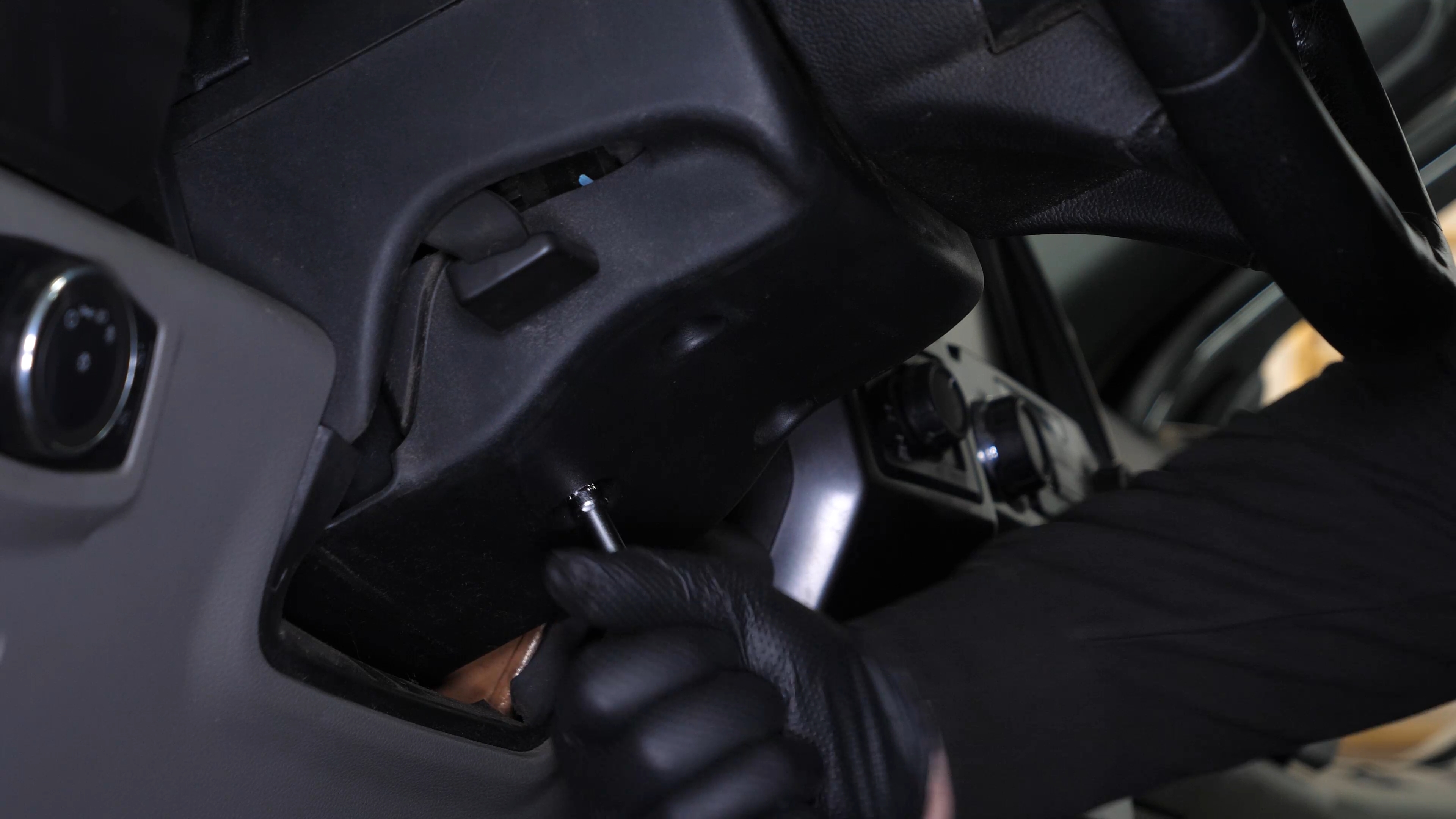

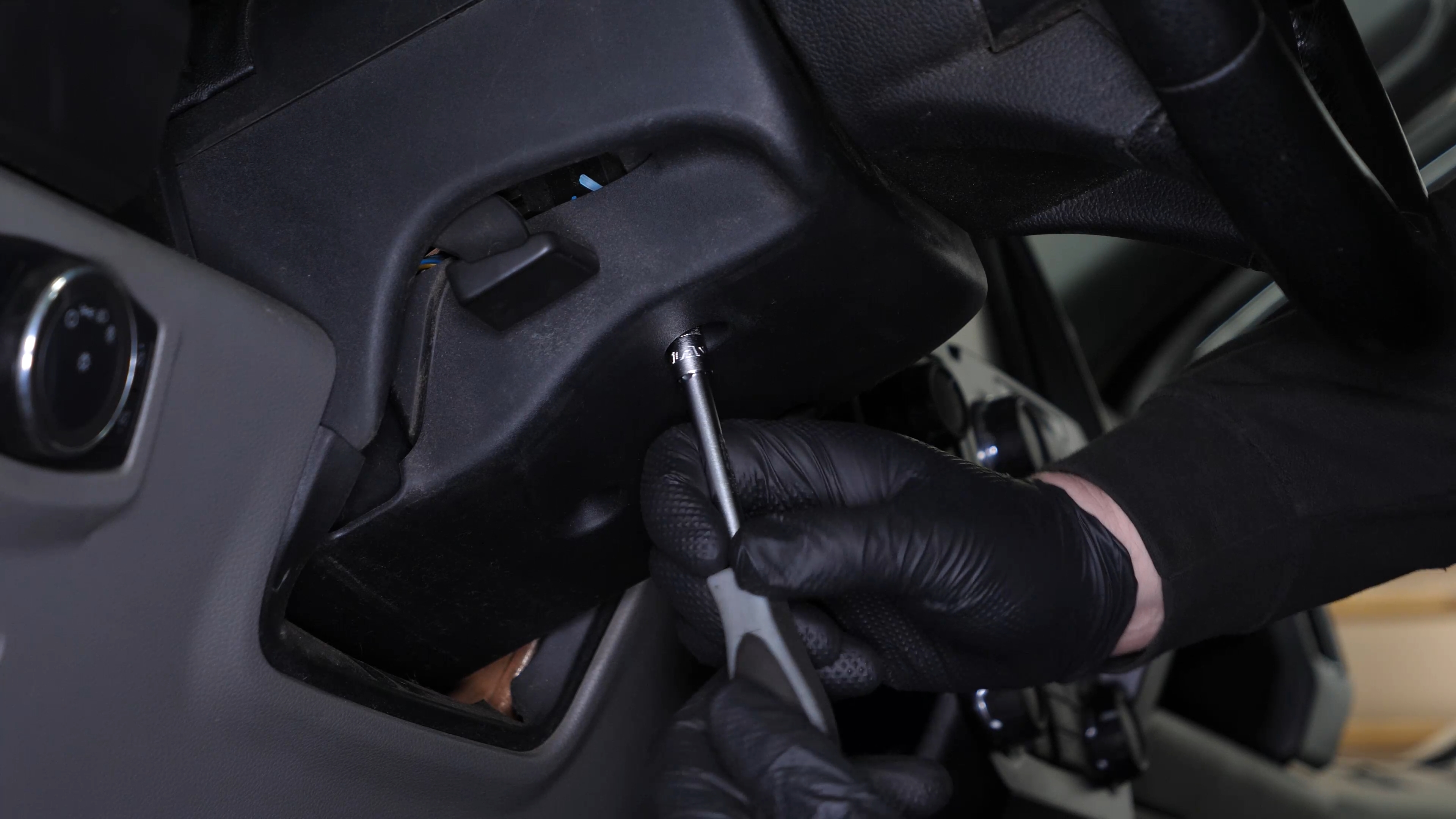

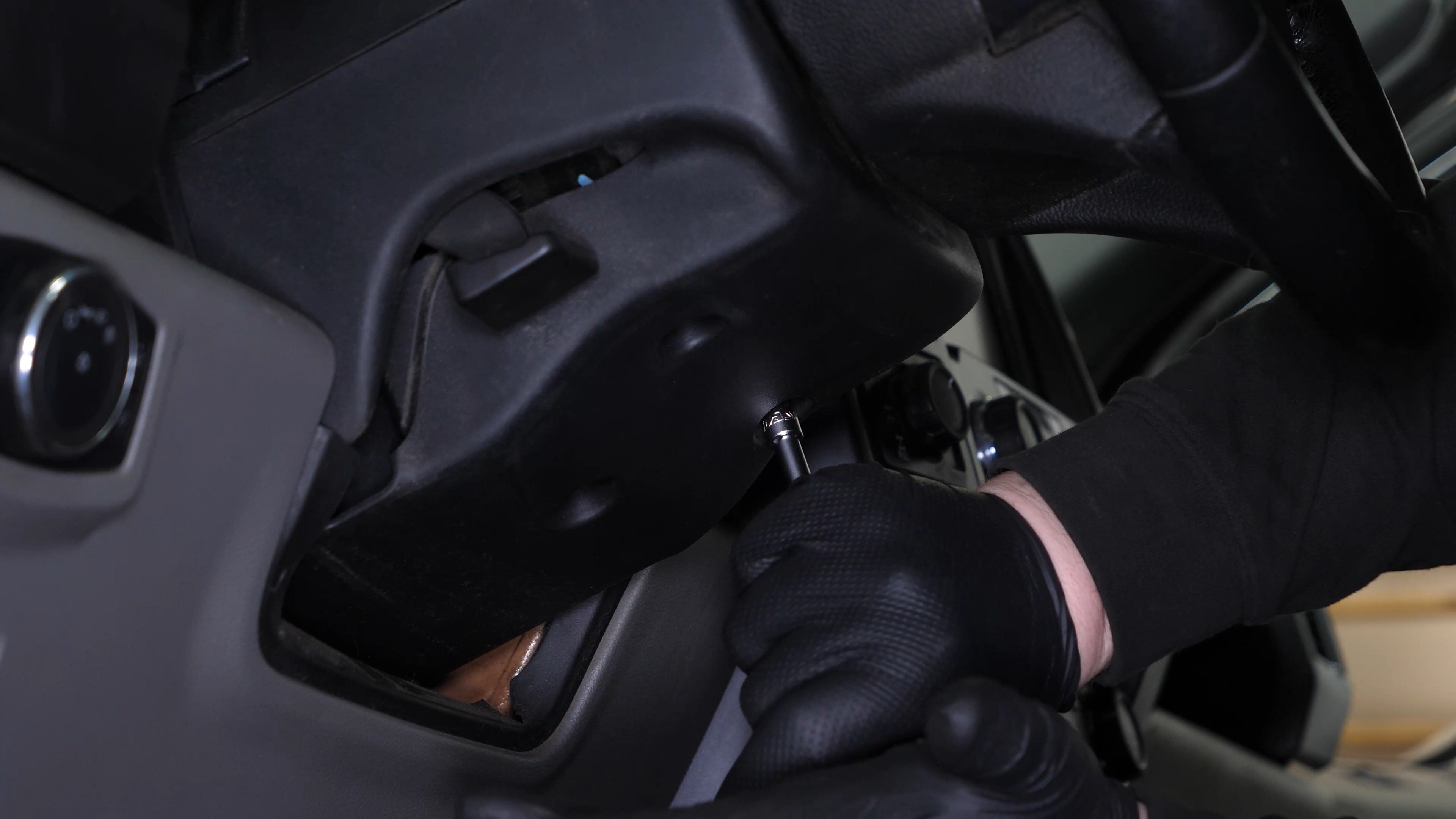

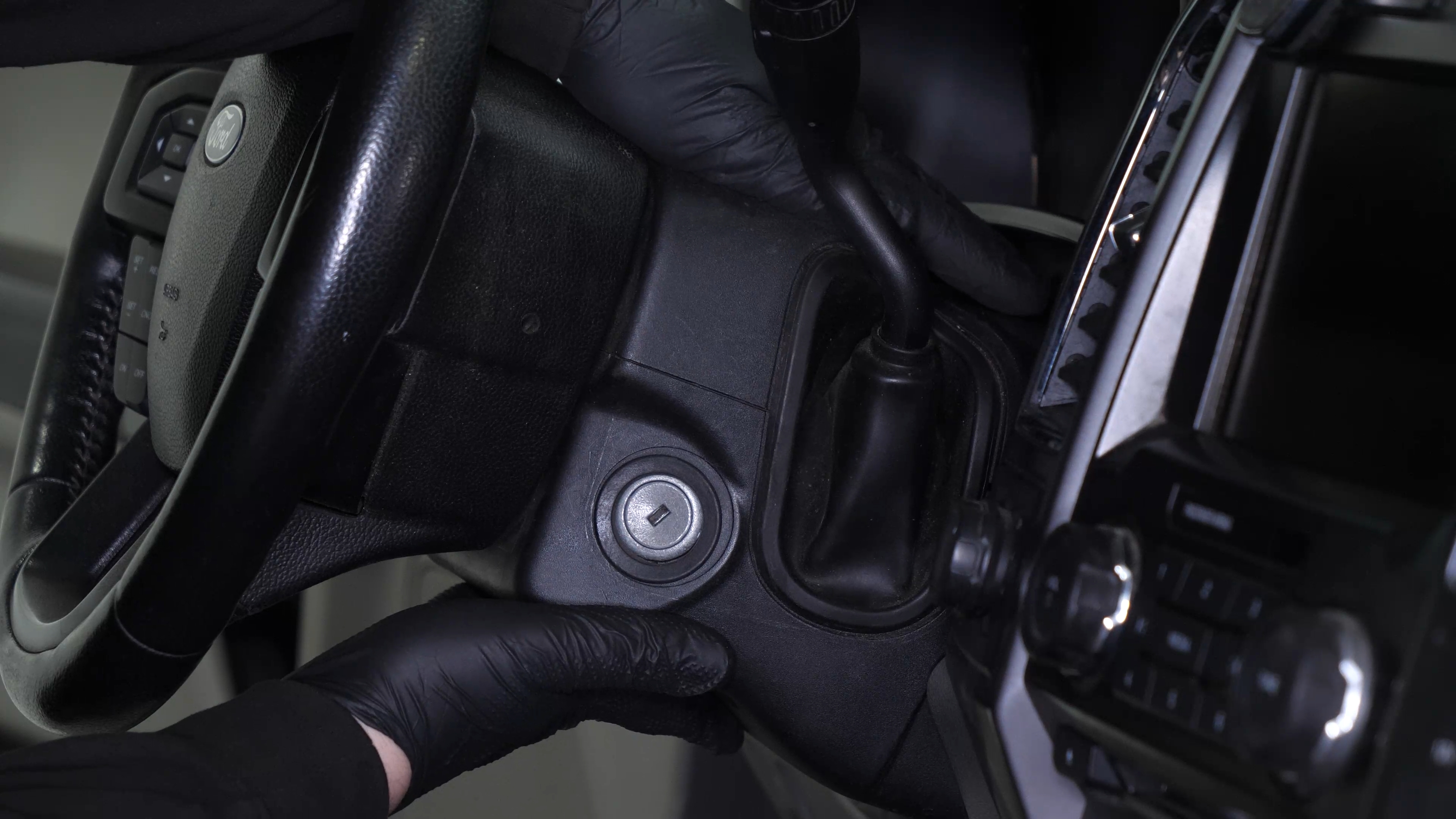

You can now clip the plastic trim back. Then, screw the 3 retaining bolts back in. You can now test your turn signal switch.
Chapter 4:
Step 2/2
Operation complete.
