How to check the fluid levels 2009-2014 Ford F-150

Chapter 1:

Tips

Step 1/2

Your truck is a set of complex elements brought together in a single system. You don’t necessarily pay attention to it since it demands little or no attention from you. But be aware that a very small malfunction can have consequences that can cost you very quickly.

Chapter 1:

Step 2/2

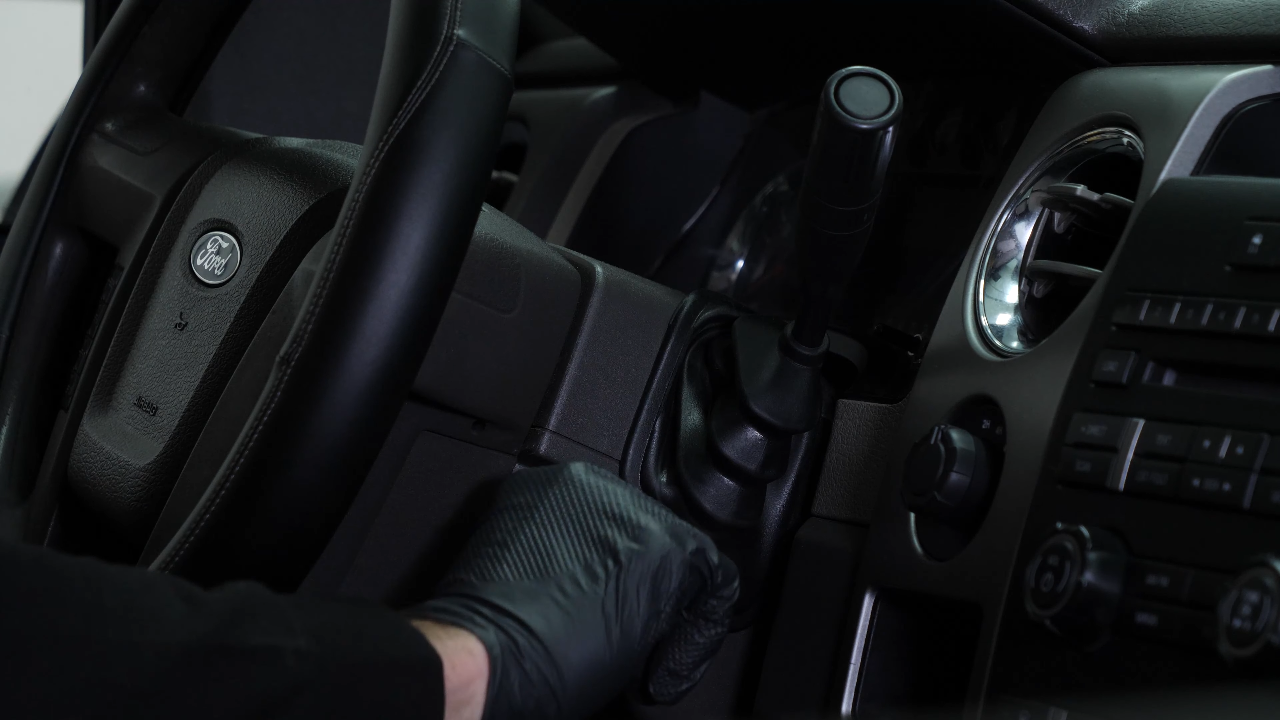

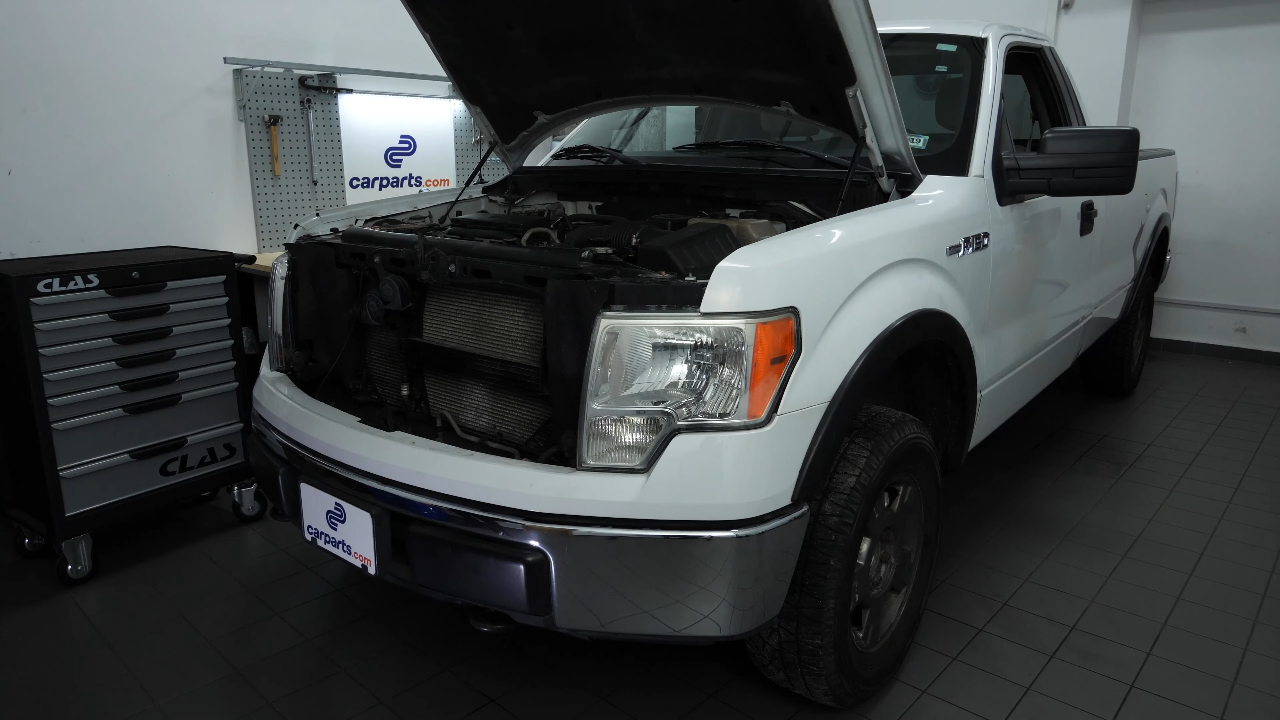

Checking your levels, paying attention to simple control elements, can help you avoid or at least warn you about reaching disproportionate expenses. Checking the levels must be carried out with the engine cold and on level ground.

Chapter 2:

Motor oil

Step 1/5

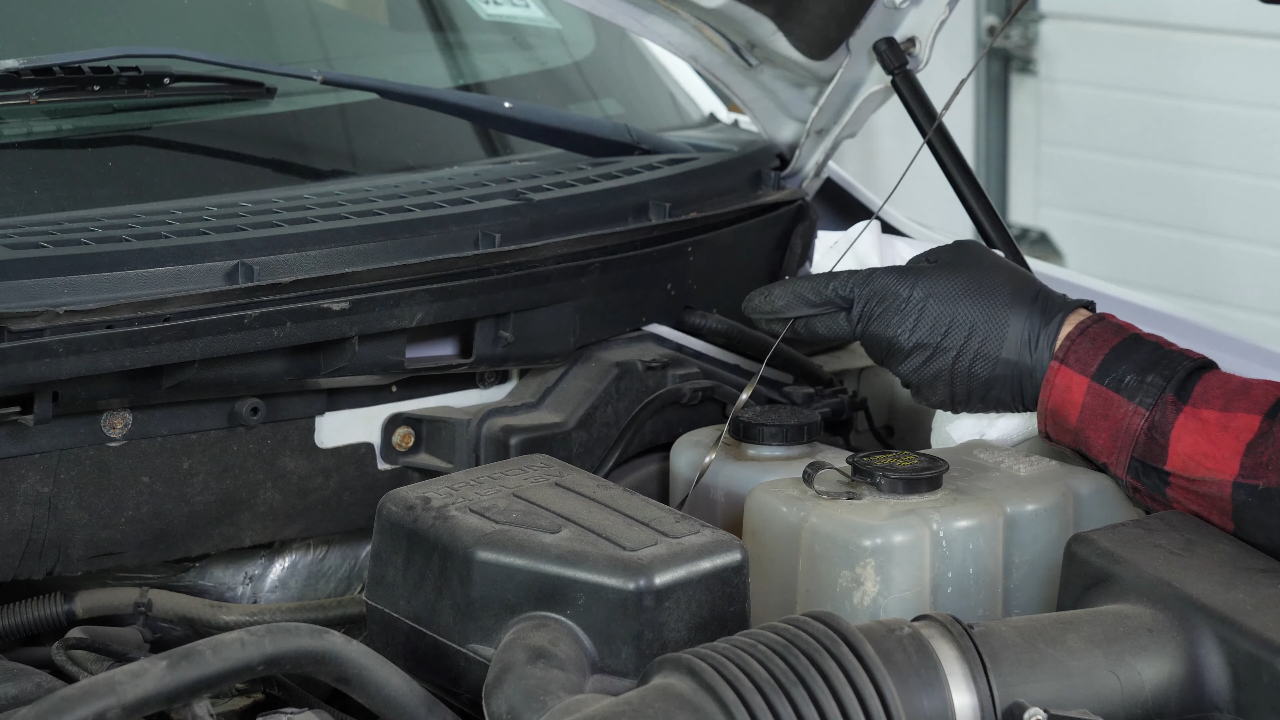

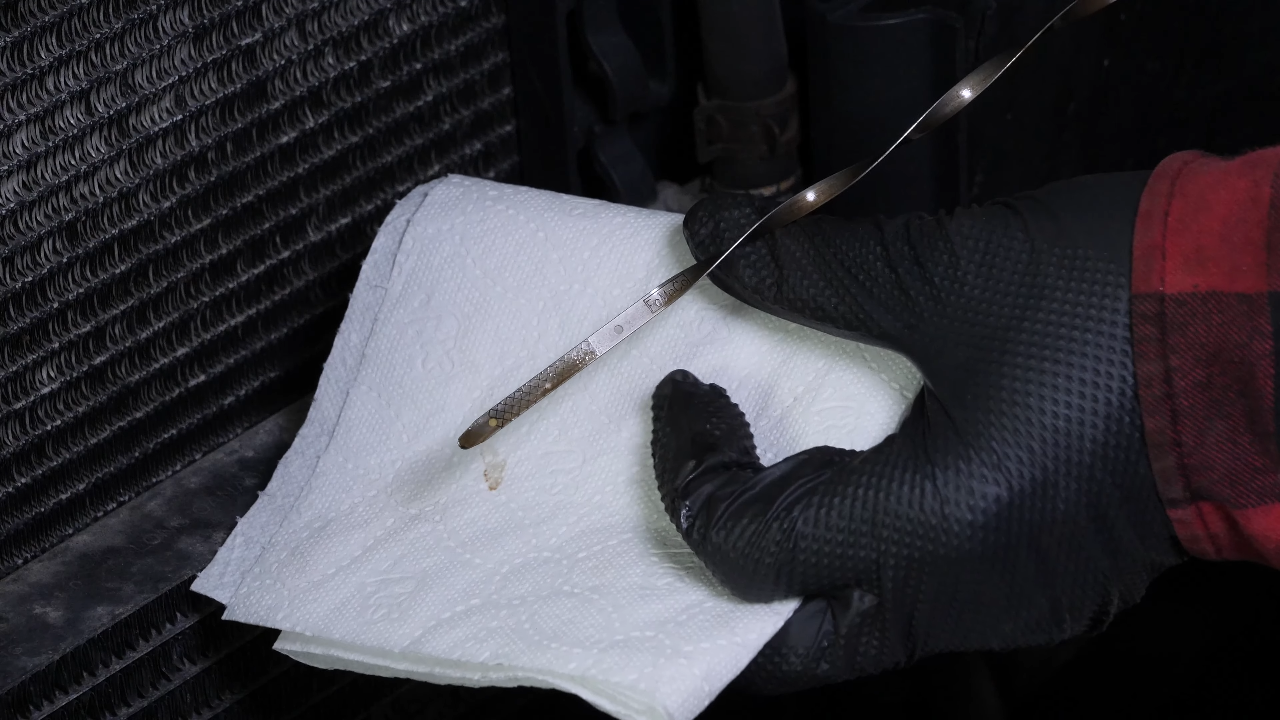

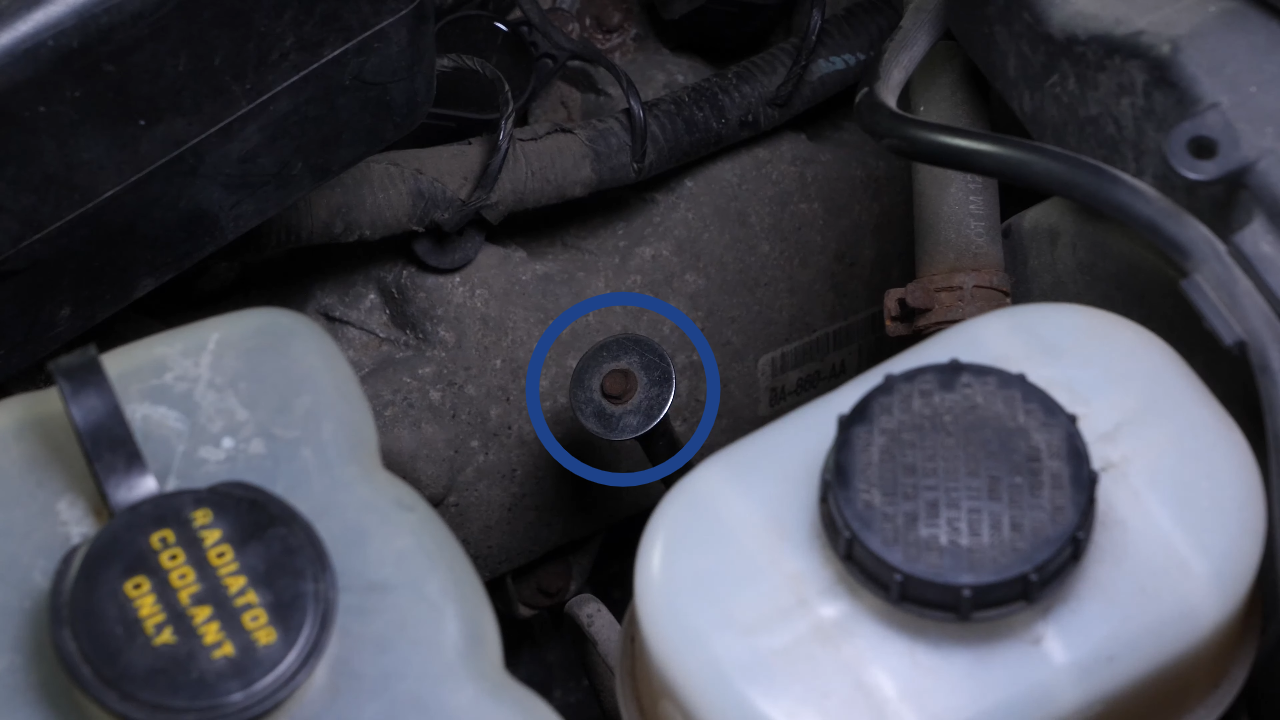

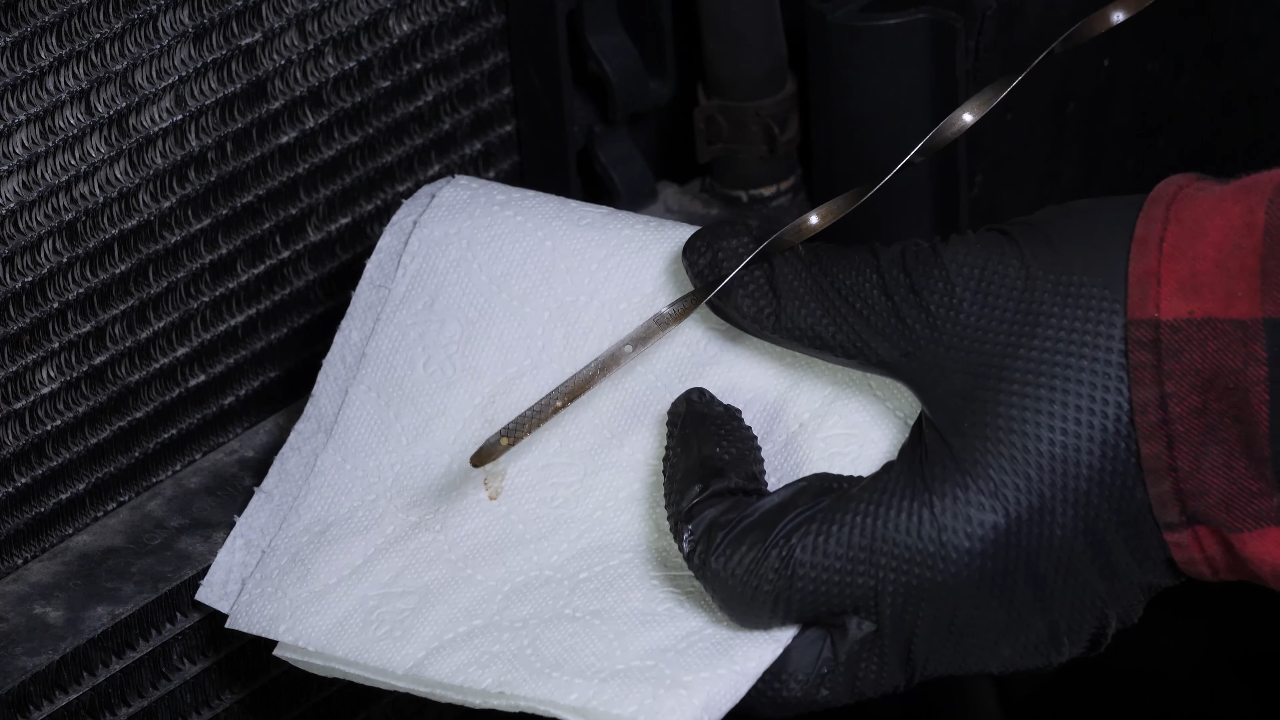

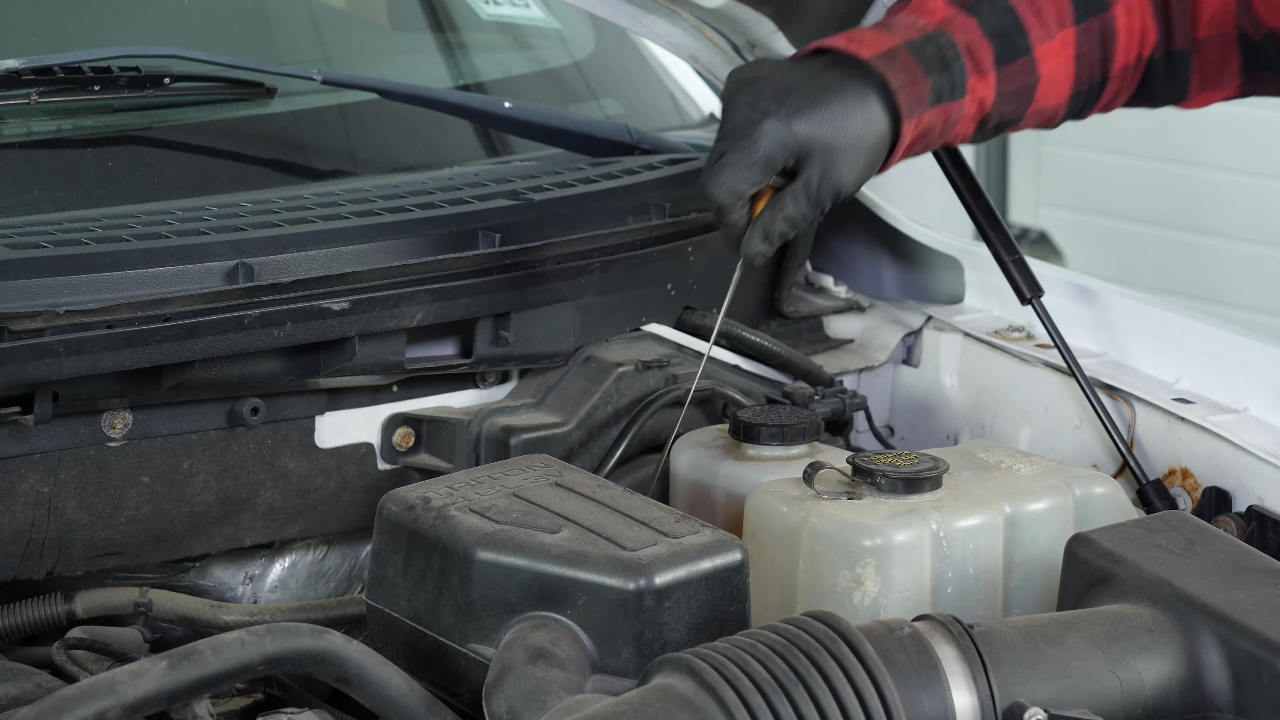

Remove the oil dipstick from its sheath. Once out, wipe it off with a paper towel.

Chapter 2:

Step 2/5

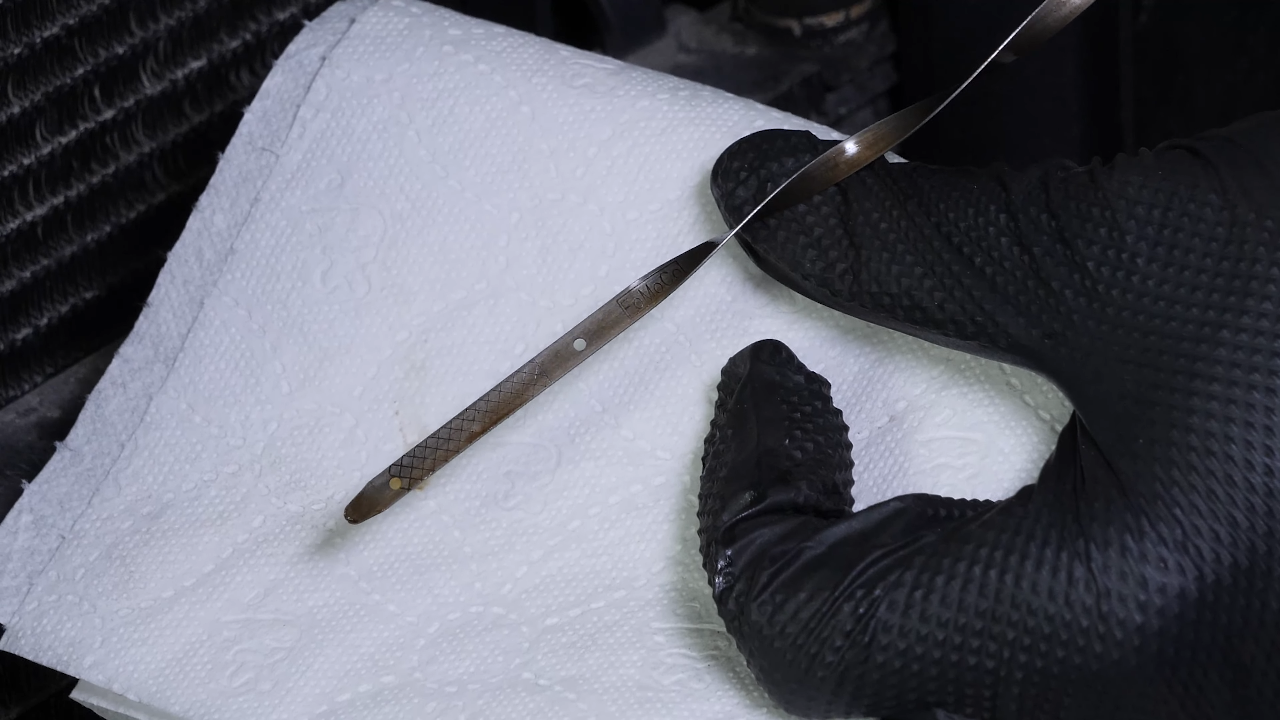

Slide it back in. And finally take it out again. Look at the gauge at the end. The gauge is ribbed at the end.

Chapter 2:

Step 3/5

This is this part that provides the image of the oil level in your engine. The latter will be considered optimal when it is located in the middle of this part.

Chapter 2:

Step 4/5

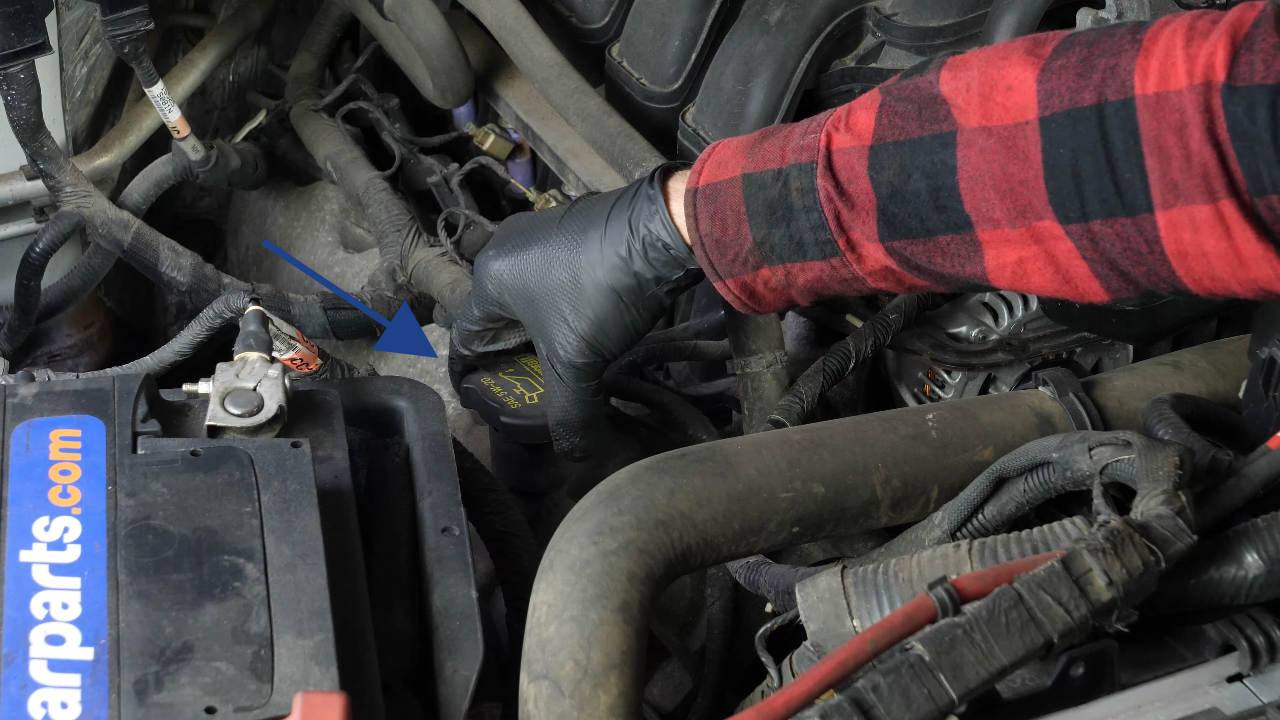

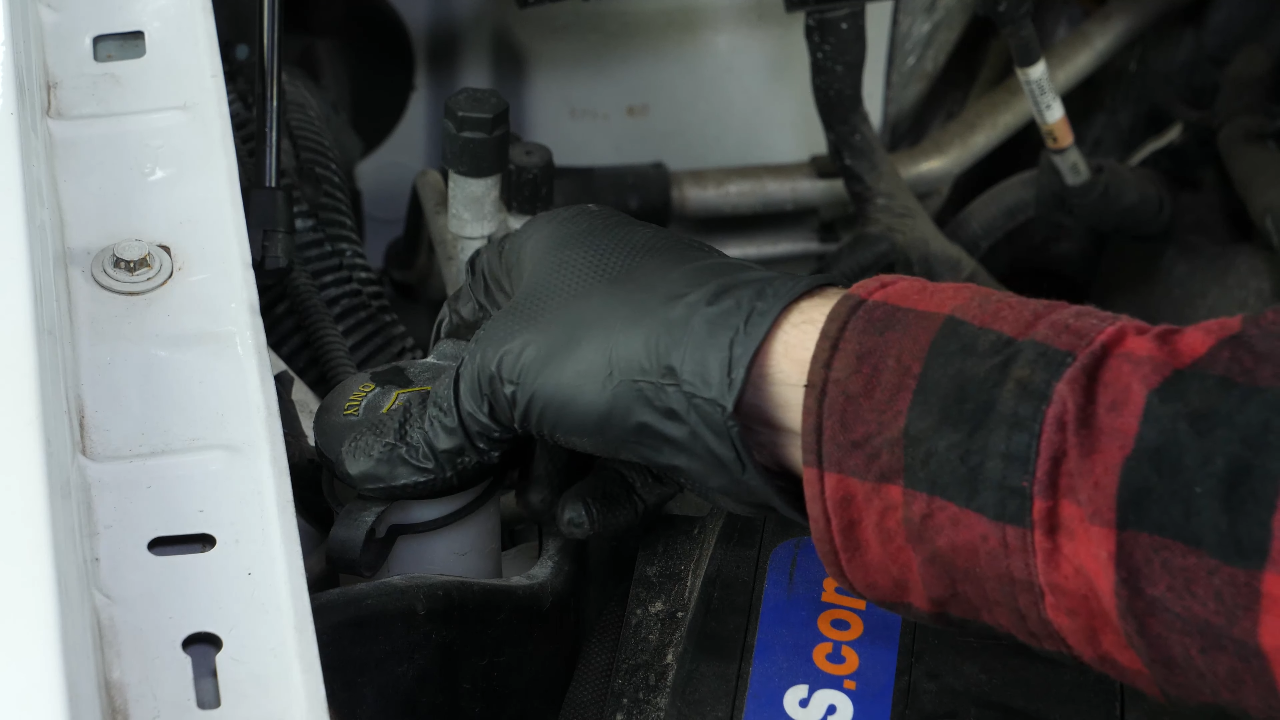

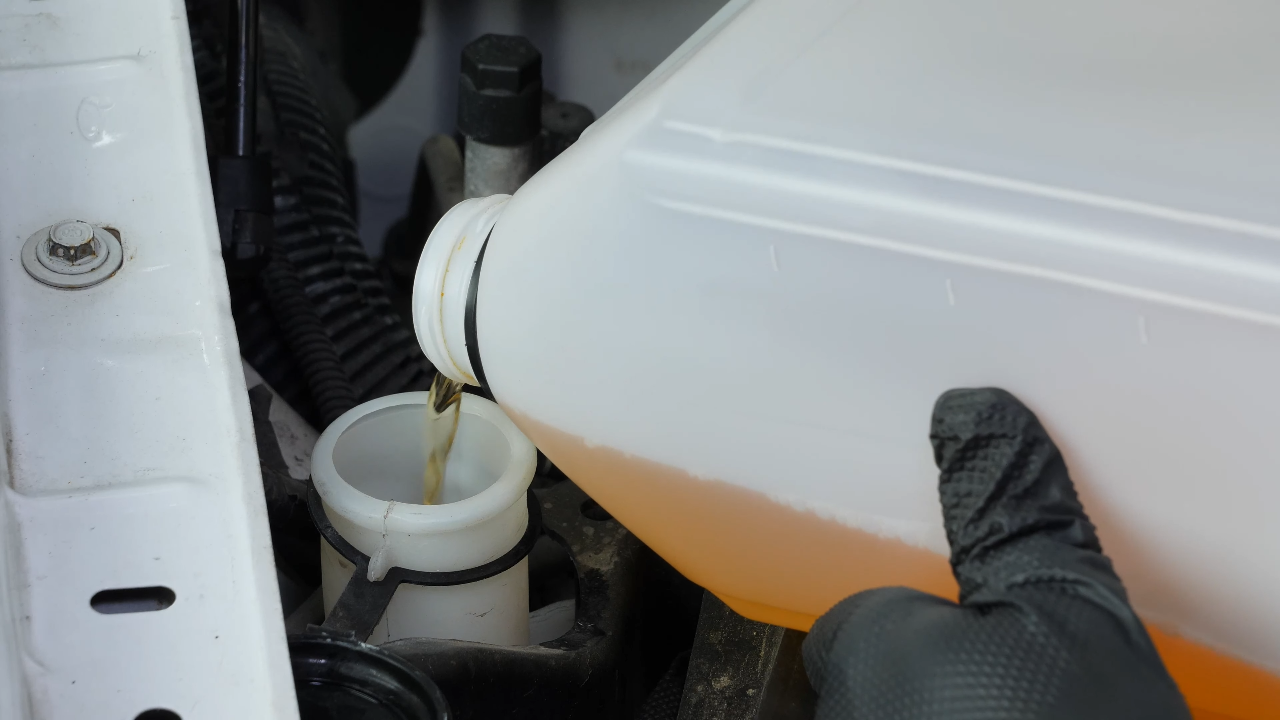

Be careful, it must not be above the maximum level. You risk engine failure. If you find that your level is low. Open the filler cap and add some oil. We are talking about a few ounces. No more.

Chapter 2:

Step 5/5

Insert your gauge again, which you will have wiped beforehand, to check the new level. Repeat the filling operation until you reach the optimal level.

Chapter 3:

Coolant

Step 1/2

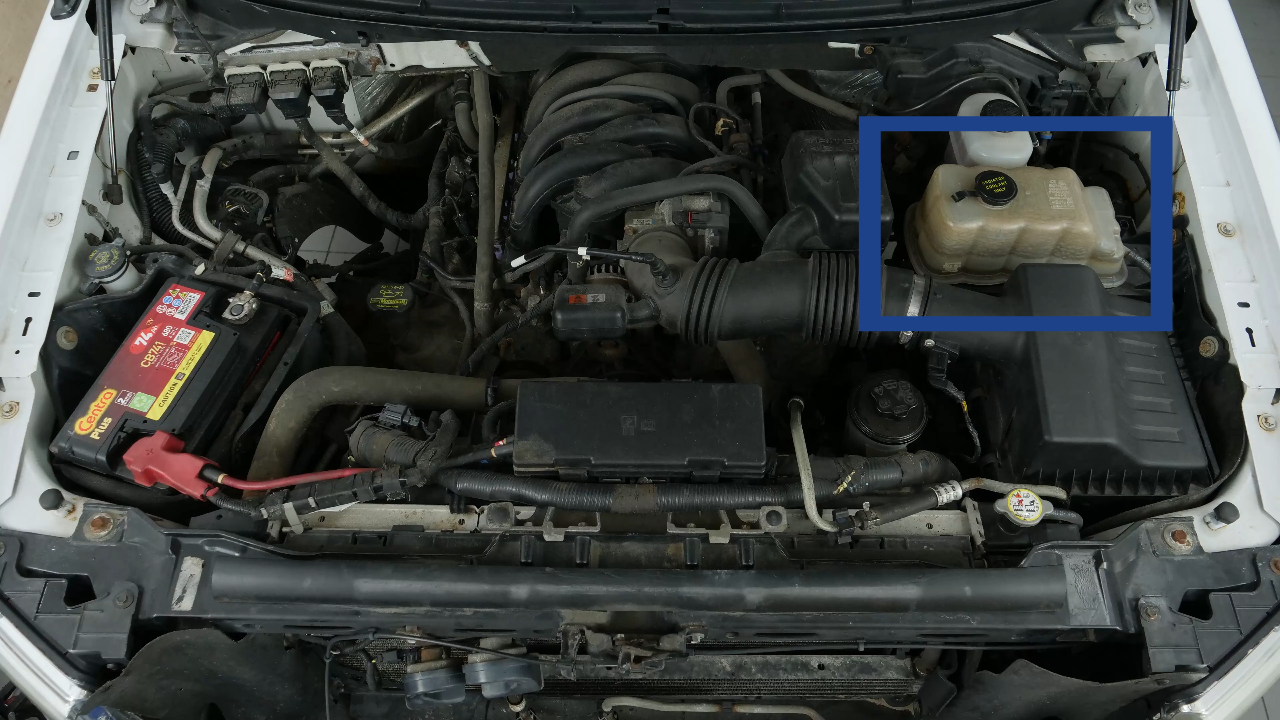

Coolant is as important as oil in an engine: VITAL. It is very important to check this level frequently.

Chapter 3:

Step 2/2

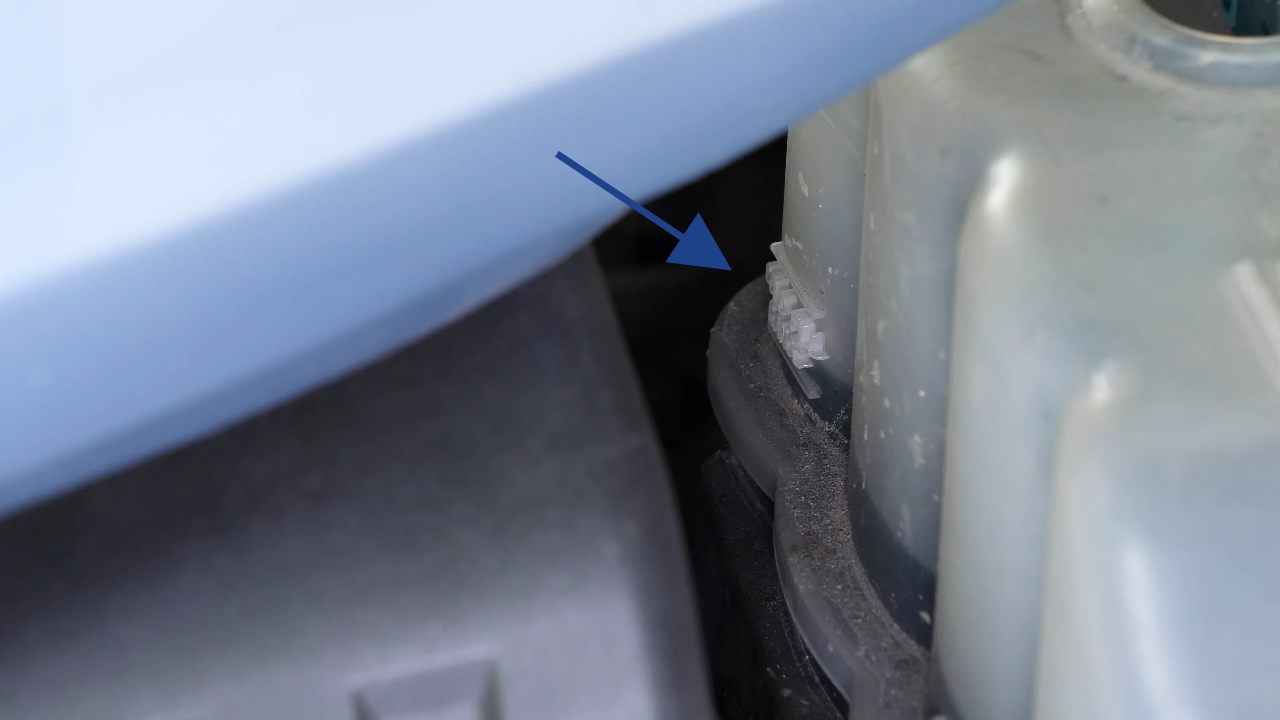

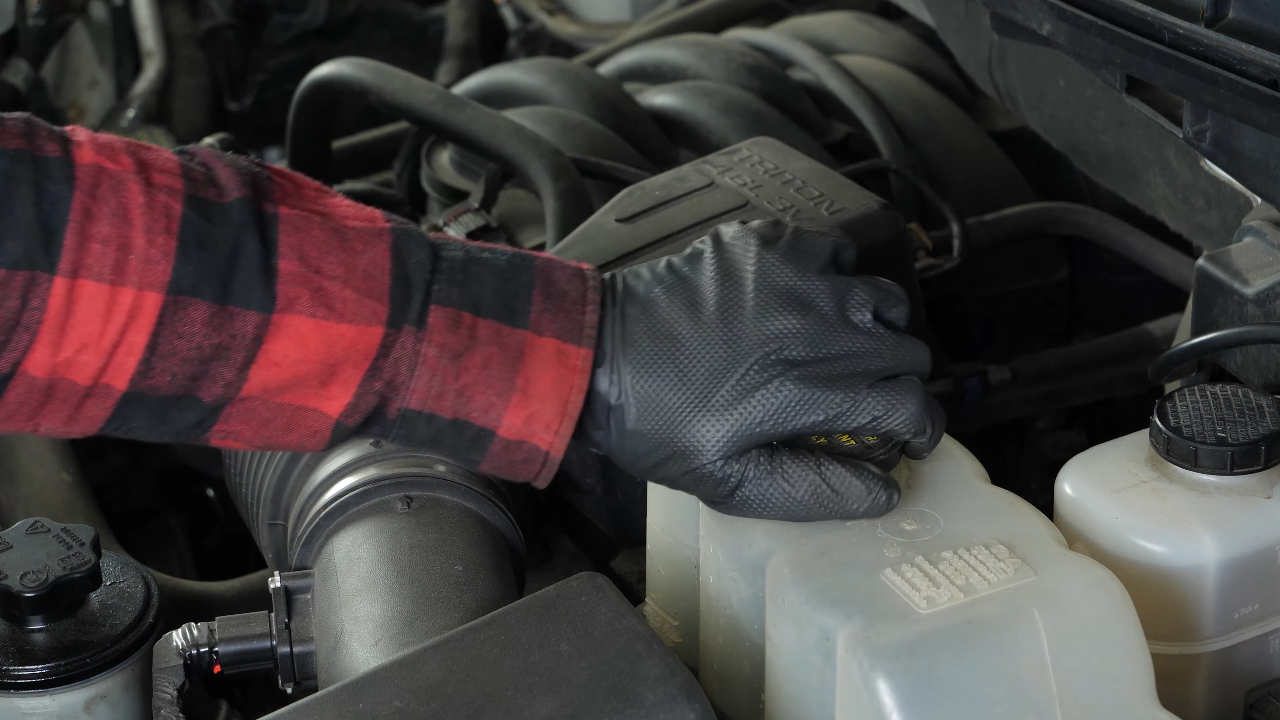

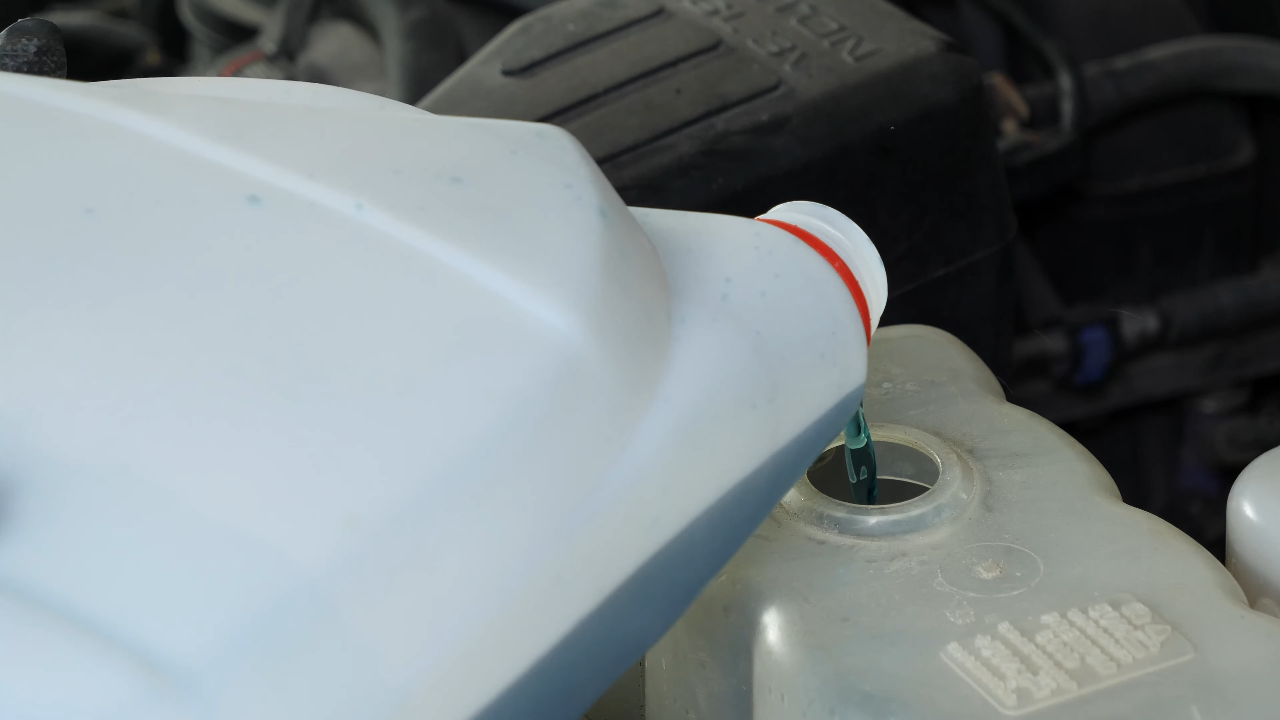

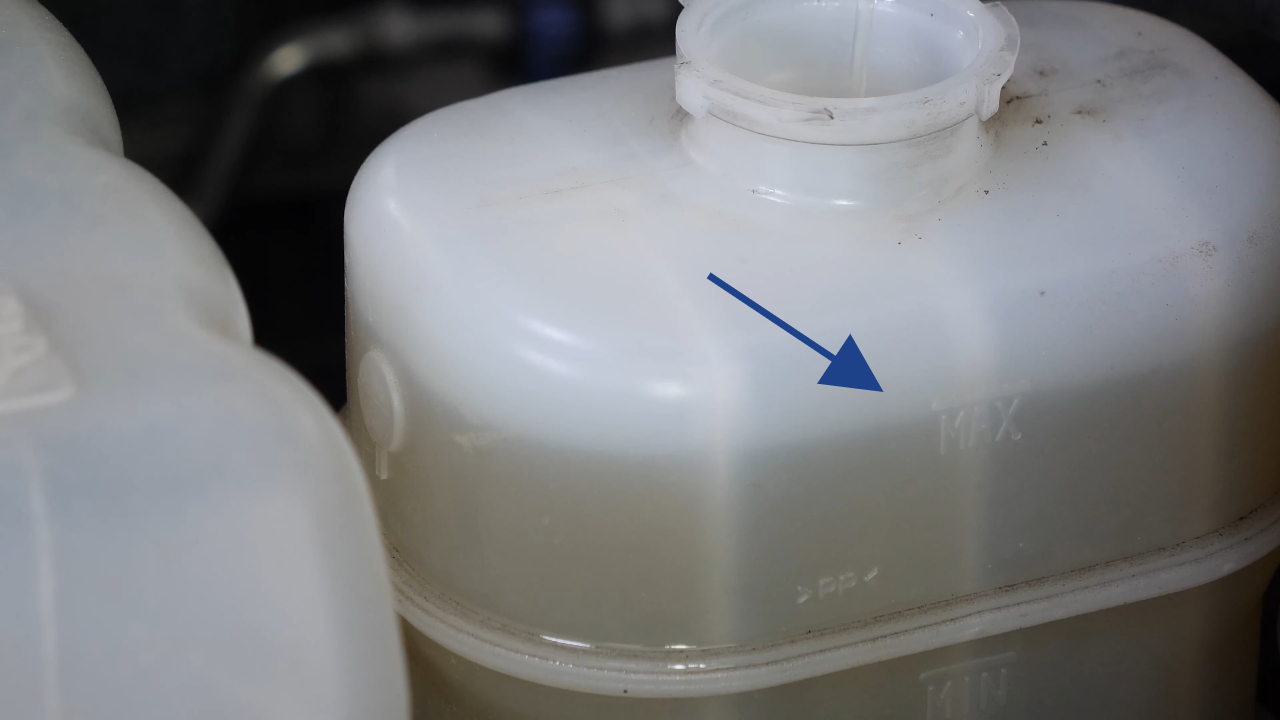

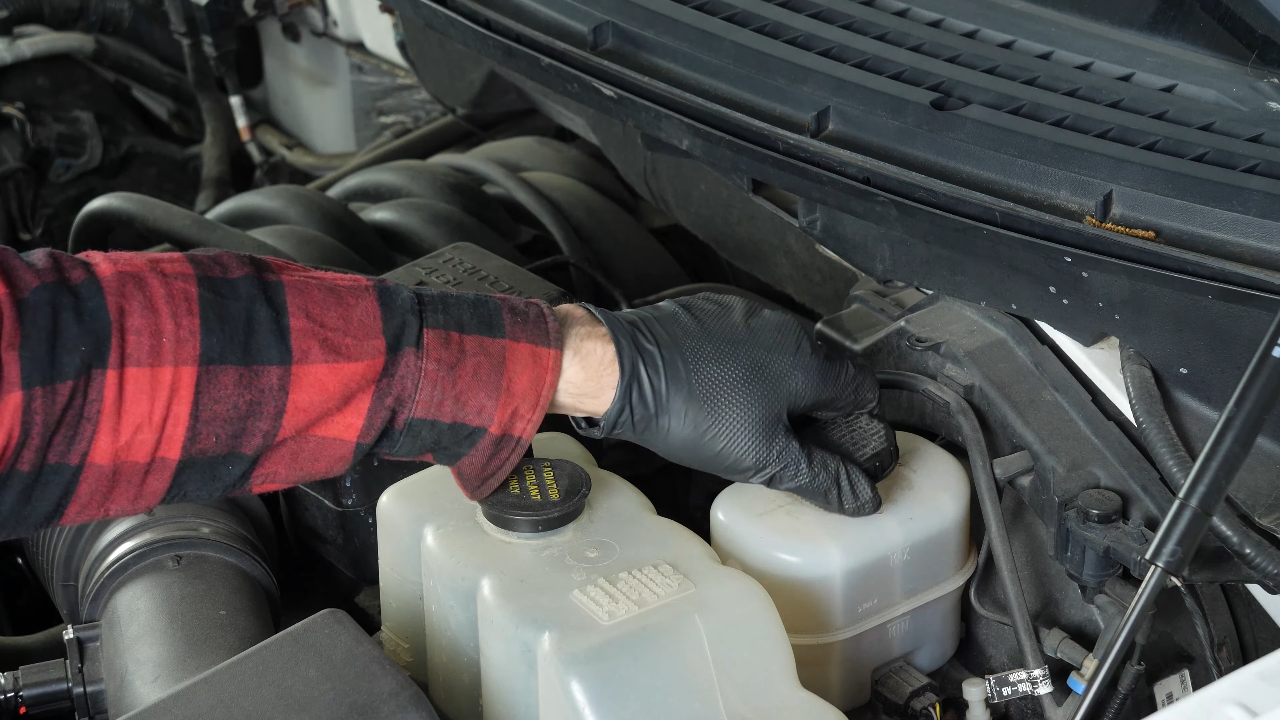

Open the expansion tank cap and fill to the maximum level. Be careful, again, to reach the maximum level indicated, but not to go above it. And especially never perform this with a hot engine.

Chapter 4:

Brake fluid

Step 1/3

The brake fluid reservoir also contains level graduations. When your level drops, this simply means wear on your brake linings.

Chapter 4:

Step 2/3

With the wear being compensated by the pistons, these come out further, and consequently enlarge the brake circuit, allowing it to accommodate more fluid. The wear being compensated by the pistons is what causes the level to drop.

Chapter 4:

Step 3/3

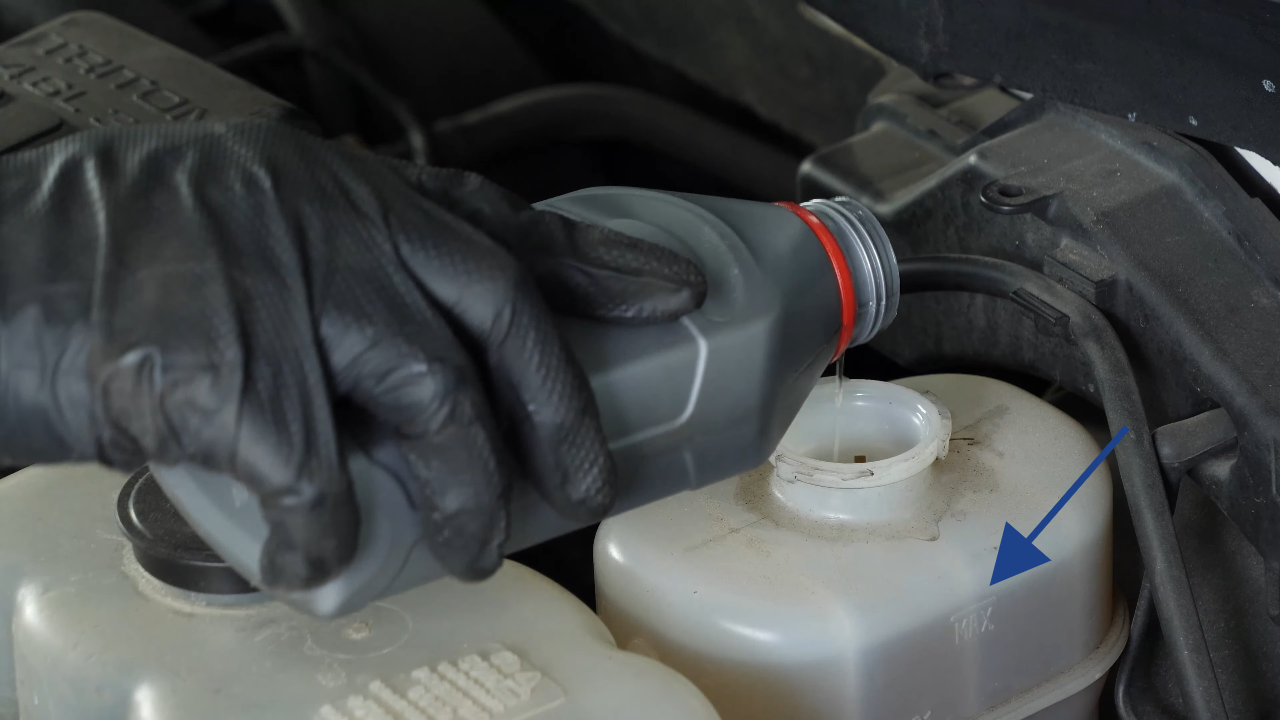

If the level is below the maximum, correct it by adding fluid.

Chapter 5:

Washer pump fluid

Step 1/2

Also take advantage of this time to add washer pump fluid to the tank, which helps keep the windshield and rear window clean. It is an important safety element to keep a clean, unobstructed field of vision.

Chapter 5:

Step 2/2

This operation must be carried out on a regular basis in order to keep your vehicle functioning optimally. Operation complete.
