How to replace the hood lift supports 2009-2014 Ford F-150
To replace the hood lift supports on your F-150 just follow the steps. You will be asked to open the hood, remove the hood lift support, install the new hood lift support and other steps you’ll need to follow in the correct order. You can carry out this tutorial of 4 chapters in 20 minutes. Take your broom and your thin flat head screwdriver and let’s get started!
Duration
20 minutes
Number of steps
4
Difficulty out of 5
1
Average savings
$30
Parts You Will Need
Tools You Will Need
Step-by-Step Installation
Chapter 1:
Open the hood
Step 1/1

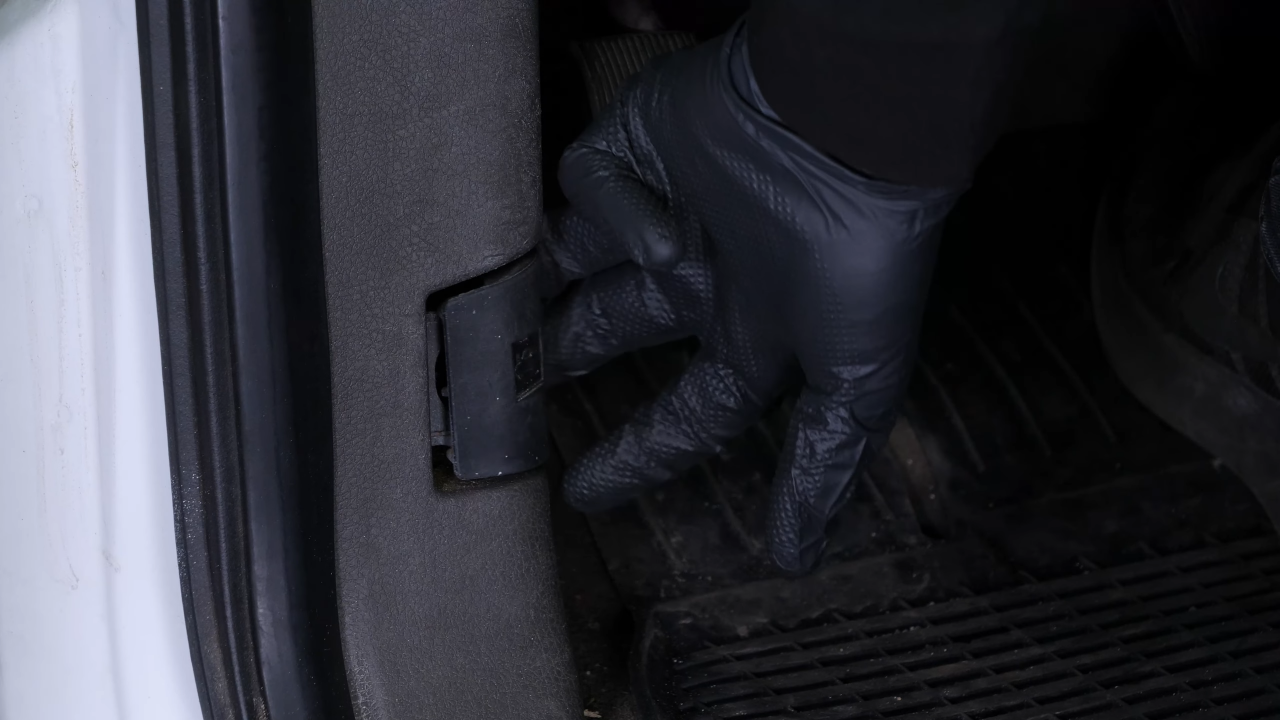

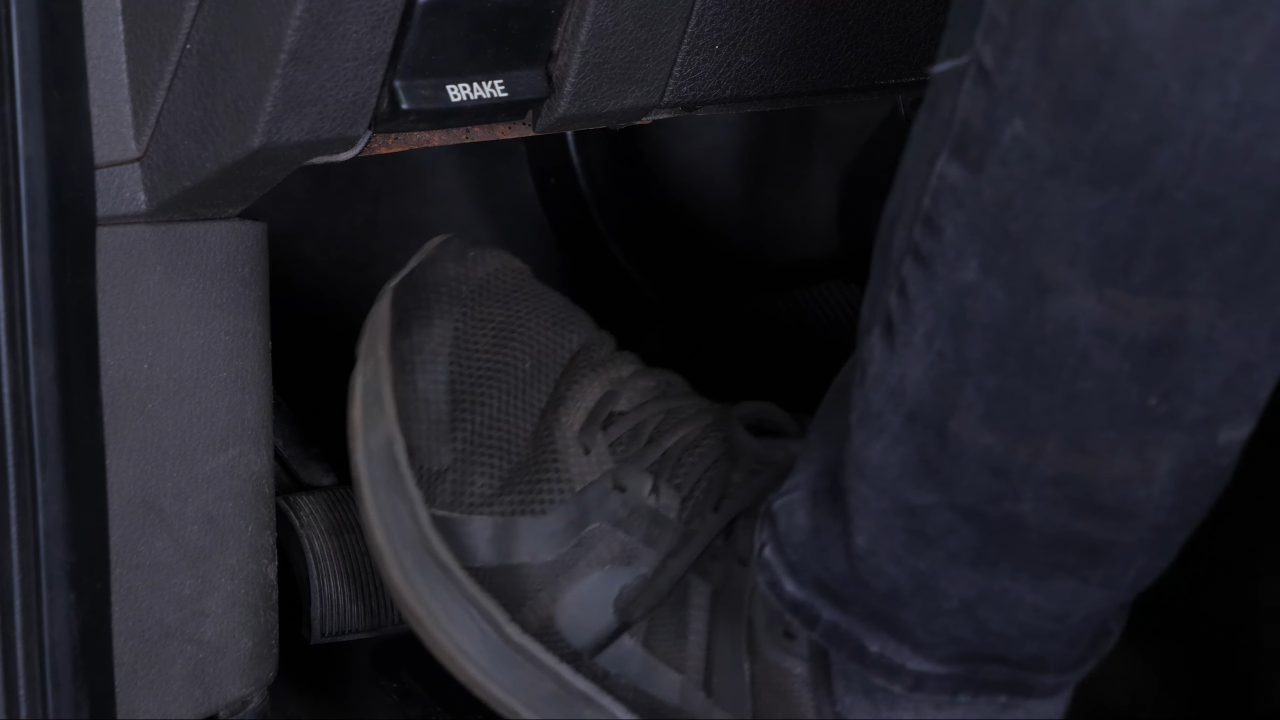

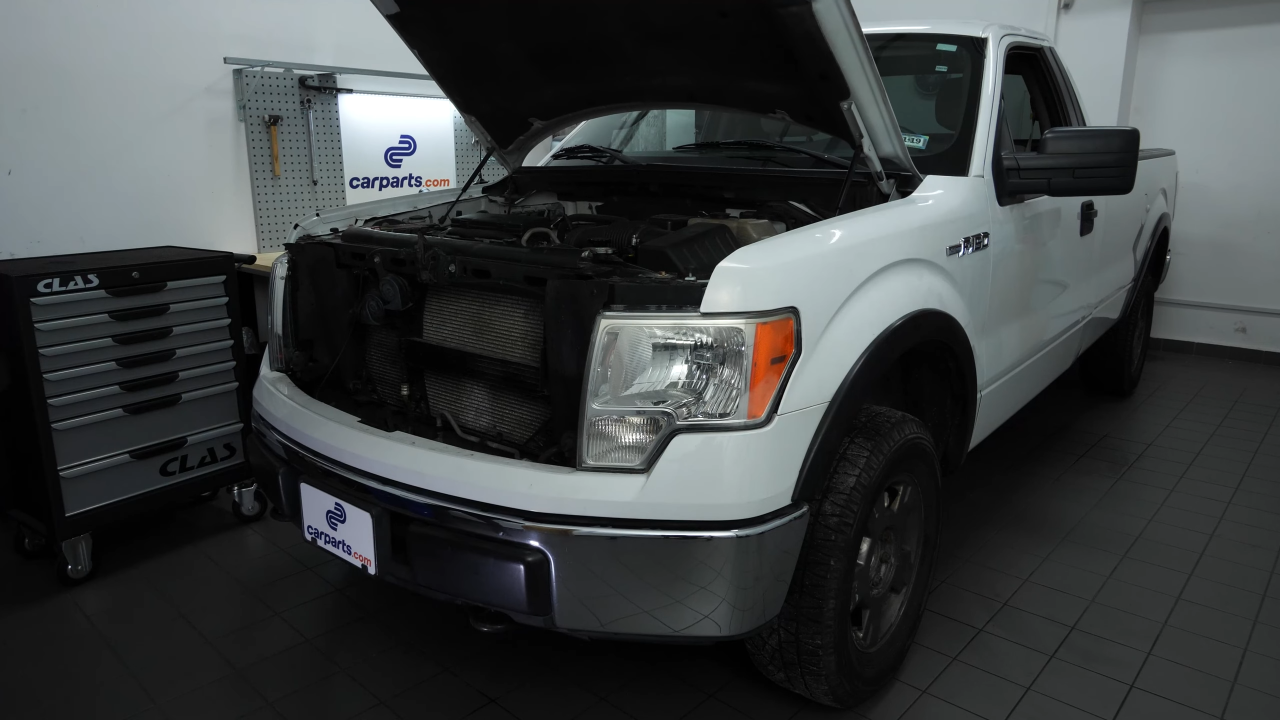

Turn off your vehicle’s ignition, set the parking brake, pull the hood release handle and open the hood.
Chapter 2:
Tips
Step 1/2
For more security, we advise changing both hood lift supports.
Chapter 2:
Step 2/2

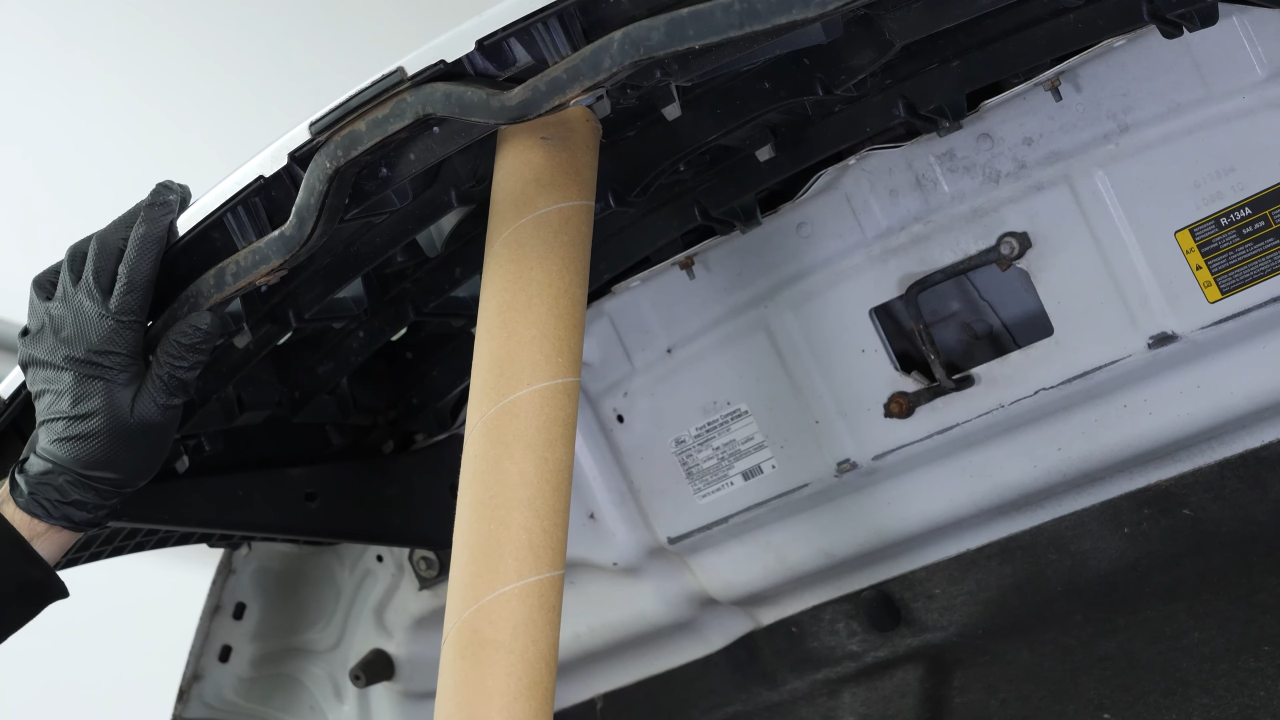

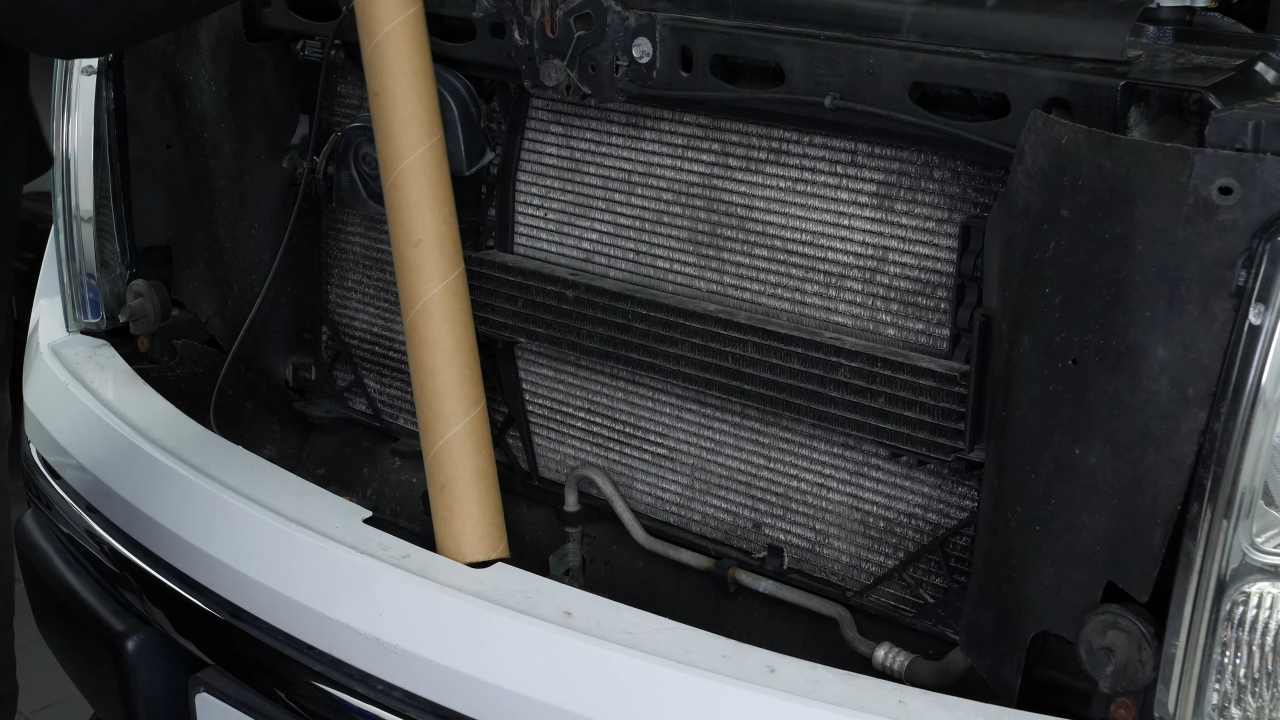

To ensure that the hood stays open, use a large enough prop so that the hood lift supports are fully extended.
Chapter 3:
Remove the hood lift support
Step 1/3

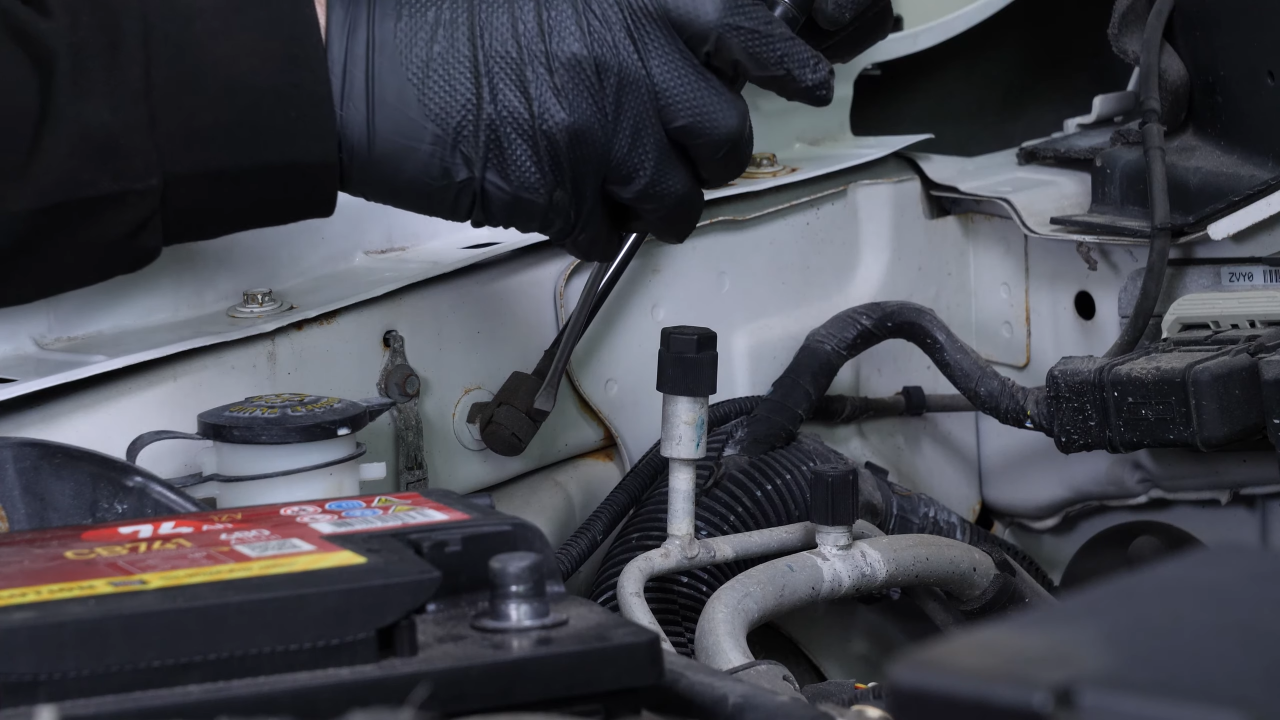

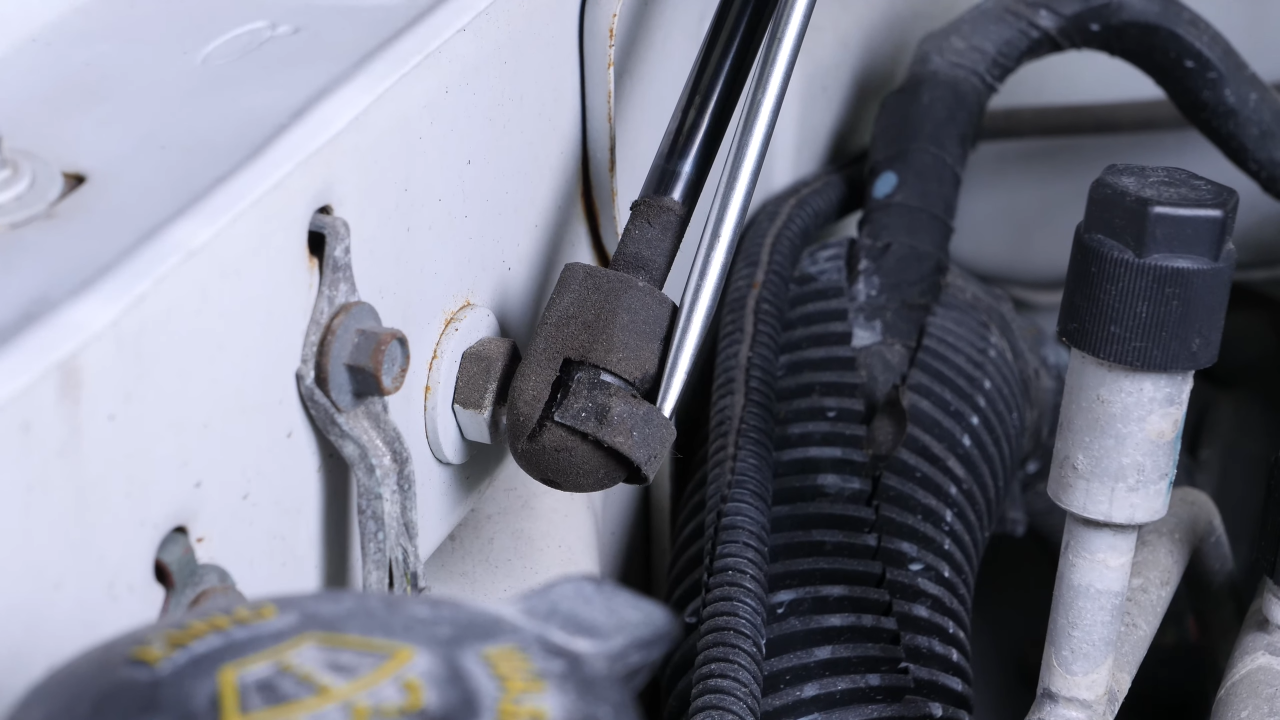

Using a thin flathead screwdriver, lift the clip at the bottom of the hood lift support that holds the hood lift support in the notch.
Chapter 3:
Step 2/3

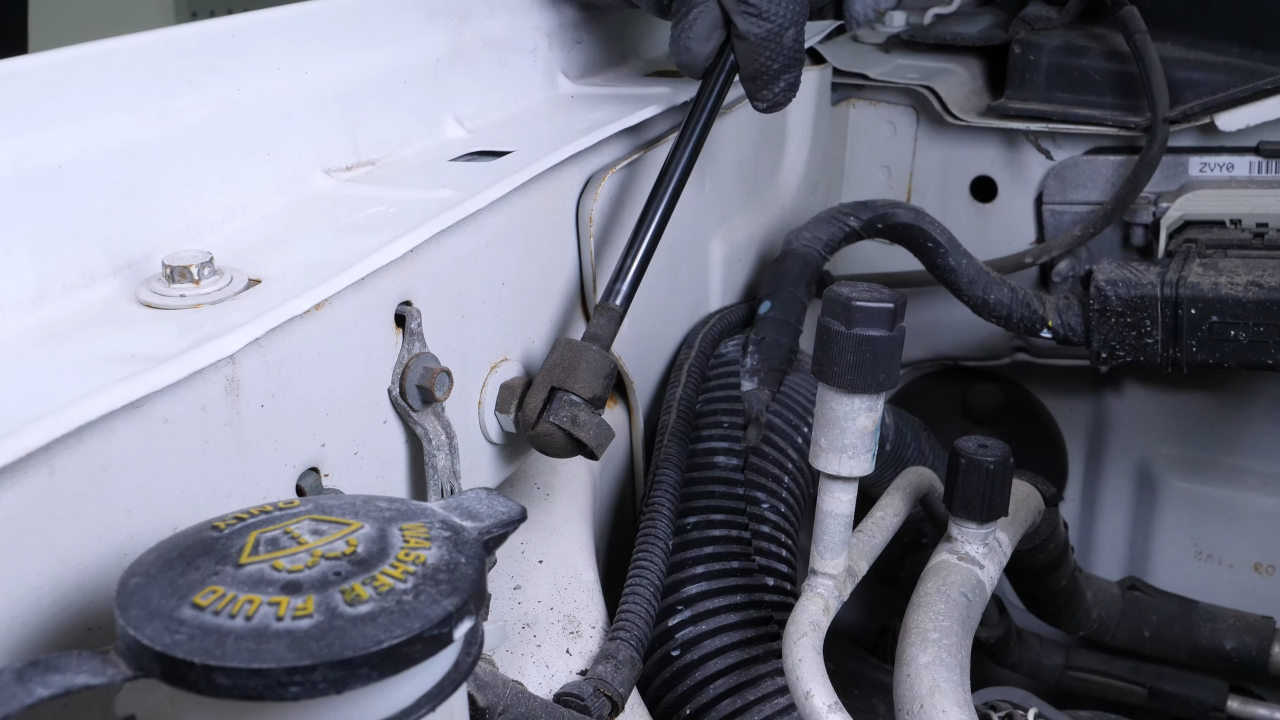

Repeat this step at the top.
Chapter 3:
Step 3/3

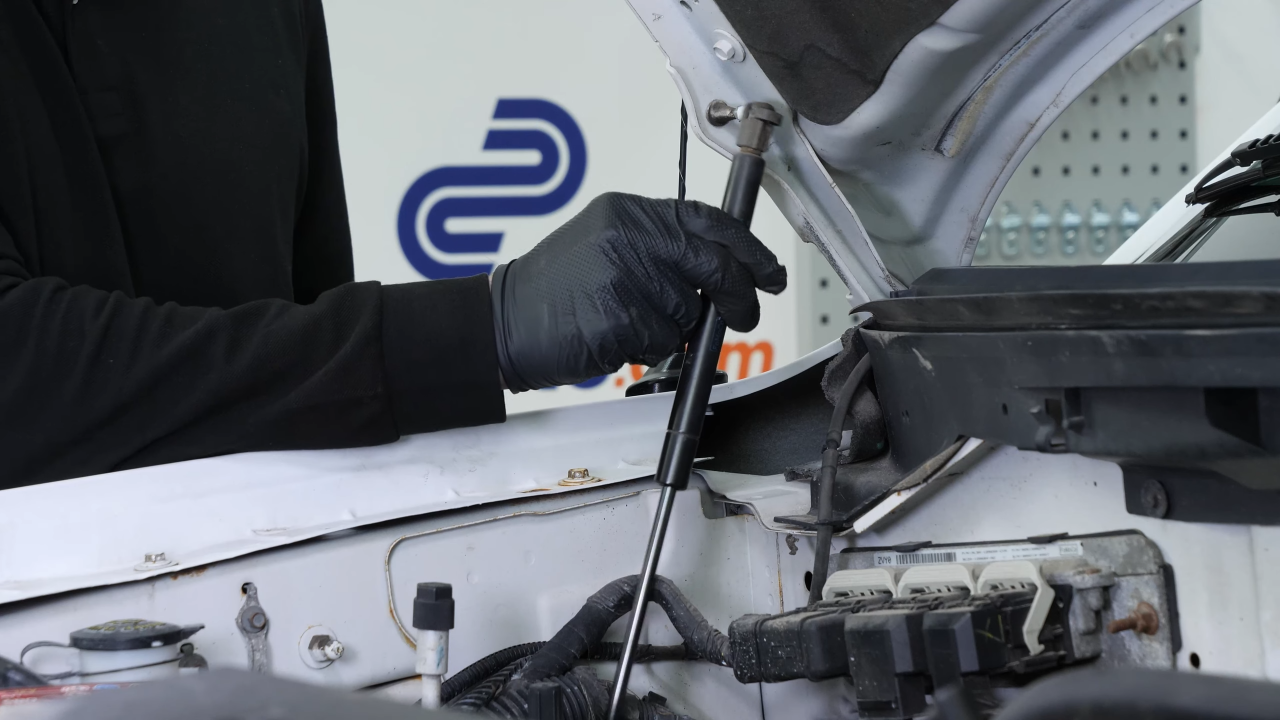

Then take out the hood lift support.
Chapter 4:
Install the new hood lift support
Step 1/6

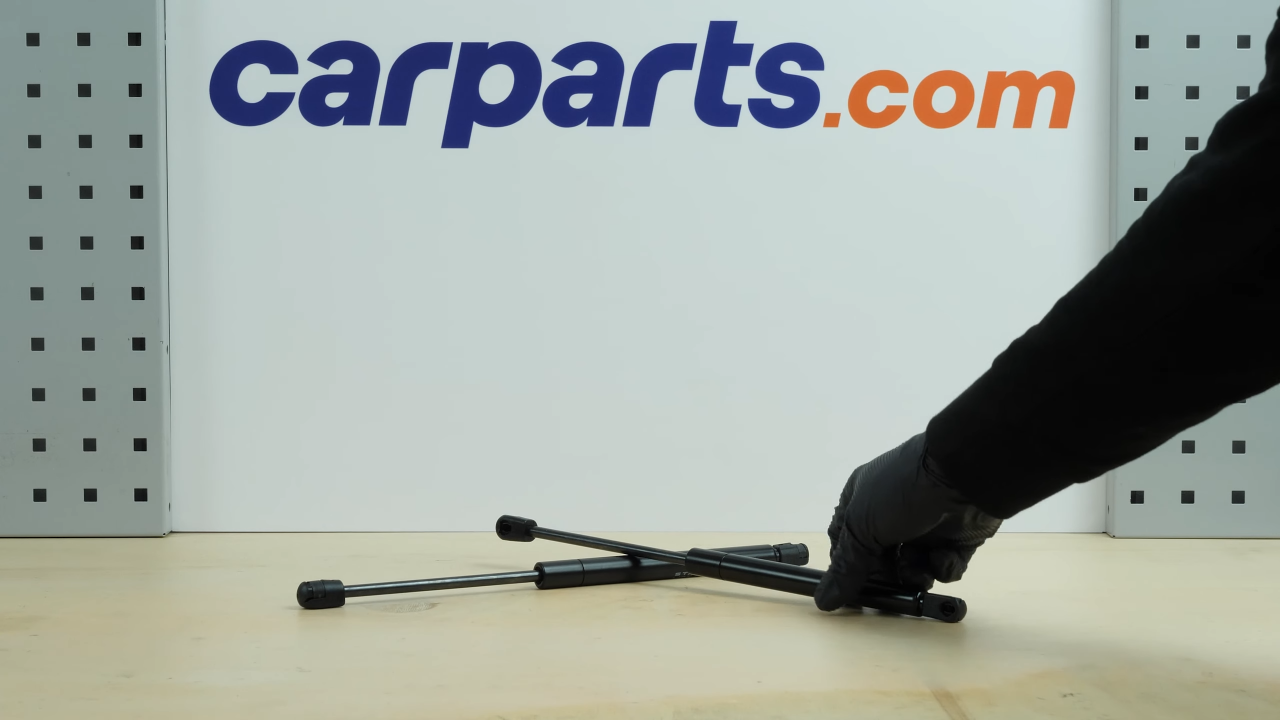

Take your hood lift support.
Chapter 4:
Step 2/6

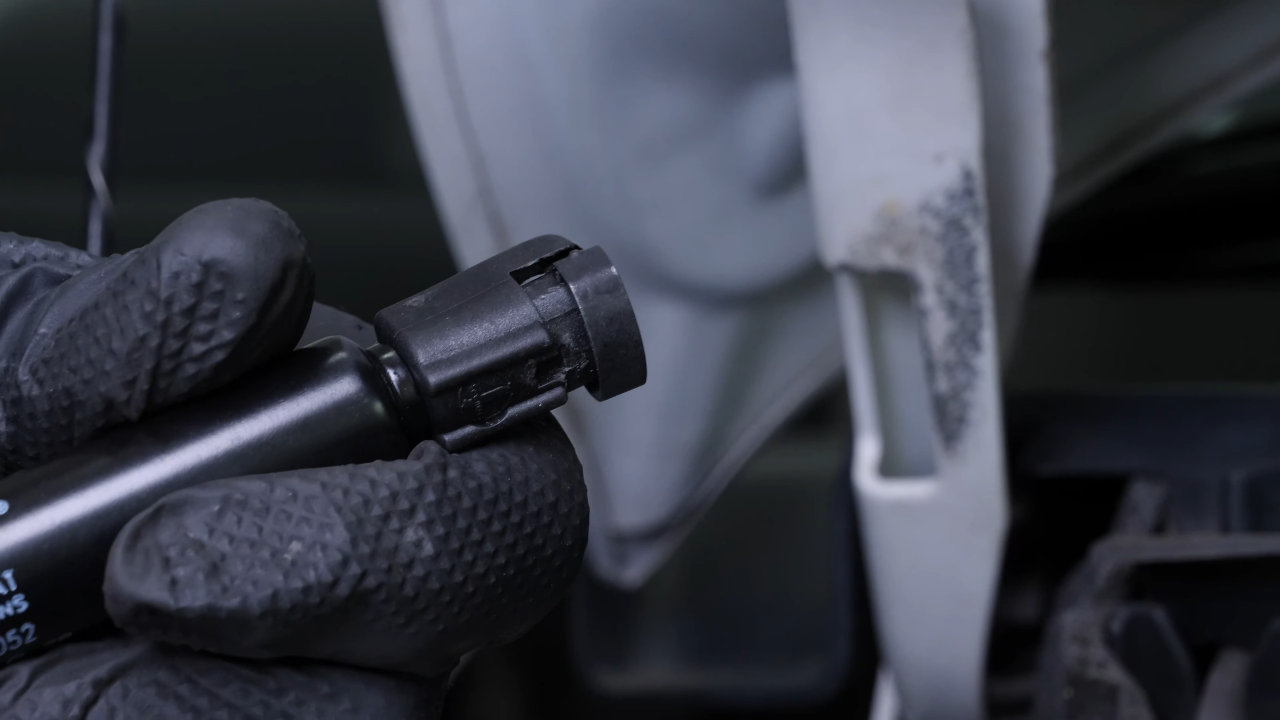

Lift the clips on both sides of the hood lift support as far as possible.
Chapter 4:
Step 3/6

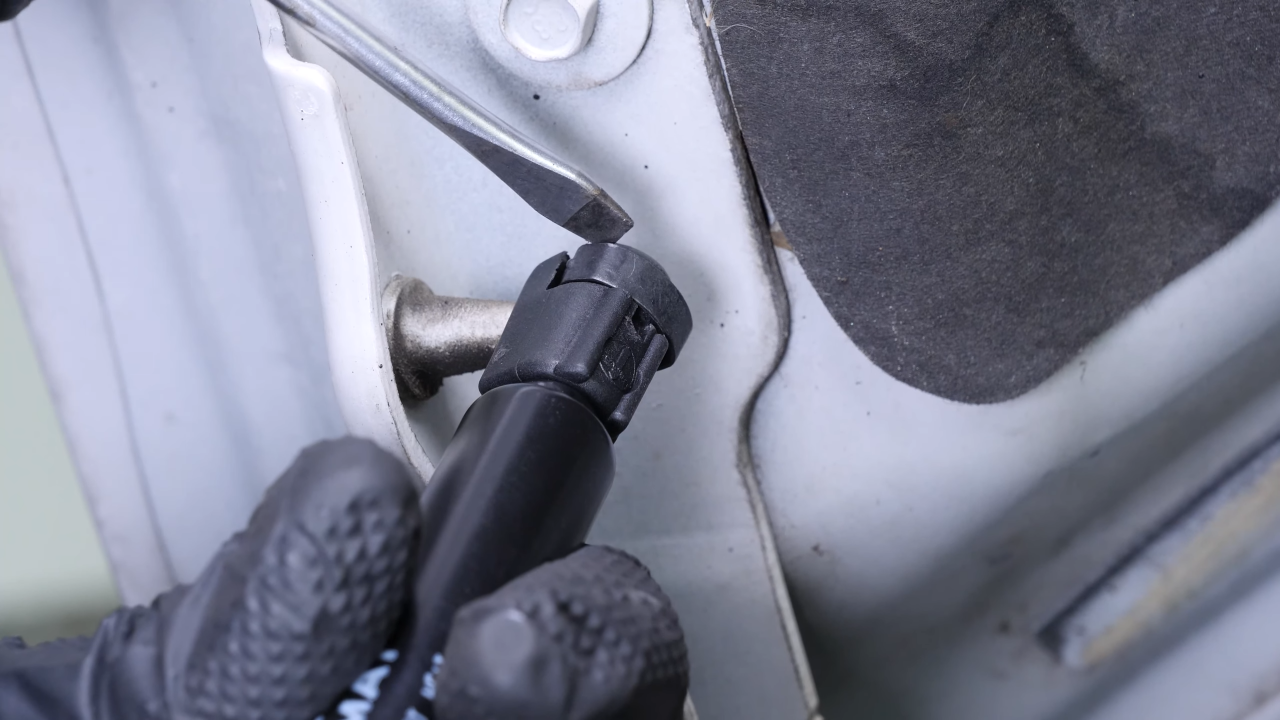

Insert the hood lift support at the top, then lock the clip.
Chapter 4:
Step 4/6

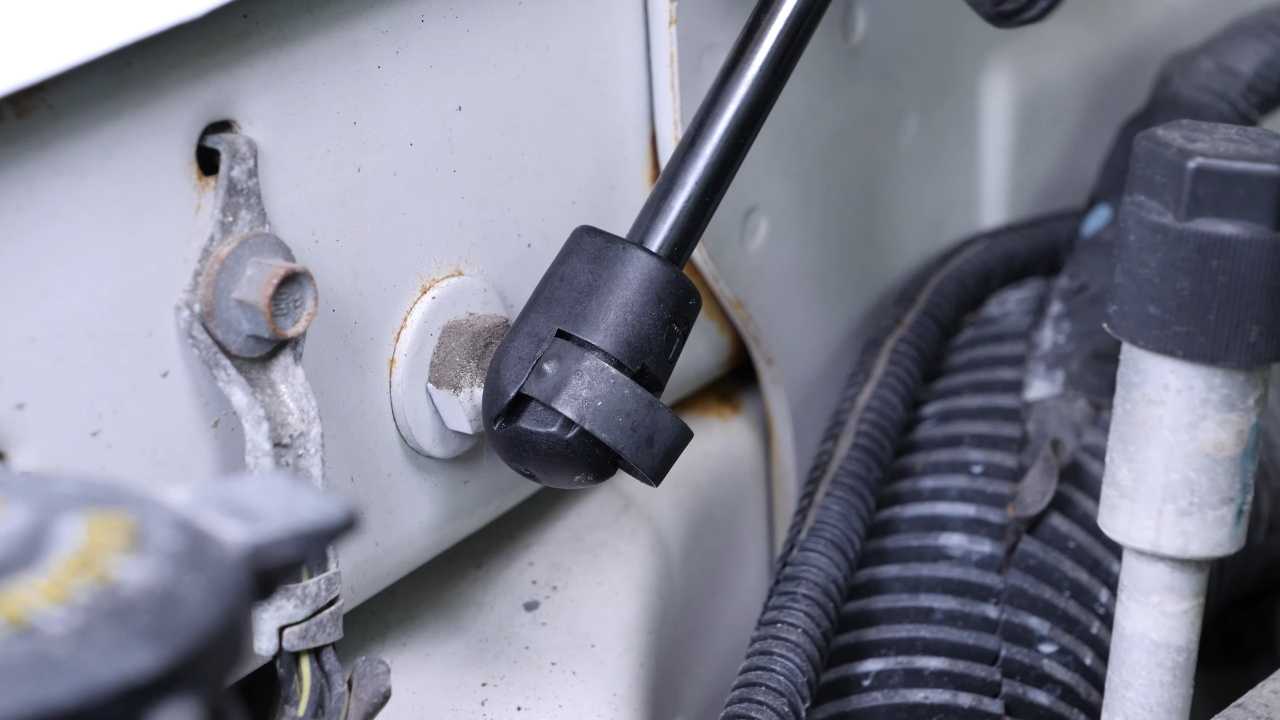

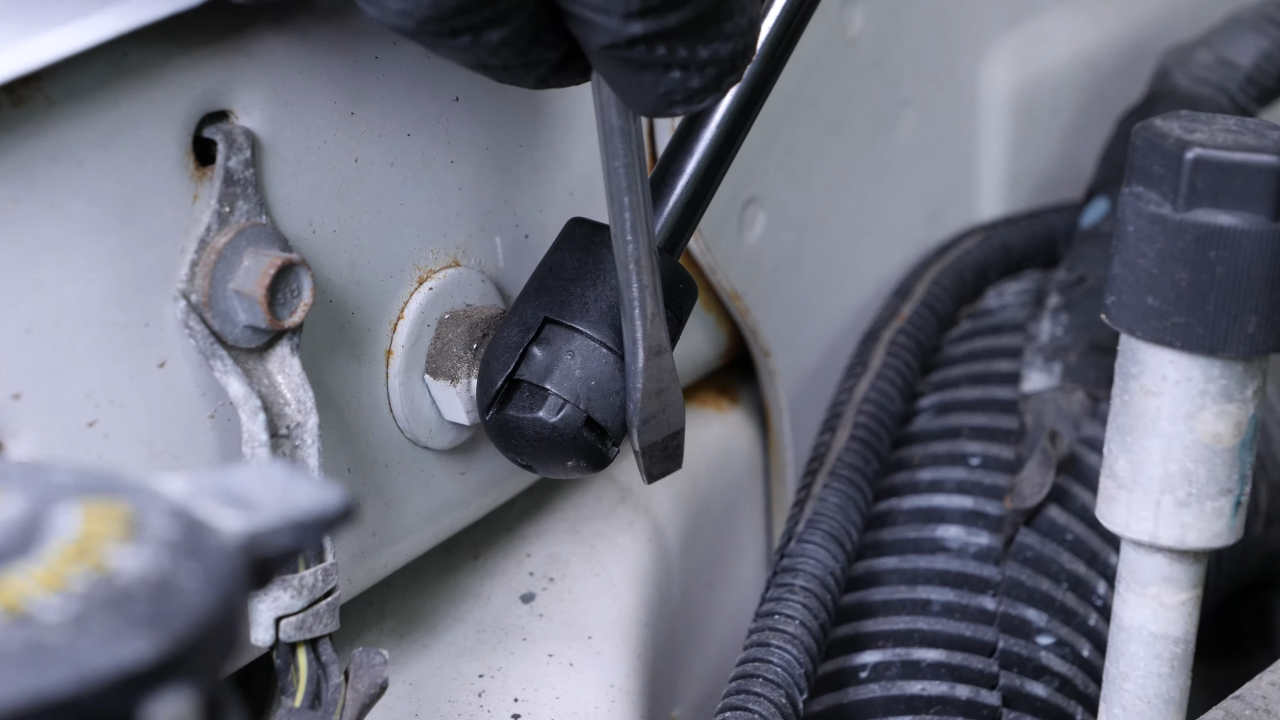

Repeat this step on the lower part of the hood lift support.
Chapter 4:
Step 5/6

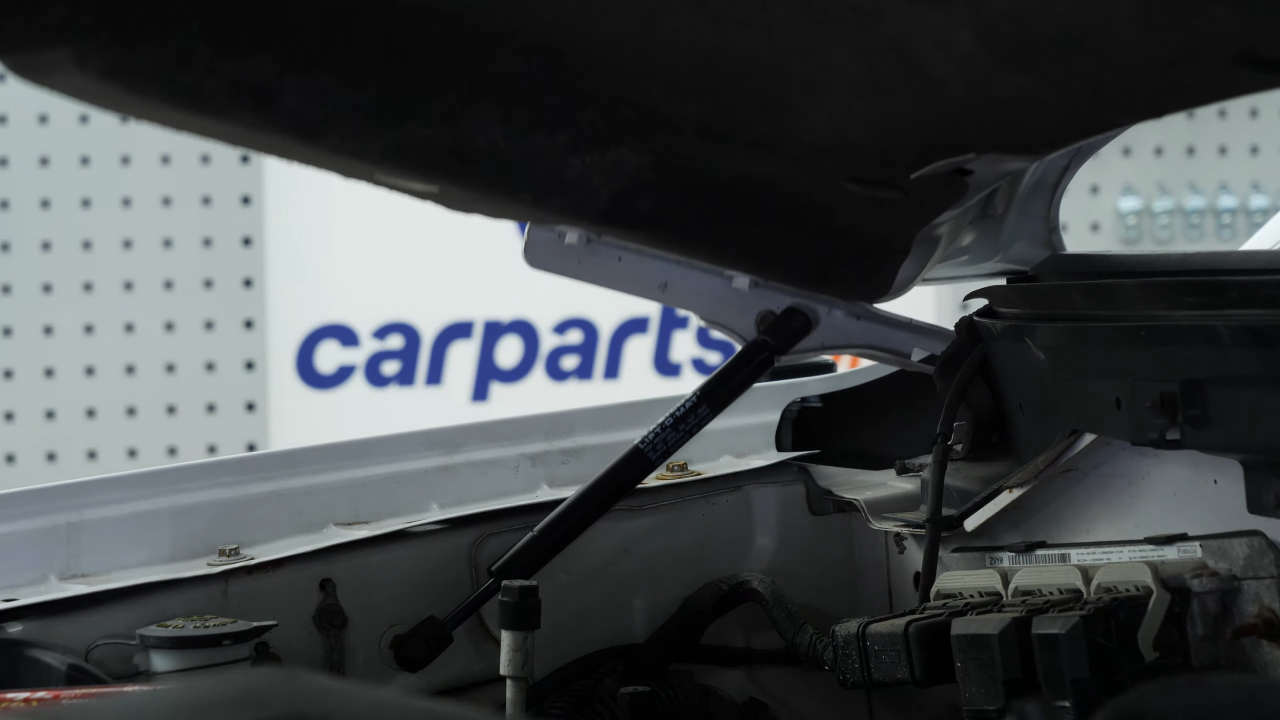

You can now repeat the same process on the other side.
Chapter 4:
Step 6/6

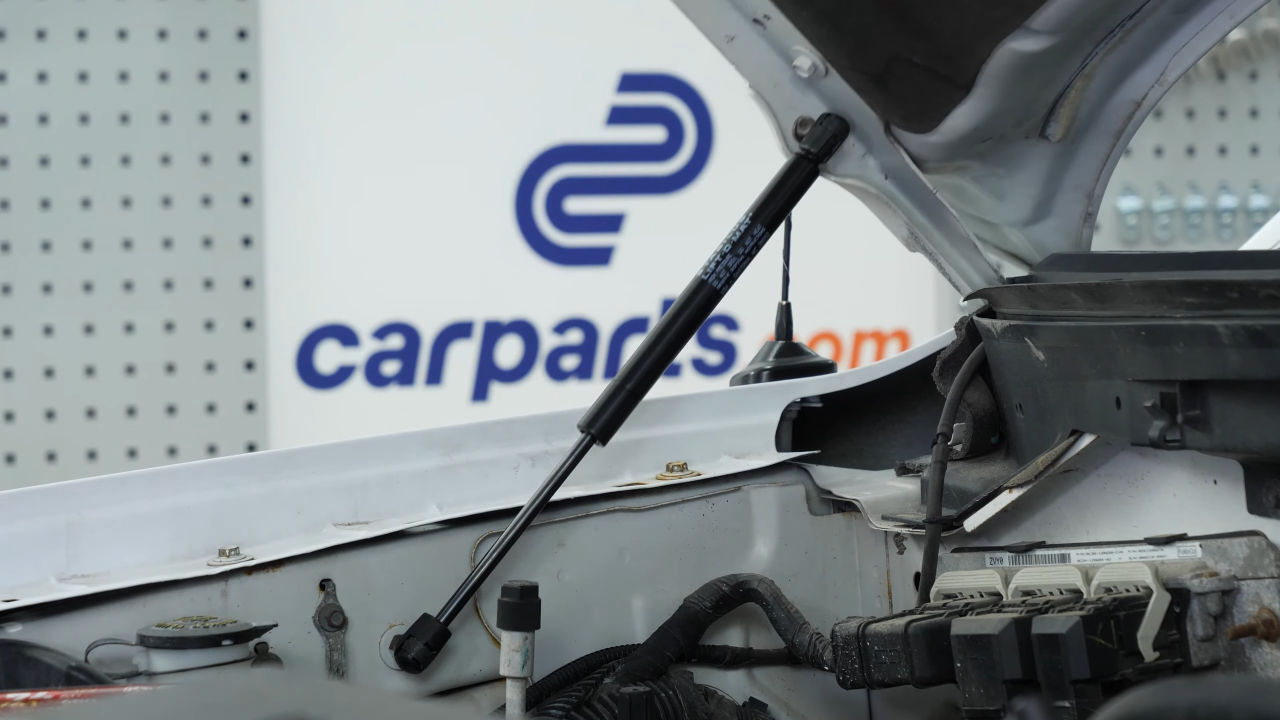

Operation complete.
