How to replace the ignition coils 2006 – 2012 Ford Fusion 1
To replace the ignition coils on your Fusion 1 it couldnt’ be easier. You will be asked to disconnect the ignition coil, remove the ignition coil, install the new ignition coil + tightening torques as well as carry out a few other steps. You can carry out this tutorial of 7 chapters in 20 minutes. Bring your ratchet and your 8 mm socket and let’s get started!
Duration
20 minutes
Number of steps
7
Difficulty out of 5
2
Average savings
$40
Parts You Will Need
Tools You Will Need
Step-by-Step Installation
Chapter 1:

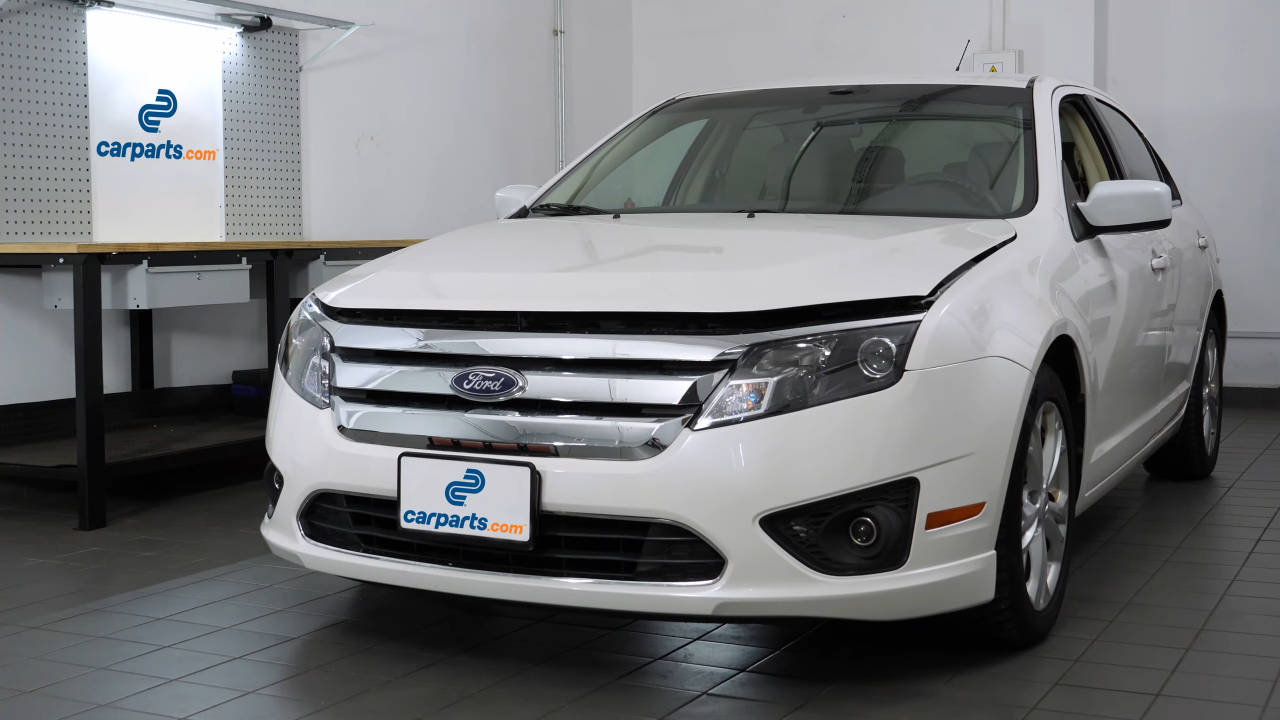

Open the hood
Step 1/1

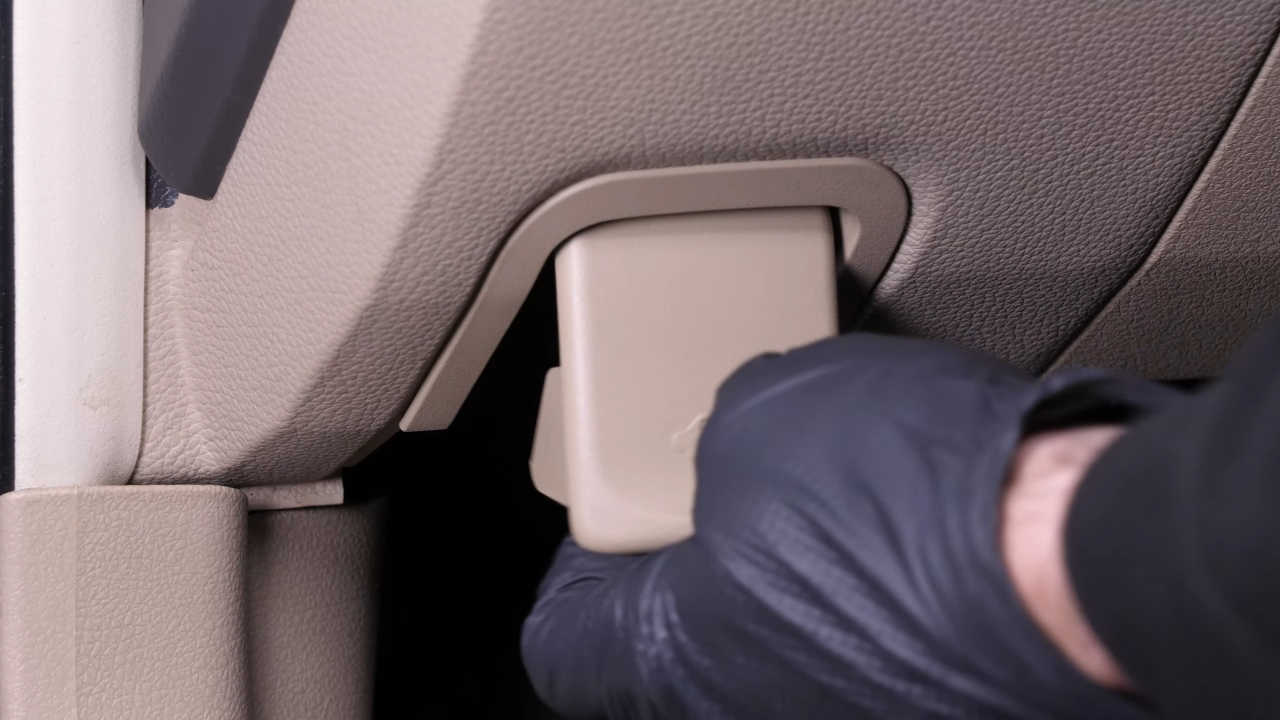

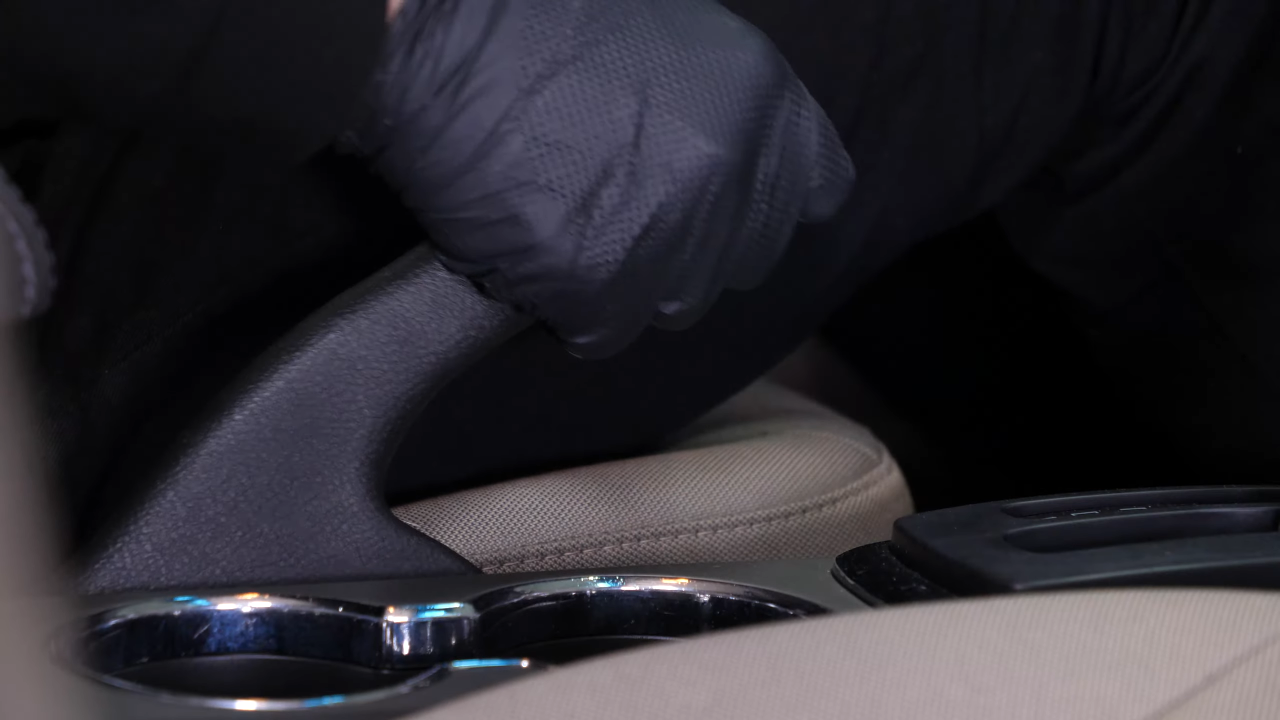

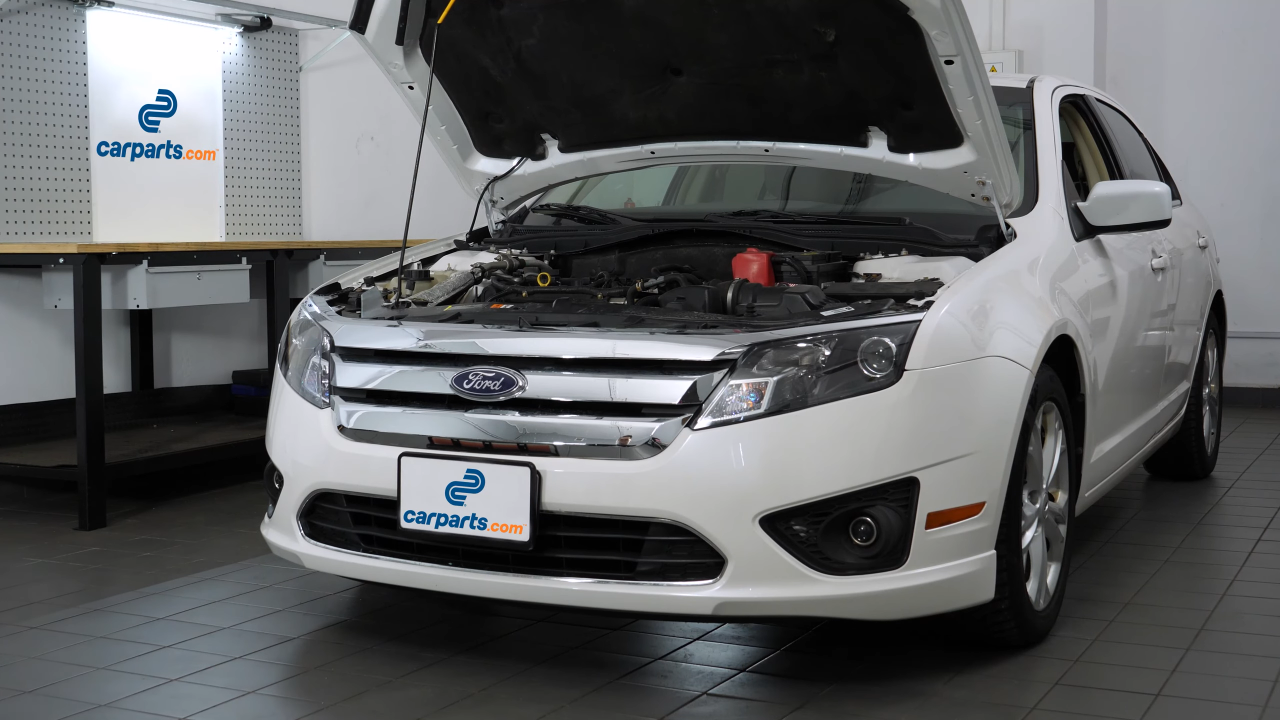

Turn your engine off, set the parking brake pull on the hood release handle, and open the hood.
Chapter 2:

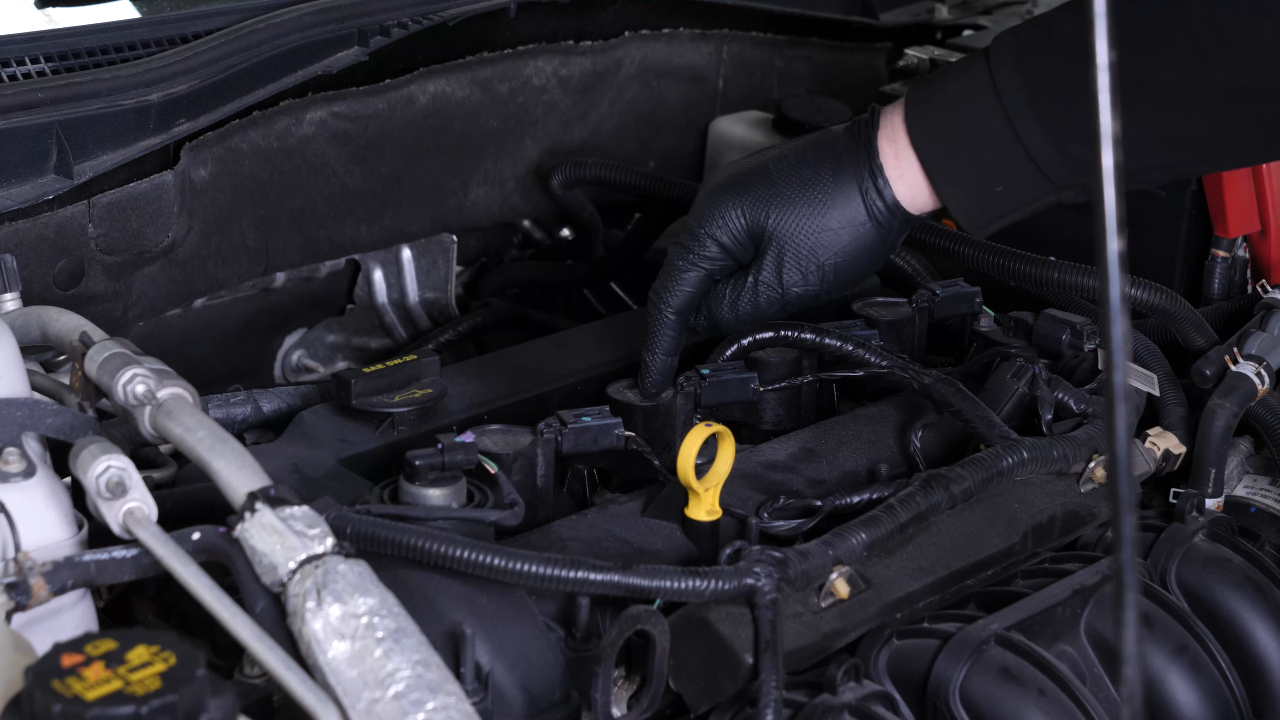

Tips
Step 1/1

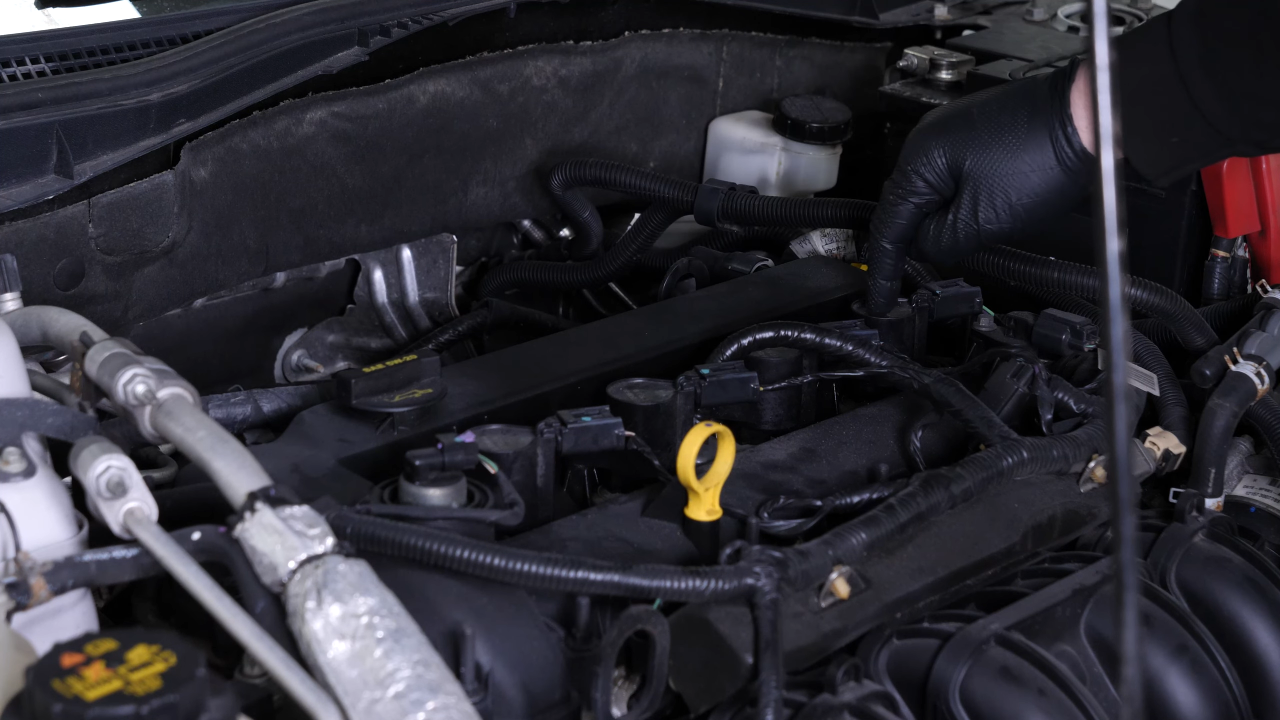

We advise you to change the ignition coils one by one, as it is important not to swap coils.
Chapter 3:

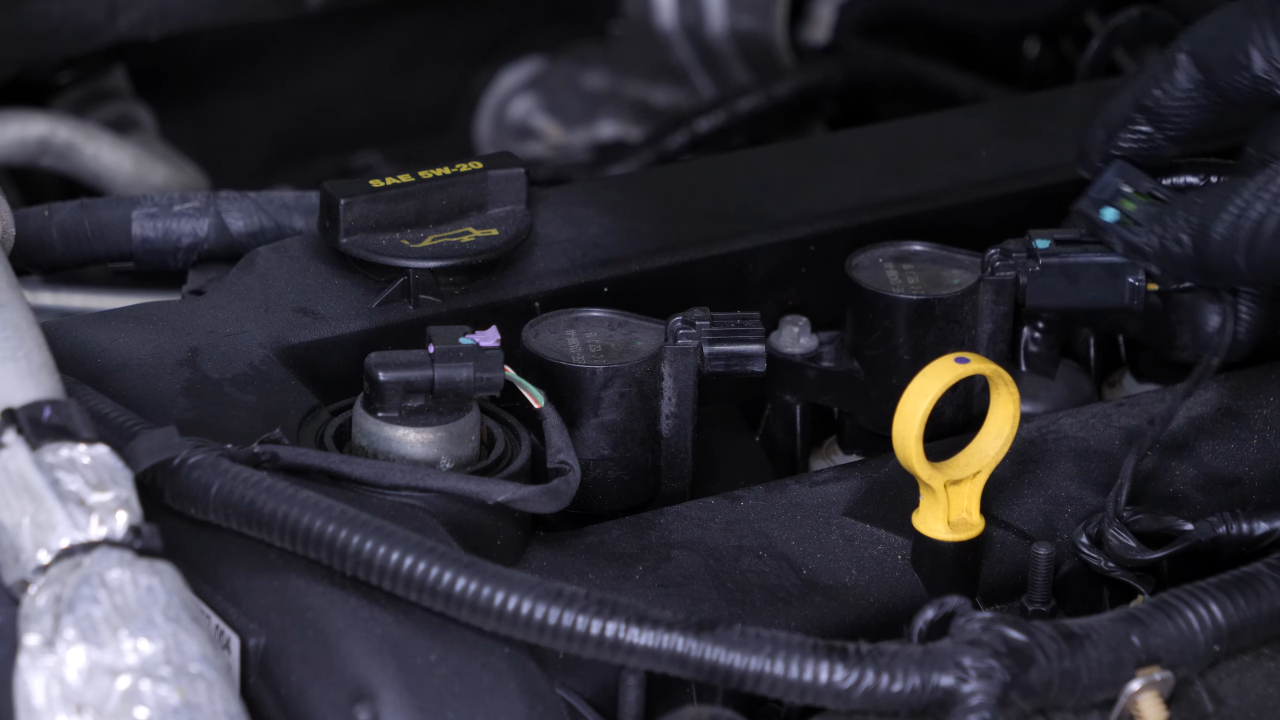

Disconnect the ignition coil
Step 1/1
Disconnect the power from the ignition coil. To do this, push on the tab and pull on the connector. Do not pull on the power cable, as this may damage the coil.
Chapter 4:

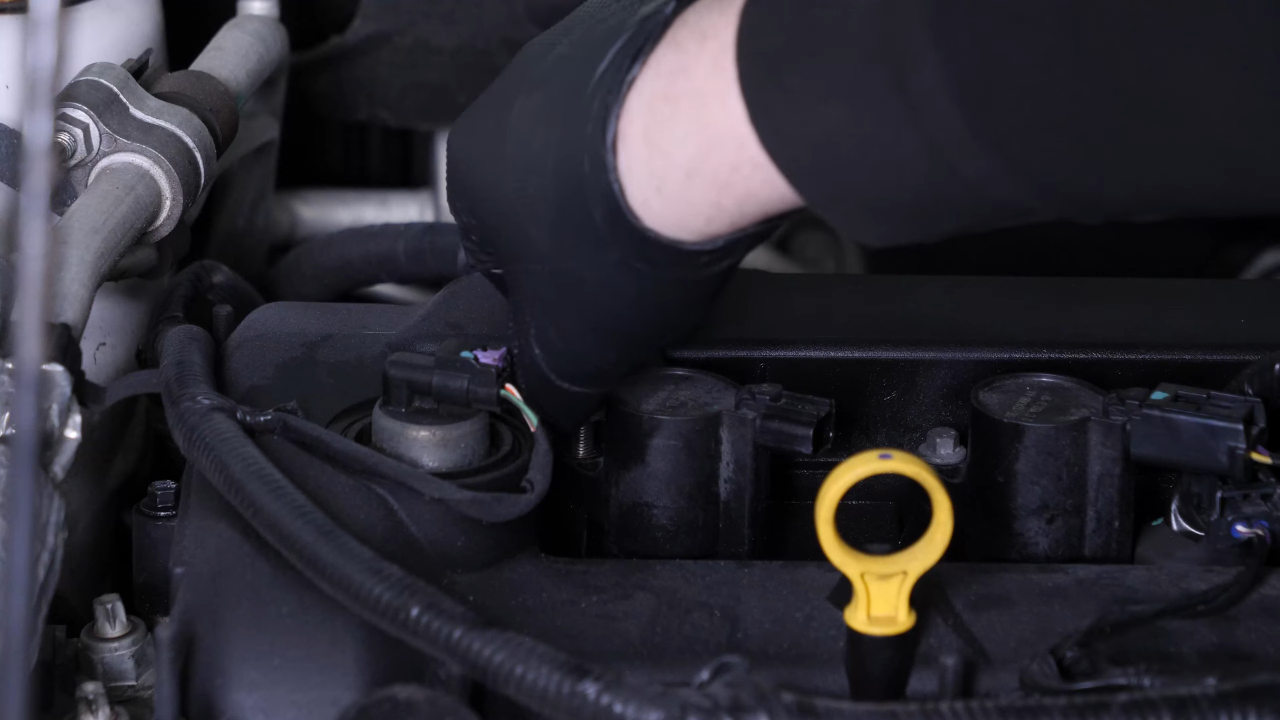

Remove the ignition coil
Step 1/2

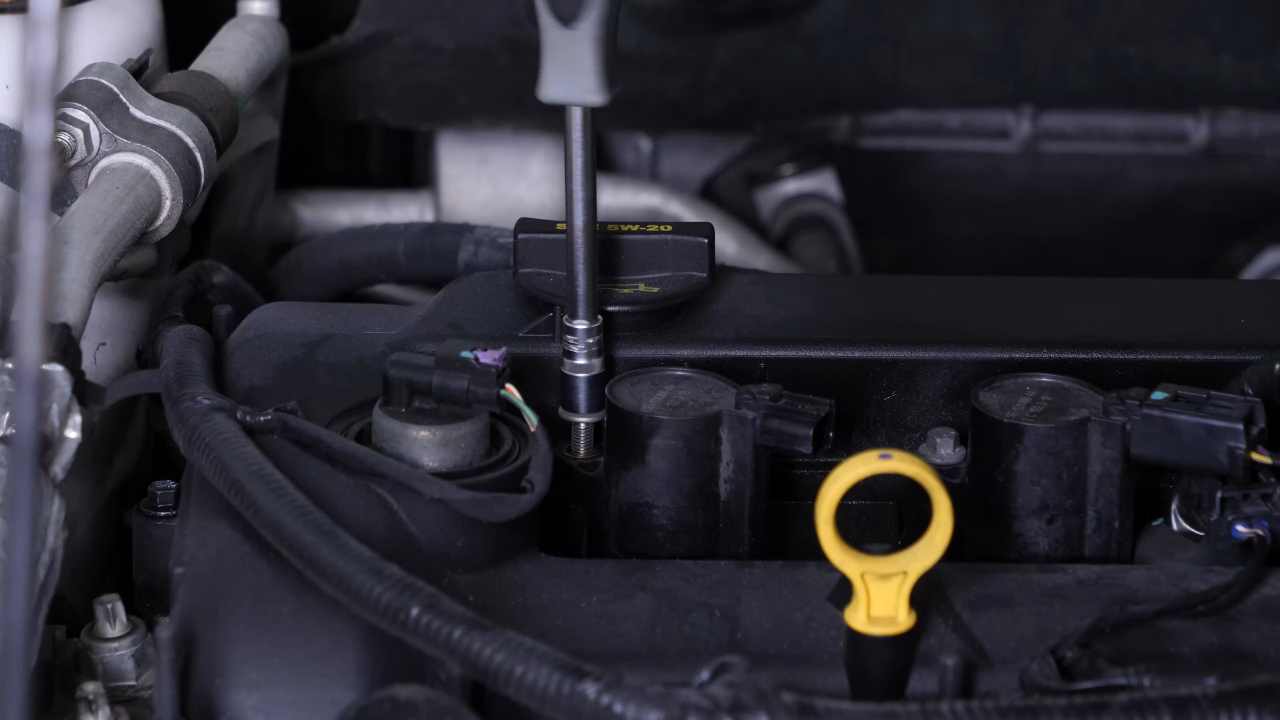

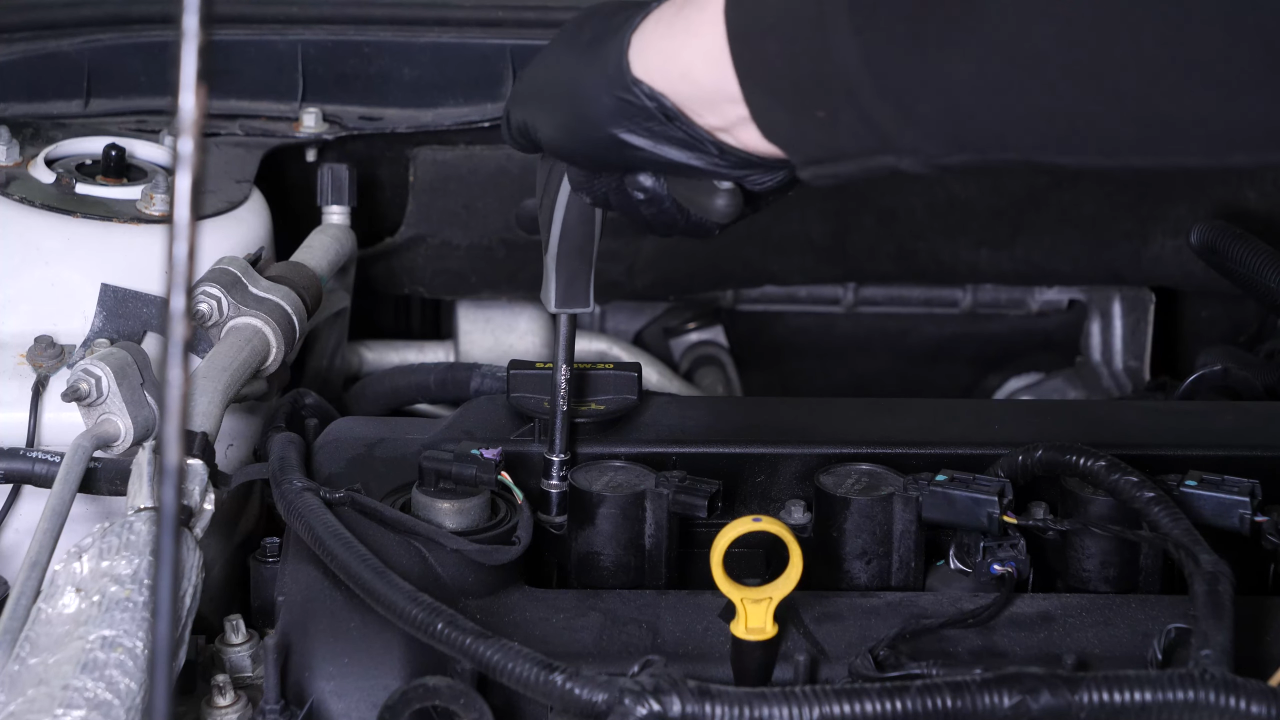

Using a ratchet, an extender and a 8 mm socket, remove the bolt holding the coil.
Chapter 4:
Step 2/2

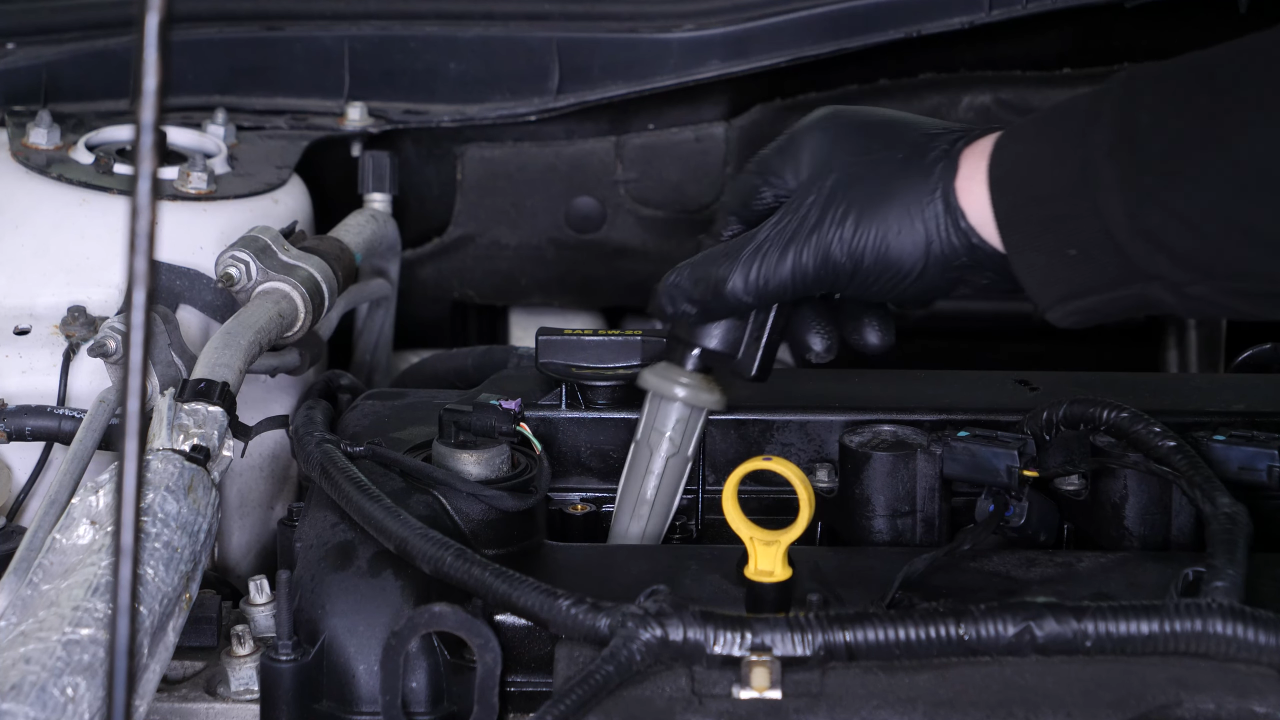

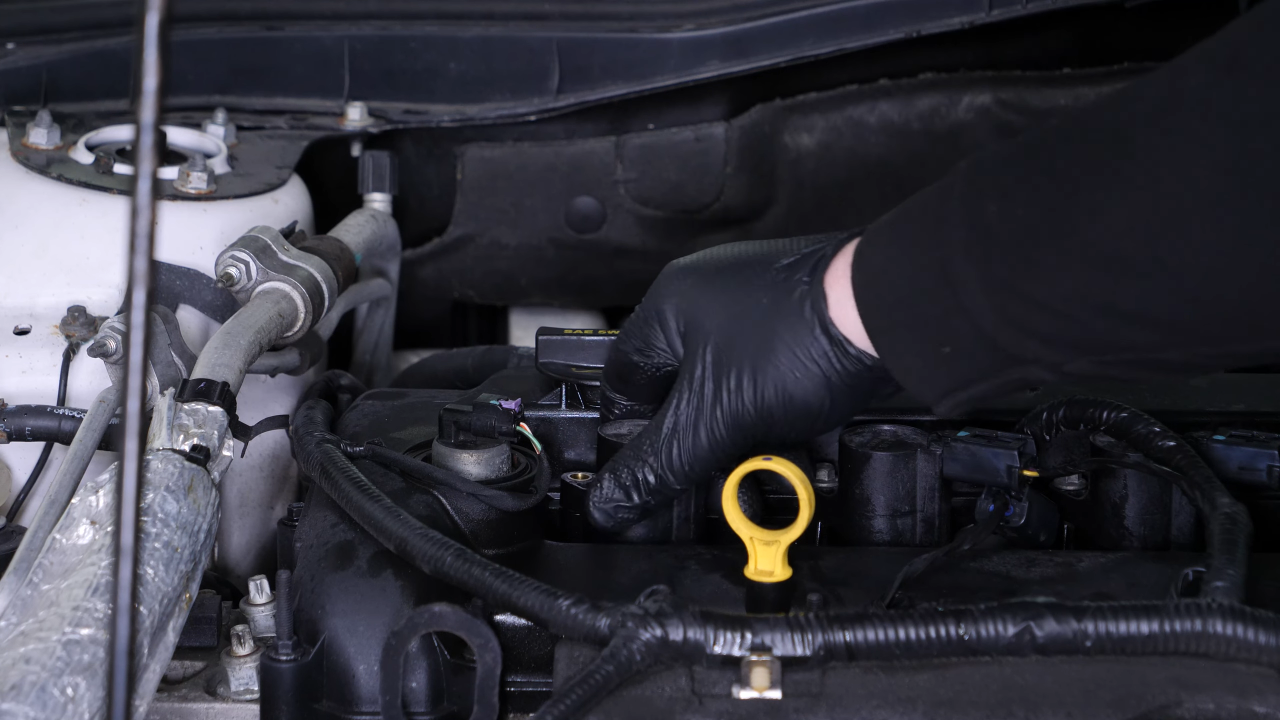

You can now carefully remove the coil, making small lateral back and forward movements.
Chapter 5:

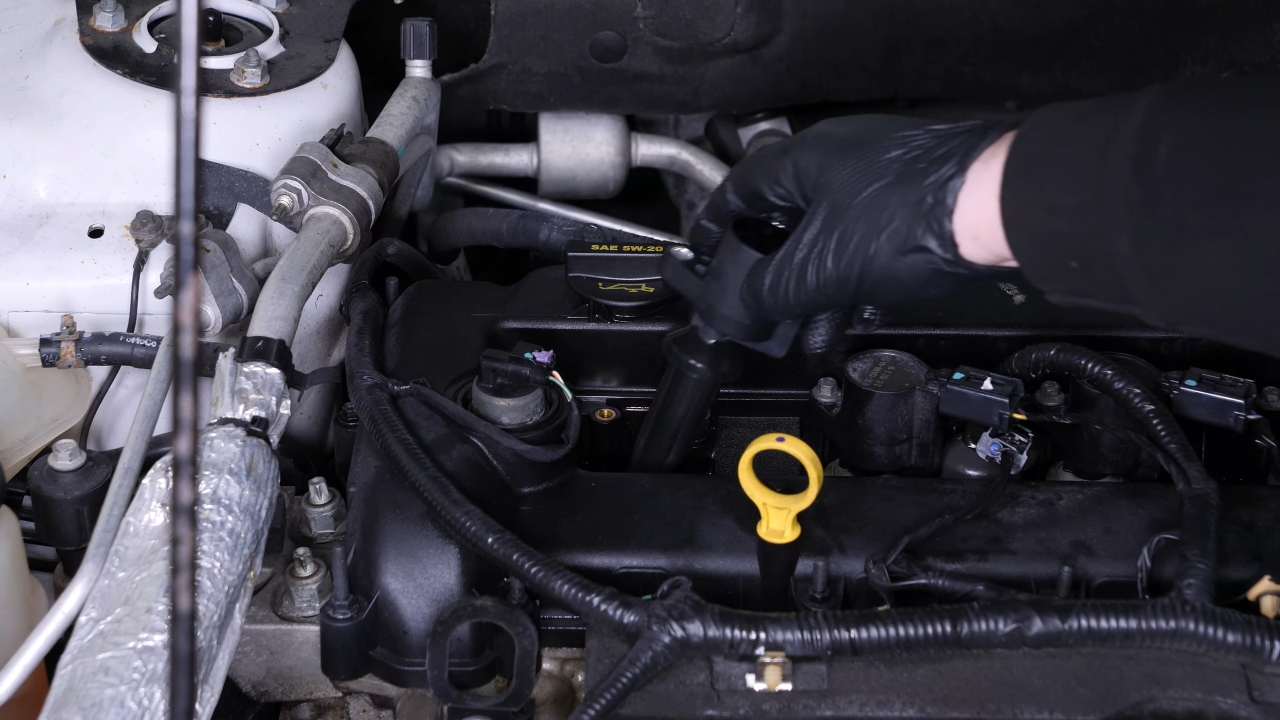

Install the new ignition coil
Step 1/3

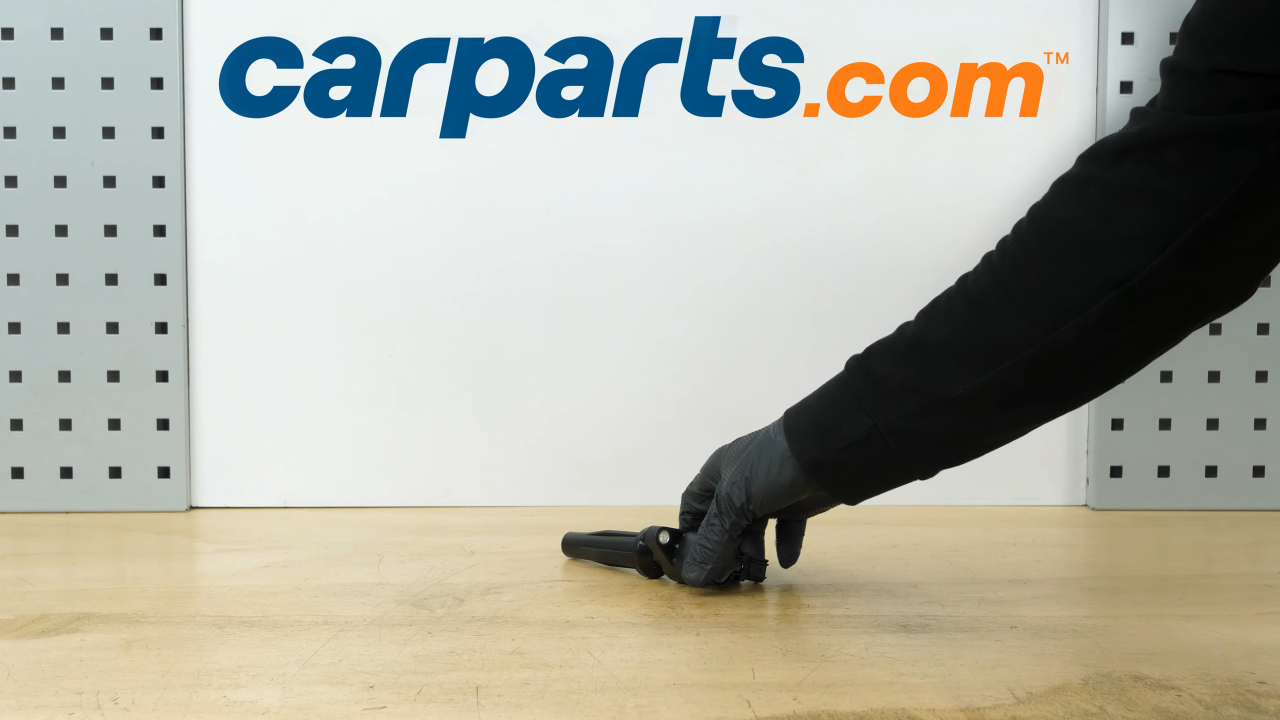

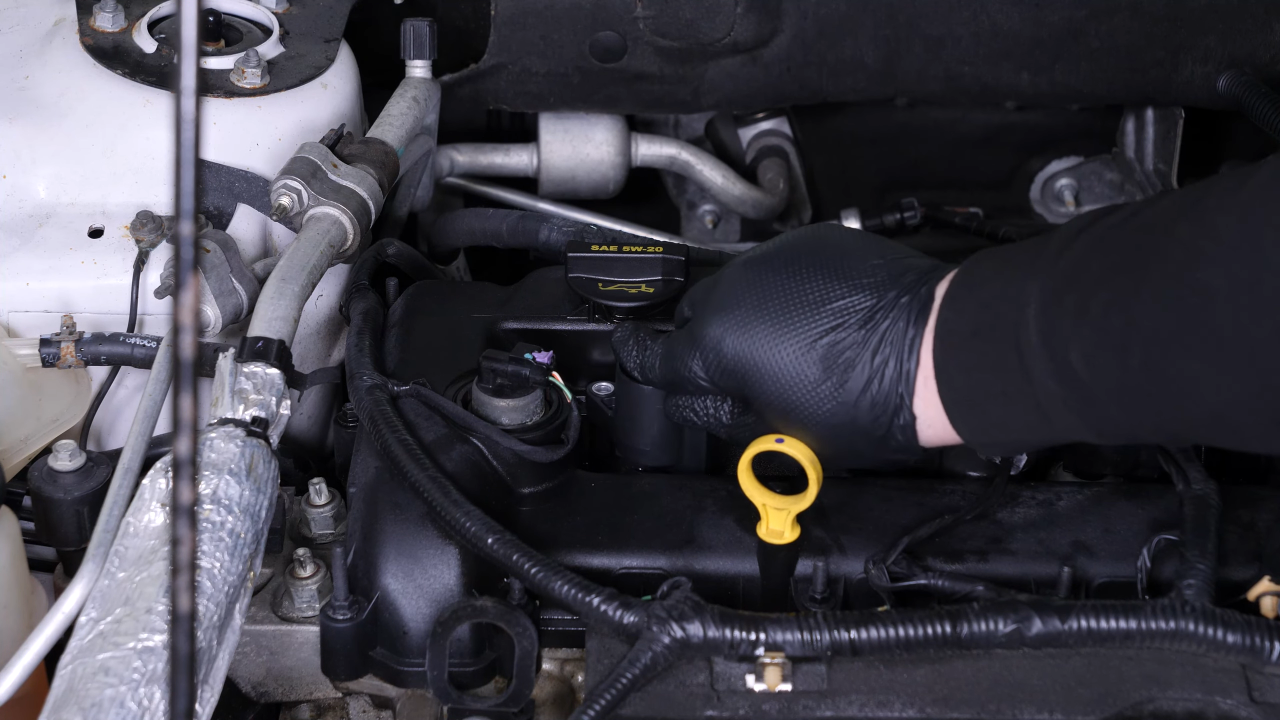

Take the new coil. Put the coil back.
Chapter 5:
Step 2/3

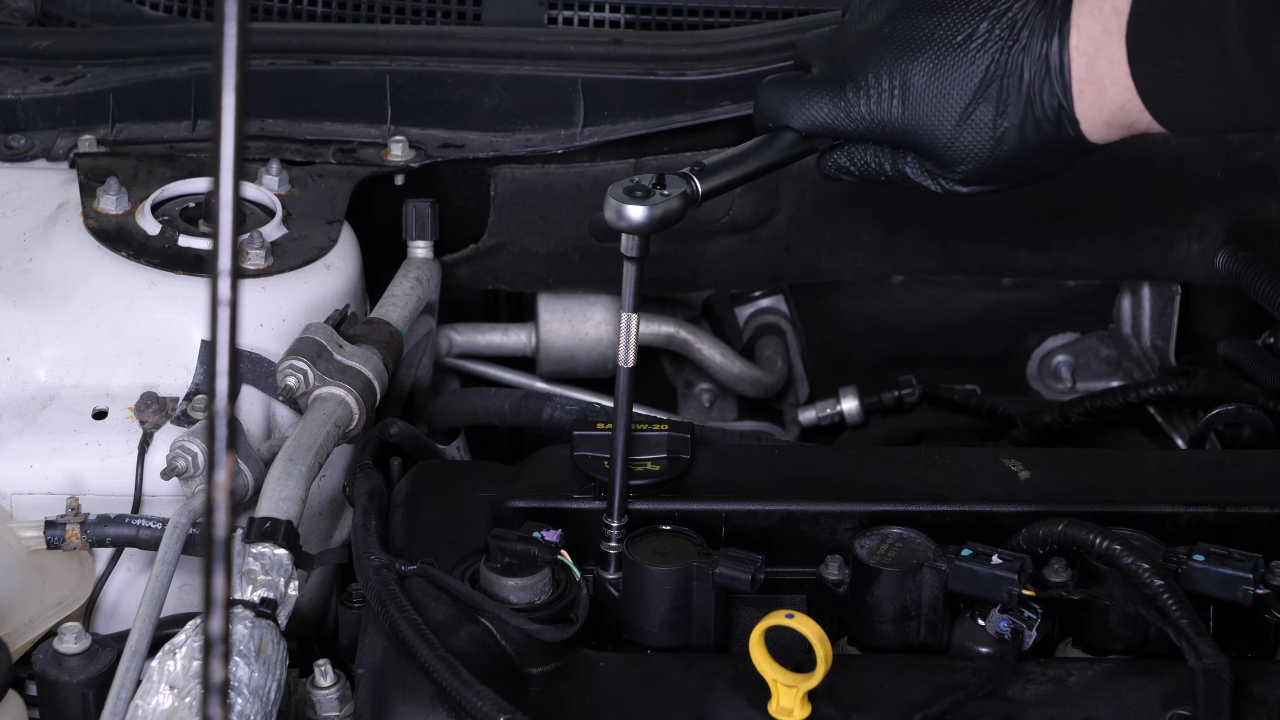

While holding the assembly, screw the retaining bolt back in by hand. Screw it in until it makes contact using the ratchet.
Chapter 5:
Step 3/3
Finish tightening using a torque wrench.
Chapter 6:
Reconnect the ignition coil
Step 1/1

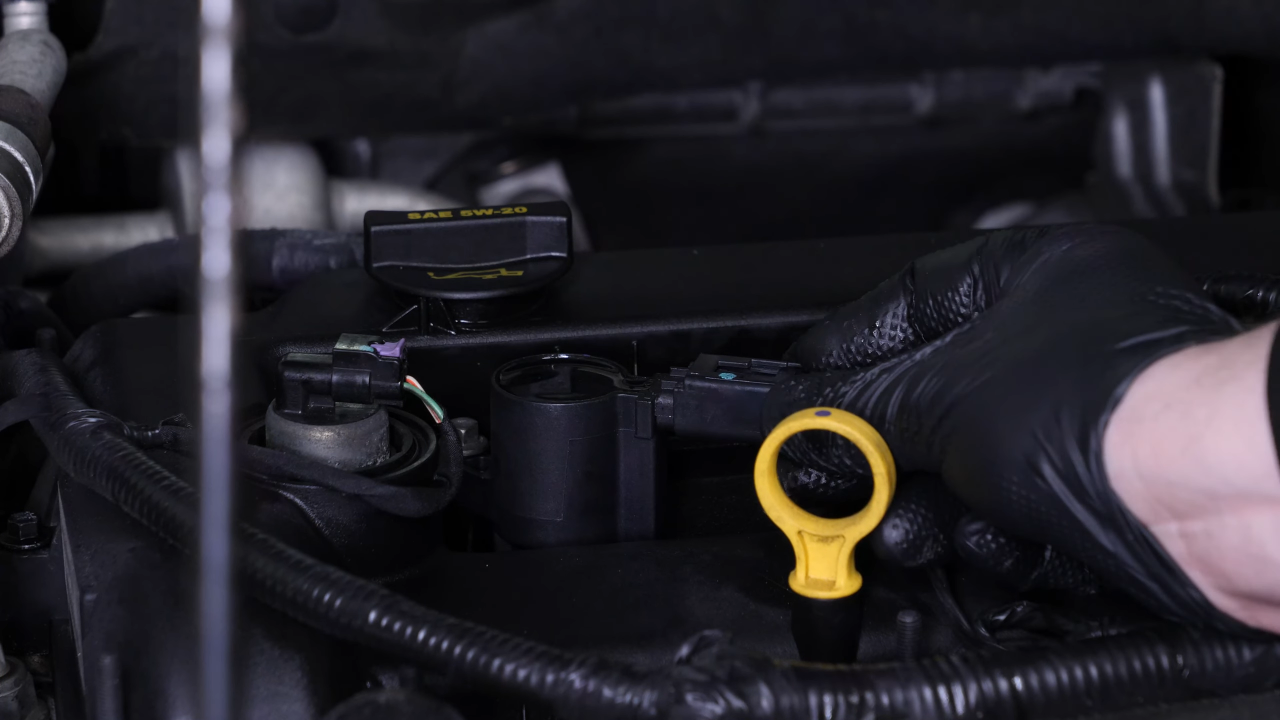

Plug the electrical connector back in.
Chapter 7:
Finalise the reassembly
Step 1/1
You can now repeat the process on the other ignition coils. Operation complete.
