How to replace the front brake pads 2003-2007 Honda Accord

Chapter 1:

Open the brake fluid reservoir

Step 1/2

Turn off your vehicle’s ignition, set the parking brake, pull the hood release handle and open the hood.

Chapter 1:

Step 2/2

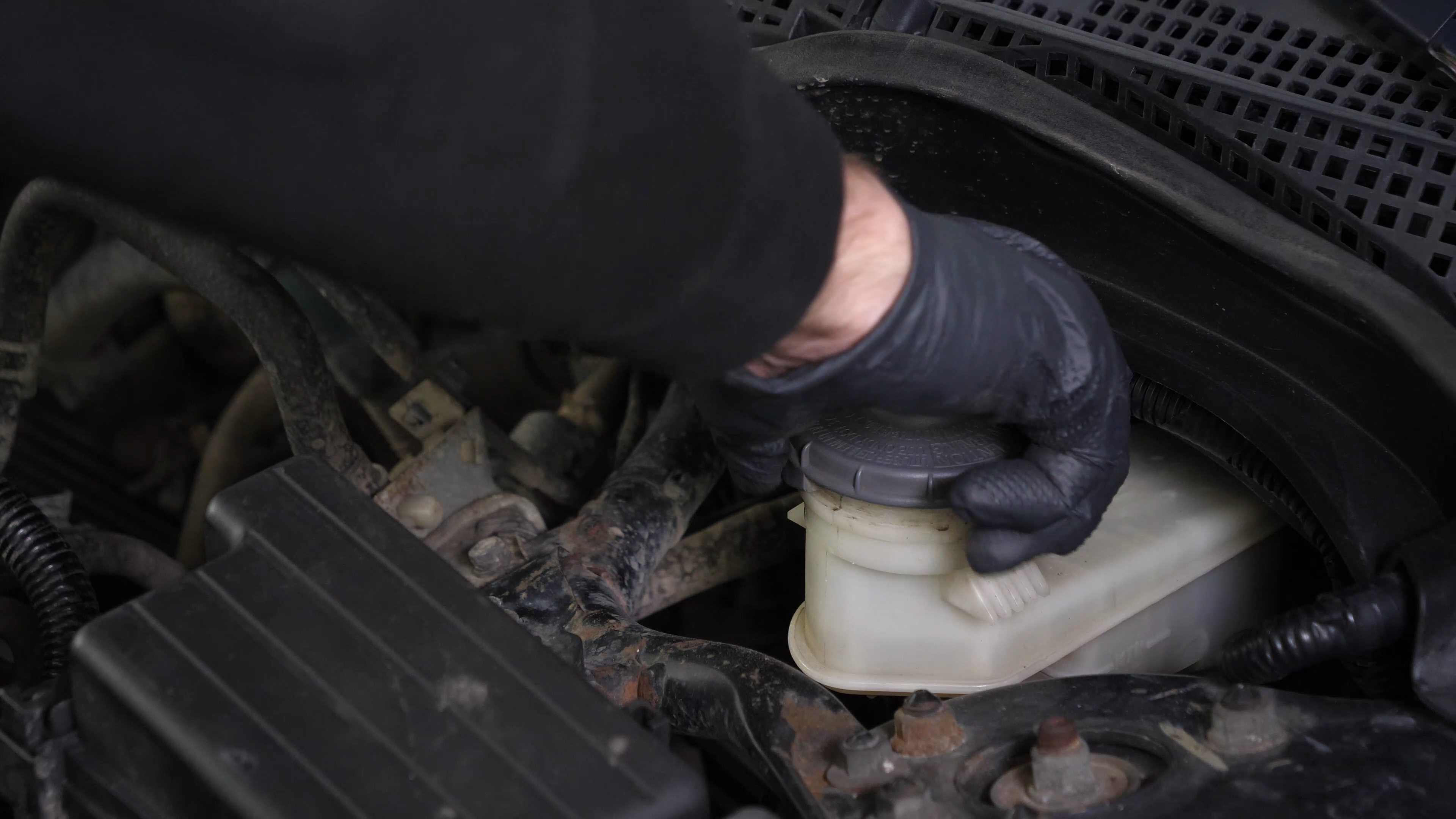

Open the brake fluid reservoir.

Chapter 2:

Lift the vehicle

Step 1/3

Loosen the stud bolts on the front wheels.

Chapter 2:

Step 2/3

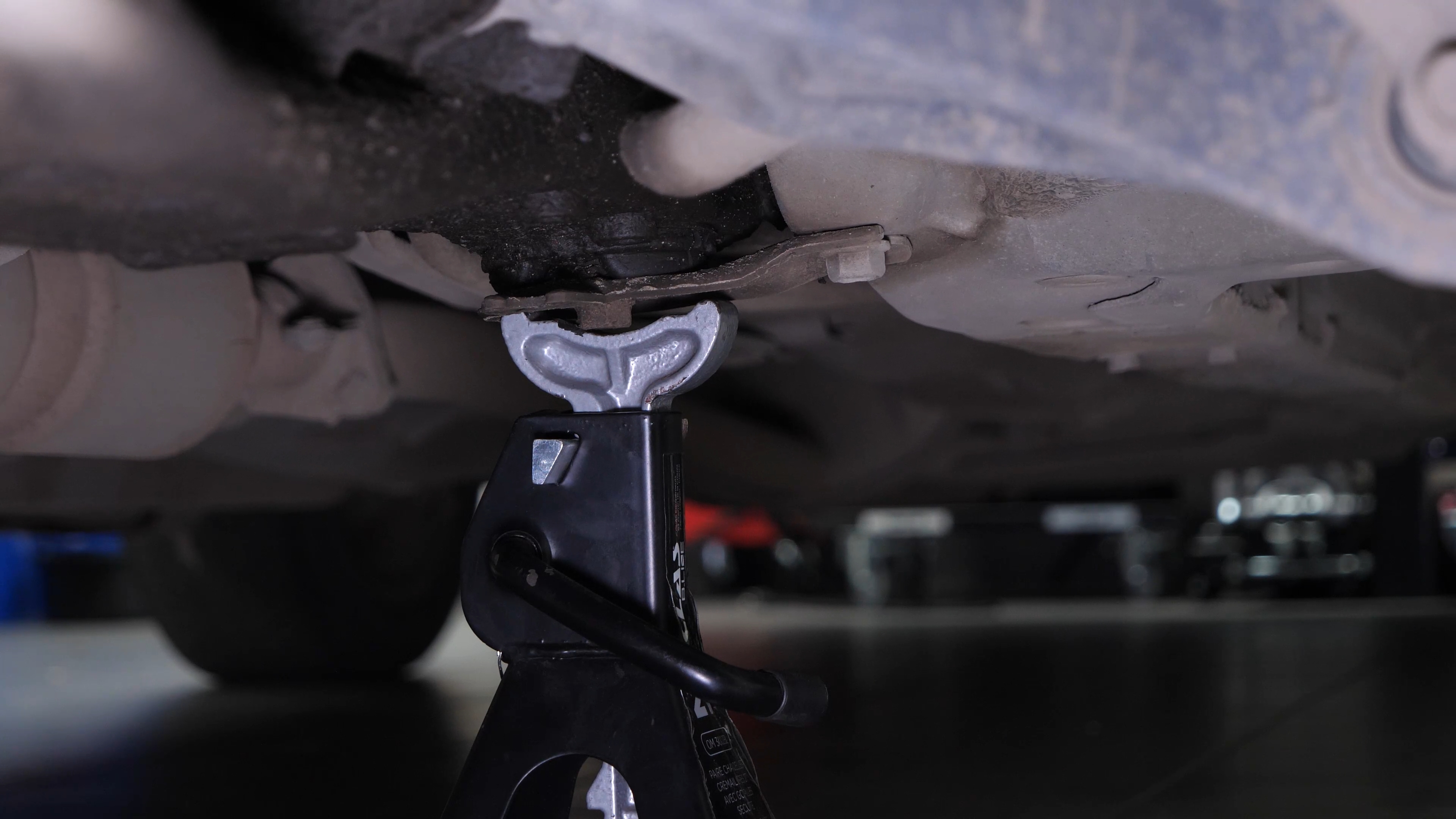

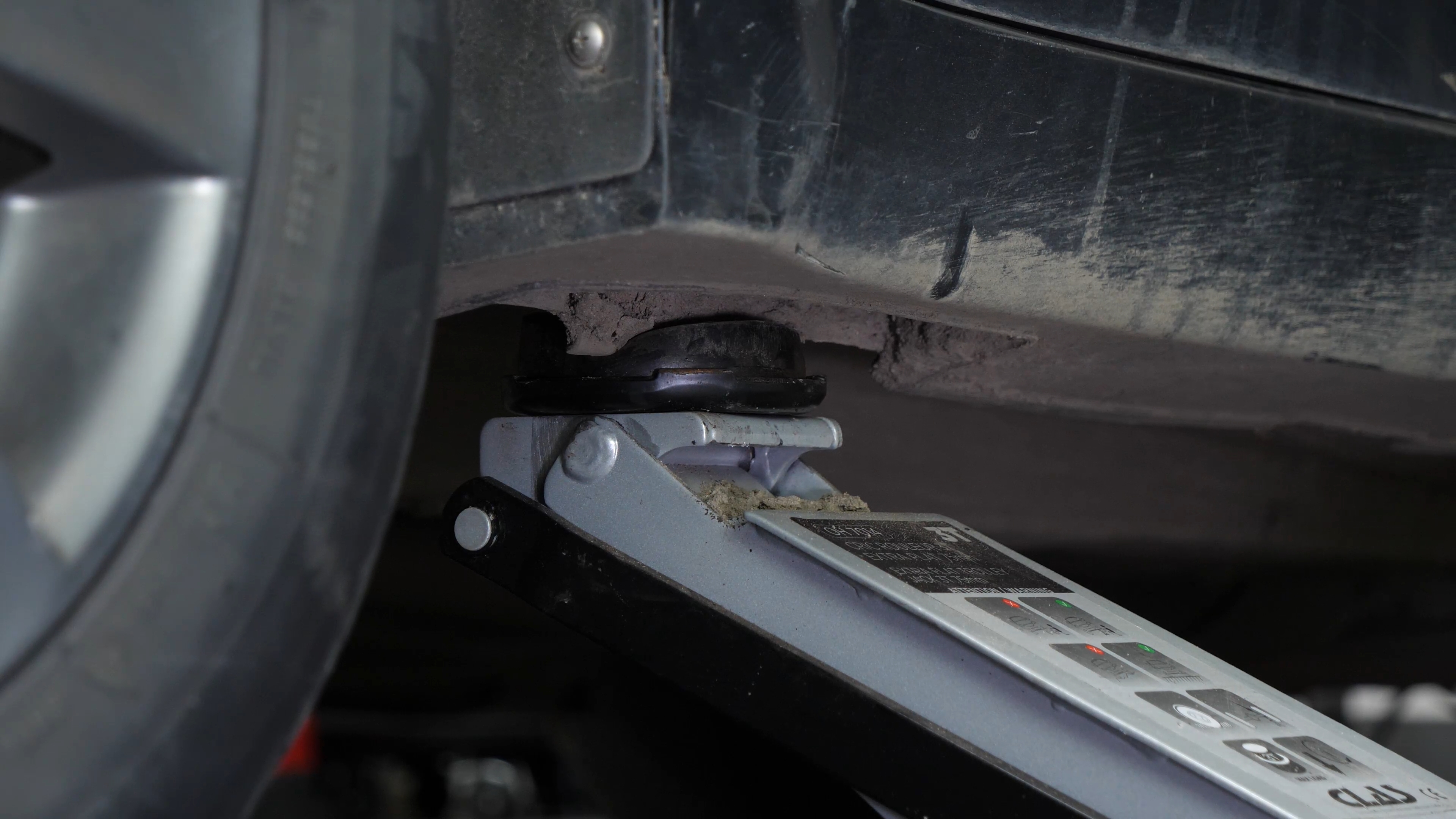

Lift the front of your vehicle. Place the vehicle on the jack stands.

Chapter 2:

Step 3/3

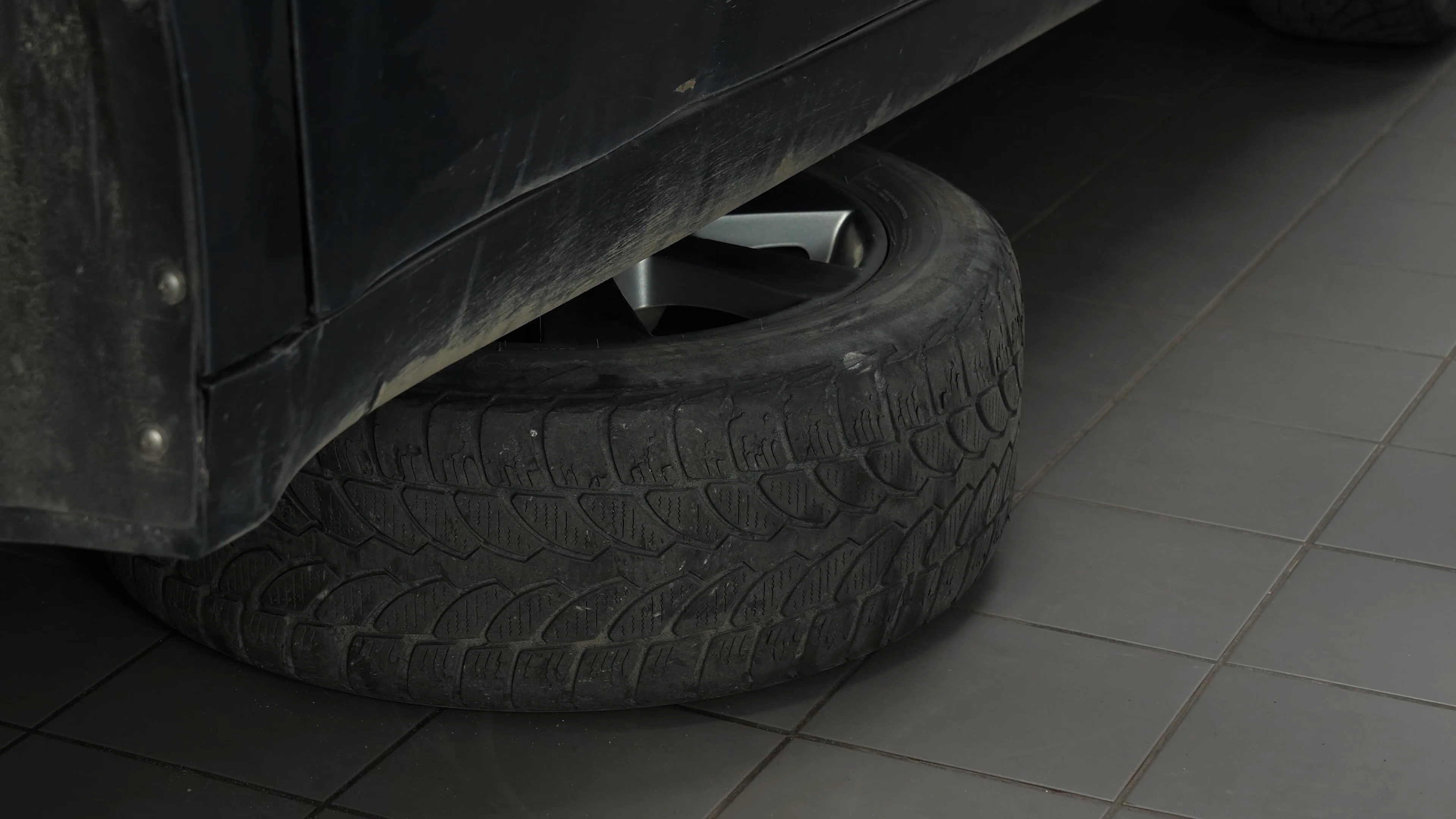

Don’t forget to put the wheels under the vehicle!

Chapter 3:

Retract the piston

Step 1/3

Turn the disc outwards, this will facilitate the following steps.

Chapter 3:

Step 2/3

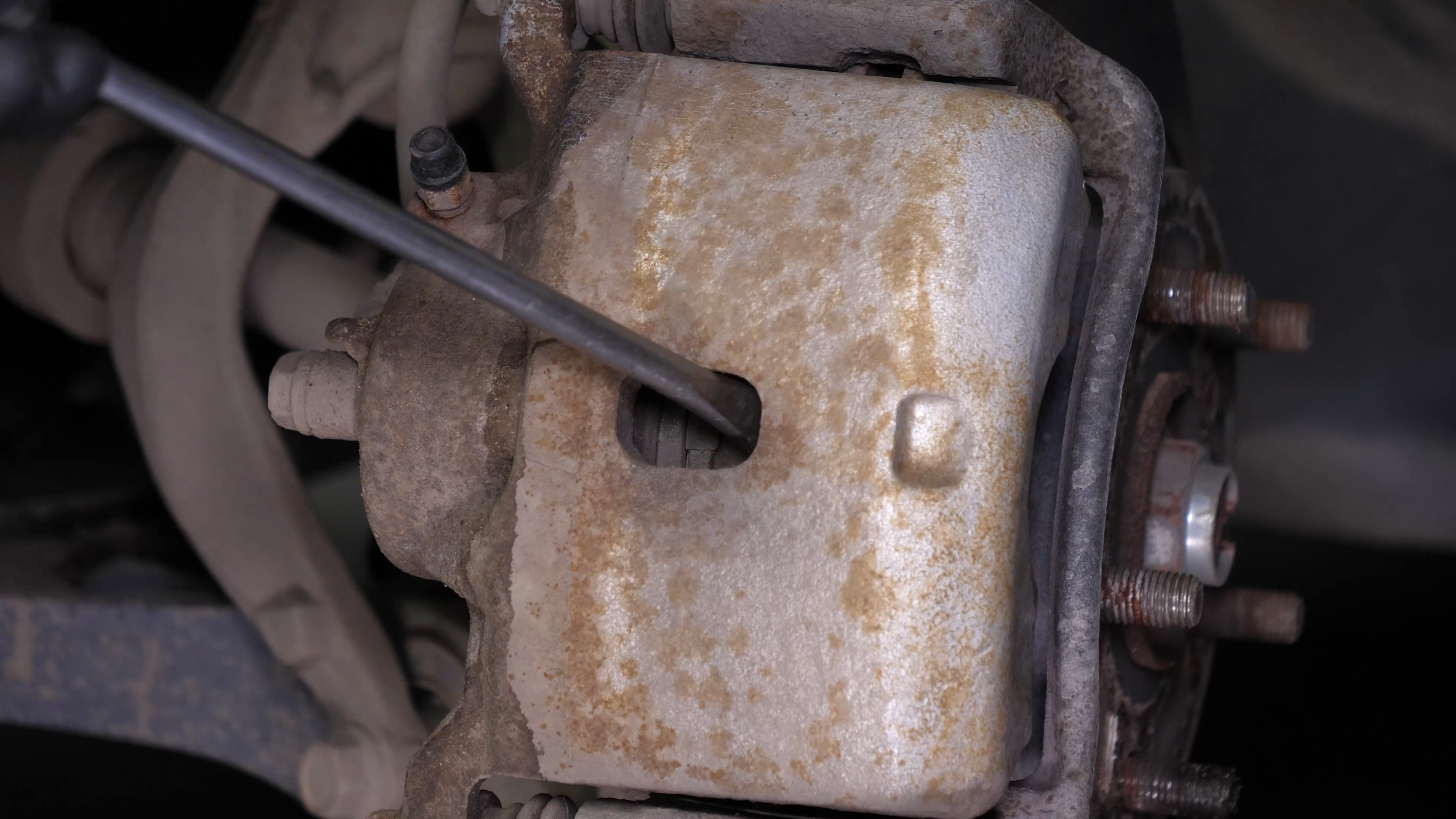

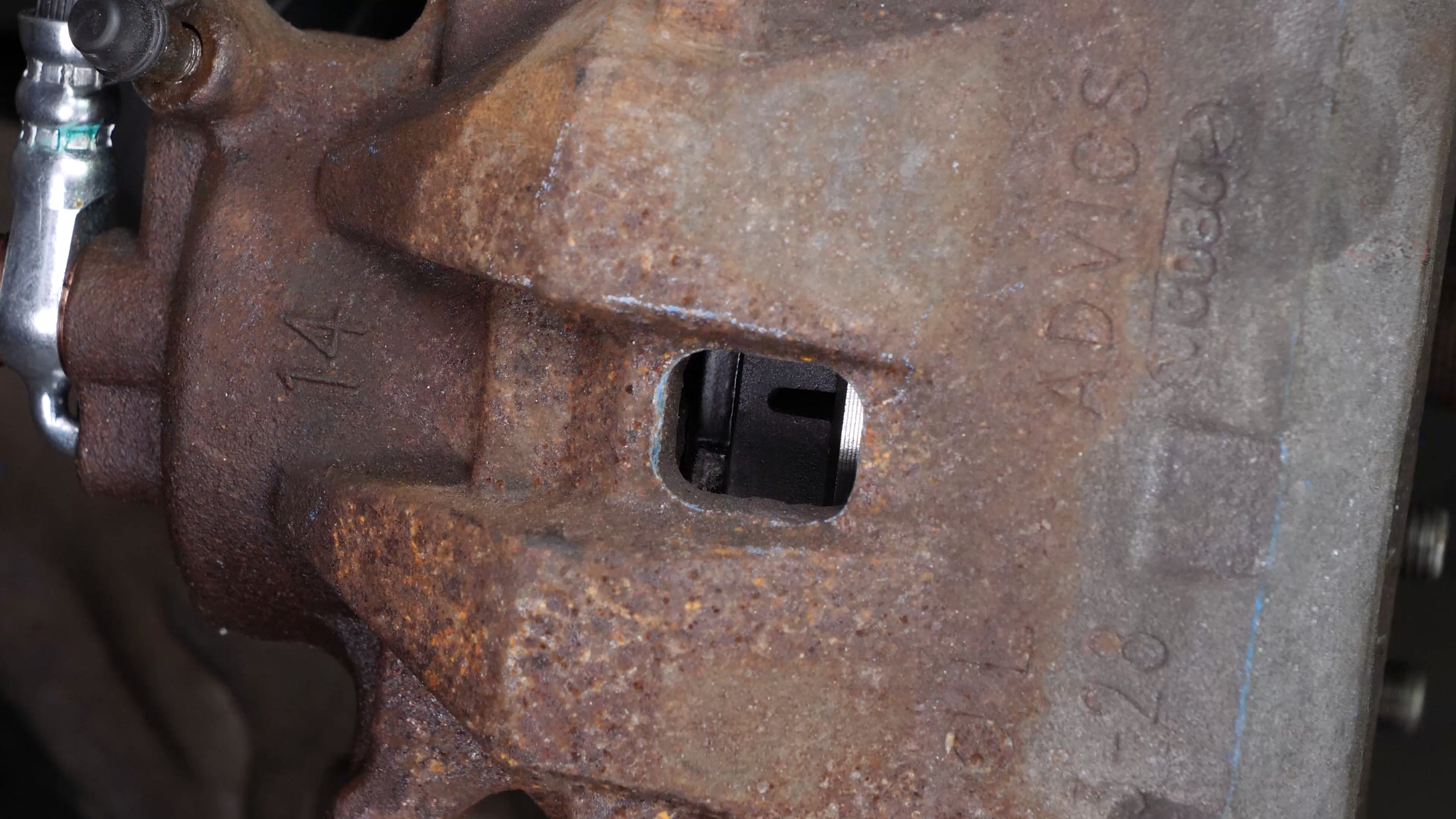

Insert a flat head screwdriver into the opening of the brake caliper.

Chapter 3:

Step 3/3

Lift it off using the screwdriver as a lever by pulling it towards you. This will cause the piston to retract, so that the caliper can be removed more easily for the next steps.

Chapter 4:

Remove the brake caliper

Step 1/5

With a 12mm wrench, unscrew the upper slide pin.

Chapter 4:

Step 2/5

Repeat this process with the lower slide pin.

Chapter 4:

Step 3/5

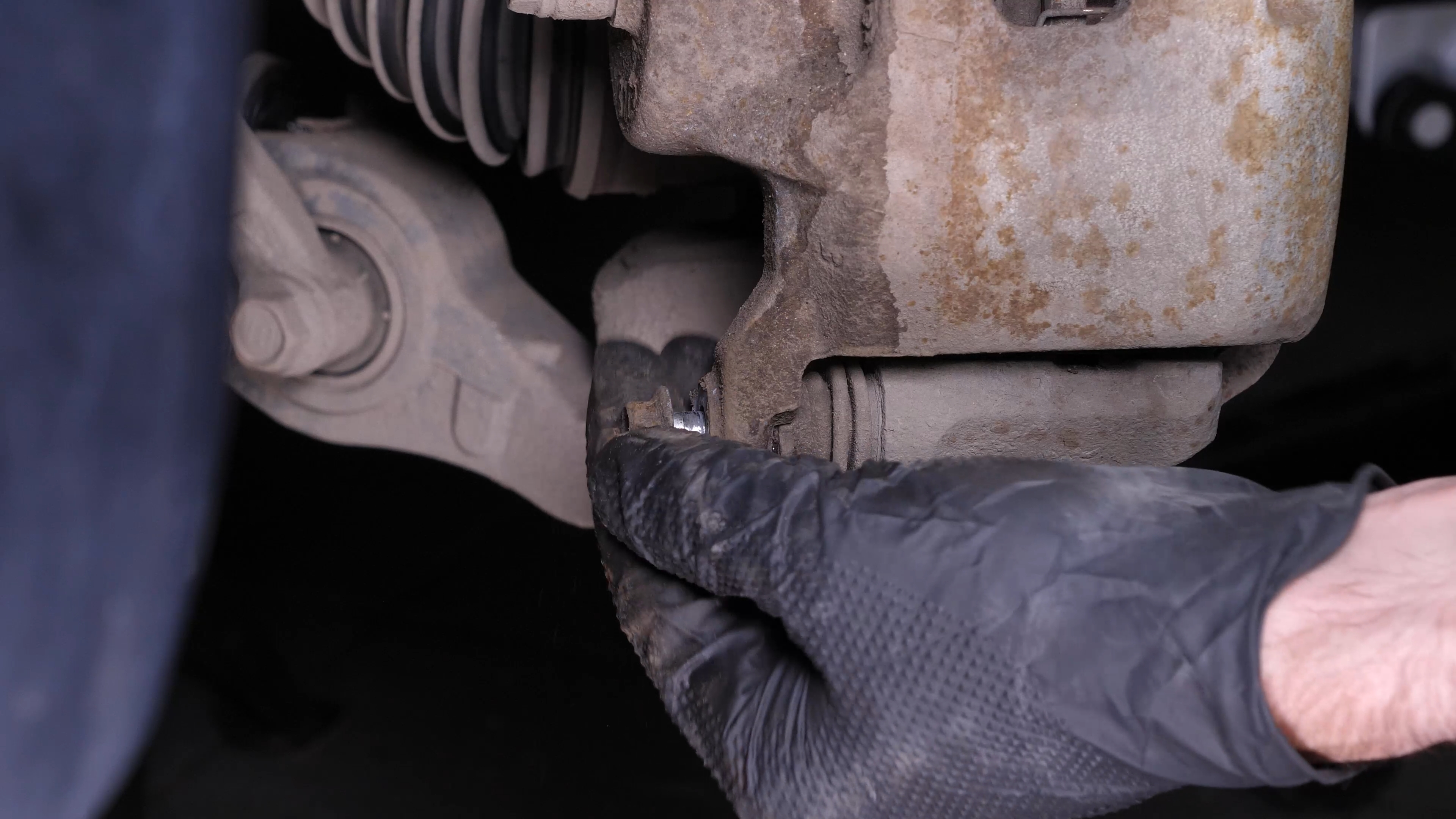

Finish unscrewing by hand.

Chapter 4:

Step 4/5

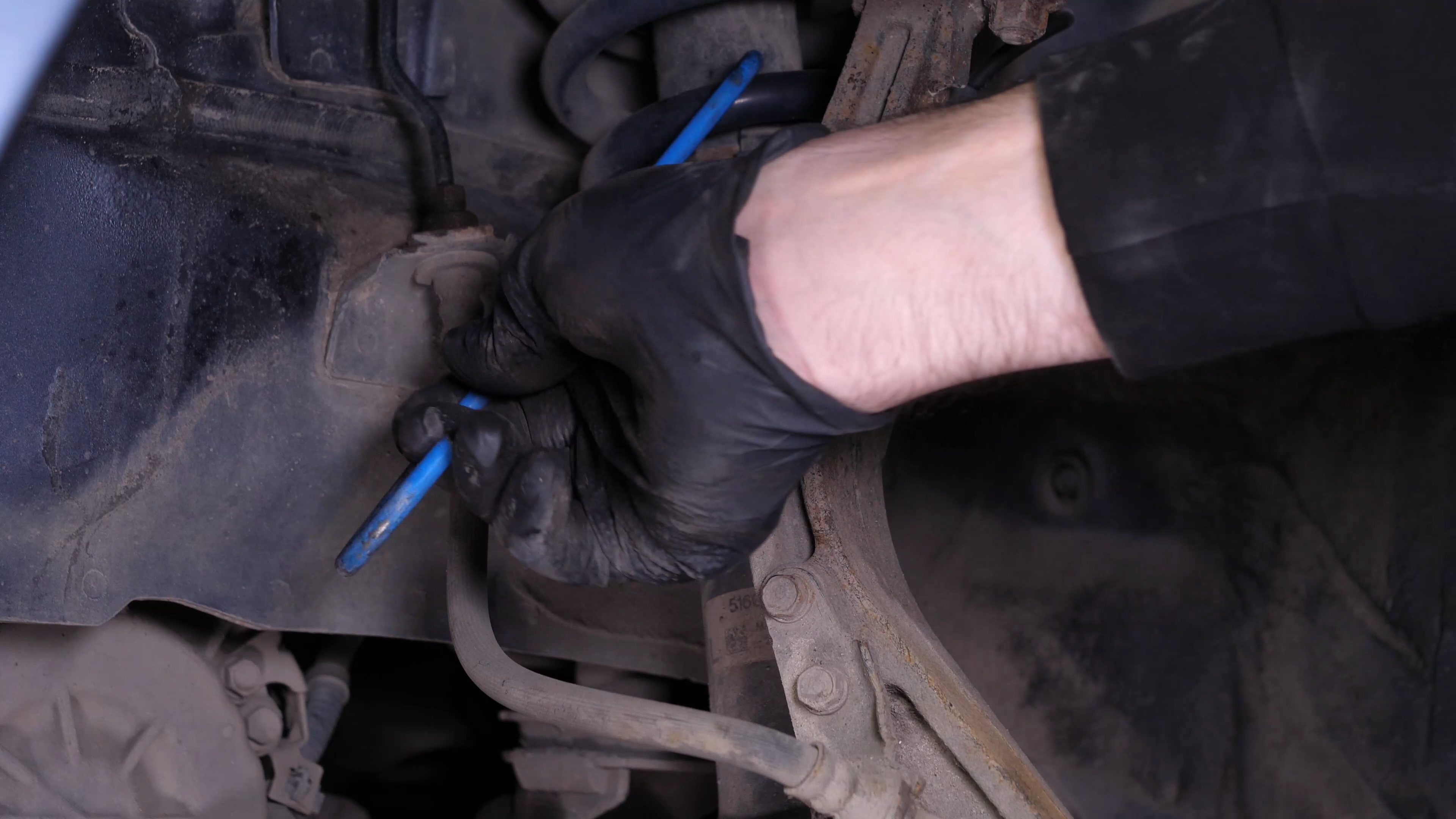

Tip: attach a piece of electrical cable, or a hook, to one of the strut spring coils

Chapter 4:

Step 5/5

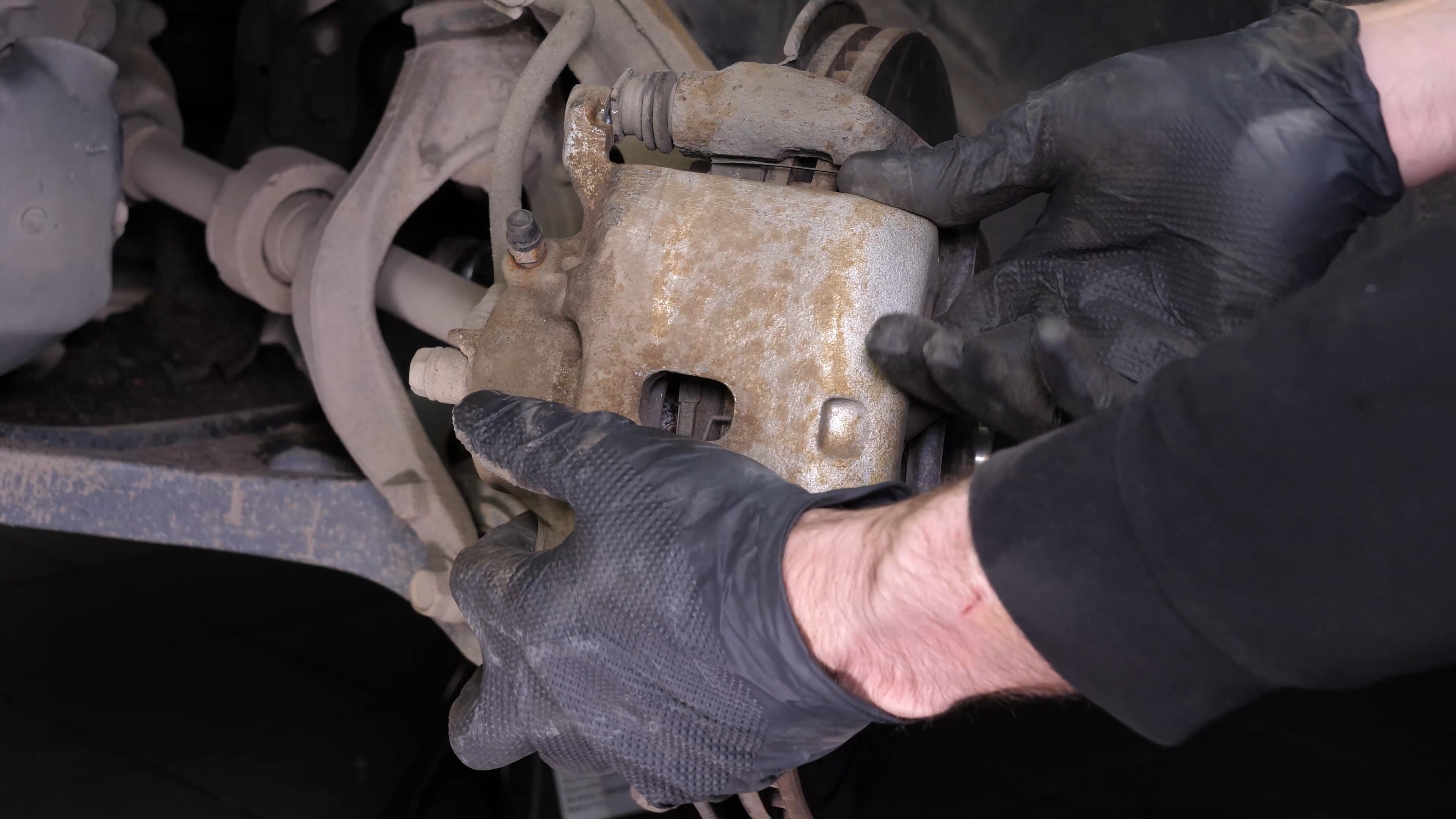

You can now remove the brake caliper and hand it to the previously installed hook.

Chapter 5:

Remove the brake pads

Step 1/3

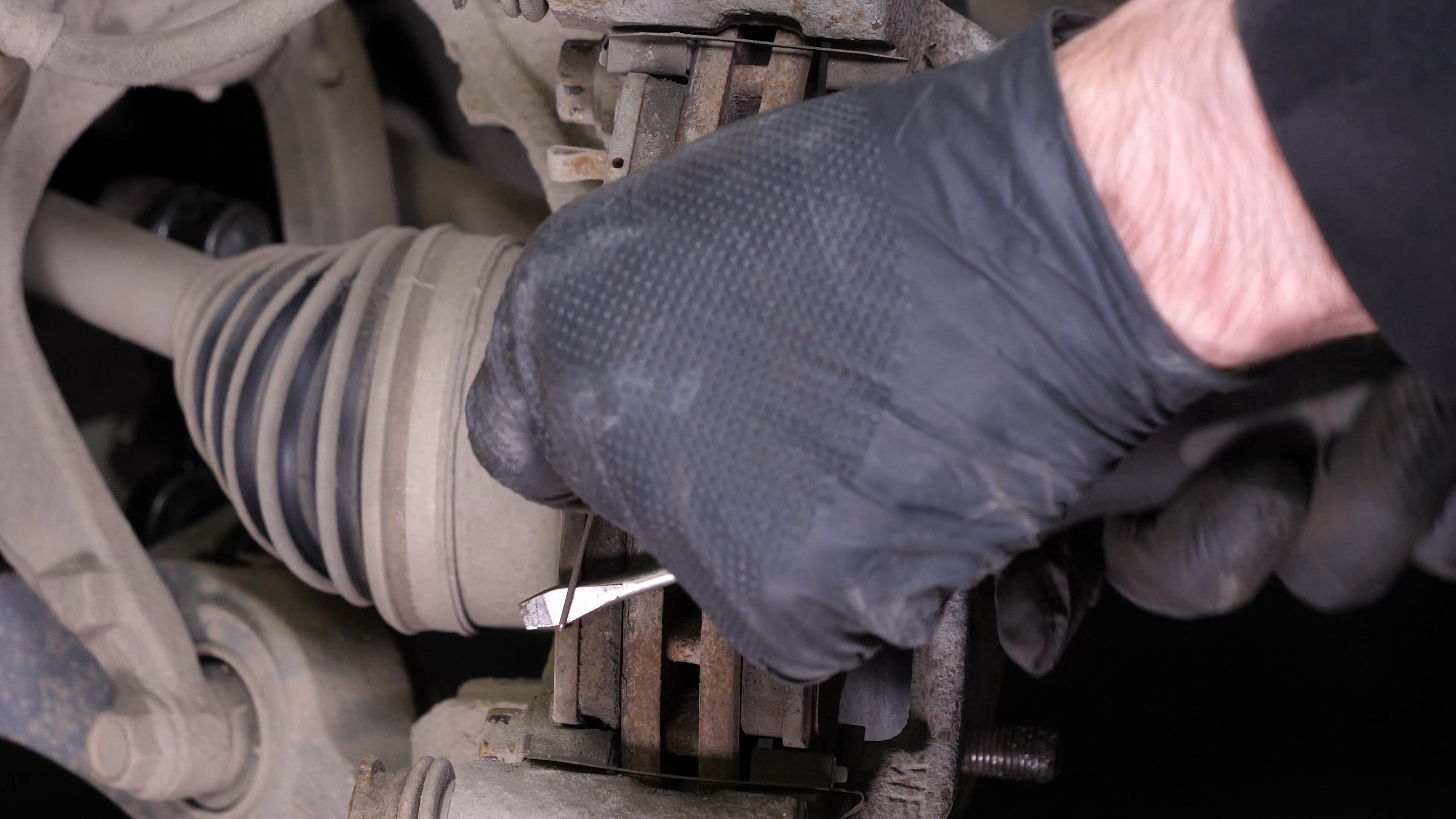

Remove the clips holding the pads. You can use a screwdriver to help you.

Chapter 5:

Step 2/3

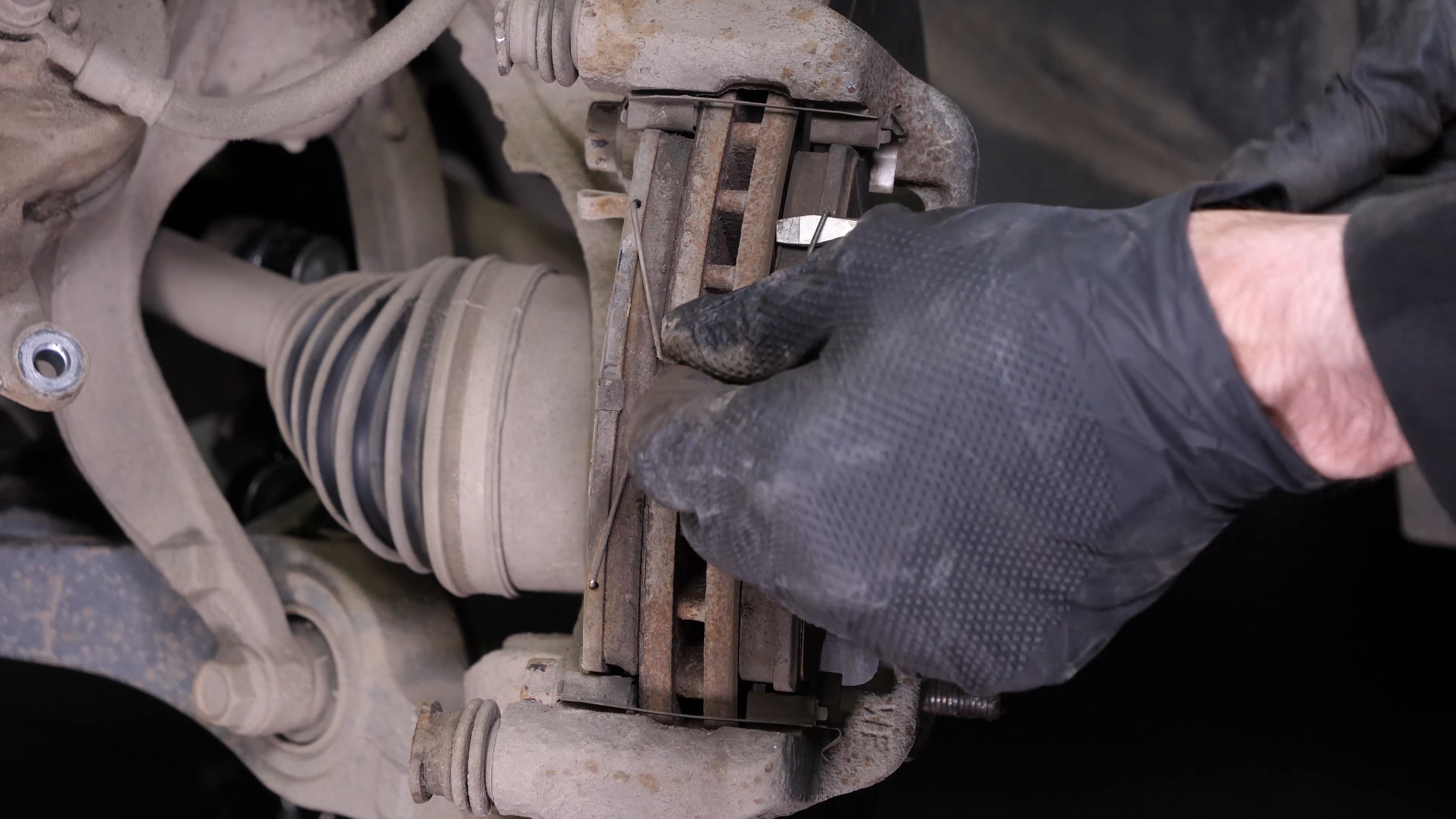

Remove the brake pads by prying them out with the flat head screwdriver.

Chapter 5:

Step 3/3

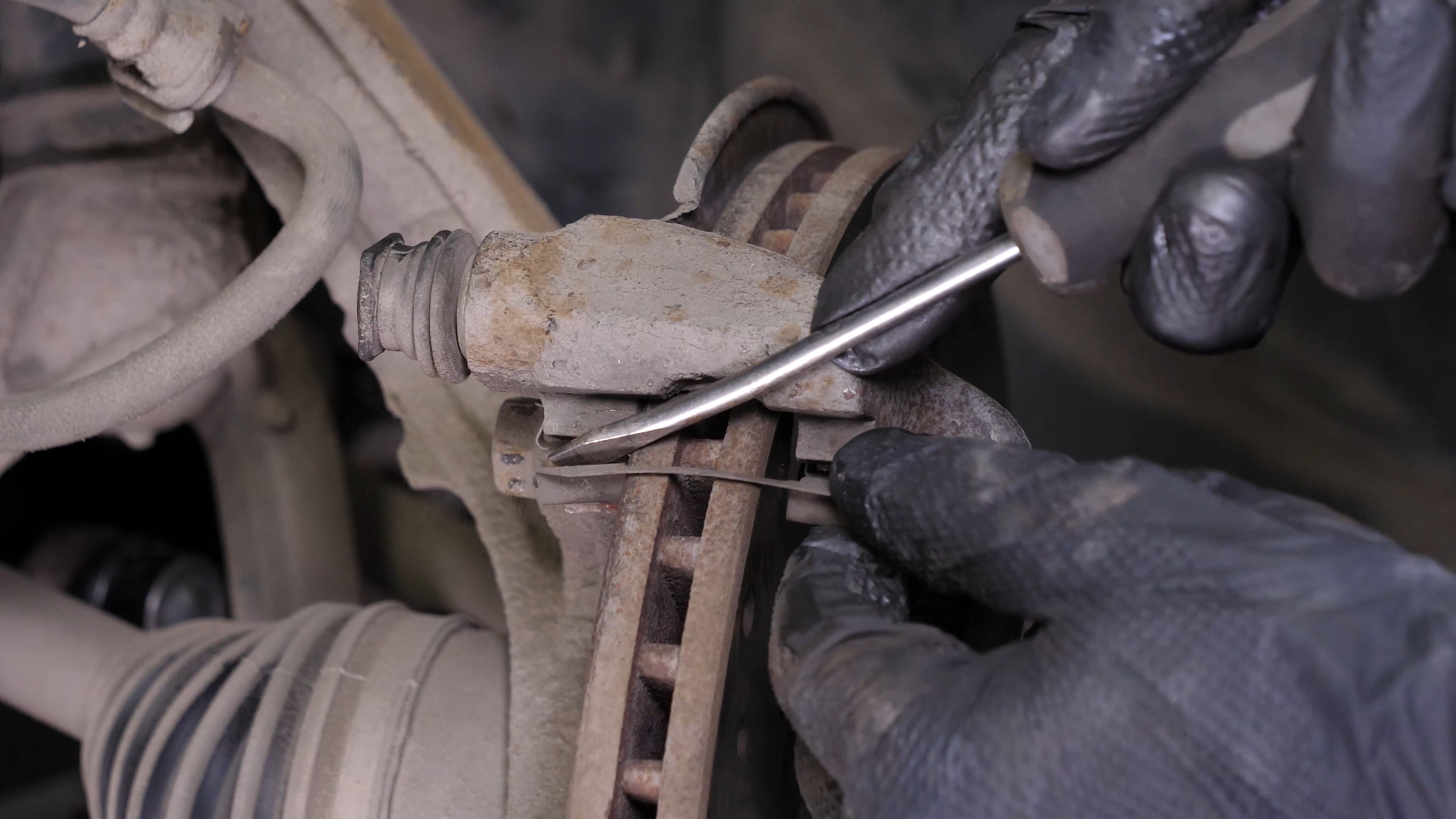

Using the screwdriver, remove the anti-rattle clips.

Chapter 6:

Clean the brake caliper mount

Step 1/1

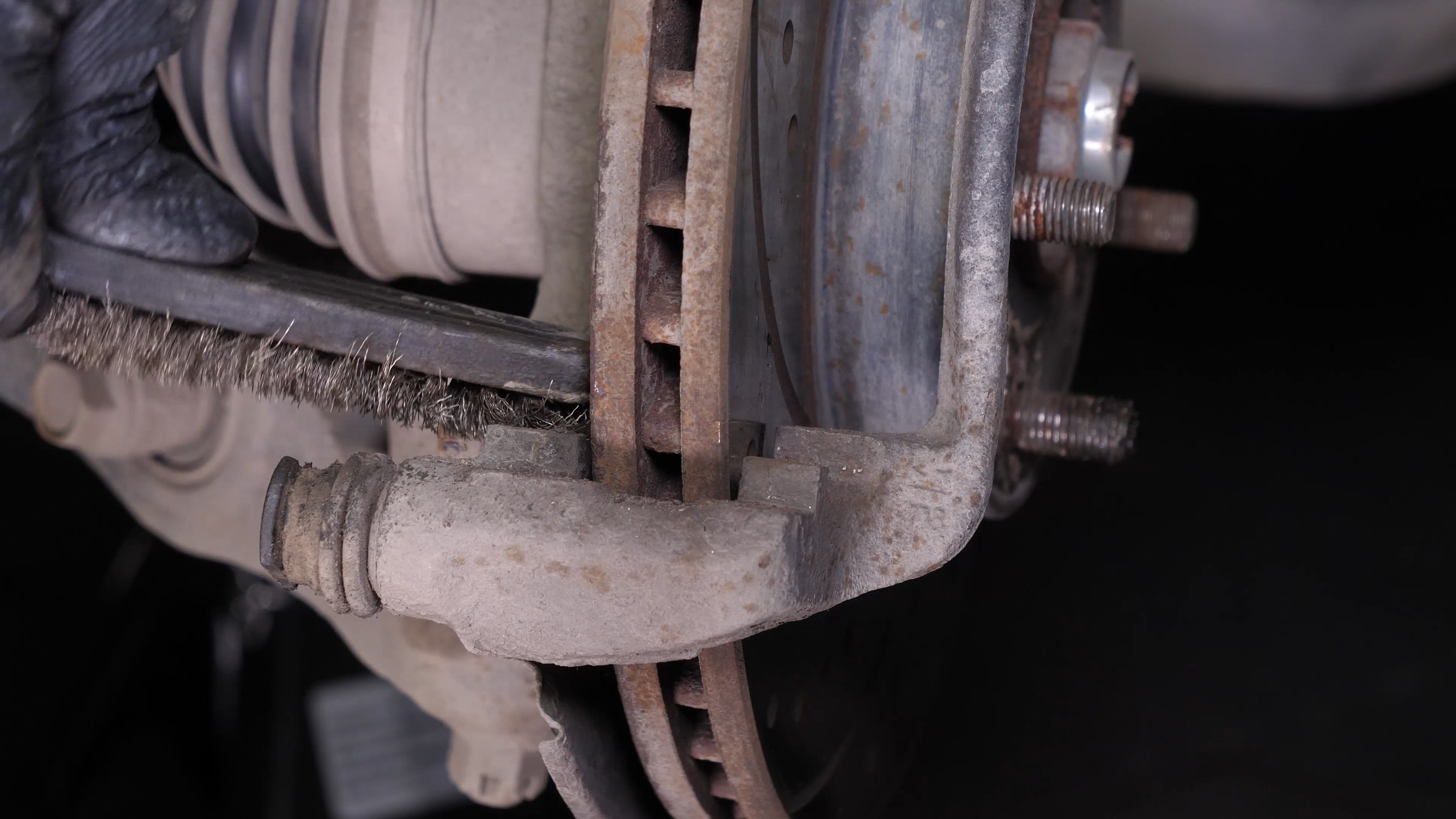

Using a wire brush, clean the caliper mount to remove any excess rust that could prevent the pads from sliding.

Chapter 7:

Install the new anti-rattle clips

Step 1/2

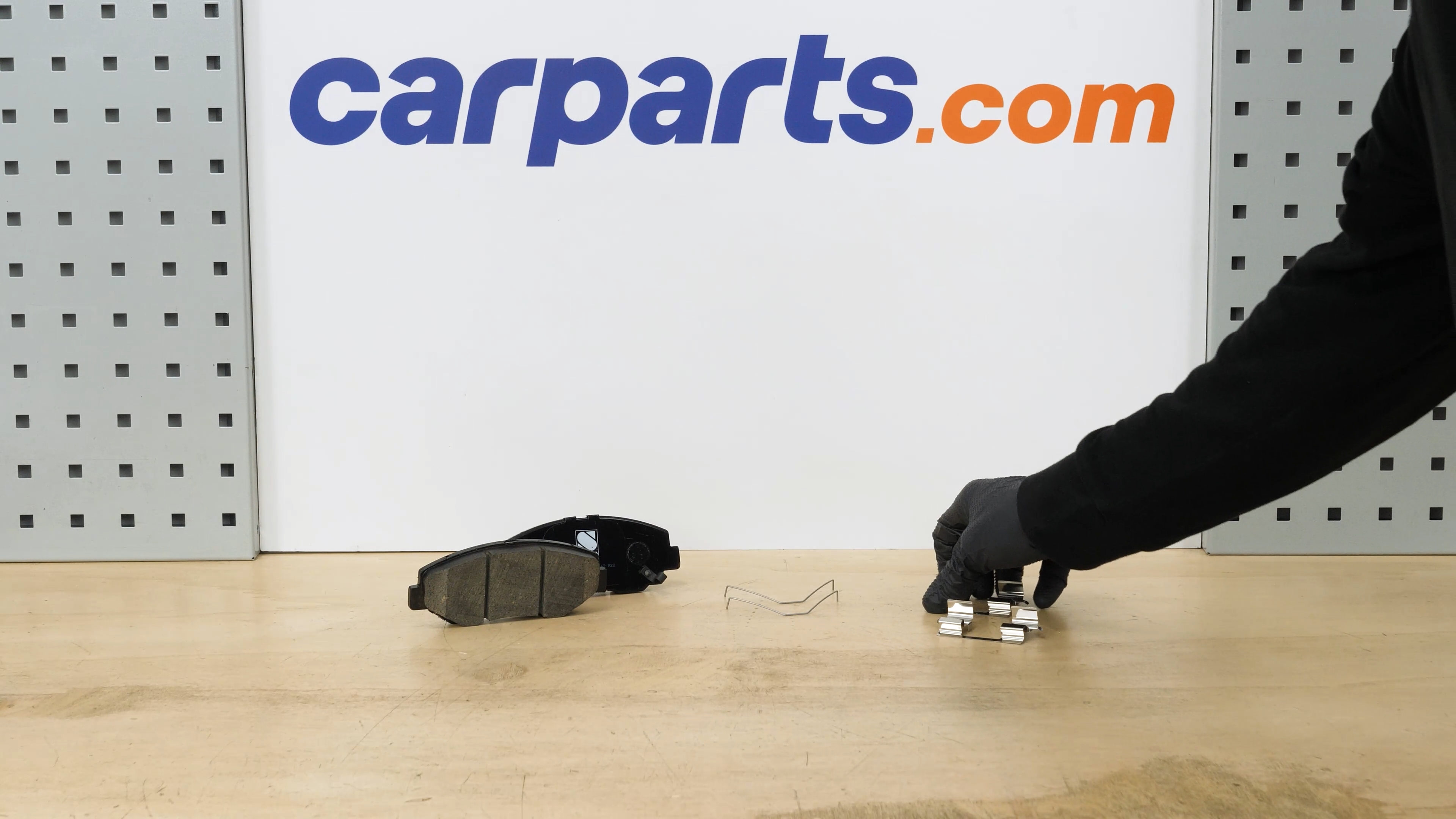

Get hold of the anti-rattle clips supplied in the kit.

Chapter 7:

Step 2/2

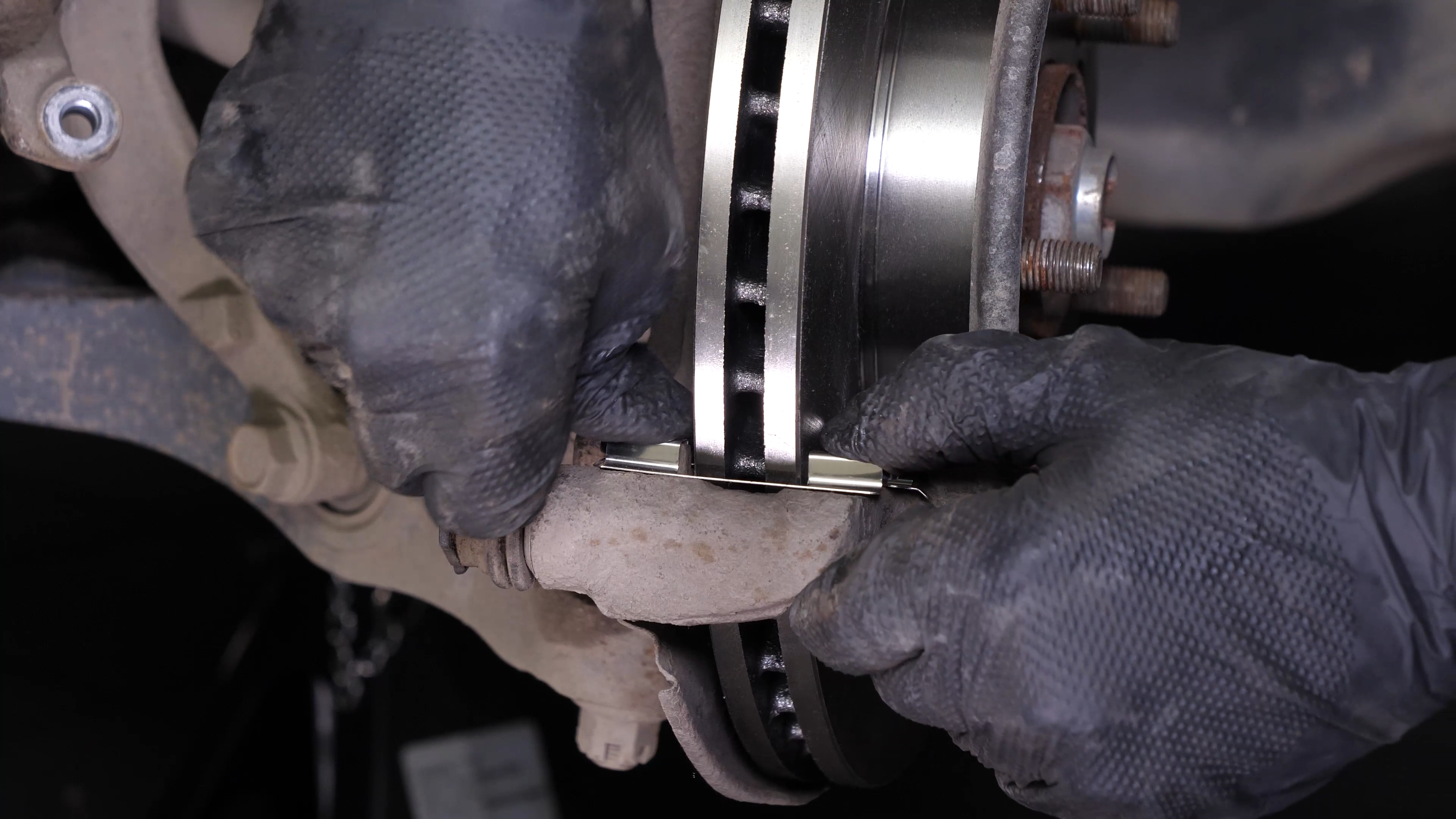

Place the new anti-rattle clips on the caliper mount.

Chapter 8:

Place the new brake pads

Step 1/5

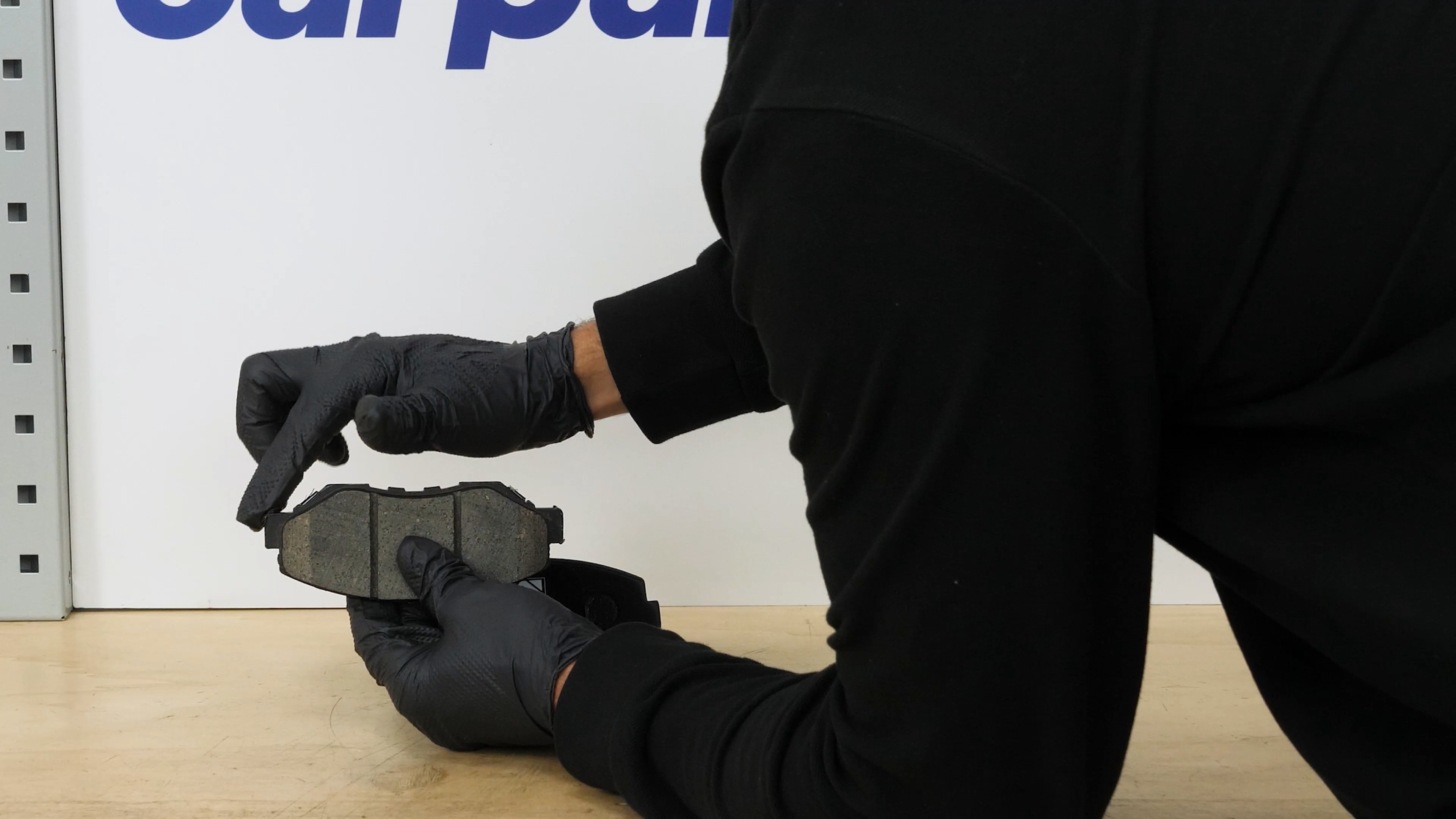

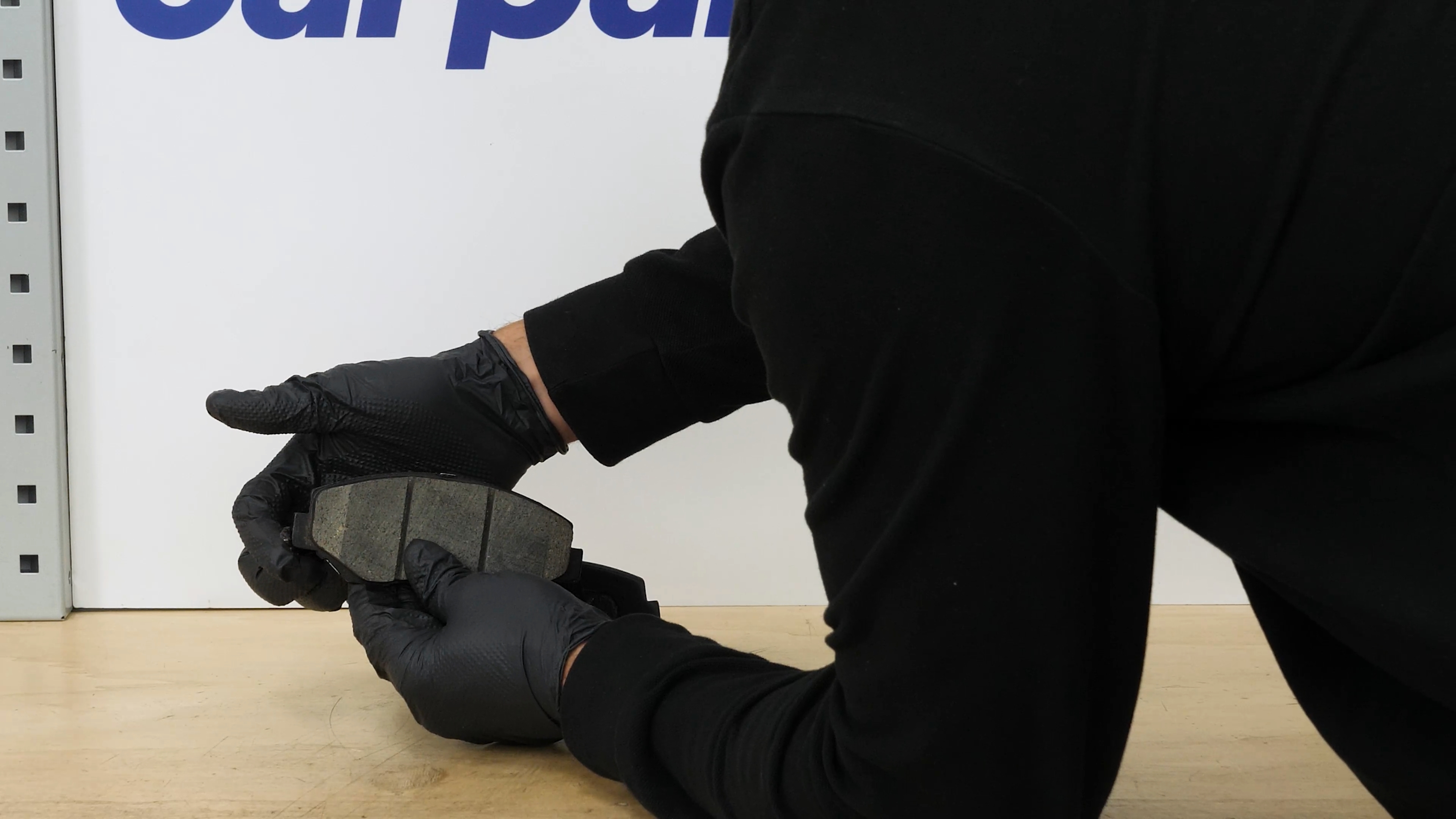

Grab the new pads, and lightly coat the ends with copper grease to help them slide more easily.

Chapter 8:

Step 2/5

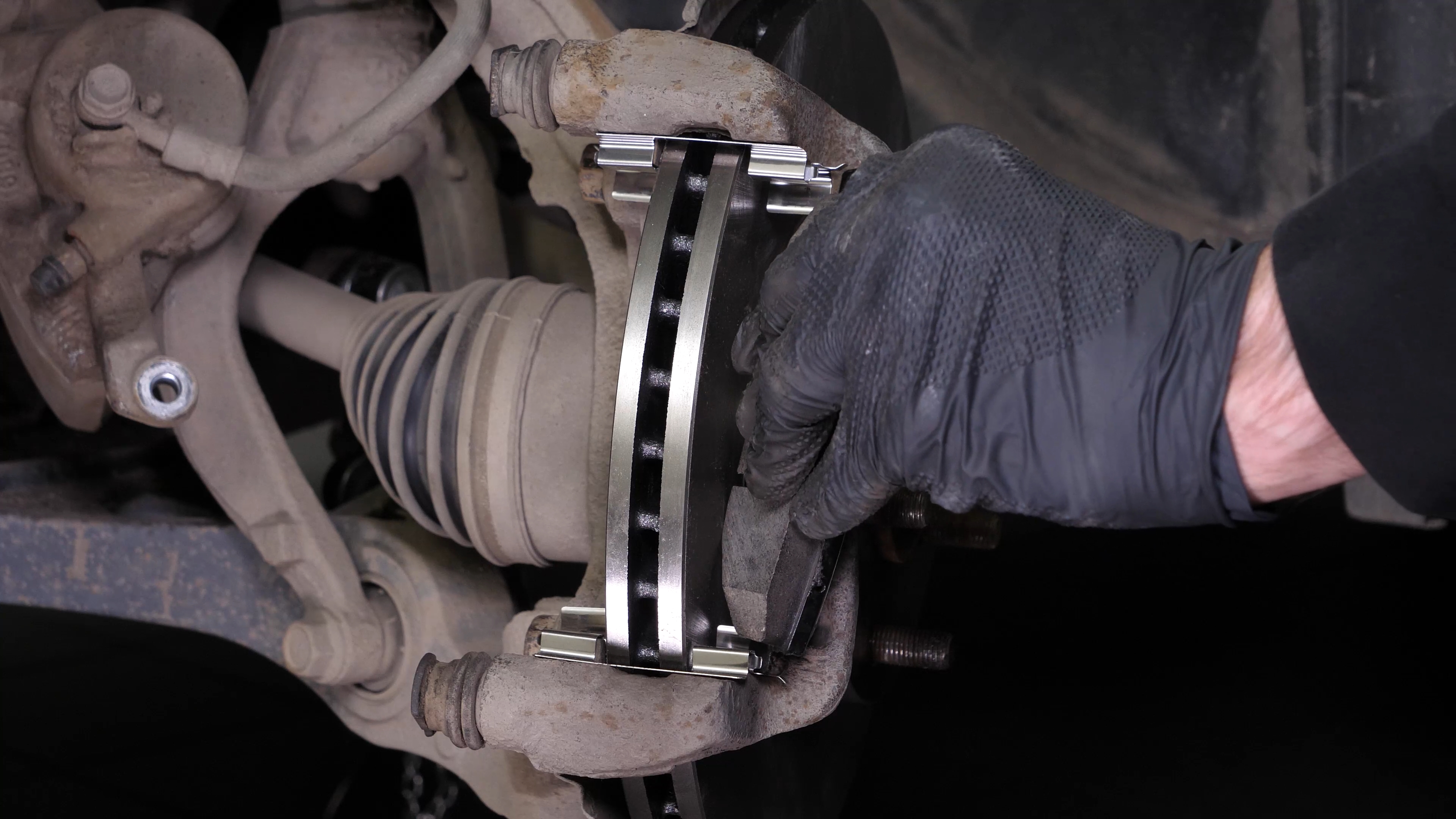

Insert the new pads into the caliper mount by sliding them in.

Chapter 8:

Step 3/5

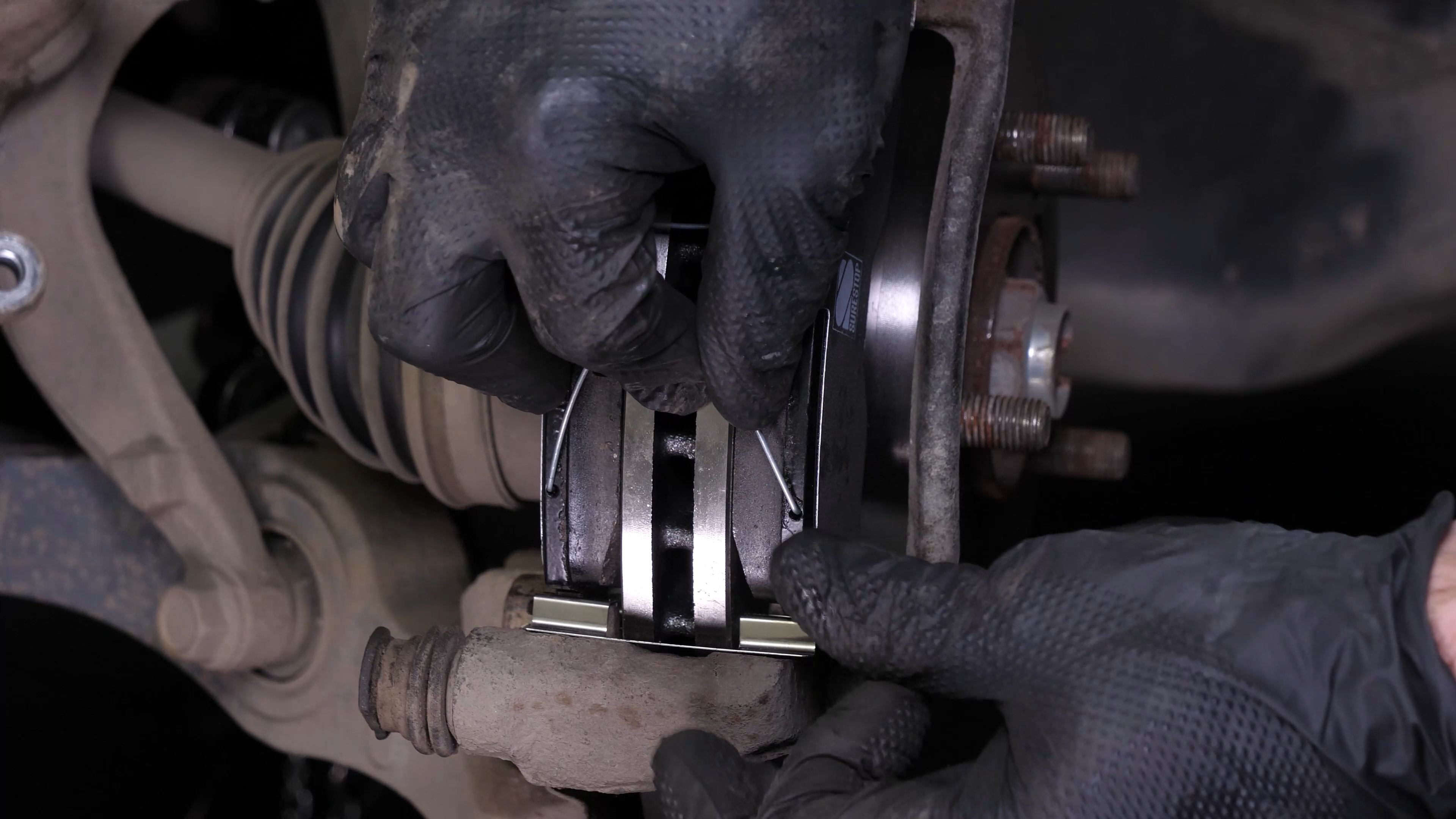

Install the new pad retaining clips.

Chapter 8:

Step 4/5

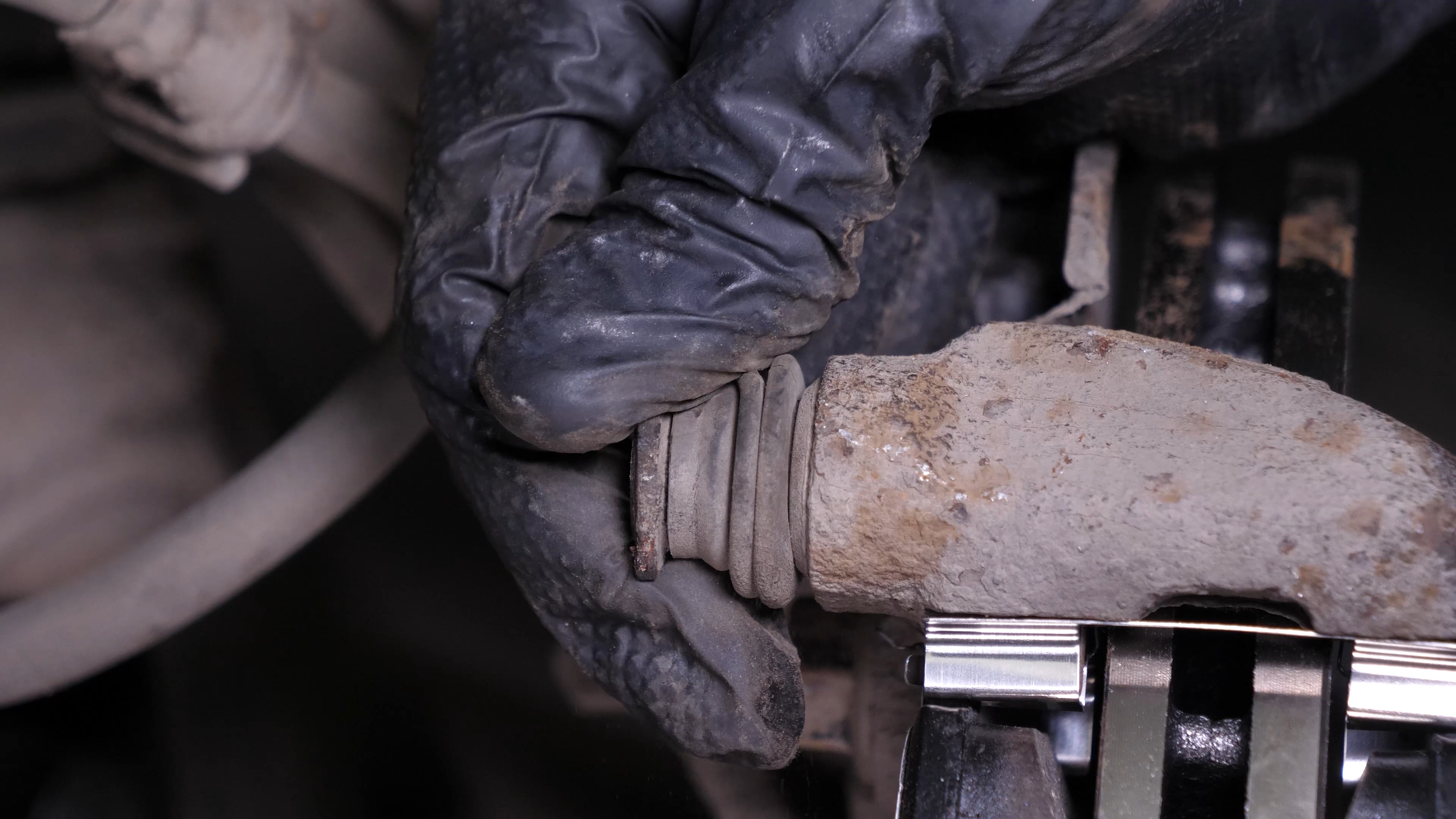

You need to check the sliding of the brake caliper slide pins and the condition of the Caliper slide pin boots.

Chapter 8:

Step 5/5

If they look worn, you are advised to replace them with new ones.

Chapter 9:

Put the brake caliper back

Step 1/4

Grab the brake caliper.

Chapter 9:

Step 2/4

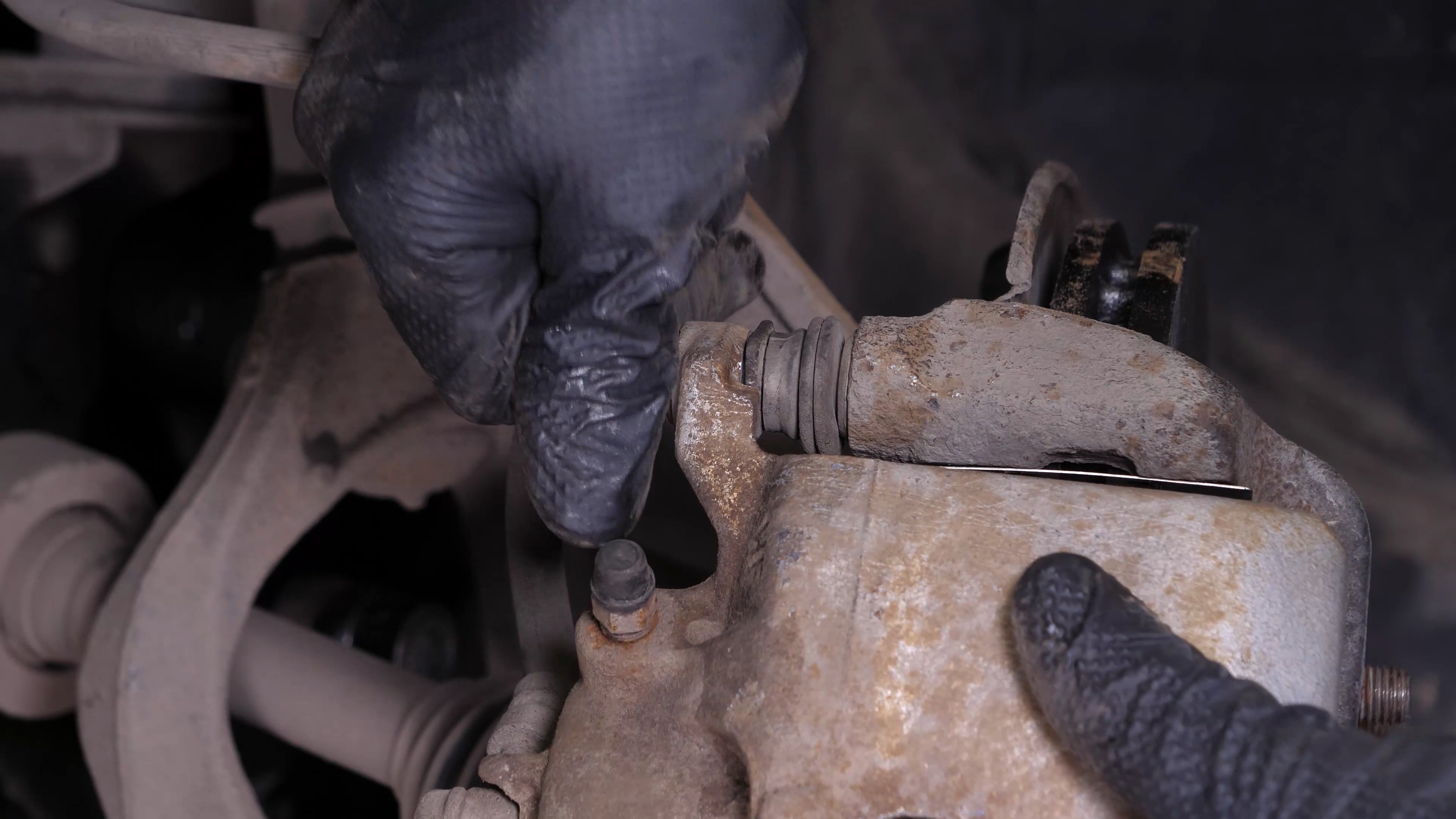

Put the brake caliper back in place and screw in the slide pins, by hand at first.

Chapter 9:

Step 3/4

Screw them in using 12mm wrench.

Chapter 9:

Step 4/4

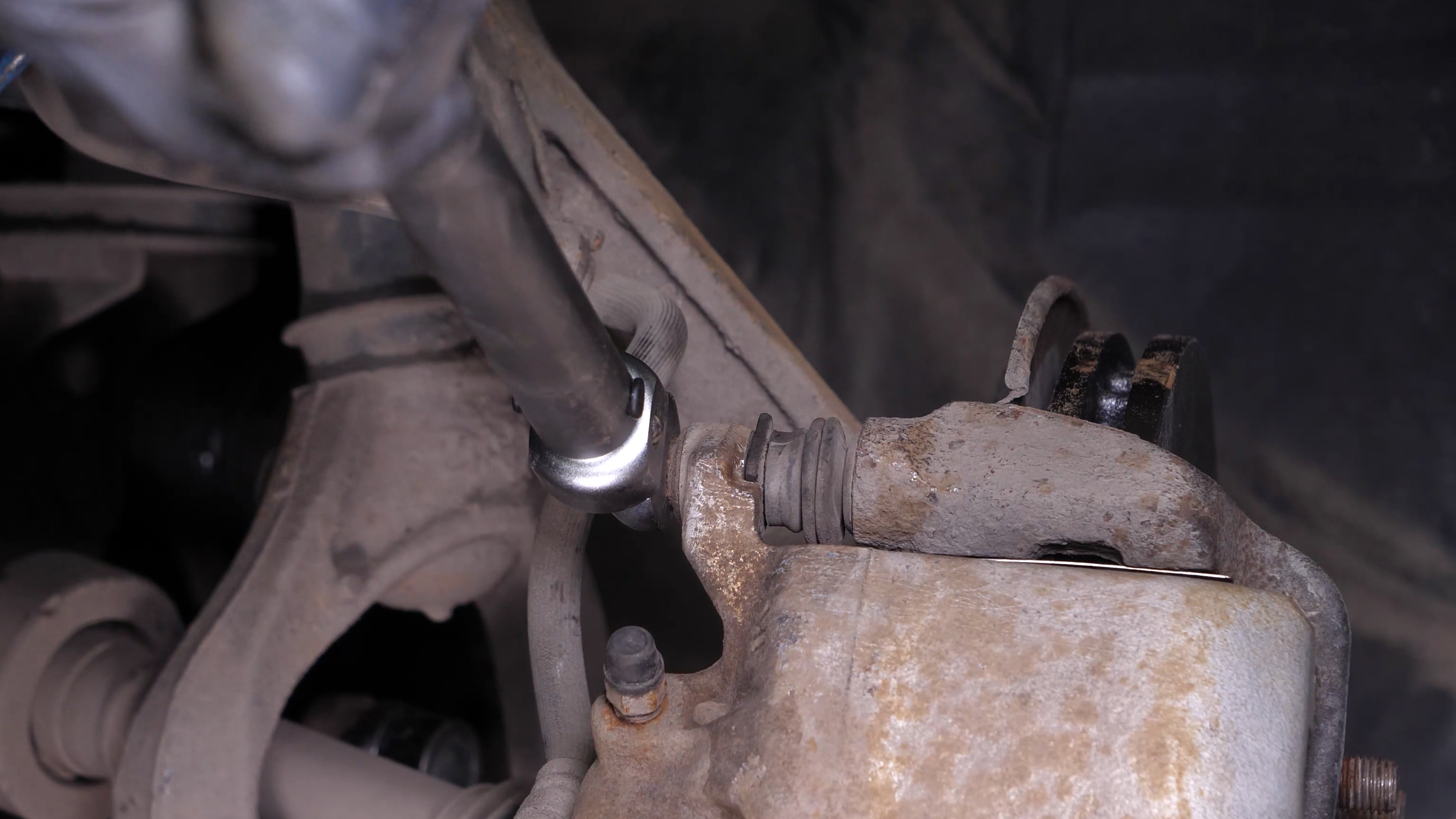

Finish tightening using a torque wrench.

Chapter 10:

Tips

Step 1/1

Don’t forget to remove the cable that you used to hold the caliper.

Chapter 11:

Clean

Step 1/1

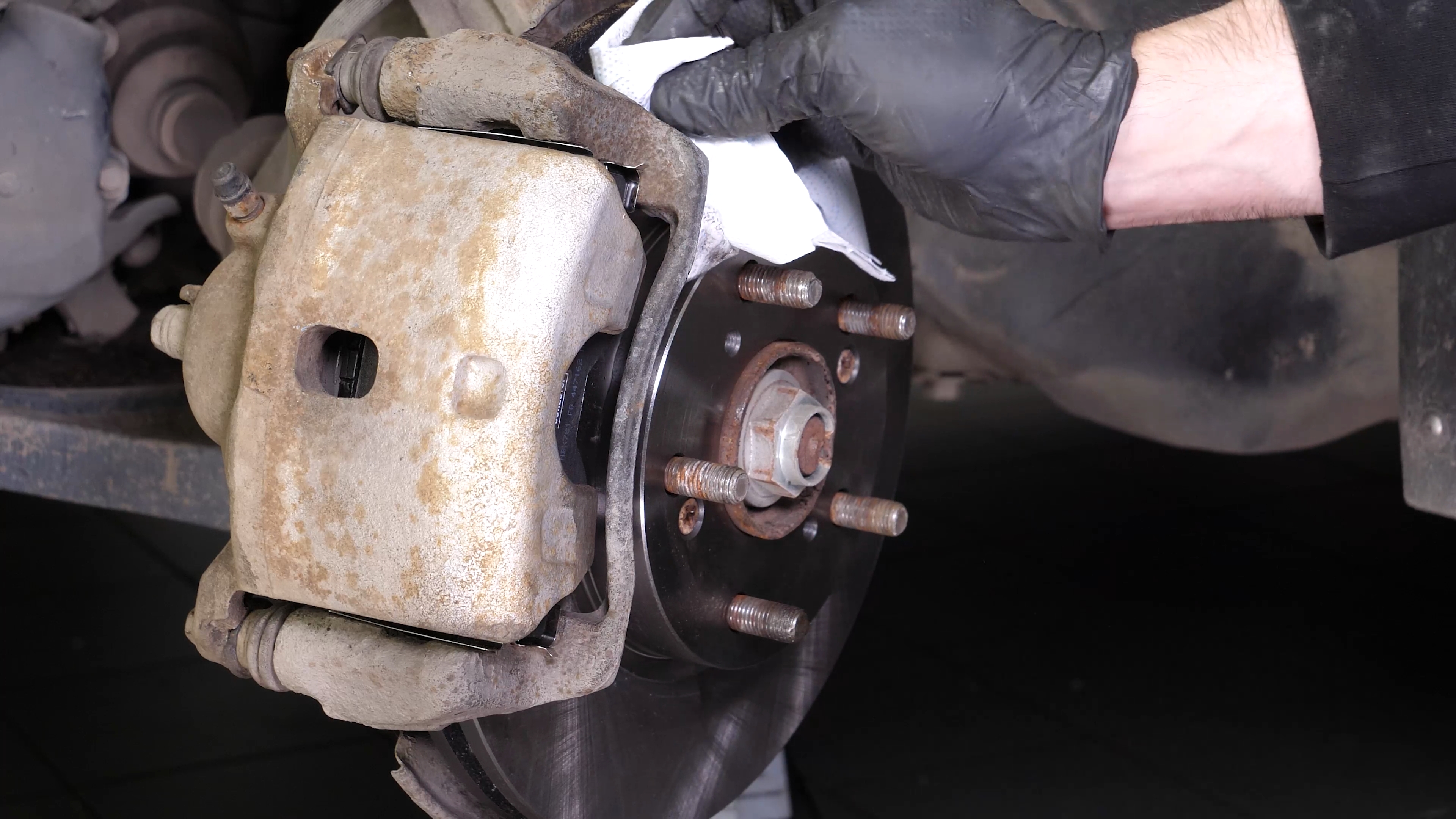

Clean the disc with brake cleaner and a cloth to remove the grease from the new pads.

Chapter 12:

Passenger side

Step 1/1

You can now repeat the same process on the other side.

Chapter 13:

Put the vehicle back on the ground

Step 1/3

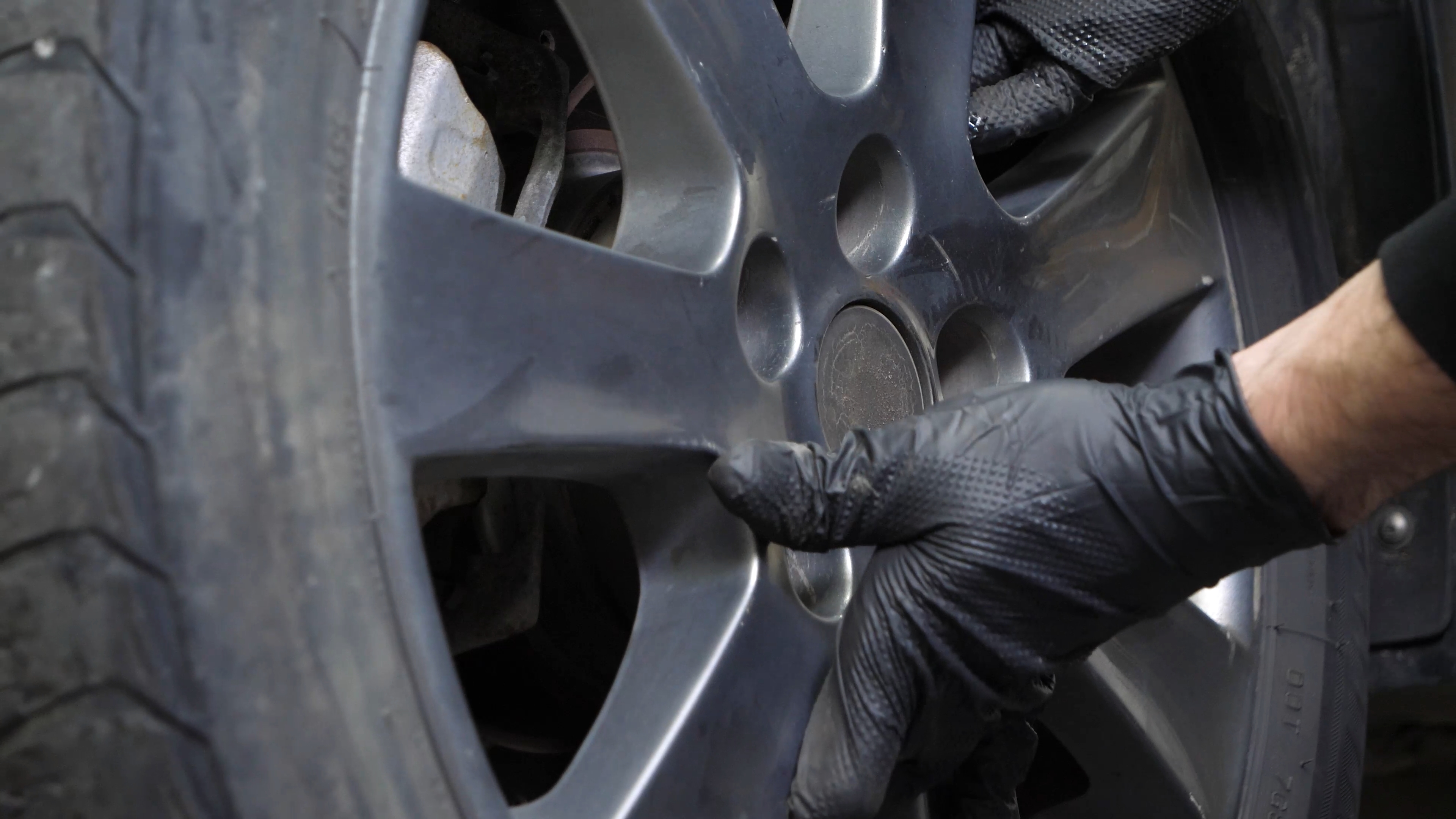

Then, you will be able to put the wheels back on your vehicle.

Chapter 13:

Step 2/3

Put the car back on the ground and block the wheels properly.

Chapter 13:

Step 3/3

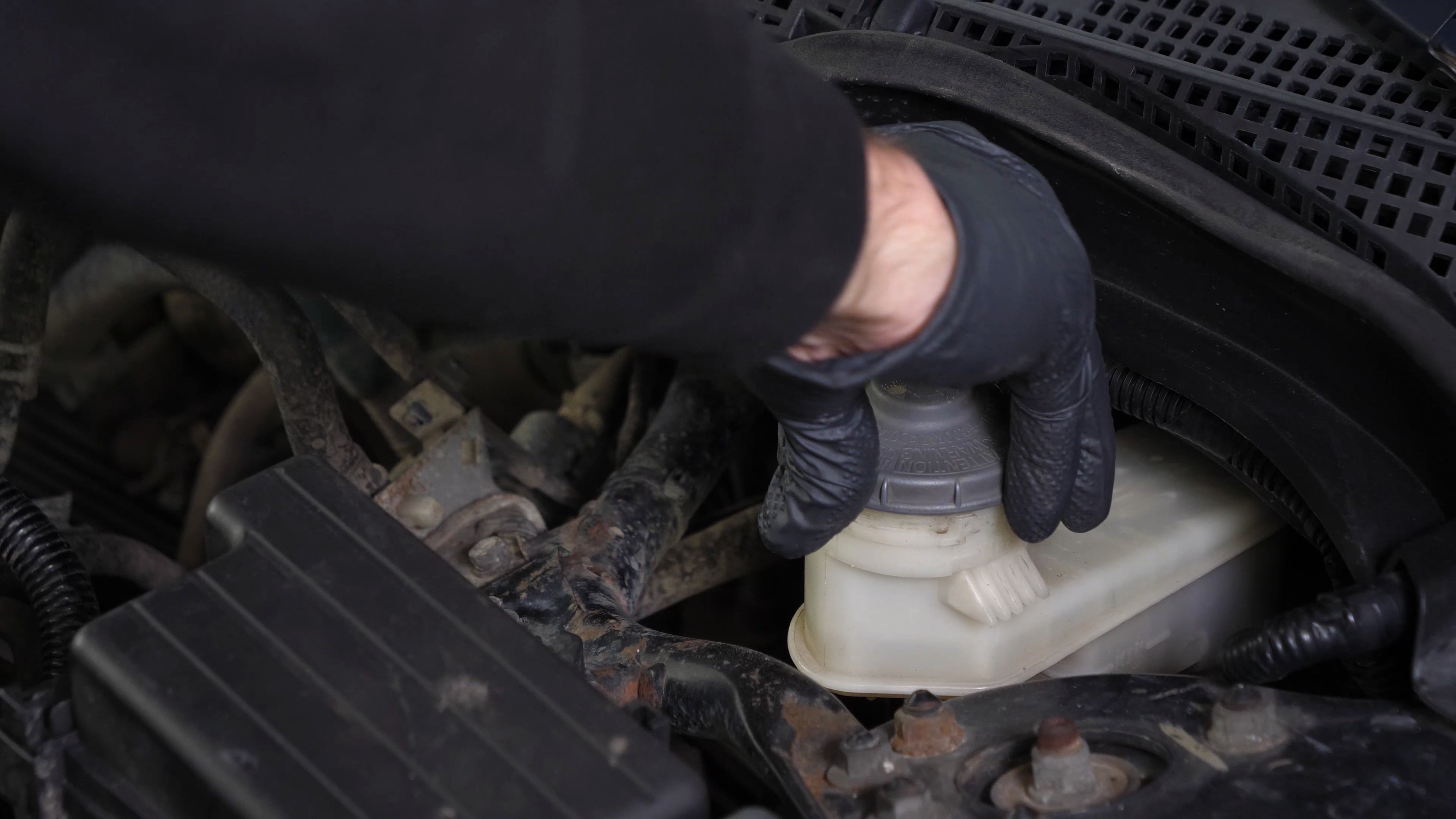

Don’t forget to screw the brake fluid cap back on before starting the car.

Chapter 14:

Safety tips

Step 1/3

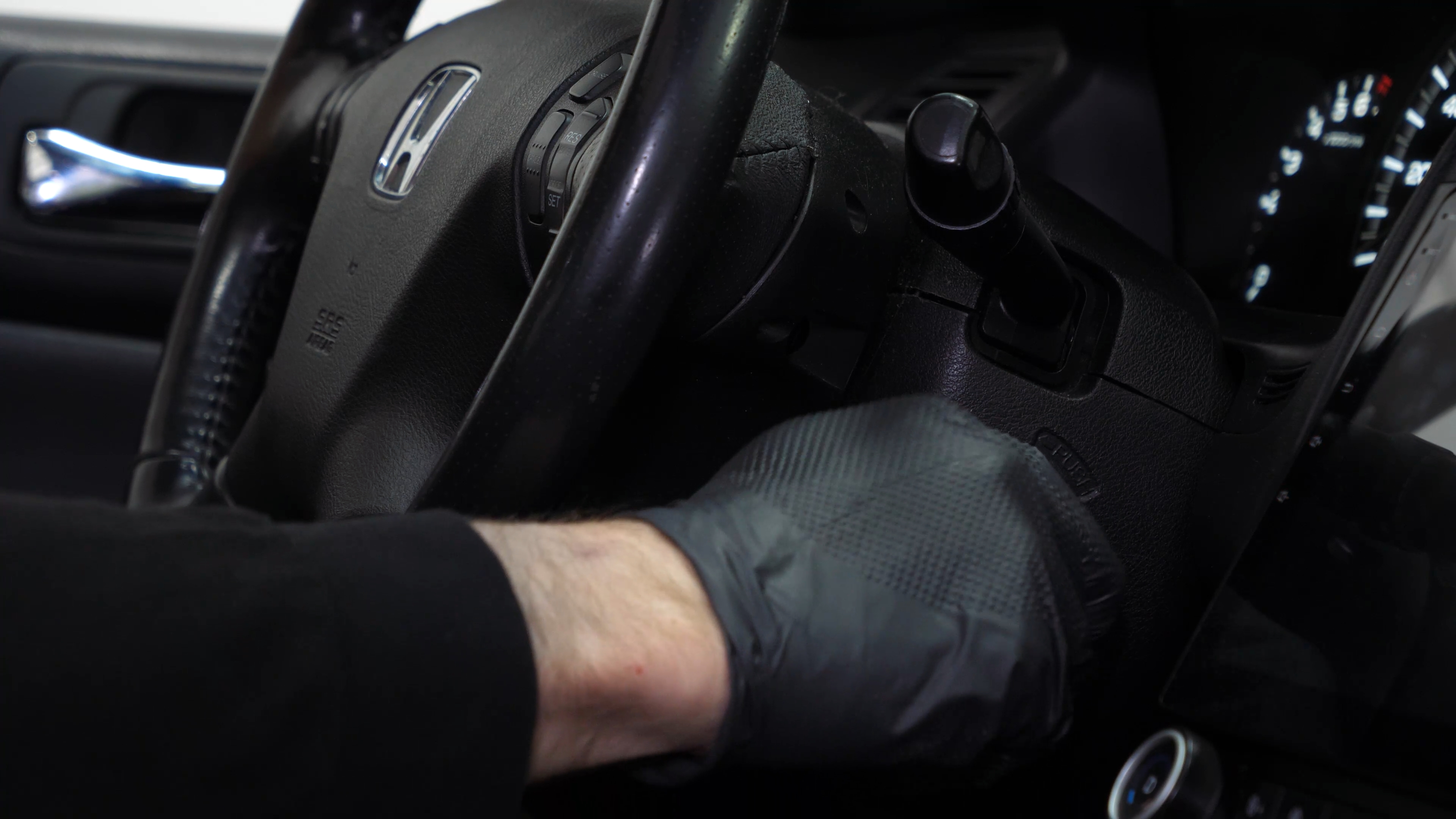

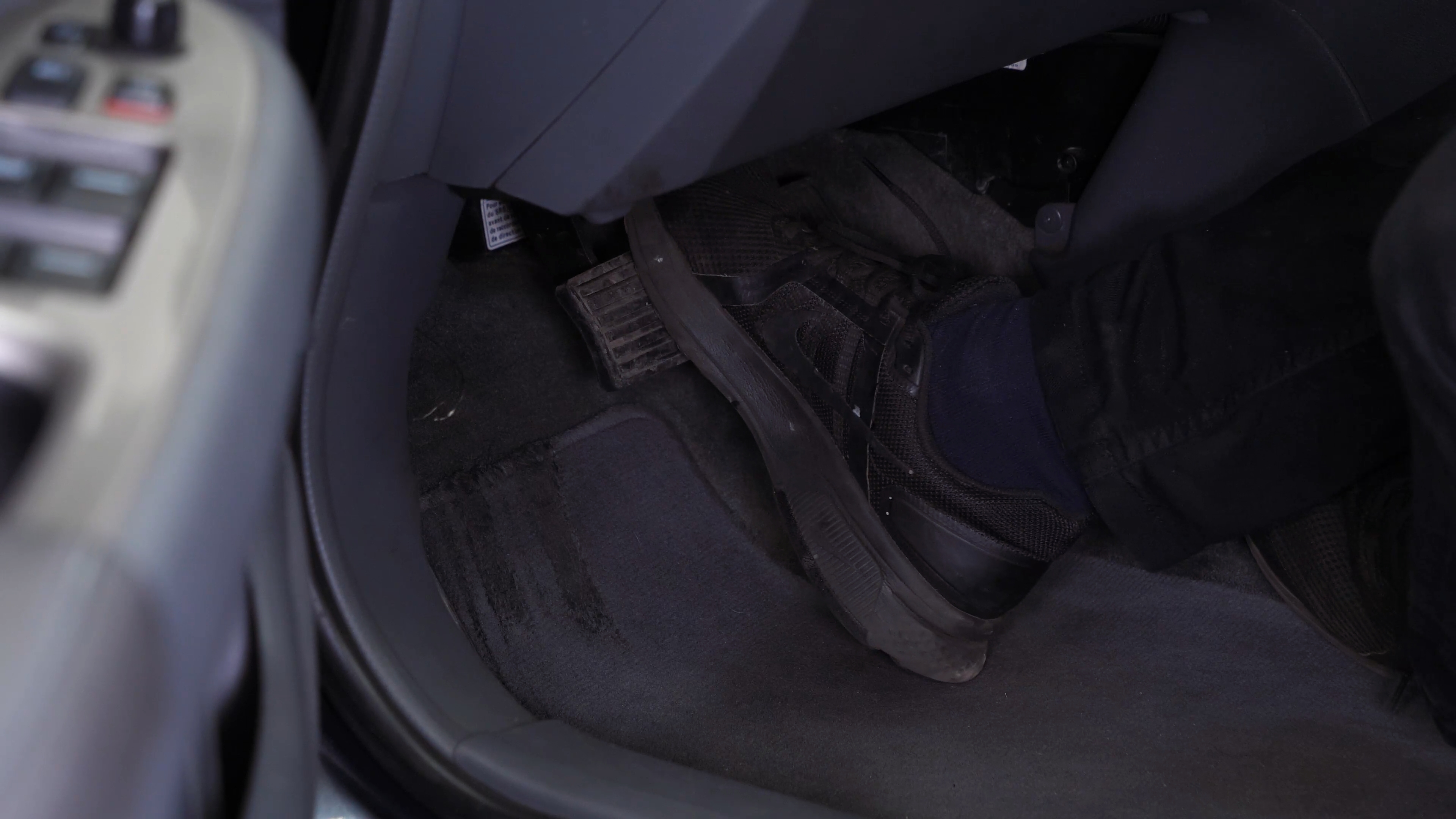

Attention! Before using your vehicle again, start your car, and pump the brake pedal a few times to push the brake pads together again.

Chapter 14:

Step 2/3

Try to drive smoothly and avoid sudden braking for the first 30 miles or so, to avoid glazing the new pads.

Chapter 14:

Step 3/3

Operation complete.
