How to replace the headlight bulbs 2003-2007 Honda Accord
To replace the headlight bulbs on your Accord it couldnt’ be easier. You will be asked to access the lightbulbs, replace the high beam bulb, replace the low beam bulb as well as carry out a few other steps. You can carry out this tutorial of 6 chapters in 10 minutes. Take your tutorial and your paper towels and let’s get started!
Duration
10 minutes
Number of steps
6
Difficulty out of 5
1
Average savings
$15
Parts You Will Need
Tools You Will Need
Step-by-Step Installation
Chapter 1:
Open the hood
Step 1/2
Turn your engine off and set the parking brake.
Chapter 1:
Step 2/2
Pull on the hood release handle and open the hood.
Chapter 2:
Tips
Step 1/1
To increase the lifespan of the bulbs, we would suggest never touching the glass with your fingers or cleaning them carefully with paper towels before putting them back.
Chapter 3:
Replace the high beam bulb
Step 1/4

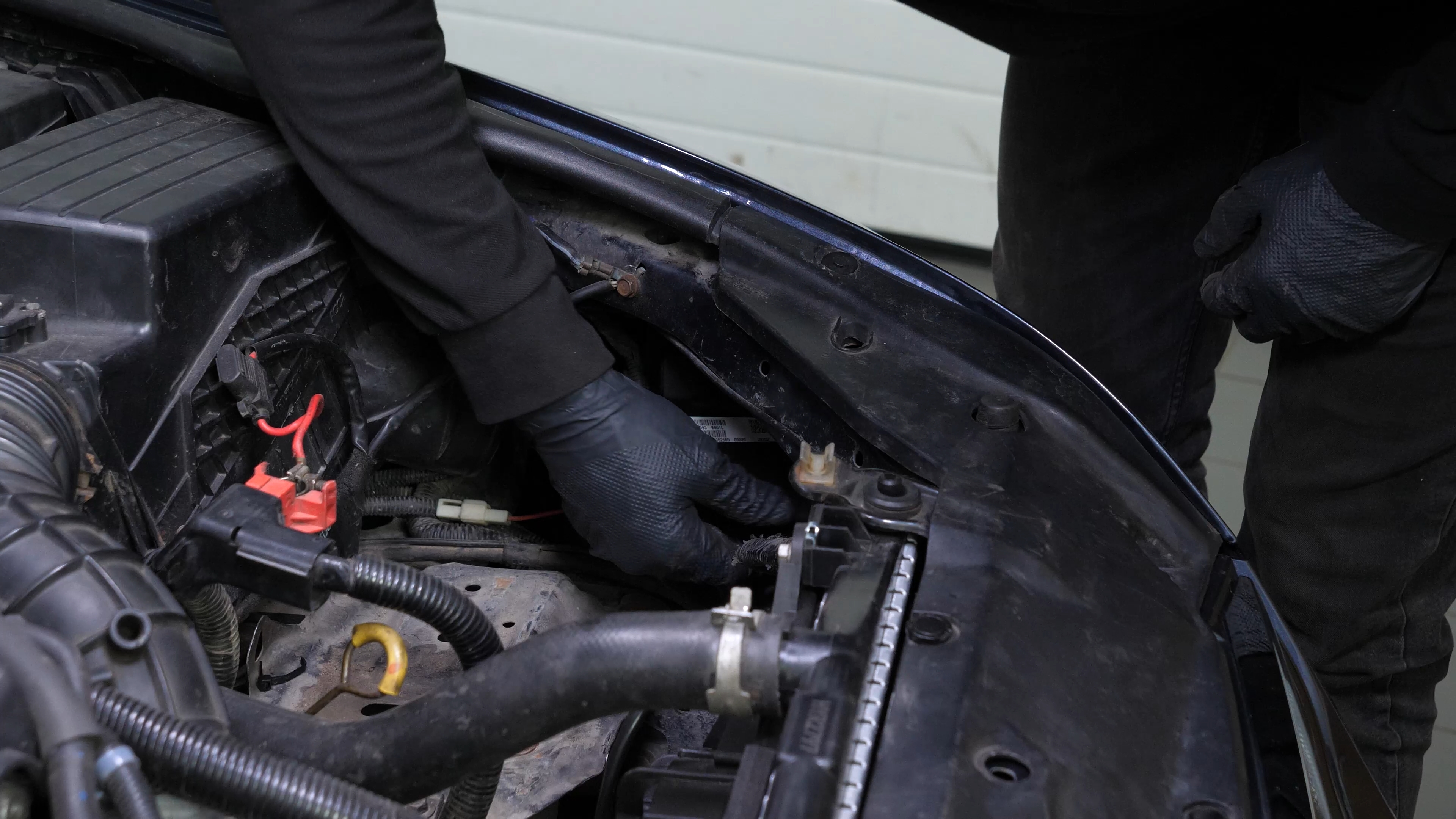

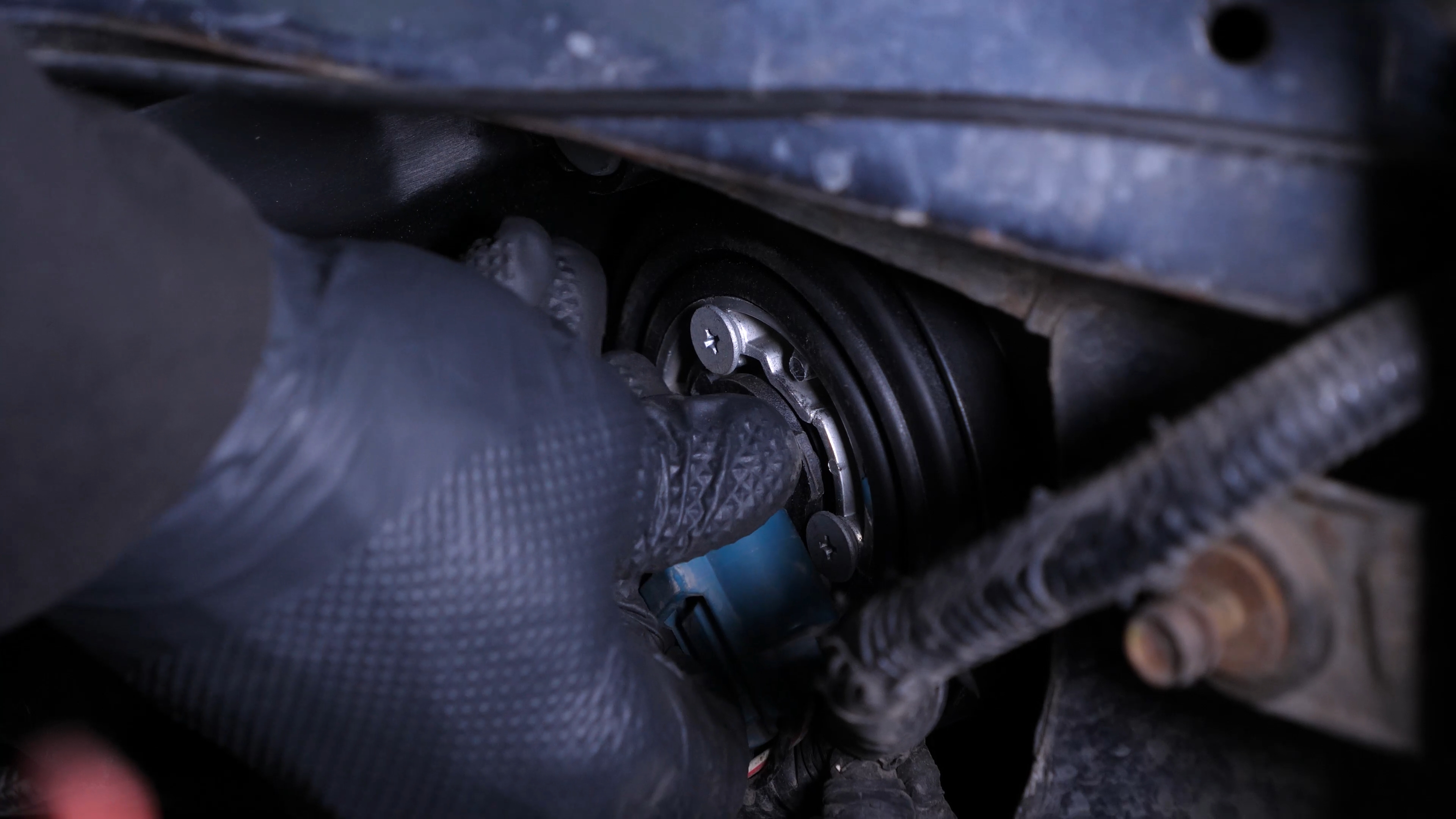

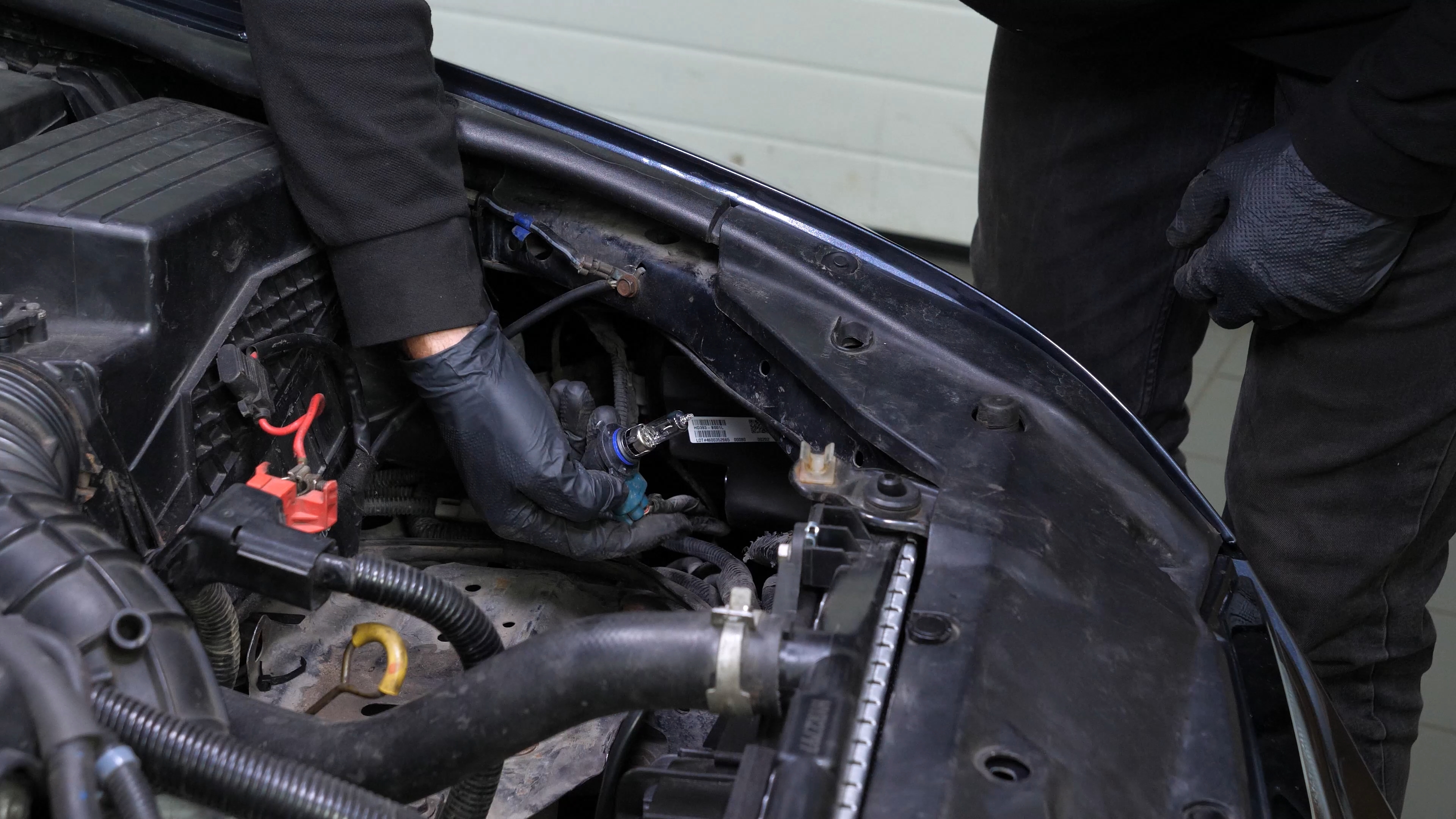

To change the 9005 high beam lightbulb located next to the grille assembly, remove the lightbulb socket from the headlight housing, turn it counterclockwise, and pull it out.
Chapter 3:
Step 2/4

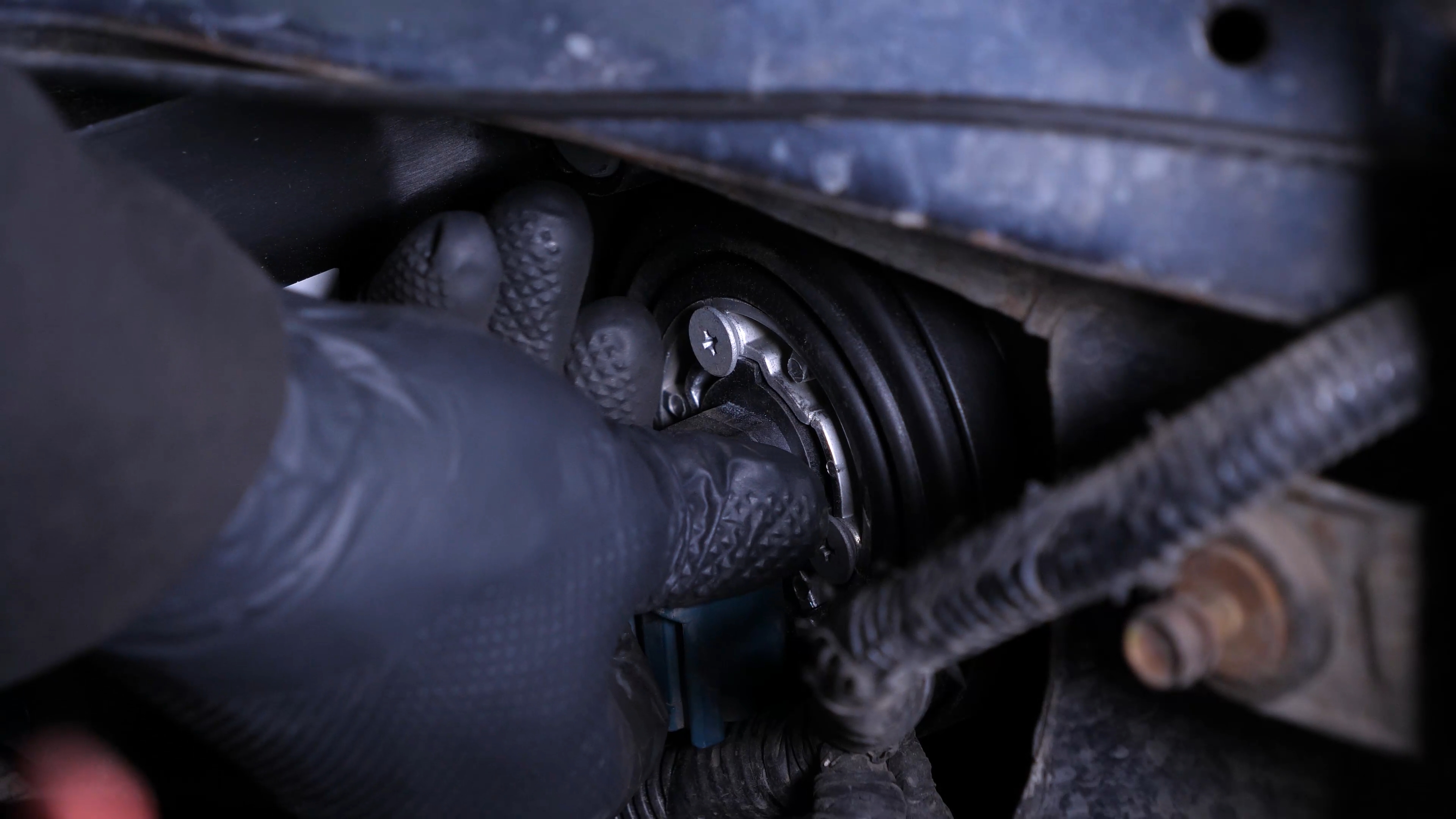

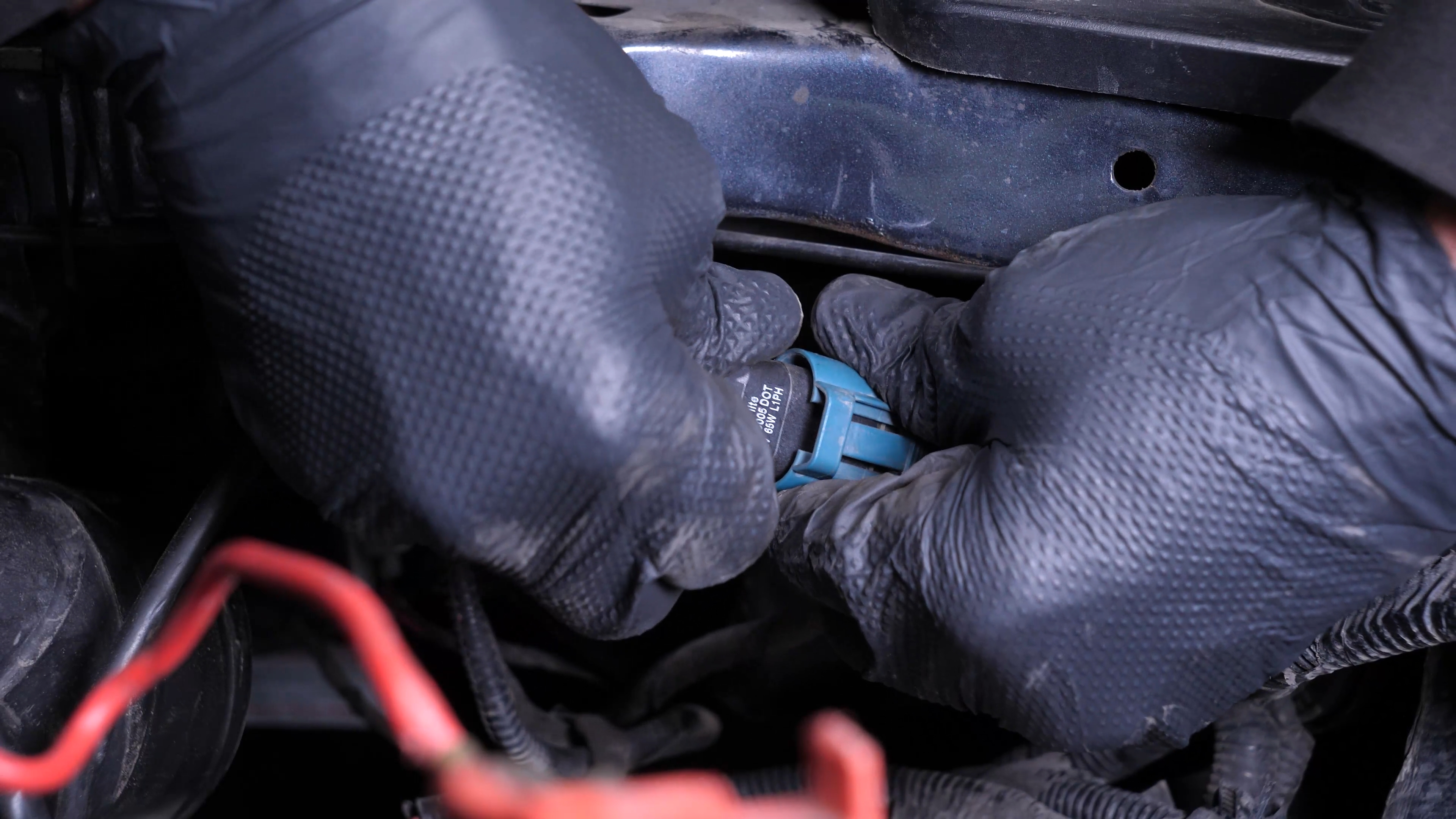

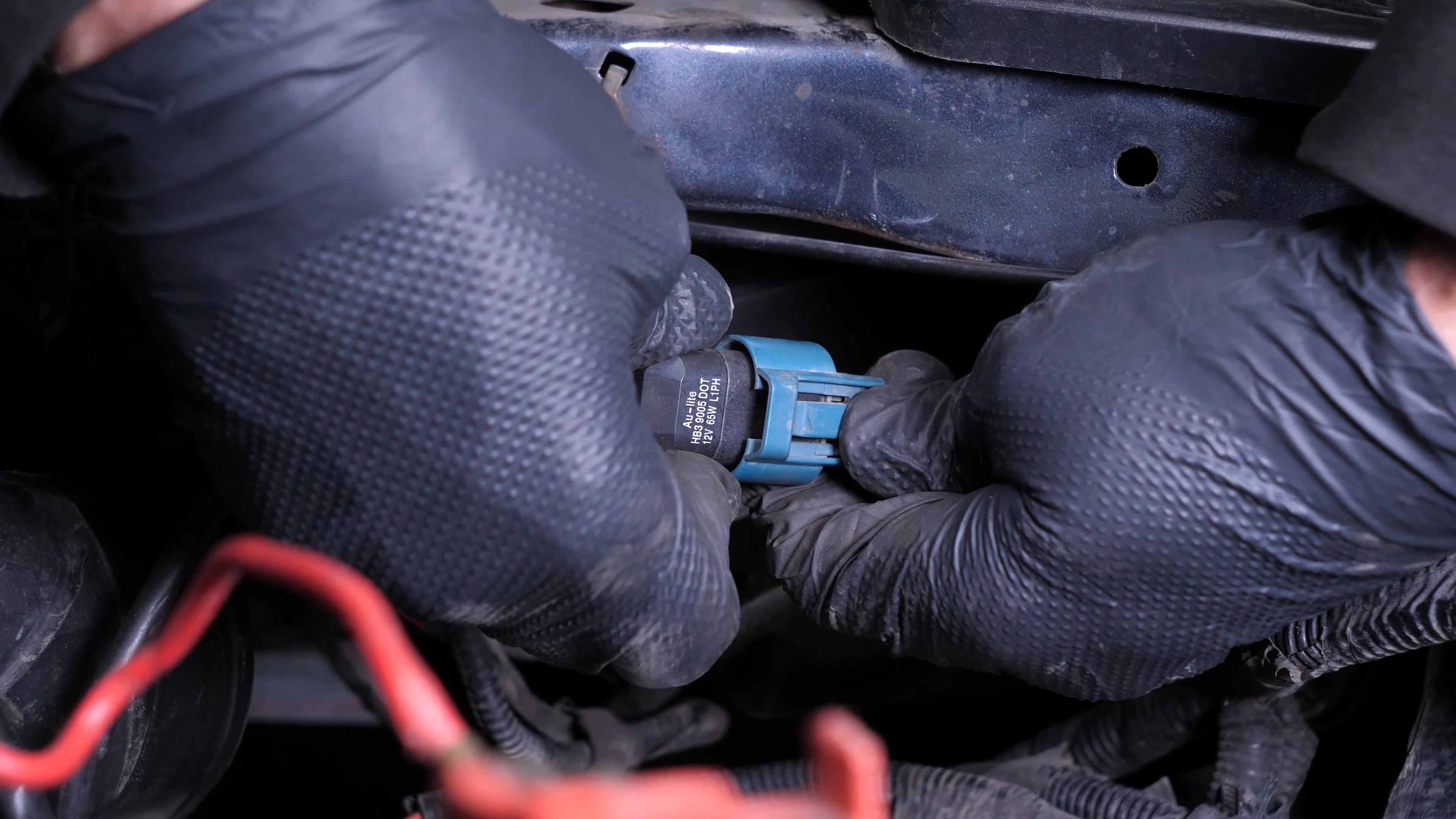

Remove the electrical connector from the lightbulb by pressing on the retaining tab, then pull on the lightbulb.
Chapter 3:
Step 3/4

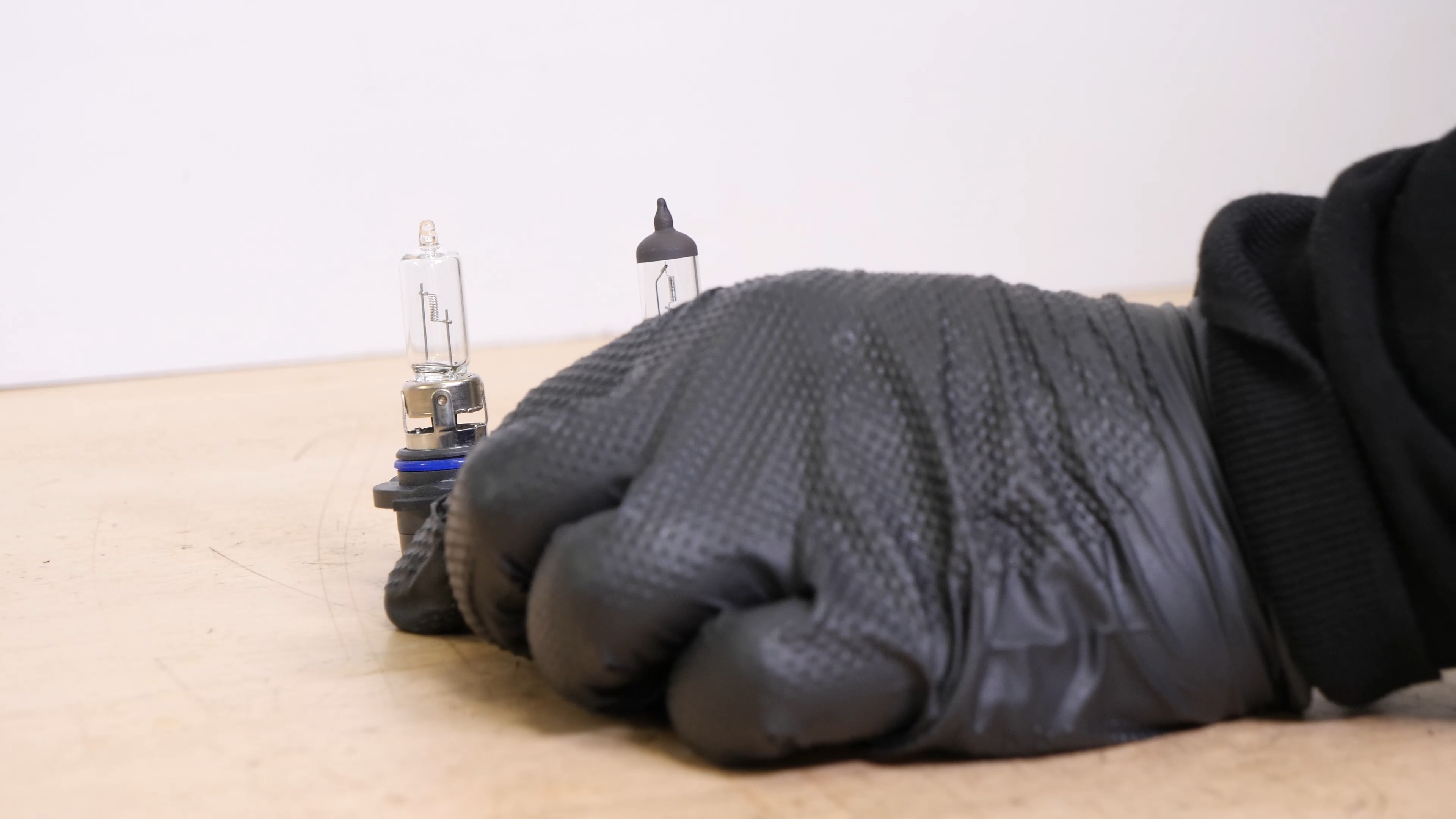

Take the new bulb.
Chapter 3:
Step 4/4

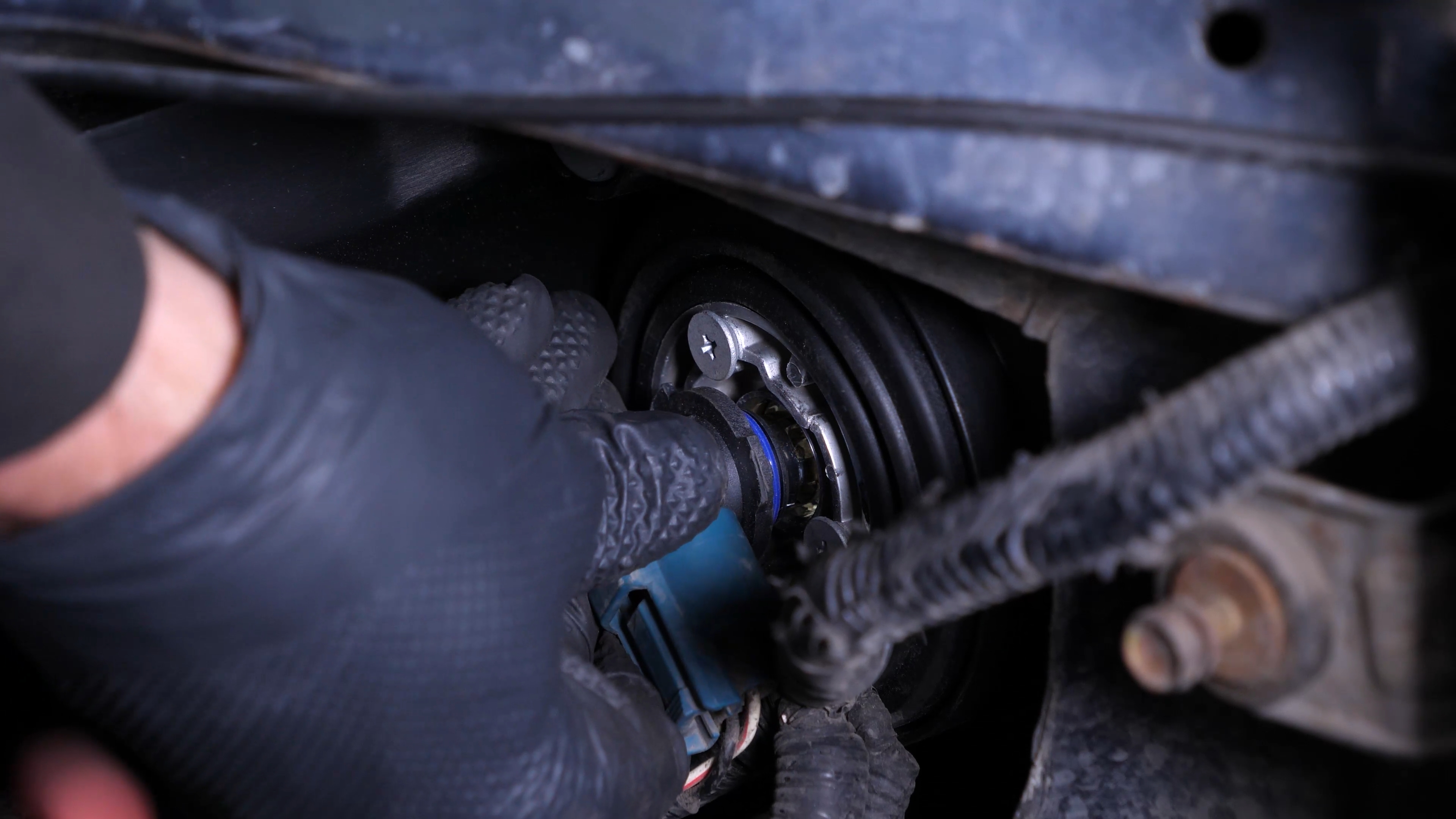

Put the new bulb into the socket, then insert the whole thing into the light, and turn it clockwise to lock it in place.
Chapter 4:
Replace the low beam bulb

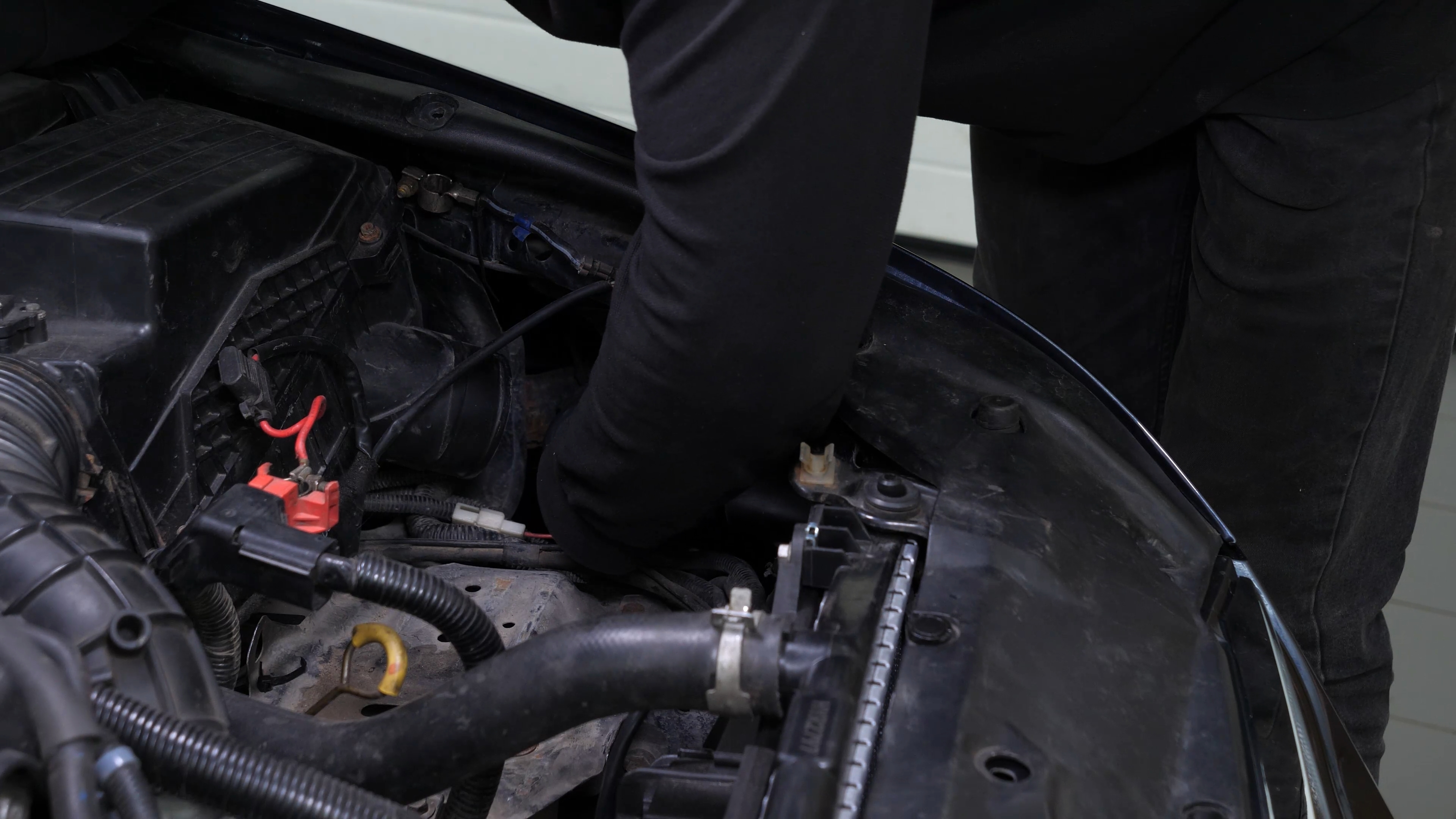

Step 1/4

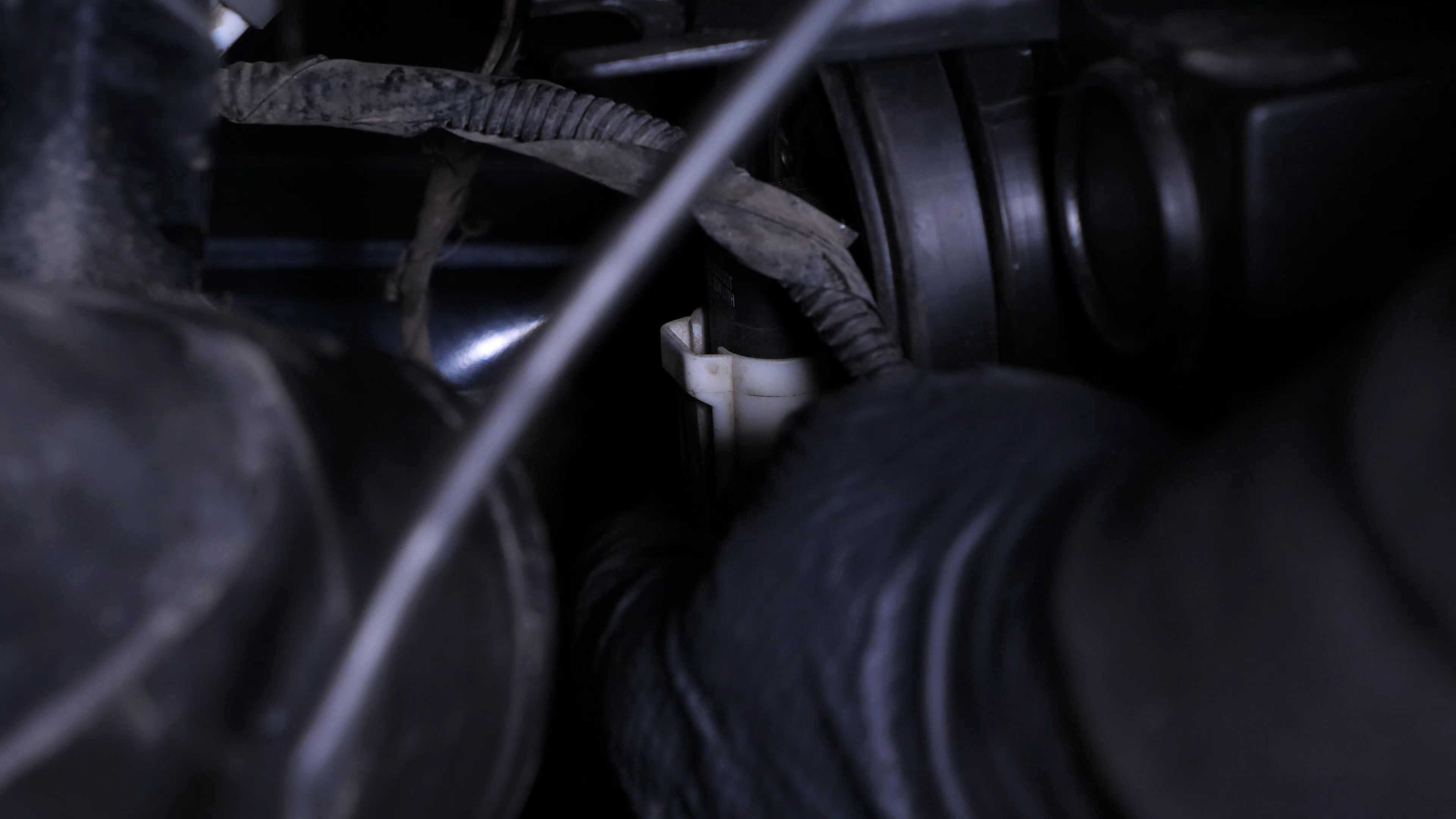

To change the 9006 low beam lightbulb located by the car’s chassis, remove the lightbulb socket from the headlight housing, turn it counterclockwise, and pull it out.
Chapter 4:
Step 2/4

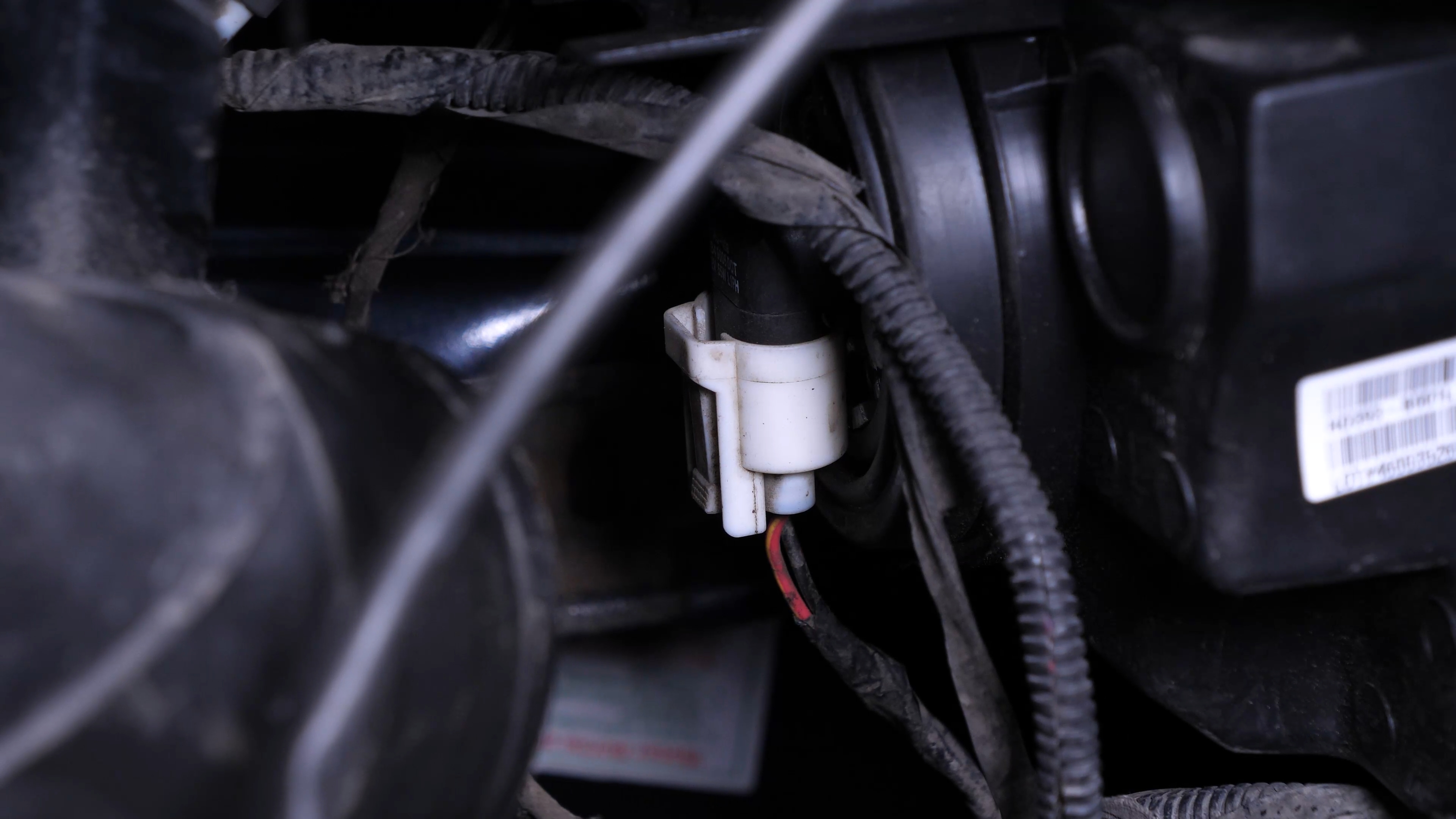

Remove the electrical connector from the lightbulb by pressing on the retaining tab, then pull on the lightbulb.
Chapter 4:
Step 3/4

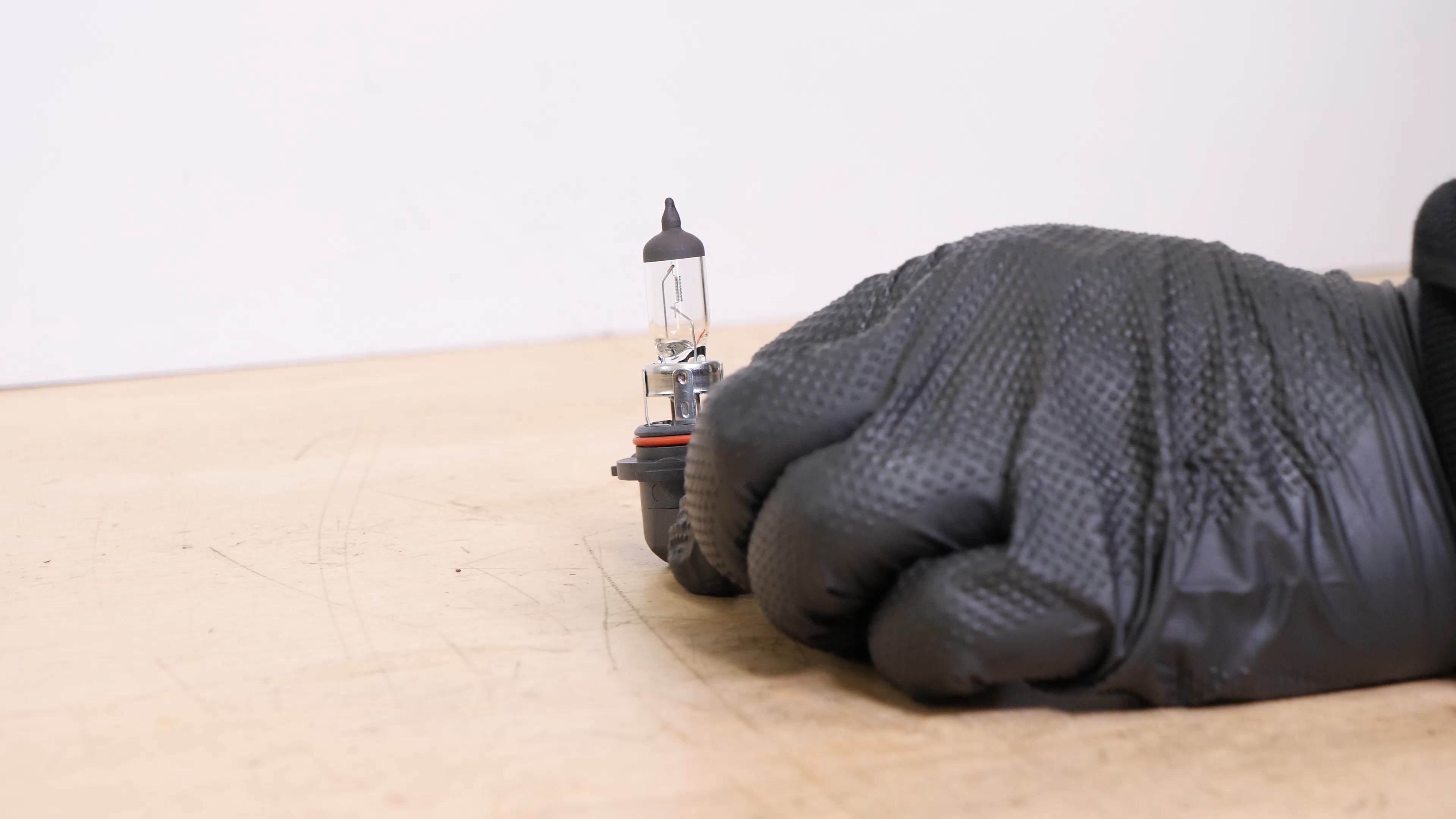

Take the new bulb.
Chapter 4:
Step 4/4

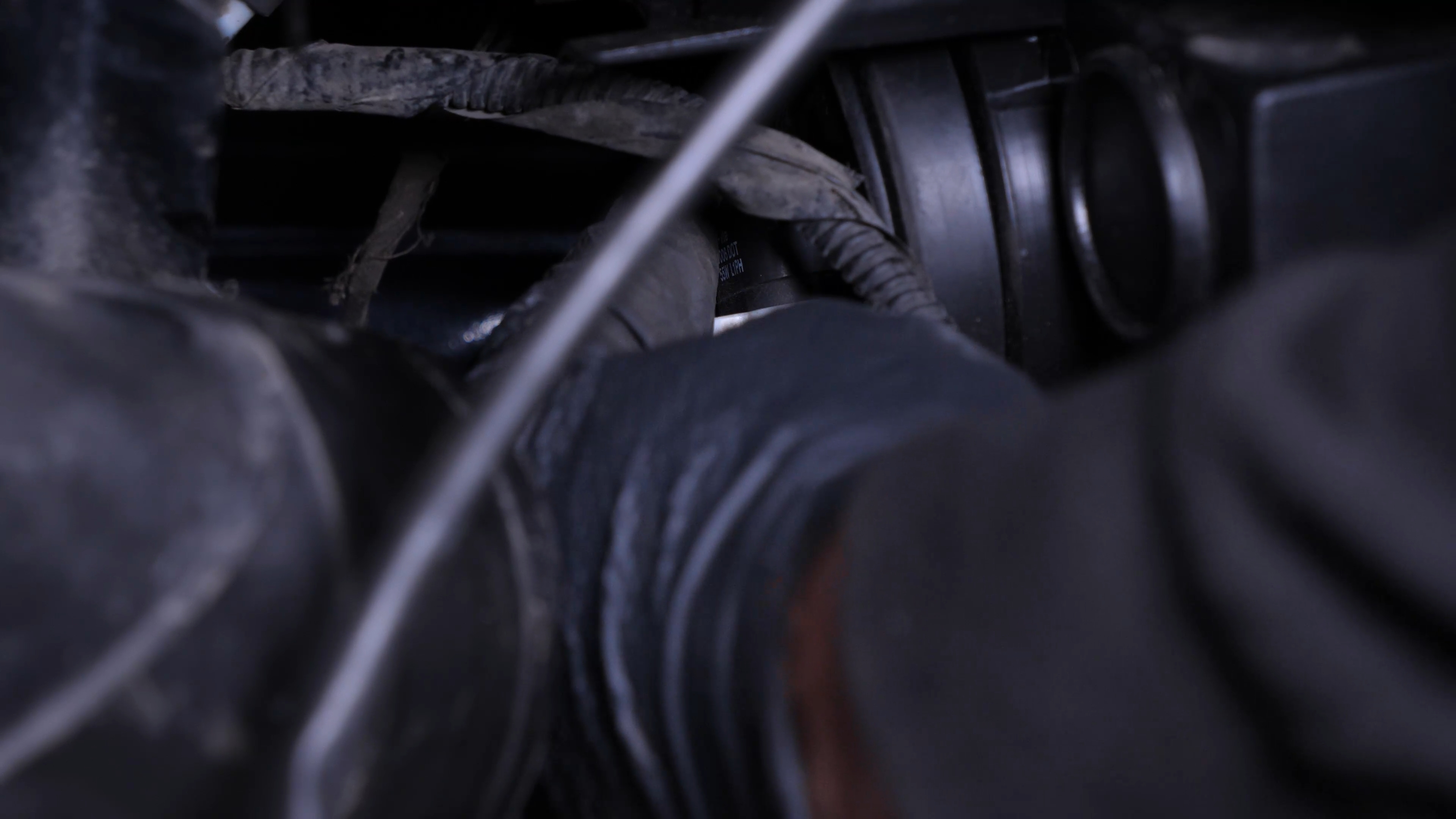

Put the new bulb into the socket, then insert the whole thing into the light, and turn it clockwise to lock it in place.
Chapter 5:
Replace turn signal bulb

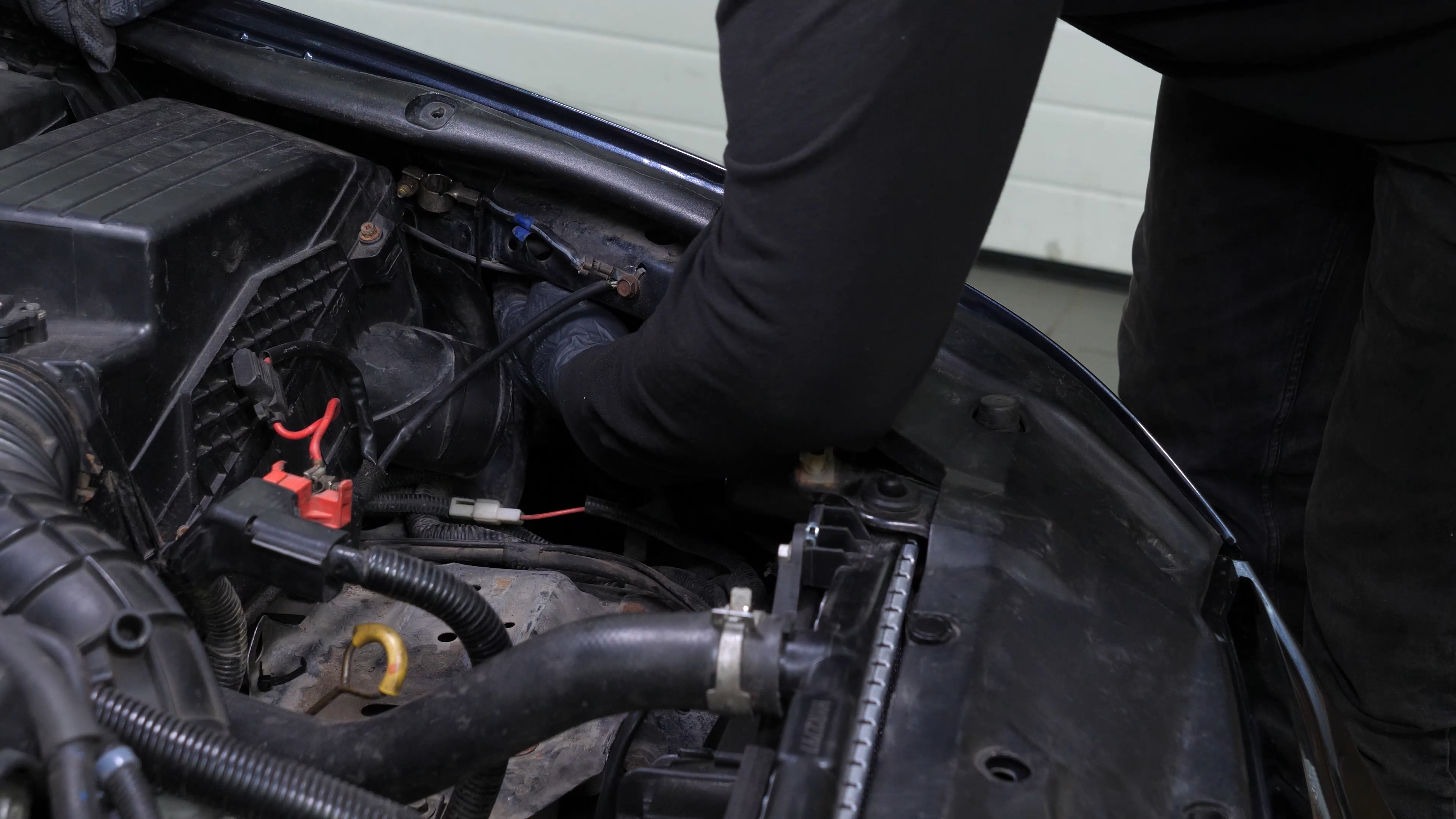

Step 1/5
The turn signal light bulb is located completely outside the light next to the fender.
Chapter 5:
Step 2/5

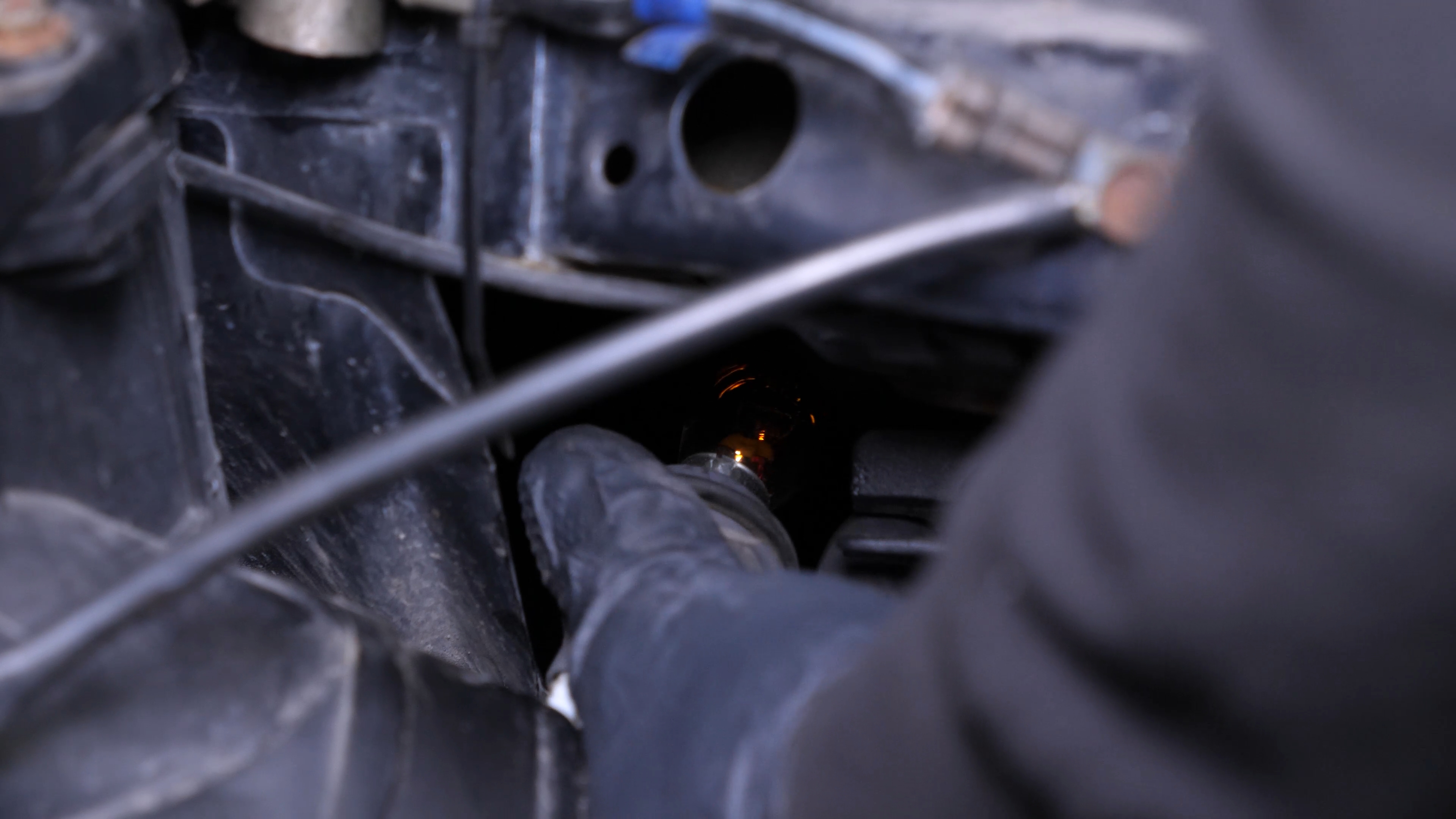

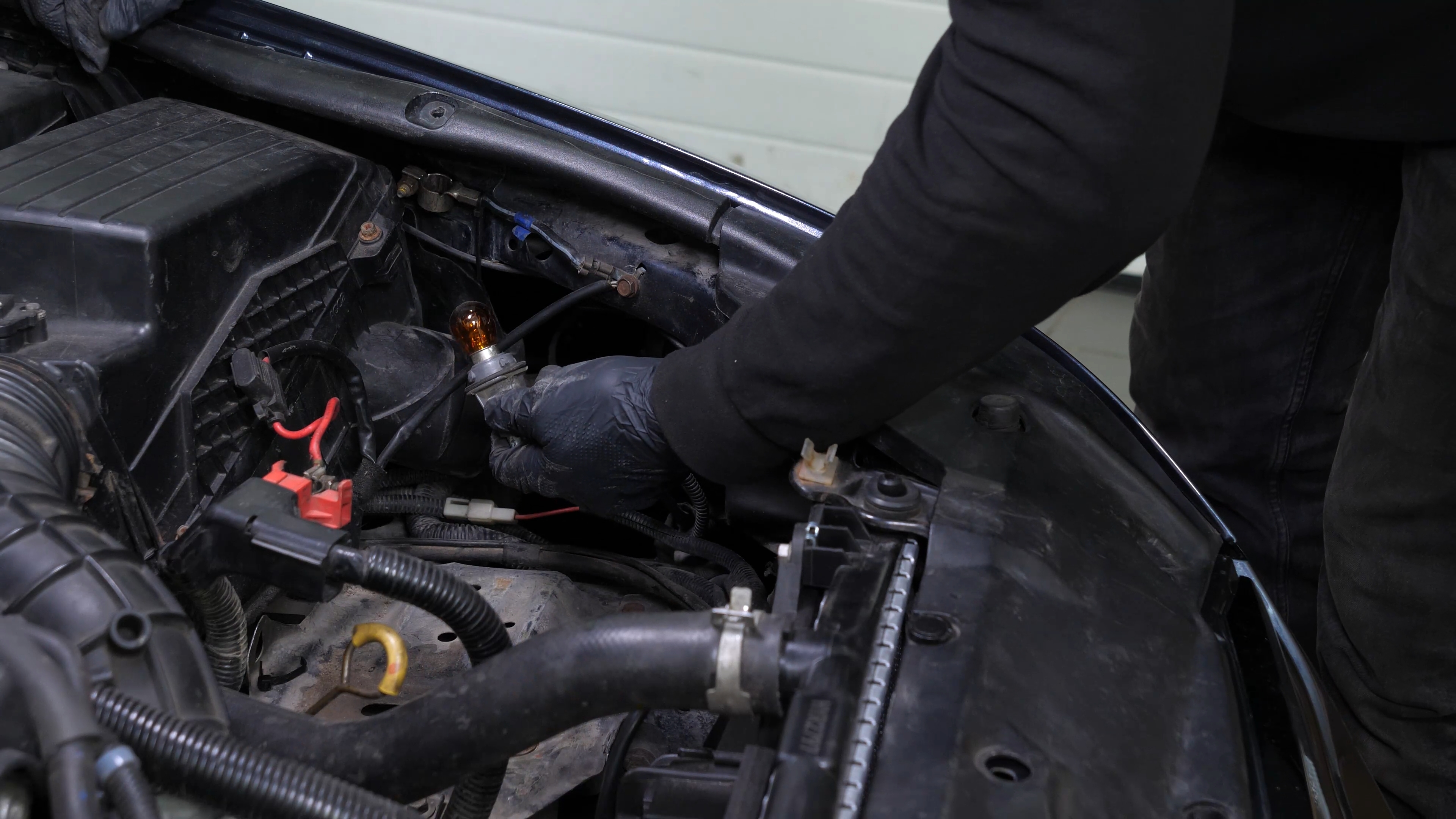

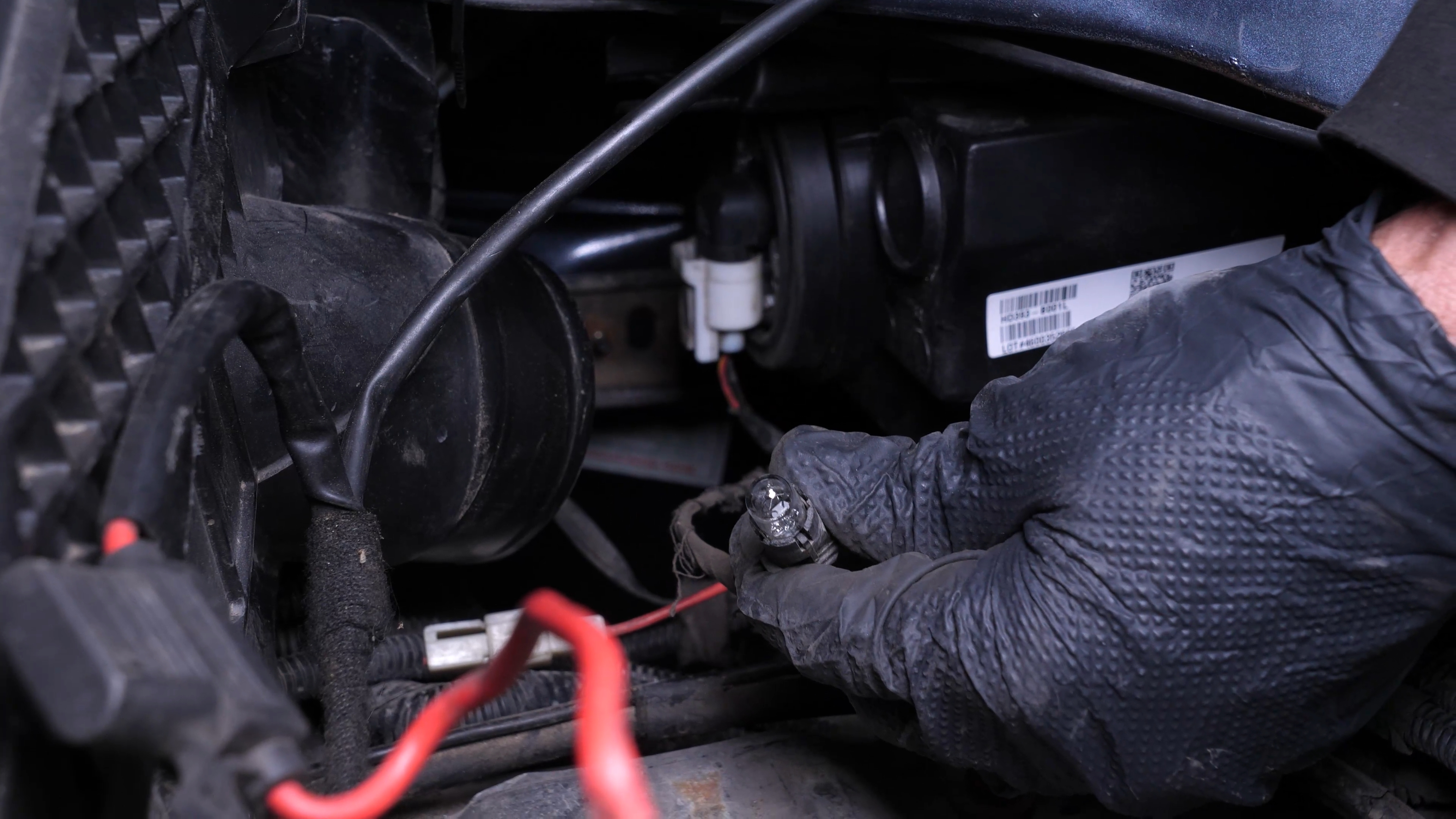

Take the bulb socket and rotate it counterclockwise. Then, remove it.
Chapter 5:
Step 3/5

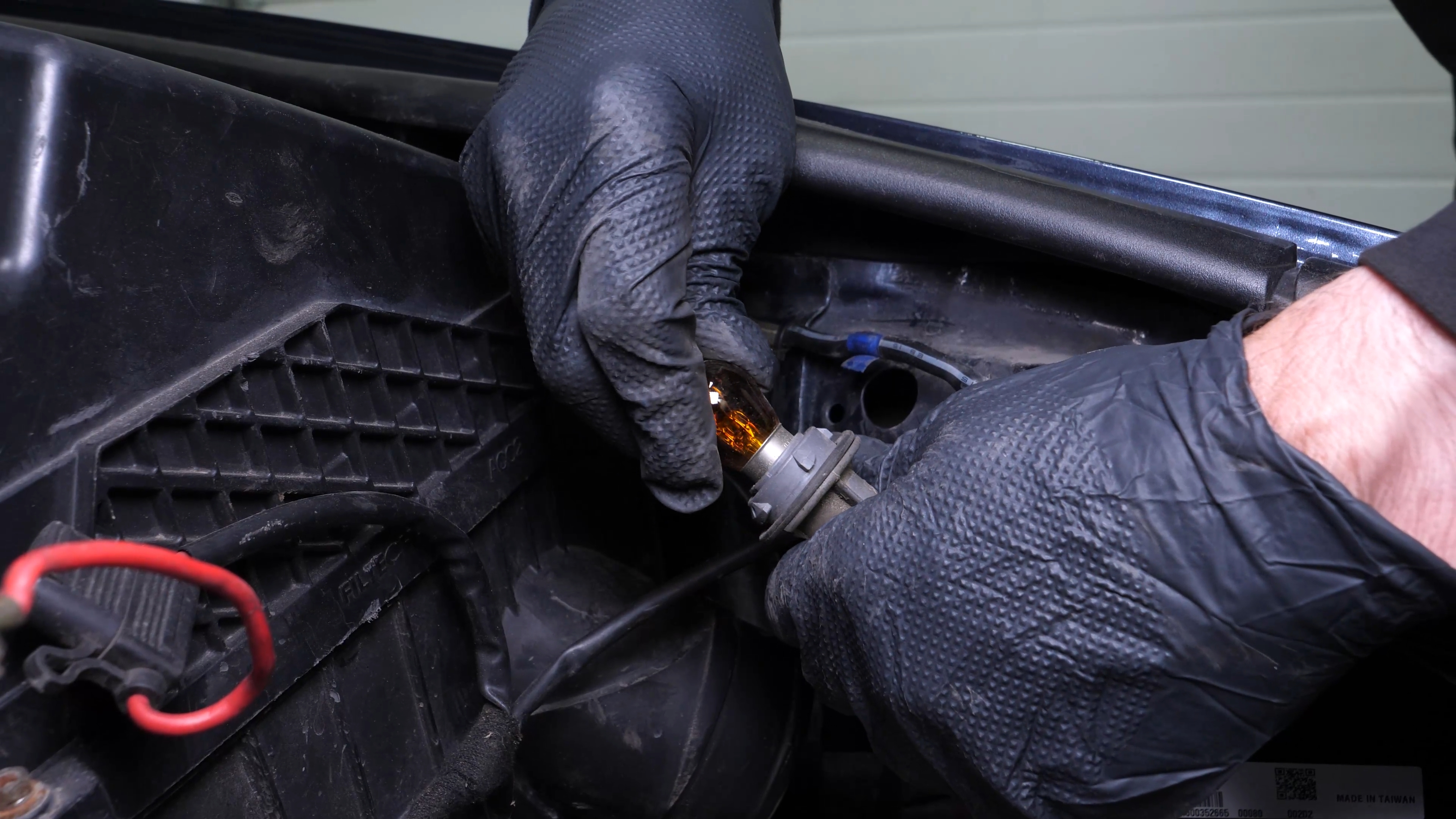

To remove the light bulb, push and unscrew by one quarter-turn.
Chapter 5:
Step 4/5

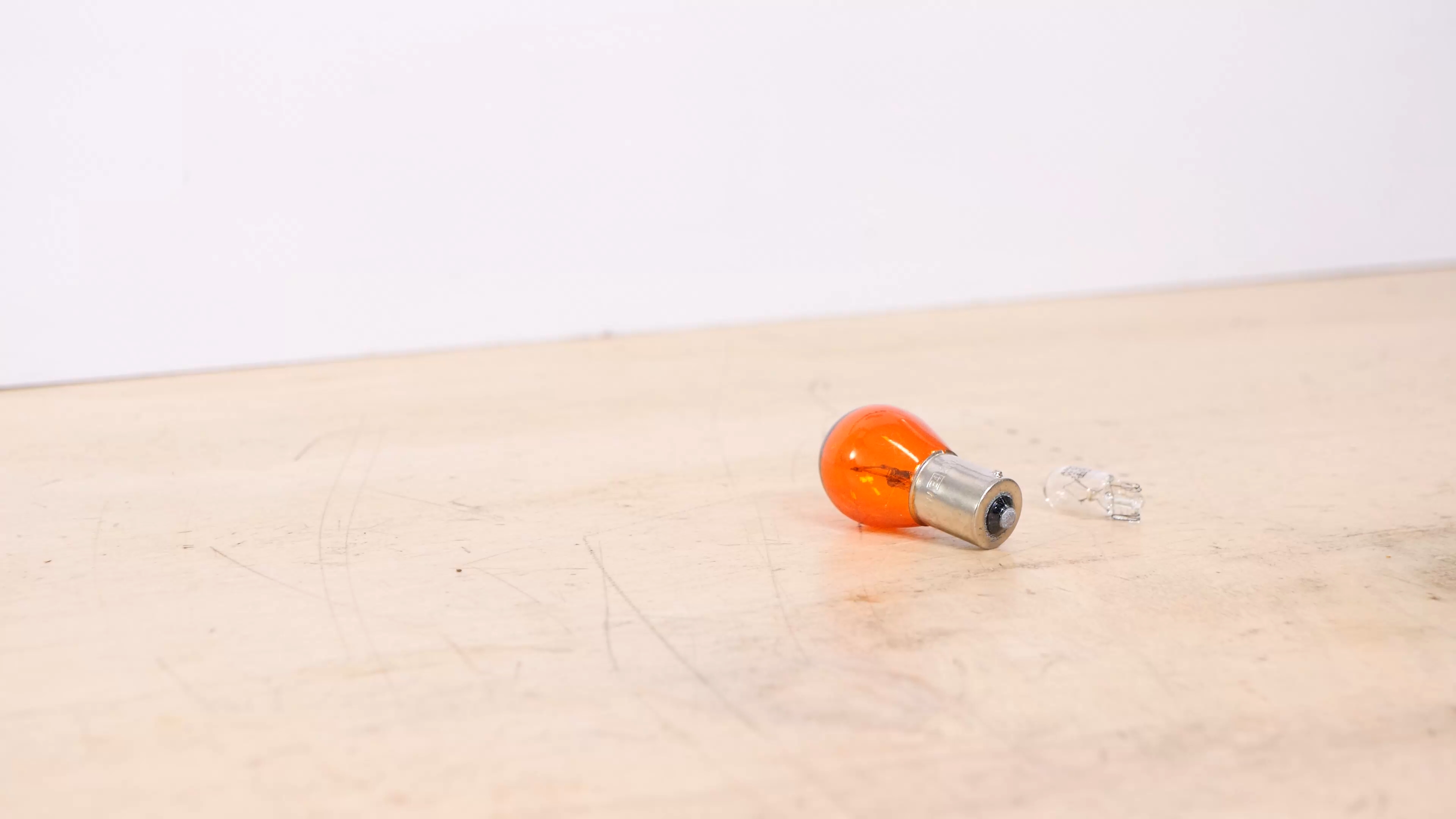

Take the new bulb.
Chapter 5:
Step 5/5

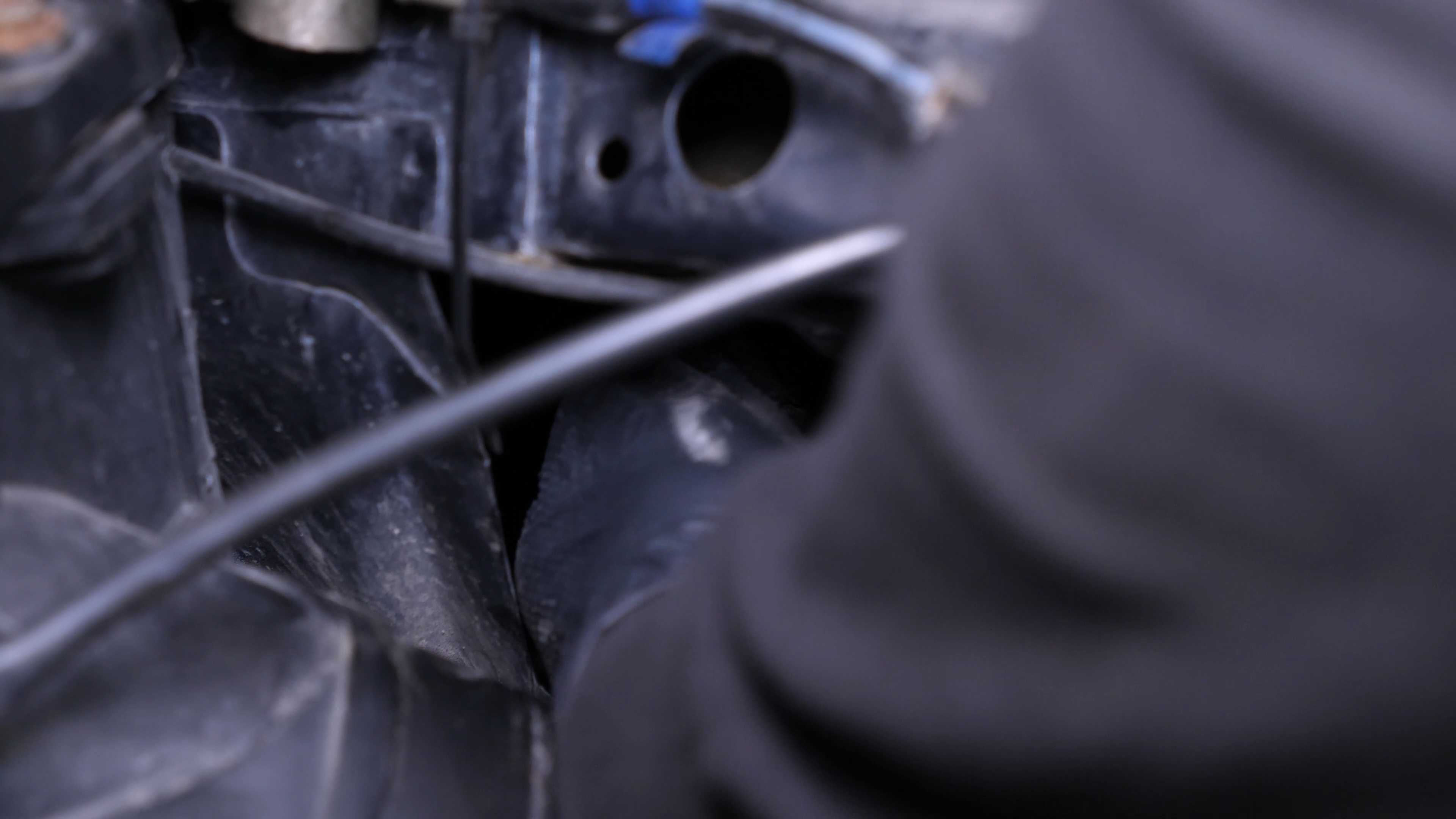

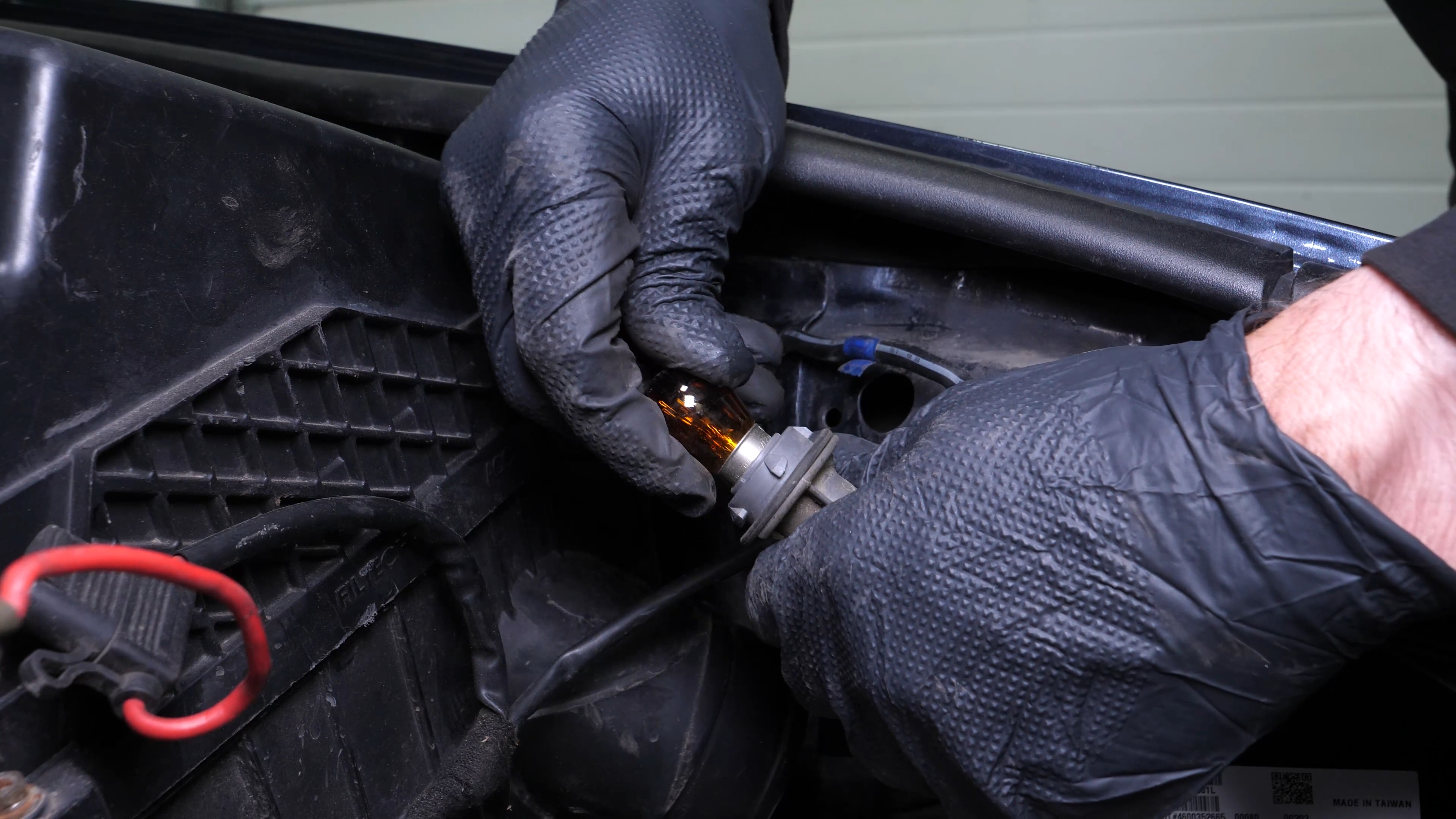

Put the new bulb into the socket, then insert the whole thing into the light, and turn it clockwise to lock it in place.
Chapter 6:
Replace the parking light bulb
Step 1/6

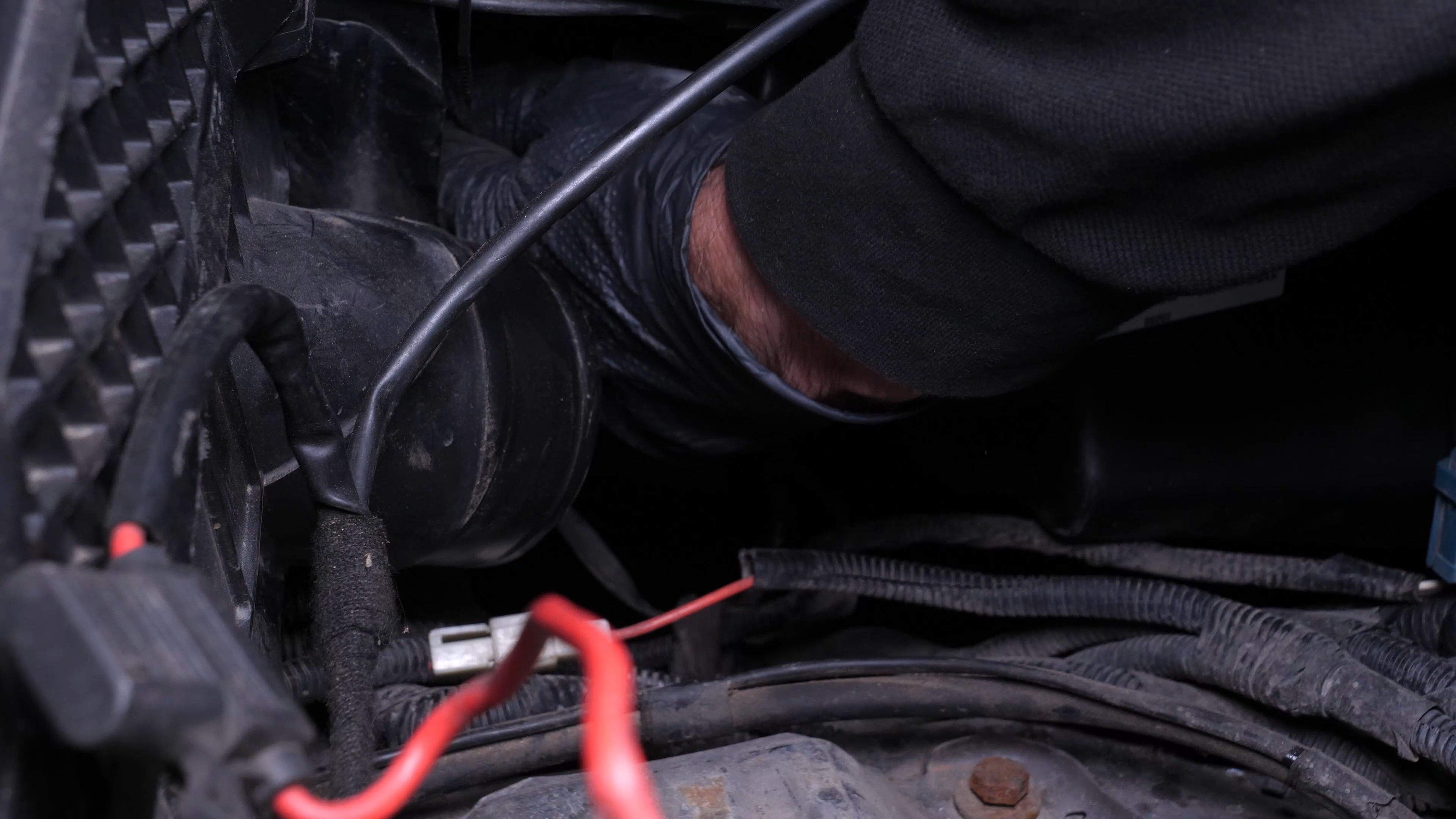

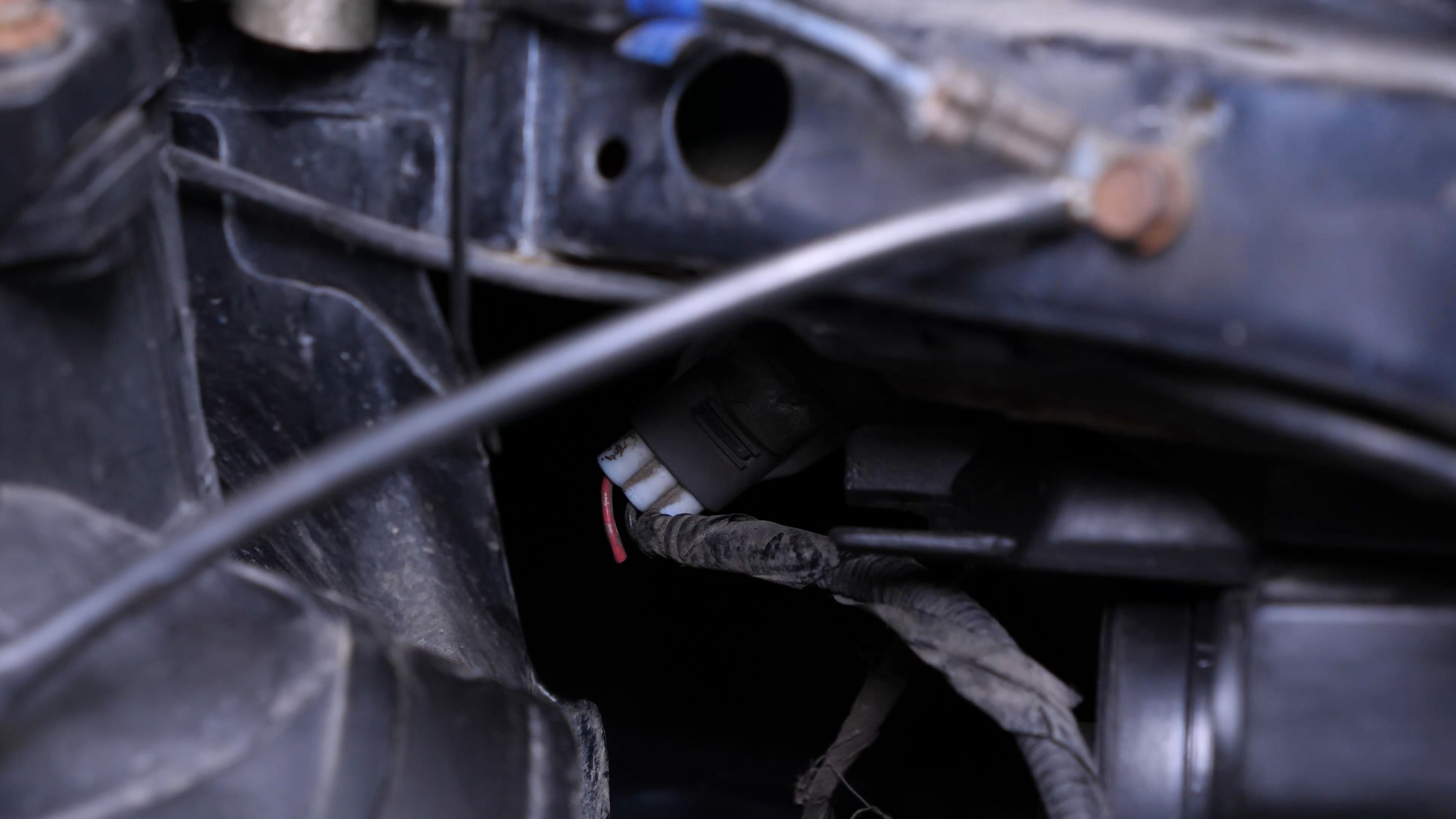

The parking light bulb socket is located below the turn signal light bulb.
Chapter 6:
Step 2/6

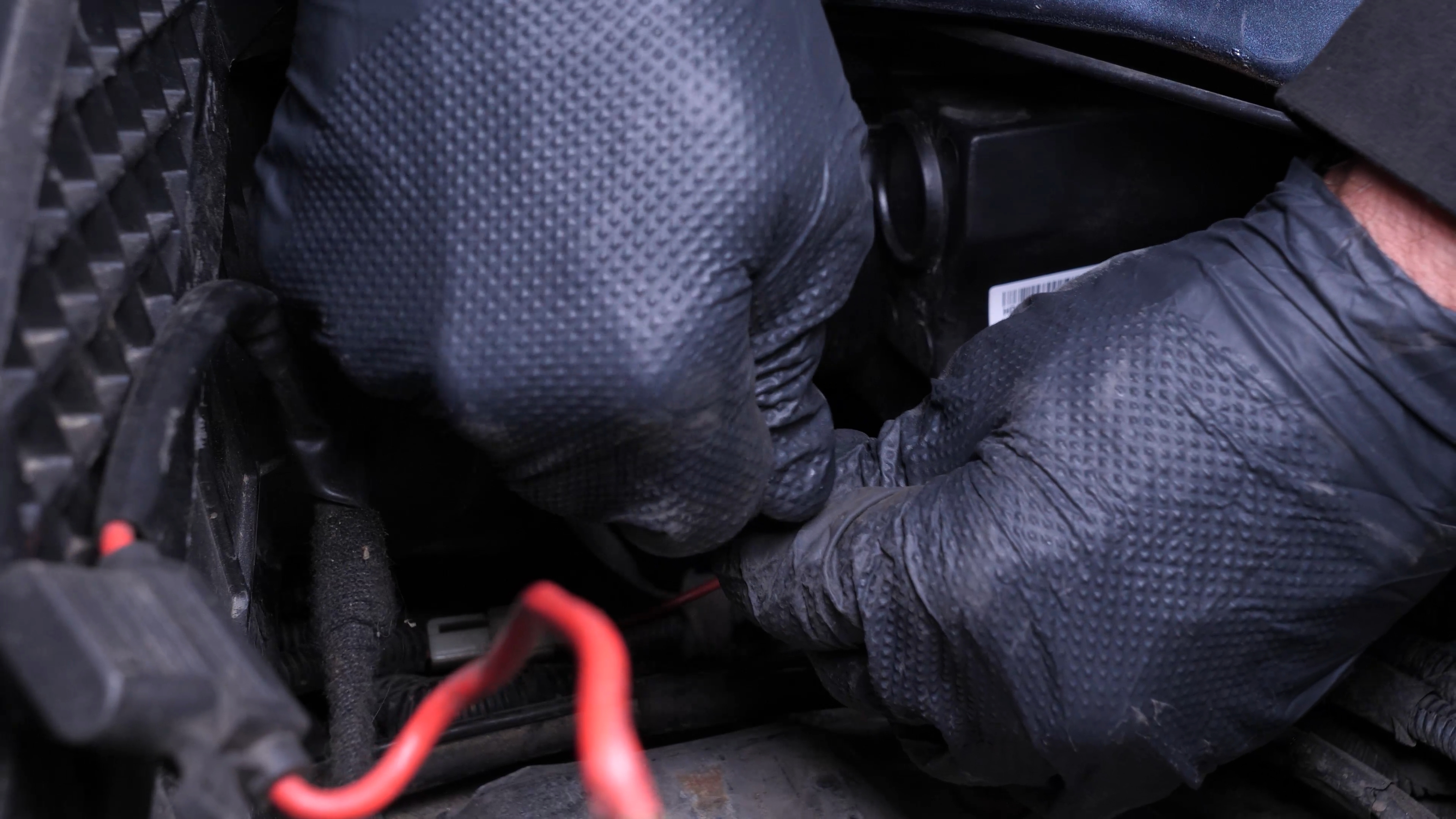

To remove the bulb from the headlight, simply pull on it.
Chapter 6:
Step 3/6
Simply pull the bulb out to remove it.
Chapter 6:
Step 4/6
Take the new bulb.
Chapter 6:
Step 5/6

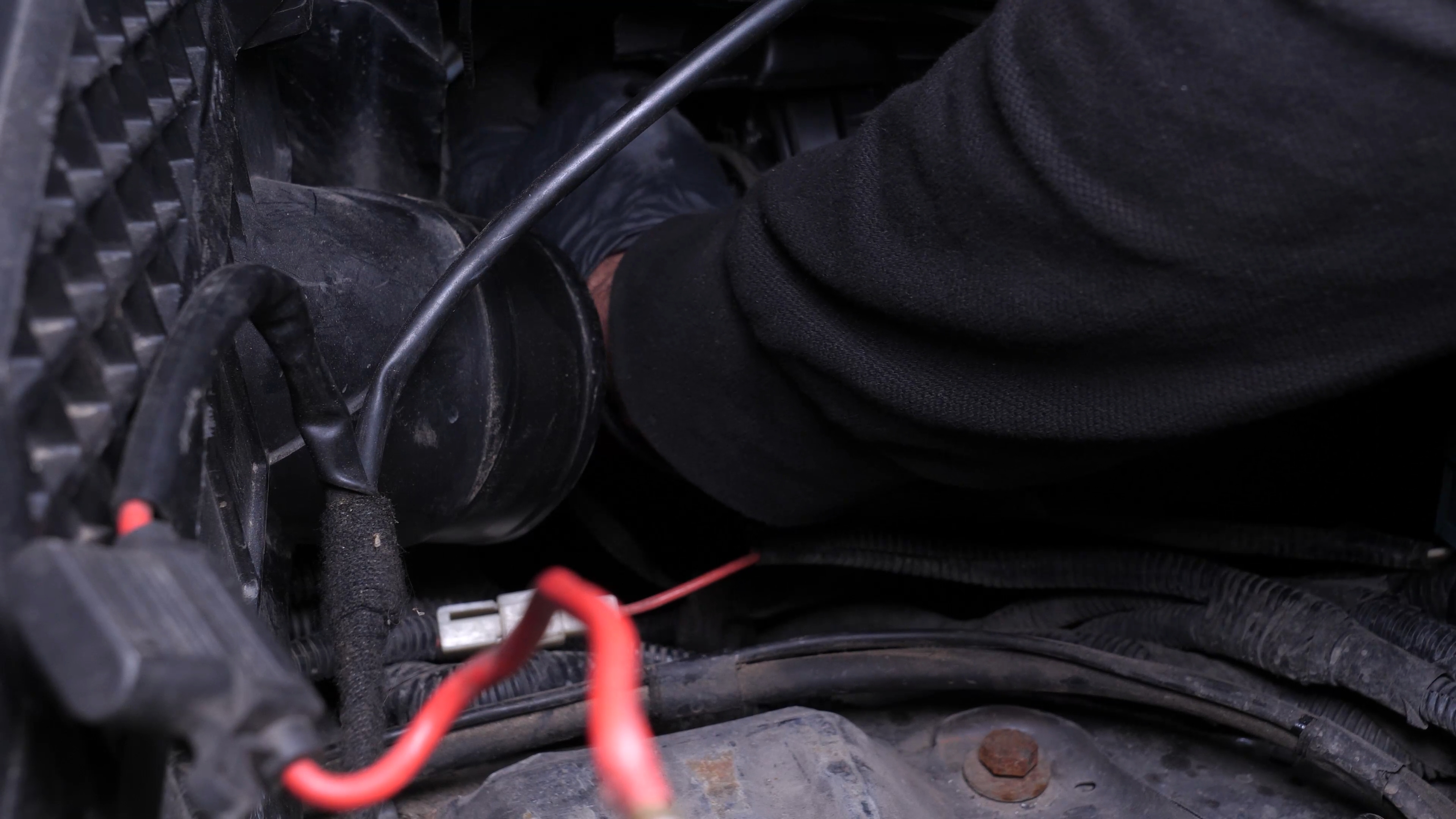

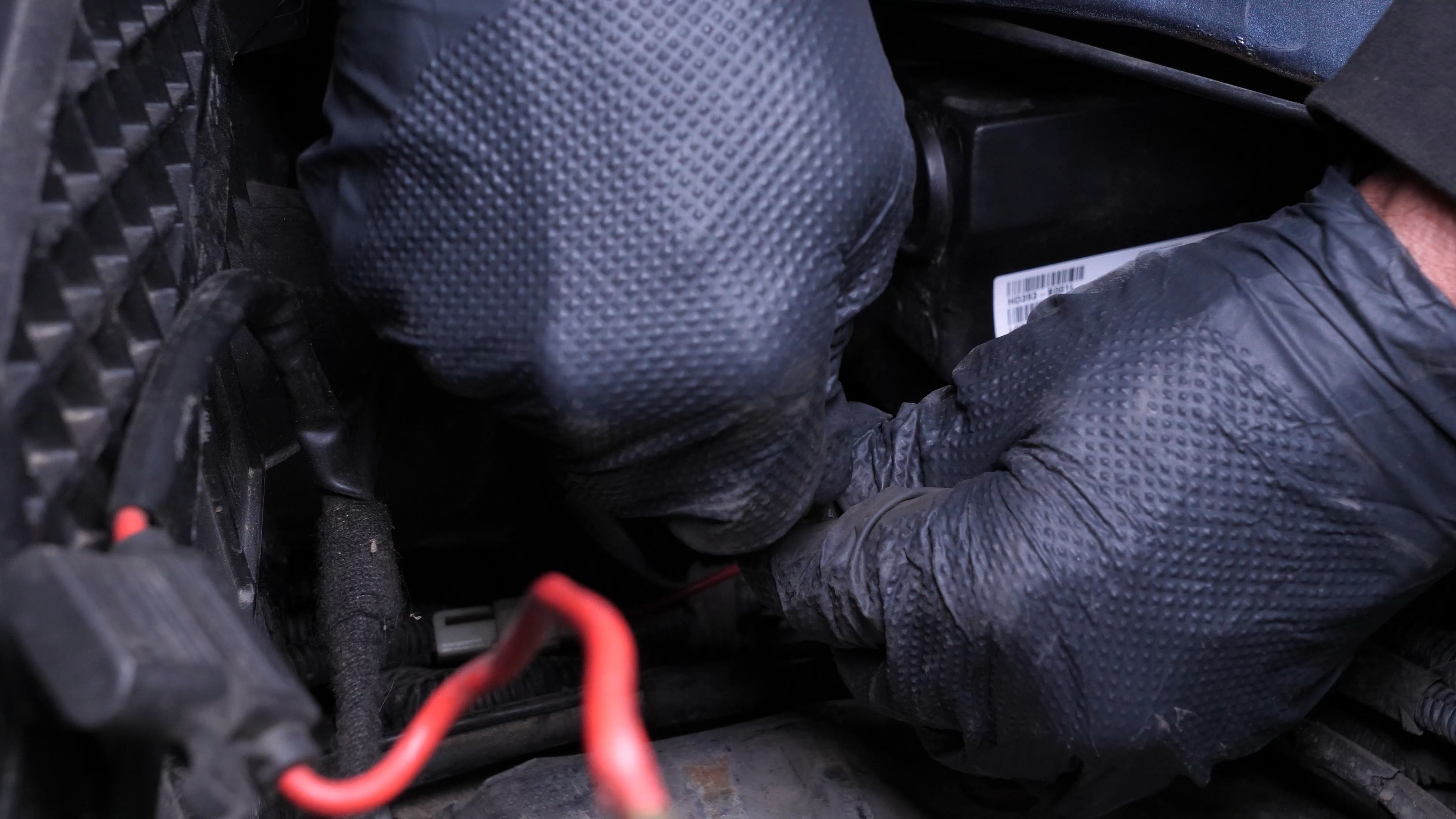

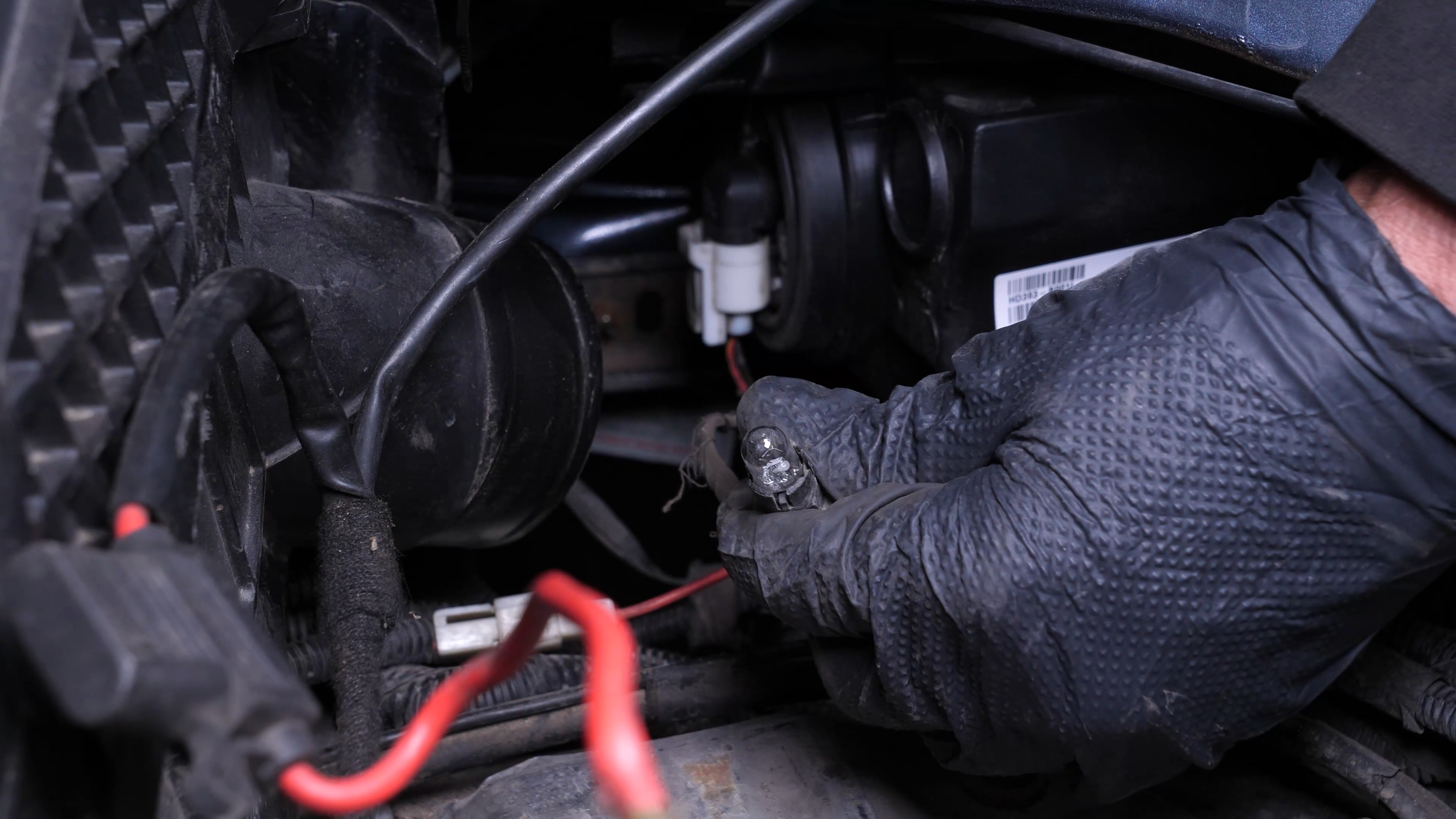

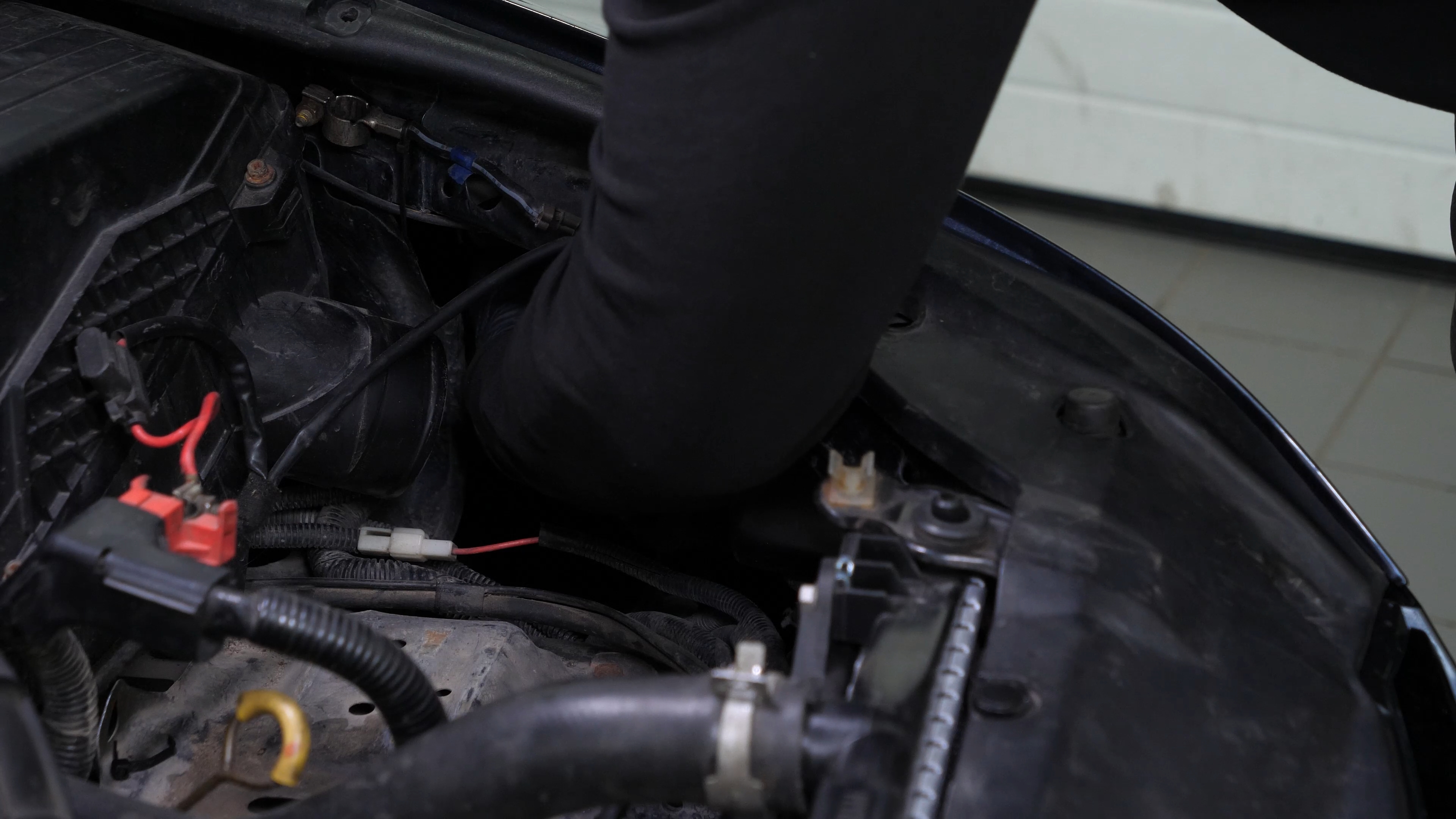

Then, insert the socket into the headlight housing.
Chapter 6:
Step 6/6
Operation complete.
