How to replace the rear bumper cover 2003 – 2007 Honda Accord

Chapter 1:

Open the trunck (v)

Step 1/2

Turn your engine off and set the parking brake.

Chapter 1:

Step 2/2

Pull on the trunk release handle, and open the trunk.

Chapter 2:

Set up

Step 1/7

Using a small flat head screwdriver, lift the protective cover of the first rear bumper cover retaining bolt.

Chapter 2:

Step 2/7

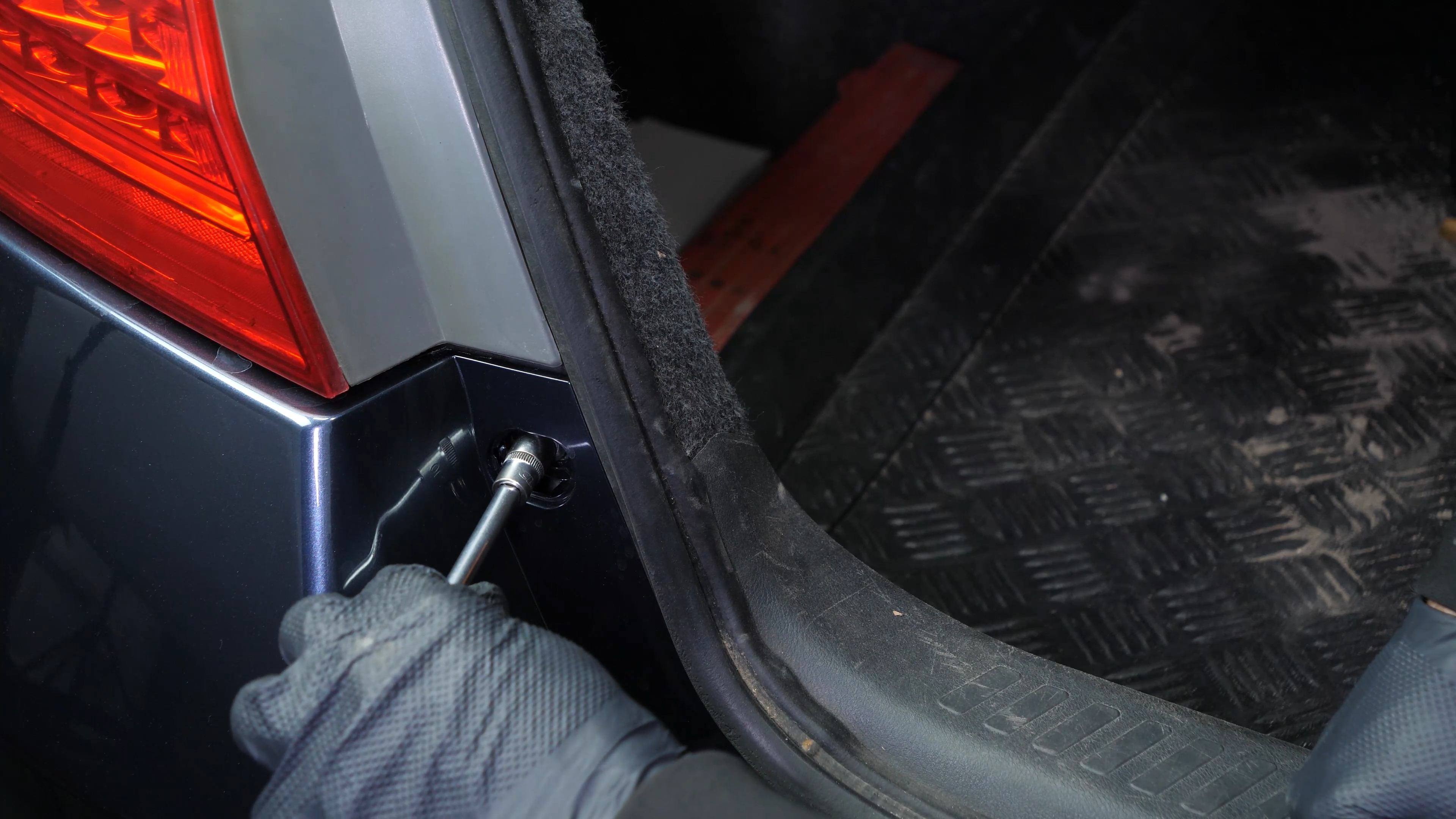

Using a multi-bit screwdriver and a 10 mm socket, unscrew the bumper cover retaining bolt.

Chapter 2:

Step 3/7

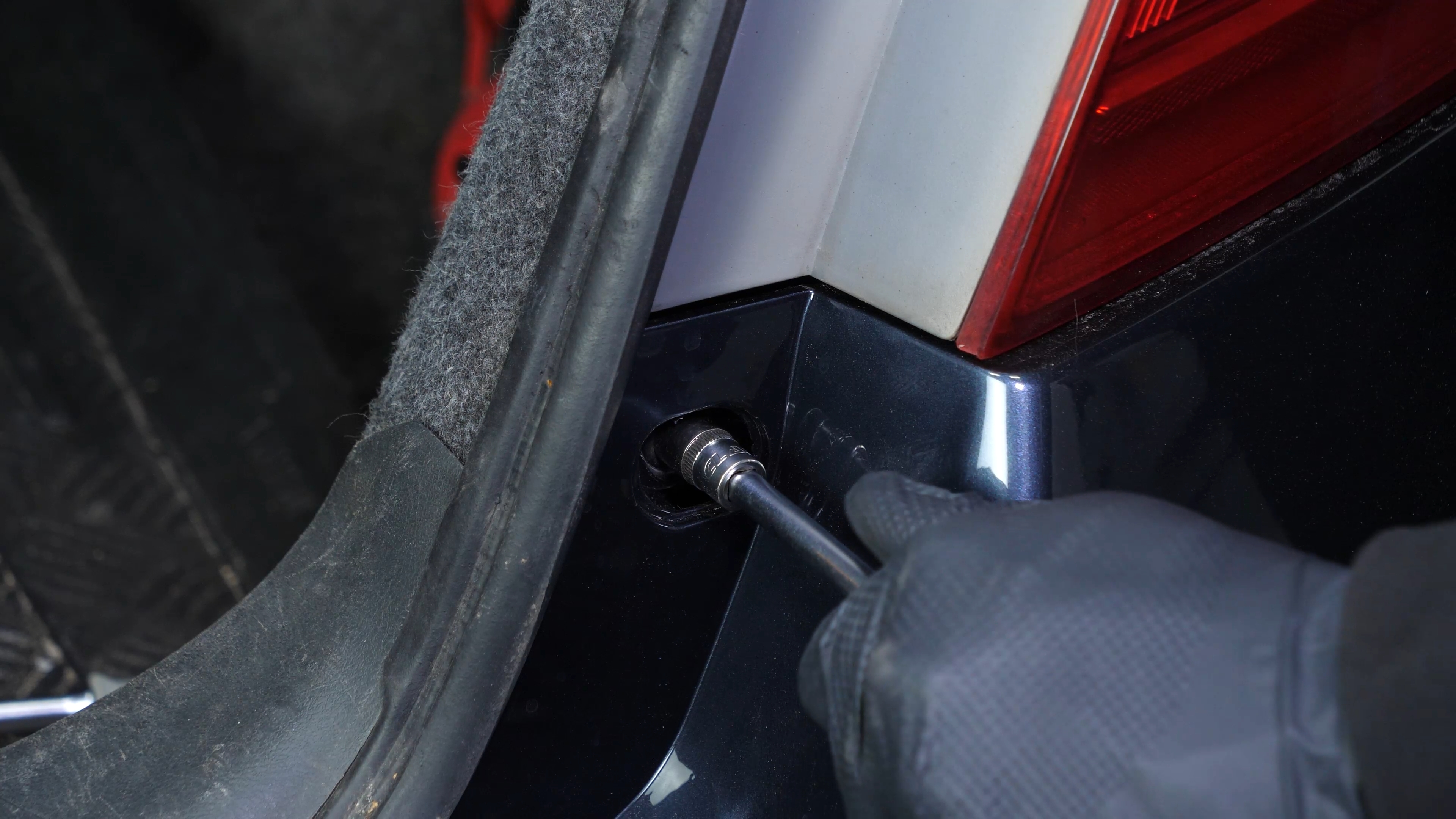

Do the same on the other side.

Chapter 2:

Step 4/7

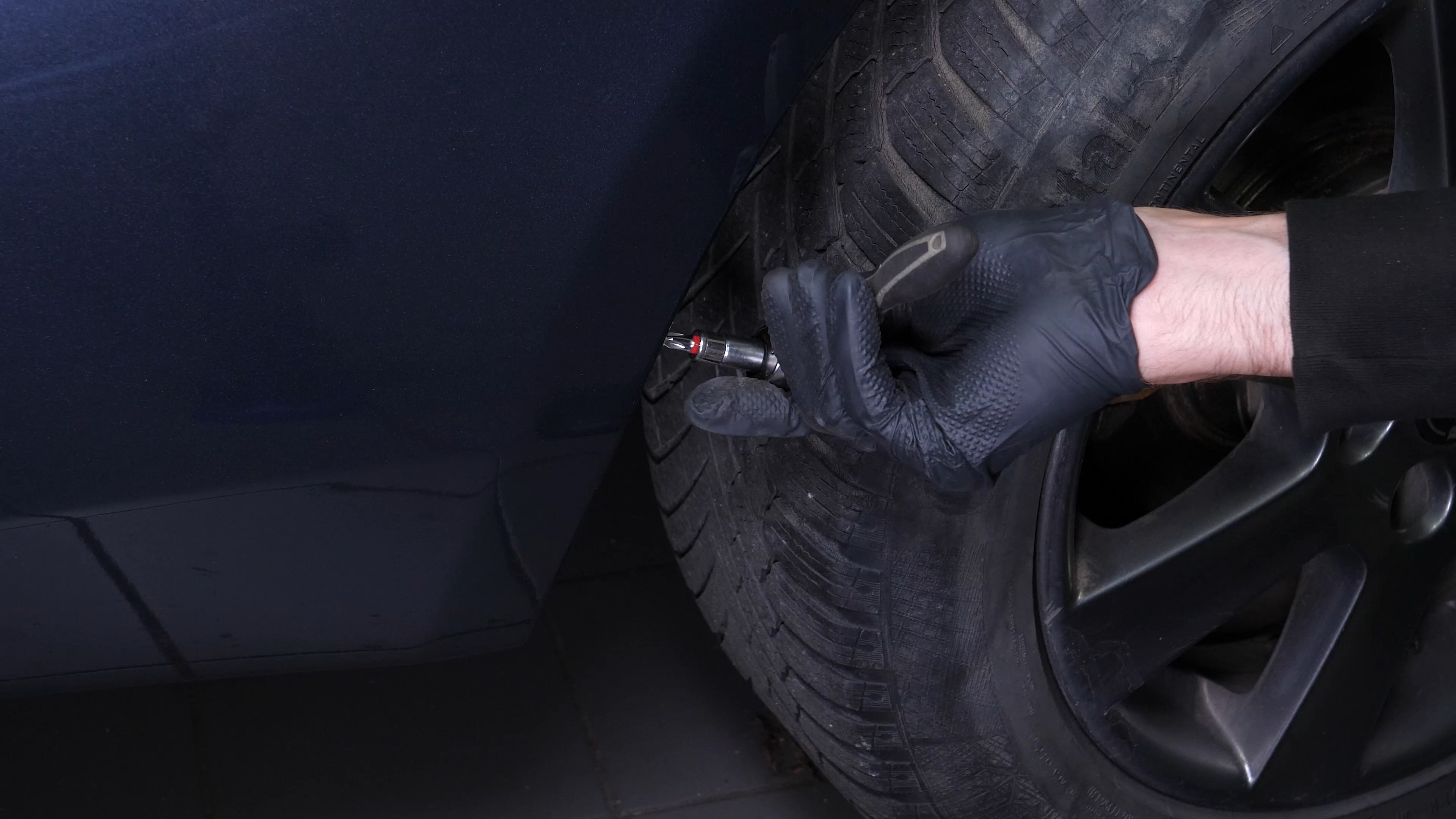

Next, in the wheel arches, unscrew the 2 screws holding the rear bumper cover to the rear mudguard using a ratchet and a Phillips bit socket.

Chapter 2:

Step 5/7

Then use the same tools to unscrew the screw holding the rear bumper cover to the bumper cover retainer.

Chapter 2:

Step 6/7

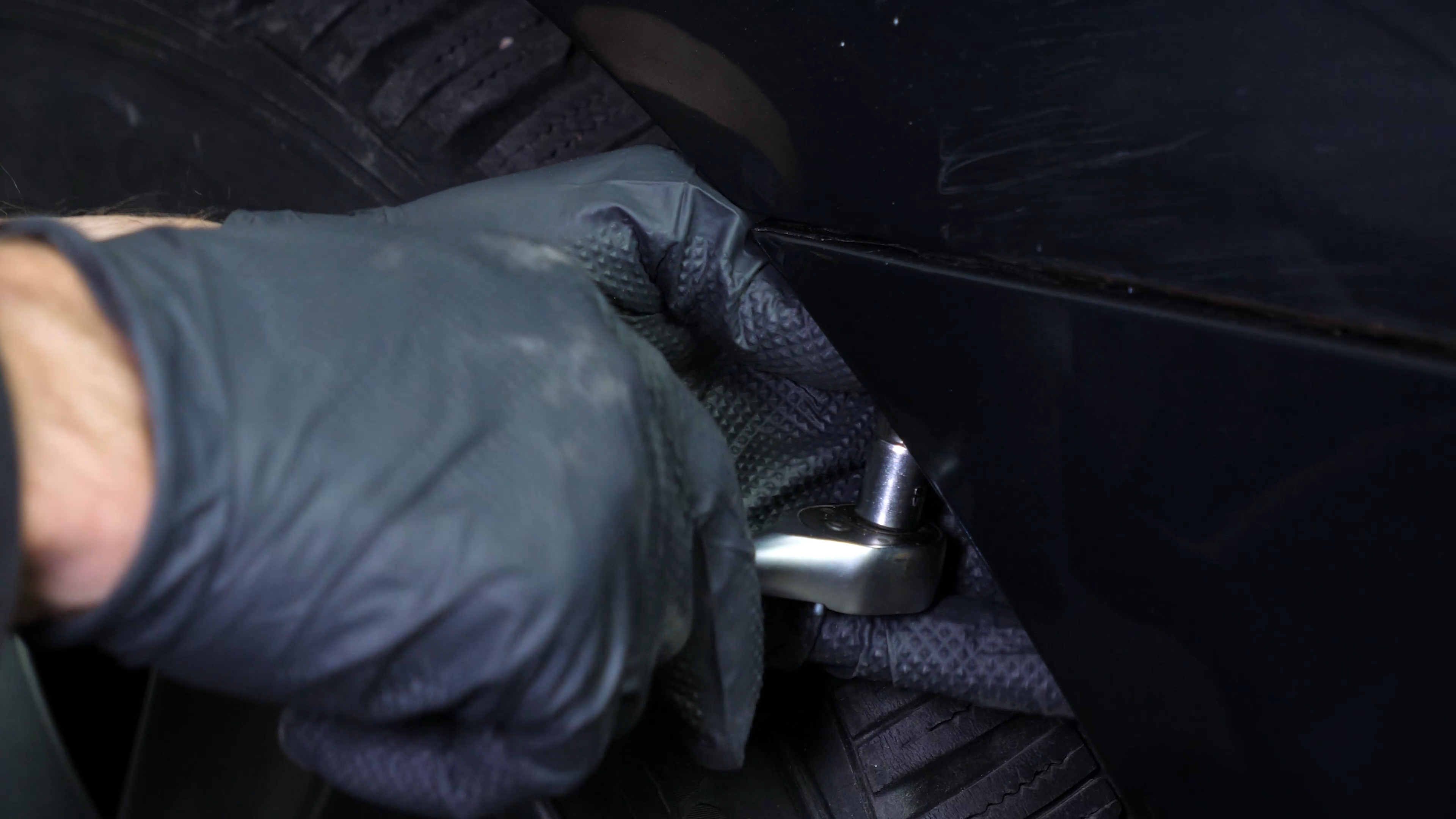

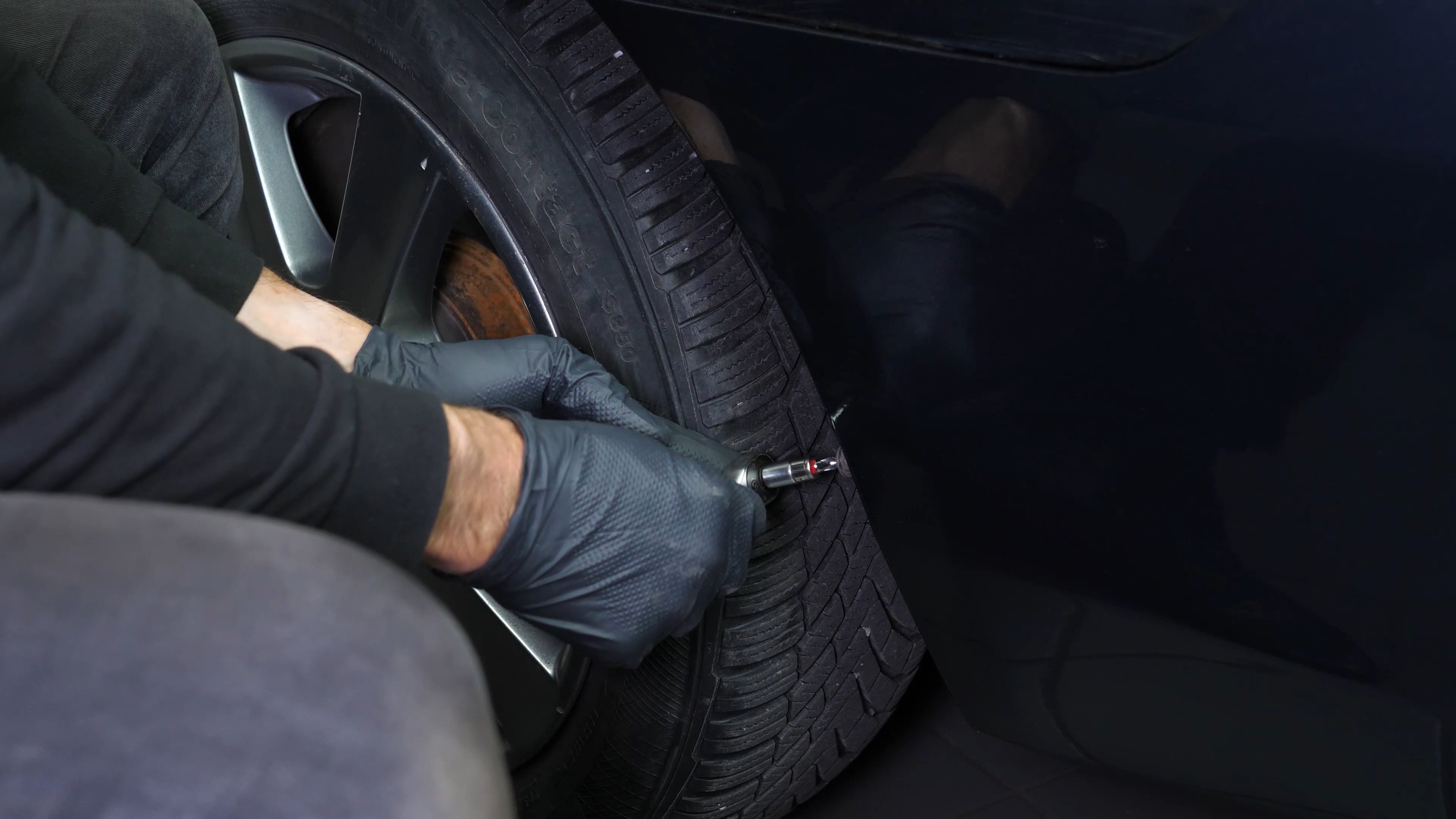

Repeat the same steps on the other side.

Chapter 2:

Step 7/7

Position yourself under the vehicle. Using a fork, remove the 2 rivets holding the bumper cover.

Chapter 3:

Remove the rear bumper cover

Step 1/2

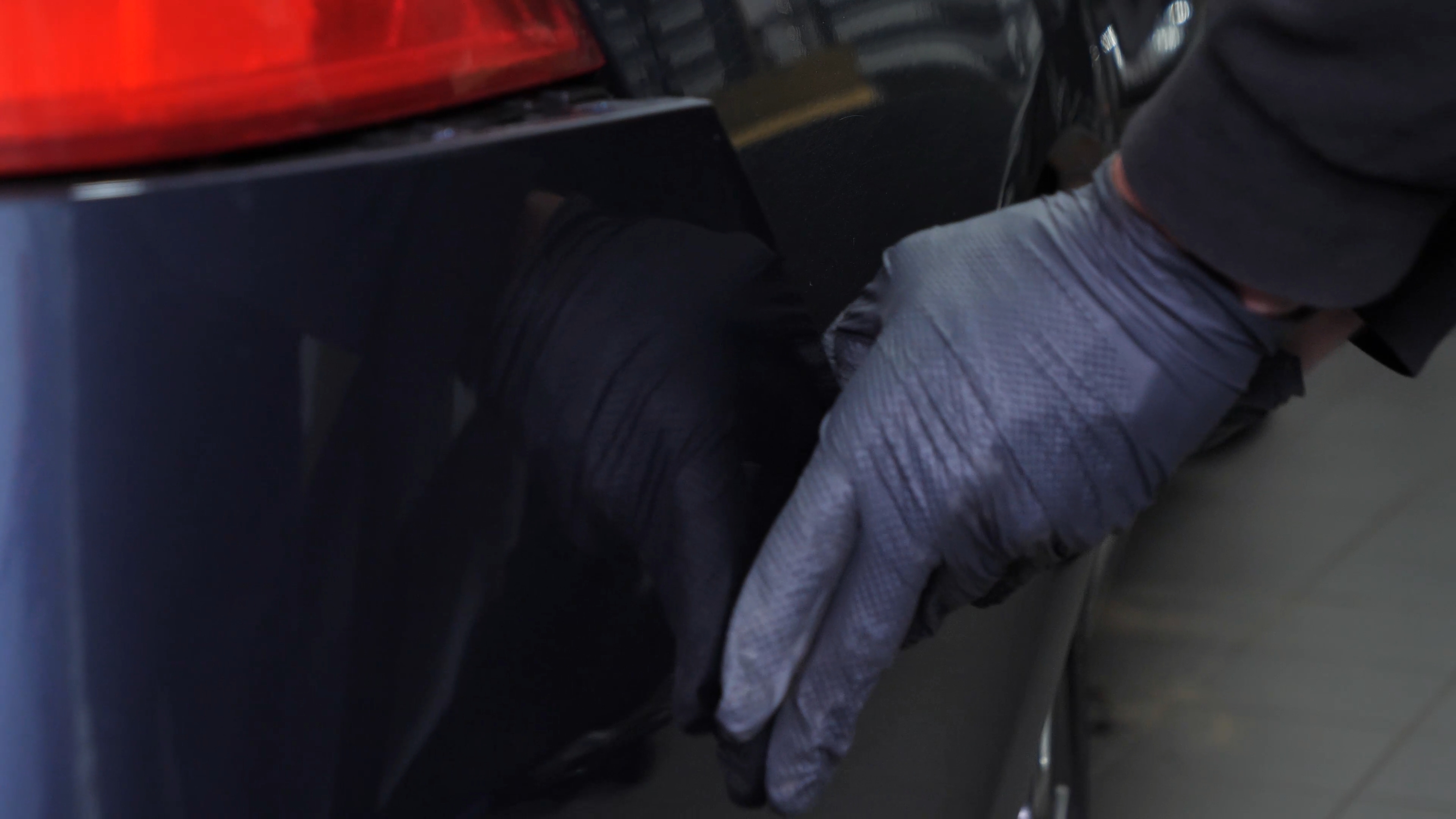

You can now unclip the rear bumper cover from the bumper retainers.

Chapter 3:

Step 2/2

The rear bumper cover is now free: you can remove it, preferably with help from a second person.

Chapter 4:

Install the new bumper cover

Step 1/6

Put the rear bumper cover back in place, by its central part first.

Chapter 4:

Step 2/6

Then reattach each side to the bumper cover retainers. Then put the 2 rivets back in place.

Chapter 4:

Step 3/6

Screw the two screws holding the bumper cover to the mudguard on both sides.

Chapter 4:

Step 4/6

Then, on both sides, screw the screw holding the bumper cover to the bumper retainers back on.

Chapter 4:

Step 5/6

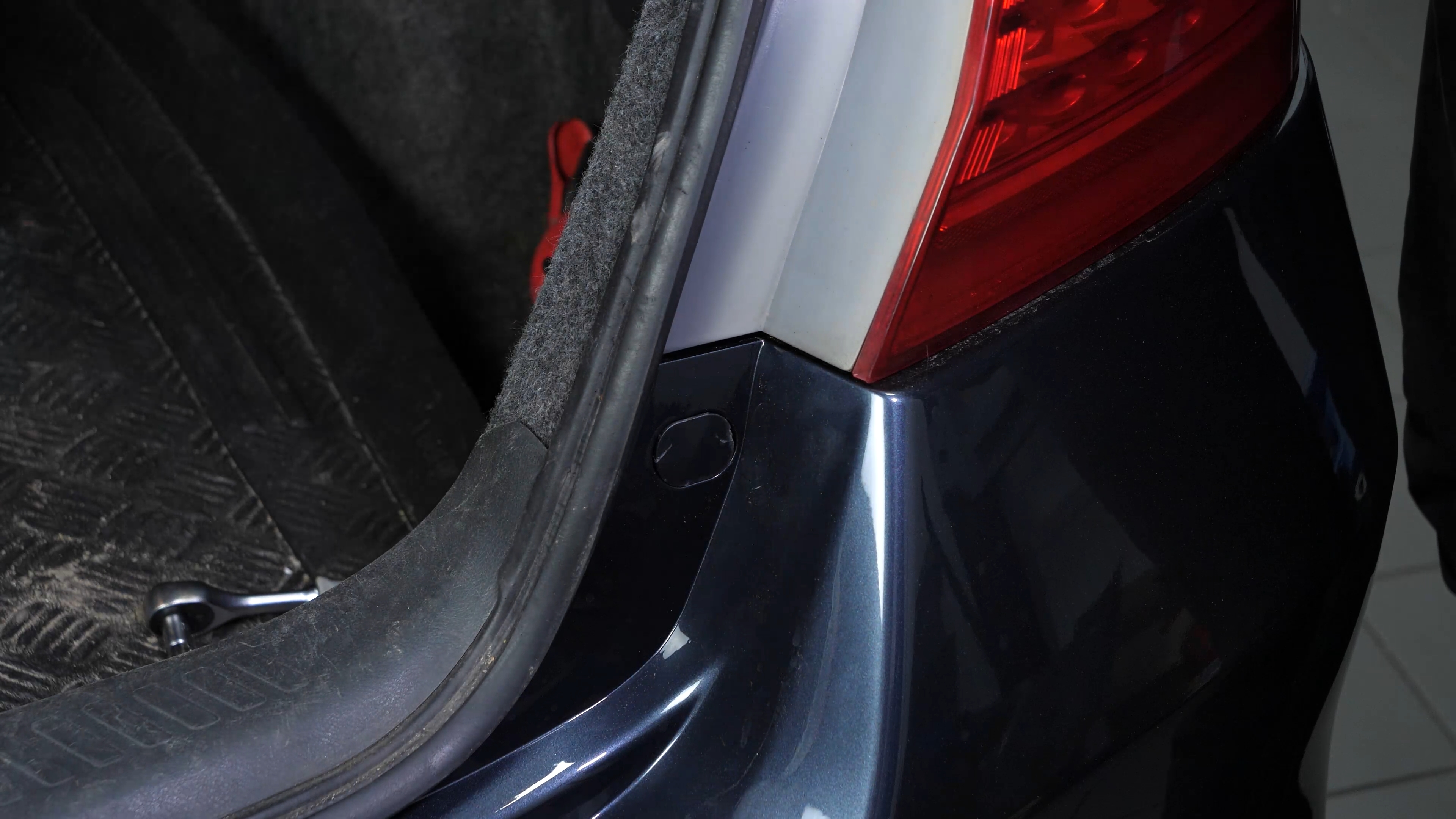

Screw the retaining bolts back on at the trunk, then put the protective covers back in place.

Chapter 4:

Step 6/6

Operation complete.
