How to replace the rear bumper cover retainers 2003 – 2007 Honda Accord

Chapter 1:

Open the trunck (v)

Step 1/2

Turn your engine off and set the parking brake.

Chapter 1:

Step 2/2

Pull on the trunk release handle, and open the trunk.

Chapter 2:

Remove the retaining screws, rivets and bolts

Step 1/7

Using a small flat head screwdriver, lift the protective cover of the first rear bumper cover retaining bolt.

Chapter 2:

Step 2/7

Using a multi-bit screwdriver and a 10 mm socket, unscrew the bumper cover retaining bolt.

Chapter 2:

Step 3/7

Do the same on the other side.

Chapter 2:

Step 4/7

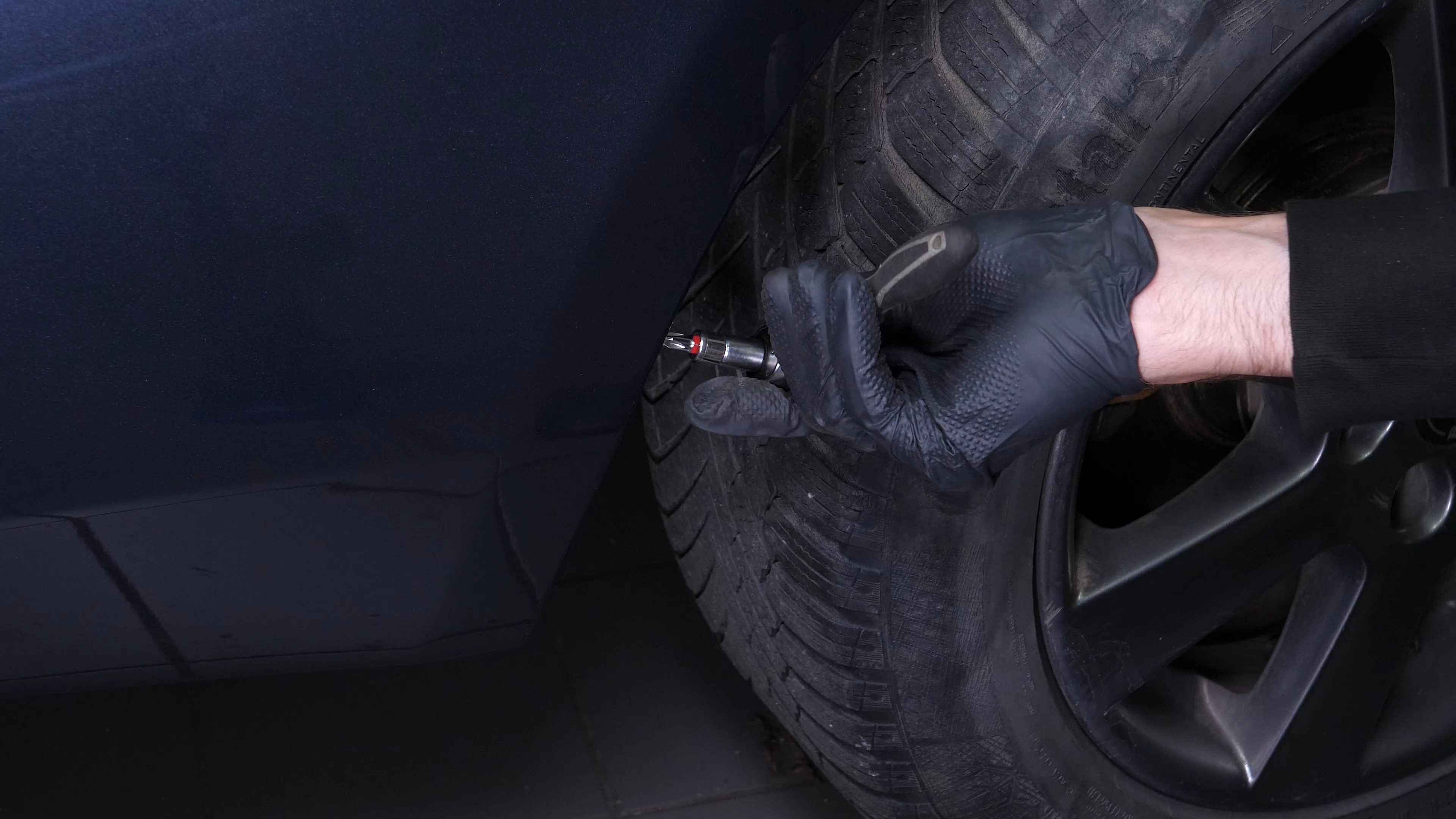

Next, in the wheel arches, unscrew the 2 screws holding the rear bumper cover to the rear mudguard using a ratchet and a Phillips bit socket.

Chapter 2:

Step 5/7

Then use the same tools to unscrew the screw holding the rear bumper cover to the bumper cover retainer.

Chapter 2:

Step 6/7

Repeat the same steps on the other side.

Chapter 2:

Step 7/7

Position yourself under the vehicle. Using a fork, remove the 2 rivets holding the bumper cover.

Chapter 3:

Remove the rear bumper cover

Step 1/2

You can now unclip the rear bumper cover from the bumper retainers.

Chapter 3:

Step 2/2

The rear bumper cover is now free: you can remove it, preferably with help from a second person.

Chapter 4:

Visualise

Step 1/1

You now have a clear view of your rear bumper cover retainers on each side of the vehicle.

Chapter 5:

Remove the bumper cover retainers

Step 1/4

Using a Phillips screwdriver, unscrew the screw holding the retainer.

Chapter 5:

Step 2/4

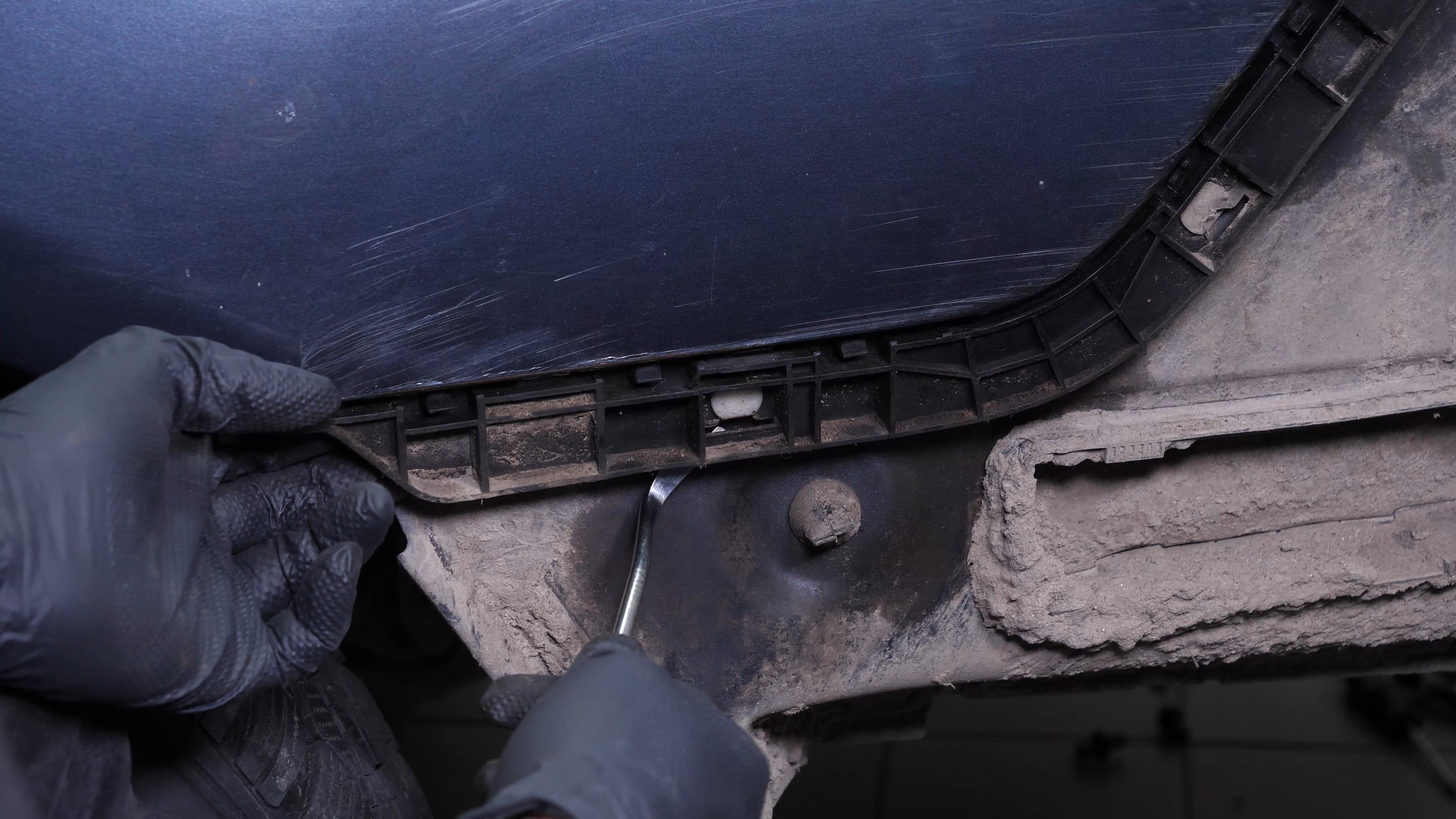

Next, using a fork, unclip 3 clips holding the retainer to the body.

Chapter 5:

Step 3/4

Remove the retainer.

Chapter 5:

Step 4/4

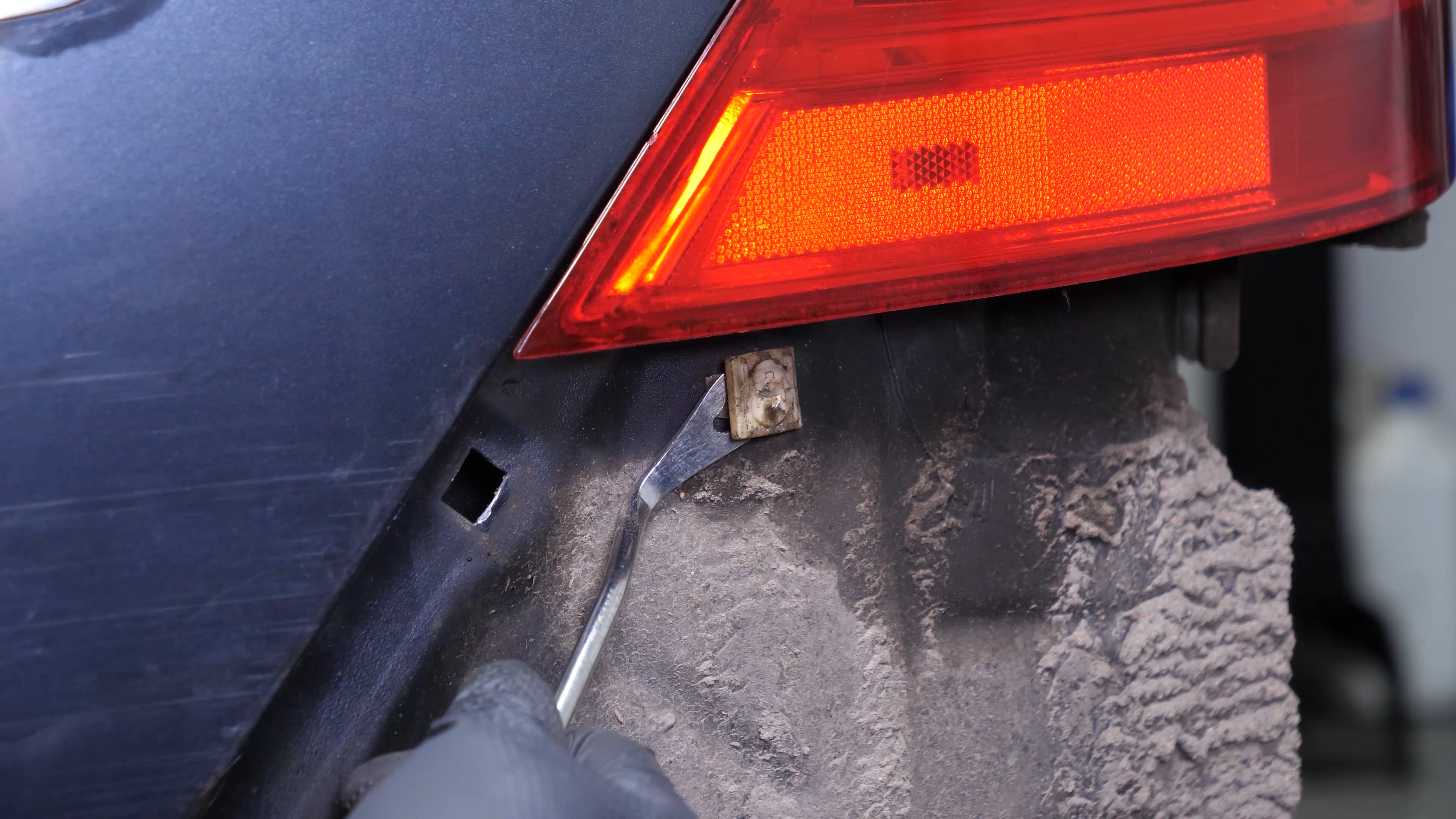

Then use the fork to remove the holding screw plastic bracket.

Chapter 6:

Put the bumper cover retainers back

Step 1/3

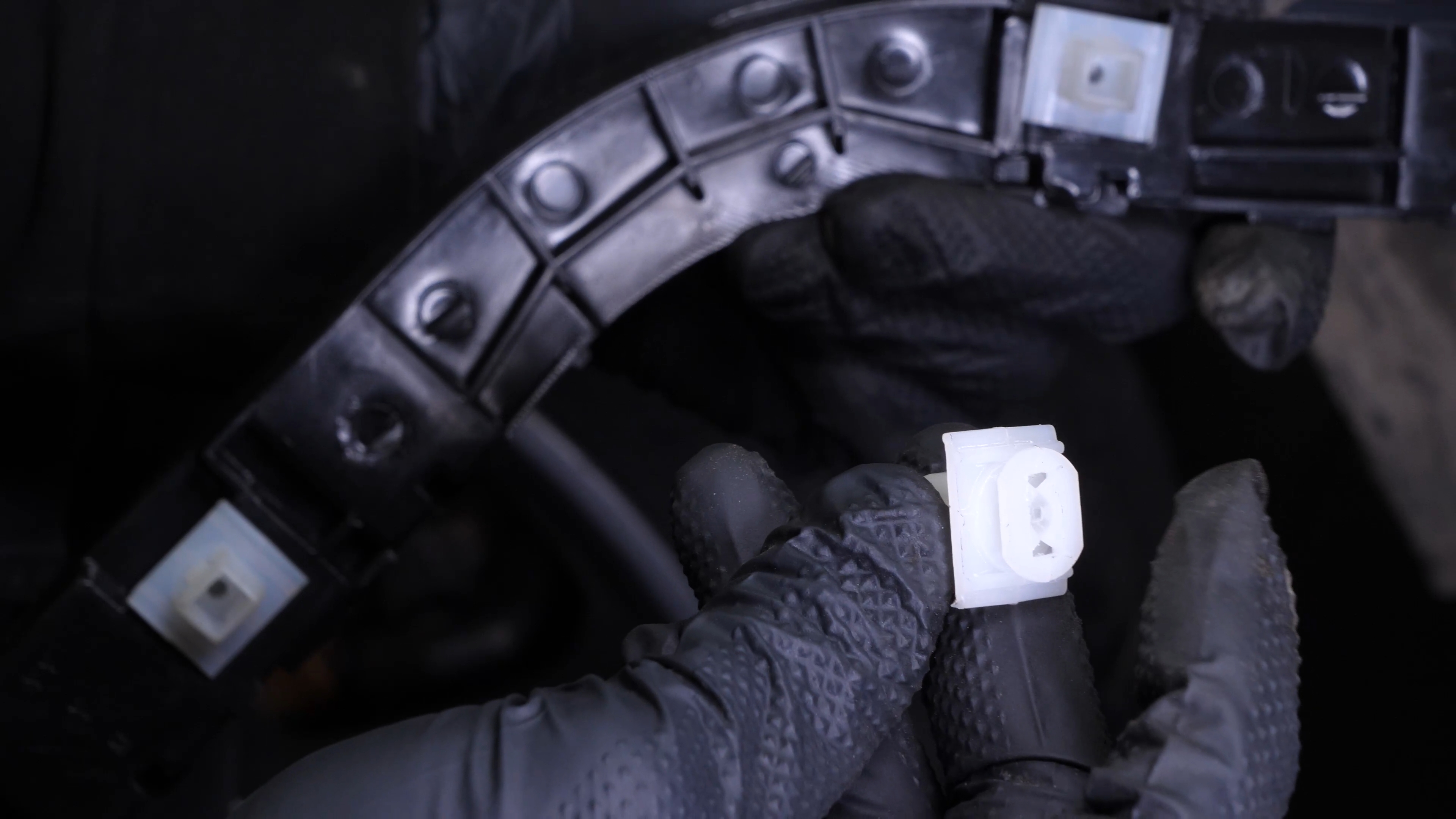

Take the retainer. Then place the 3 clips on the retainer.

Chapter 6:

Step 2/3

Install the holding screw plastic bracket.

Chapter 6:

Step 3/3

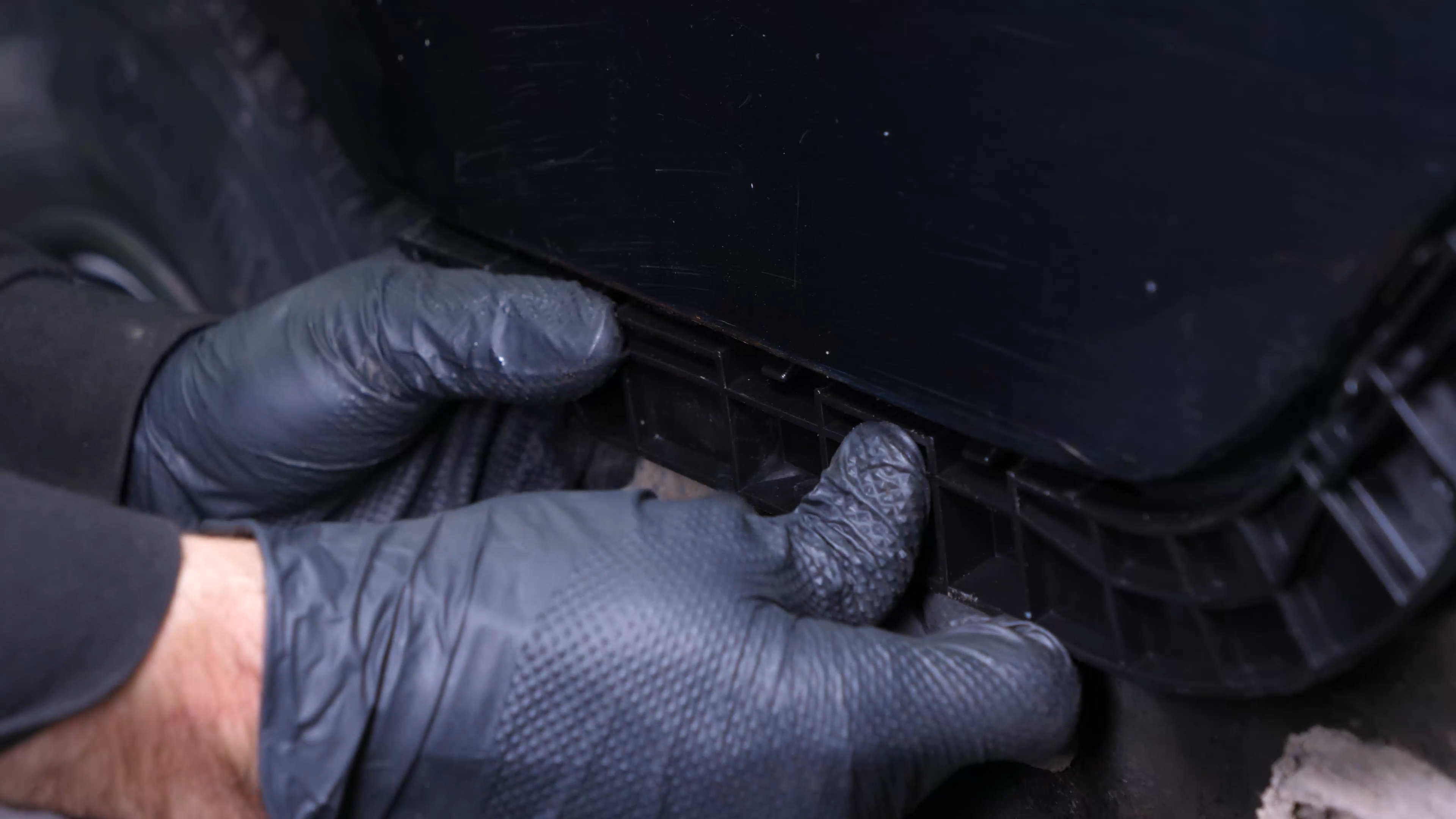

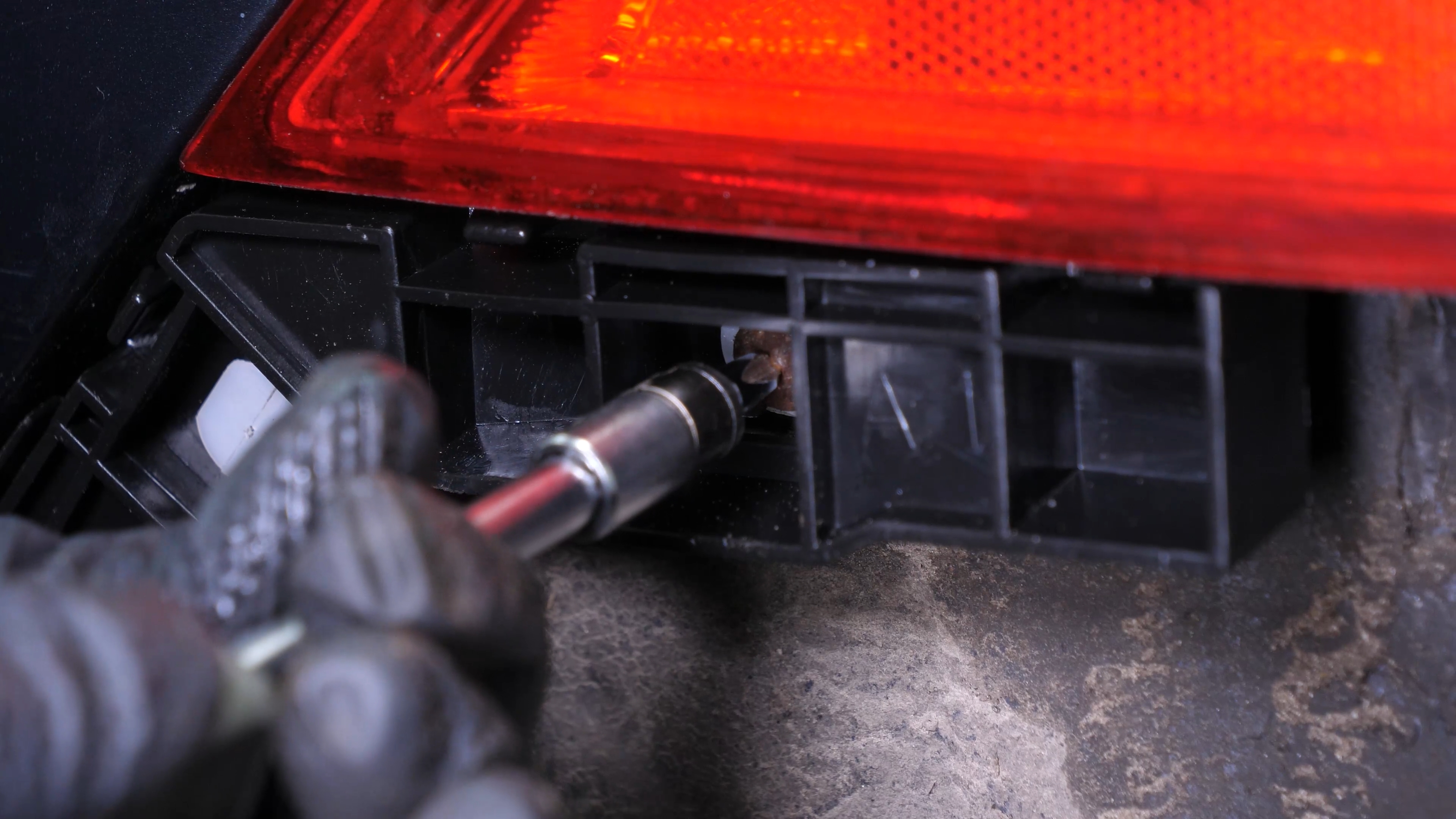

Put the bumper cover retainer in place, then clip it into its slots. Then, retighten the retaining screw.

Chapter 7:

Put the bumper cover back

Step 1/6

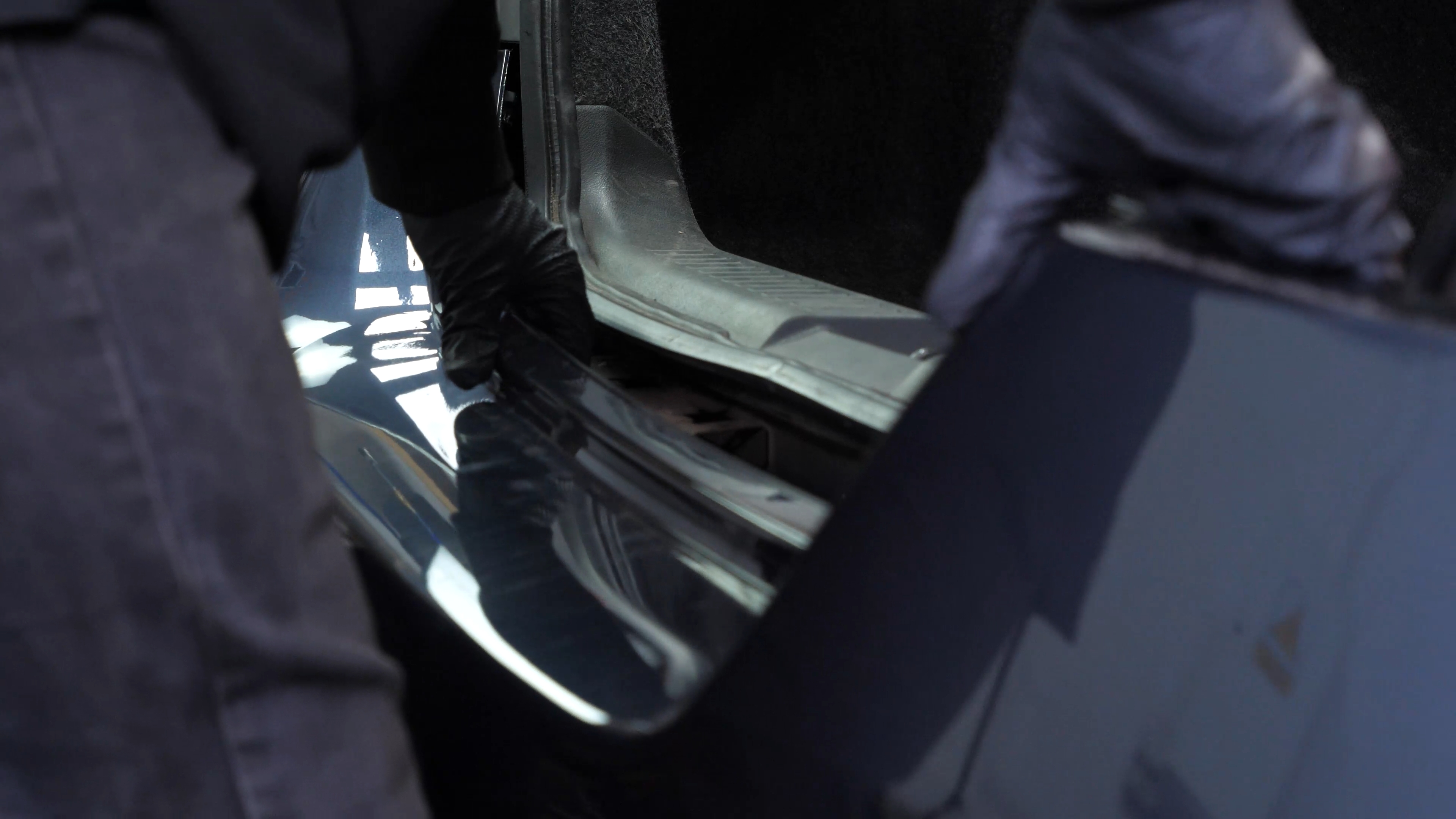

Put the rear bumper cover back in place, by its central part first.

Chapter 7:

Step 2/6

Then reattach each side to the bumper cover retainers. Then put the 2 rivets back in place.

Chapter 7:

Step 3/6

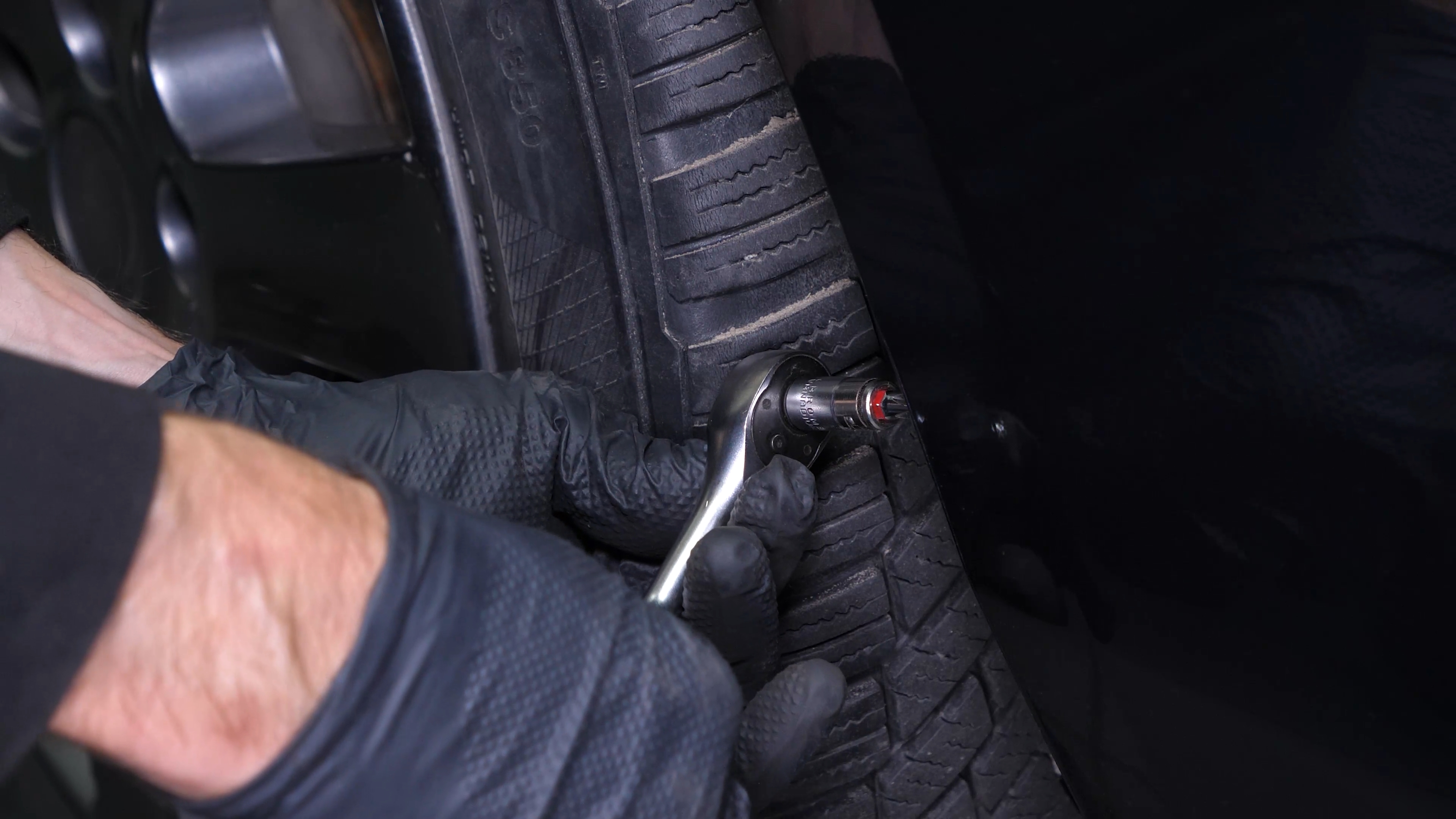

Screw the two screws holding the bumper cover to the mudguard on both sides.

Chapter 7:

Step 4/6

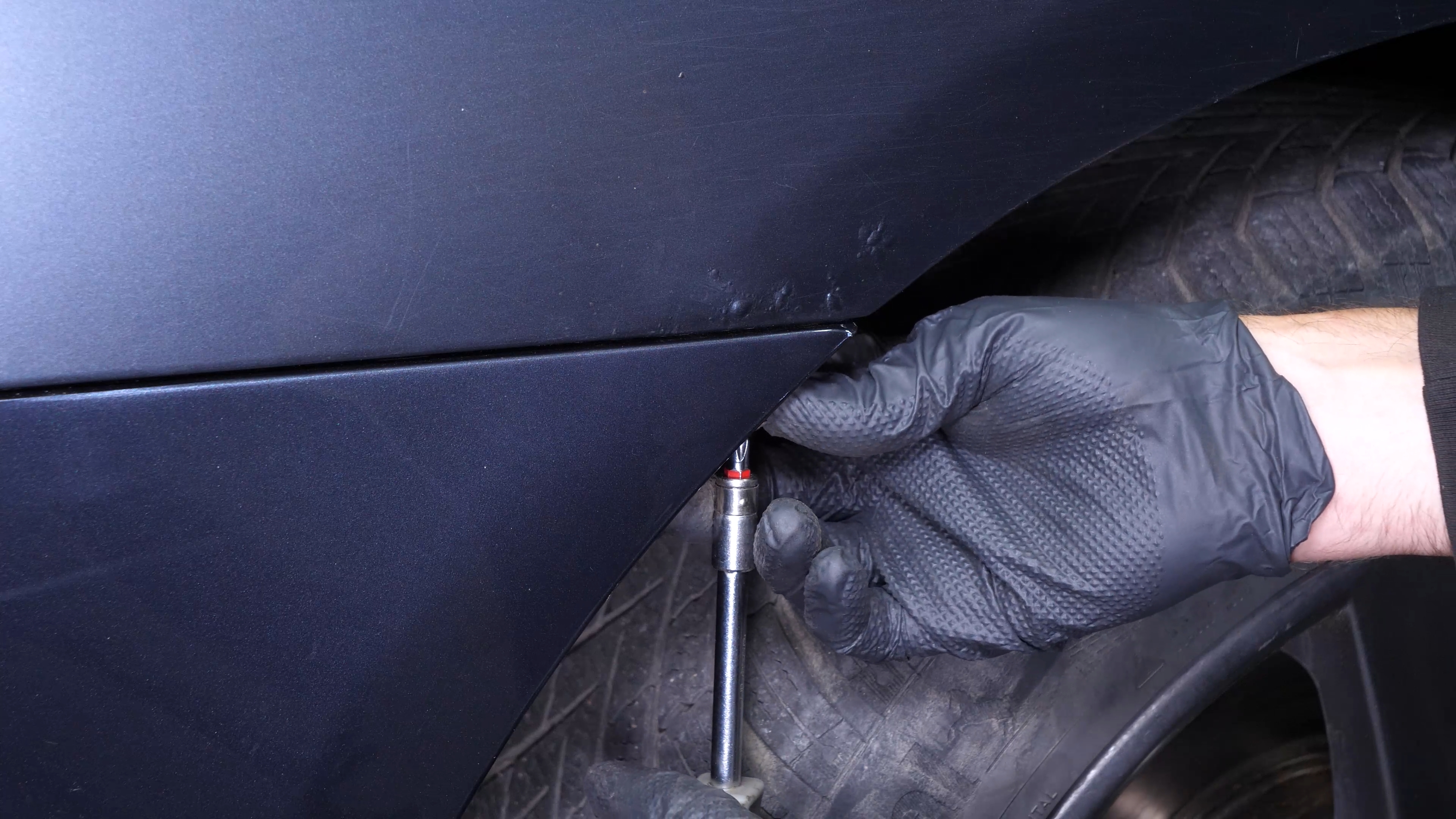

Then, on both sides, screw the screw holding the bumper cover to the bumper retainers back on.

Chapter 7:

Step 5/6

Screw the retaining bolts back on at the trunk, then put the protective covers back in place.

Chapter 7:

Step 6/6

Operation complete.
