How to replace the rear sway bar end Links 2003-2007 Honda Accord

Chapter 1:

Lift the vehicle

Step 1/4

Turn your engine off and set the parking brake.

Chapter 1:

Step 2/4

Loosen the wheel lug nuts on the rear wheels.

Chapter 1:

Step 3/4

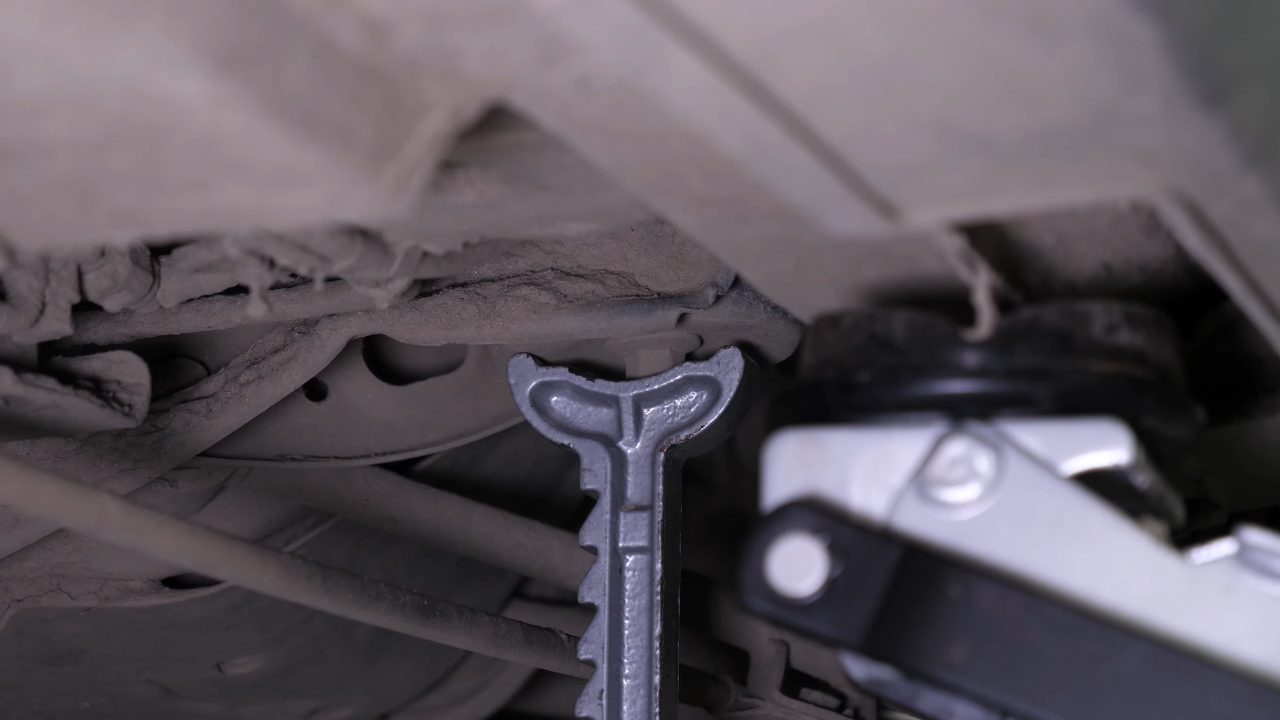

Lift the rear of your vehicle. Place the vehicle on the jack stands.

Chapter 1:

Step 4/4

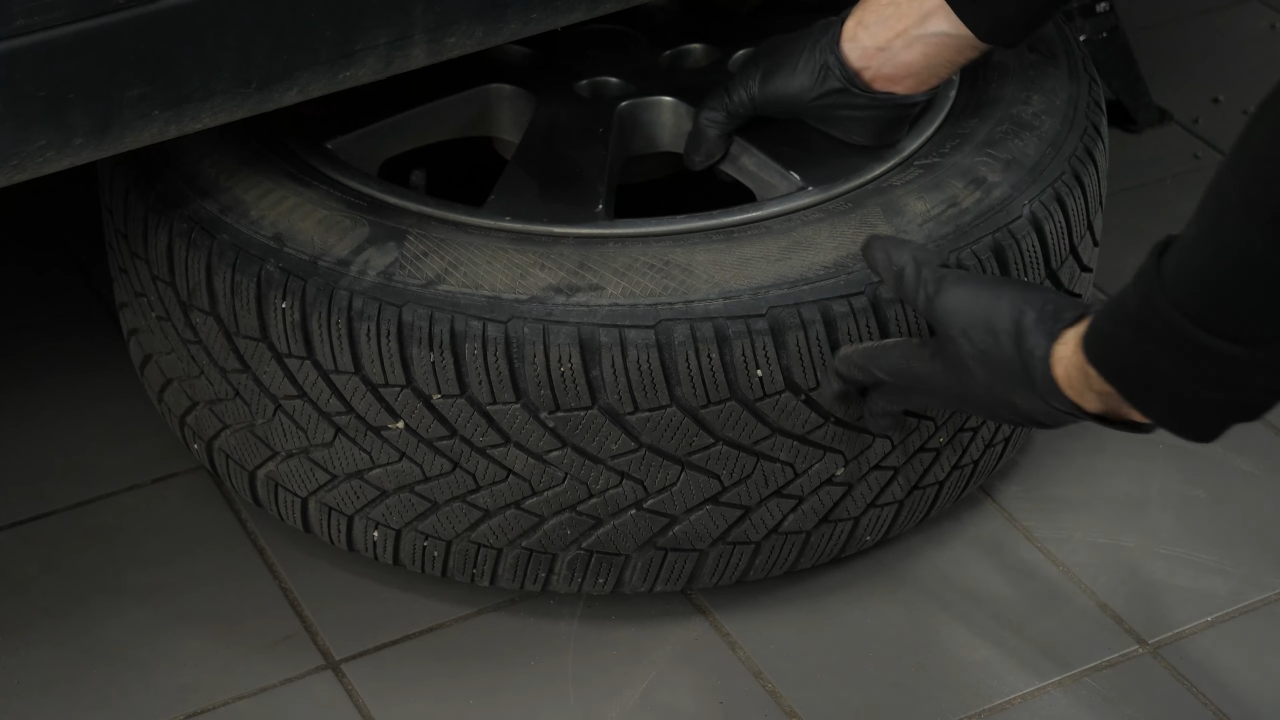

Don’t forget to put the wheels under the vehicle!

Chapter 2:

Visualise

Step 1/1

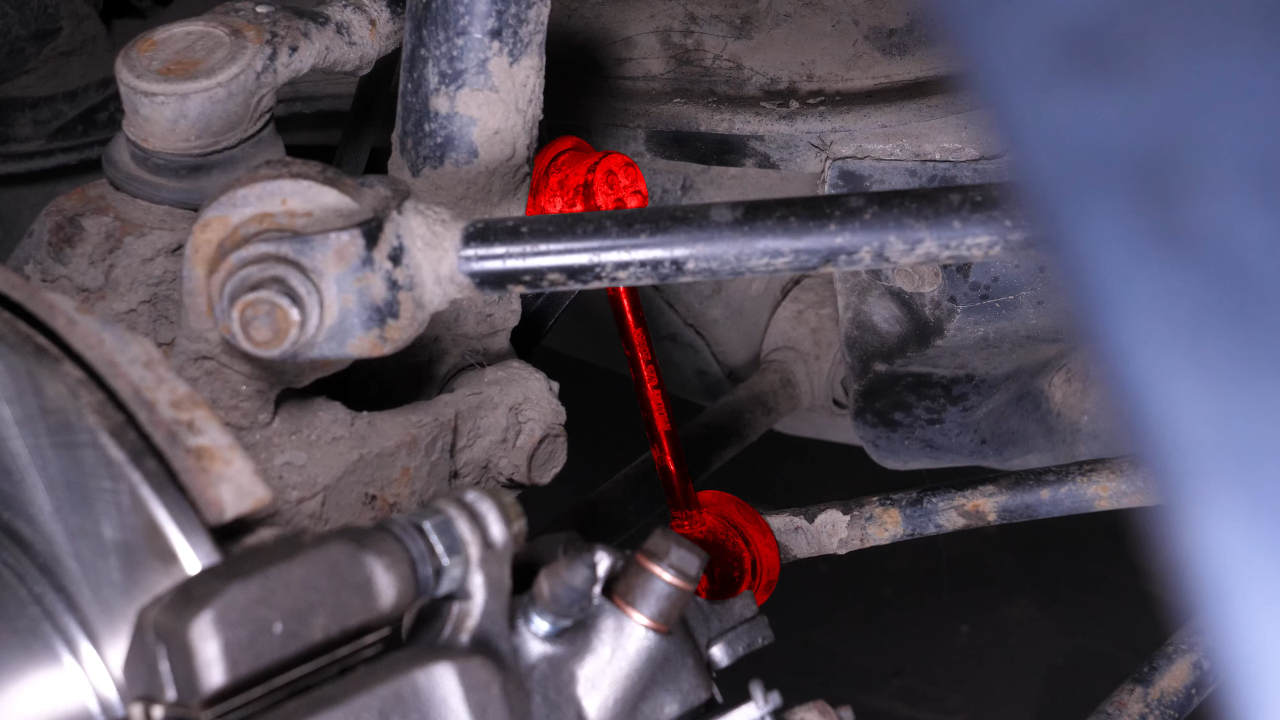

You can now see your car’s rear end link.

Chapter 3:

Informations

Step 1/1

The end link connects the rear sway bar to the struts to keep the wheels firmly on the ground at all times.

Chapter 4:

Remove the sway bar end link

Step 1/5

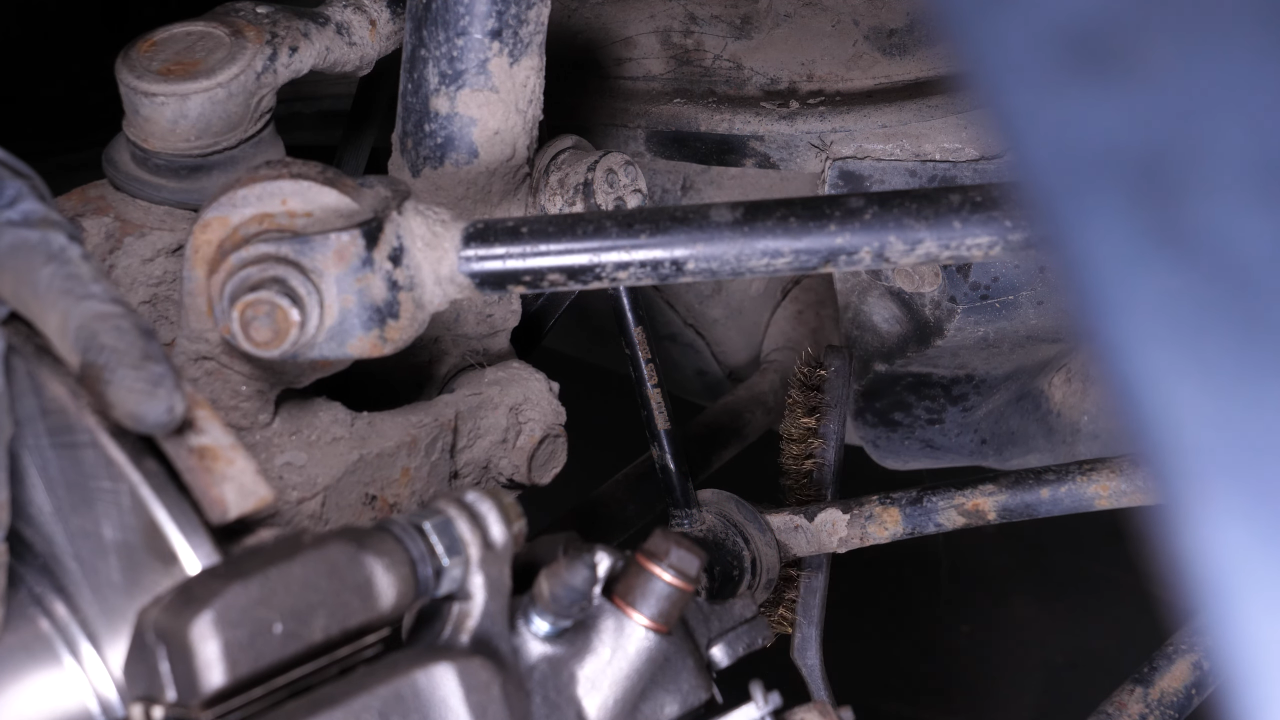

The components to be removed are very often seized up, so don’t hesitate to brush and to use penetrating oil to make removal easier.

Chapter 4:

Step 2/5

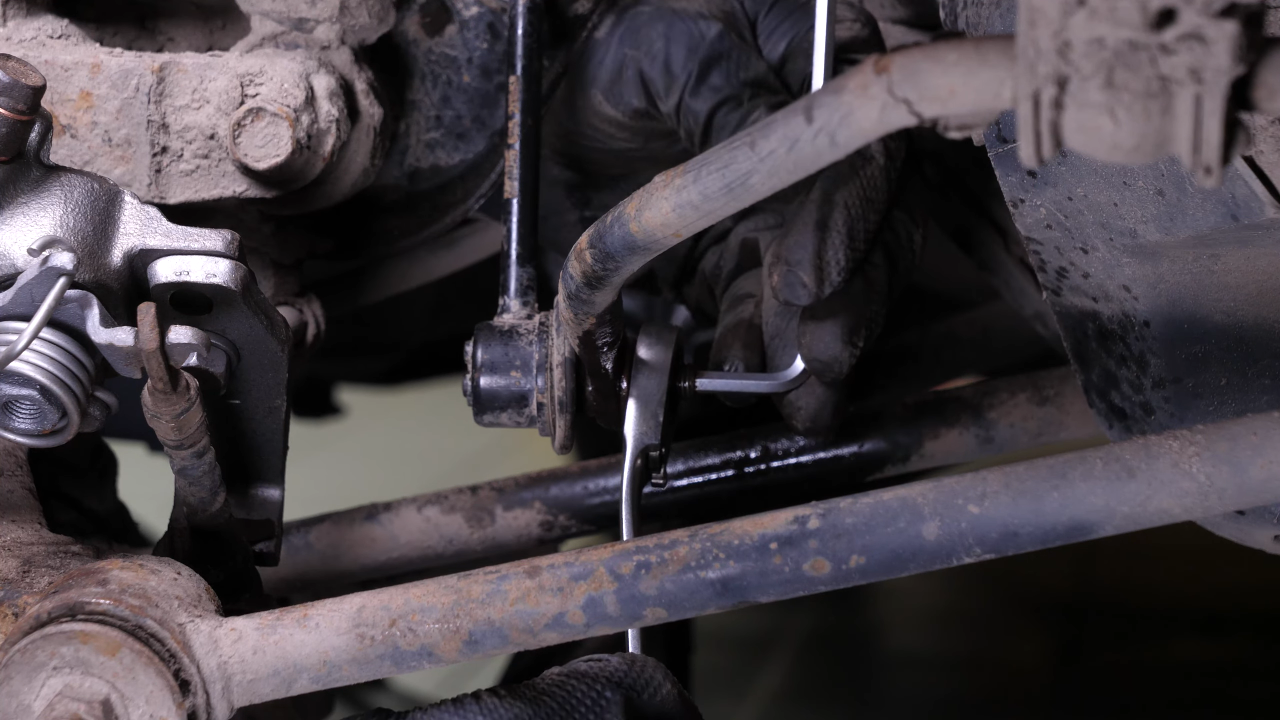

Using a 17 mm wrench, a ratchet and a 5mm Allen socket, unscrew the lower ball joint nut. Keep the ball joint from rotating using the Allen socket and unscrew the nut with the wrench.

Chapter 4:

Step 3/5

Finish unscrewing by hand.

Chapter 4:

Step 4/5

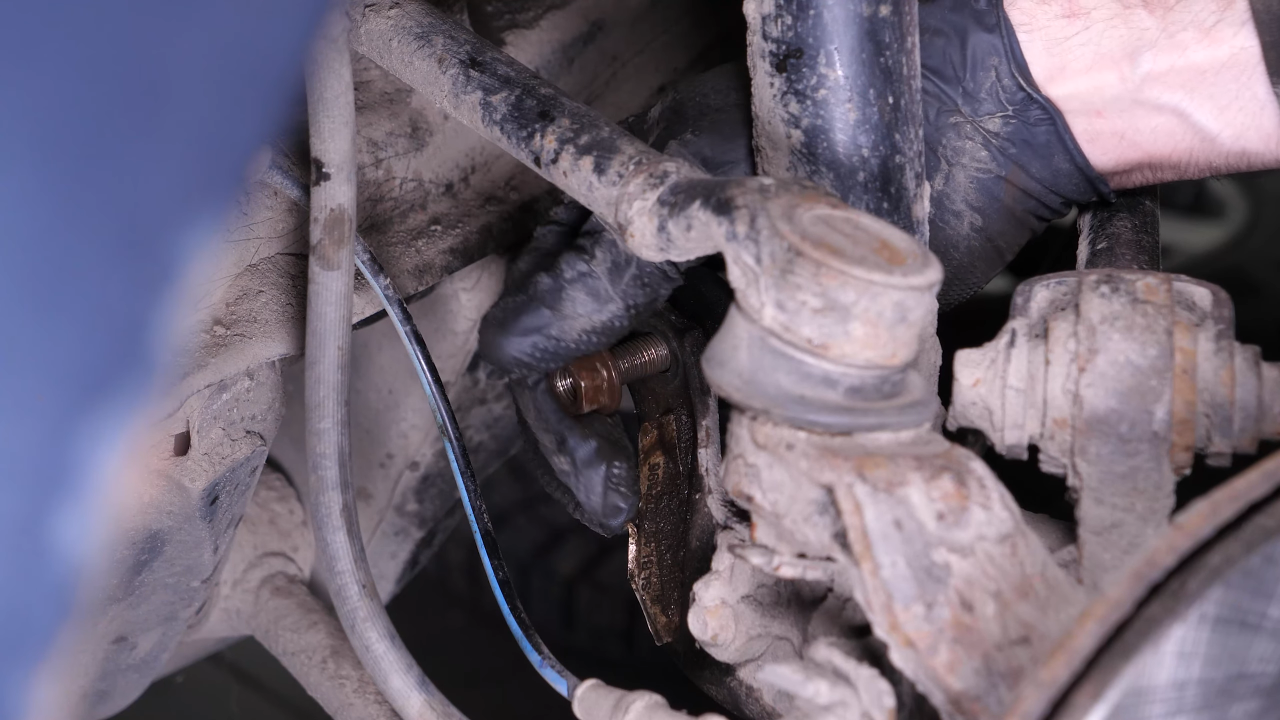

Repeat the operation on the upper ball joint.

Chapter 4:

Step 5/5

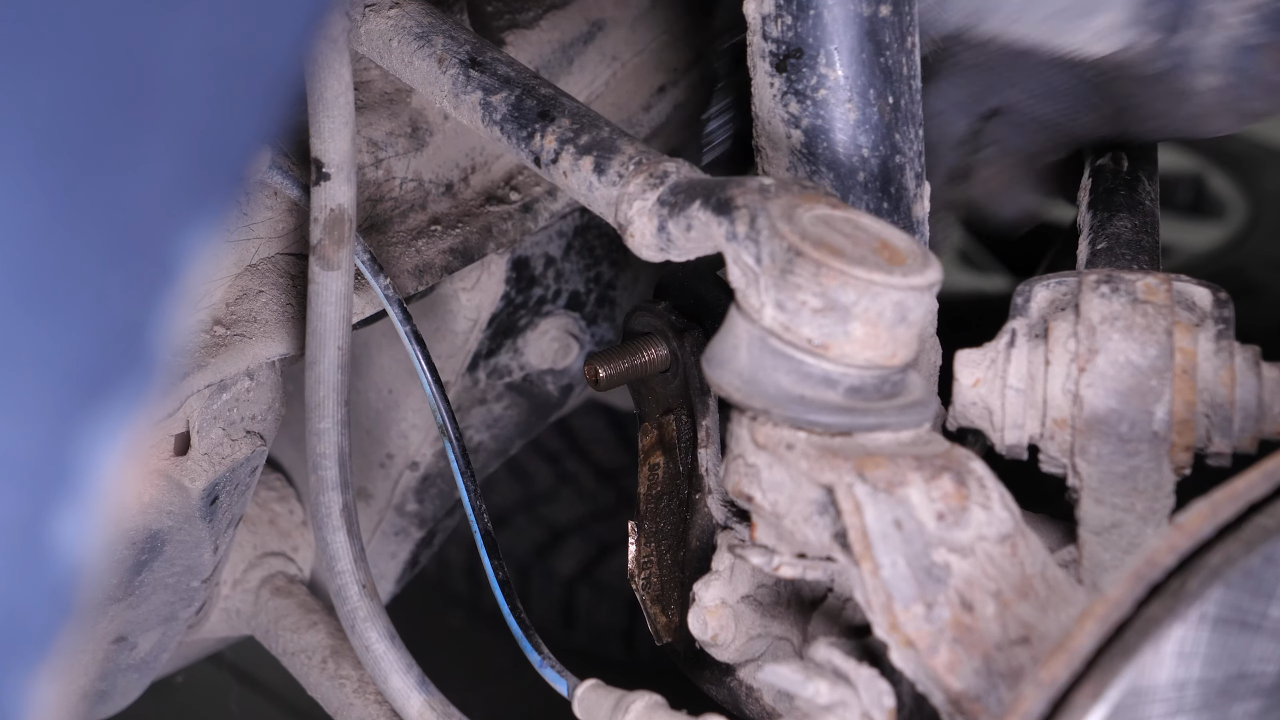

You can now remove the link.

Chapter 5:

Install the new sway bar end link

Step 1/4

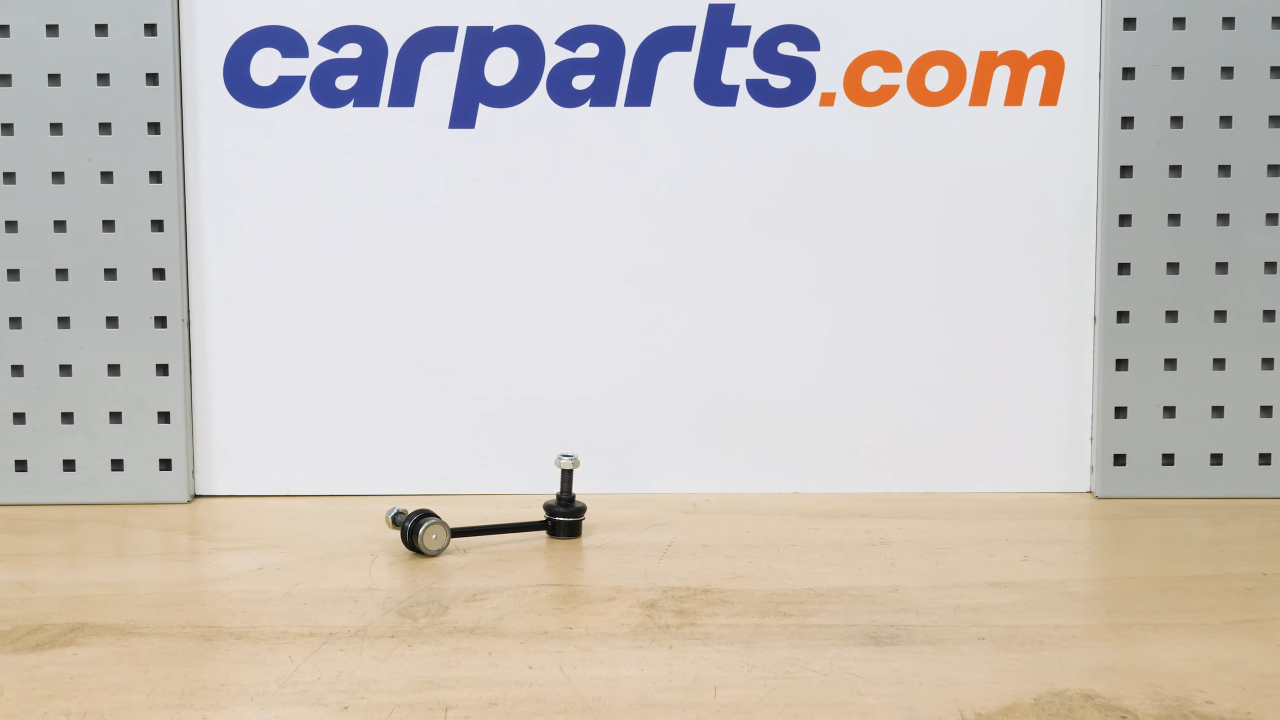

Take the new link and unscrew the nuts supplied with it.

Chapter 5:

Step 2/4

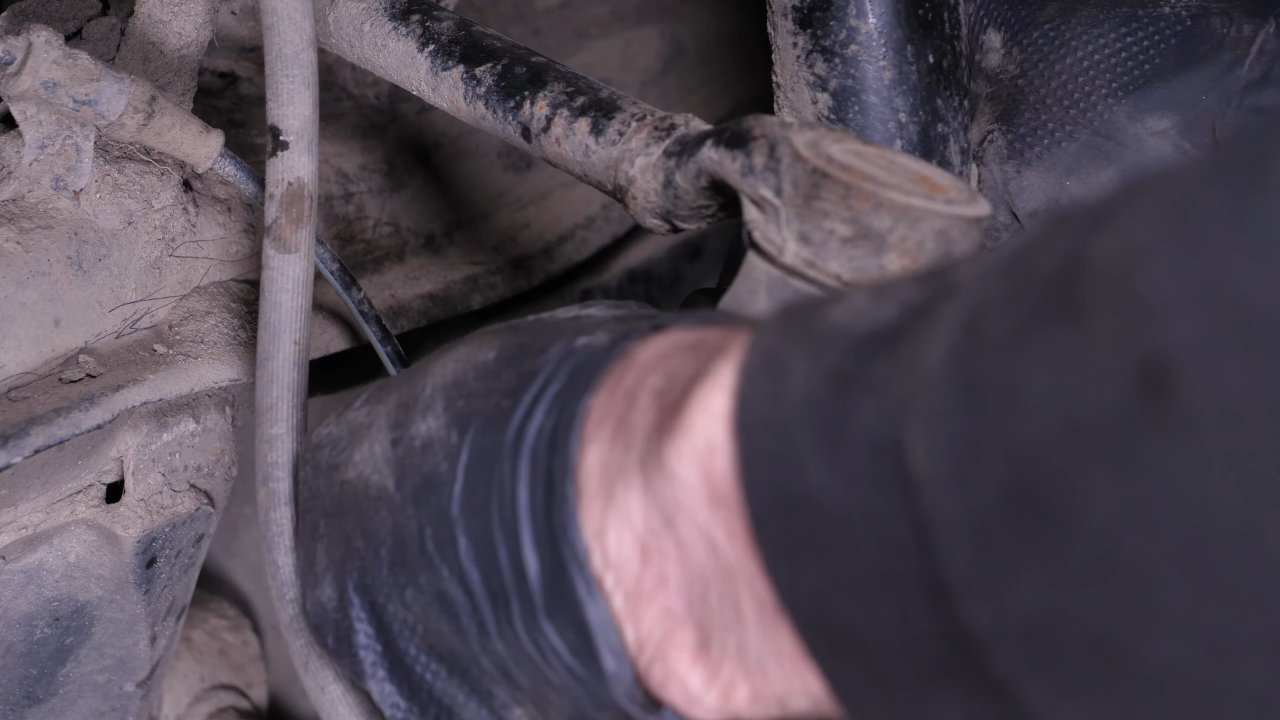

Install it in the sway bar, then in the metal bracket. Then screw the nuts back in, by hand at first.

Chapter 5:

Step 3/4

Screw the nuts back in until it makes contact.

Chapter 5:

Step 4/4

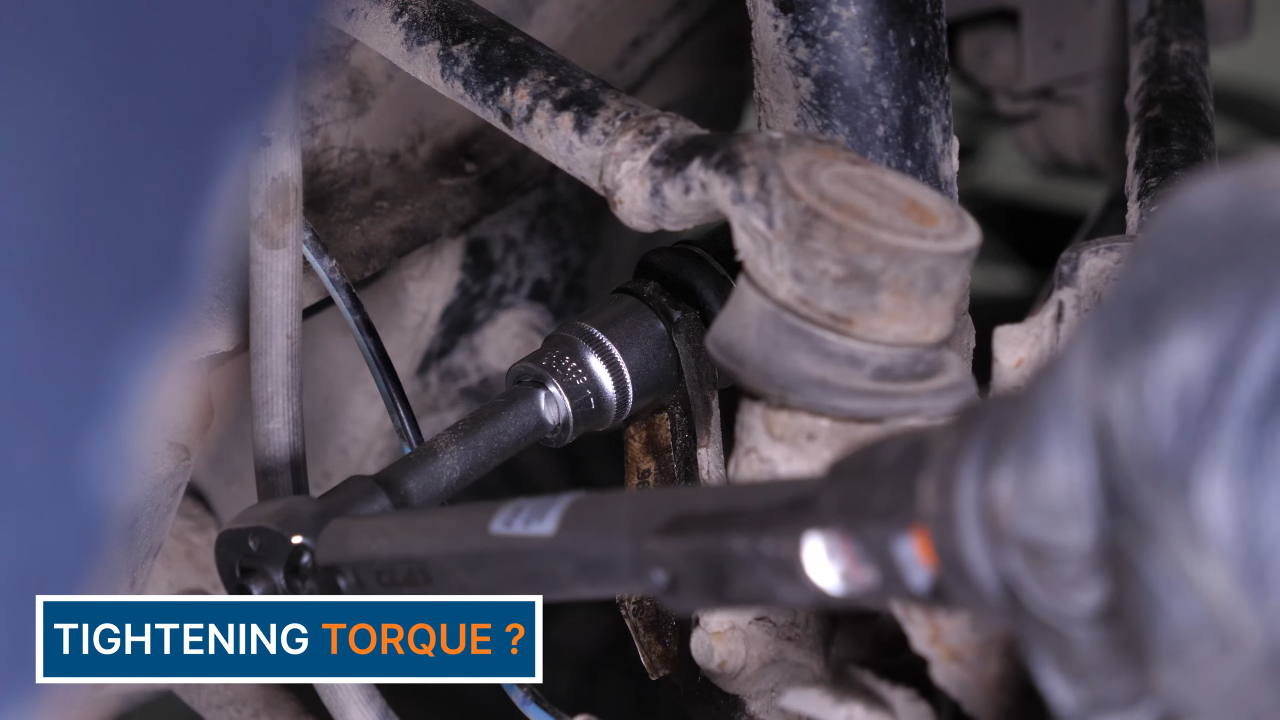

Tighten the nuts with a torque wrench.

Chapter 6:

Put the vehicle back on the ground

Step 1/3

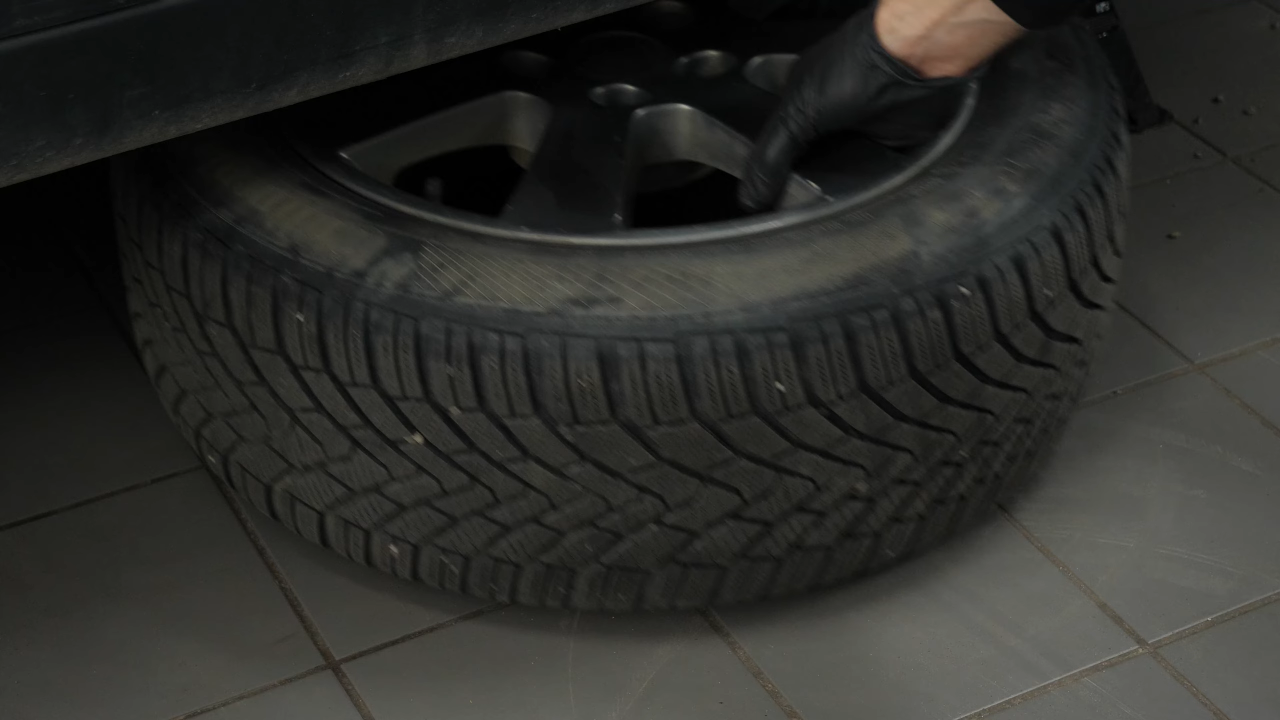

Then, you will be able to put the wheels back on your vehicle.

Chapter 6:

Step 2/3

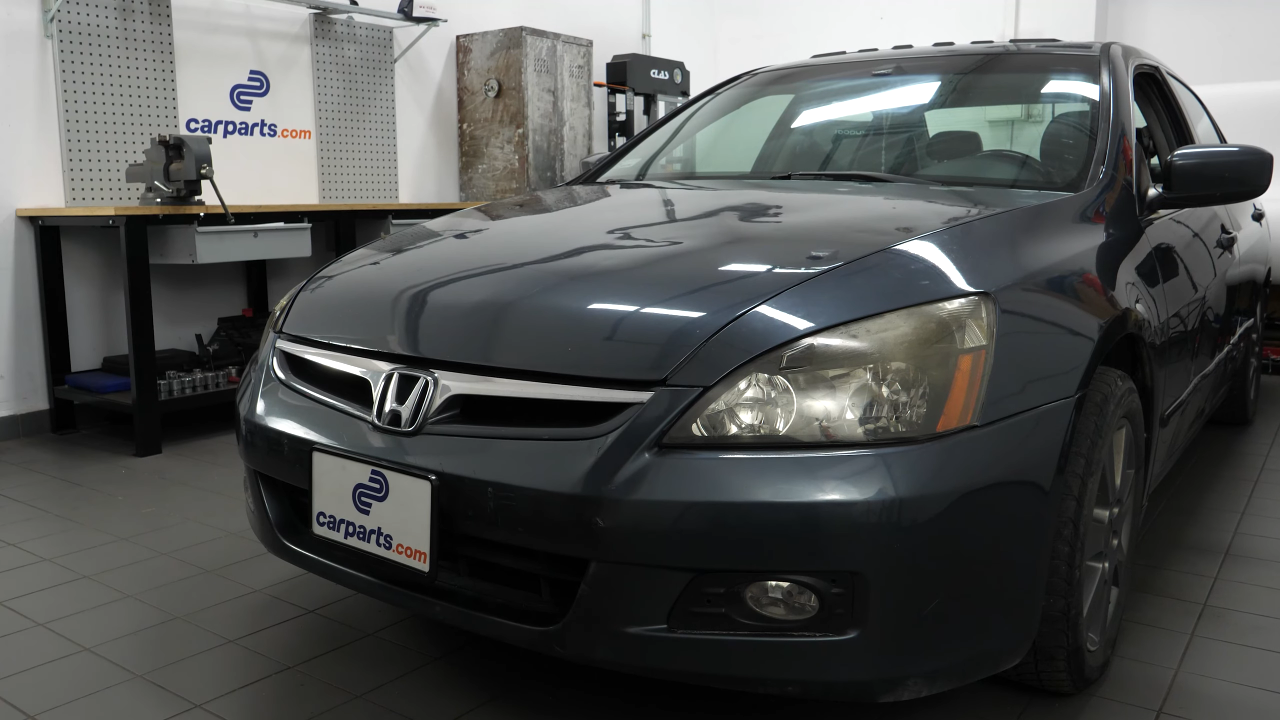

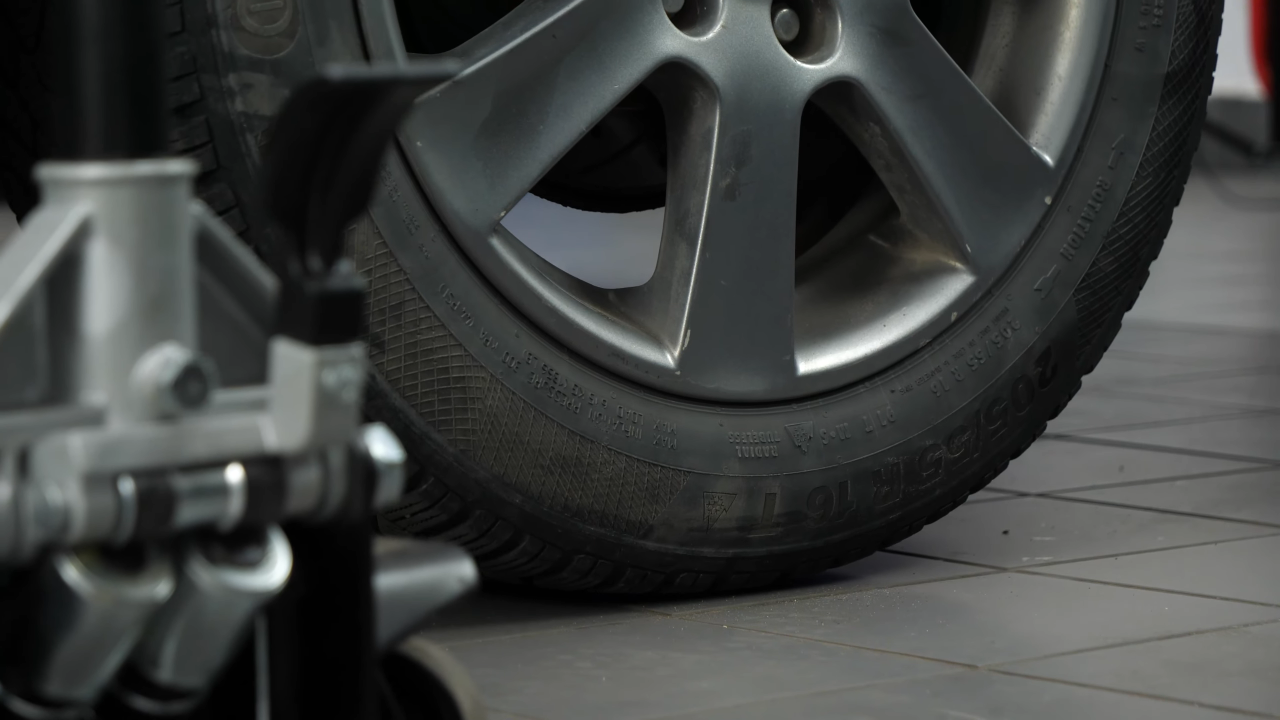

Put the car back on the ground and block the wheels properly.

Chapter 6:

Step 3/3

Operation complete.
