How to replace the front ABS sensor 2006-2011 Honda Civic

Chapter 1:

Lift the vehicle

Step 1/4

Turn your engine off and set the parking brake.

Chapter 1:

Step 2/4

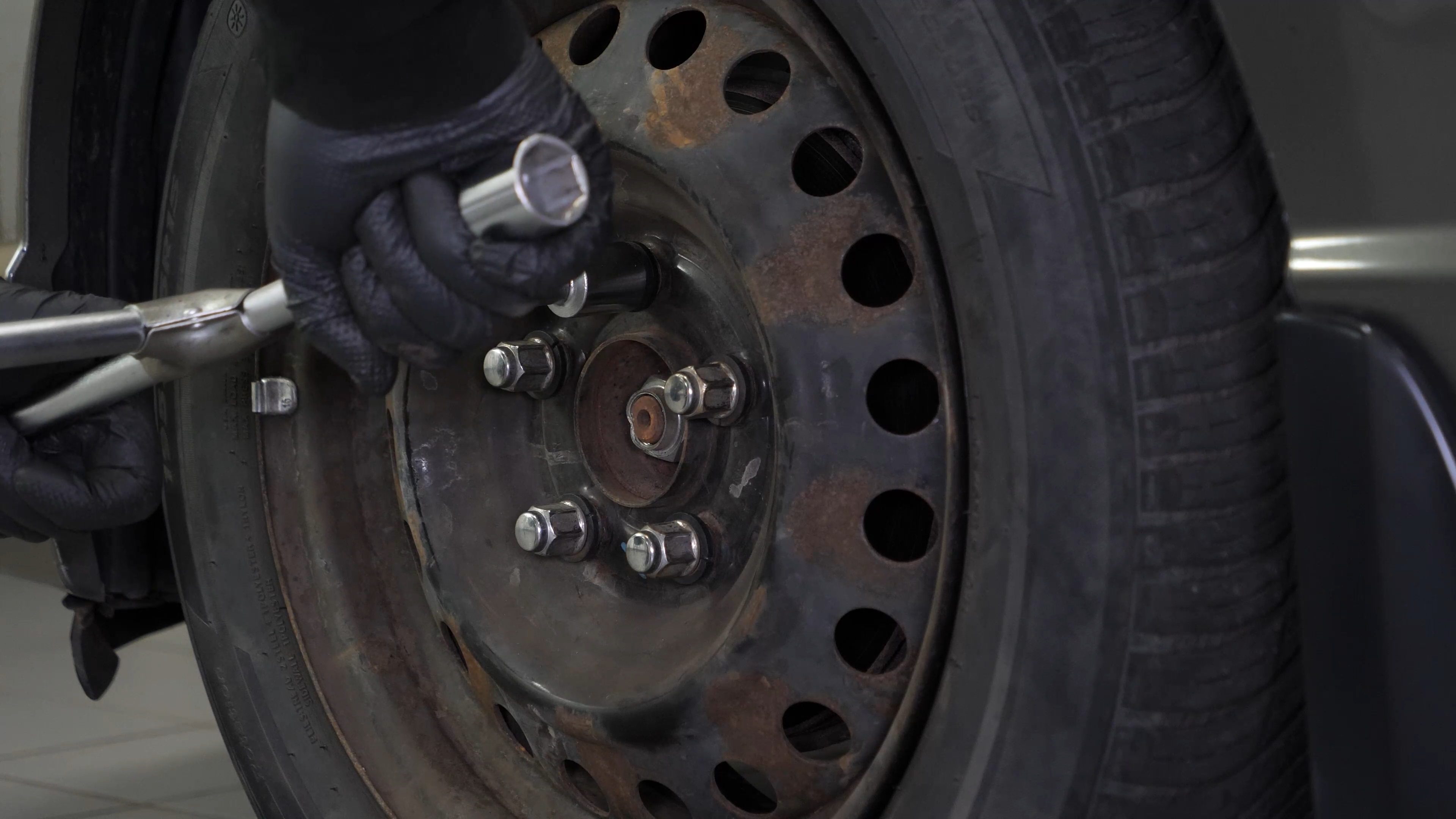

Loosen the stud bolts on the front wheels.

Chapter 1:

Step 3/4

Lift the front of your vehicle. Place the vehicle on the jack stands.

Chapter 1:

Step 4/4

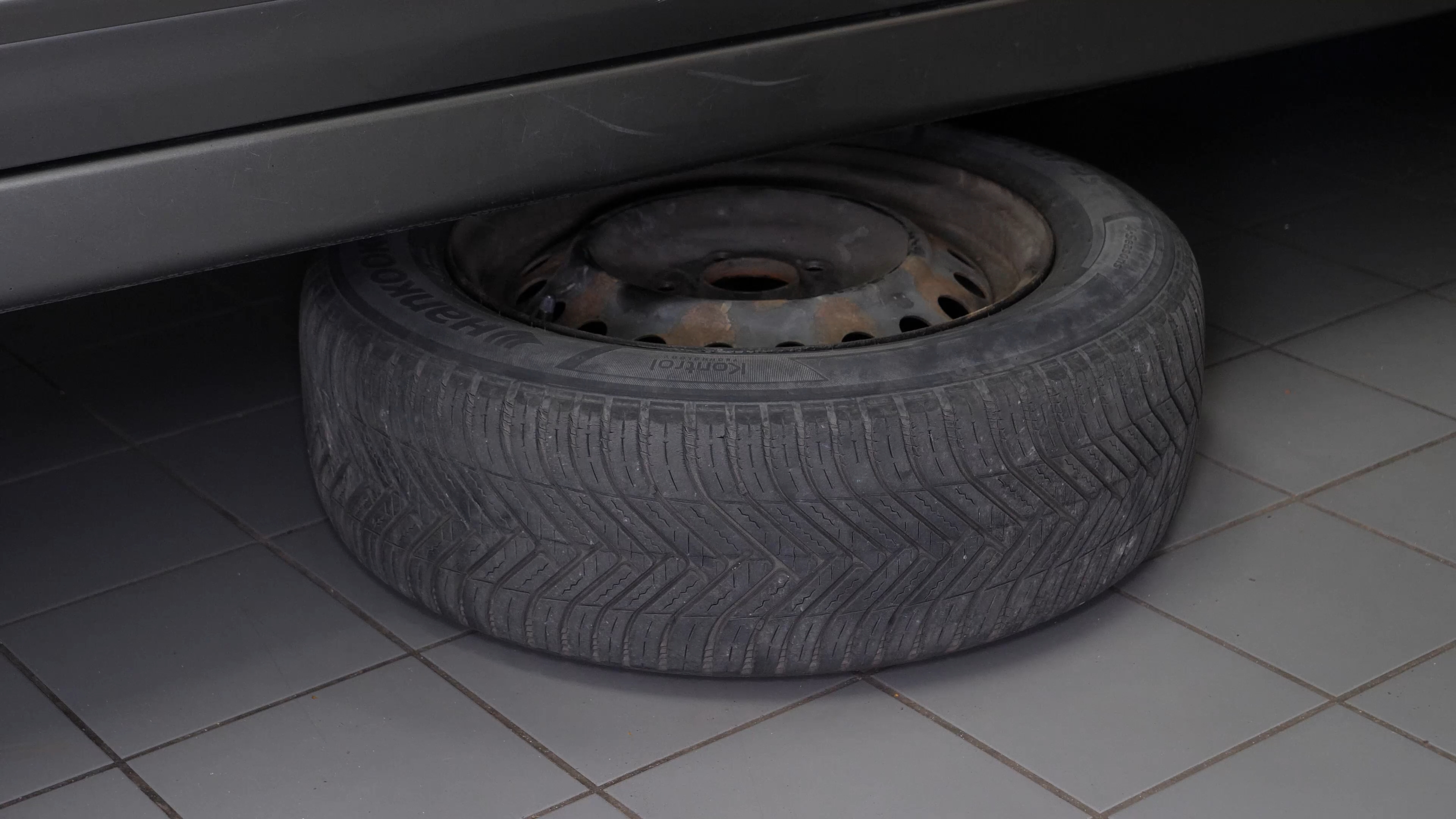

Don’t forget to put the wheels under the vehicle!

Chapter 2:

Informations

Step 1/1

Depending on the condition of the ABS sensor, you may have to remove the wheel knuckle so as to completely pull out the sensor. For safety reasons, you should anticipate this possibility.

Chapter 3:

Visualise

Step 1/1

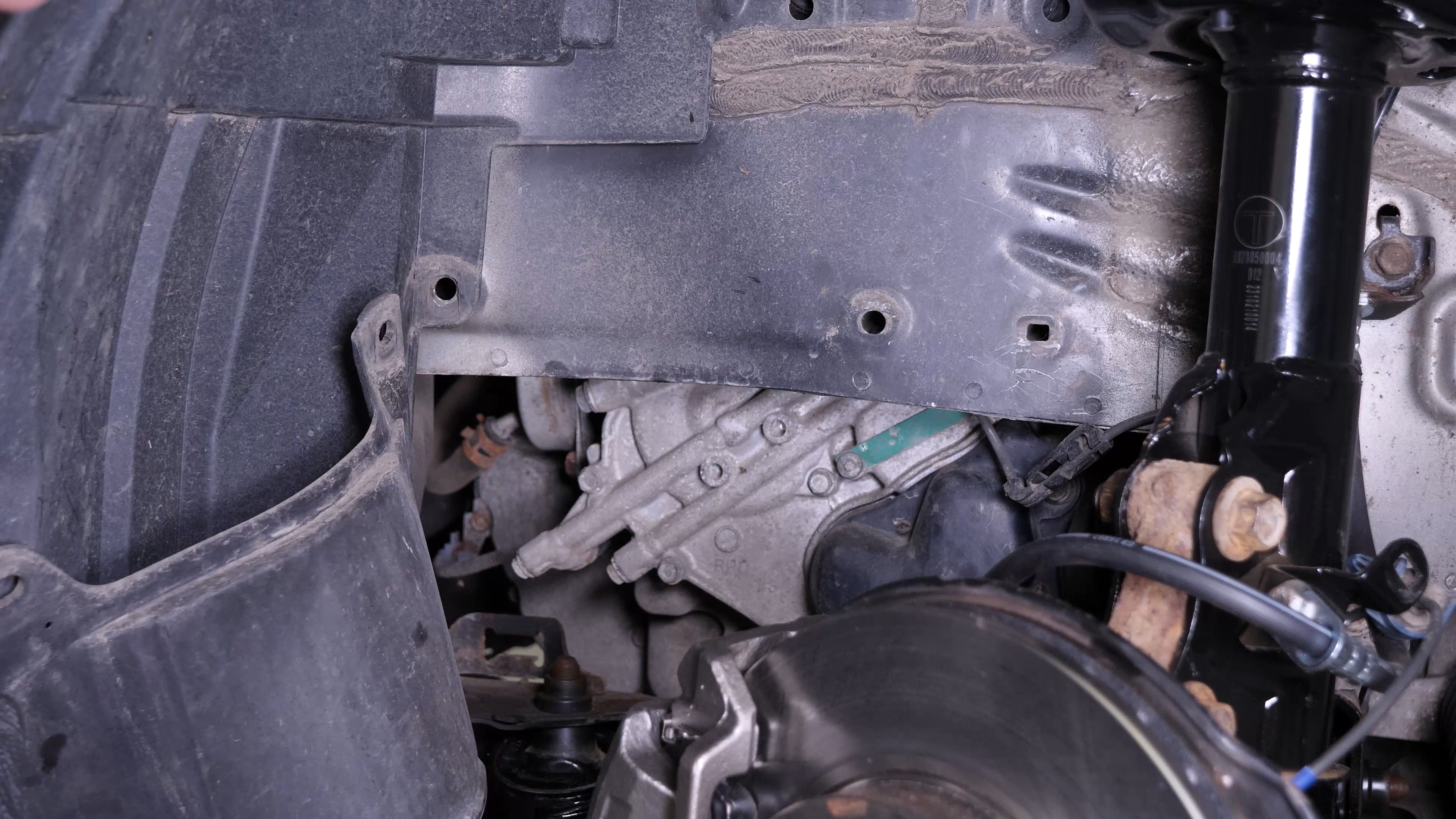

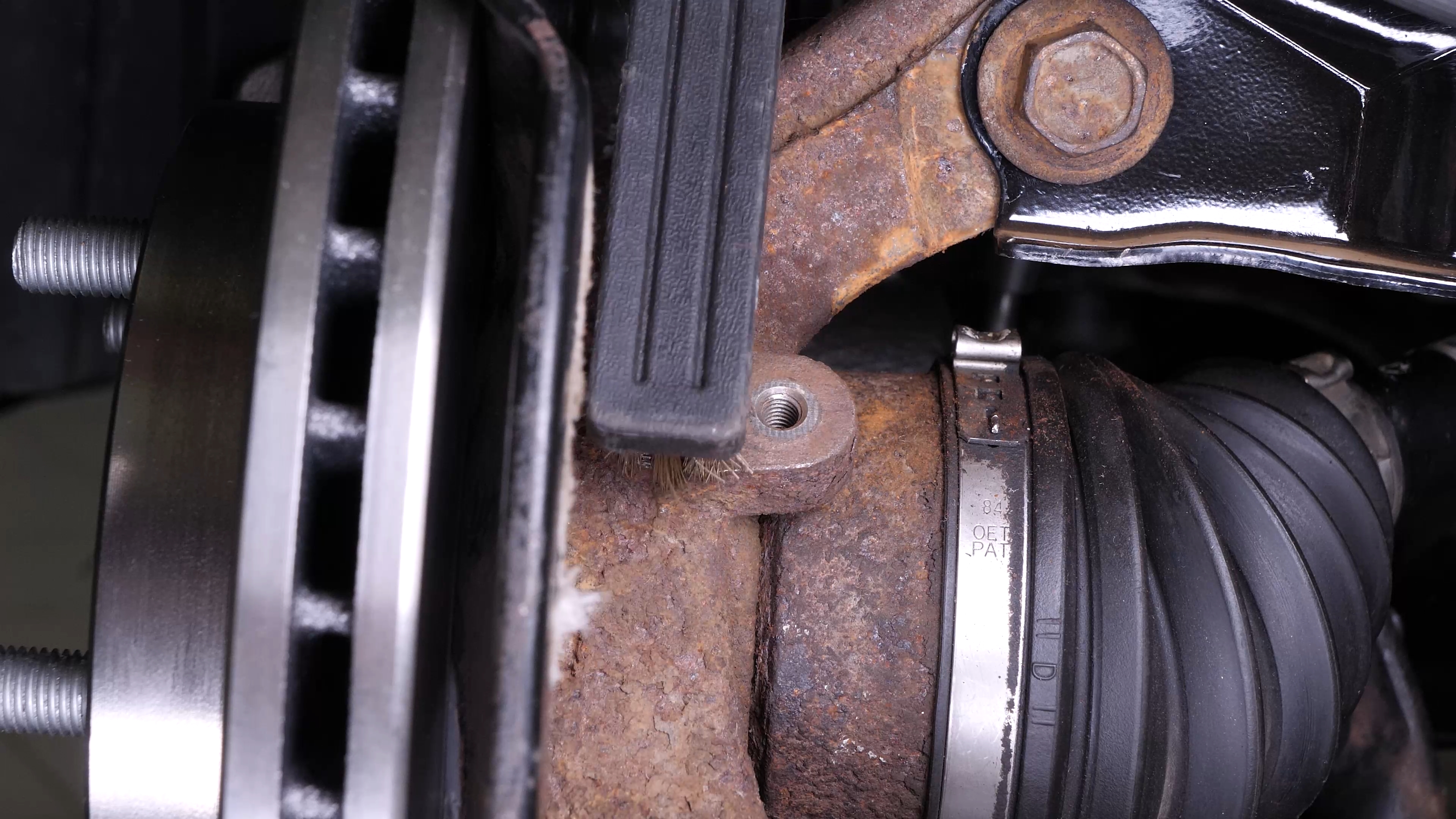

Turn the brake disc inward to make this operation easier. You can now see the ABS sensor.

Chapter 4:

Remove the cable from its housings

Step 1/3

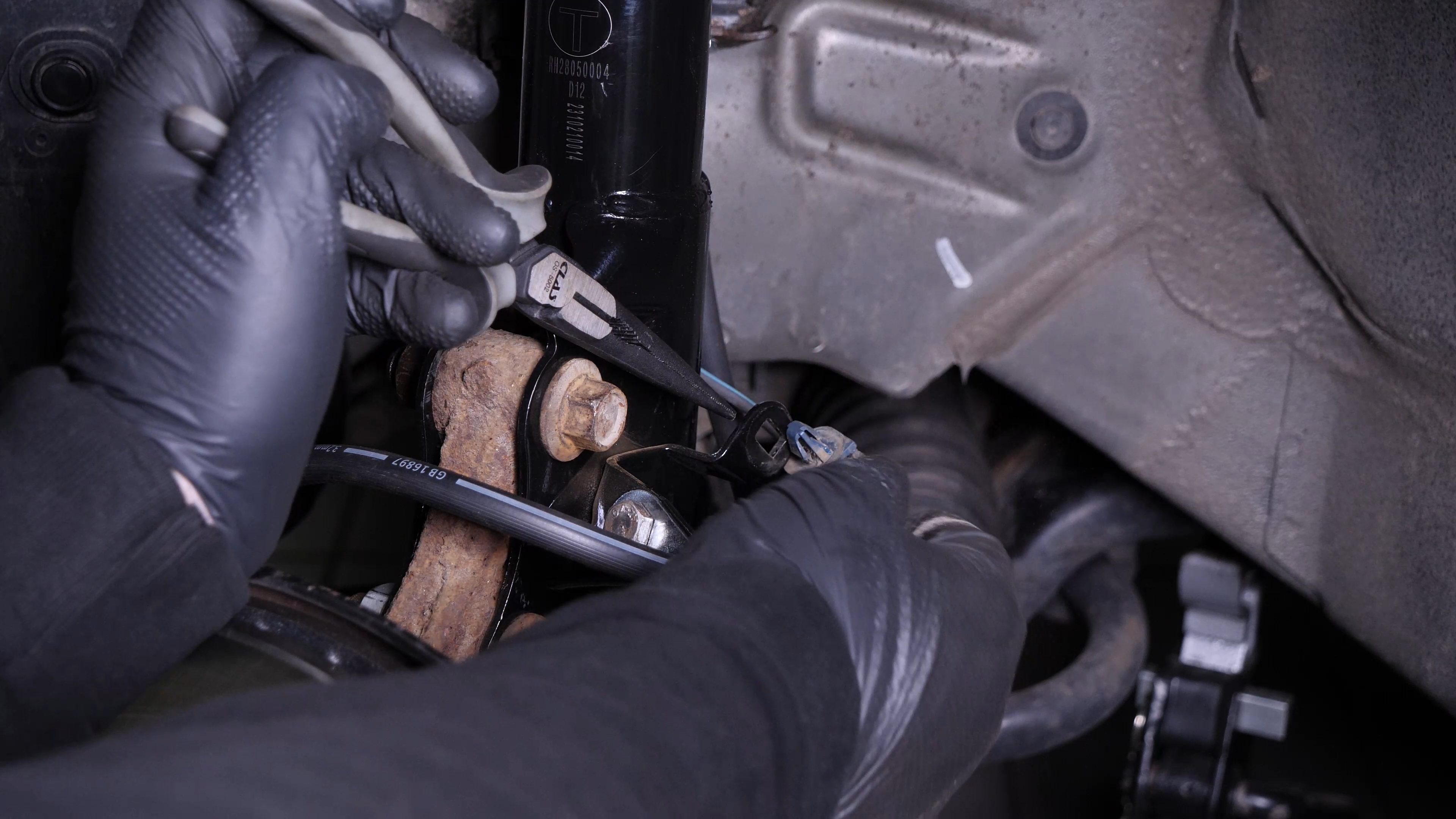

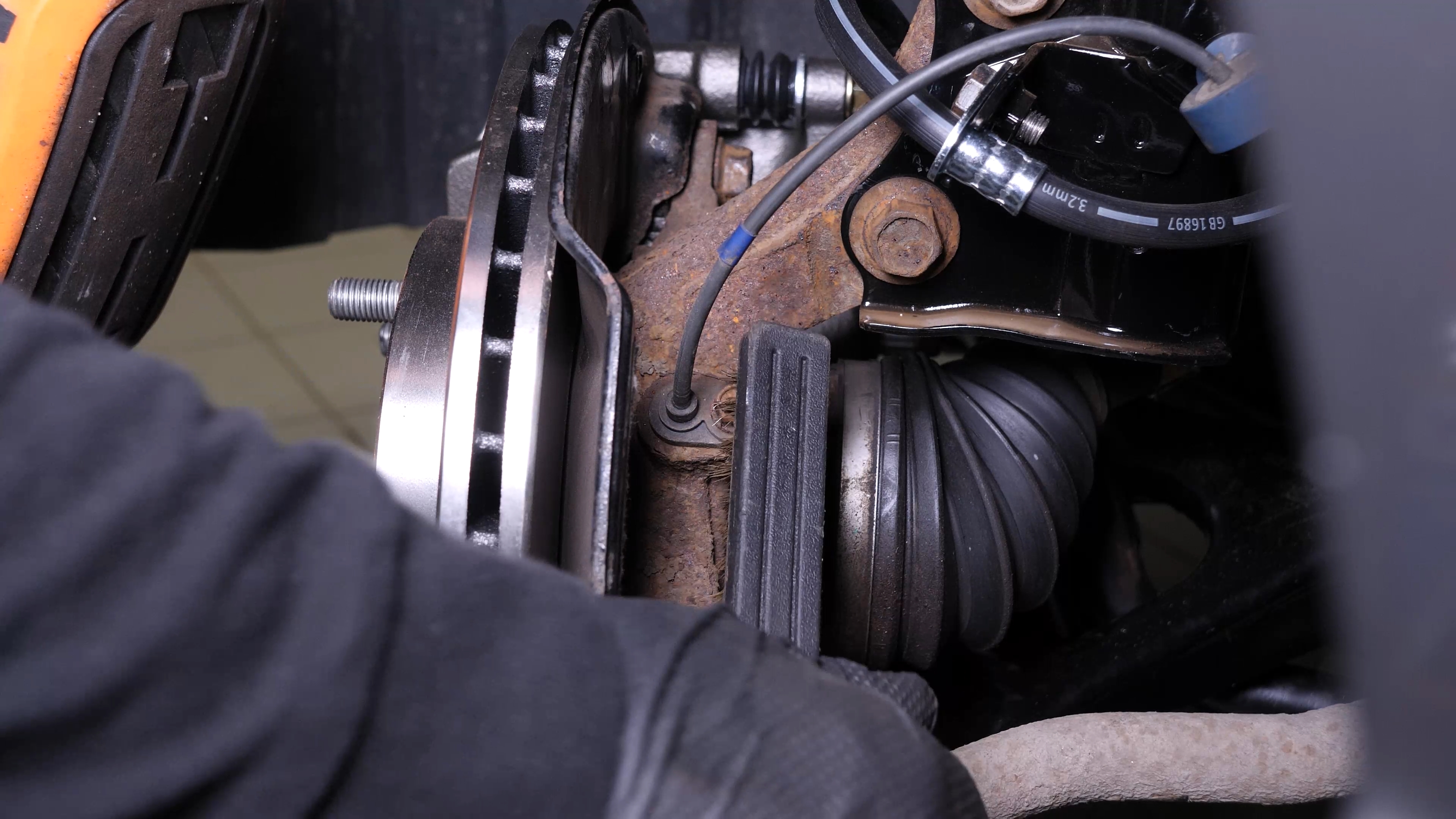

Using needle-nose pliers, unclip the ABS sensor cable from the strut foot.

Chapter 4:

Step 2/3

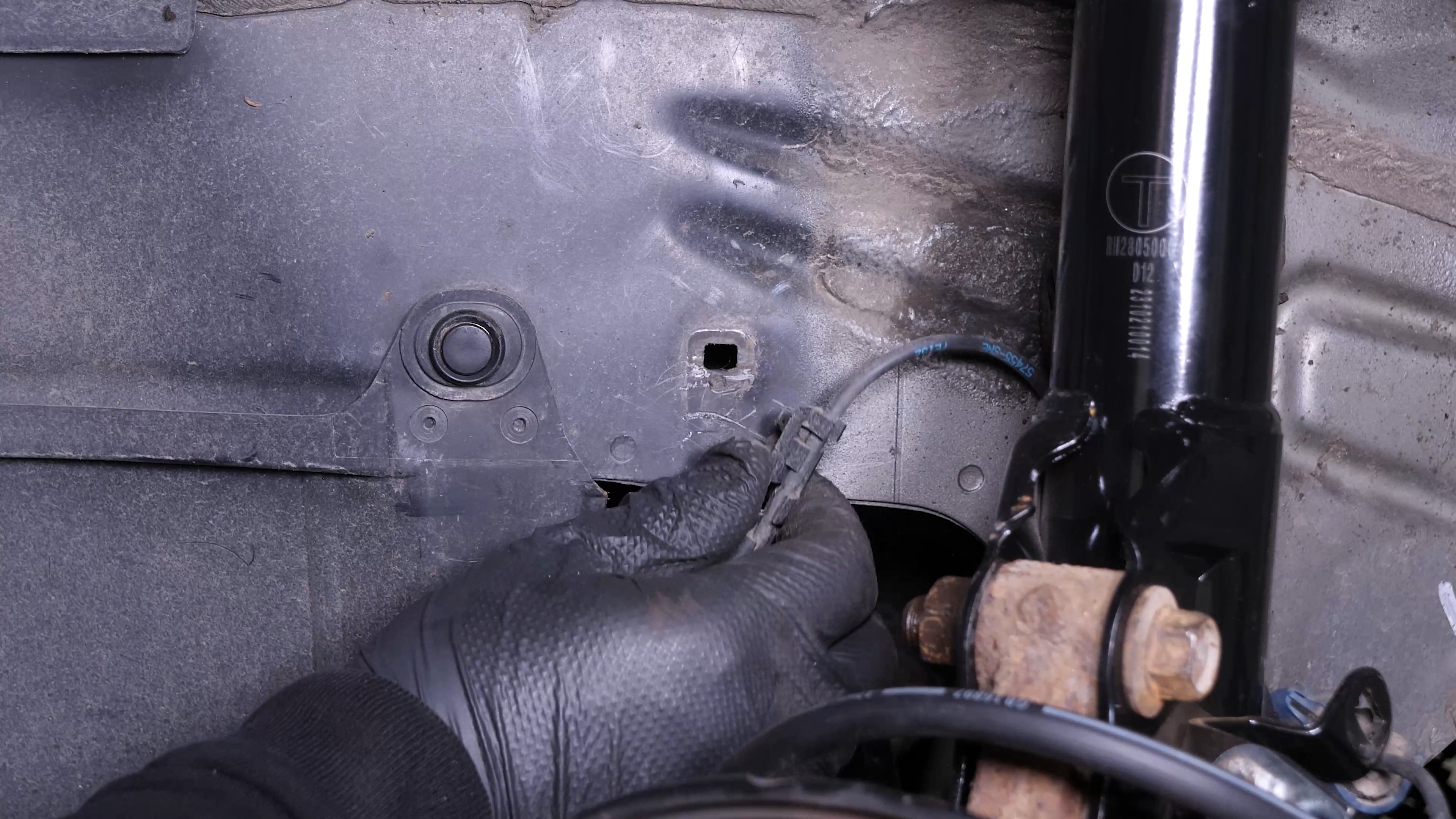

Next, unclip the ABS sensor cable from its retaining tab.

Chapter 4:

Step 3/3

Finally, using a flat head screwdriver, unclip the plastic guide from the body.

Chapter 5:

Disconnect the electric connector

Step 1/3

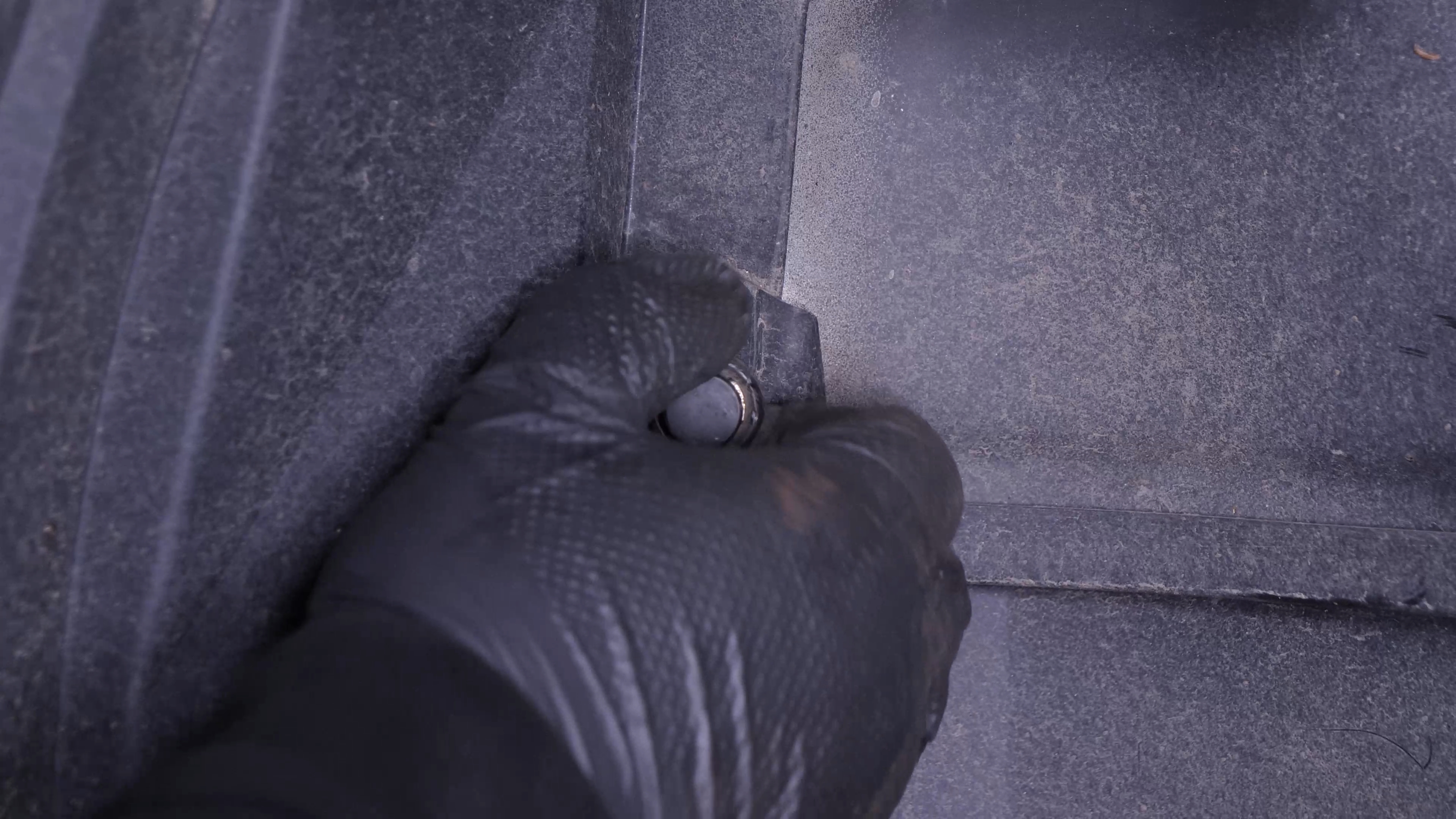

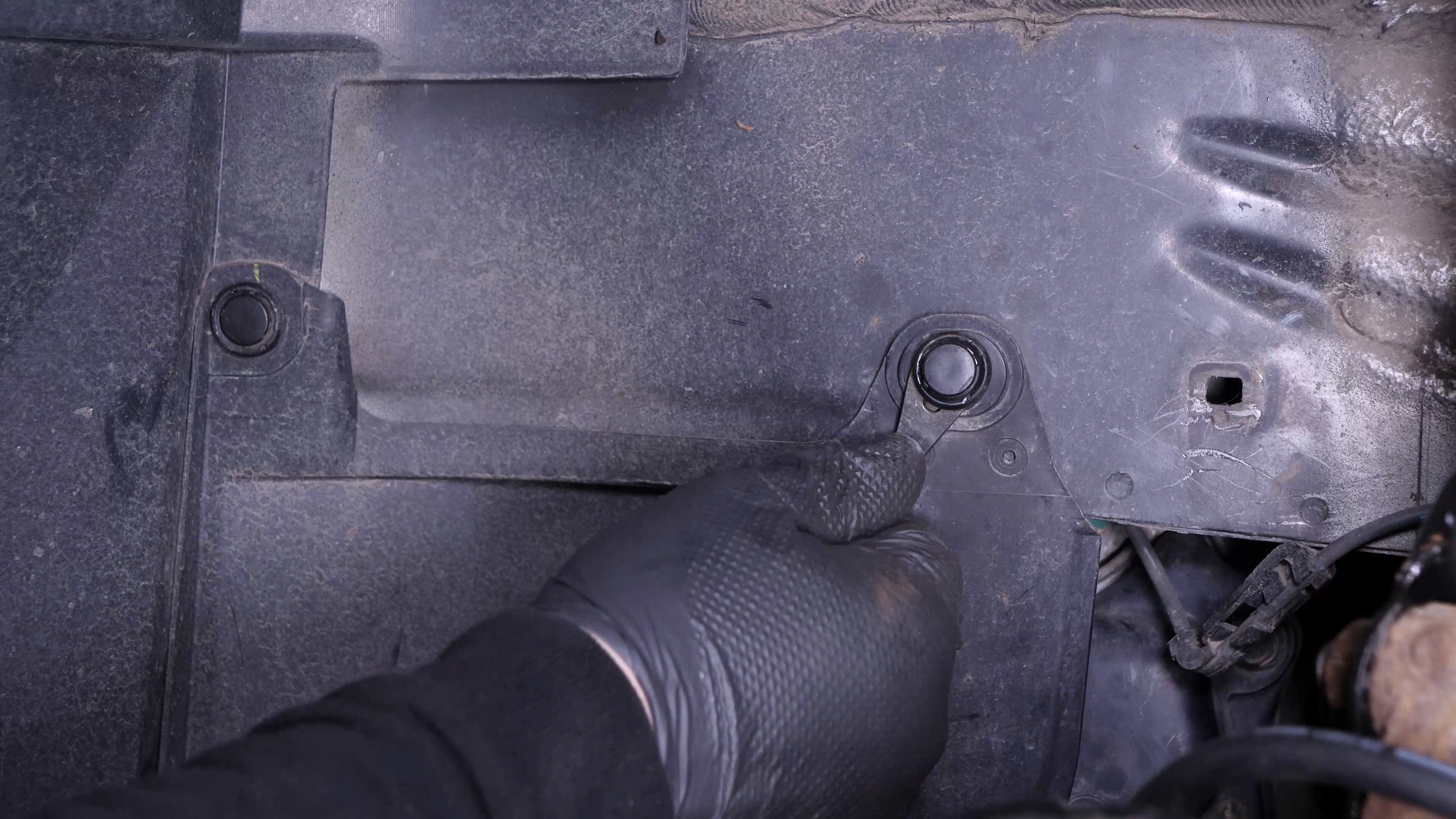

Next, using a fork, remove the 2 rivets holding the engine’s plastic cover. Then take off the cover.

Chapter 5:

Step 2/3

Use a fork to remove the ABS sensor cable connector from its support.

Chapter 5:

Step 3/3

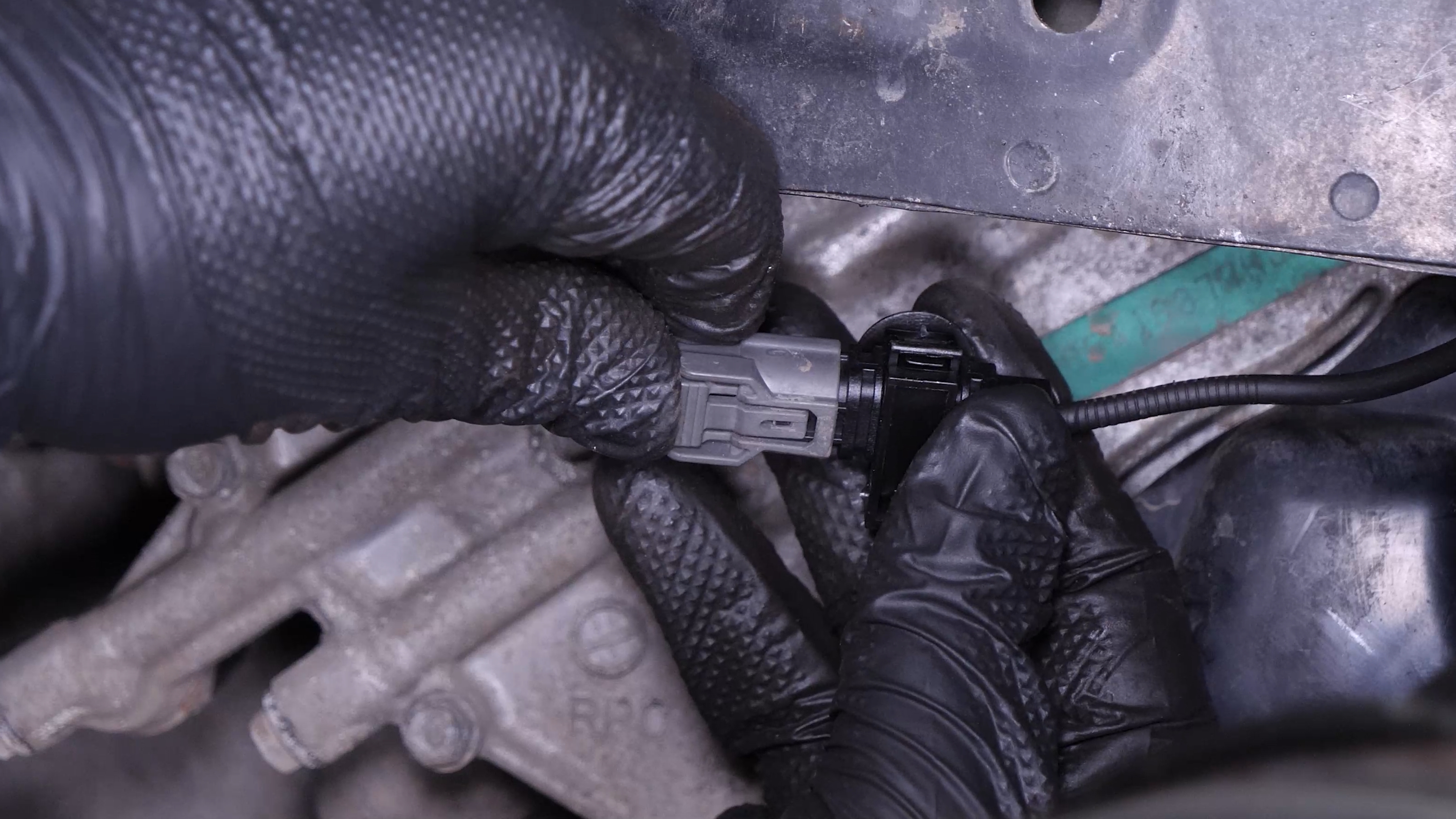

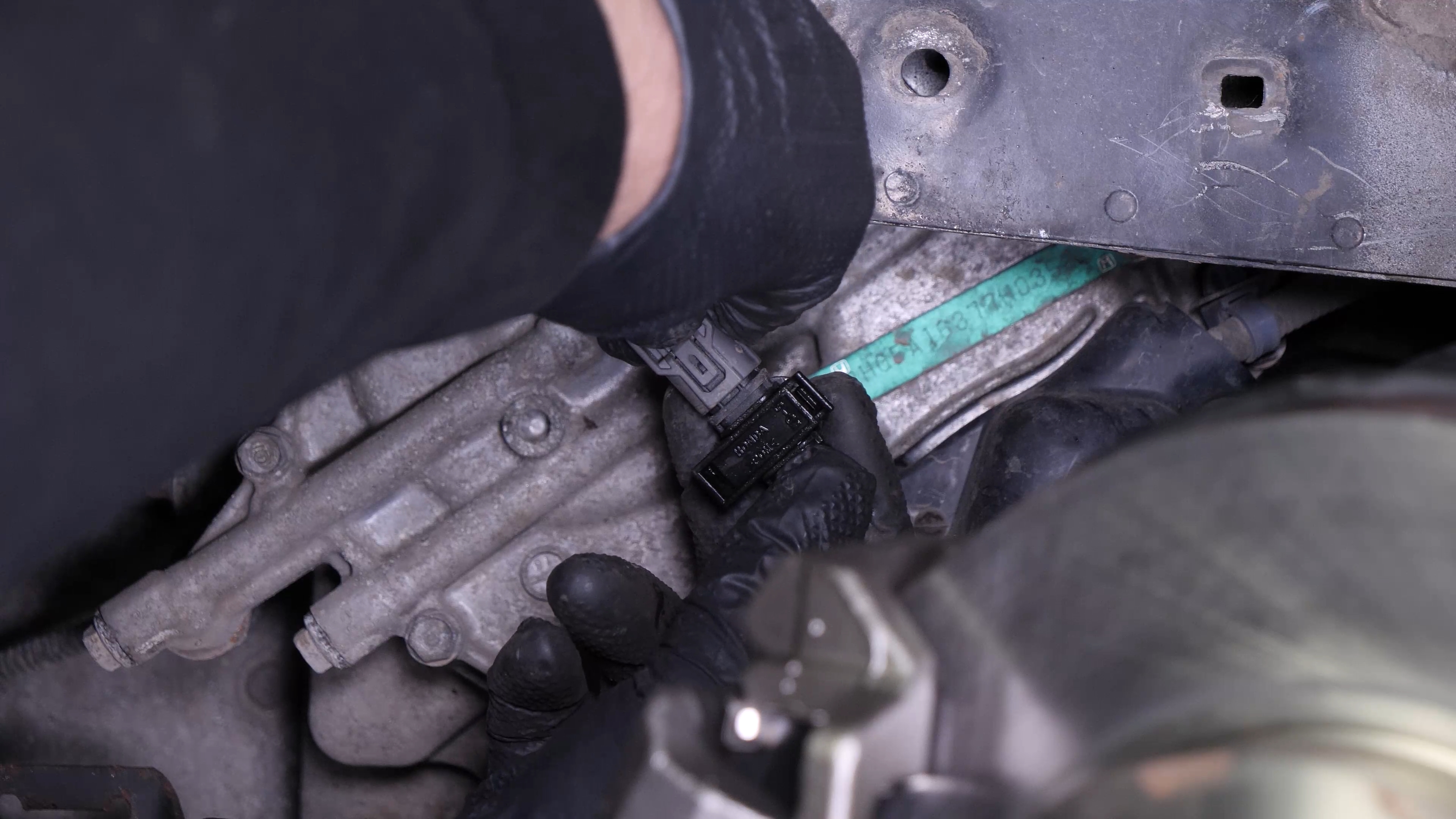

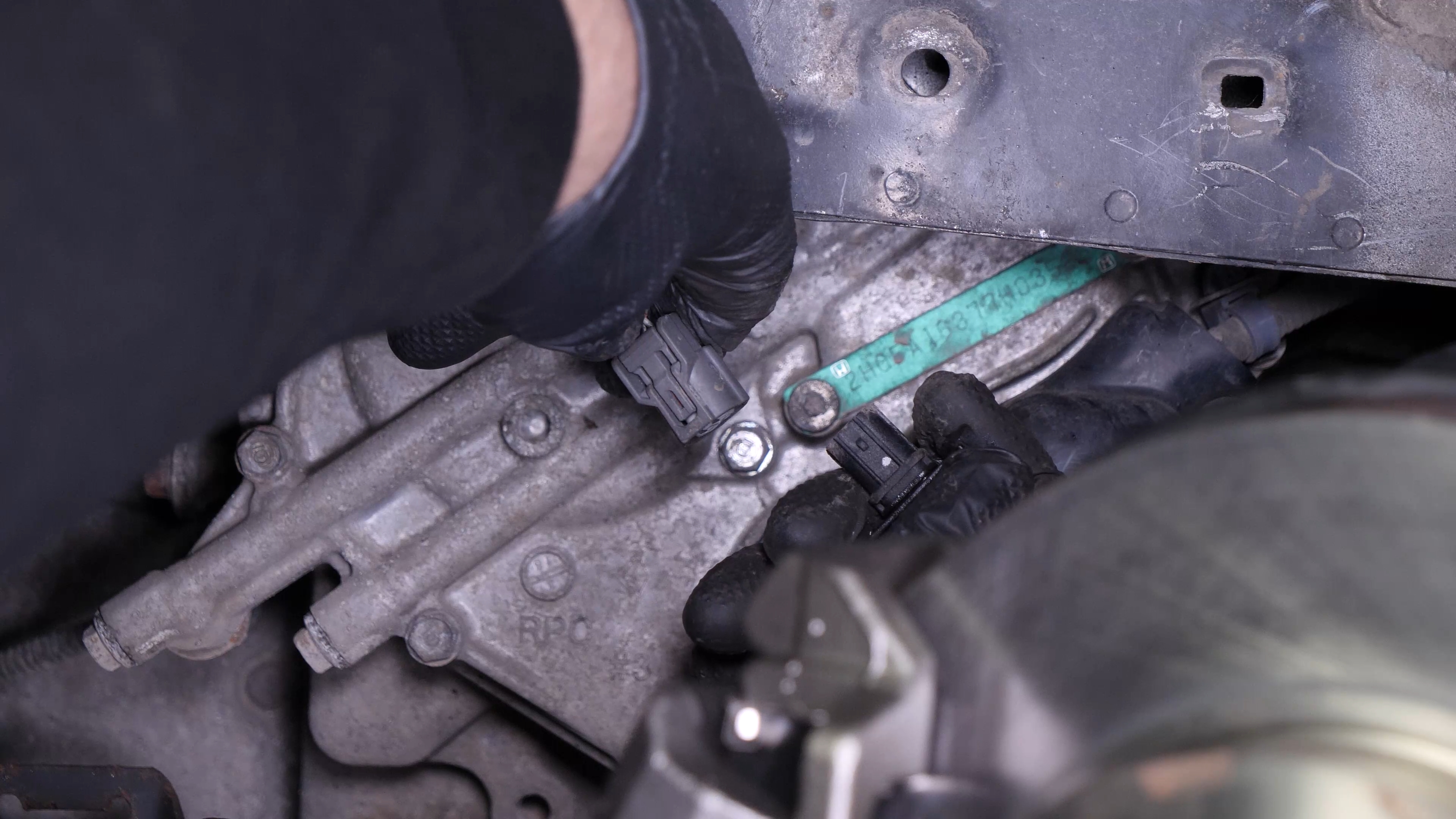

Then, disconnect the electrical connector by pressing the plastic tab.

Chapter 6:

Remove the ABS sensor

Step 1/4

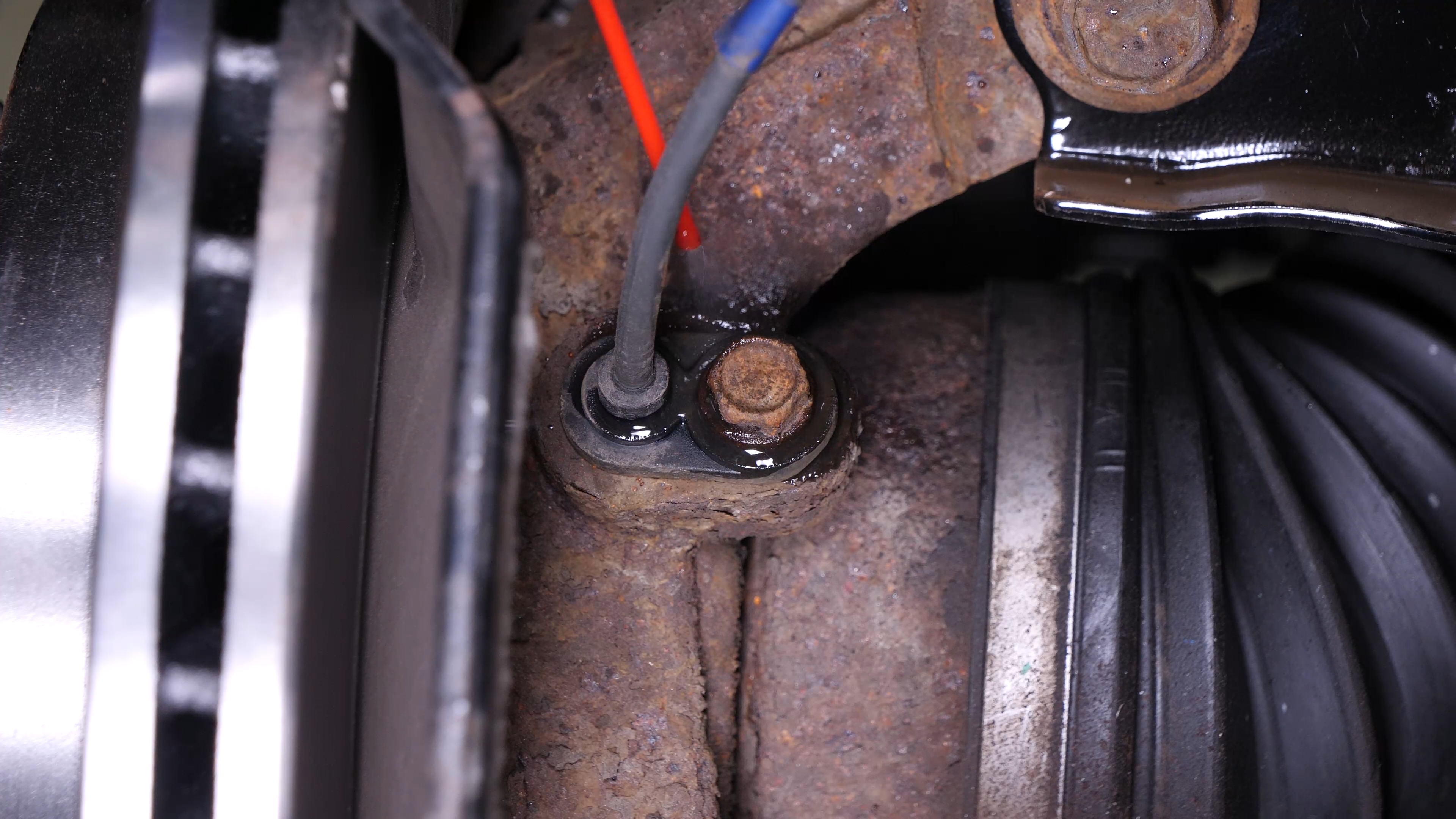

It’s common for the components being removed to be seized up, so don’t hesitate to brush them and to use penetrating oil to make removal easier.

Chapter 6:

Step 2/4

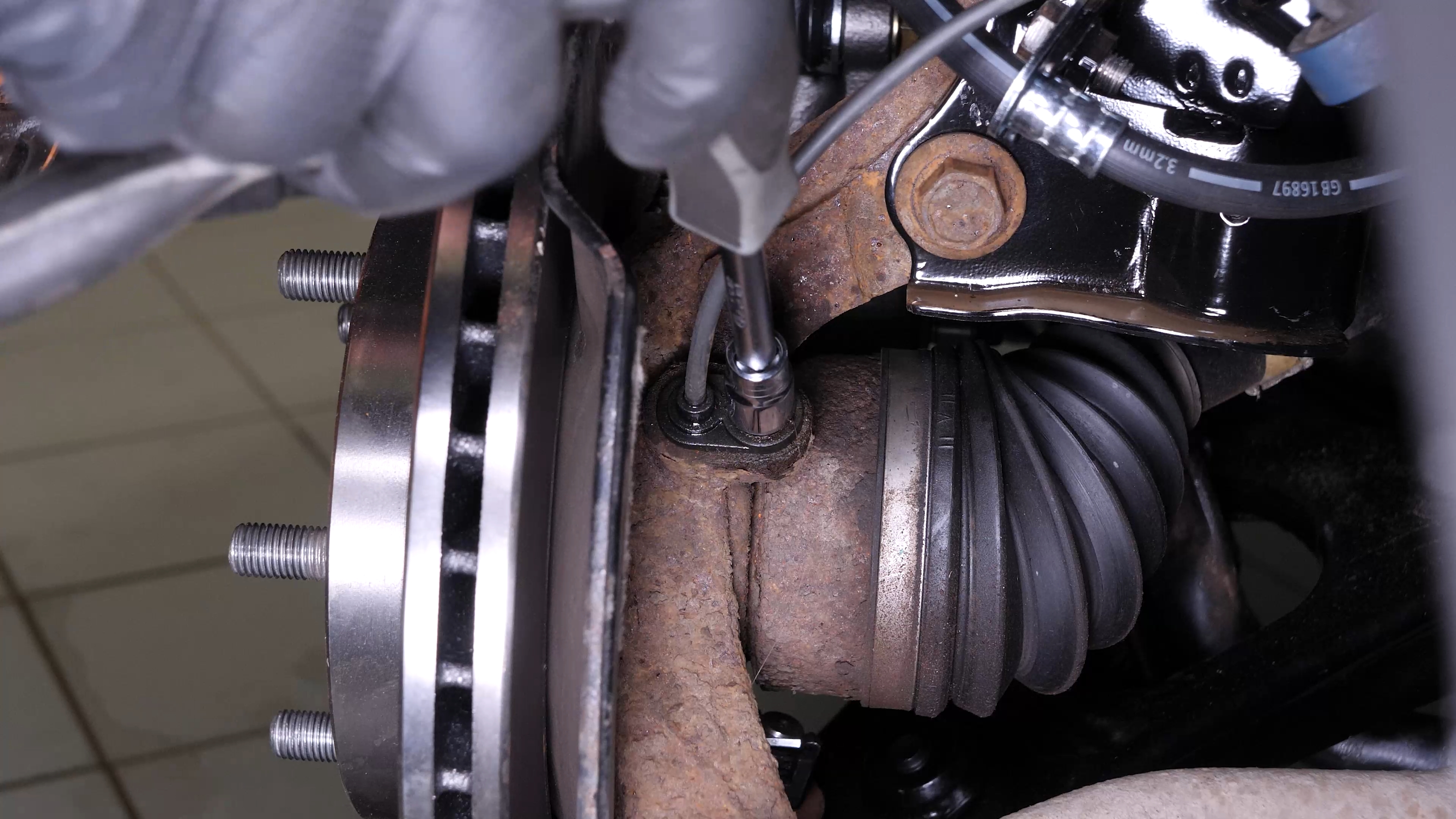

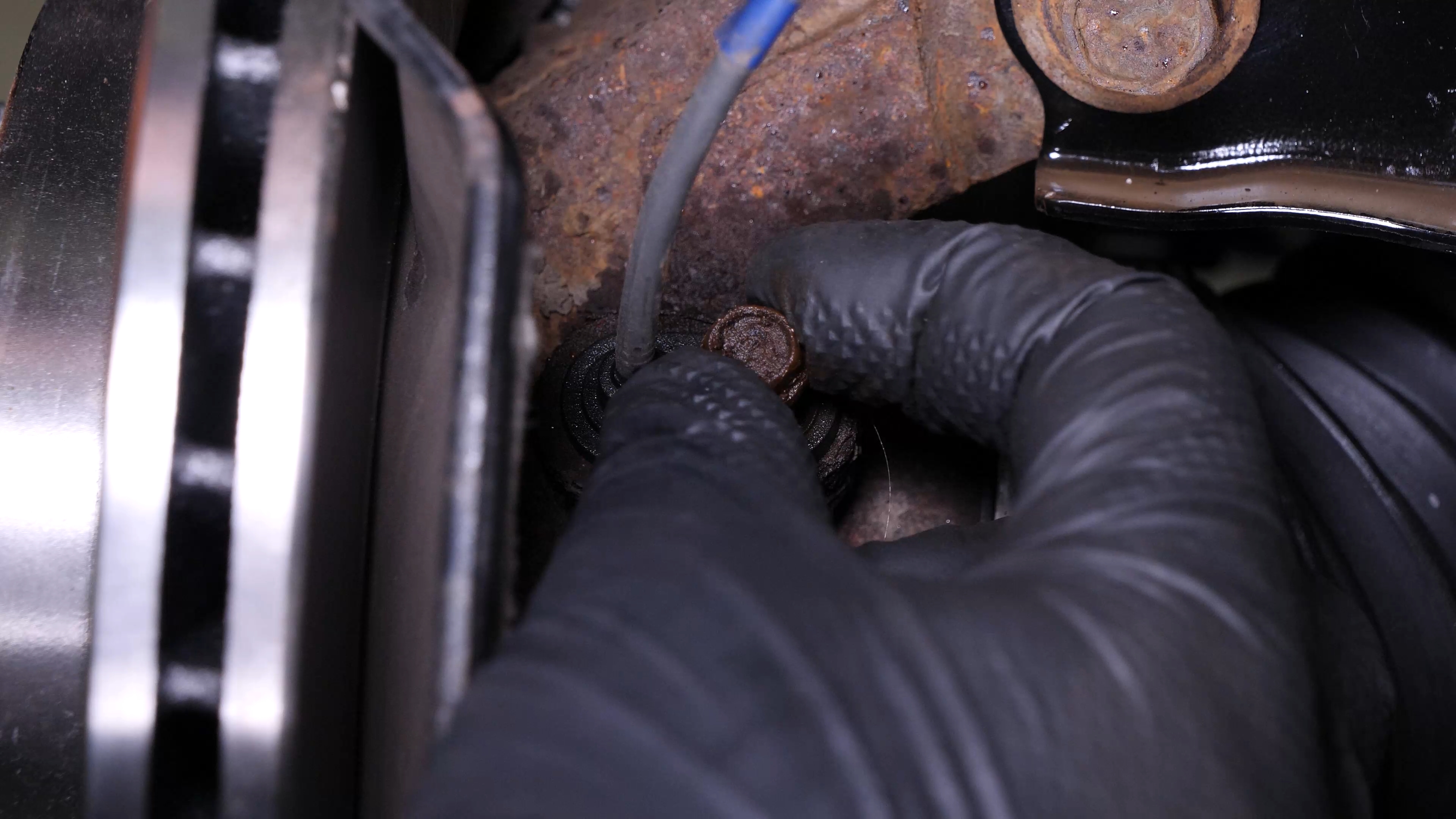

Using a ratchet, an extender and an 10 mm socket, unscrew the ABS sensor’s retaining bolt.

Chapter 6:

Step 3/4

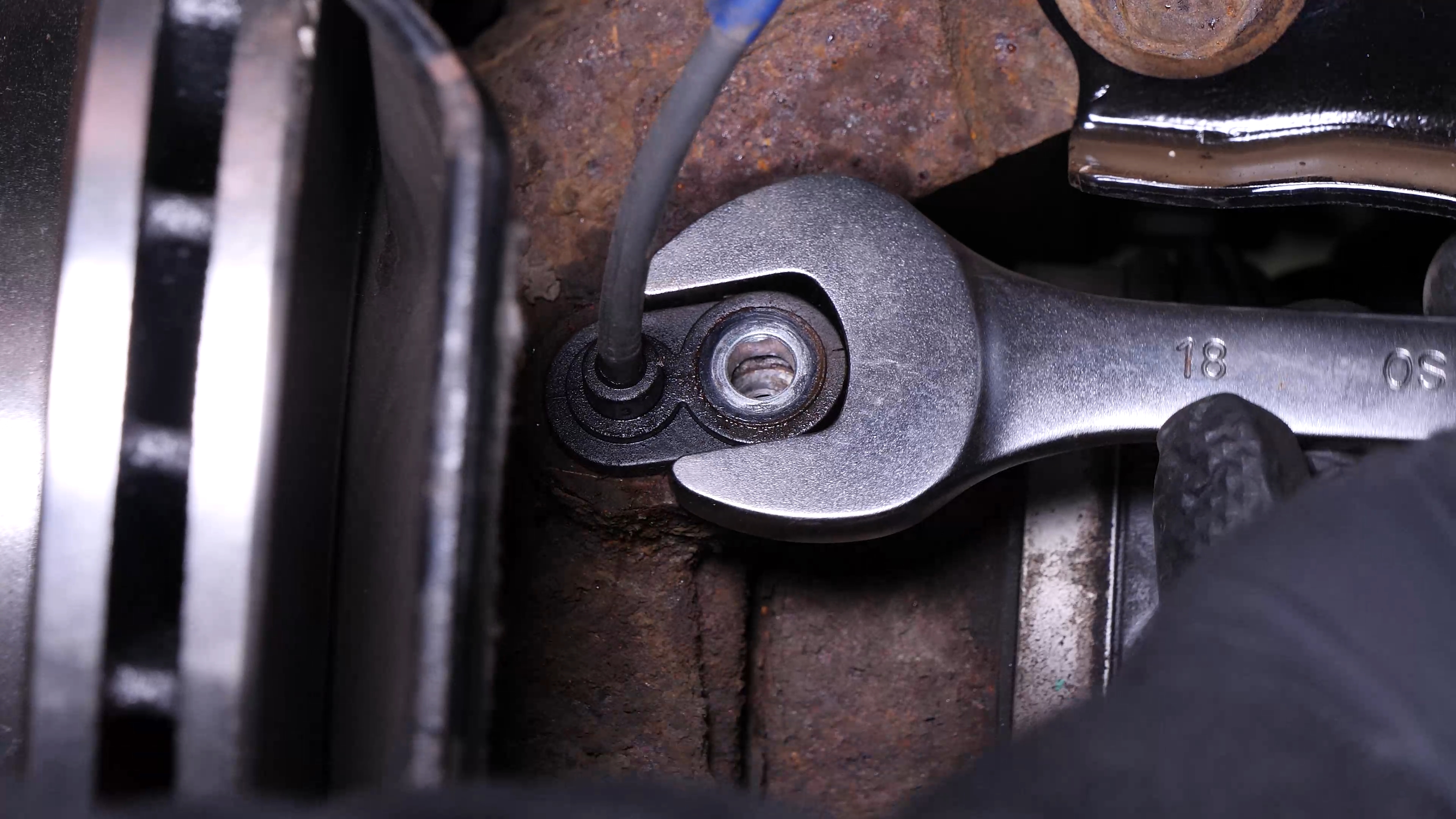

Using a 18 mm wrench, pull out the sensor by jiggling it back and forth to try and loosen it.

Chapter 6:

Step 4/4

Using a large flathead screwdriver, pry it out of its slot.

Chapter 7:

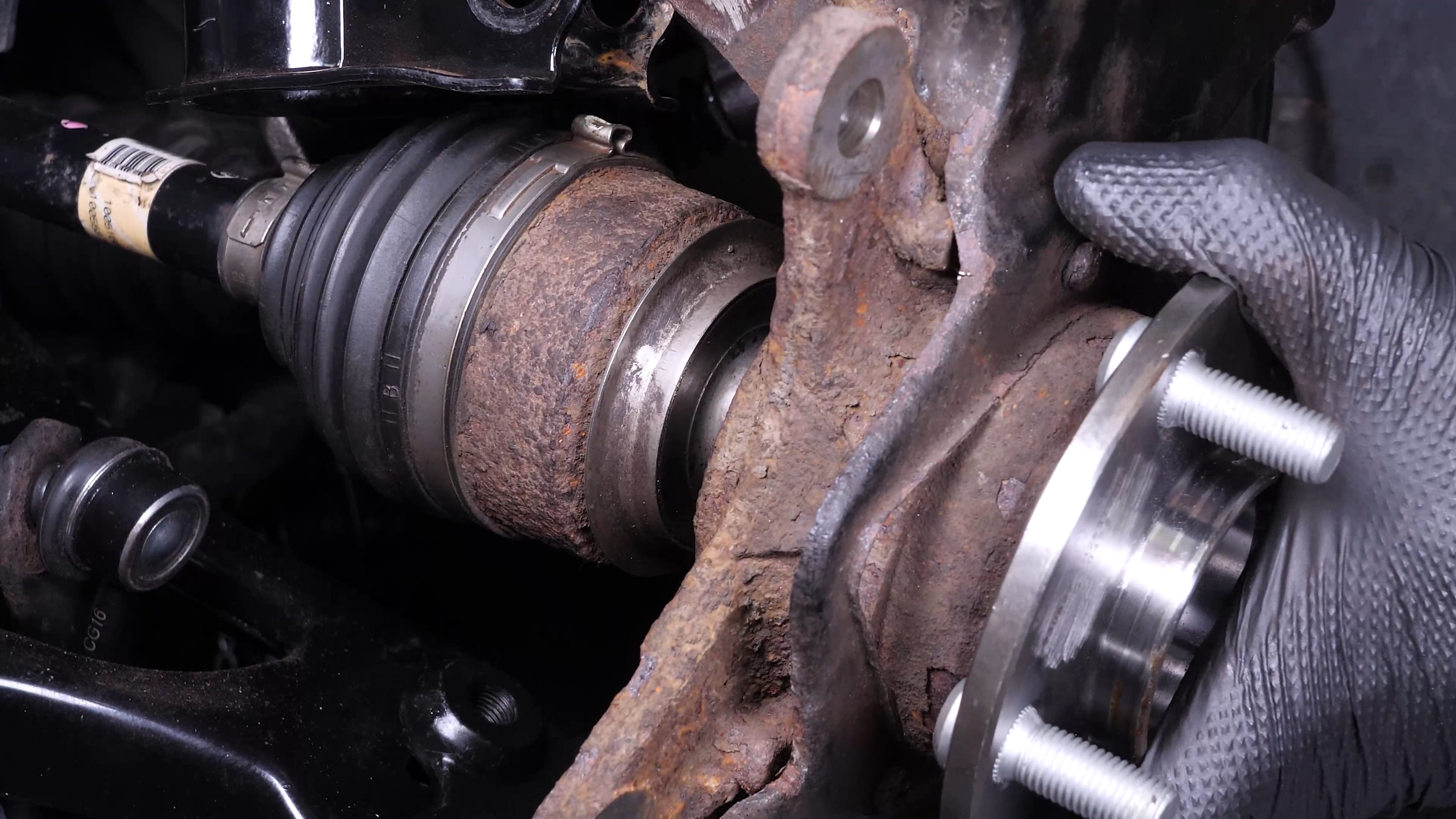

Remove the wheel knuckle

Step 1/1

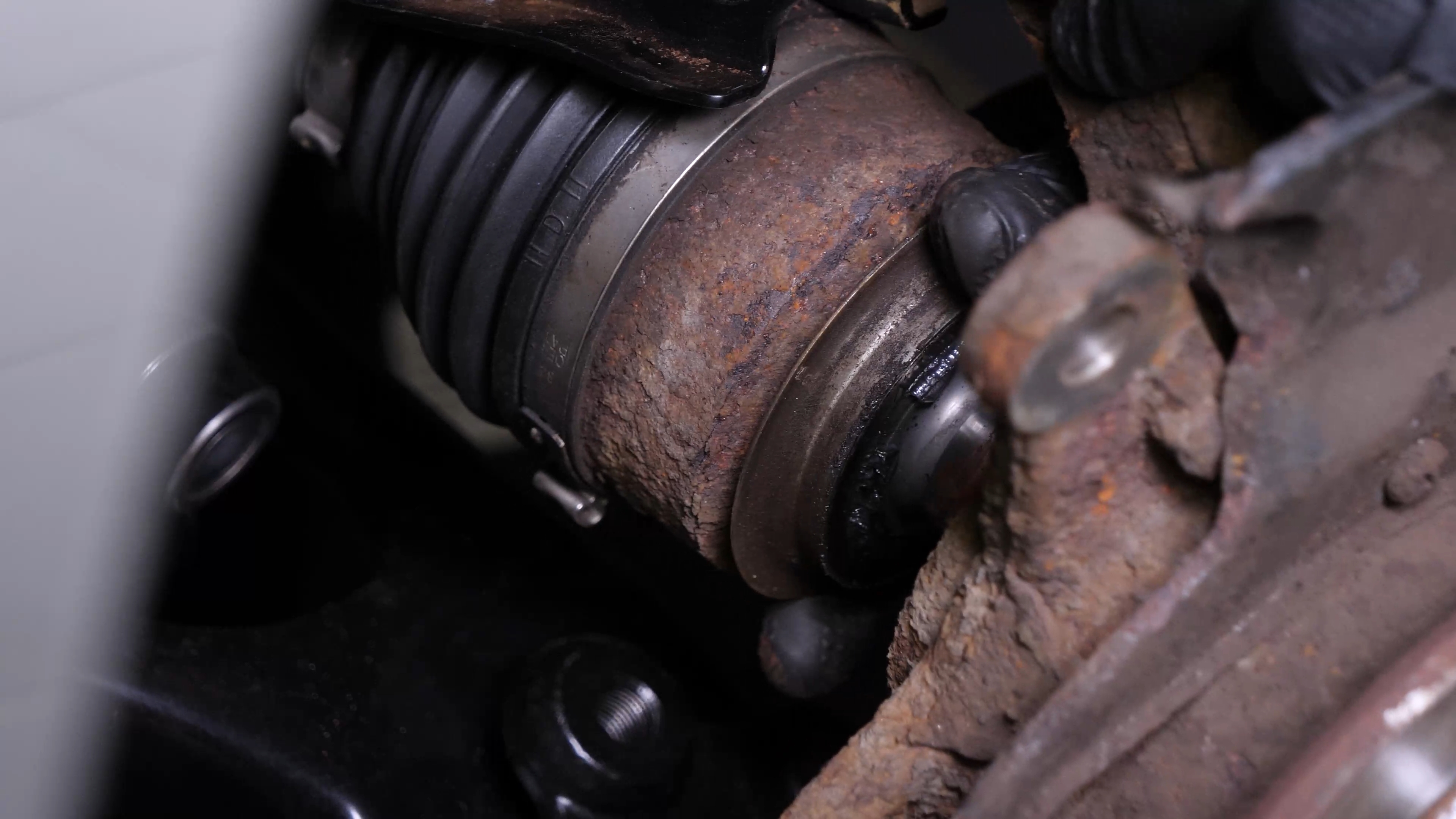

Unfortunately on this vehicle, the sensor is very often seized up and impossible to remove. If, like us, you broke it during disassembly, you’ll have to take apart the wheel knuckle to cleanly remove the ABS sensor.

Chapter 8:

Remove the ABS sensor from the wheel knuckle

Step 1/4

Secure the wheel knuckle in a vice.

Chapter 8:

Step 2/4

Using a flat head screwdriver and a hammer, tap the ABS sensor to push it outwards.

Chapter 8:

Step 3/4

You can also use a drill to remove all remnants of the old sensor.

Chapter 8:

Step 4/4

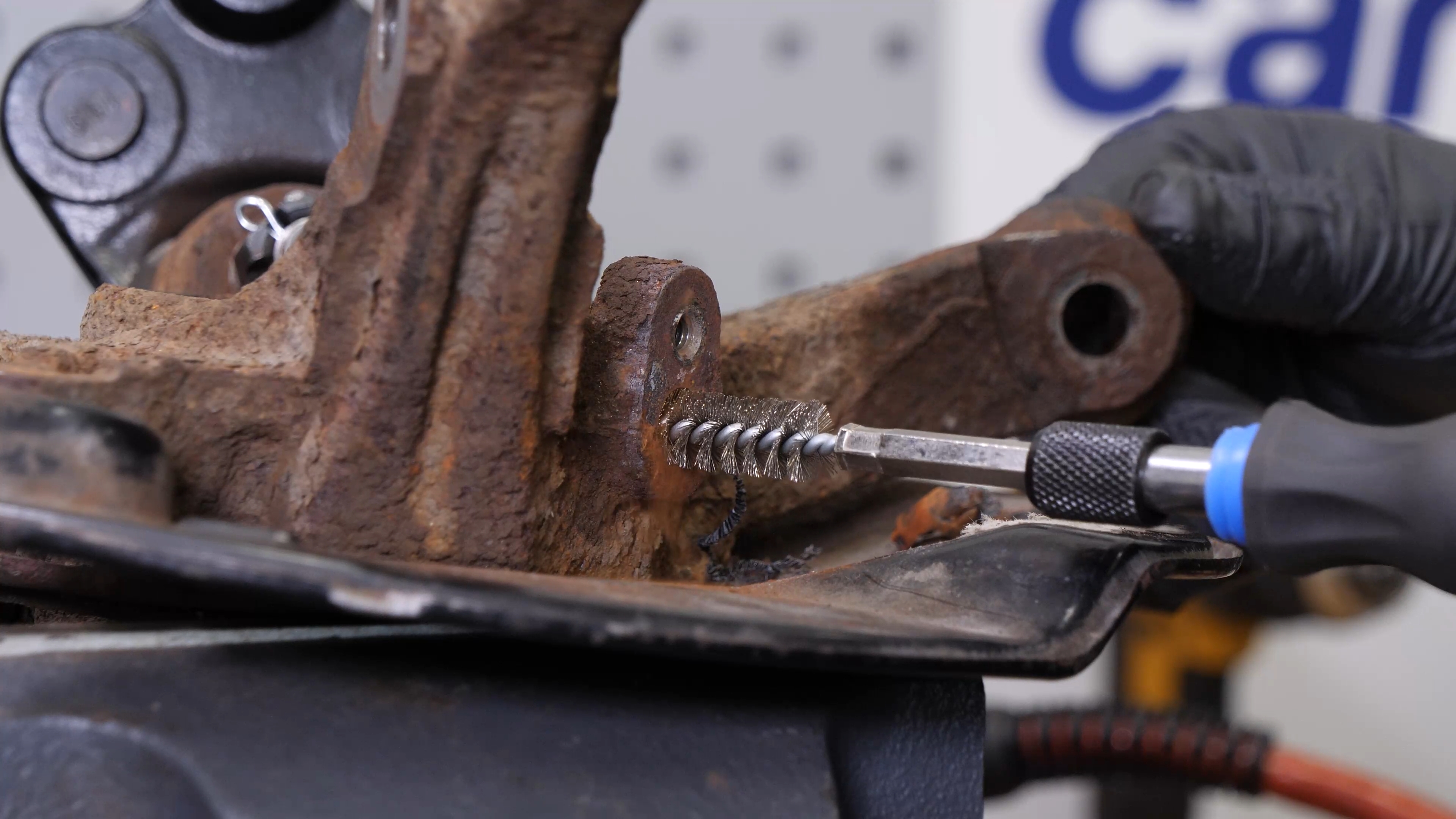

Using a cylindrical brush, clean the sensor area to make it easier to install the new sensor once the parts have been reassembled.

Chapter 9:

Clean the ABS sensor location

Step 1/1

Before installing the ABS sensor, we recommend that you thoroughly clean its location using a wire brush.

Chapter 10:

Install the ABS sensor

Step 1/4

Take the new sensor.

Chapter 10:

Step 2/4

Apply grease to the clamp and sensor to prevent corrosion in the long term.

Chapter 10:

Step 3/4

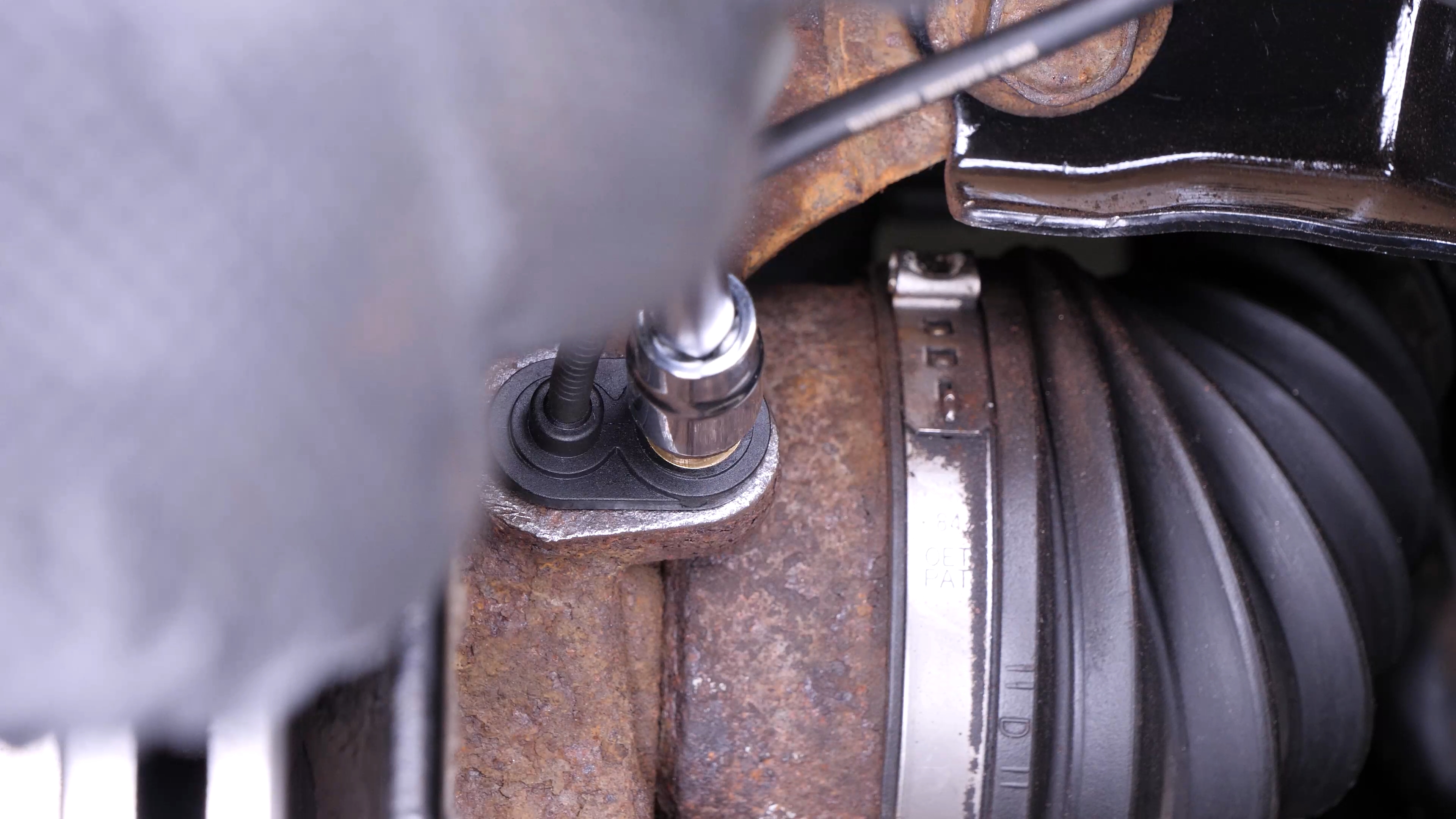

Insert the sensor into its housing. Then screw the retaining bolt back on using the ratchet.

Chapter 10:

Step 4/4

Finish tightening using a torque wrench.

Chapter 11:

Reclip the cable in its housings

Step 1/4

Clip the ABS sensor cable back onto the strut foot.

Chapter 11:

Step 2/4

Clip the cable back onto the brake hose support.

Chapter 11:

Step 3/4

Clip the ABS sensor’s plastic guide back inside the mudguard. Plug the electrical connector back in.

Chapter 11:

Step 4/4

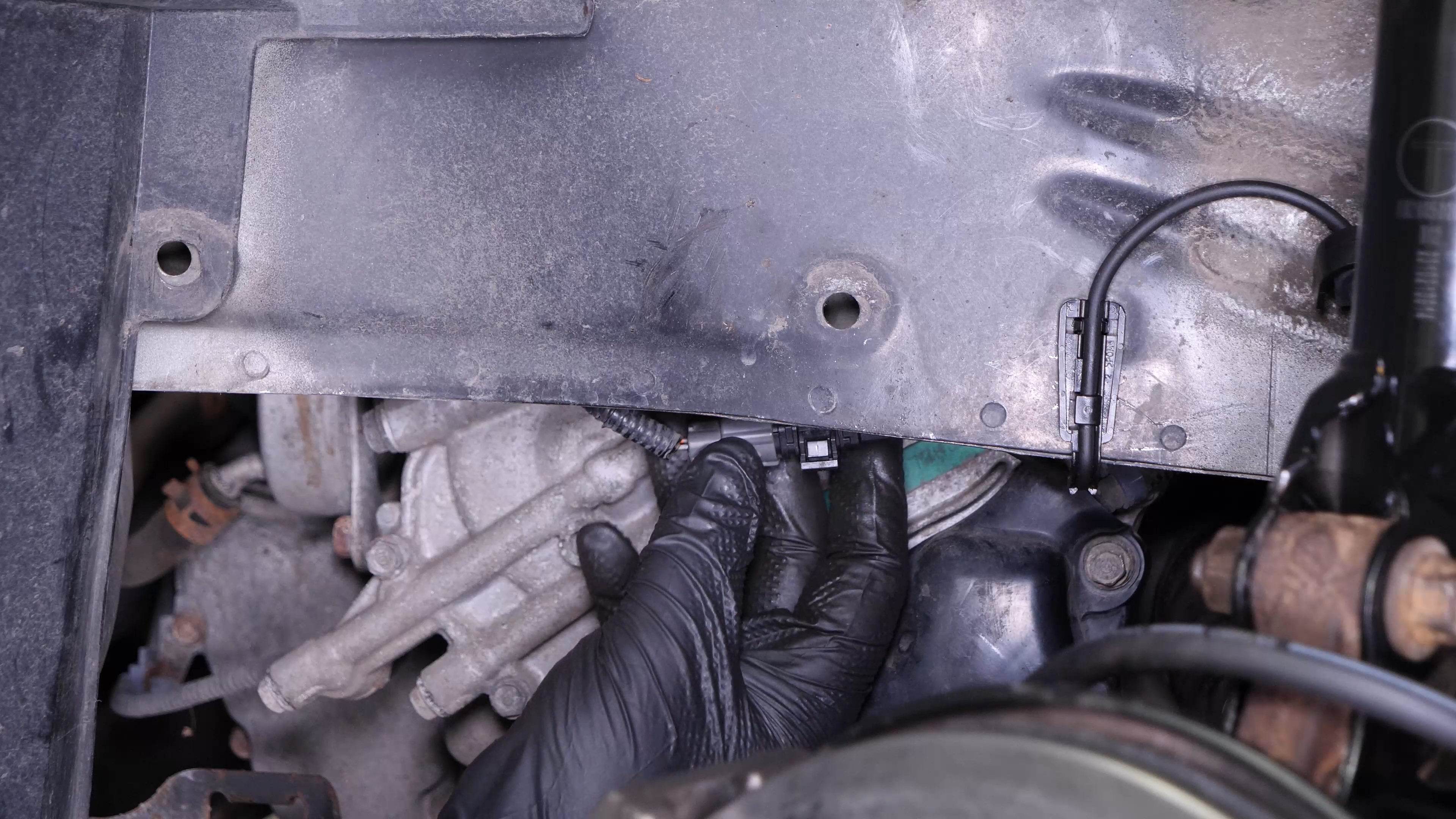

Route the ABS sensor harness through the opening in the body.

Chapter 12:

Finalise the reassembly

Step 1/2

Put the plastic engine cover back in place and reattach the rivets.

Chapter 12:

Step 2/2

Remember to finish tightening the hub nut if you had to remove it.

Chapter 13:

Put the vehicle back on the ground

Step 1/3

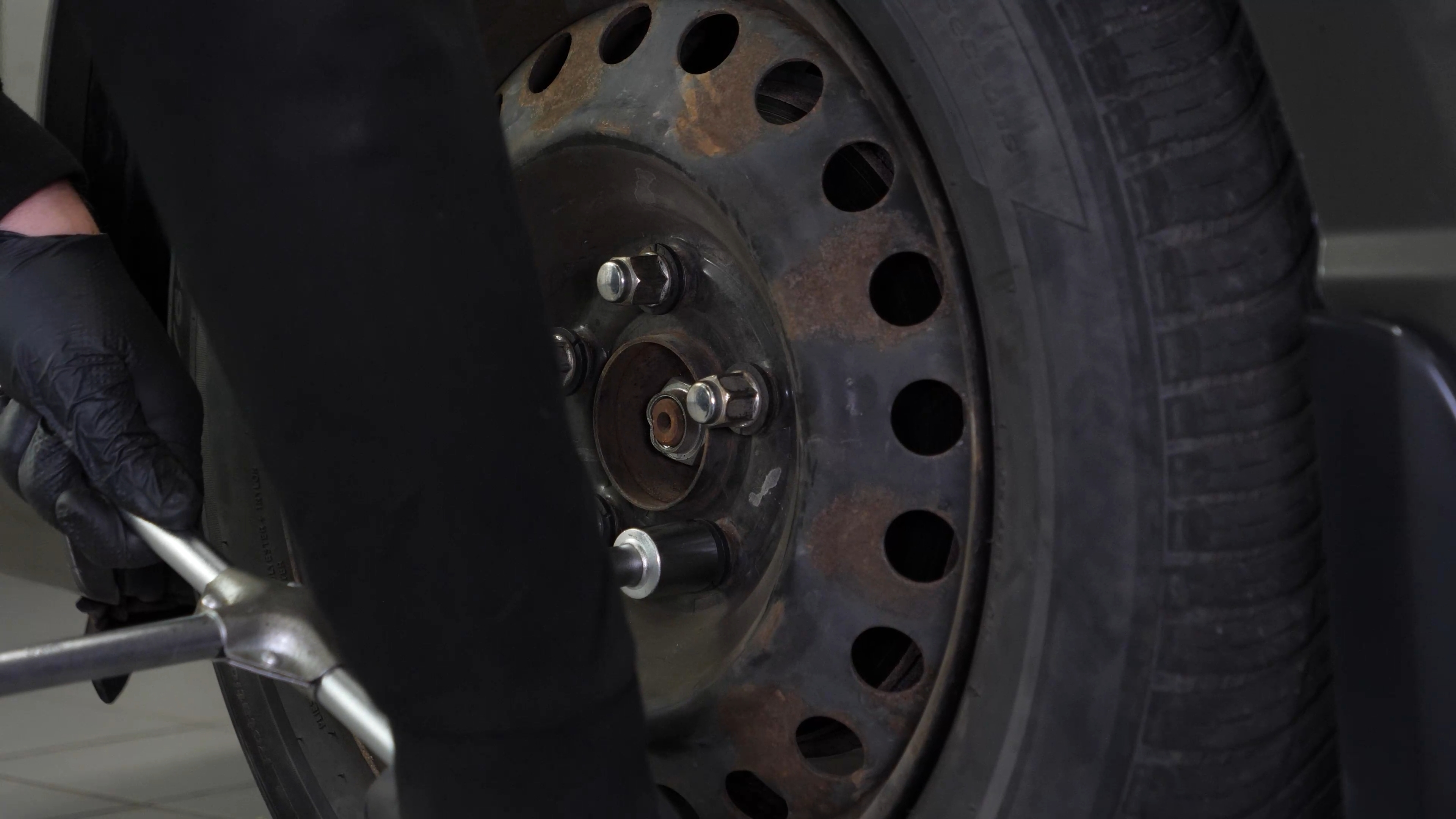

Then, you will be able to put the wheels back on your vehicle.

Chapter 13:

Step 2/3

Put your vehicle back on the ground before properly fixing the wheels in place.

Chapter 13:

Step 3/3

Operation complete.
