How to replace the front brake hose 2006-2011 Honda Civic

Chapter 1:

Open the brake fluid reservoir

Step 1/2

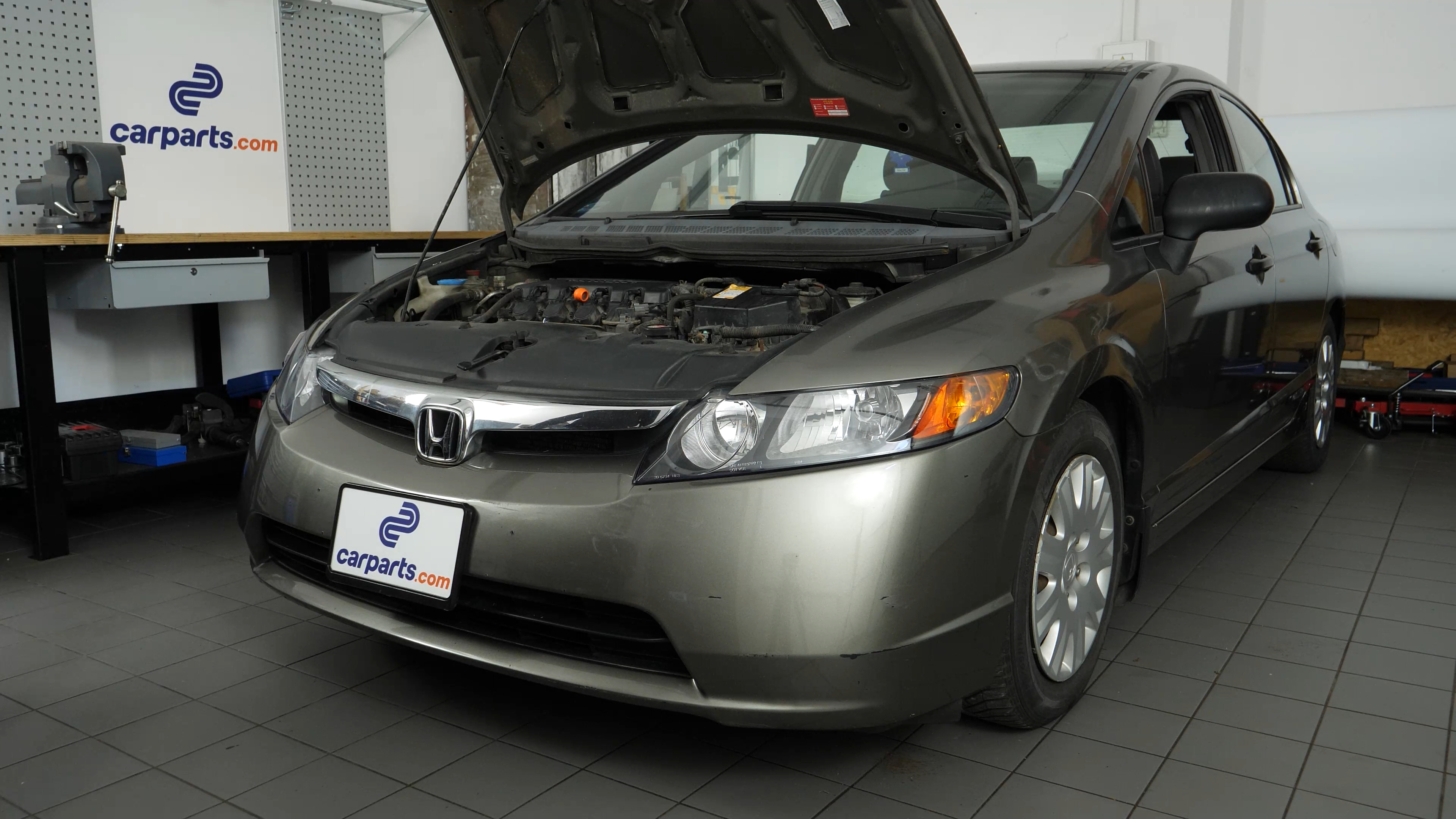

Turn off your vehicle’s ignition, set the parking brake, pull the hood release handle and open the hood.

Chapter 1:

Step 2/2

Open the brake fluid reservoir.

Chapter 2:

Lift the vehicle

Step 1/3

Loosen the stud bolts on the front wheels.

Chapter 2:

Step 2/3

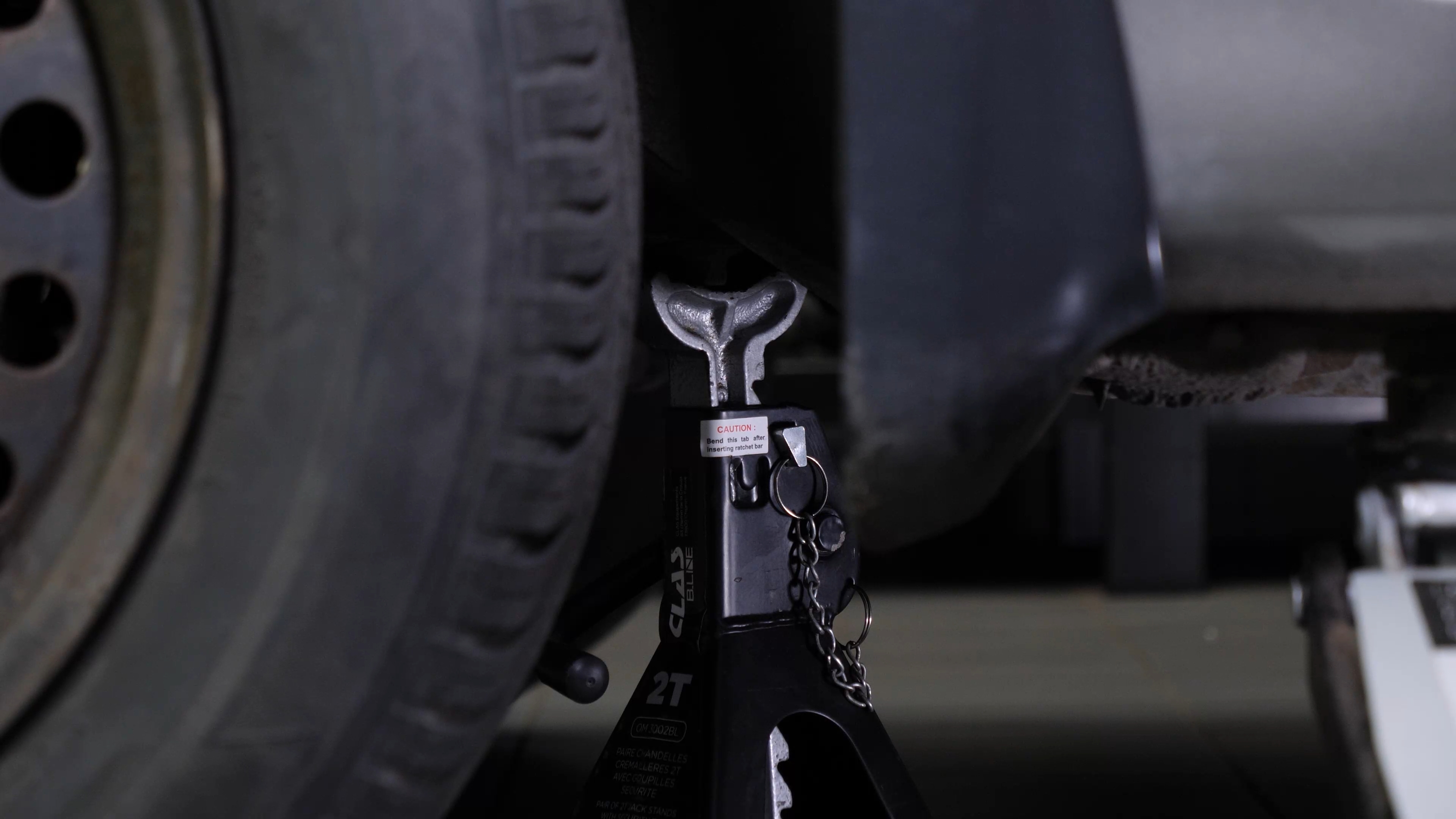

Lift the front of your vehicle. Place the vehicle on the jack stands.

Chapter 2:

Step 3/3

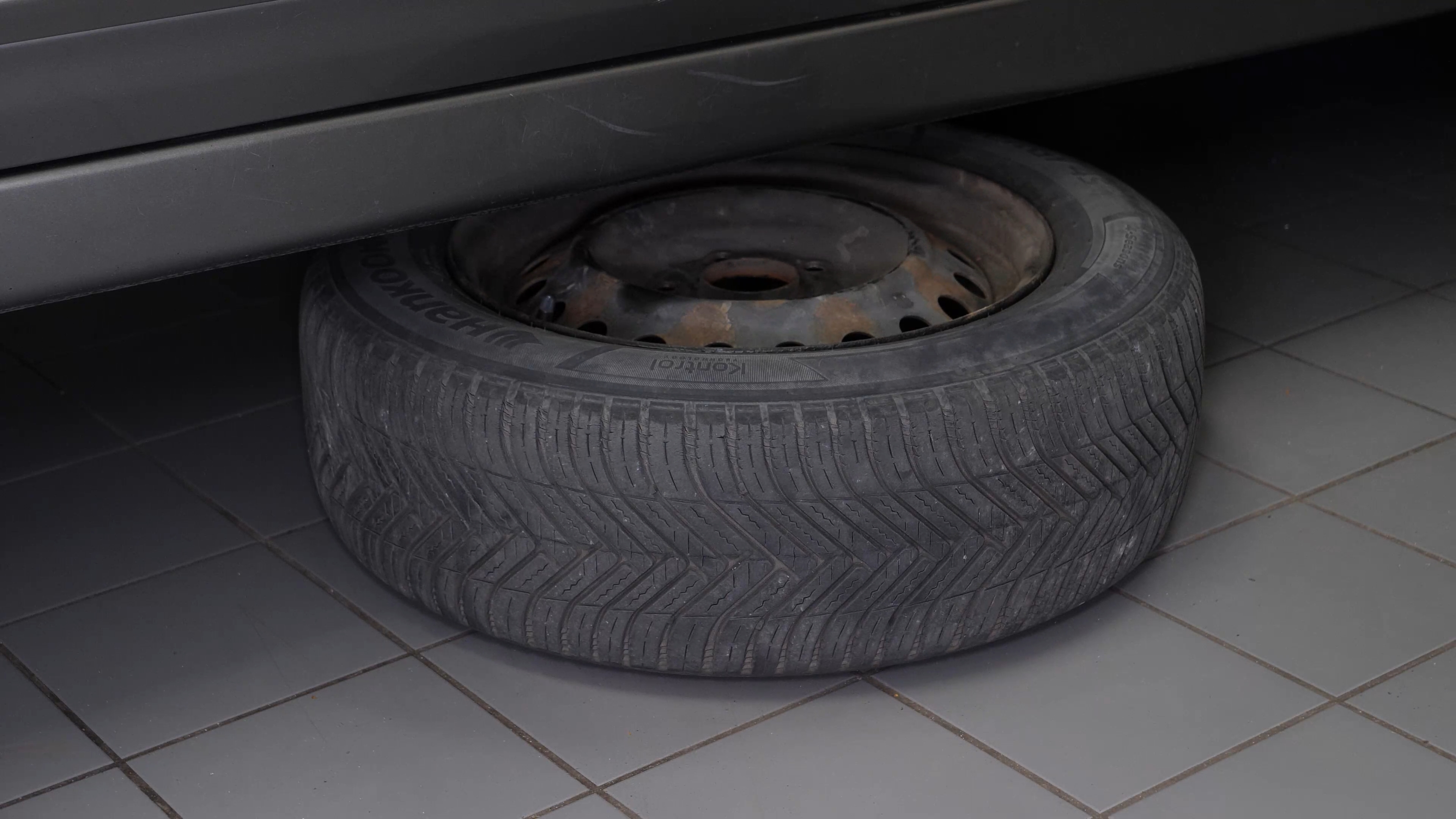

Don’t forget to put the wheel under the vehicle!

Chapter 3:

Set up

Step 1/2

Place a container to collect the fluid under the caliper, since the brake fluid may leak out.

Chapter 3:

Step 2/2

It’s common for the components being removed to be seized up, so don’t hesitate to brush them and to use penetrating oil to make removal easier.

Chapter 4:

Unscrew the brake hose from the brake caliper

Step 1/1

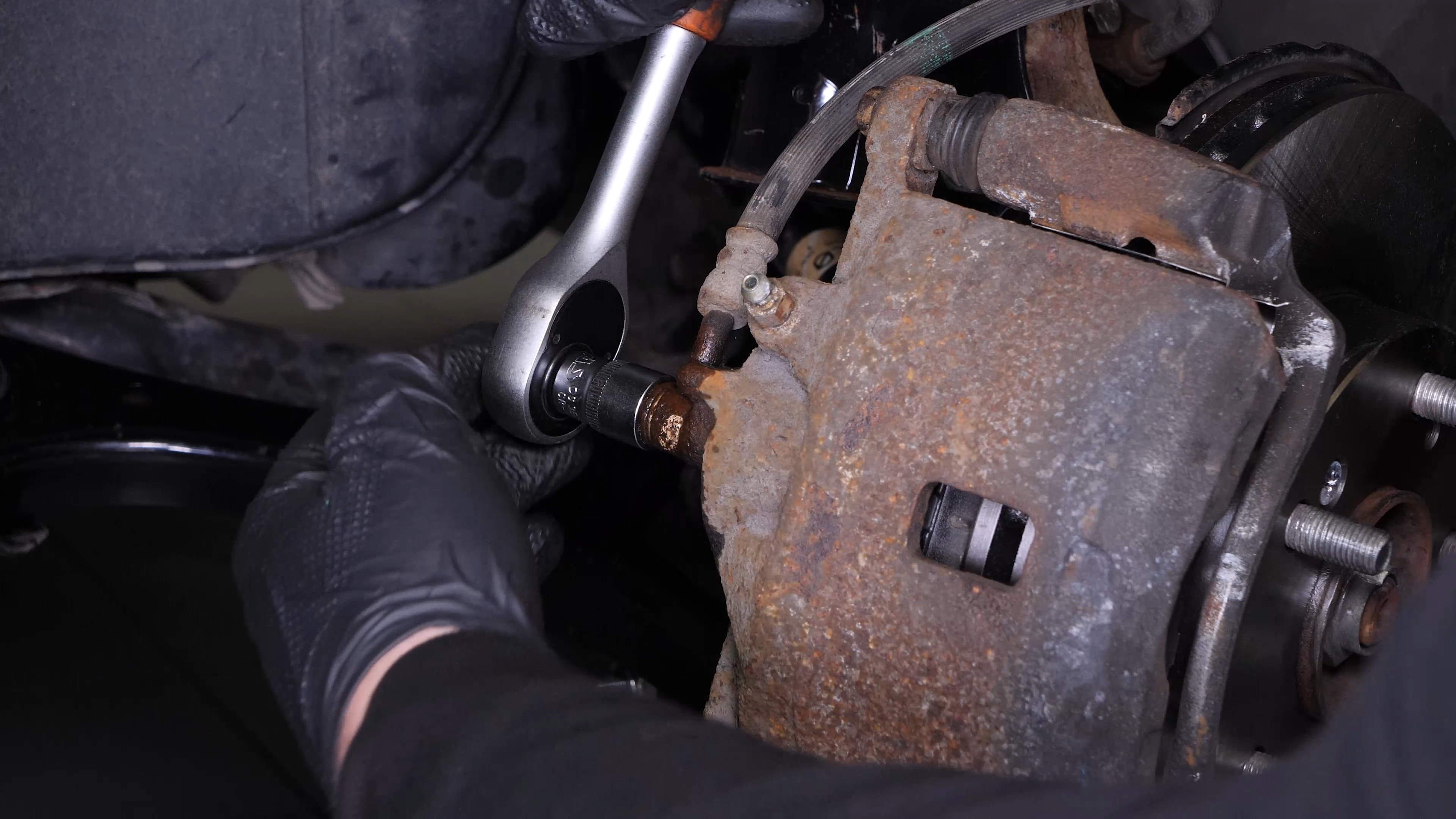

Using a ratchet and a 14 mm socket, unscrew the banjo screw connecting the hose to the caliper.

Chapter 5:

Tips

Step 1/1

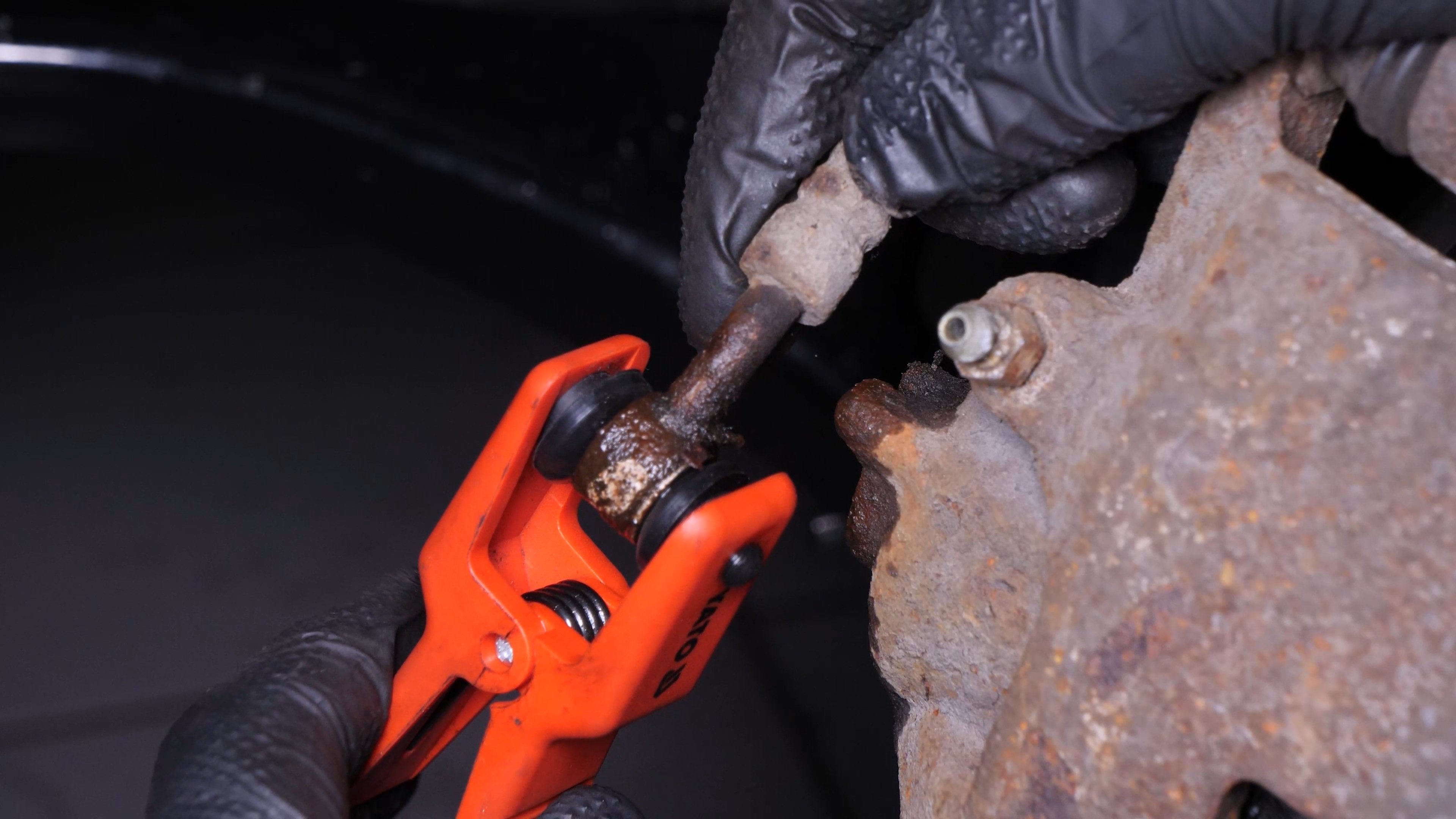

Here’s a tip! You can limit brake fluid leakage during this operation by plugging both sides of the banjo screw with banjo shutter pliers.

Chapter 6:

Remove the hose

Step 1/6

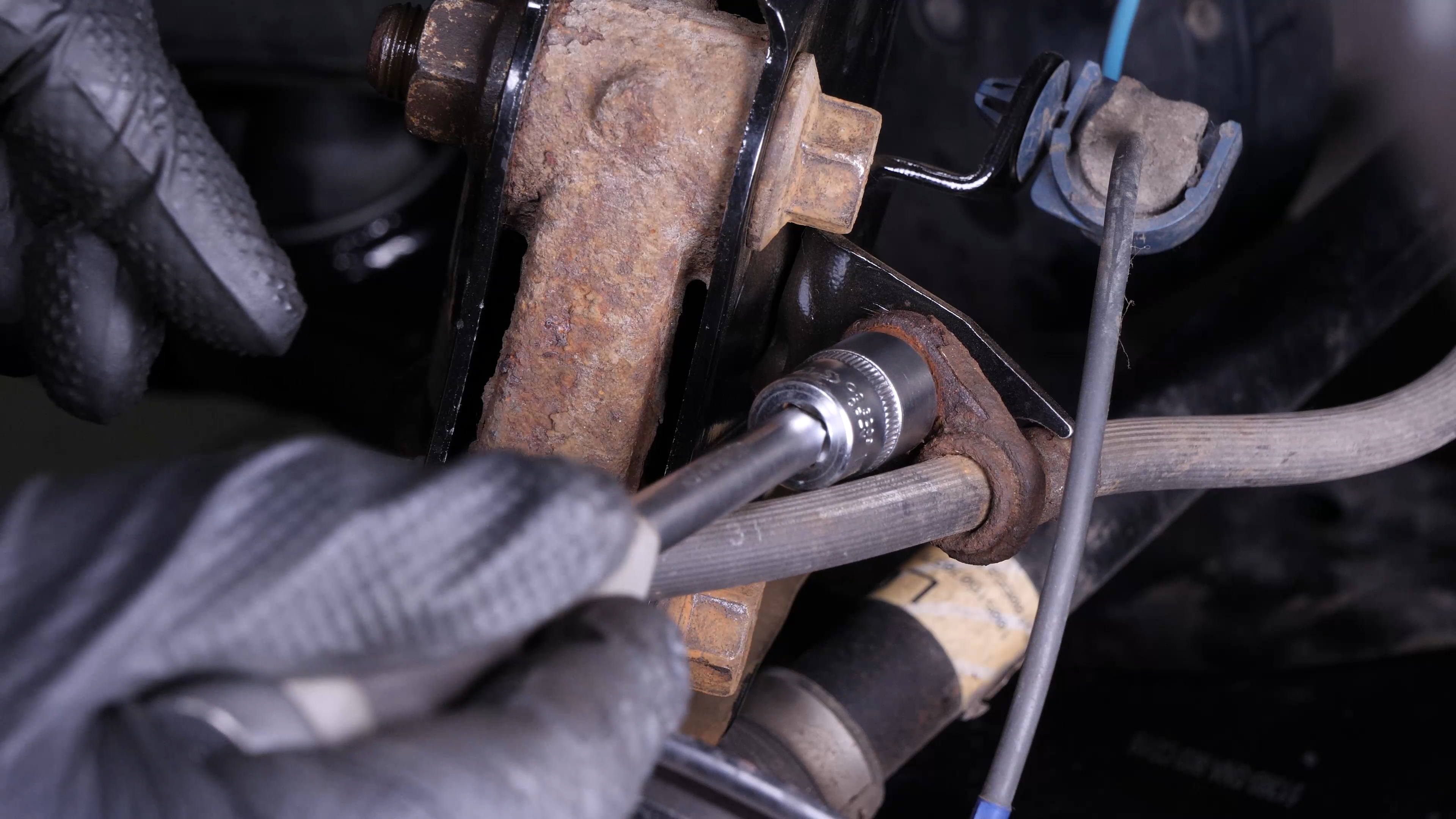

Using a ratchet and a 13 mm socket, unscrew the bolt securing the brake hose clamp.

Chapter 6:

Step 2/6

Move the liquid collection container under it.

Chapter 6:

Step 3/6

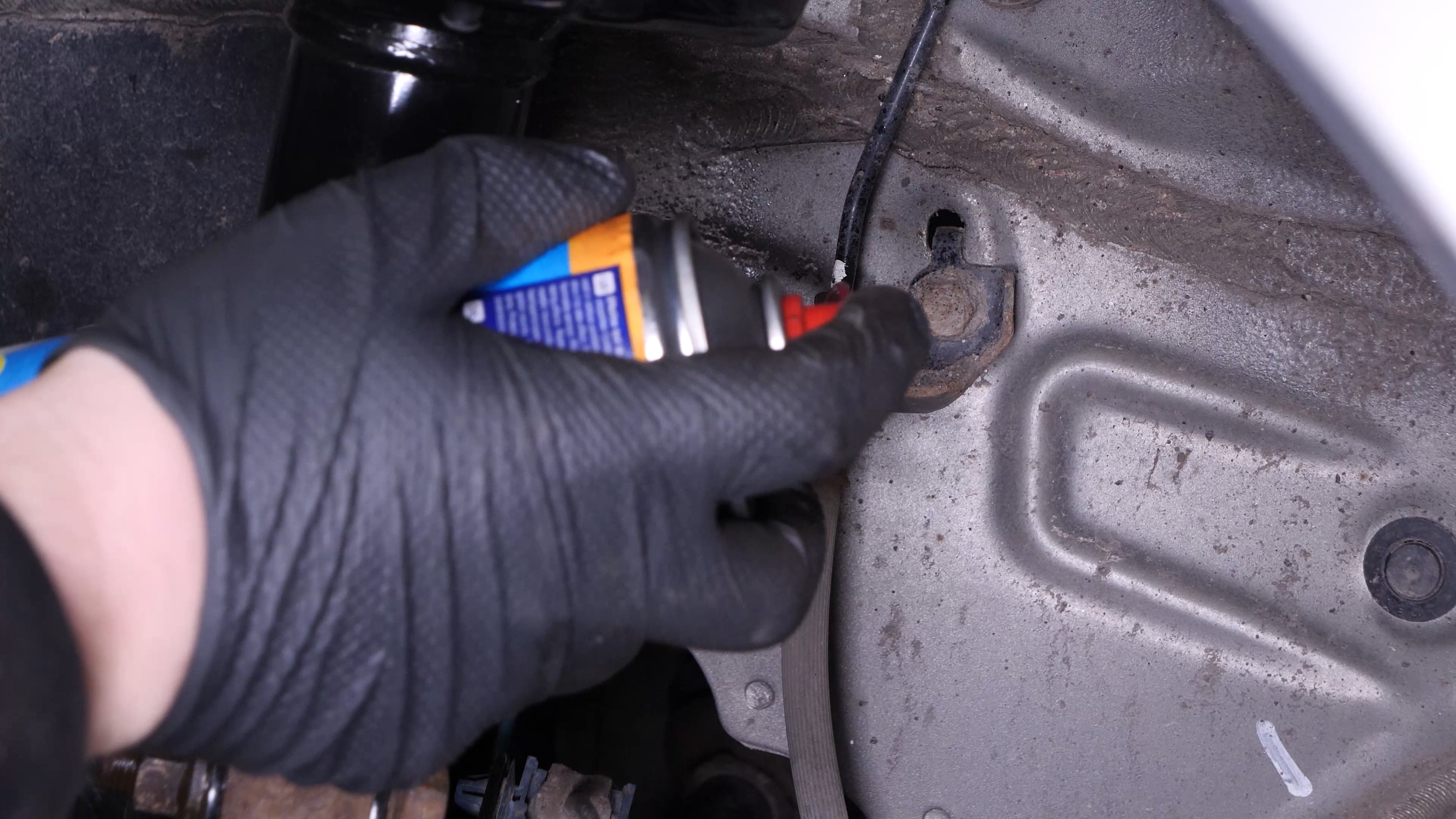

Using a wire brush, start by brushing the metal hose connection of the brake hose and spray it with penetrating oil.

Chapter 6:

Step 4/6

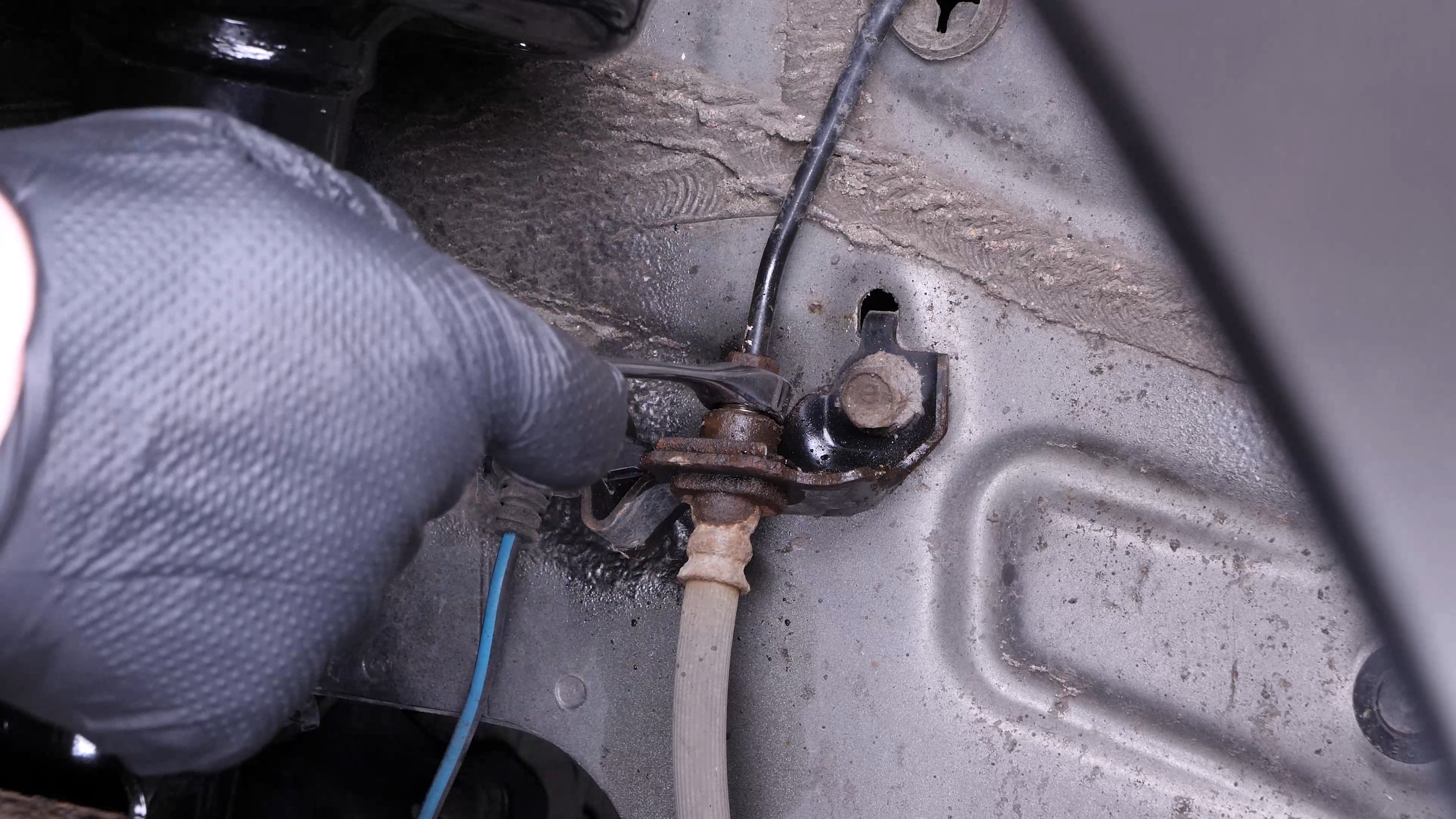

Using a 10 mm open ring wrench, undo the metal hose connector from the brake hose while it is still on its support.

Chapter 6:

Step 5/6

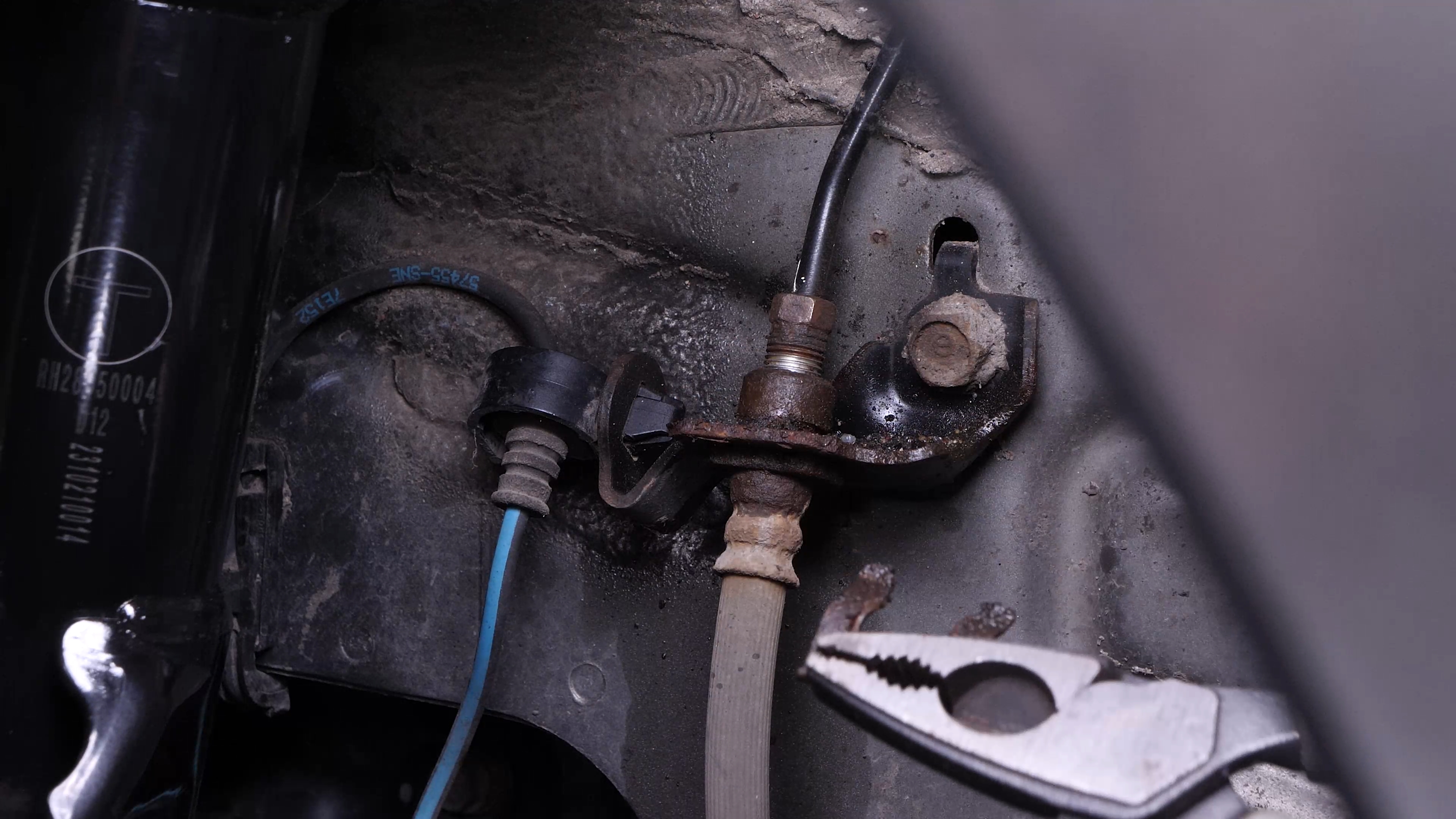

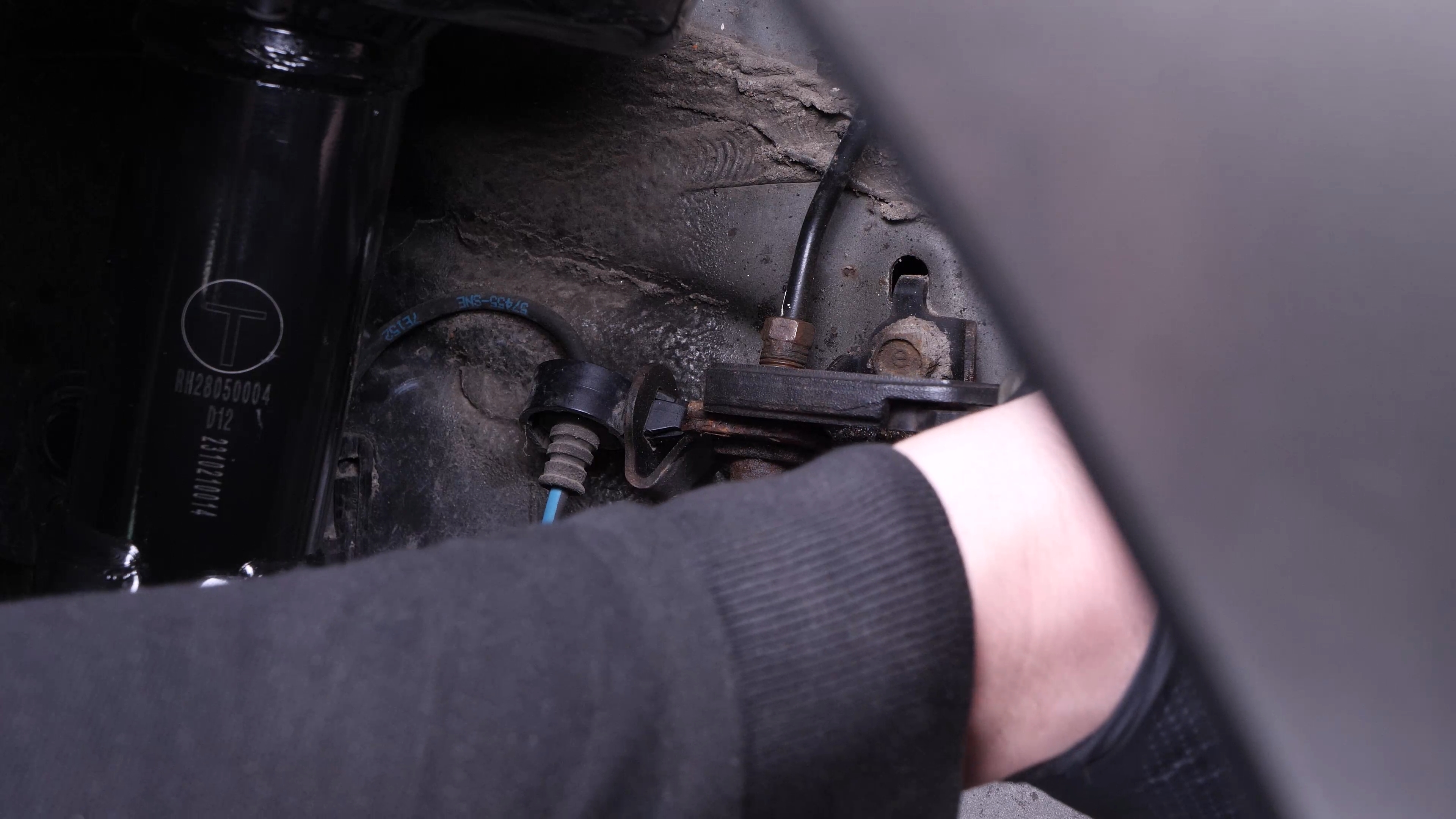

Then, using pliers, remove the brake hose retaining clip.

Chapter 6:

Step 6/6

You can now remove the hose.

Chapter 7:

Clean

Step 1/1

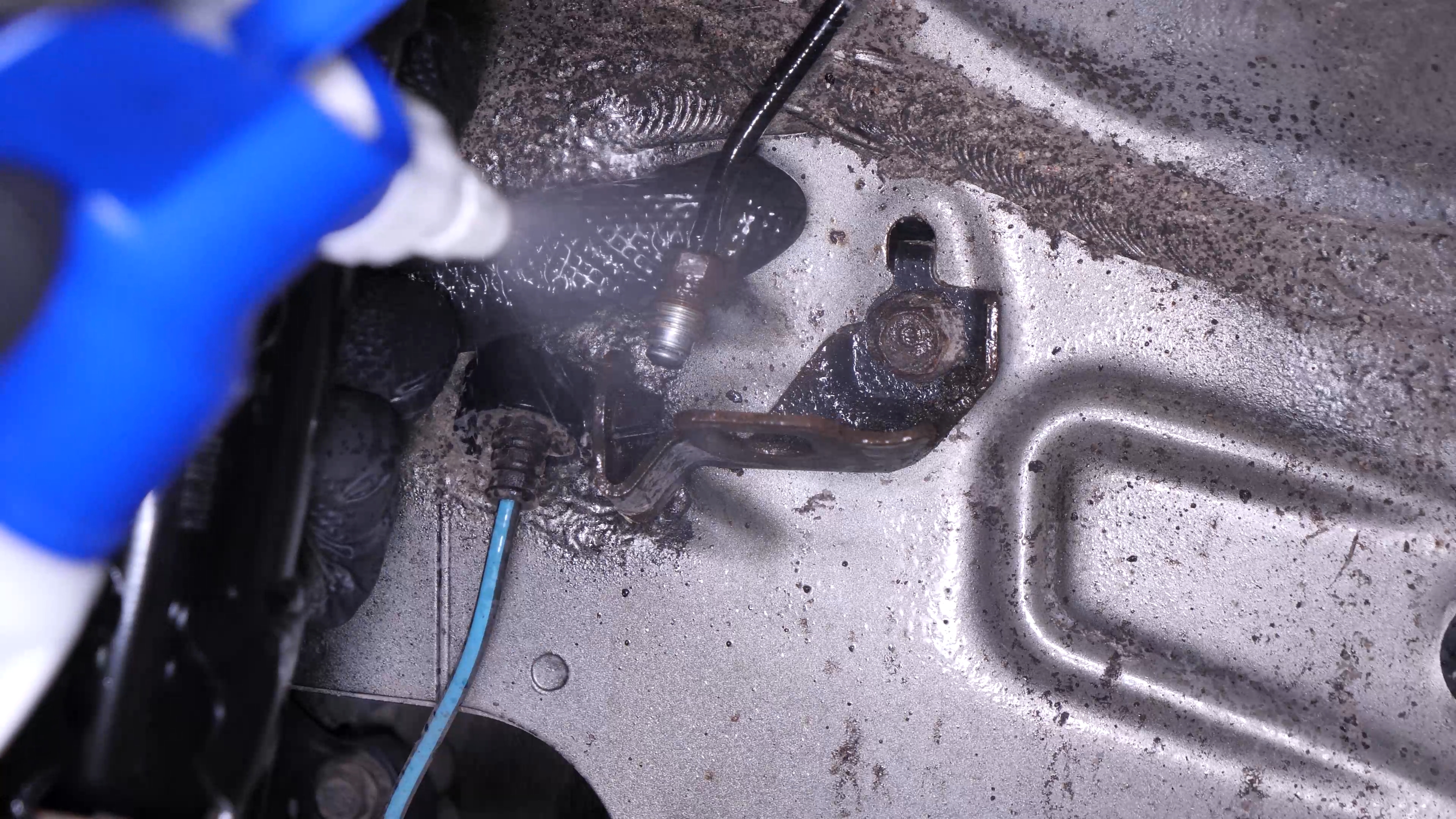

You can now clean the junction between the metal connector and the brake hose with a wire brush and brake cleaner to remove the brake fluid, which can be corrosive.

Chapter 8:

Install the new brake hose

Step 1/5

Take the new brake hose. Then insert it from its upper part.

Chapter 8:

Step 2/5

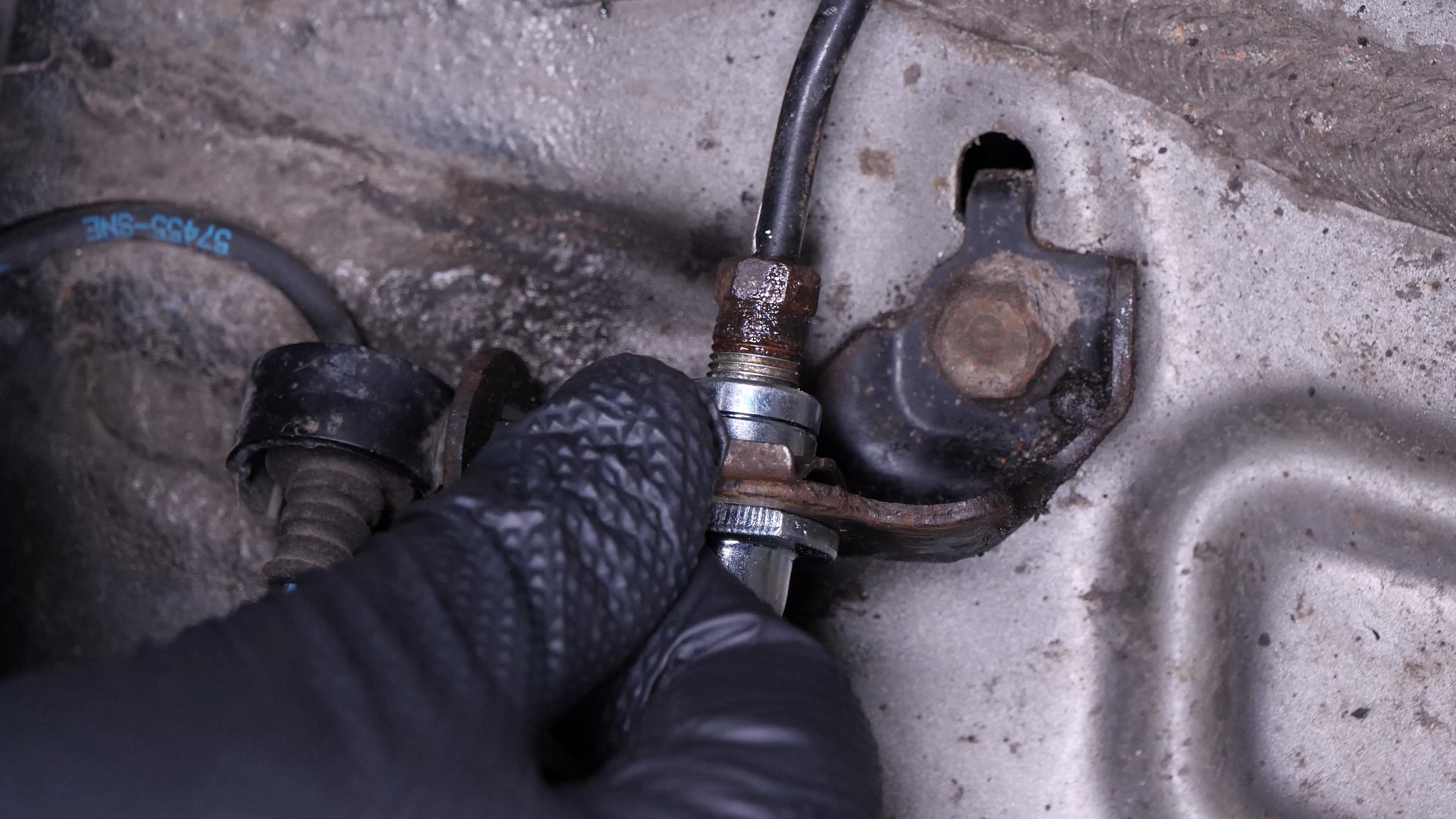

Screw the metal hose connector back on partway. Then put the retaining clip back in place.

Chapter 8:

Step 3/5

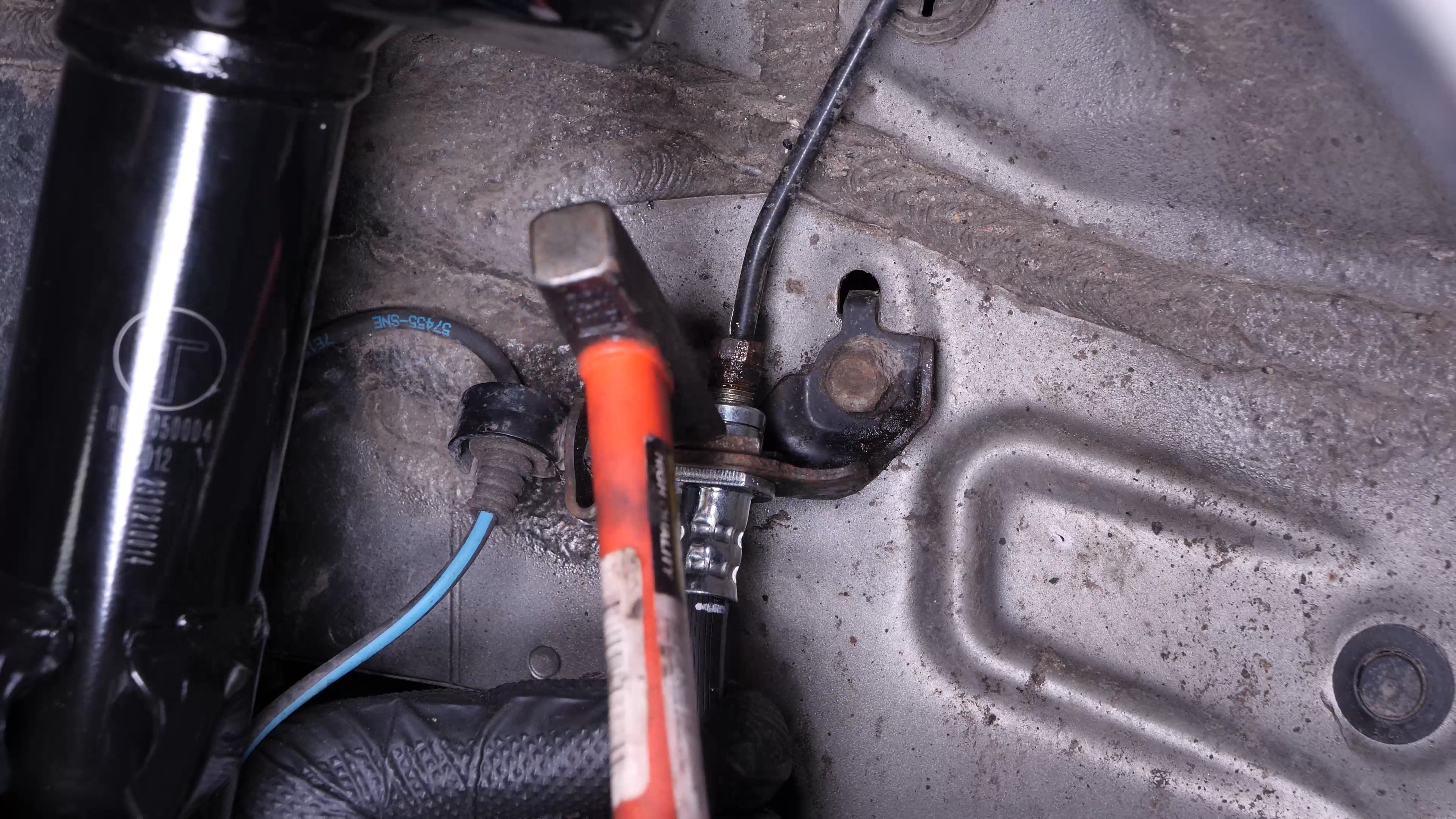

You can use a hammer to help you.

Chapter 8:

Step 4/5

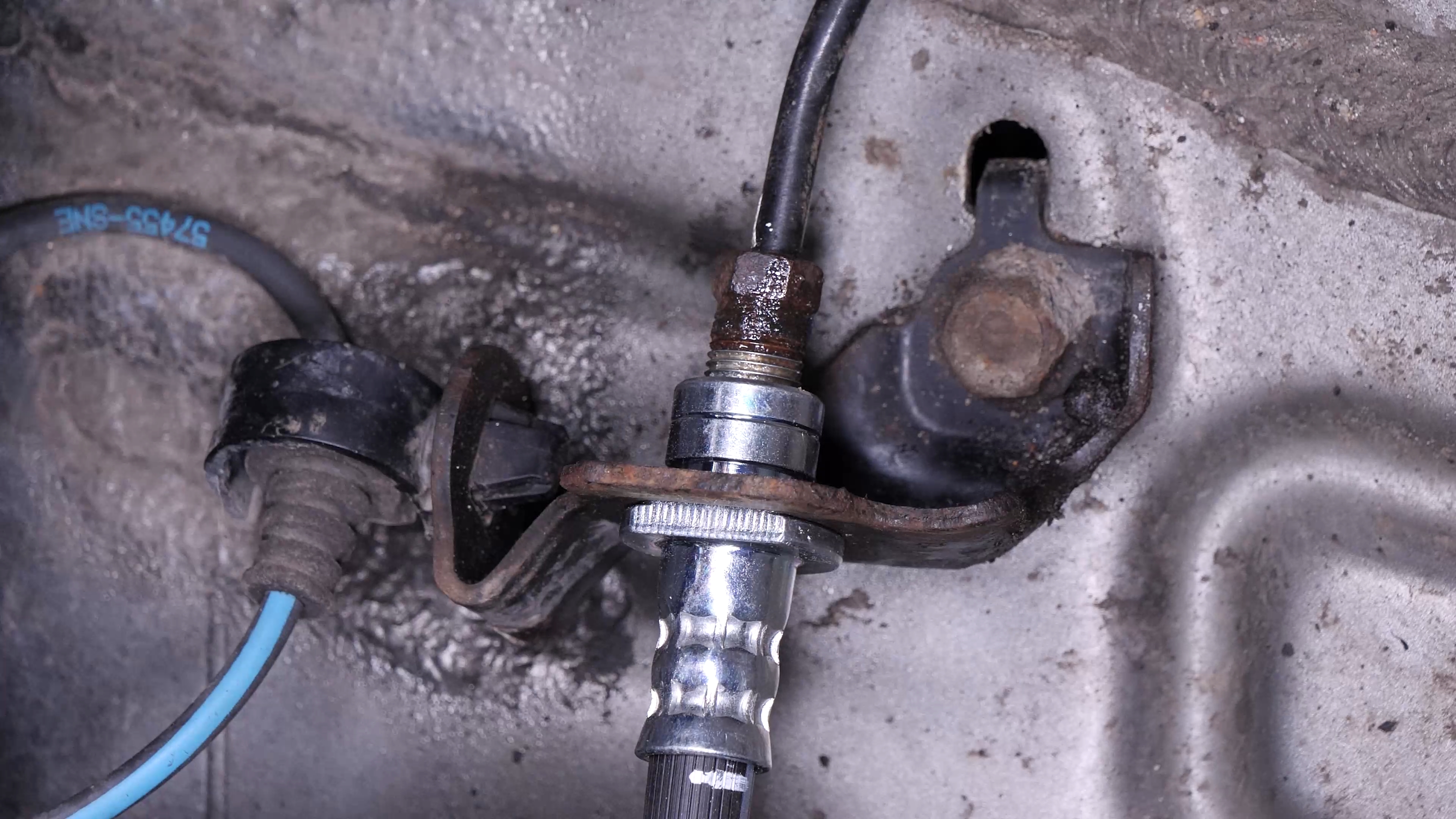

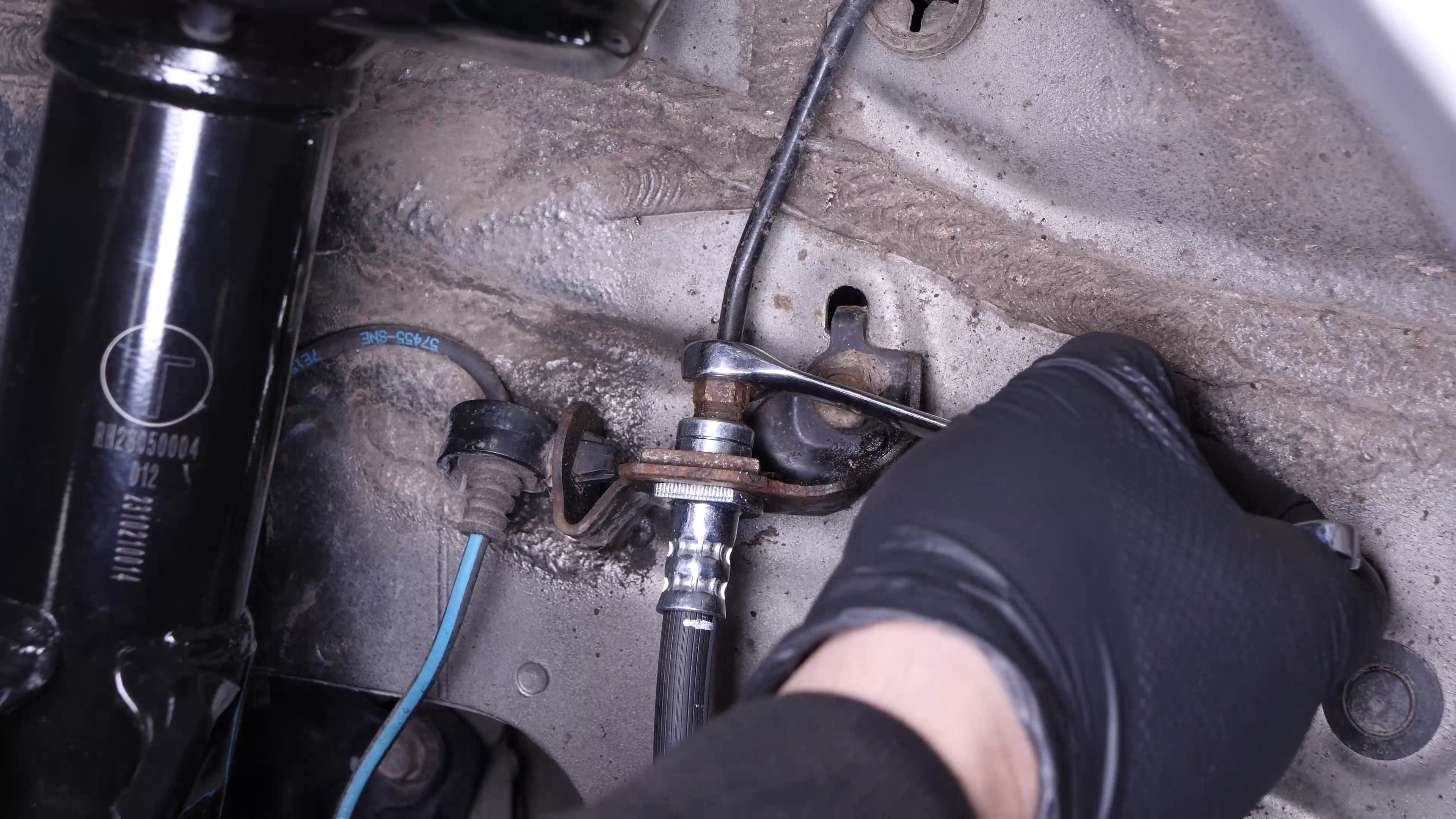

You can now finish tightening the metal hose connector.

Chapter 8:

Step 5/5

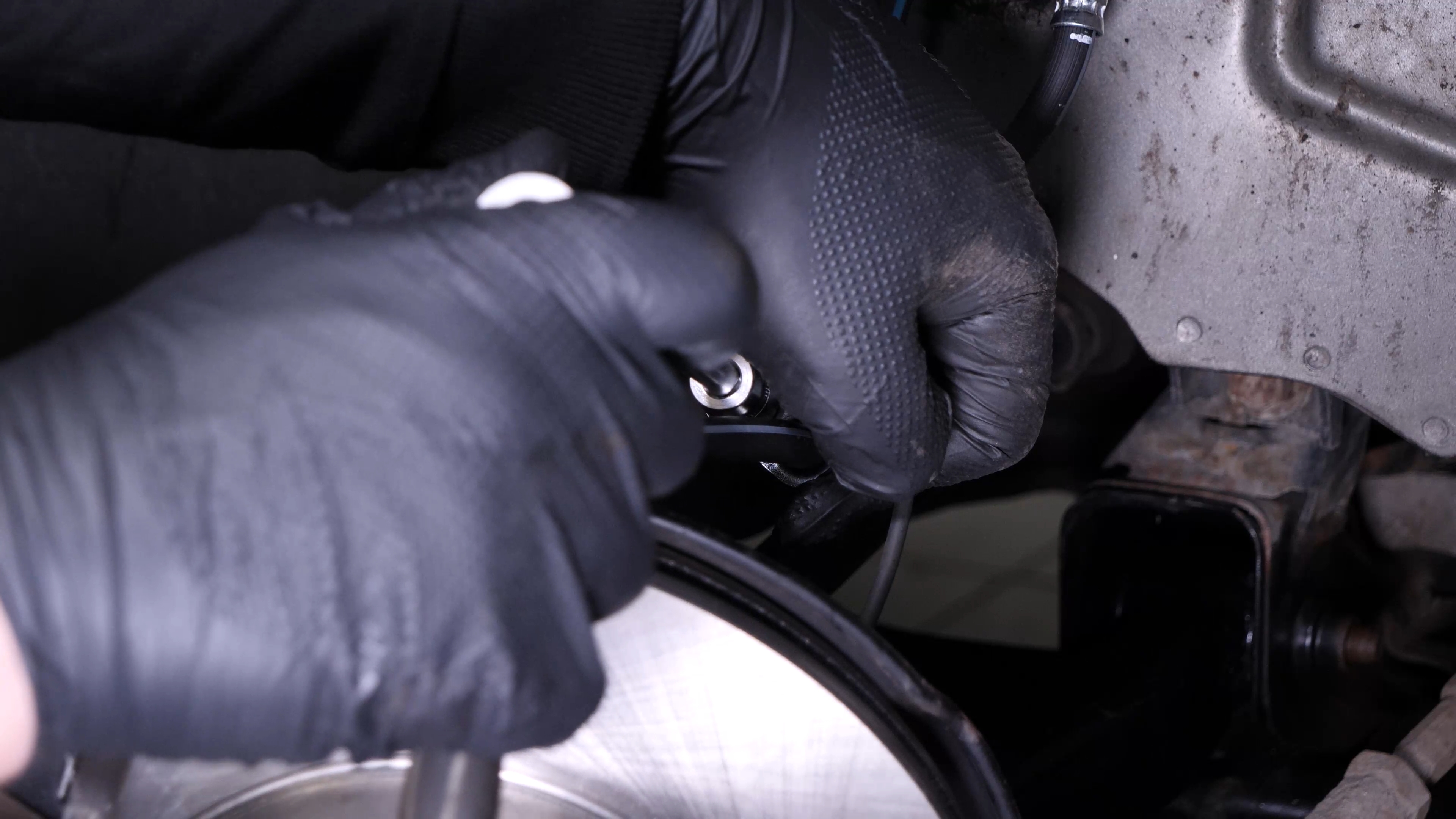

Screw the brake hose mounting bracket back on.

Chapter 9:

clean

Step 1/1

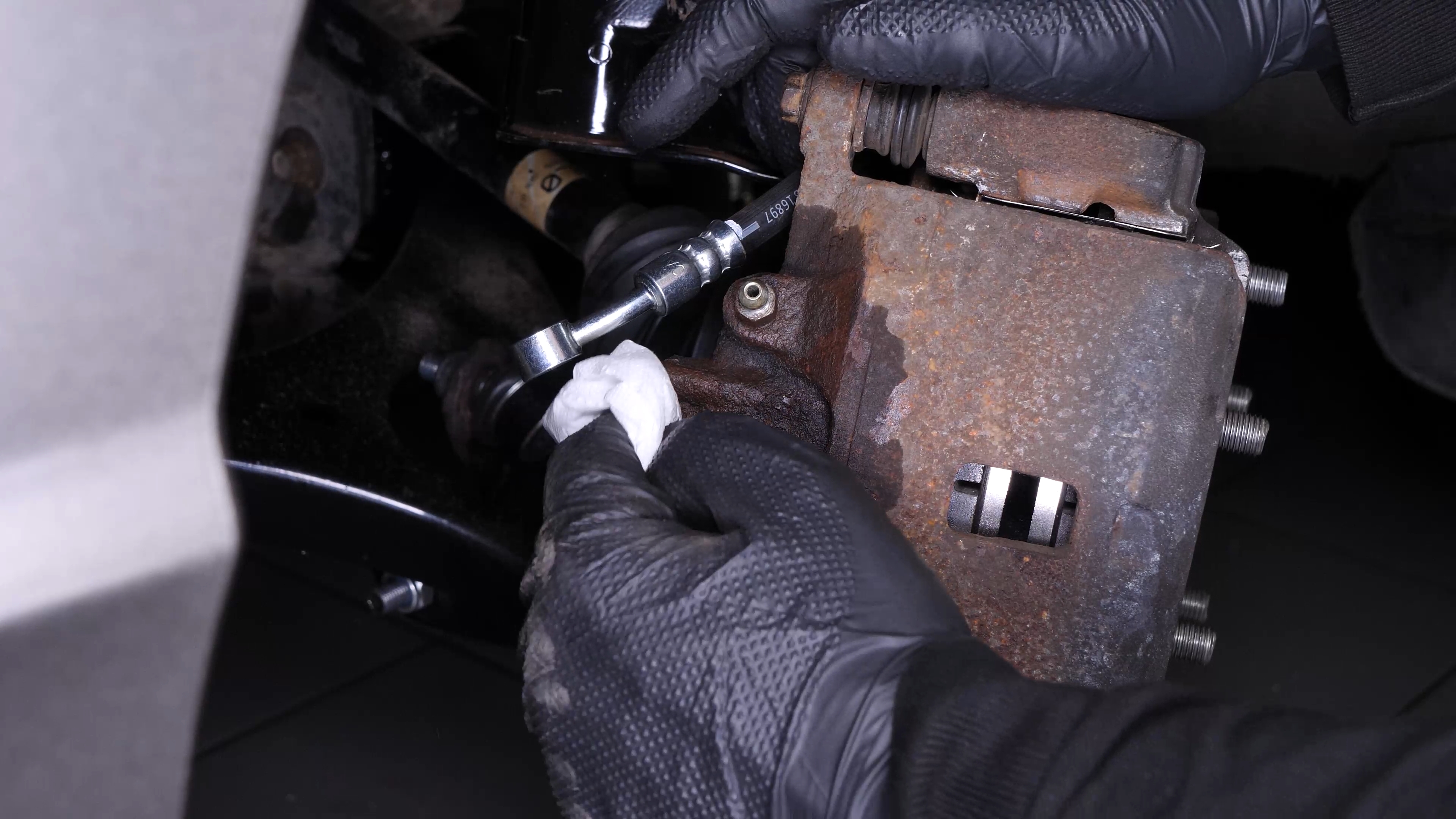

Using brake cleaner and paper towels, clean the contact surface between the brake caliper and the brake hose.

Chapter 10:

Screw the brake hose back on the caliper

Step 1/4

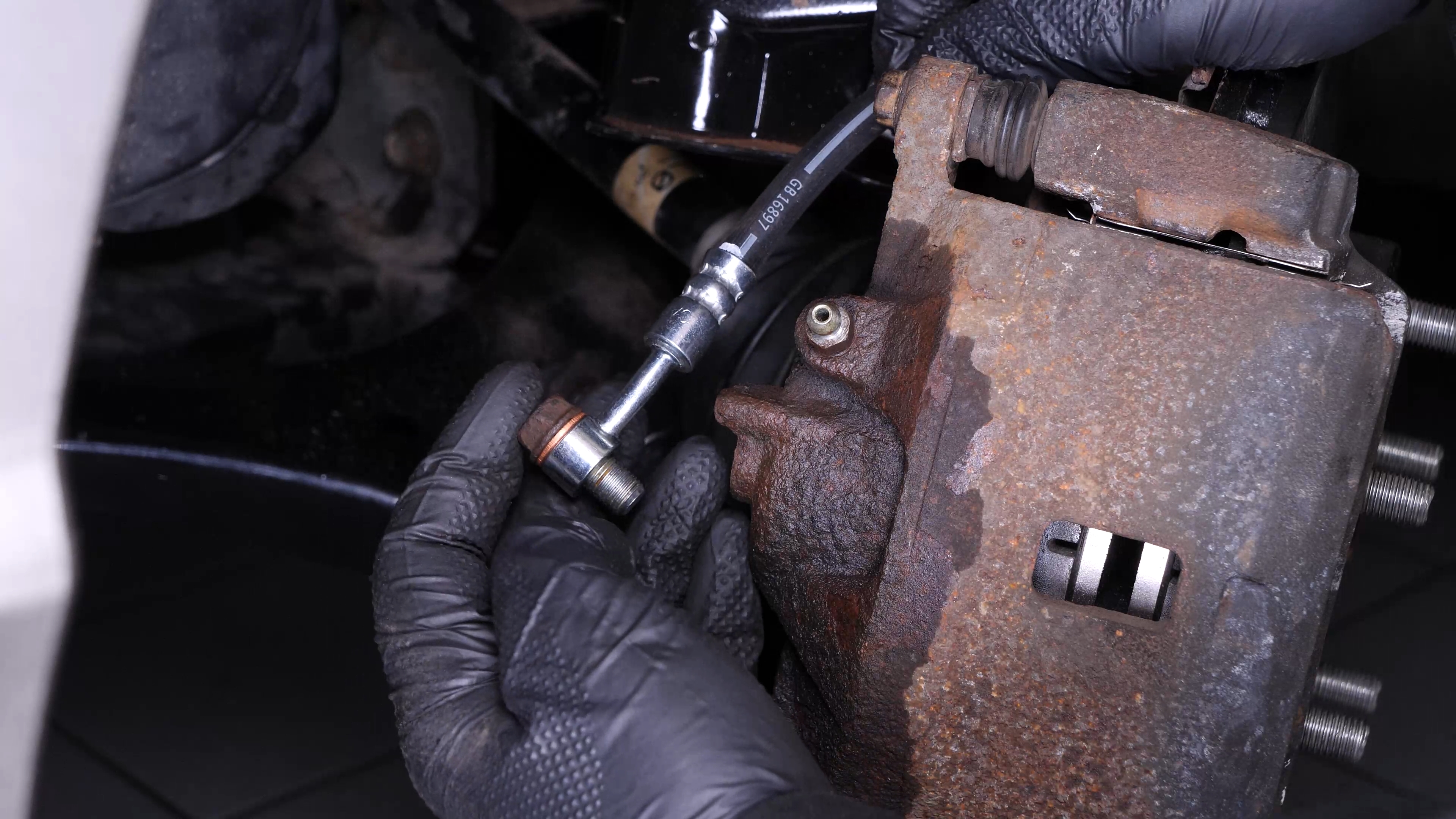

Put a seal on the banjo screw and install the assembly on the hose.

Chapter 10:

Step 2/4

Then put the second seal.

Chapter 10:

Step 3/4

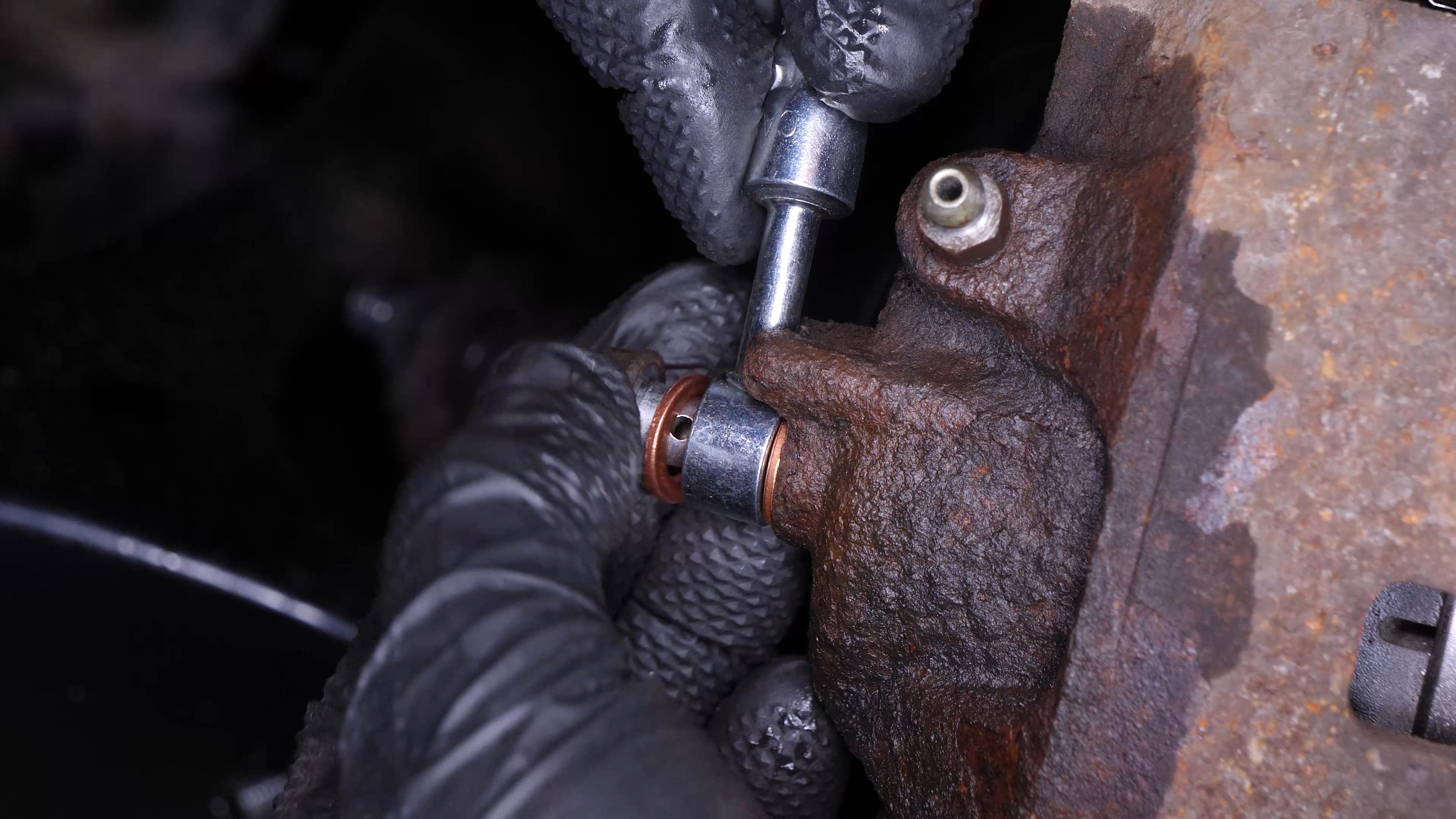

Screw the banjo screw that connects the brake hose to the caliper, back on by hand until it makes contact.

Chapter 10:

Step 4/4

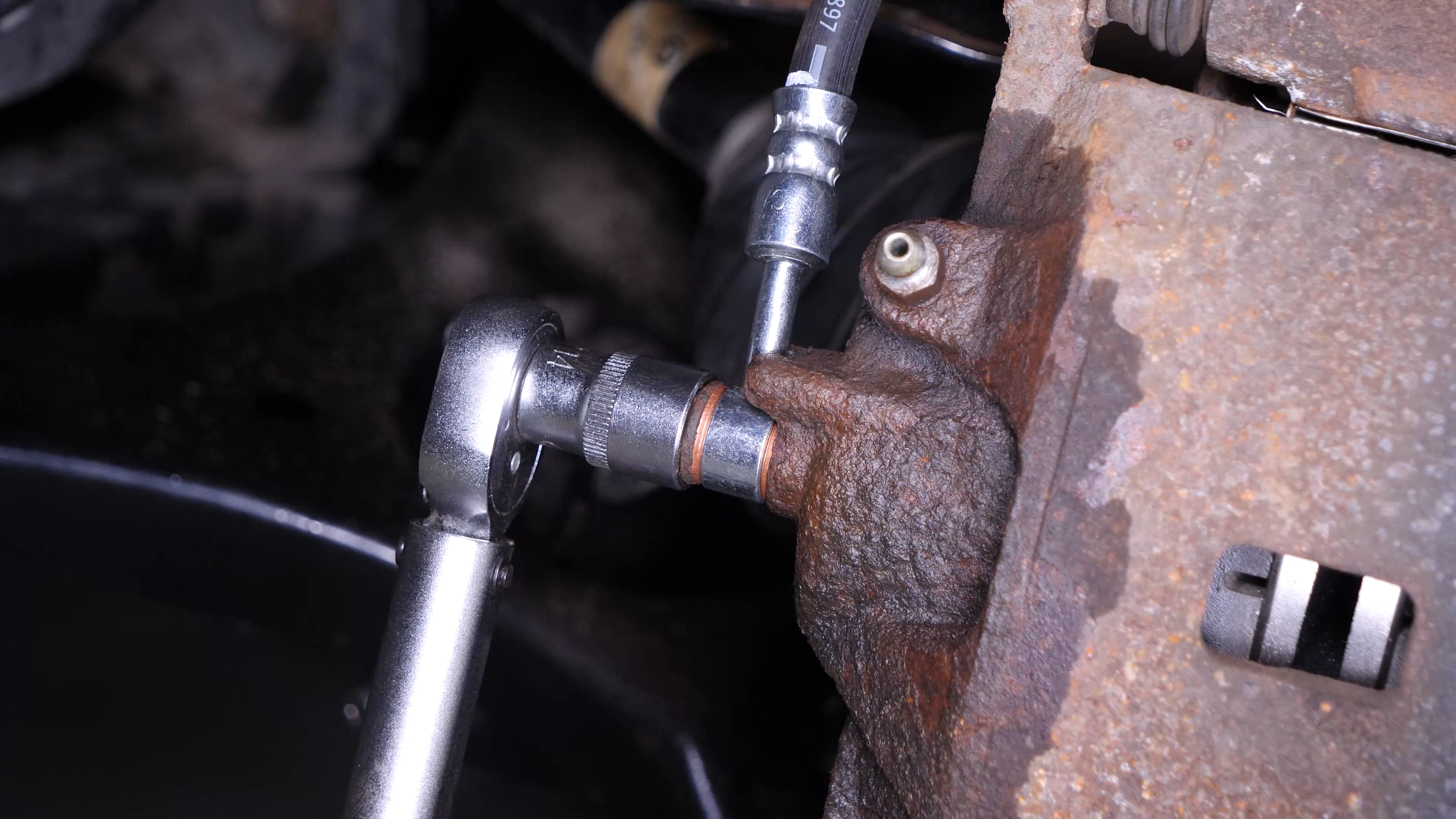

Finish tightening using a torque wrench.

Chapter 11:

Bleed the brake fluid

Step 1/1

When replacing a brake hose, you need to bleed the brake fluid system to remove air from the system.

Chapter 12:

Clean

Step 1/1

After bleeding, remember to clean the caliper-disc assembly with brake cleaner.

Chapter 13:

Put the vehicle back on the ground

Step 1/4

Then, you will be able to put the wheels back on your vehicle.

Chapter 13:

Step 2/4

Put the car back on the ground and block the wheels properly.

Chapter 13:

Step 3/4

Don’t forget to screw the brake fluid cap back on before starting the car.

Chapter 13:

Step 4/4

Operation complete.
