How to replace the serpentine belt 2006-2011 Honda Civic

Chapter 1:

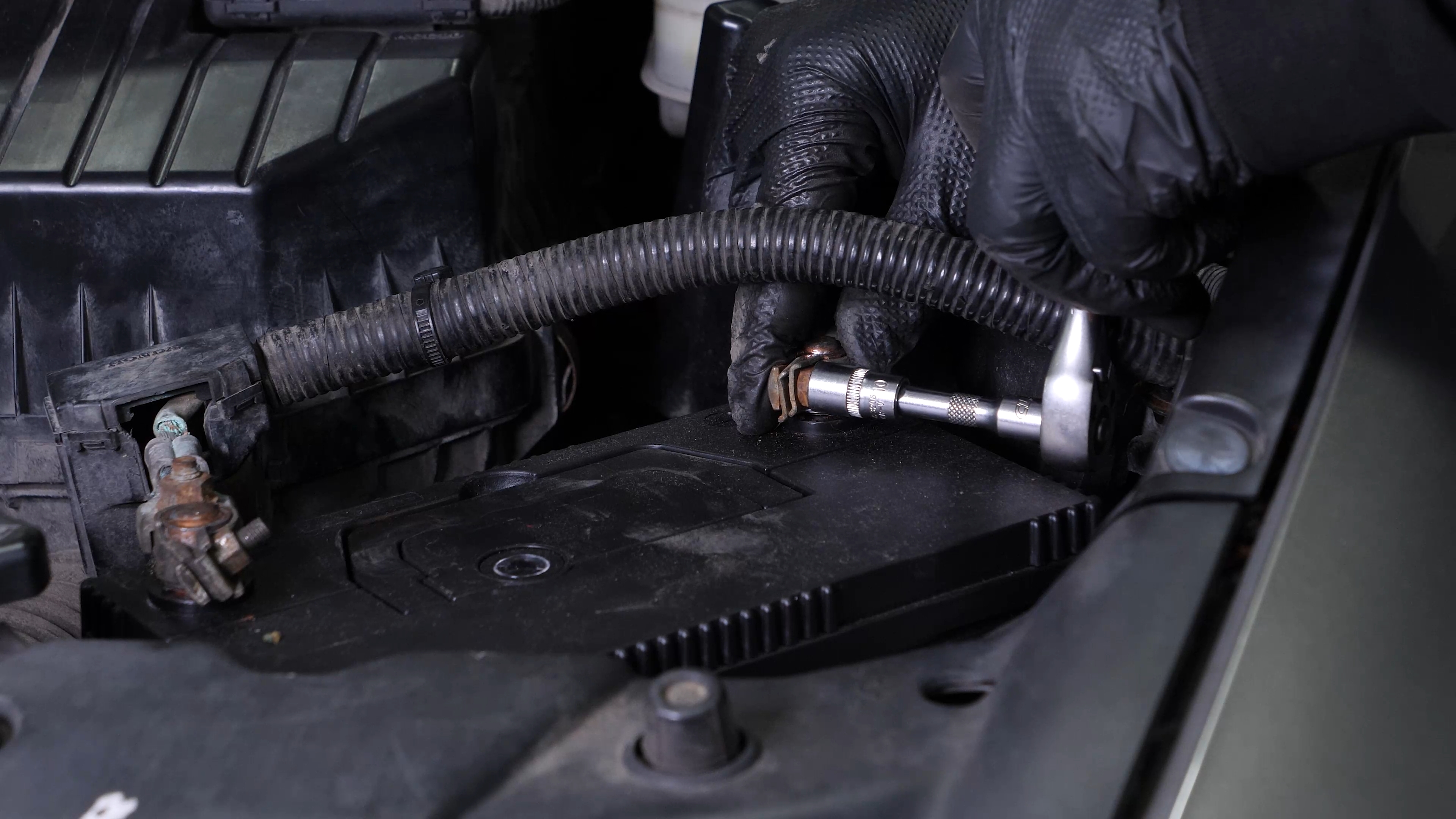

Disconnect the battery

Step 1/1

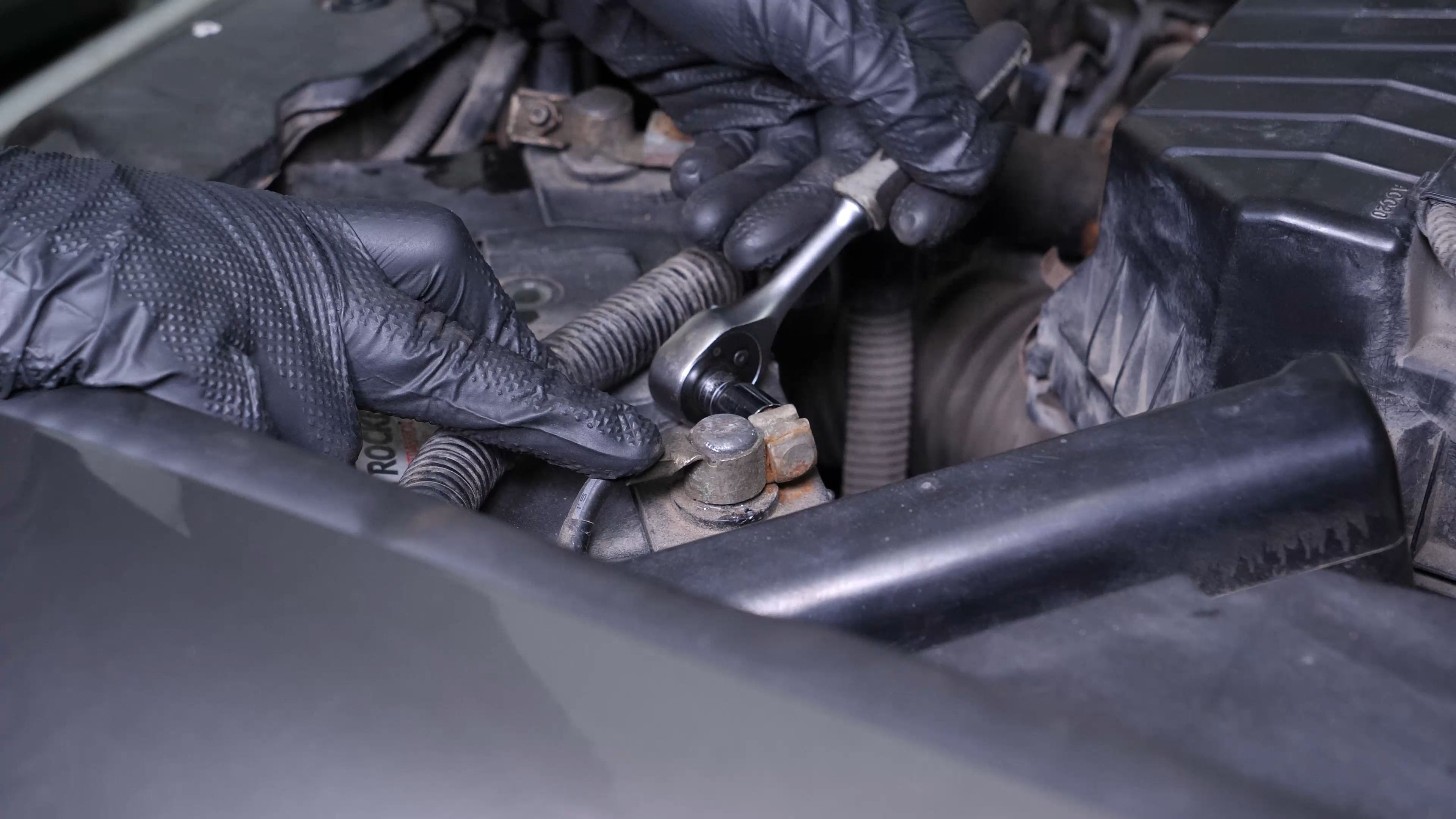

It’s also safer to disconnect the battery.

Chapter 2:

Set up

Step 1/4

In order to change the serpentine belt on your vehicle, you need to take off the wheel on the passenger side to gain full access.

Chapter 2:

Step 2/4

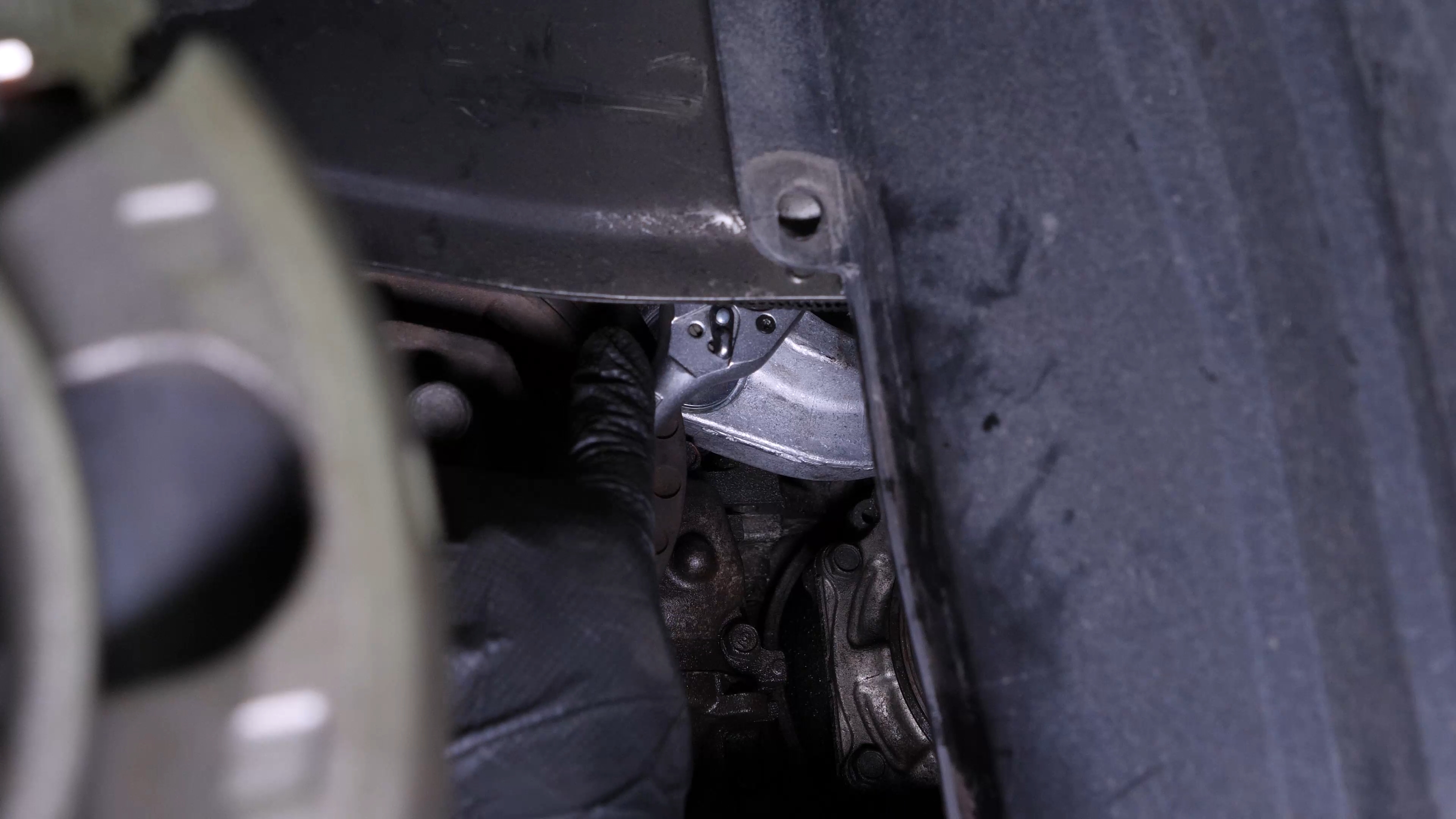

Now you need to remove the plastic cover that gives access to the Damper pulley.

Chapter 2:

Step 3/4

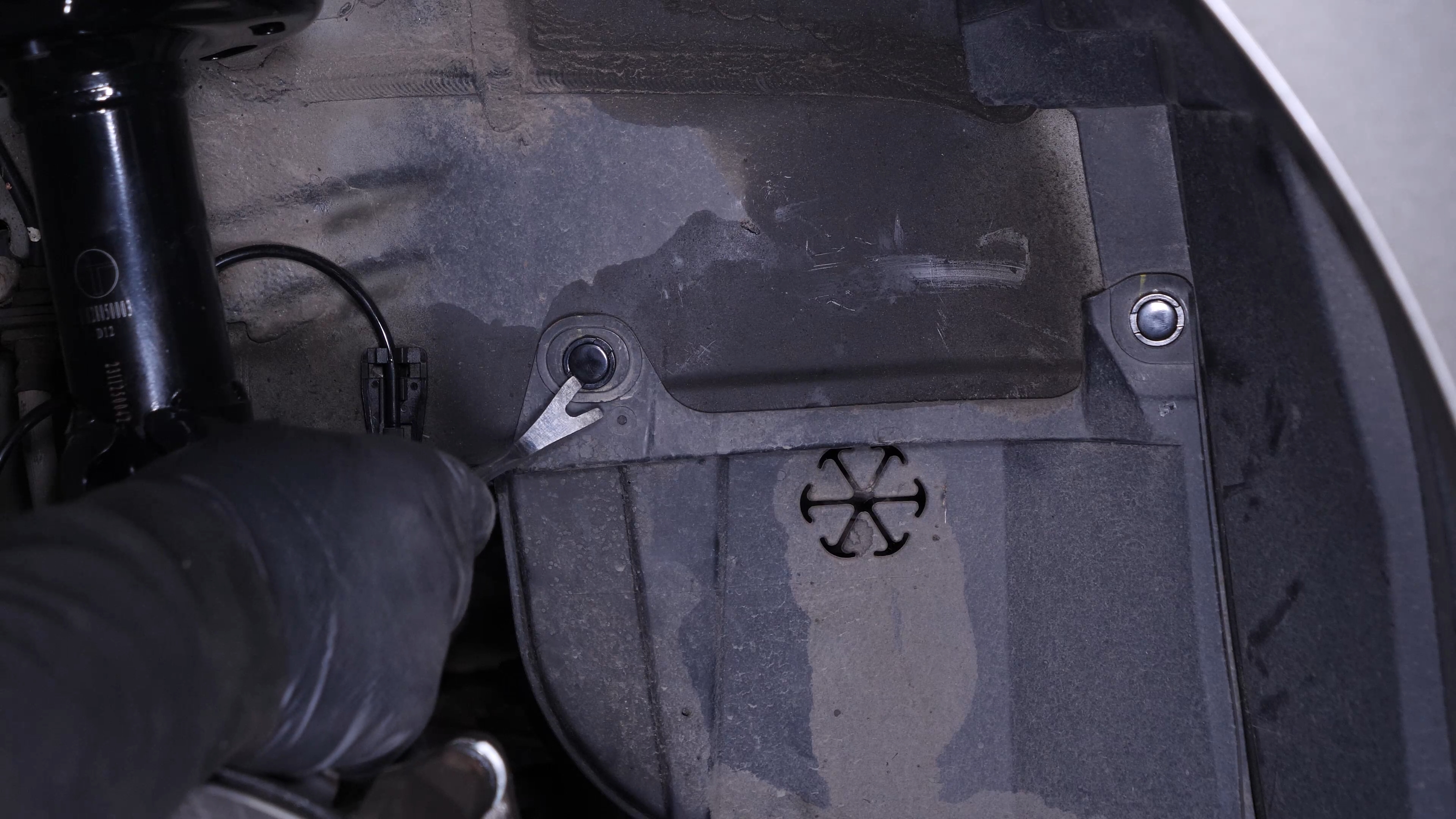

Using a fork, remove the 2 holding rivets.

Chapter 2:

Step 4/4

Then remove it to access the belt more easily, and reposition it correctly when reassembling.

Chapter 3:

Remove the serpentine blet

Step 1/3

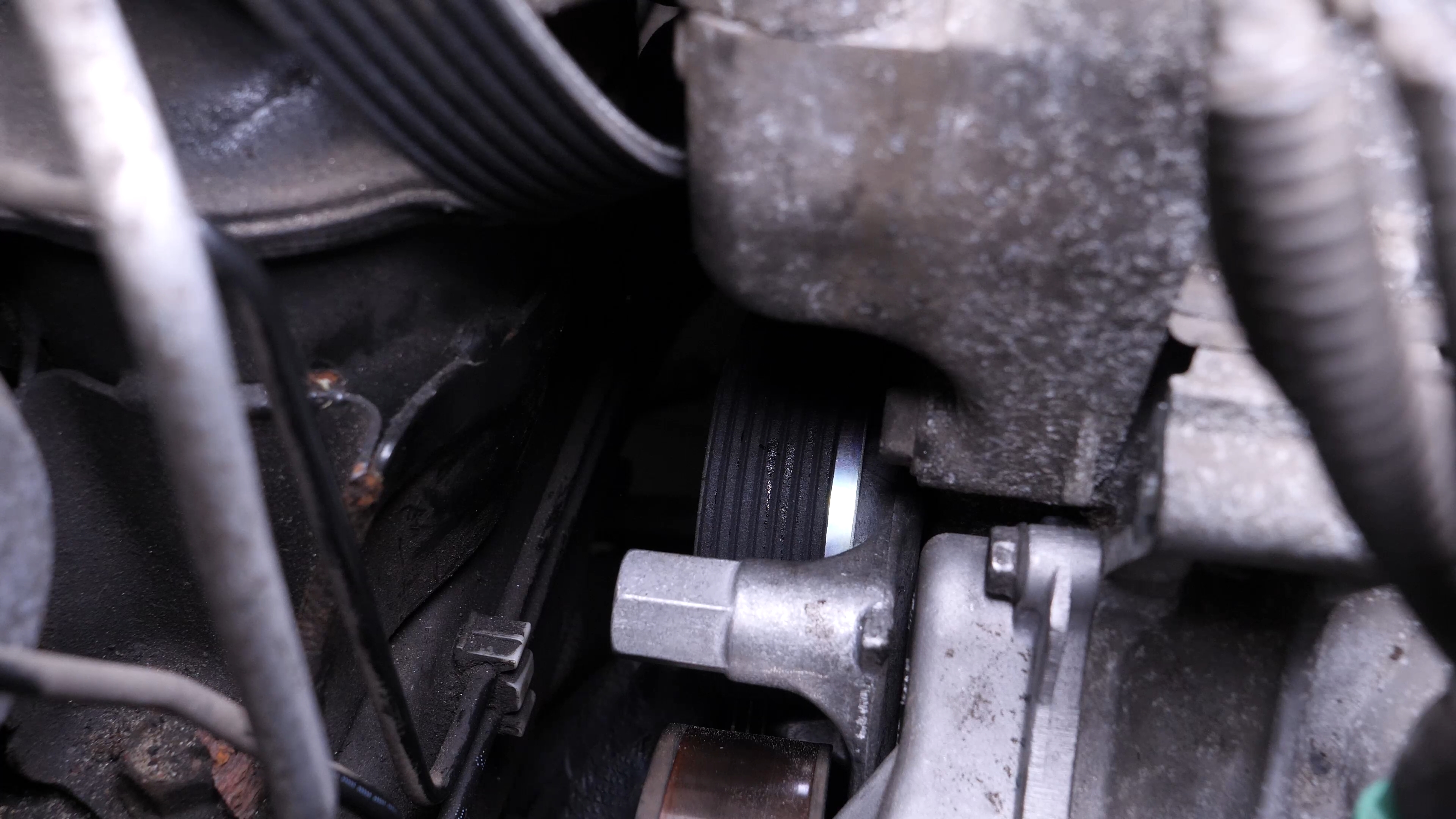

Using a 19 mm offset wrench, loosen the belt by turning the serpentine belt tensioner clockwise.

Chapter 3:

Step 2/3

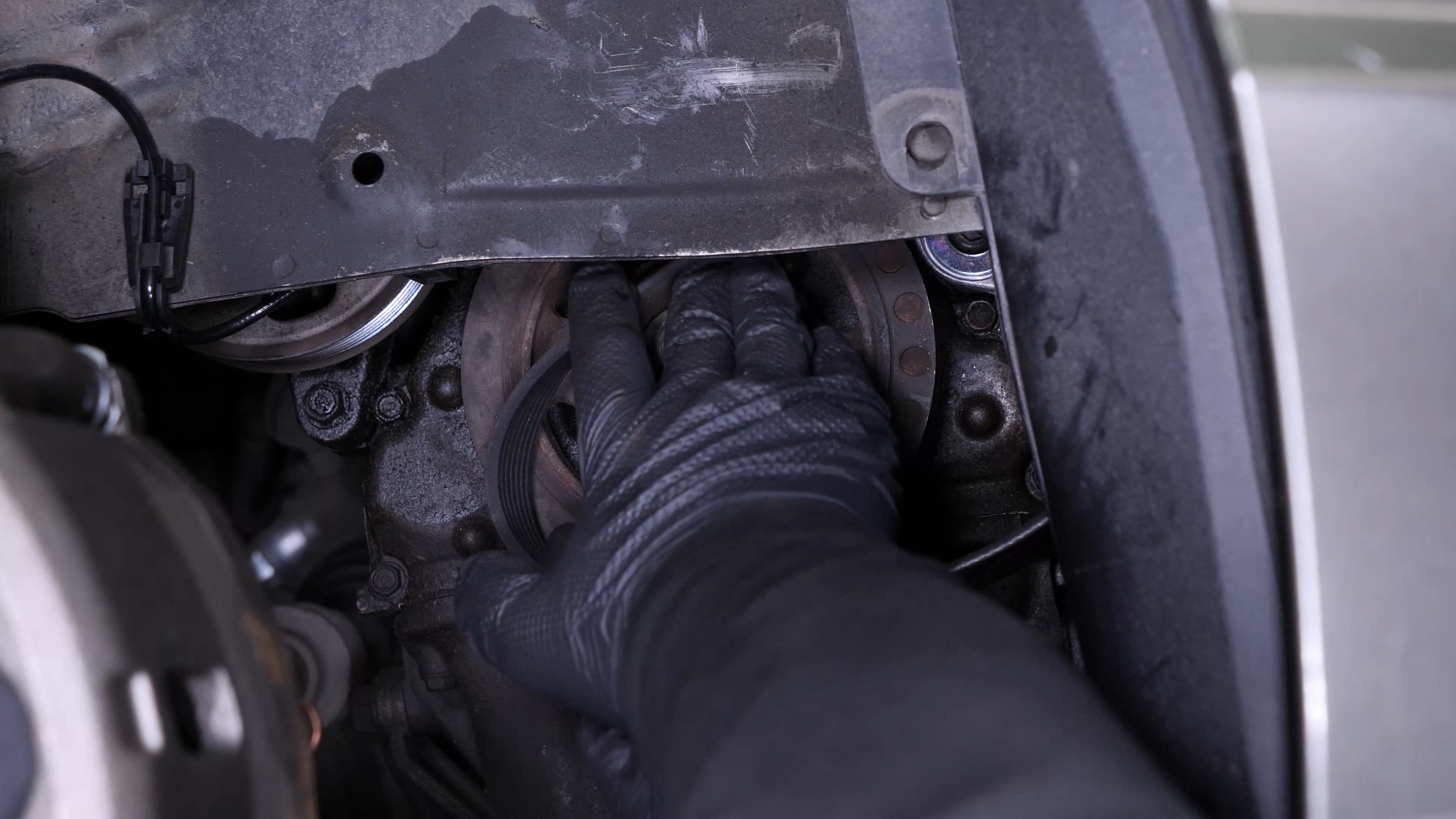

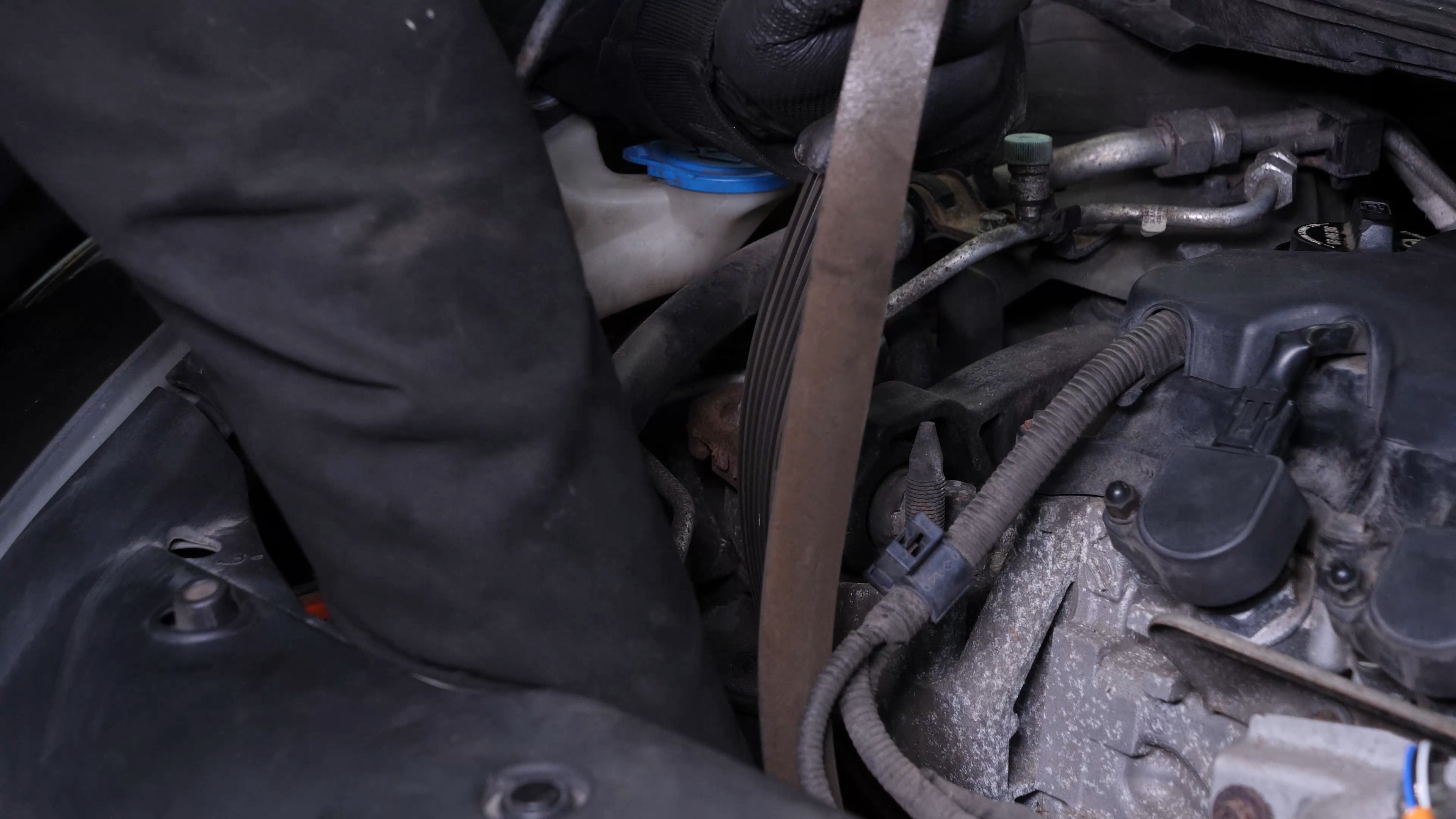

Meanwhile, remove the belt from the tensioner, then from the various pulleys. Before proceeding with the replacement of the serpentine belt, we recommend taking a picture or to draw the path of the belt around the different pulleys, in order to position it correctly later.

Chapter 3:

Step 3/3

You can now remove the belt.

Chapter 4:

Remove various components

Step 1/2

When changing the belt, you should also replace the tensioner pulley. On this vehicle, the belt tensioner is held in place by one of the alternator retaining bolts.

Chapter 4:

Step 2/2

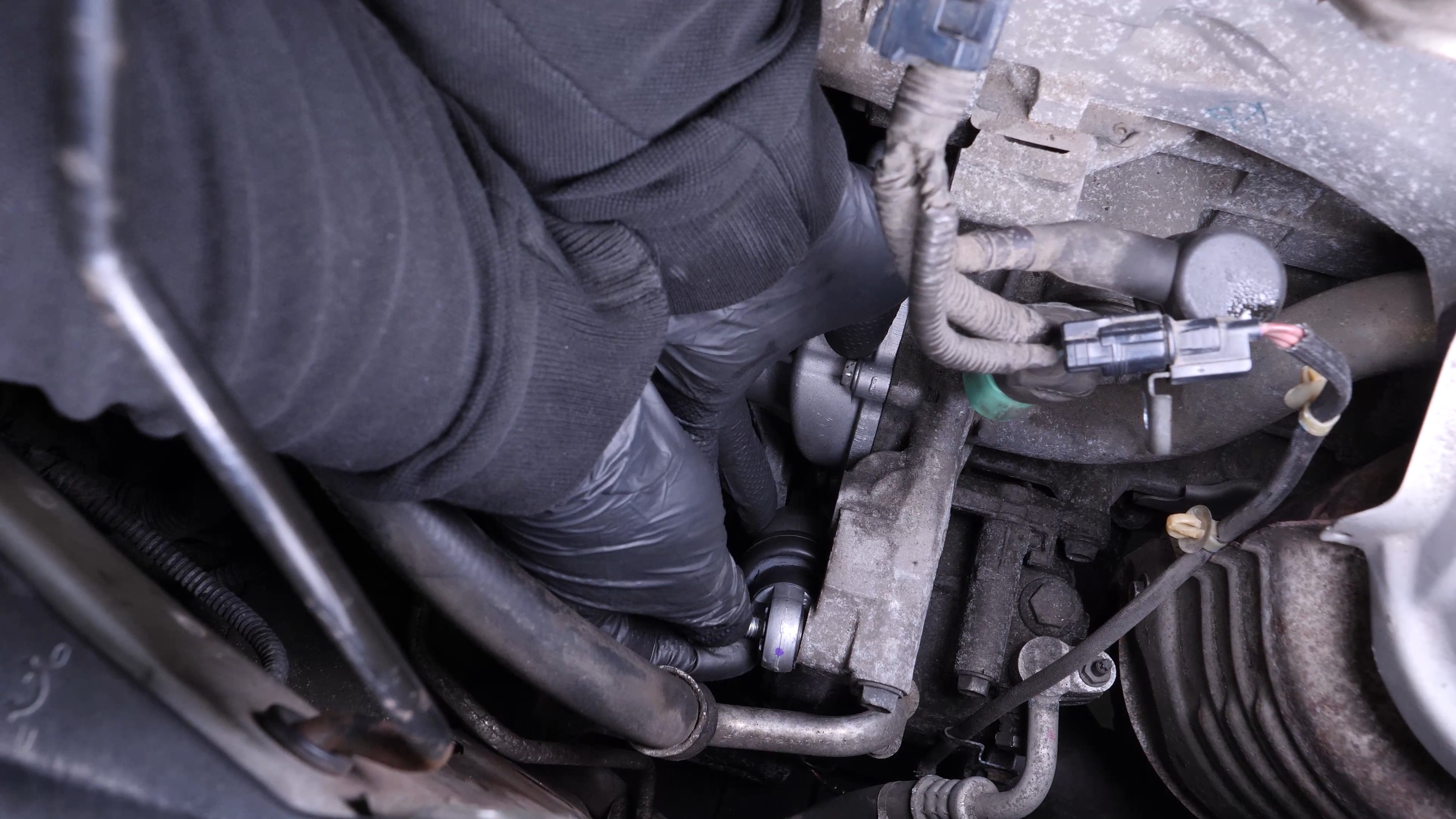

It is therefore necessary to remove the alternator.

Chapter 5:

Remove the water pump pulley

Step 1/3

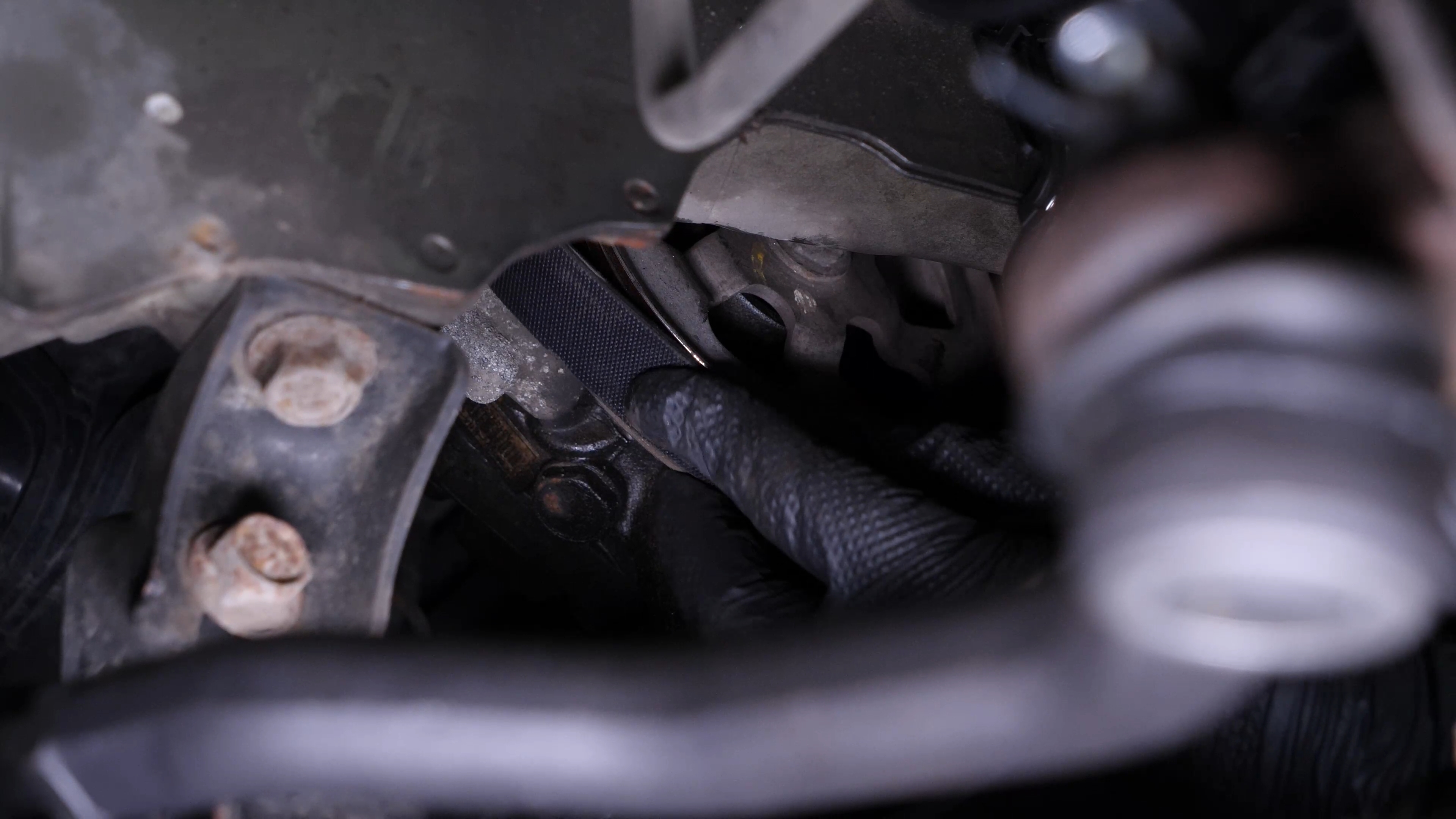

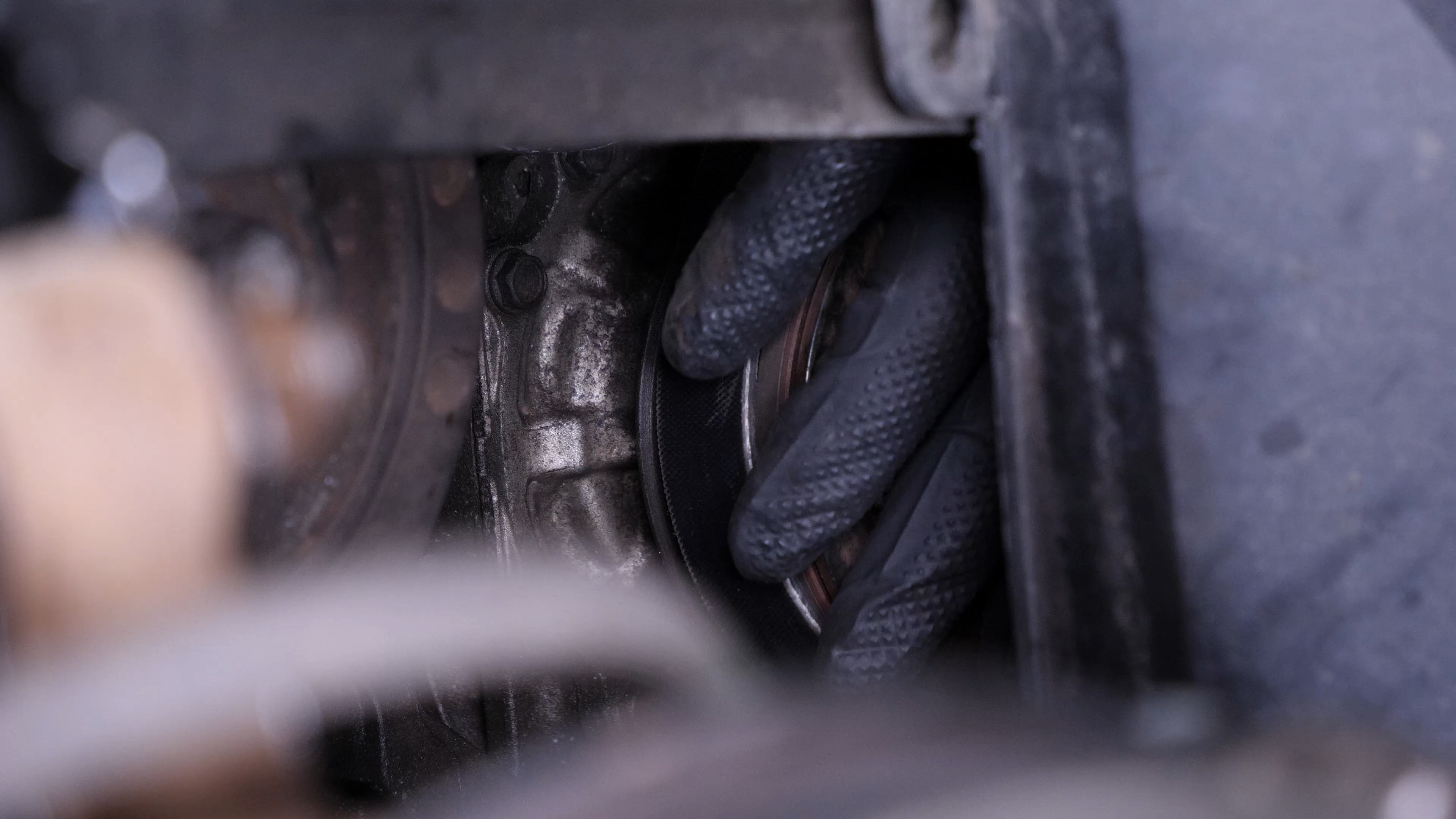

Secure the water pump pulley with a pulley lock wrench.

Chapter 5:

Step 2/3

Insert the 2 pins of the wrench into the holes in the pulley.

Chapter 5:

Step 3/3

You can now unscrew the 3 pulley retaining bolts with a 10 mm wrench. Then, remove it.

Chapter 6:

Remove the belt tensioner

Step 1/3

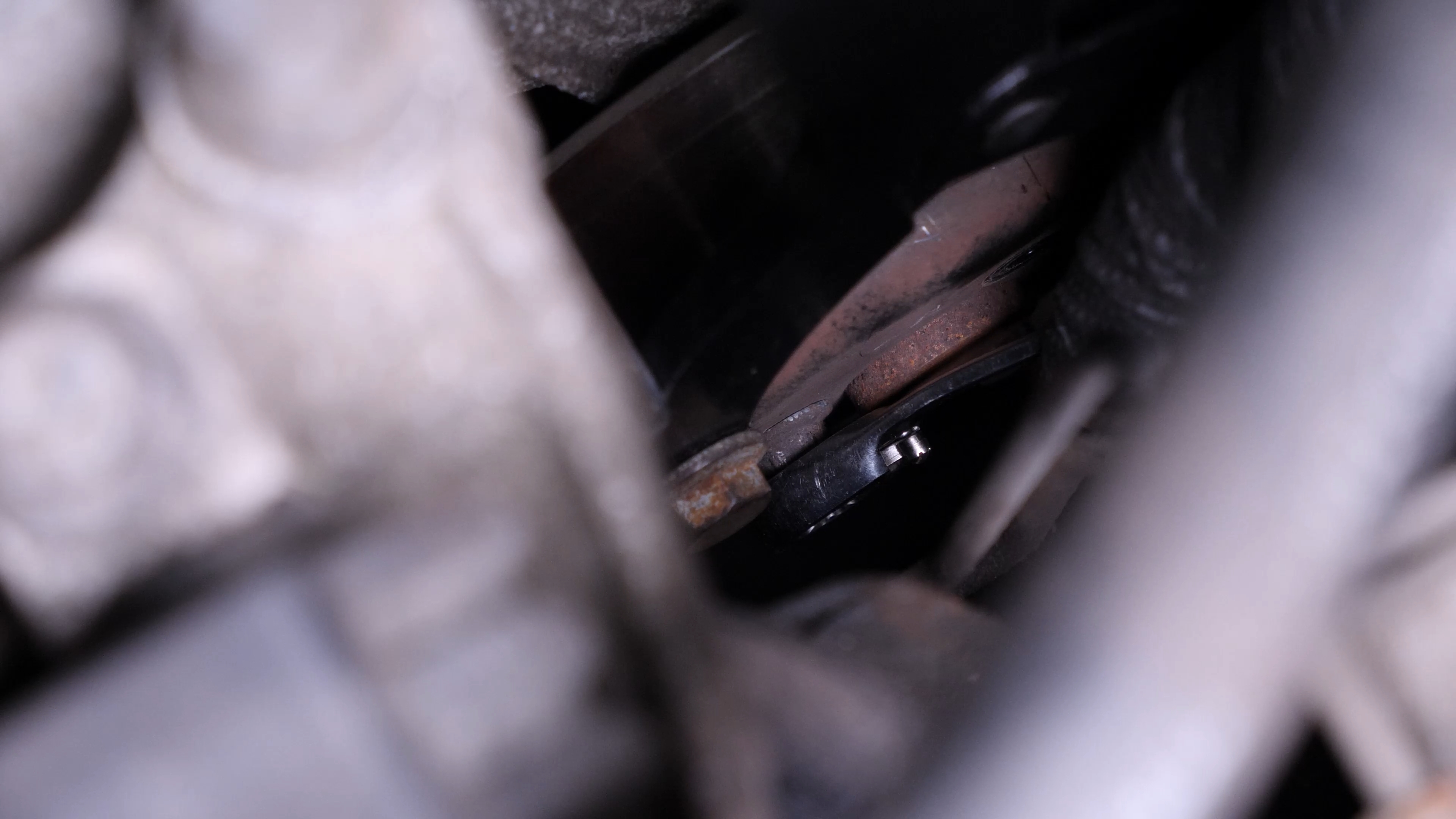

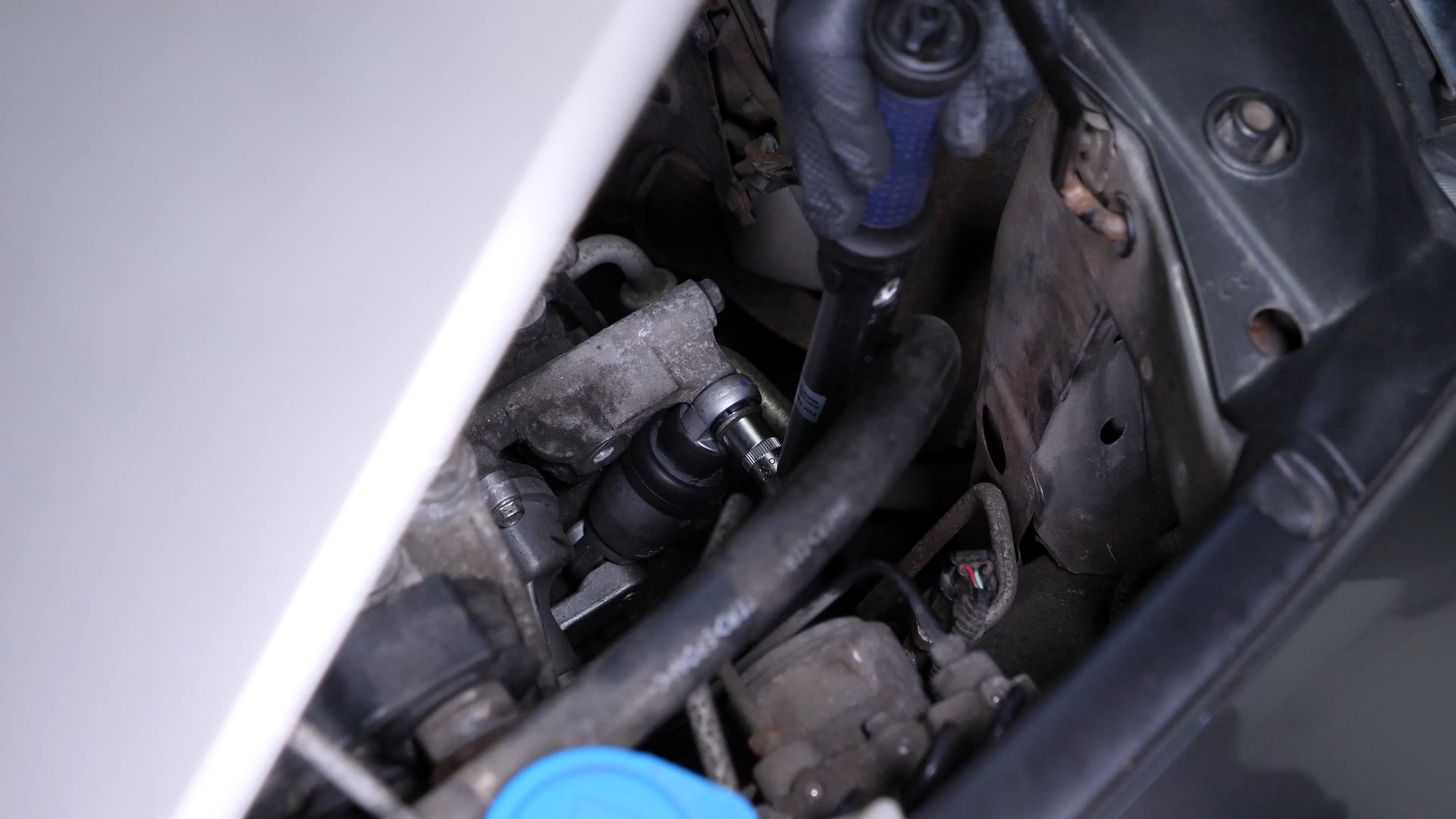

Using a ratchet and a 8mm Allen socket, unscrew the lower retaining bolt. Caution: access is difficult, and the cavity is fragile. Above all, the socket must be firmly seated in its housing.

Chapter 6:

Step 2/3

Using a ratchet and a 12 mm socket, unscrew the upper retaining bolt of the belt tensioner.

Chapter 6:

Step 3/3

Remove the bolt. Then remove the tensioner.

Chapter 7:

Put the belt tensioner back

Step 1/3

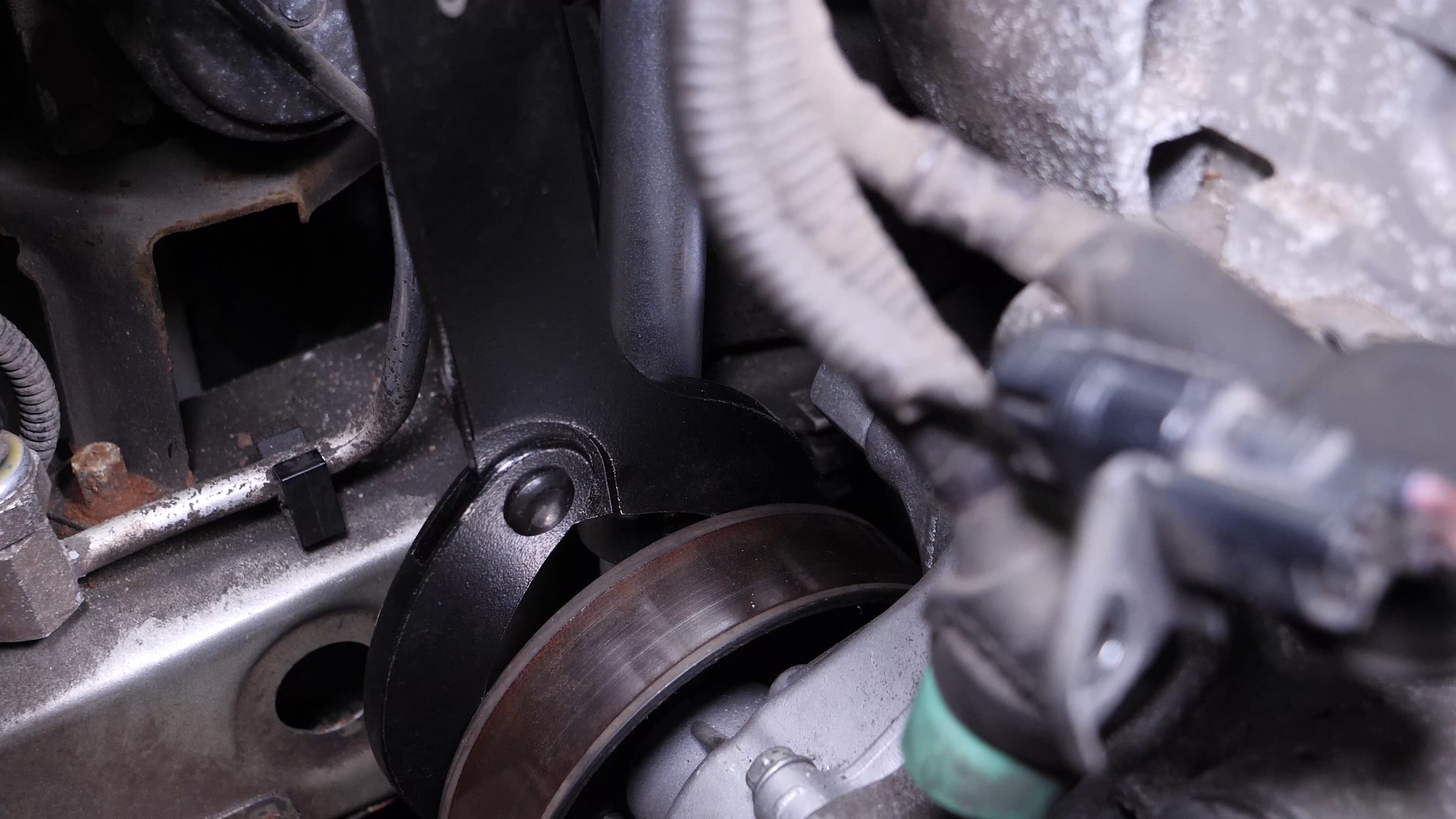

Take the belt tensioner.

Chapter 7:

Step 2/3

Put it back in its place, then screw the bolts back in roughly by hand. Then screw them back in with a ratchet until they make contact.

Chapter 7:

Step 3/3

Finish tightening using a torque wrench.

Chapter 8:

Put the water pump pulley back

Step 1/3

Replace the water pump pulley.

Chapter 8:

Step 2/3

Using the pulley lock wrench and a 10 mm wrench, tighten the 3 pulley retaining bolts.

Chapter 8:

Step 3/3

Finish tightening using a torque wrench.

Chapter 9:

Put the belt back

Step 1/6

Take the new serpentine belt.

Chapter 9:

Step 2/6

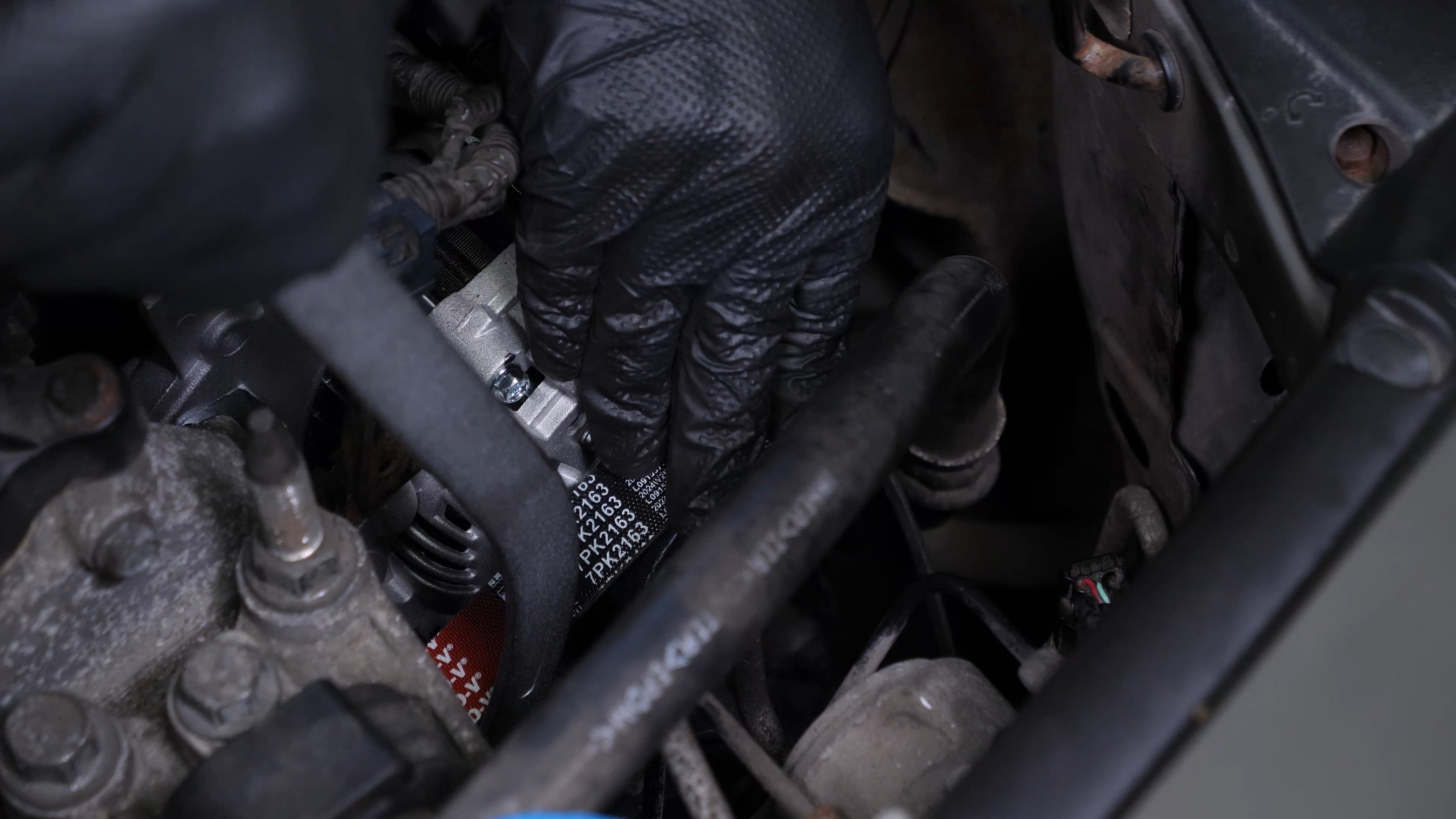

Pay careful attention to which way up you use it. The writing on the belt must turn clockwise.

Chapter 9:

Step 3/6

Slide the new belt around the different elements respecting the layout from the initial assembly.

Chapter 9:

Step 4/6

Return the alternator to its housing.

Chapter 9:

Step 5/6

To fully put it back in place, lift the serpentine belt tensioner in order to wind the serpentine belt onto all of the pulleys.

Chapter 9:

Step 6/6

Then release the belt tensioner to fully extend the belt. Before starting your car again, check that the belt is properly positioned in all the pulleys.

Chapter 10:

Finalise the reassembly

Step 1/1

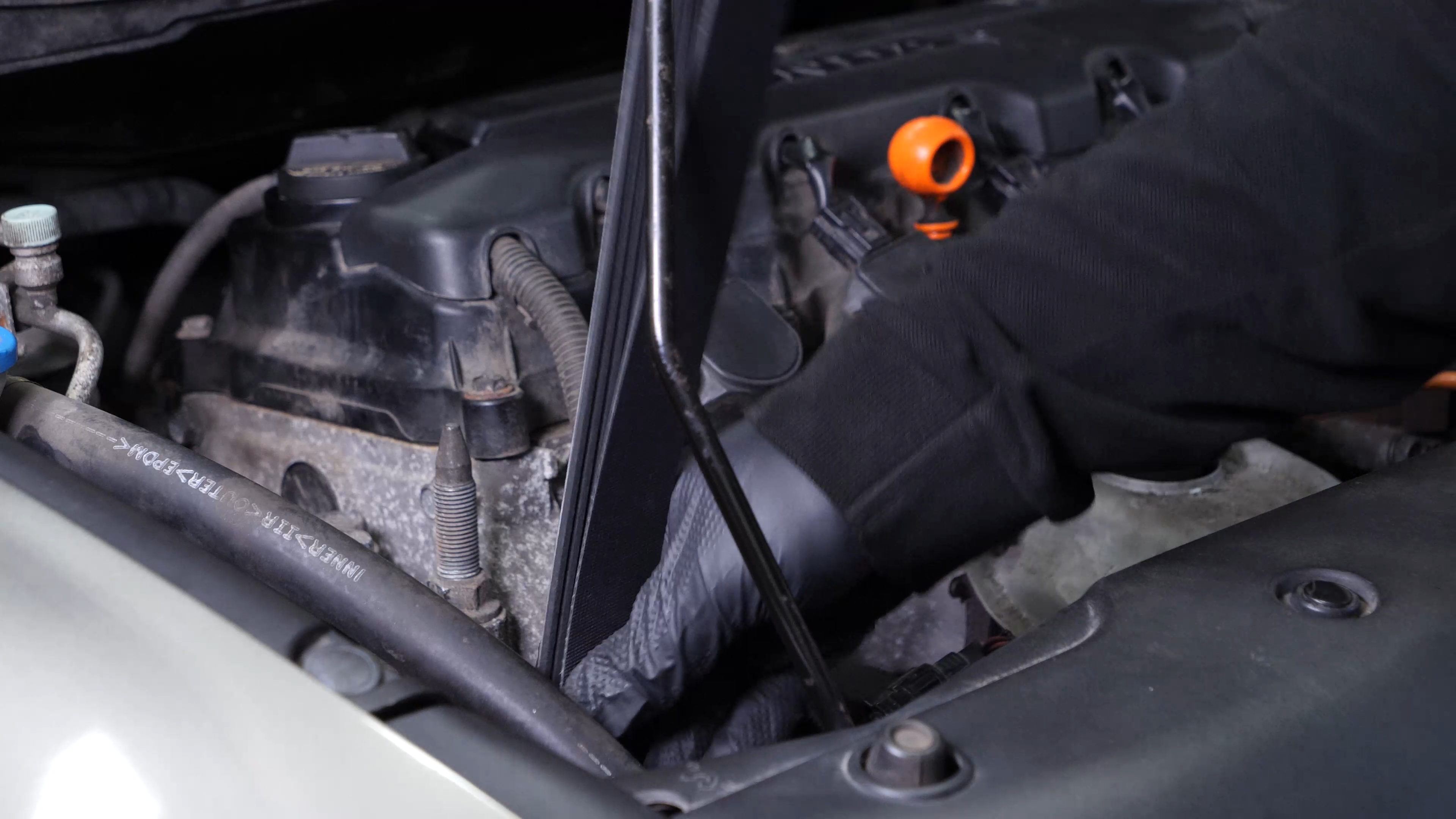

Replace the plastic cover. Then put the rivets back in place.

Chapter 11:

Put the vehicle back on the ground

Step 1/2

Then, you will be able to put the wheel back on your vehicle.

Chapter 11:

Step 2/2

Put the car back on the ground and block the wheel properly.

Chapter 12:

Reconnect the battery

Step 1/2

Reconnect the battery.

Chapter 12:

Step 2/2

Operation complete.
