How to replace the water pump 2006-2011 Honda Civic

Chapter 1:

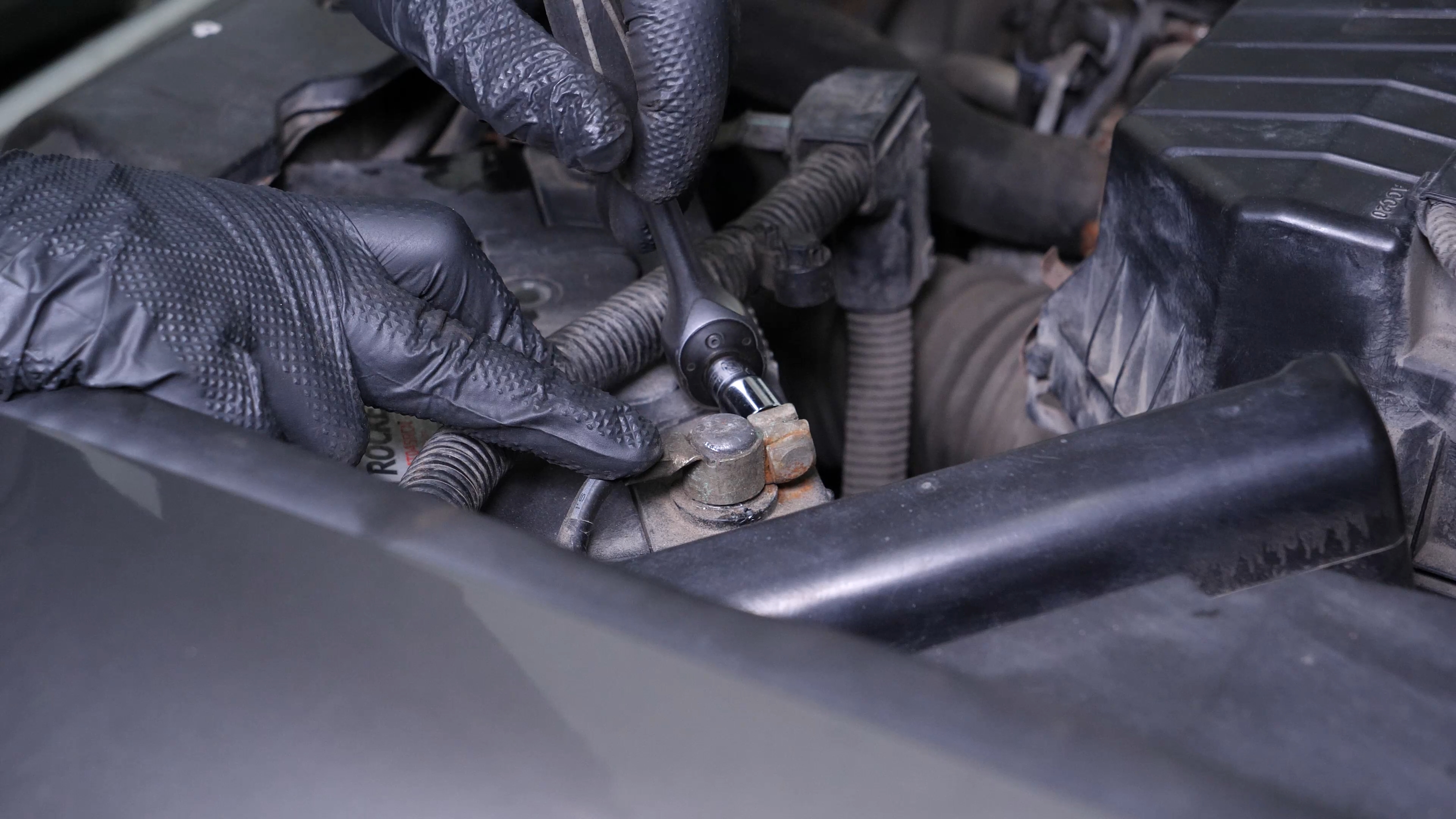

Disconnect the battery

Step 1/1

It’s also safer to disconnect the battery.

Chapter 2:

Bleed the coolant

Step 1/1

In order to change the water pump, it is necessary to carry out a complete bleed of your cooling system.

Chapter 3:

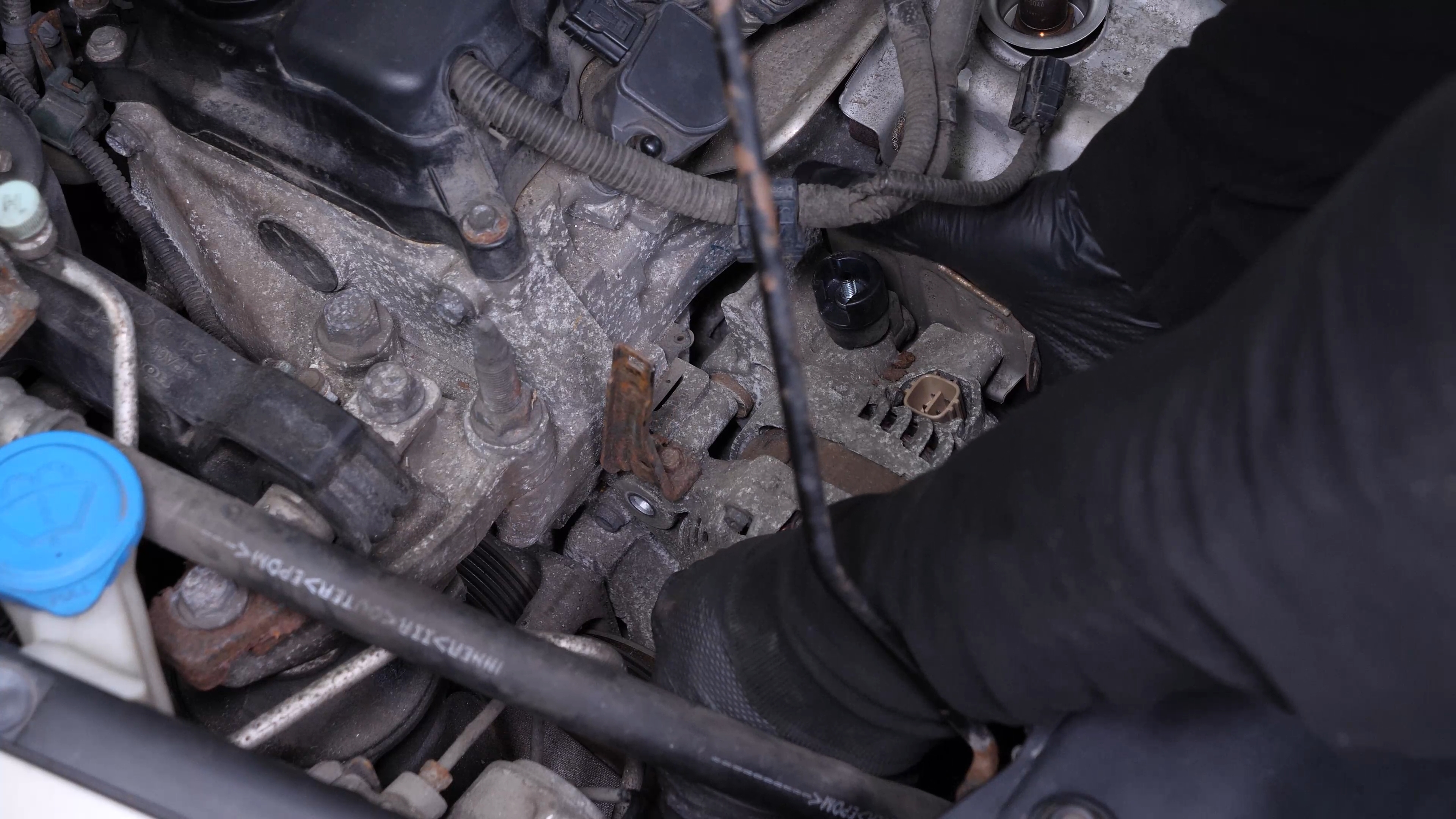

Remove the alternator

Step 1/1

To gain easier access to the water pump, you can remove the alternator first. However, this is not mandatory.

Chapter 4:

Remove the serpentine belt

Step 1/1

While you’re at it, you can change your serpentine belt and tensioner pulley, as access is easier.

Chapter 5:

Remove the water pump pulley

Step 1/3

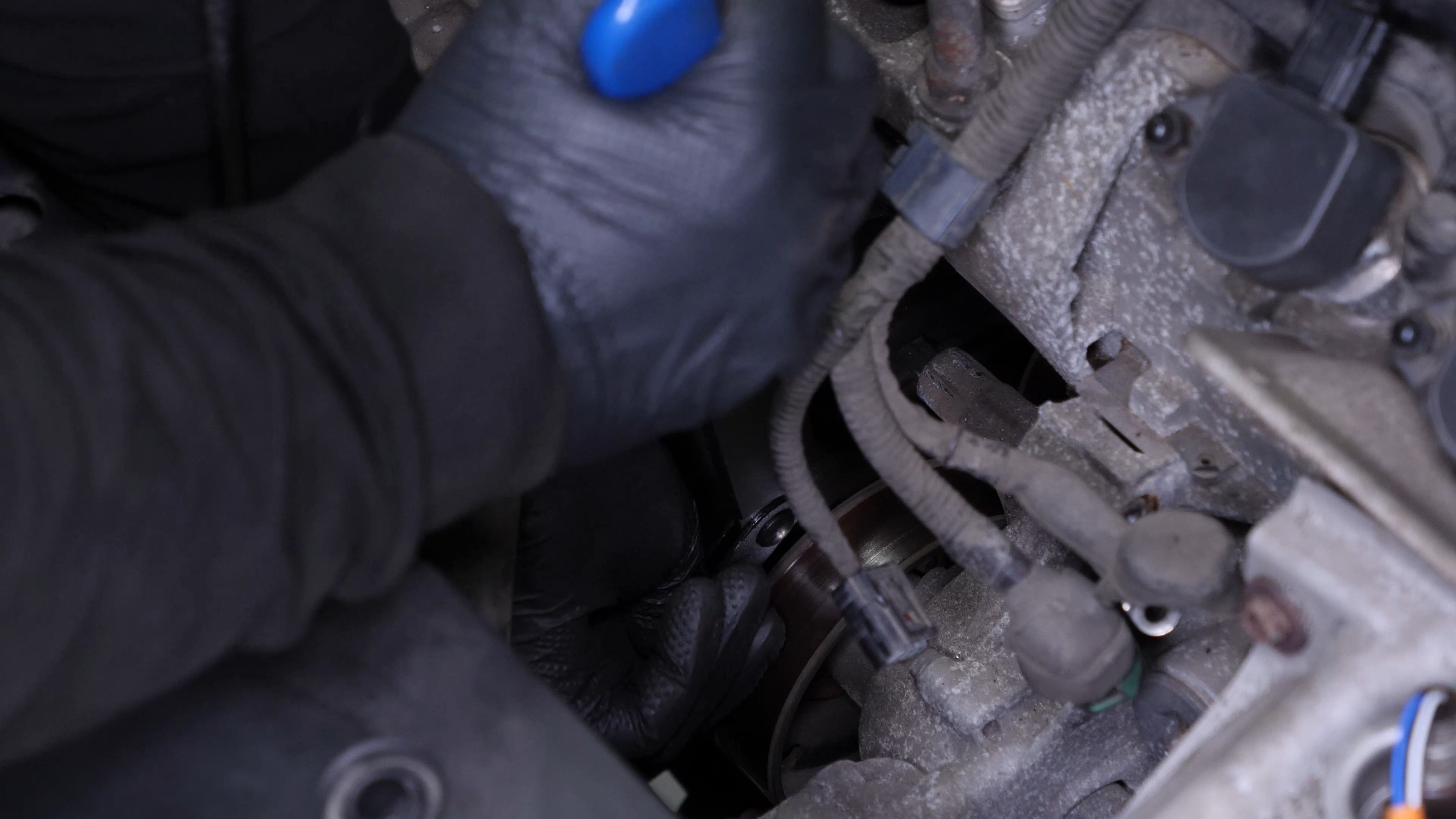

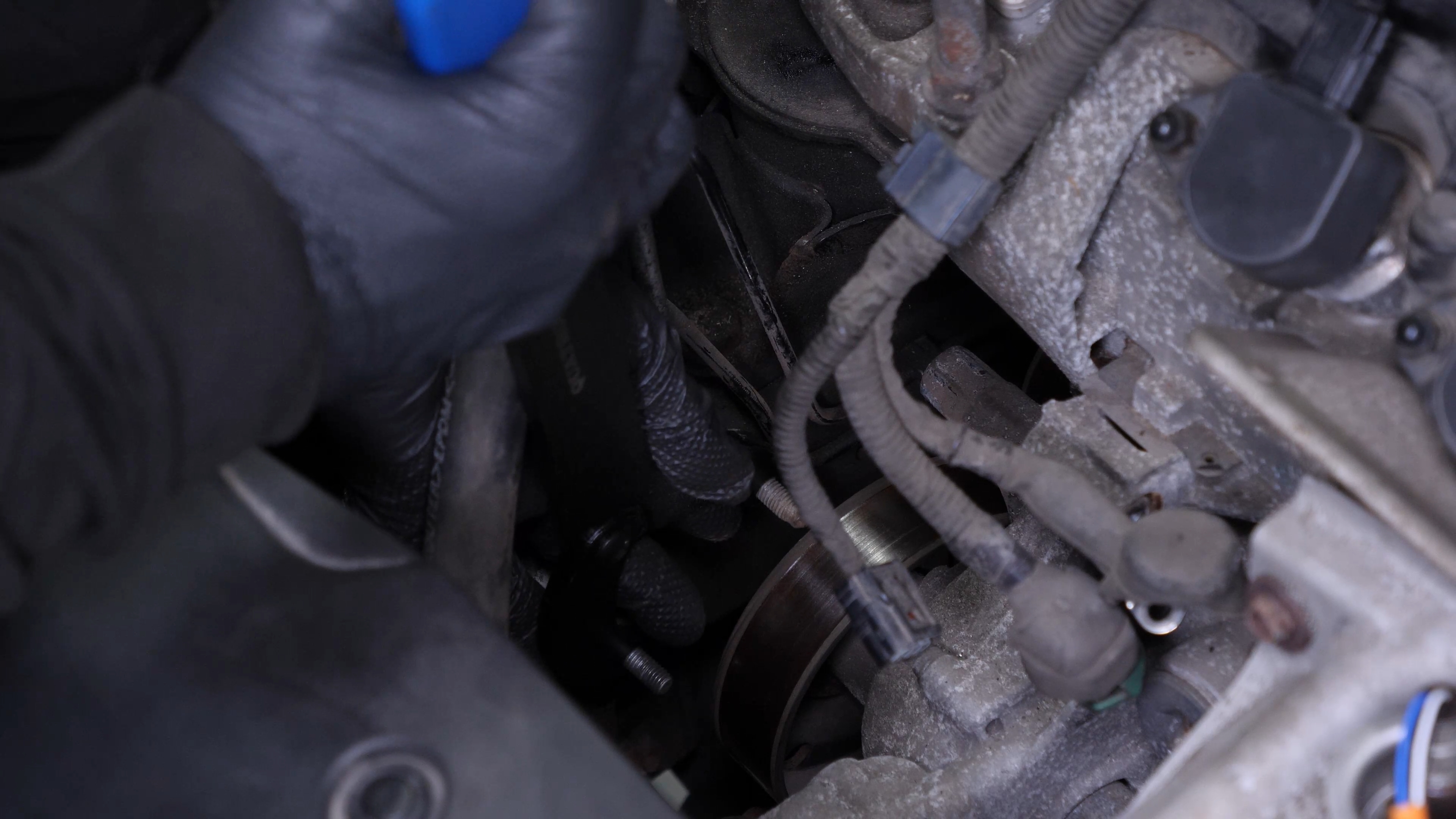

To access the water pump retaining bolts, you need to remove the water pump pulley. Secure the water pump pulley with a pulley lock wrench.

Chapter 5:

Step 2/3

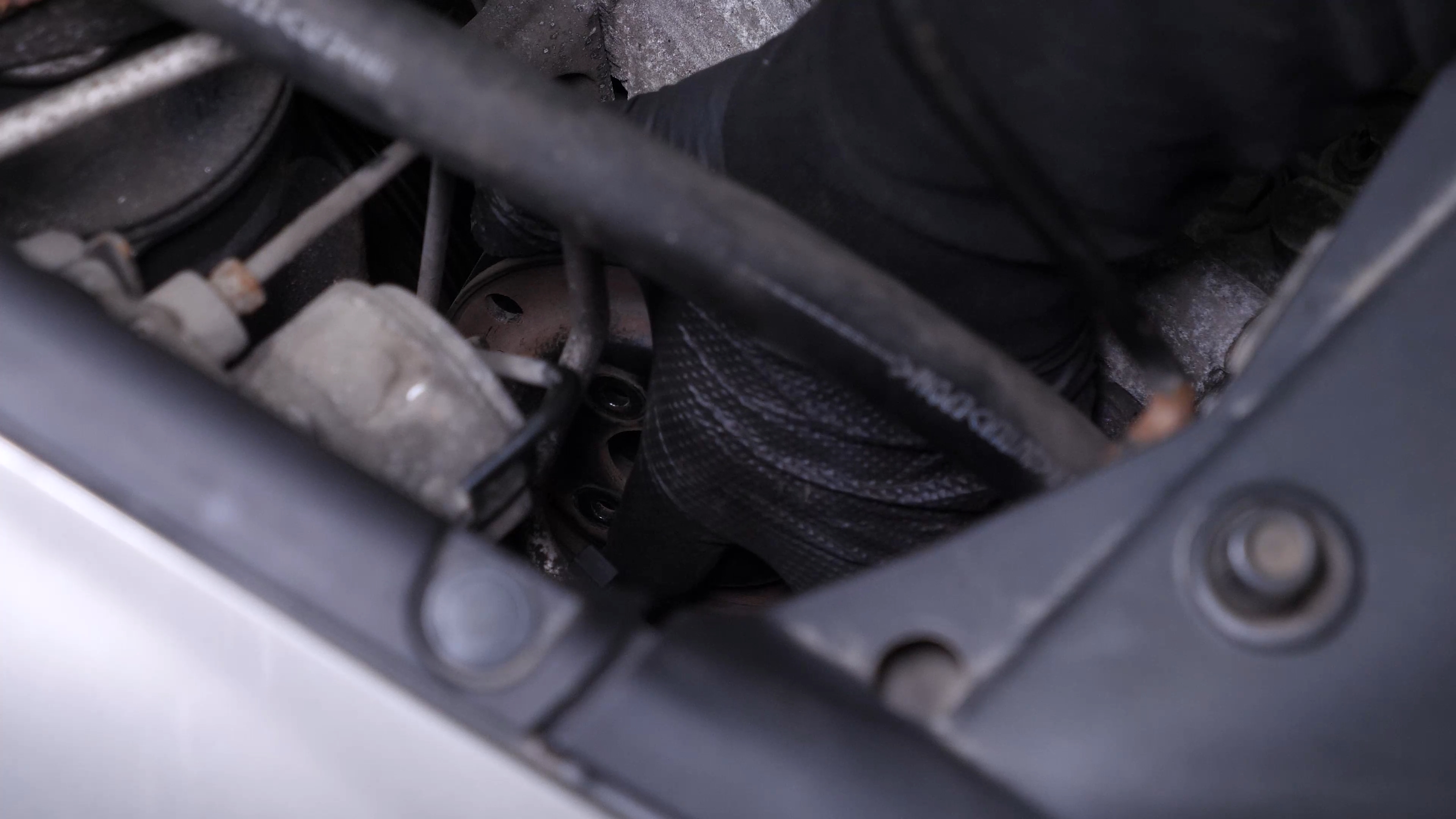

Insert the 2 pins of the wrench into the holes in the pulley.

Chapter 5:

Step 3/3

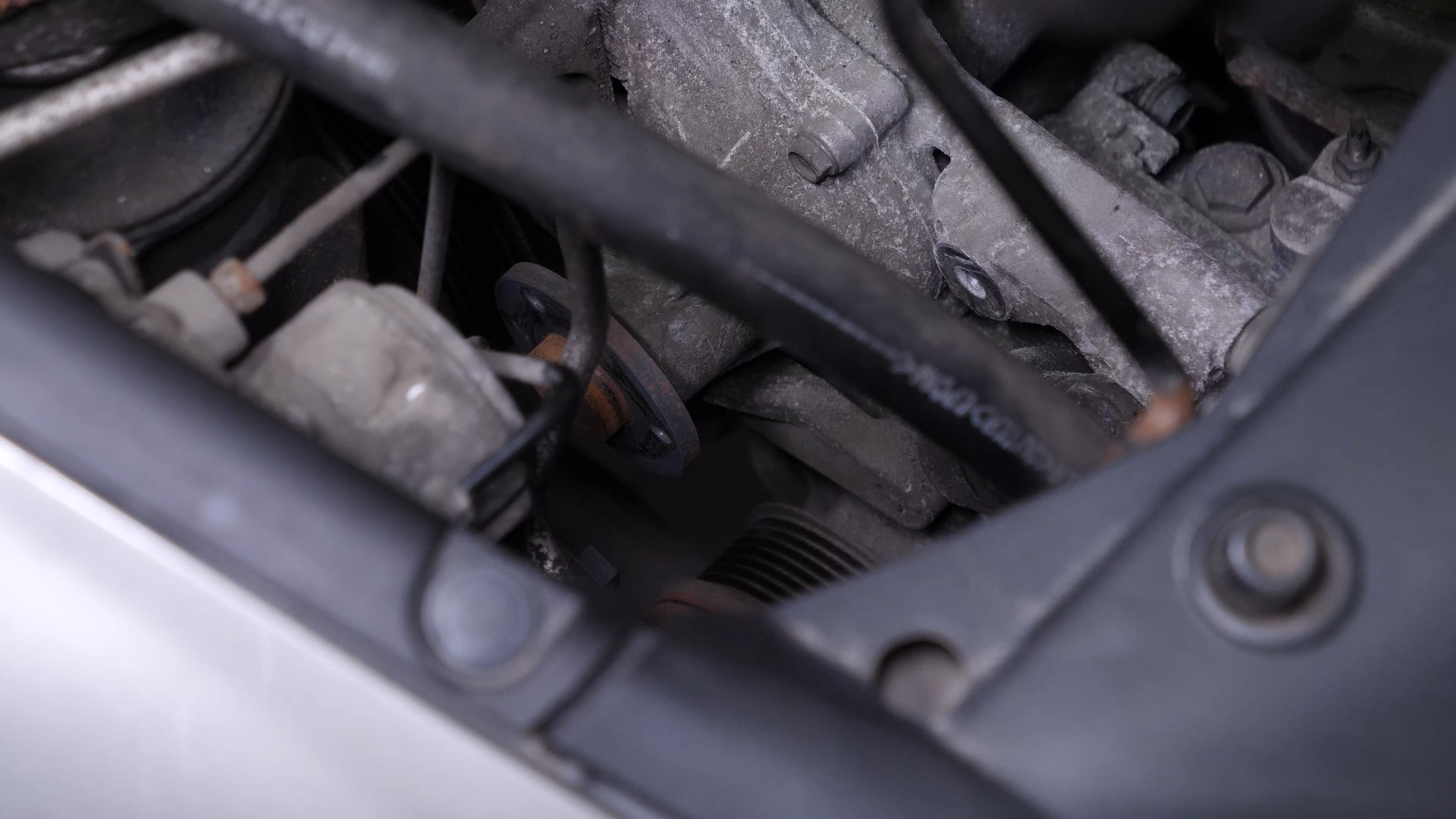

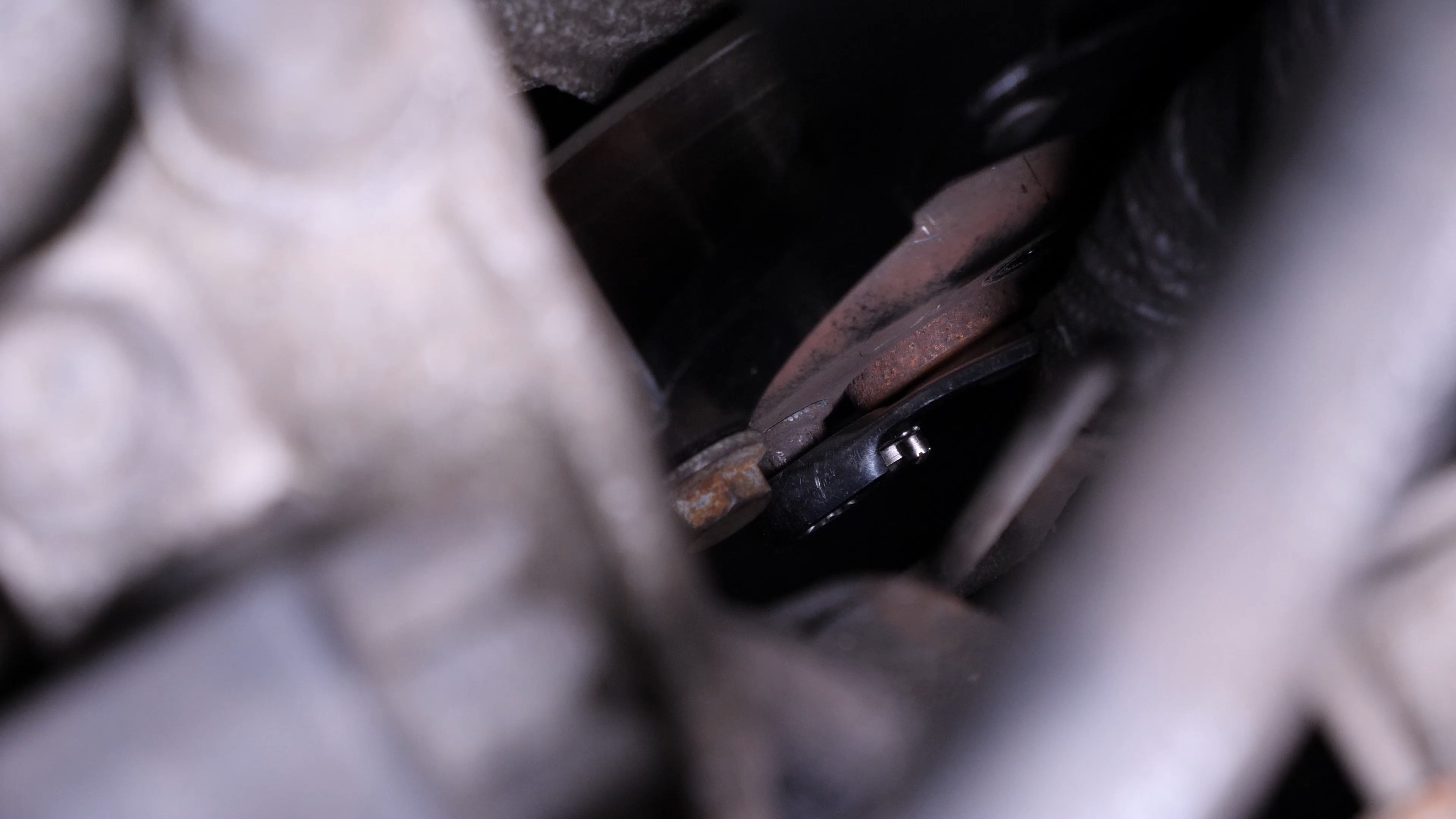

You can now unscrew the 3 pulley retaining bolts with a 10 mm wrench. Then, remove it.

Chapter 6:

Remove the water pump

Step 1/3

Using a 10 mm socket, unscrew the 5 water pump retaining bolts.

Chapter 6:

Step 2/3

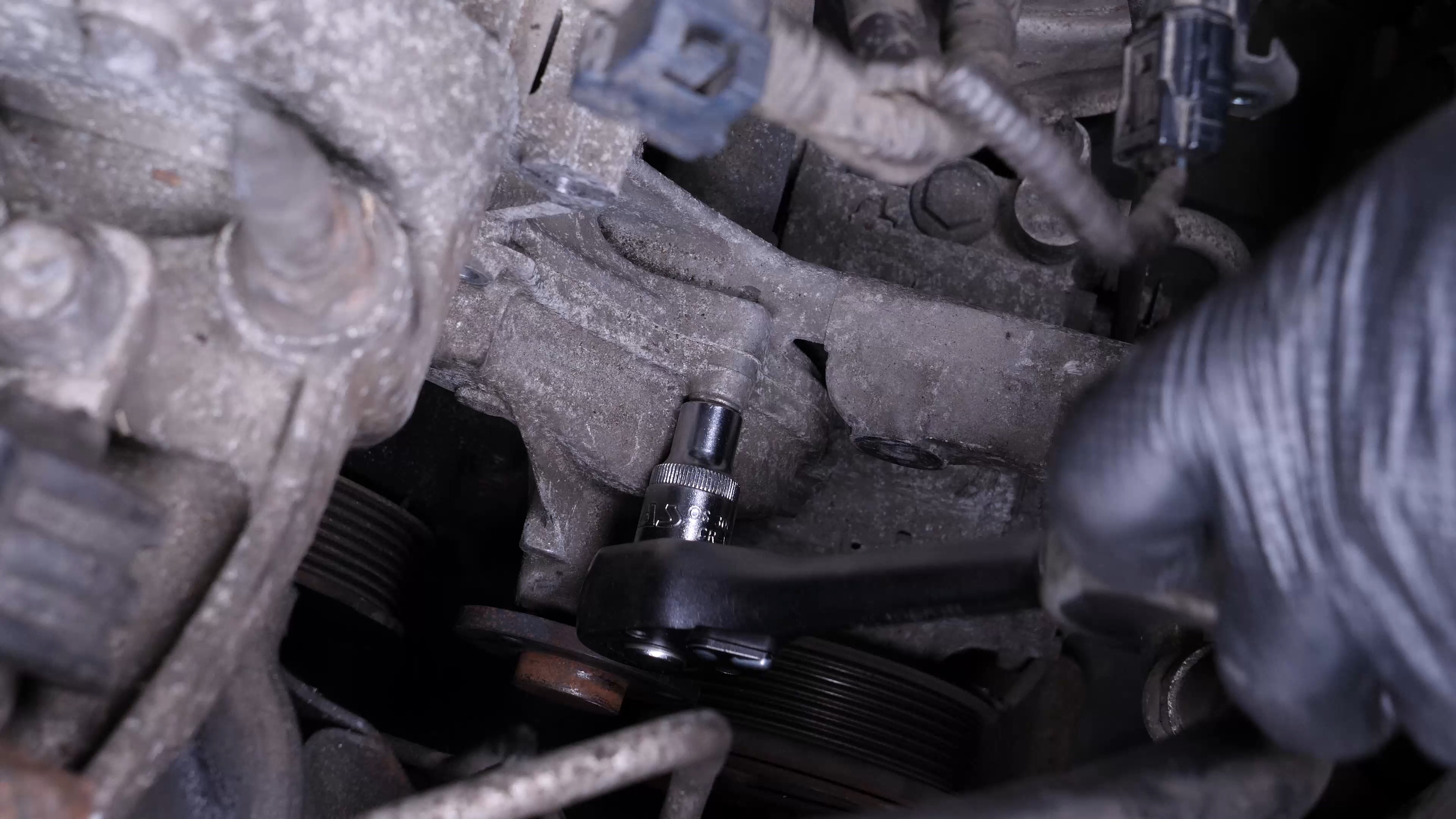

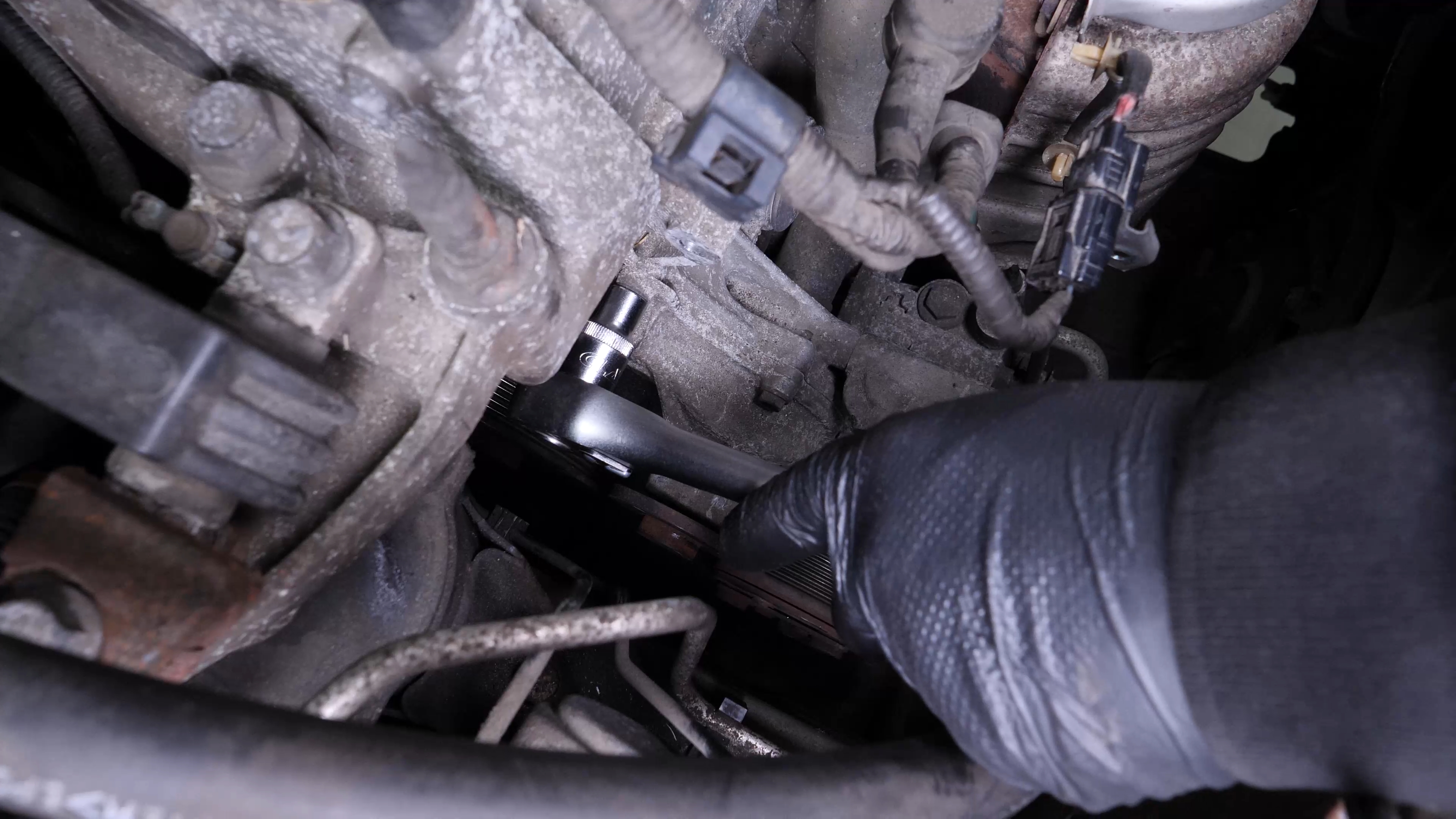

You can easily access the first 3 retaining bolts on top of the water pump.

Chapter 6:

Step 3/3

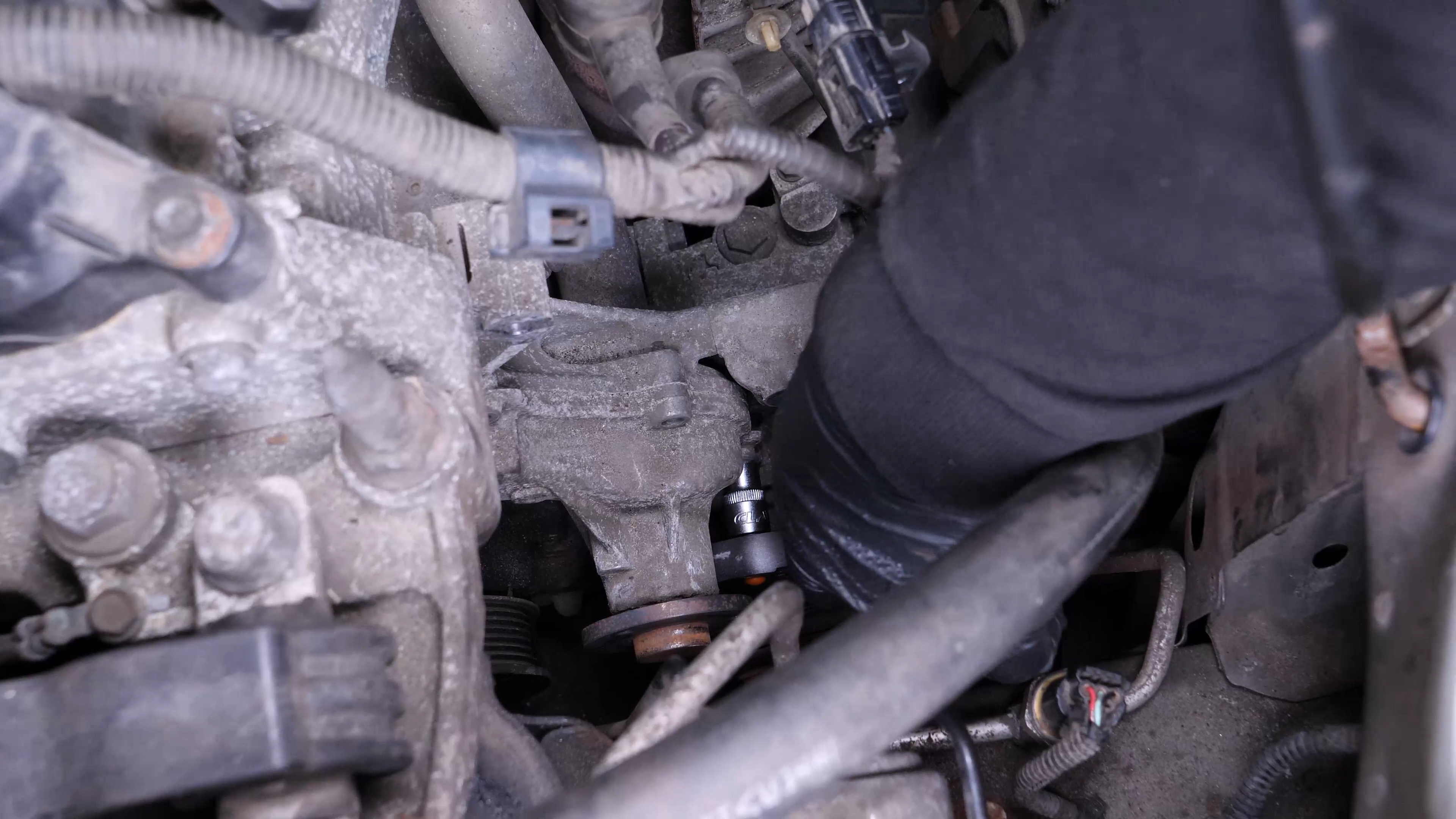

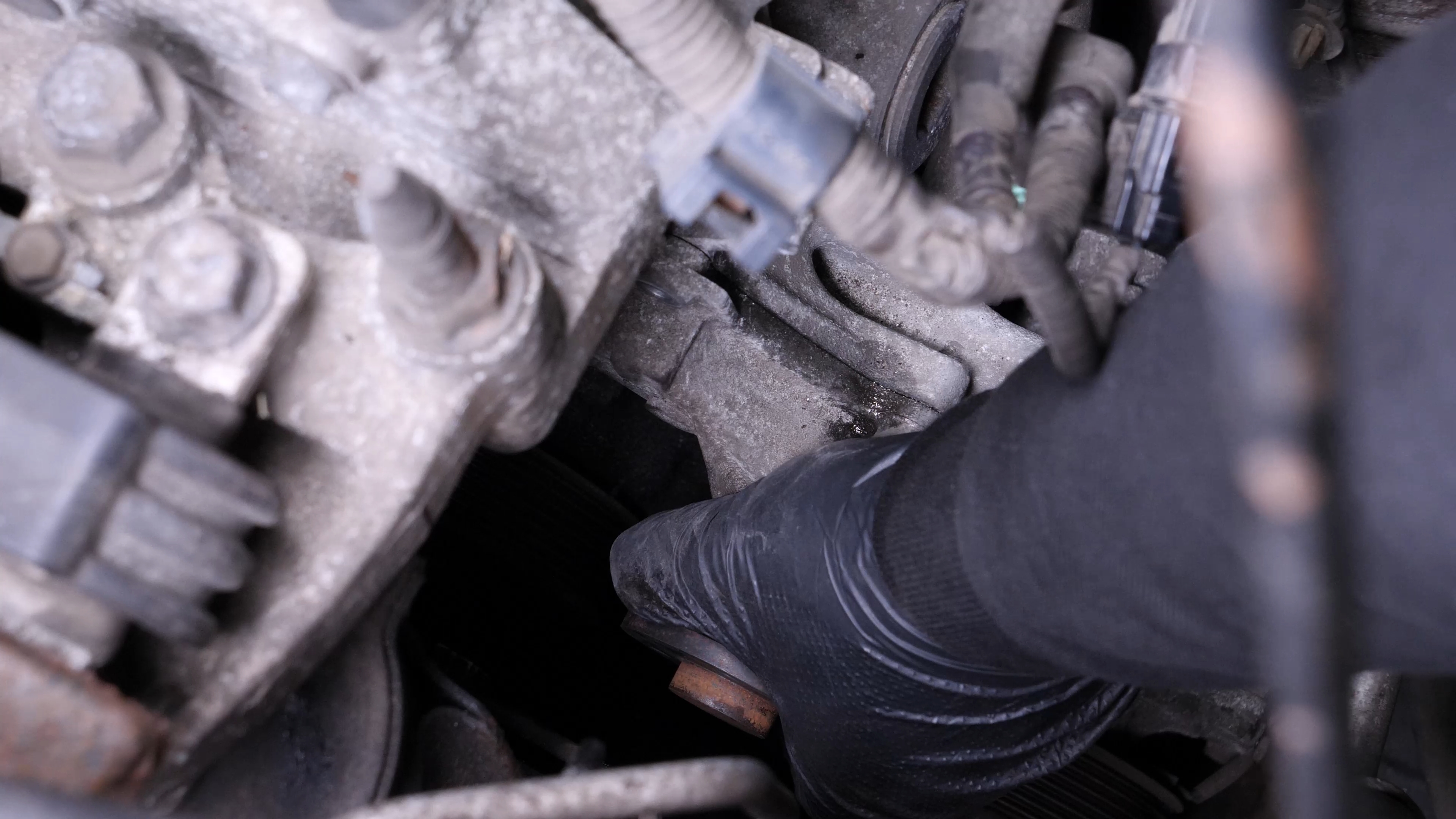

The last 2 bolts are more difficult to access as they are under the water pump. You can also use an extender for different access points.

Chapter 7:

Tips

Step 1/2

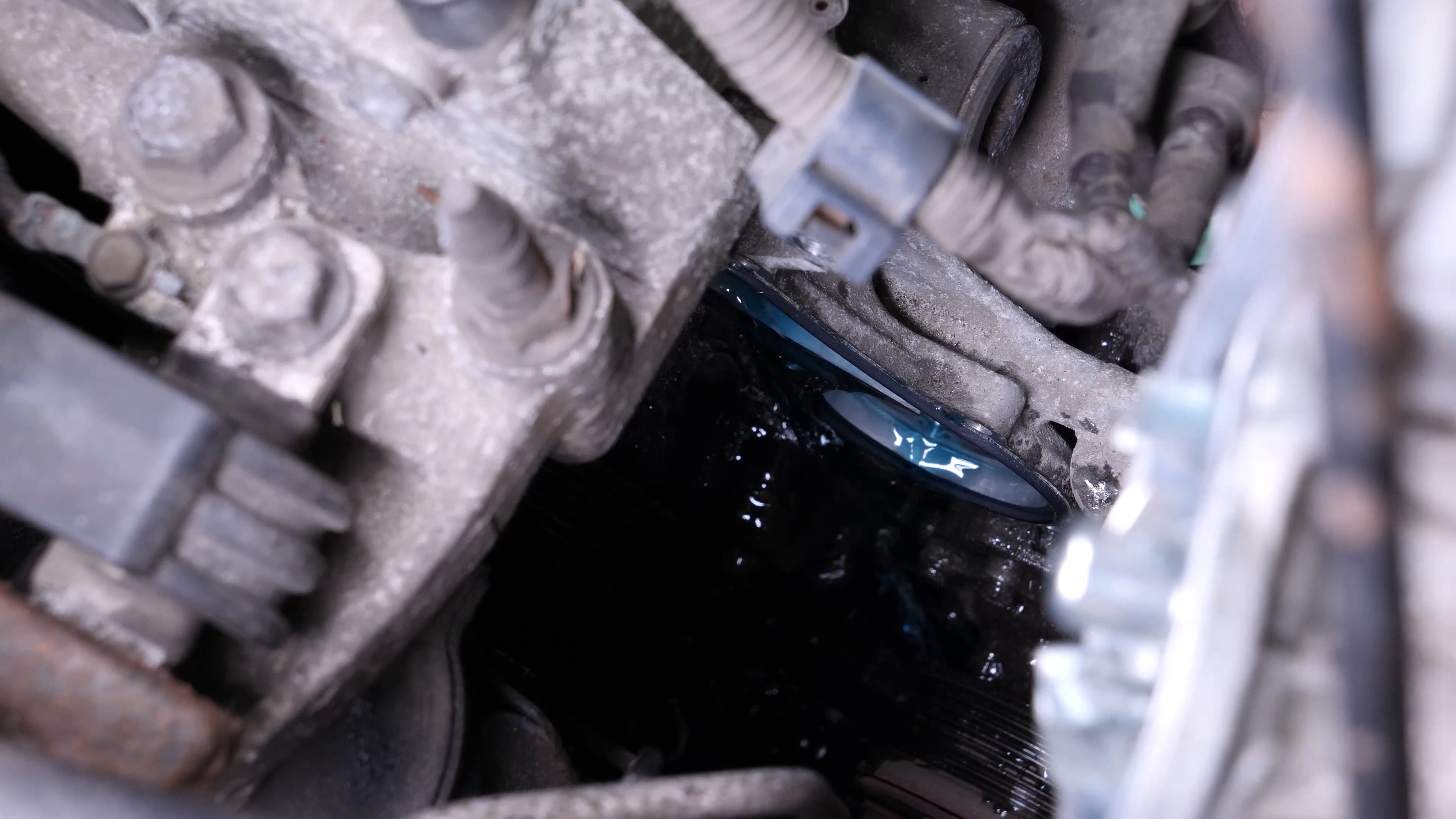

Remember to position the liquid collector under the pump.

Chapter 7:

Step 2/2

Be careful, when removing it, coolant remaining in the circuit will flow.

Chapter 8:

Clean the gasket surface

Step 1/3

Remove the seal.

Chapter 8:

Step 2/3

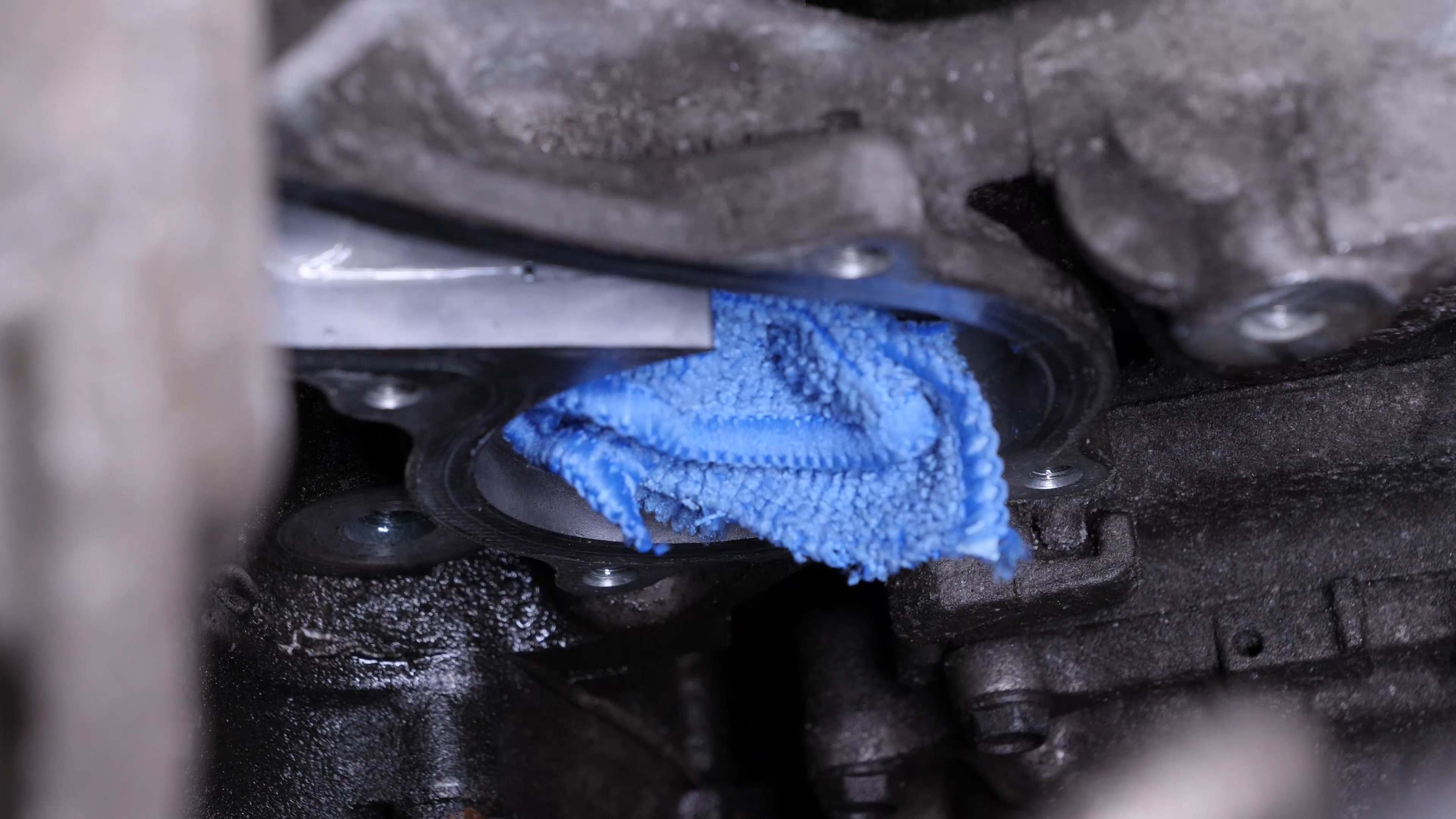

Protect the entrance to the cooling circuit by plugging it with a cloth to prevent impurities from polluting the circuit.

Chapter 8:

Step 3/3

To avoid any risk of leaks, clean the water pump seal surface thoroughly.

Chapter 9:

Informations

Step 1/1

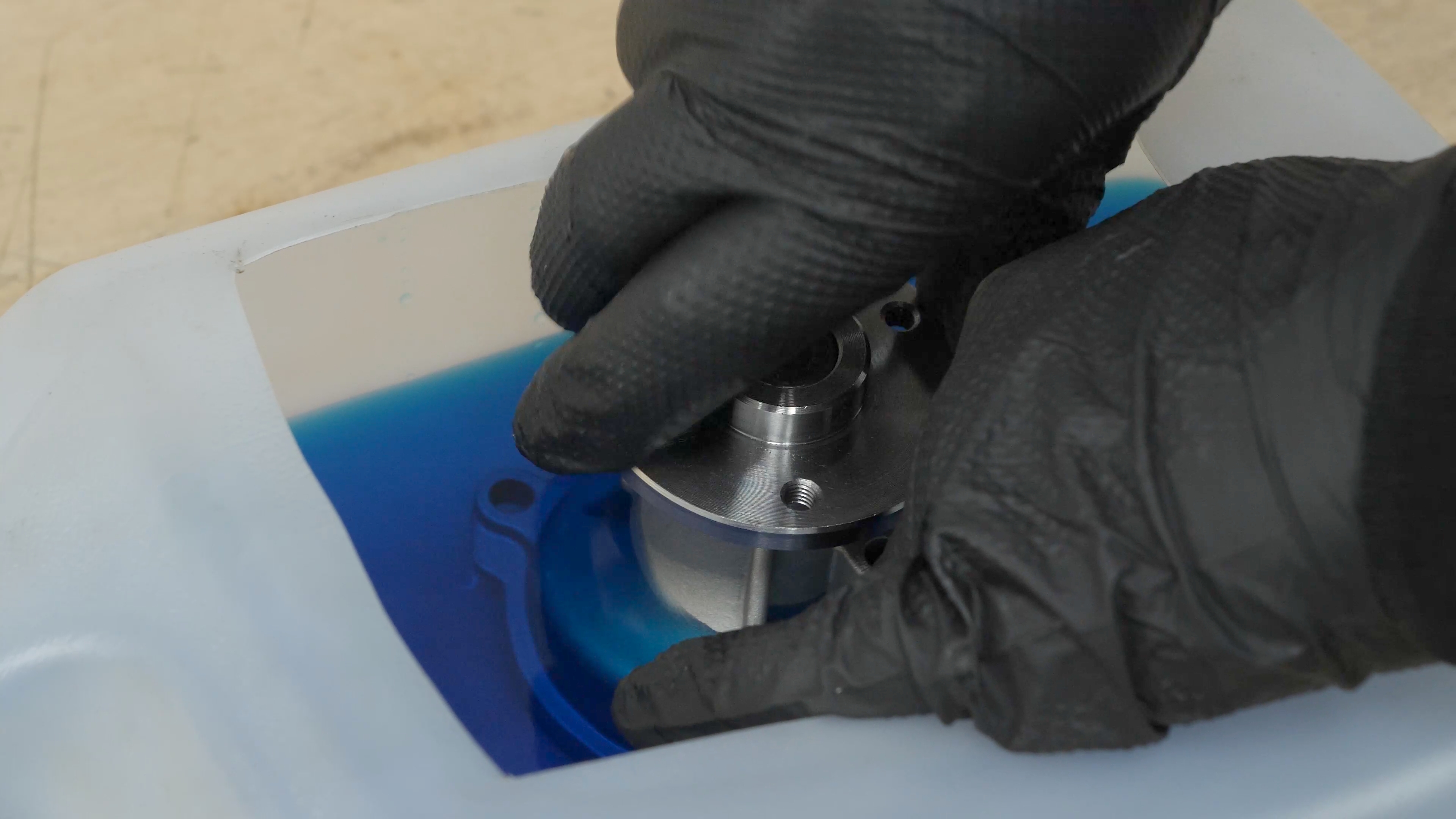

Everyone’s natural reflex is to take the water pump in hand and turn the pump pulley to check that this element is rotating correctly. But this is a serious mistake that can irreversibly damage the water pump. You need to immerse the pump in coolant, and to turn it around ten times. This prevents subsequent leaks, as the pump must never run dry.

Chapter 10:

Prepare the water pump

Step 1/4

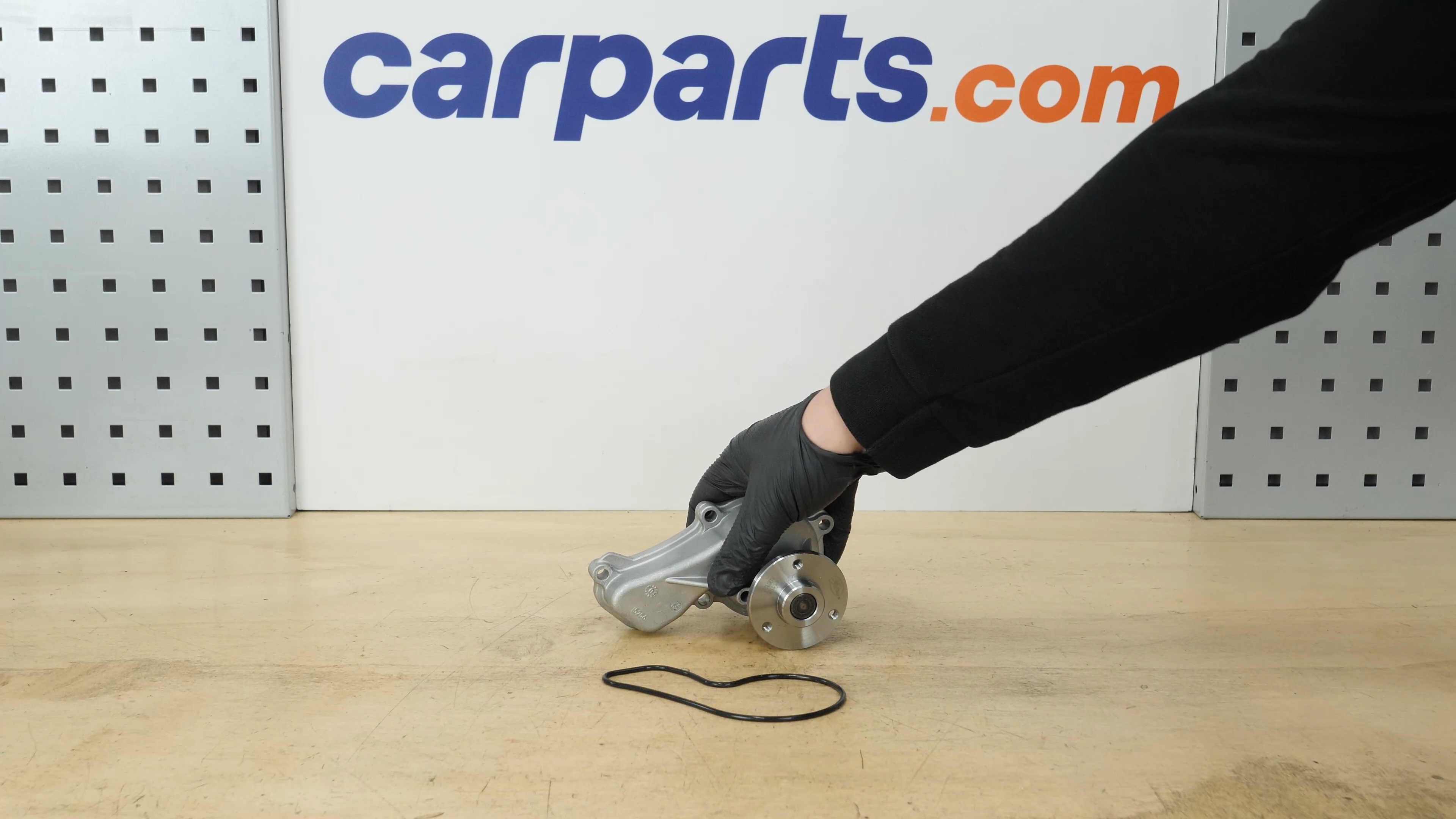

Get the new water pump.

Chapter 10:

Step 2/4

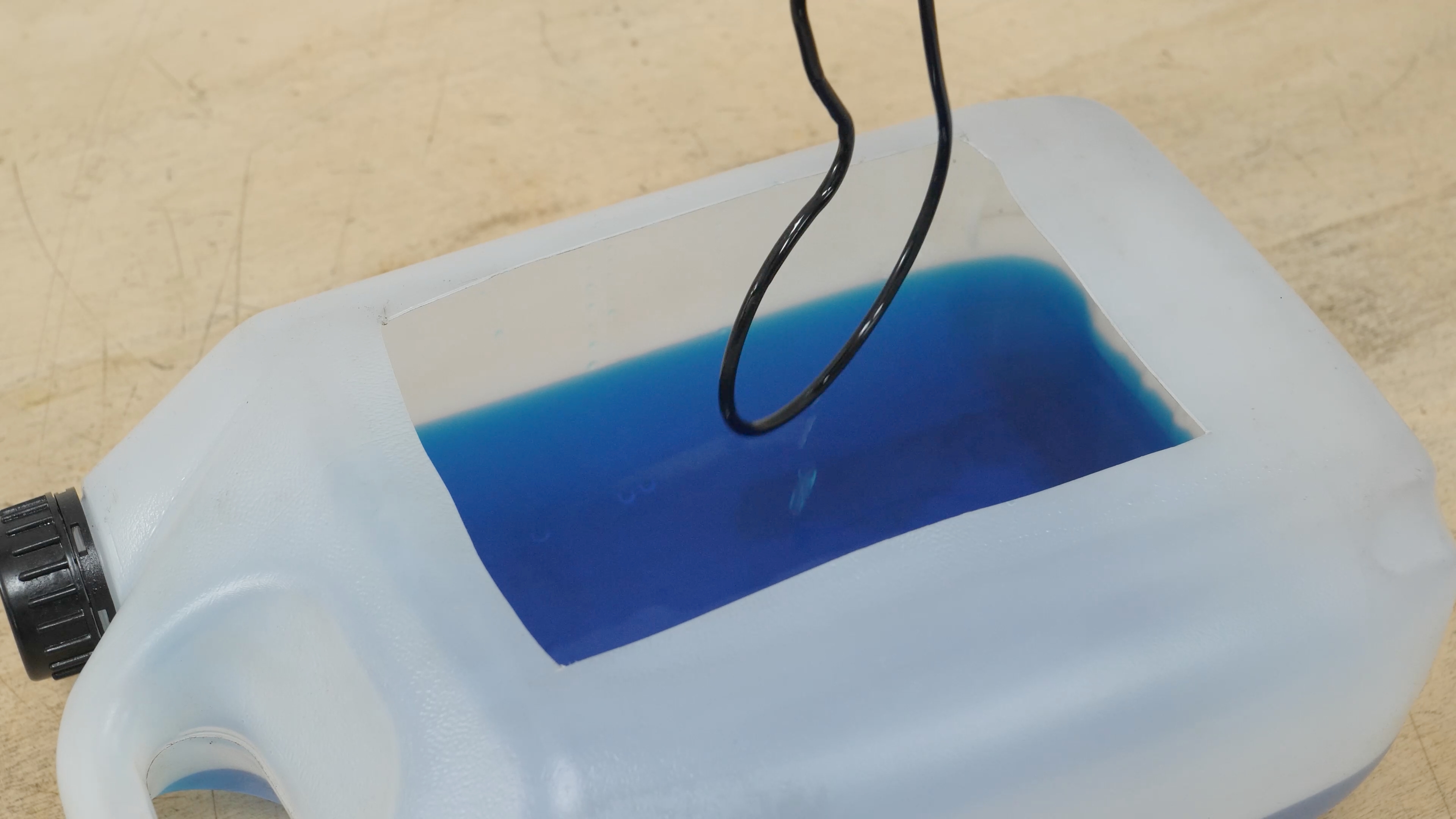

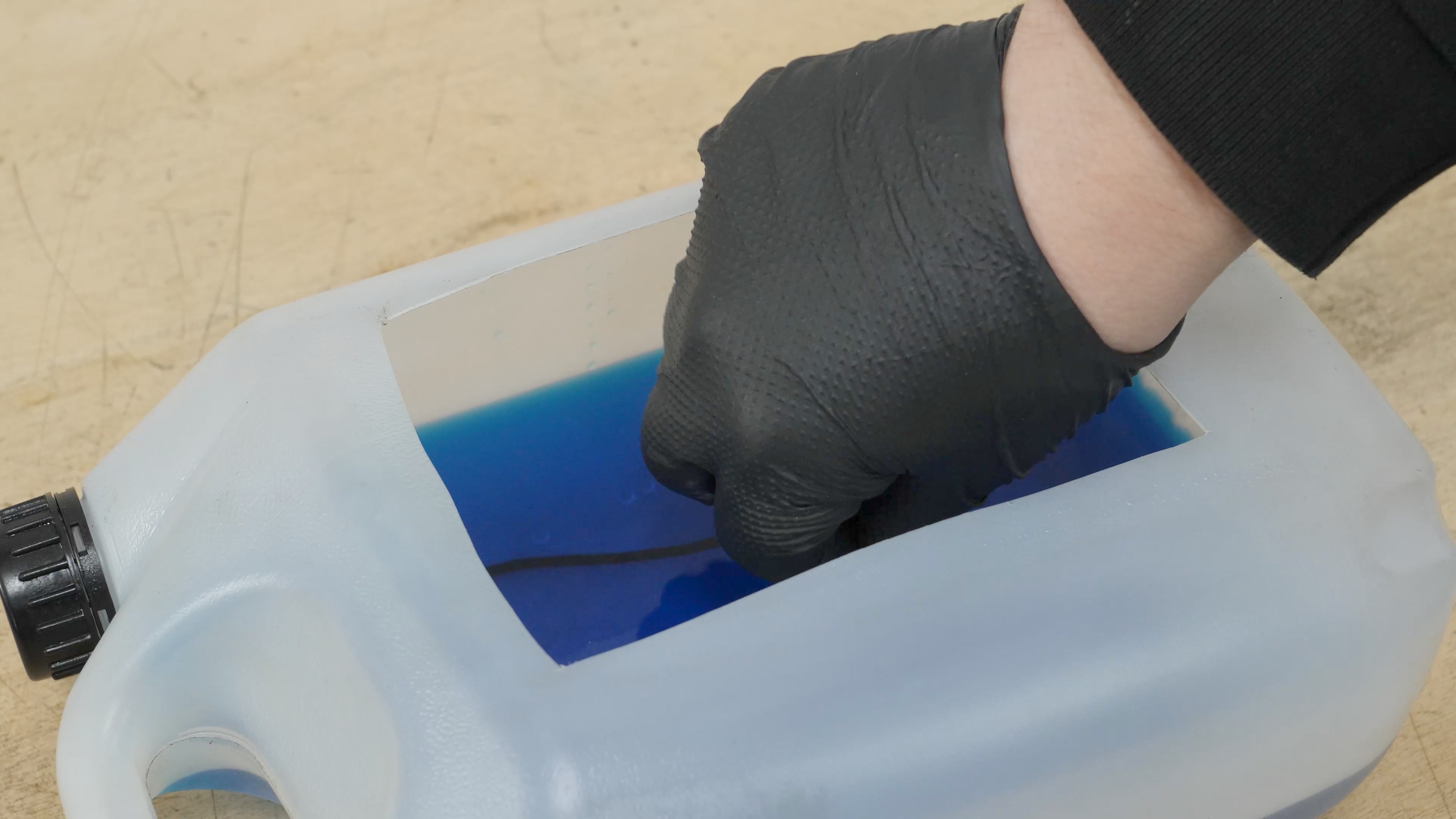

Get the new seal, and soak it in the coolant.

Chapter 10:

Step 3/4

Then put it in place on the new water pump.

Chapter 10:

Step 4/4

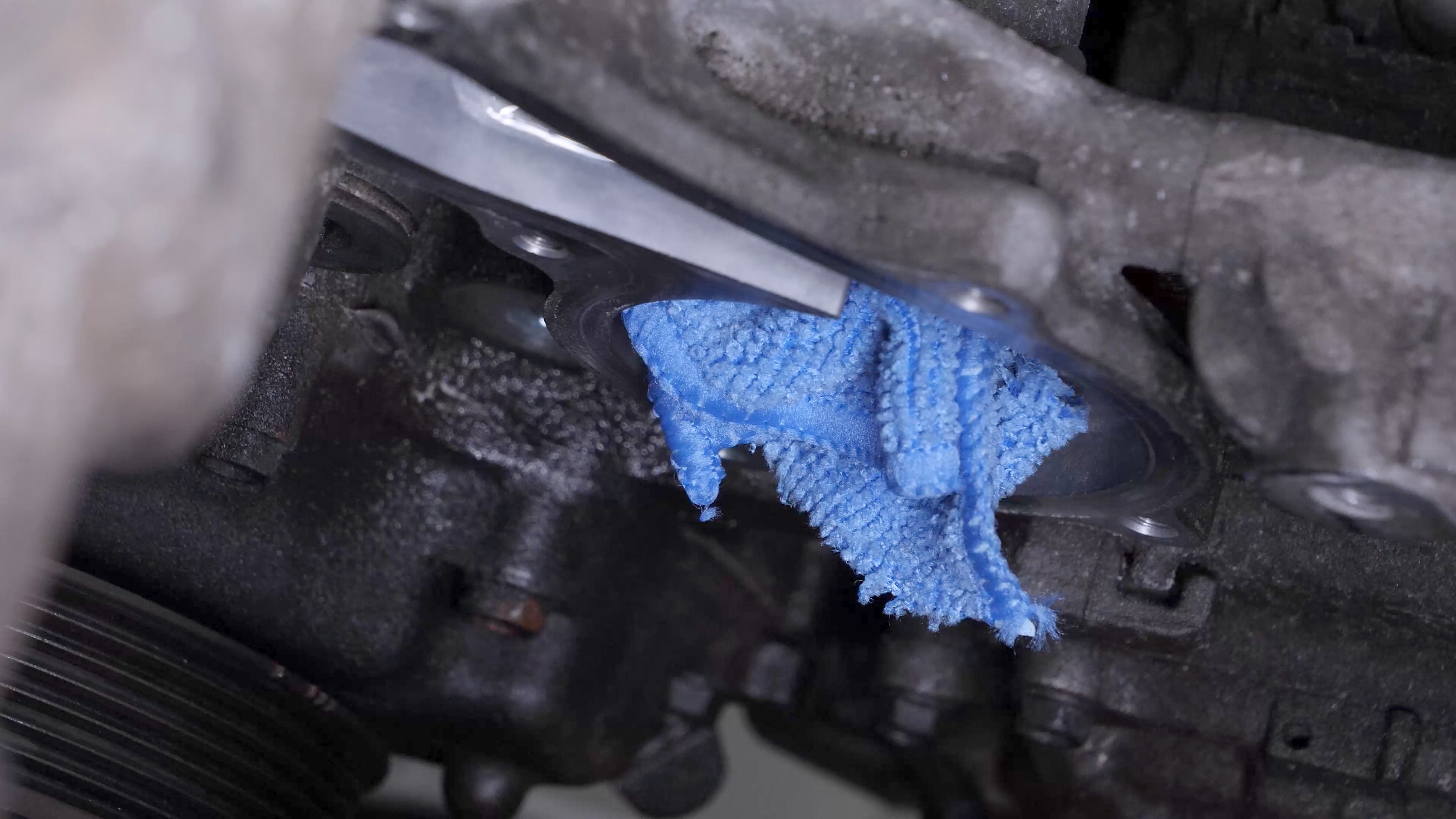

Remove the cloth.

Chapter 11:

Install the new water pump

Step 1/4

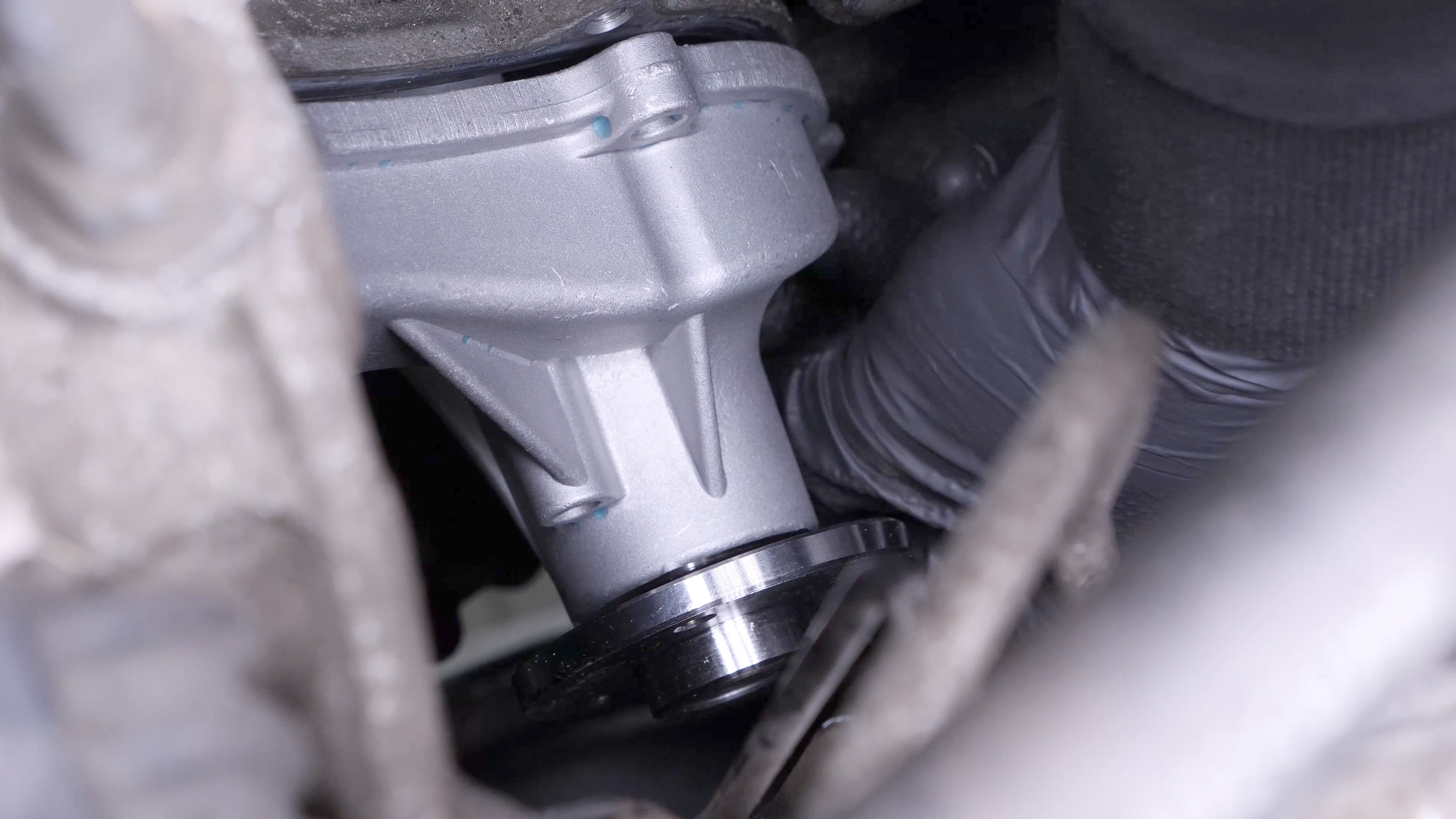

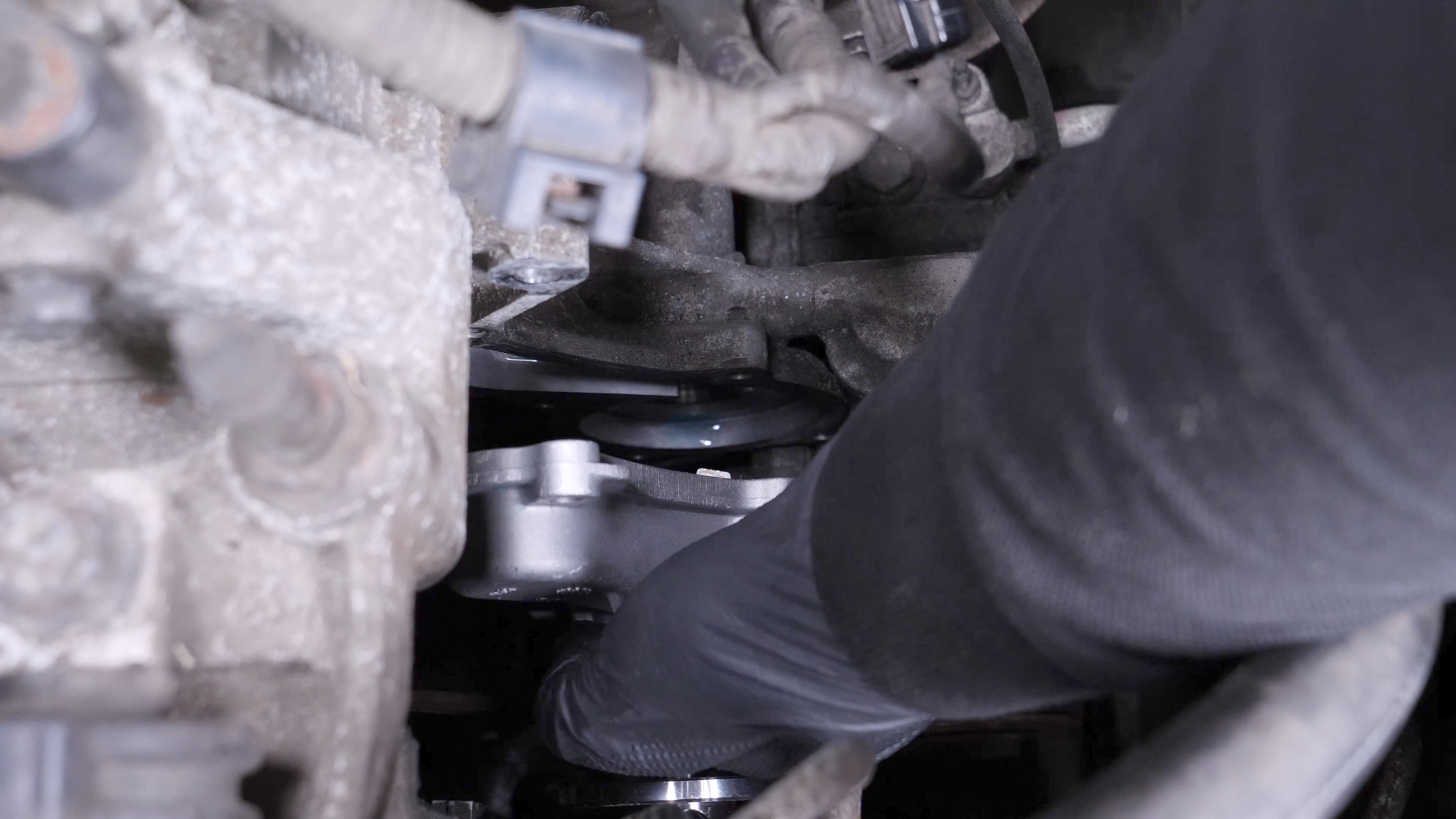

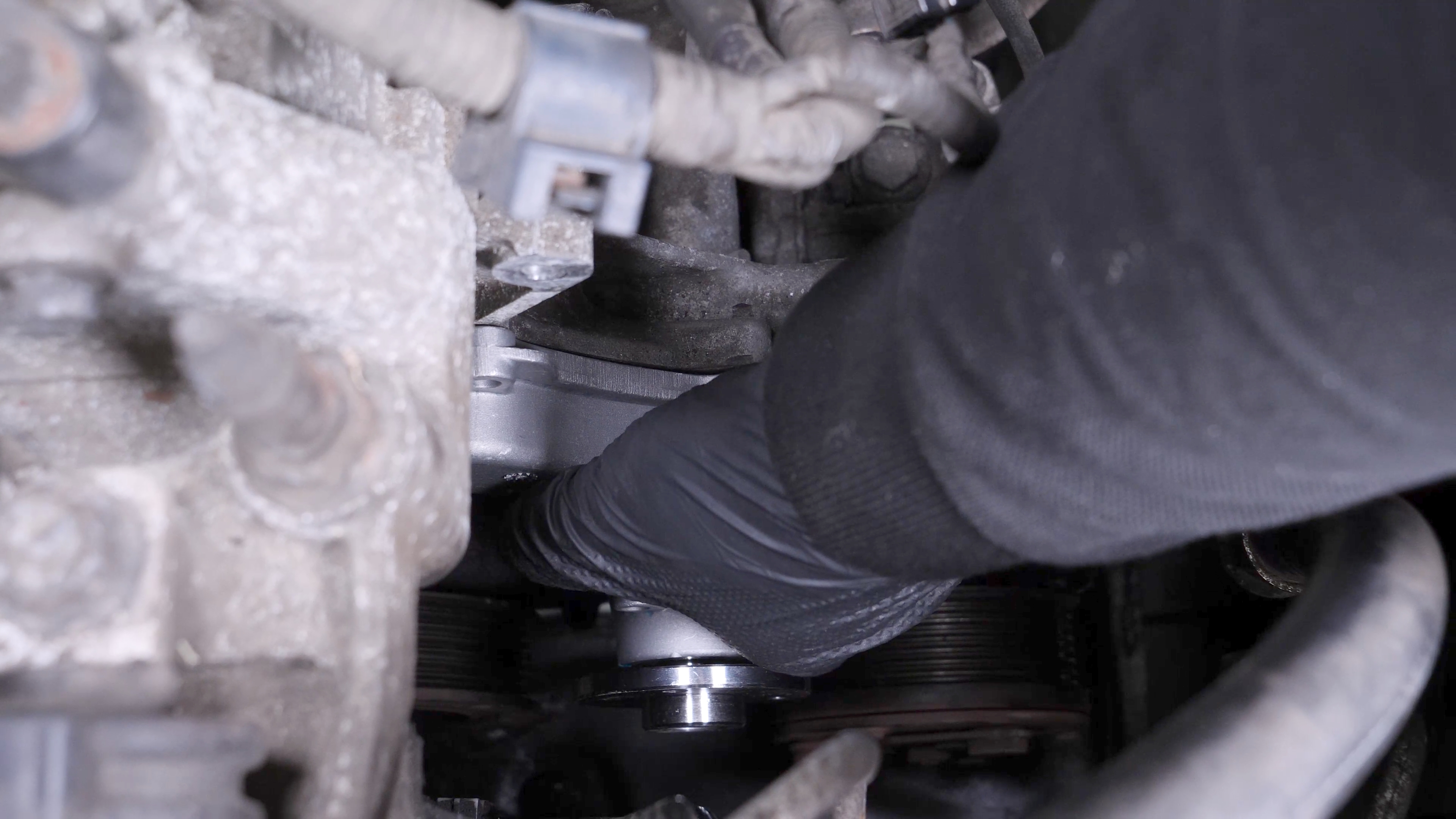

Take the new water pump and install it, making sure the seal is firmly in place on the pump.

Chapter 11:

Step 2/4

Loosely screw a bolt back on to hold it together.

Chapter 11:

Step 3/4

You can now screw in all the water pump retaining bolts until they make contact.

Chapter 11:

Step 4/4

Finish tightening the bolts in staggered order using a torque wrench.

Chapter 12:

Put the the water pump pulley back

Step 1/3

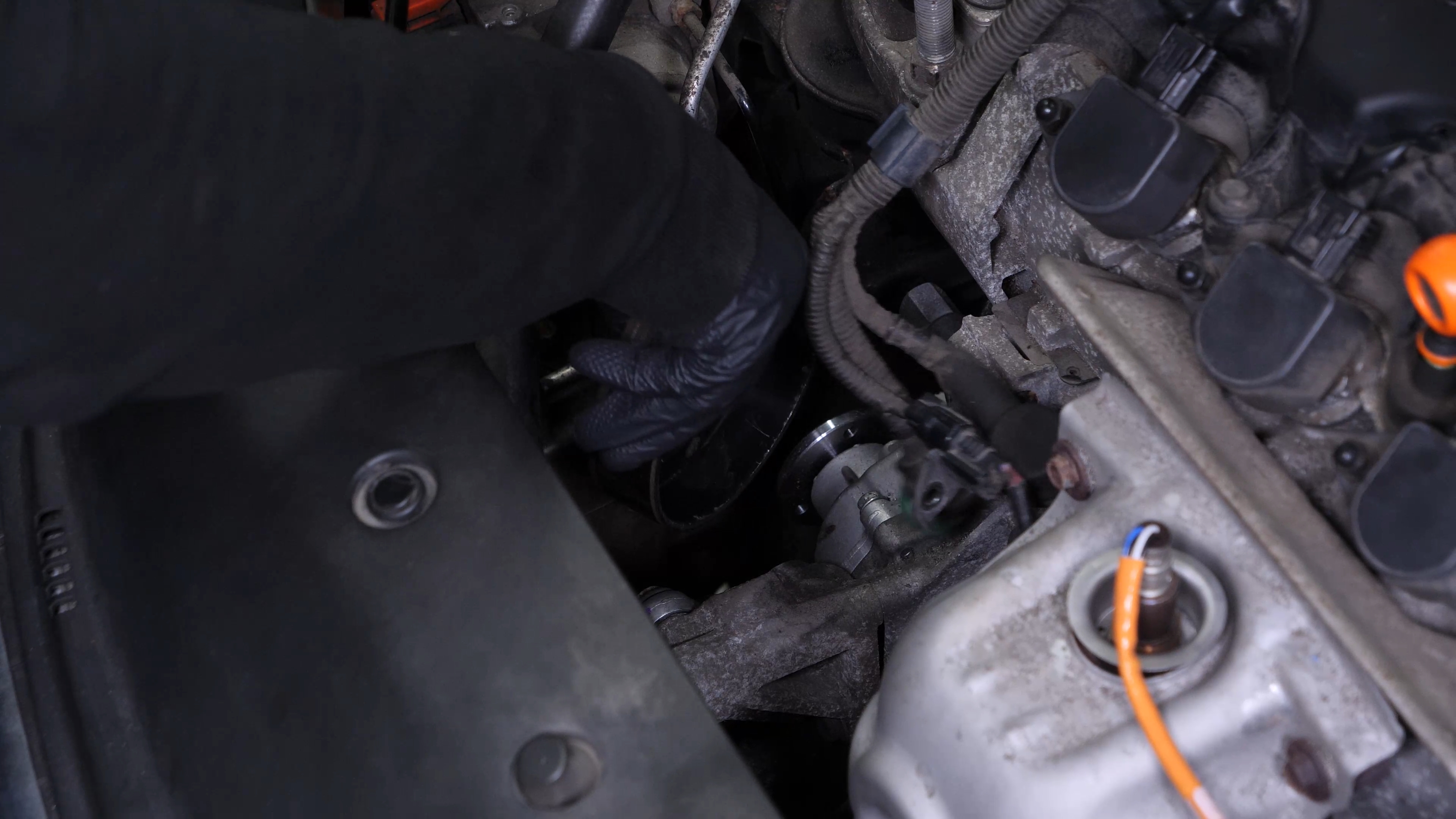

We recommend installing a new water pump pulley. Replace the water pump pulley.

Chapter 12:

Step 2/3

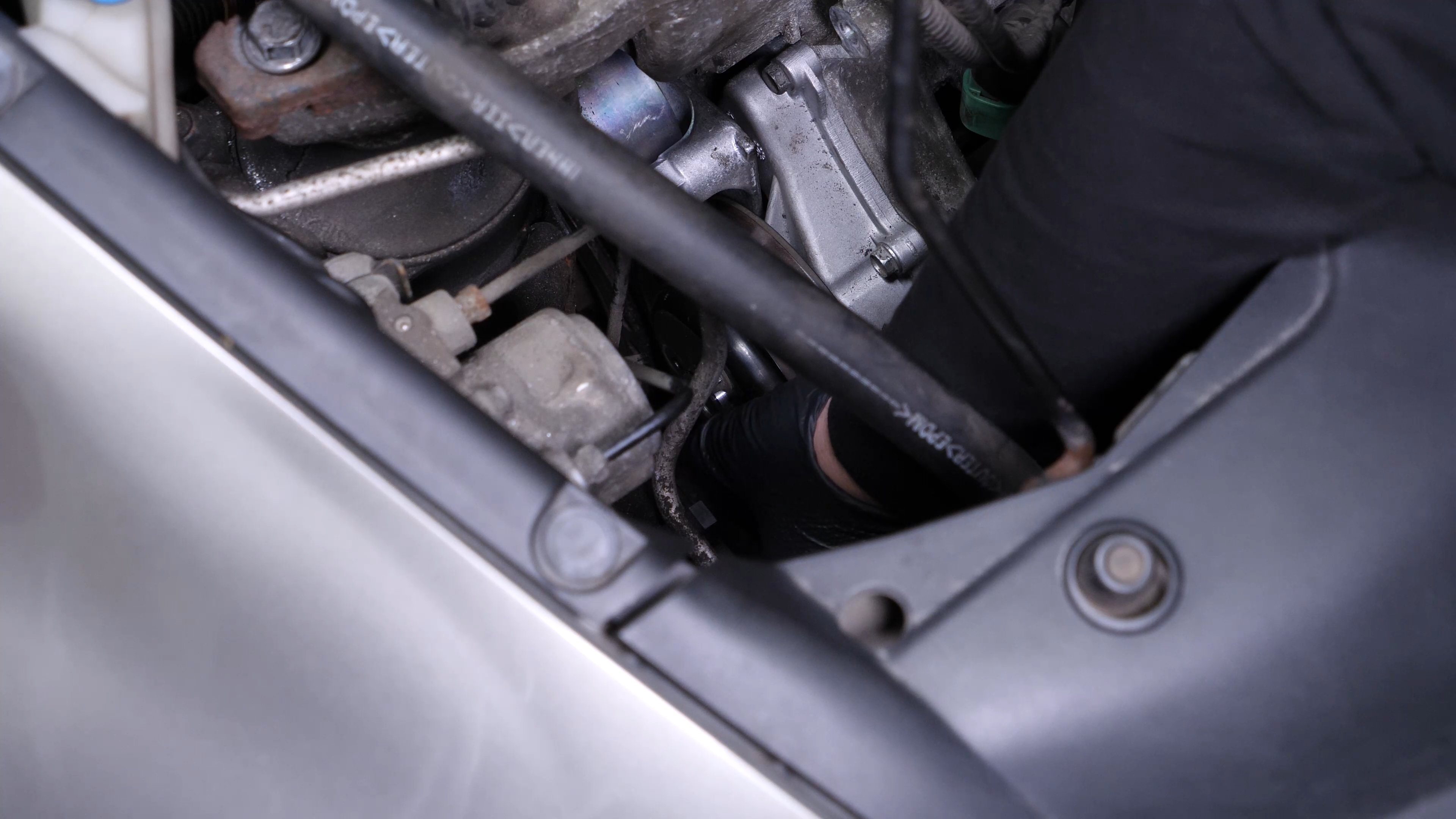

Using the pulley lock wrench and a 10 mm wrench, tighten the 3 pulley retaining bolts.

Chapter 12:

Step 3/3

Finish tightening using a torque wrench.

Chapter 13:

Put the serpentine belt back

Step 1/3

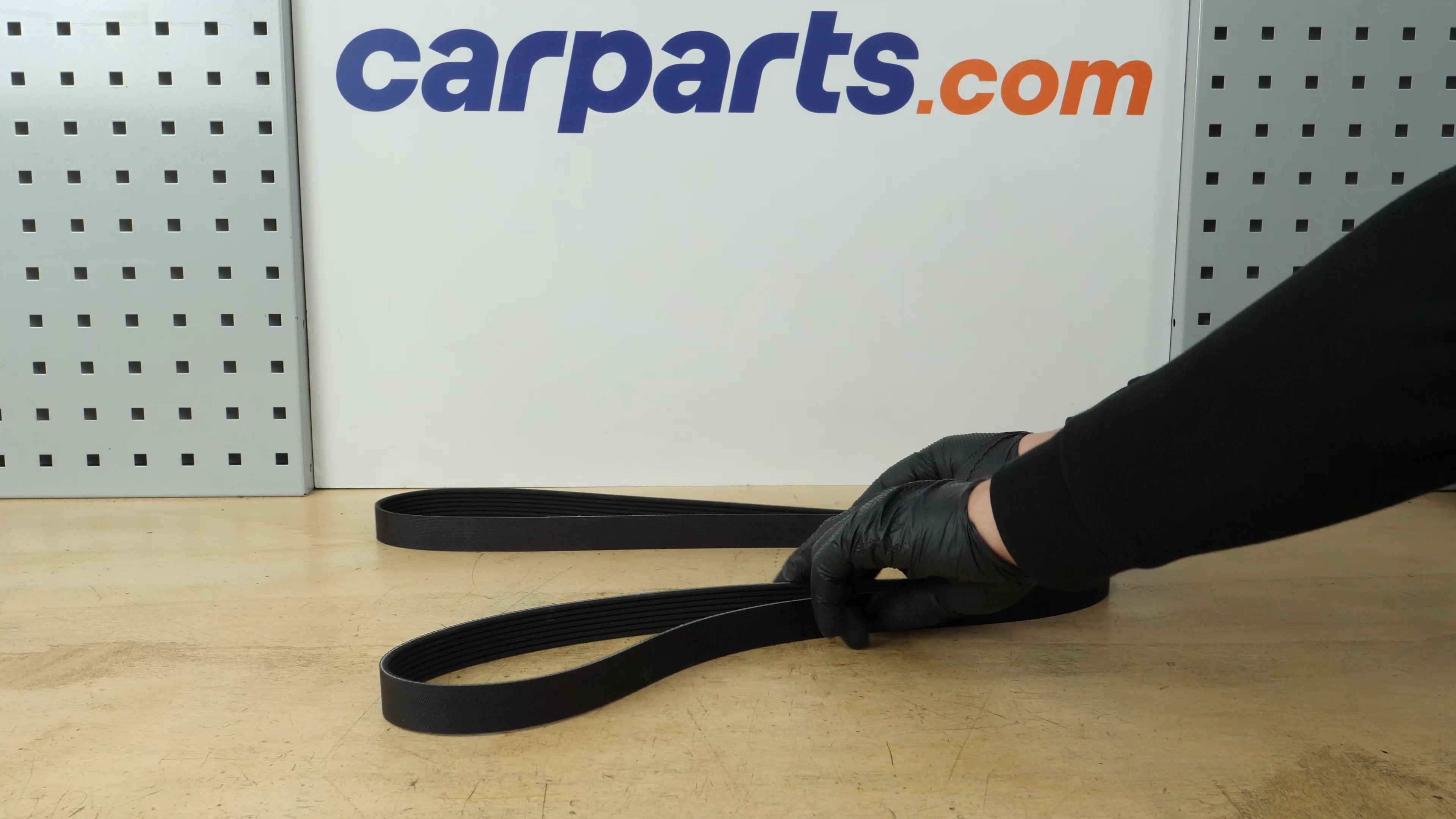

You can now put the serpentine belt back in place.

Chapter 13:

Step 2/3

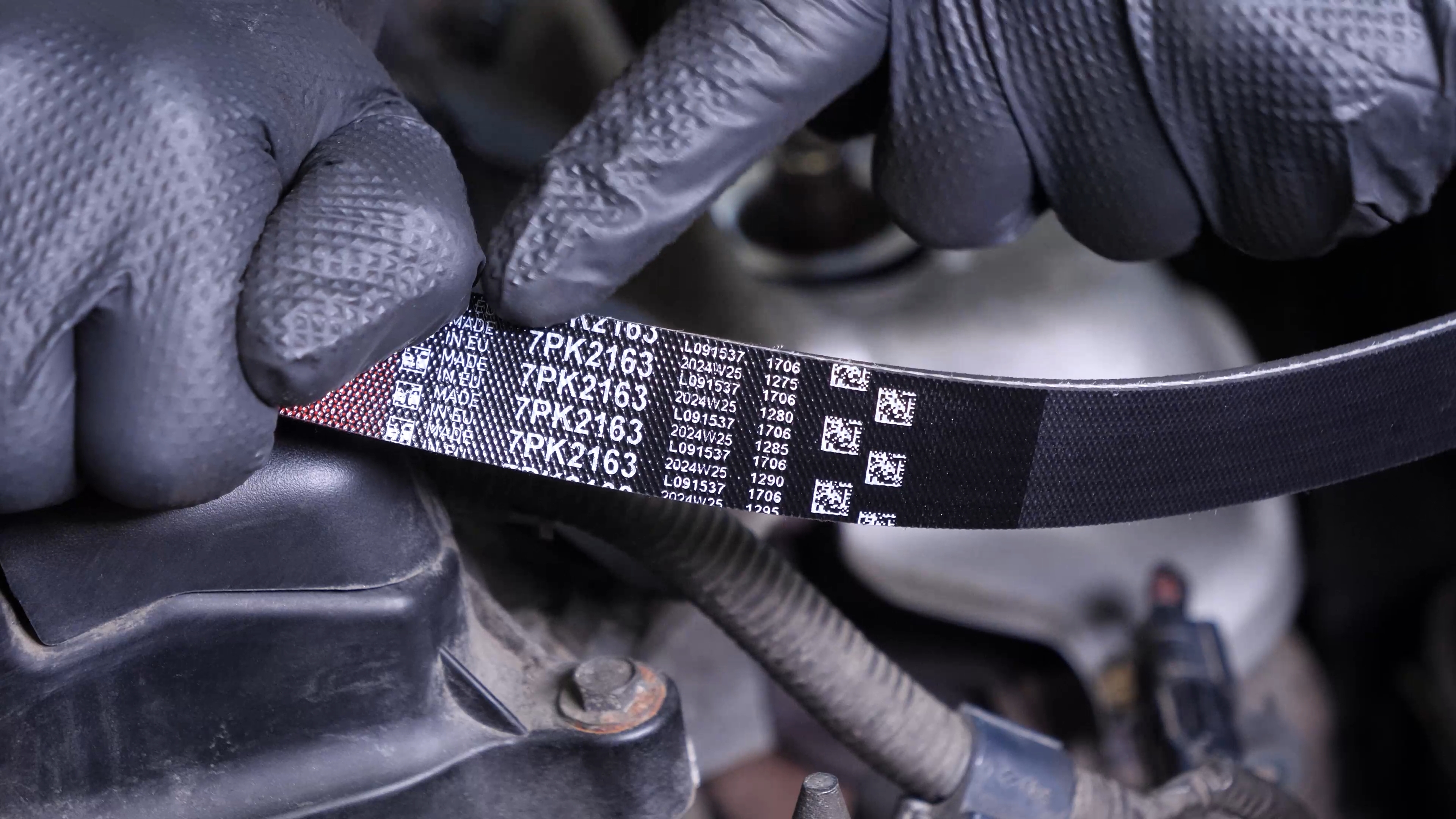

Pay careful attention to which way up you use it. The writing on the belt must turn clockwise.

Chapter 13:

Step 3/3

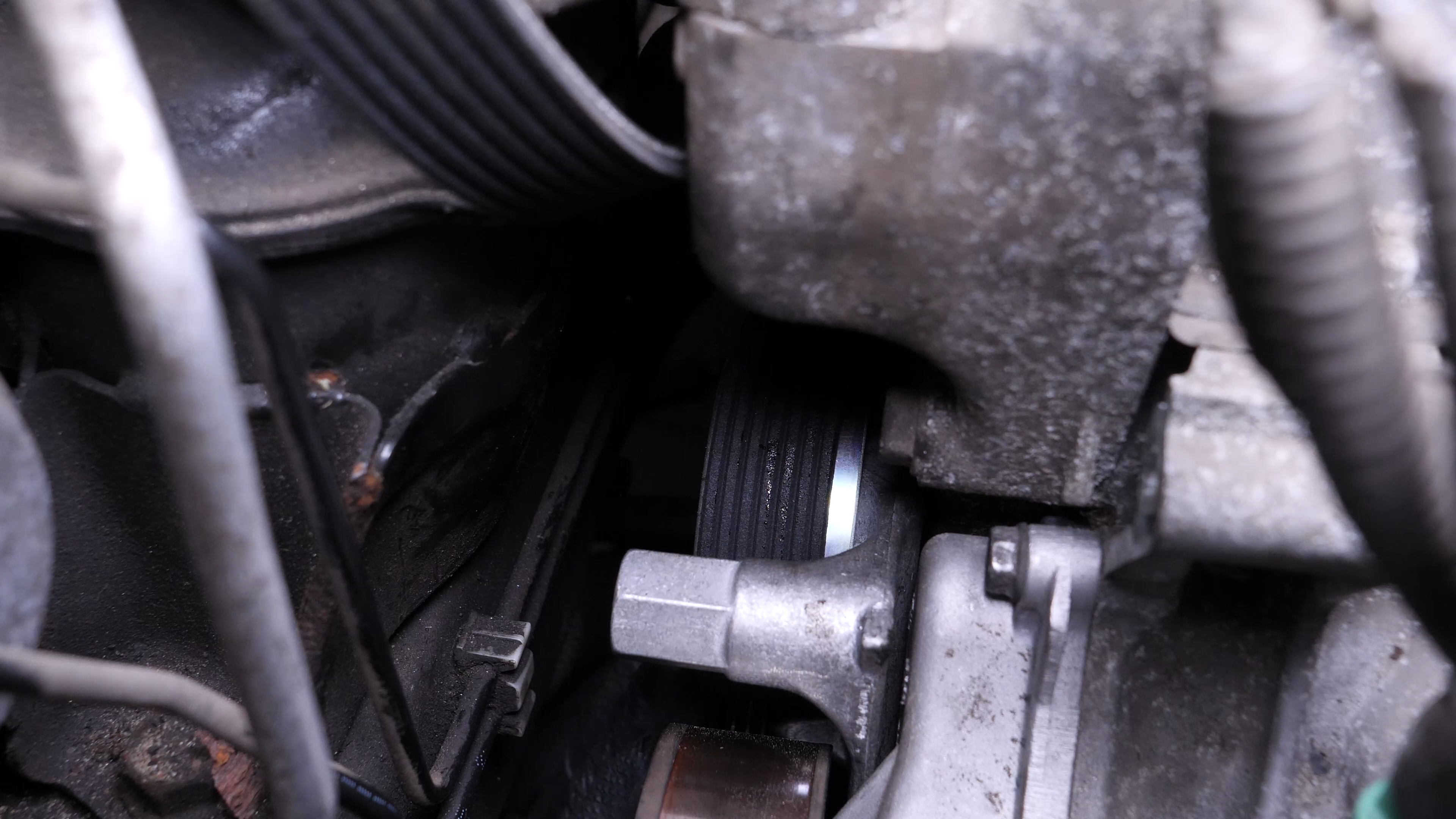

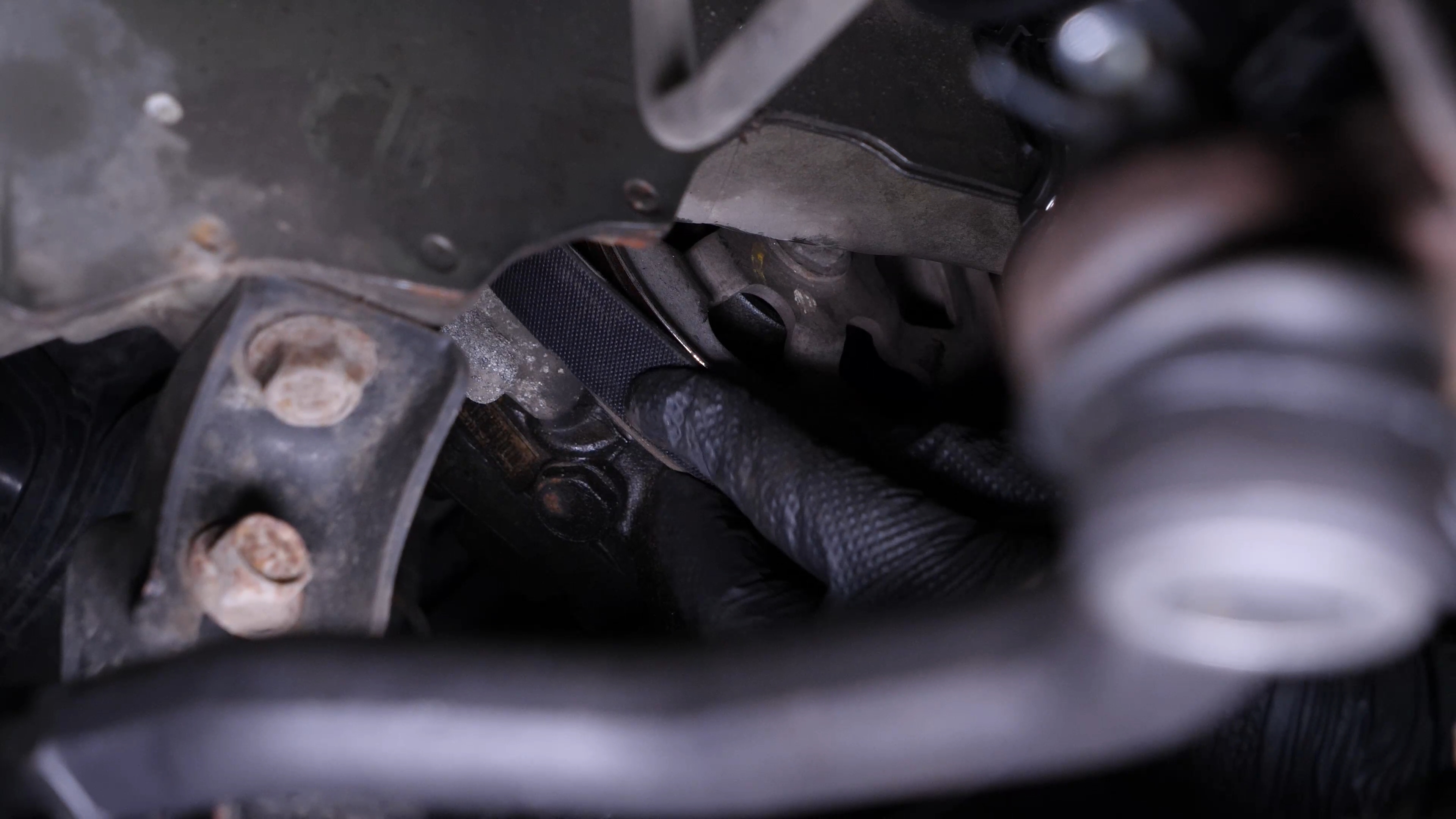

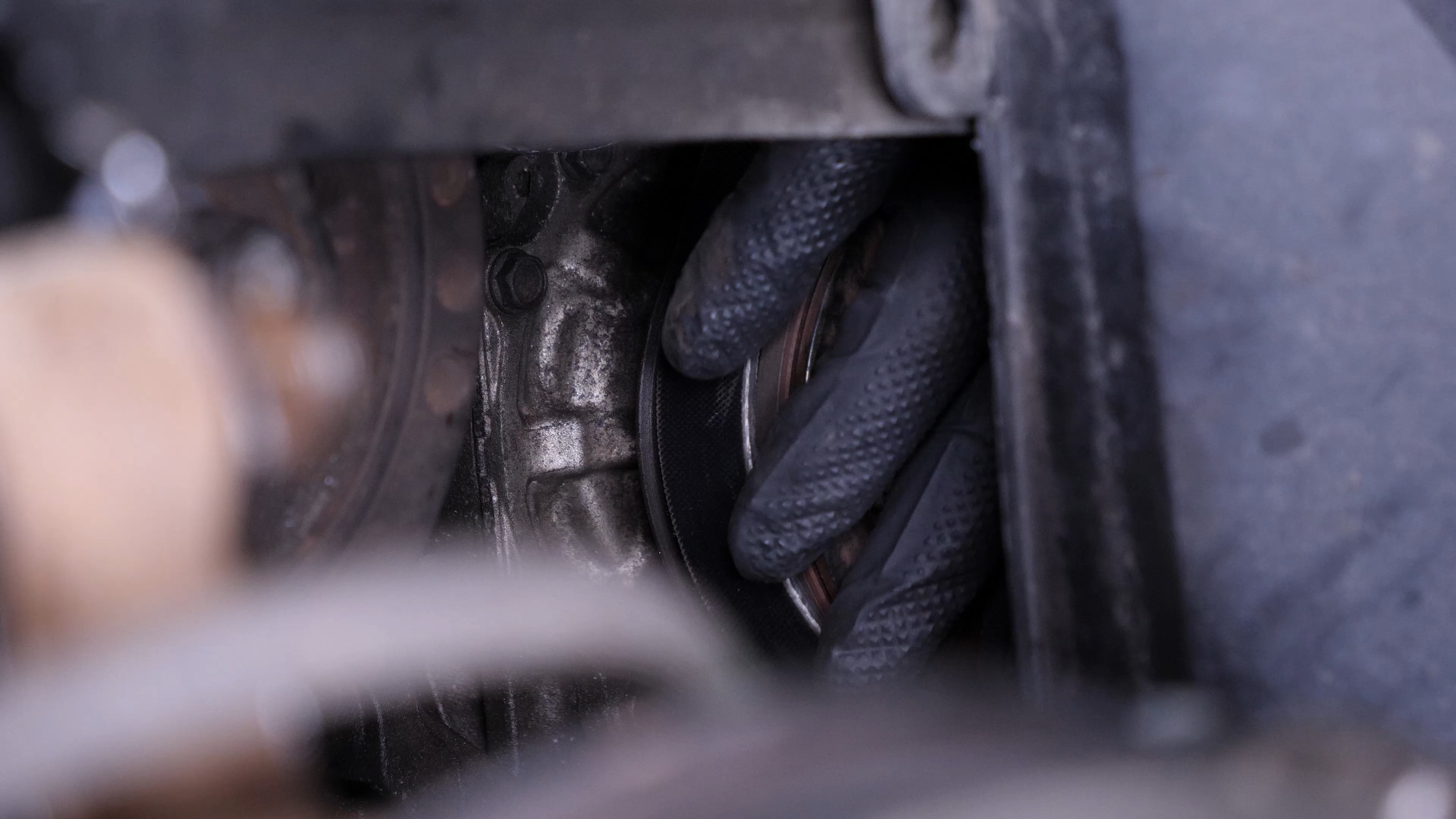

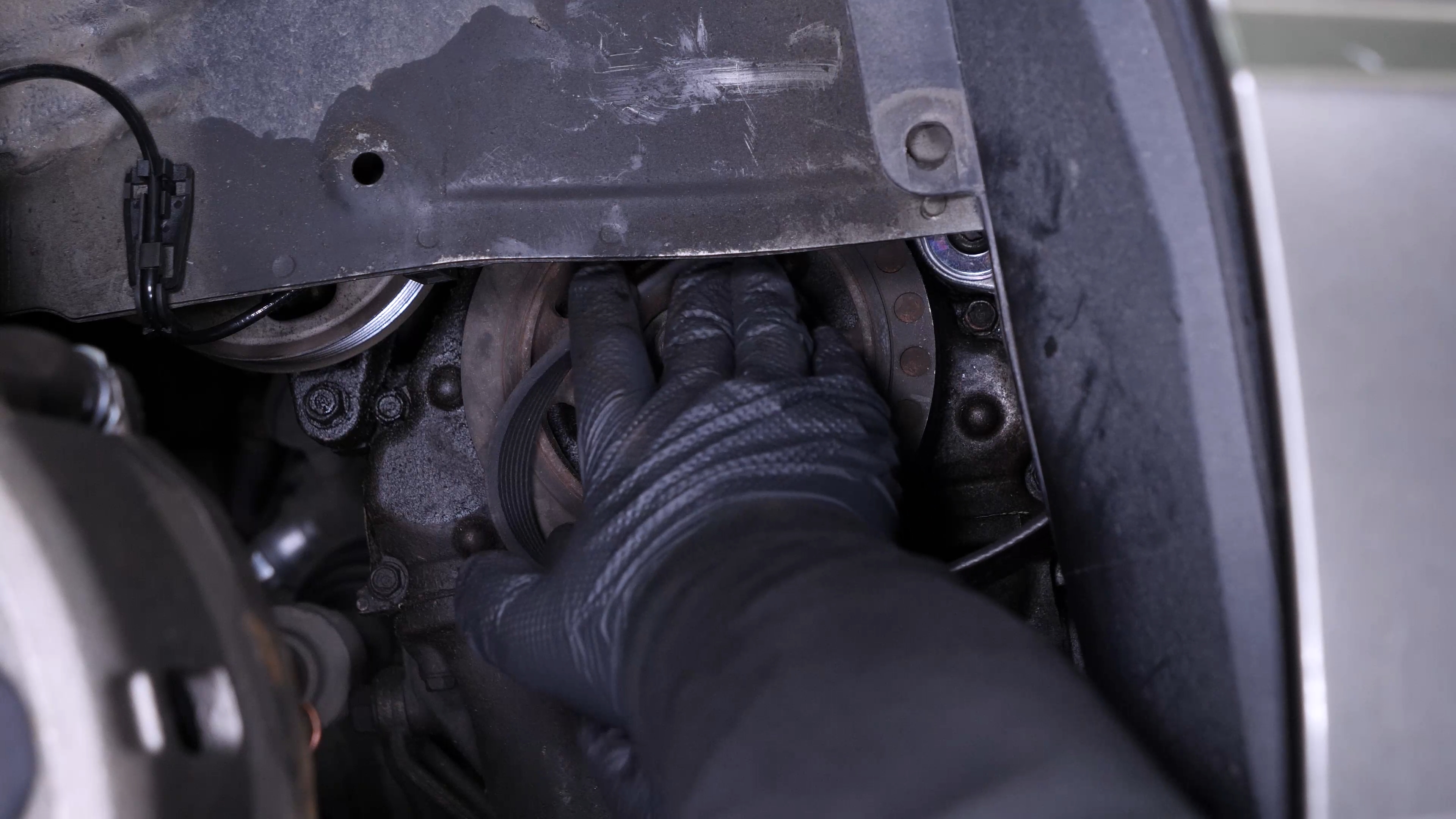

Slide the new belt around the different elements respecting the layout from the initial assembly.

Chapter 14:

Put the alternator back in place

Step 1/1

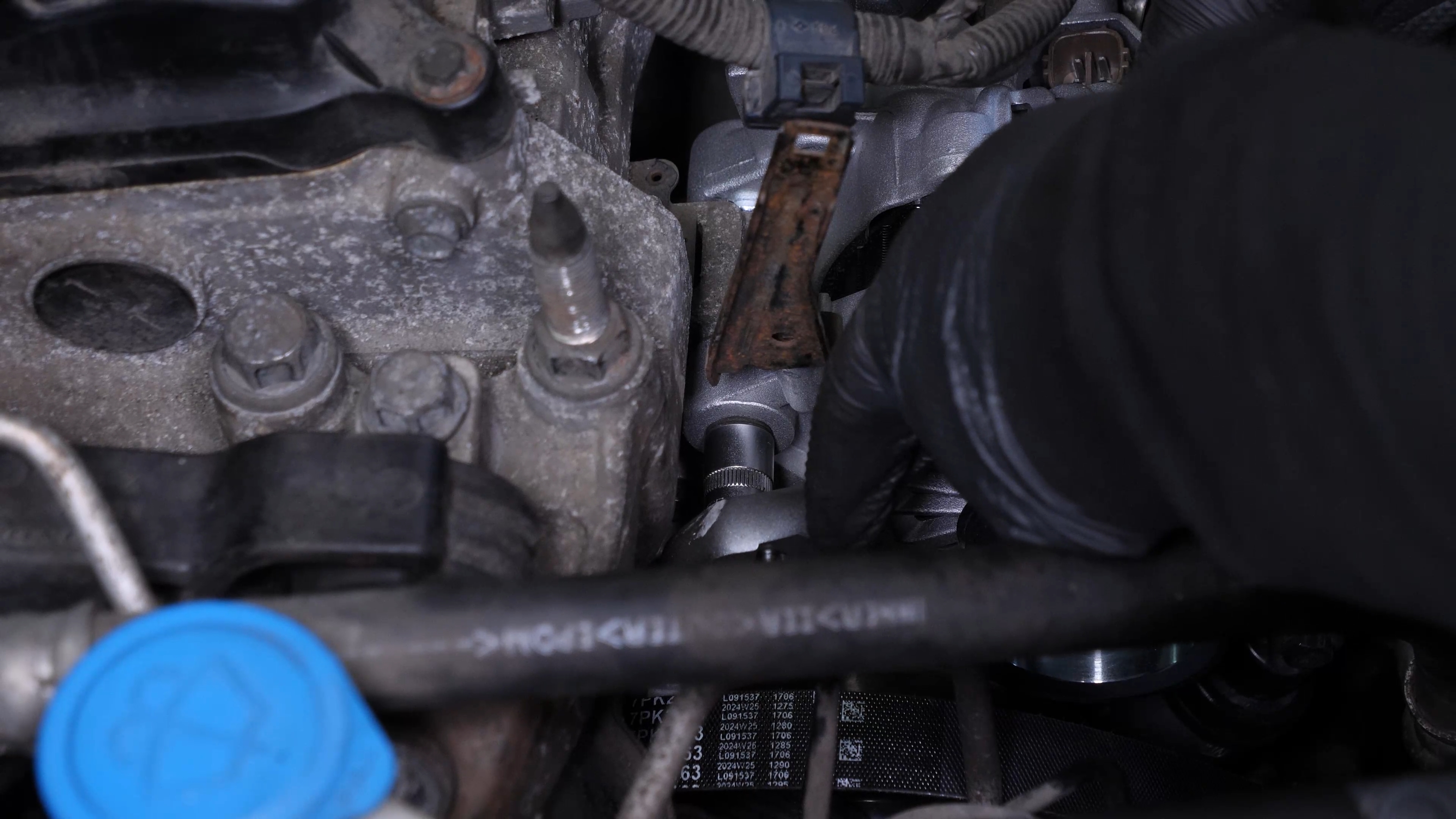

Return the alternator to its housing.

Chapter 15:

Finalise the reassembly

Step 1/2

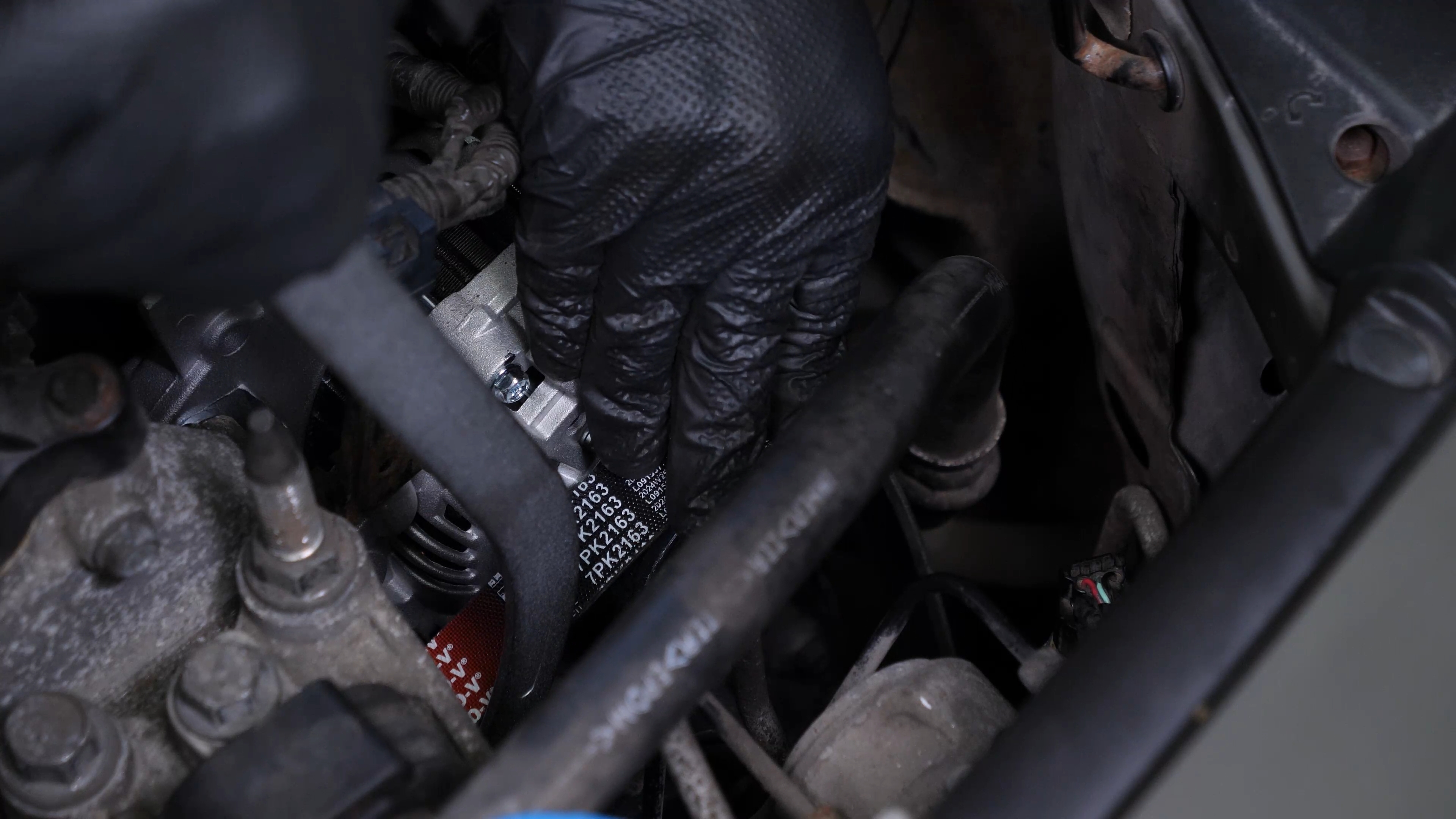

To fully put it back in place, lift the serpentine belt tensioner in order to wind the serpentine belt onto all of the pulleys.

Chapter 15:

Step 2/2

Then release the belt tensioner to fully extend the belt. Before starting your car again, check that the belt is properly positioned in all the pulleys.

Chapter 16:

Add coolant

Step 1/1

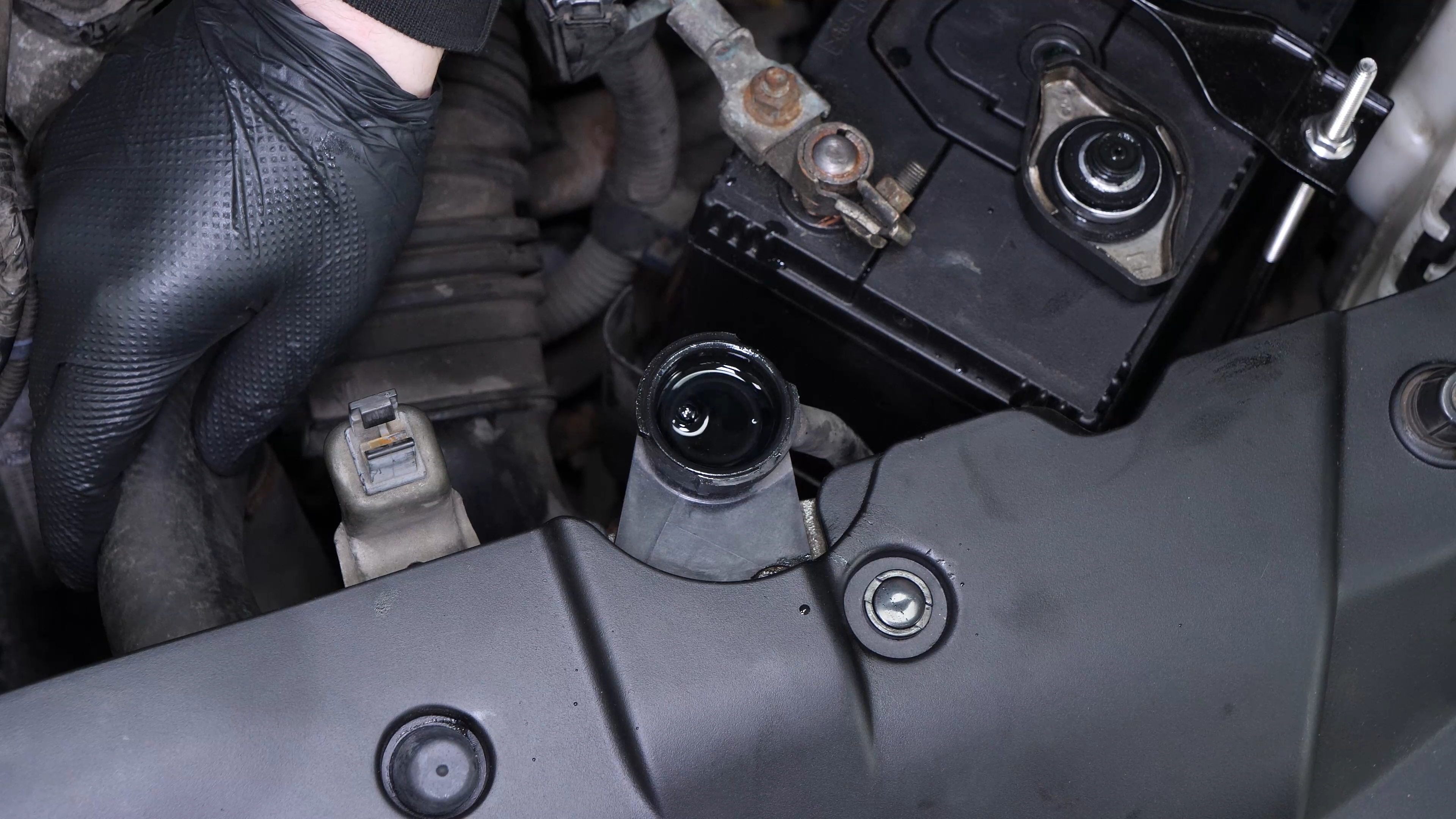

Now you need to refill the radiator with coolant and purge any air from the circuit.

Chapter 17:

Put the vehicle back on the ground

Step 1/2

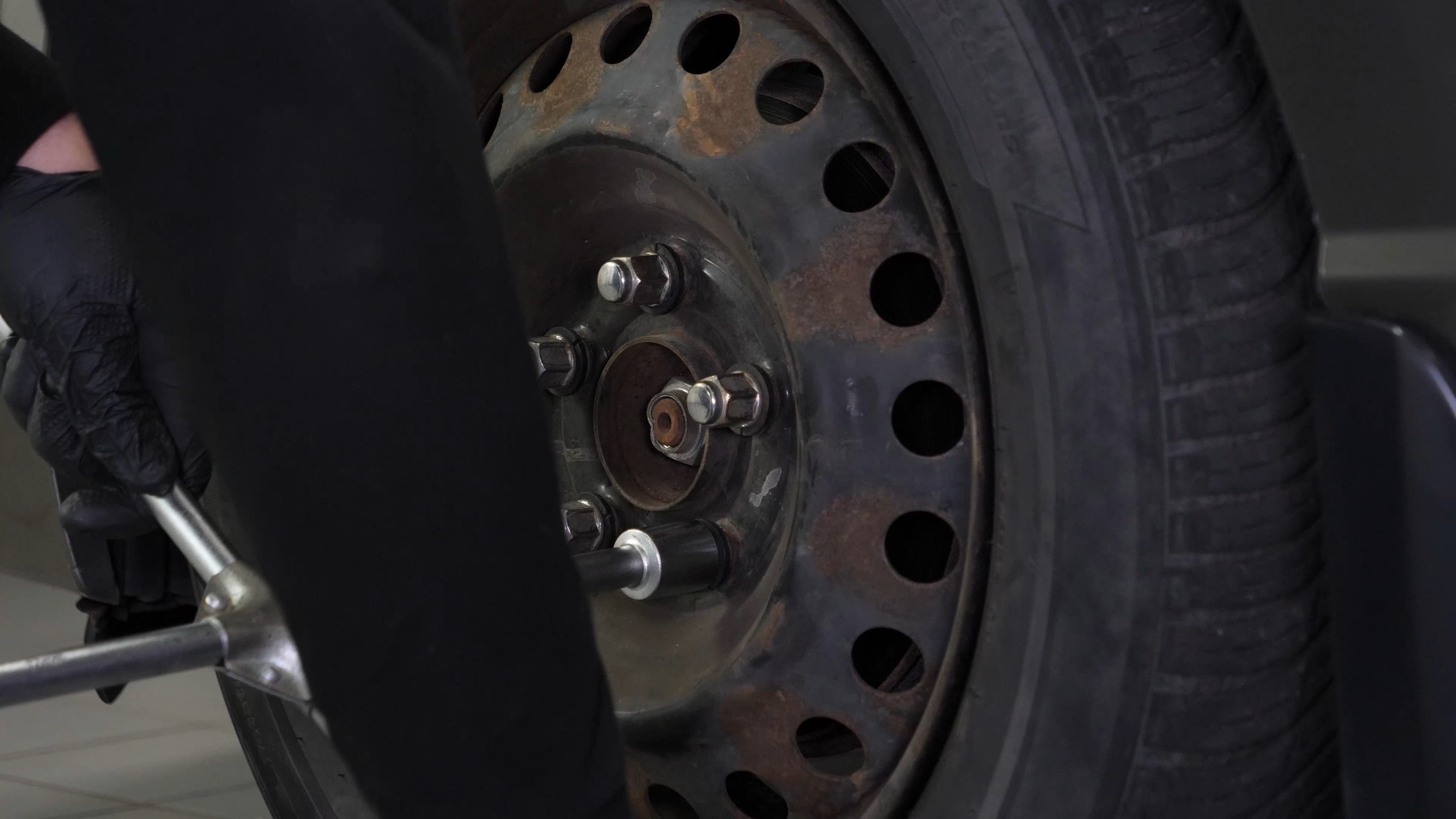

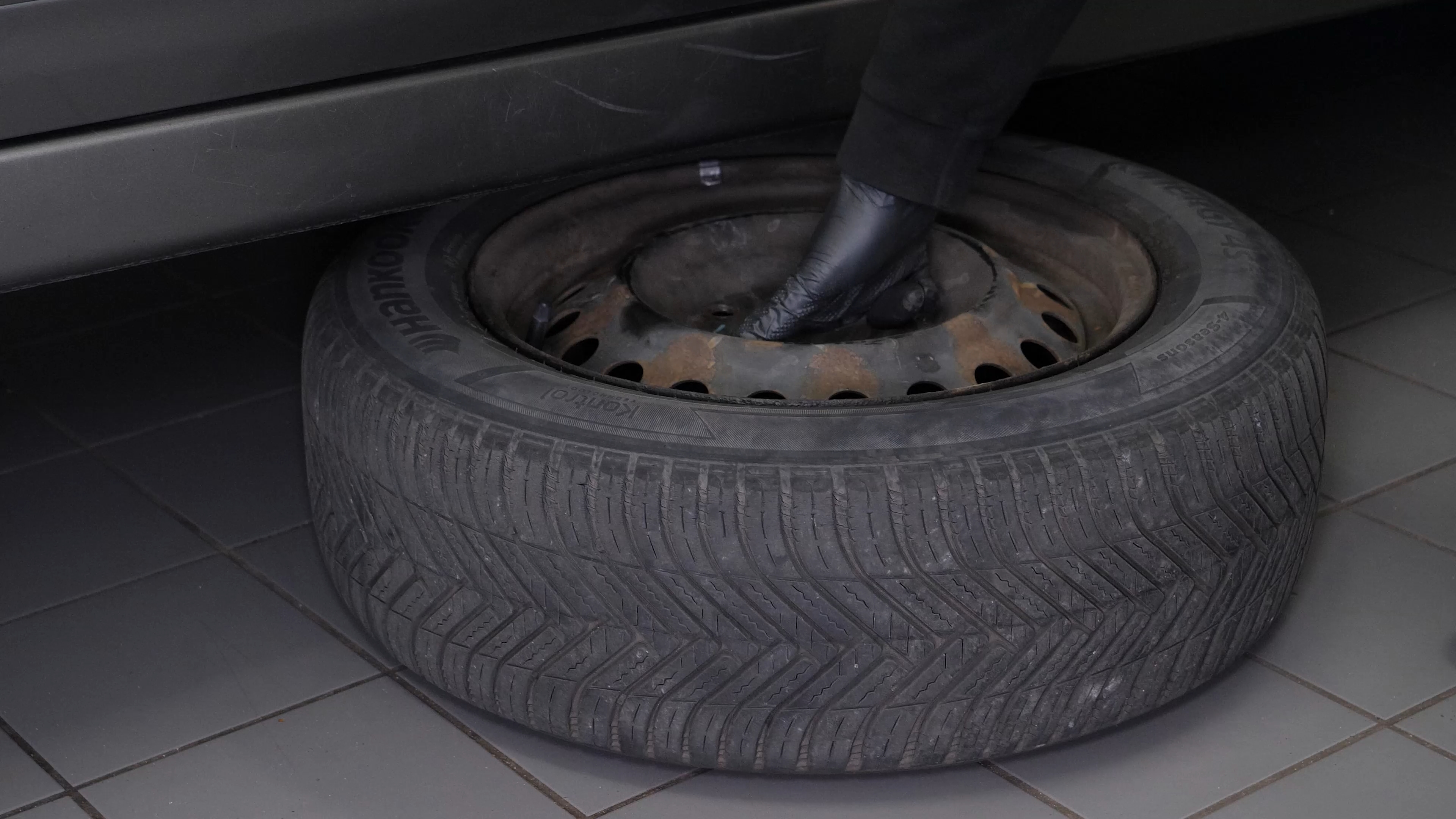

Then, you will be able to put the wheel back on your vehicle.

Chapter 17:

Step 2/2

Put the car back on the ground and block the wheel properly.

Chapter 18:

Reconnect the battery

Step 1/2

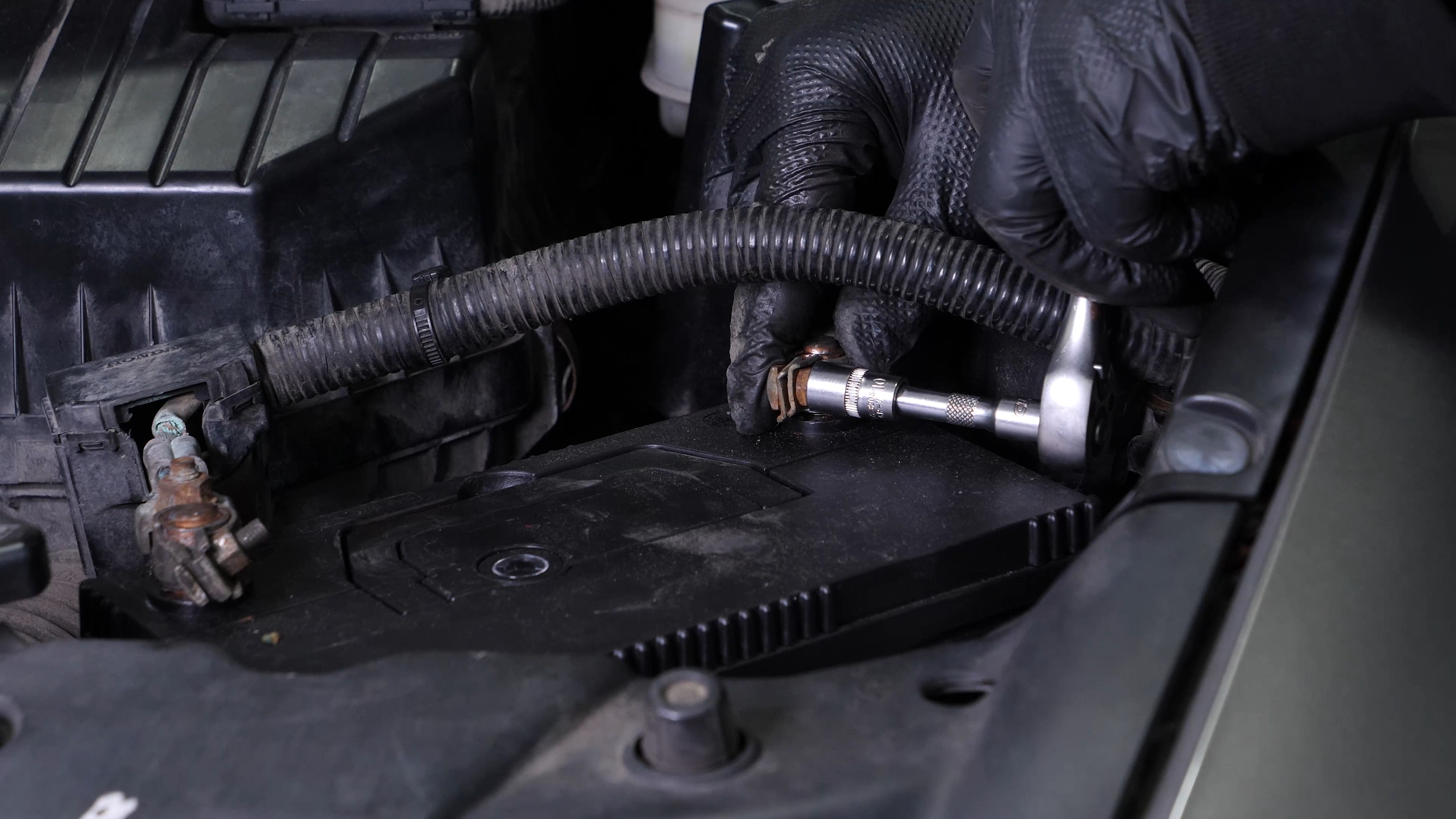

Reconnect the battery.

Chapter 18:

Step 2/2

Operation complete.
