How to replace the front bumper brackets 2013 – 2018 Nissan Altima

Chapter 1:

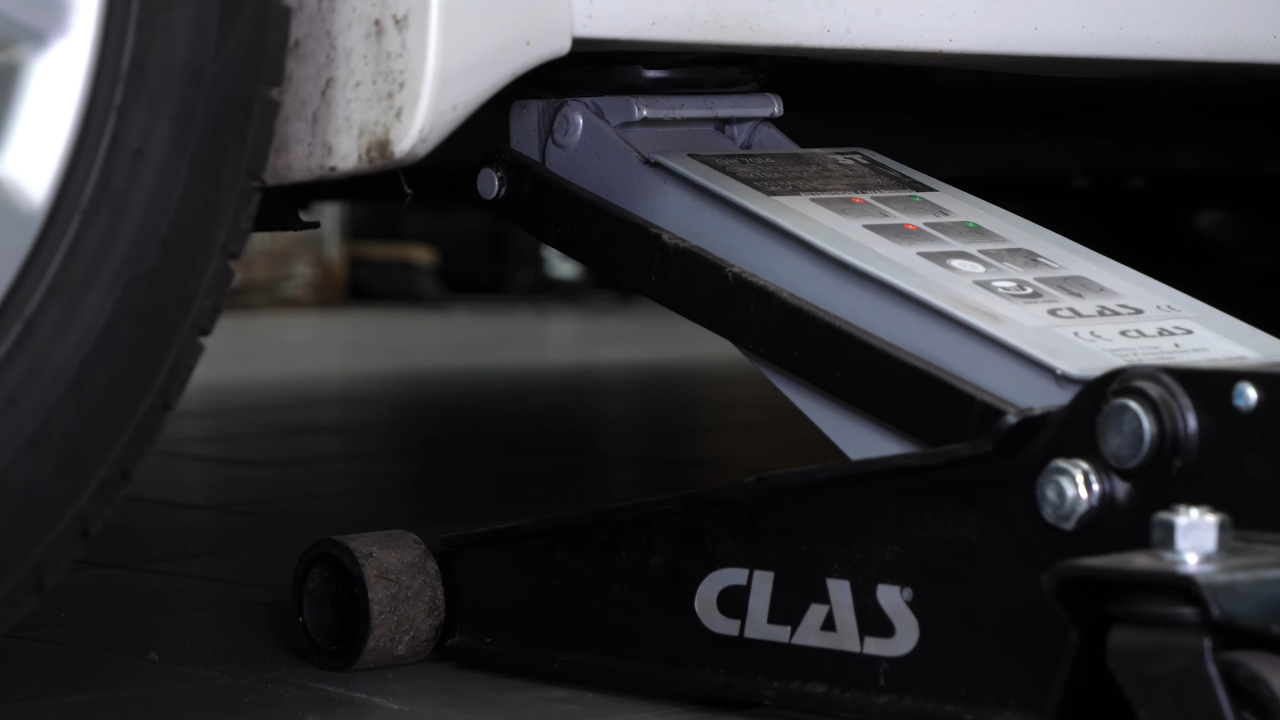

Lift the vehicle

Step 1/2

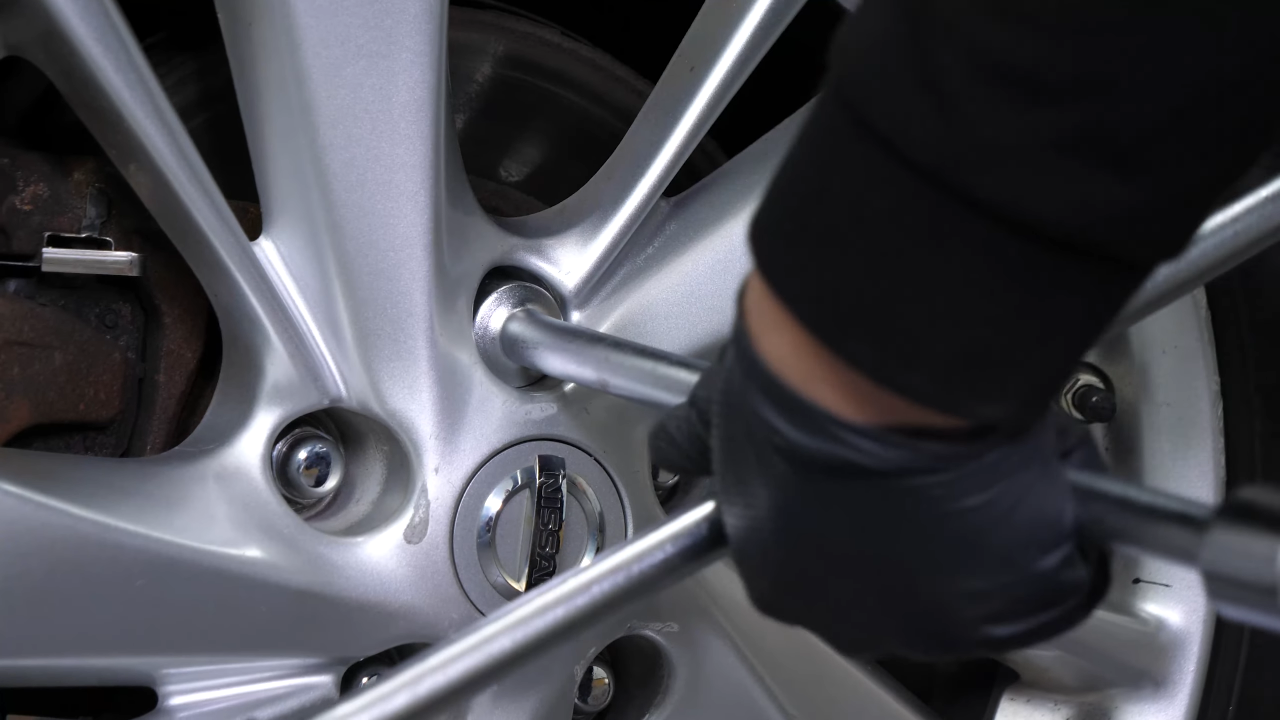

Loosen the stud bolts on the front wheels. Lift the front of your vehicle.

Chapter 1:

Step 2/2

Place the vehicle on the jack stands. Don’t forget to put the wheels under the vehicle!

Chapter 2:

Informations

Step 1/1

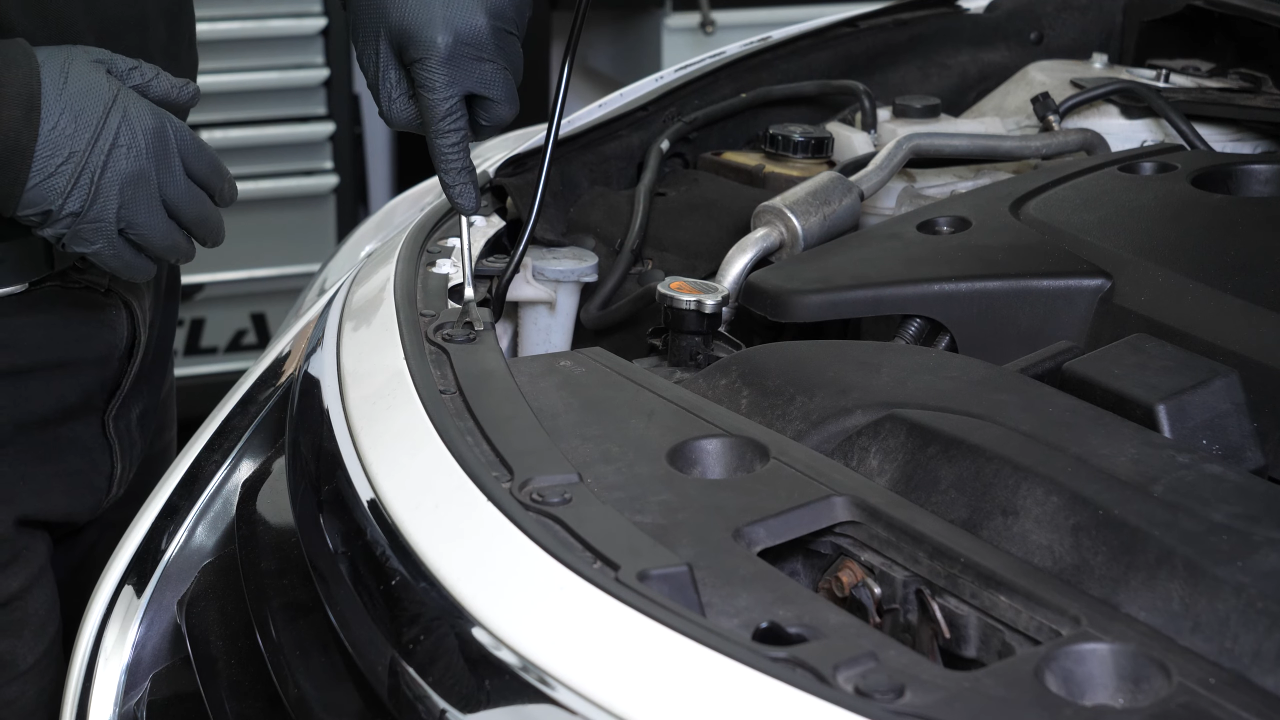

In order to change the front bumper cover brackets on your vehicle, you will need to remove the radiator support cover to have full access.

Chapter 3:

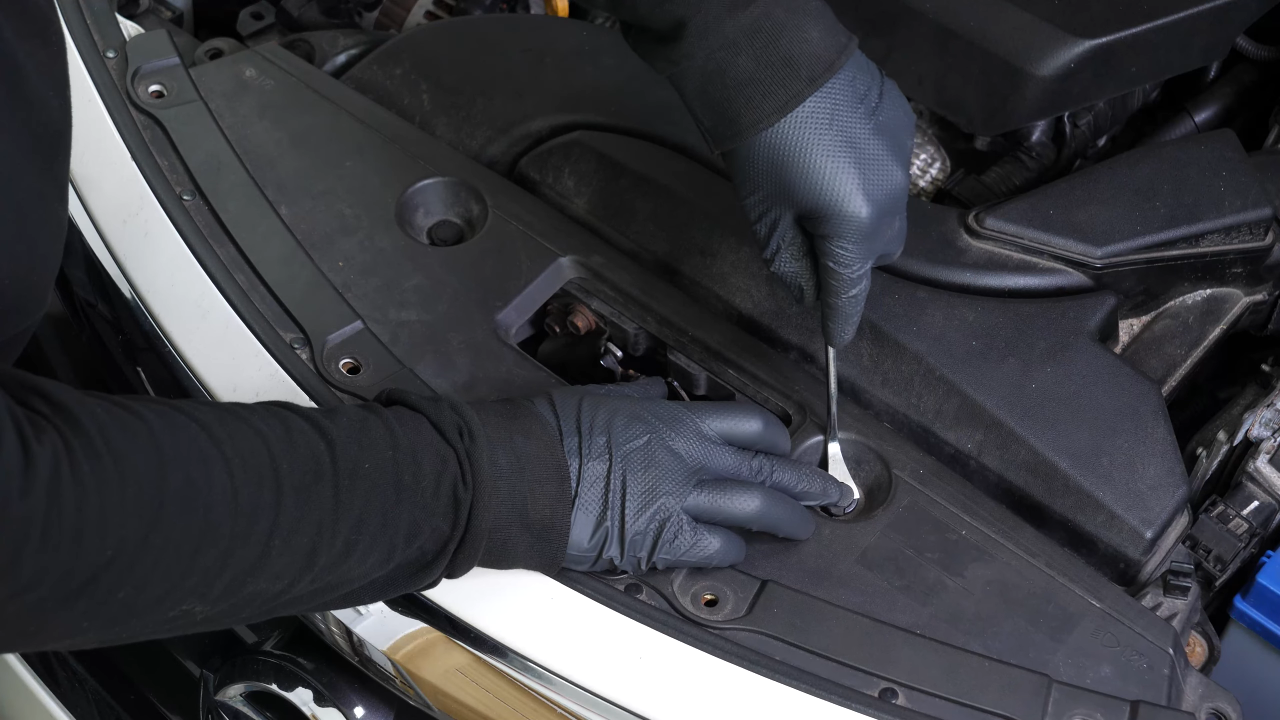

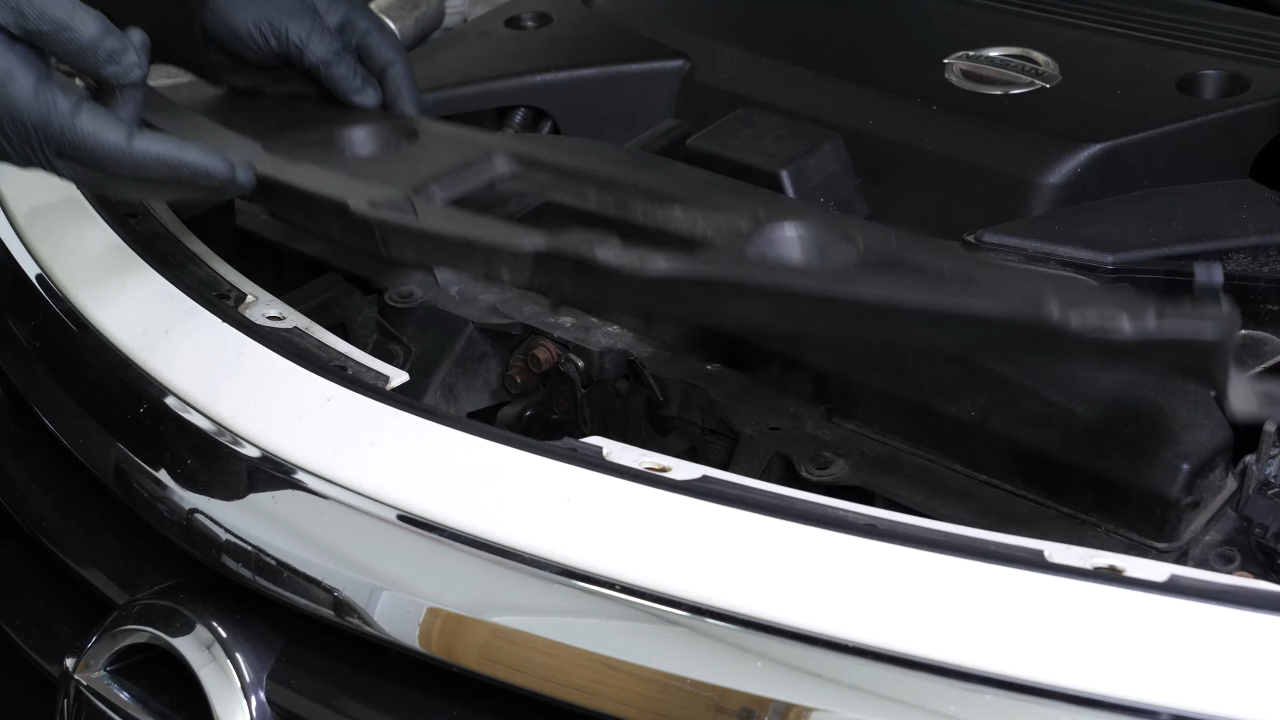

Remove the radiator support cover

Step 1/1

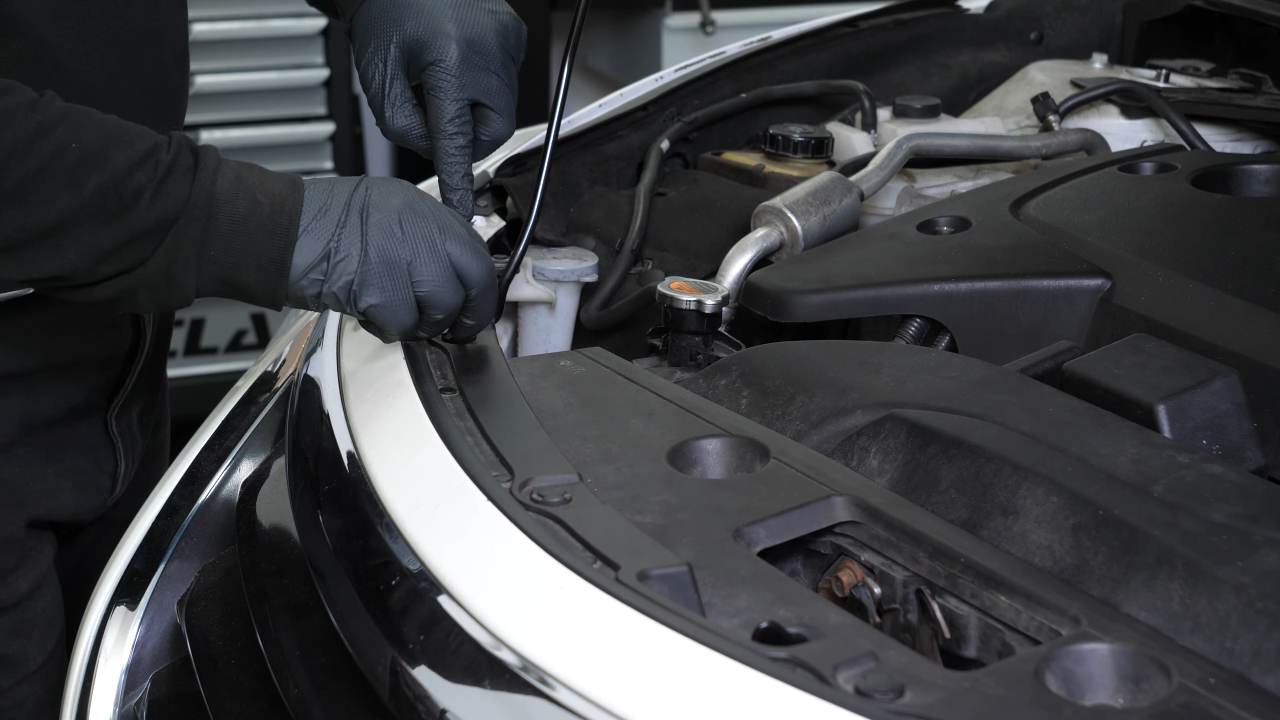

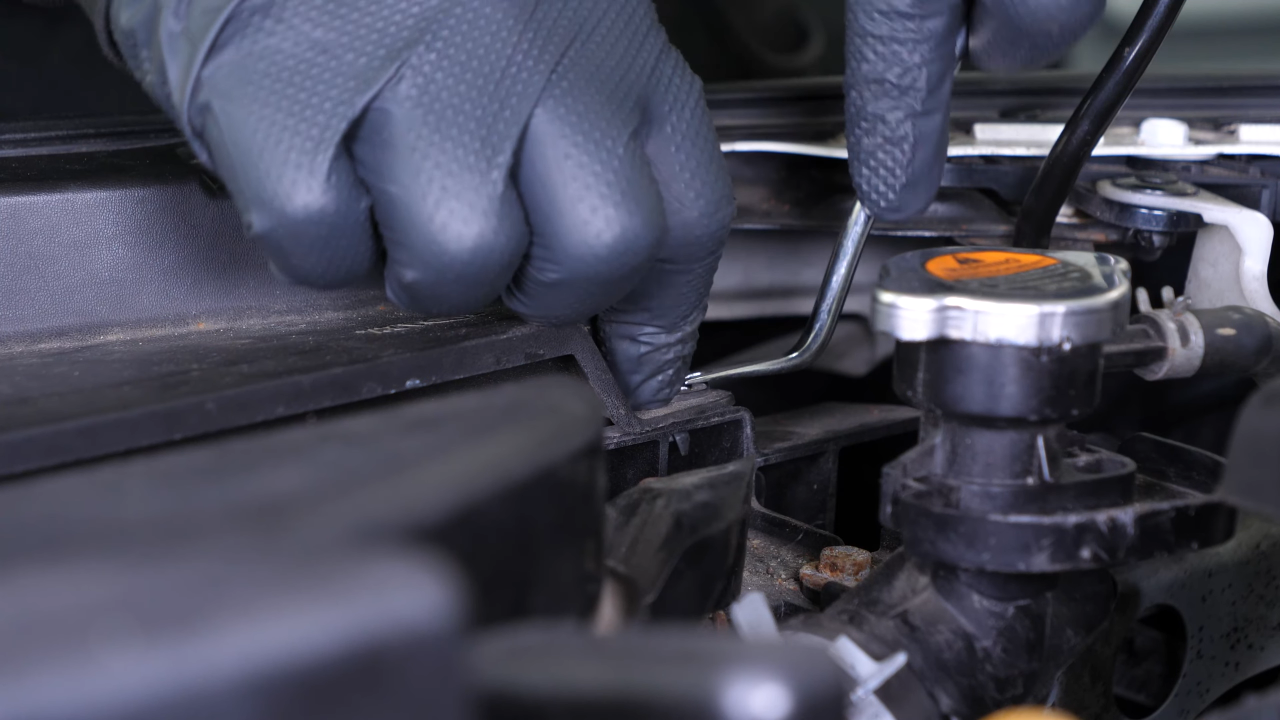

Using a fork, remove the 10 holding rivets. Then remove the cover.

Chapter 4:

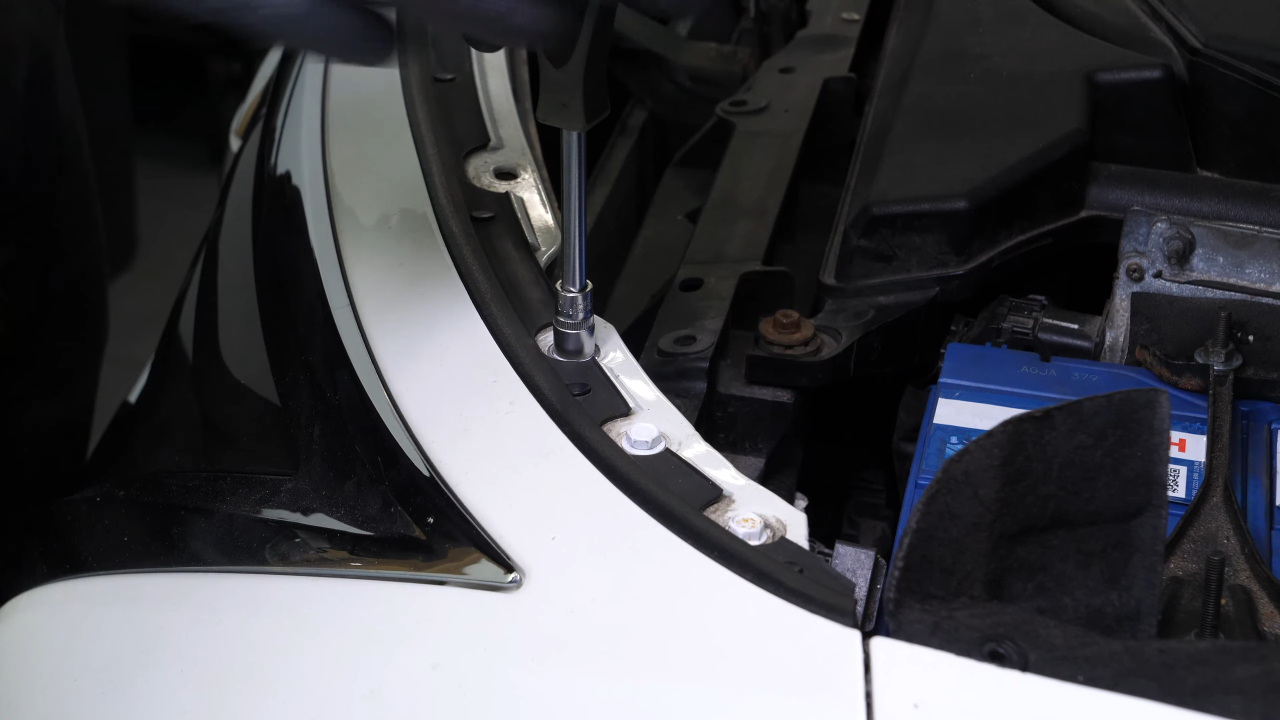

Set up

Step 1/5

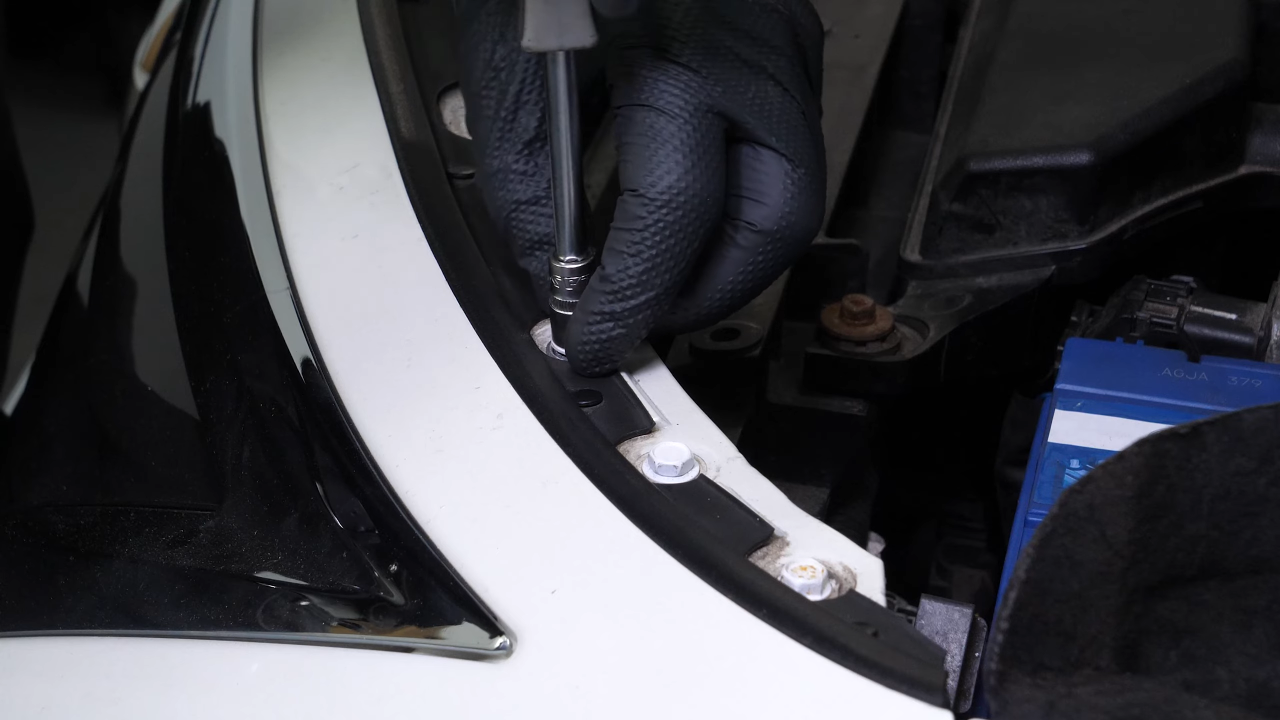

Start with the driver side. Using a multi-bit screwdriver and a 10 mm socket, unscrew the upper bumper cover retaining bolt.

Chapter 4:

Step 2/5

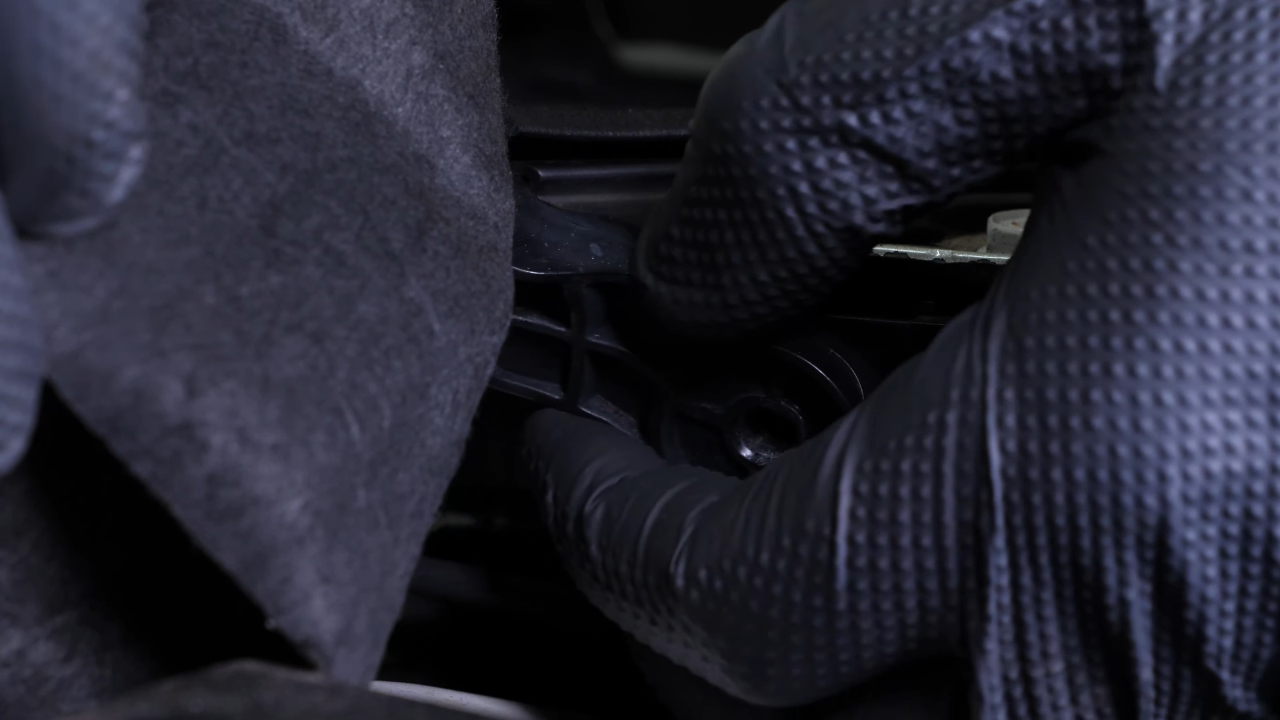

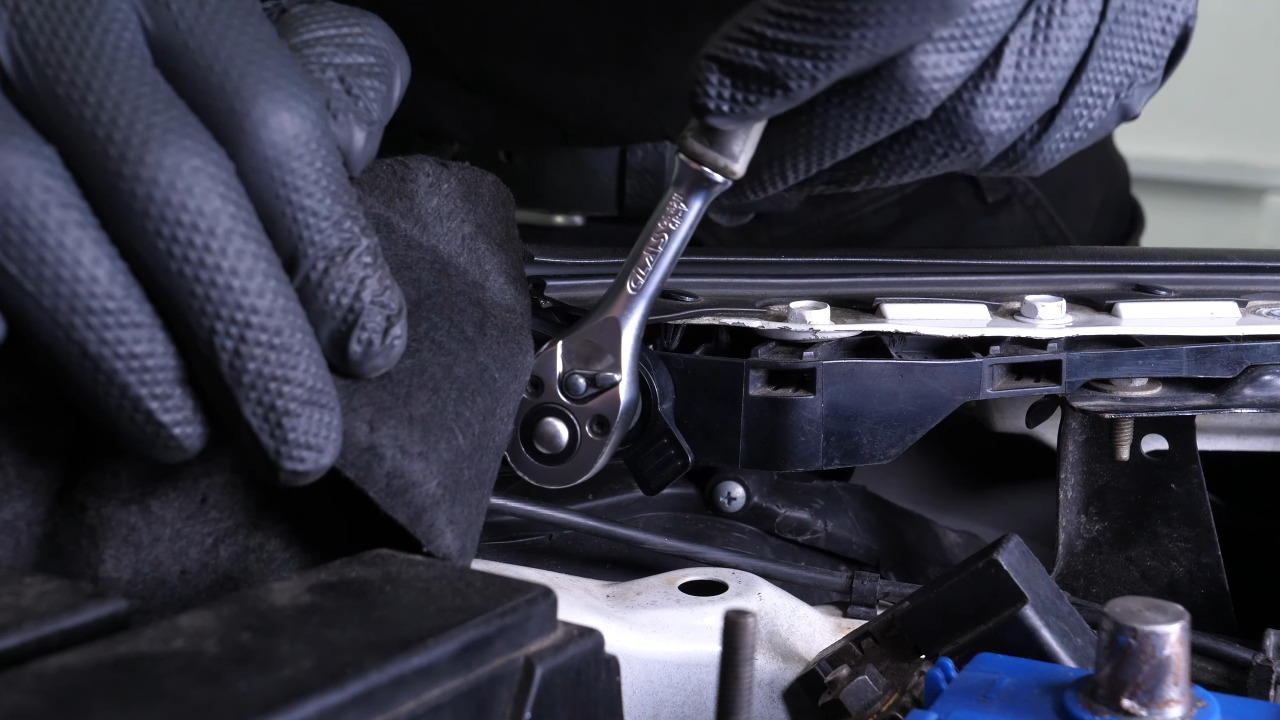

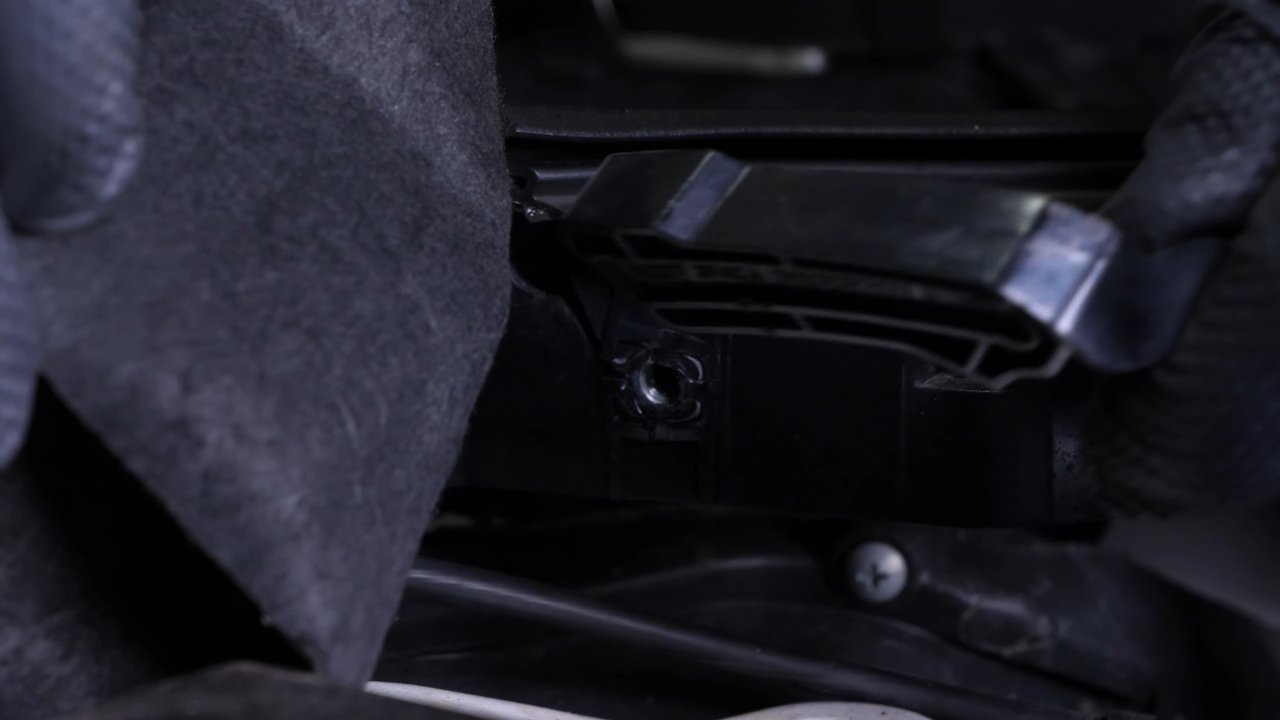

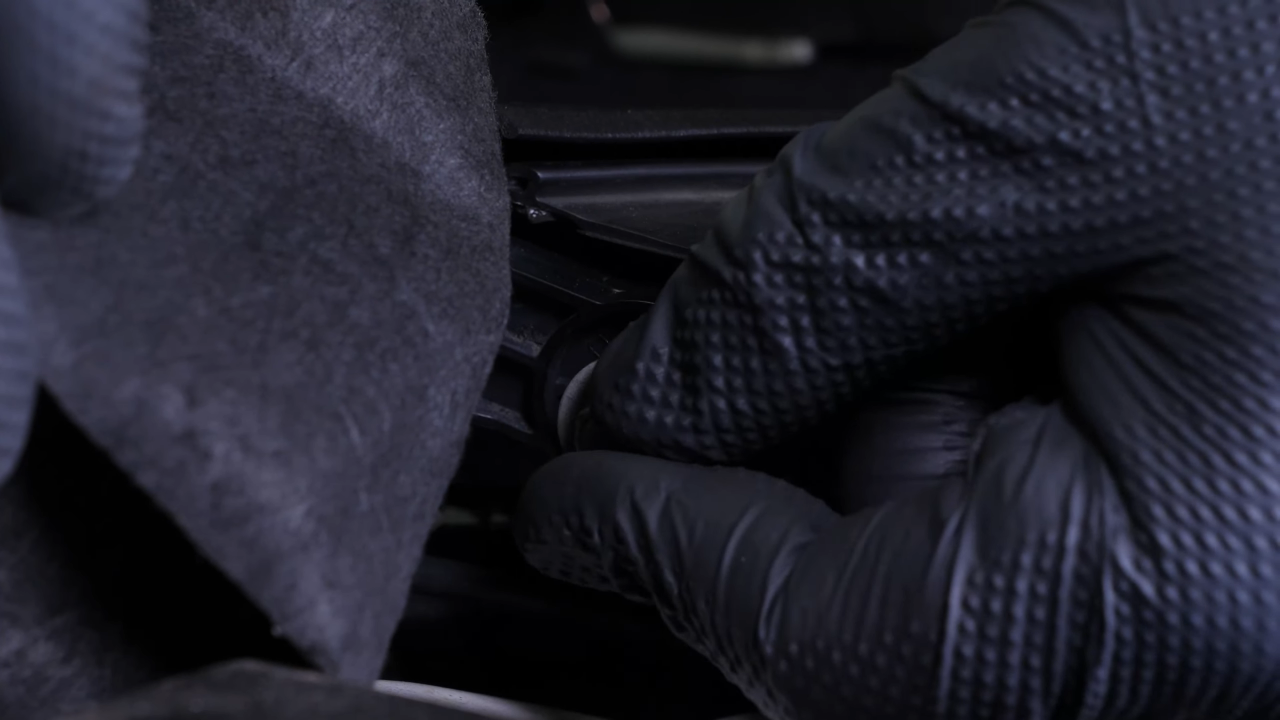

Lift up the textile cover. Next, using a ratchet and a 10 mm socket, unscrew the plastic bumper cover bracket retaining bolt.

Chapter 4:

Step 3/5

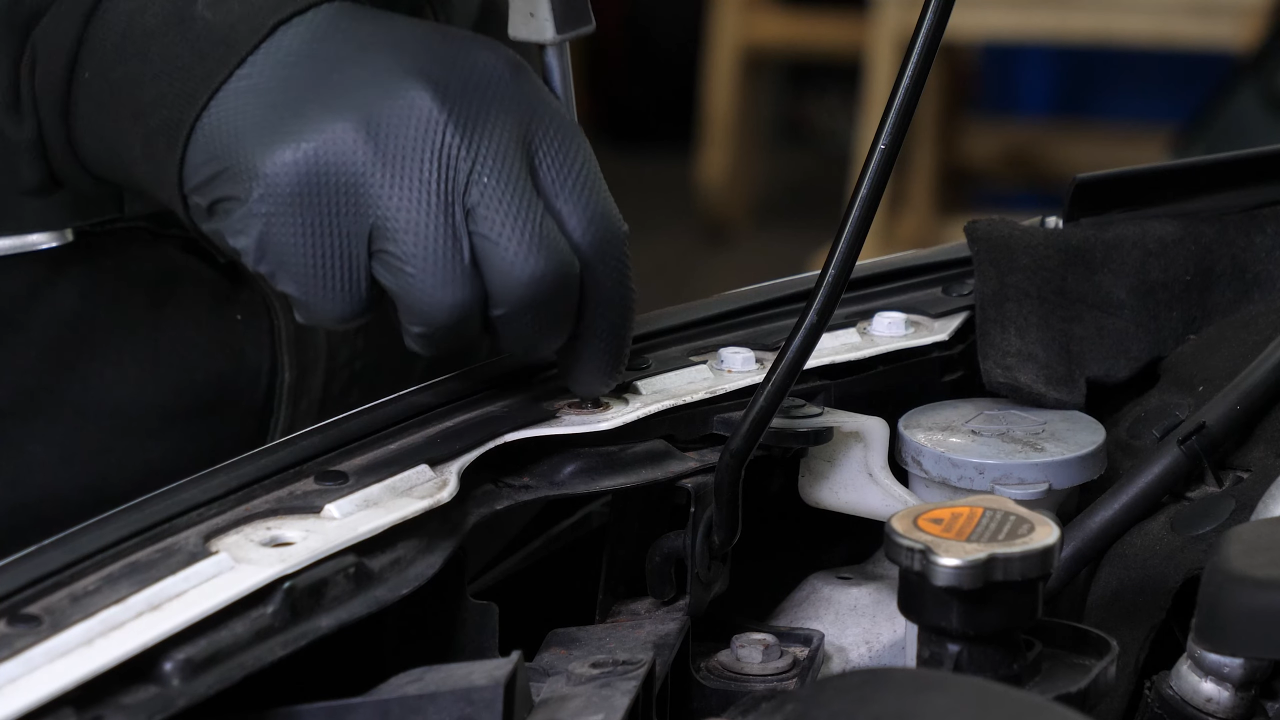

Unscrew the upper bolt on the passenger side.

Chapter 4:

Step 4/5

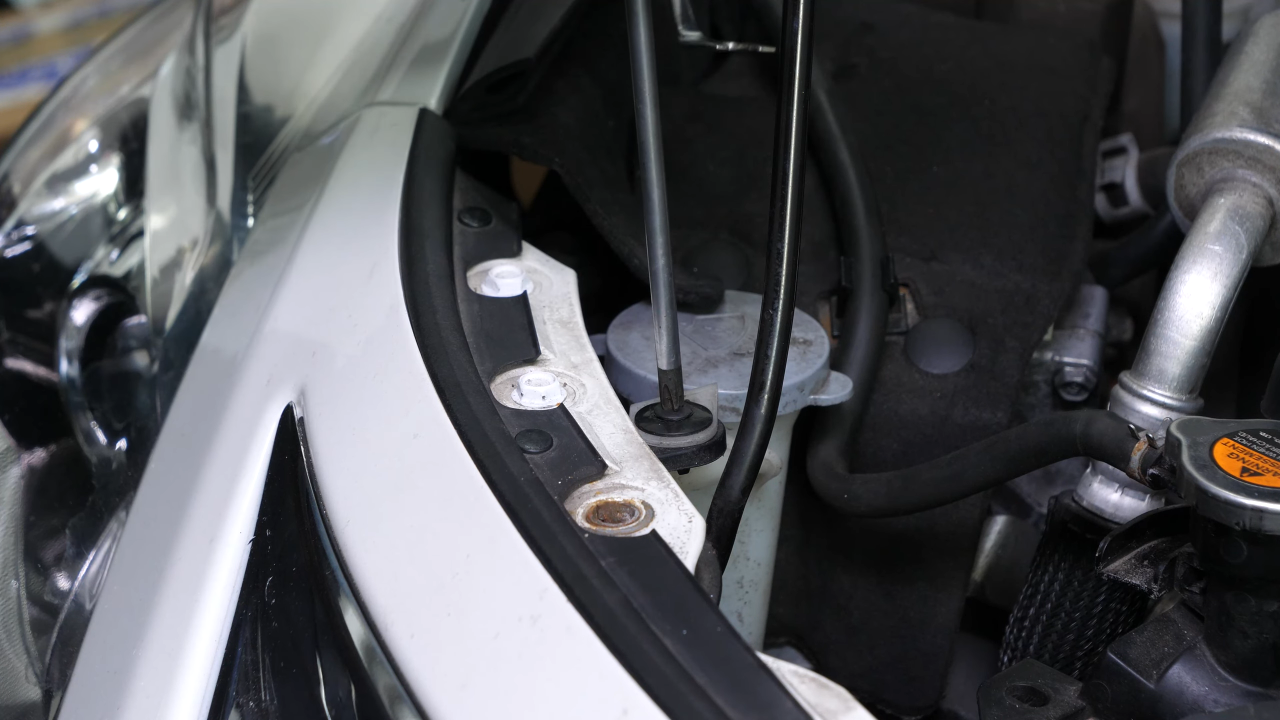

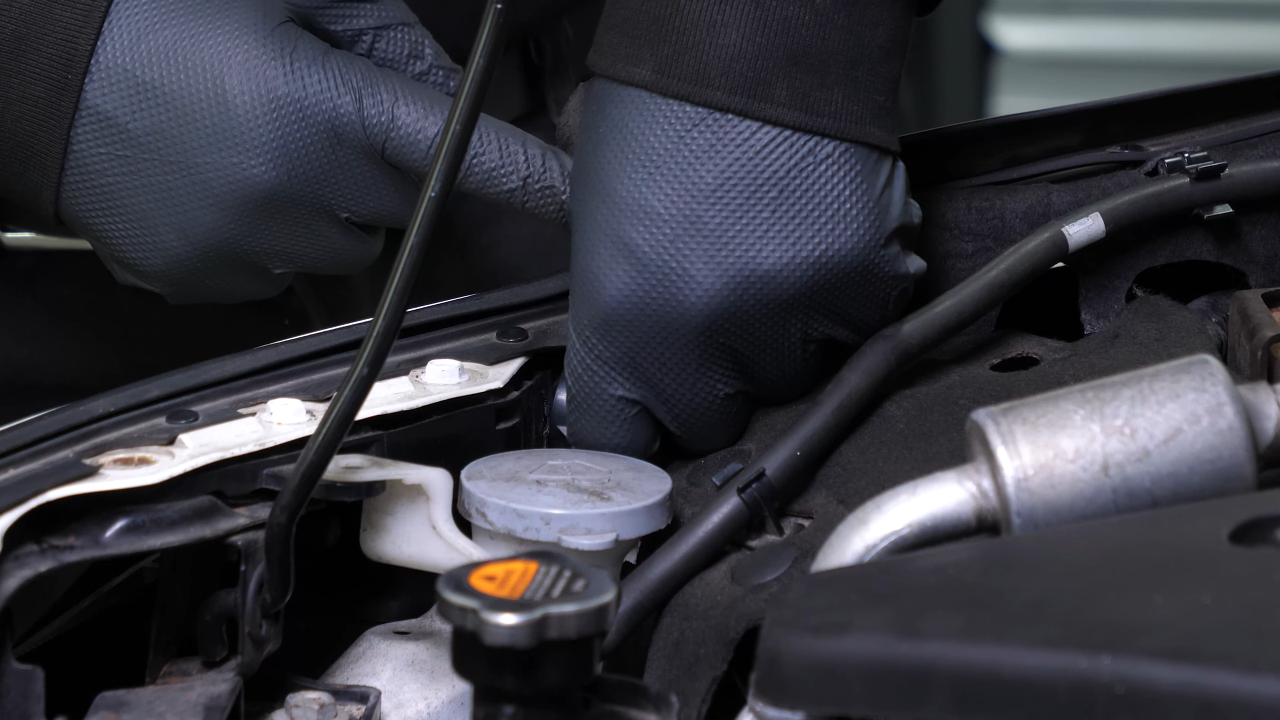

Then, using a Phillips screwdriver, unscrew the plastic rivet from the washer pump fluid reservoir hole on the bumper cover.

Chapter 4:

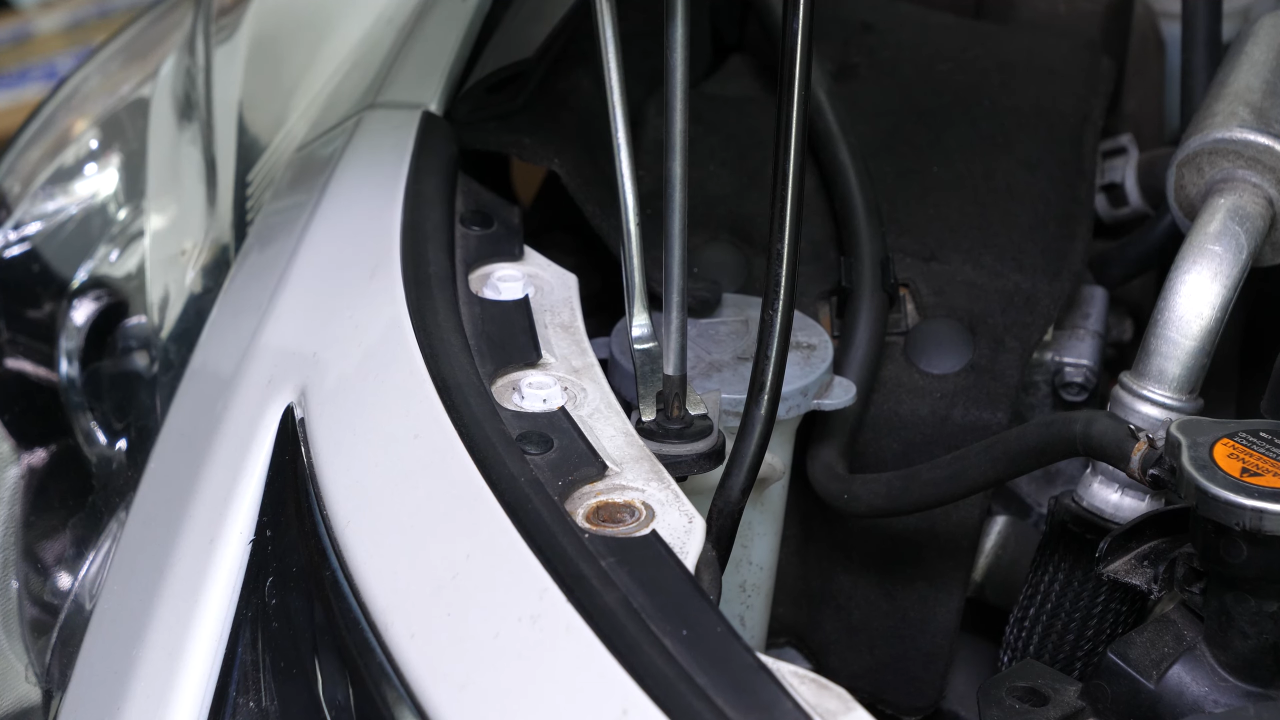

Step 5/5

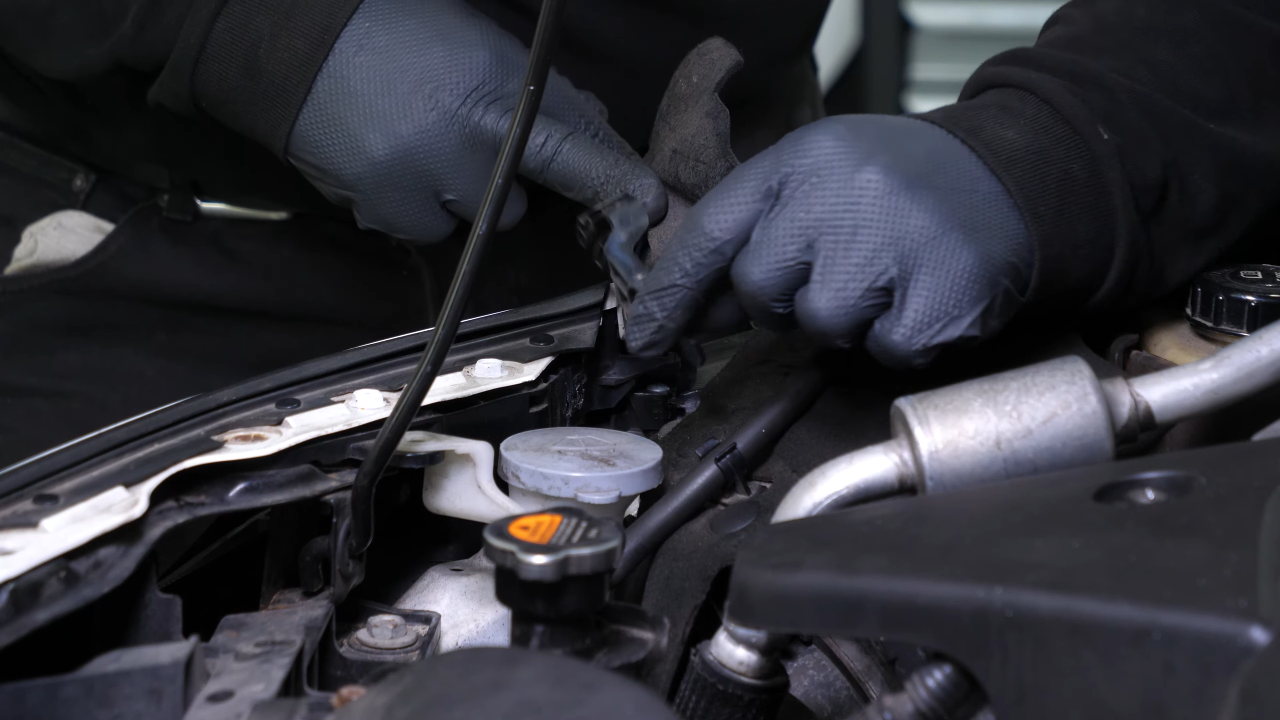

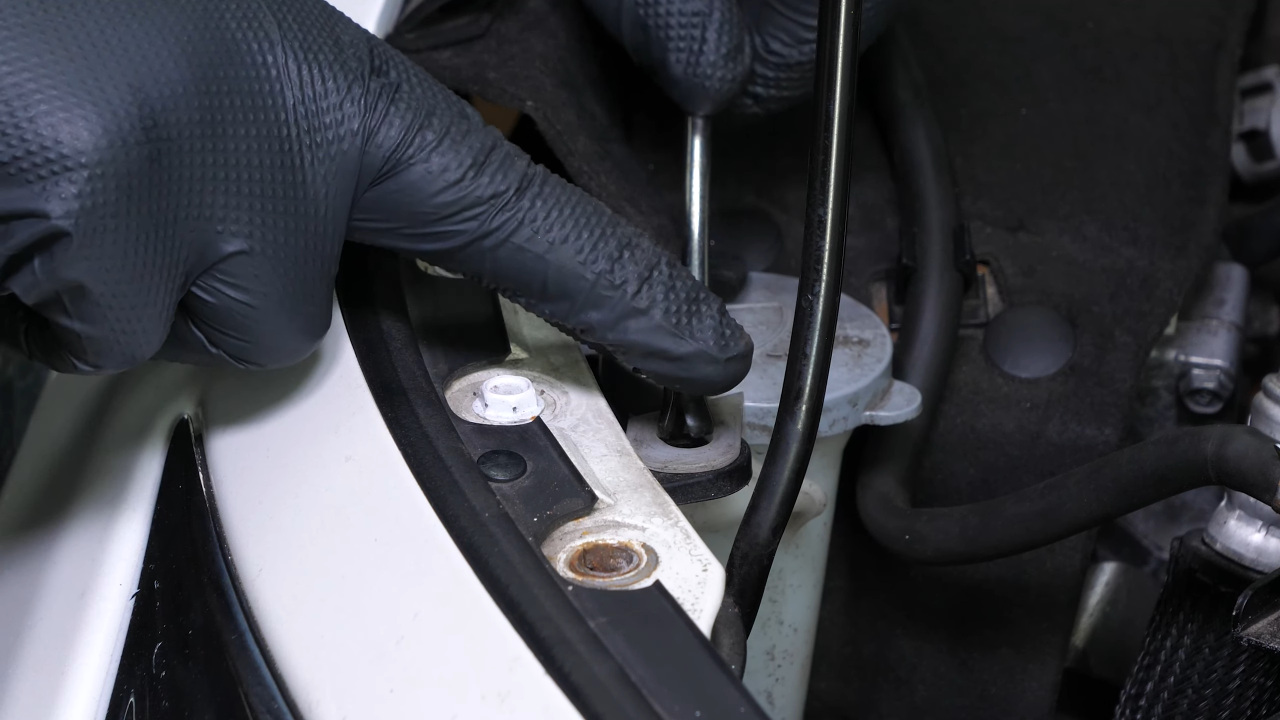

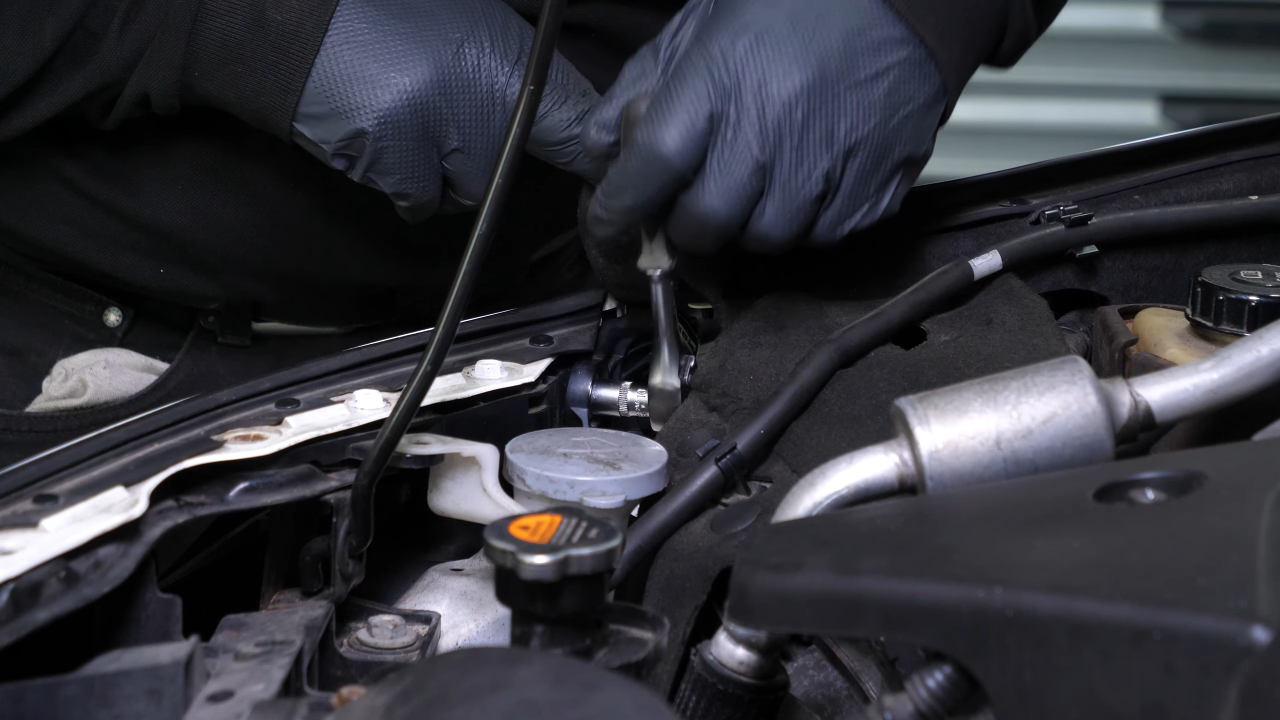

Remove it with a fork. Then unscrew the other plastic bracket. Then, remove it.

Chapter 5:

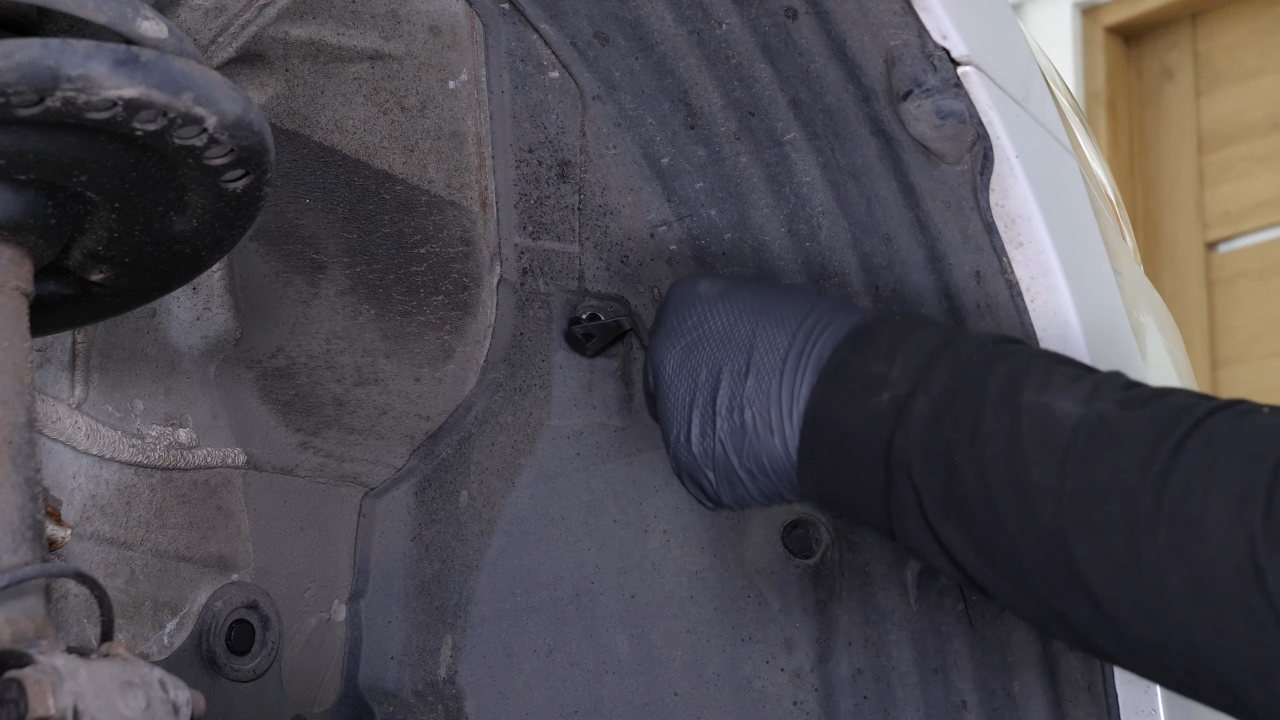

Remove the mudguard

Step 1/7

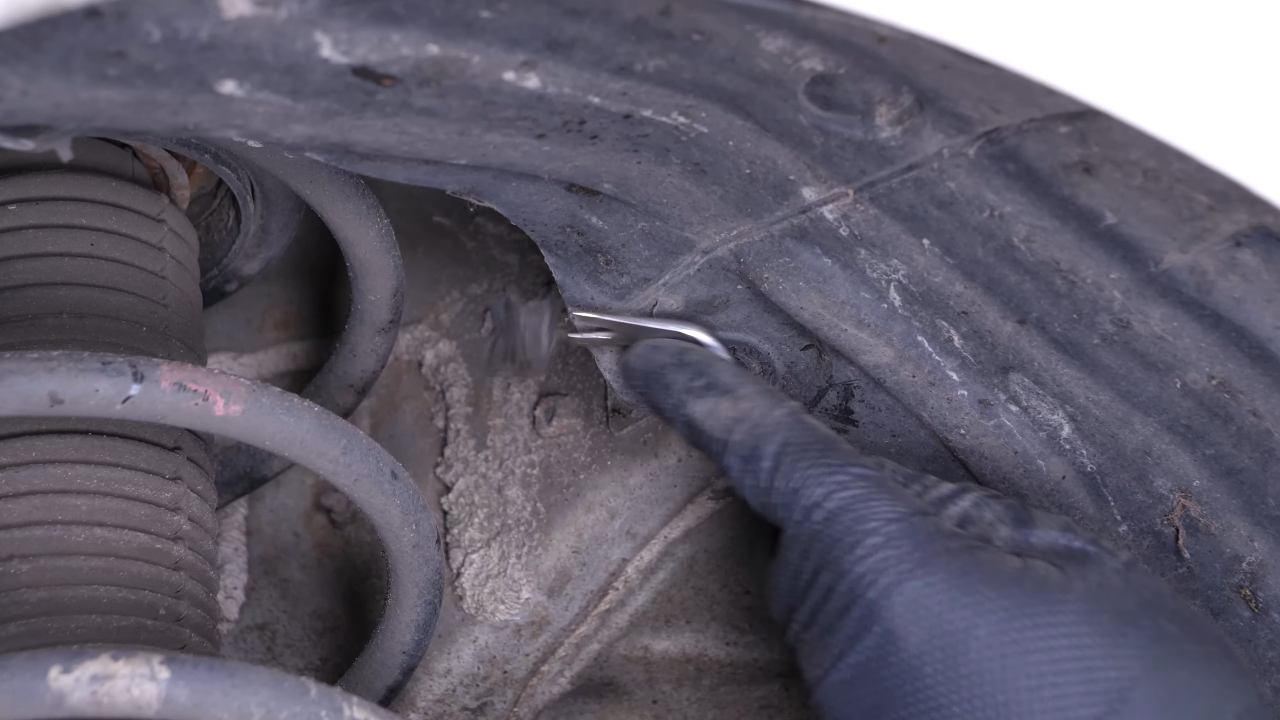

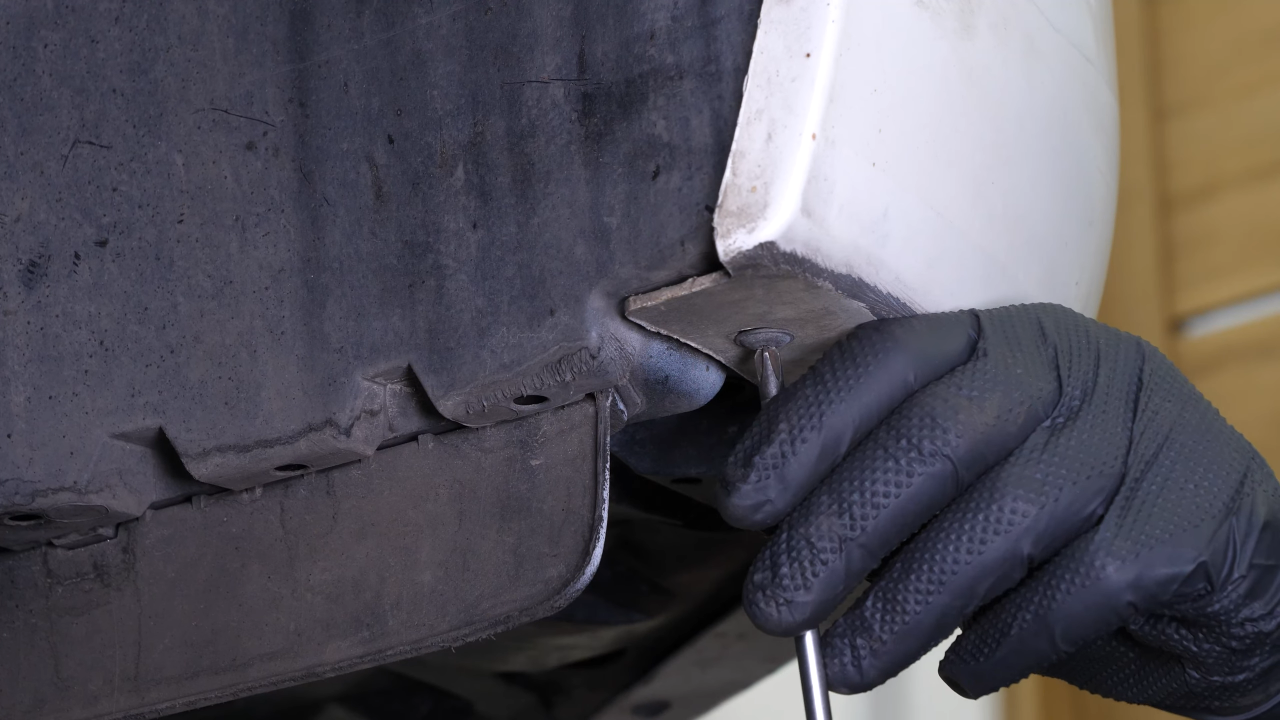

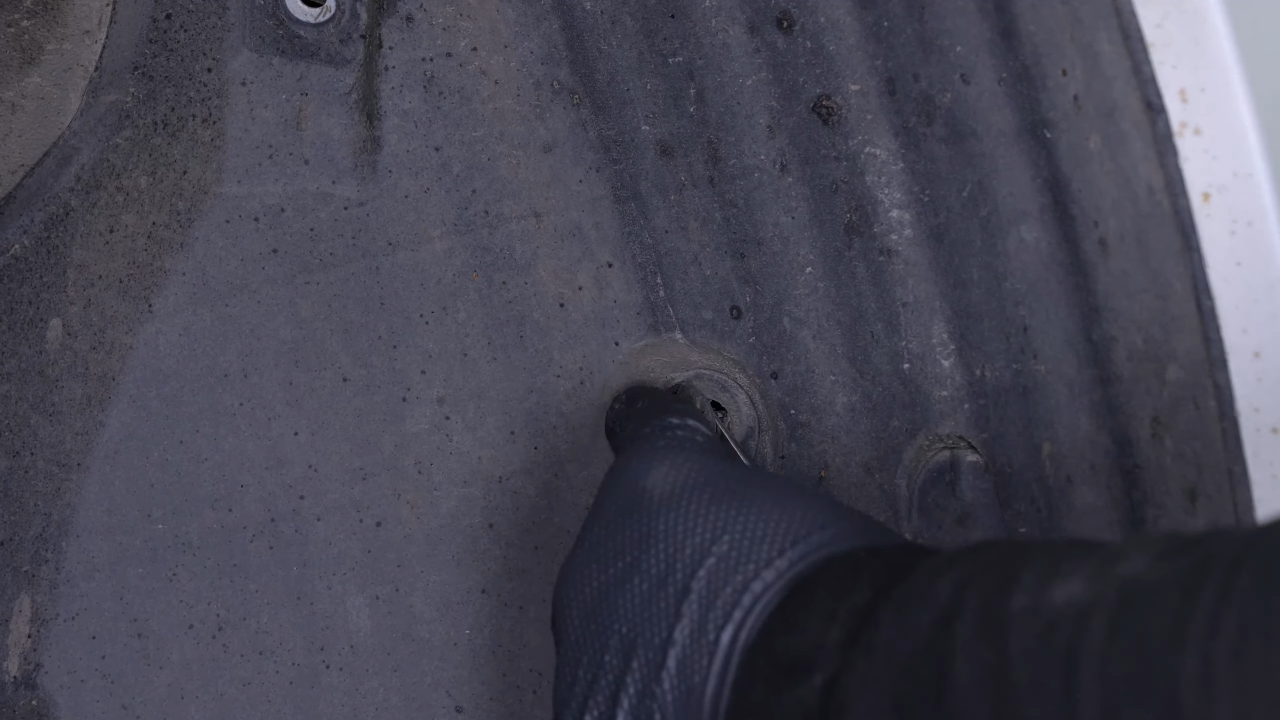

Now you need to remove the mudguard. Using a fork, remove the three mudguard retaining rivets.

Chapter 5:

Step 2/7

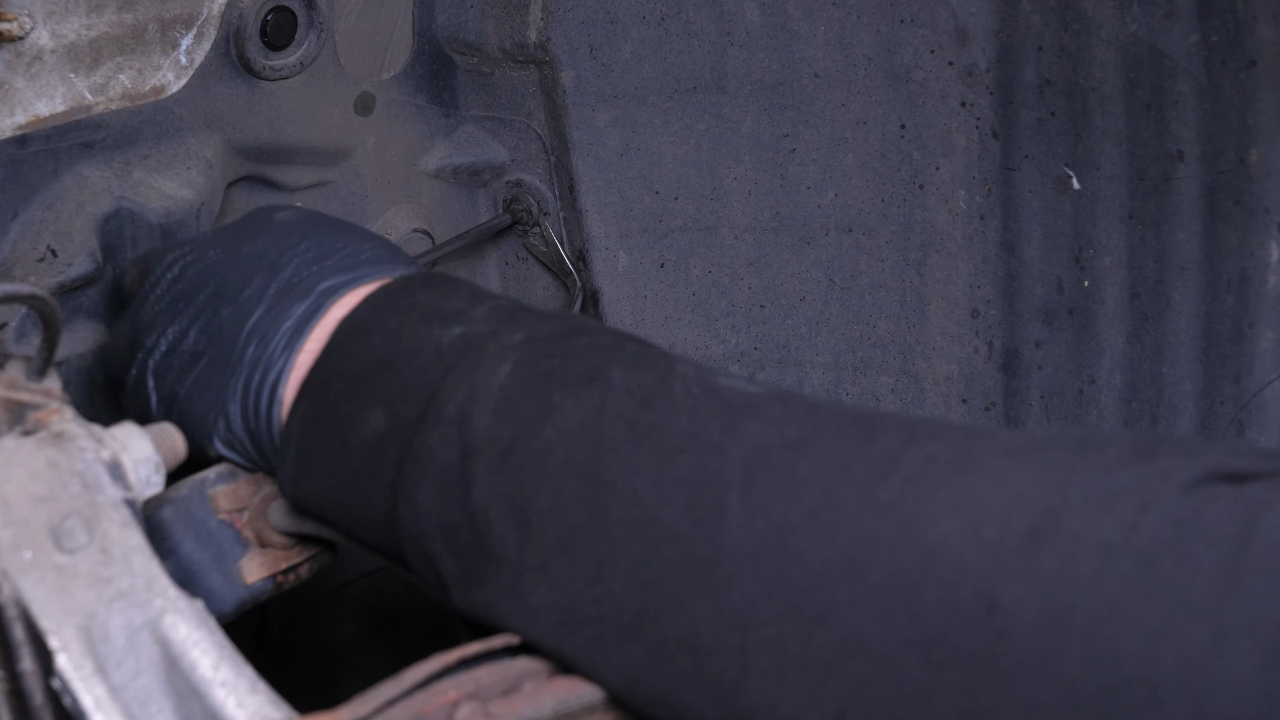

Using a Phillips screwdriver, unscrew the other 2 rivets holding the mudguard in place.

Chapter 5:

Step 3/7

Remove them with a fork.

Chapter 5:

Step 4/7

Using the Phillips screwdriver, unscrew the screw holding the bumper cover to the mudguard.

Chapter 5:

Step 5/7

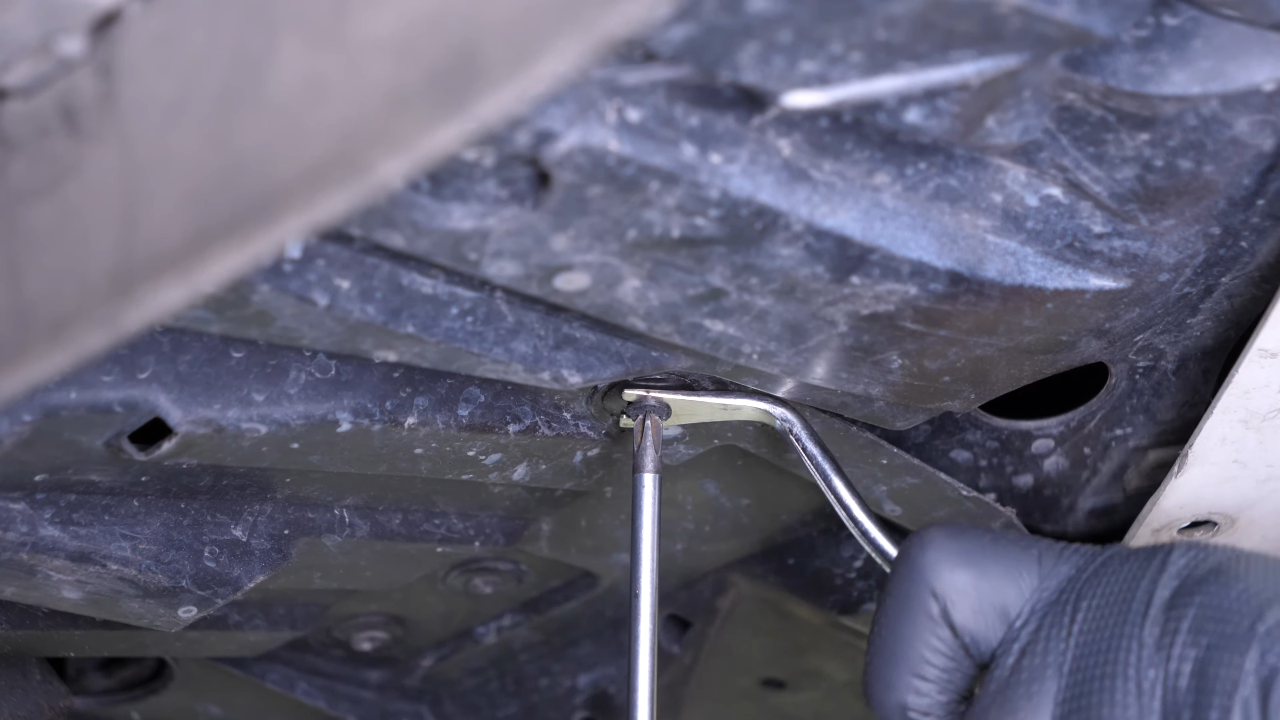

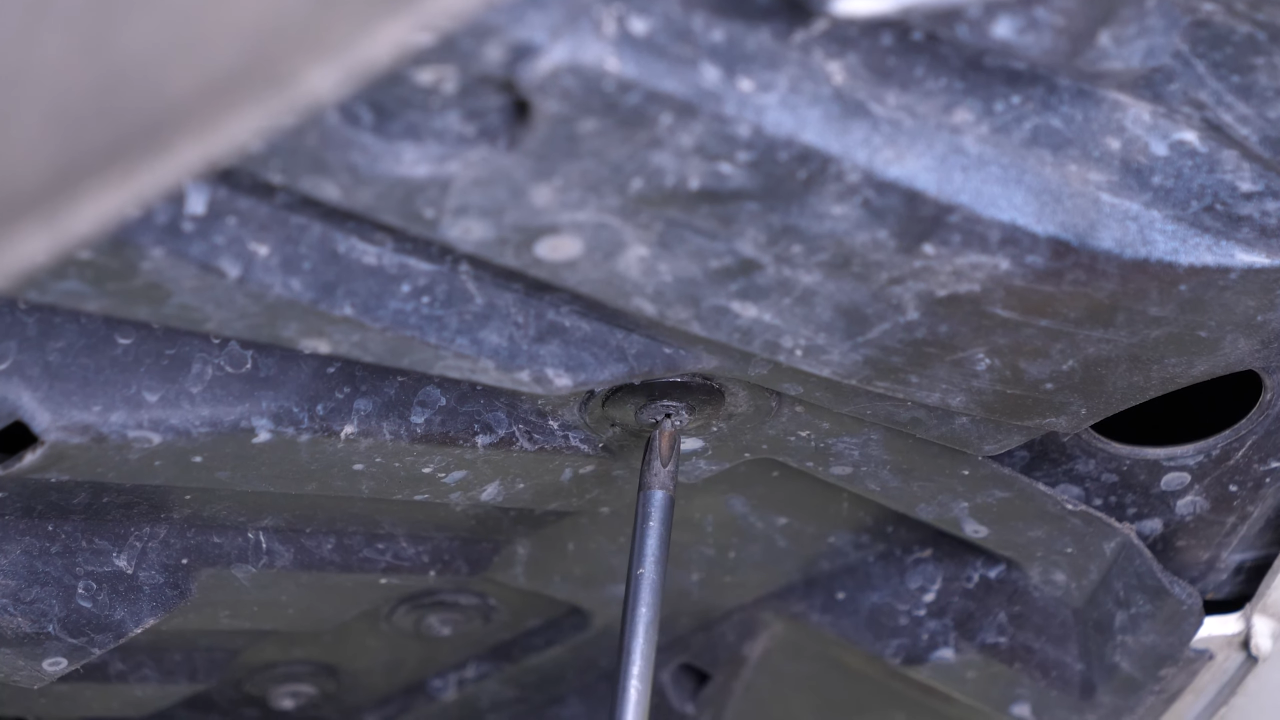

Using the Phillips screwdriver and the fork, unscrew the rivet holding the splash shield in place.

Chapter 5:

Step 6/7

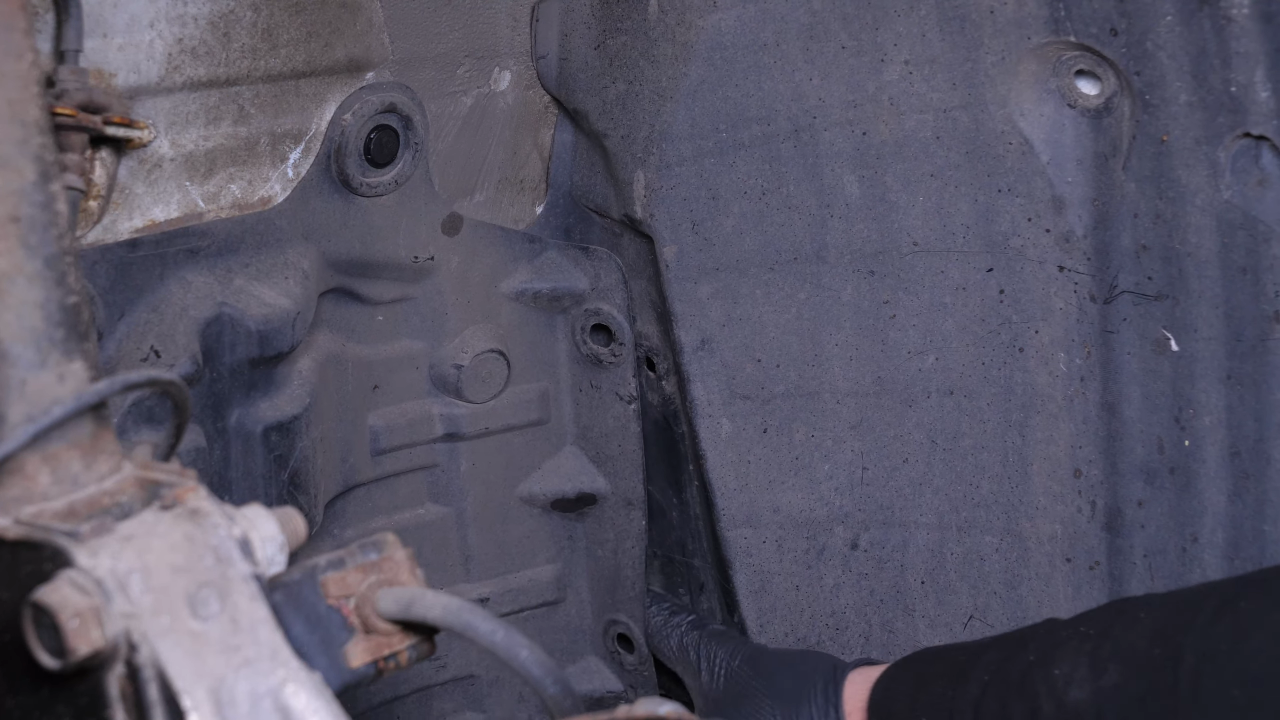

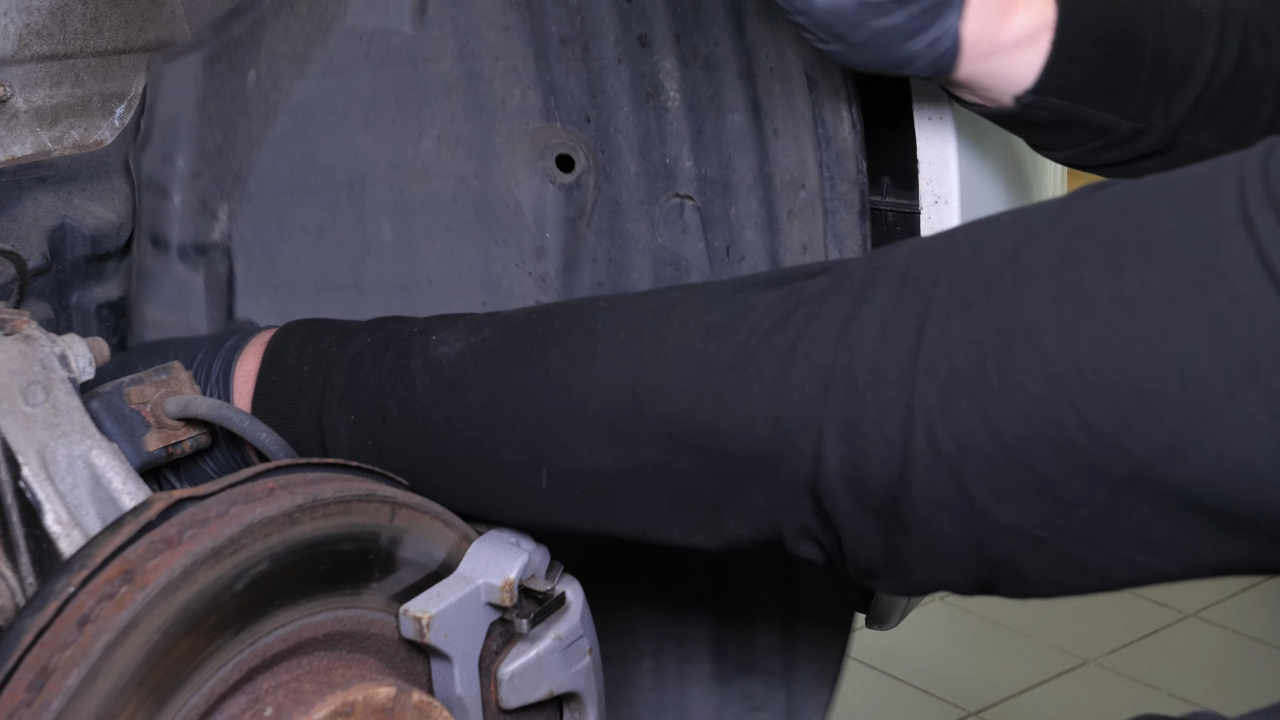

You can now pull back the mudguard.

Chapter 5:

Step 7/7

Repeat this step on the other side.

Chapter 6:

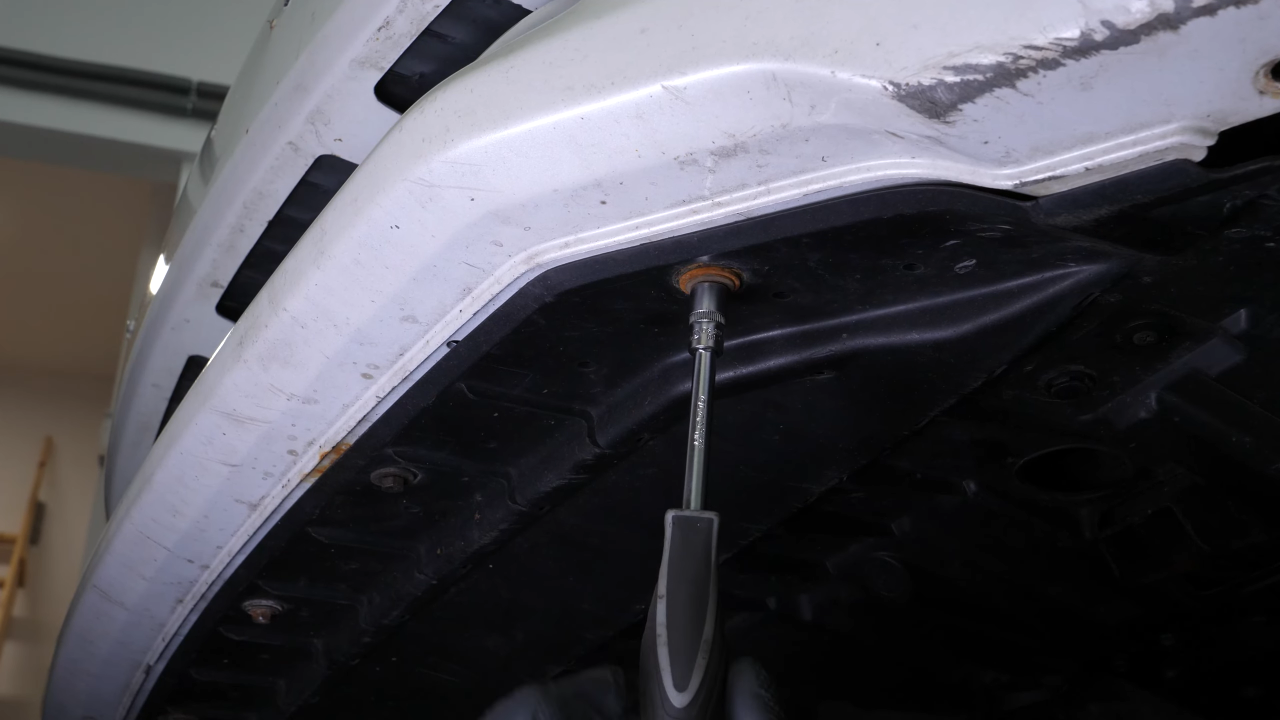

Remove various components

Step 1/5

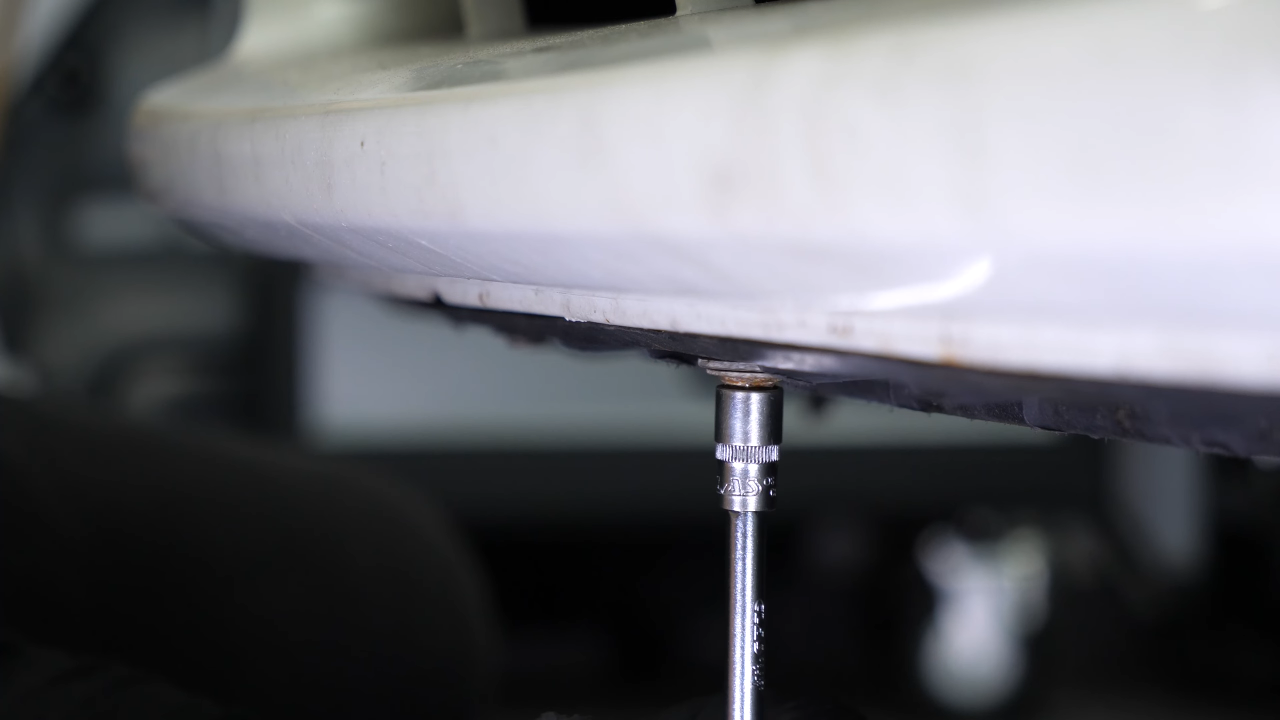

Using a multi-bit screwdriver and a 10 mm socket, unscrew the 5 engine splash shield retaining bolts.

Chapter 6:

Step 2/5

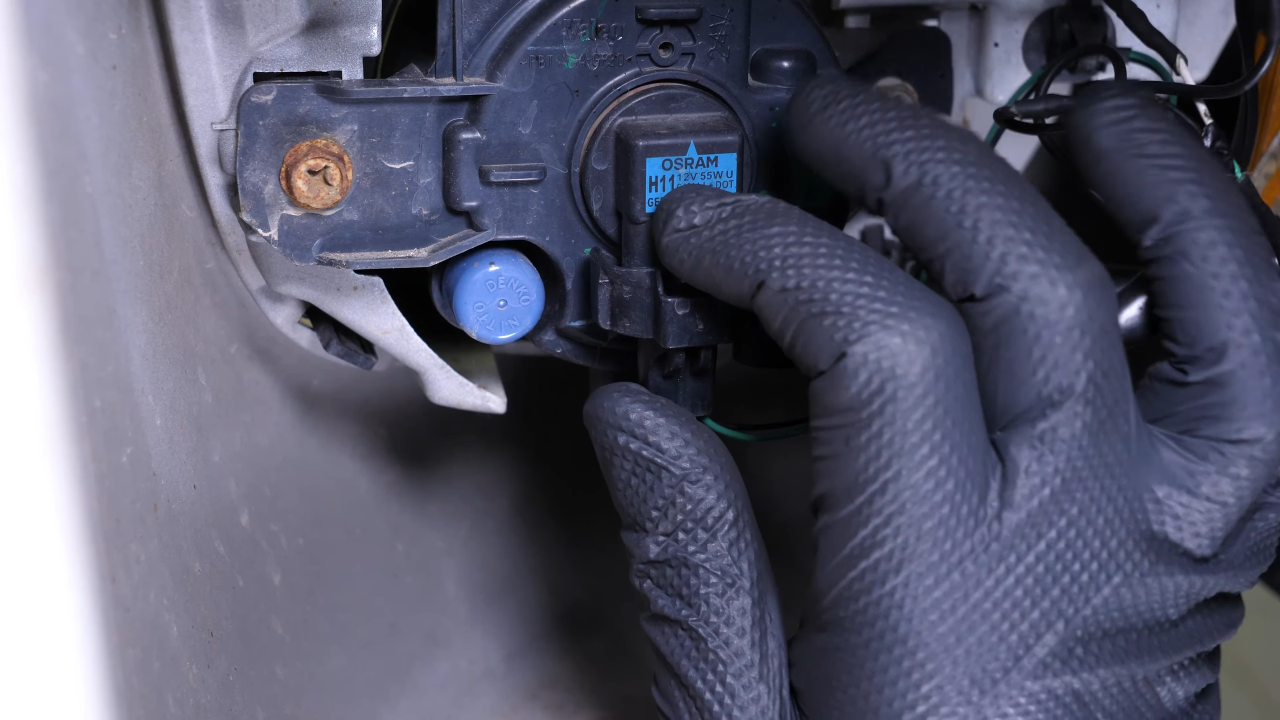

Remove the power connector from the fog light bulb.

Chapter 6:

Step 3/5

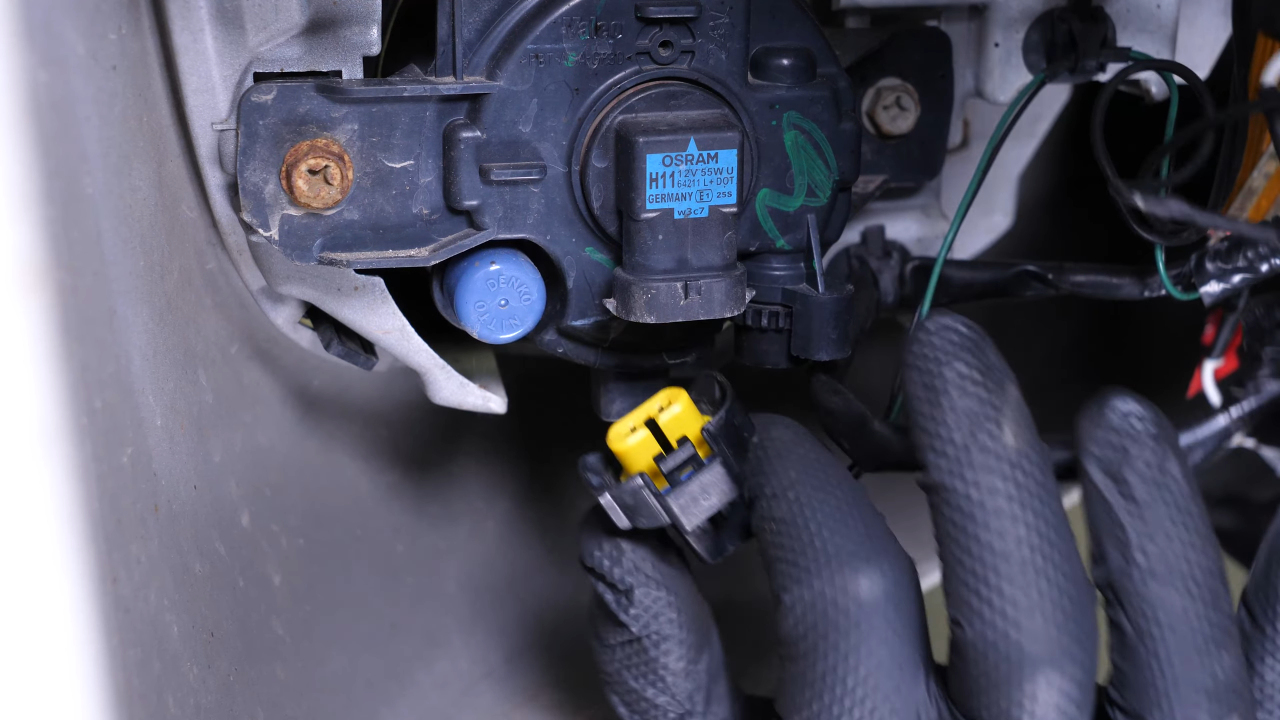

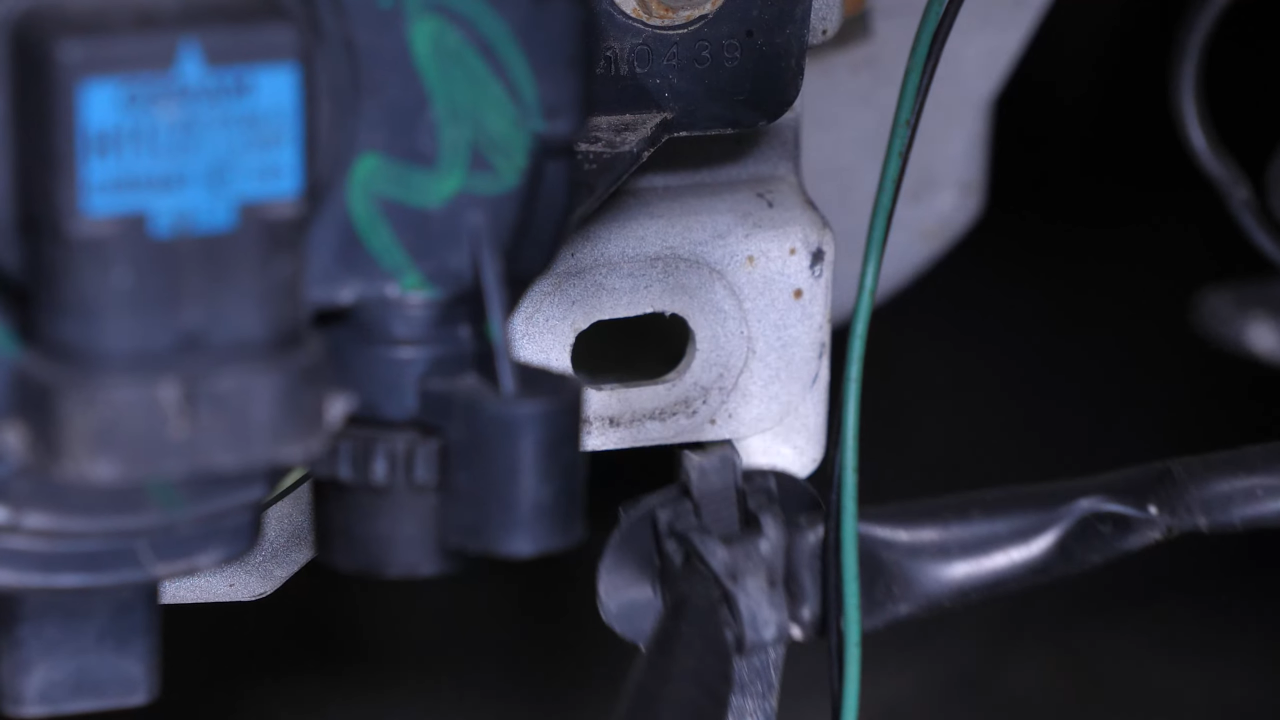

To do this, push on the tab and pull on the connector.

Chapter 6:

Step 4/5

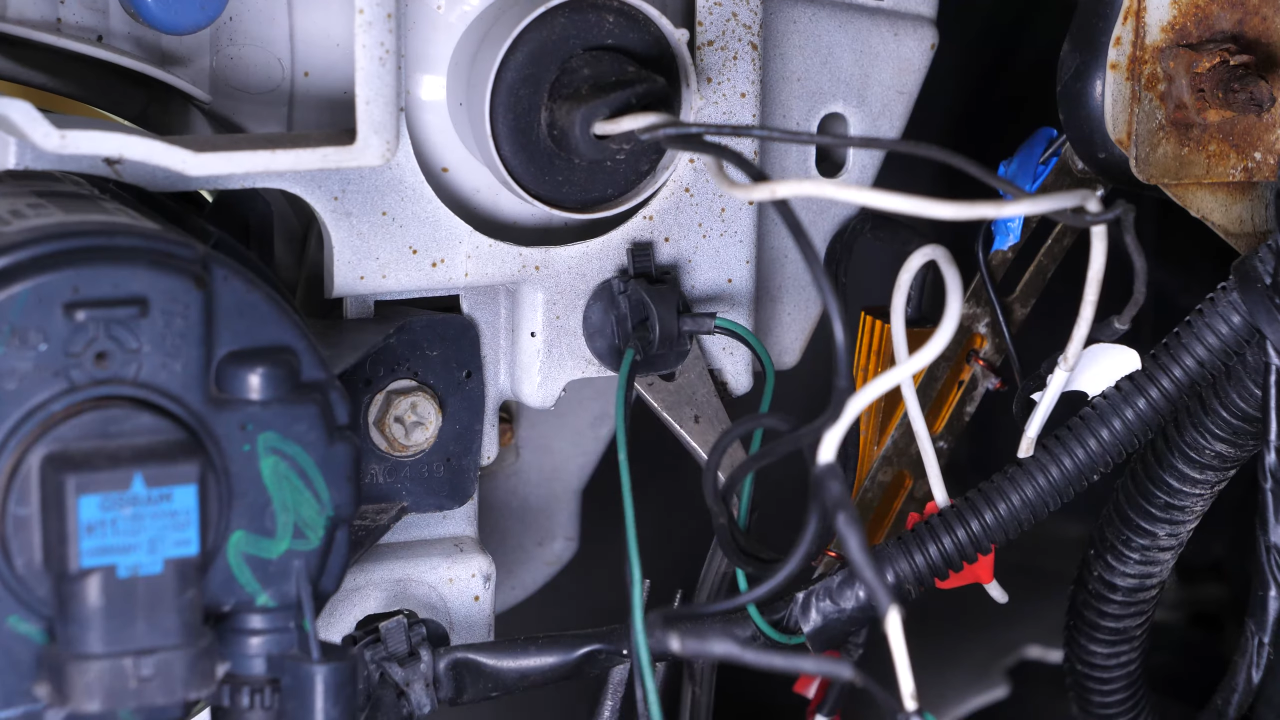

Using needle-nose pliers and a fork, remove the two cable retaining clips on the bumper cover.

Chapter 6:

Step 5/5

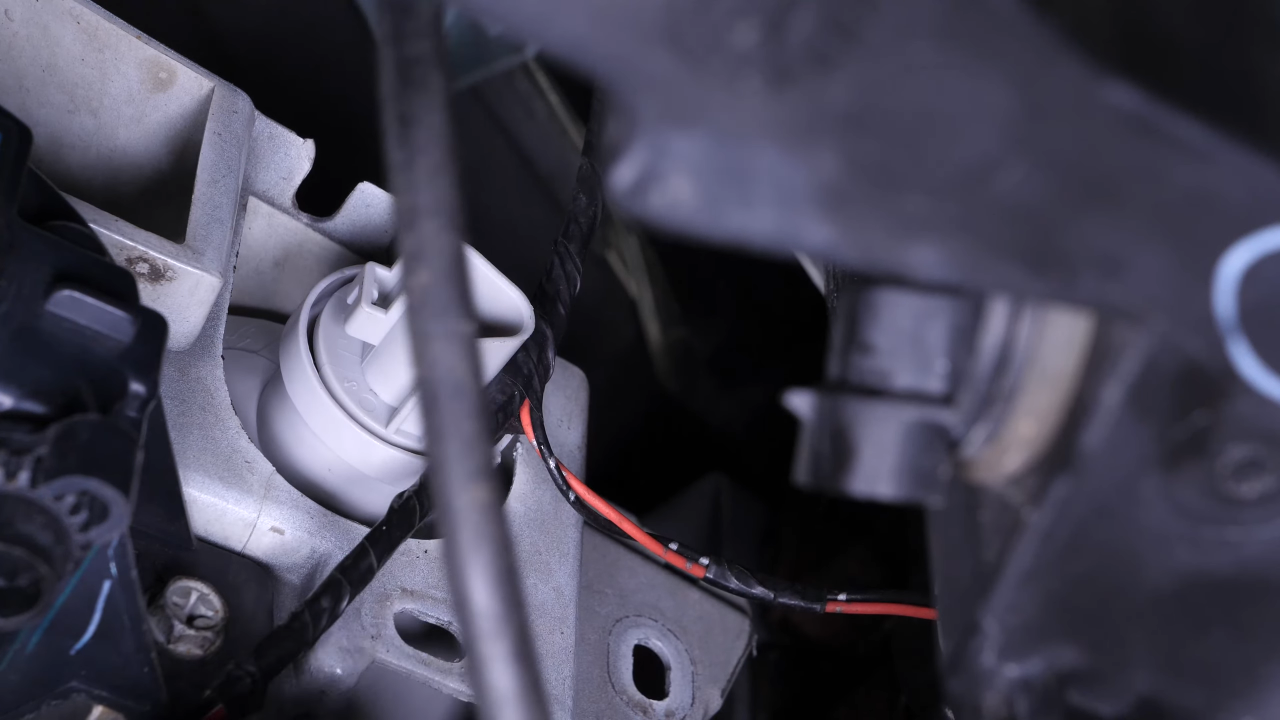

Remove the power connector from the turn signal bulb socket

Chapter 7:

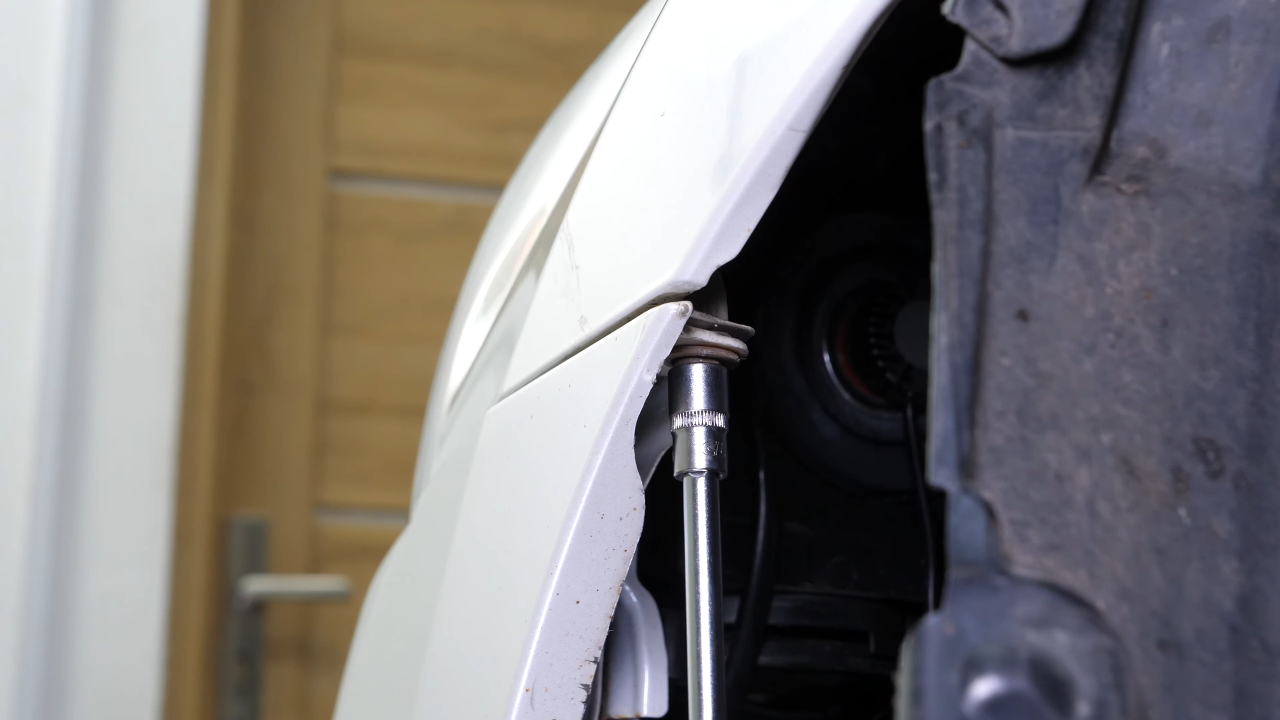

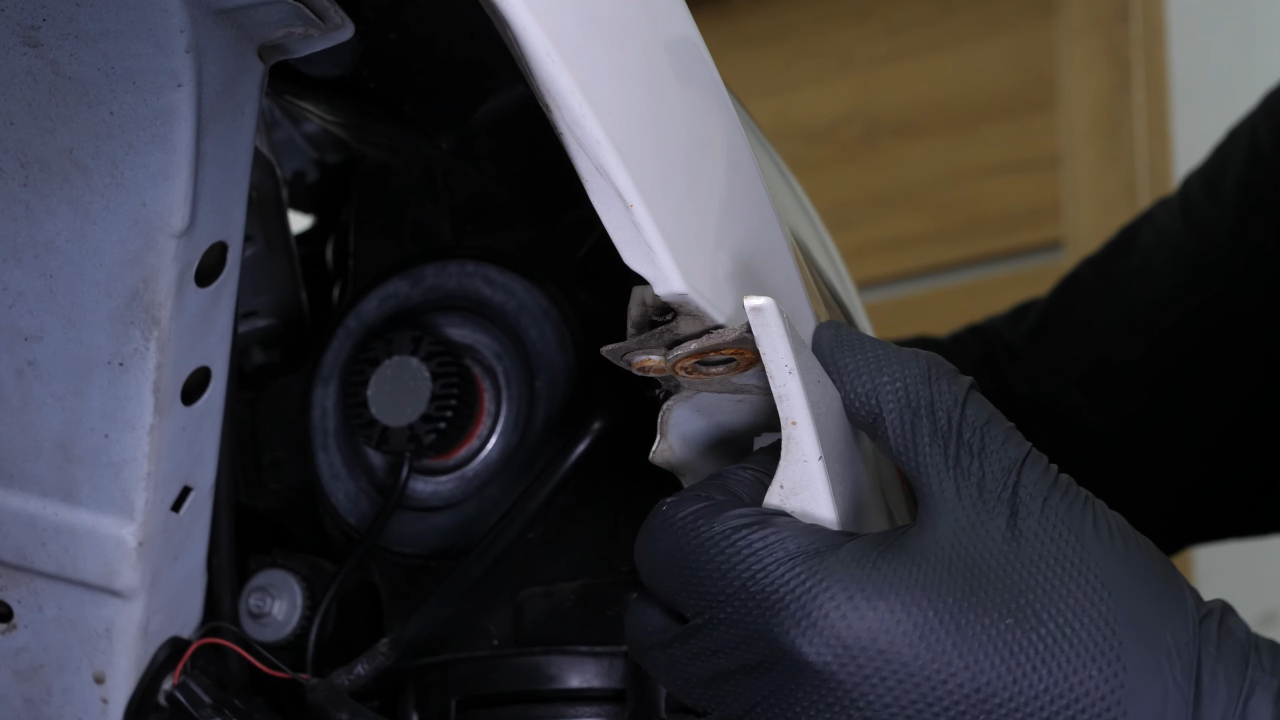

Remove the bumper cover

Step 1/5

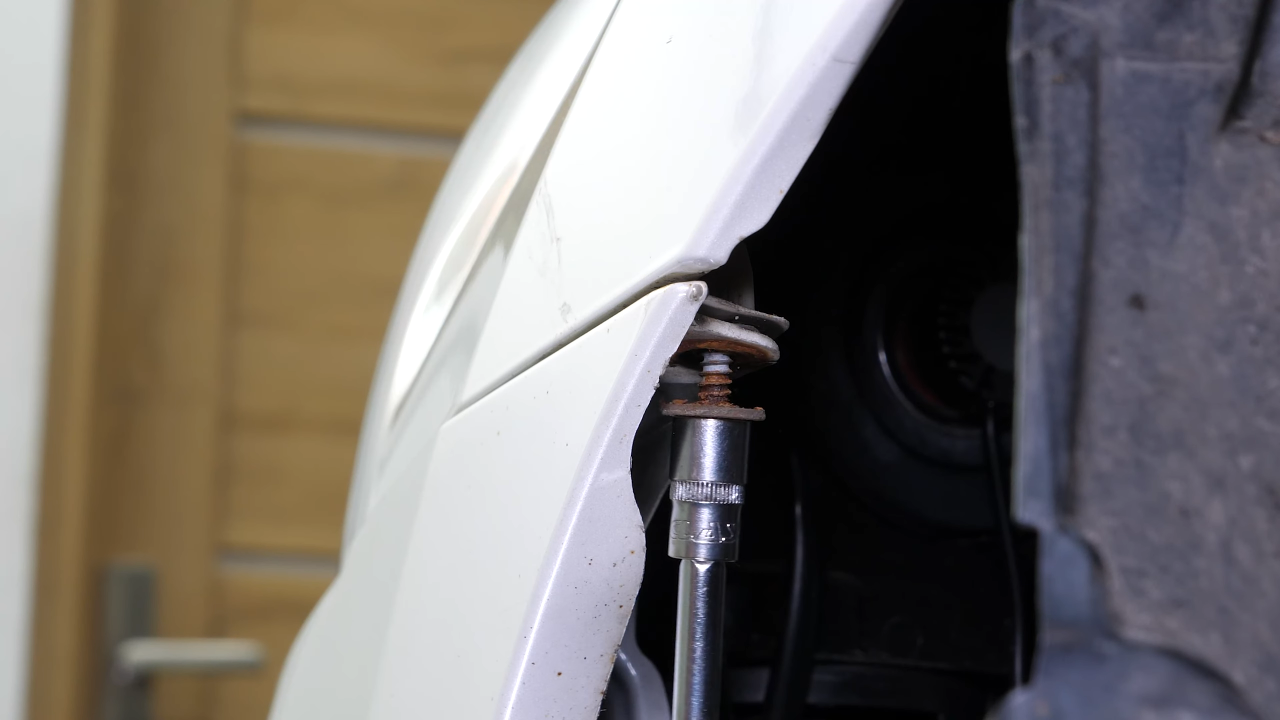

Next, using a ratchet, an extender and a 10 mm socket, loosen the screw holding the bumper cover to the fender.

Chapter 7:

Step 2/5

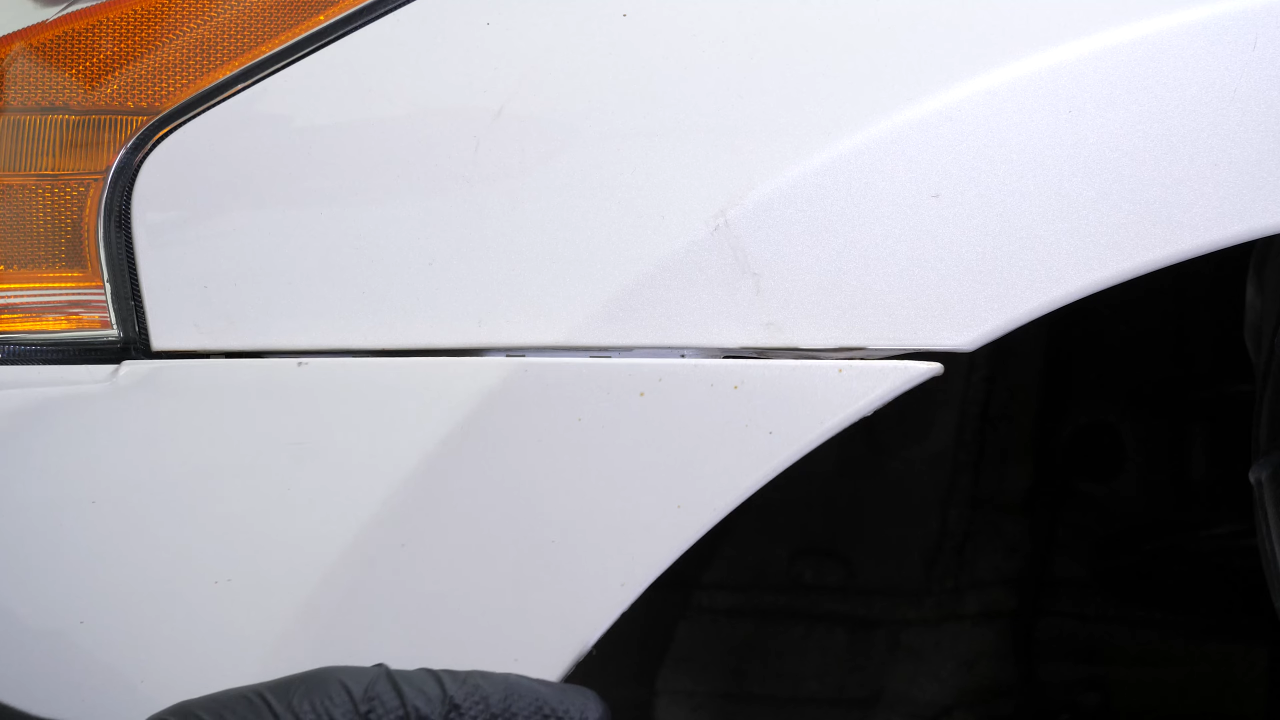

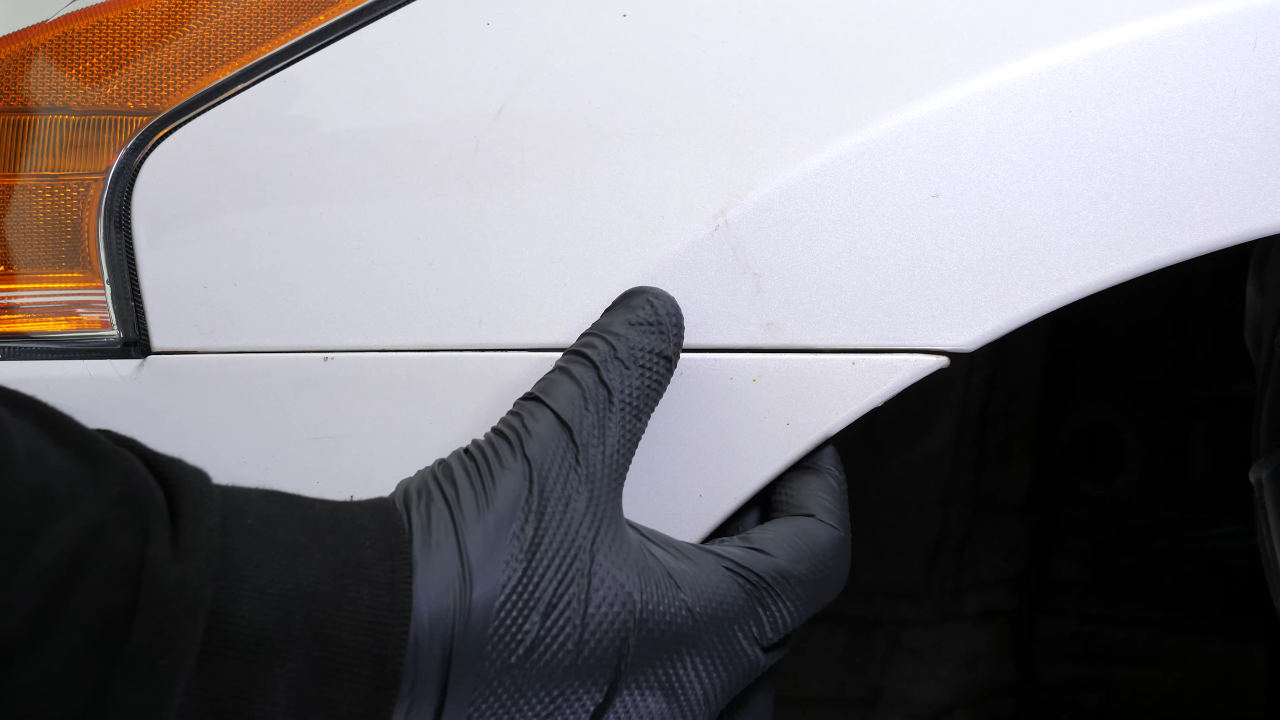

Pull the bumper cover out of its slot.

Chapter 7:

Step 3/5

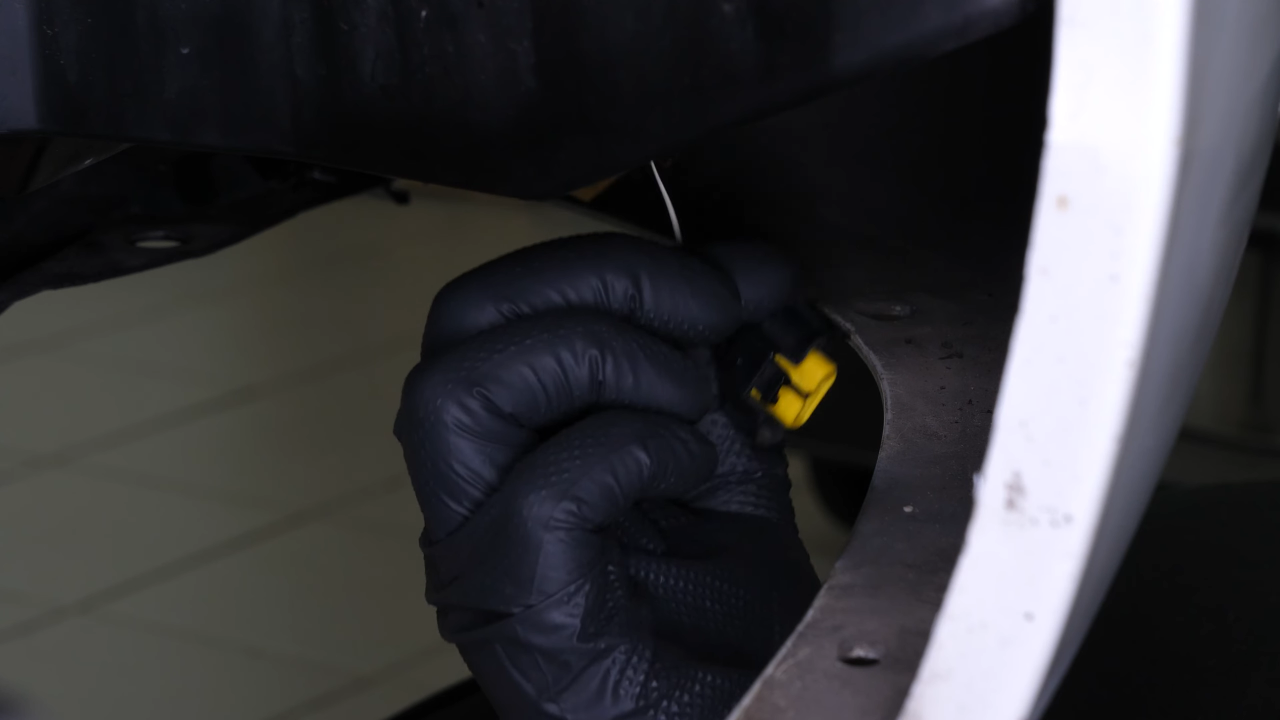

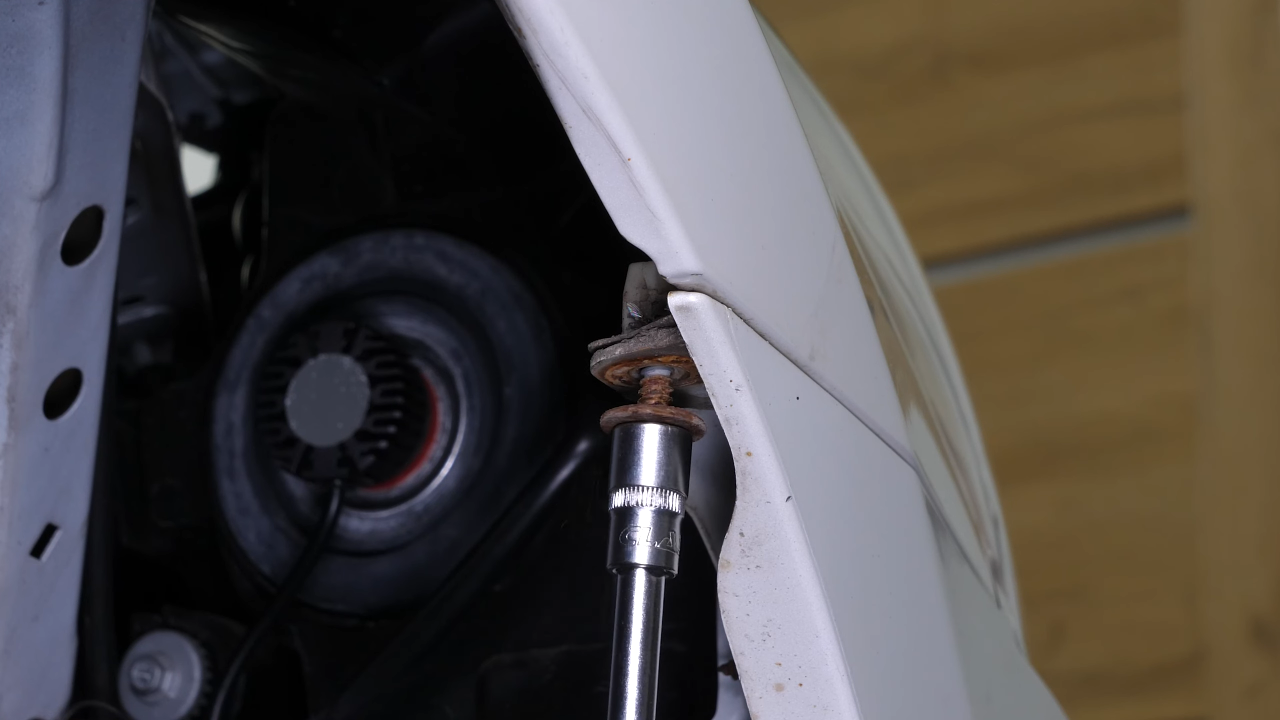

Repeat the same steps on the other side of the bumper cover.

Chapter 7:

Step 4/5

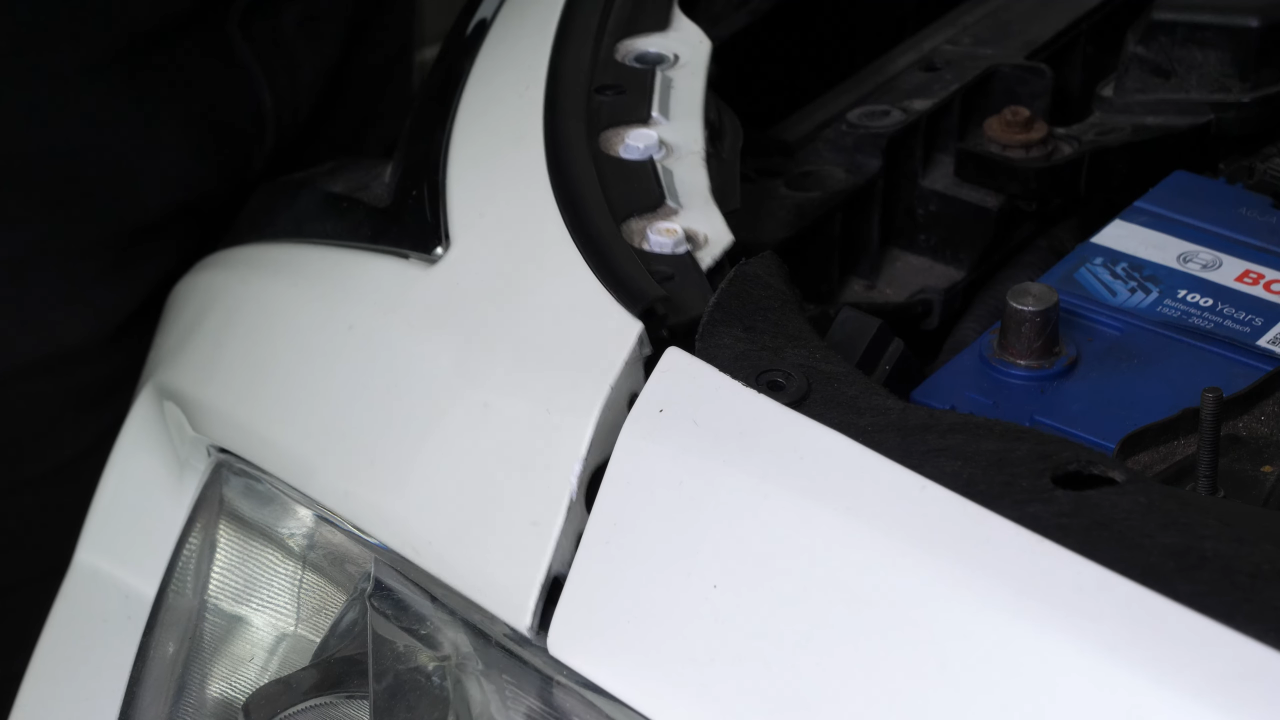

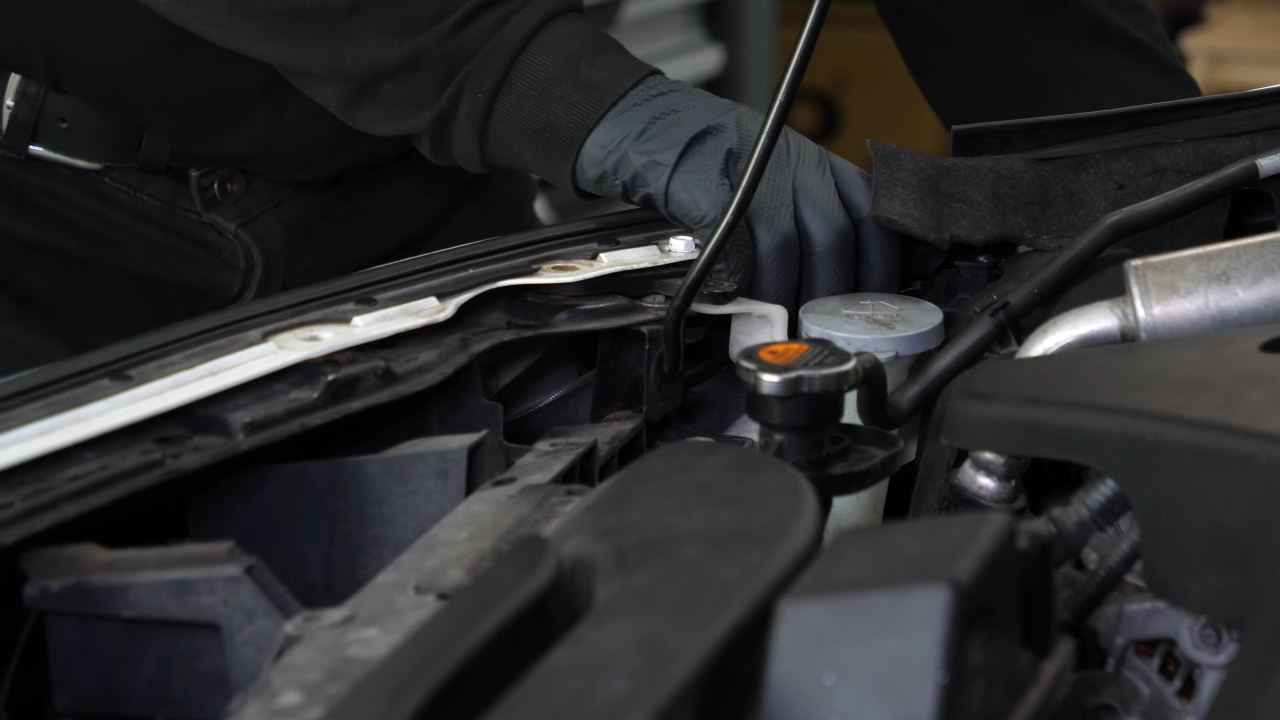

Then pull it out to the front to disengage the locating pins from their housings in the front fenders.

Chapter 7:

Step 5/5

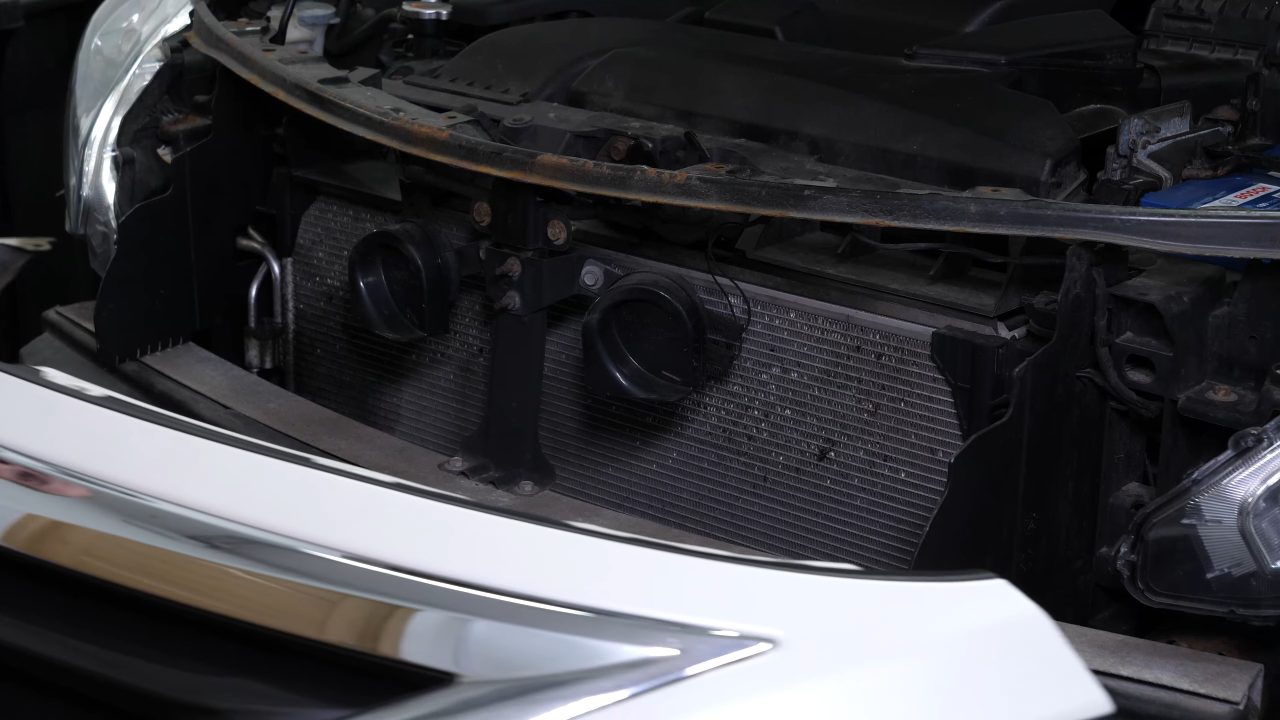

The front bumper cover is now free: you can remove it, preferably with help from a second person.

Chapter 8:

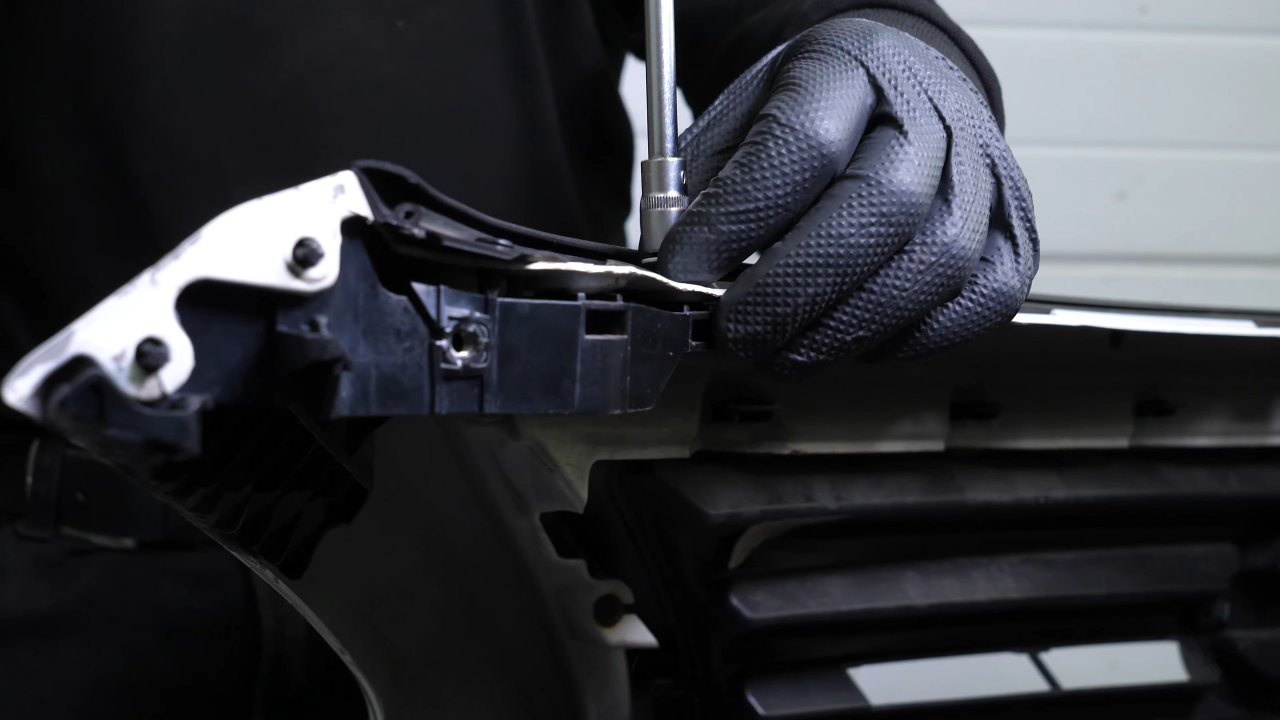

Remove the bumper brackets

Step 1/1

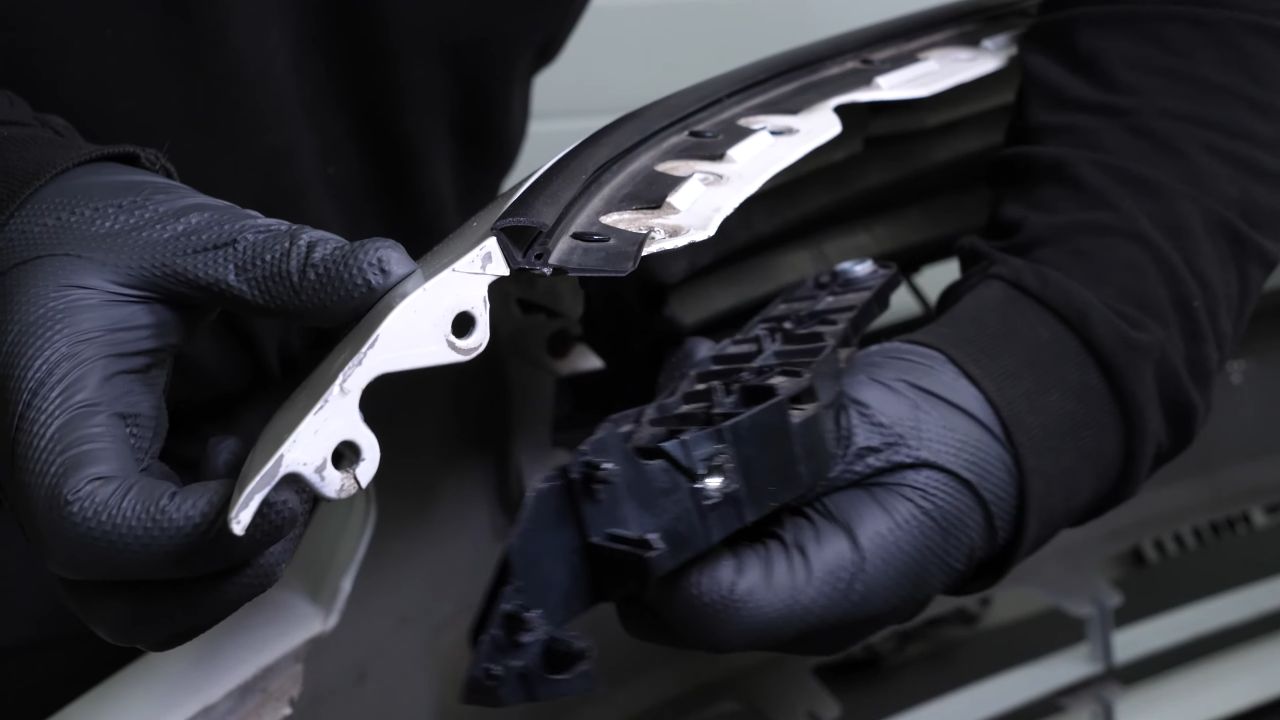

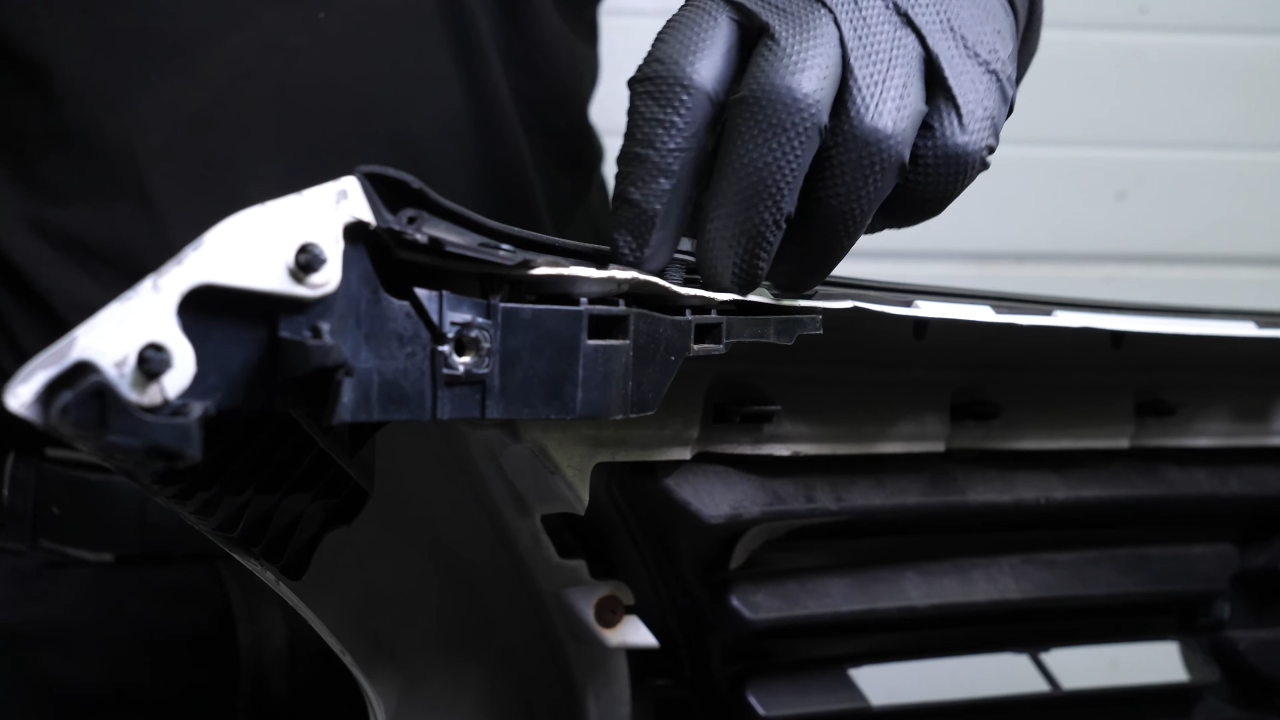

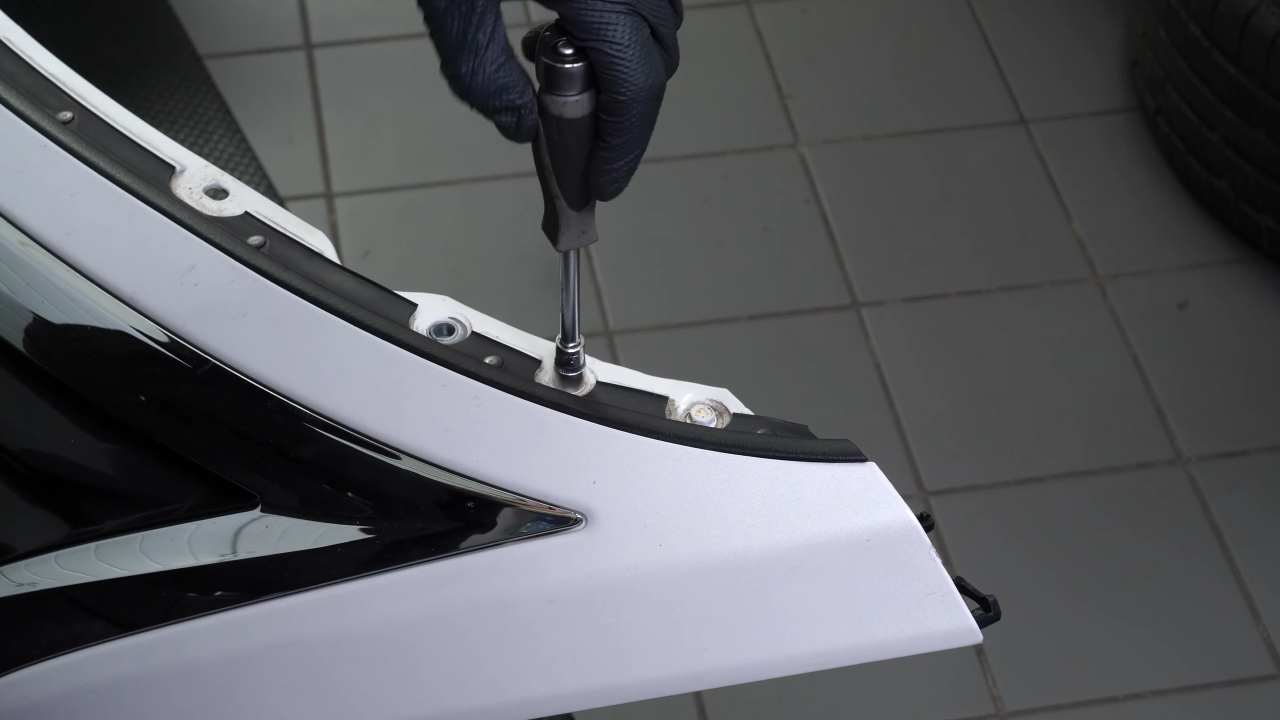

Use a ratchet, an extender and a 10 mm socket to unscrew the 2 bumper cover bracket retaining bolts. Then, remove the bracket.

Chapter 9:

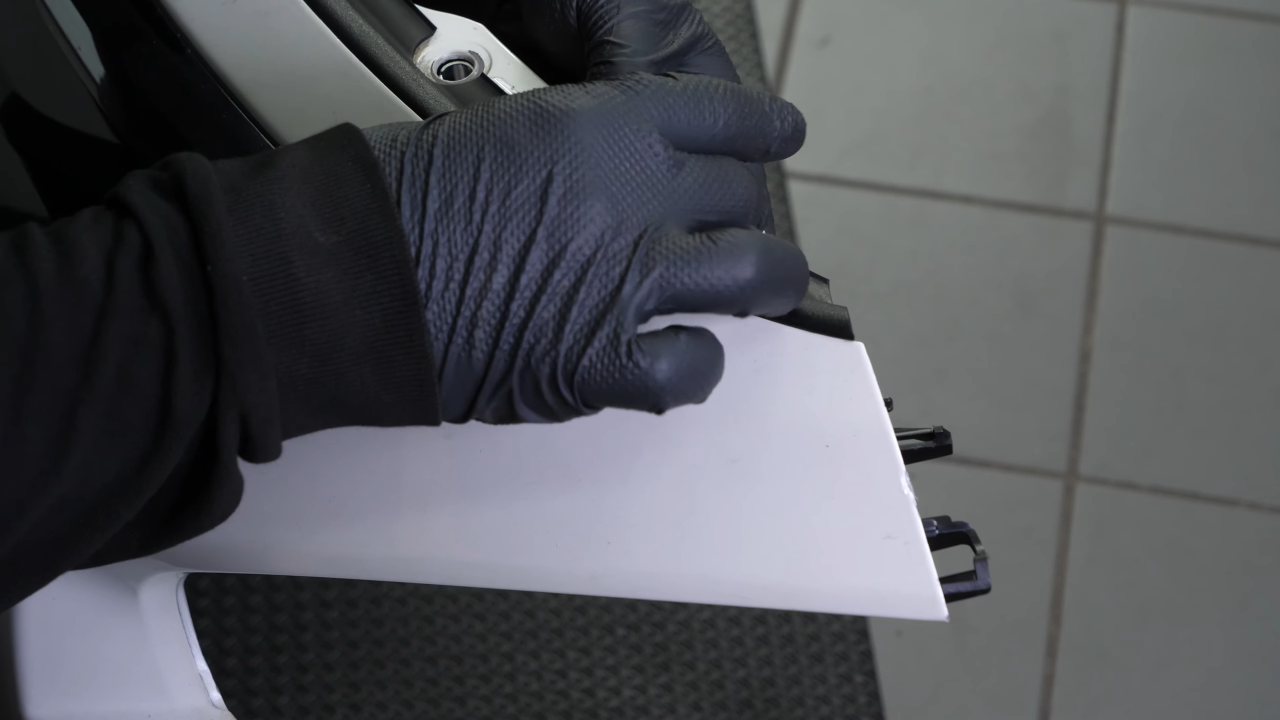

Install the front bumper brackets

Step 1/2

Take the new front bumper cover bracket.

Chapter 9:

Step 2/2

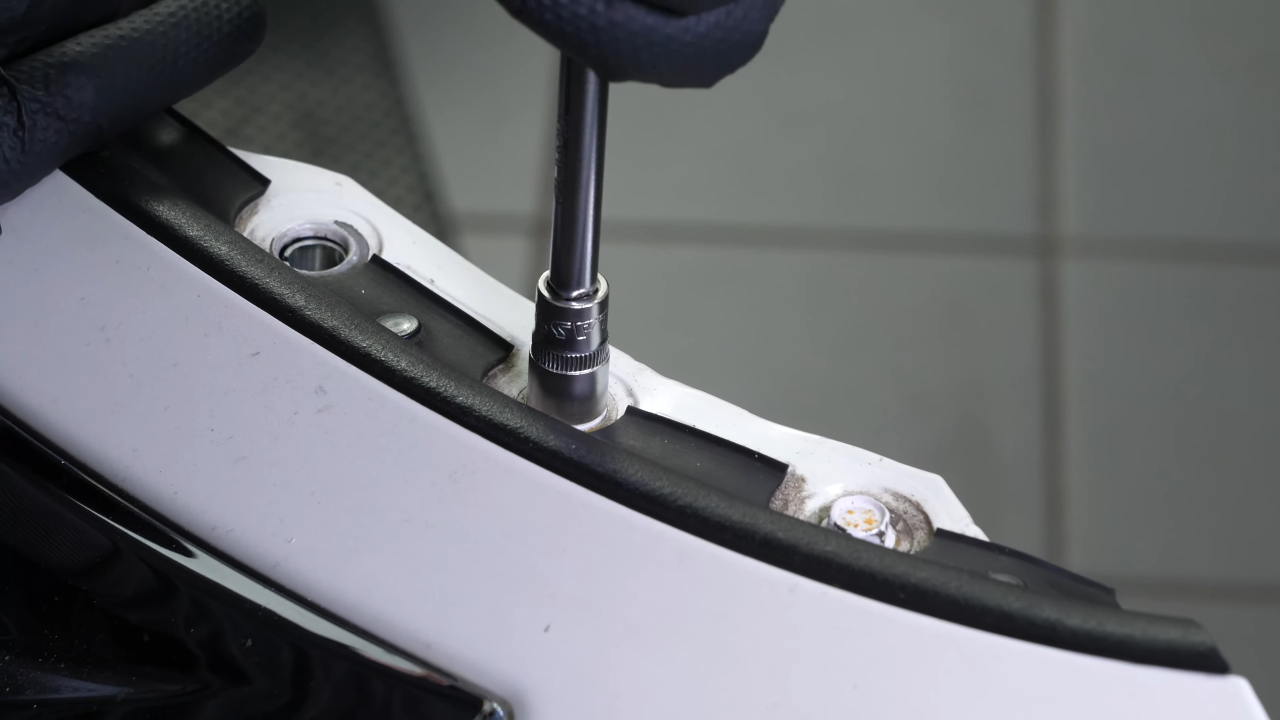

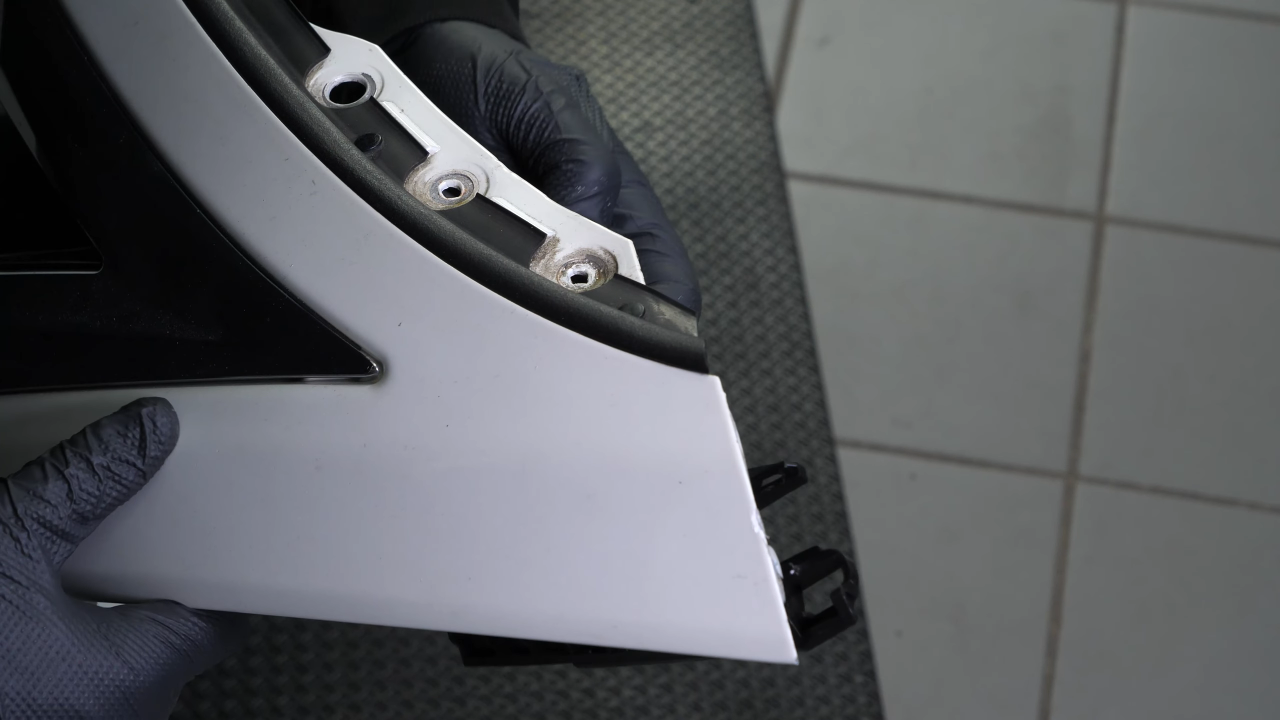

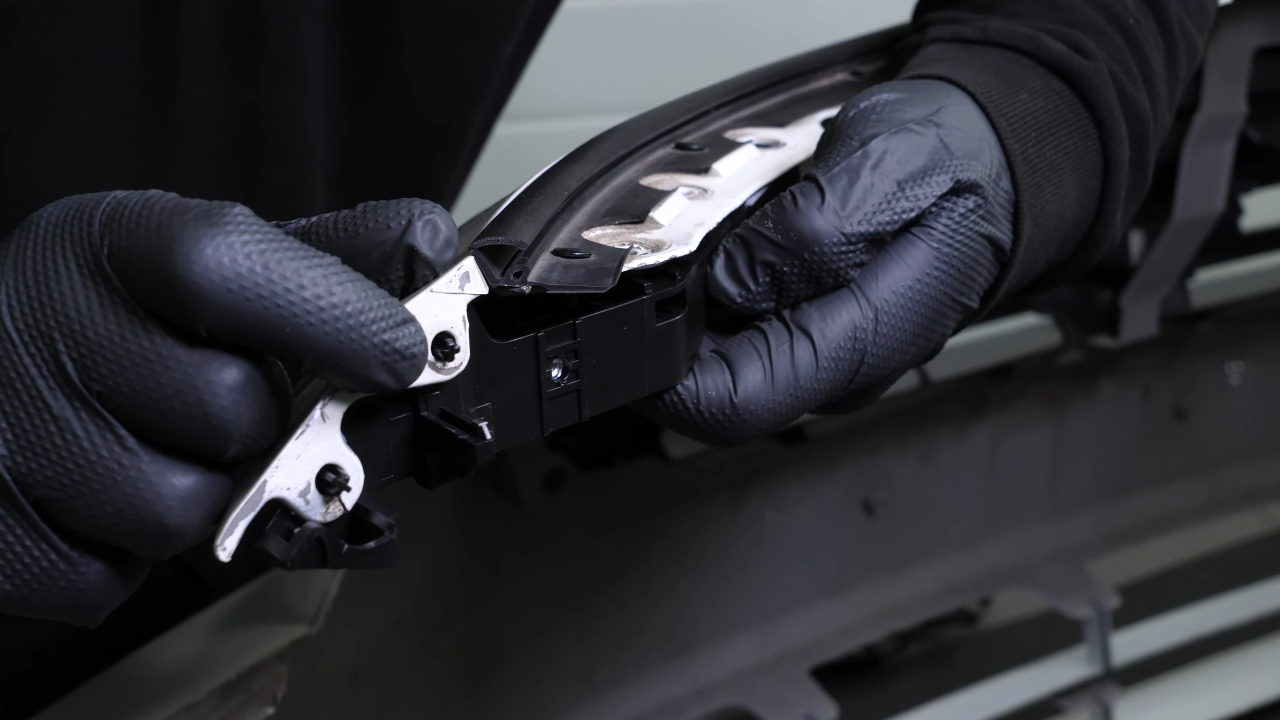

Put the bumper cover bracket back in place. Then screw the 2 bolts back on.

Chapter 10:

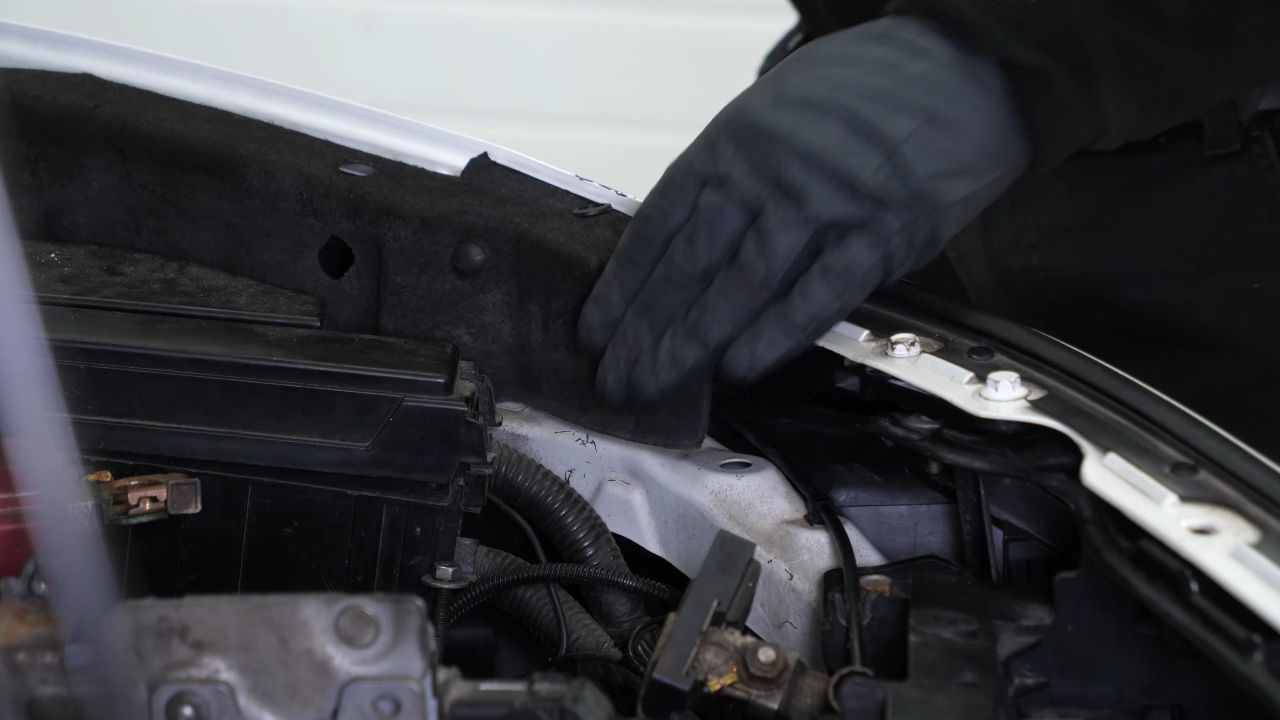

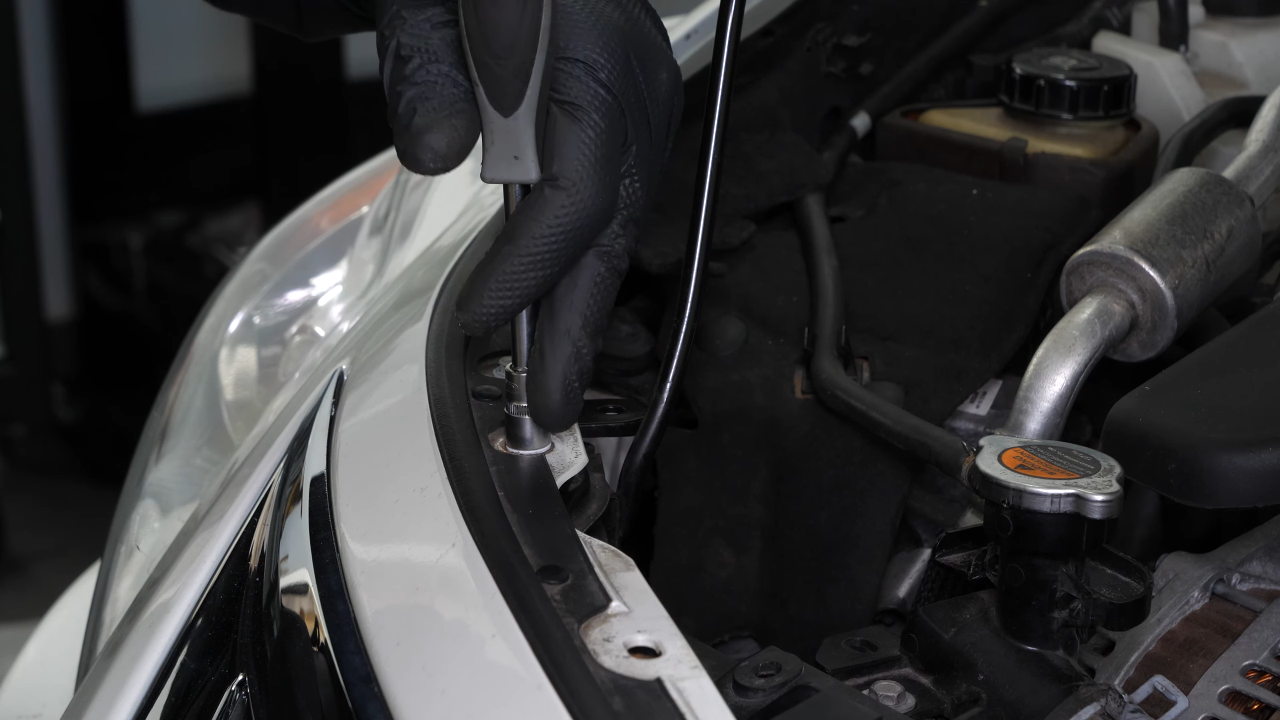

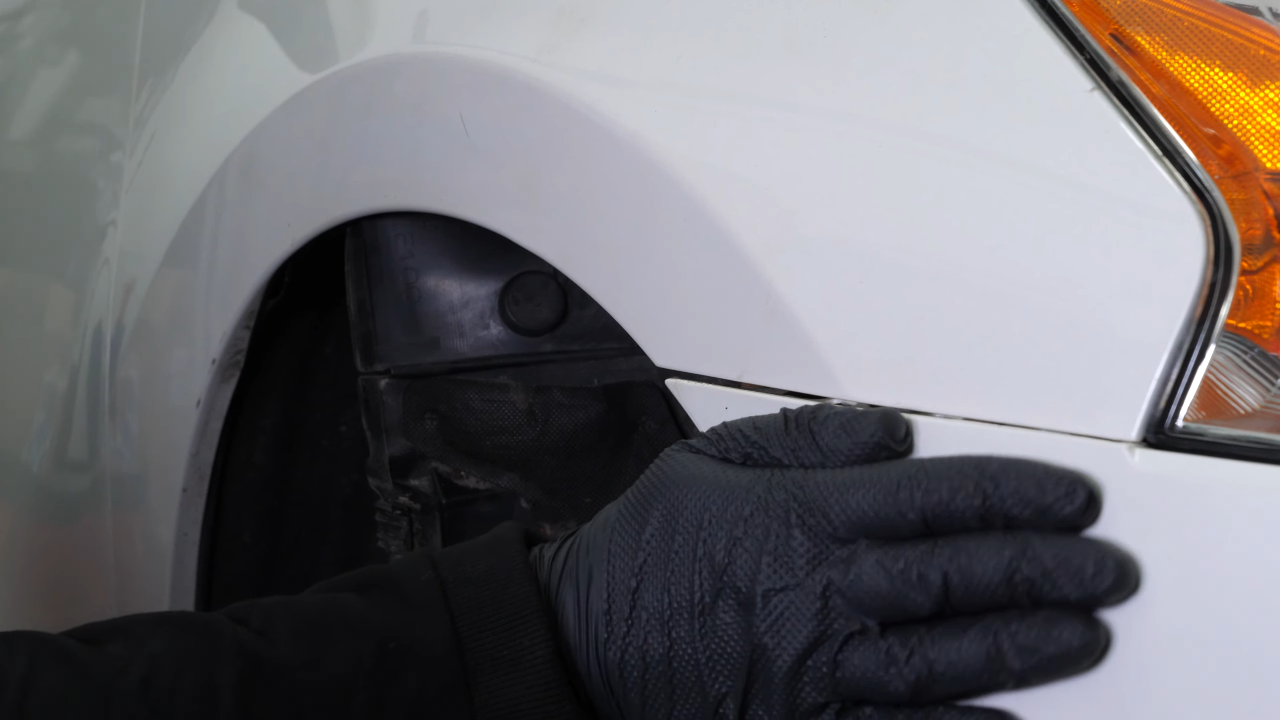

Reinstall the bumper cover

Step 1/6

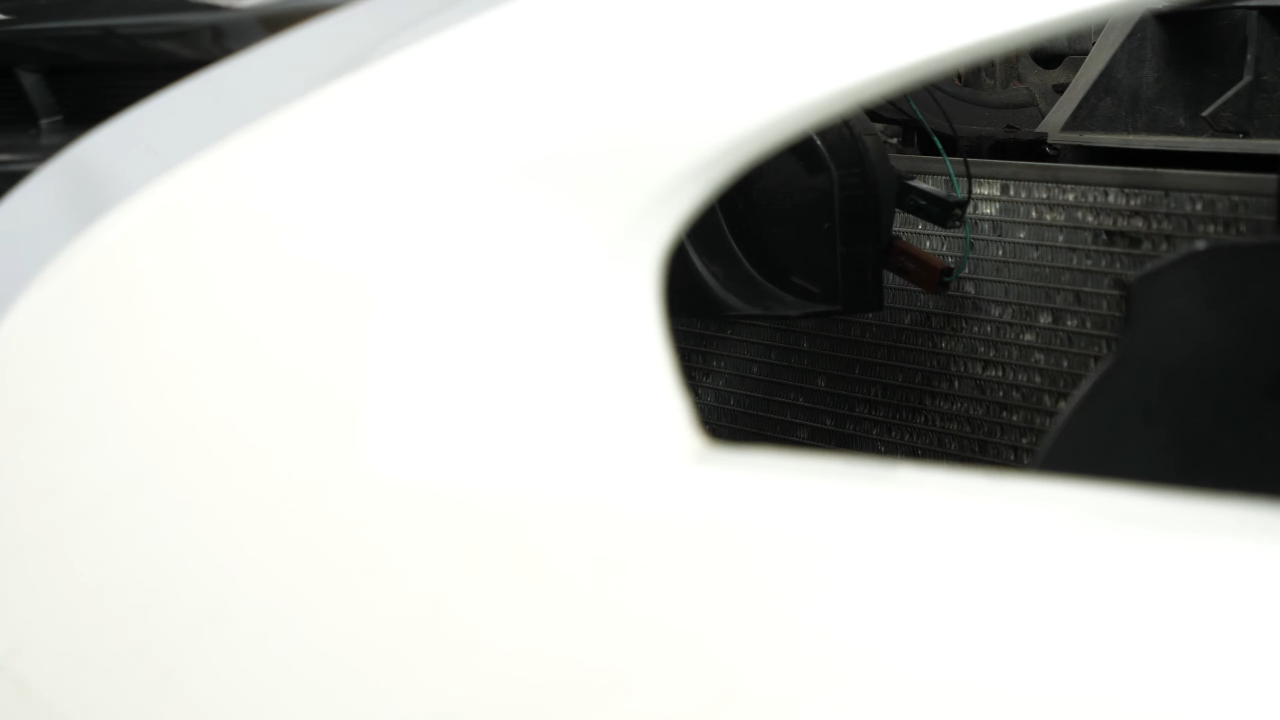

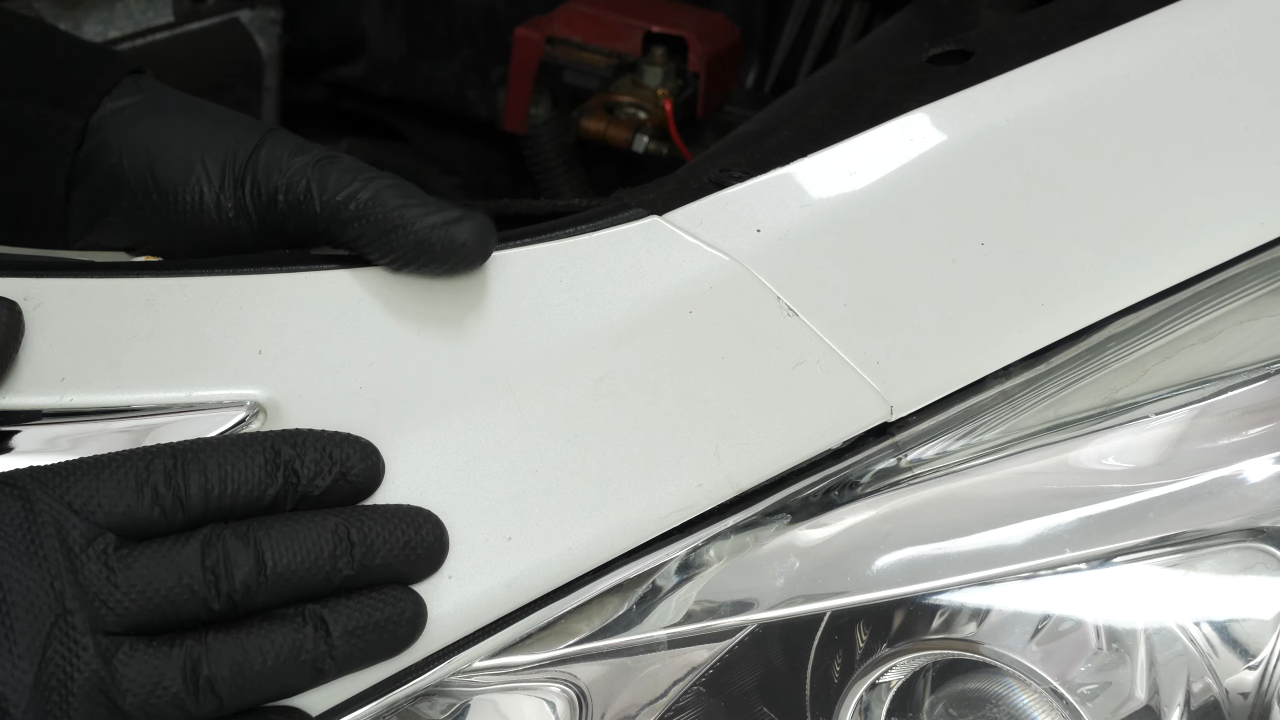

Put the front bumper cover back in place. Then, reinsert the bumper cover onto the fender.

Chapter 10:

Step 2/6

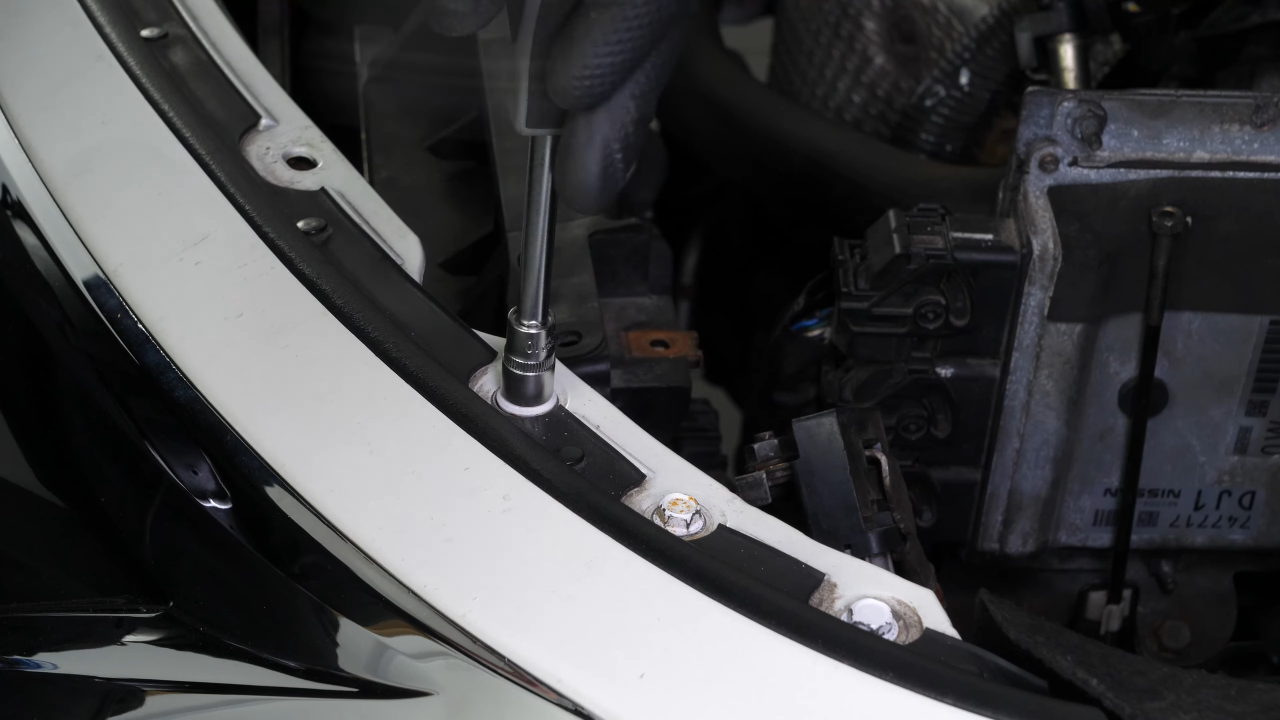

Screw the 2 upper bumper cover retaining bolts back on. Clip the bumper cover back into the side bumper cover retainer.

Chapter 10:

Step 4/6

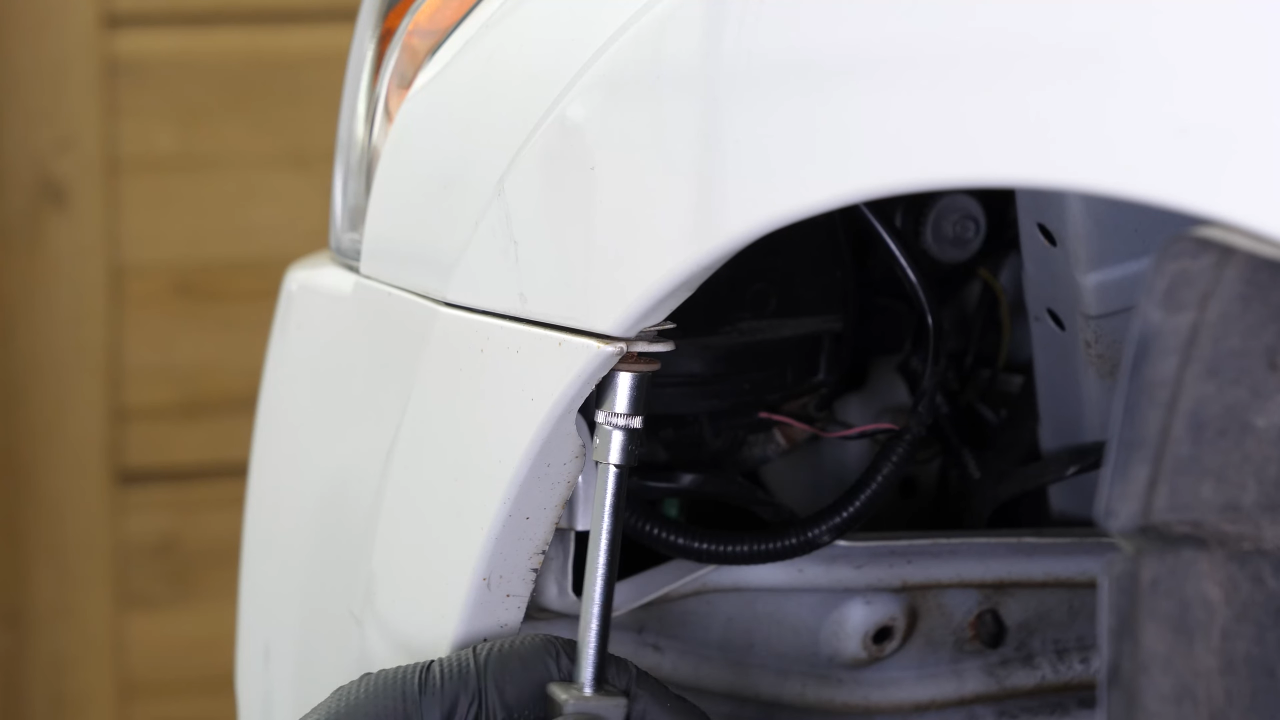

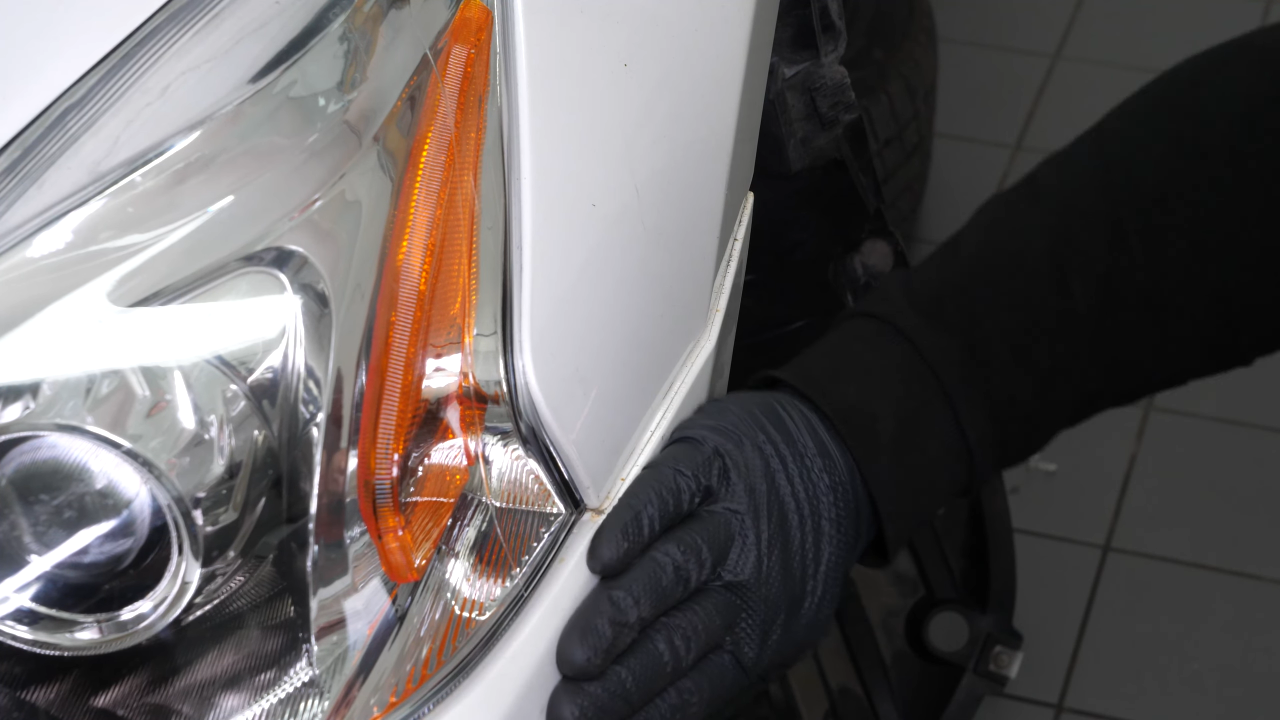

From the wheel arch, screw the bumper cover retaining screw back onto the fender.

Chapter 10:

Step 5/6

Repeat this step on the other side.

Chapter 10:

Step 6/6

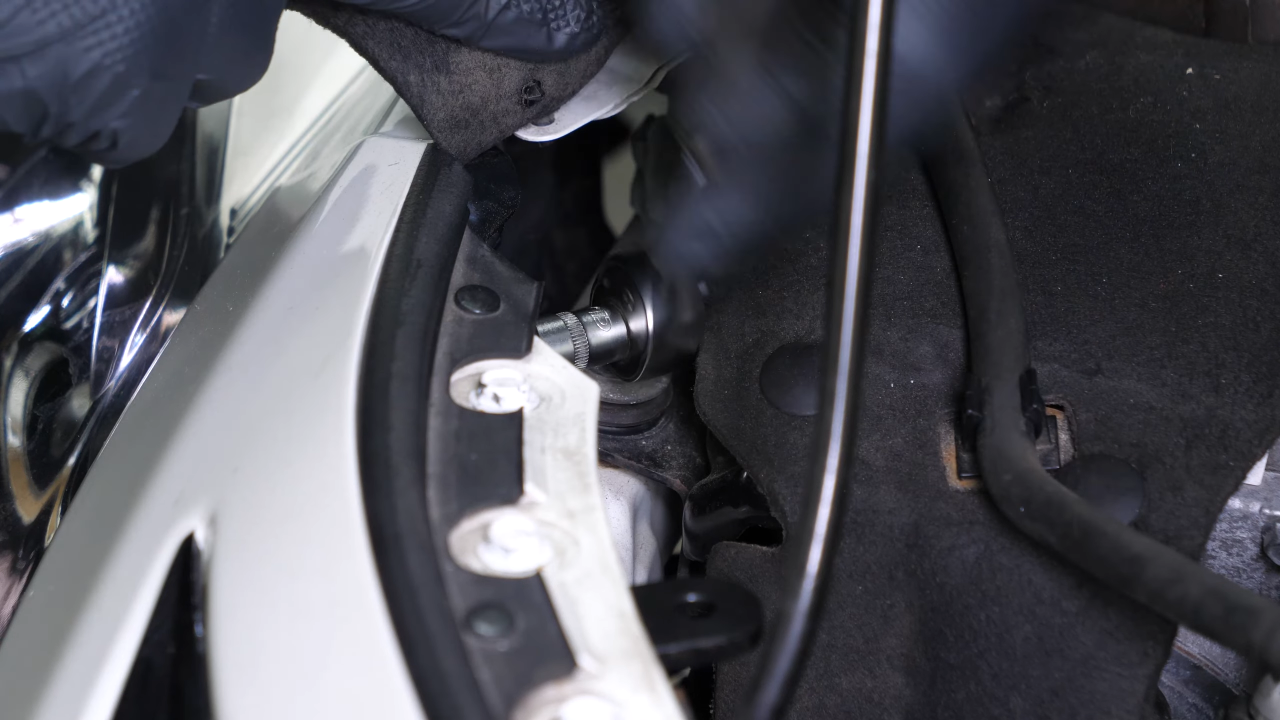

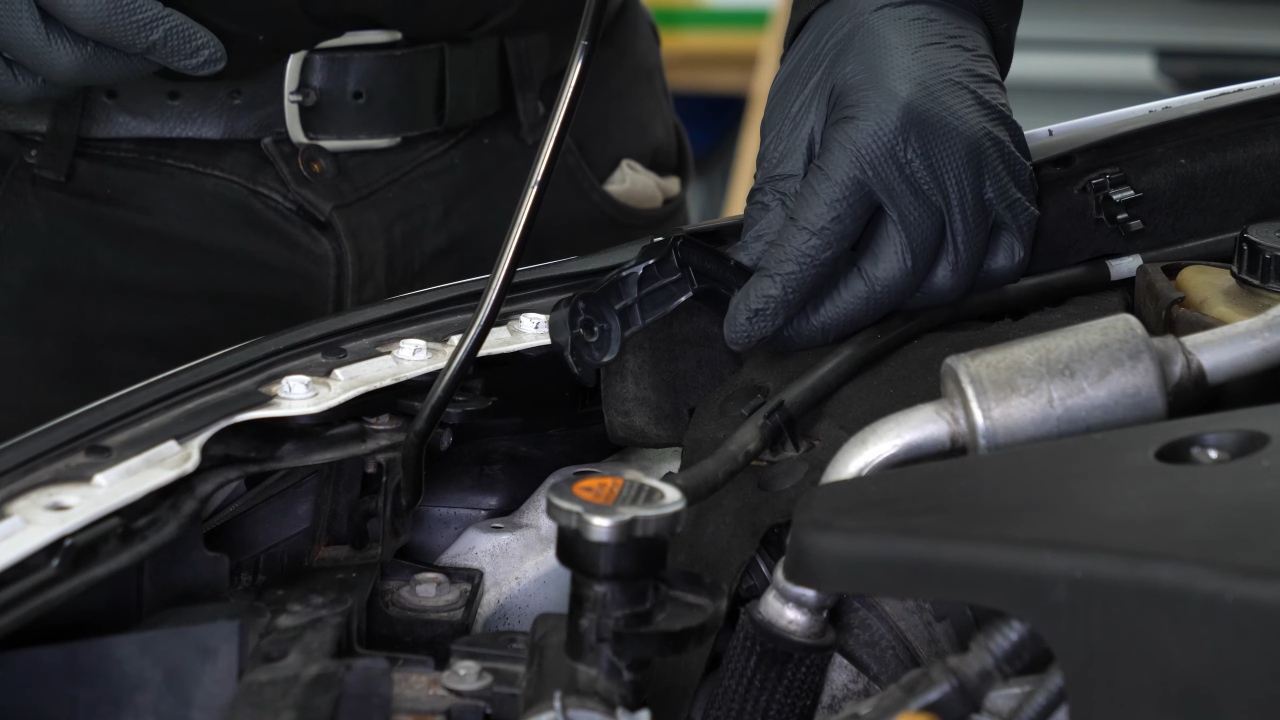

Put the plastic bumper cover bracket back in place. And screw it back on.

Chapter 10:

Step 7/6

Repeat this step on the other side. Then put the washer pump fluid reservoir retaining rivet back in place.

Chapter 11:

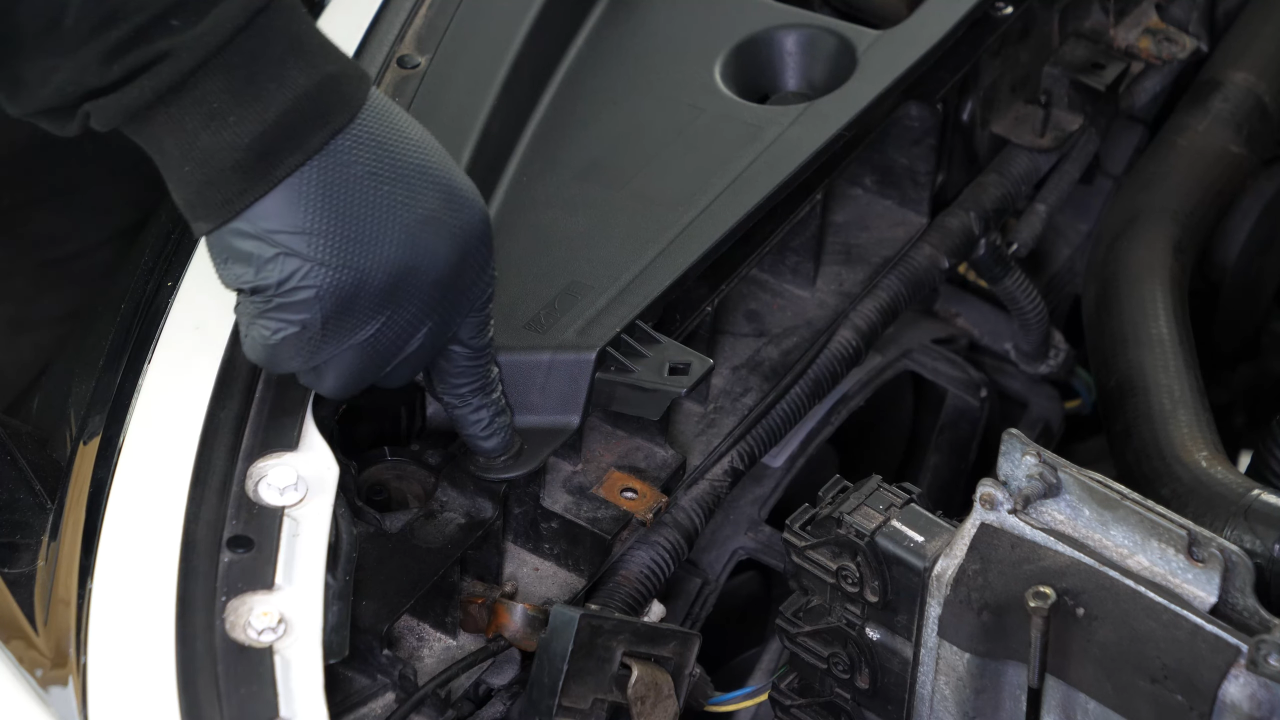

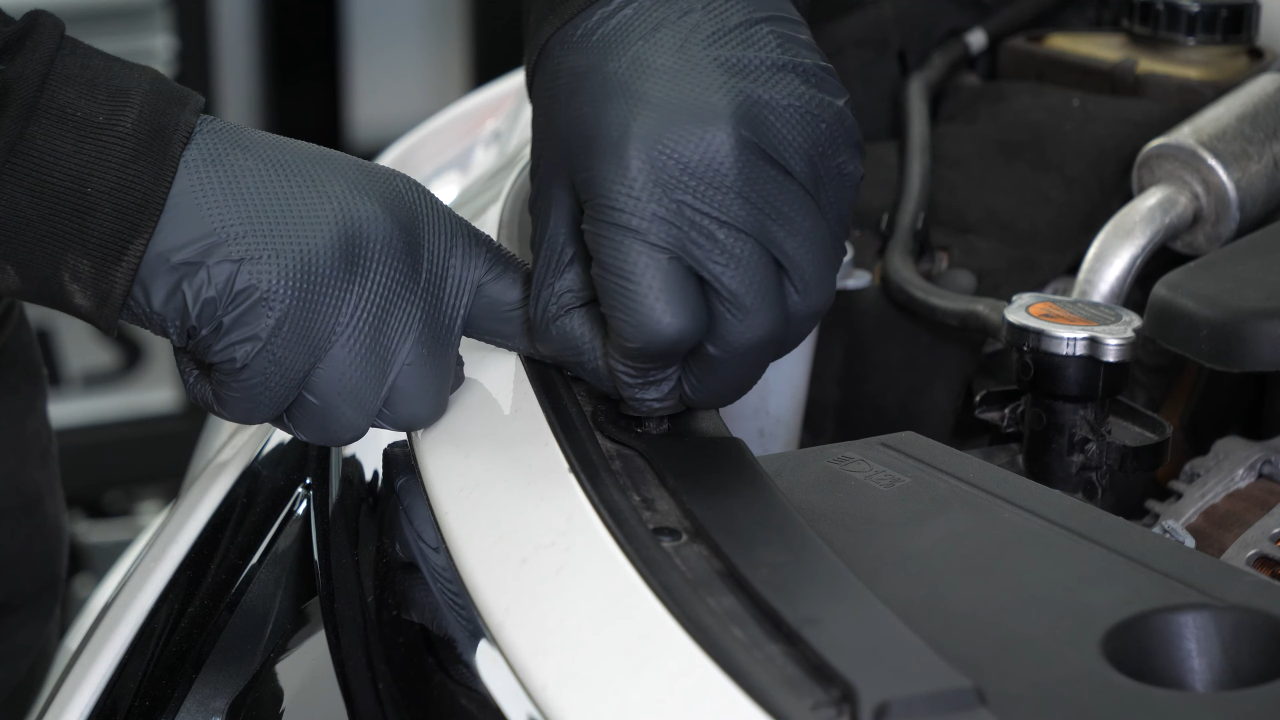

Put the radiator support cover back

Step 1/1

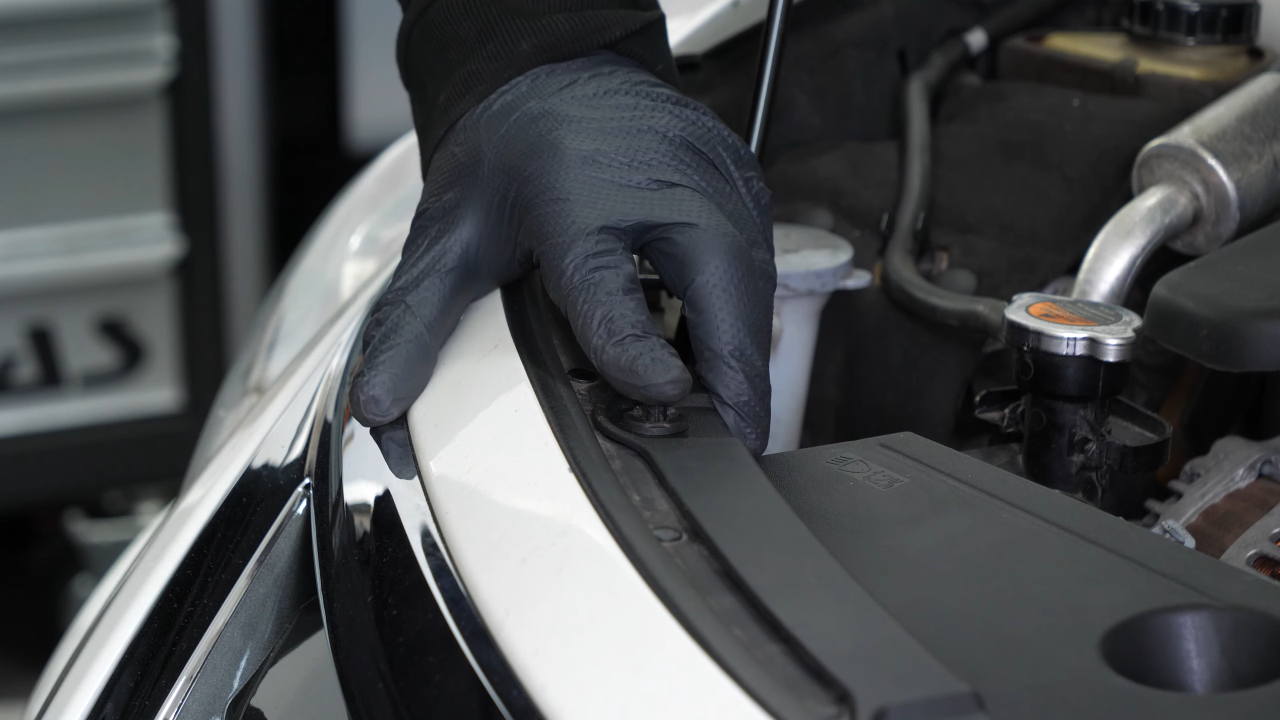

Put the radiator support cover back in place. Then put the rivets back in place.

Chapter 12:

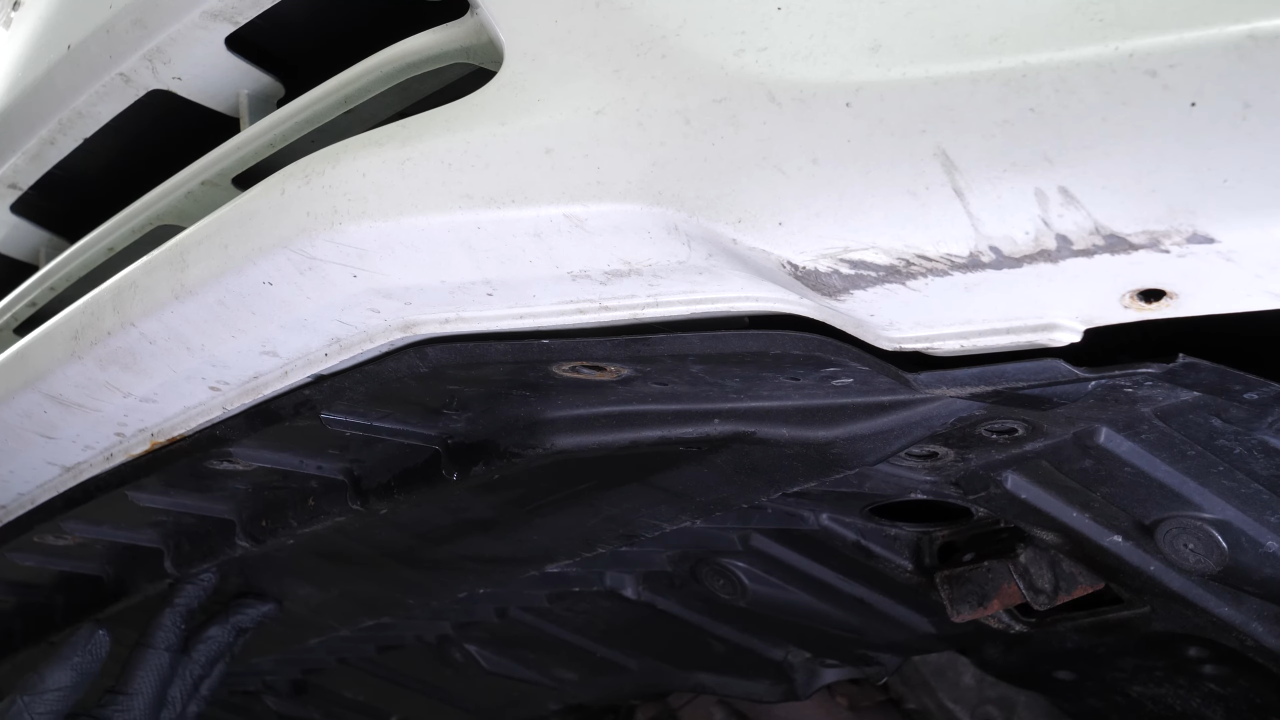

Put the components back in place

Step 1/4

Put the splash shield back in place.

Chapter 12:

Step 2/4

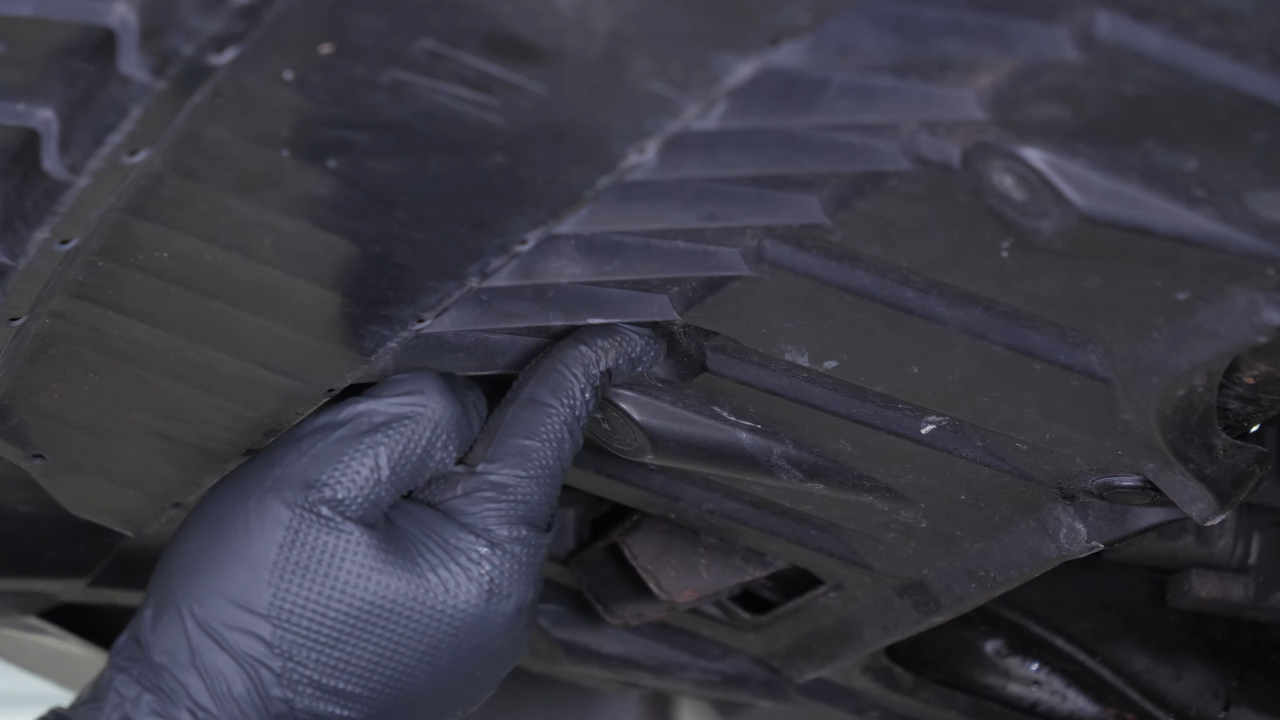

Then screw the bolts back on. Then put the rivets back in place.

Chapter 12:

Step 3/4

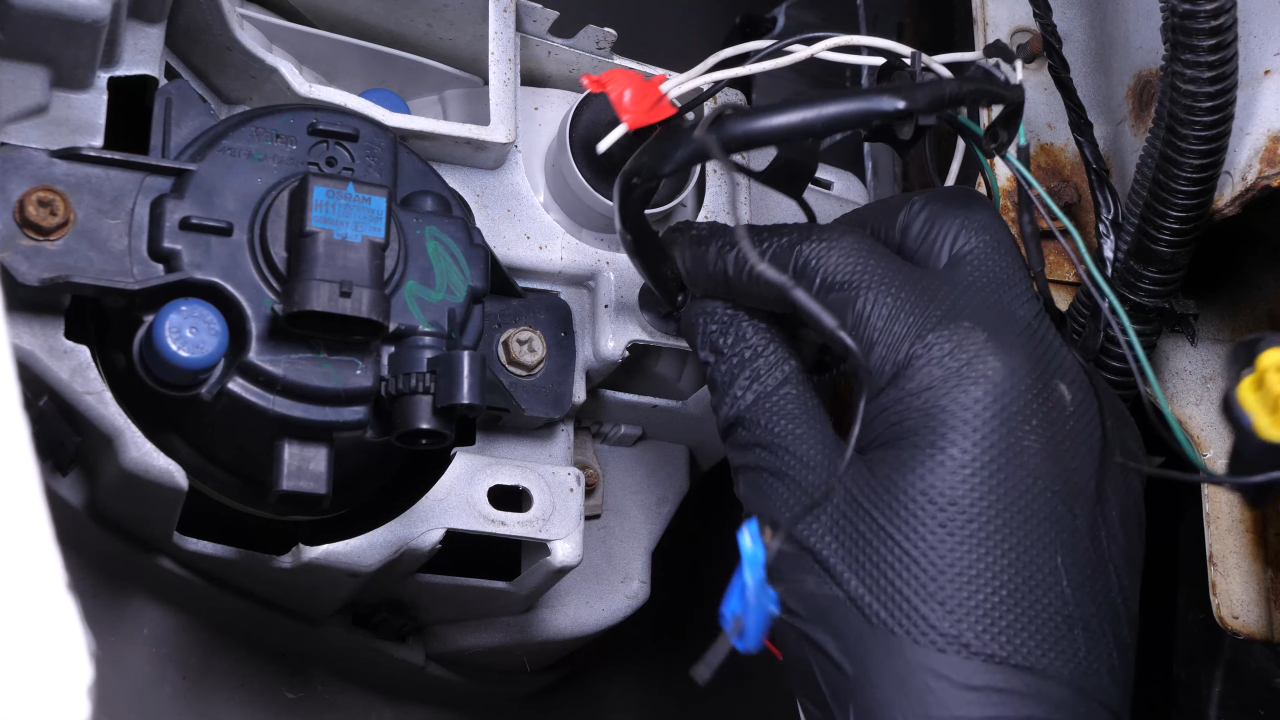

Reconnect the turn signals’ power connectors. Then, reattach the clips.

Chapter 12:

Step 4/4

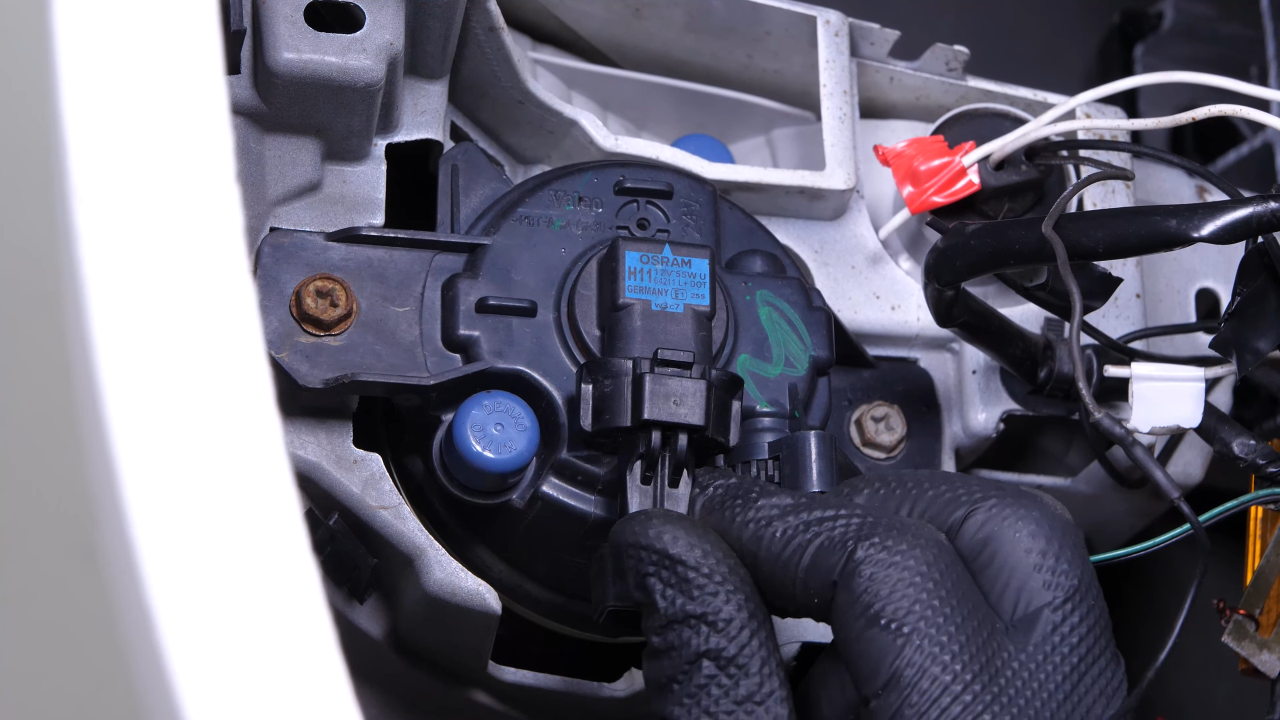

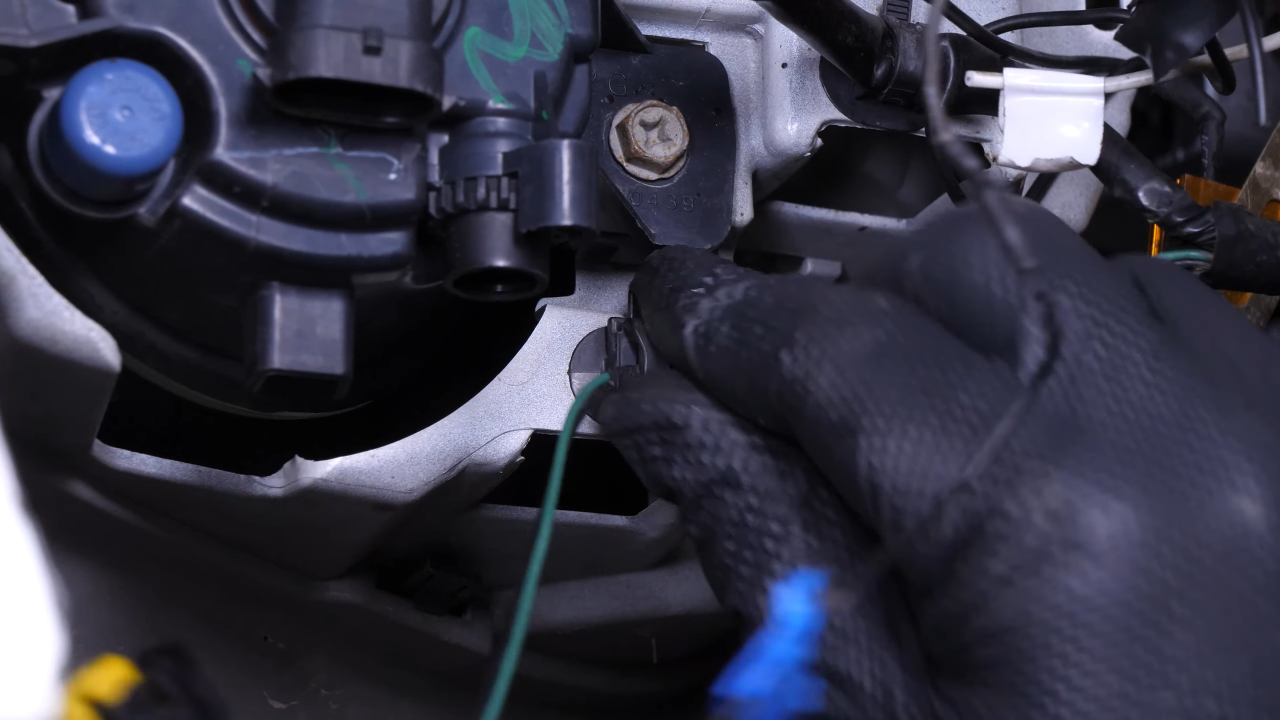

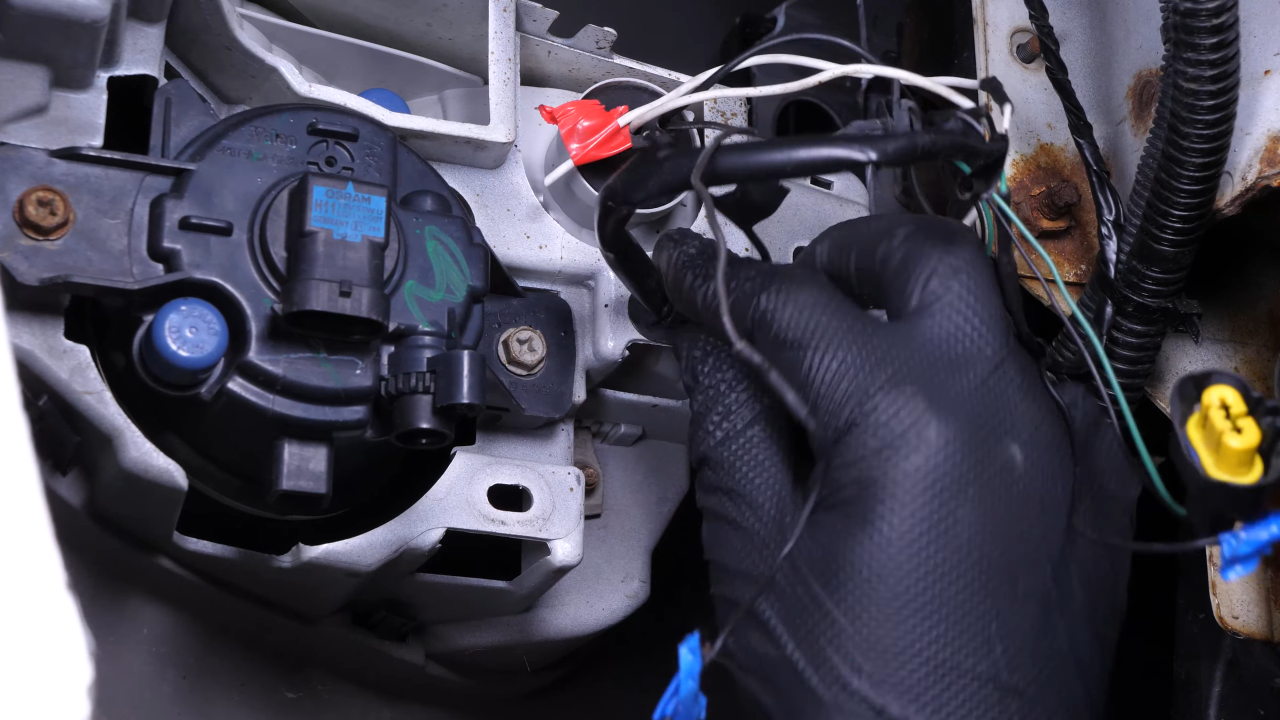

Reconnect the fog lights’ power connectors.

Chapter 13:

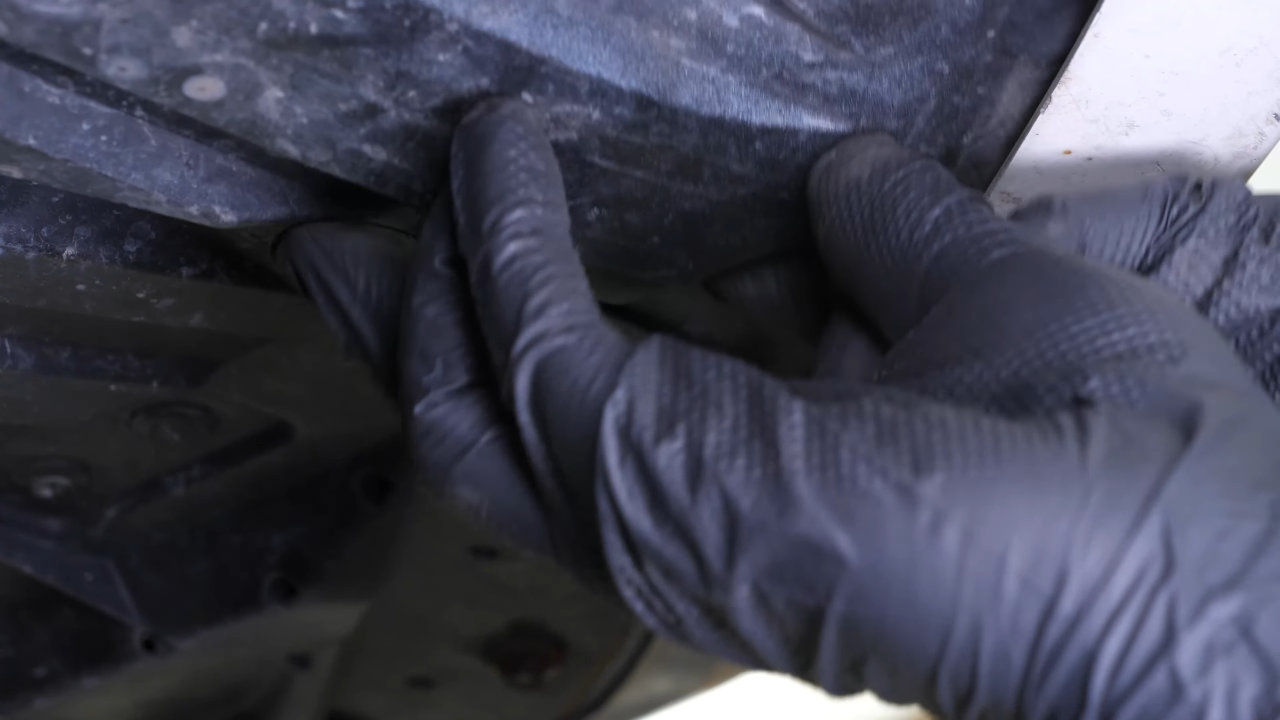

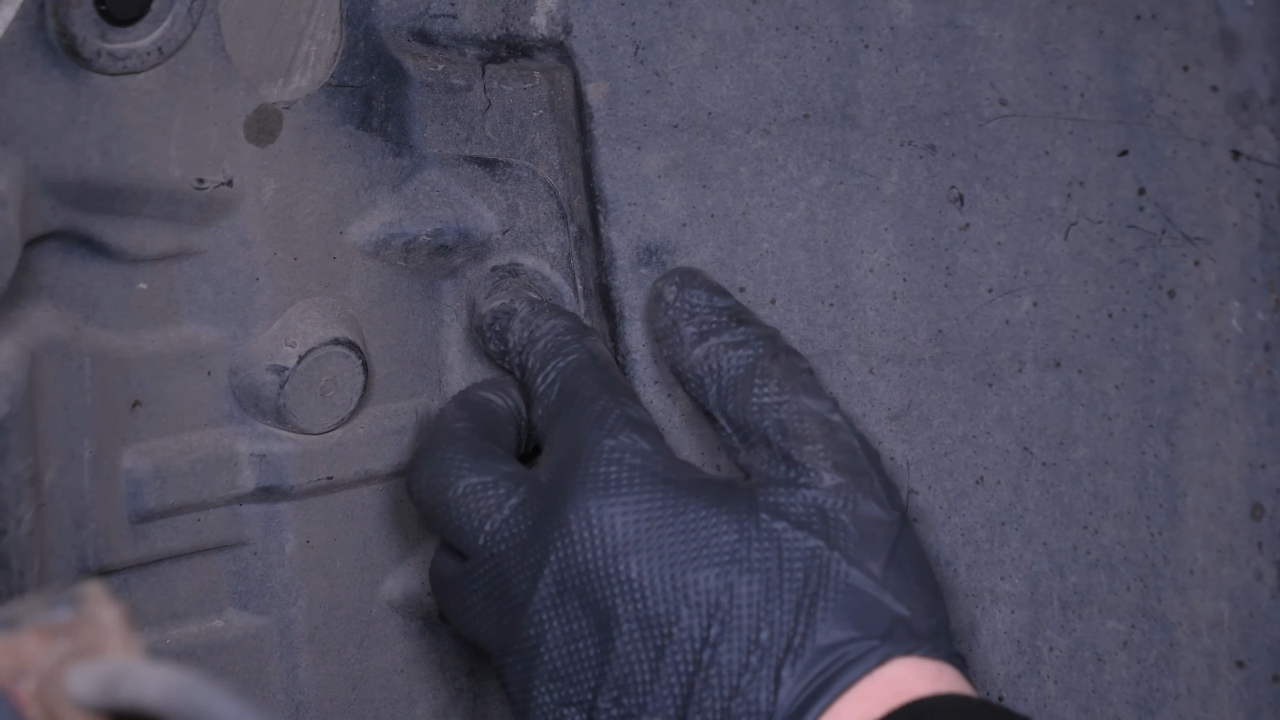

Put the mudguard back

Step 1/3

Put the mudguard back in place. Then put the rivets back in place.

Chapter 13:

Step 2/3

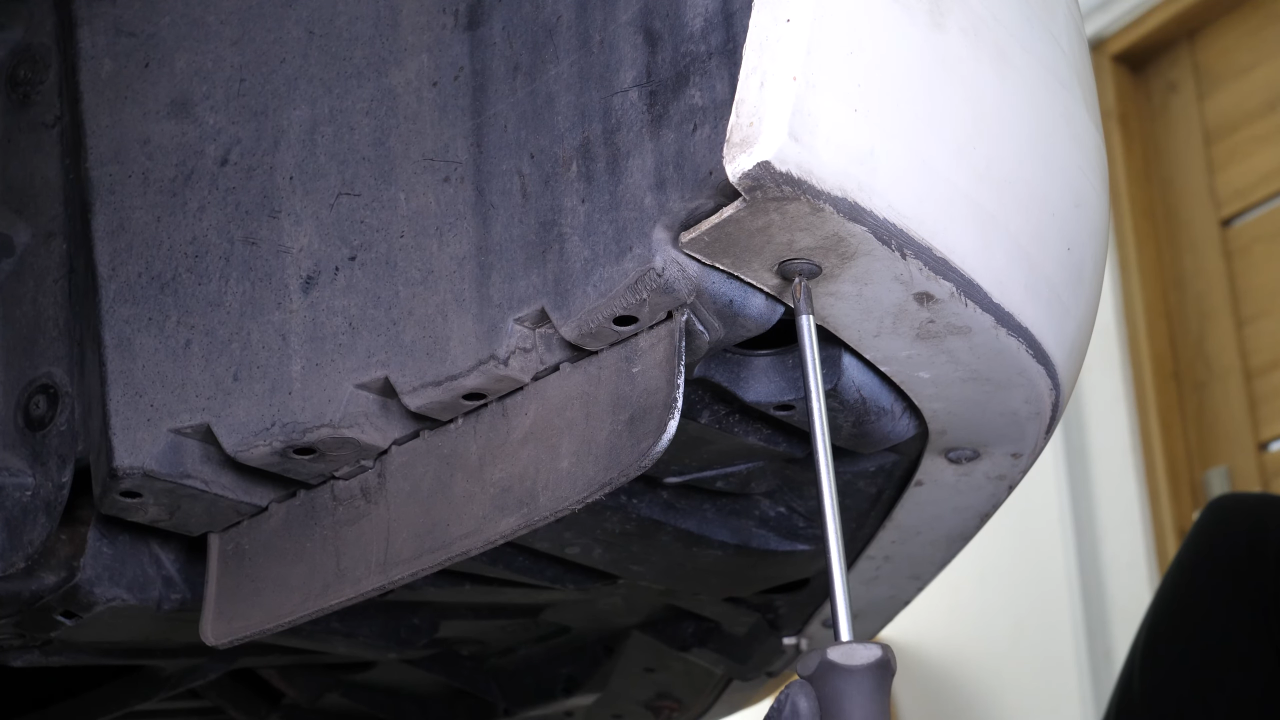

Run the splash shield through the bumper cover. Then, retighten the retaining screw.

Chapter 13:

Step 3/3

Repeat the same steps on the other side.

Chapter 14:

Put the vehicle back on the ground

Step 1/3

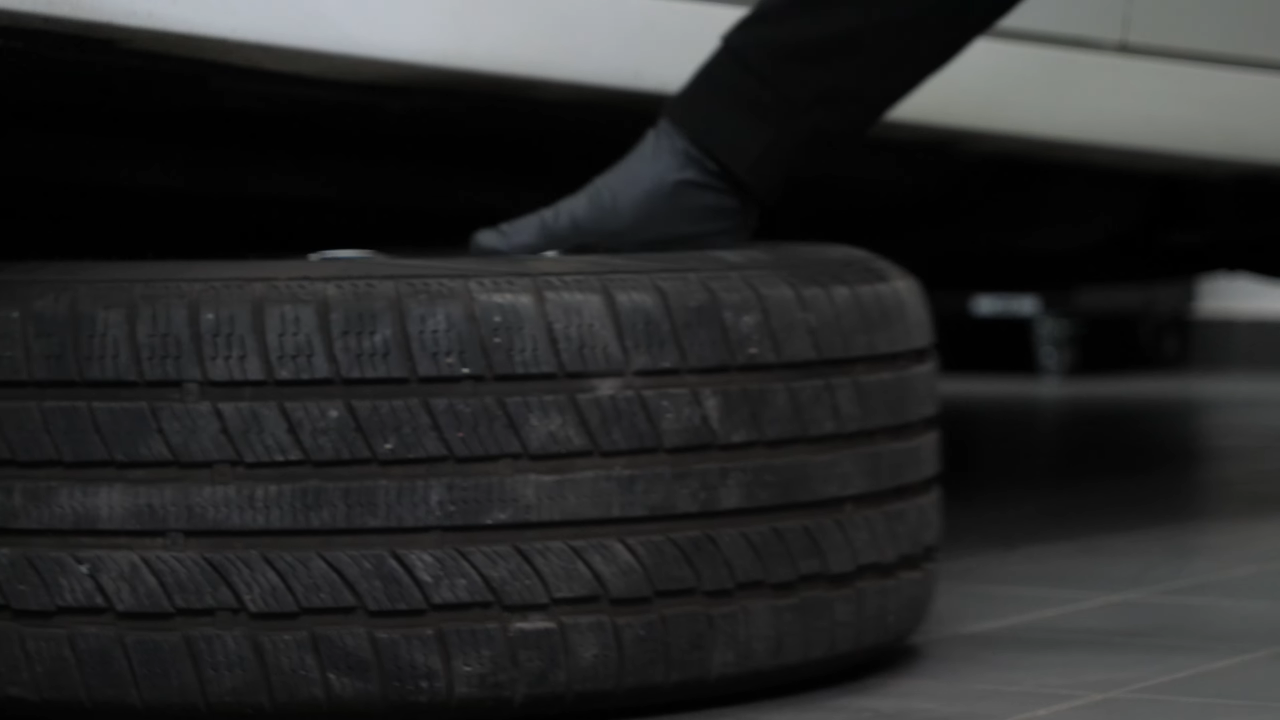

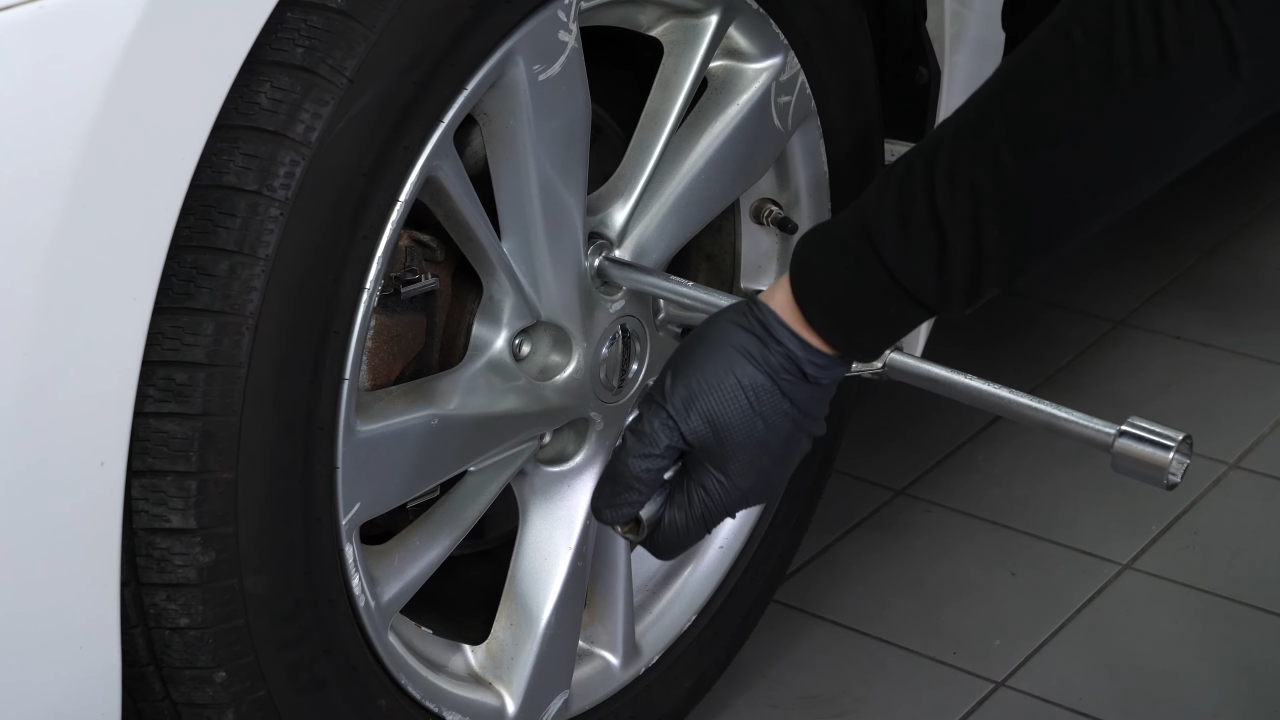

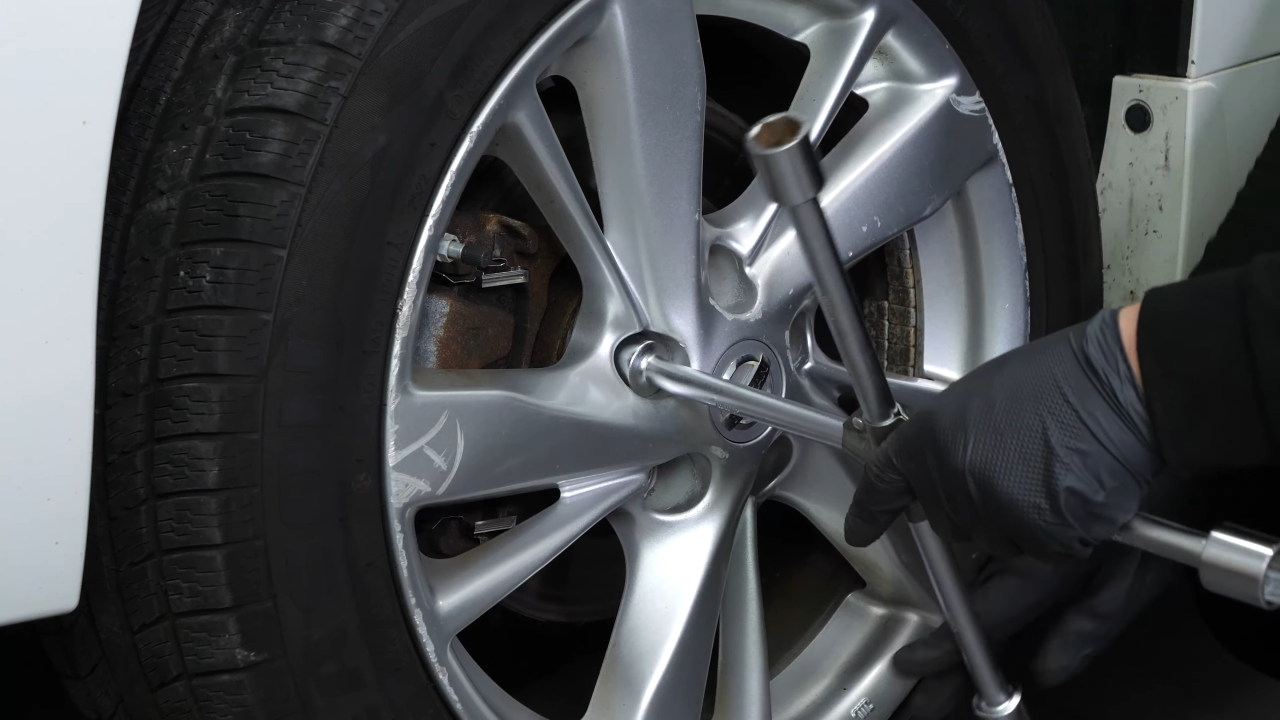

Then, you will be able to put the wheels back on your vehicle.

Chapter 14:

Step 2/3

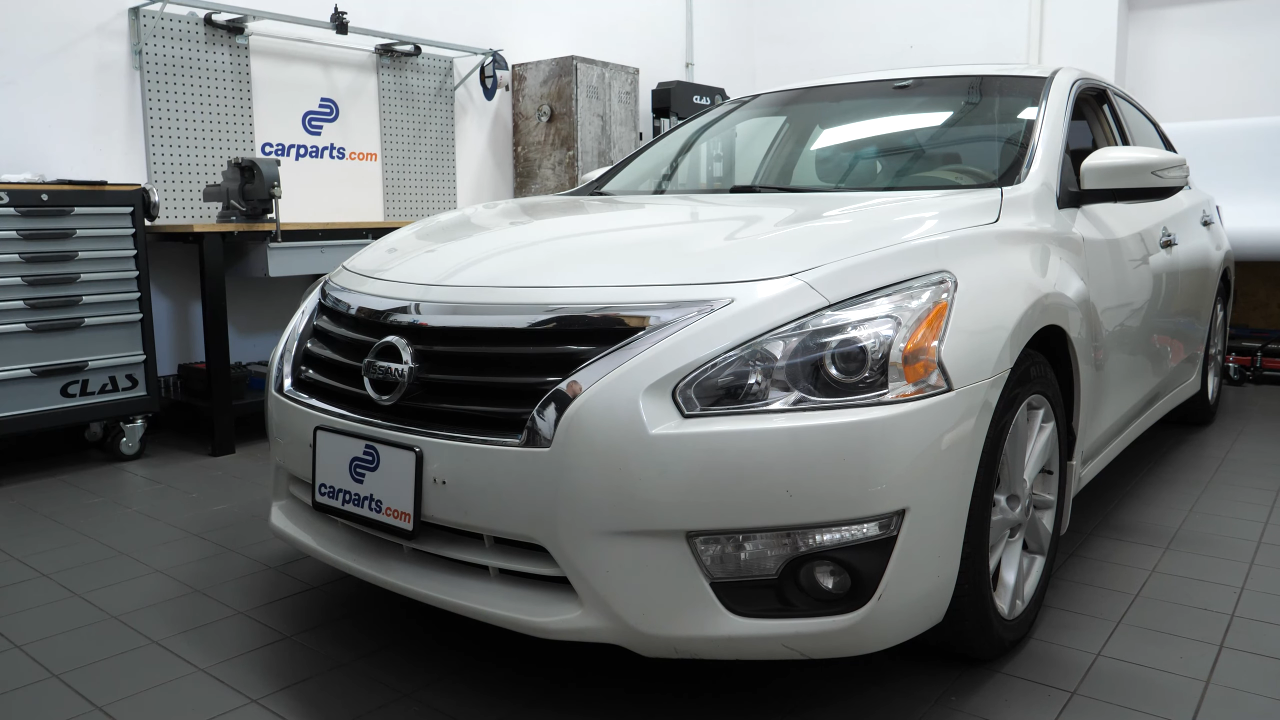

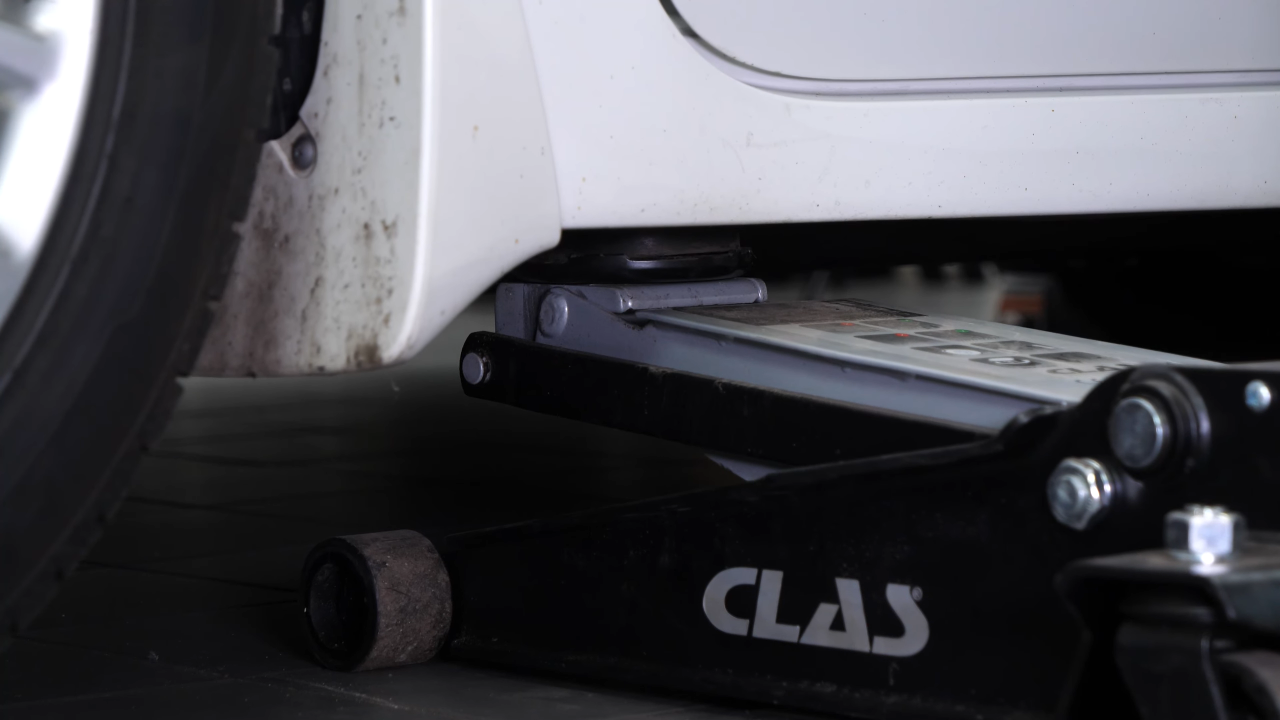

Put the car back on the ground and block the wheels properly.

Chapter 14:

Step 3/3

Operation complete.
