How to replace the front bumper cover 2013 – 2018 Nissan Altima

Chapter 1:

Lift the vehicle

Step 1/1

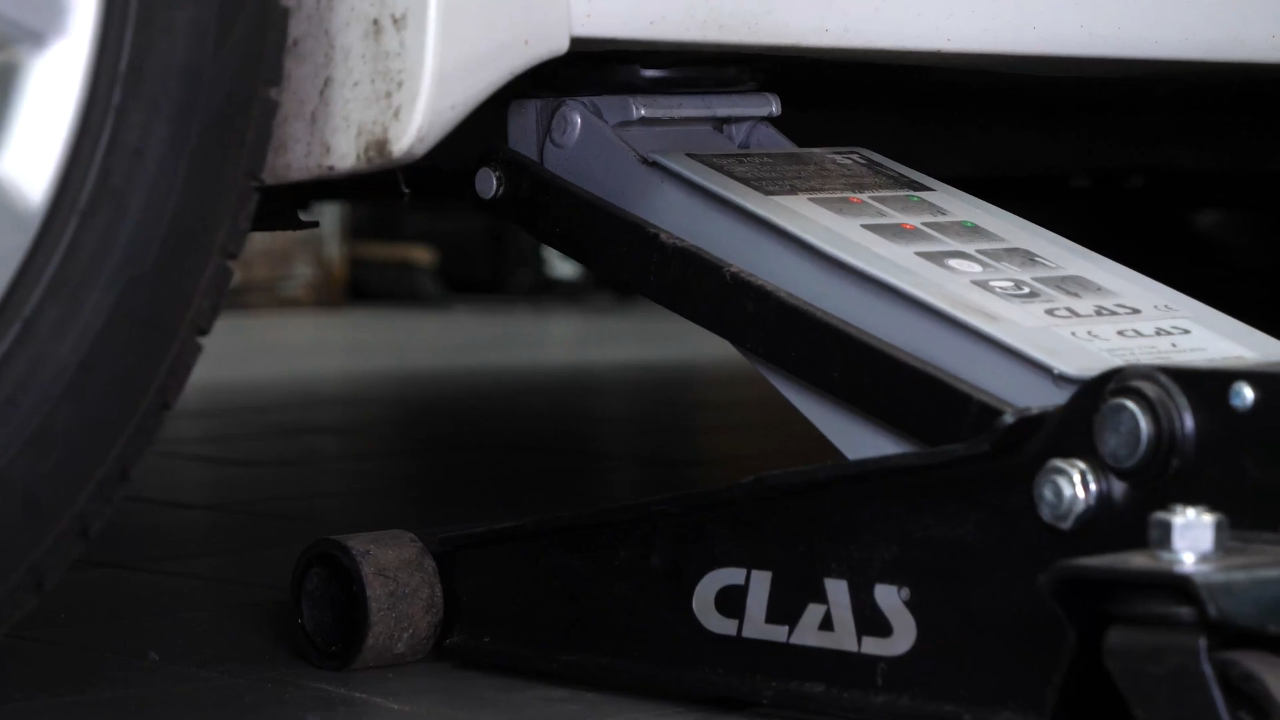

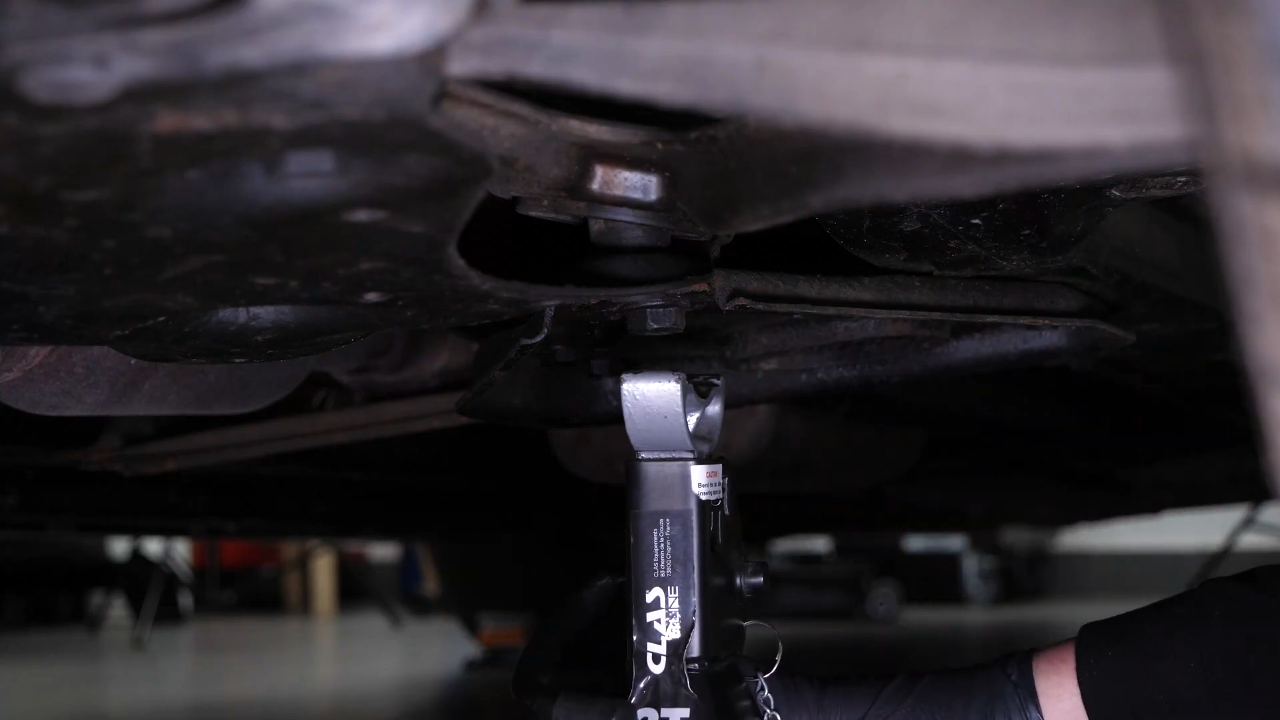

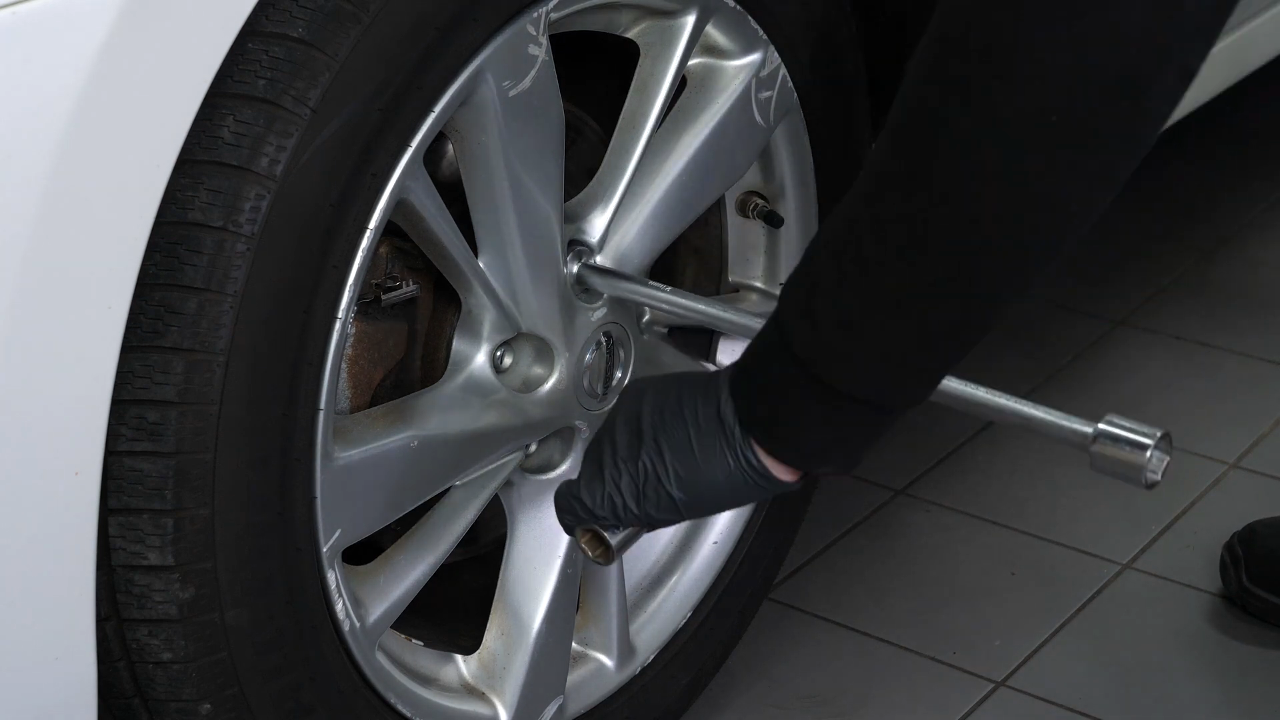

Loosen the stud bolts on the front wheels. Lift the front of your vehicle.Place the vehicle on the jack stands. Don’t forget to put the wheels under the vehicle!

Chapter 2:

Remove the radiator support cover

Step 1/2

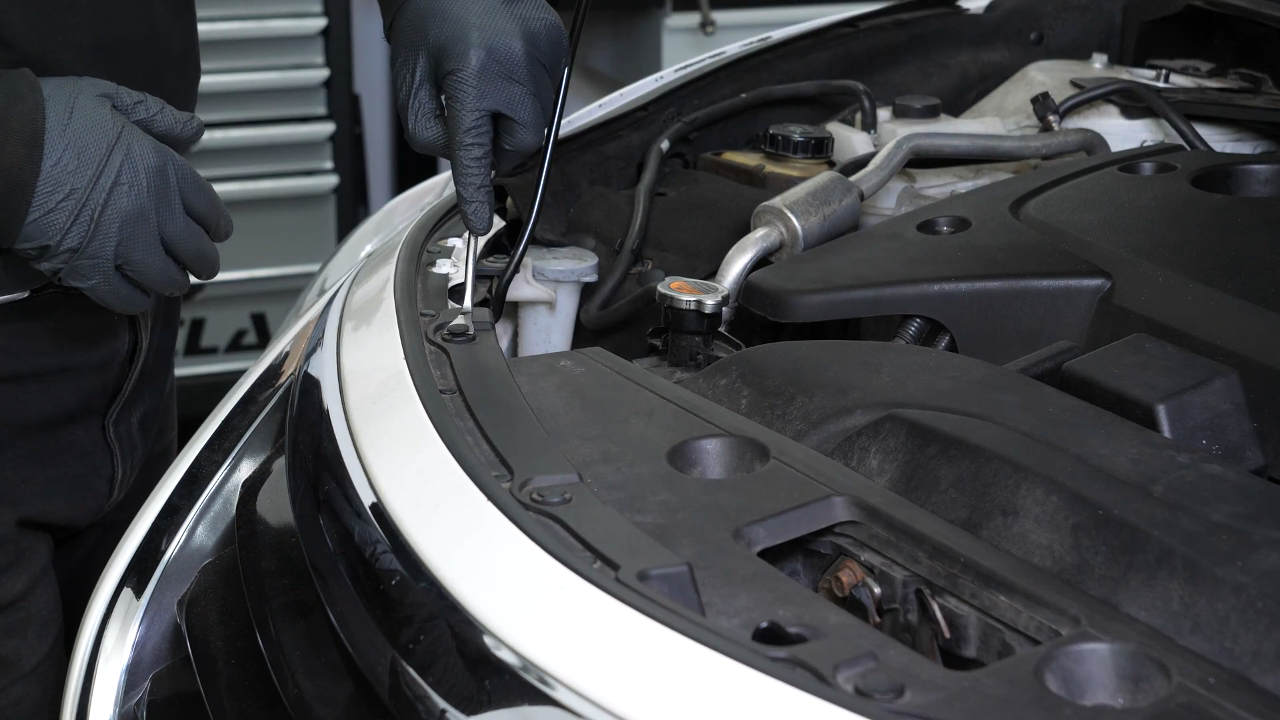

In order to change the front bumper cover on your vehicle, you will need to remove the radiator support cover to have full access. Using a fork, remove the 10 holding rivets.

Chapter 2:

Step 2/2

Then remove the cover.

Chapter 3:

Remove the bumper cover / plastic bracket holding screws

Step 1/8

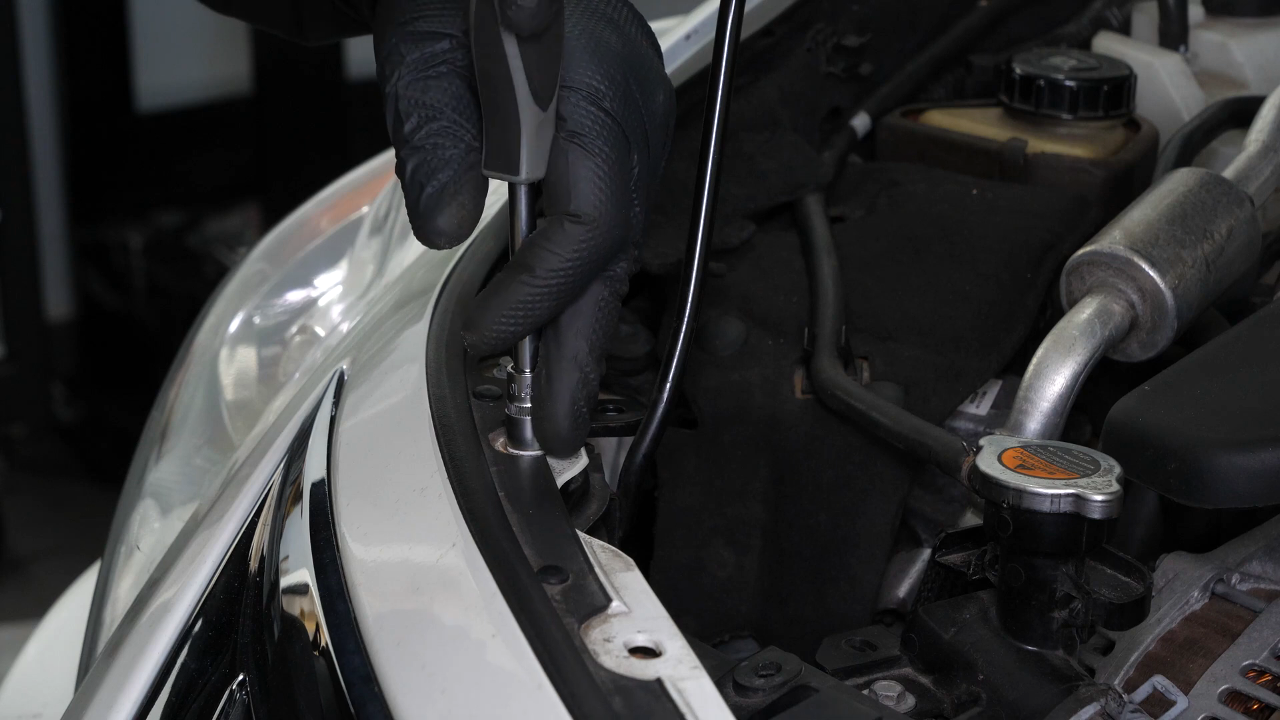

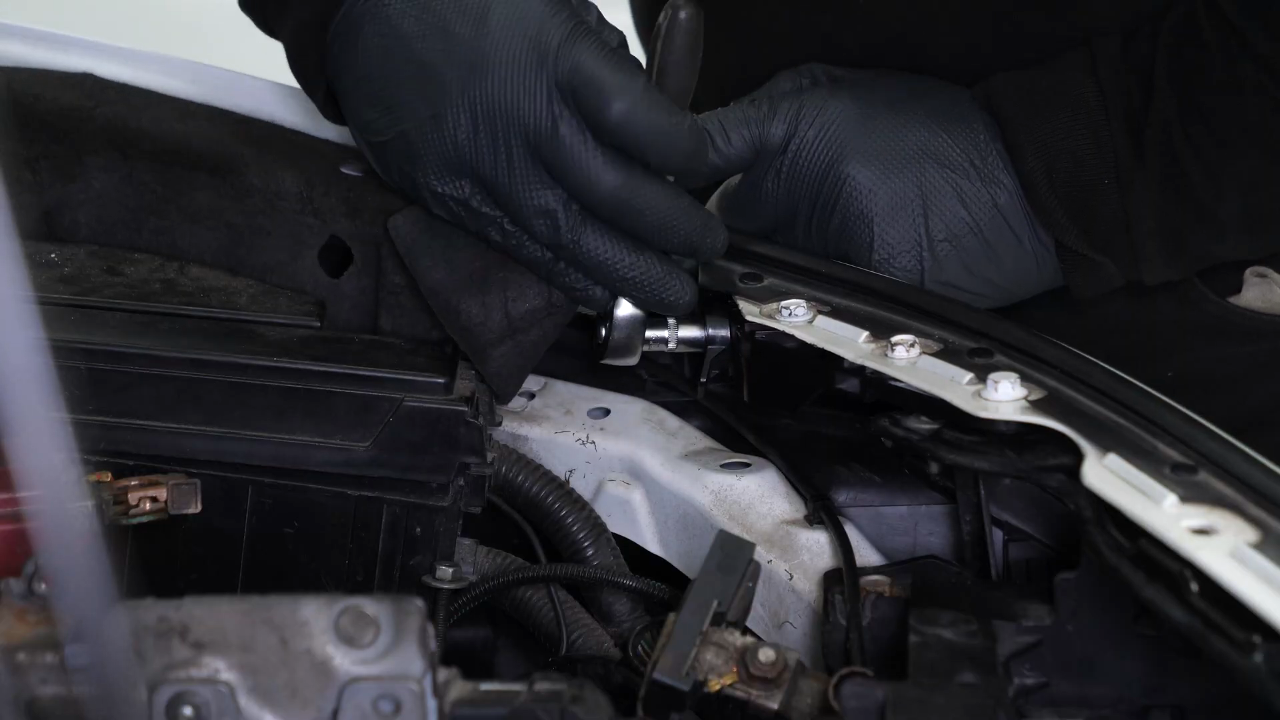

Start with the driver side. Using a multi-bit screwdriver and a 10 mm socket, unscrew the upper bumper cover retaining bolt.

Chapter 3:

Step 2/8

Lift up the textile cover.

Chapter 3:

Step 3/8

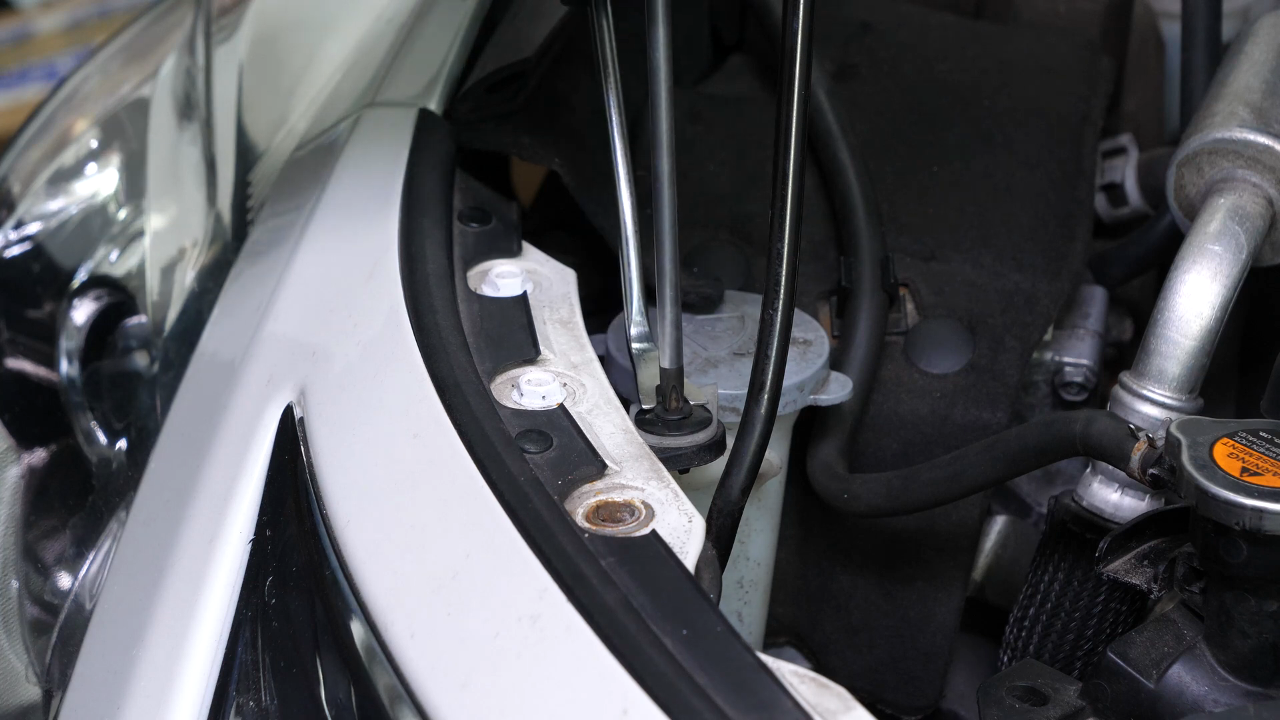

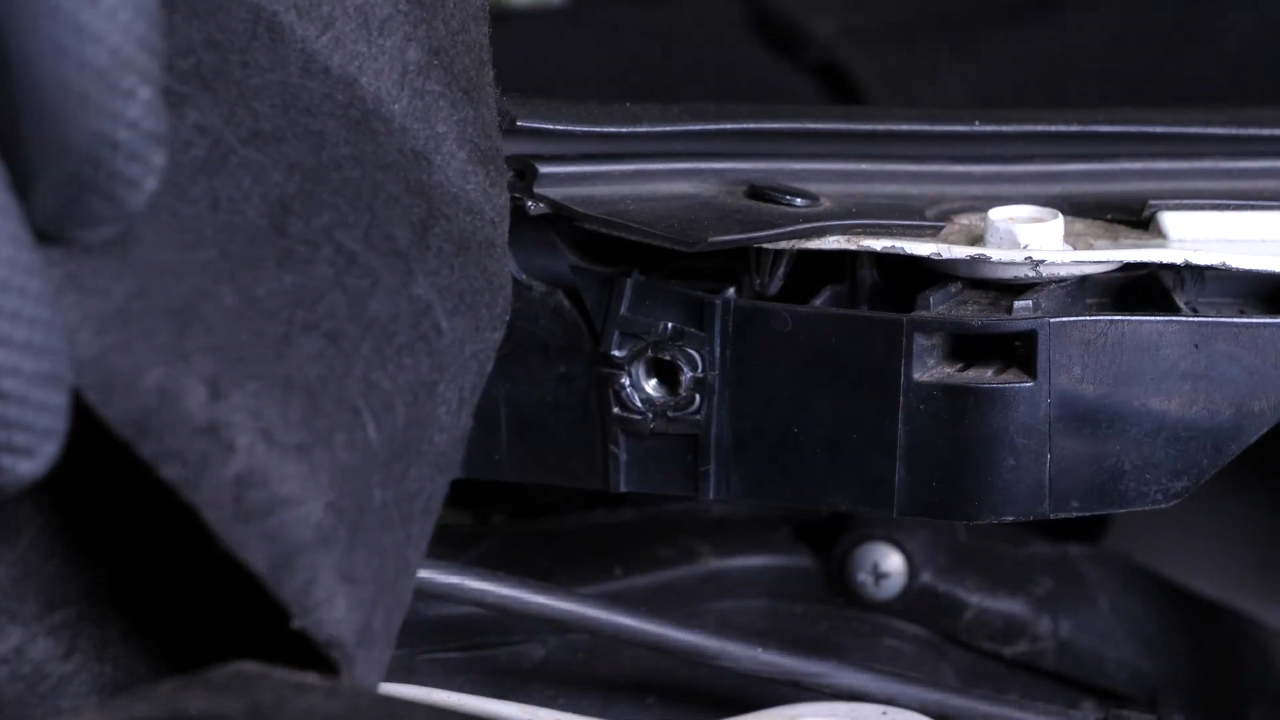

Next, using a ratchet and a 10 mm socket, unscrew the plastic bumper cover bracket retaining bolt.

Chapter 3:

Step 4/8

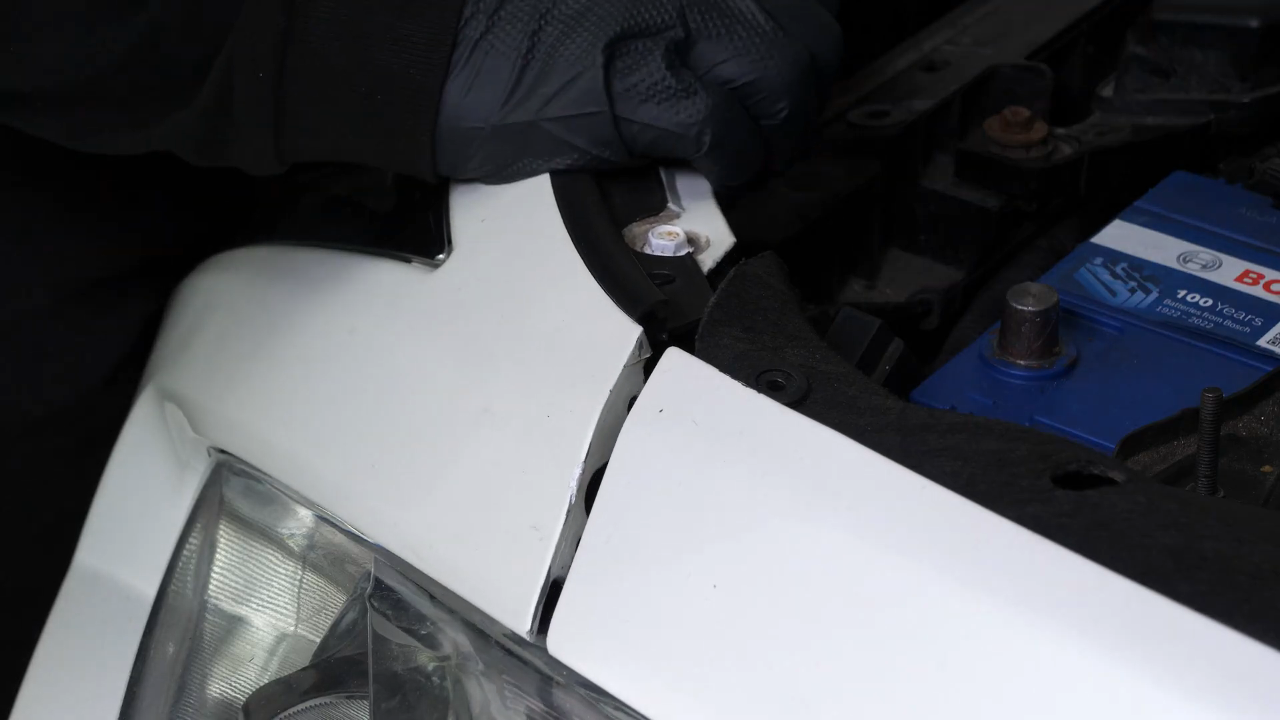

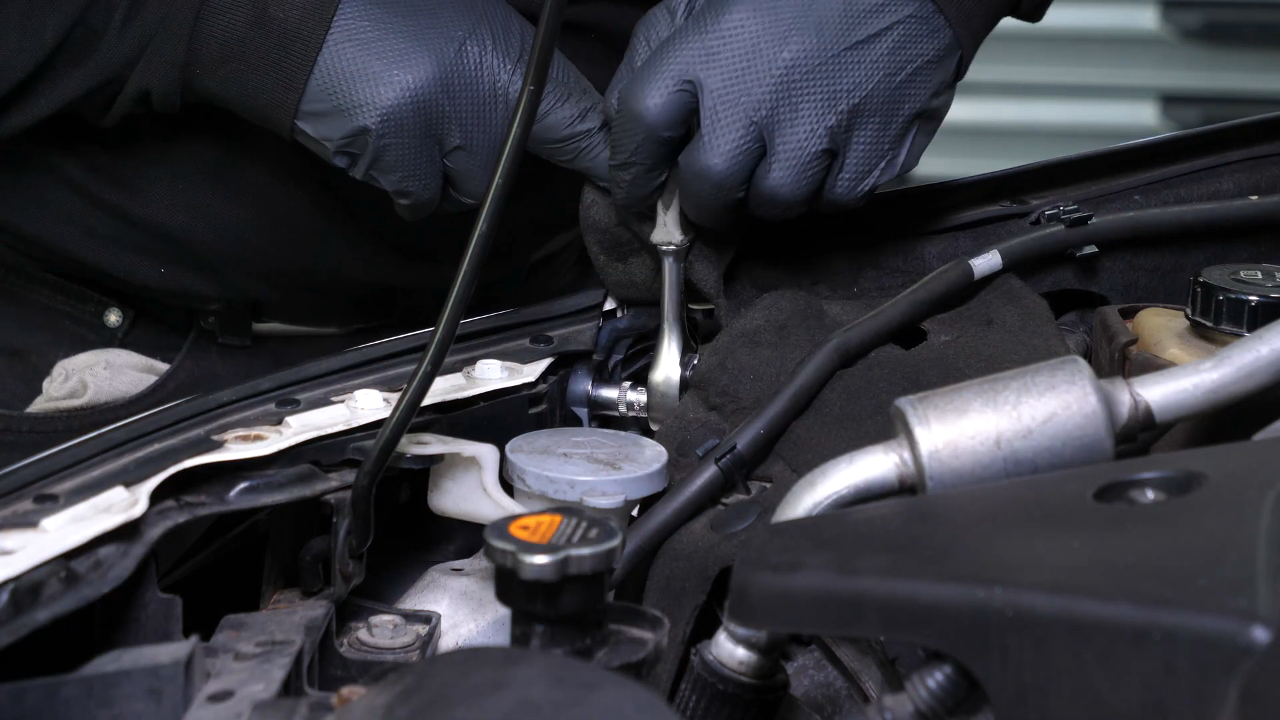

Unscrew the upper bolt on the passenger side.

Chapter 3:

Step 5/8

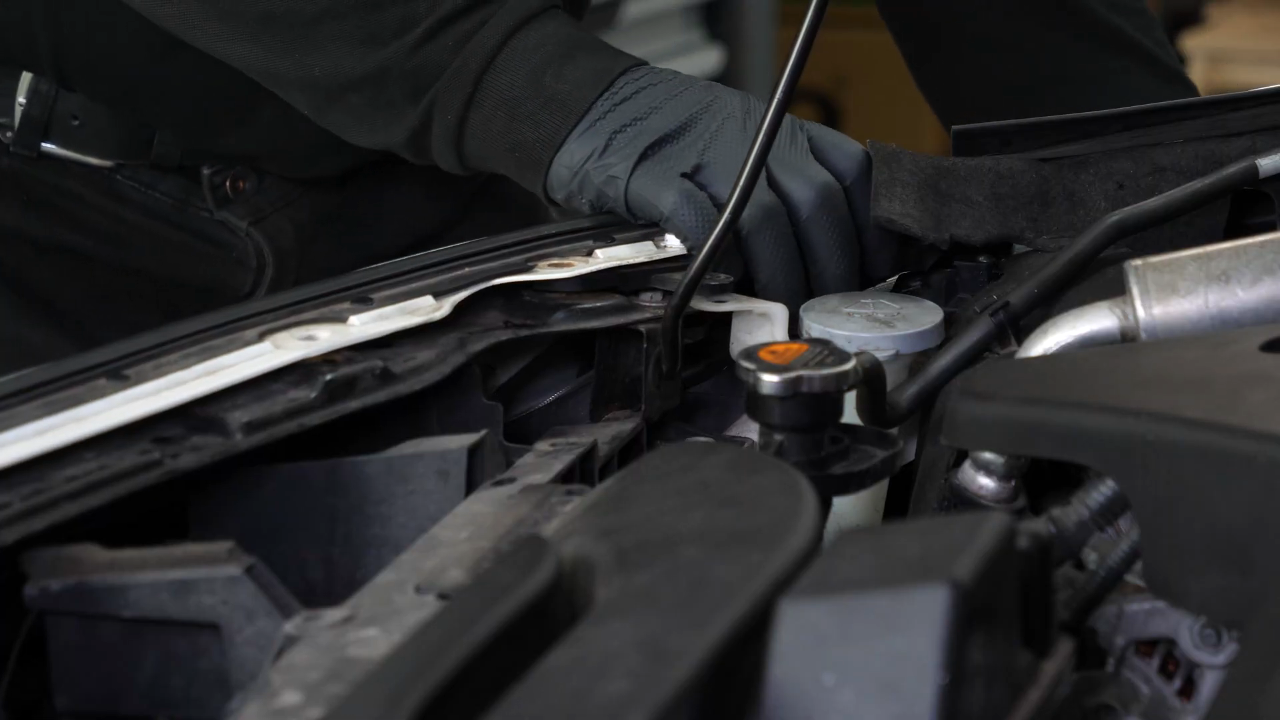

Then, using a Phillips screwdriver, unscrew the plastic rivet from the washer pump fluid reservoir hole on the bumper cover.

Chapter 3:

Step 6/8

Remove it with a fork.

Chapter 3:

Step 7/8

Then unscrew the other plastic bracket.

Chapter 3:

Step 8/8

Then, remove it.

Chapter 4:

Remove the mudguard

Step 1/6

Now you need to remove the mudguard. Using a fork, remove the three mudguard retaining rivets.

Chapter 4:

Step 2/6

Using a Phillips screwdriver, unscrew the other 2 rivets holding the mudguard in place.

Chapter 4:

Step 3/6

Remove them with a fork.

Chapter 4:

Step 4/6

Using the Phillips screwdriver, unscrew the screw holding the bumper cover to the mudguard.

Chapter 4:

Step 5/6

Using the Phillips screwdriver and the fork, unscrew the rivet holding the splash shield in place.

Chapter 4:

Step 6/6

You can now pull back the mudguard.

Chapter 5:

Remove various components

Step 1/8

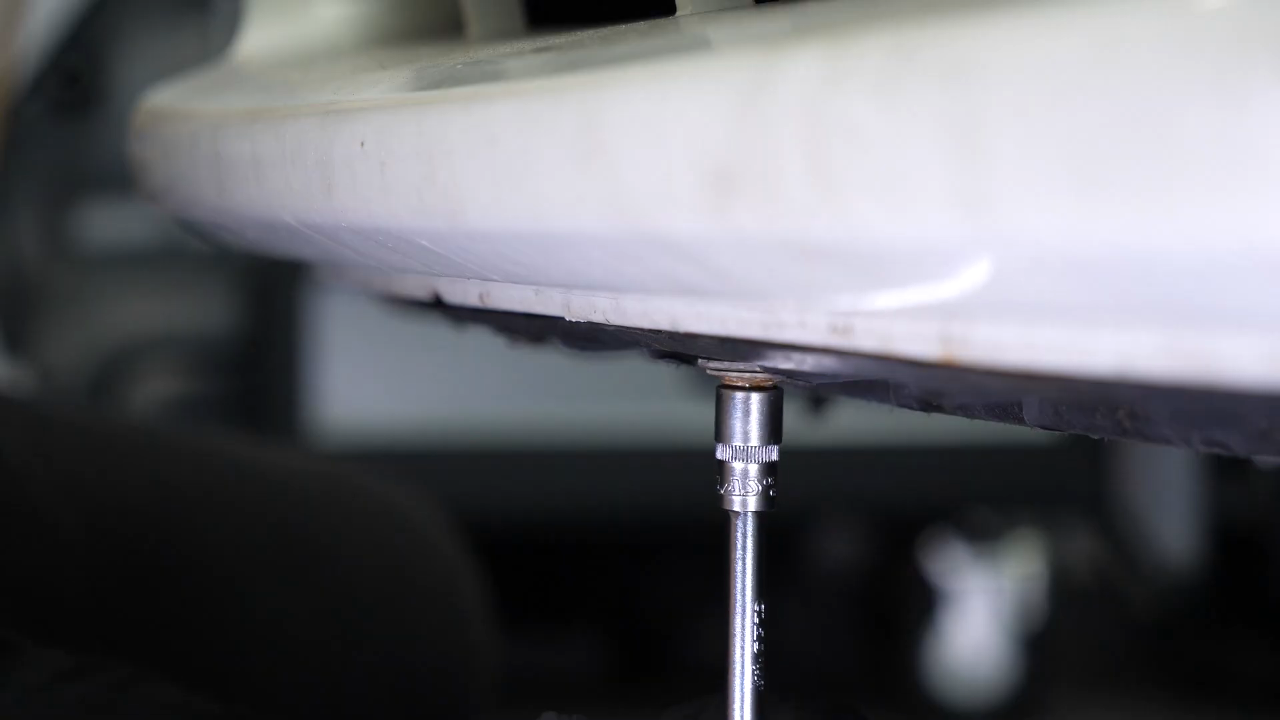

Using a multi-bit screwdriver and a 10 mm socket, unscrew the 5 engine splash shield retaining bolts.

Chapter 5:

Step 2/8

Remove the power connector from the fog light bulb. To do this, push on the tab and pull on the connector.

Chapter 5:

Step 3/8

Using needle-nose pliers and a fork, remove the two cable retaining clips on the bumper cover.

Chapter 5:

Step 4/8

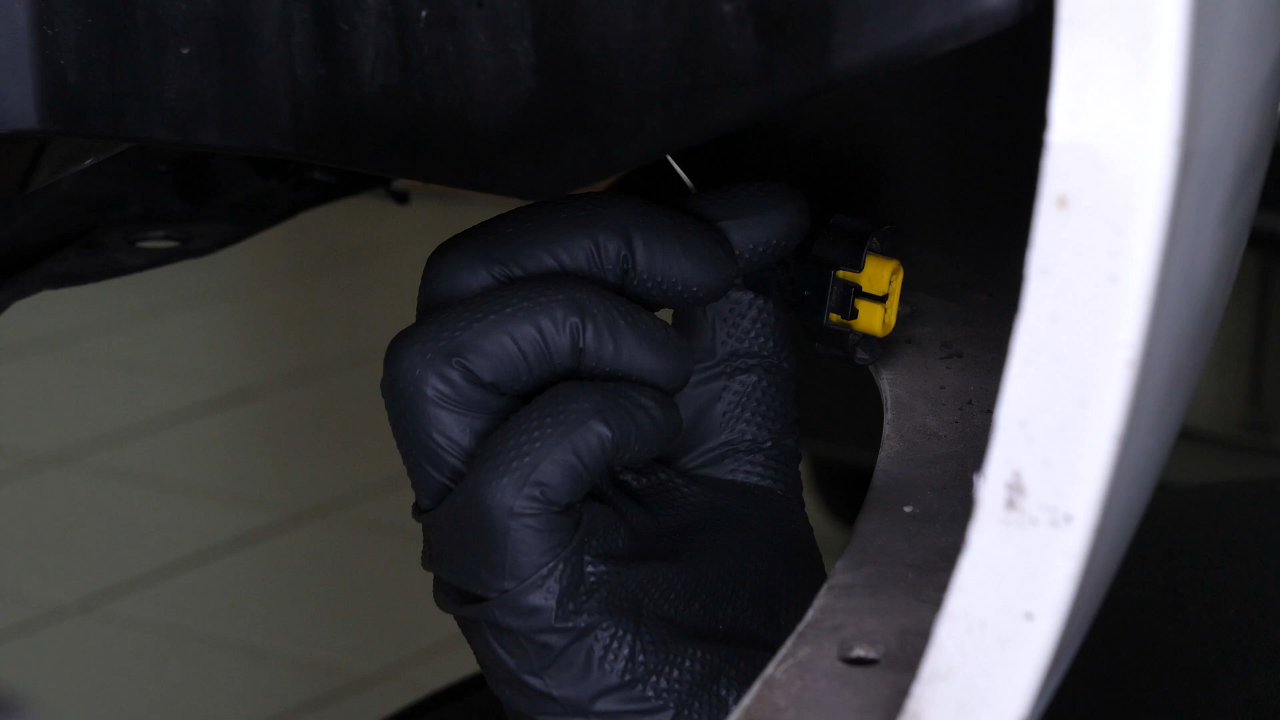

Remove the power connector from the turn signal bulb socket

Chapter 5:

Step 5/8

Next, using a ratchet, an extender and a 10 mm socket, loosen the screw holding the bumper cover to the fender.

Chapter 5:

Step 6/8

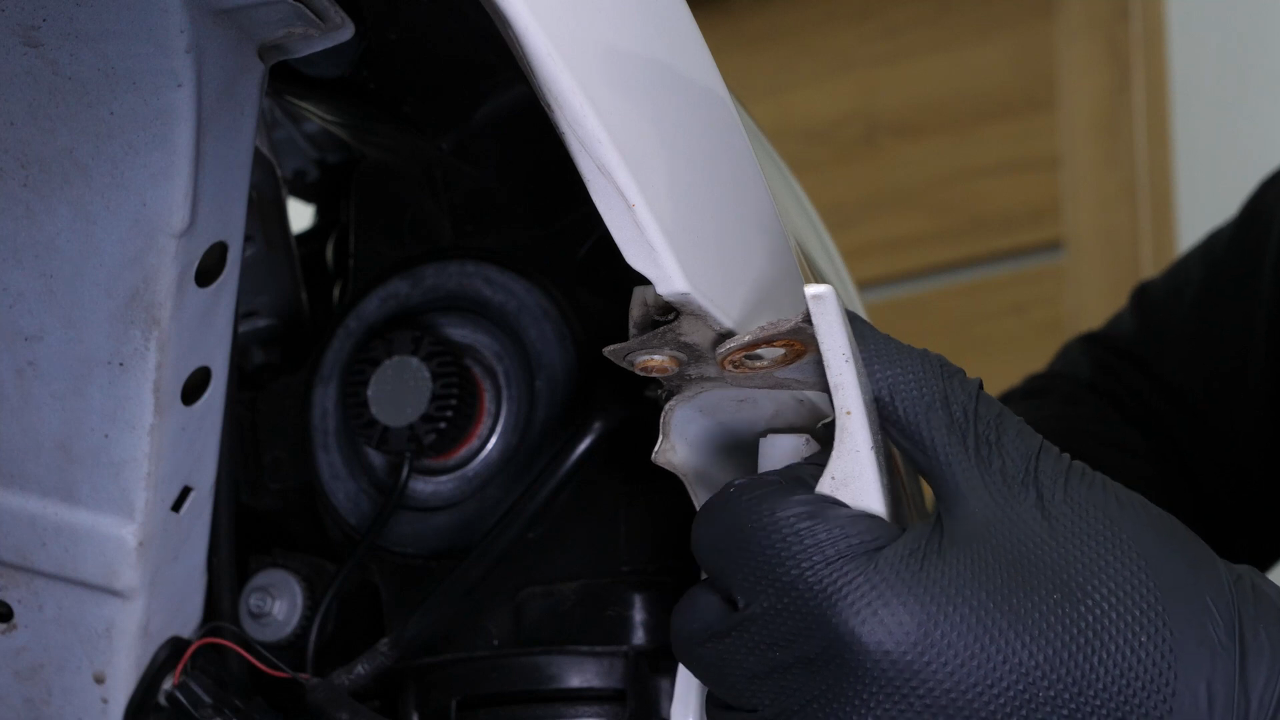

Pull the bumper cover out of its slot.

Chapter 5:

Step 7/8

Repeat the same steps on the other side of the bumper cover.

Chapter 5:

Step 8/8

Then pull it out to the front to disengage the locating pins from their housings in the front fenders.

Chapter 6:

Remove the bumper cover

Step 1/1

The front bumper cover is now free: you can remove it, preferably with help from a second person.

Chapter 7:

Screw back the bumper cover / plastic bracket holding screws

Step 1/2

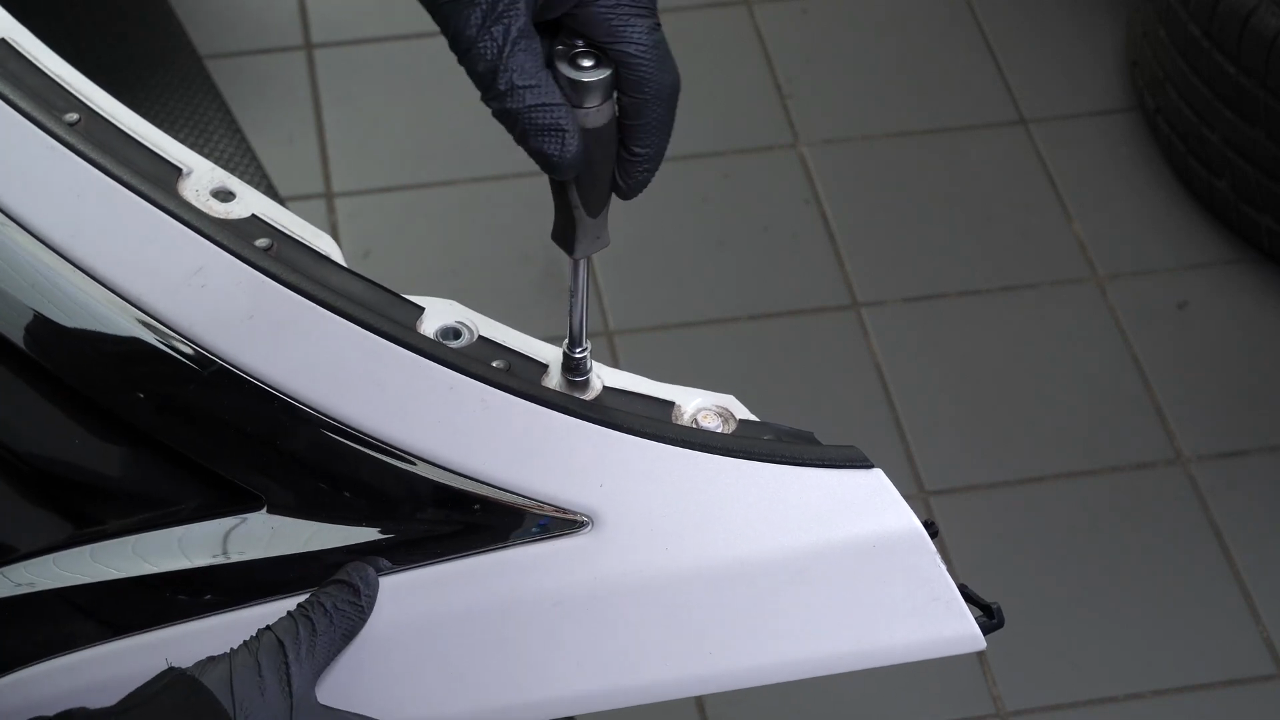

Use a ratchet, an extender and a 10 mm socket to unscrew the 2 bumper cover bracket retaining bolts.

Chapter 7:

Step 2/2

Then, remove the bracket.

Chapter 8:

Remove the grille assembly

Step 1/2

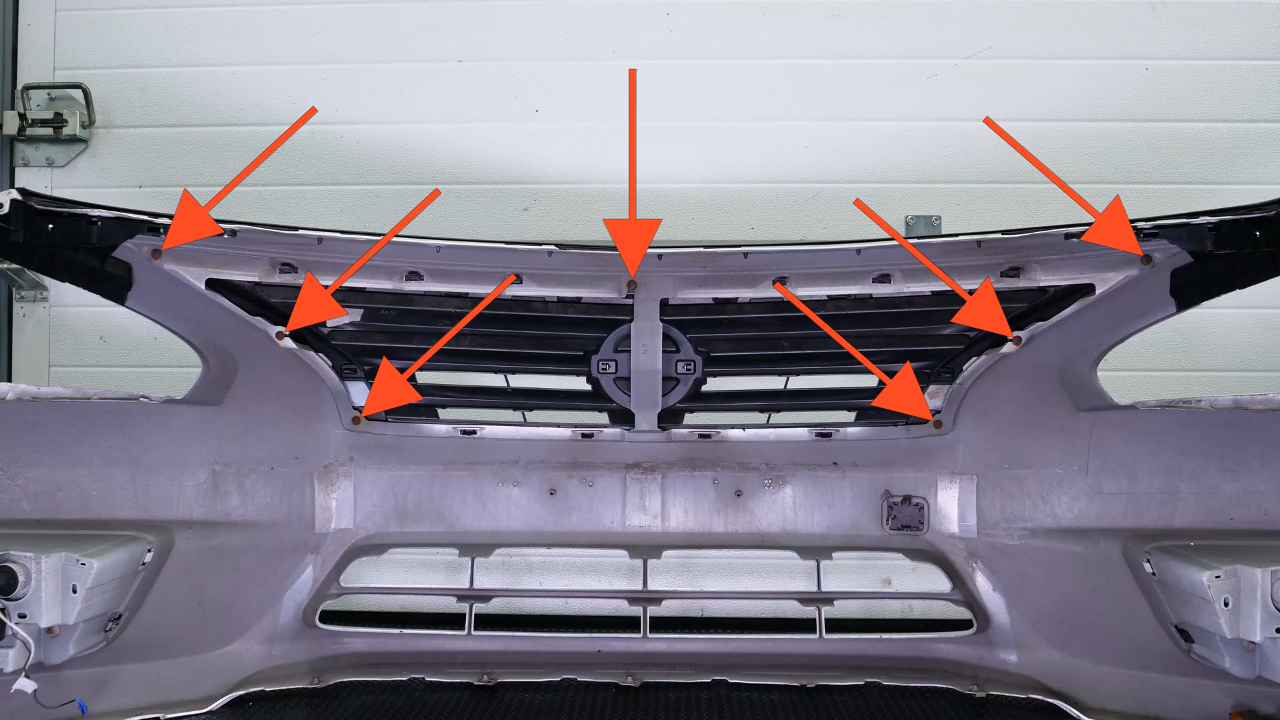

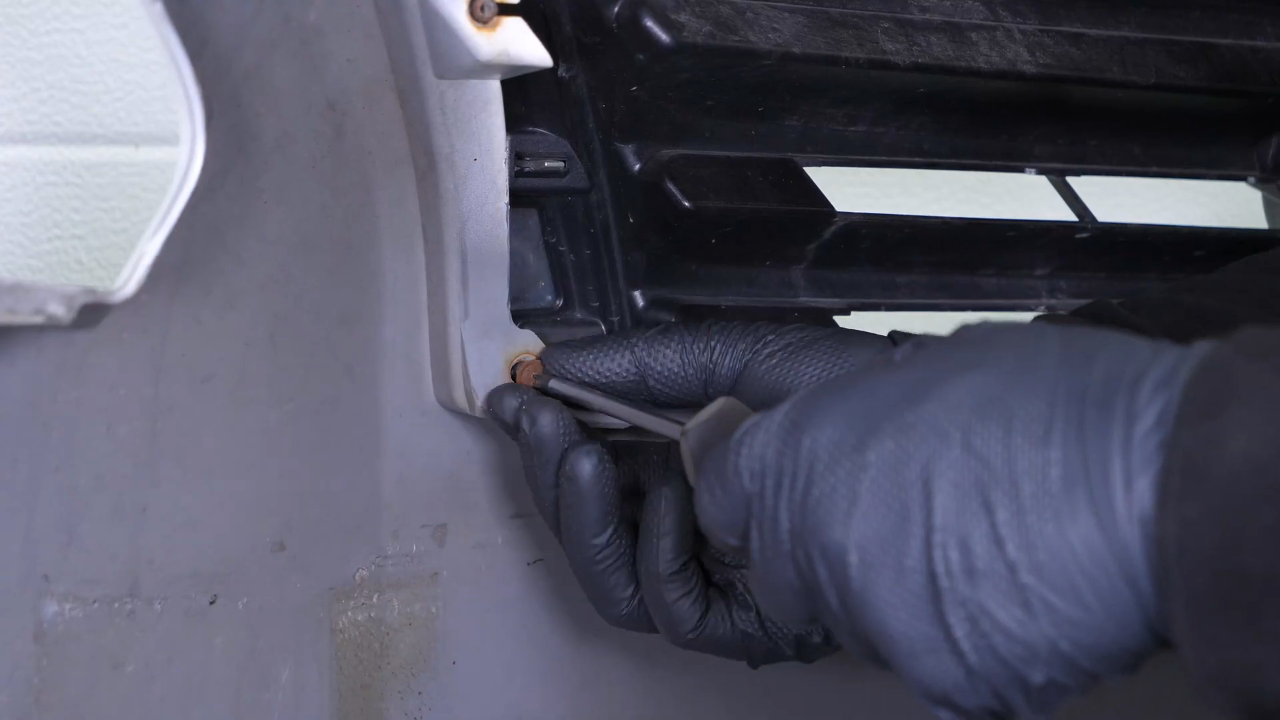

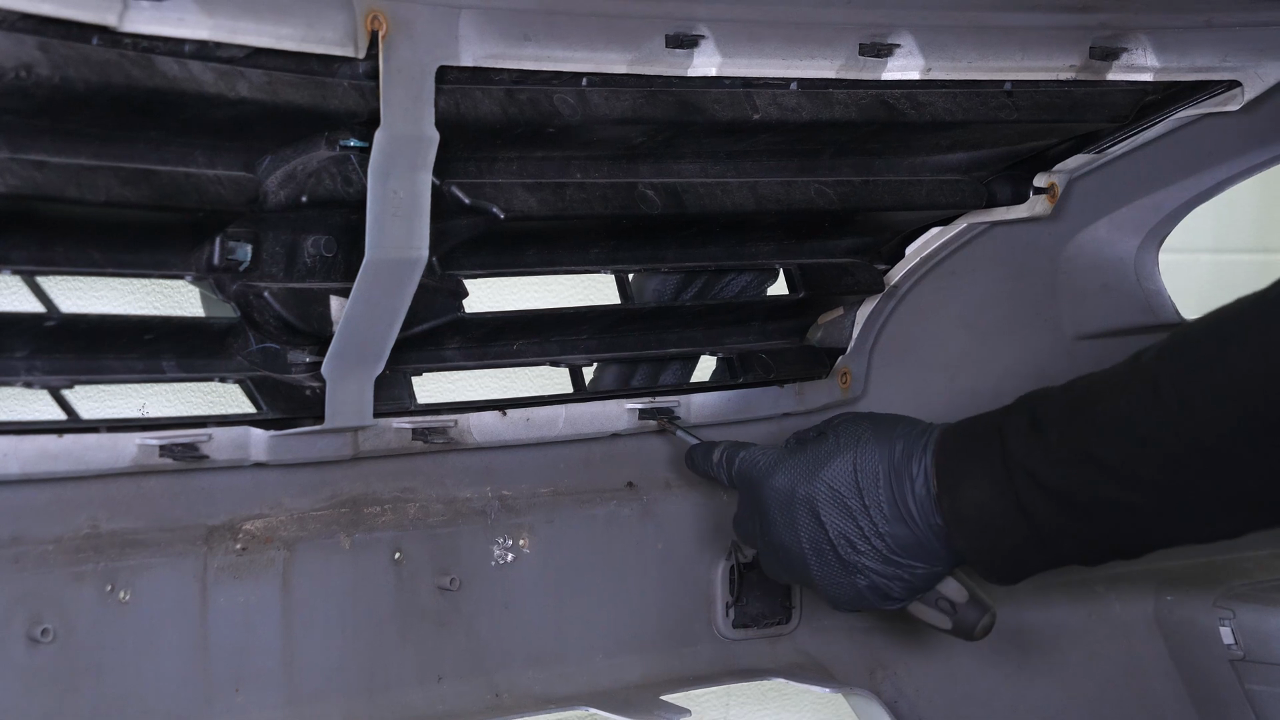

Using a Phillips screwdriver, unscrew the 7 bolts holding the grille assembly in place.

Chapter 8:

Step 2/2

Then disengage the grille from the bumper cover by pushing the 10 retaining tabs.

Chapter 9:

Remove various components

Step 1/6

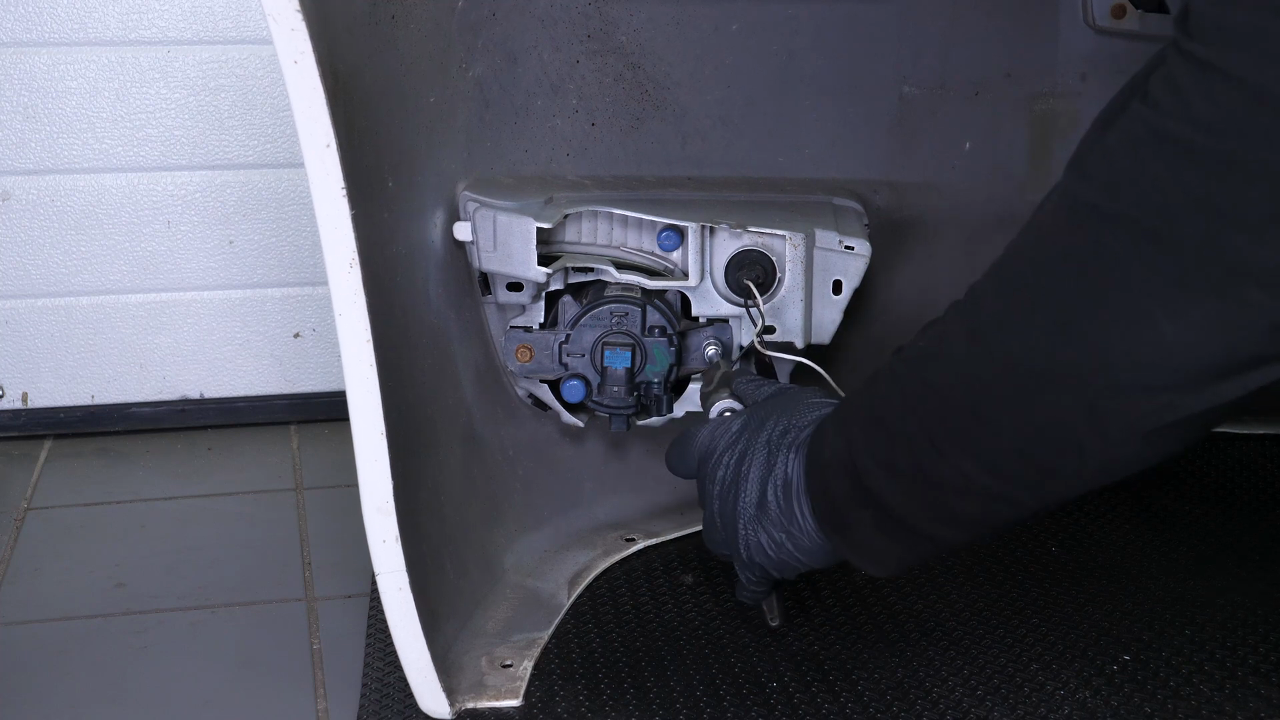

Using a ratchet and a 10 mm socket, unscrew the two bolts holding the fog light in the bumper cover.

Chapter 9:

Step 2/6

Remove the clip from the retaining tab of the fog light’s plastic trim.

Chapter 9:

Step 3/6

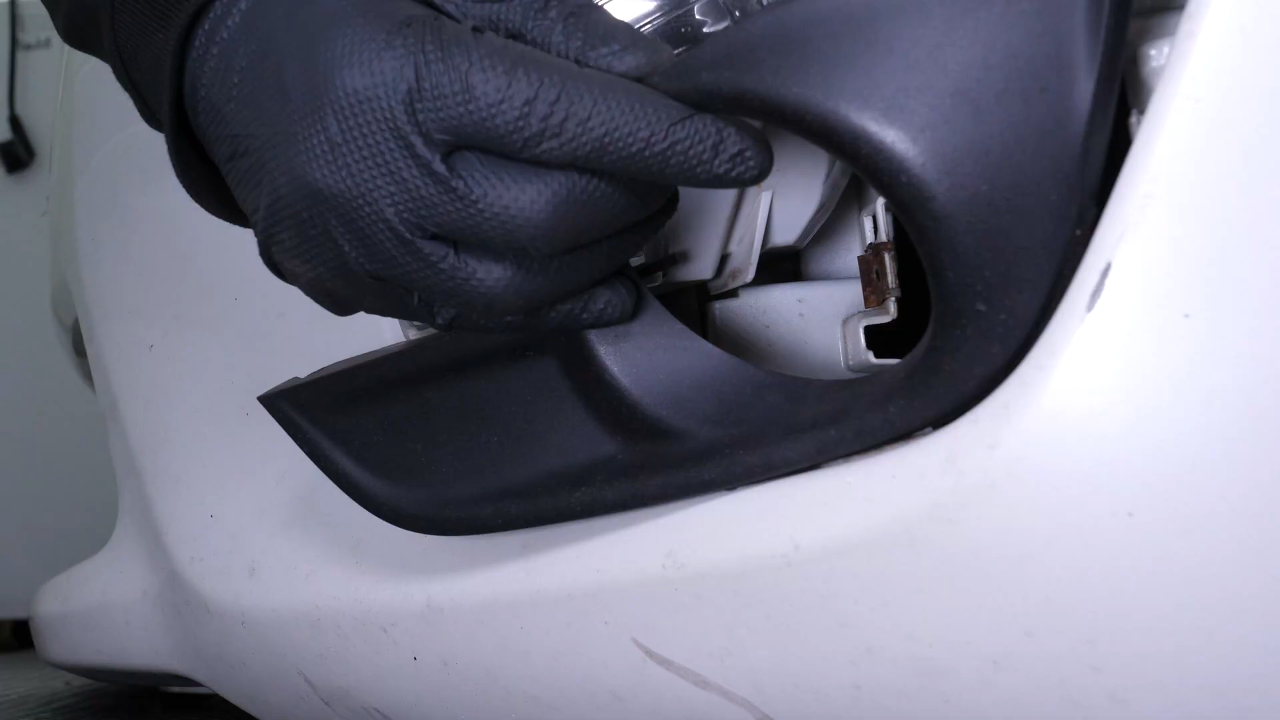

Then disengage the plastic trim from the bumper cover by pushing the 5 retaining tabs.

Chapter 9:

Step 4/6

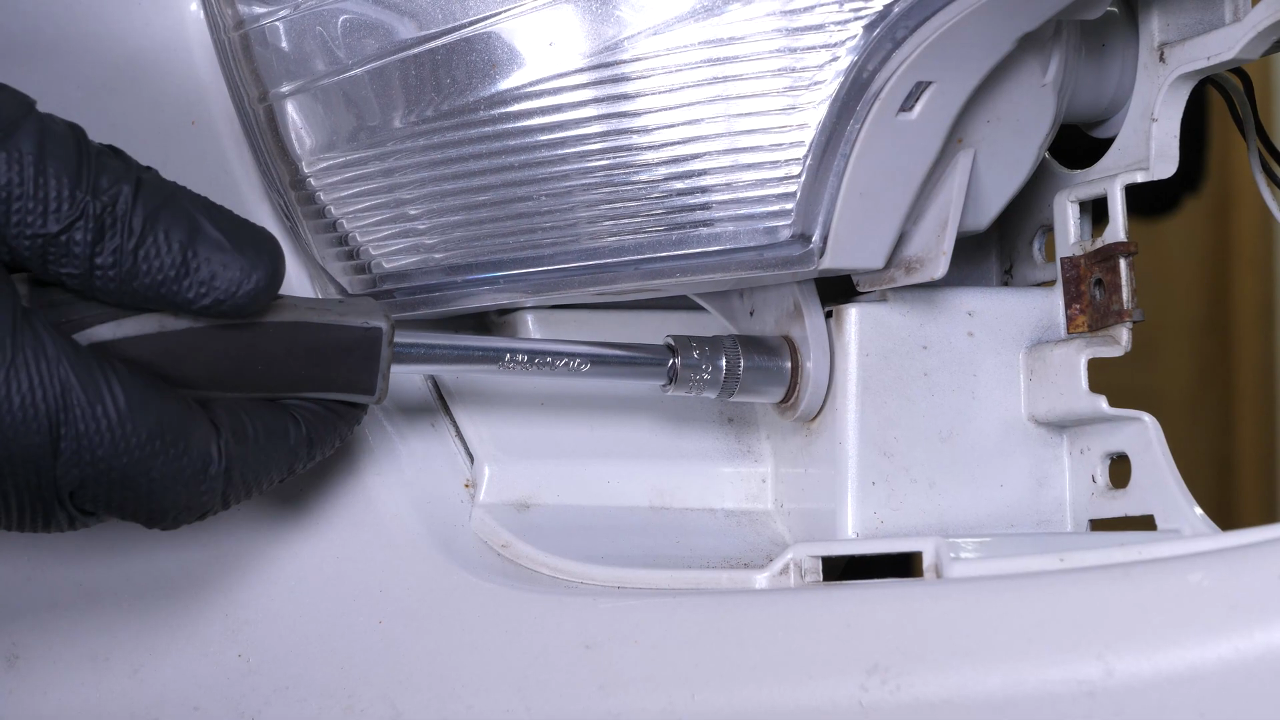

Using a multi-bit screwdriver and a 10 mm socket, unscrew the turn signal light retaining bolt.

Chapter 9:

Step 5/6

Press the turn signal light retaining tab.

Chapter 9:

Step 6/6

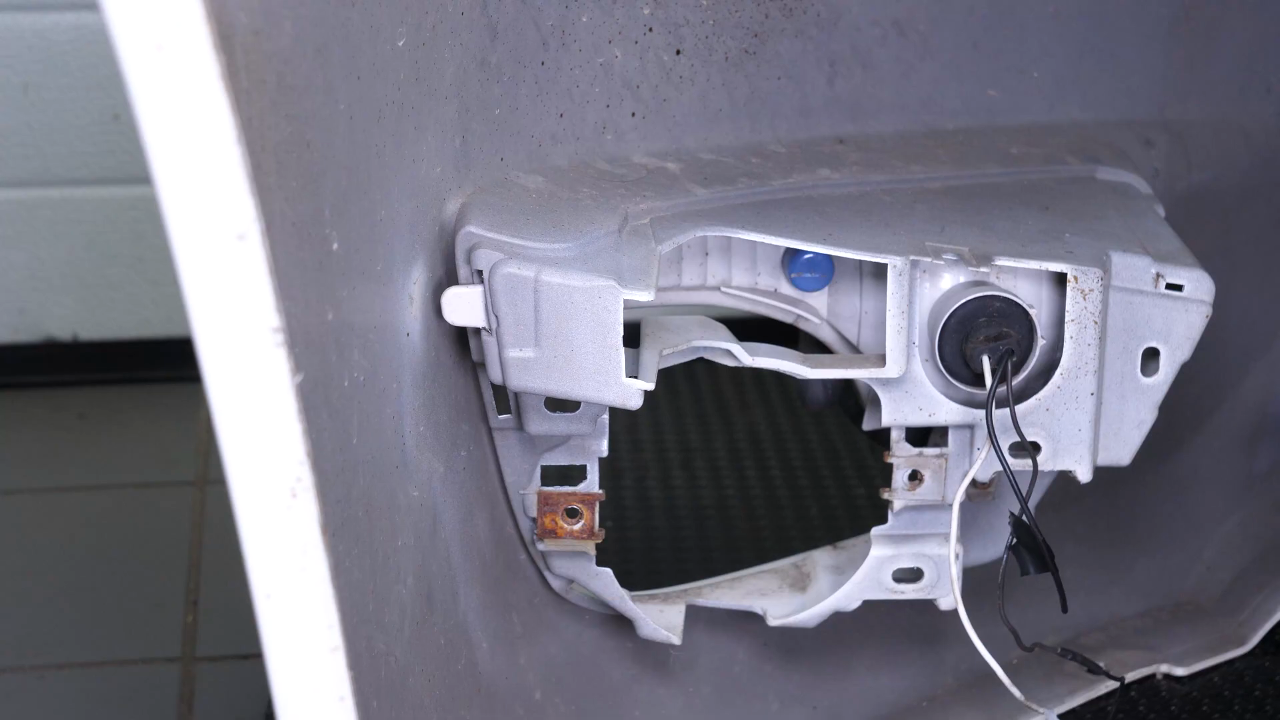

You can now remove the light.

Chapter 10:

Prepare the new bumper cover

Step 1/10

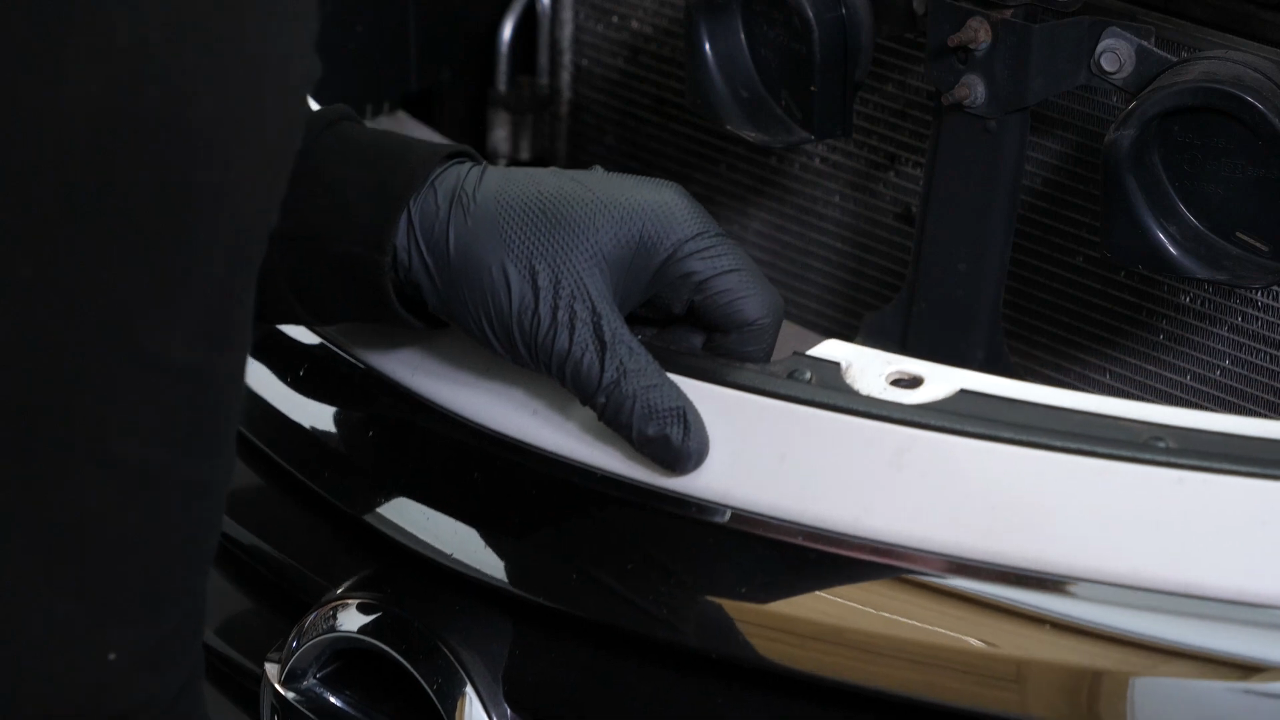

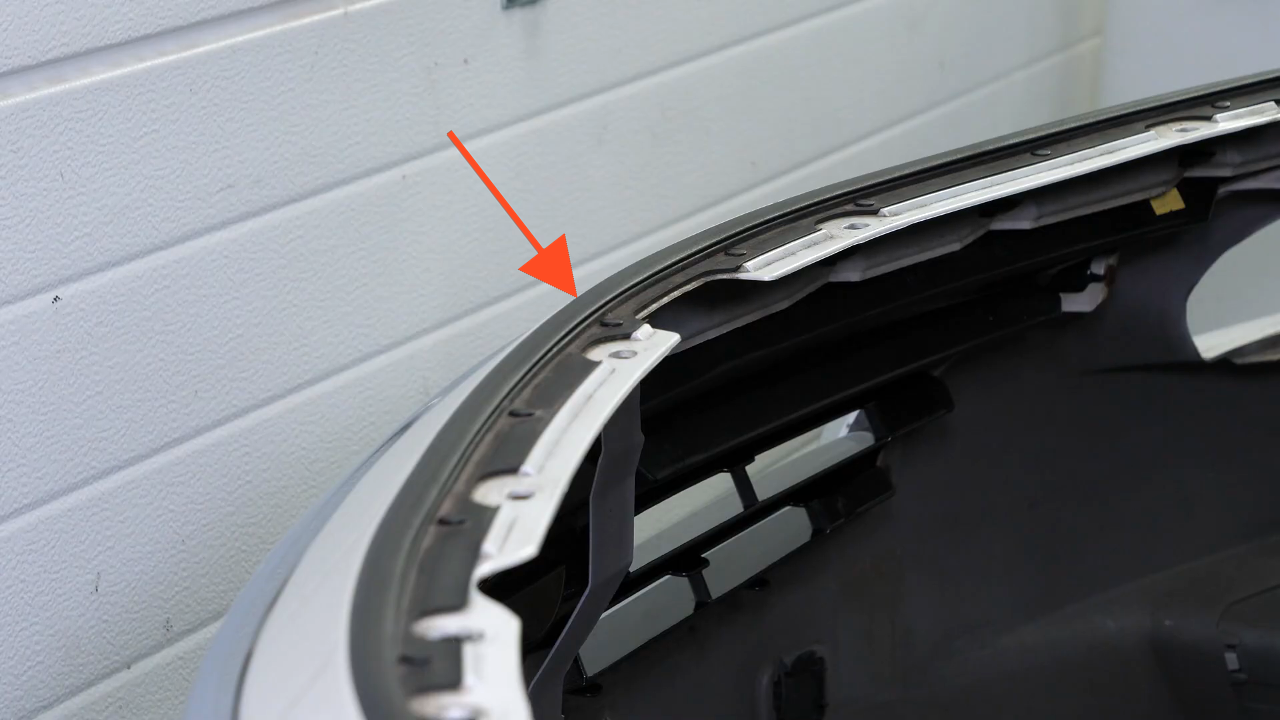

If the plastic seal at the top of the bumper cover is not installed on the new bumper cover, it must be retrieved from the old one.

Chapter 10:

Step 2/10

You can order the front bumper cover used in the video on Carparts.com via the link in the description.

Chapter 10:

Step 3/10

Take the new front bumper cover.

Chapter 10:

Step 4/10

Install the plastic seal.

Chapter 10:

Step 5/10

Put the turn signal light back in place.

Chapter 10:

Step 6/10

Then screw the bolt back on.

Chapter 10:

Step 7/10

Clip the fog light’s plastic trim back on.

Chapter 10:

Step 8/10

Then put the retaining clip back in place.

Chapter 10:

Step 9/10

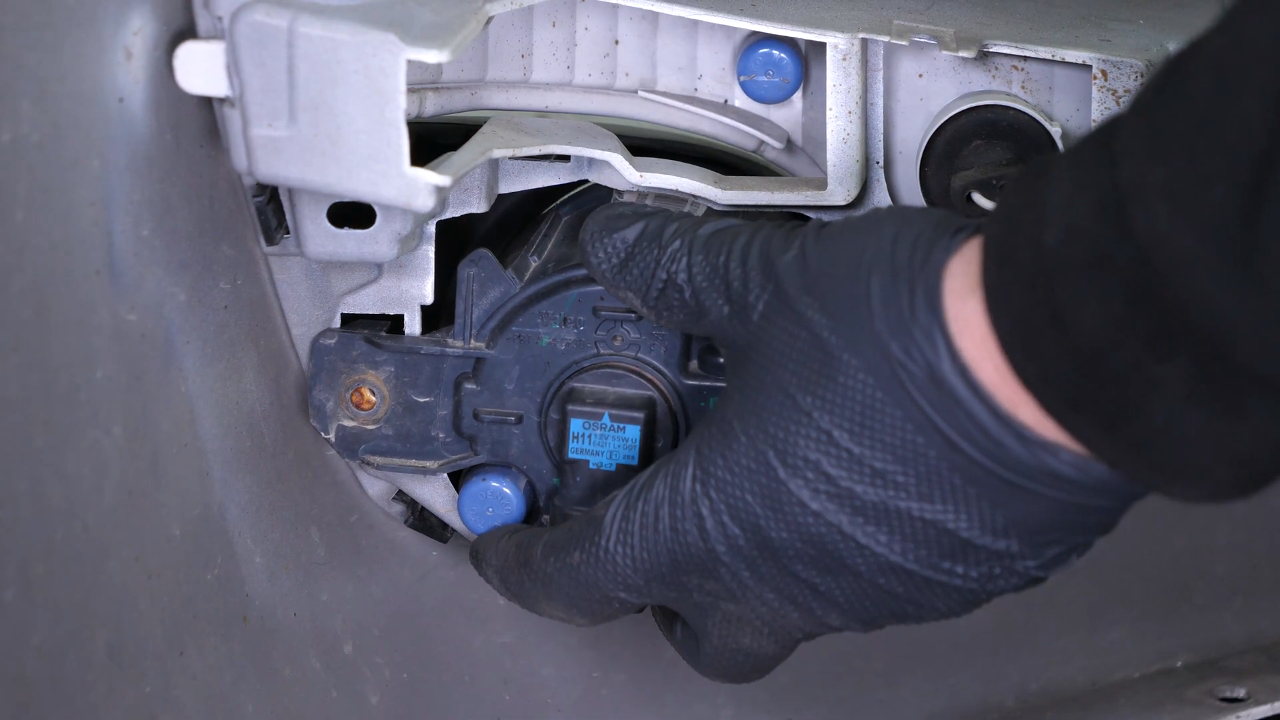

Reinsert the headlight into the front bumper cover.

Chapter 10:

Step 10/10

Then screw the 2 bolts back on.

Chapter 11:

Put the grille assembly back

Step 1/5

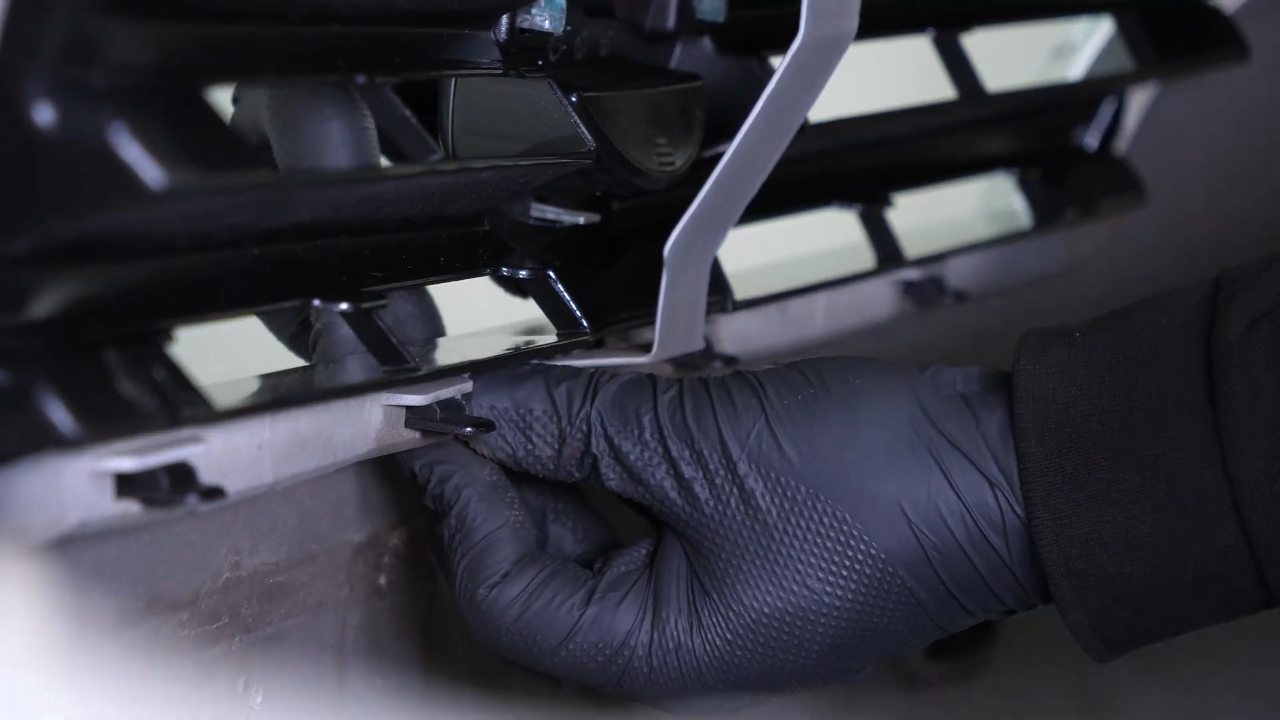

Put the Grille assembly back in place.

Chapter 11:

Step 2/5

Then retighten the screws.

Chapter 11:

Step 3/5

Put the bumper cover bracket back in place.

Chapter 11:

Step 4/5

Then screw the 2 bolts back on.

Chapter 11:

Step 5/5

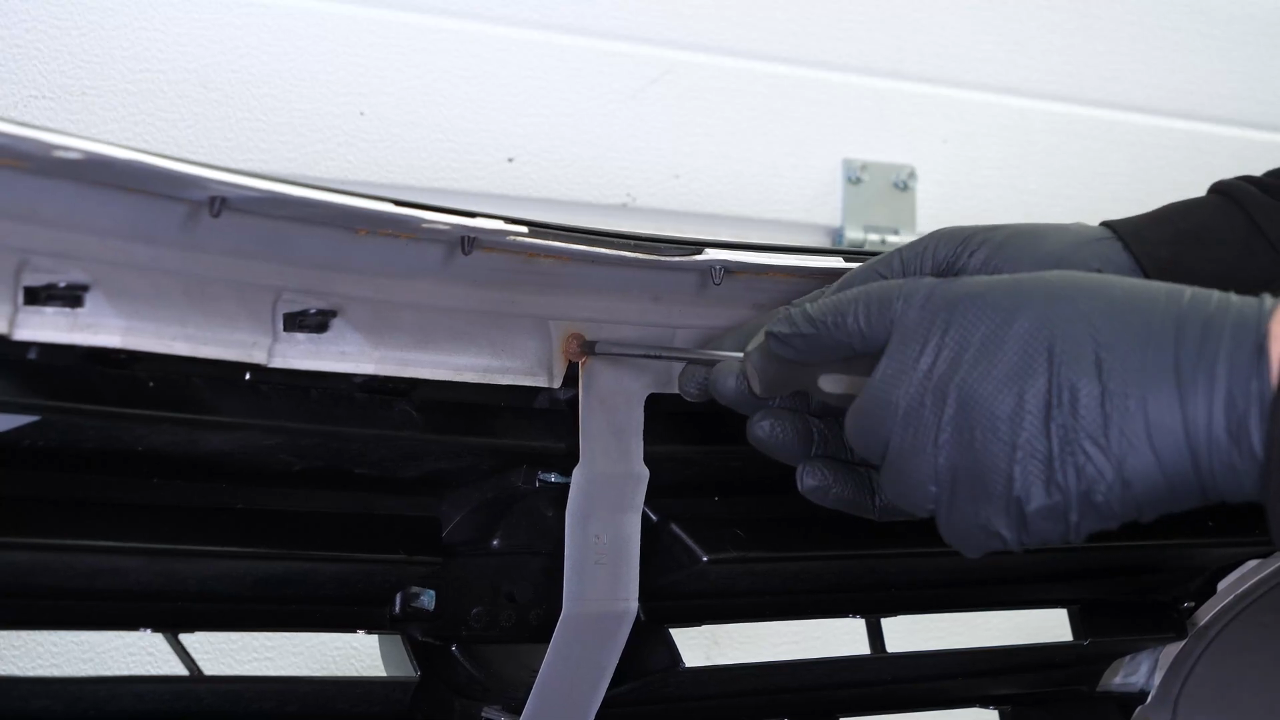

Retrieve the plastic fasteners of the splash shield from the old bumper cover, and put them back in place.

Chapter 12:

Reinstall the bumper cover

Step 1/18

Once all the parts have been reassembled on the front bumper cover, you can reinstall it.

Chapter 12:

Step 2/18

Then, reinsert the bumper cover onto the fender.

Chapter 12:

Step 3/18

Screw the 2 upper bumper cover retaining bolts back on.

Chapter 12:

Step 4/18

Clip the bumper cover back into the side bumper cover retainer.

Chapter 12:

Step 5/18

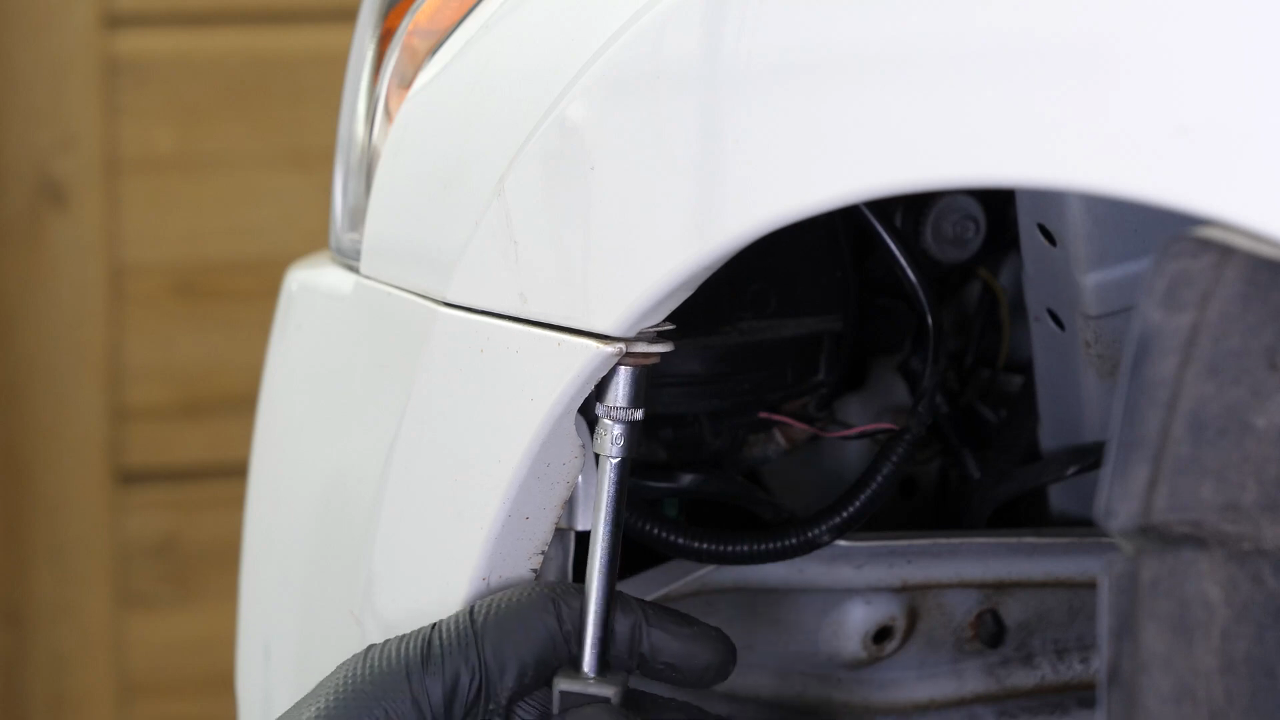

From the wheel arch, screw the bumper cover retaining screw back onto the fender.

Chapter 12:

Step 6/18

Repeat this step on the other side.

Chapter 12:

Step 7/18

Put the plastic bumper cover bracket back in place.

Chapter 12:

Step 8/18

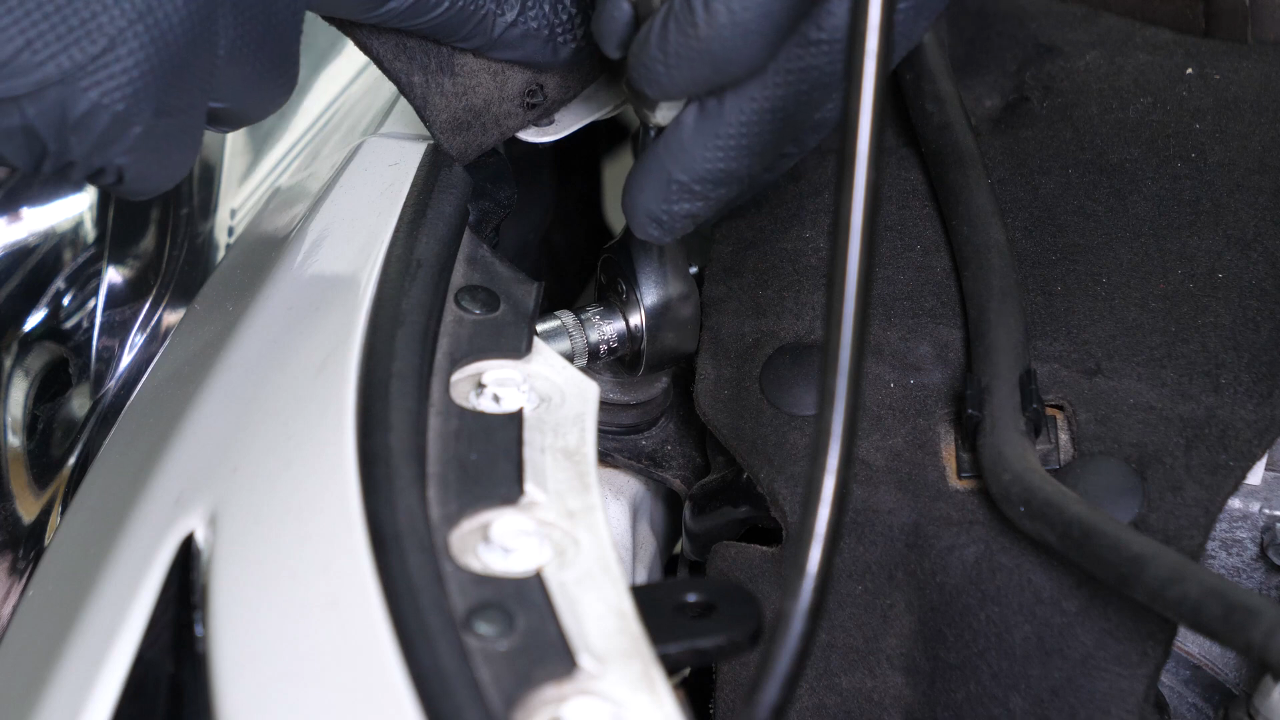

And screw it back on.

Chapter 12:

Step 9/18

Repeat this step on the other side.

Chapter 12:

Step 10/18

Then put the washer pump fluid reservoir retaining rivet back in place.

Chapter 12:

Step 11/18

Put the radiator support cover back in place.

Chapter 12:

Step 12/18

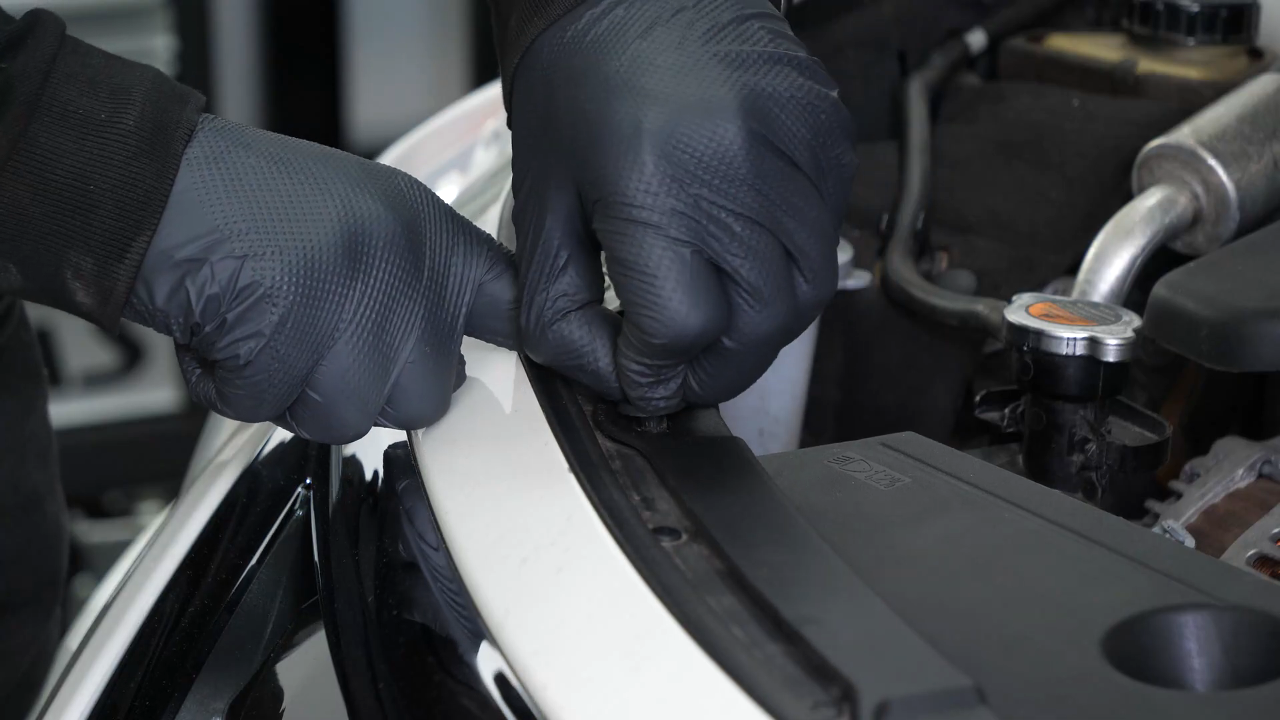

Then put the rivets back in place.

Chapter 12:

Step 13/18

Put the splash shield back in place.

Chapter 12:

Step 14/18

Then screw the bolts back on.

Chapter 12:

Step 15/18

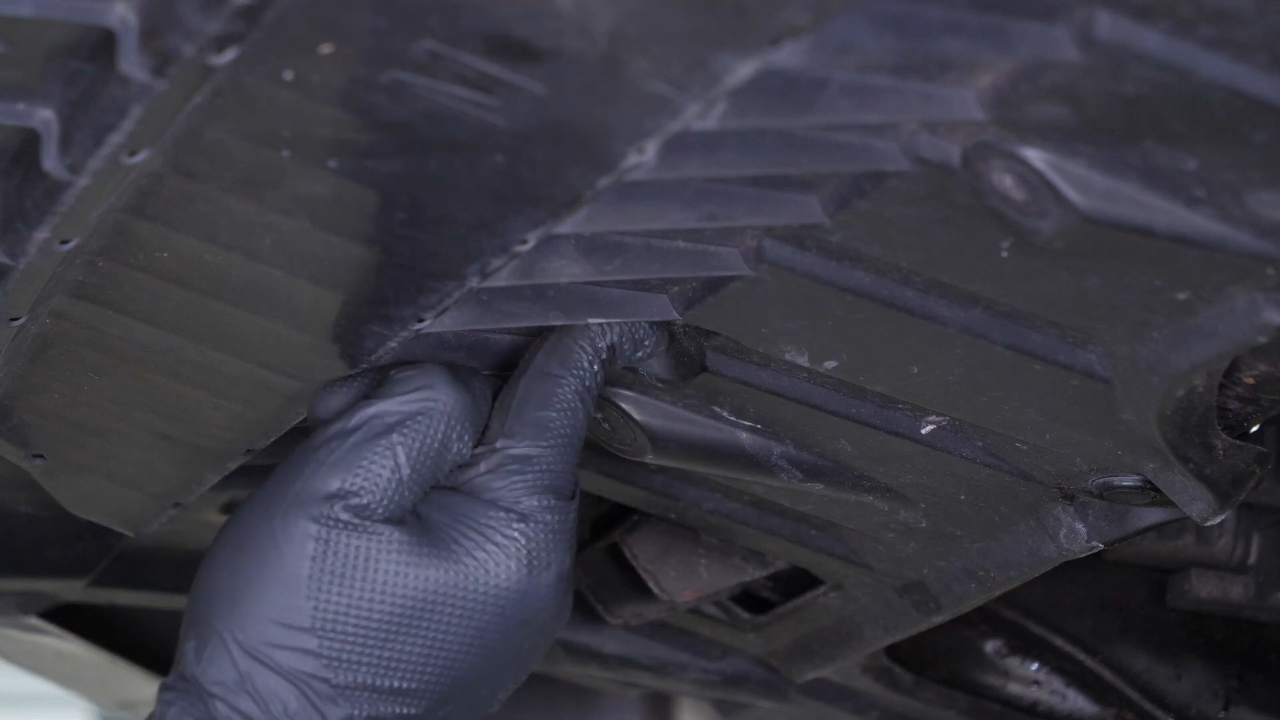

Then put the rivets back in place.

Chapter 12:

Step 16/18

Reconnect the turn signals’ power connectors.

Chapter 12:

Step 17/18

Then, reattach the clips.

Chapter 12:

Step 18/18

Reconnect the fog lights’ power connectors.

Chapter 13:

Put the mudguard back

Step 1/4

Put the mudguard back in place.

Chapter 13:

Step 2/4

Then put the rivets back in place.

Chapter 13:

Step 3/4

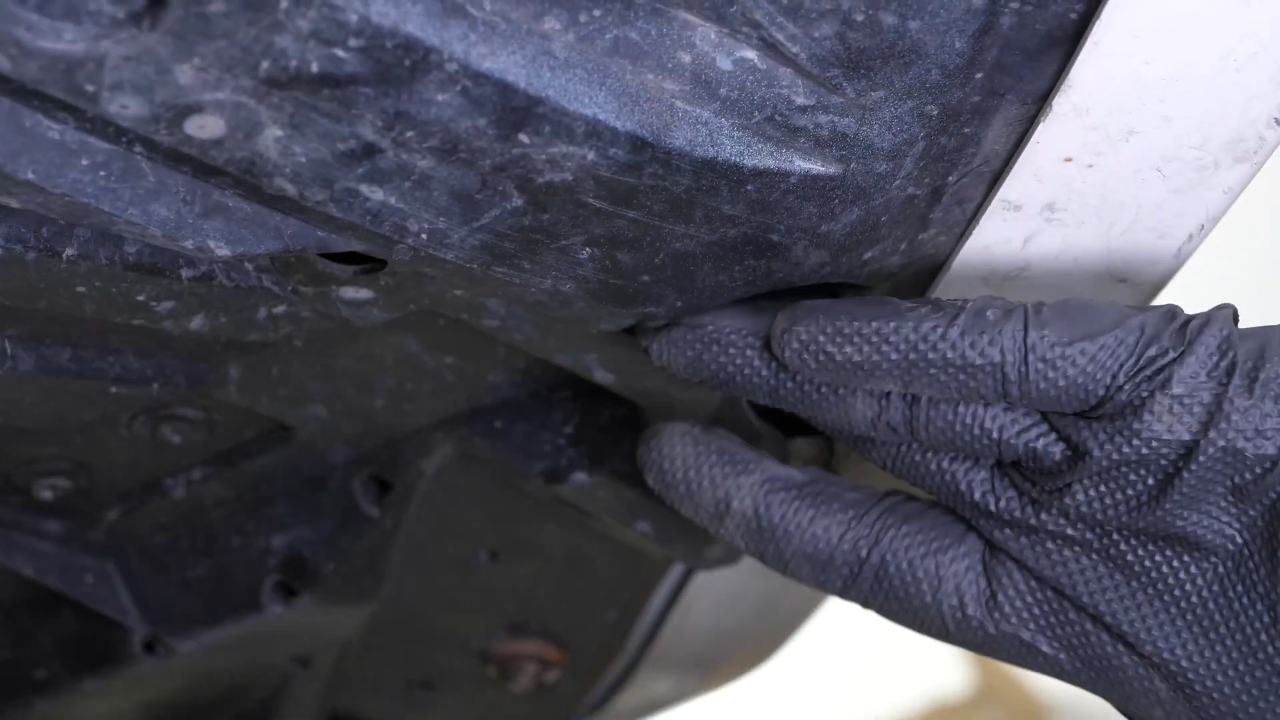

Run the splash shield through the bumper cover.

Chapter 13:

Step 4/4

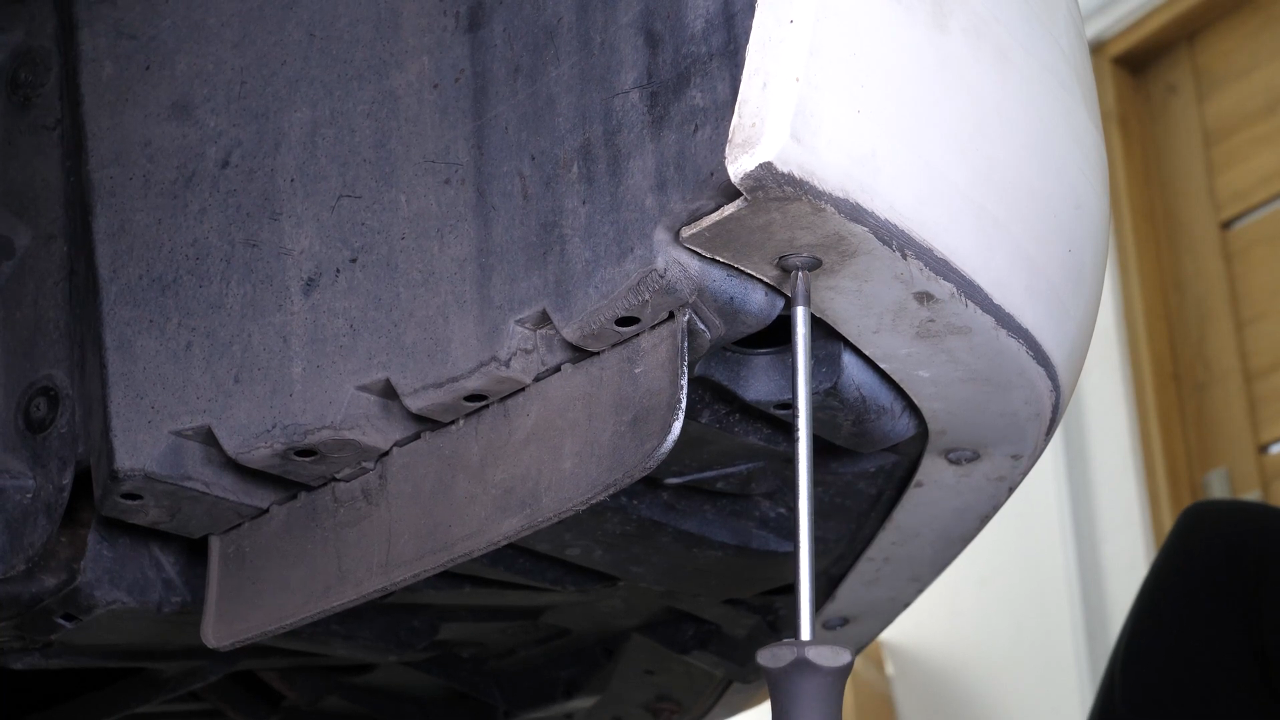

Then, retighten the retaining screw.

Chapter 14:

Put the vehicle back on the ground

Step 1/3

Then, you will be able to put the wheels back on your vehicle.

Chapter 14:

Step 2/3

Put the car back on the ground and block the wheels properly.

Chapter 14:

Step 3/3

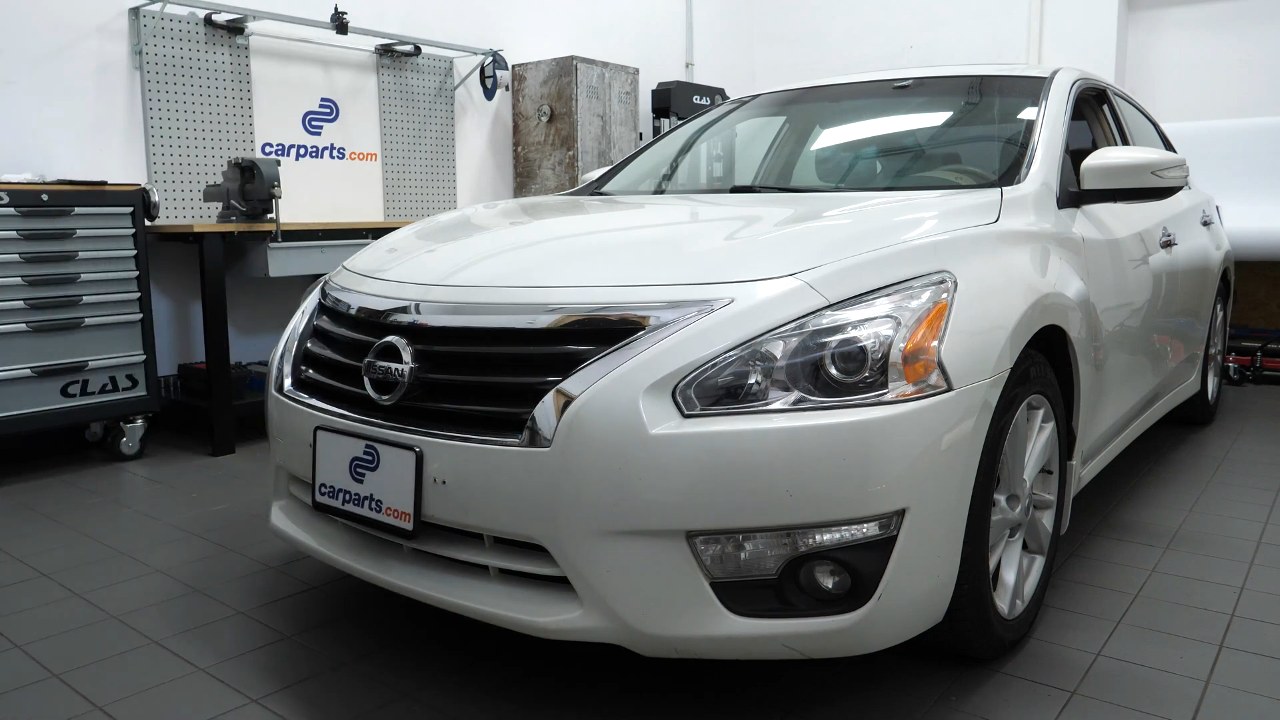

Operation complete.
