How to replace the headlight assembly 2013 – 2018 Nissan Altima

Chapter 1:

Lift the vehicle

Step 1/2

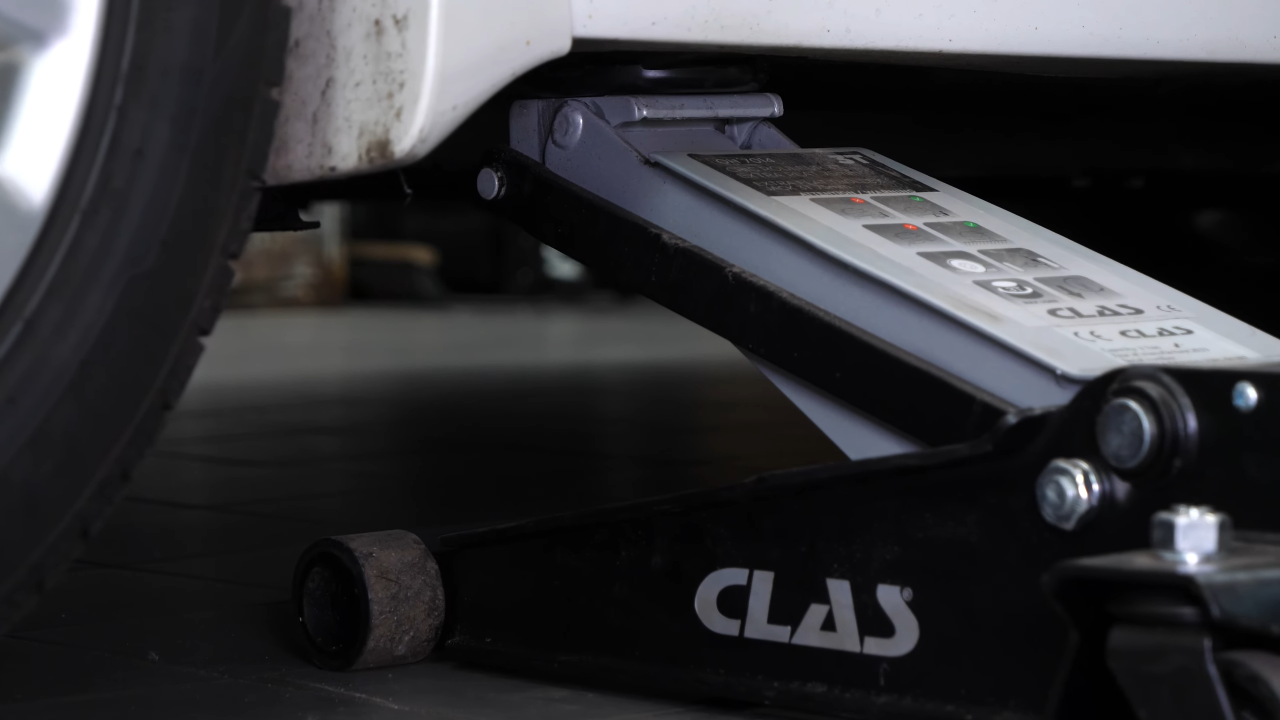

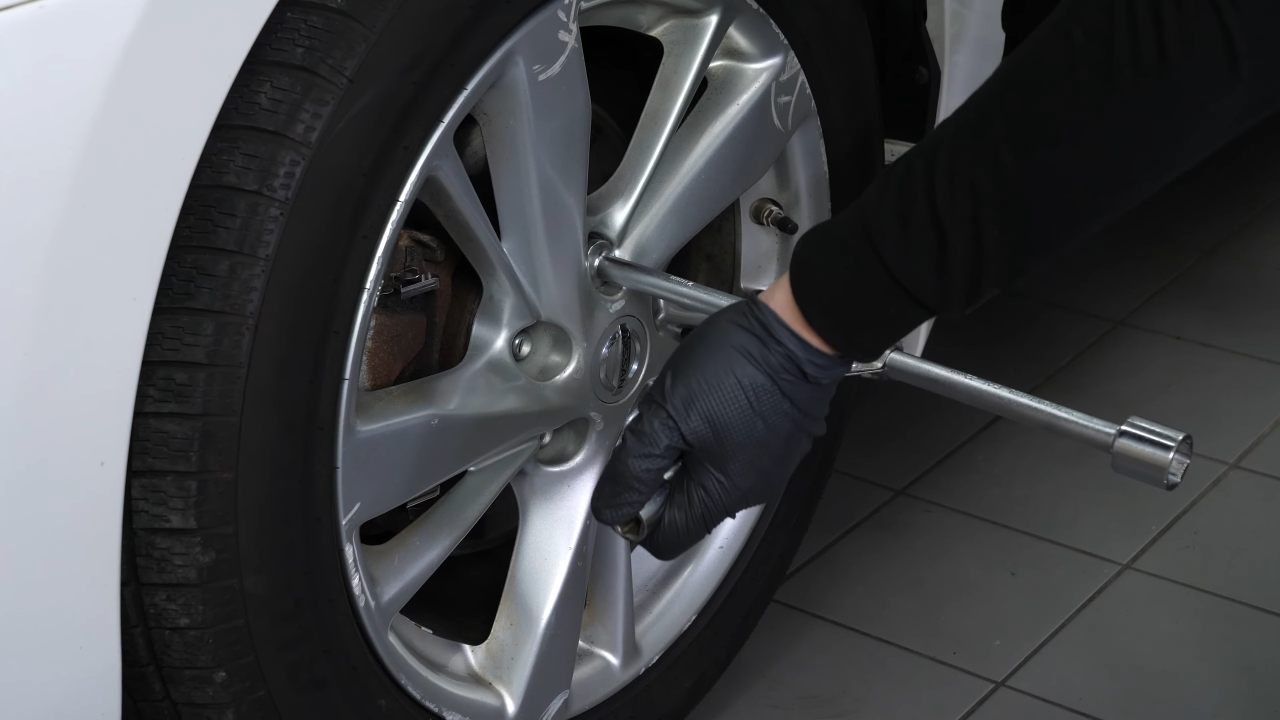

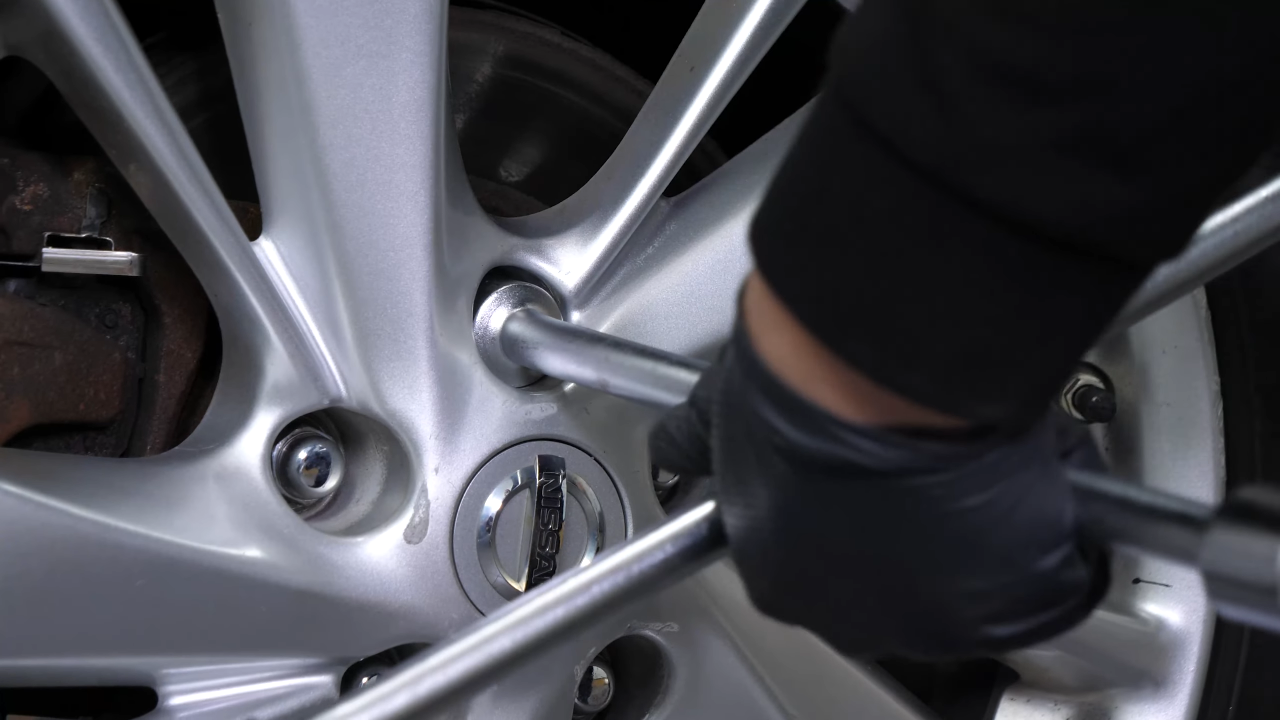

Loosen the stud bolts on the front wheels. Lift the front of your vehicle.

Chapter 1:

Step 2/2

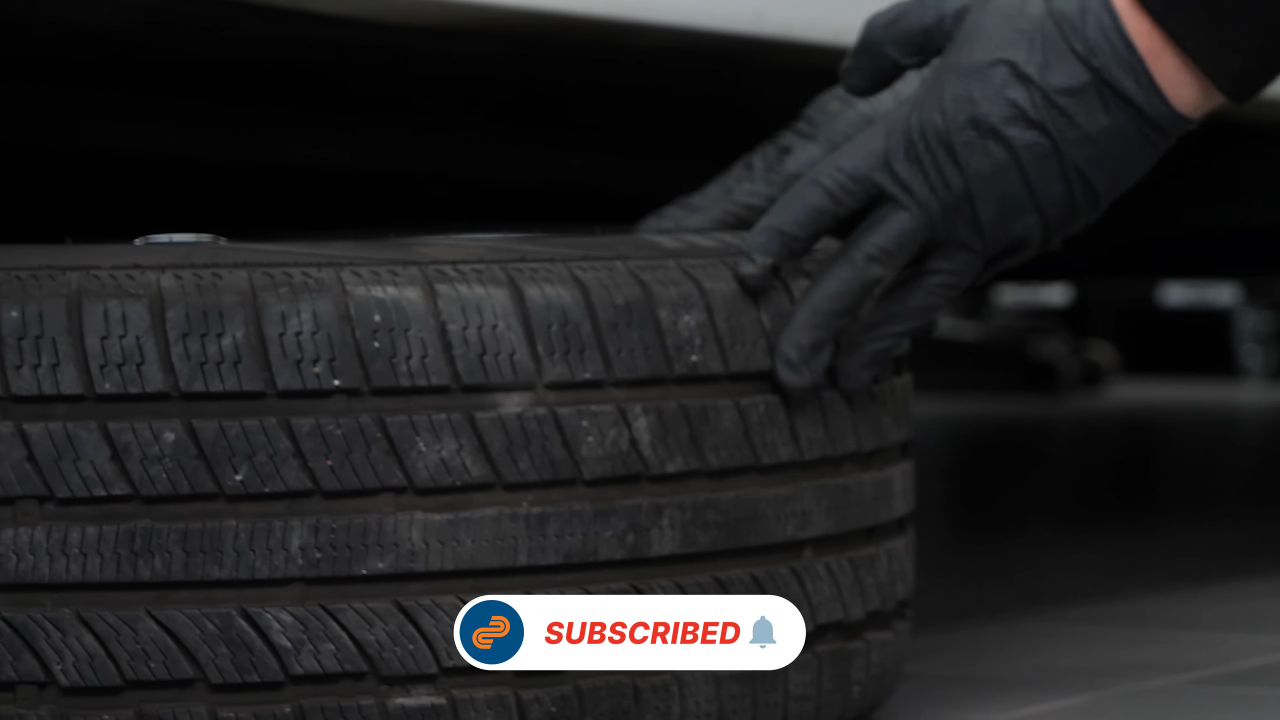

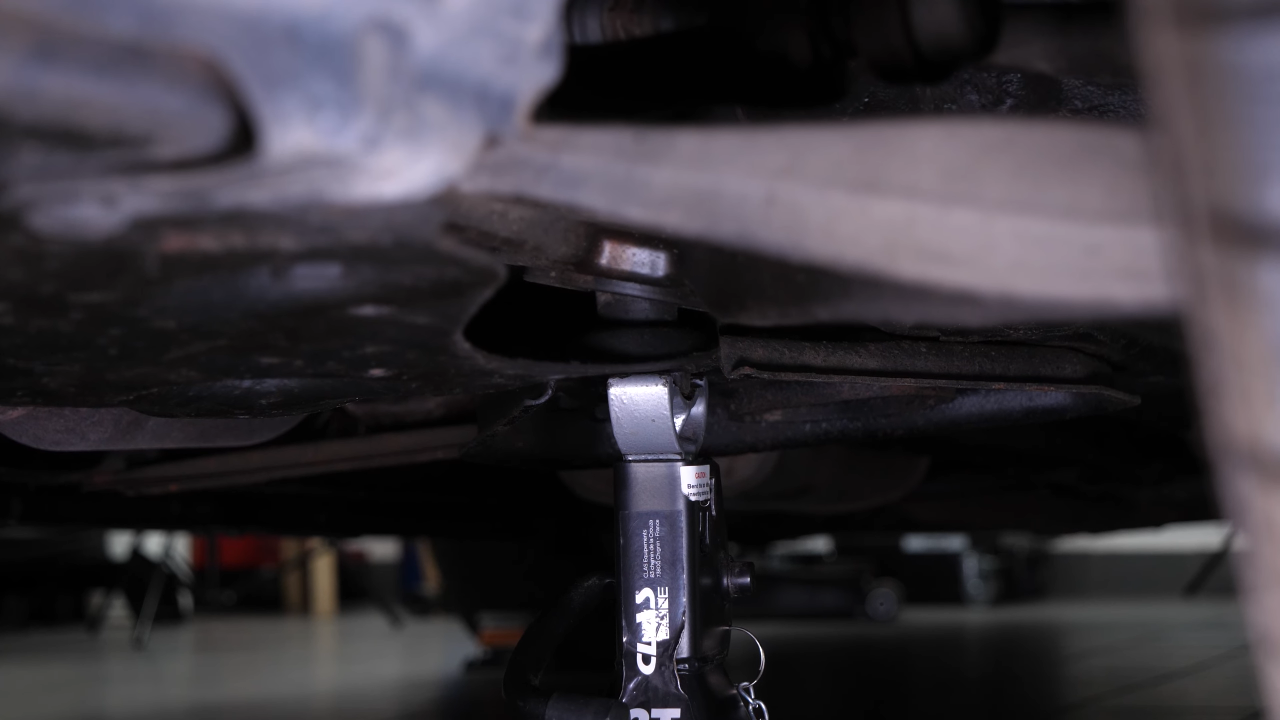

Place the vehicle on the jack stands. Don’t forget to put the wheels under the vehicle!

Chapter 2:

Informations

Step 1/1

In order to change the headlights on your vehicle, you will need to remove the front bumper cover to have full access.

Chapter 3:

Remove the plastic cover

Step 1/1

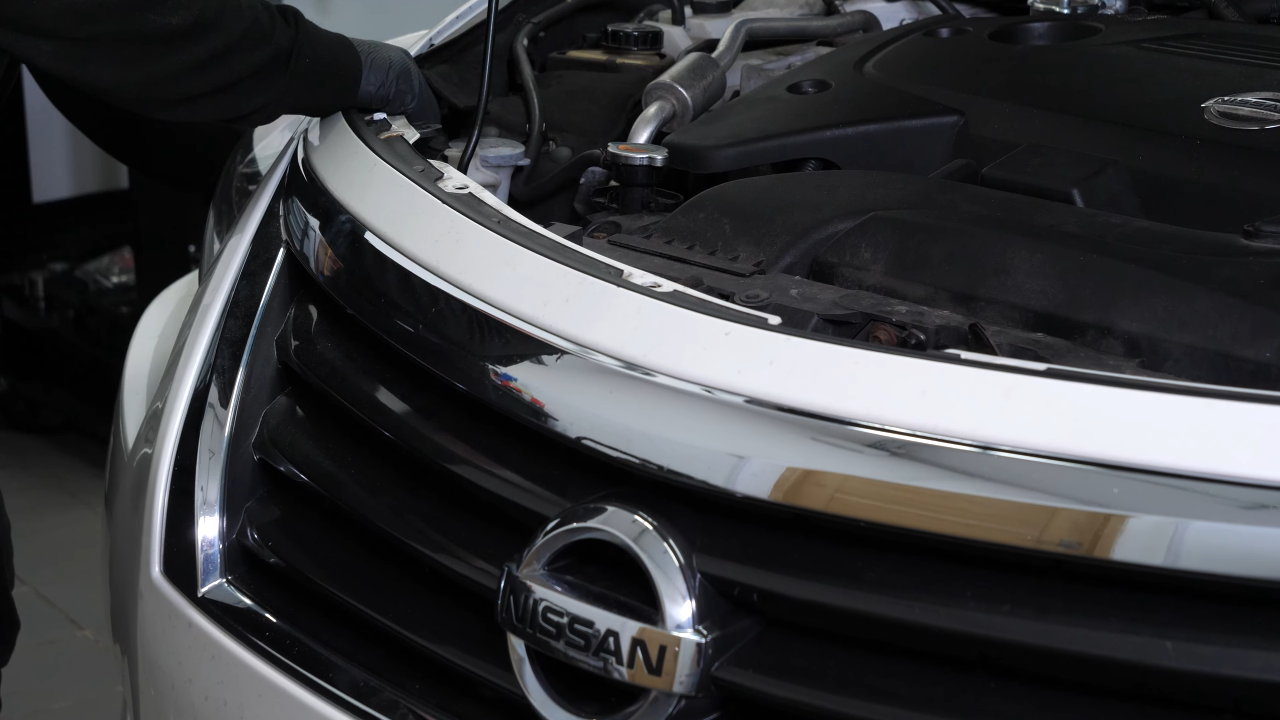

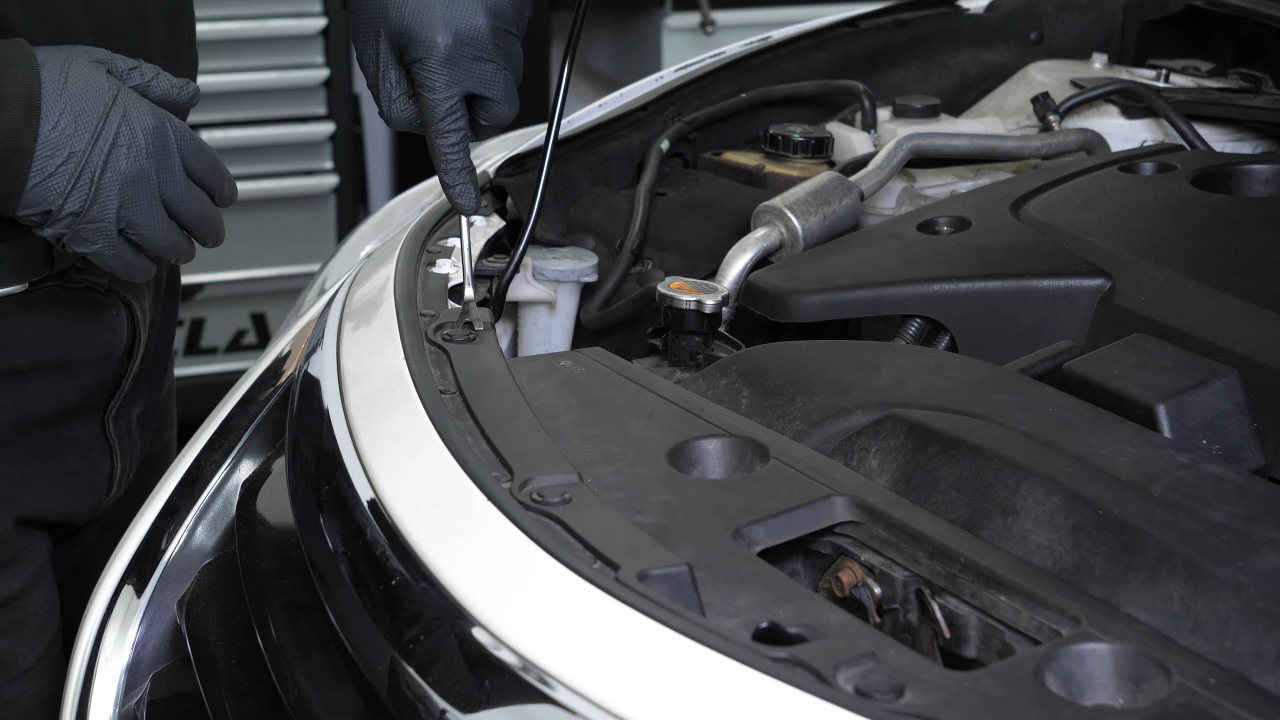

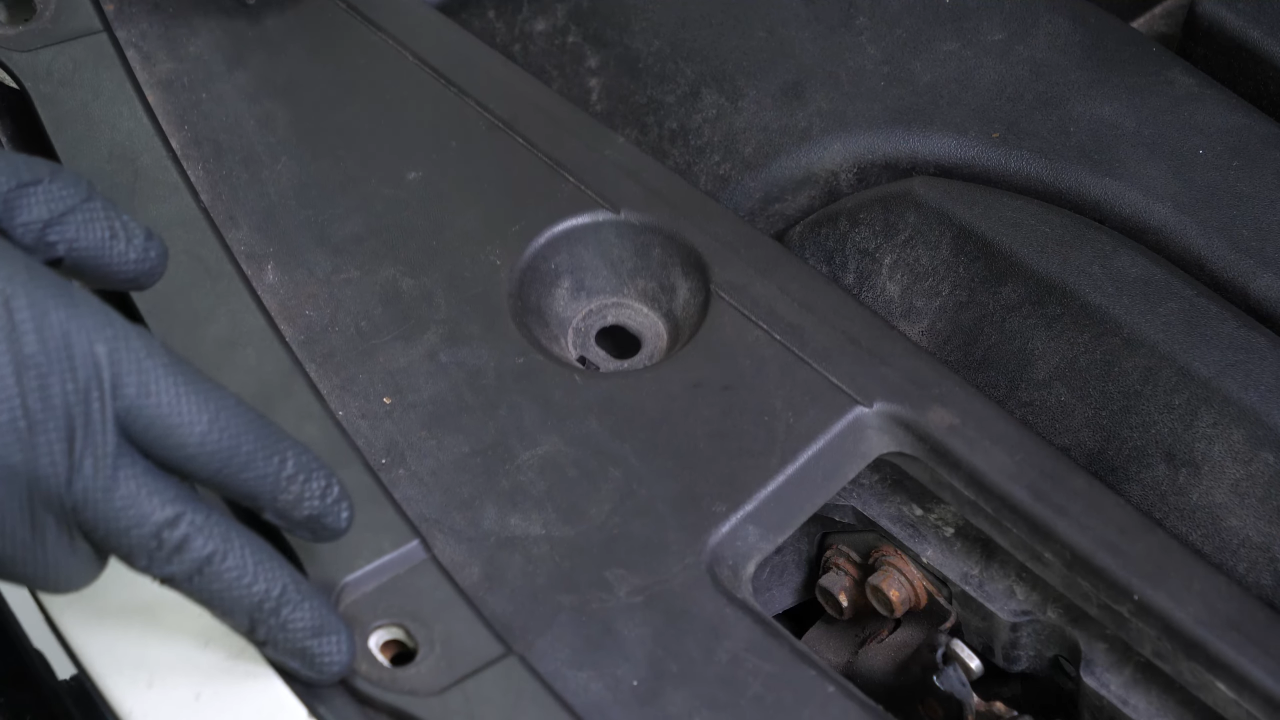

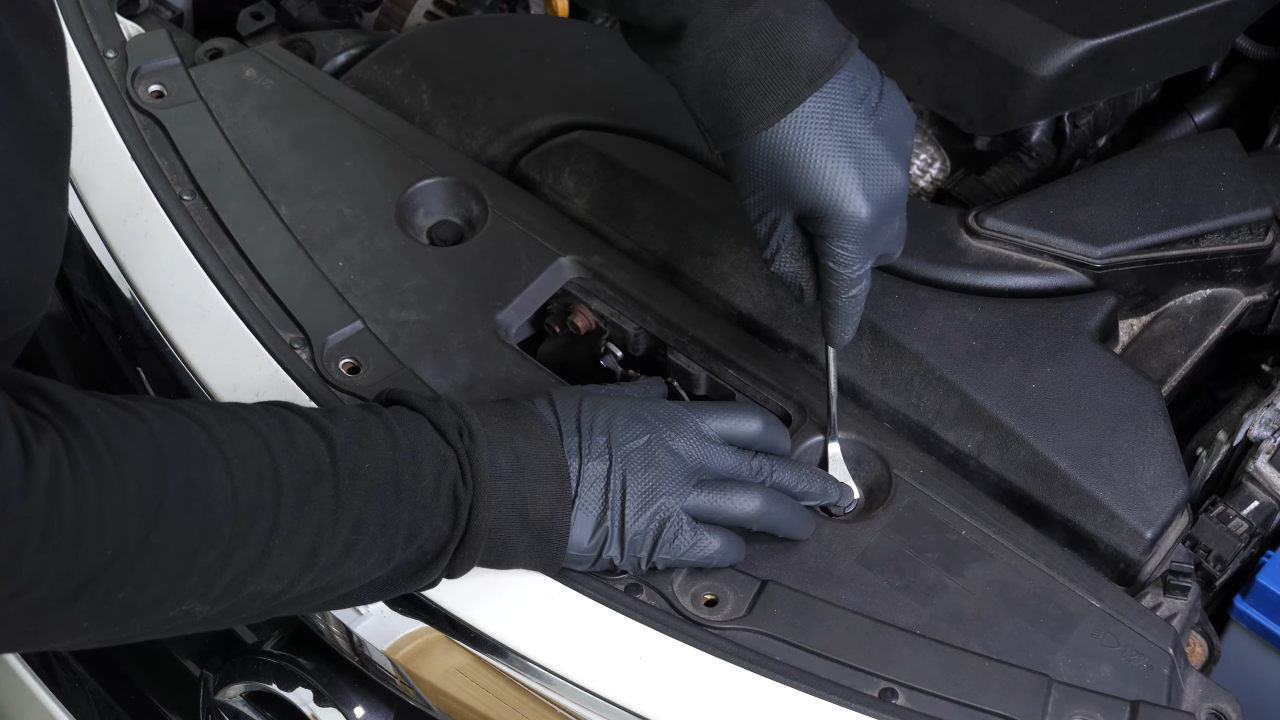

Using a fork, remove the 10 holding rivets. Then remove the cover.

Chapter 4:

Set up

Step 1/5

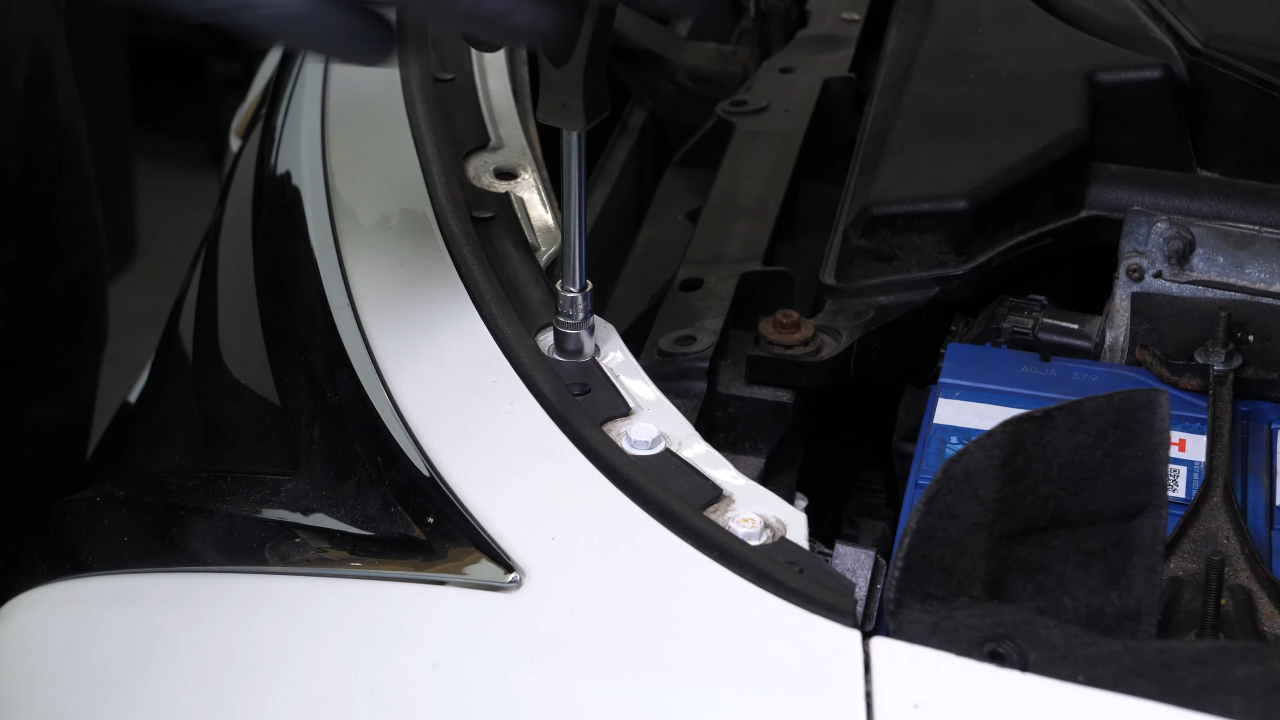

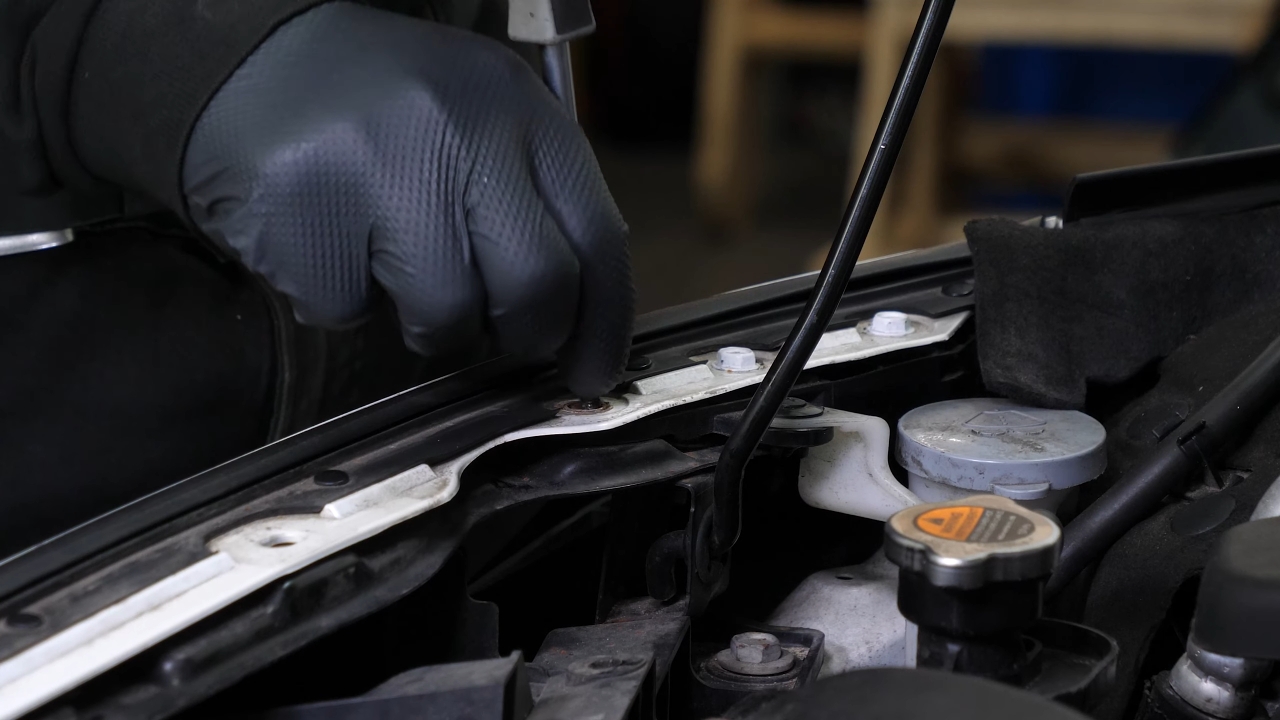

Start with the driver side. Using a multi-bit screwdriver and a 10 mm socket, unscrew the upper bumper cover retaining bolt.

Chapter 4:

Step 2/5

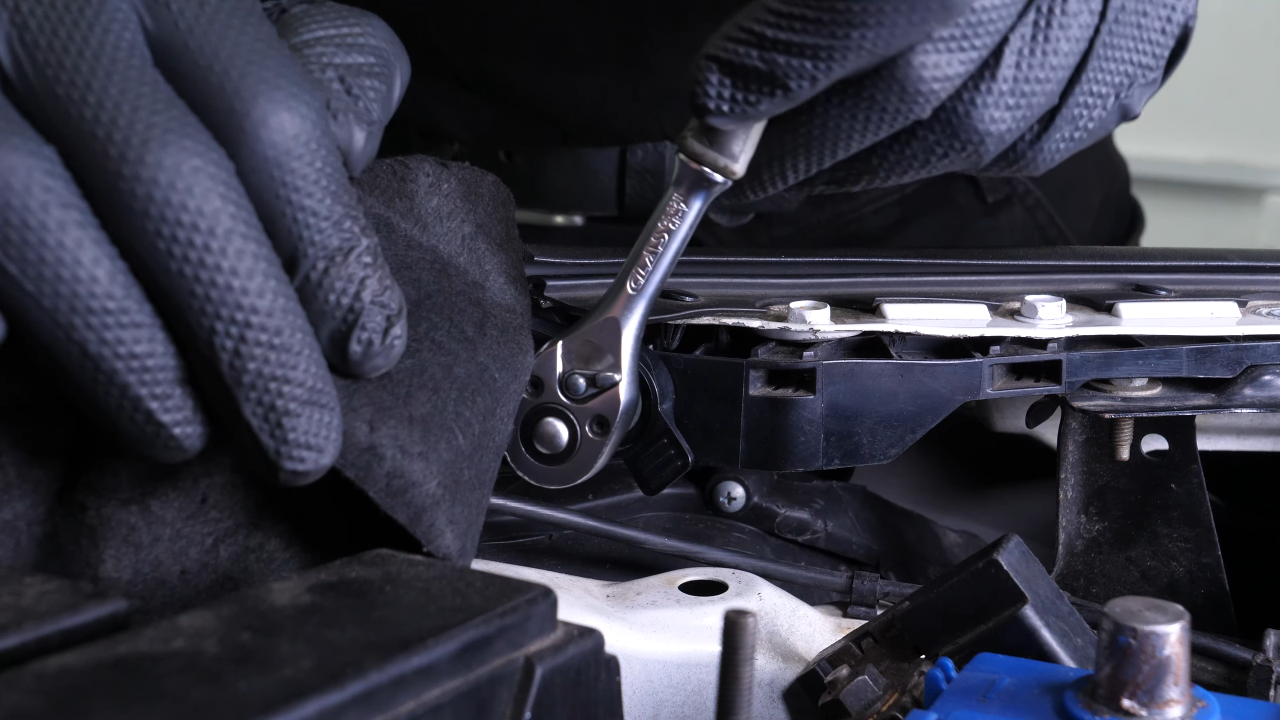

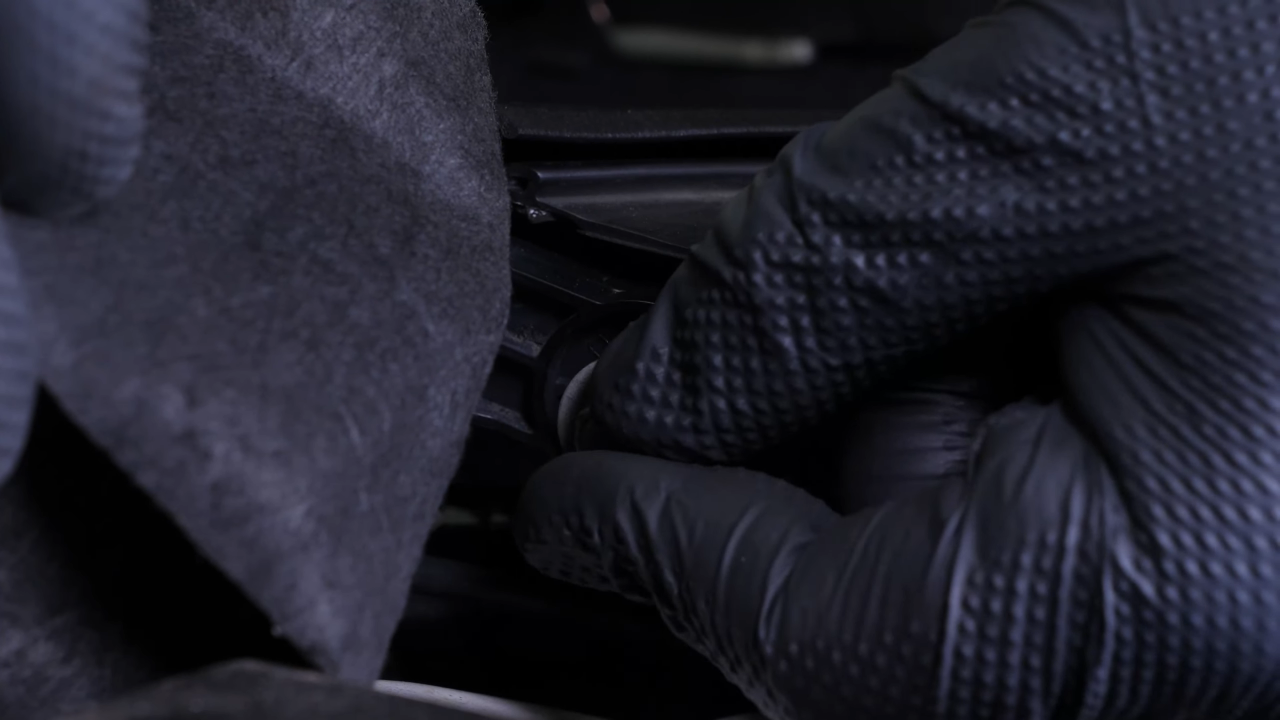

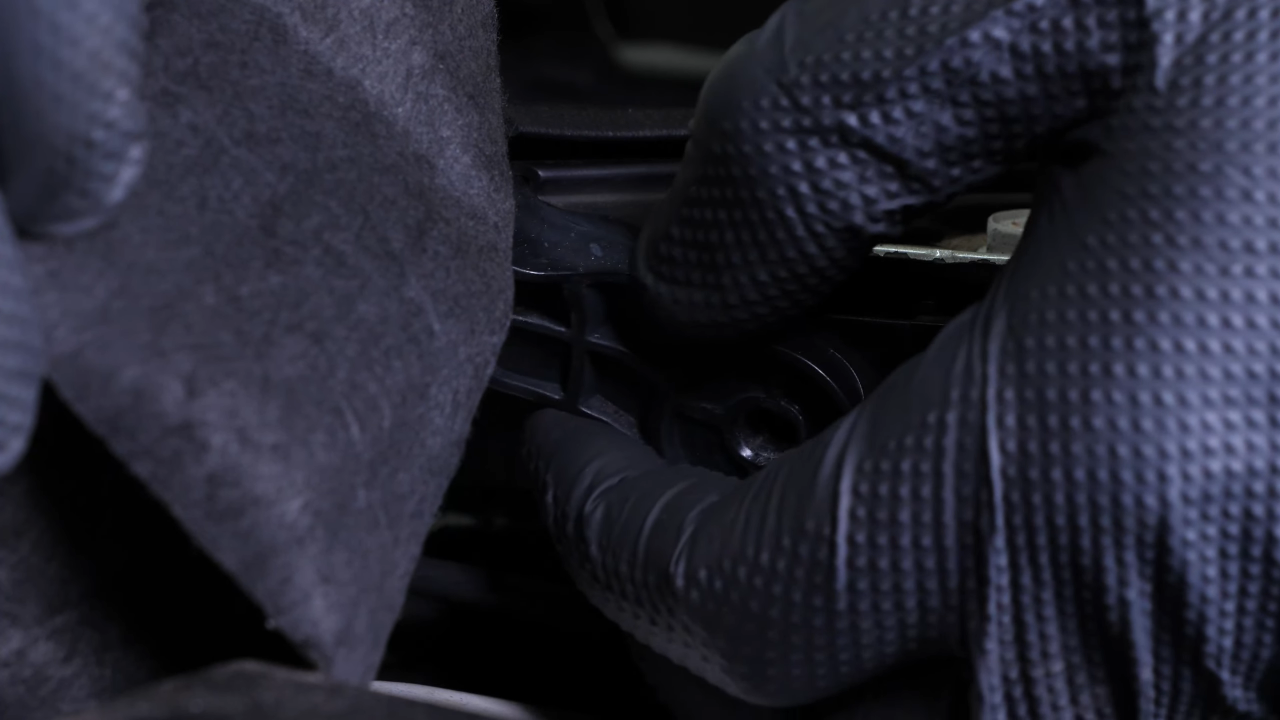

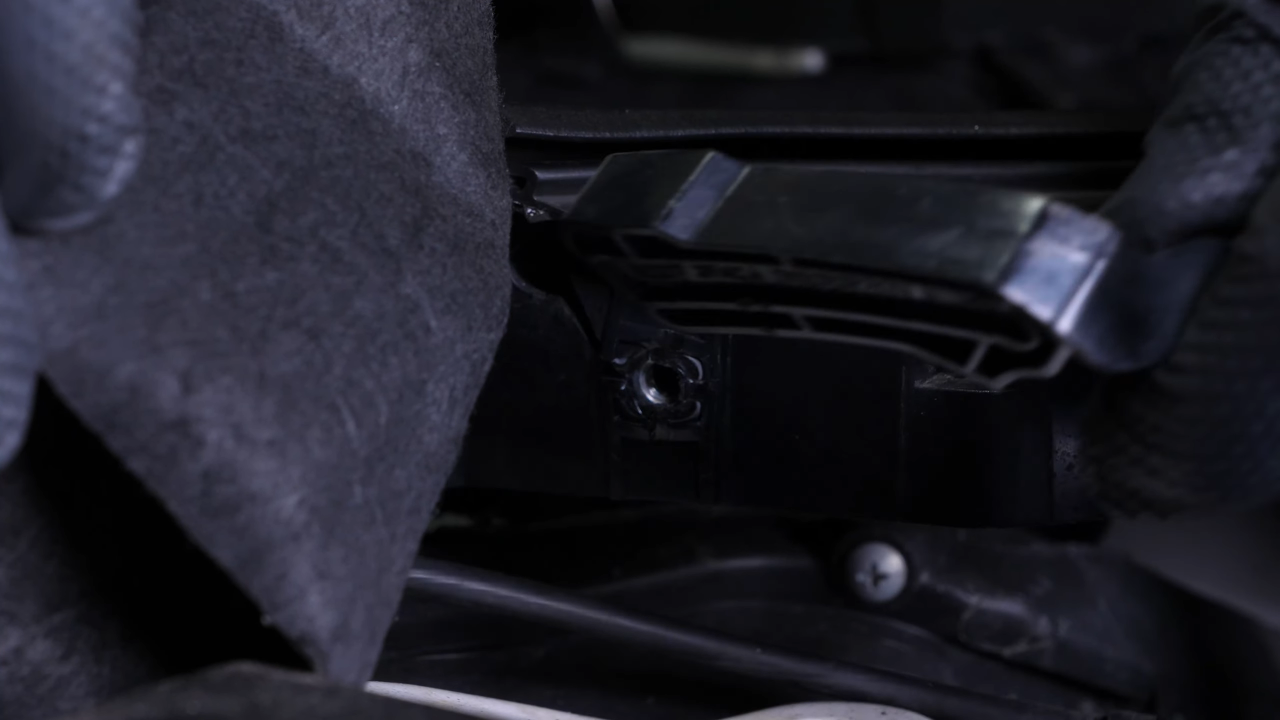

Lift up the textile cover. Next, using a ratchet and a 10 mm socket, unscrew the plastic bumper cover bracket retaining bolt.

Chapter 4:

Step 3/5

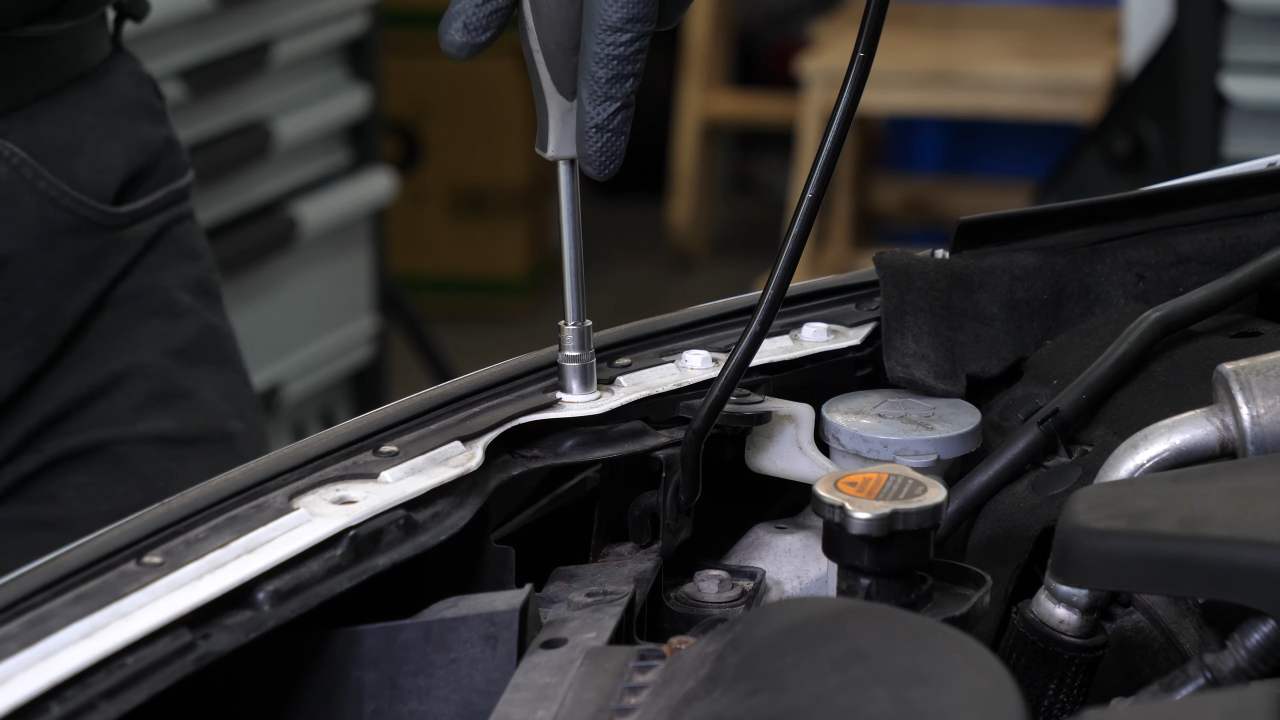

Unscrew the upper bolt on the passenger side.

Chapter 4:

Step 4/5

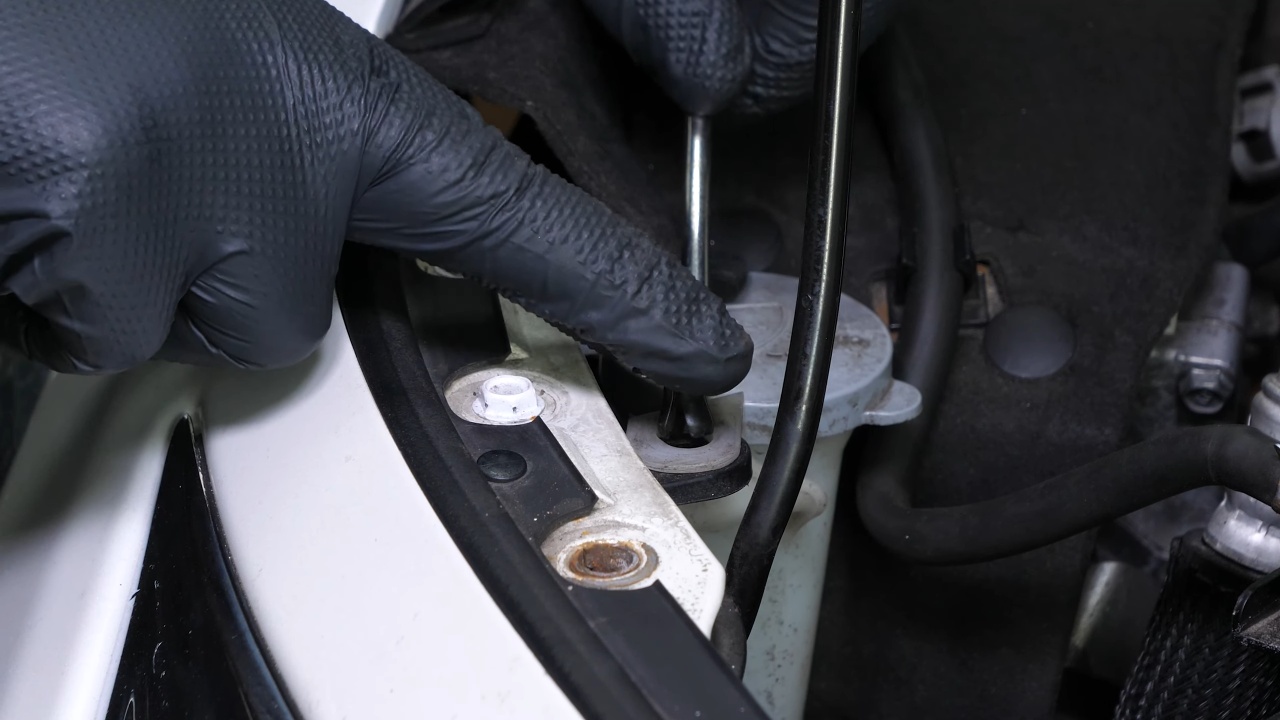

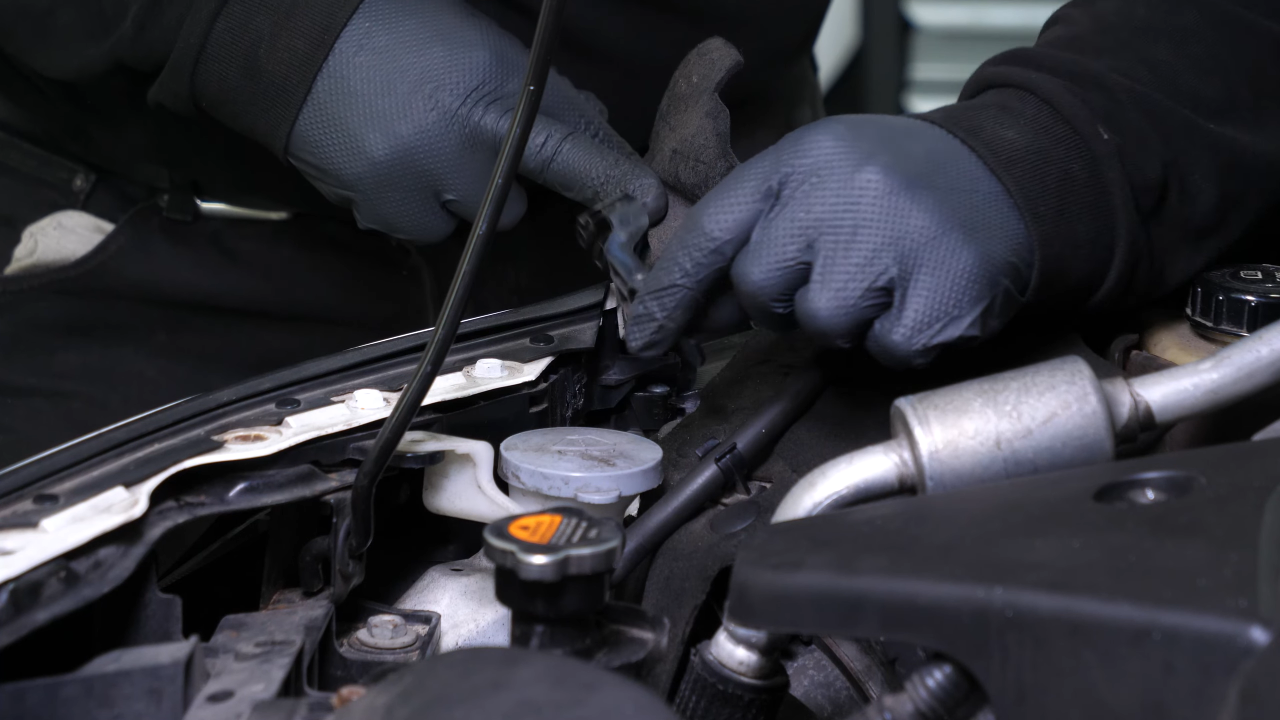

Then, using a Phillips screwdriver, unscrew the plastic rivet from the washer pump fluid reservoir hole on the bumper cover.

Chapter 4:

Step 5/5

Remove it with a fork. Then unscrew the other plastic bracket. Then, remove it.

Chapter 5:

Remove the mudguard

Step 1/6

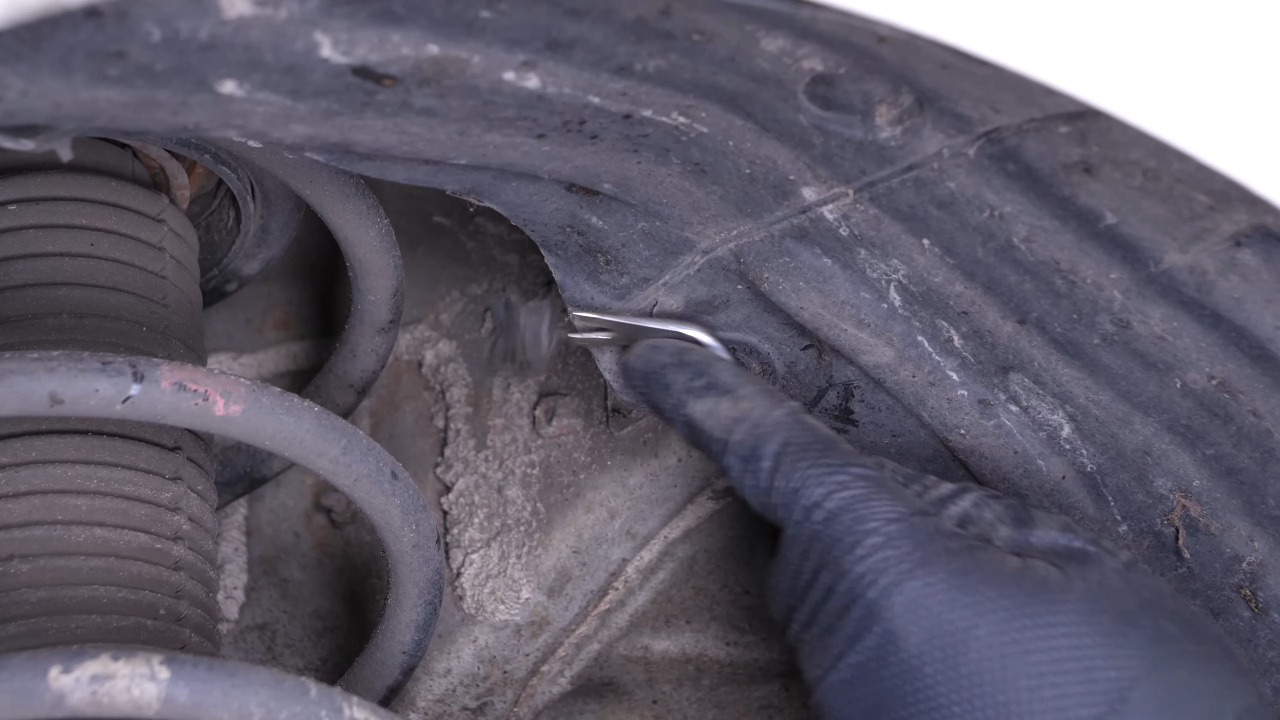

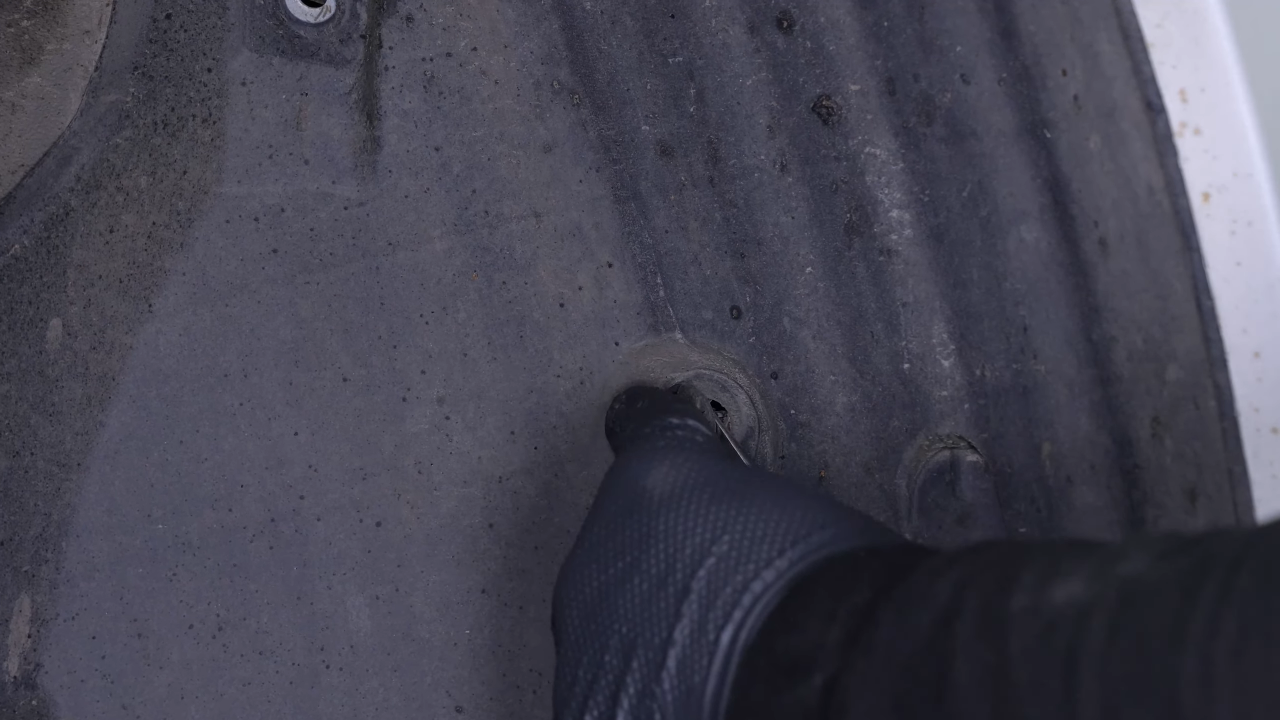

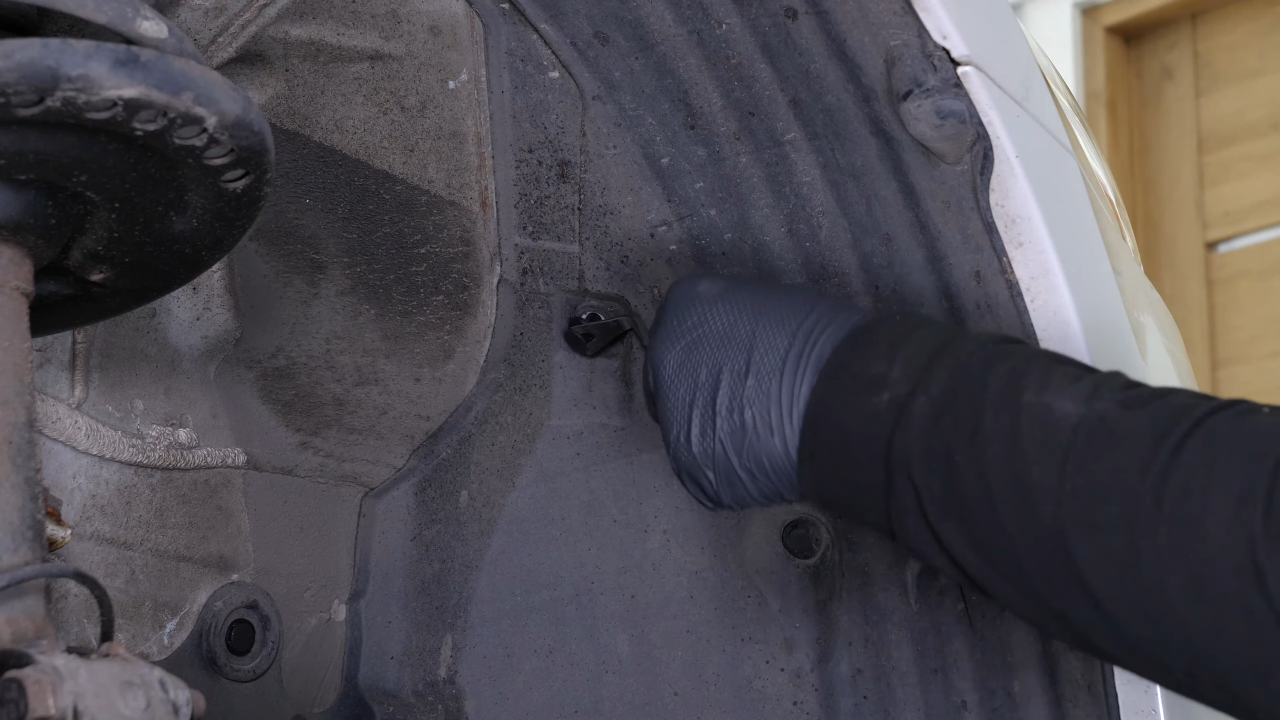

Now you need to remove the mudguard. Using a fork, remove the three mudguard retaining rivets.

Chapter 5:

Step 2/6

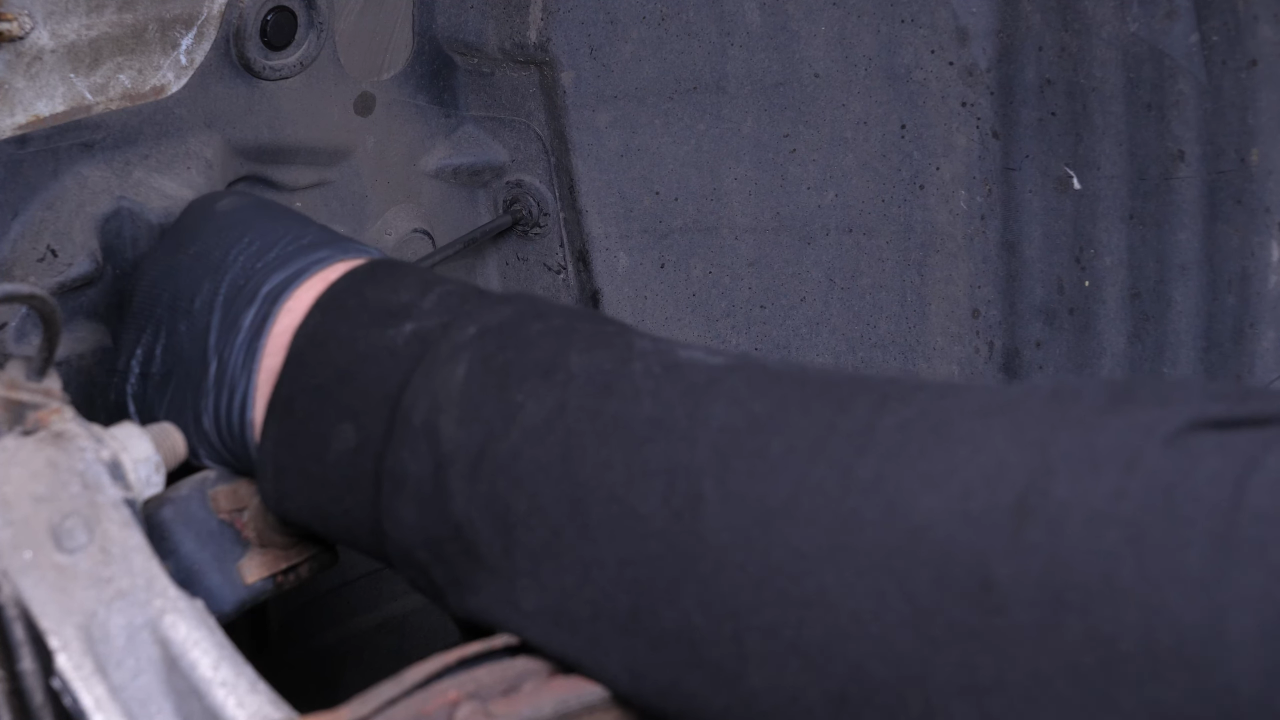

Using a Phillips screwdriver, unscrew the other 2 rivets holding the mudguard in place. Remove them with a fork.

Chapter 5:

Step 3/6

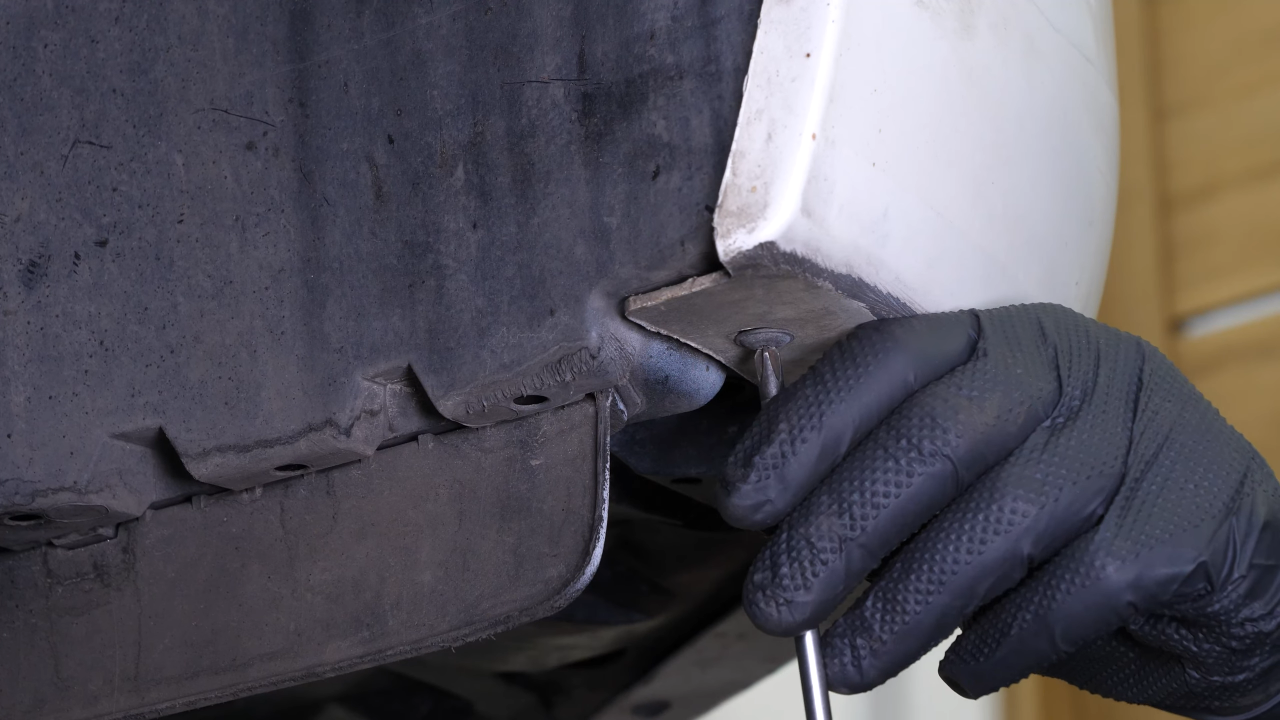

Using the Phillips screwdriver, unscrew the screw holding the bumper cover to the mudguard.

Chapter 5:

Step 4/6

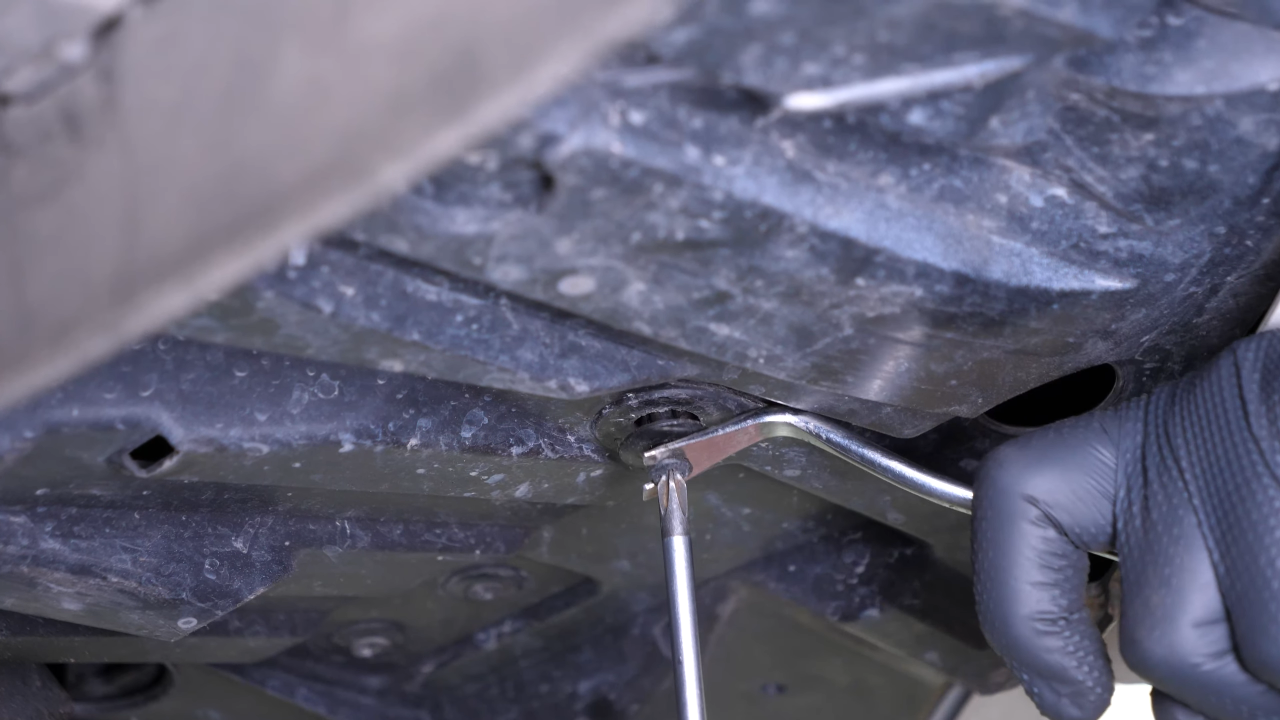

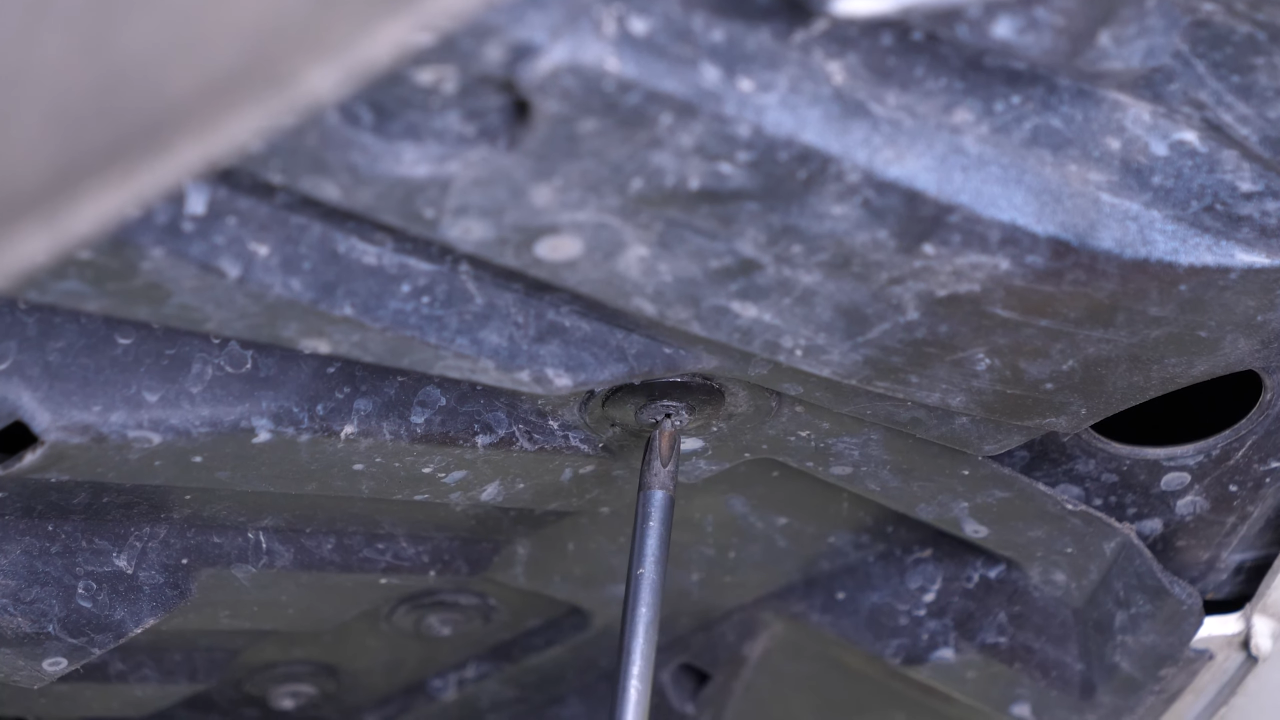

Using the Phillips screwdriver and the fork, unscrew the rivet holding the splash shield in place.

Chapter 5:

Step 5/6

You can now pull back the mudguard.

Chapter 5:

Step 6/6

Repeat this step on the other side.

Chapter 6:

Remove various components

Step 1/4

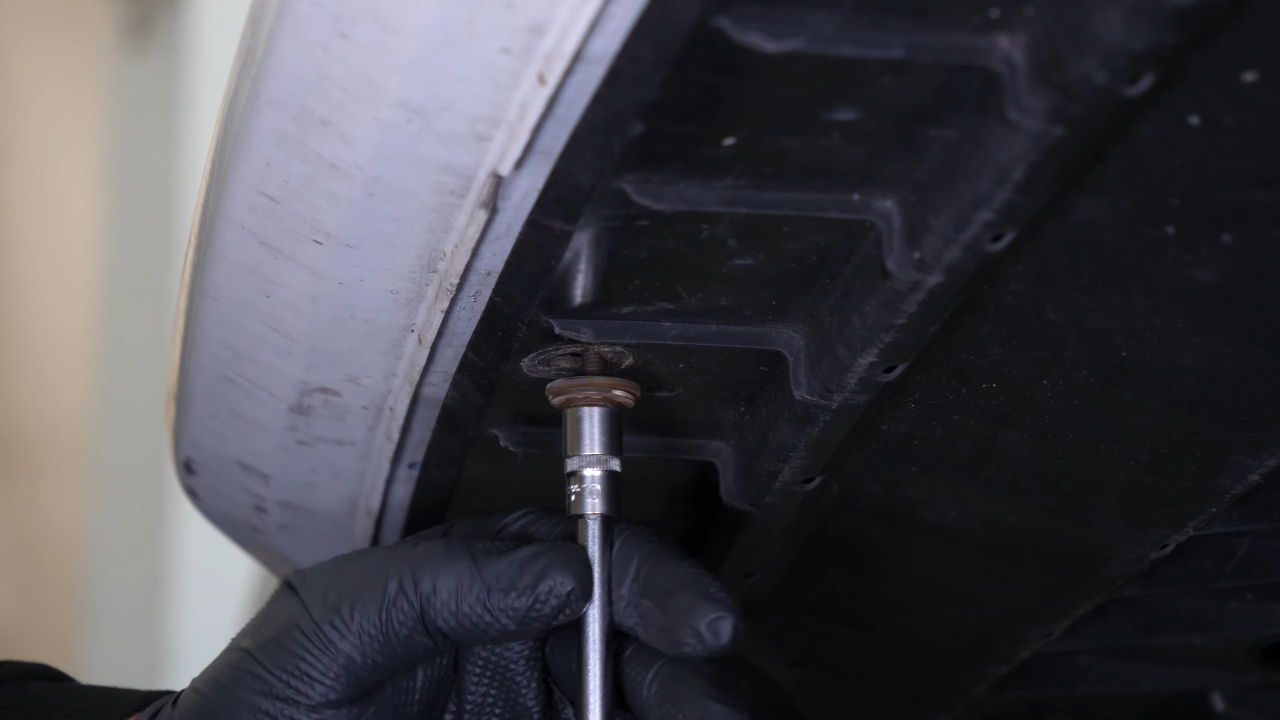

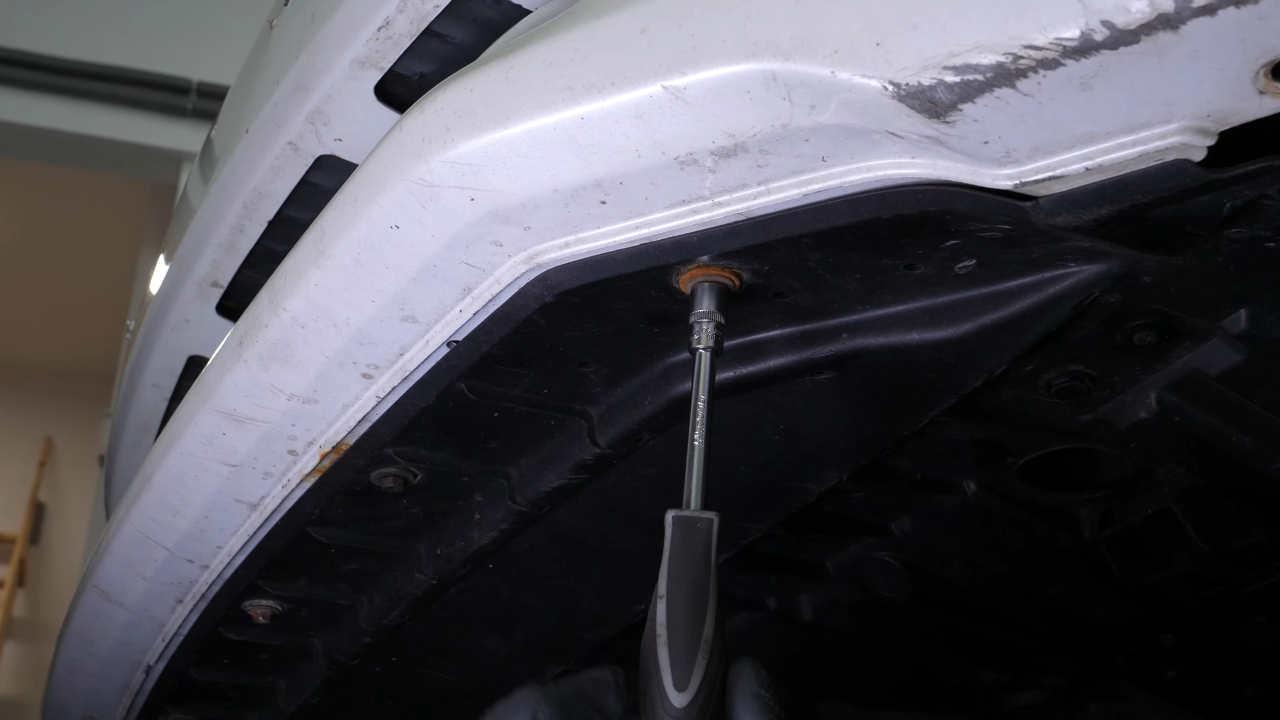

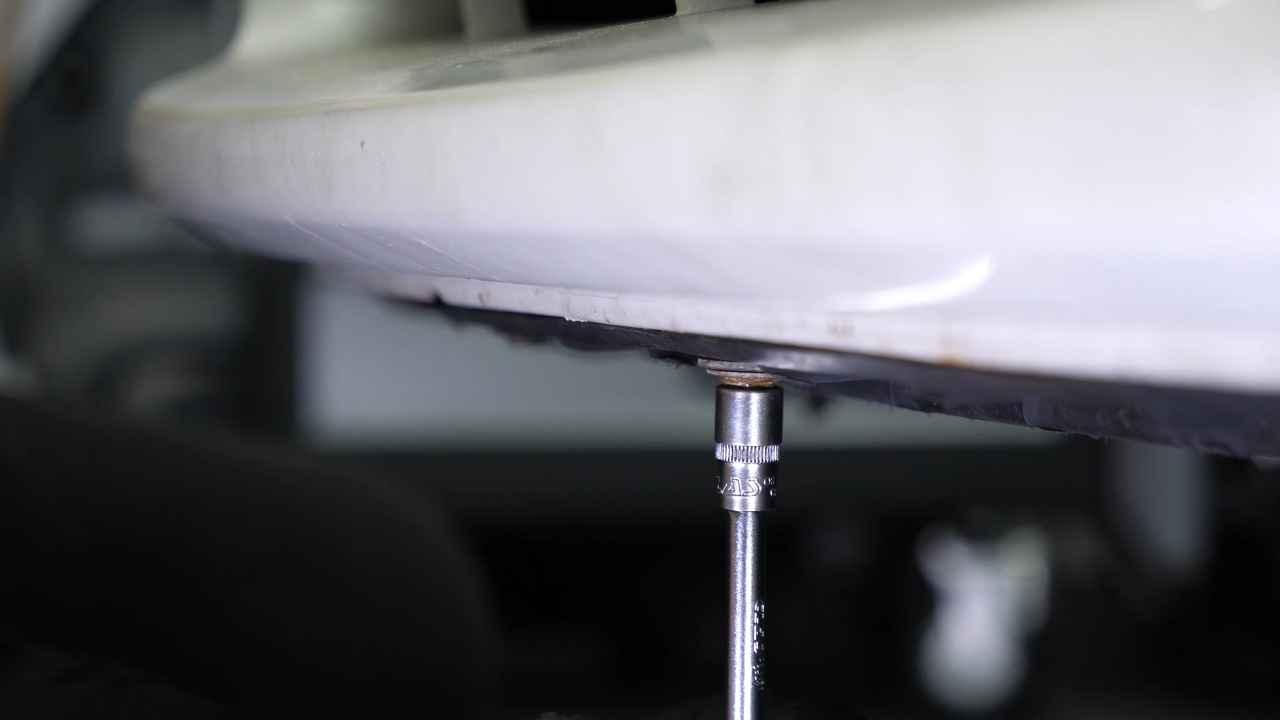

Using a multi-bit screwdriver and a 10 mm socket, unscrew the 5 engine splash shield retaining bolts.

Chapter 6:

Step 2/4

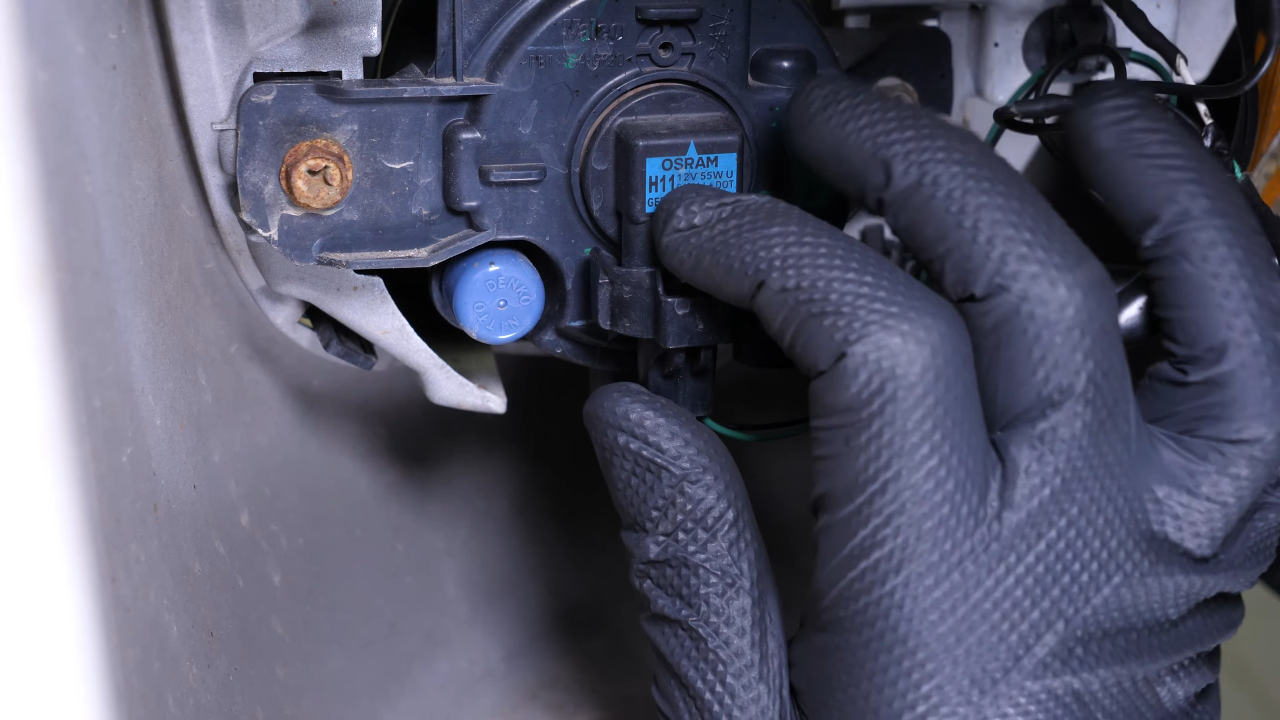

Remove the power connector from the fog light bulb. To do this, push on the tab and pull on the connector.

Chapter 6:

Step 3/4

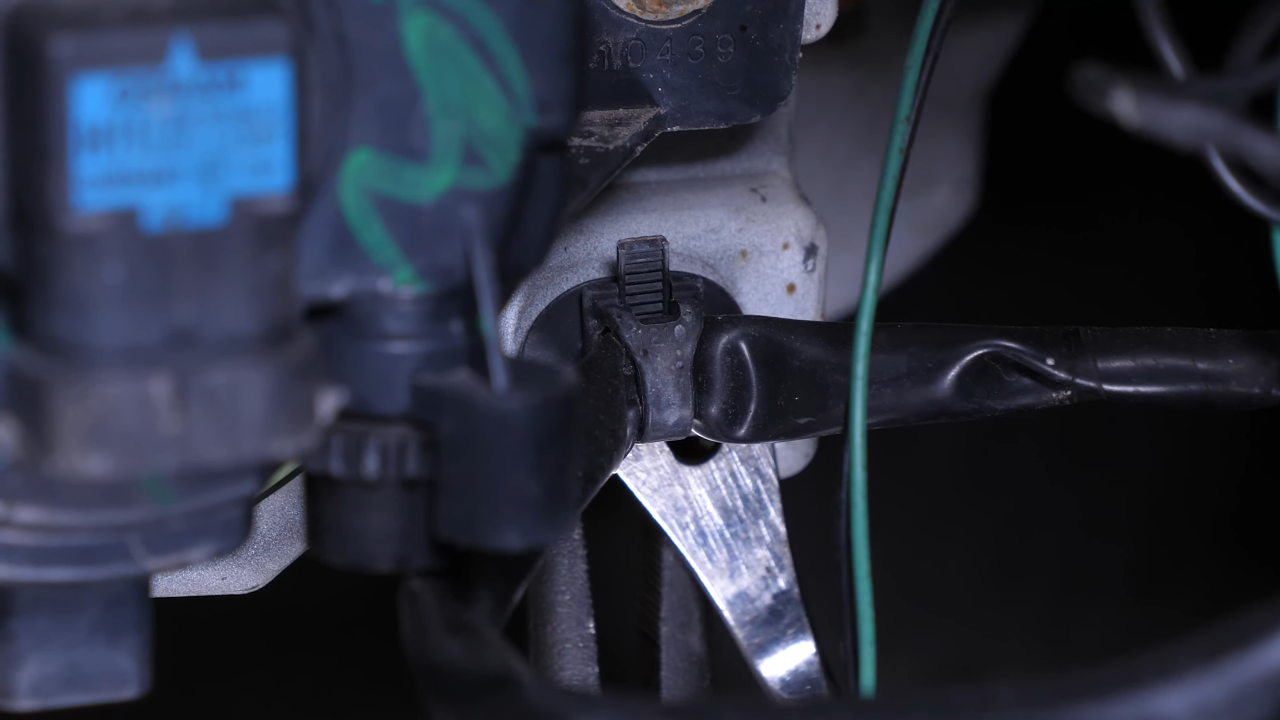

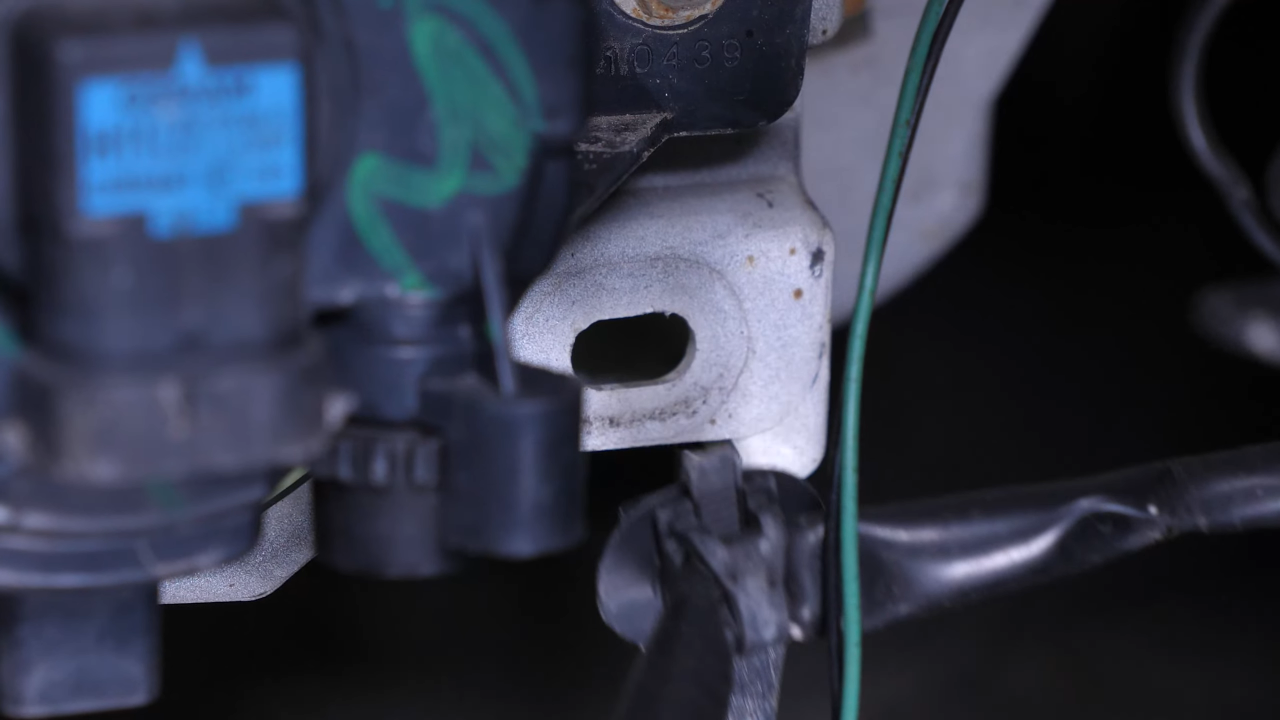

Using needle-nose pliers and a fork, remove the two cable retaining clips on the bumper cover.

Chapter 6:

Step 4/4

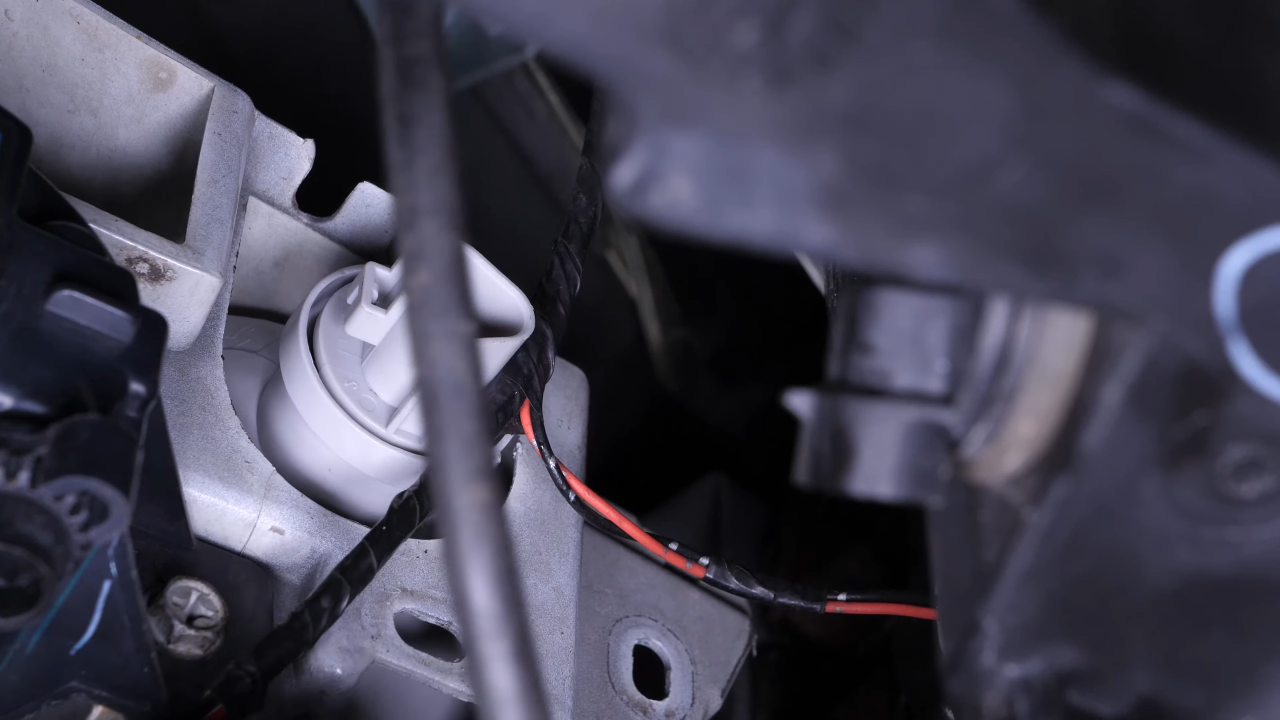

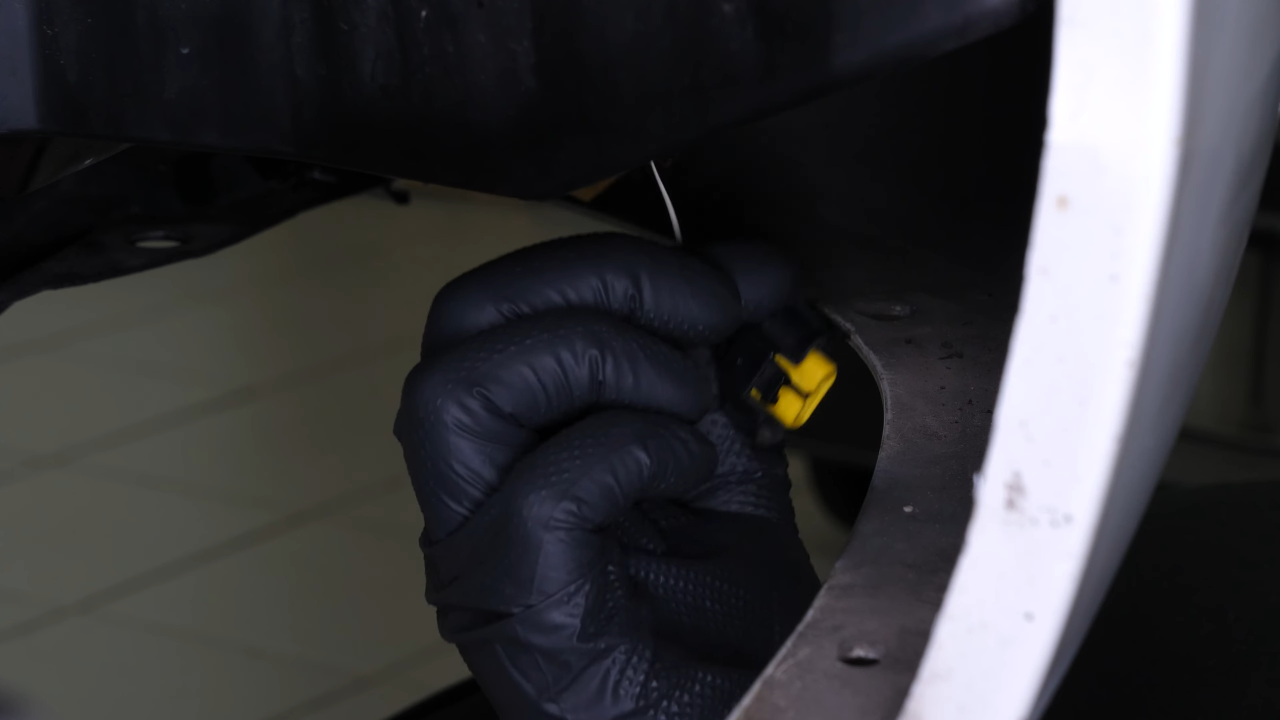

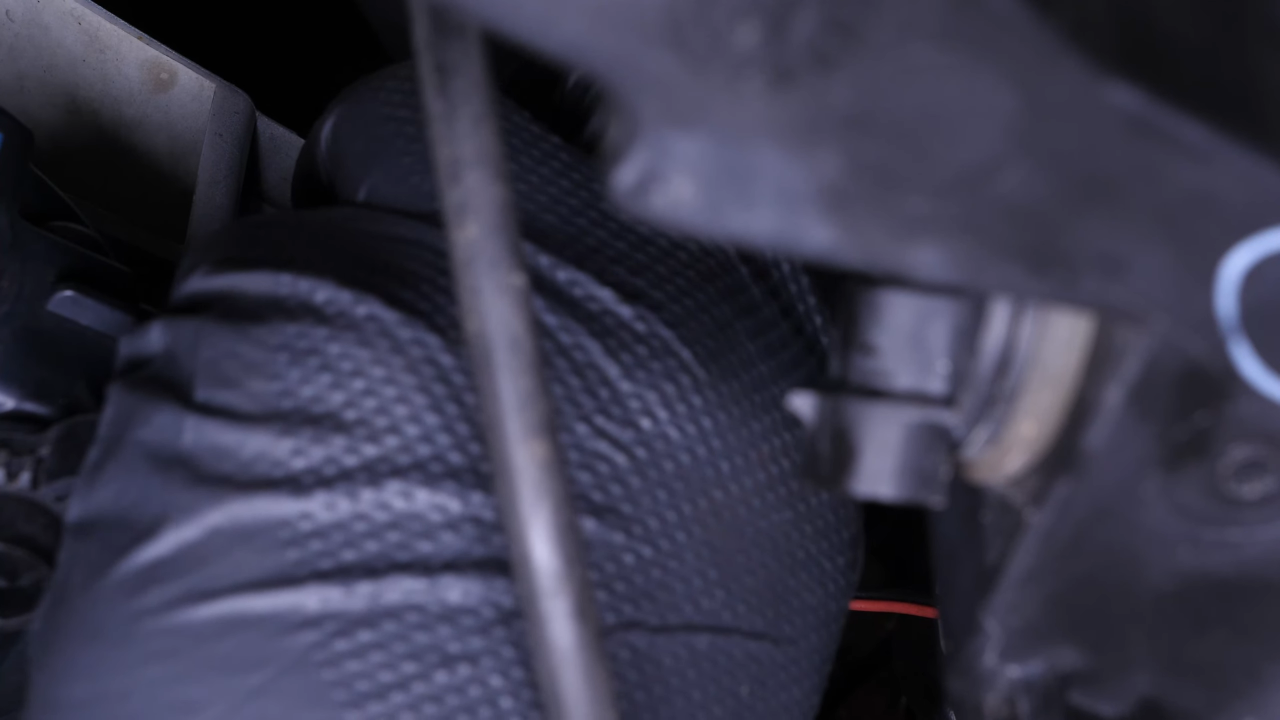

Remove the power connector from the turn signal bulb socket

Chapter 7:

Remove the bumper cover

Step 1/5

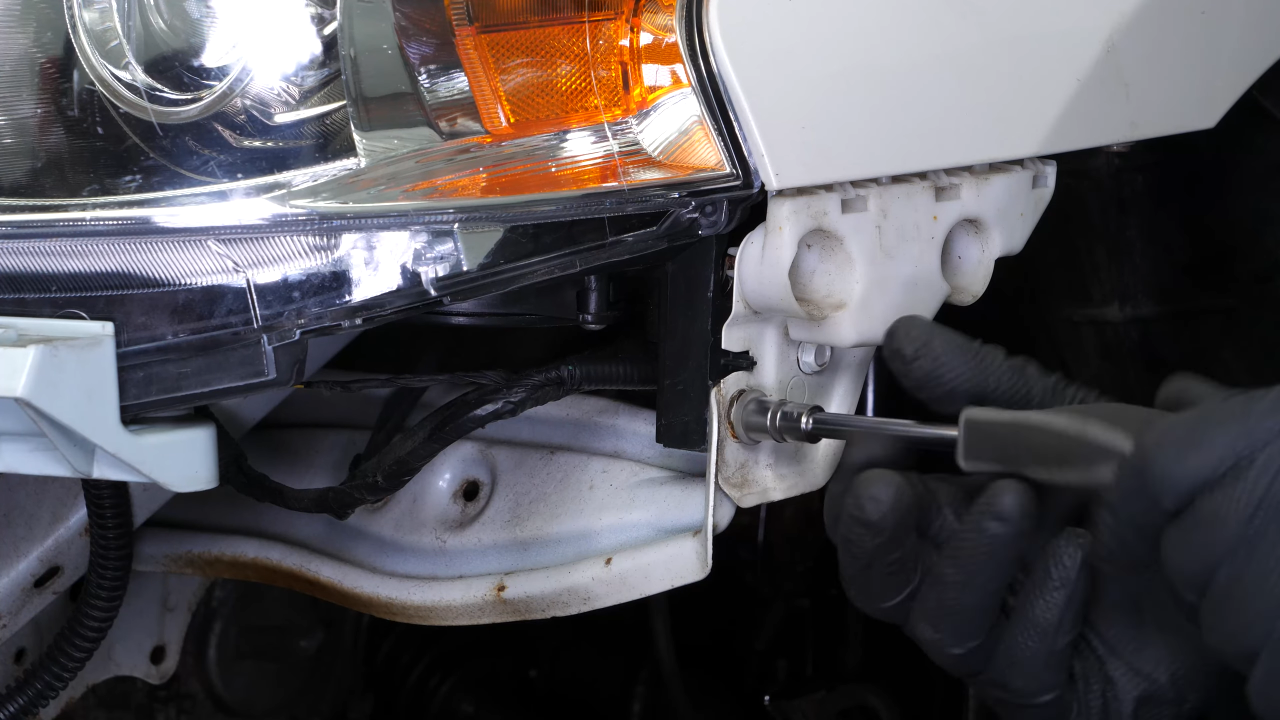

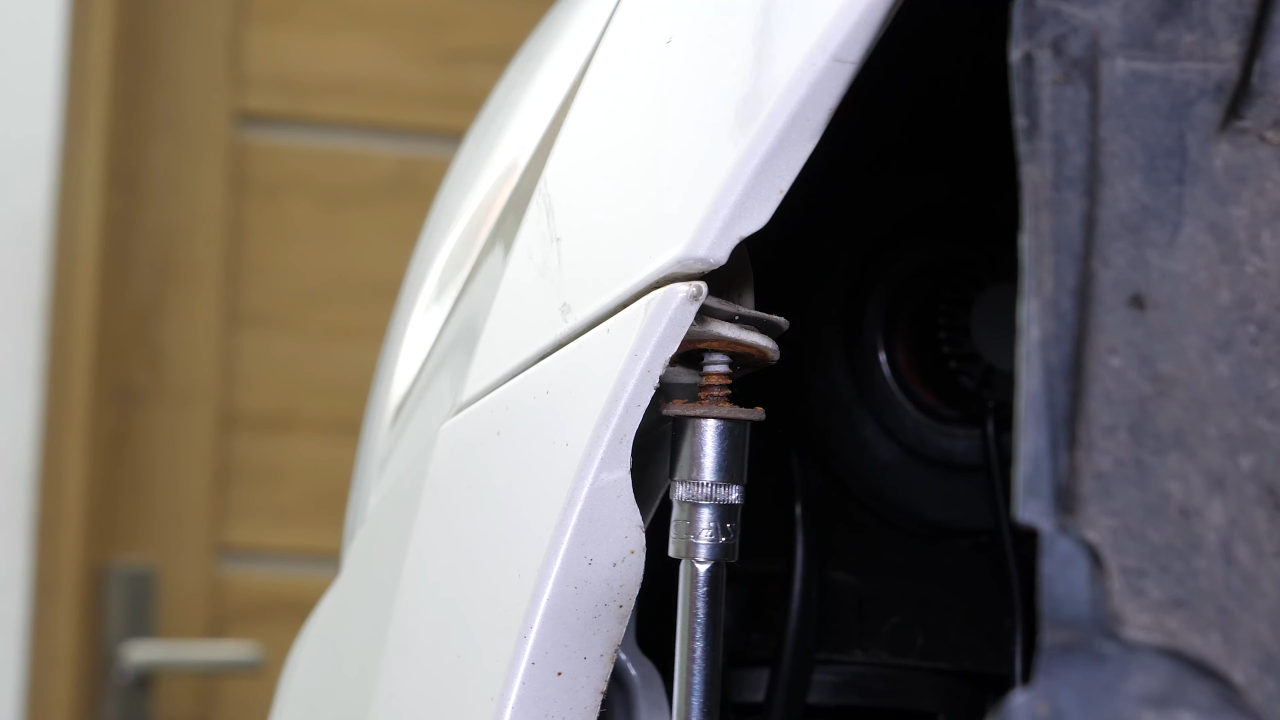

Next, using a ratchet, an extender and a 10 mm socket, loosen the screw holding the bumper cover to the fender.

Chapter 7:

Step 2/5

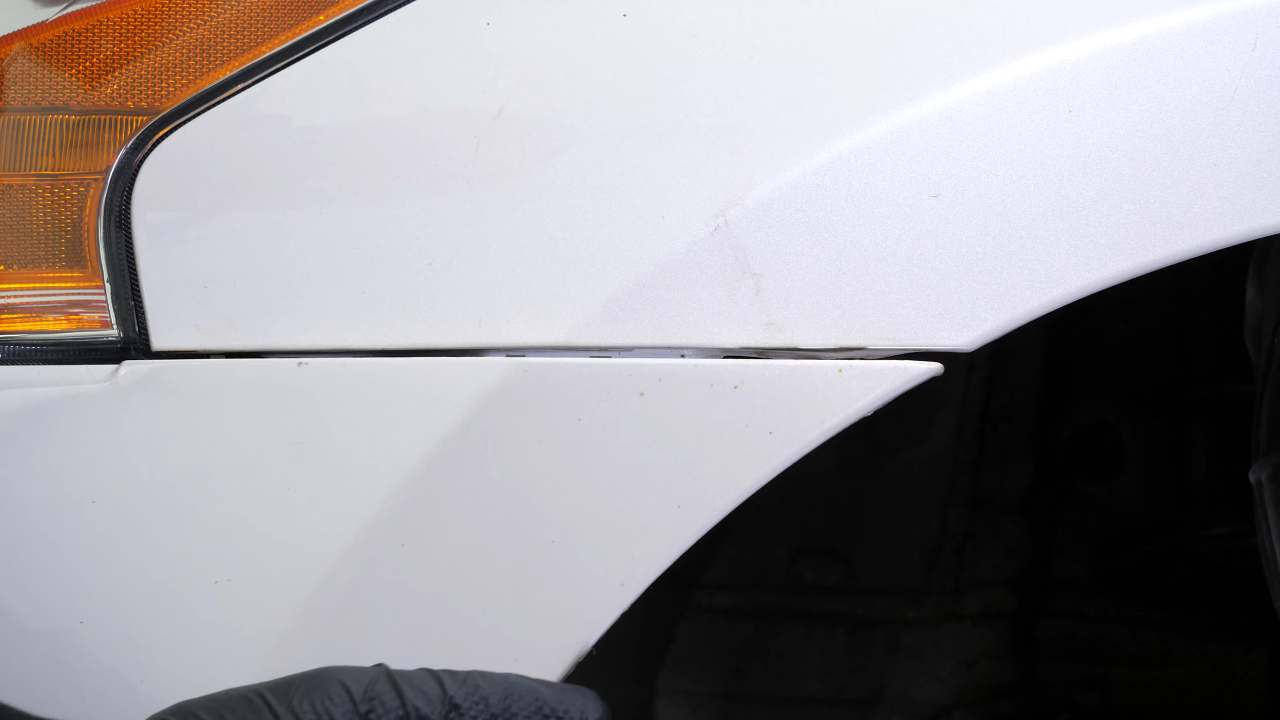

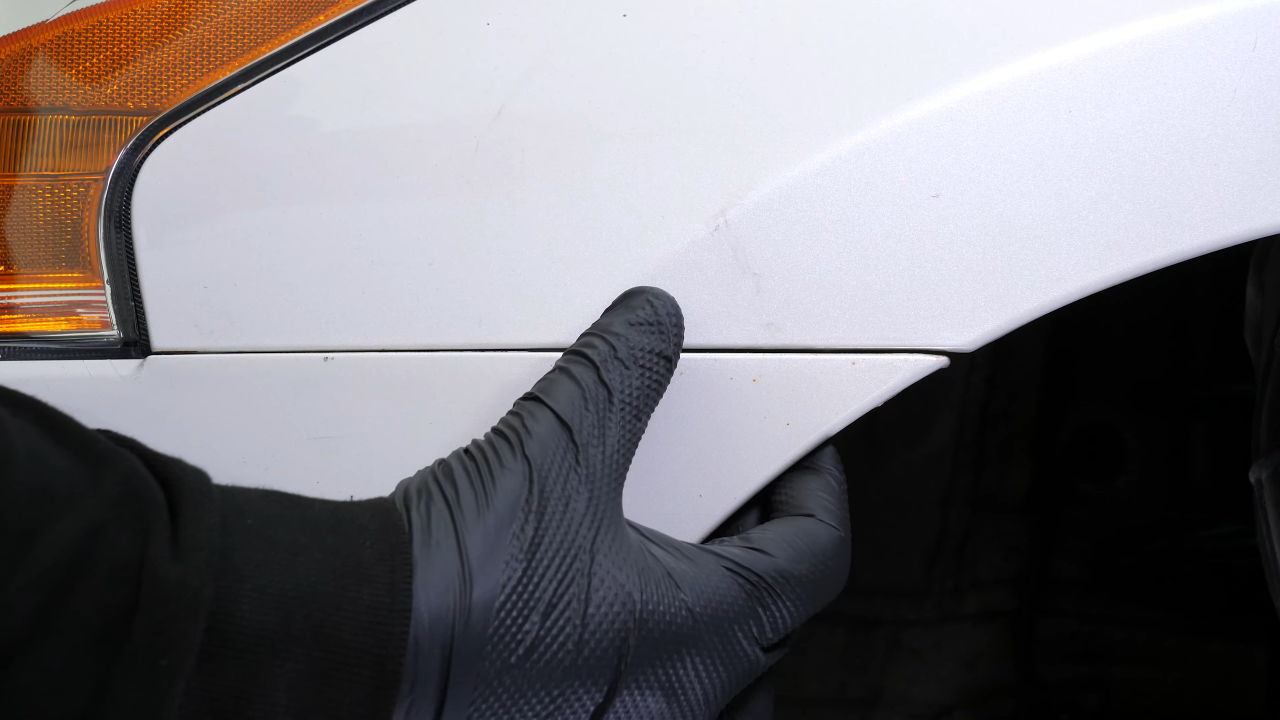

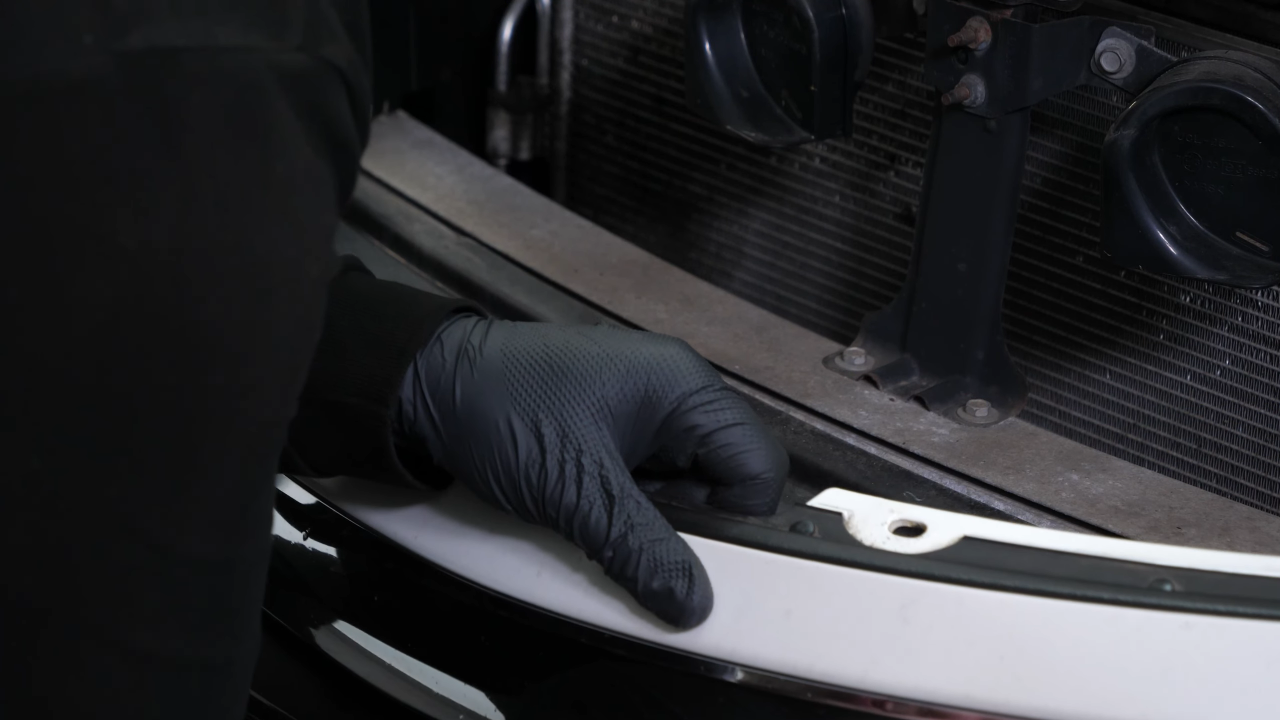

Pull the bumper cover out of its slot.

Chapter 7:

Step 3/5

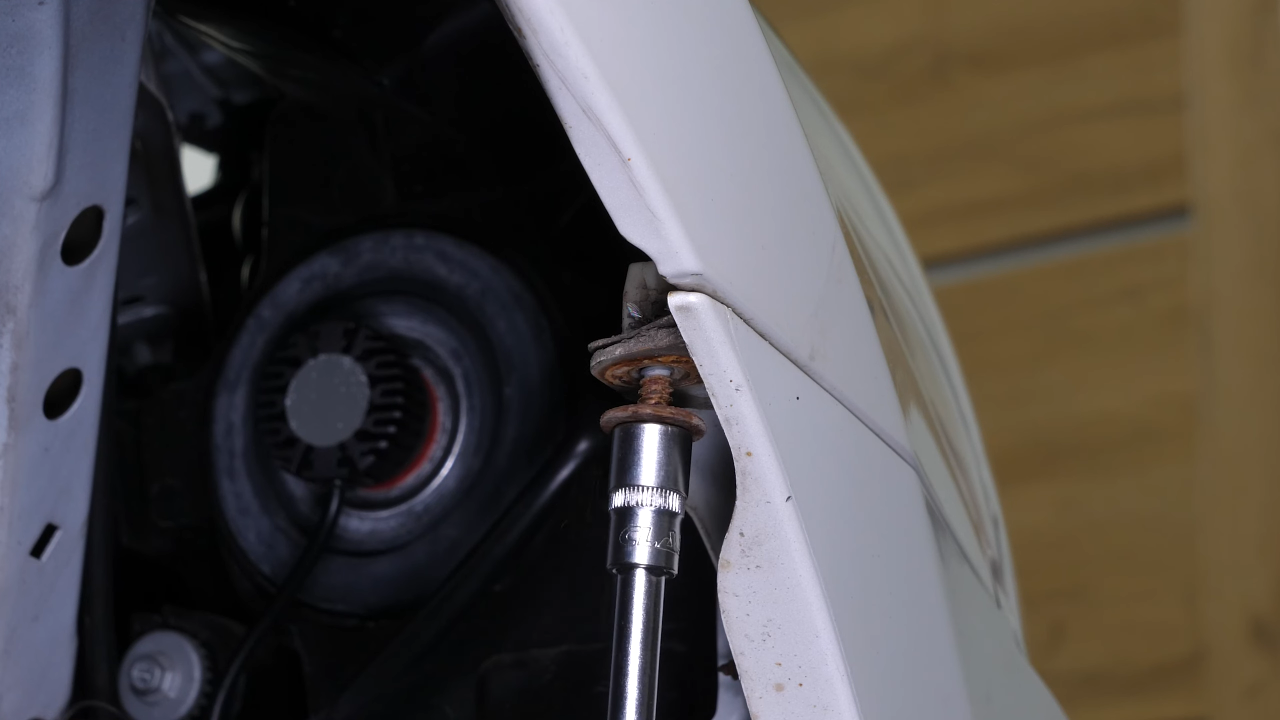

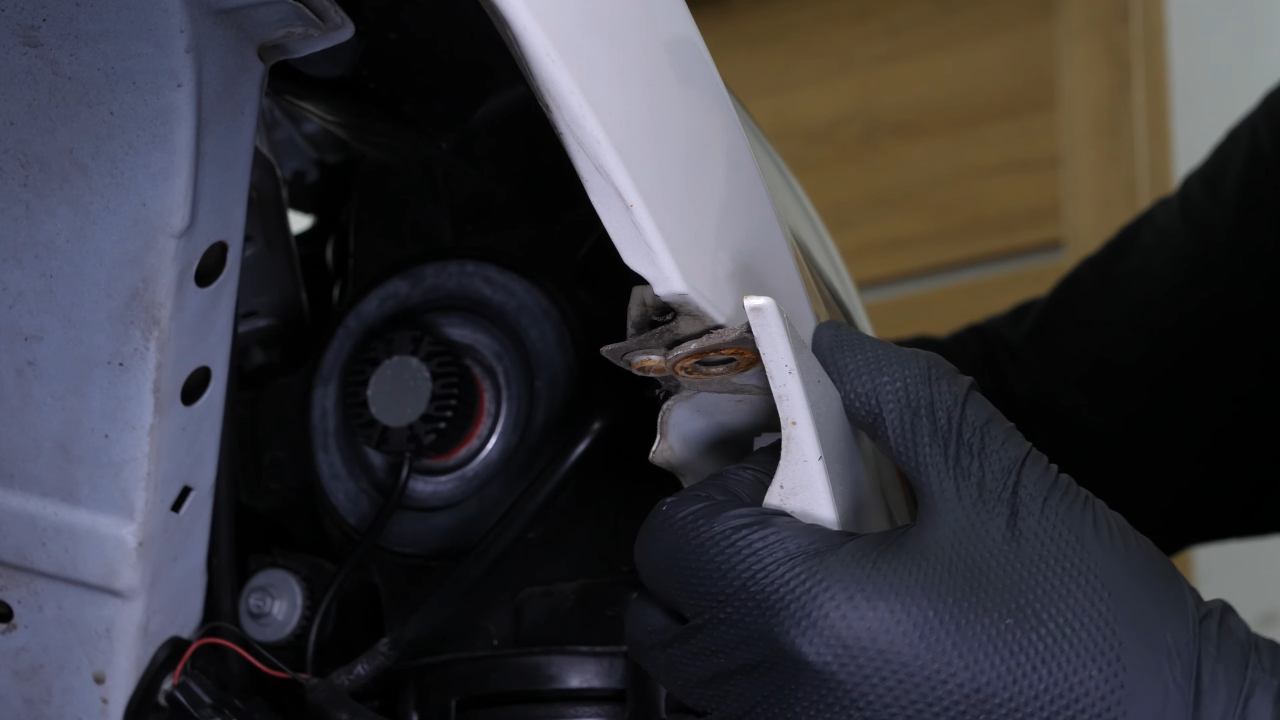

Repeat the same steps on the other side of the bumper cover.

Chapter 7:

Step 4/5

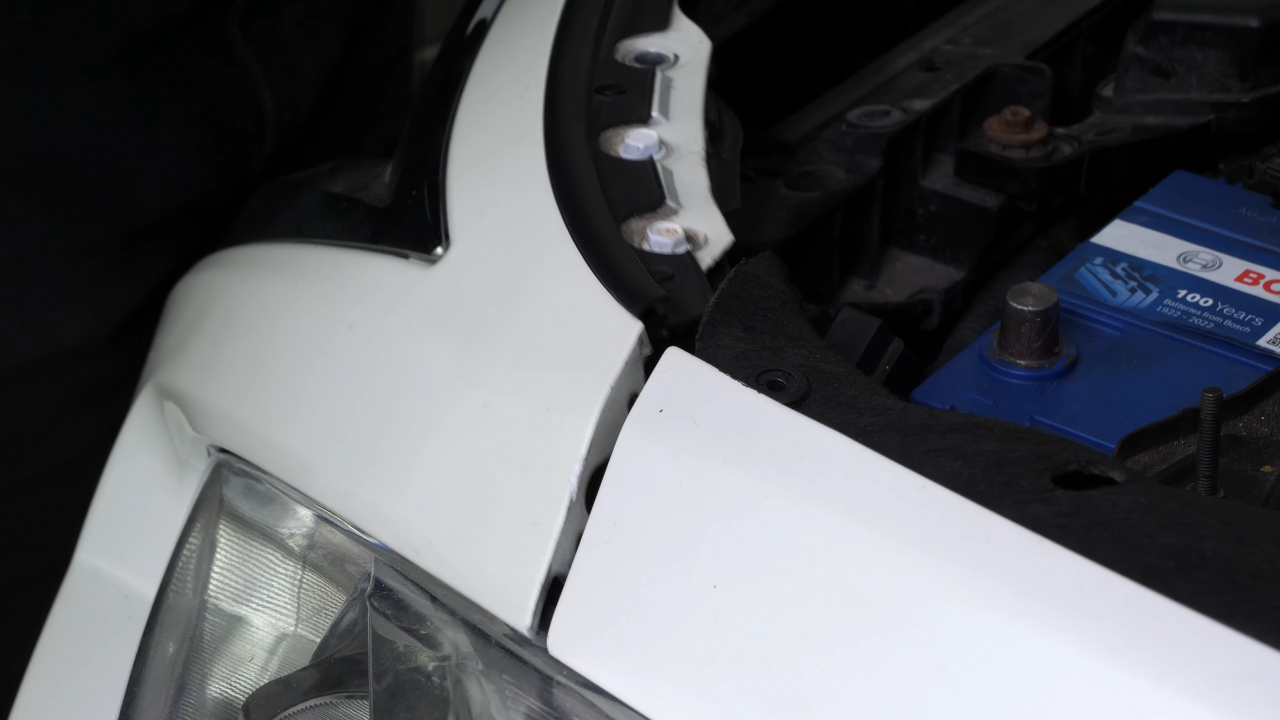

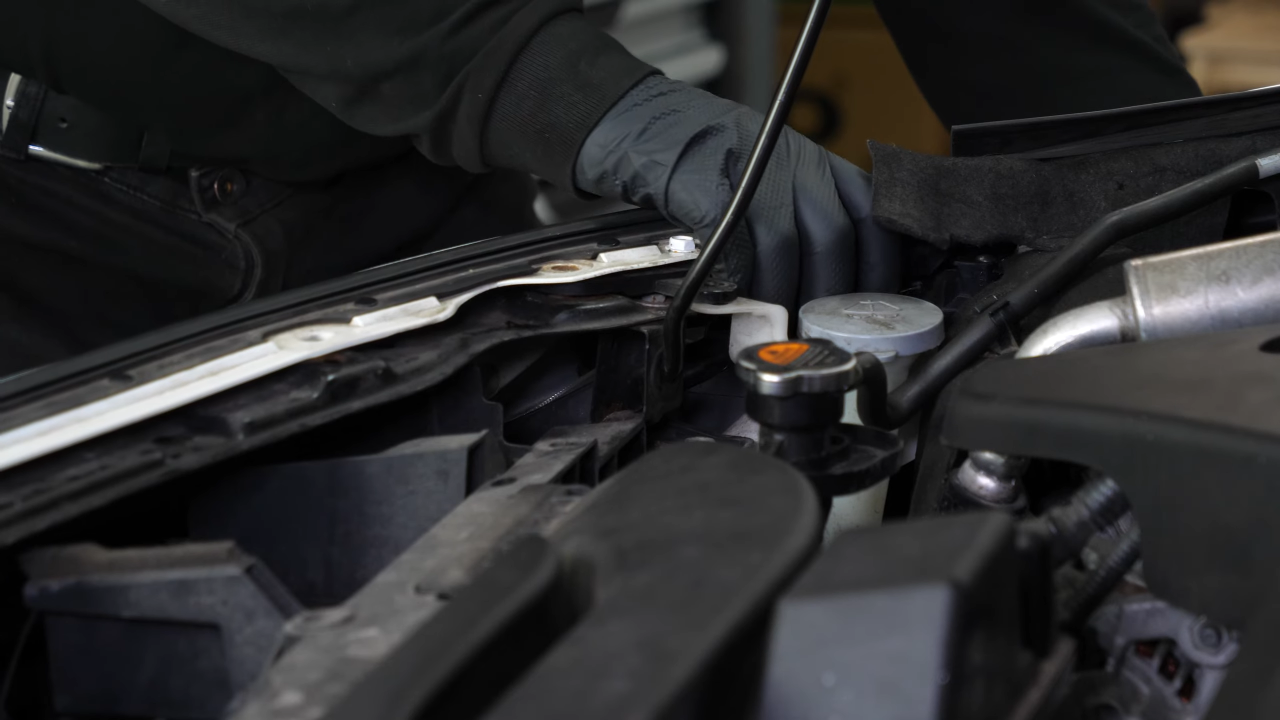

Then pull it out to the front to disengage the locating pins from their housings in the front fenders.

Chapter 7:

Step 5/5

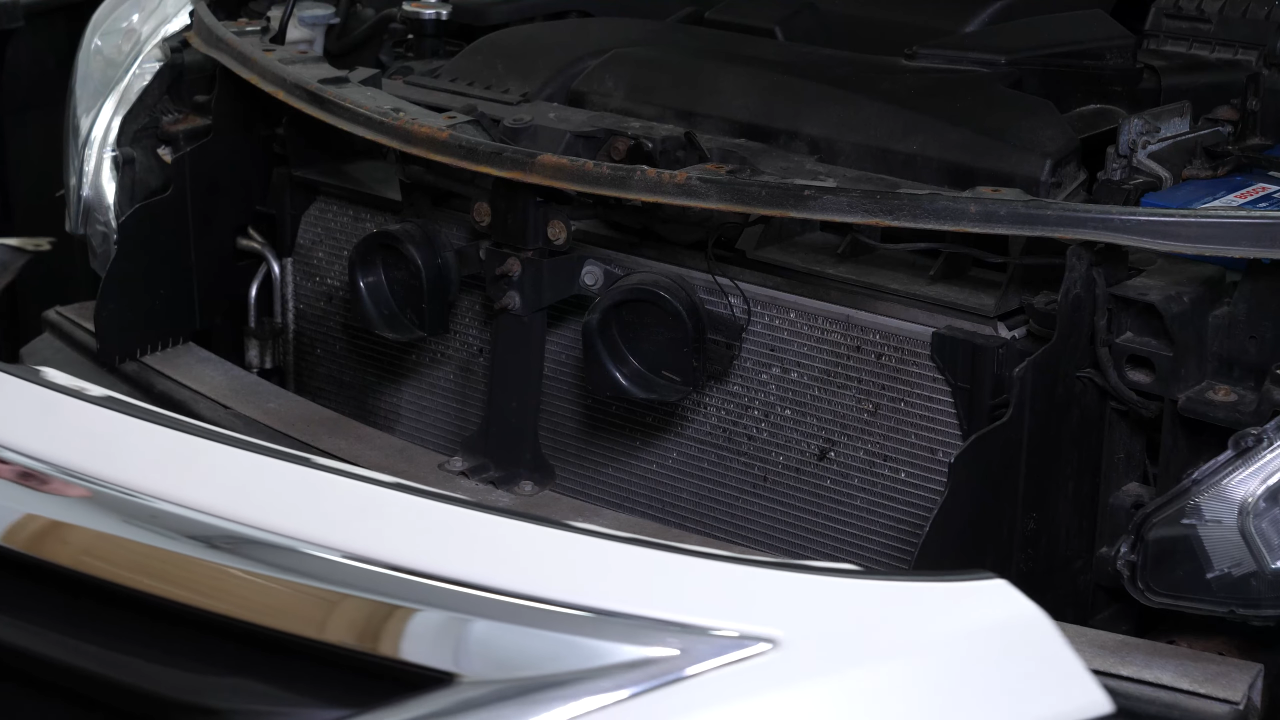

The front bumper cover is now free: you can remove it, preferably with help from a second person.

Chapter 8:

Remove the headlight housing

Step 1/3

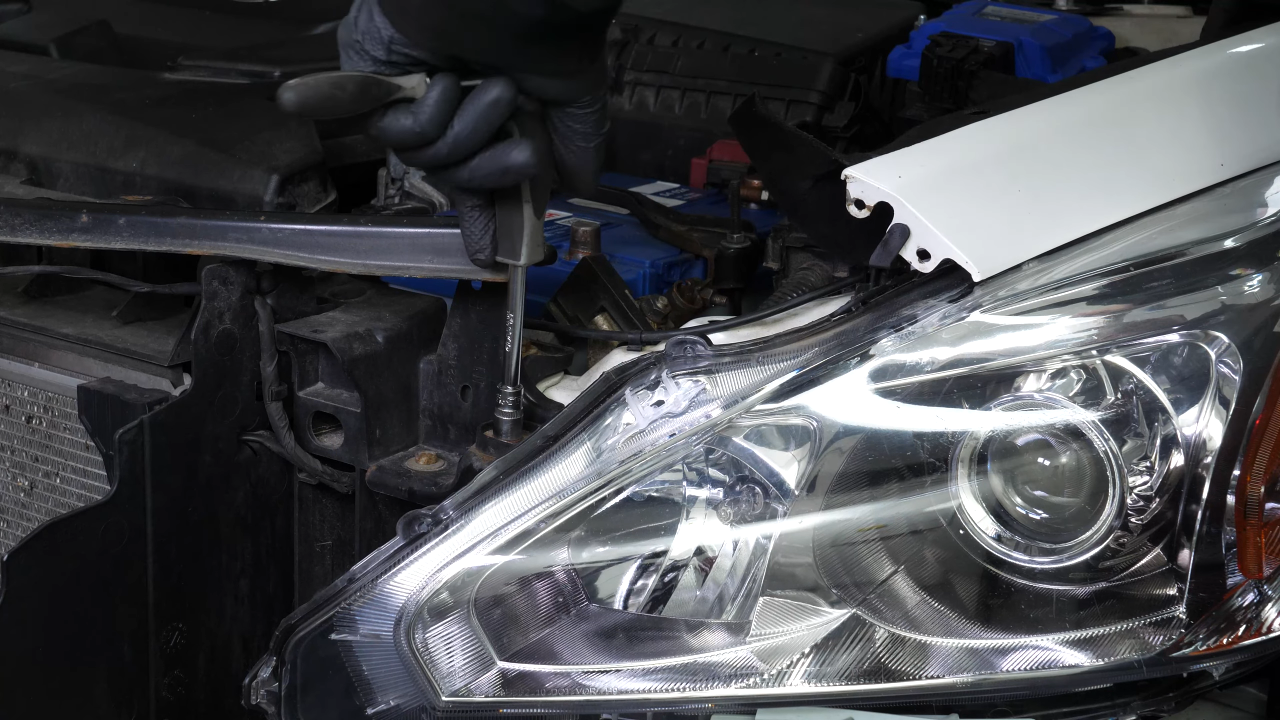

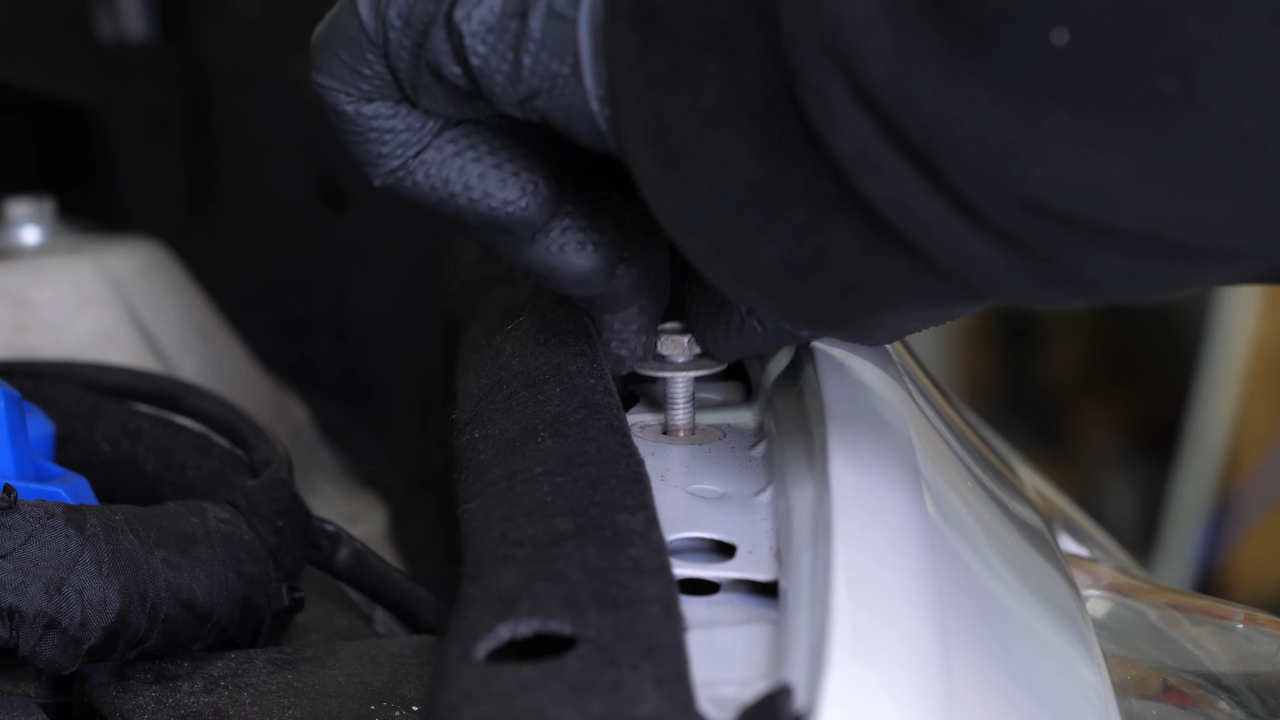

Using a multi-bit screwdriver and a 10 mm socket, unscrew the 4 headlight retaining bolts.

Chapter 8:

Step 2/3

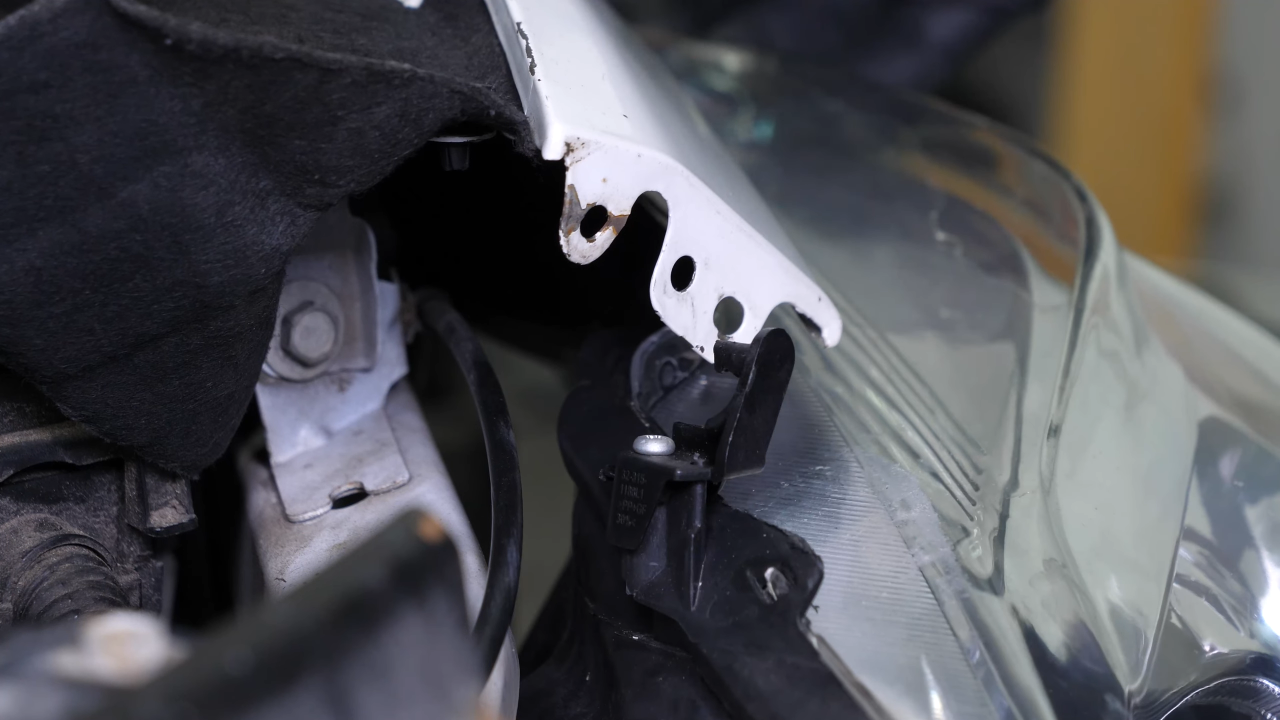

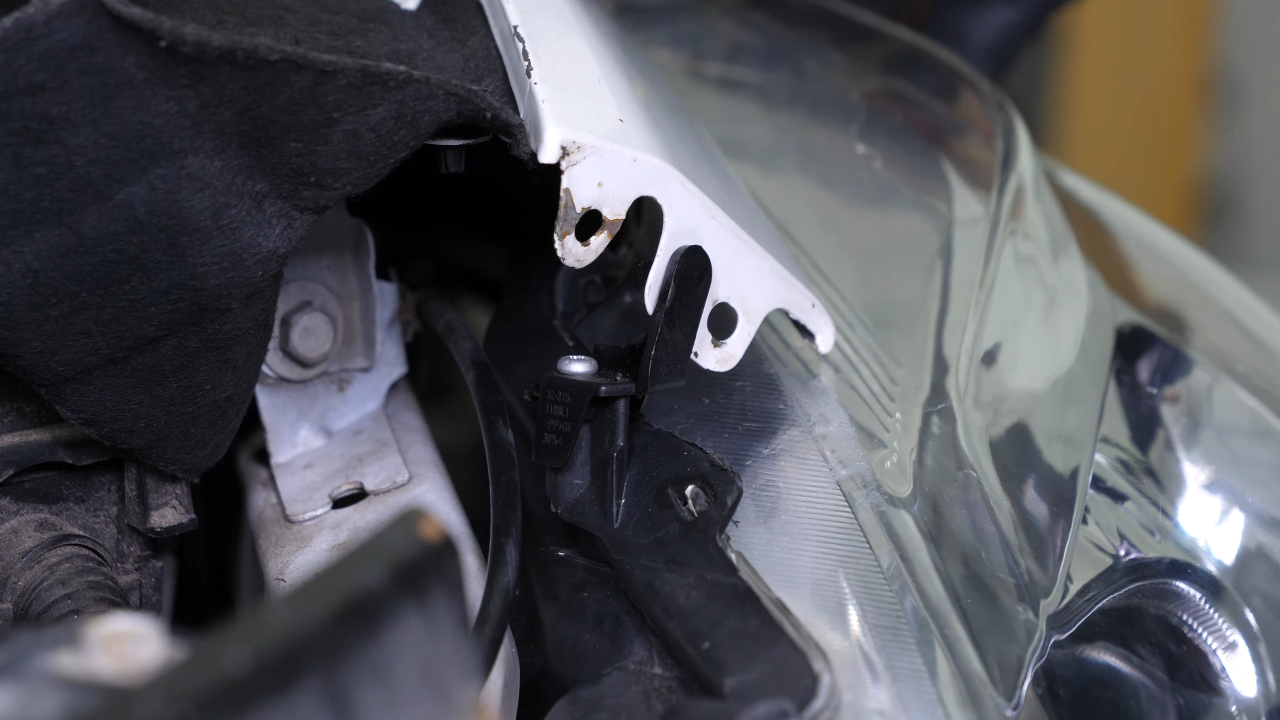

Disengage the headlight retaining pin from the fender by pulling it towards you.

Chapter 8:

Step 3/3

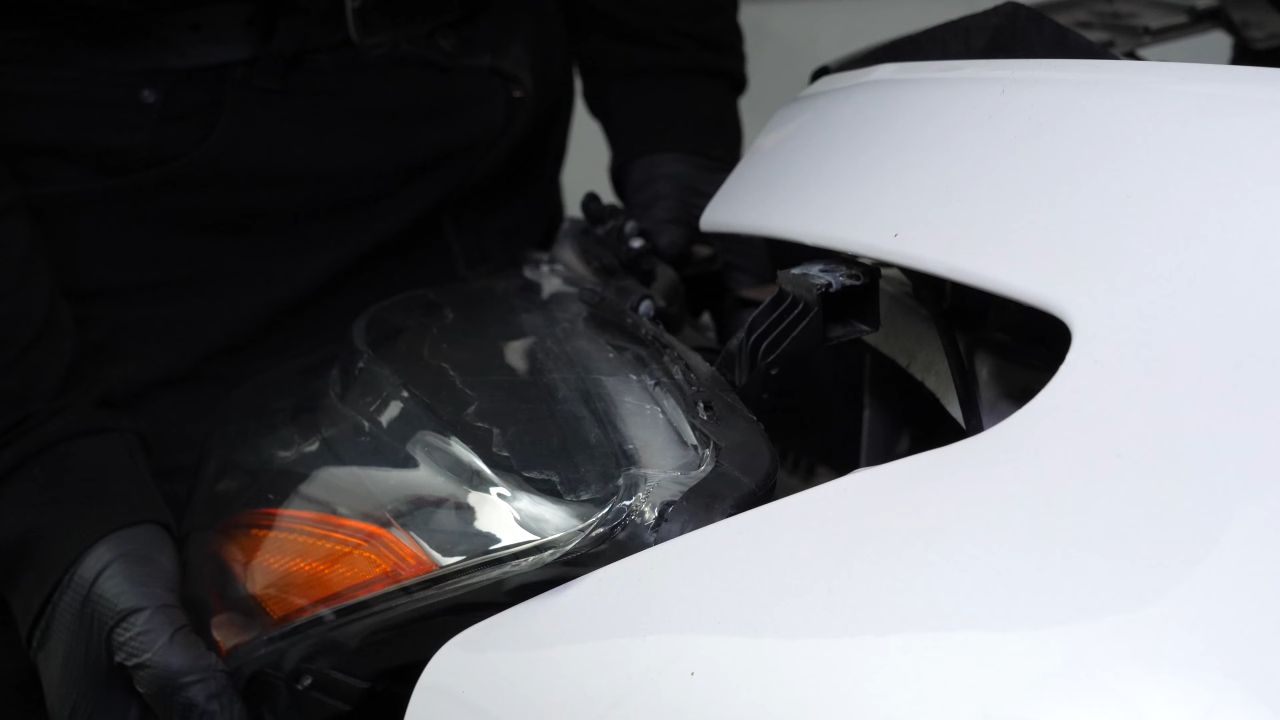

You can now extract the headlight from its location.

Chapter 9:

Disconnect the headlight assembly

Step 1/2

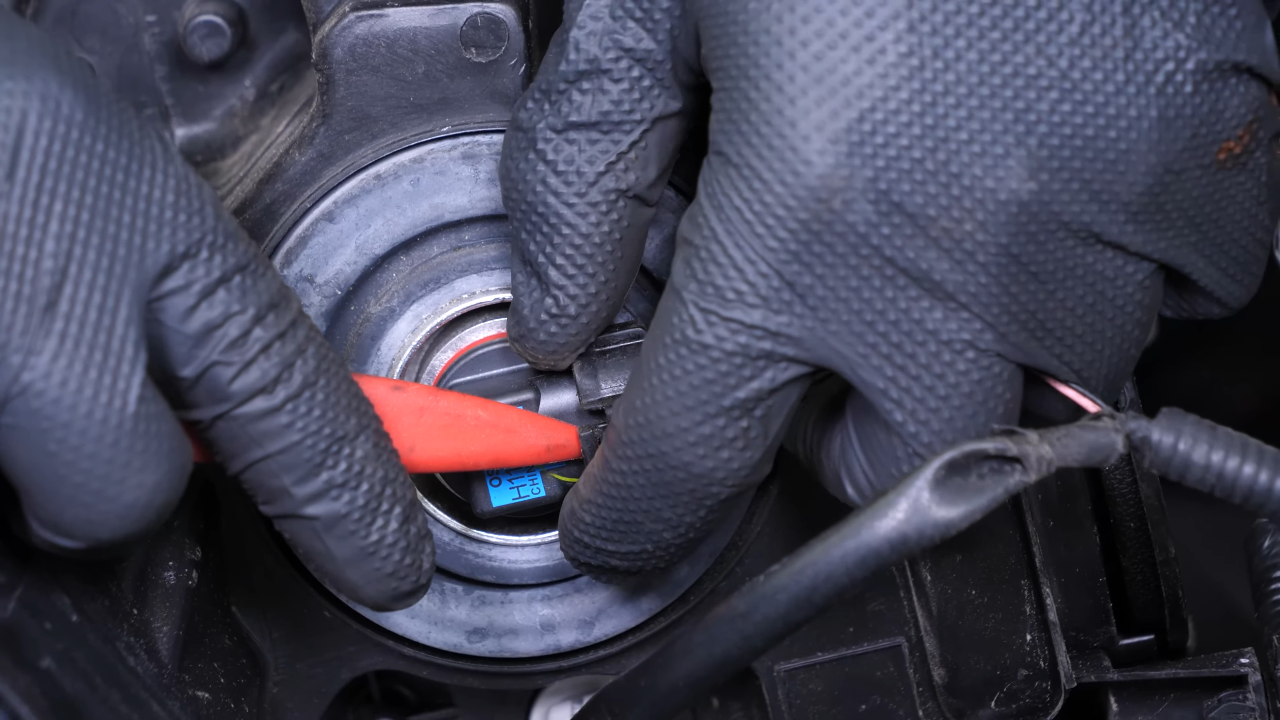

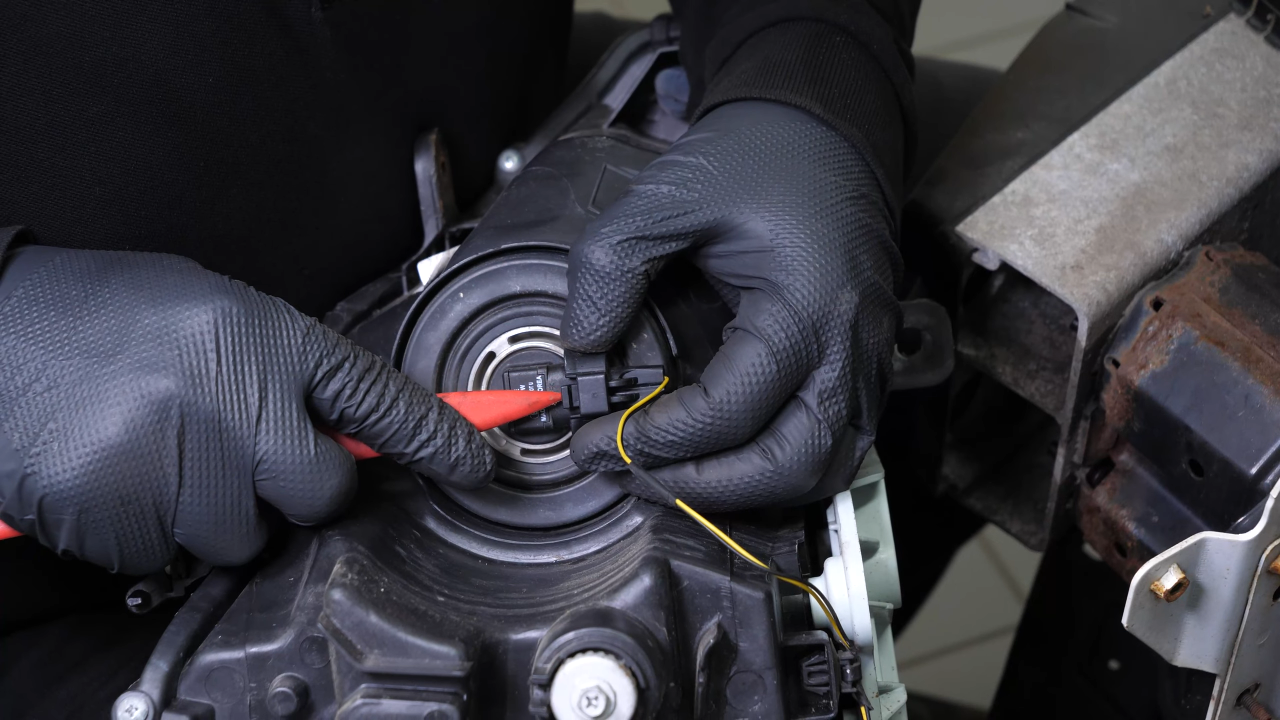

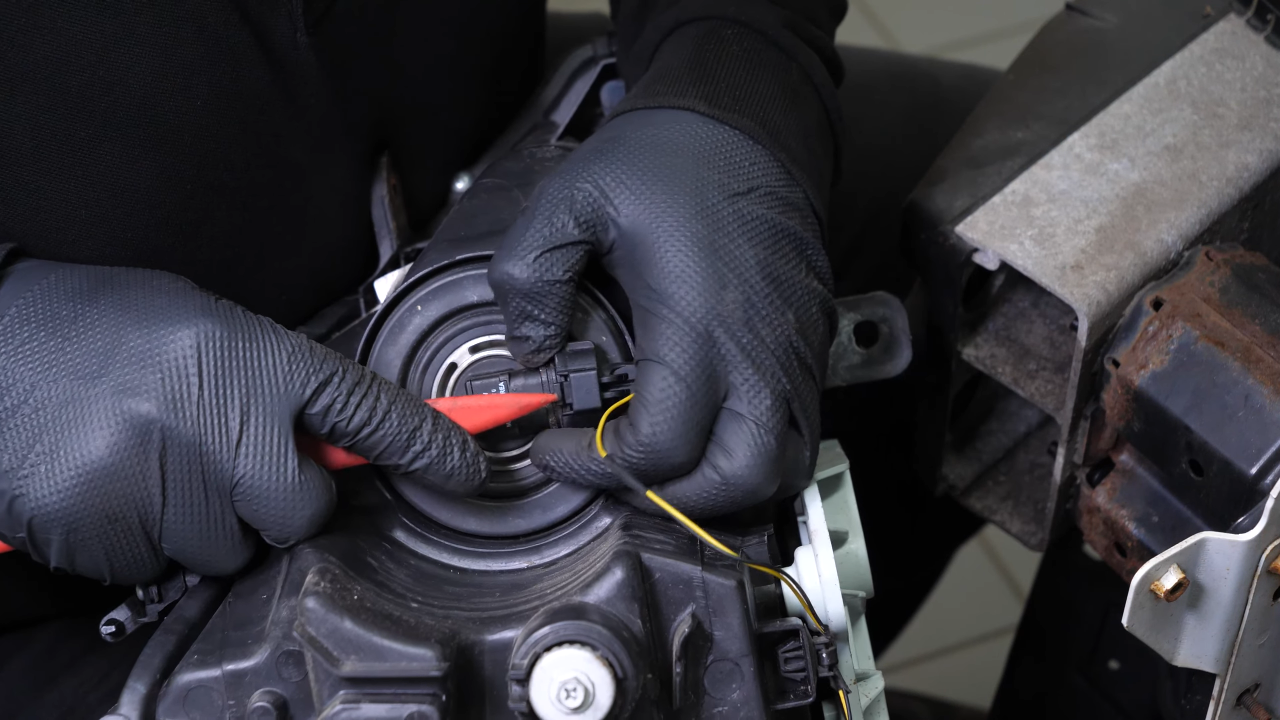

Remove the electrical connectors from the headlight bulbs. To do this, push on the tabs and pull on the connectors.

Chapter 9:

Step 2/2

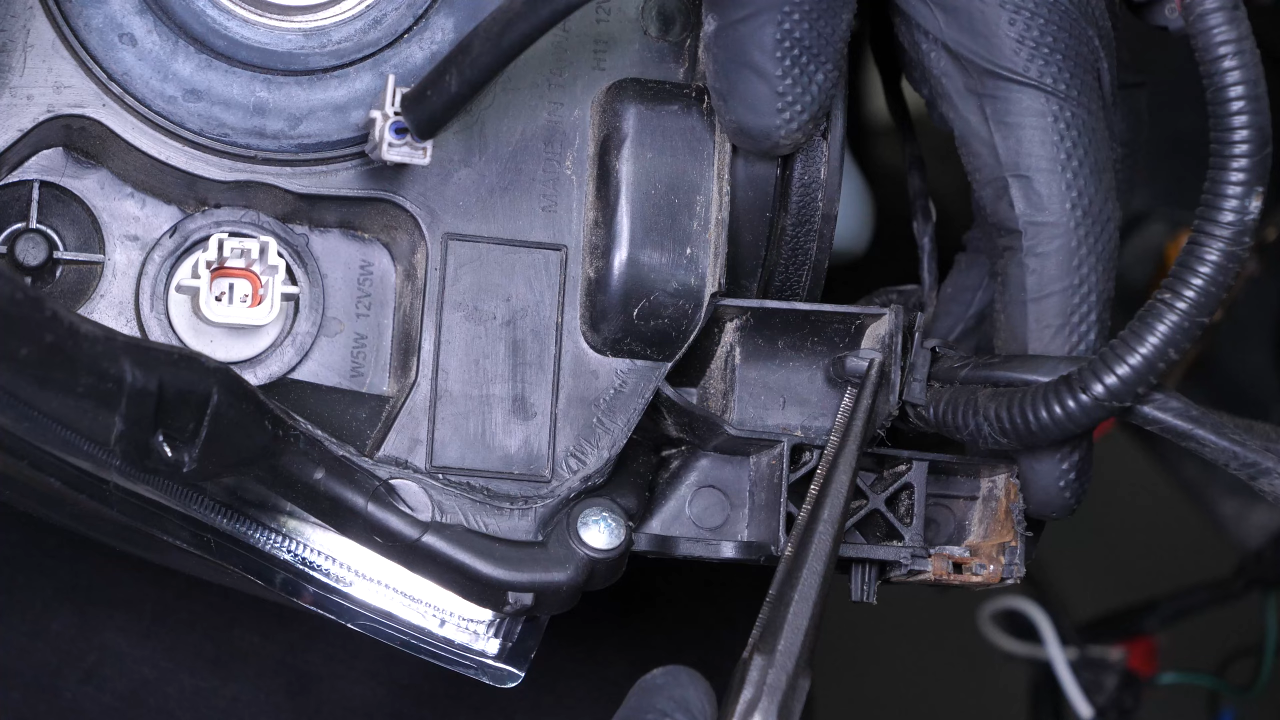

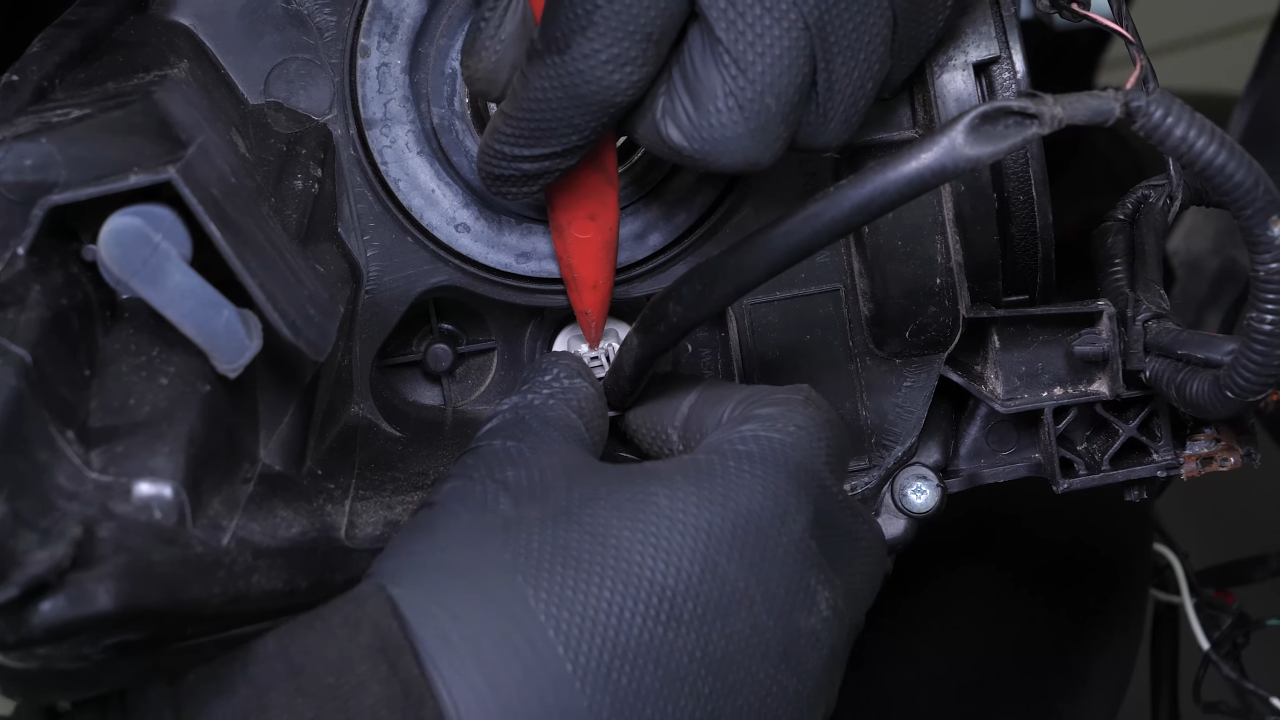

Using flat-nose pliers, unclip the two clips holding the headlight’s wiring harness in place.

Chapter 10:

Put the headlight housing back

Step 1/5

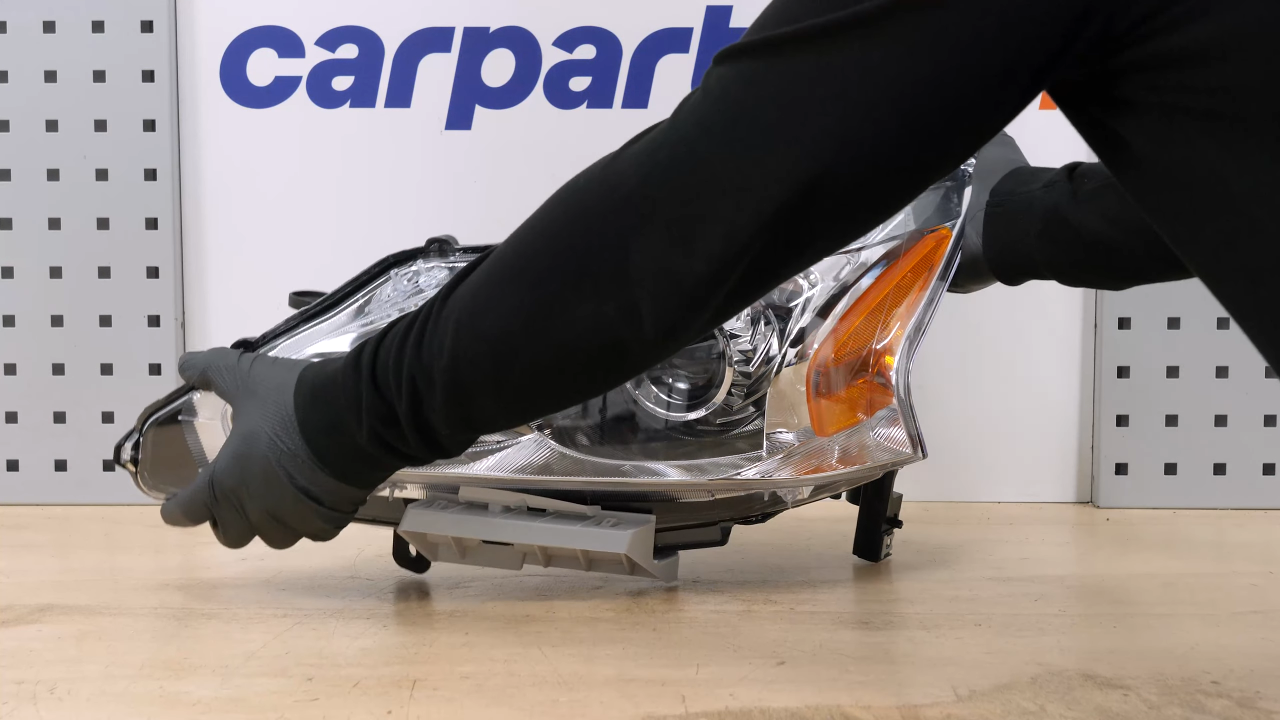

Take the new head light All the bulbs are supplied with it.

Chapter 10:

Step 2/5

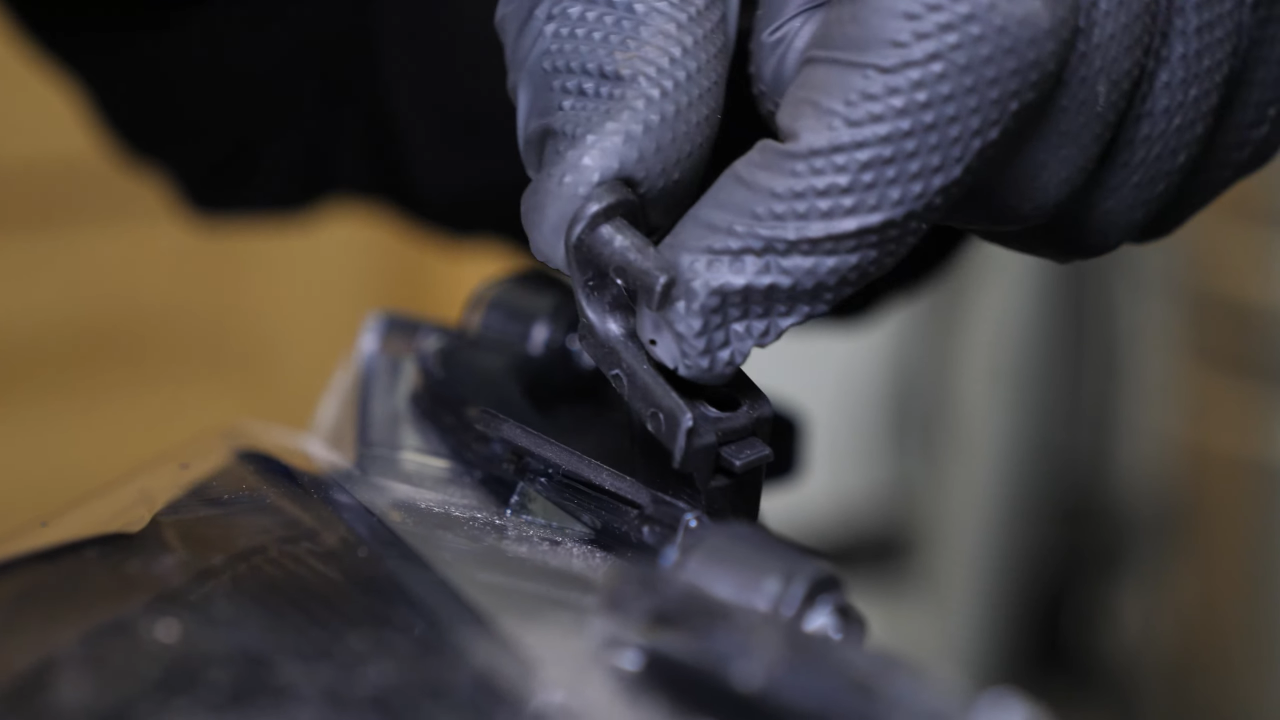

You also need to take the headlight retaining pin.

Chapter 10:

Step 3/5

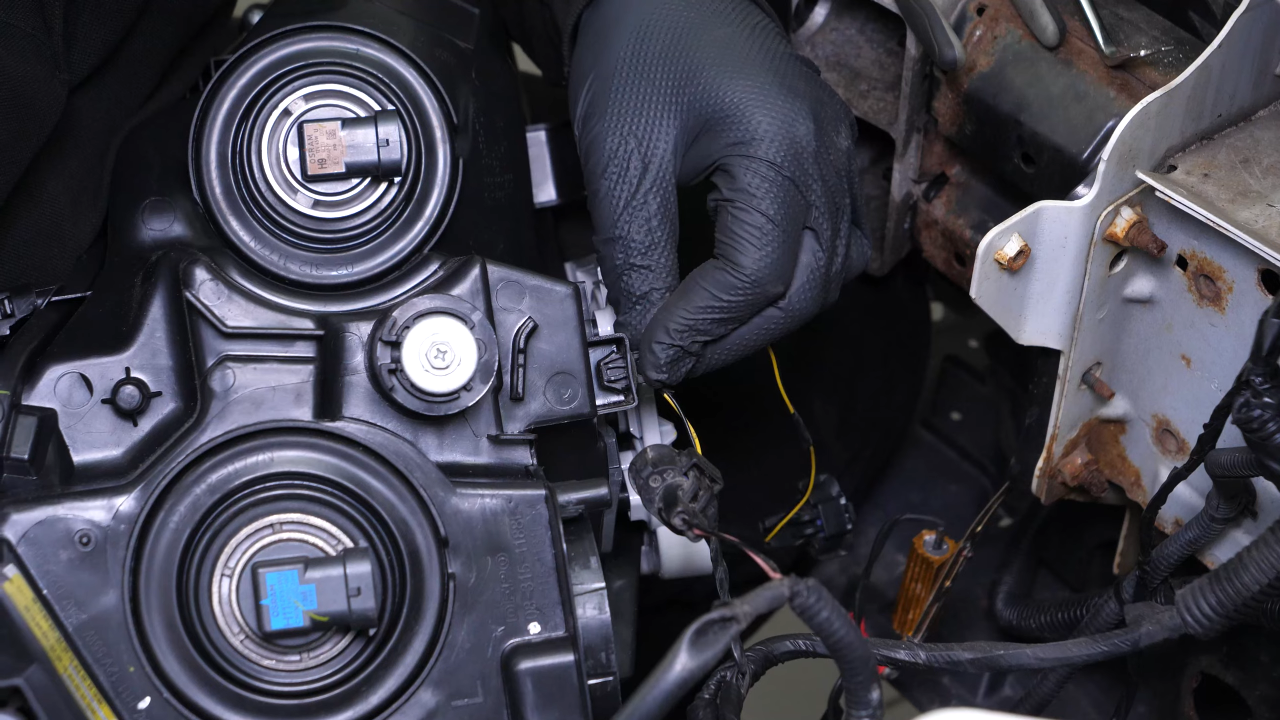

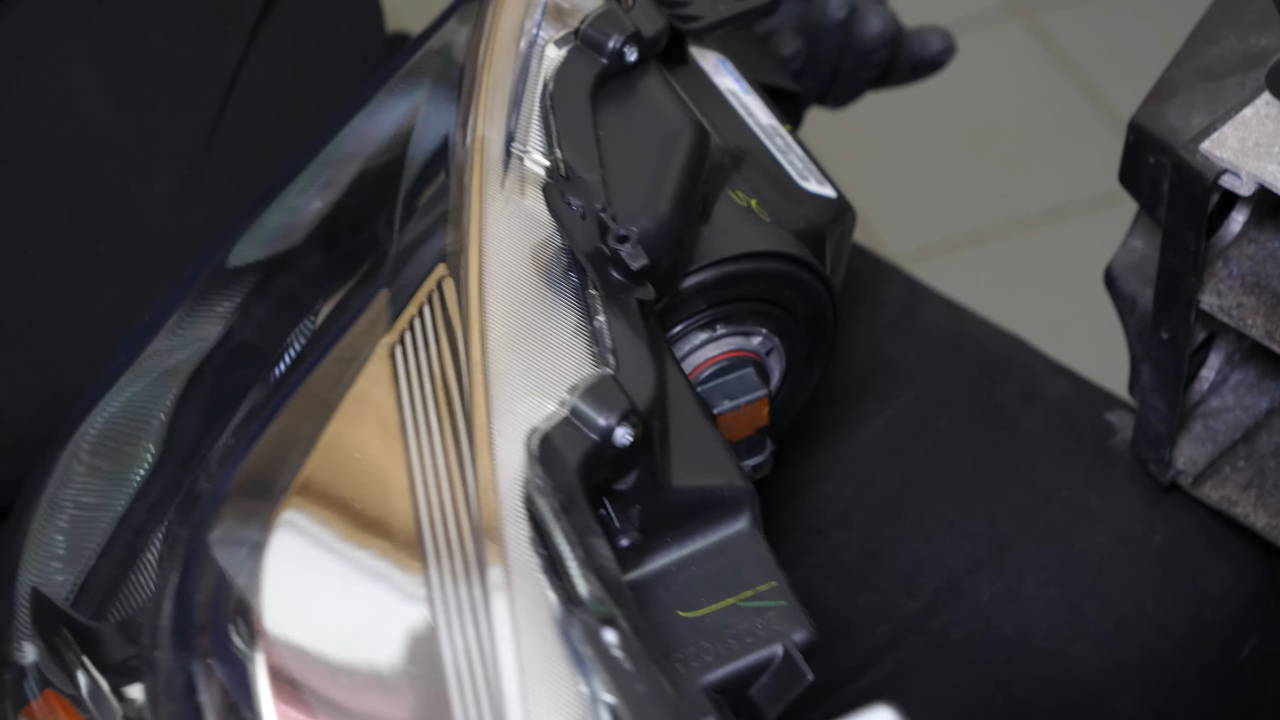

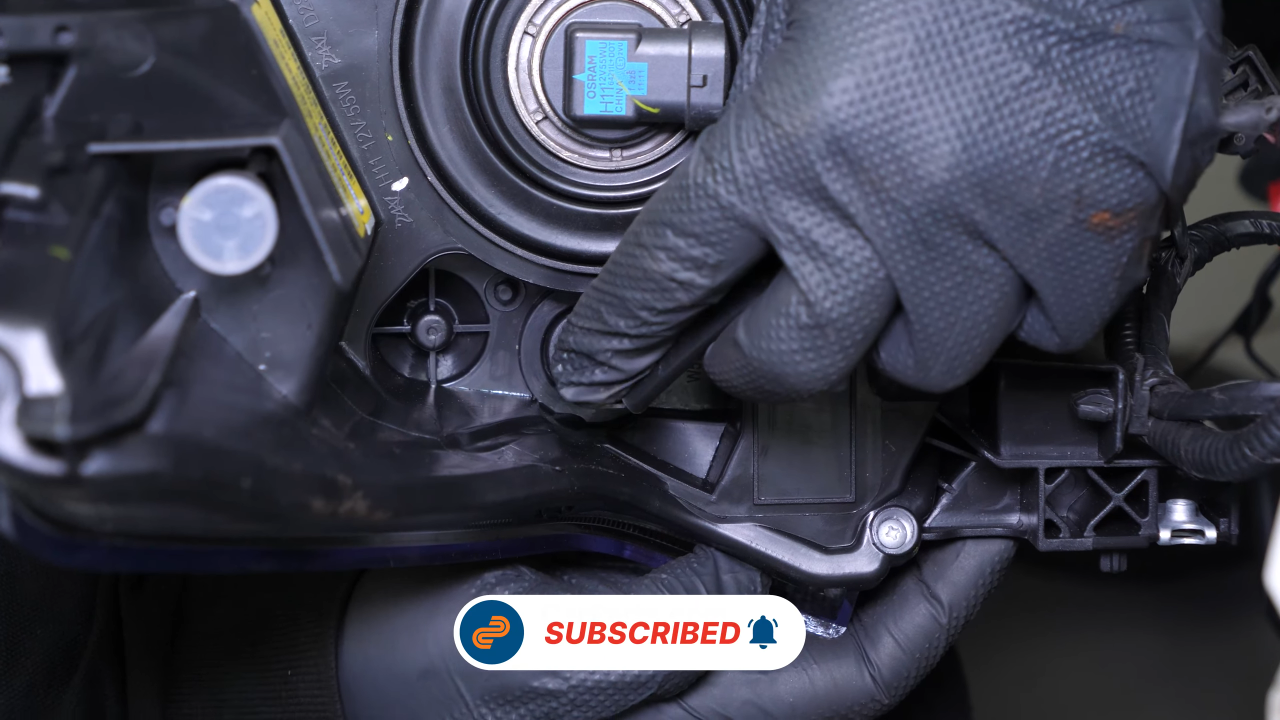

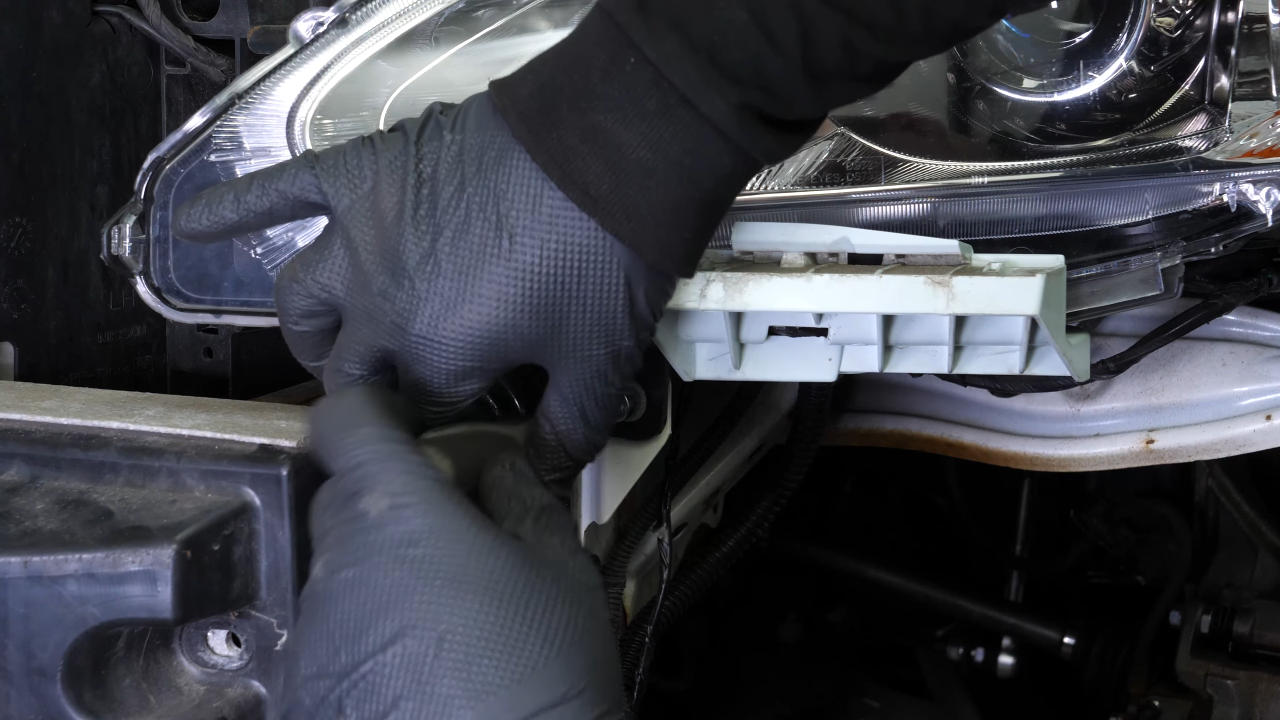

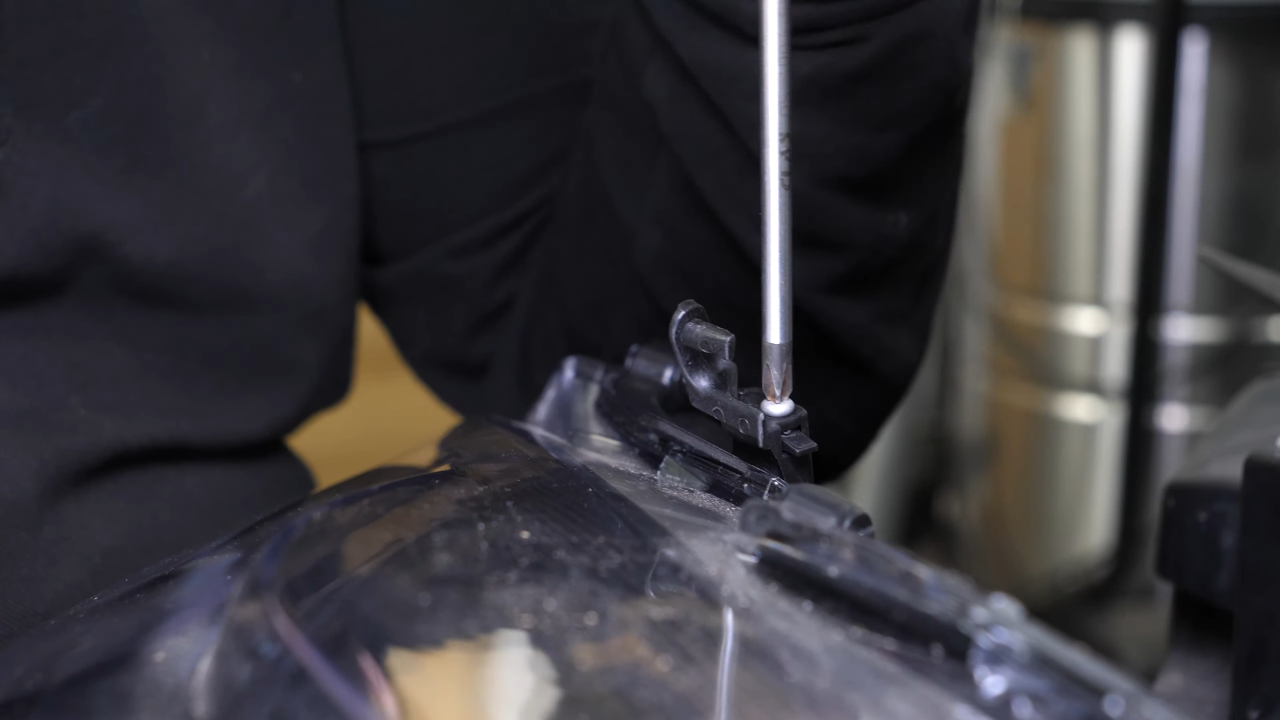

Position it on the new headlight and screw it back on. Then, reattach the clips.

Chapter 10:

Step 4/5

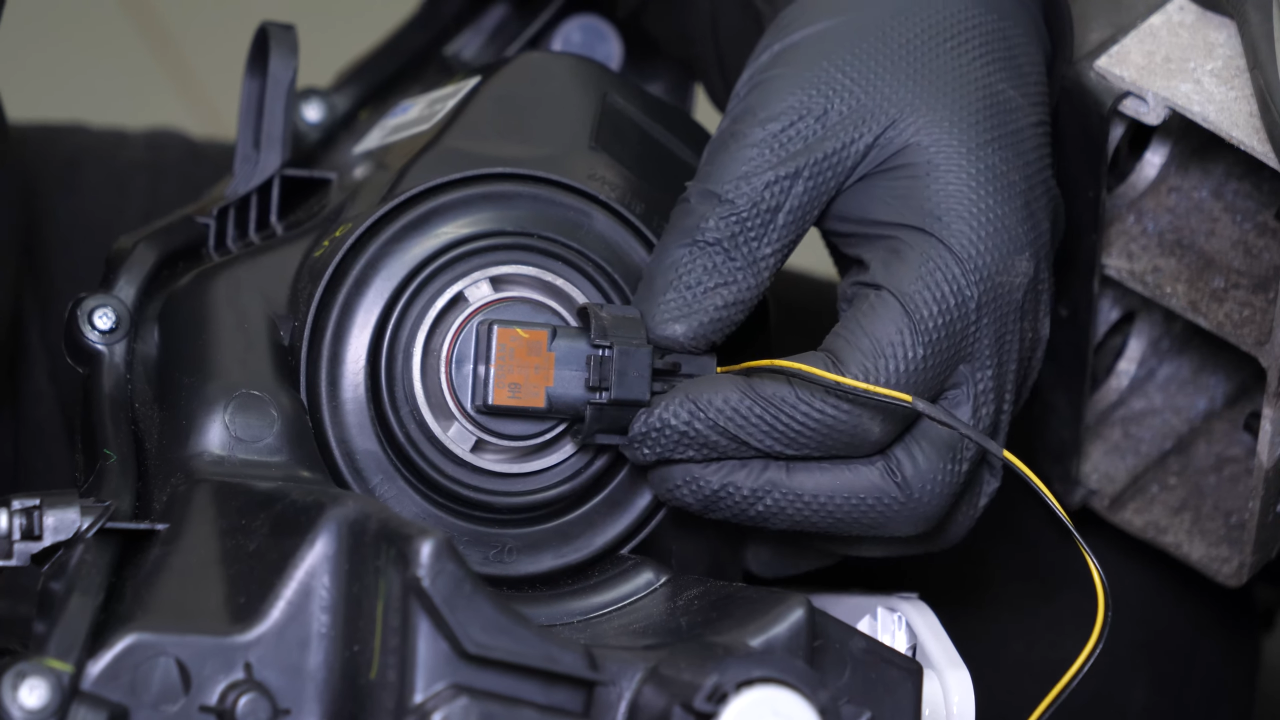

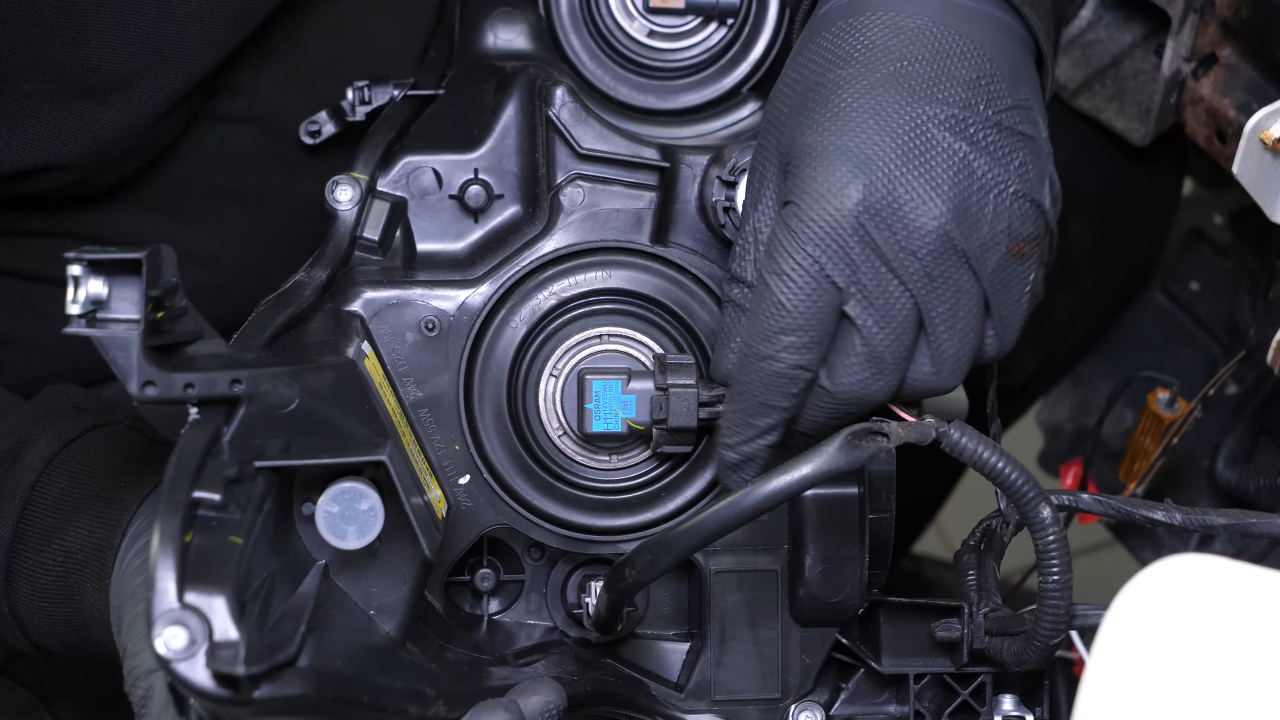

Replace the electrical connections of the bulbs.

Chapter 10:

Step 5/5

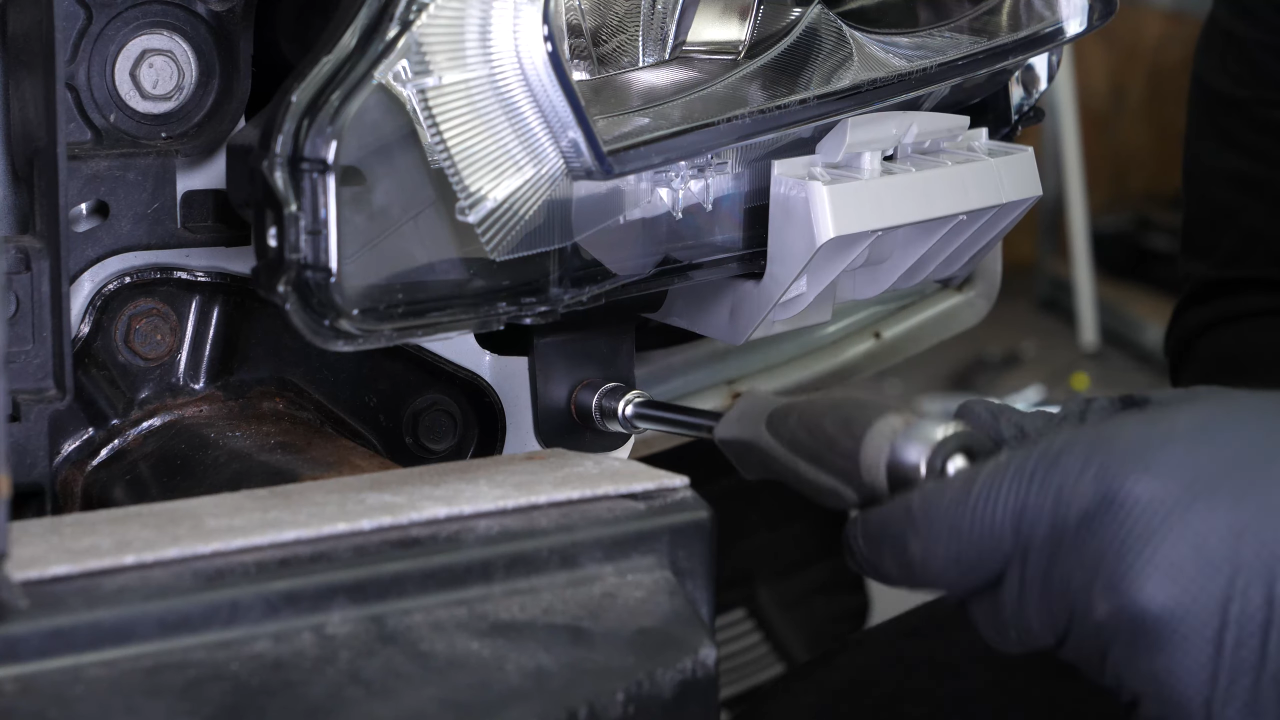

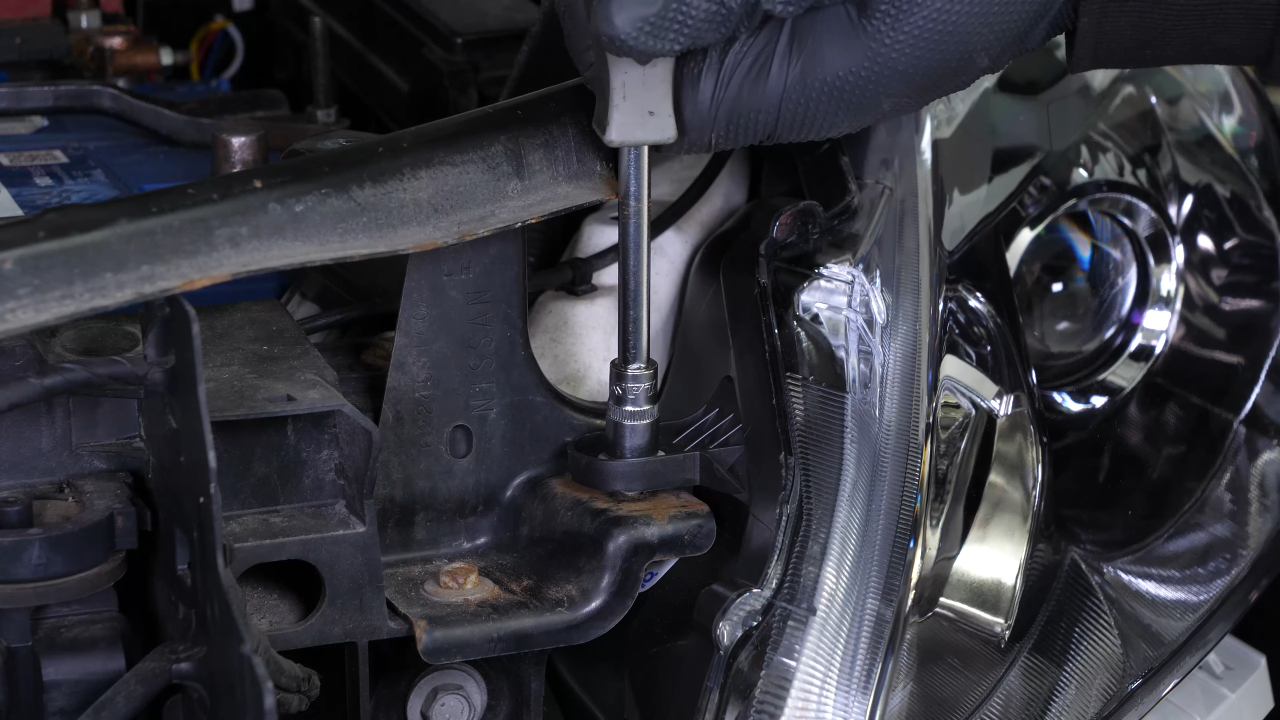

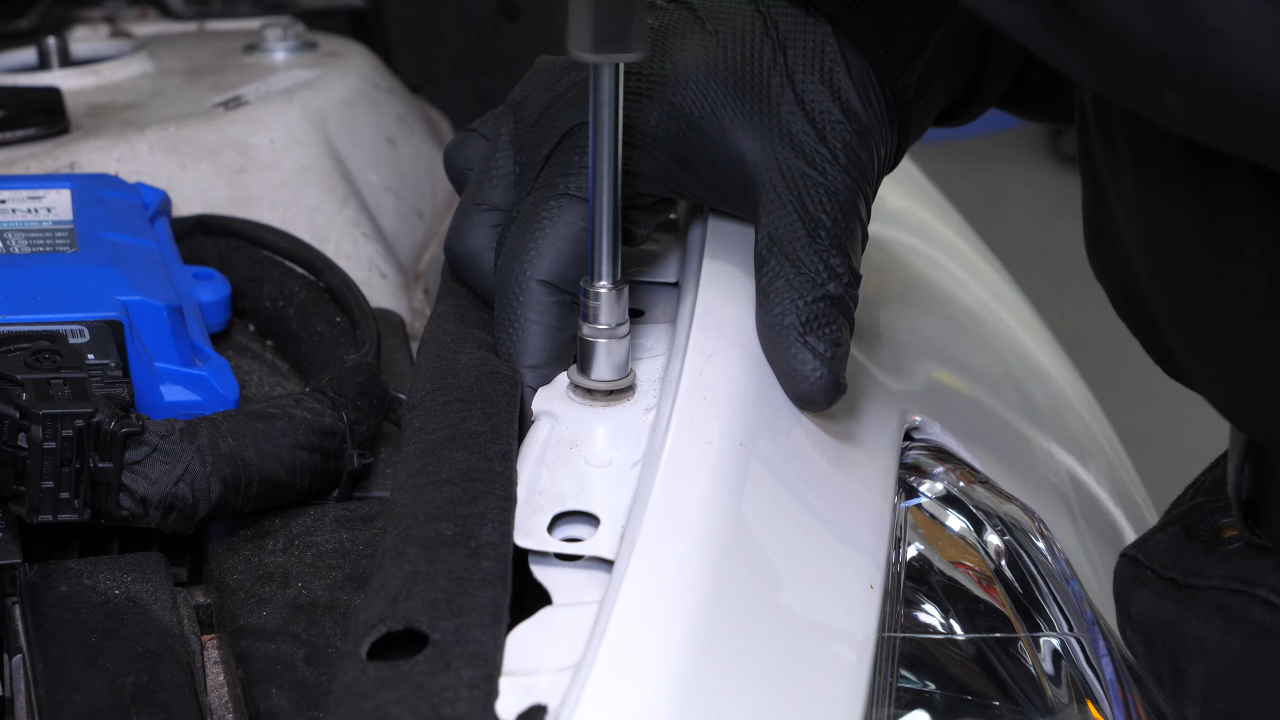

Put the light back in. Remember to position the retaining pin correctly in the fender. Then, screw the 4 retaining bolts back in.

Chapter 11:

Reinstall the bumper cover

Step 1/6

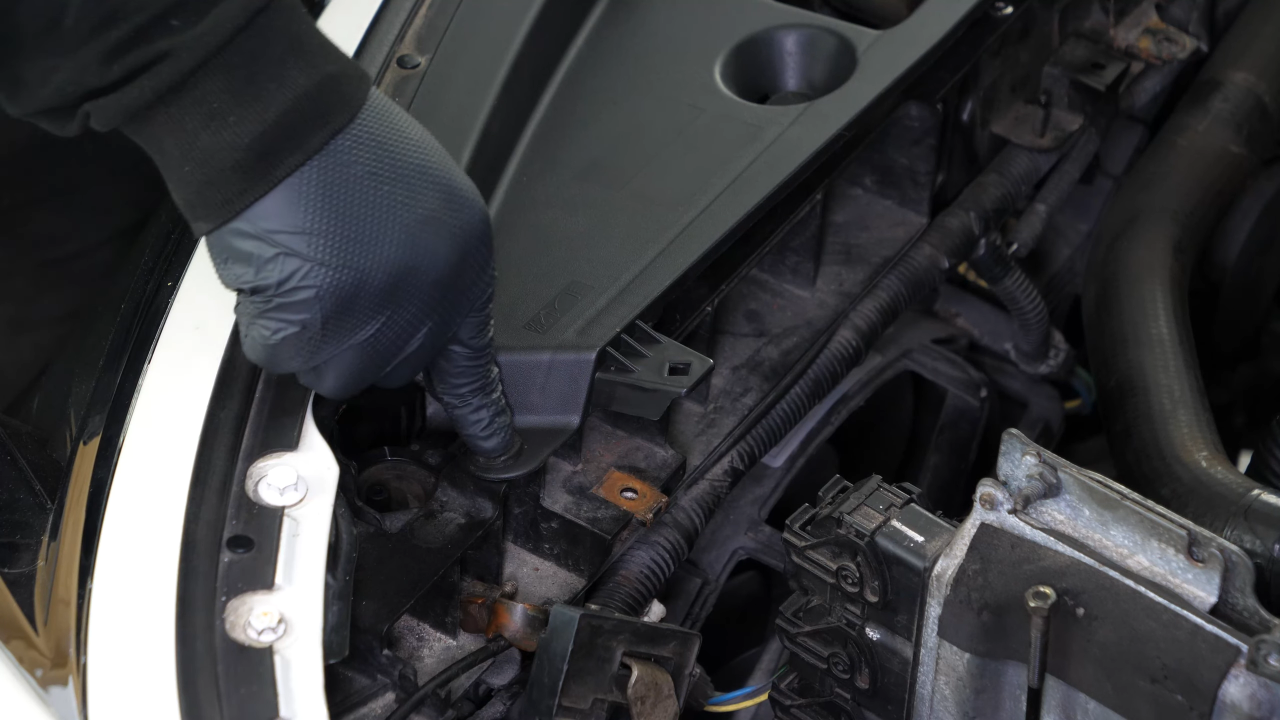

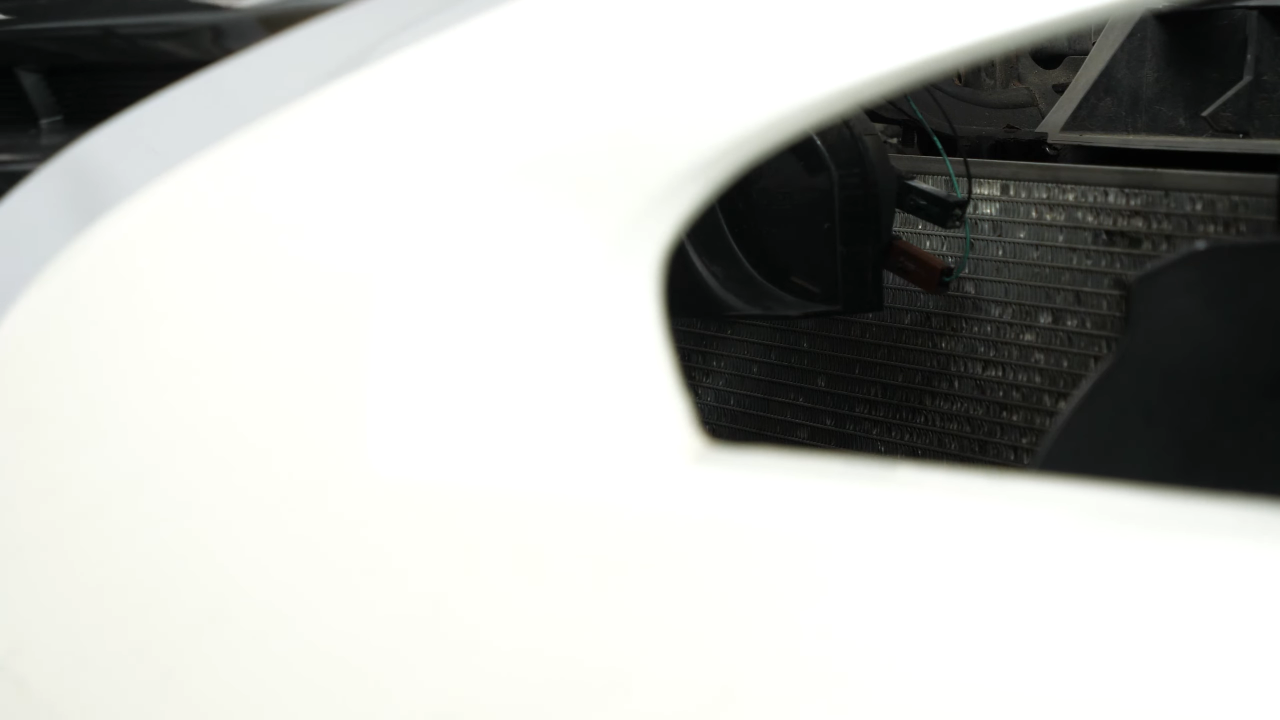

Put the front bumper cover back in place.

Chapter 11:

Step 2/6

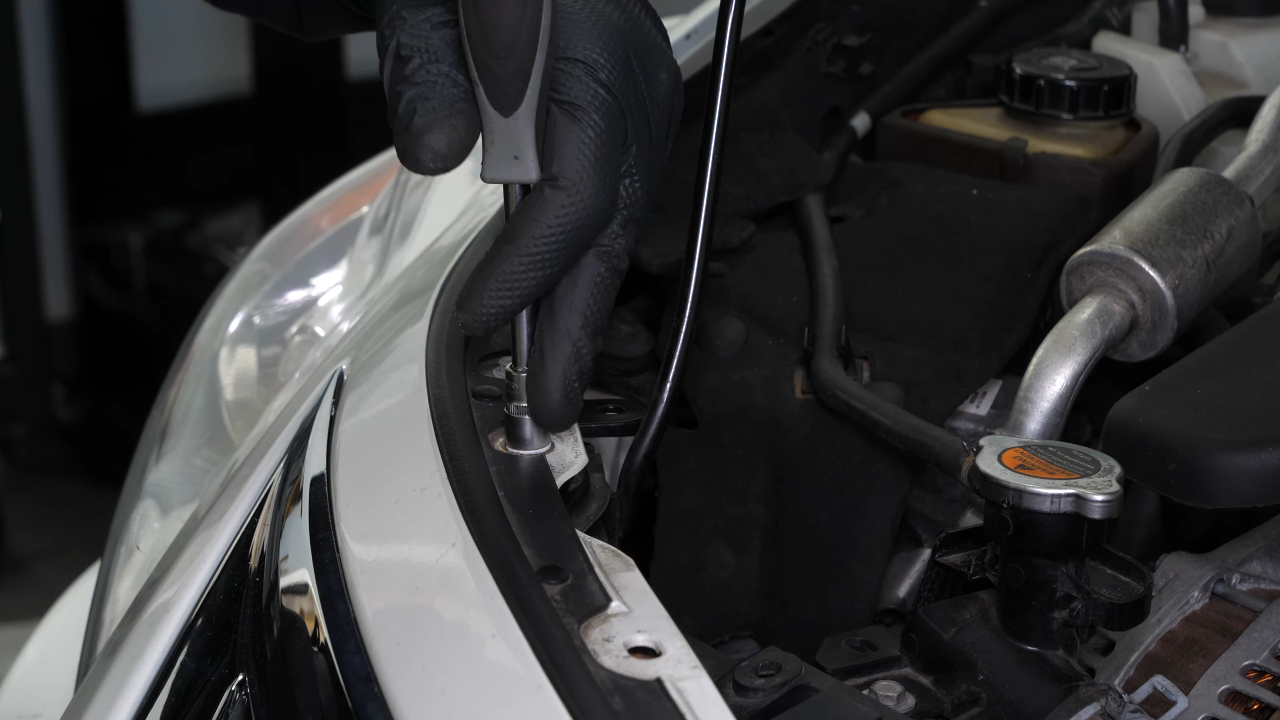

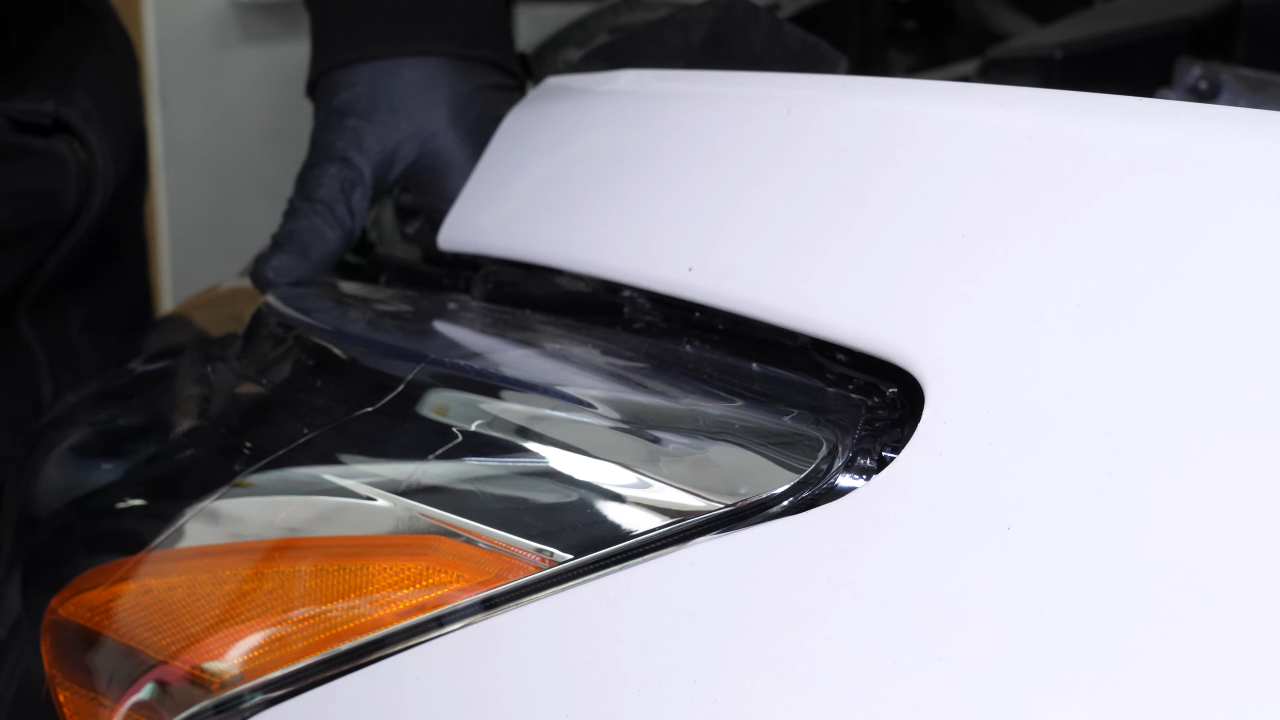

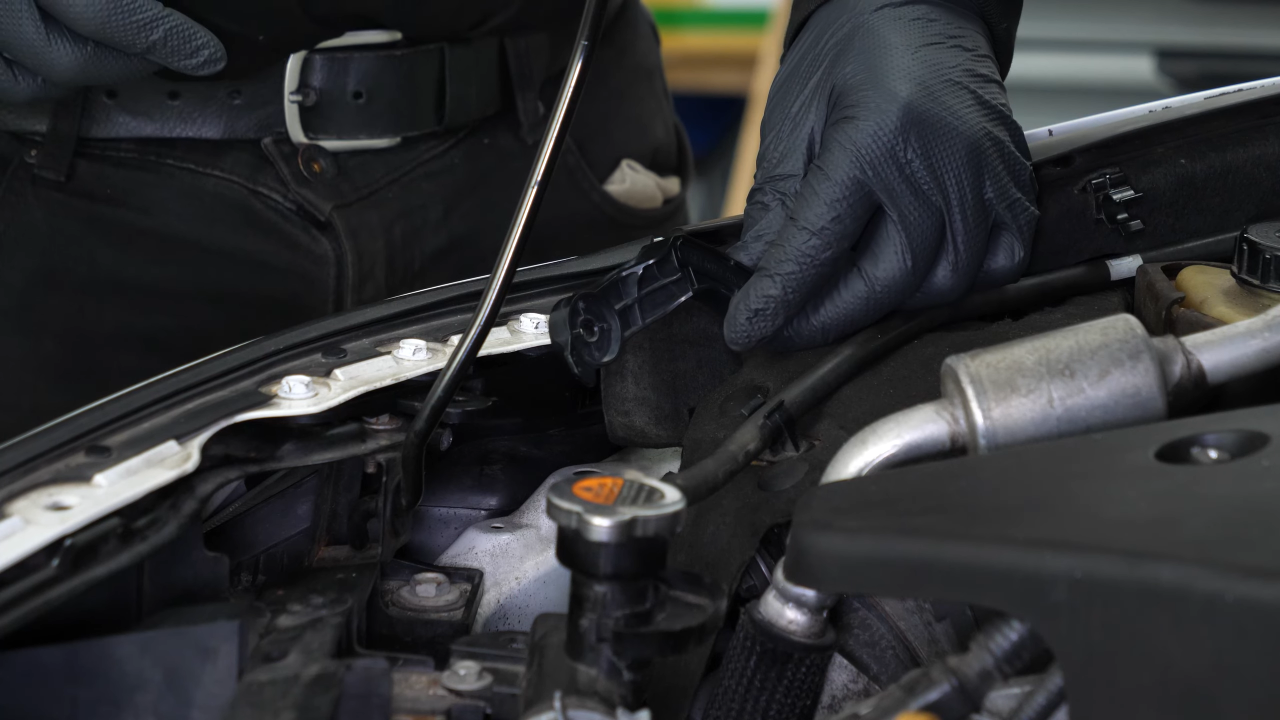

Then, reinsert the bumper cover onto the fender. Screw the 2 upper bumper cover retaining bolts back on.

Chapter 11:

Step 3/6

Clip the bumper cover back into the side bumper cover retainer.

Chapter 11:

Step 4/6

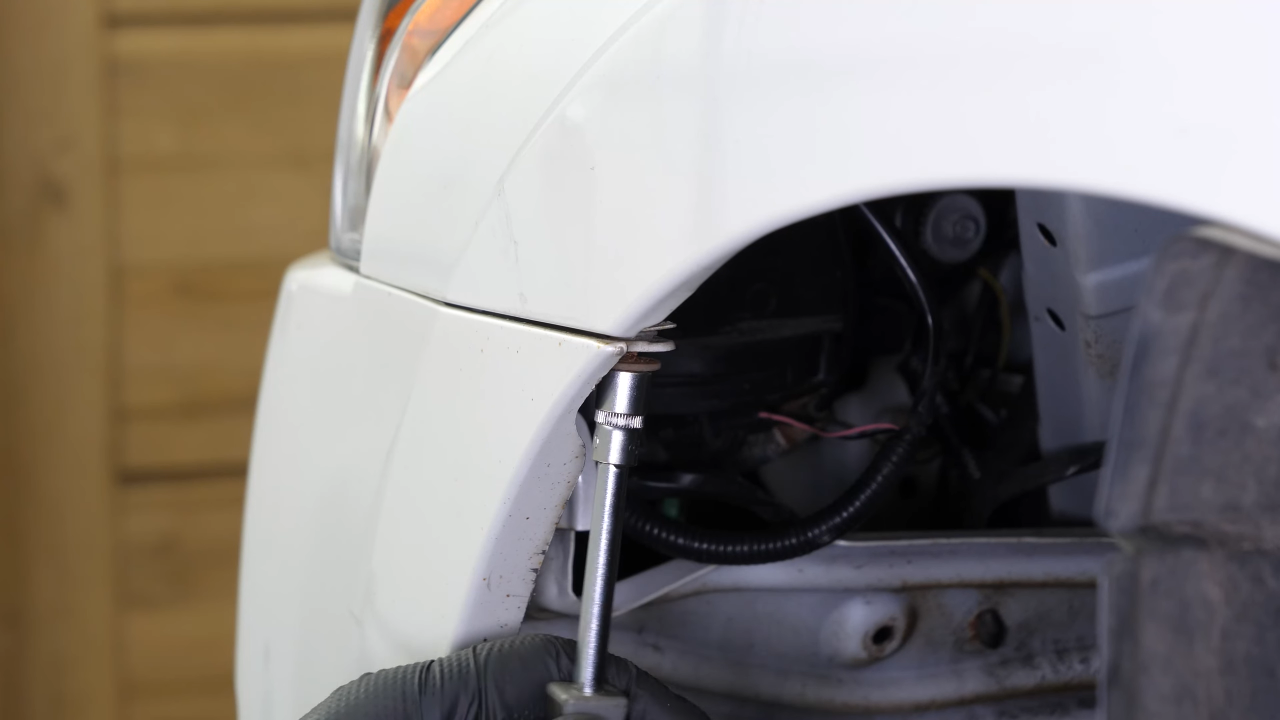

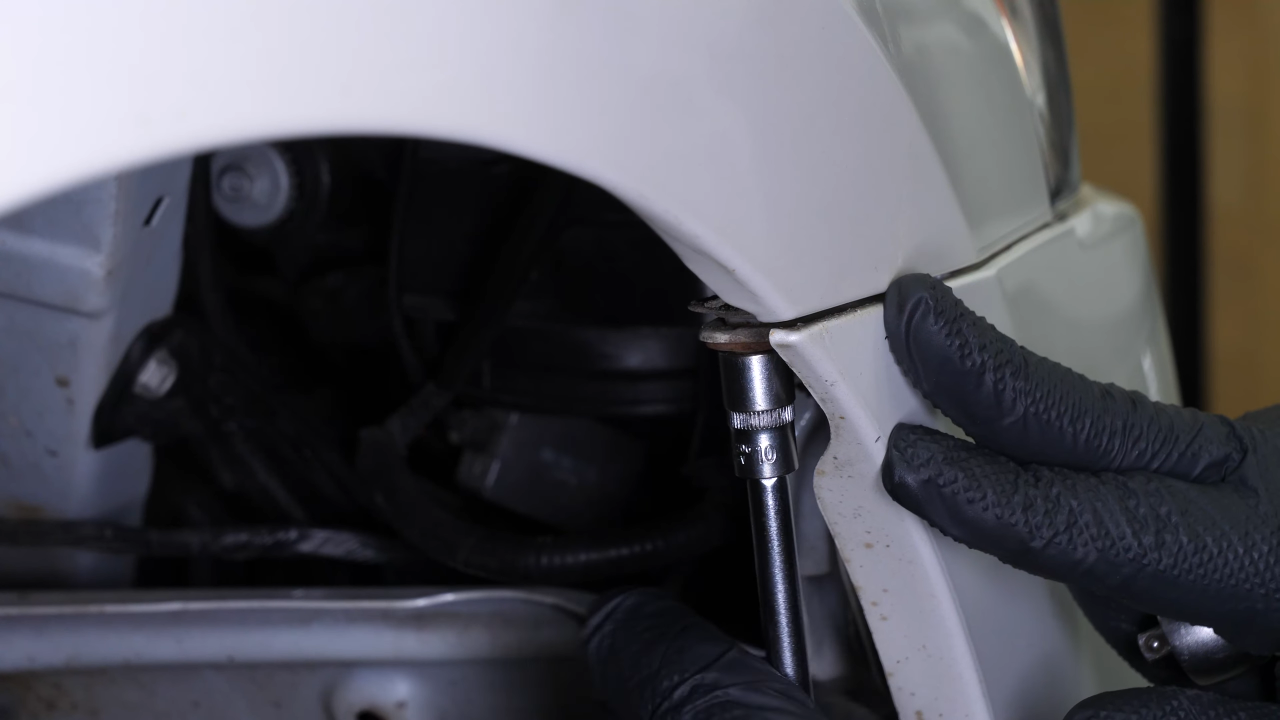

From the wheel arch, screw the bumper cover retaining screw back onto the fender.

Chapter 11:

Step 5/6

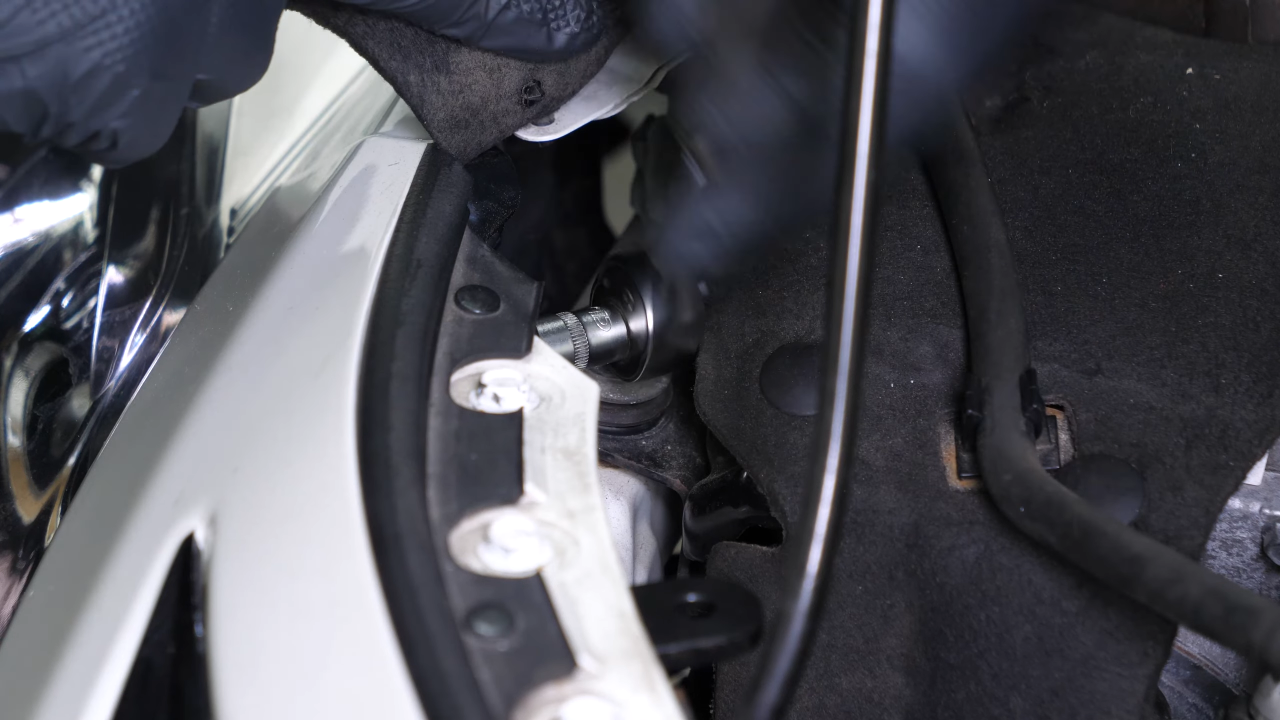

Repeat this step on the other side. Put the plastic bumper cover bracket back in place. And screw it back on.

Chapter 11:

Step 6/6

Repeat this step on the other side. Then put the washer pump fluid reservoir retaining rivet back in place.

Chapter 12:

Put the plastic cover back

Step 1/1

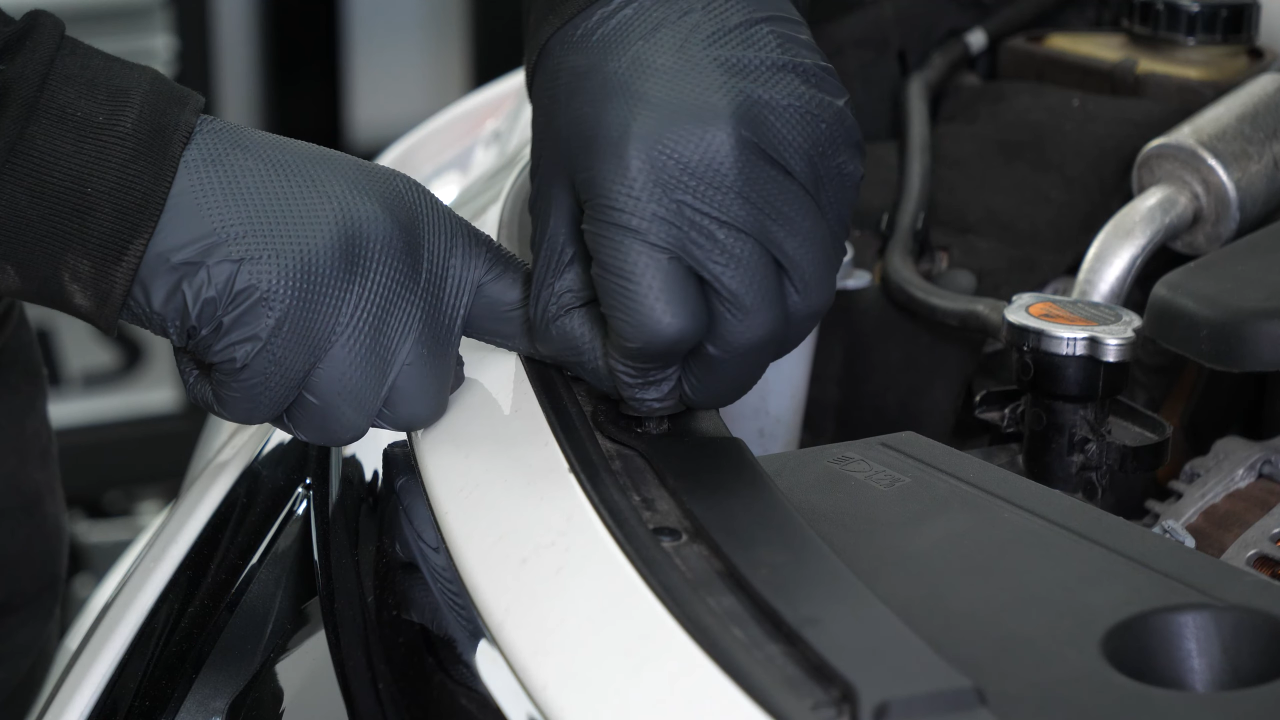

Put the radiator support cover back in place. Then put the rivets back in place.

Chapter 13:

Put the components back in place

Step 1/4

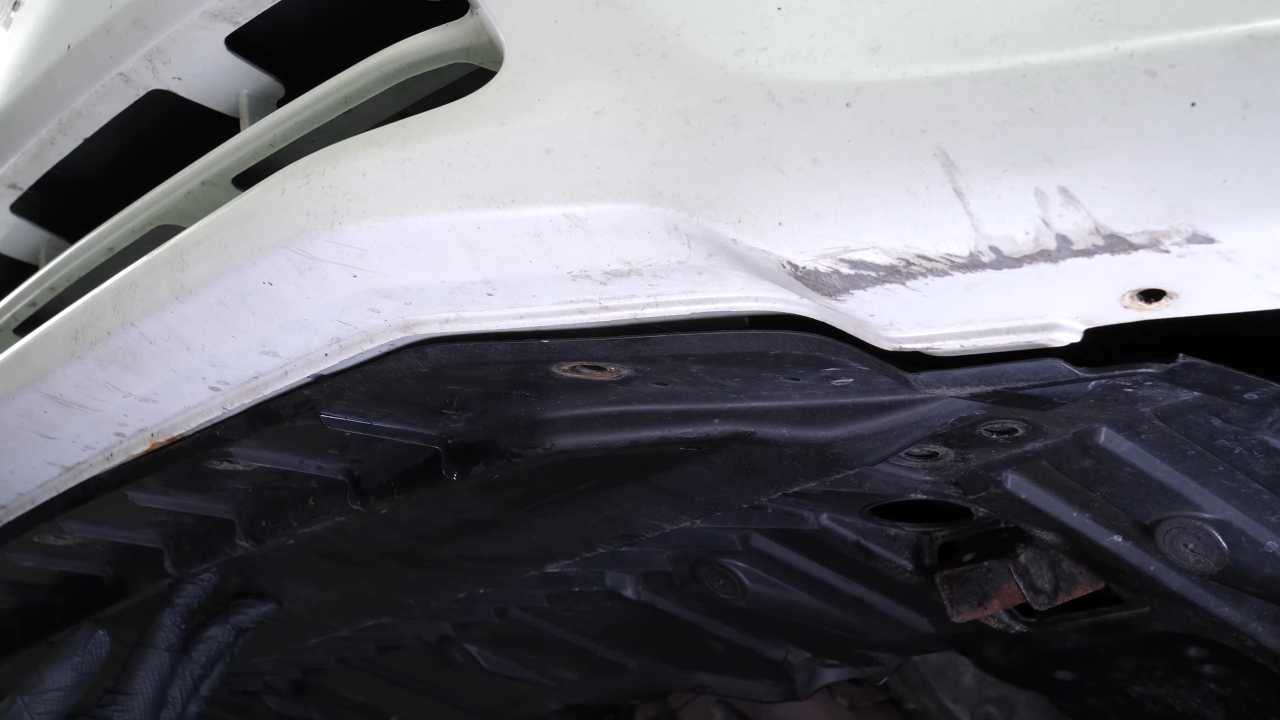

Put the splash shield back in place.

Chapter 13:

Step 2/4

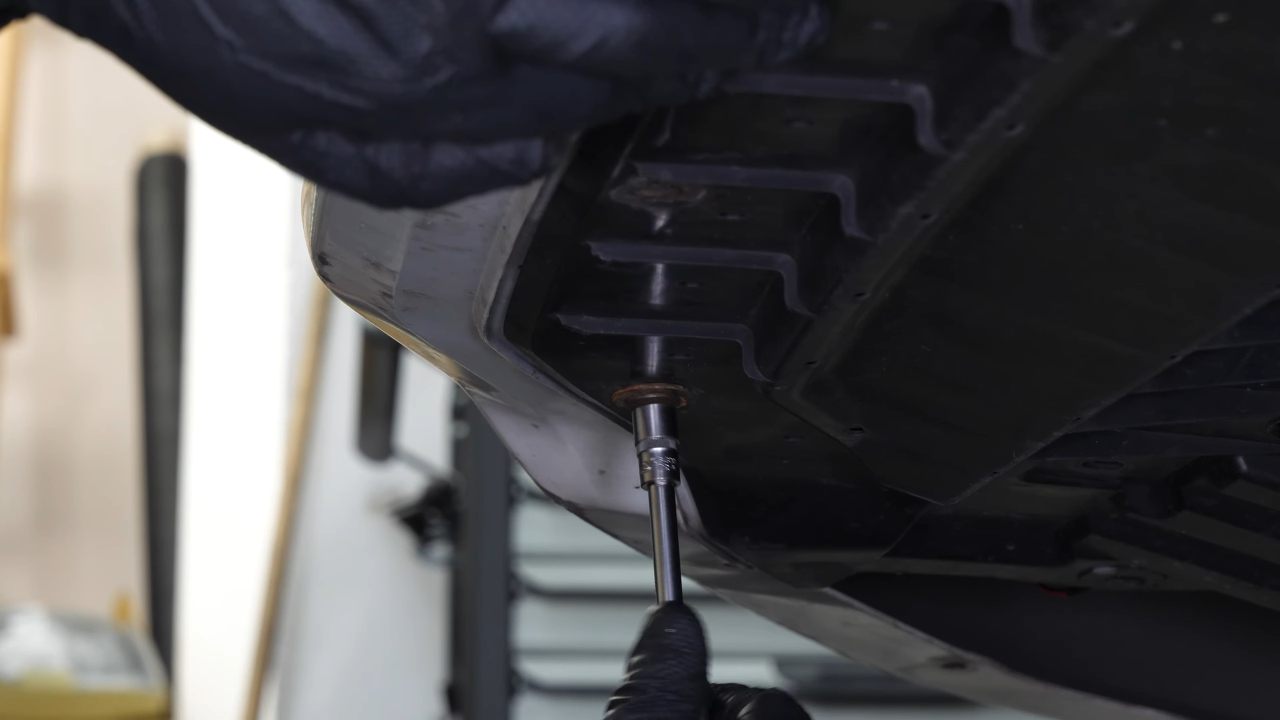

Then screw the bolts back on. Then put the rivets back in place.

Chapter 13:

Step 3/4

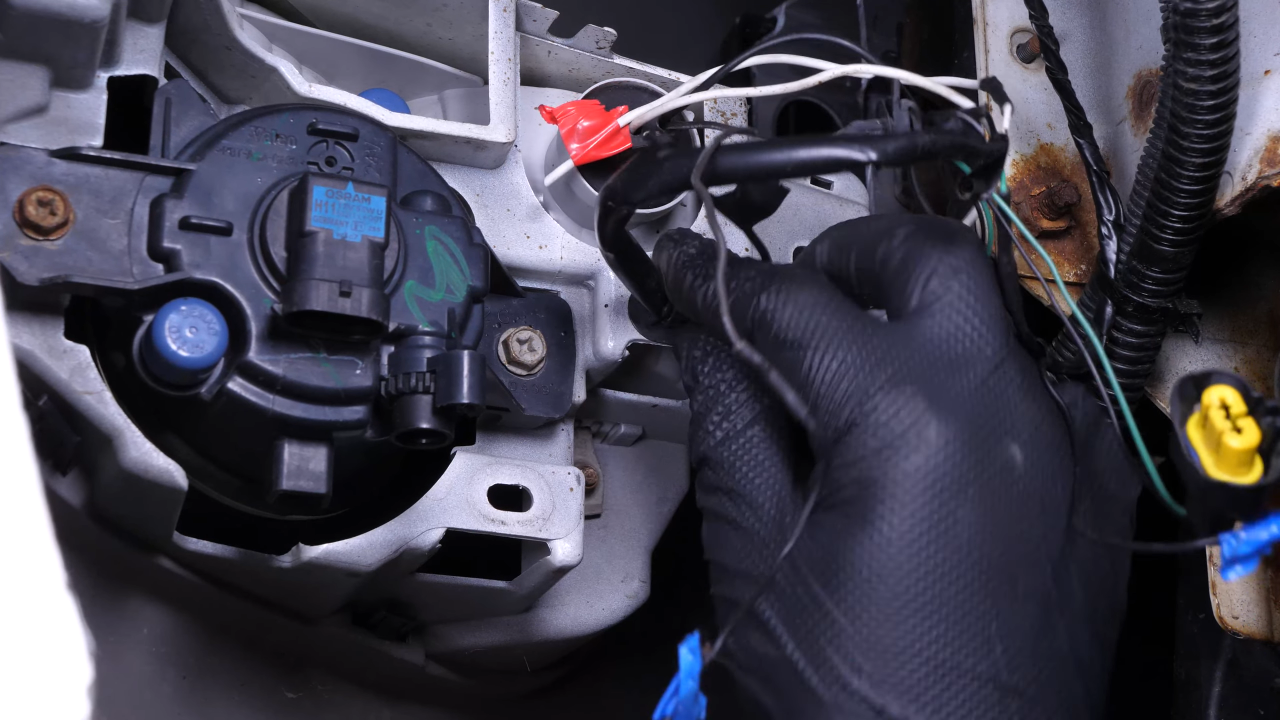

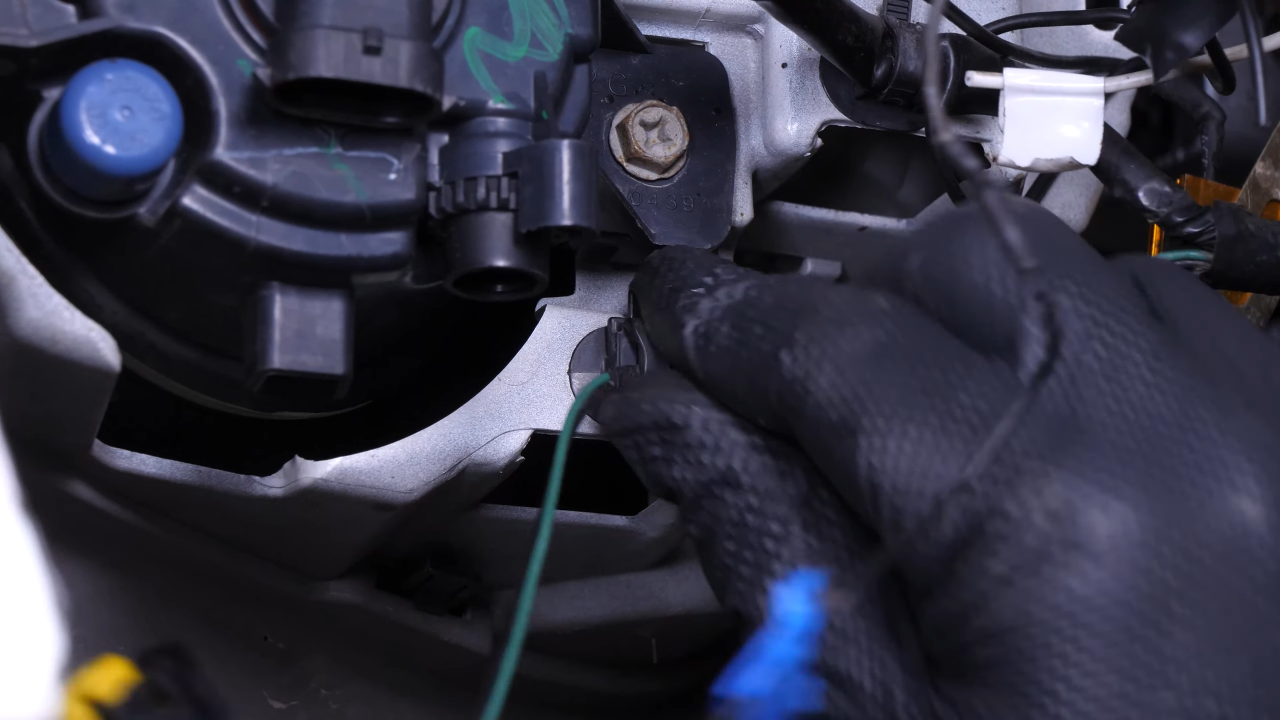

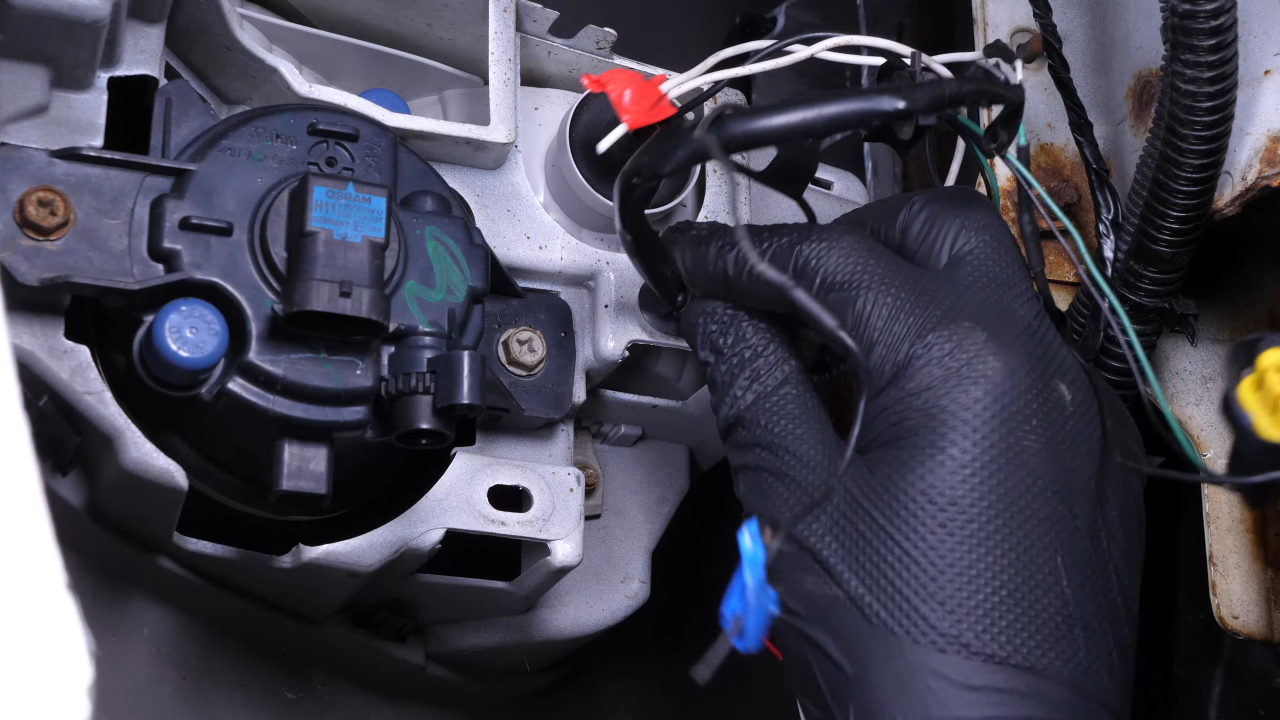

Reconnect the turn signals’ power connectors. Then, reattach the clips.

Chapter 13:

Step 4/4

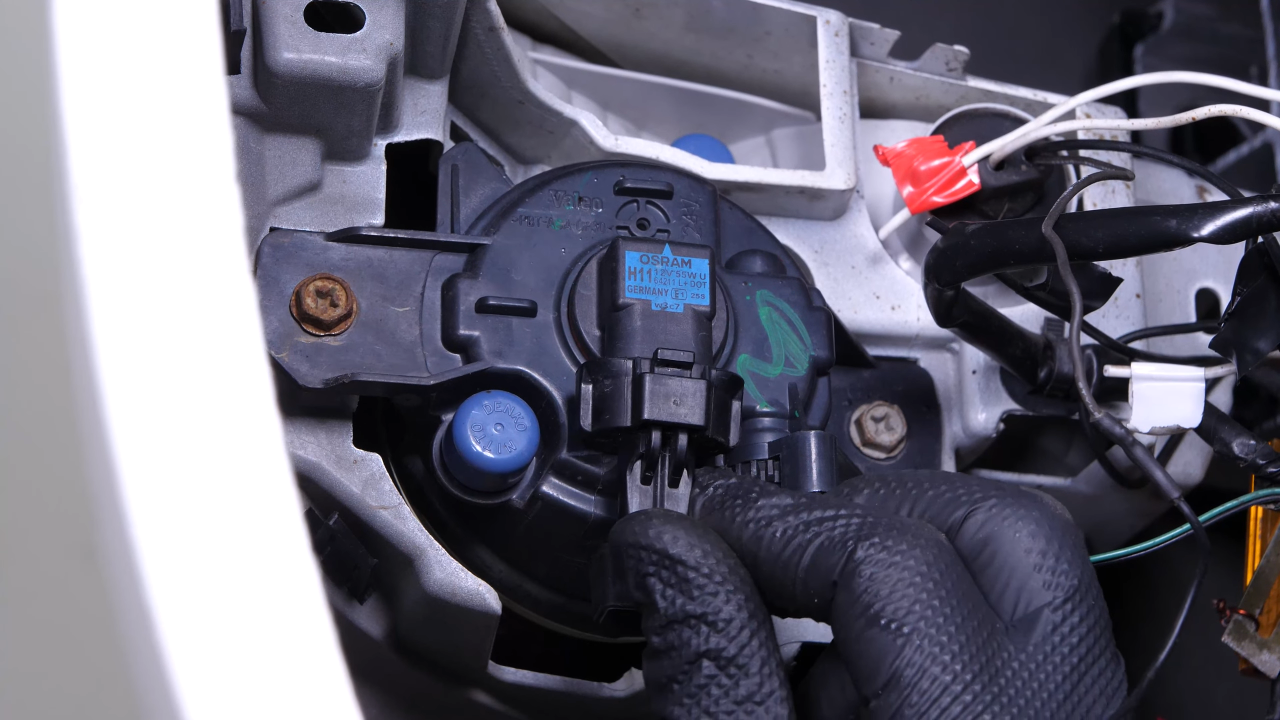

Reconnect the fog lights’ power connectors.

Chapter 14:

Put the mudguard back

Step 1/2

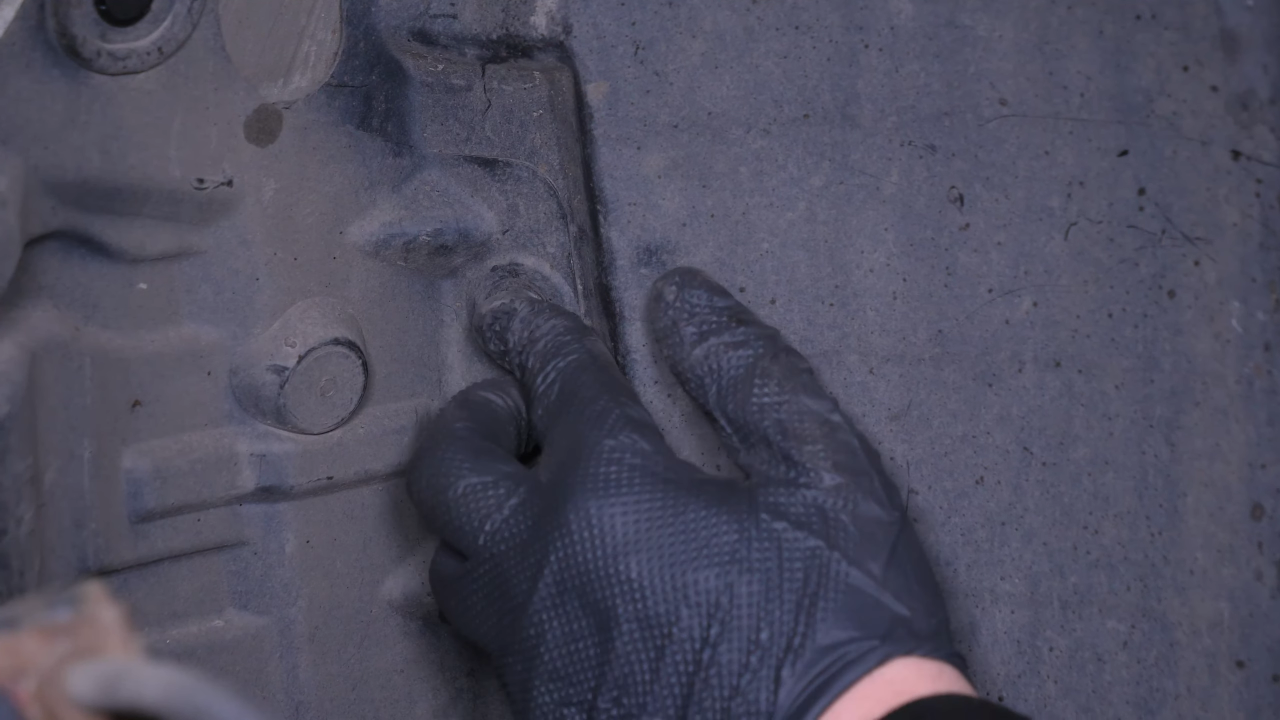

Put the mudguard back in place. Then put the rivets back in place.

Chapter 14:

Step 2/2

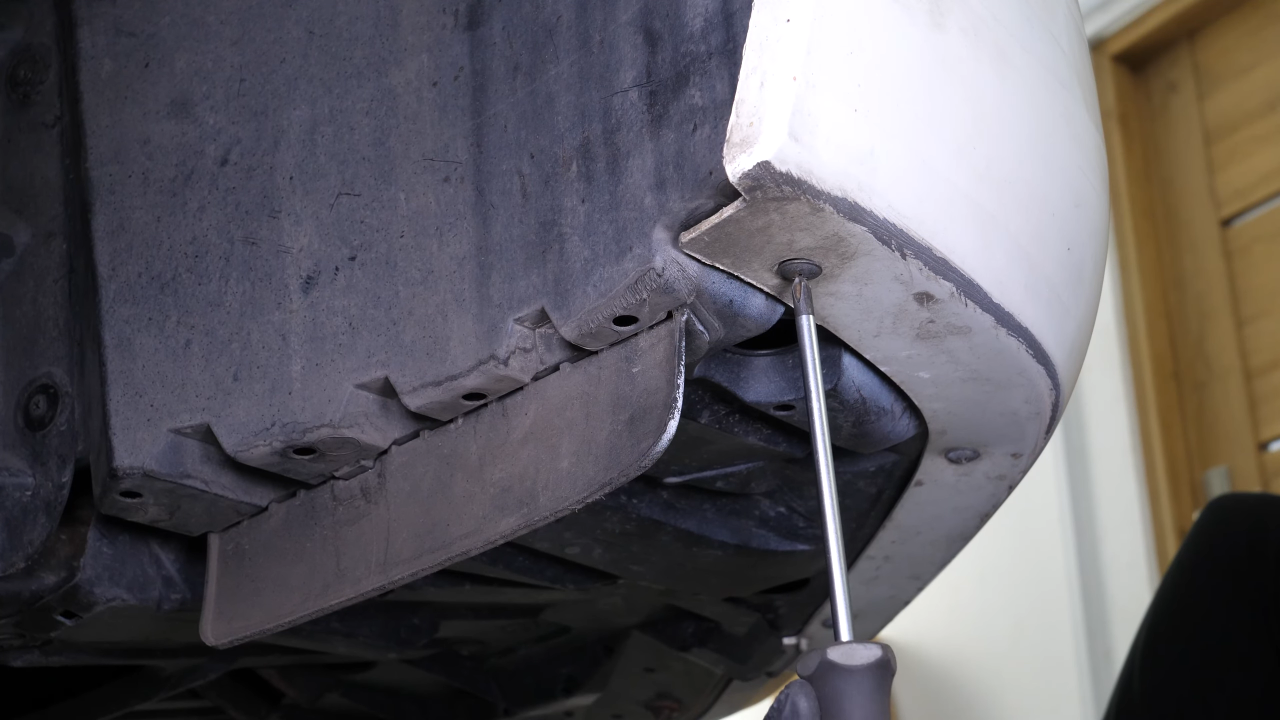

Run the splash shield through the bumper cover. Then, retighten the retaining screw. Repeat the same steps on the other side.

Chapter 15:

Lift the vehicle

Step 1/3

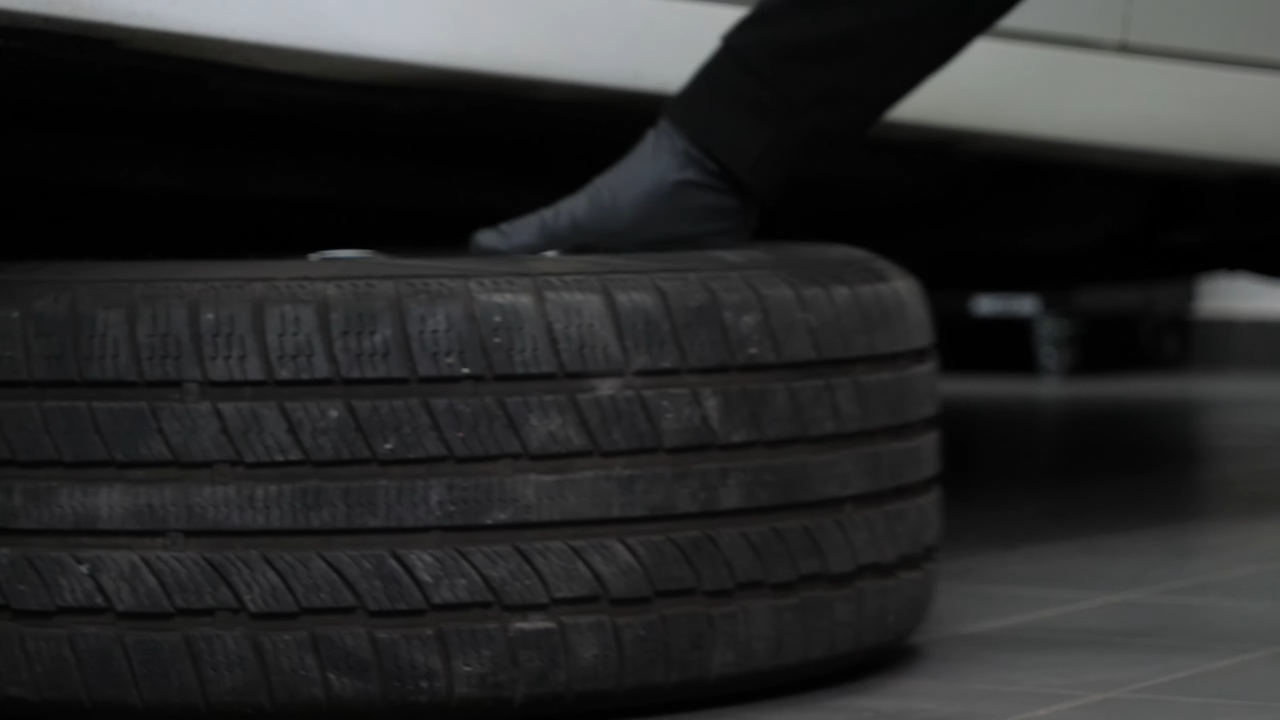

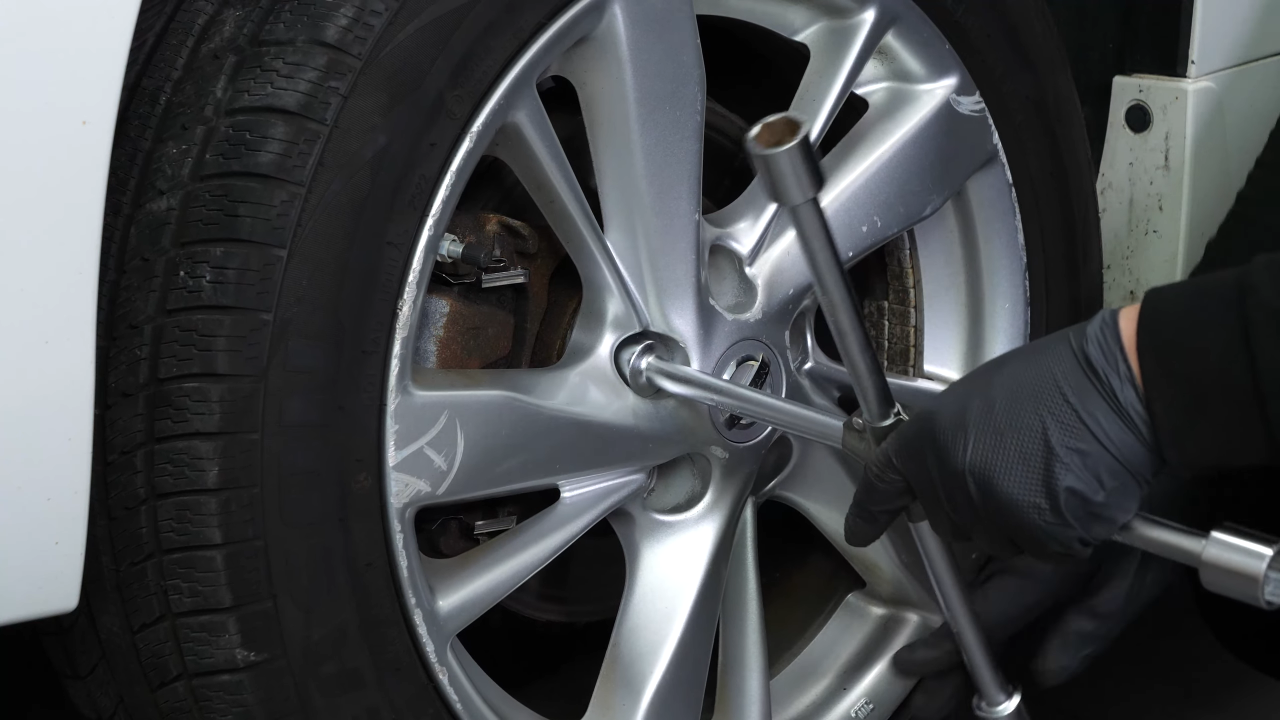

Then, you will be able to put the wheels back on your vehicle.

Chapter 15:

Step 2/3

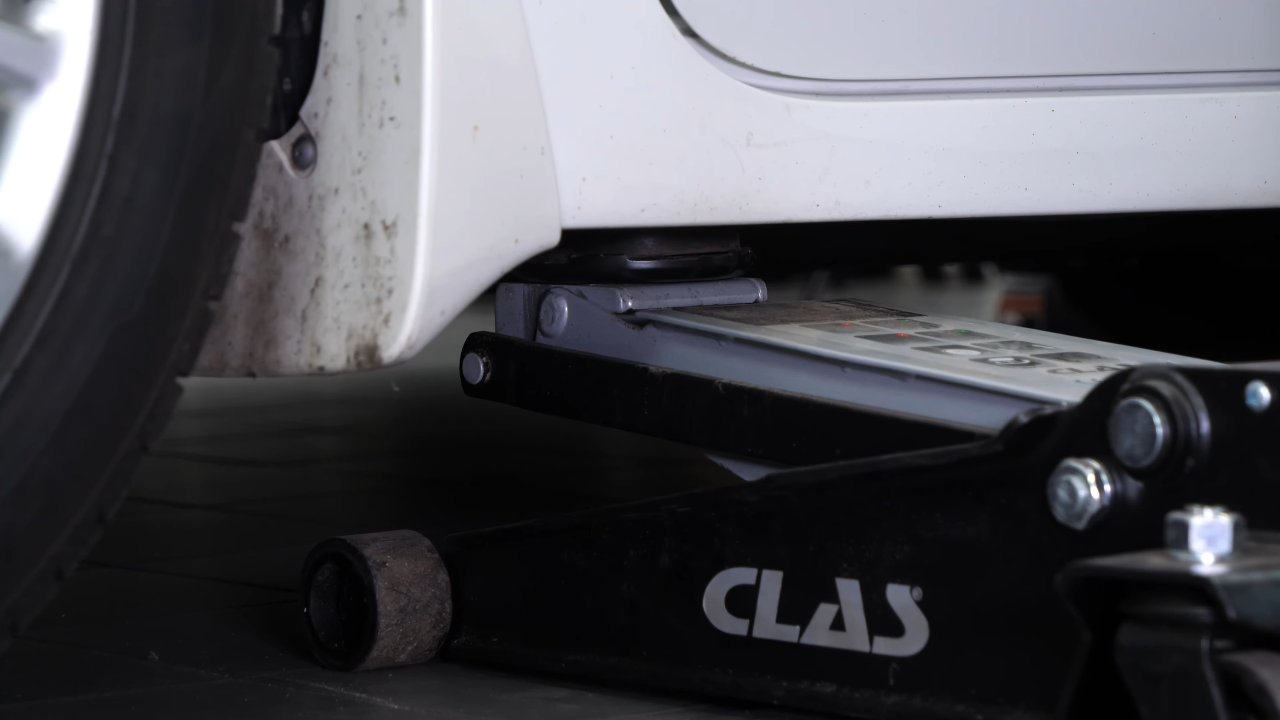

Put the car back on the ground and block the wheels properly.

Chapter 15:

Step 3/3

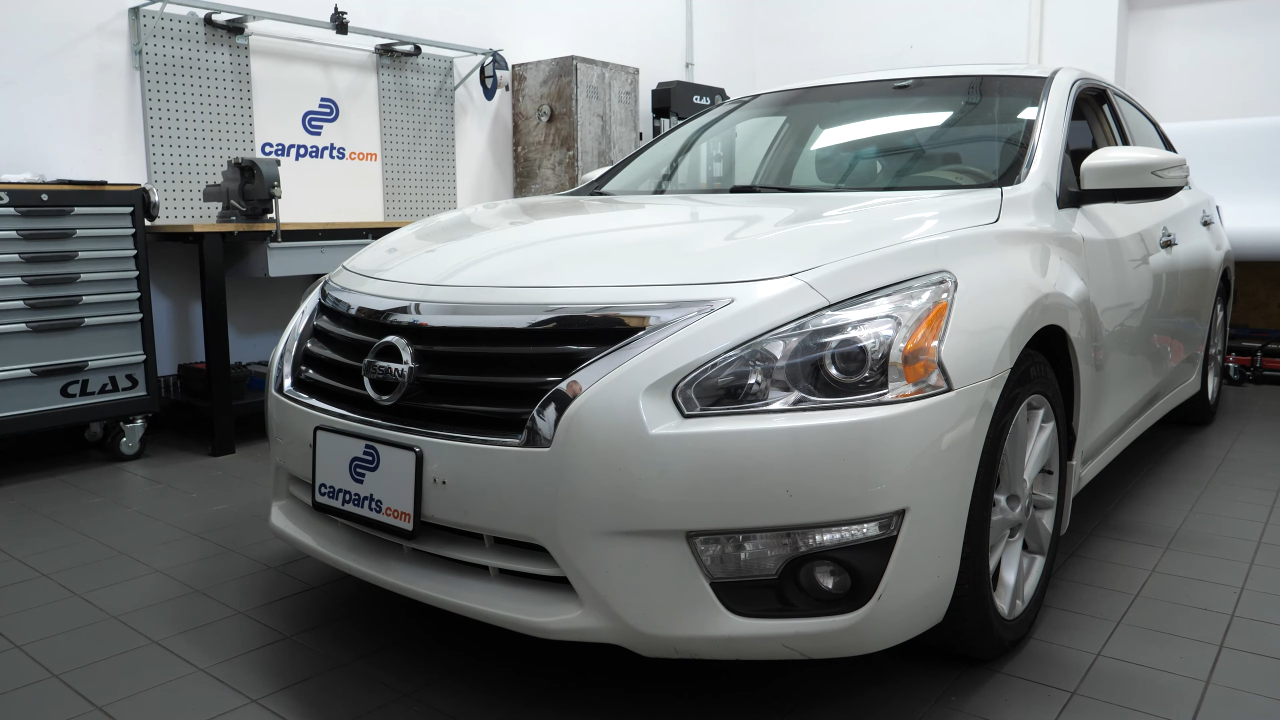

Operation complete.
