How to replace the headlight bulbs 2013 – 2018 Nissan Altima
To replace the headlight bulbs on your Altima this tutorial was tailor-made for you. You’ll need to access the lightbulbs, replace the high beam bulb, replace turn signal bulb and follow the next steps described below. You can carry out this tutorial of 7 chapters in 10 minutes. Take your wheel lug wrench and your Phillips screwdriver and let’s get started!
Duration
10 minutes
Number of steps
7
Difficulty out of 5
1
Average savings
$15
Parts You Will Need
Tools You Will Need
Step-by-Step Installation
Chapter 1:
Informations
Step 1/1
For safety reasons, we strongly suggest watching our video on ‘How to jack your Nissan Altima safely”.
Chapter 2:
Access the lightbulbs
Step 1/7

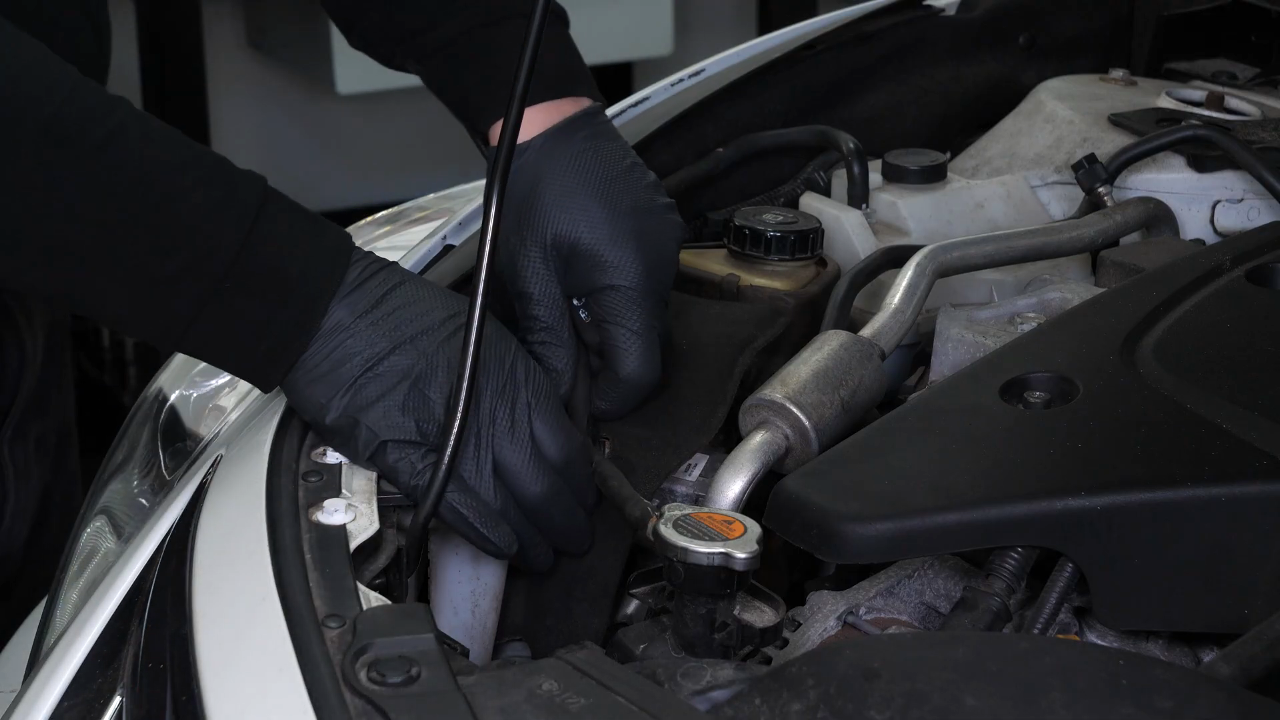

Unclip the hose connecting the coolant reservoir to the radiator.
Chapter 2:
Step 2/7
Using a fork, remove the two clips from the textile cover.
Chapter 2:
Step 3/7

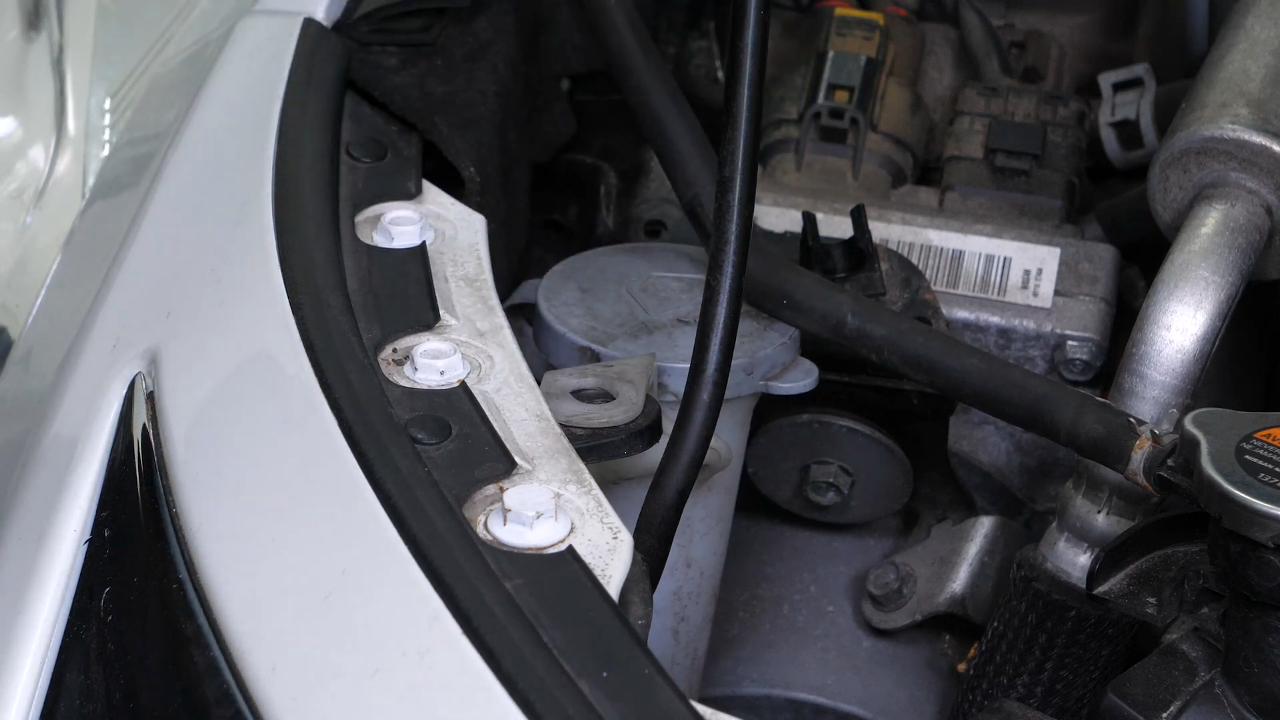

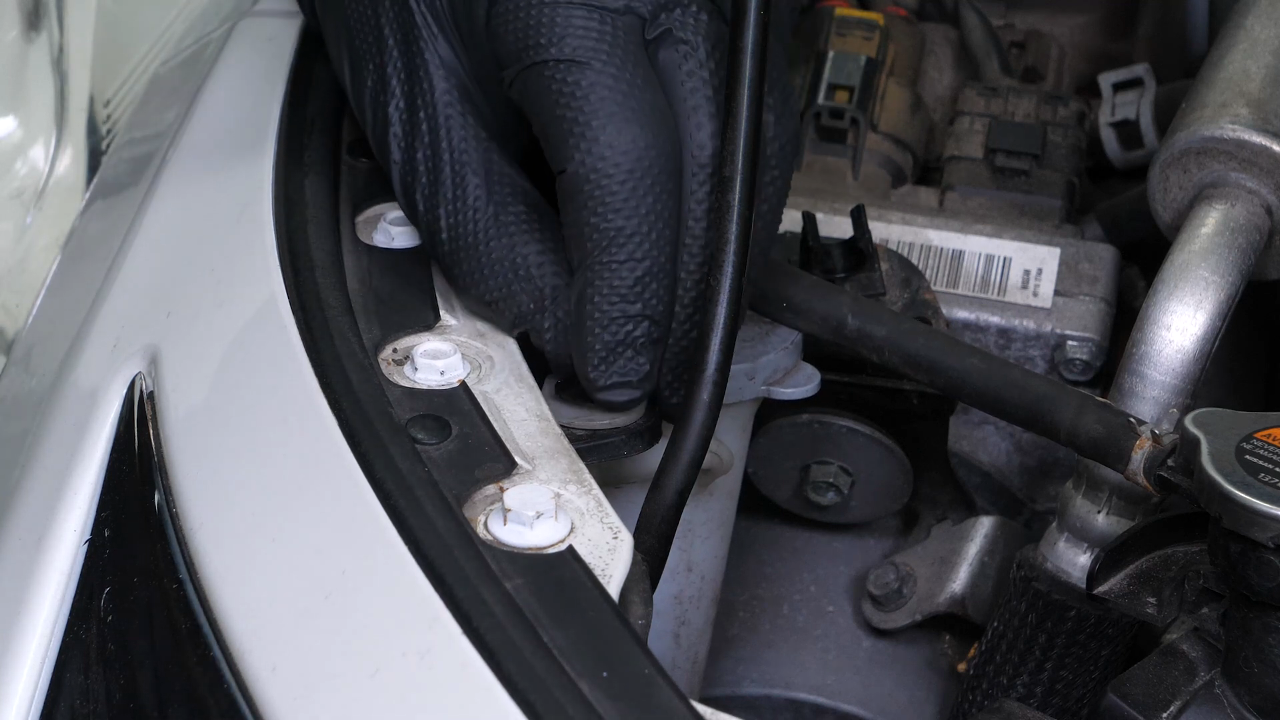

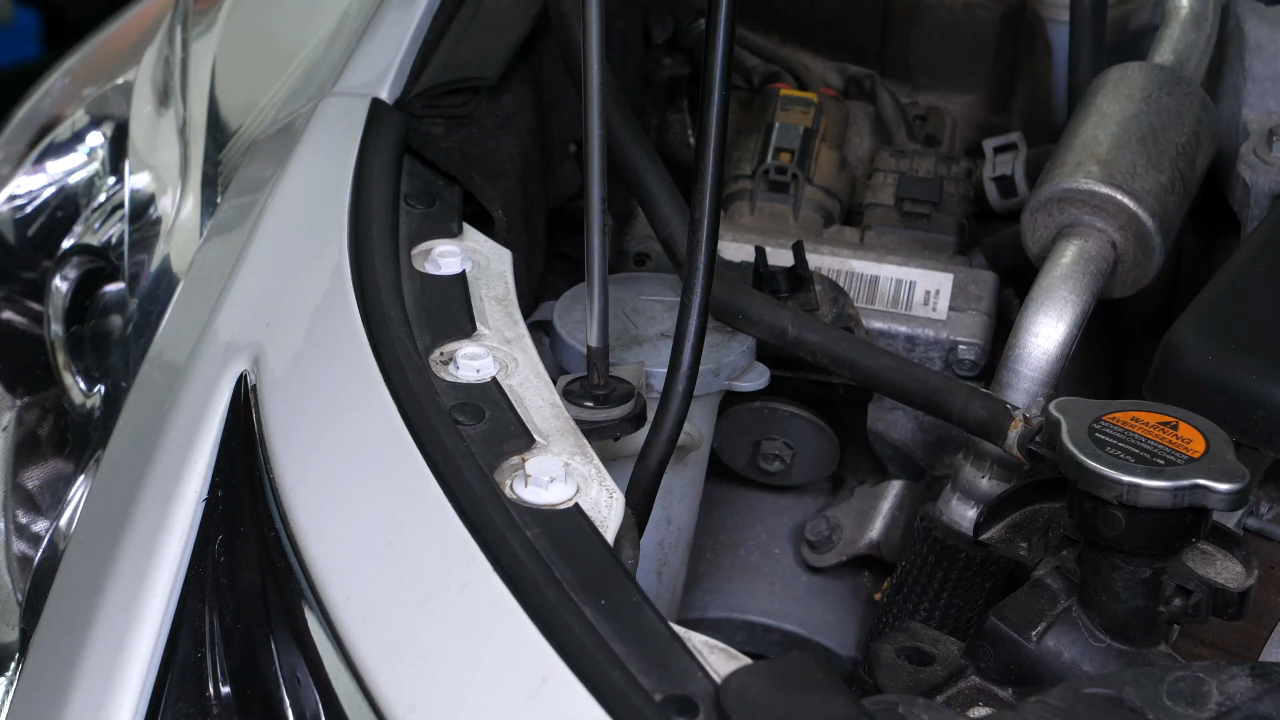

Then, using a Phillips screwdriver, unscrew the plastic rivet from the washer pump fluid reservoir hole on the bumper cover.
Chapter 2:
Step 4/7
Remove it with a fork.
Chapter 2:
Step 5/7

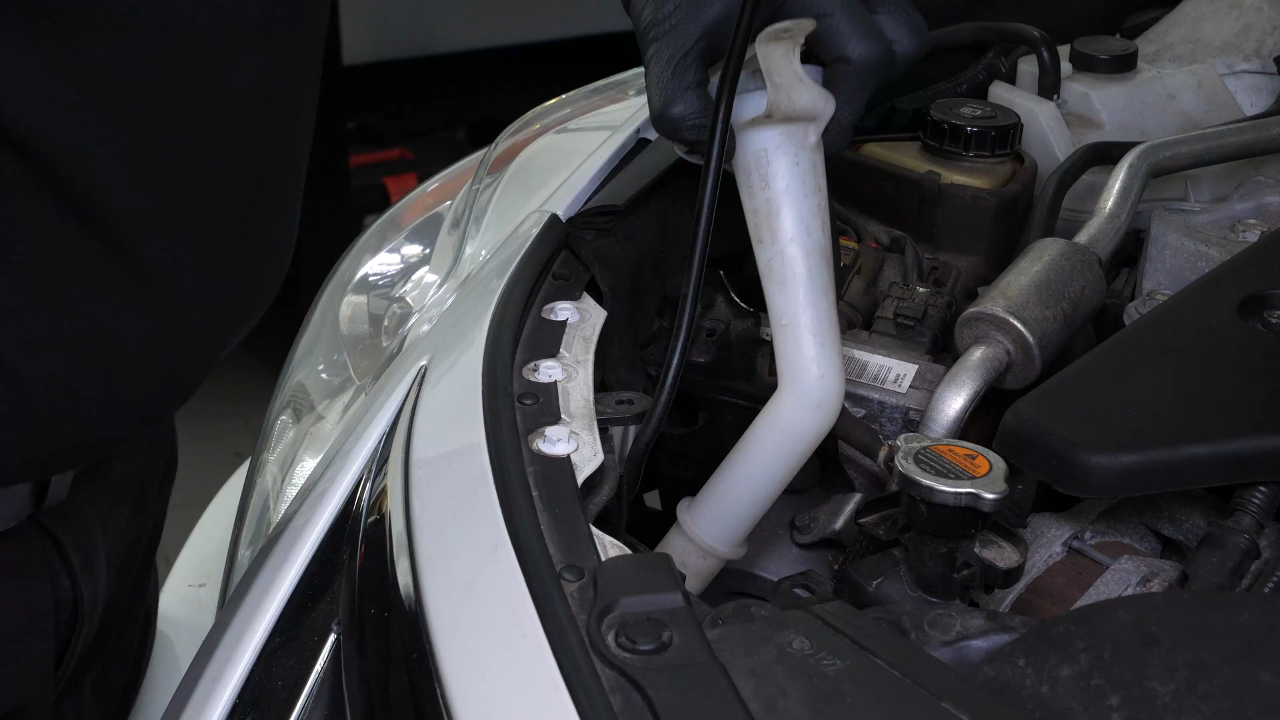

Then remove the orifice.
Chapter 2:
Step 6/7
Remove the seal.
Chapter 2:
Step 7/7

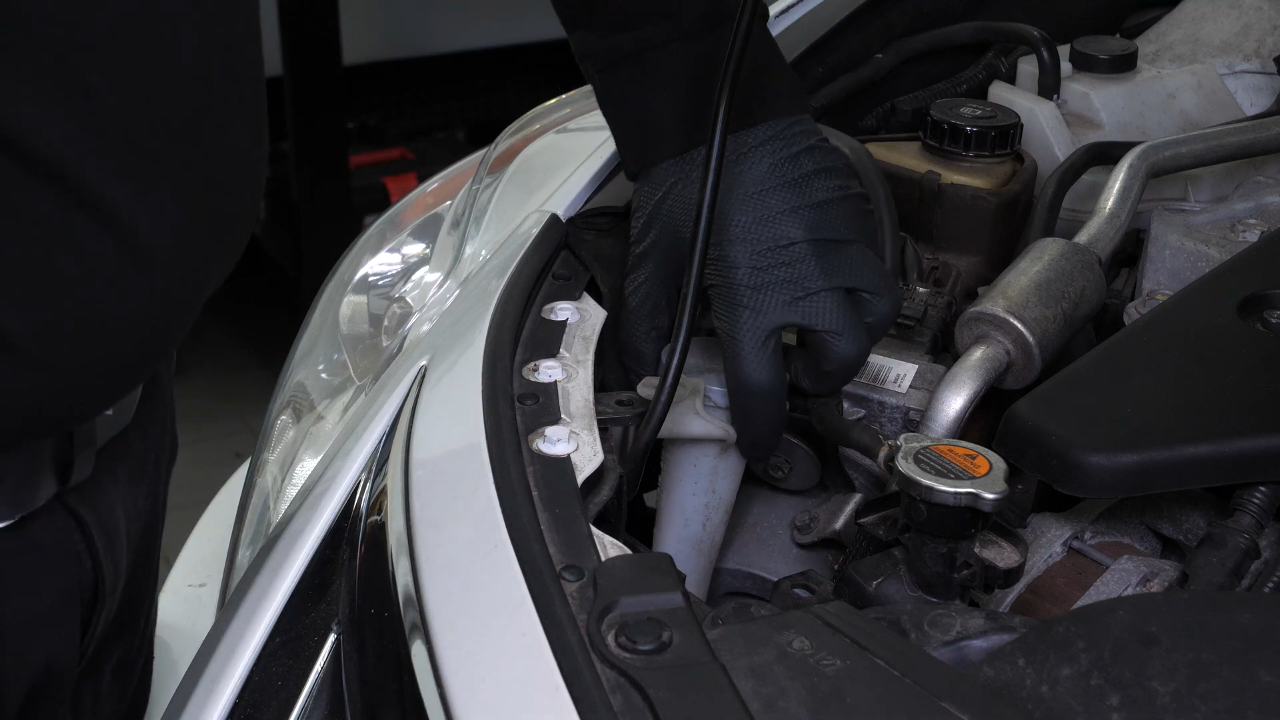

Protect the entrance to the washer pump fluid circuit by plugging it with paper towels to prevent impurities from polluting the circuit.
Chapter 3:
Tips
Step 1/1
To increase the lifespan of the bulbs, we would suggest never touching the glass with your fingers or cleaning them carefully with paper towels before putting them back.
Chapter 4:
Replace the high beam bulb
Step 1/11

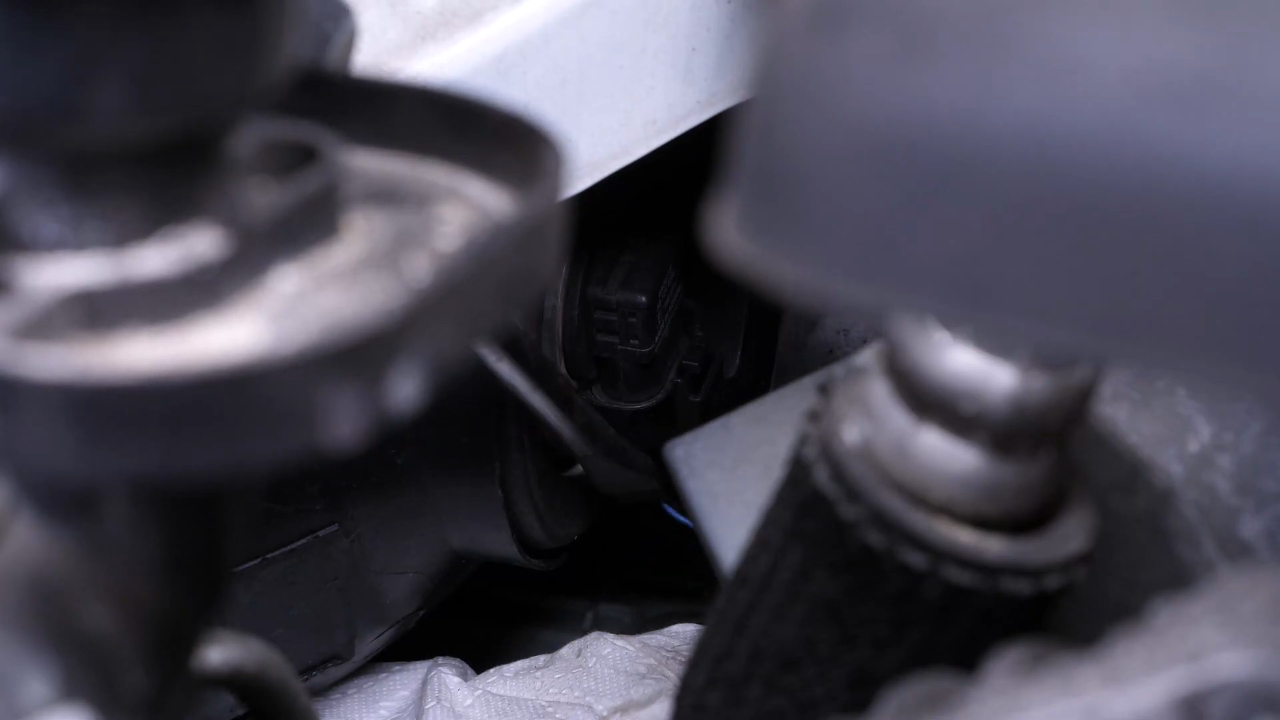

To change the H9 high beam lightbulb located next to the grille assembly, remove the lightbulb socket from the headlight housing, turn it counterclockwise, and pull it out.
Chapter 4:
Step 2/11
You can use a screwdriver to help you.
Chapter 4:
Step 3/11
To remove the socket, press down the retaining tab, then pull out the socket.
Chapter 4:
Step 4/11

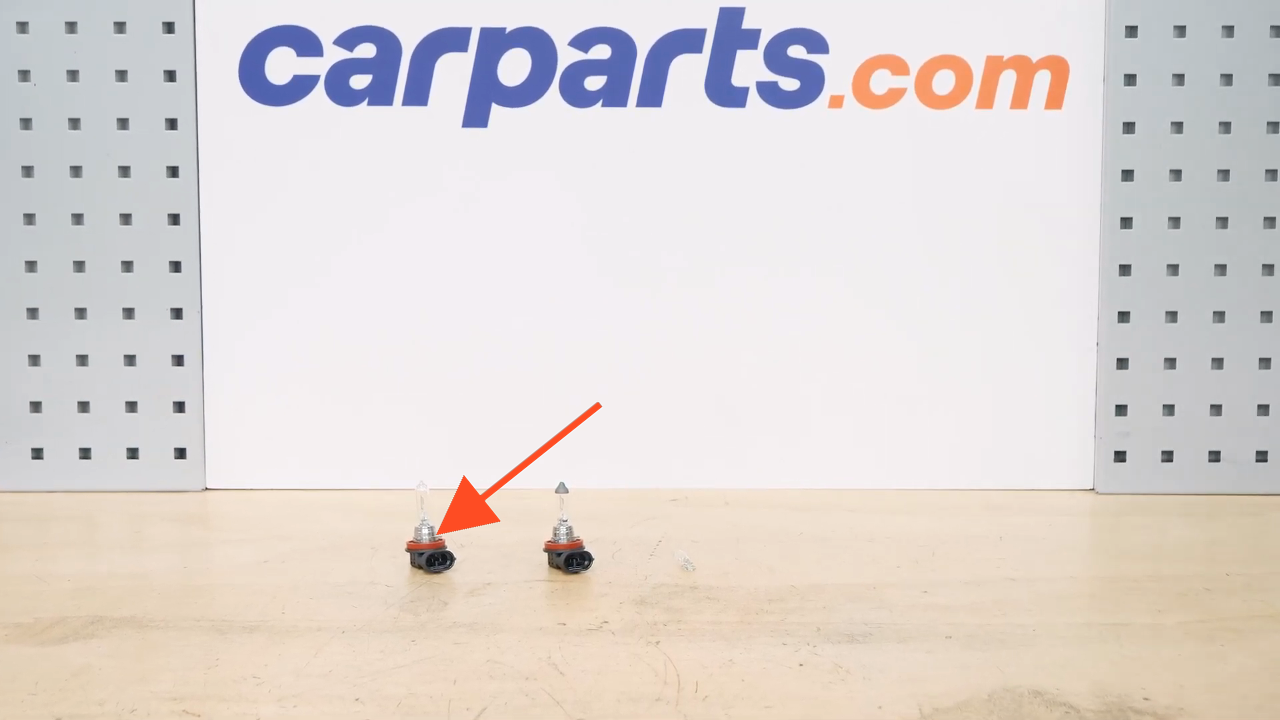

You can order the bulbs used in the video on Carparts.com via the link in the description.
Chapter 4:
Step 5/11
Take the new bulb.
Chapter 4:
Step 6/11

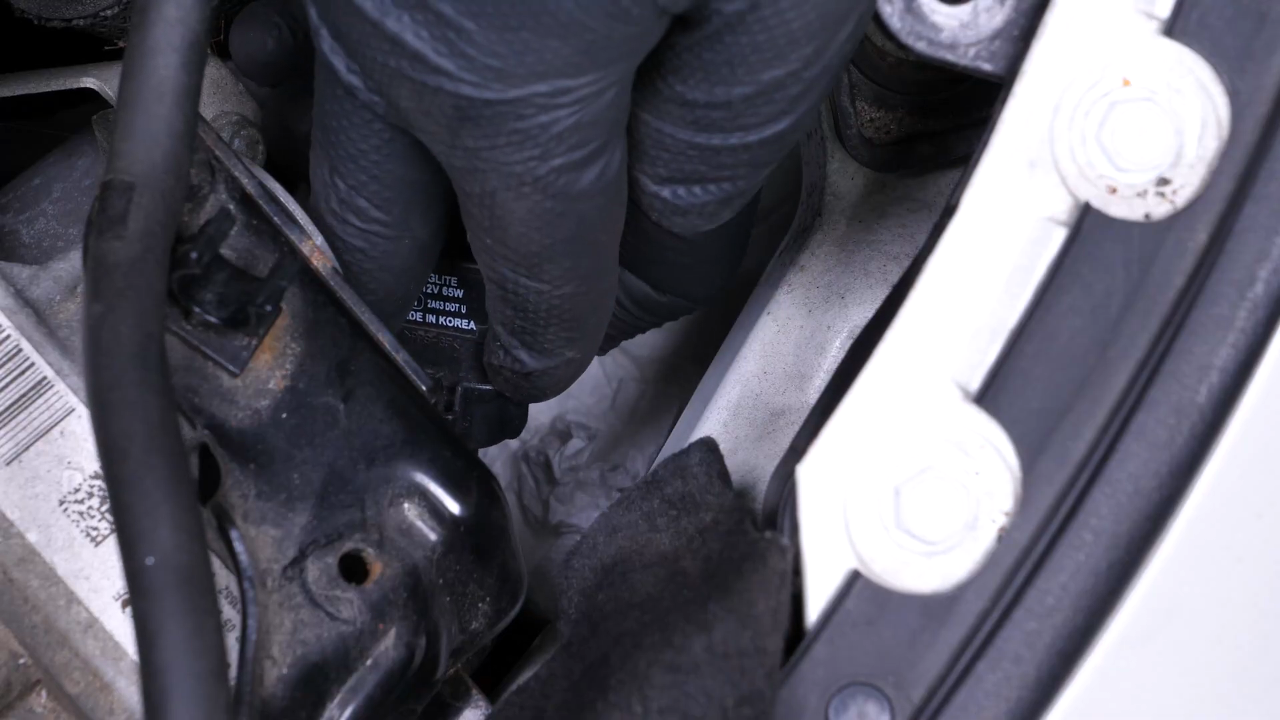

Put the new bulb into the socket, then insert the whole thing into the light, and turn it clockwise to lock it in place.
Chapter 4:
Step 7/11
Remove the paper towel.
Chapter 4:
Step 8/11

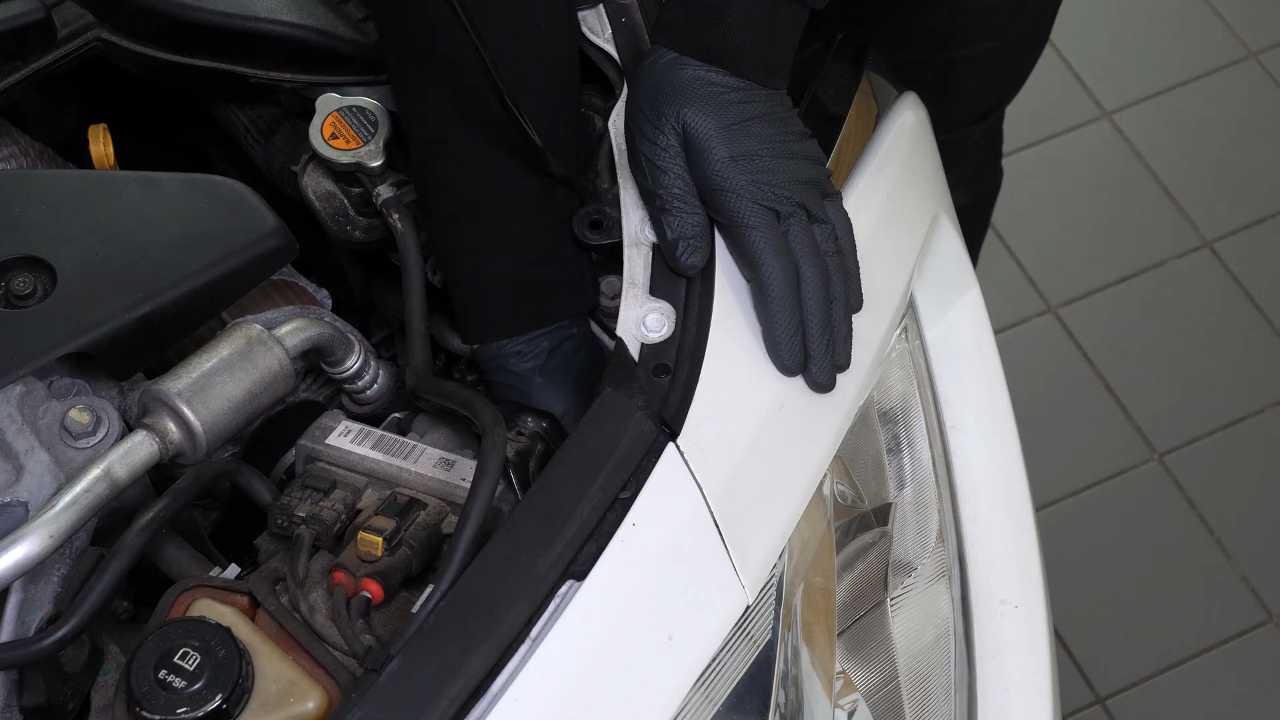

Put the neck filler back in place, making sure the lower pin of the seal is correctly positioned in its slot.
Chapter 4:
Step 9/11

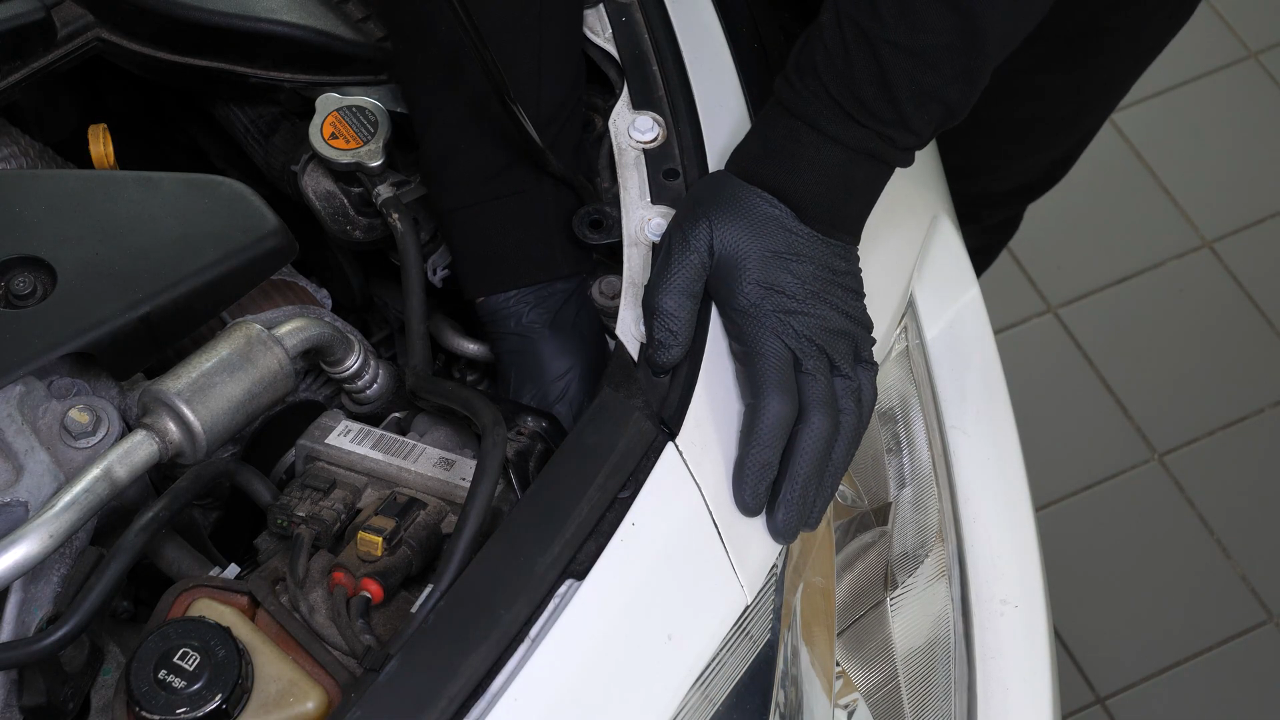

Then put the washer pump fluid reservoir retaining rivet back in place.
Chapter 4:
Step 10/11
Clip the textile cover back on.
Chapter 4:
Step 11/11
Clip the hose back on.
Chapter 5:
Replace the low beam bulb
Step 1/13
To replace the low beam lightbulb, you need to remove the wheel to gain full access.
Chapter 5:
Step 2/13
Now you need to remove the mudguard.
Chapter 5:
Step 3/13

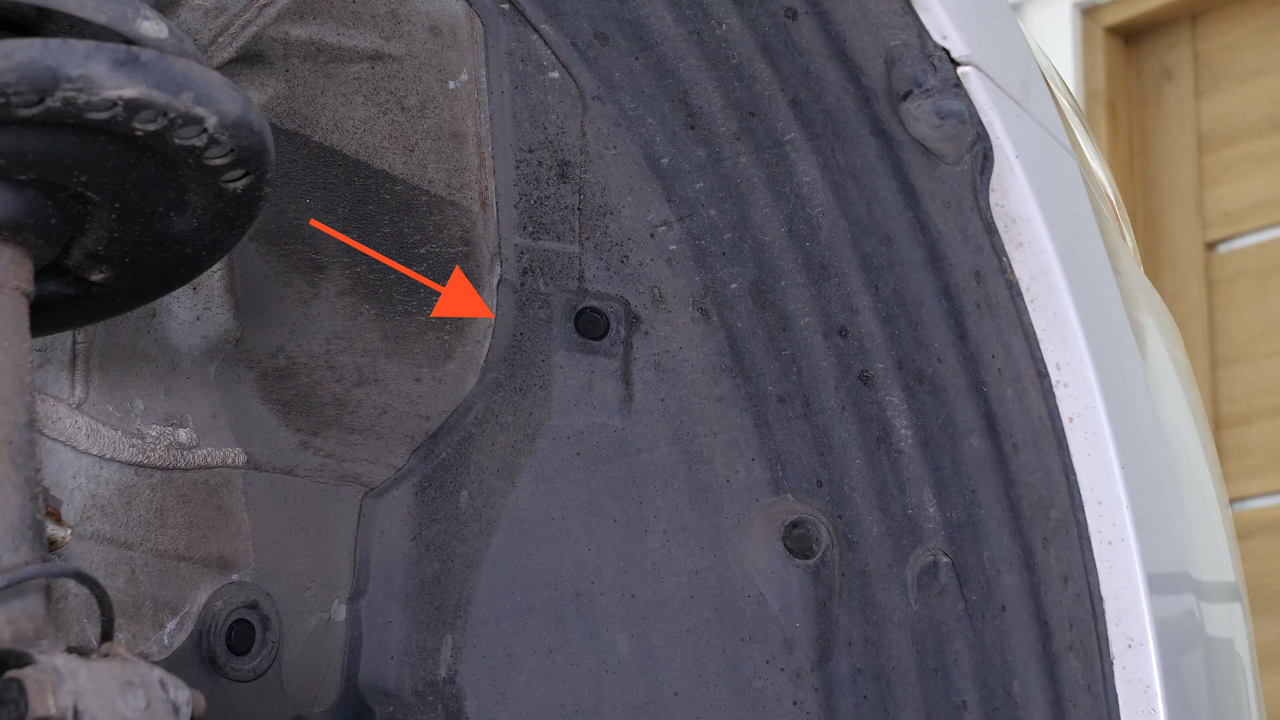

Using a fork, remove the three mudguard retaining rivets.
Chapter 5:
Step 4/13
Using a Phillips screwdriver, unscrew the other 2 rivets holding the mudguard in place.
Chapter 5:
Step 5/13
Remove them with a fork.
Chapter 5:
Step 6/13
Using the Phillips screwdriver, unscrew the screw holding the bumper cover to the mudguard.
Chapter 5:
Step 7/13
Using the Phillips screwdriver and the fork, unscrew the rivet holding the splash shield in place.
Chapter 5:
Step 8/13
You can now pull back the mudguard.
Chapter 5:
Step 9/13
Disconnect the connector by pressing on the plastic tab and pulling it.
Chapter 5:
Step 10/13
To change the H11 low beam lightbulb located by the car’s chassis, remove the lightbulb from the headlight housing, turn it counterclockwise, and pull it out.
Chapter 5:
Step 11/13
Take the new bulb.
Chapter 5:
Step 12/13
Put the bulb into the headlight housing and turn it clockwise to lock it in place.
Chapter 5:
Step 13/13
Plug the electrical connector back in.
Chapter 6:
Replace turn signal bulb
Step 1/4
The turn signal light bulb is located completely outside the light next to the fender.
Chapter 6:
Step 2/4
Take the bulb socket and rotate it counterclockwise. Then, remove it.
Chapter 6:
Step 3/4

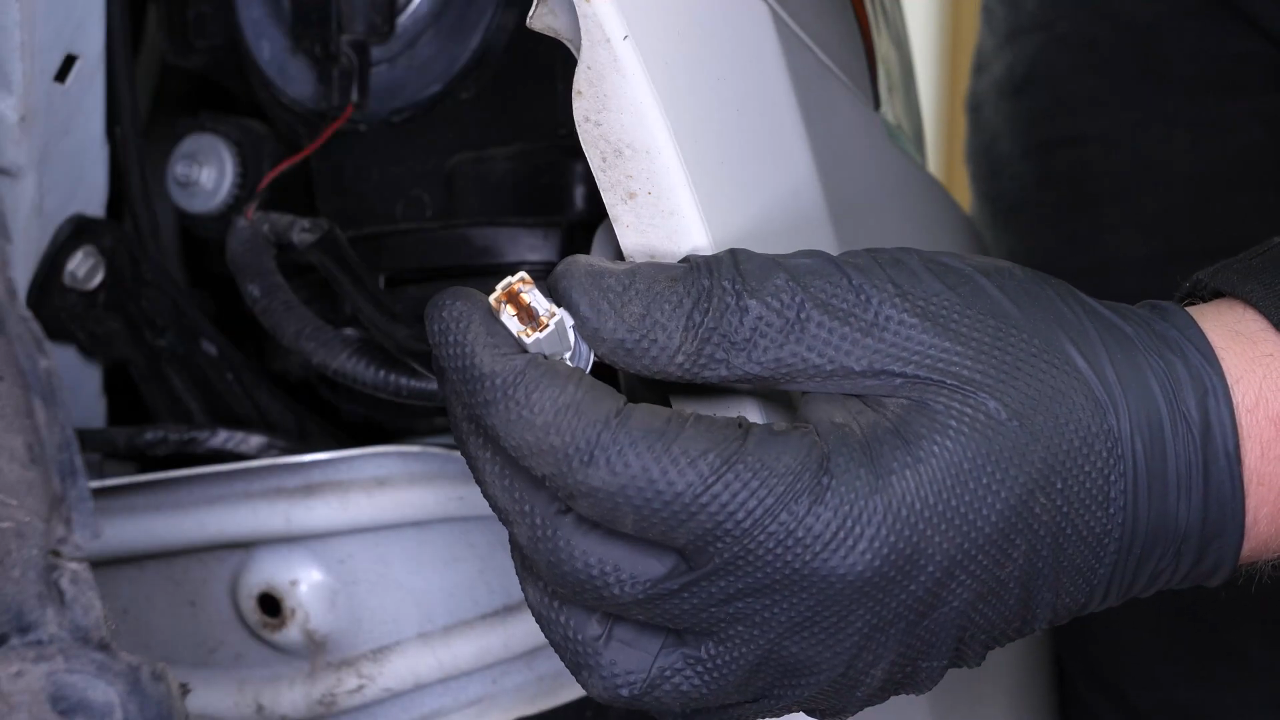

To remove the turn signal light bulb, simply pull on it.
Chapter 6:
Step 4/4
Put the new bulb into the socket, then insert the whole thing into the light, and turn it clockwise to lock it in place.
Chapter 7:
Finalise the reassembly
Step 1/7

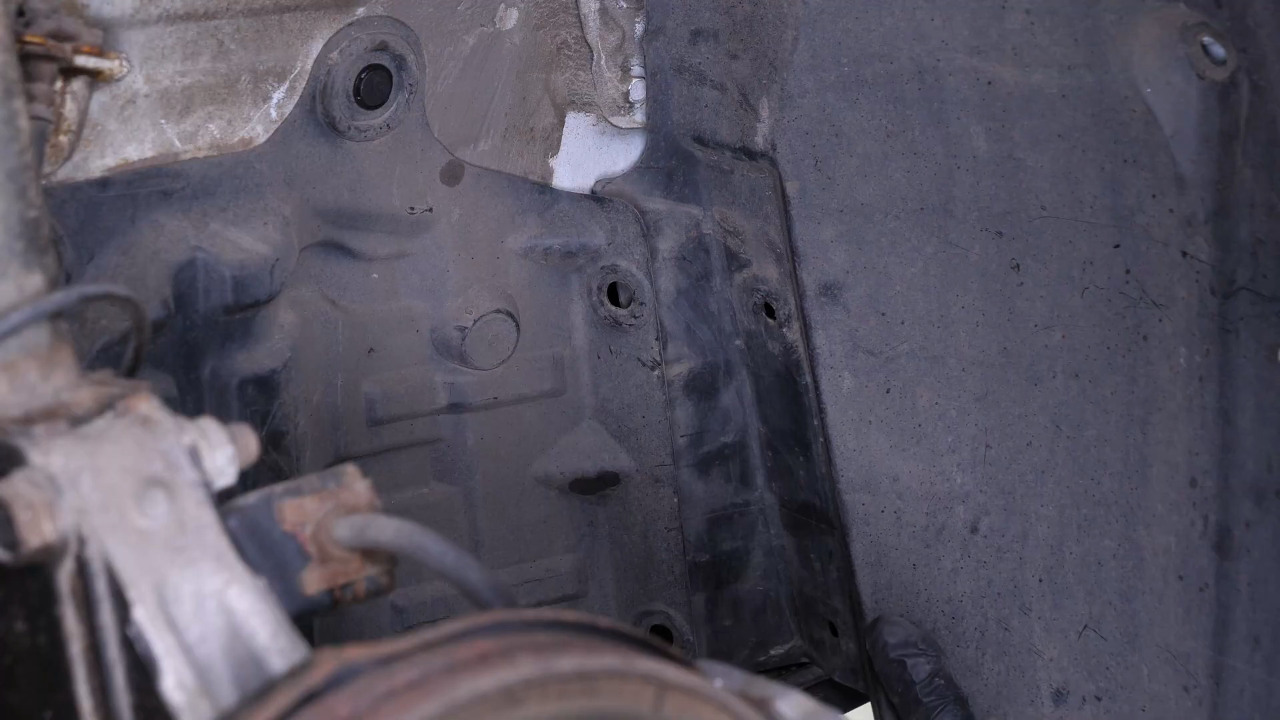

Put the mudguard back in place.
Chapter 7:
Step 2/7
Then put the rivets back in place.
Chapter 7:
Step 3/7
Run the splash shield through the bumper cover.
Chapter 7:
Step 4/7
Then, retighten the retaining screw.
Chapter 7:
Step 5/7
Then, you will be able to put the wheel back on your vehicle.
Chapter 7:
Step 6/7
Put the car back on the ground and block the wheel properly.
Chapter 7:
Step 7/7
Operation complete.
