How to replace the rear ABS sensor 2013 – 2018 Nissan Altima

Chapter 1:

Take off the wheels

Step 1/2

Loosen the stud bolts on the rear wheels. Lift the rear of your vehicle.

Chapter 1:

Step 2/2

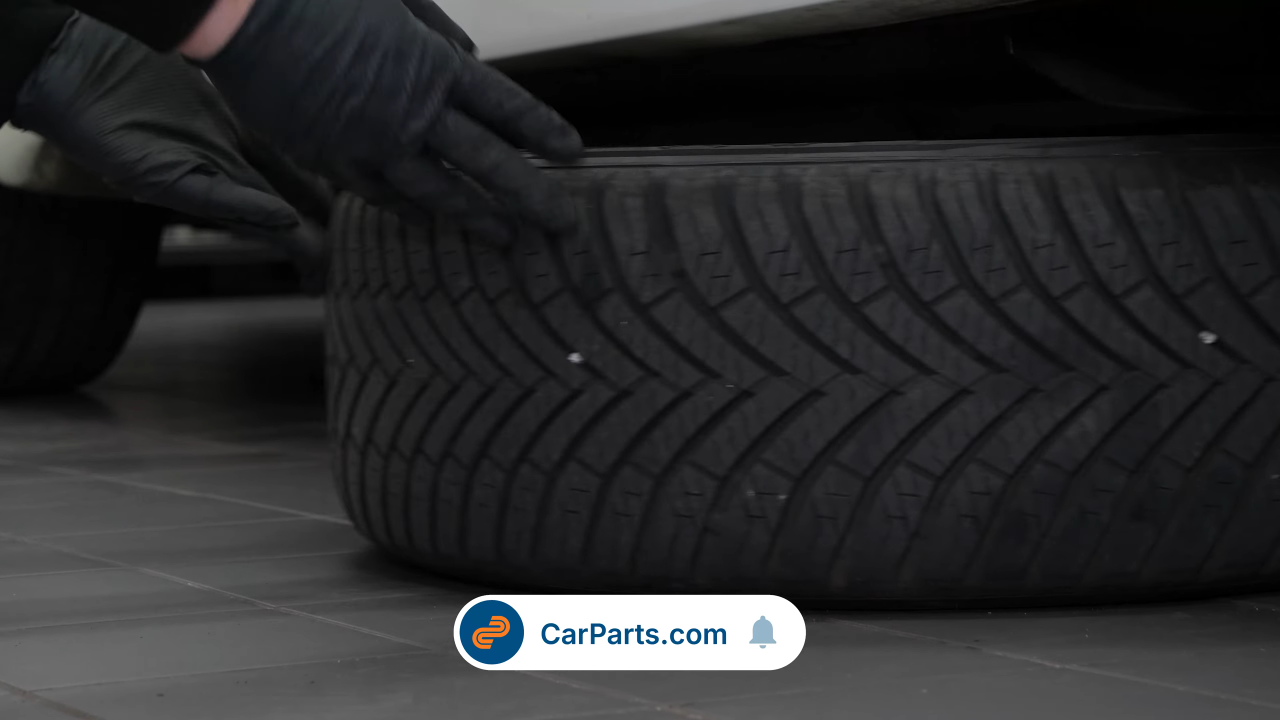

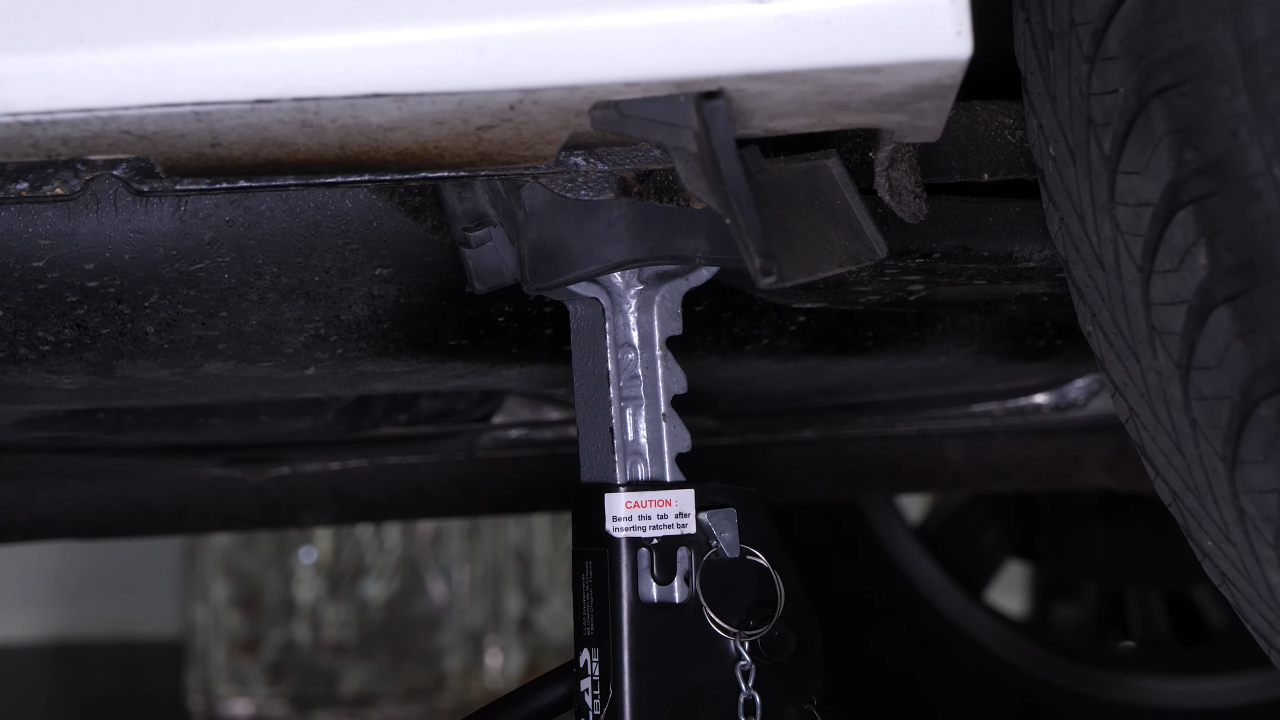

Place the vehicle on the jack stands. Don’t forget to put the wheels under the vehicle!

Chapter 2:

Remove the brake system

Step 1/1

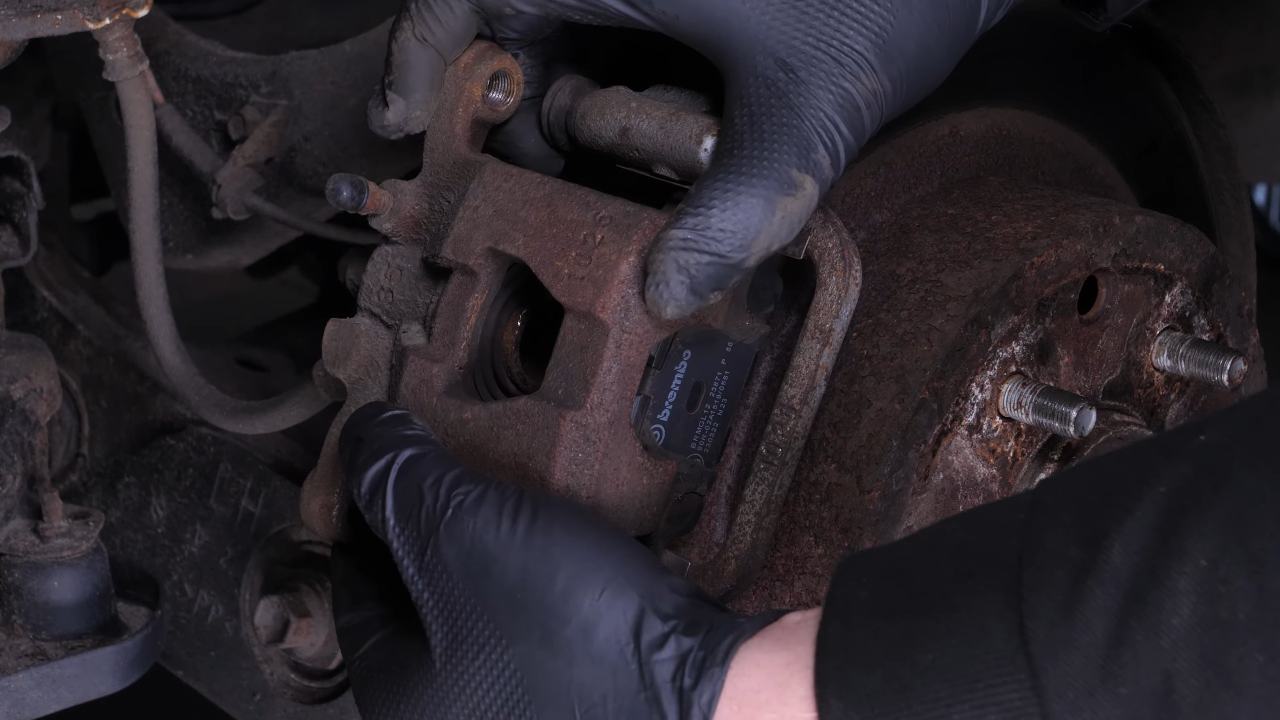

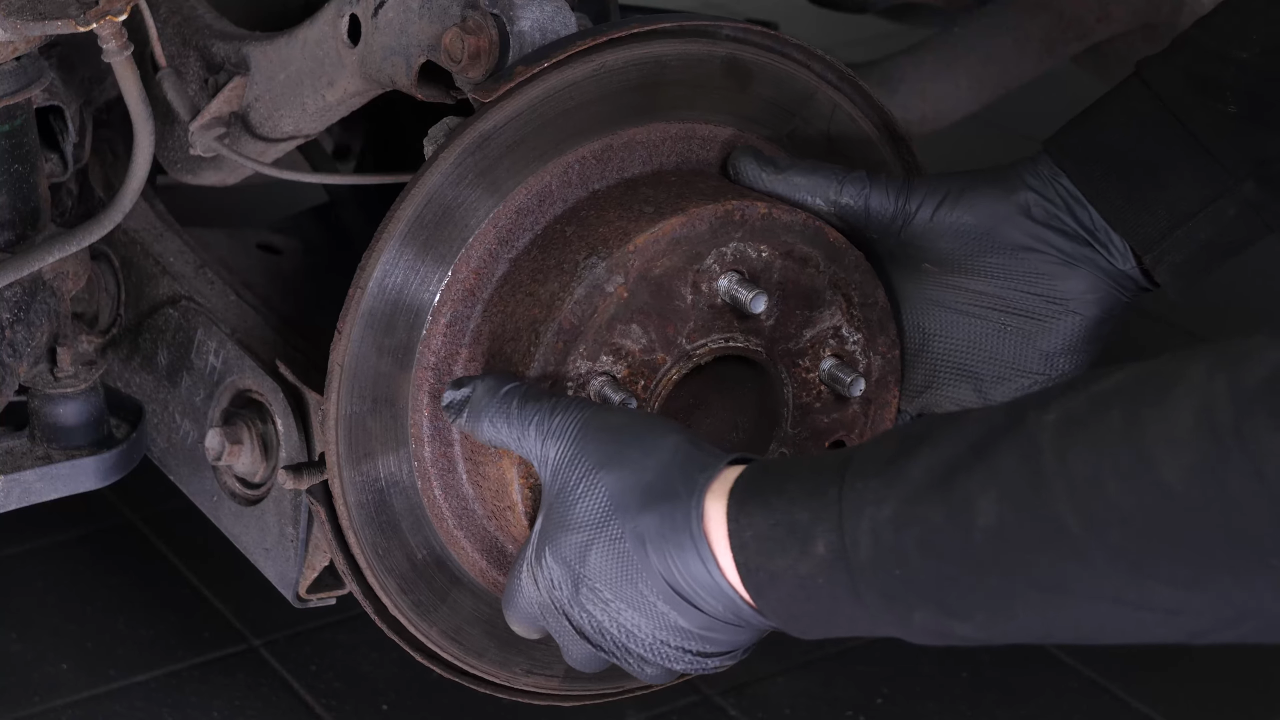

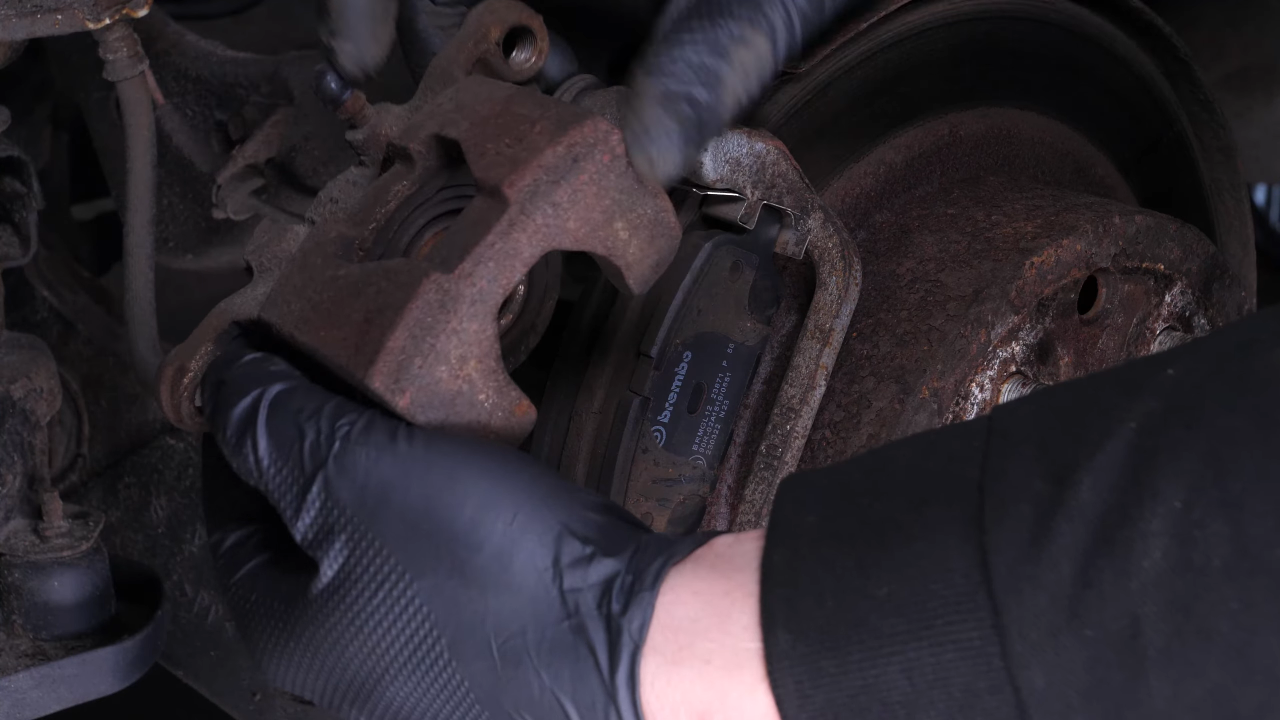

Now you need to remove the brake system.

Chapter 3:

Remove the ABS sensor

Step 1/3

The components to be removed are very often seized up, so don’t hesitate to brush and to use penetrating oil to make removal easier.

Chapter 3:

Step 2/3

Using a ratchet, an extender and an 10 mm socket, unscrew the ABS sensor’s retaining bolt.

Chapter 3:

Step 3/3

Using a flathead screwdriver, pry it out of its slot.

Chapter 4:

Informations

Step 1/1

Unfortunately on this vehicle, the sensor is very often seized up and impossible to remove. If, like us, you broke it during disassembly, you’ll need to dismantle the wheel hub to cleanly remove the ABS sensor.

Chapter 5:

Remove the cable from its housings

Step 1/3

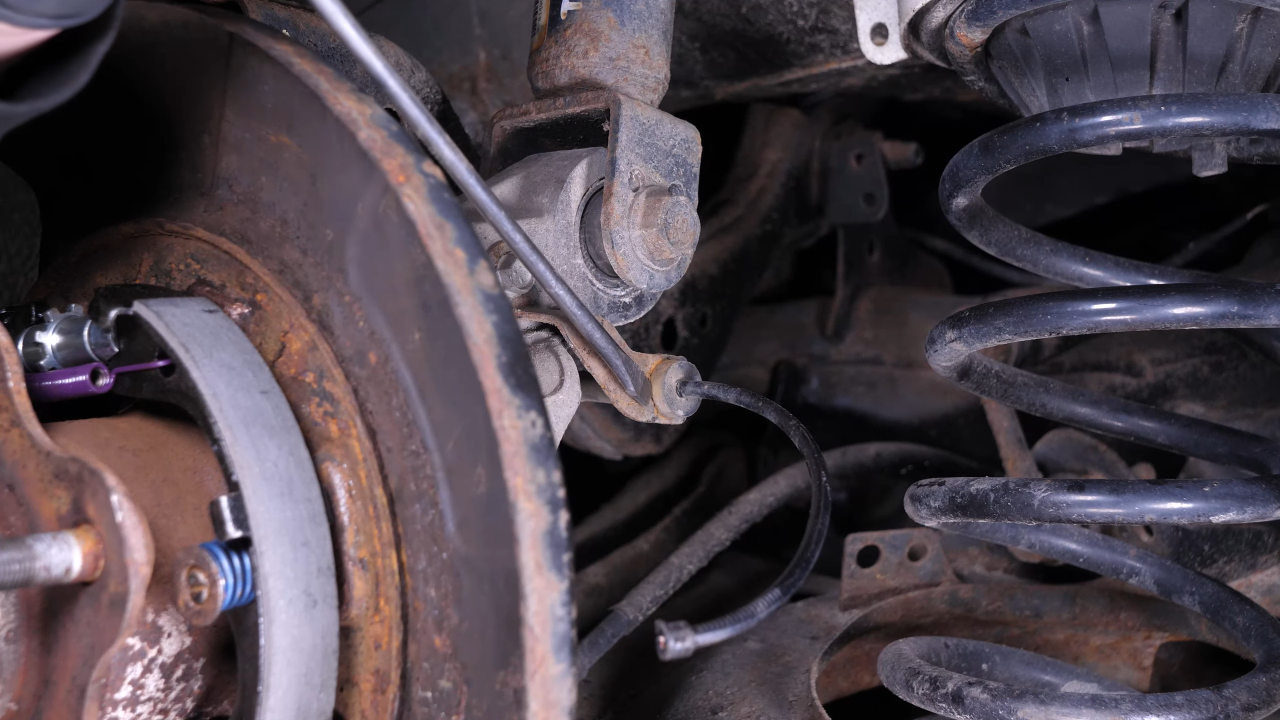

Using a flat head screwdriver, unclip the entire ABS sensor cable, starting from the wheel knuckle.

Chapter 5:

Step 2/3

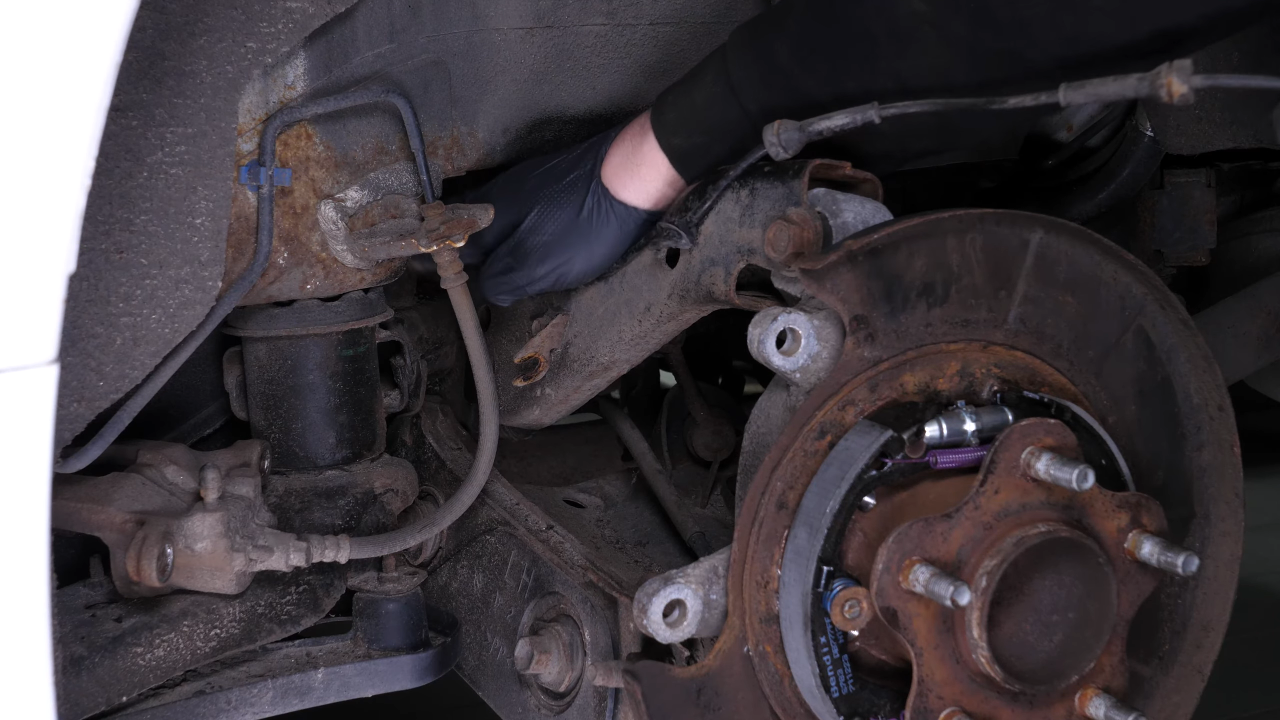

Unclip the last retaining clip. If you break it during removal, remove what remains using pliers.

Chapter 5:

Step 3/3

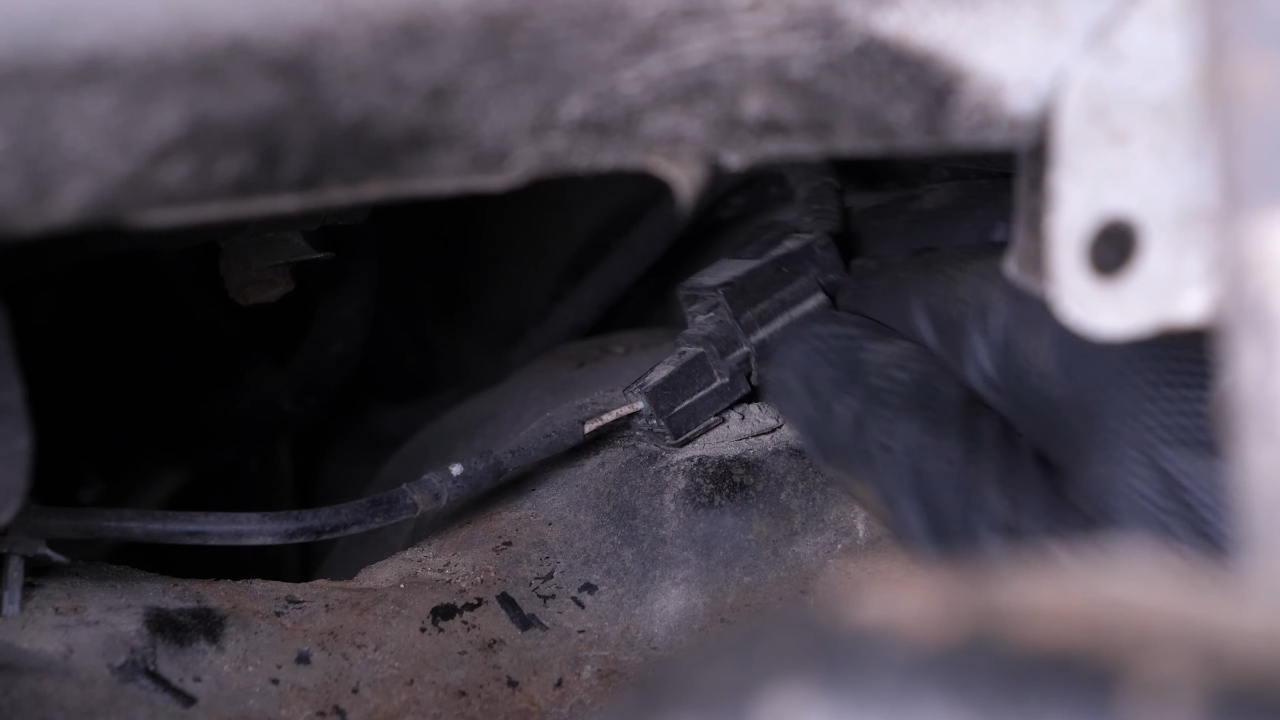

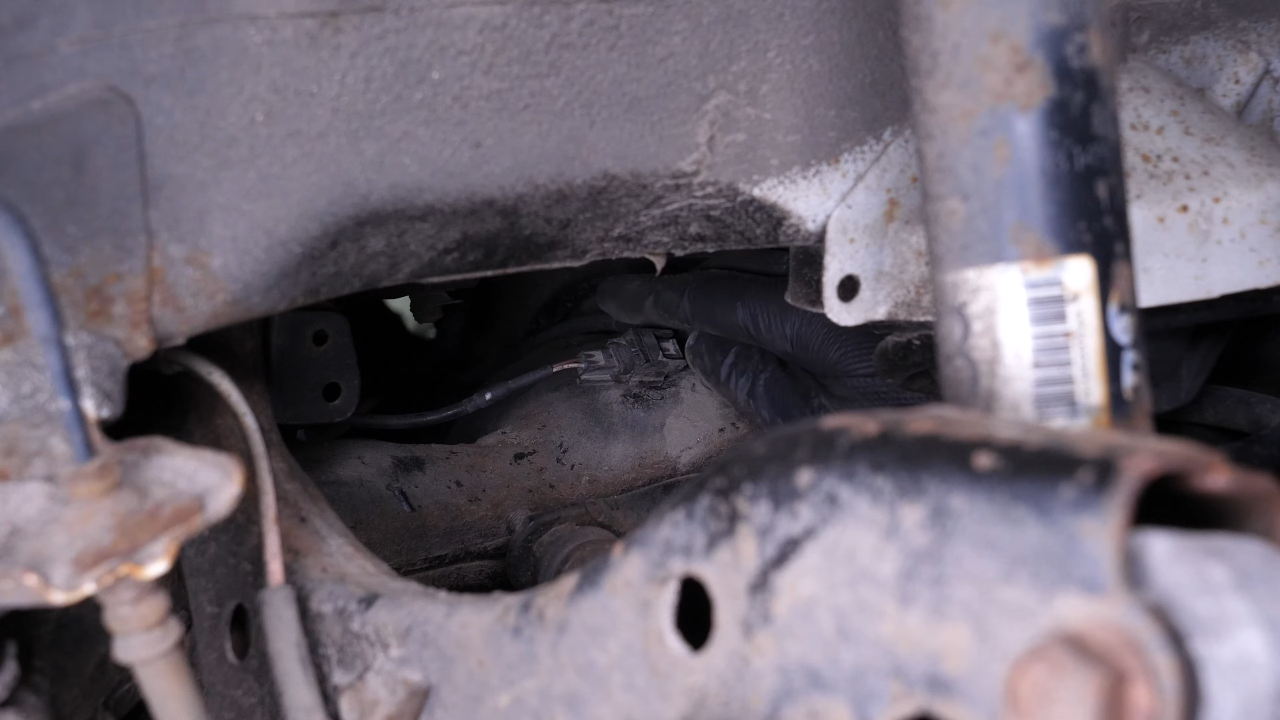

Disconnect the electrical connector.

Chapter 6:

Remove various components

Step 1/4

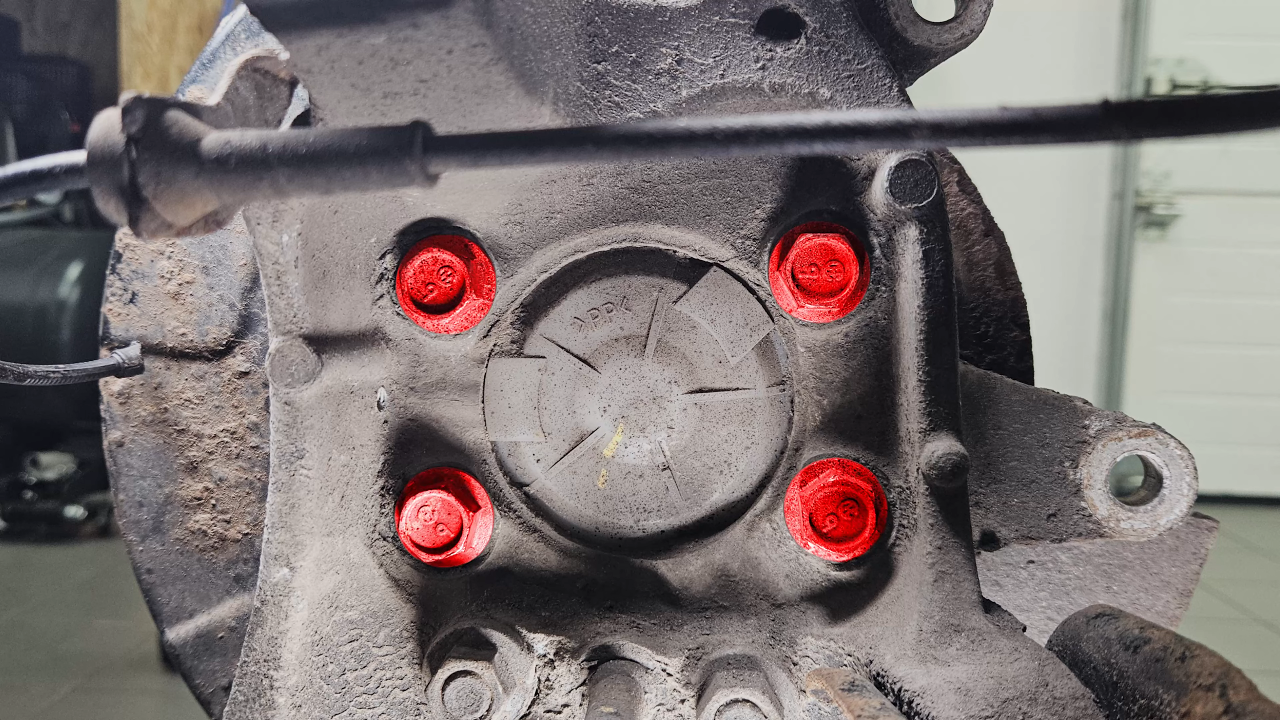

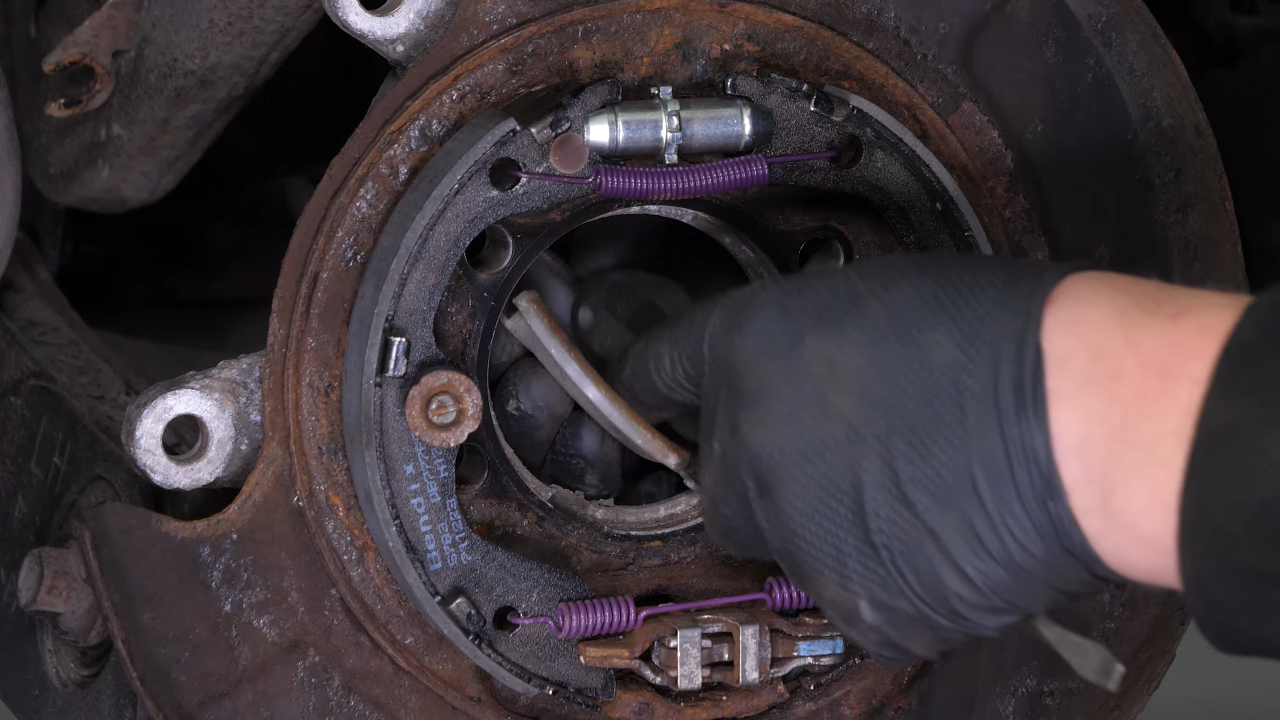

Now you need to remove the wheel hub.

Chapter 6:

Step 2/4

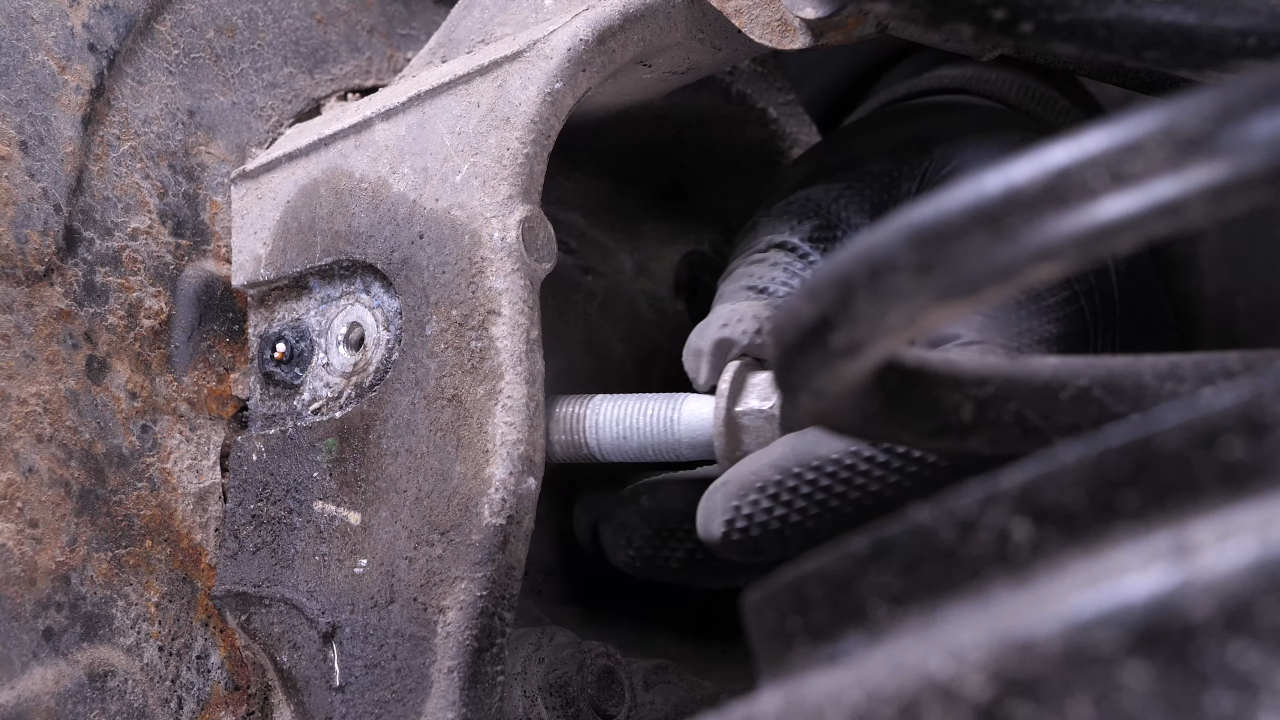

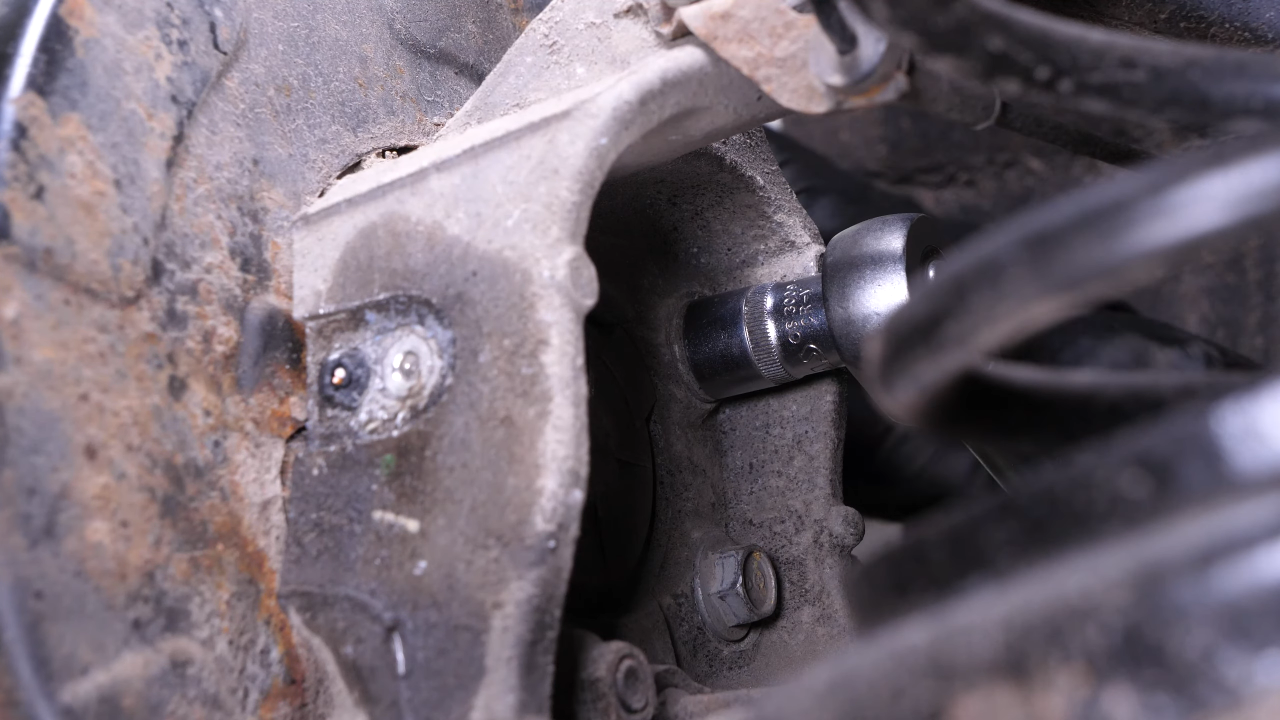

Using a ratchet and a 17 mm socket, loosen the 4 wheel hub retaining bolts. Then, remove them.

Chapter 6:

Step 3/4

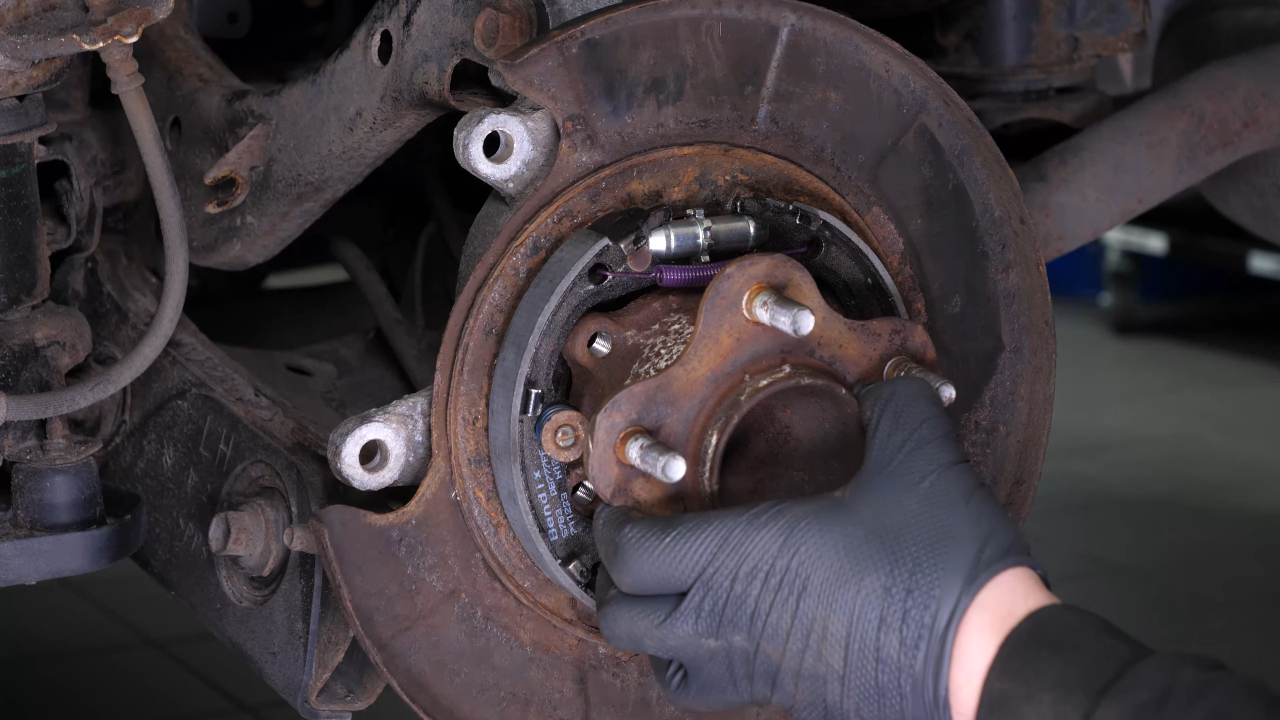

Remove the wheel hub.

Chapter 6:

Step 4/4

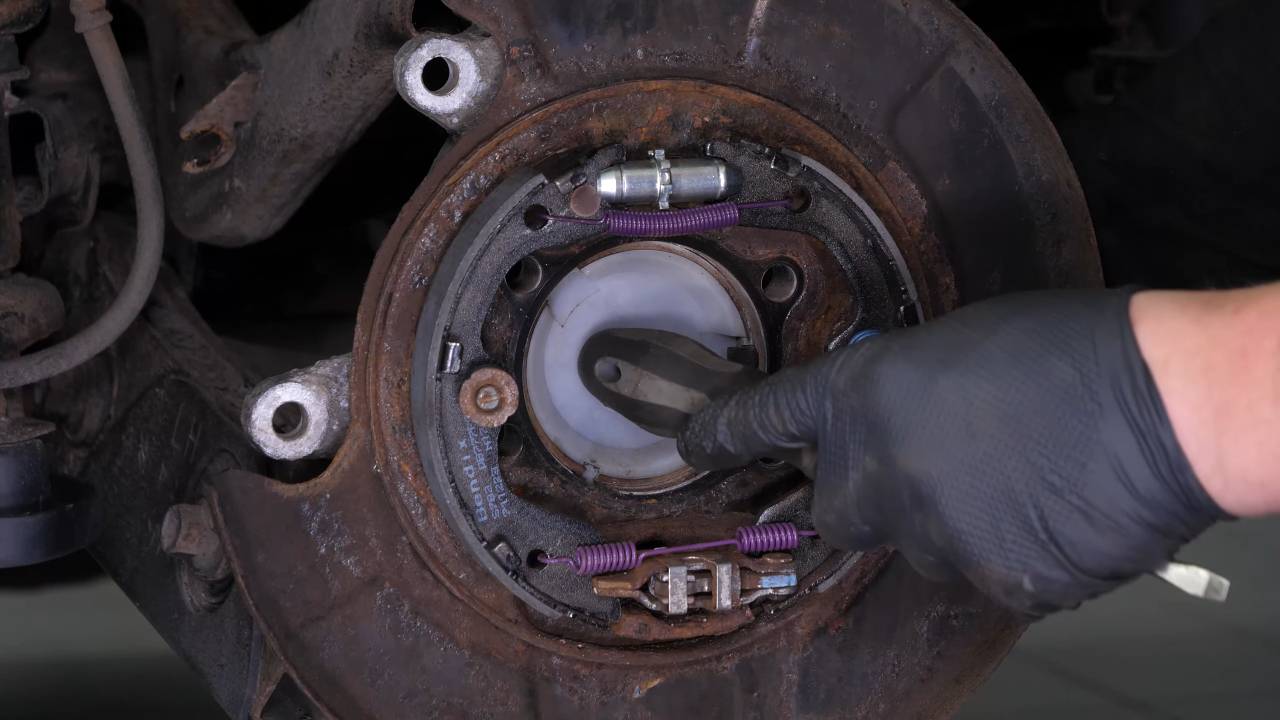

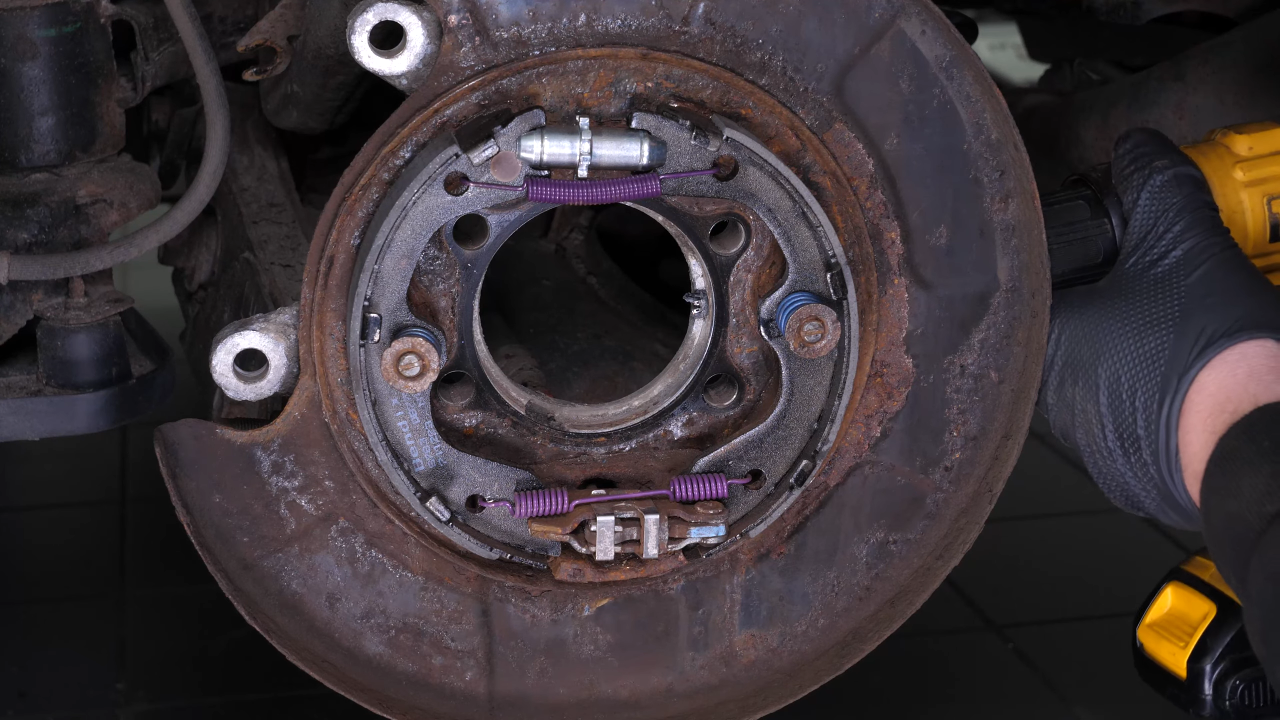

Remove the plastic cover.

Chapter 7:

Remove the ABS sensor

Step 1/4

Using a flat head screwdriver and a hammer, tap the ABS sensor to push it outwards.

Chapter 7:

Step 2/4

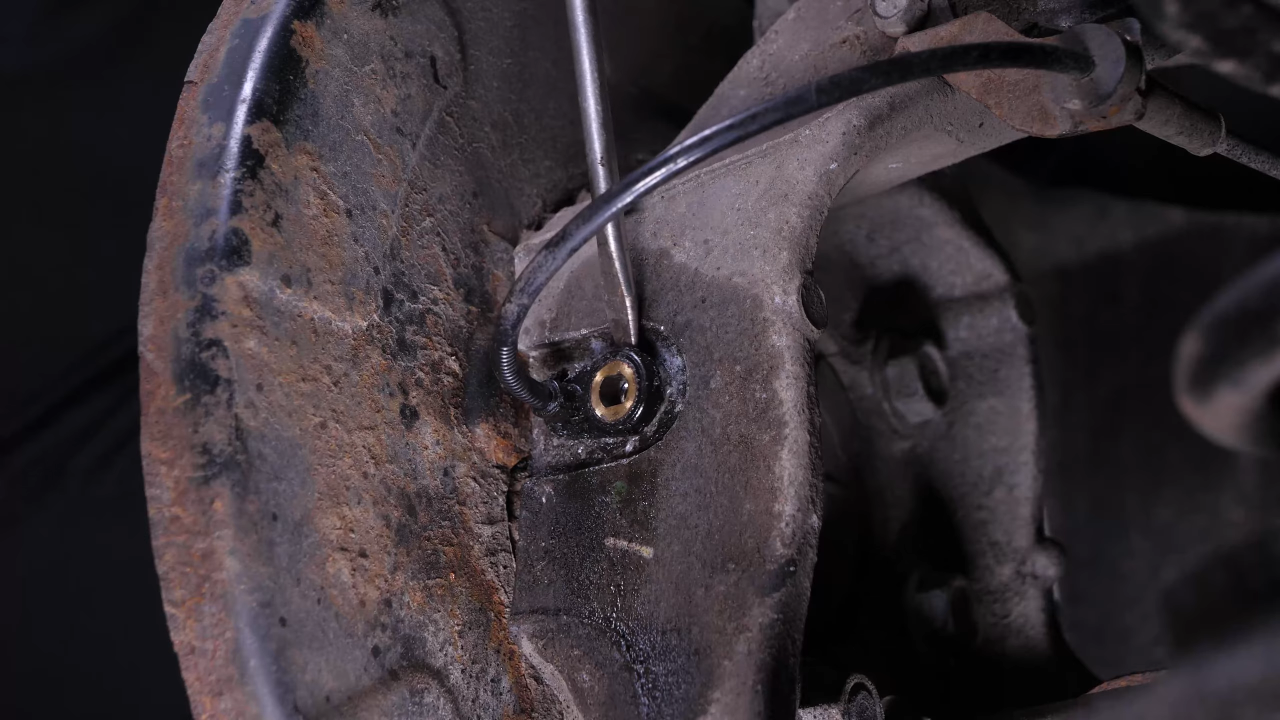

You can also use a drill to remove all remnants of the old sensor.

Chapter 7:

Step 3/4

Using a cylindrical brush, clean the sensor area to make it easier to install the new sensor once the parts have been reassembled.

Chapter 7:

Step 4/4

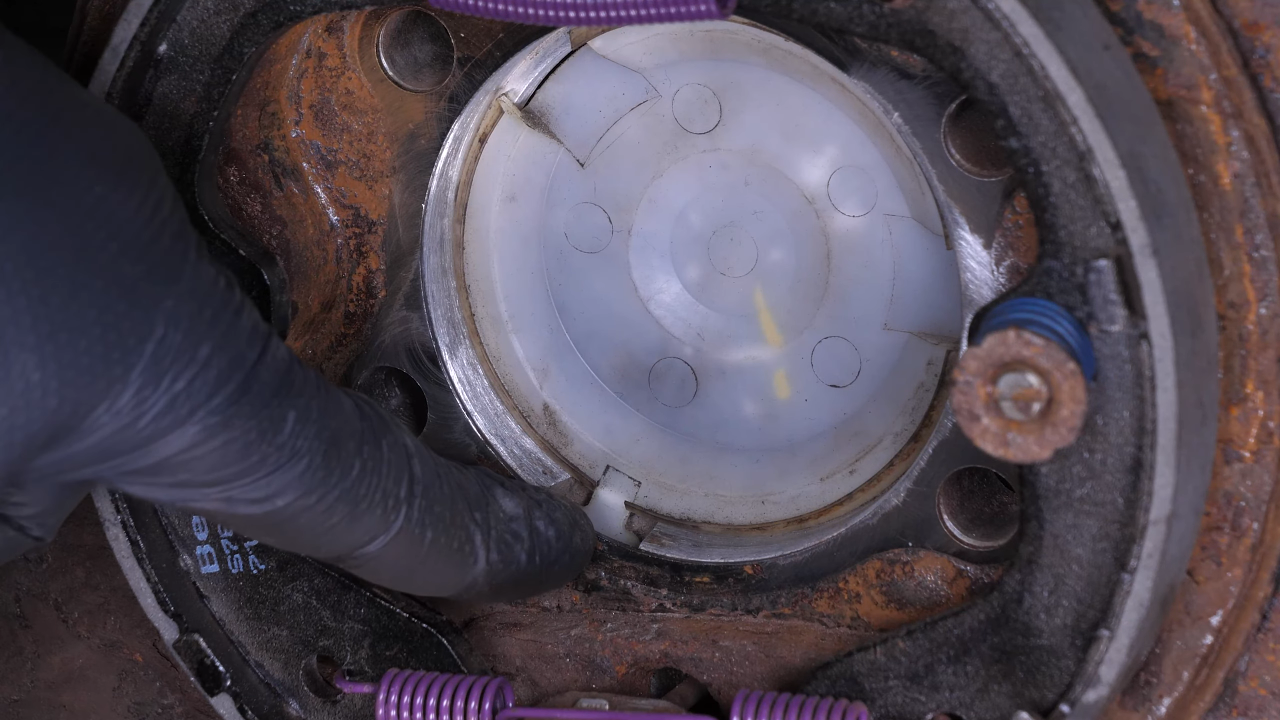

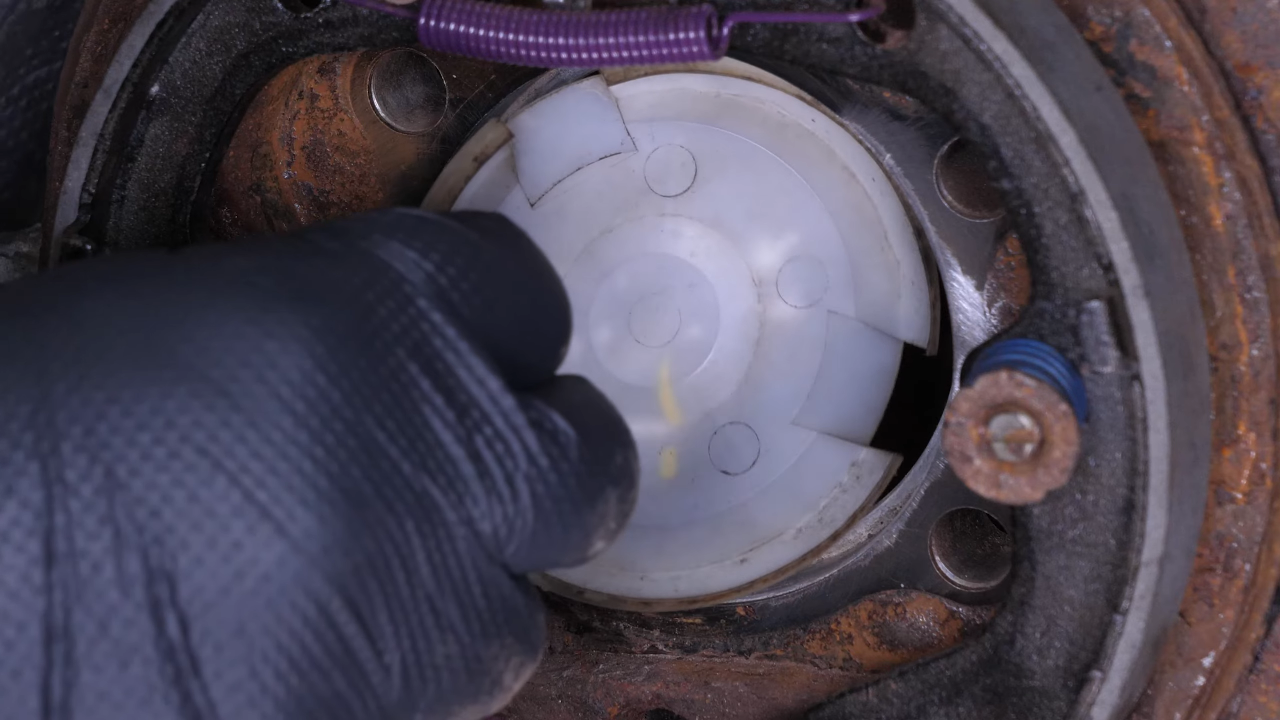

Replace the plastic cover.

Chapter 8:

Set up

Step 1/2

Take the new sensor. Before installing the ABS sensor, we recommend that you thoroughly clean its location using a wire brush.

Chapter 8:

Step 2/2

Apply grease to the clamp and sensor to prevent corrosion in the long term.

Chapter 9:

Install the ABS sensor

Step 1/3

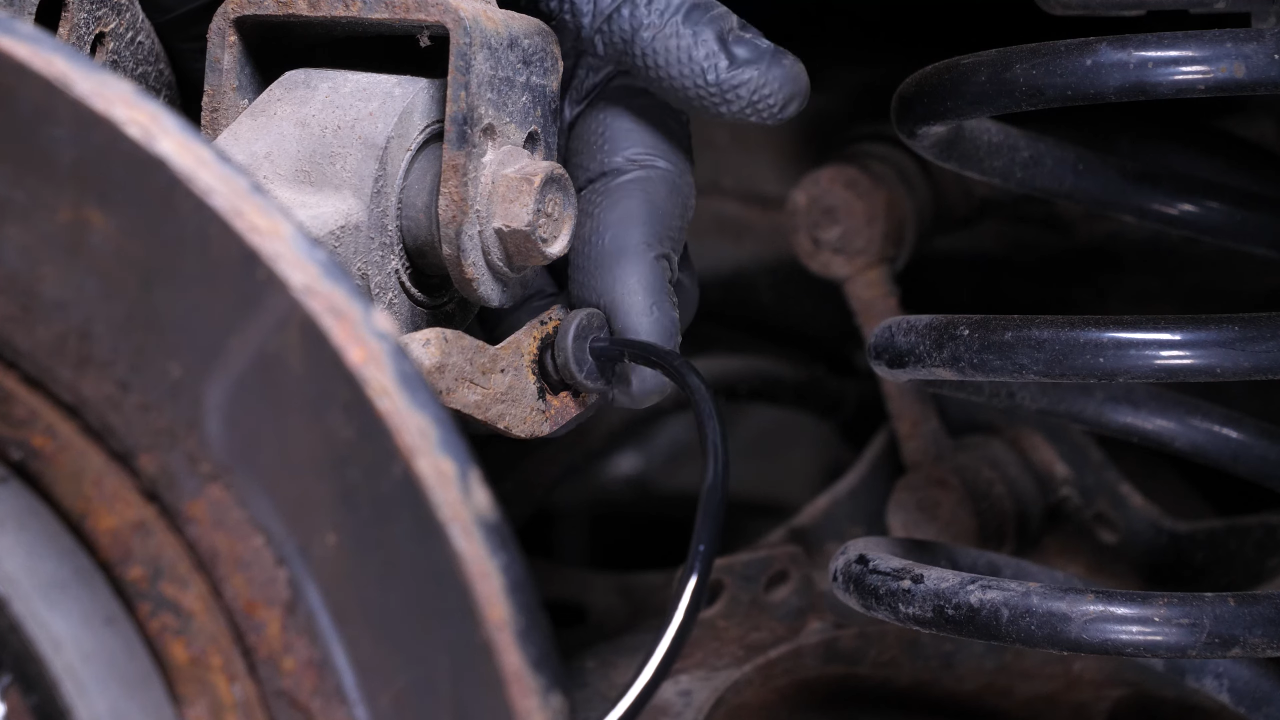

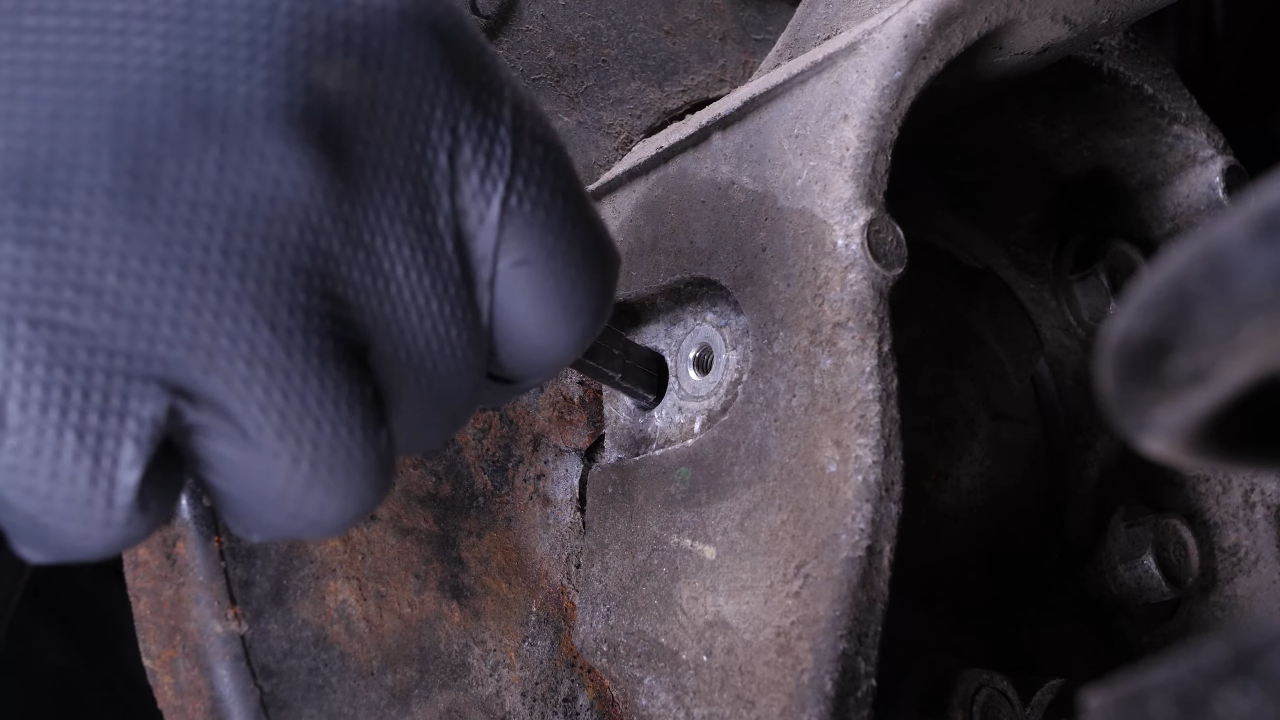

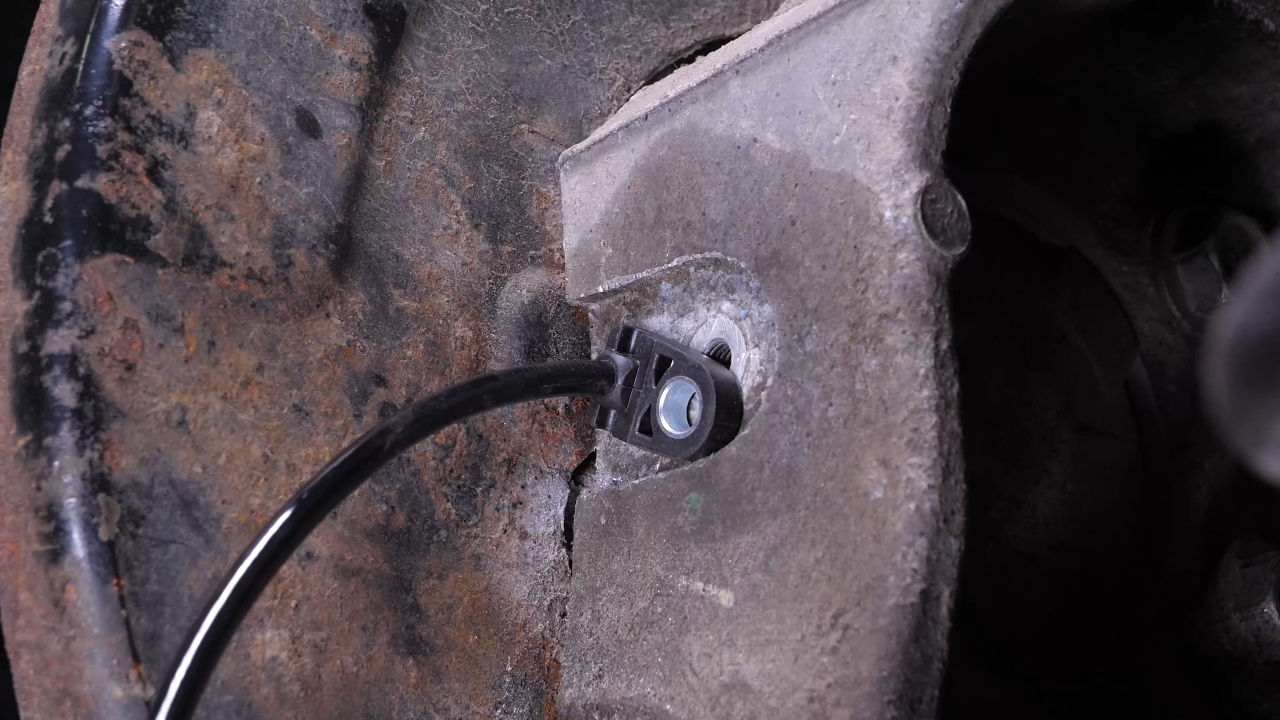

Insert the sensor into its housing. Then, screw it back on, initially by hand.

Chapter 9:

Step 2/3

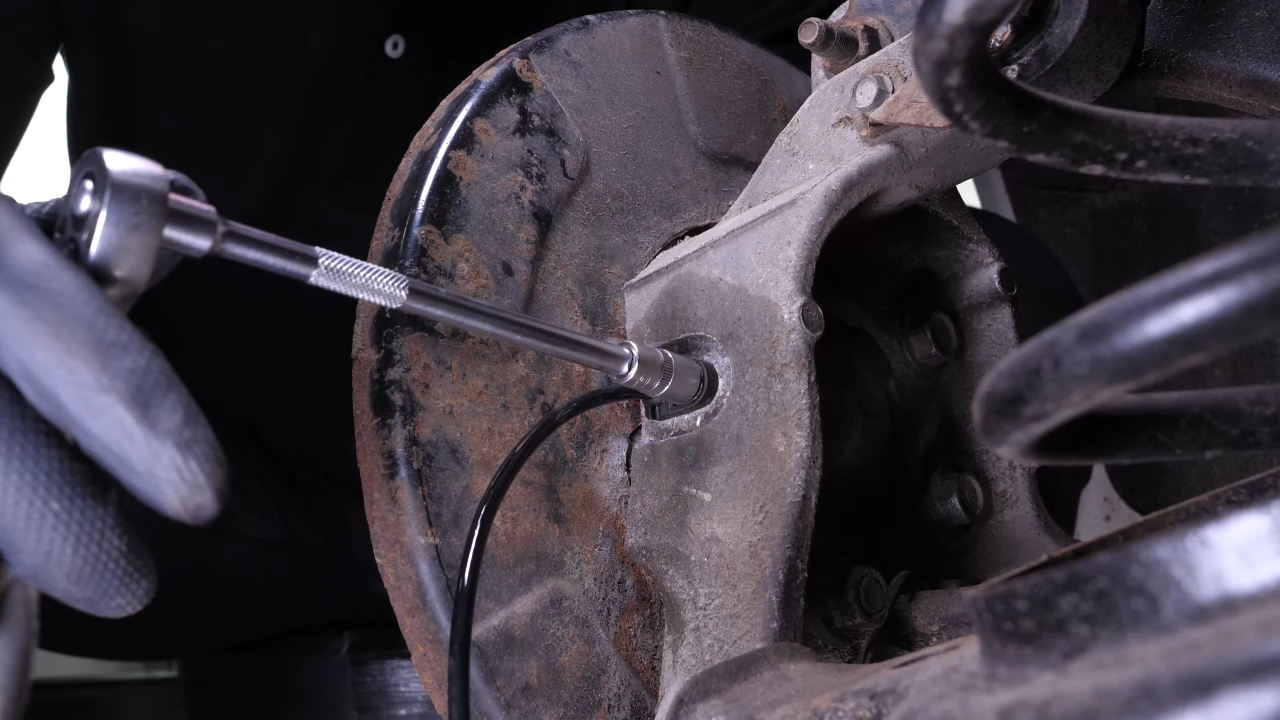

Screw it in until it makes contact using the ratchet.

Chapter 9:

Step 3/3

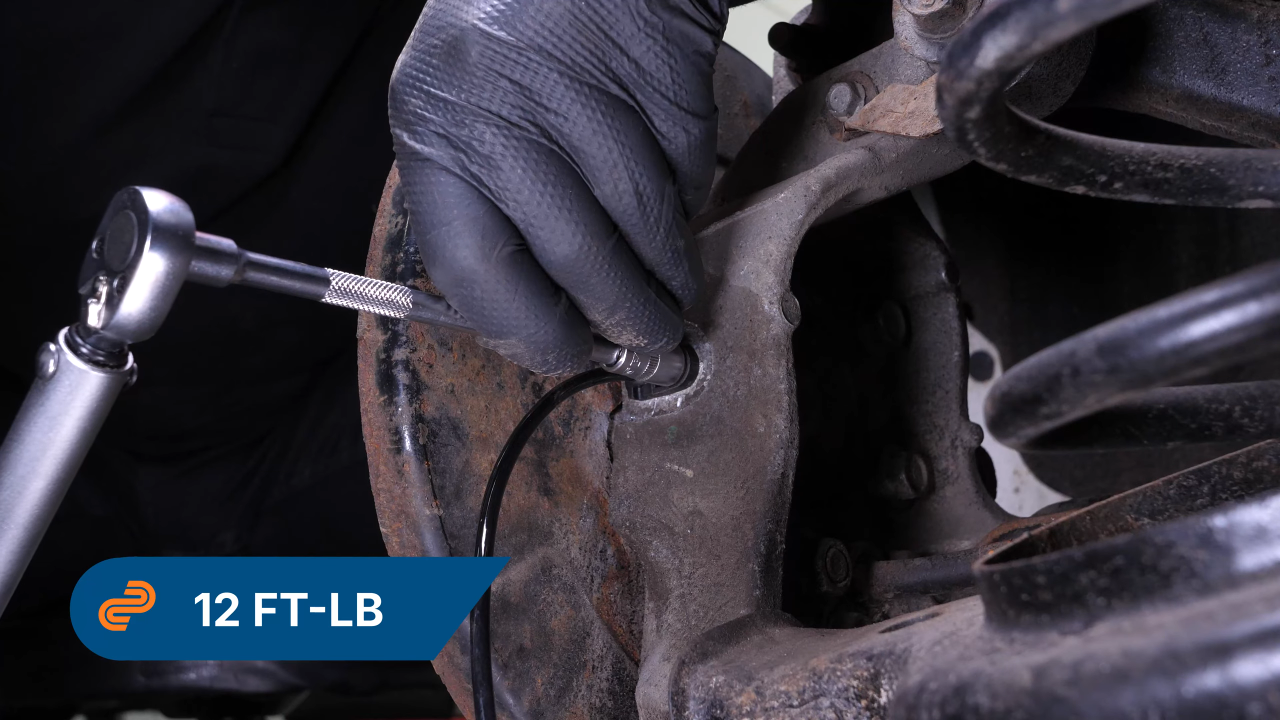

Finish tightening using a torque wrench.

Chapter 10:

Put the components back in place

Step 1/3

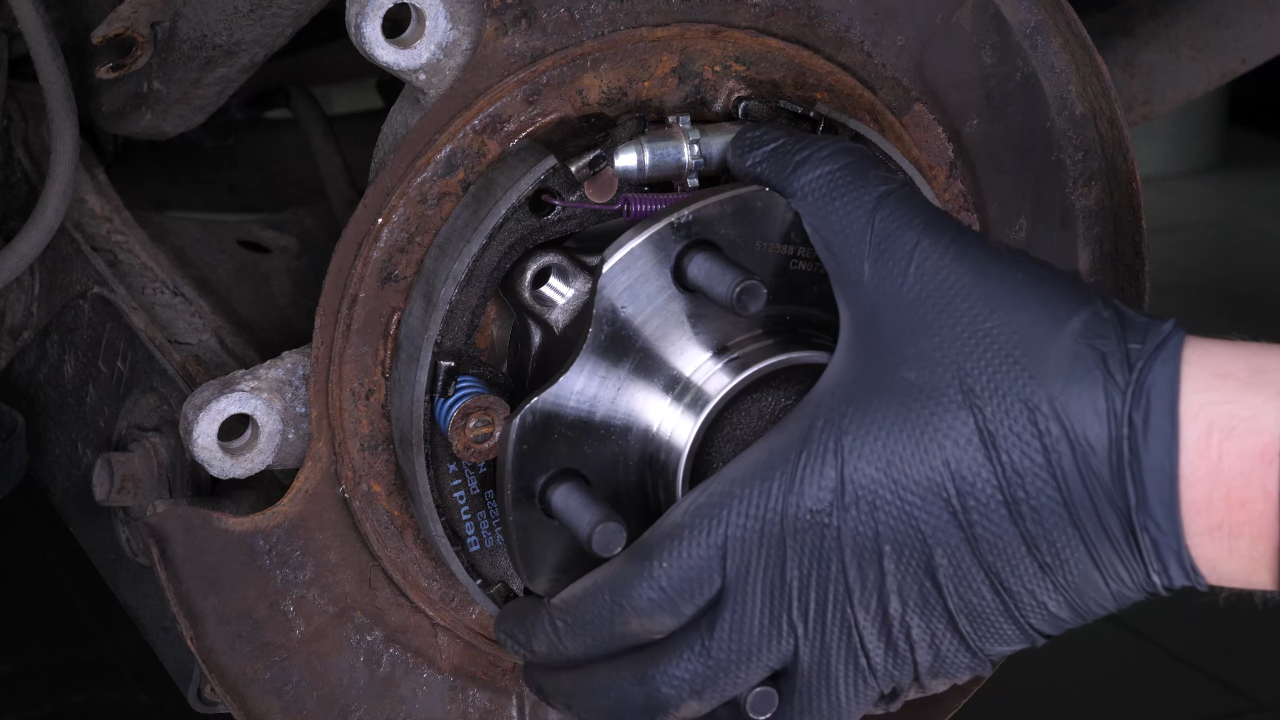

Put the wheel hub back in place. Then tighten the bolts by hand.

Chapter 10:

Step 2/3

Screw them back in with a ratchet until they make contact.

Chapter 10:

Step 3/3

Finalize the tightening crosswise, and with a torque wrench.

Chapter 11:

Reclip the cable in its housings

Step 1/2

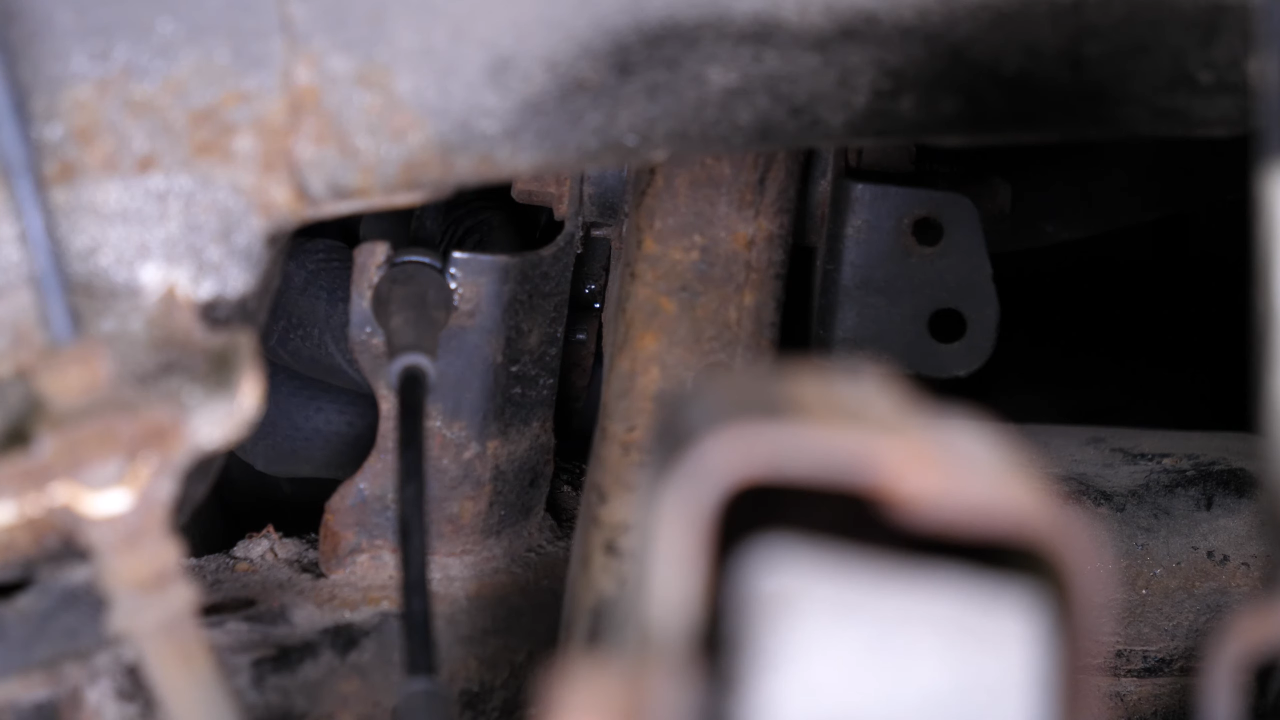

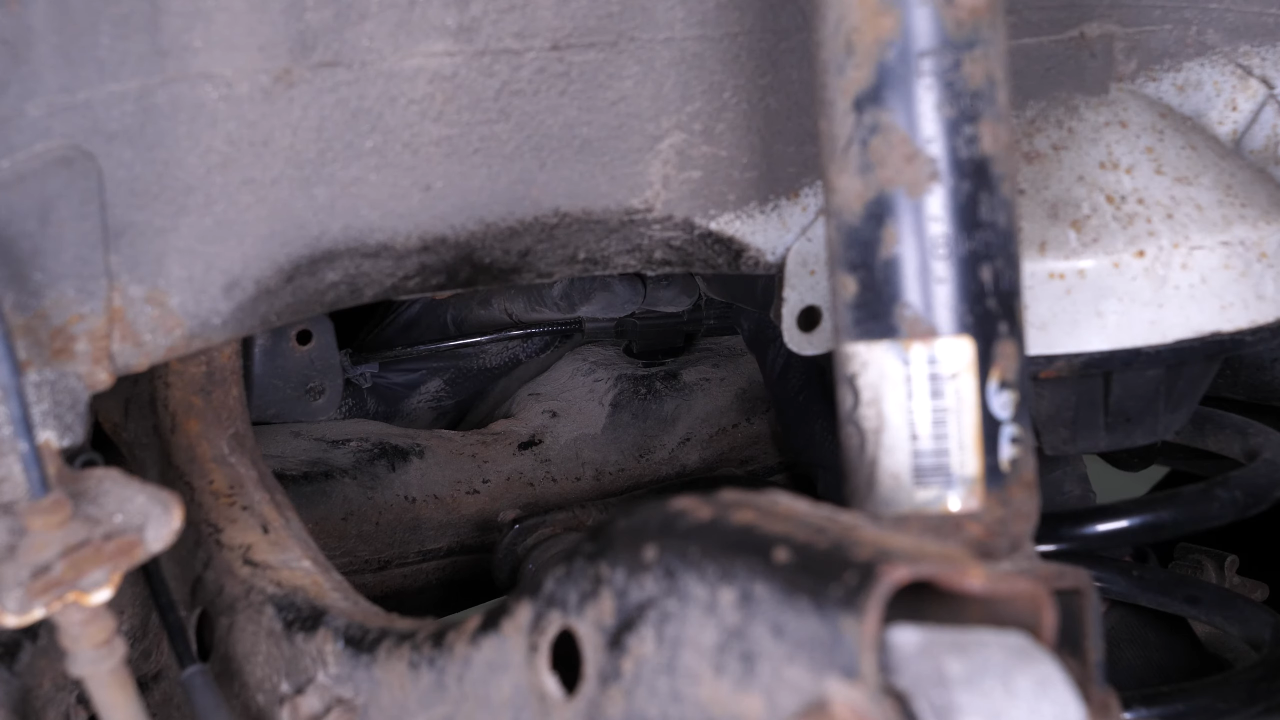

Replace the ABS sensor cable in its slots.

Chapter 11:

Step 2/2

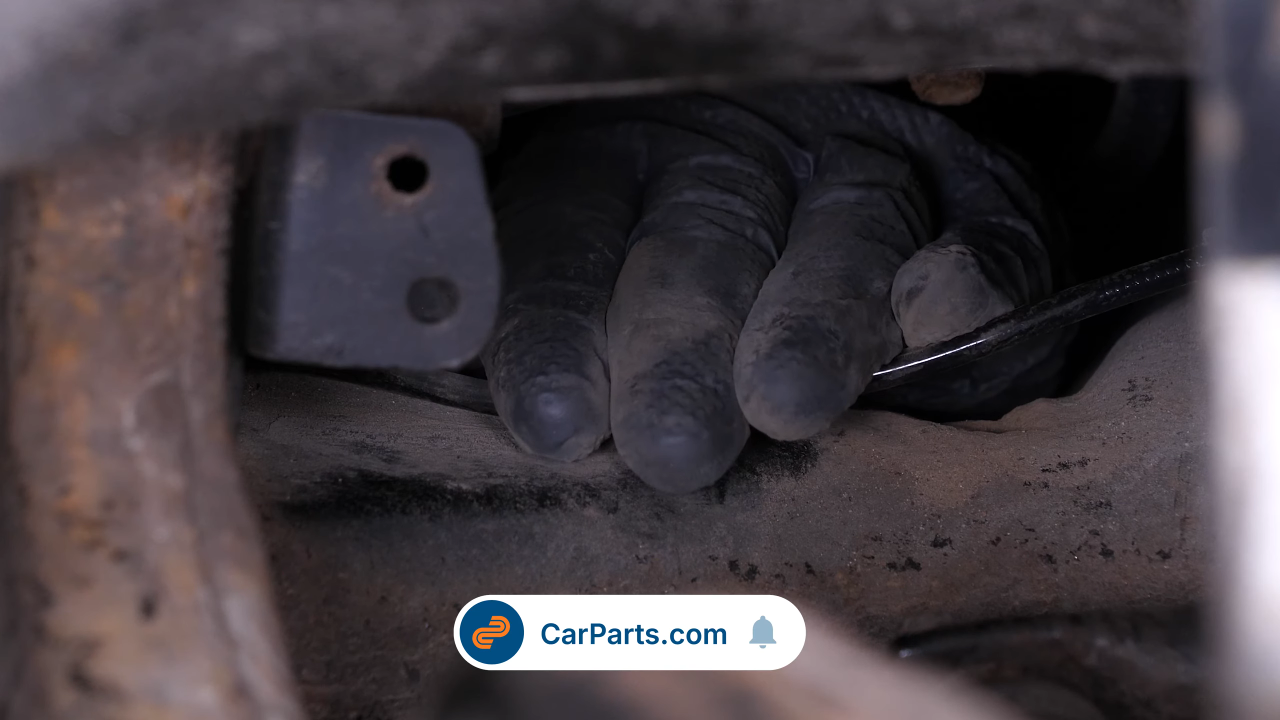

Plug the electrical connector back in. Then, reattach the clips.

Chapter 12:

Put the brake system back

Step 1/1

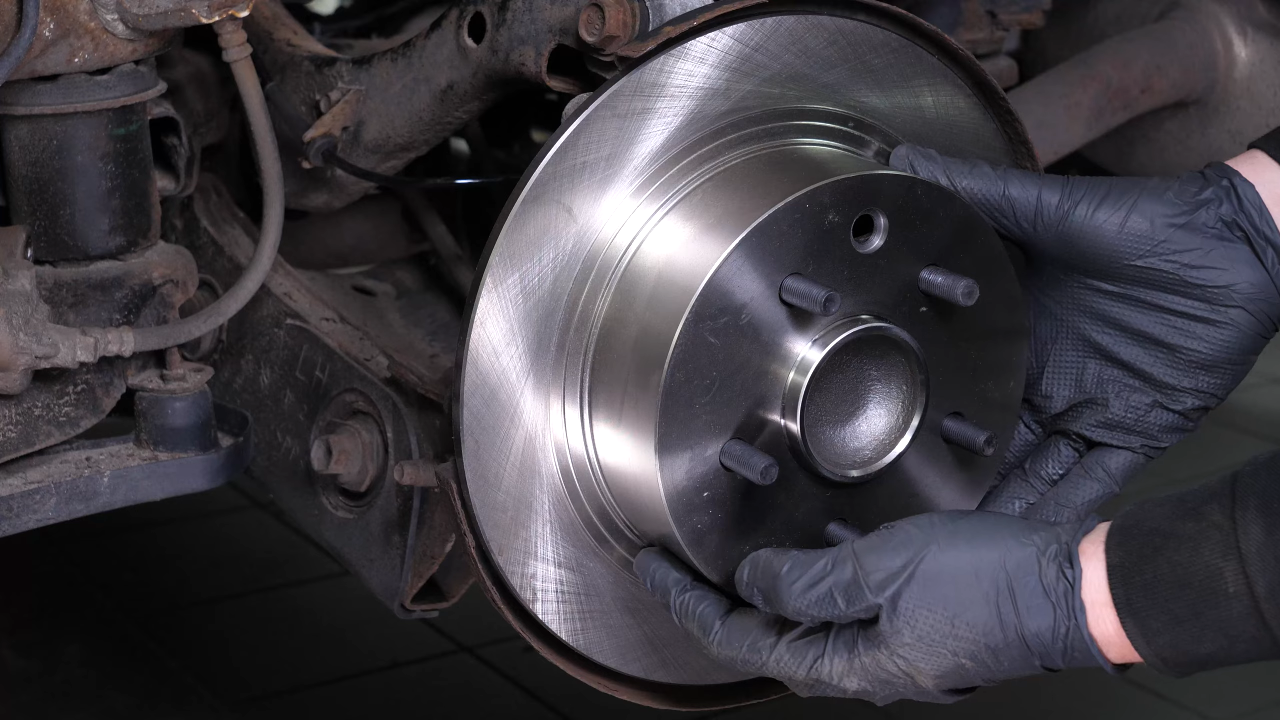

Now put the brake system back in place.

Chapter 13:

Put the vehicle back on the ground

Step 1/3

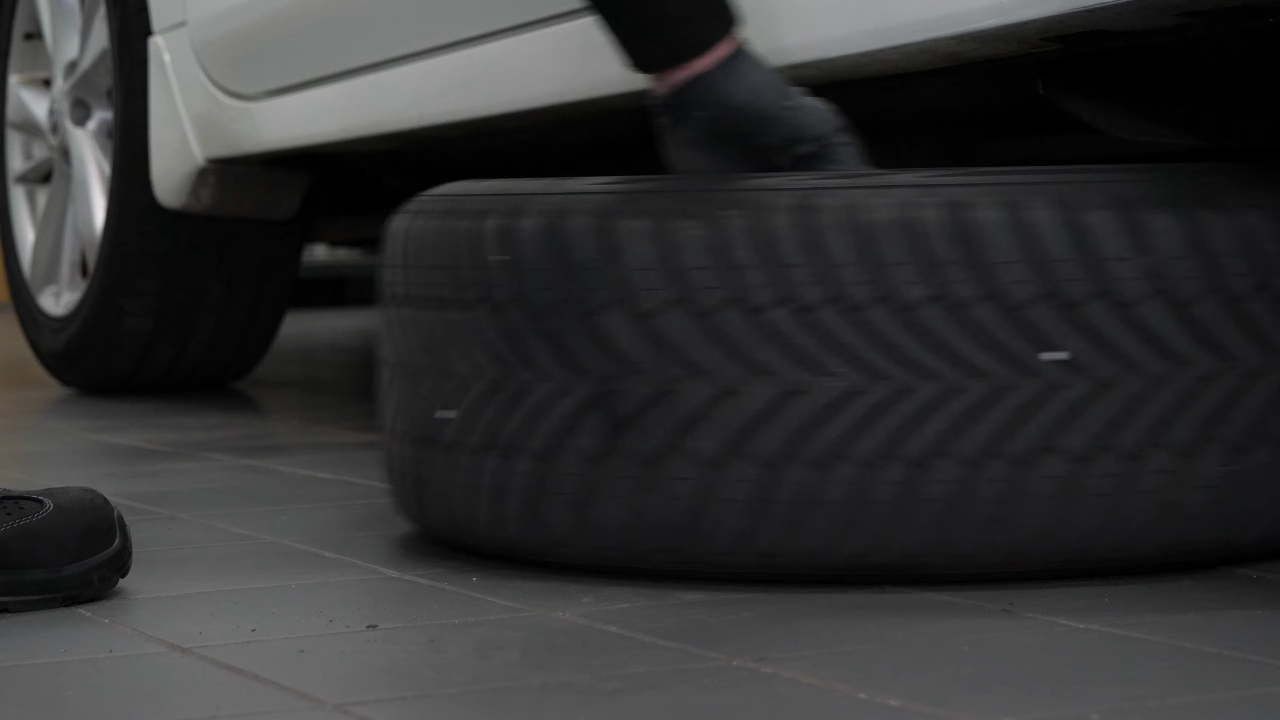

Then, you will be able to put the wheels back on your vehicle.

Chapter 13:

Step 2/3

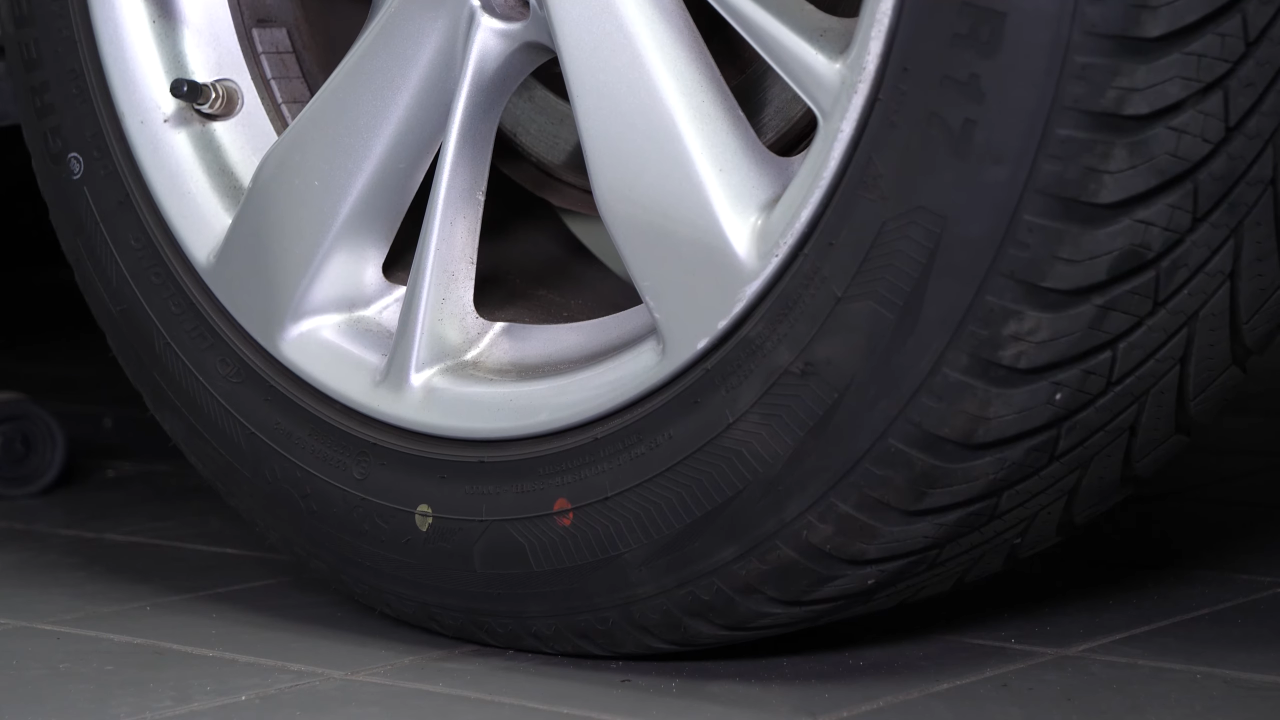

Put your vehicle back on the ground before properly fixing the wheels in place.

Chapter 13:

Step 3/3

Operation complete.
