How to replace he front wheel hub bearing 2009-2018 Dodge Ram 1500

Chapter 1:

Lift the vehicle

Step 1/4

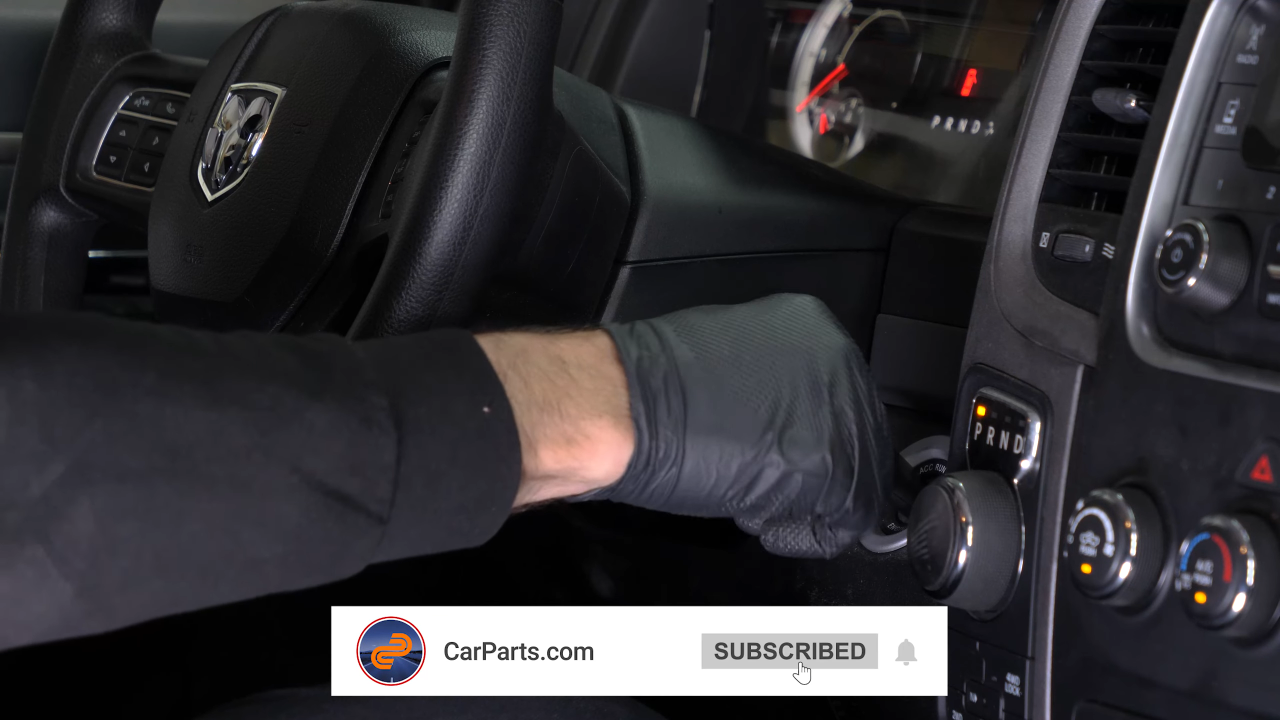

Turn your engine off and set the parking brake.

Chapter 1:

Step 2/4

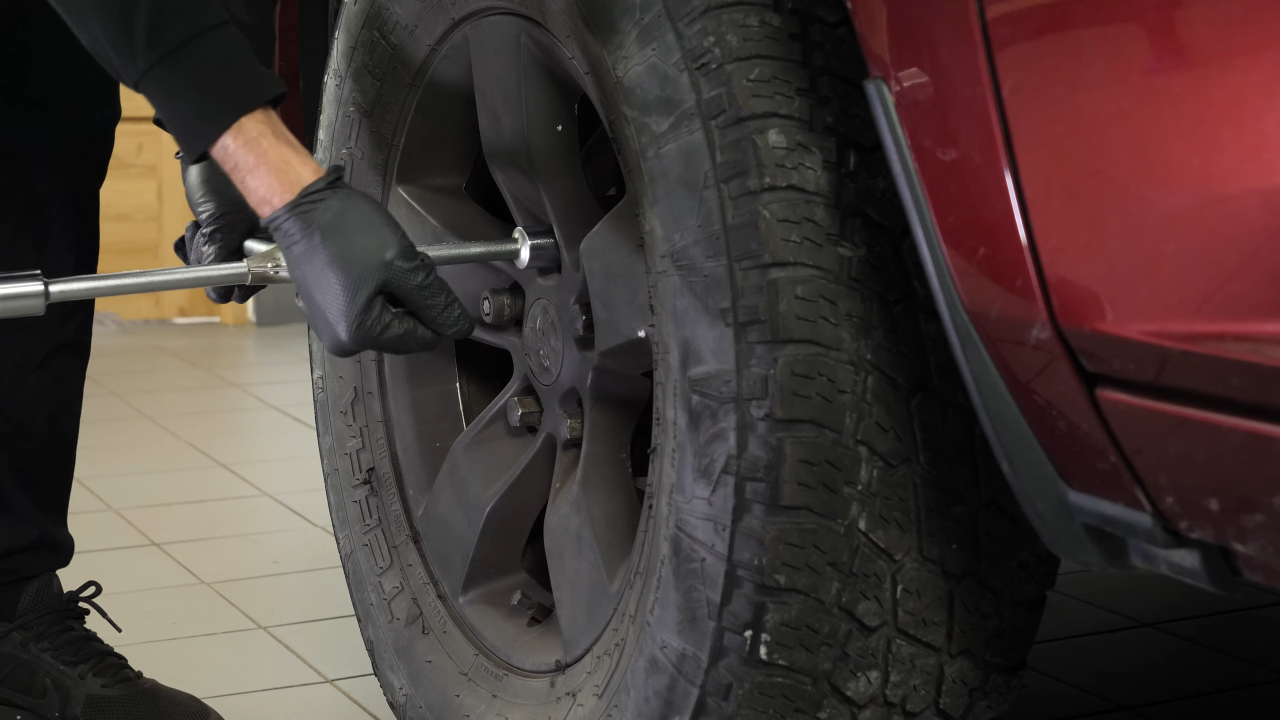

Loosen the stud bolts on the front wheels.

Chapter 1:

Step 3/4

Lift the front of your vehicle. Place the vehicle on the jack stands.

Chapter 1:

Step 4/4

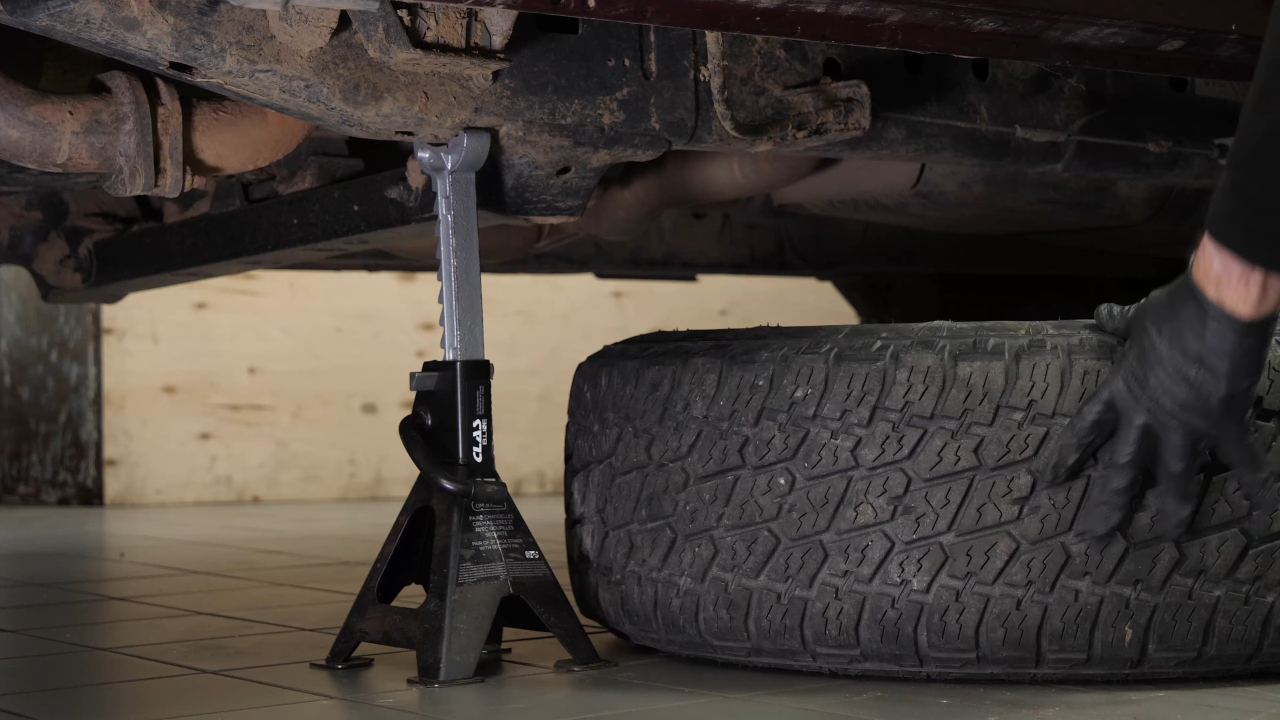

Don’t forget to put the wheels under the vehicle!

Chapter 2:

Set up

Step 1/2

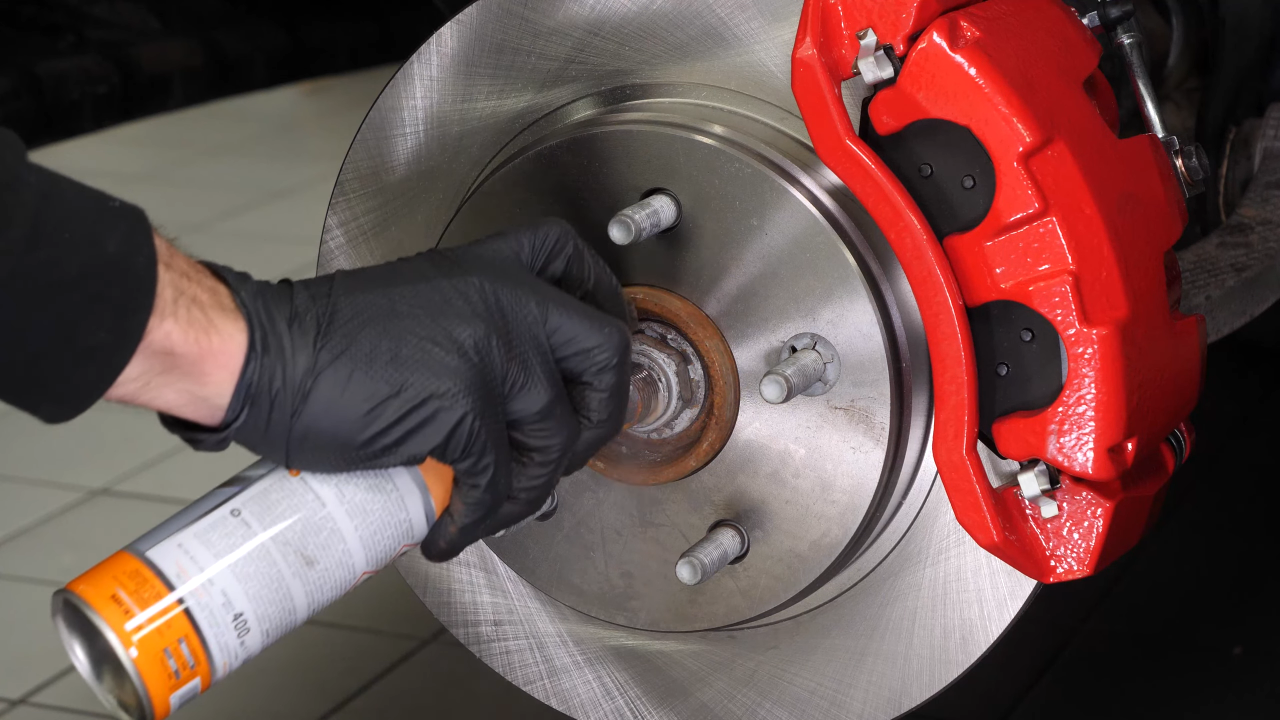

Using a wire brush, start by brushing the hub nut and spraying it with penetrating oil.

Chapter 2:

Step 2/2

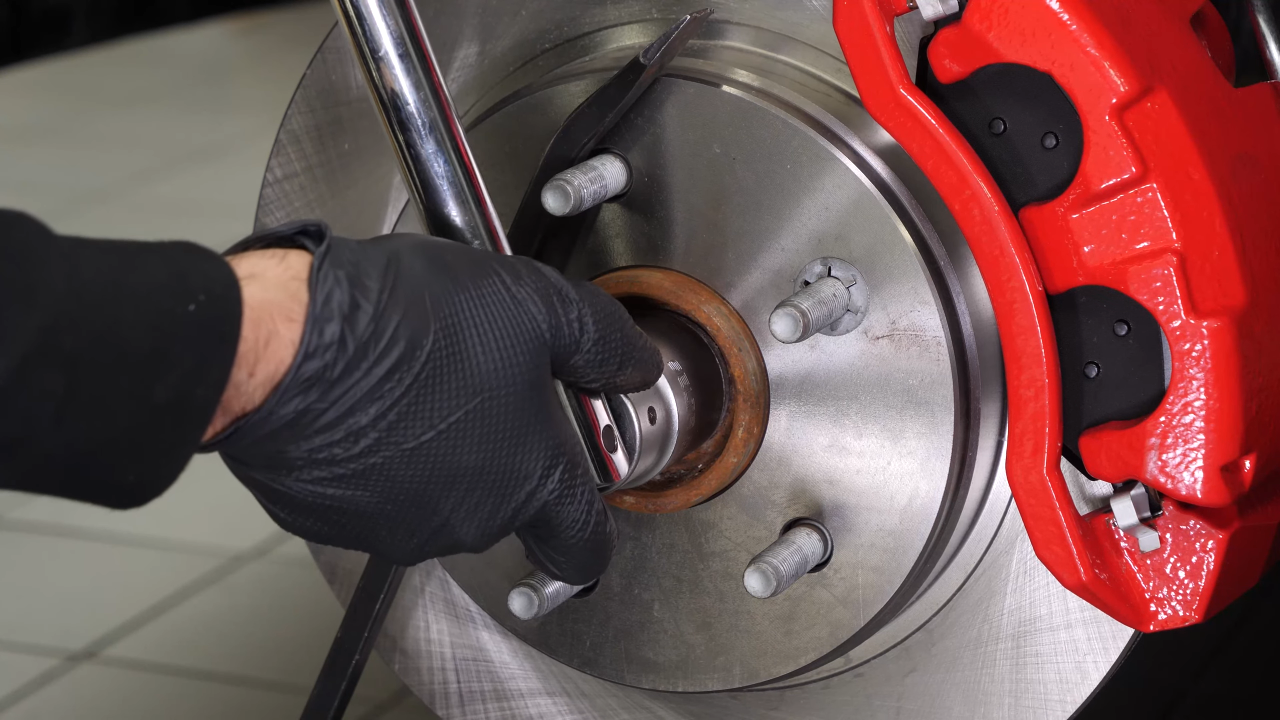

Then, locking the wheel hub rotation with a crowbar, unscrew the wheel hub nut using a breaker bar and a 36mm socket.

Chapter 3:

Remove the caliper assembly

Step 1/3

It is now necessary to remove the caliper assembly. Attach a wire to the upper control arm of the vehicle in order to maintain the assembly when it is removed.

Chapter 3:

Step 2/3

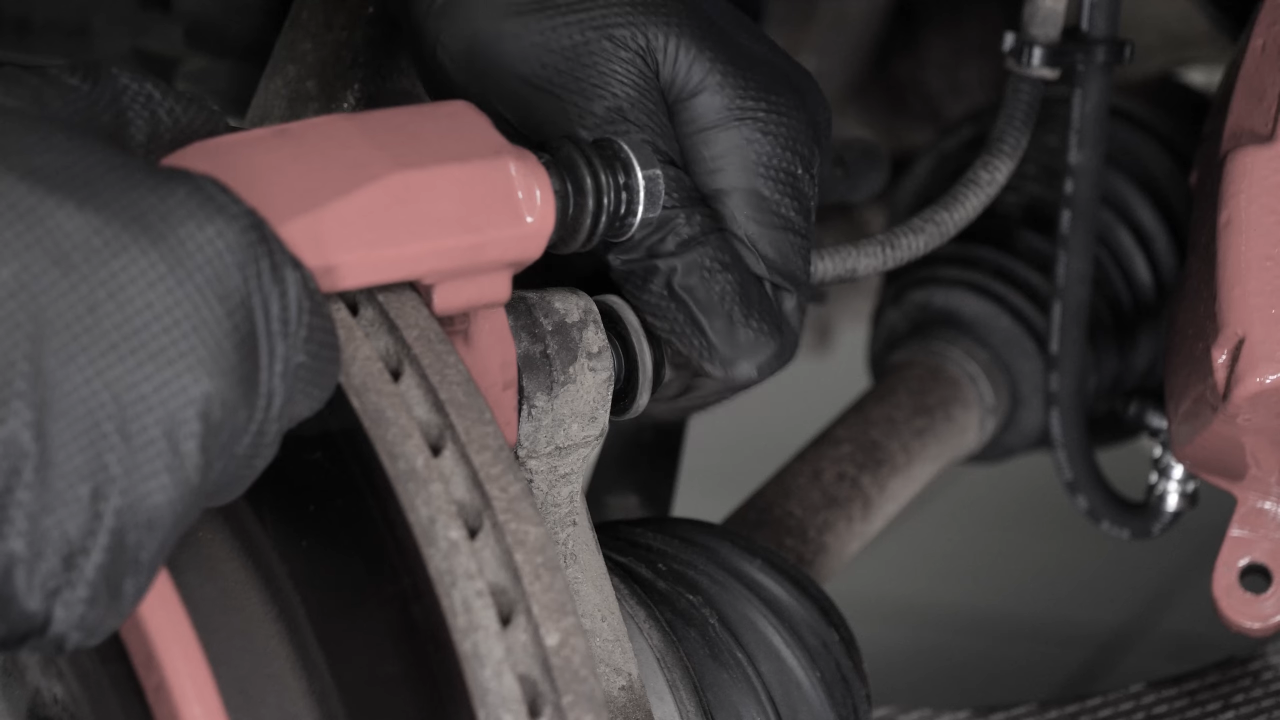

Then using a ratchet and a 21mm socket, unscrew the two screws from the caliper mount.

Chapter 3:

Step 3/3

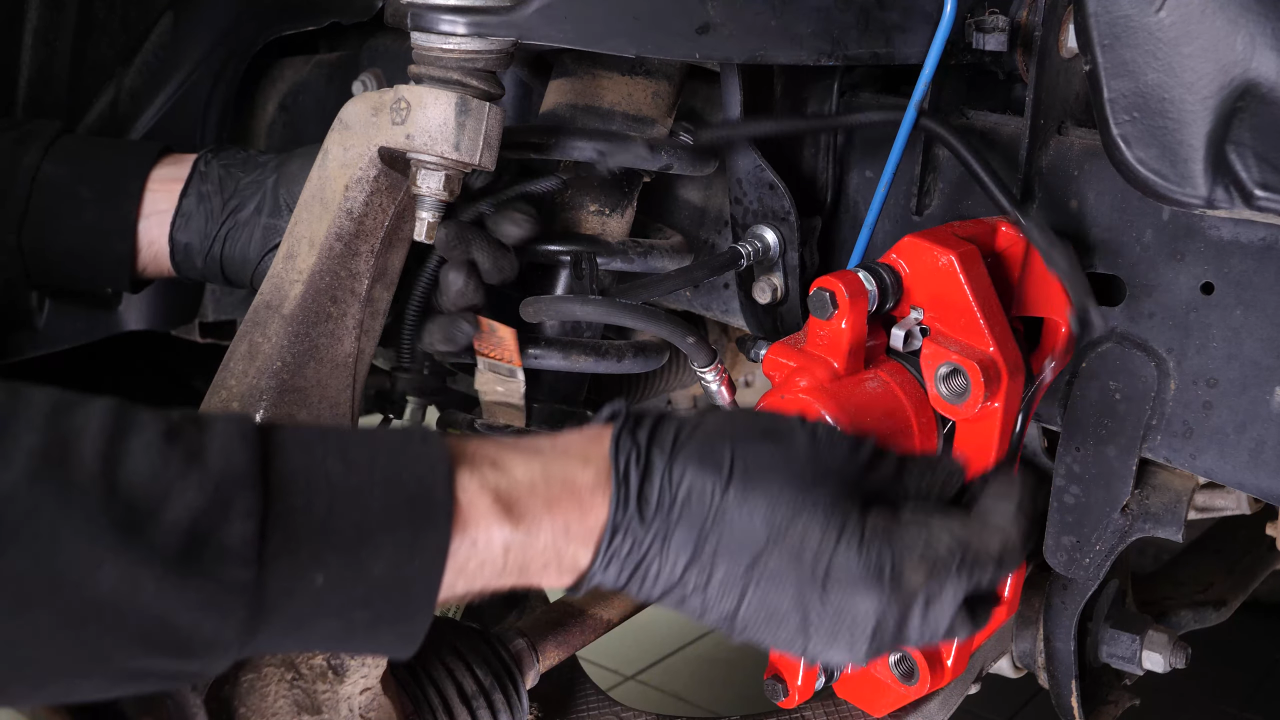

Then attach the assembly to the iron wire previously installed.

Chapter 4:

Remove the brake disc

Step 1/2

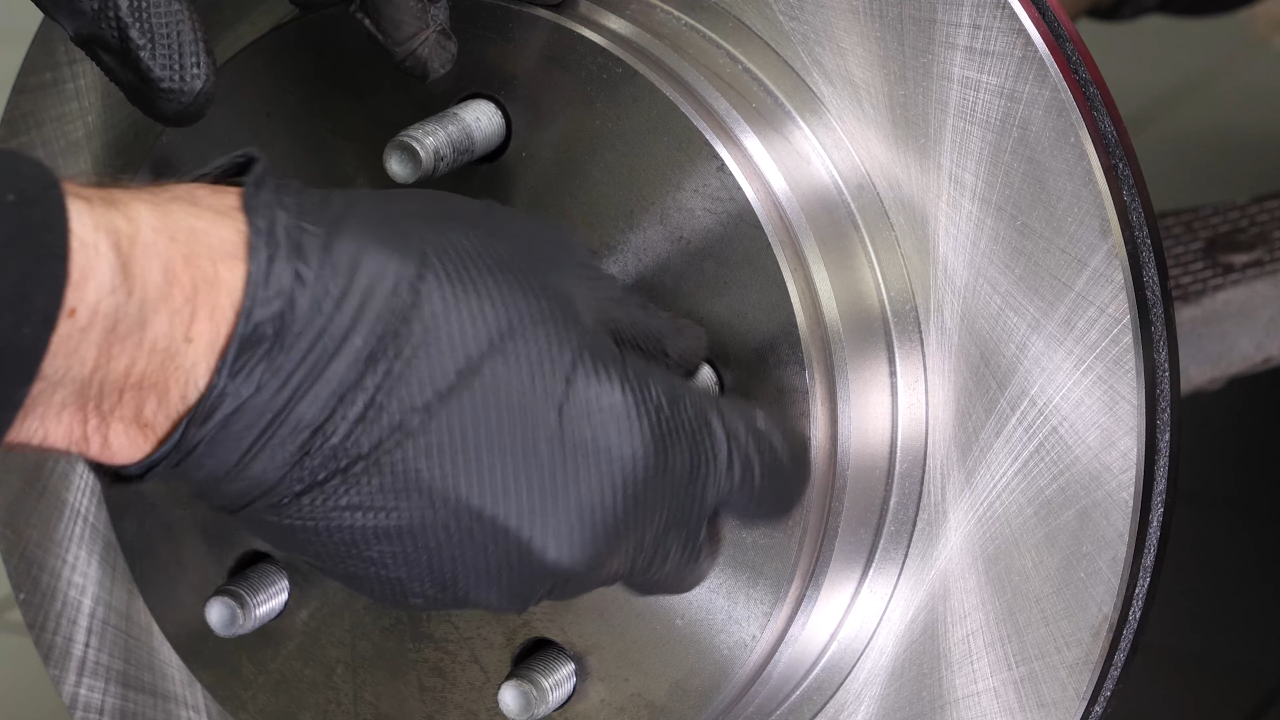

Using a flat head screwdriver, pull the retainer away from the disc so you can unscrew it.

Chapter 4:

Step 2/2

Then remove the disc.

Chapter 5:

Unscrew the wheel hub nut

Step 1/1

Finish unscrewing the hub nut.

Chapter 6:

Remove the ABS sensor

Step 1/4

Next, unclip the ABS sensor cable retaining clip behind the mudguard.

Chapter 6:

Step 2/4

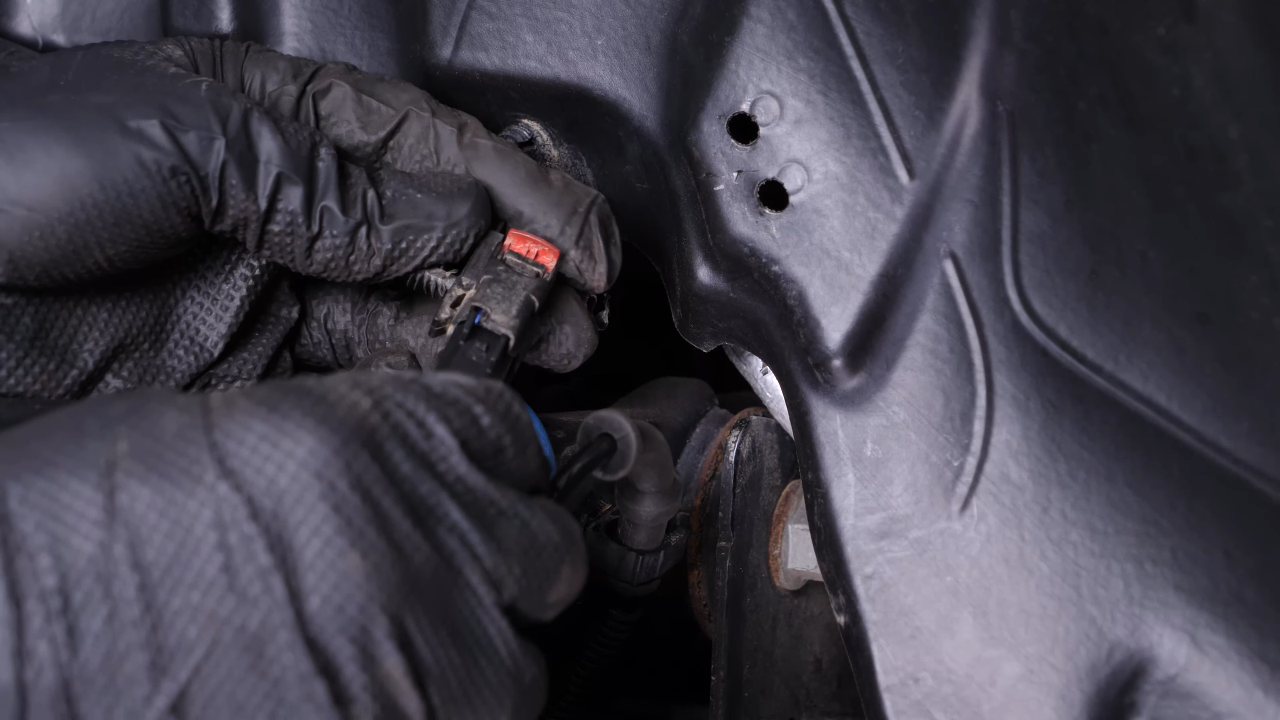

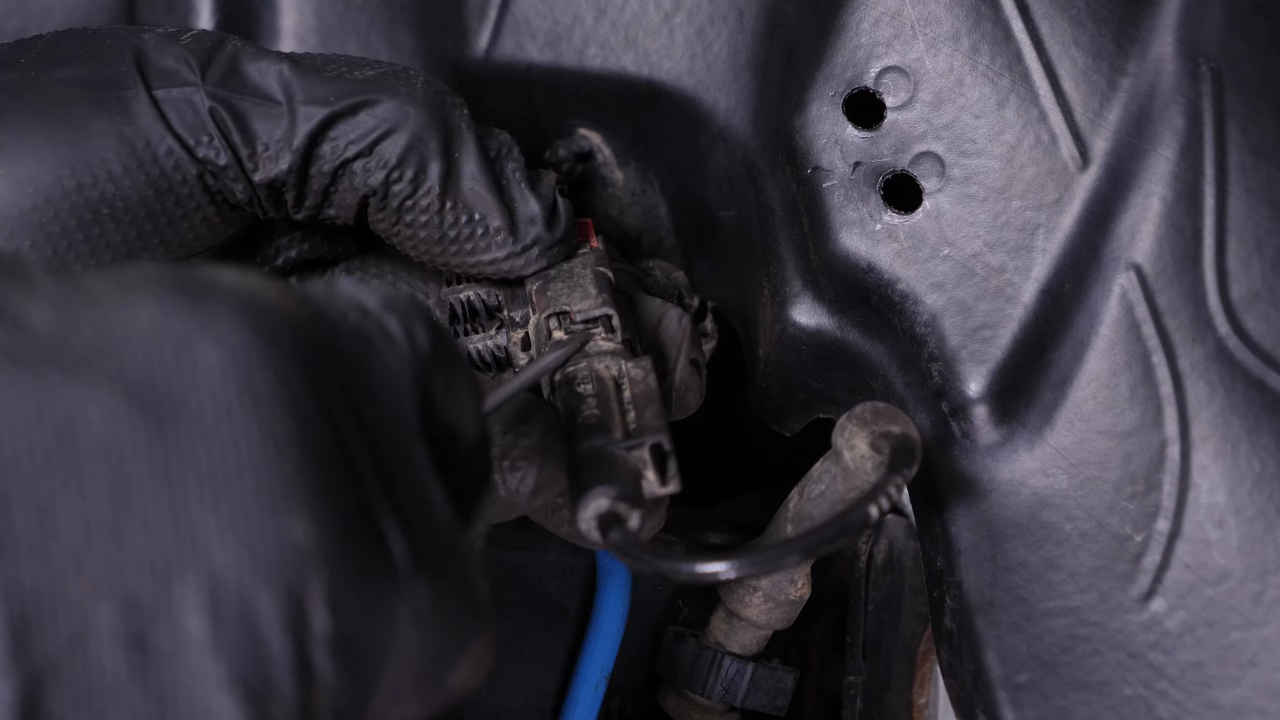

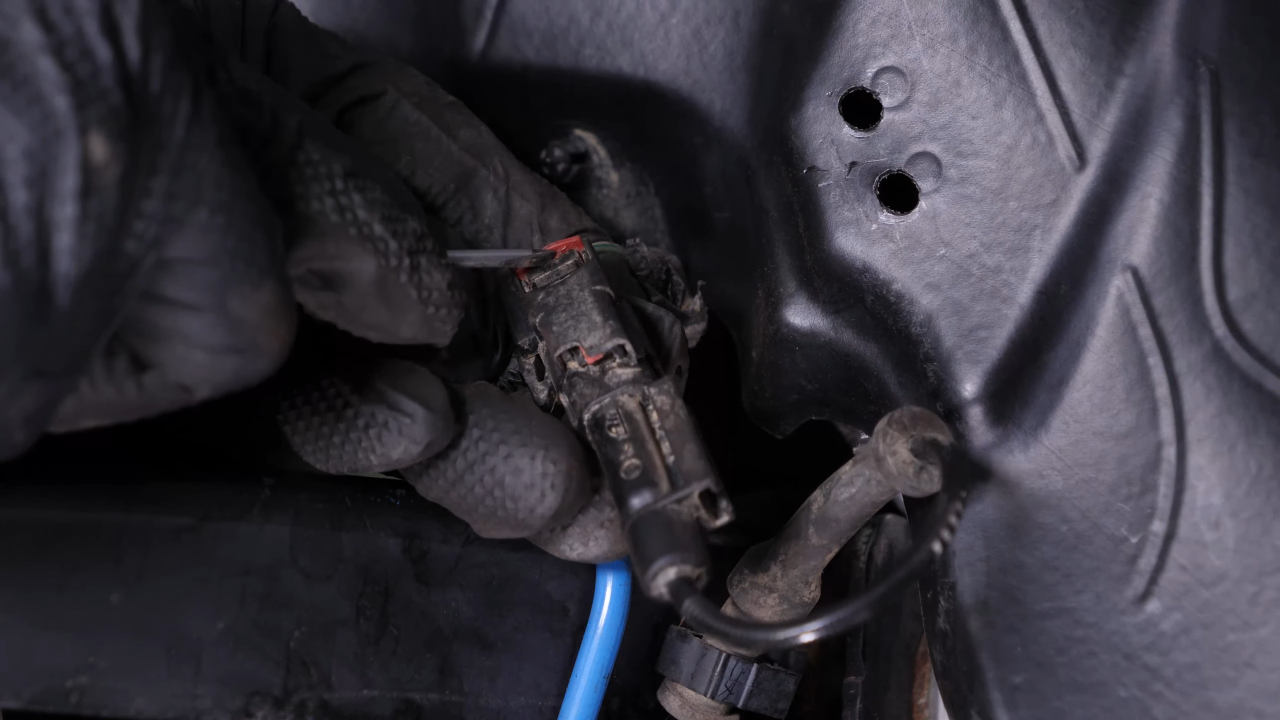

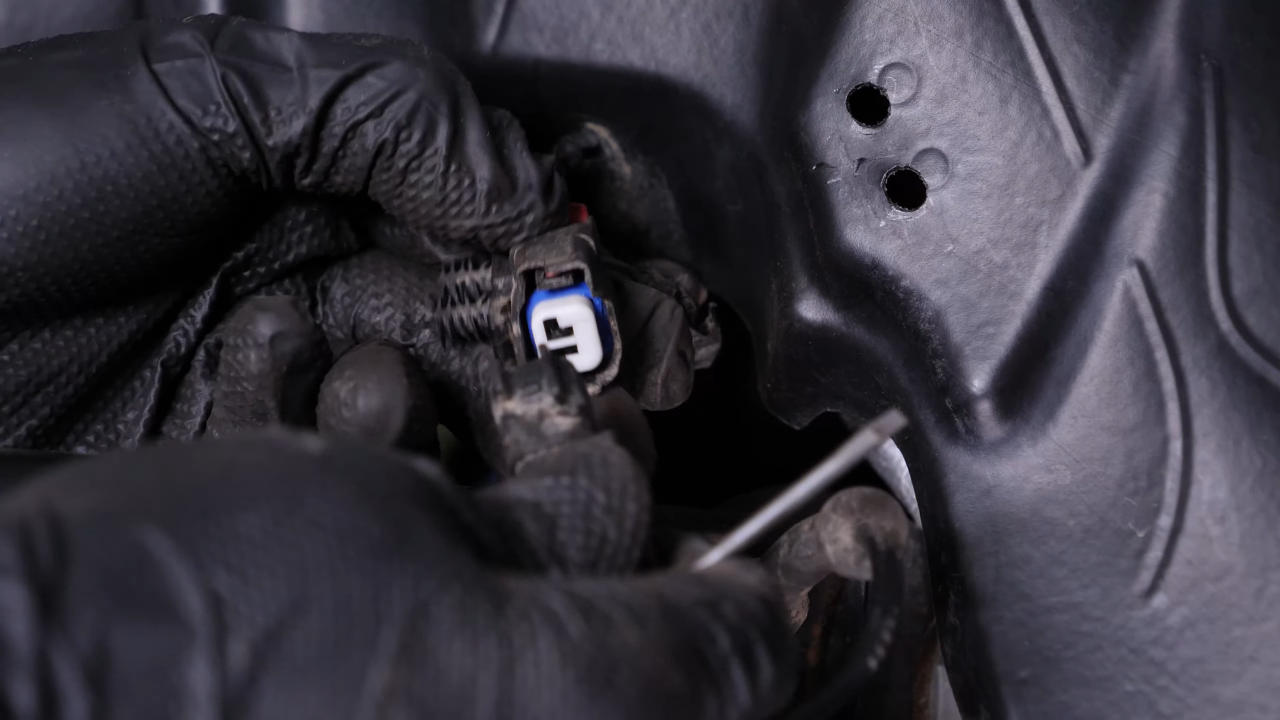

Disconnect the connector by pushing on the red plastic tab, then prying the tab and pulling it.

Chapter 6:

Step 3/4

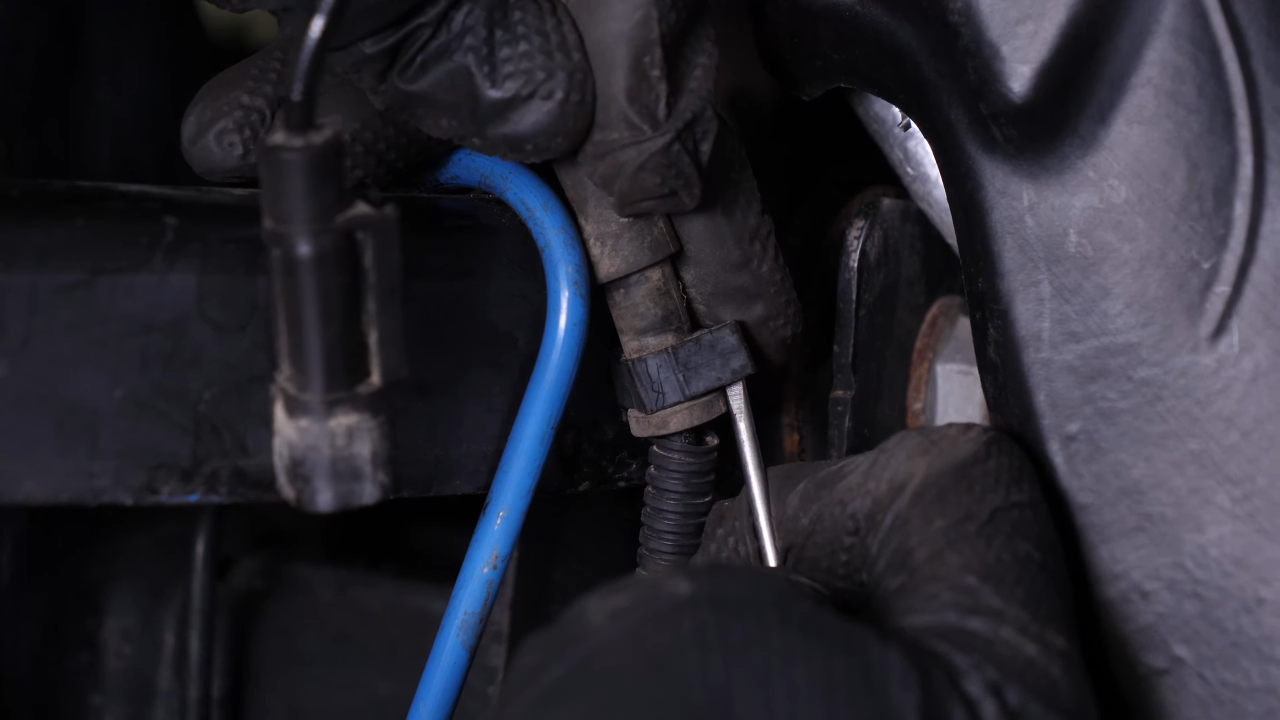

Then unclip all of the ABS sensor cable retaining clips using a flat head screwdriver, working down to the steering knuckle.

Chapter 6:

Step 4/4

You can now move the cable aside.

Chapter 7:

Remove the wheel hub

Step 1/6

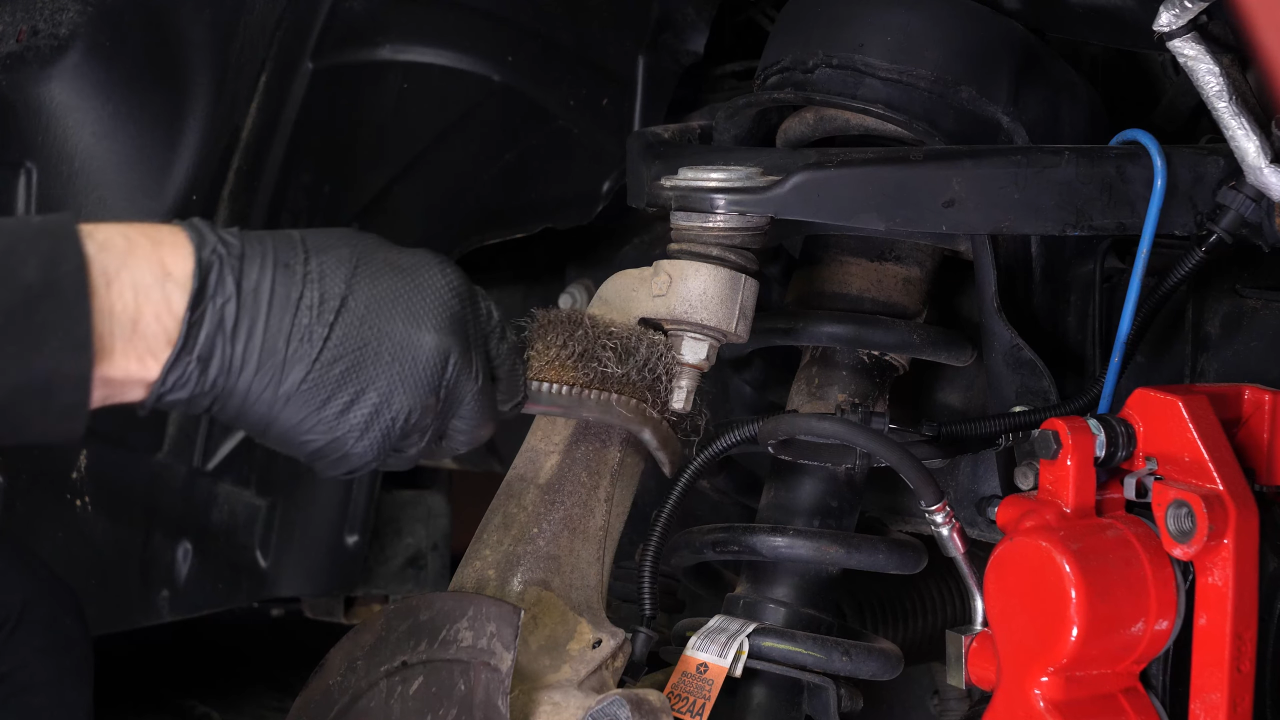

You must then disengage the upper control arm ball joint from the wheel knuckle. Brush the upper control arm ball joint retainer nut and spray it with penetrating oil.

Chapter 7:

Step 2/6

Then release the ball joint with a ratchet and a 21mm socket.

Chapter 7:

Step 3/6

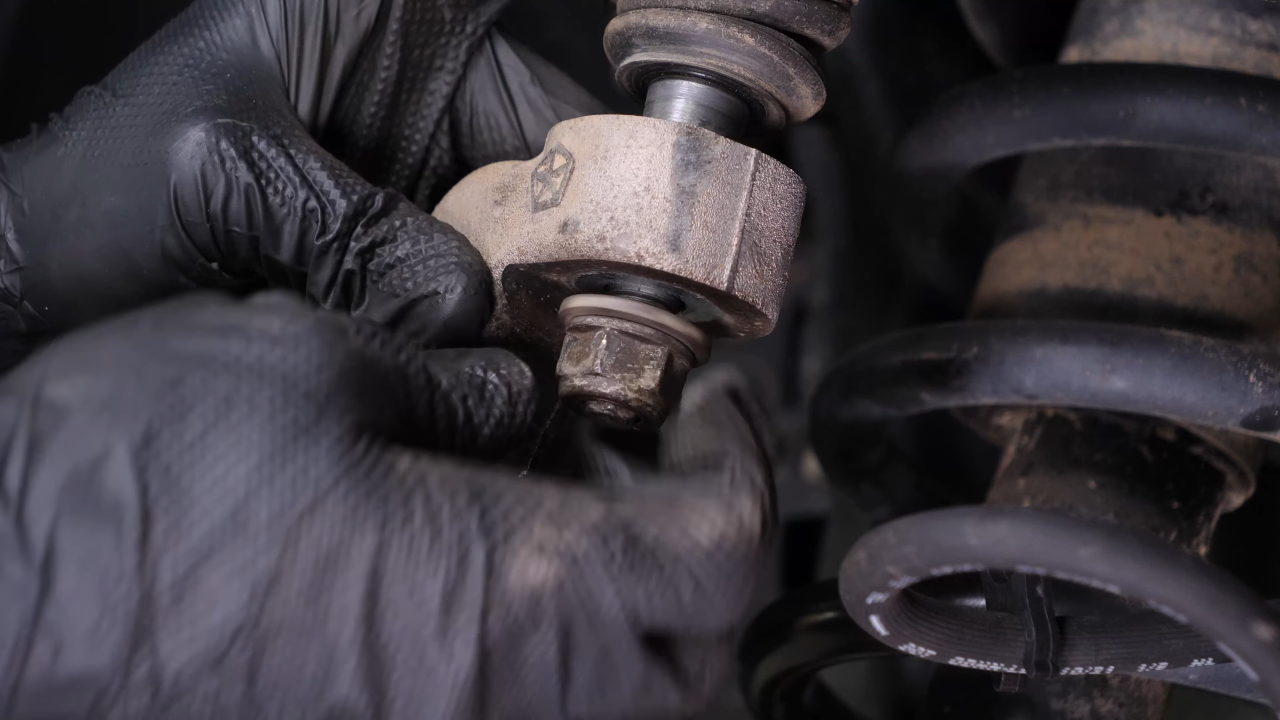

Use a 10 mm wrench to keep the ball joint from rotating.

Chapter 7:

Step 4/6

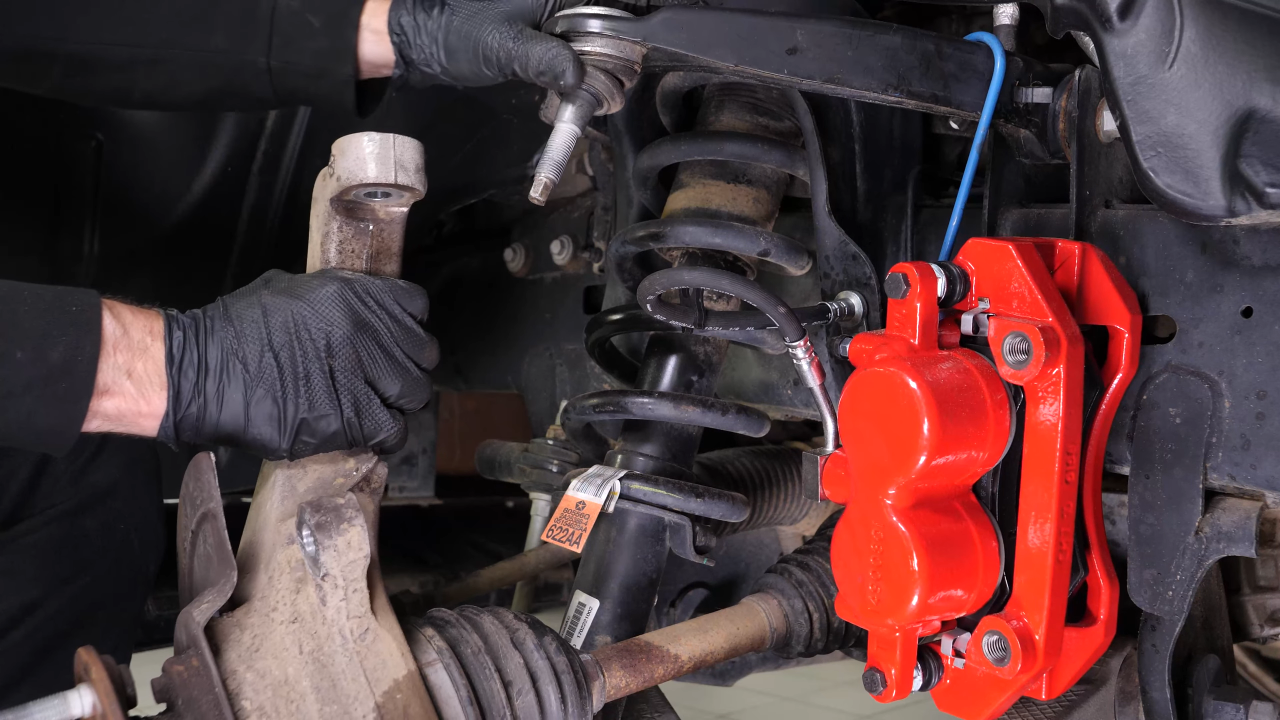

You can now remove the ball joint from the wheel knuckle, which allows the CV axle to be slightly removed from the wheel hub.

Chapter 7:

Step 5/6

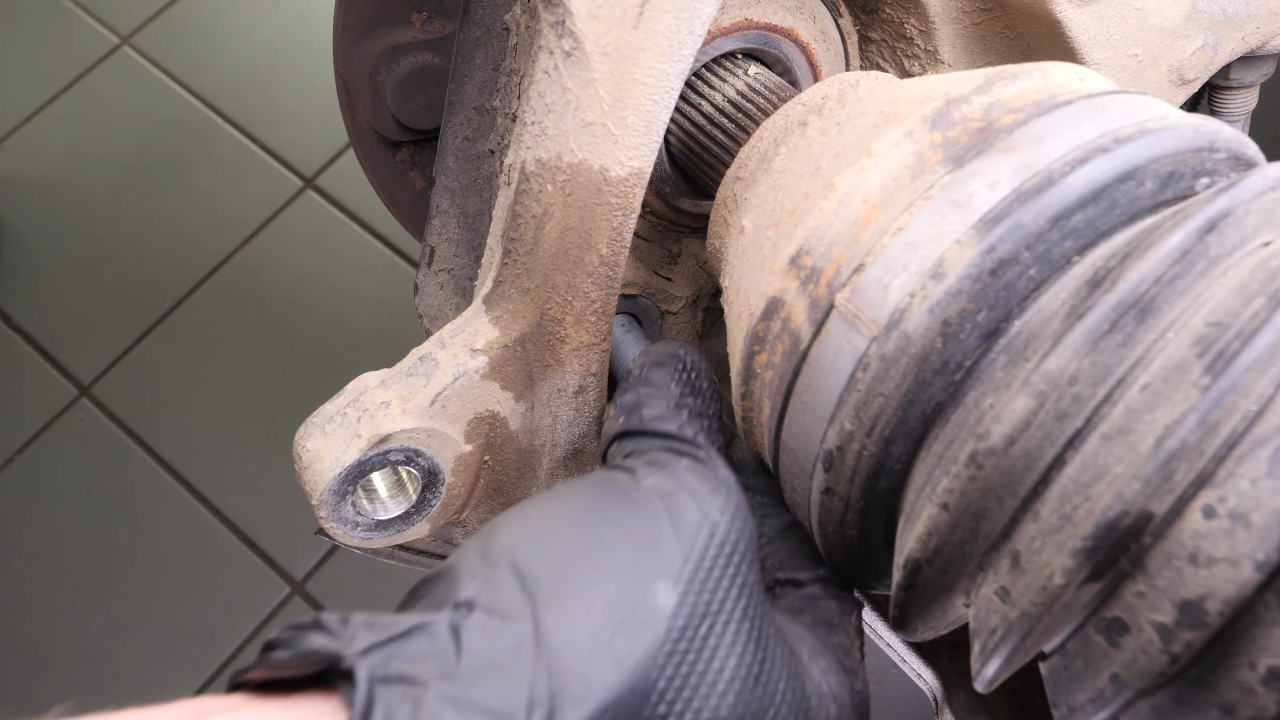

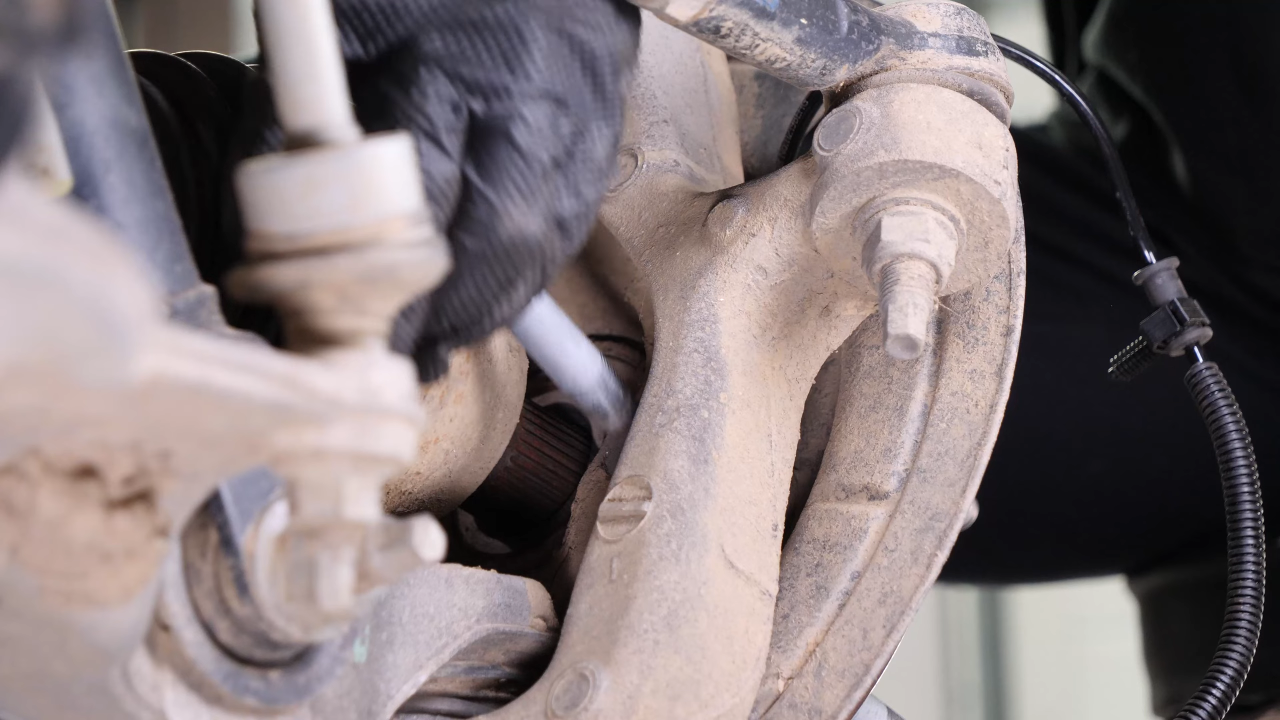

You can now unscrew the 3 retaining bolts from the wheel hub using a ratchet and a 21 mm socket.

Chapter 7:

Step 6/6

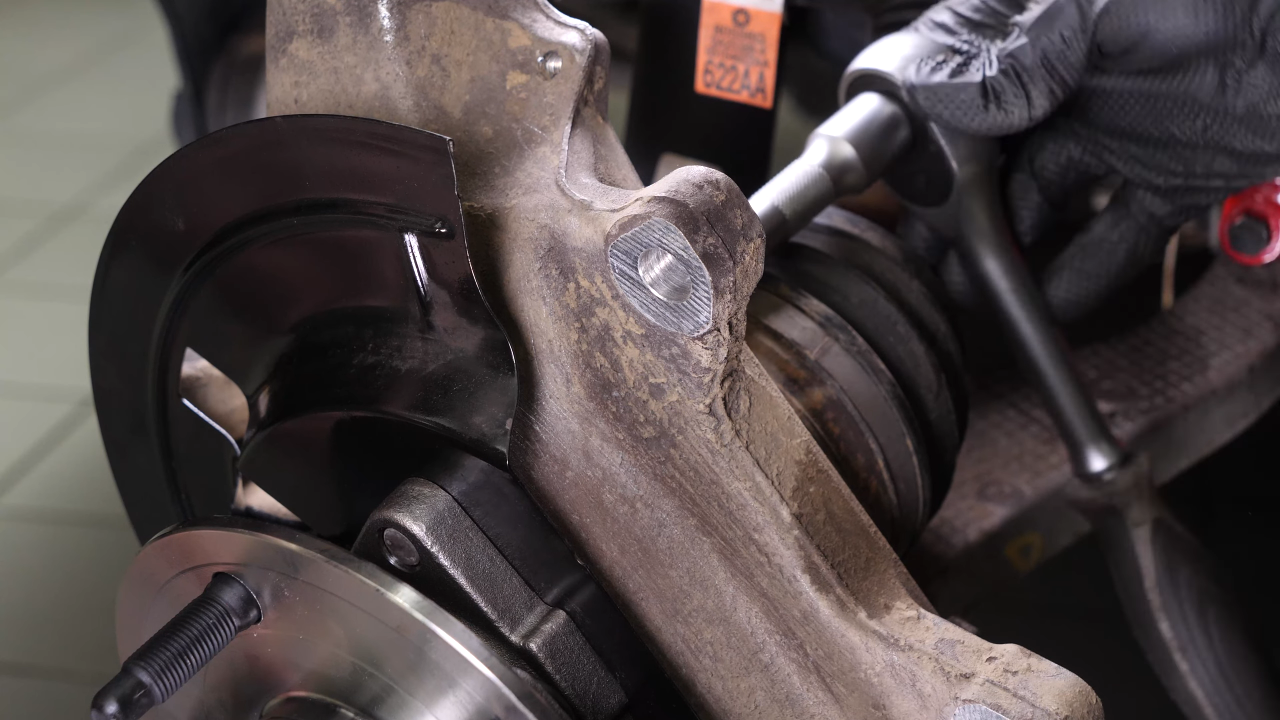

You can now remove the wheel hub assembly from its location with a hammer.

Chapter 8:

Remove the anchor plate

Step 1/2

Remove the brake backing plate if you want to reuse it on the new assembly

Chapter 8:

Step 2/2

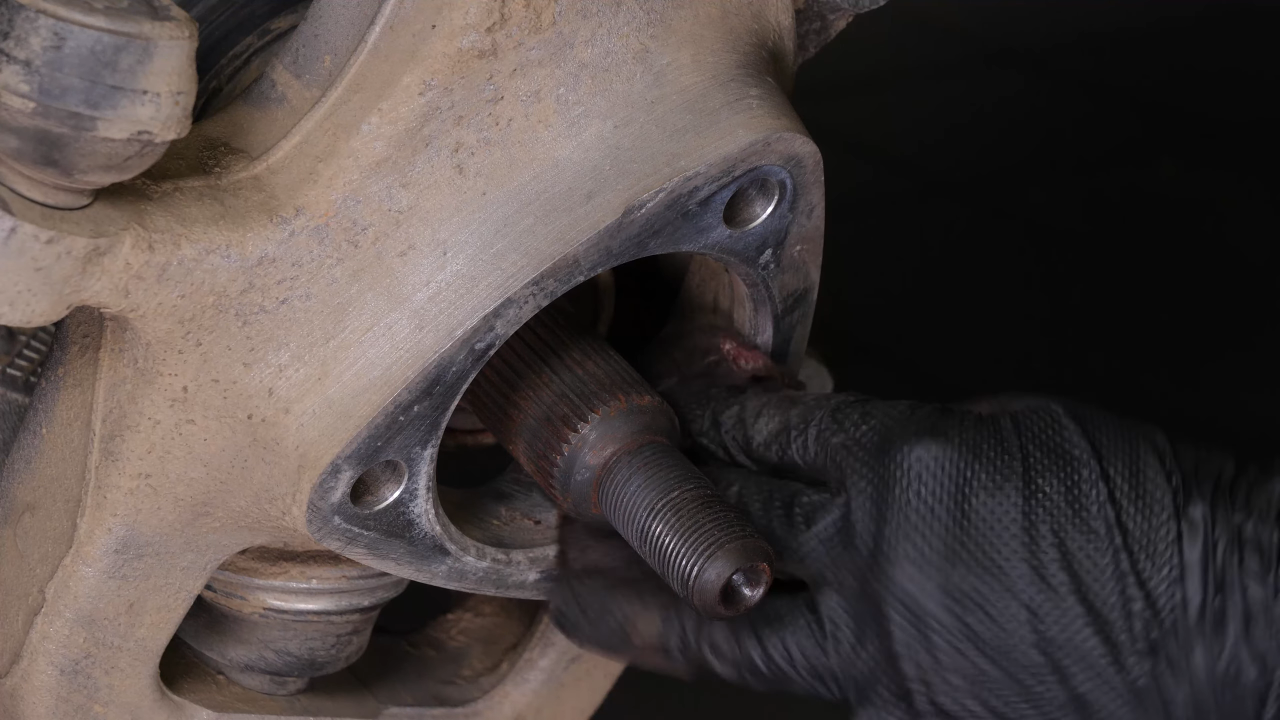

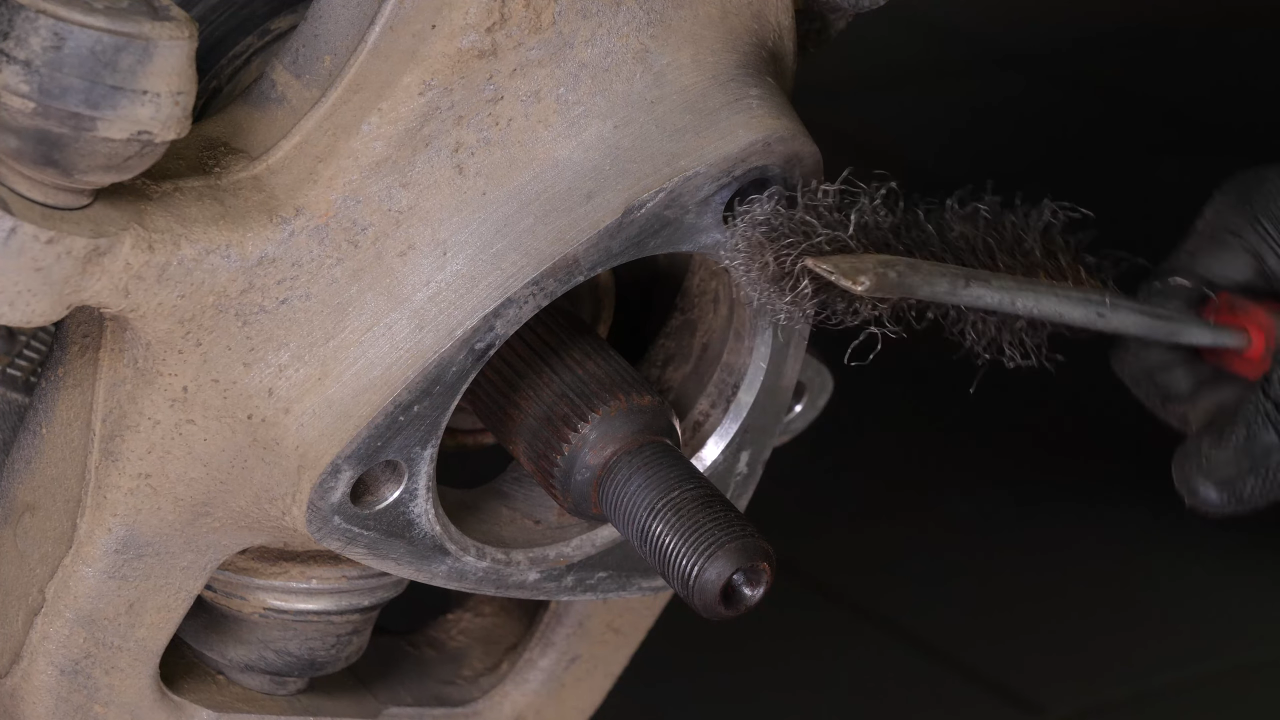

Clean the inside of the hub with fine sandpaper and a wire brush.

Chapter 9:

Manipulate the wheel hub

Step 1/4

Install the brake backing plate on the new wheel hub assembly.

Chapter 9:

Step 2/4

Put the assembly in place on the steering knuckle.

Chapter 9:

Step 3/4

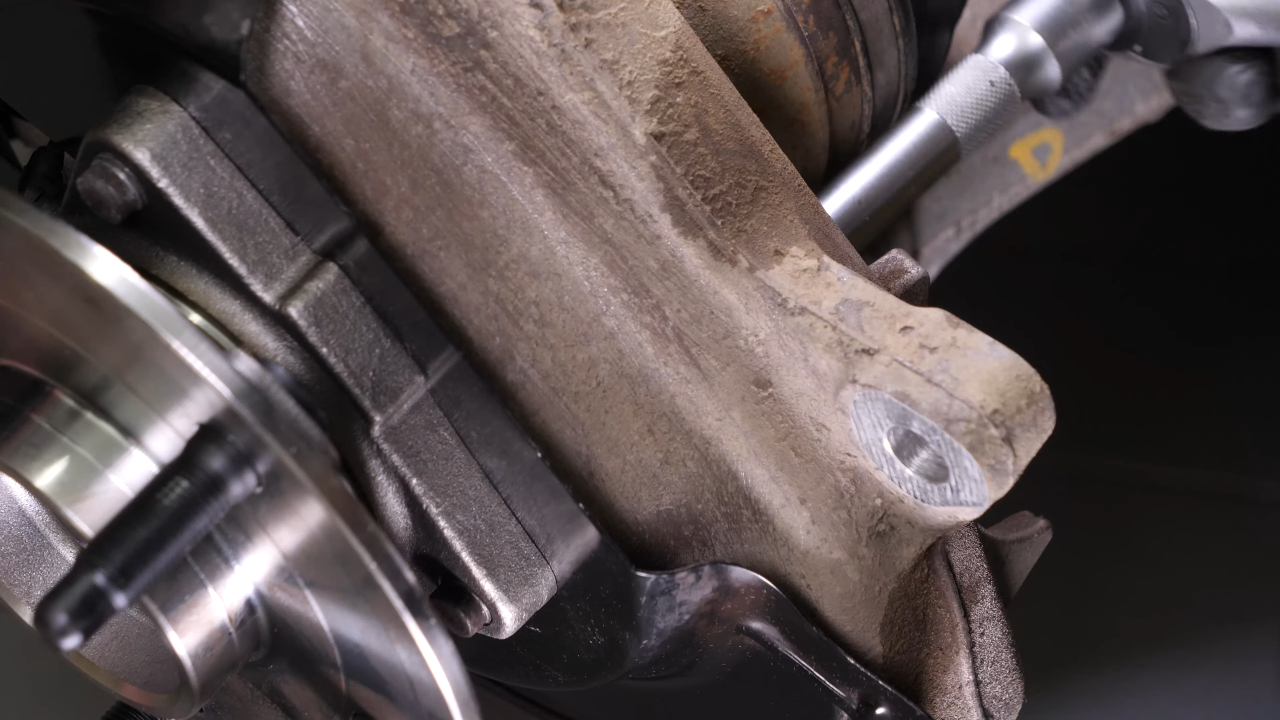

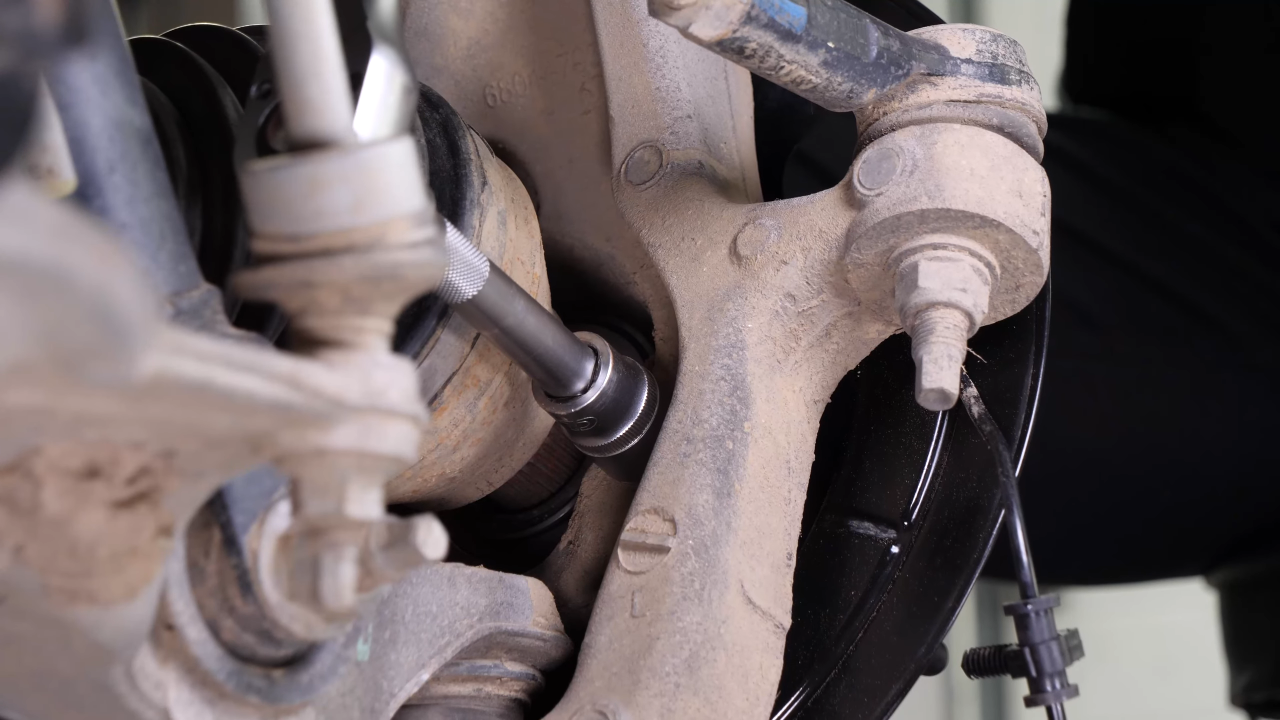

Tighten the 3 wheel hub assembly retaining bolts using the ratchet.

Chapter 9:

Step 4/4

Finish tightening using a torque wrench.

Chapter 10:

Install the wheel hub

Step 1/6

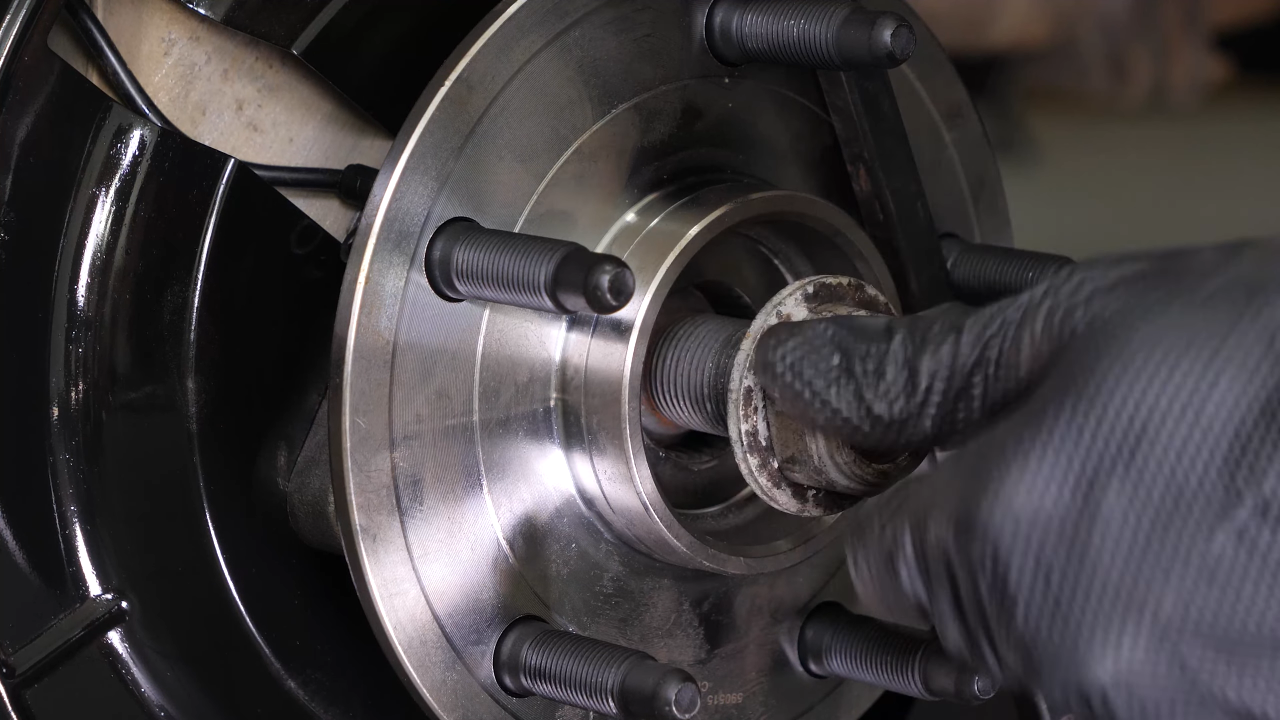

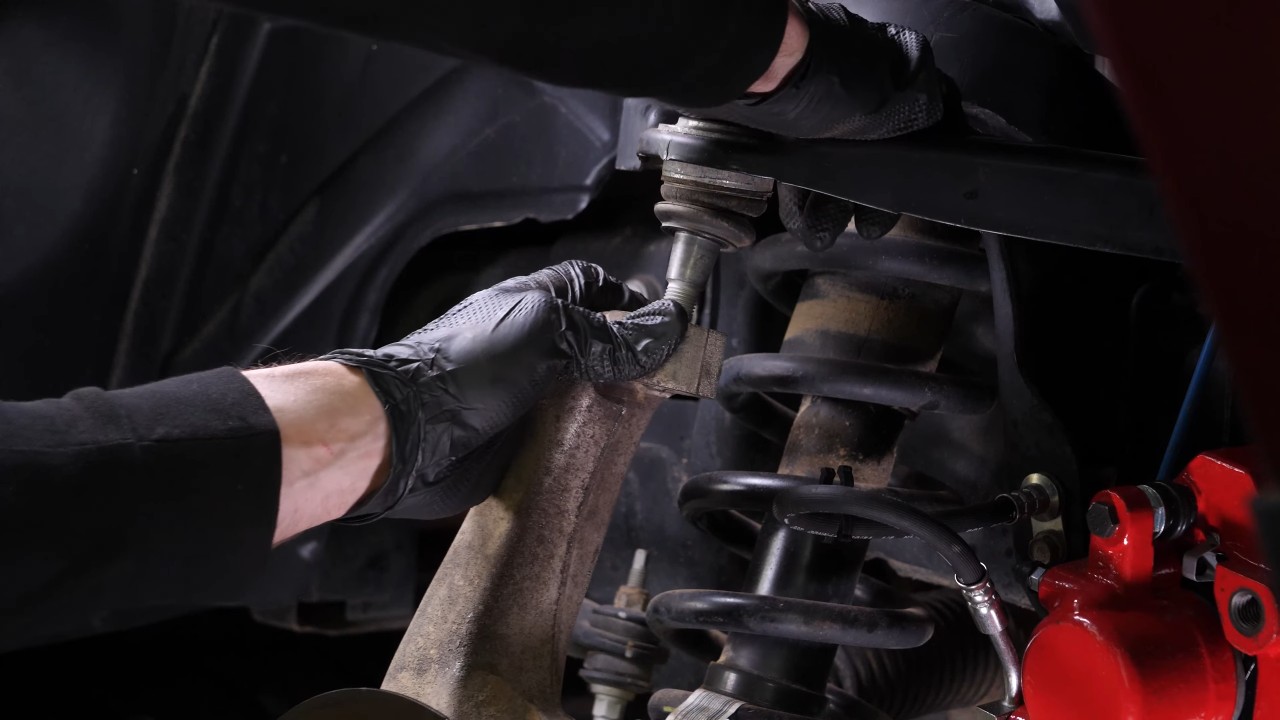

Fully reinsert the CV axle into the wheel hub assembly. Reinsert the upper control arm ball joint into the wheel knuckle.

Chapter 10:

Step 2/6

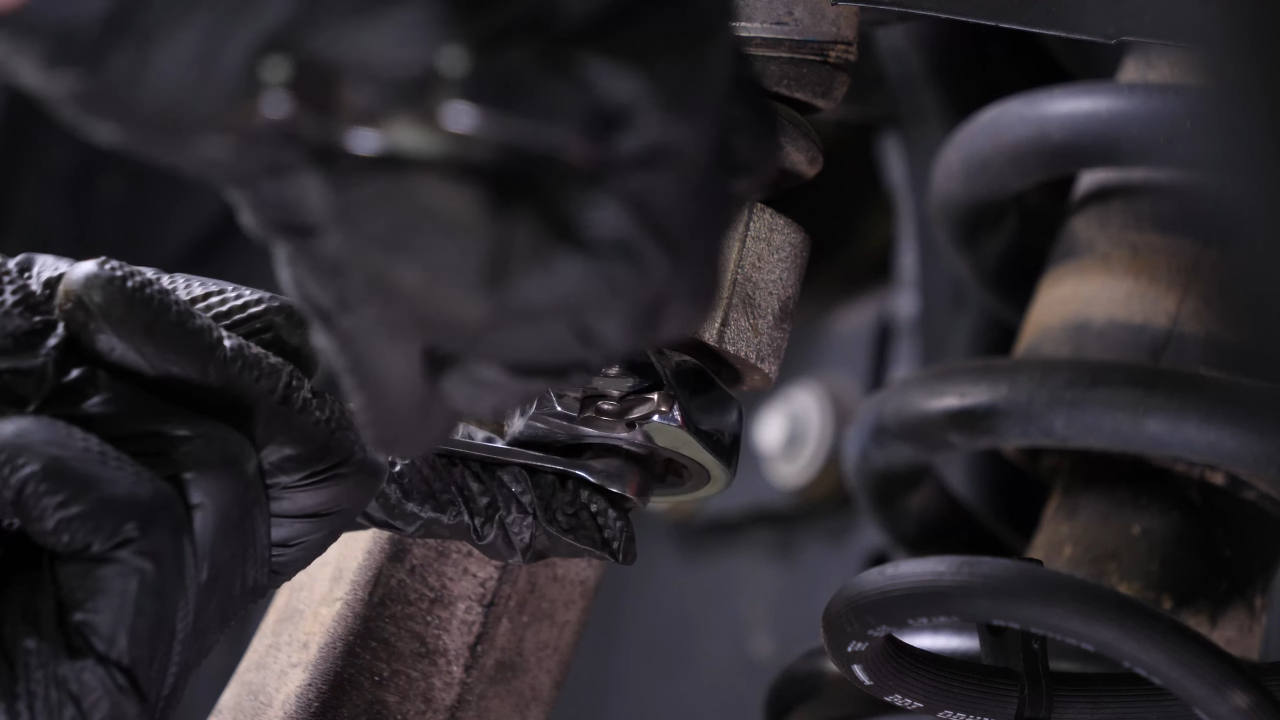

Use the wrench to tighten the nut until it makes contact.

Chapter 10:

Step 3/6

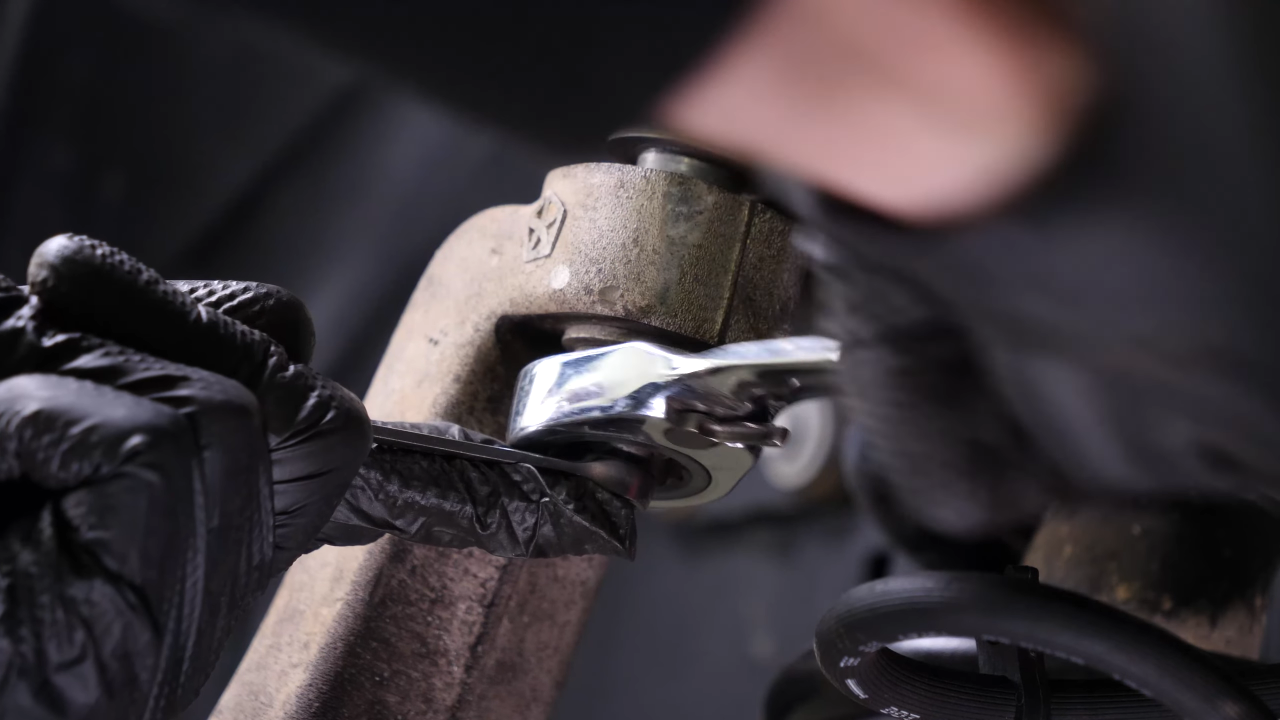

Use a 10 mm wrench to keep the ball joint from rotating.

Chapter 10:

Step 4/6

Finish tightening using a torque wrench.

Chapter 10:

Step 5/6

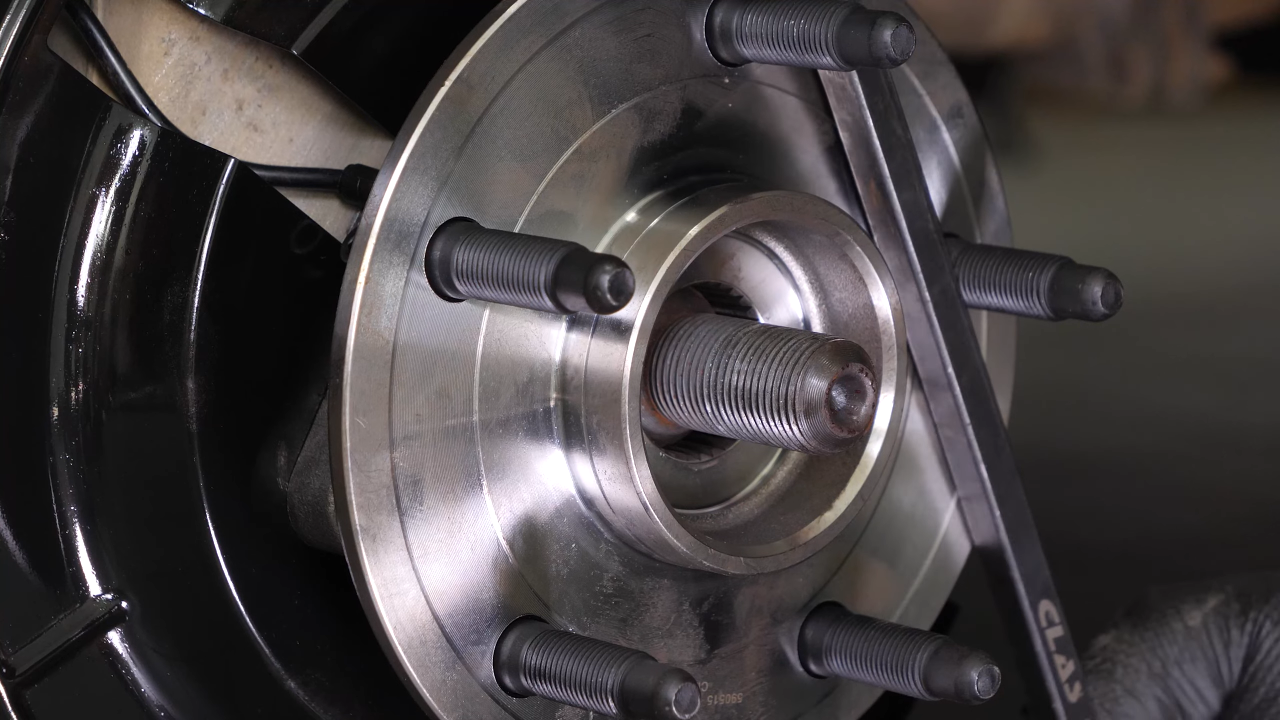

Replace the hub nut. Then, while blocking the rotation of the hub with a crowbar, screw it back on.

Chapter 10:

Step 6/6

Finish tightening using a torque wrench.

Chapter 11:

Install the ABS sensor

Step 1/4

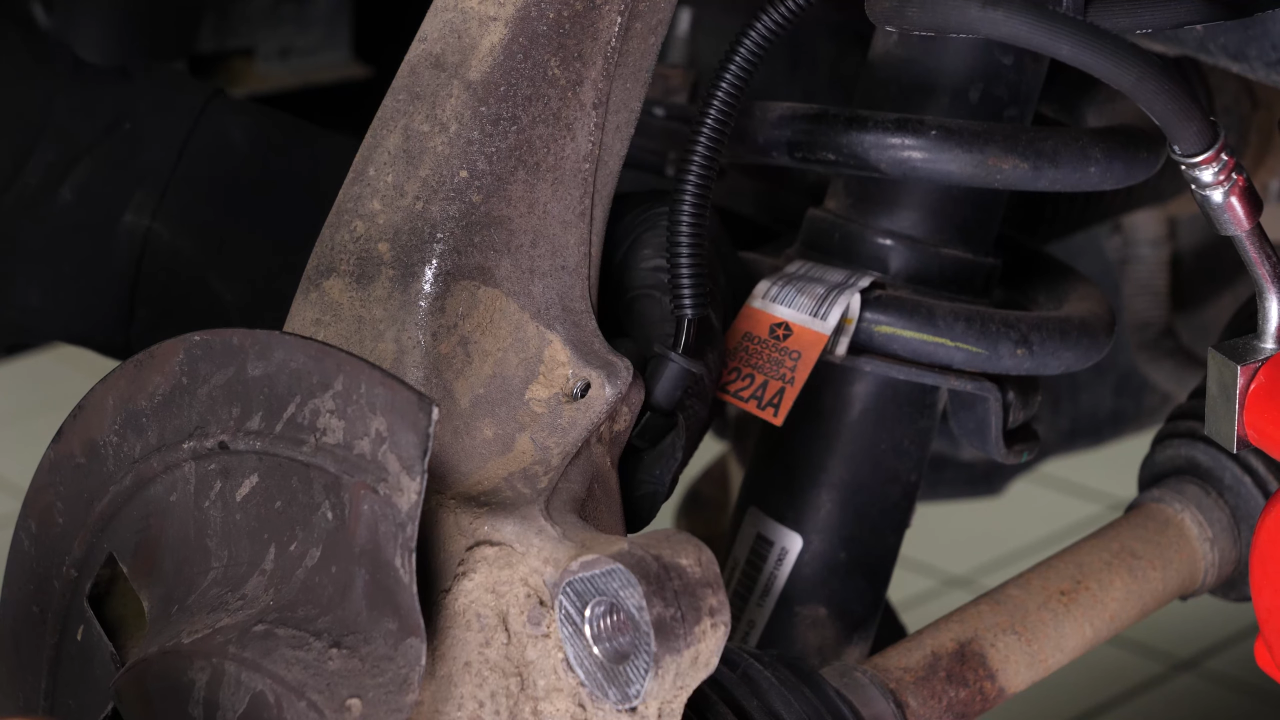

Put the ABS sensor cable back in place and clip it into its upper slot.

Chapter 11:

Step 2/4

Then reconnect it.

Chapter 11:

Step 3/4

Clip the ABS sensor connector back inside the mudguard.

Chapter 11:

Step 4/4

Then clip the sensor into its various slots.

Chapter 12:

Install the brake disc

Step 1/2

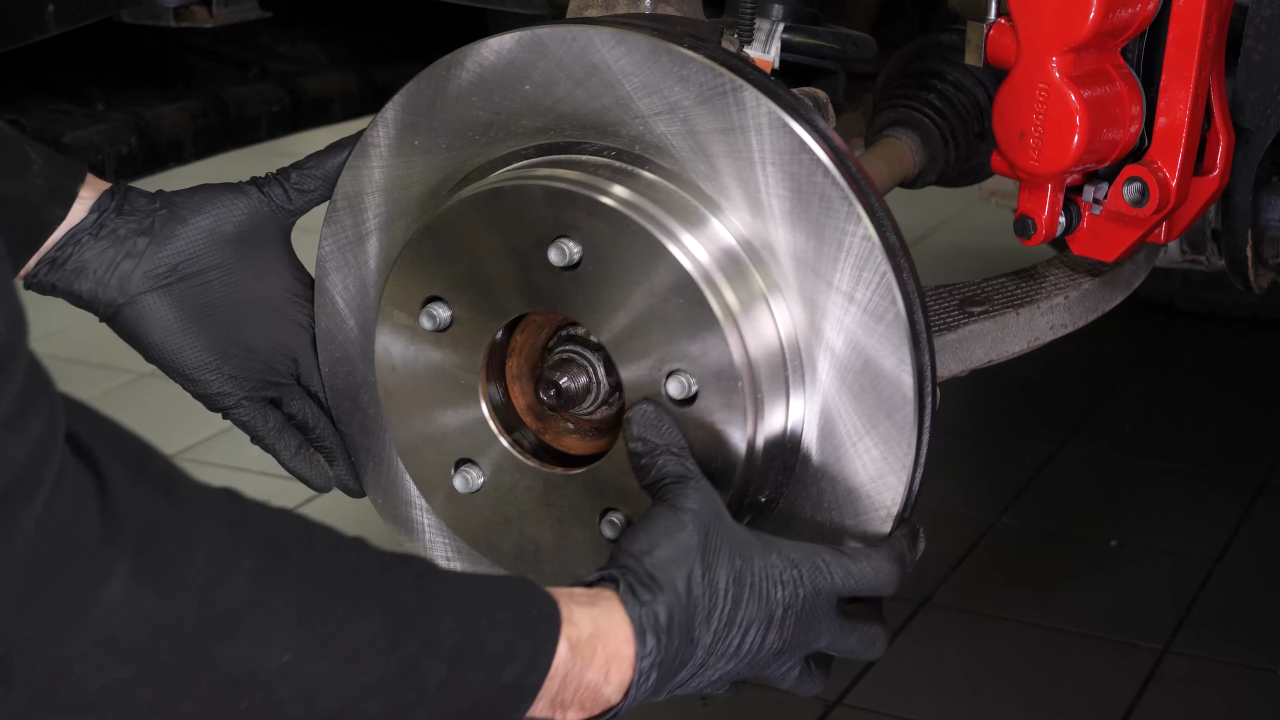

Reinstall the brake disc.

Chapter 12:

Step 2/2

Then put the retainer back in place.

Chapter 13:

Install the caliper assembly

Step 1/4

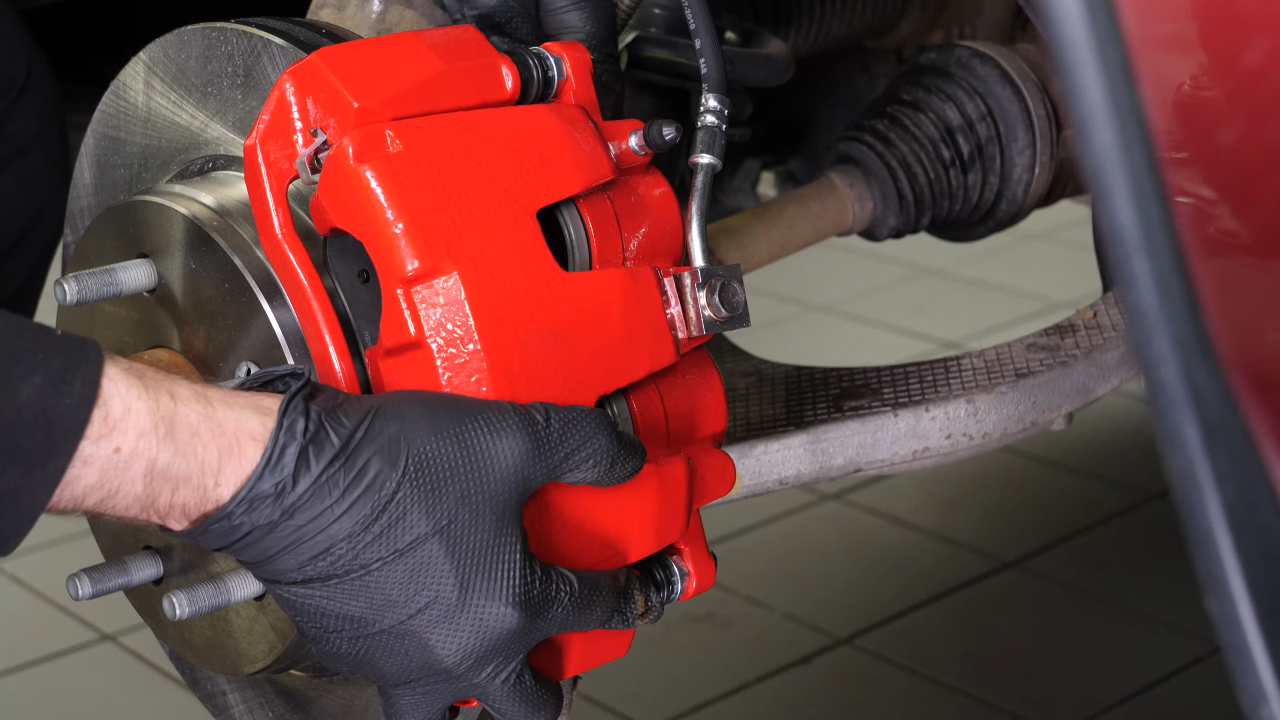

You can now re-install the caliper assembly.

Chapter 13:

Step 2/4

And screw it back on.

Chapter 13:

Step 3/4

Finish tightening using a torque wrench.

Chapter 13:

Step 4/4

Don’t forget to remove the cable that you used to hold the caliper assembly together.

Chapter 14:

Put the vehicle back on the ground

Step 1/3

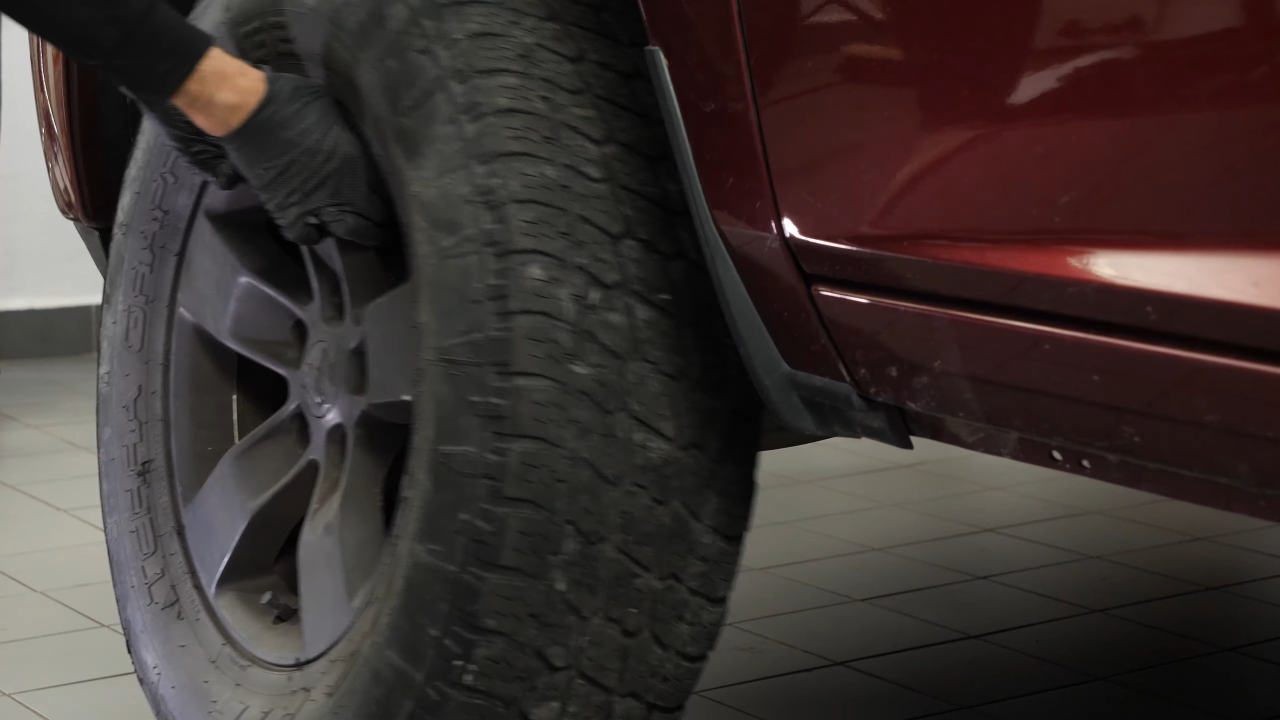

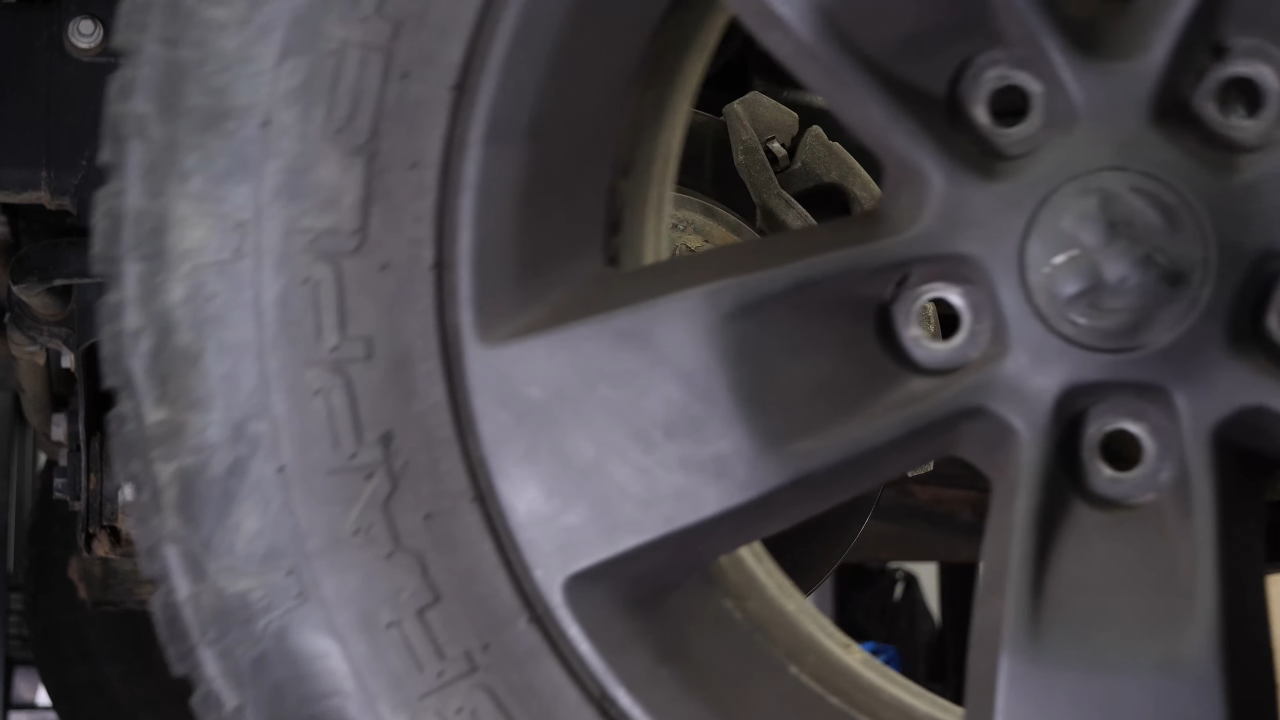

Then, you will be able to put the wheels back on your vehicle.

Chapter 14:

Step 2/3

Put the car back on the ground and block the wheels properly.

Chapter 14:

Step 3/3

Operation complete.
