How to replace the headlight assembly 2009-2018 Dodge Ram 1500

Chapter 1:

Open the hood

Step 1/2

Turn your engine off and set the parking brake.

Chapter 1:

Step 2/2

Pull on the hood release handle and open the hood.

Chapter 2:

Remove the plastic cover

Step 1/2

Now you need to access the head light retaining bolts.

Chapter 2:

Step 2/2

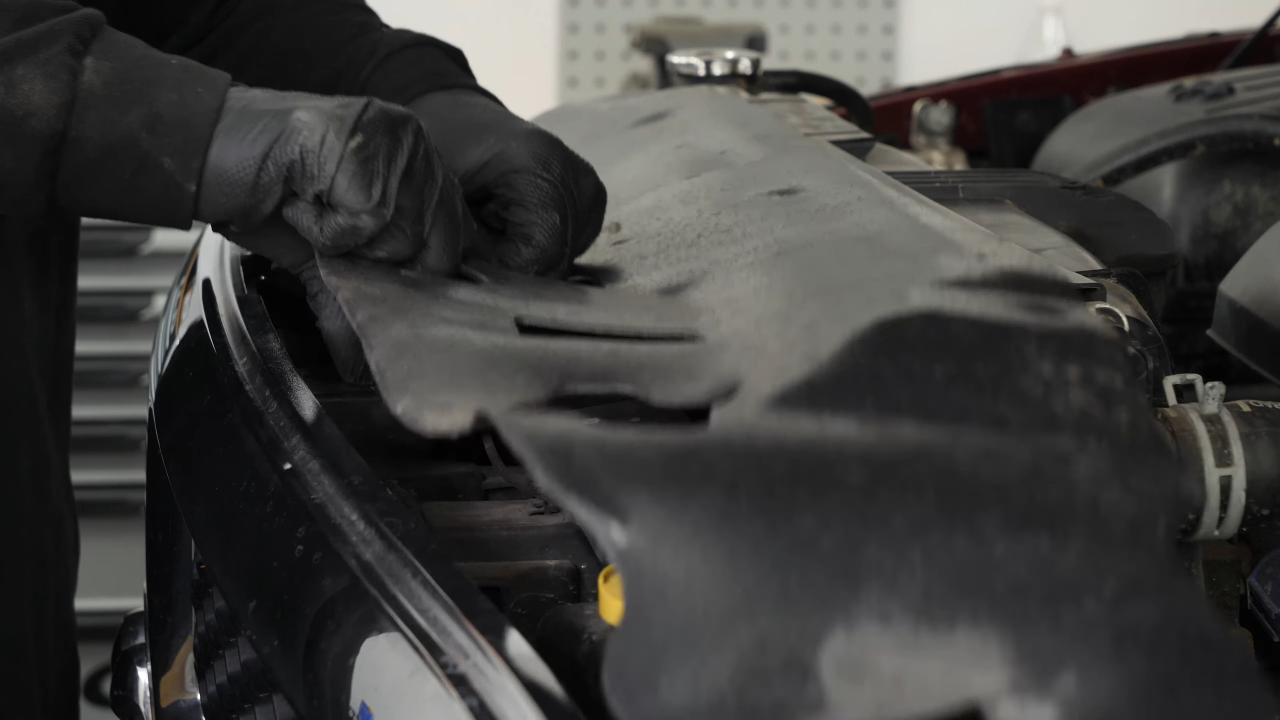

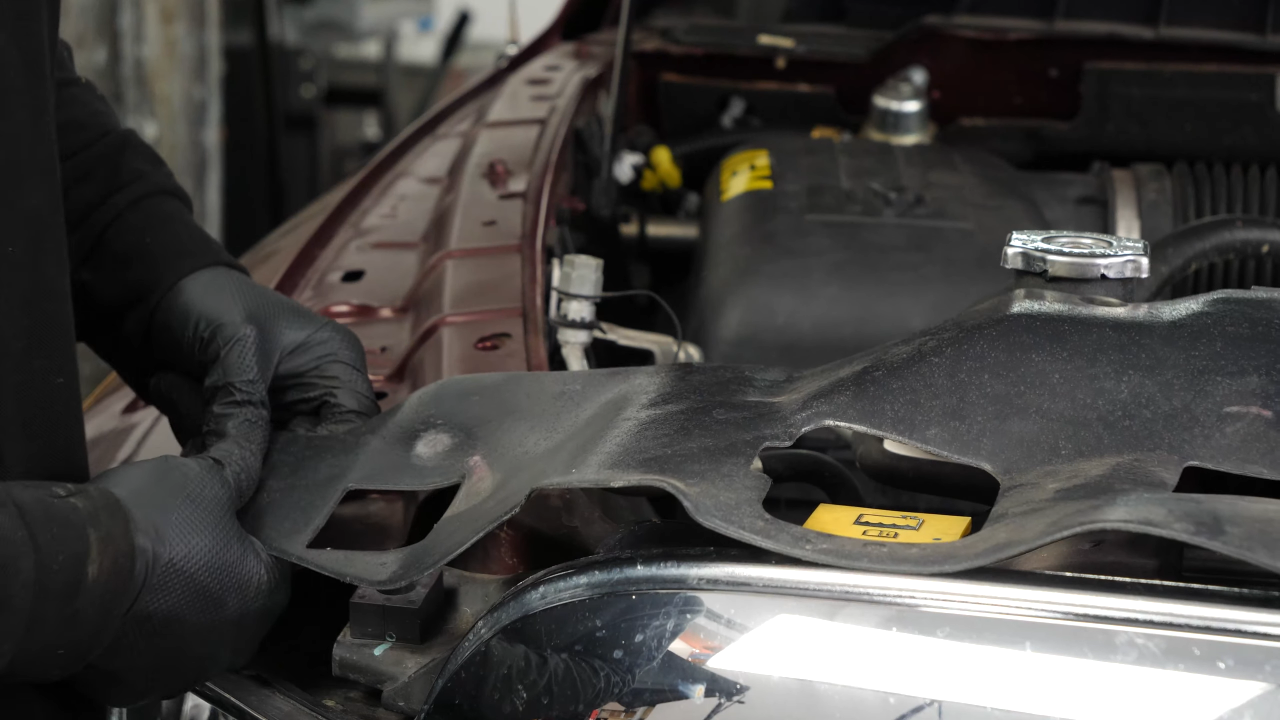

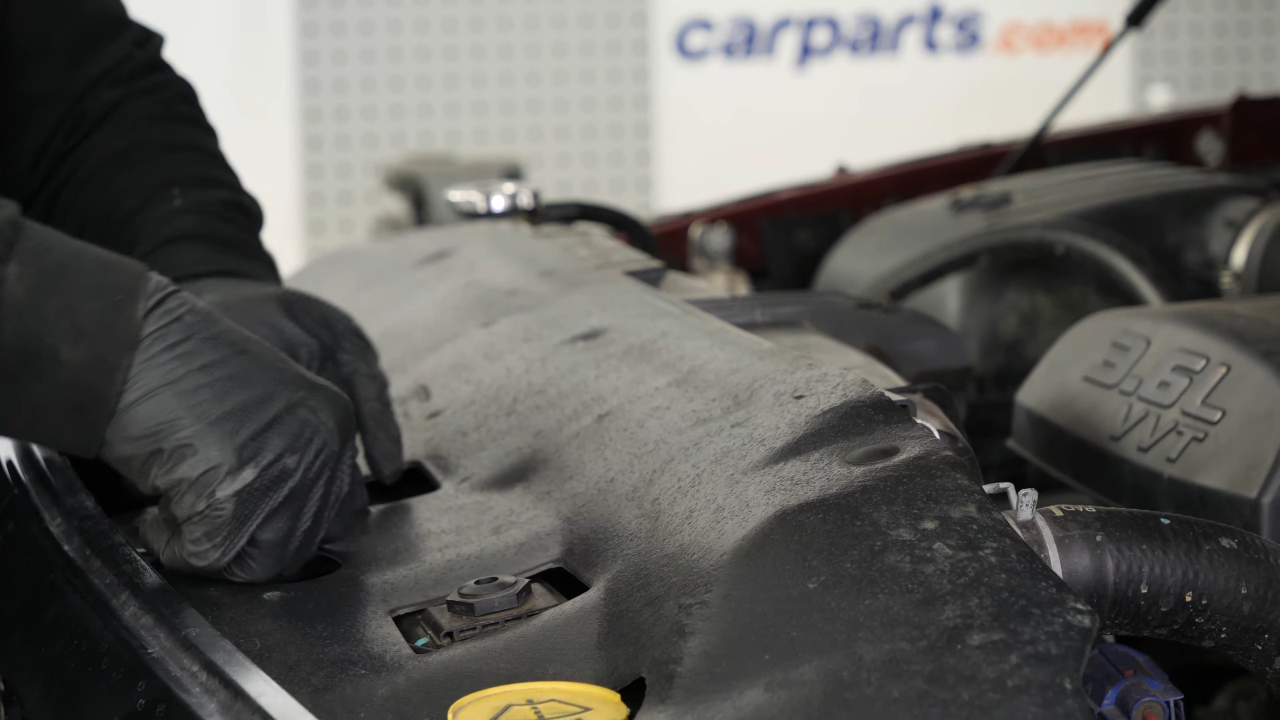

To do this, start removing the plastic cover by pulling on the 6 plastic rivets. Then remove the cover.

Chapter 3:

Remove the Grille assembly

Step 1/1

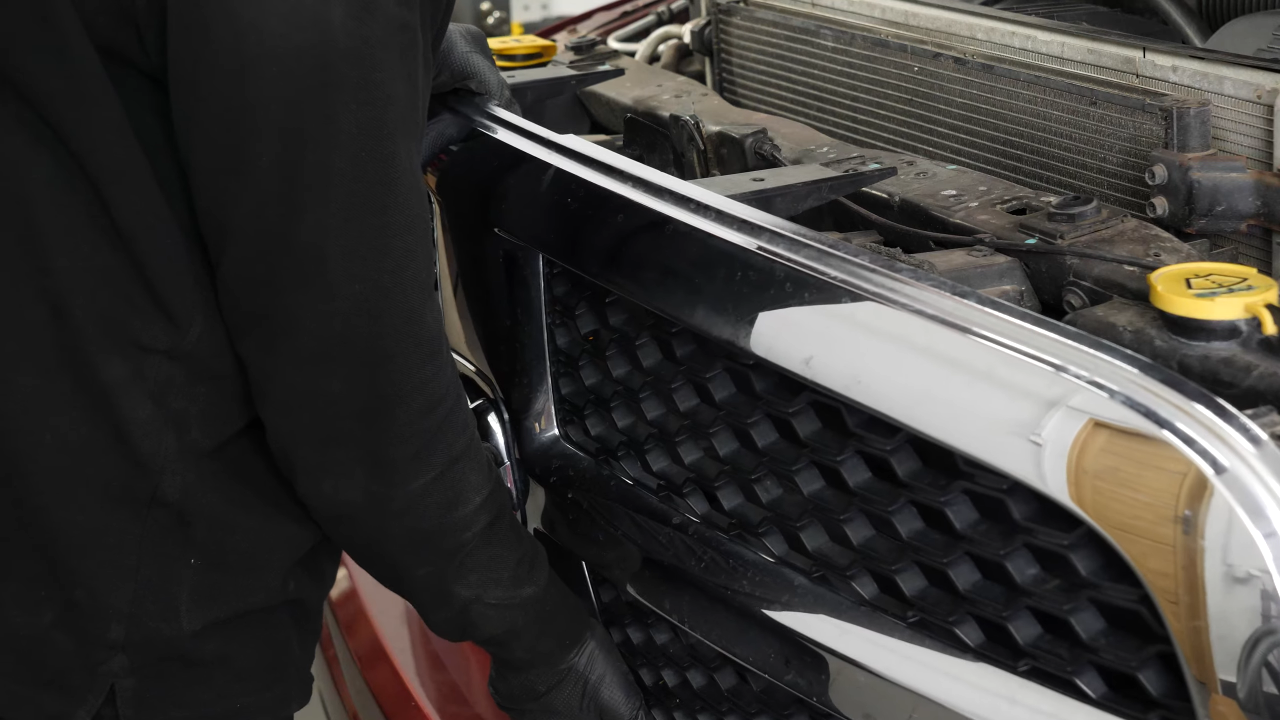

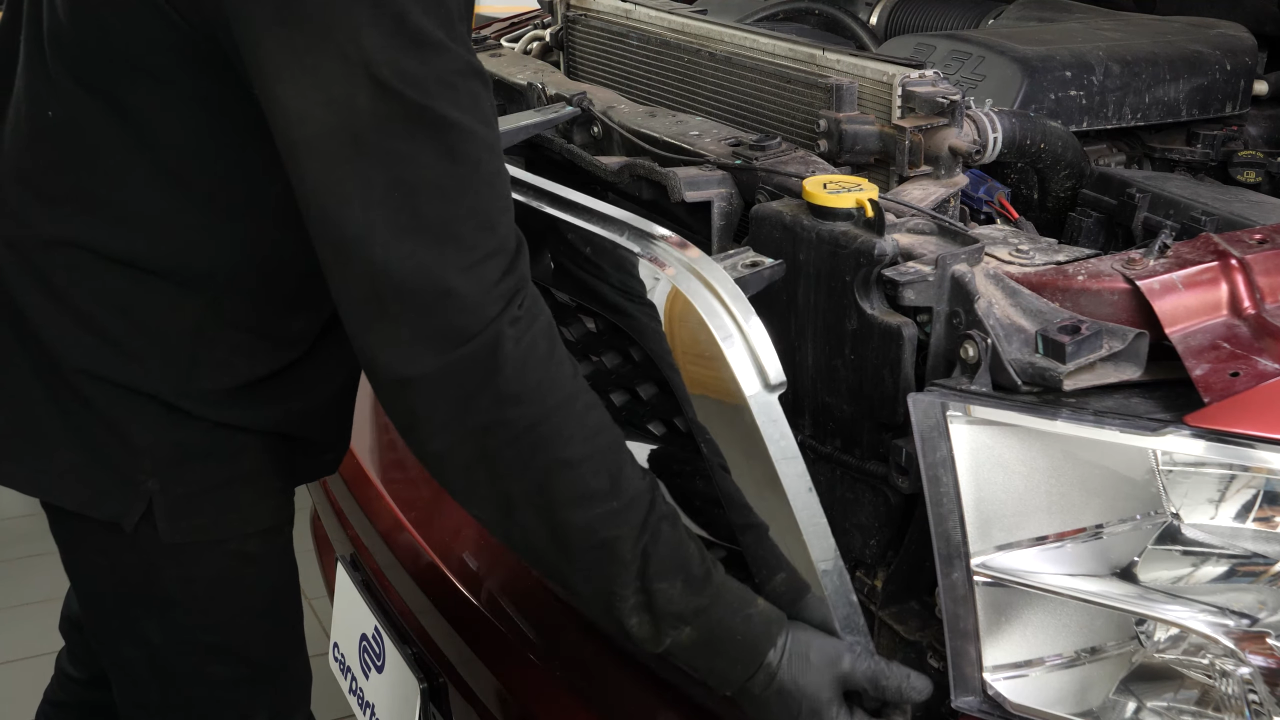

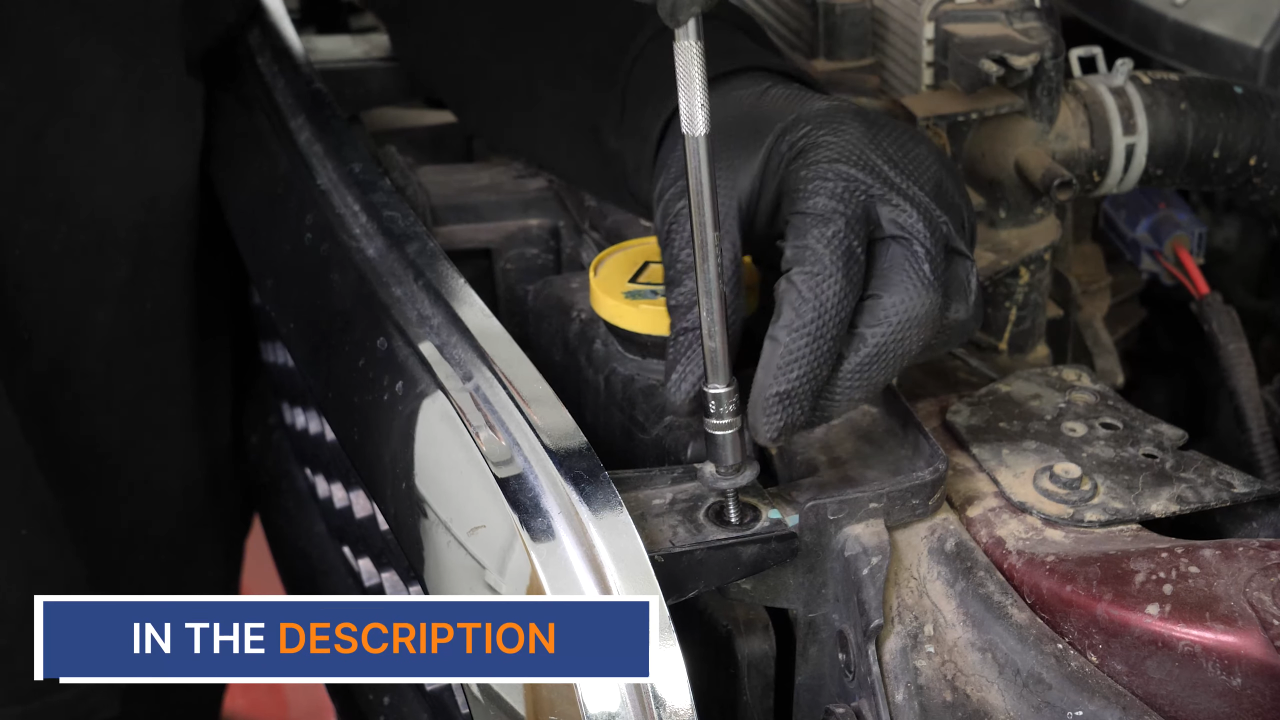

Using a ratchet and an 8 mm socket, unscrew the 4 bolts holding the grille assembly. Then, remove it.

Chapter 4:

Remove the headlight housing

Step 1/3

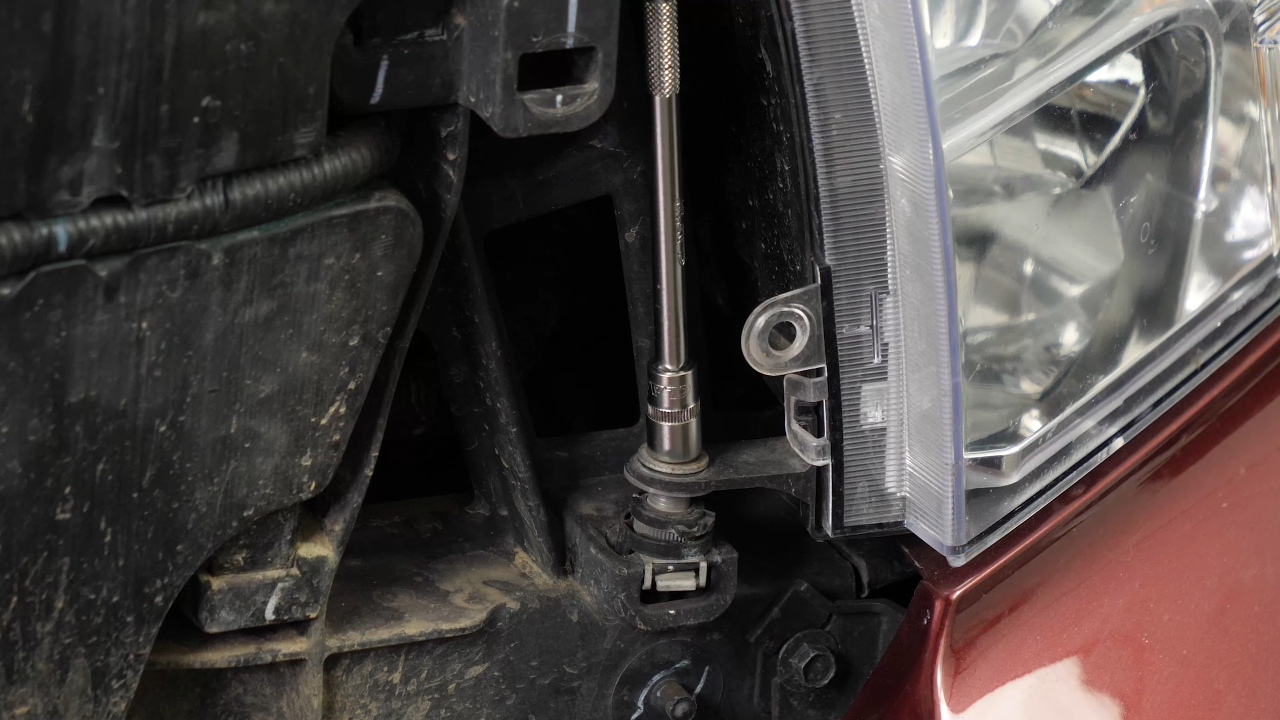

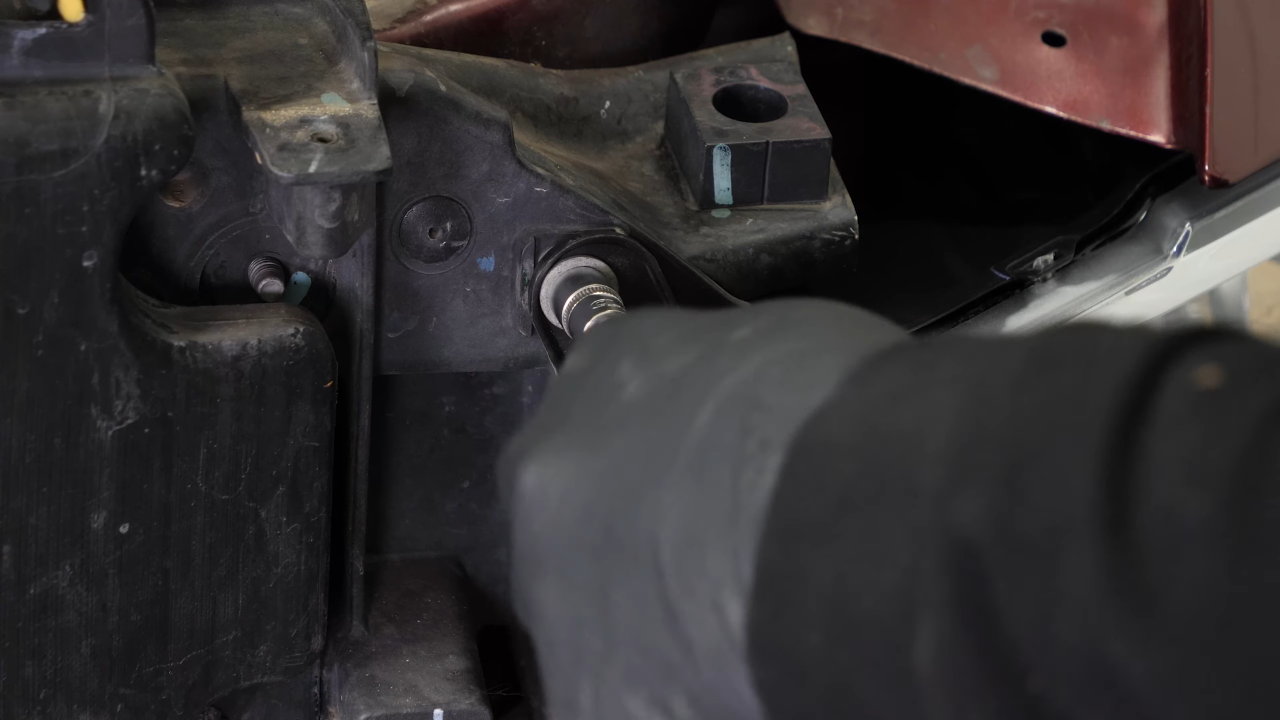

Then, using a ratchet and a 10 mm socket, unscrew the 2 bolts holding the head light.

Chapter 4:

Step 2/3

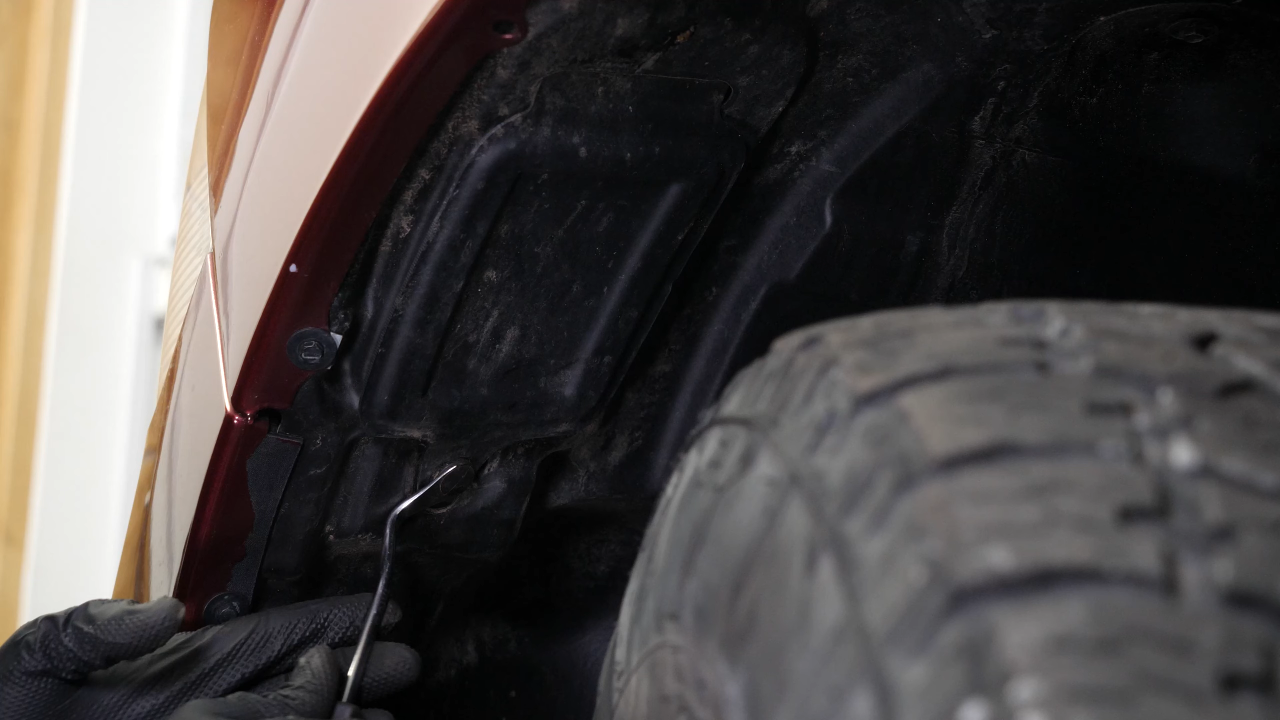

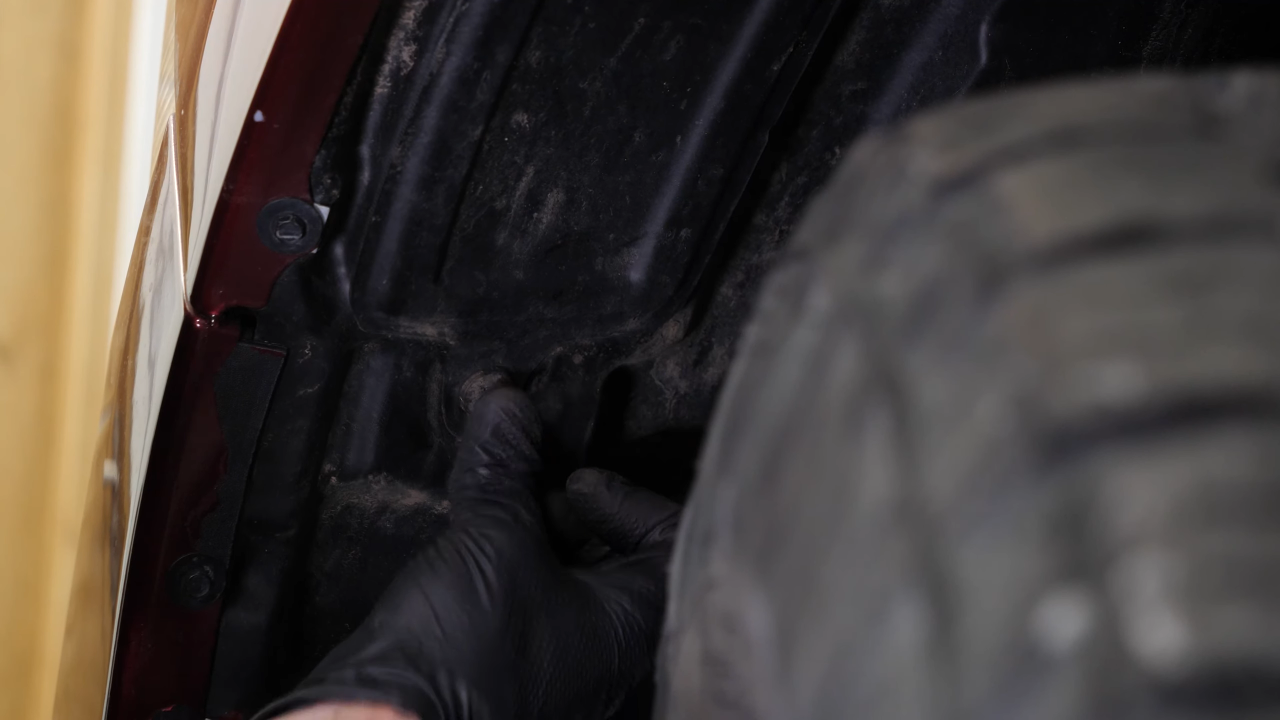

At the mudguard, use a fork to remove the plastic rivet to open the access hatch to the rear headlight retaining system.

Chapter 4:

Step 3/3

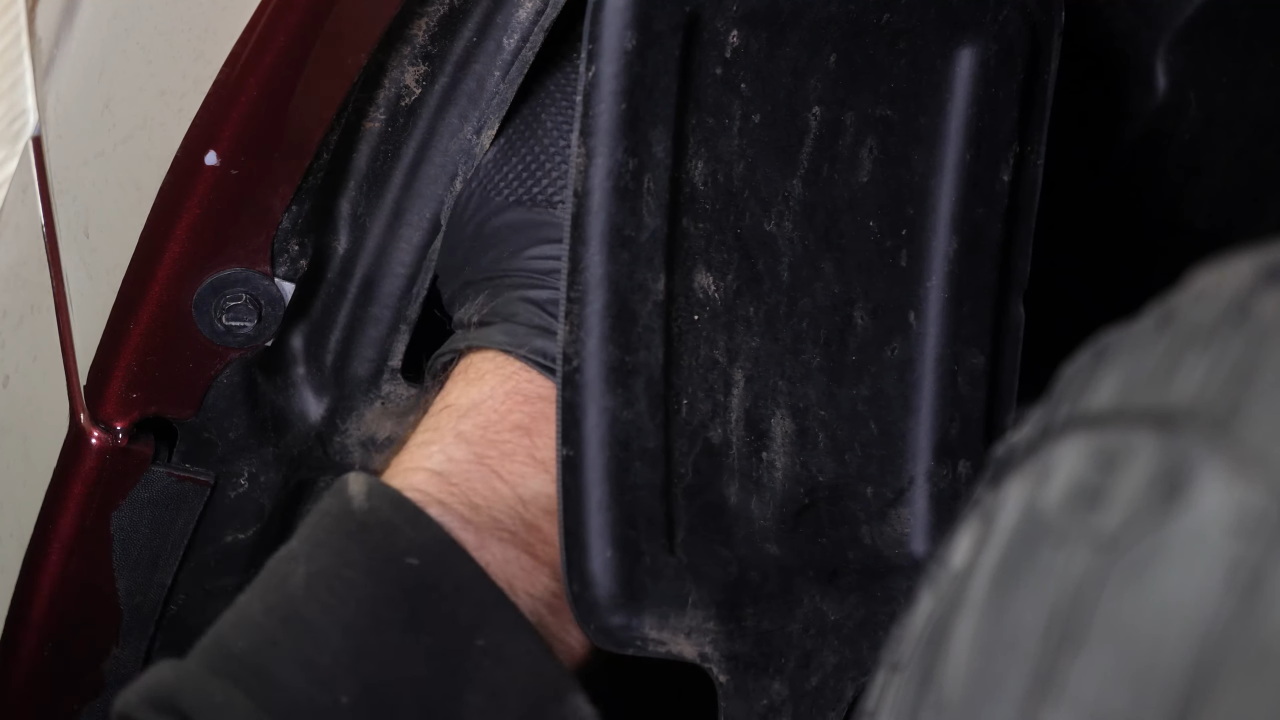

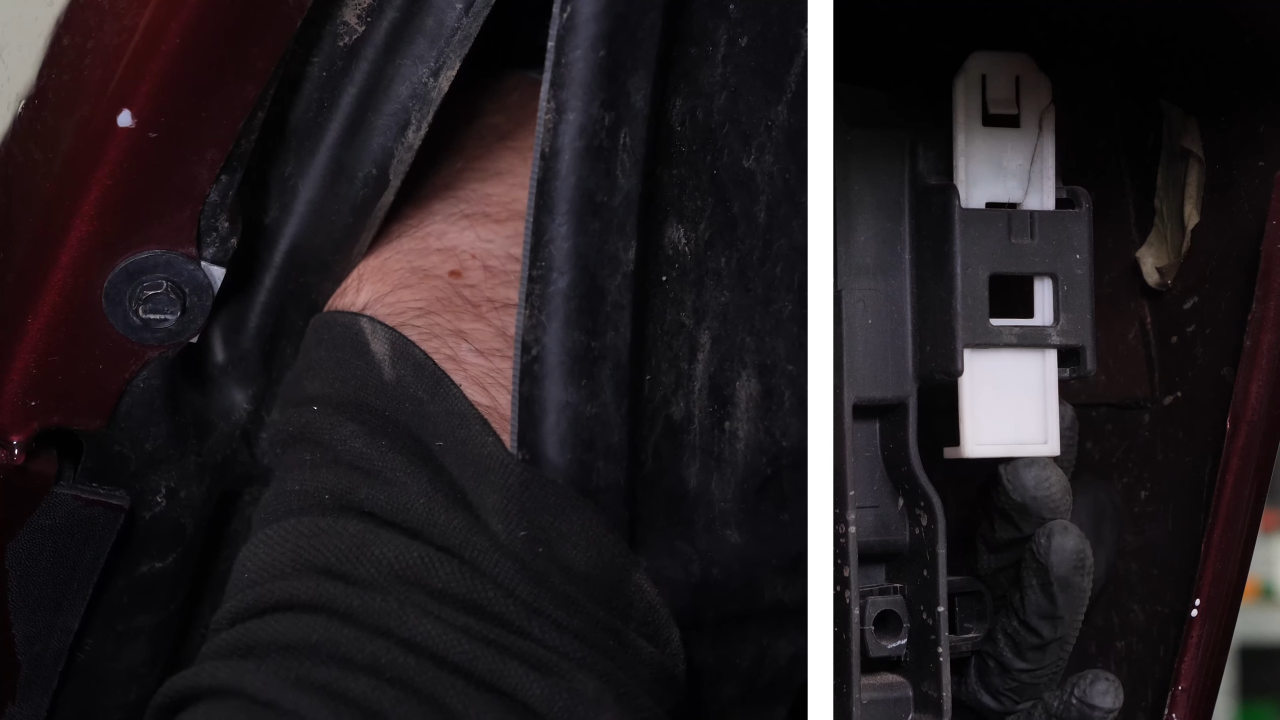

Then push the retaining tab to unlock the head light.

Chapter 5:

Disconnect the headlight assembly

Step 1/3

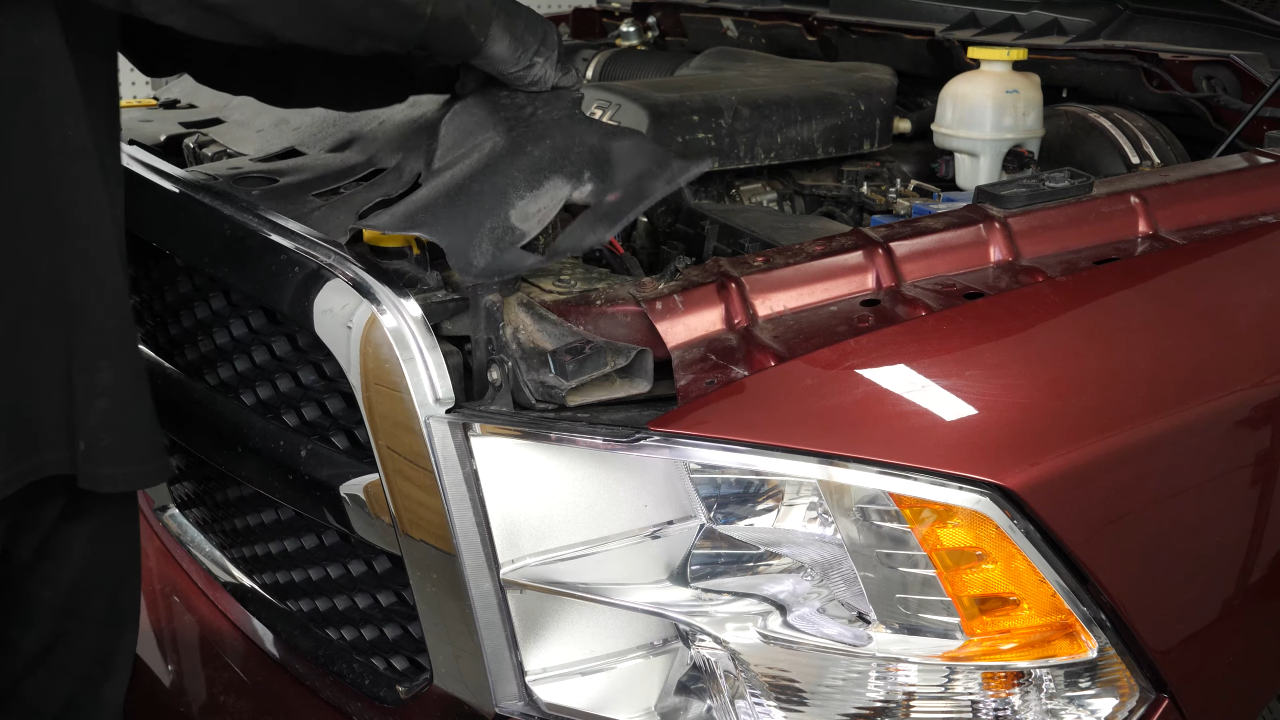

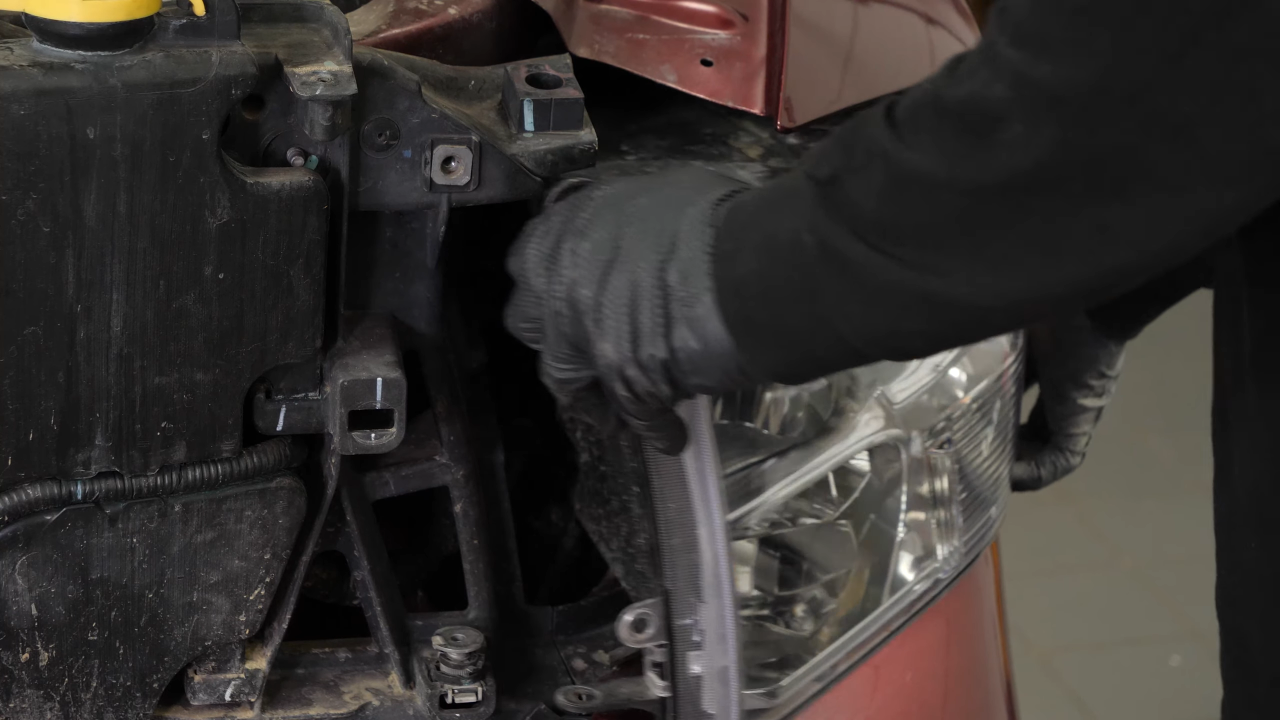

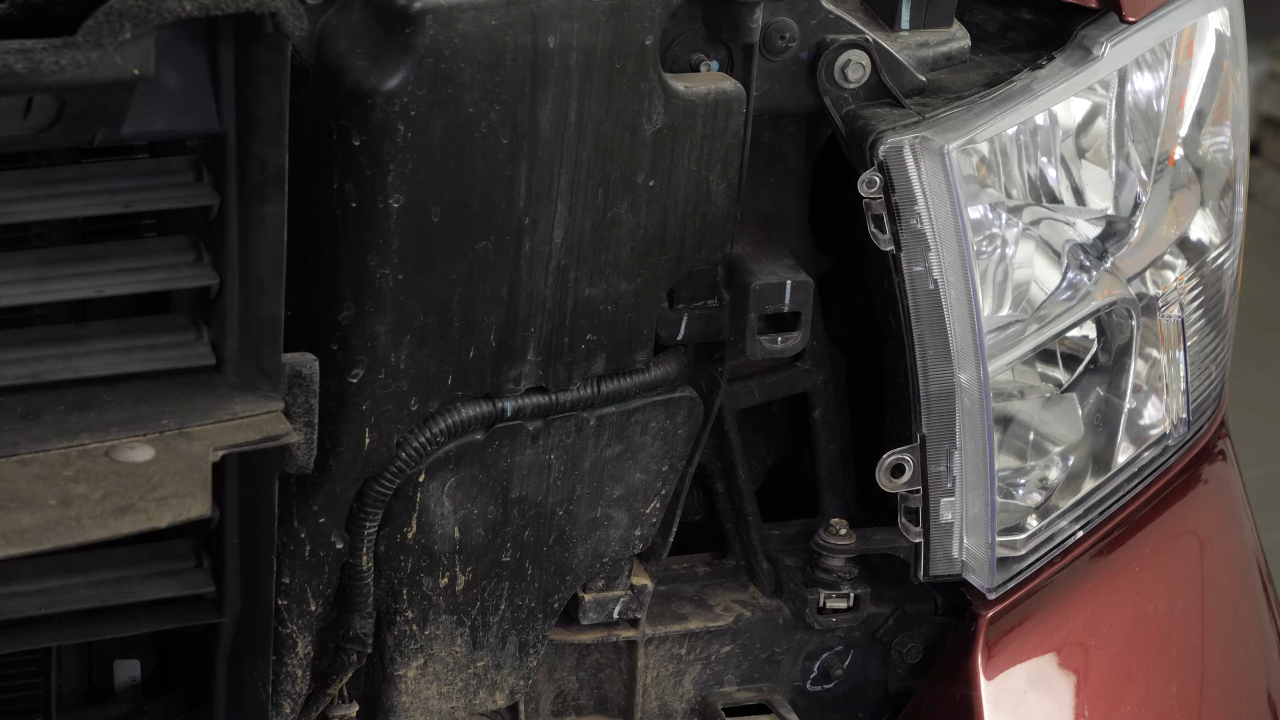

You can now move the head light aside.

Chapter 5:

Step 2/3

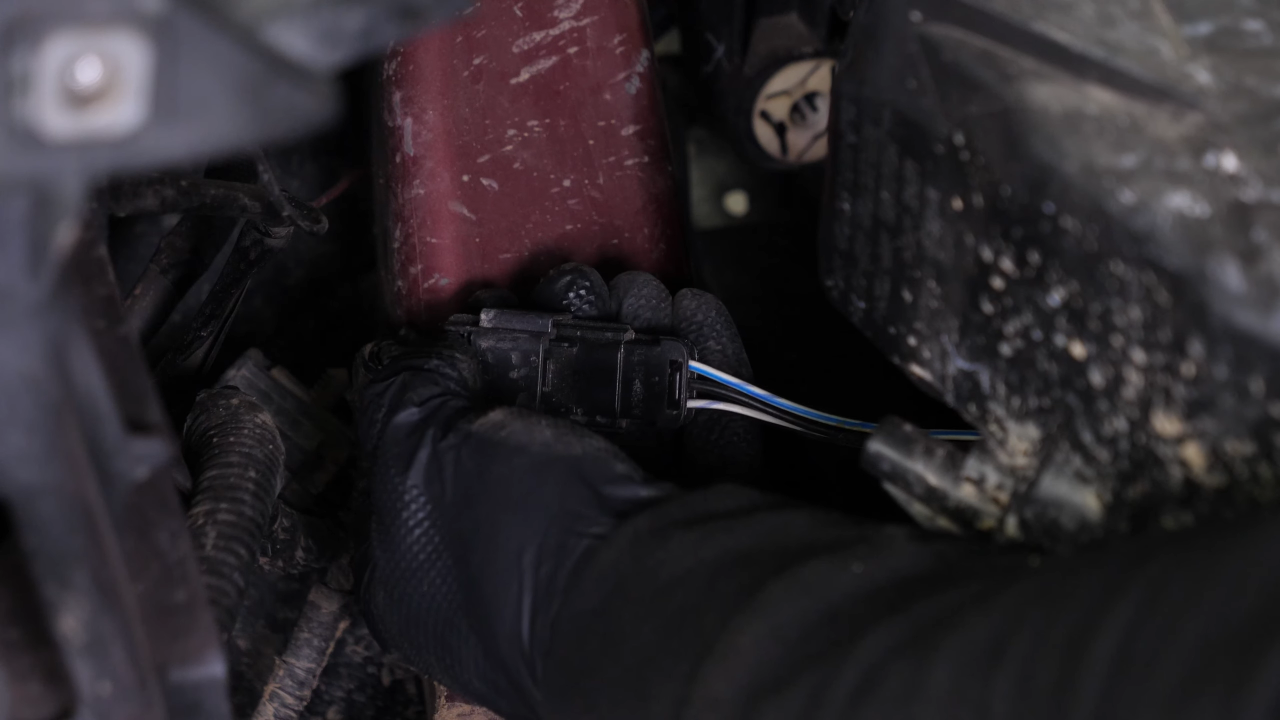

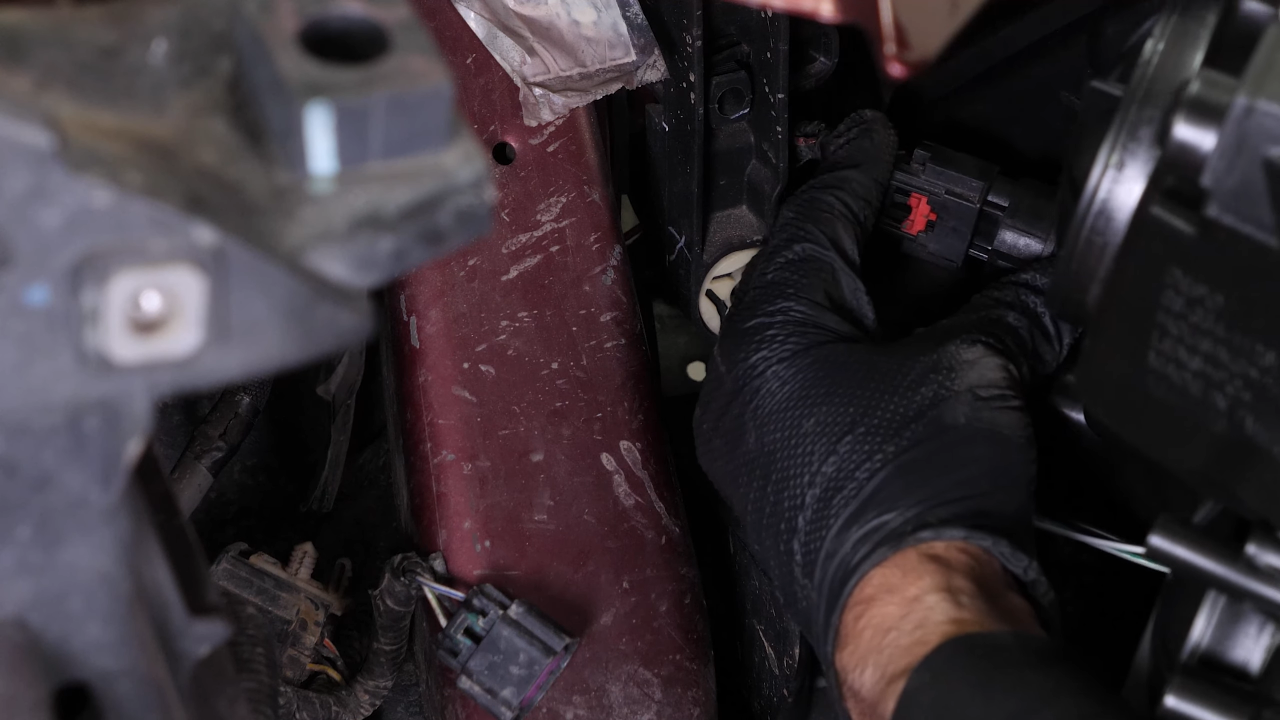

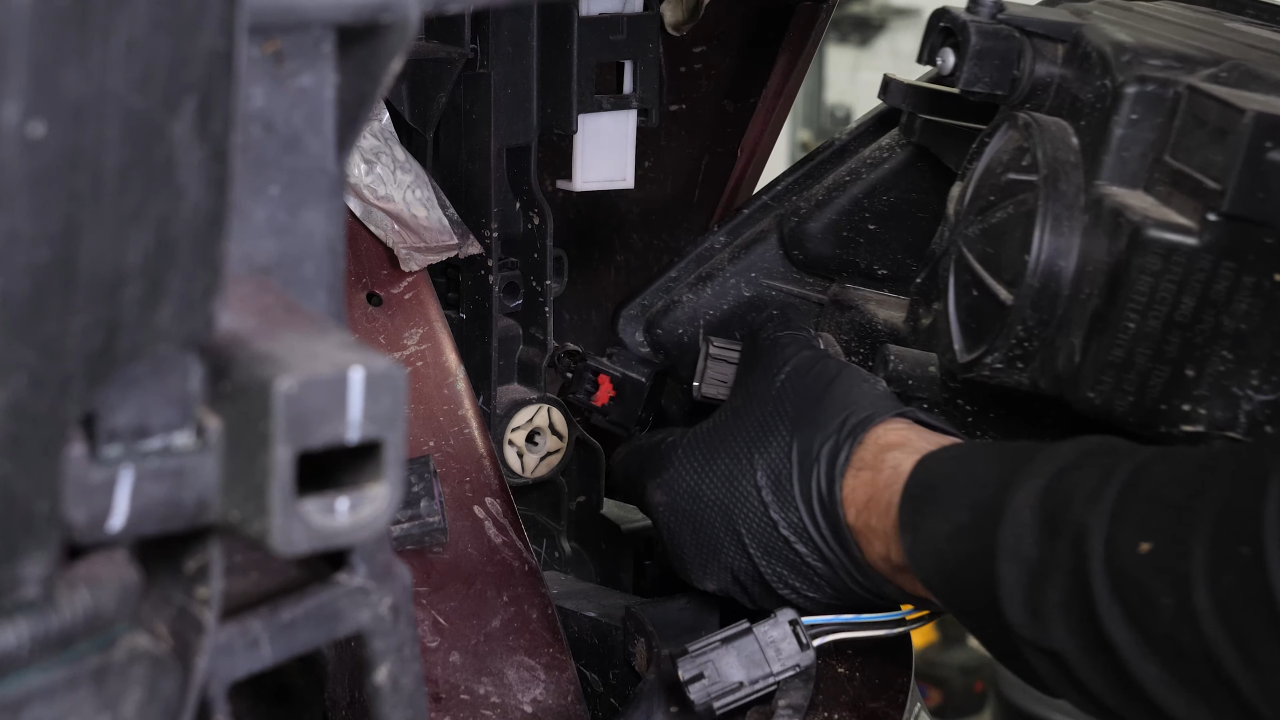

Disconnect the first power connector from the head light by pressing the tab and pulling on the pod.

Chapter 5:

Step 3/3

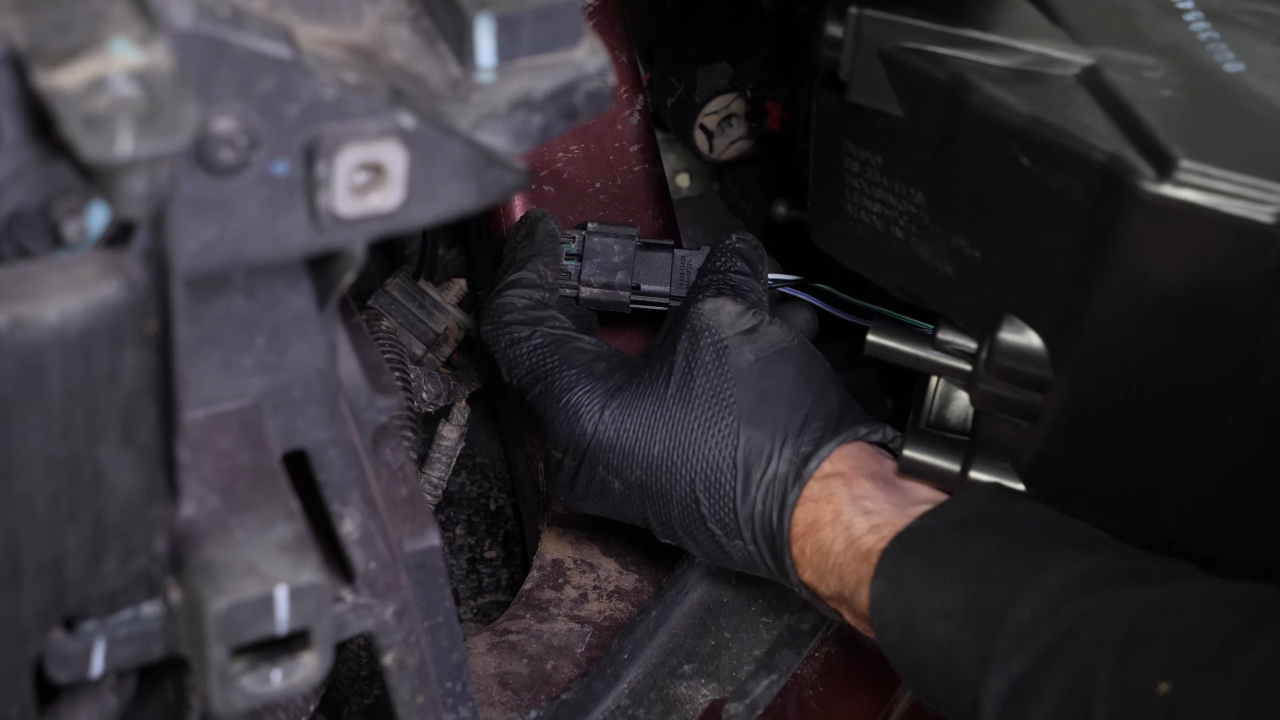

Then disconnect the second one by pushing the red tab and pulling on the pod.

Chapter 6:

Reconnect the headlight assembly

Step 1/2

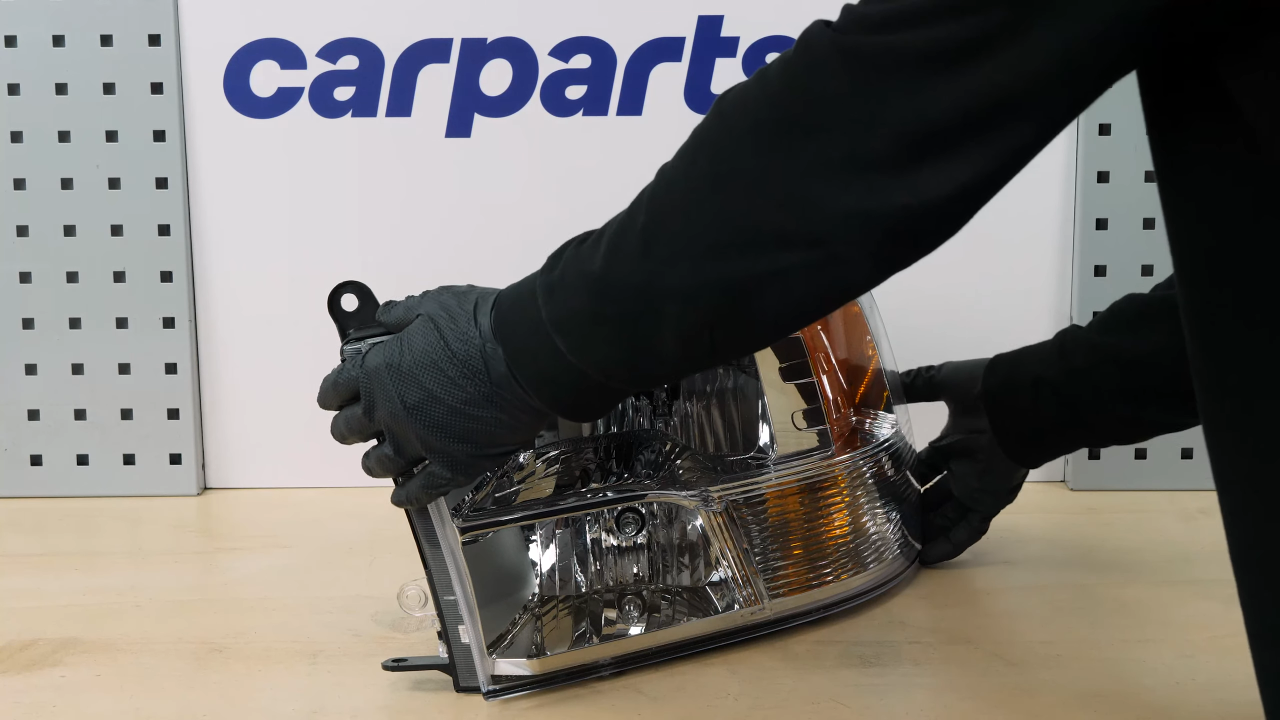

Take the new head light

Chapter 6:

Step 2/2

Reposition the headlight assembly and reconnect the head light power connectors.

Chapter 7:

Put the headlight housing back

Step 1/3

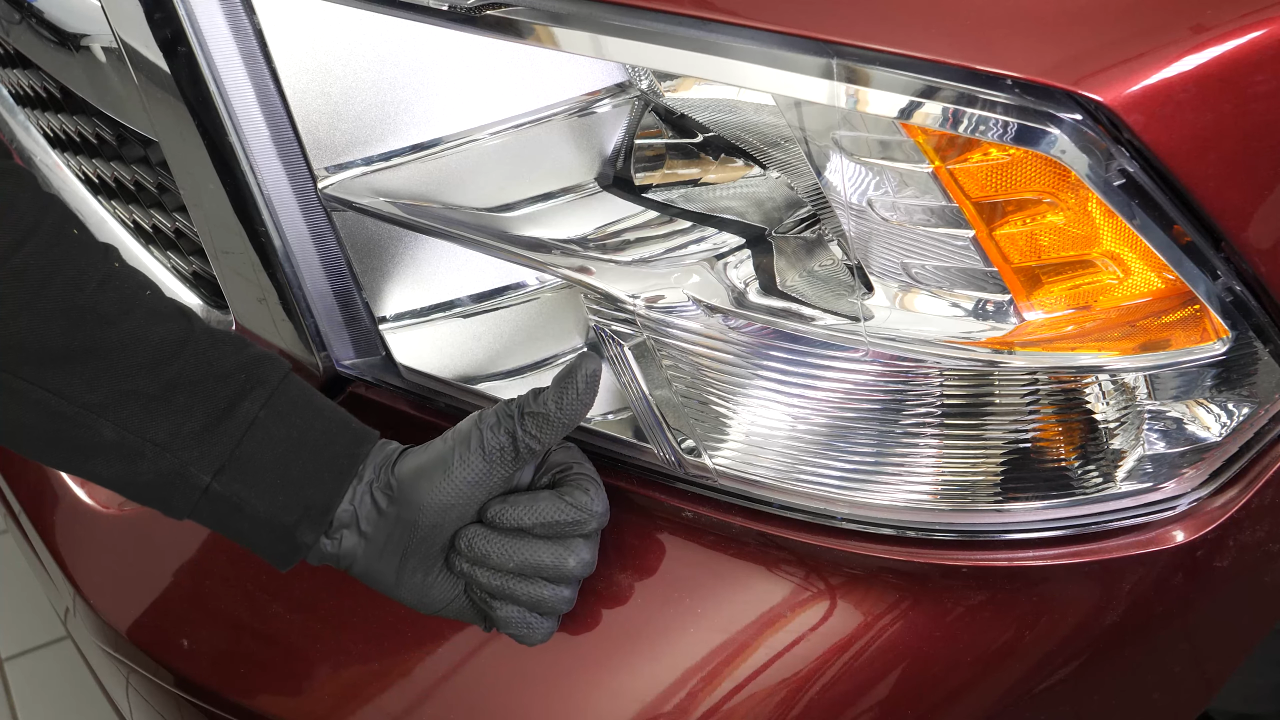

Put the light back in.

Chapter 7:

Step 2/3

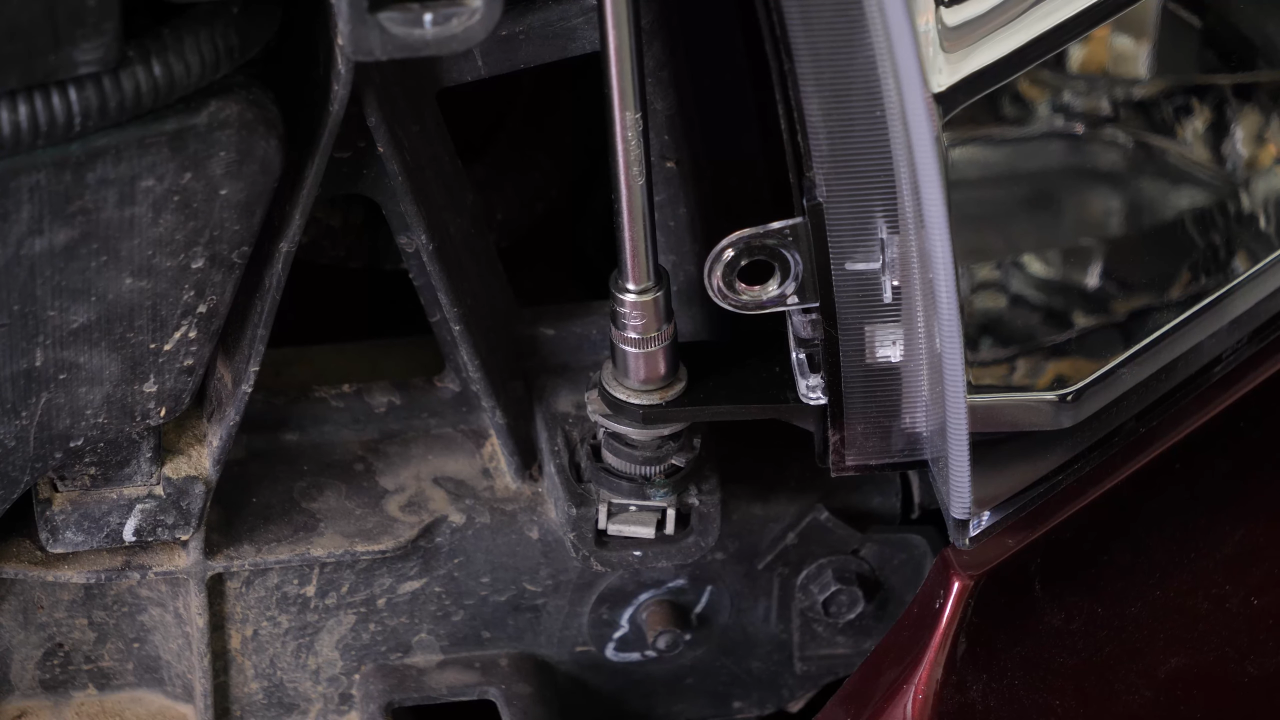

Tighten the two head light retaining bolts.

Chapter 7:

Step 3/3

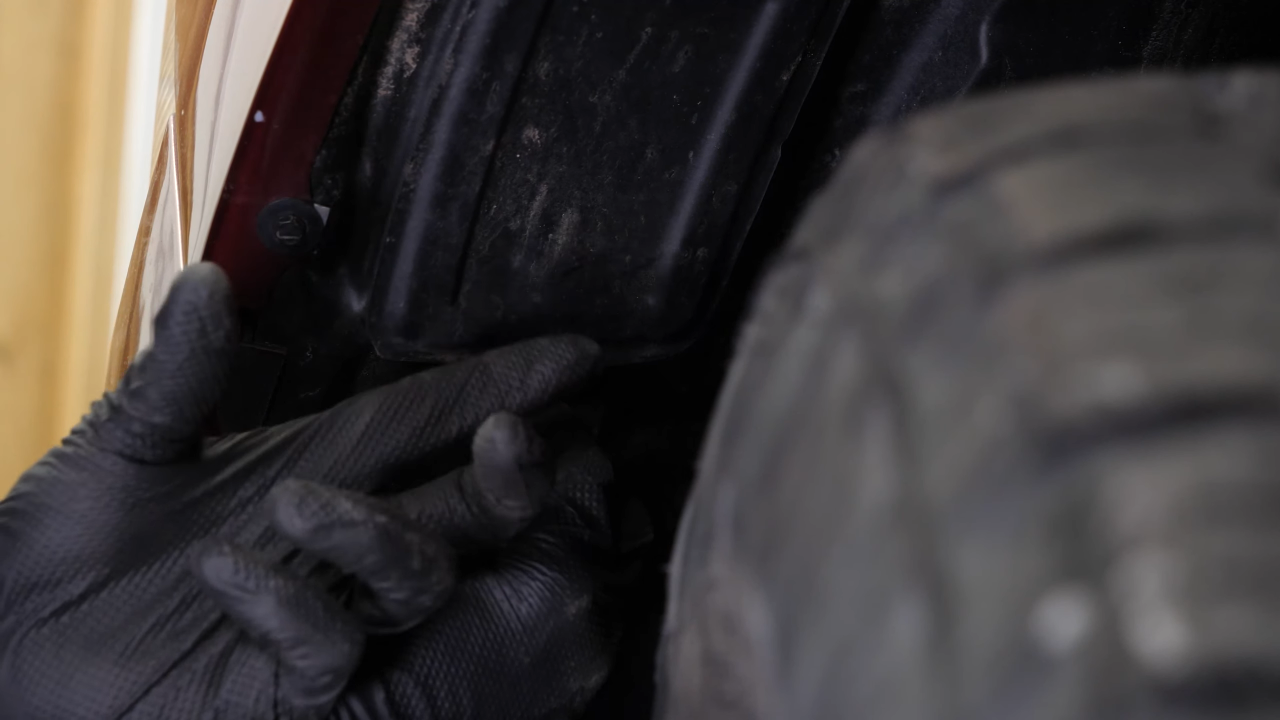

Then lock the head light with the retaining tab. Close the access hatch and put the rivet back in place.

Chapter 8:

Put the Grille assembly back

Step 1/1

Put the grille assembly back on and retighten the 4 bolts.

Chapter 9:

Put the plastic cover back

Step 1/2

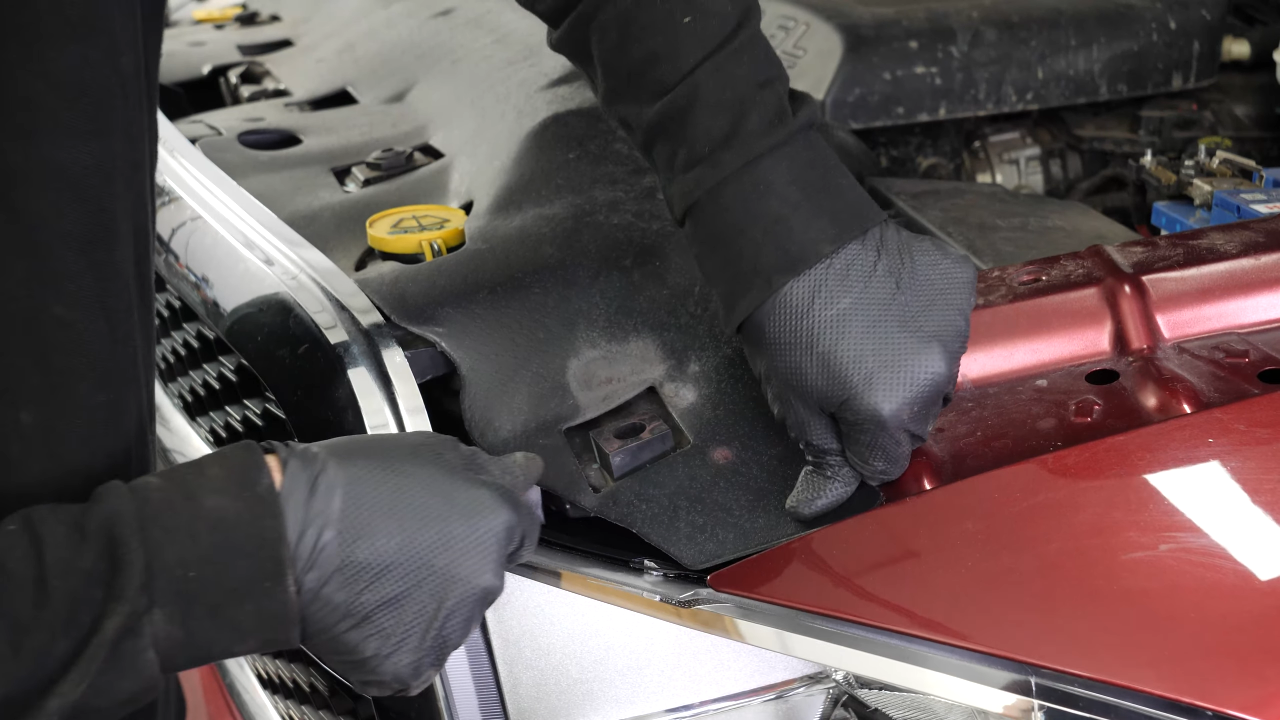

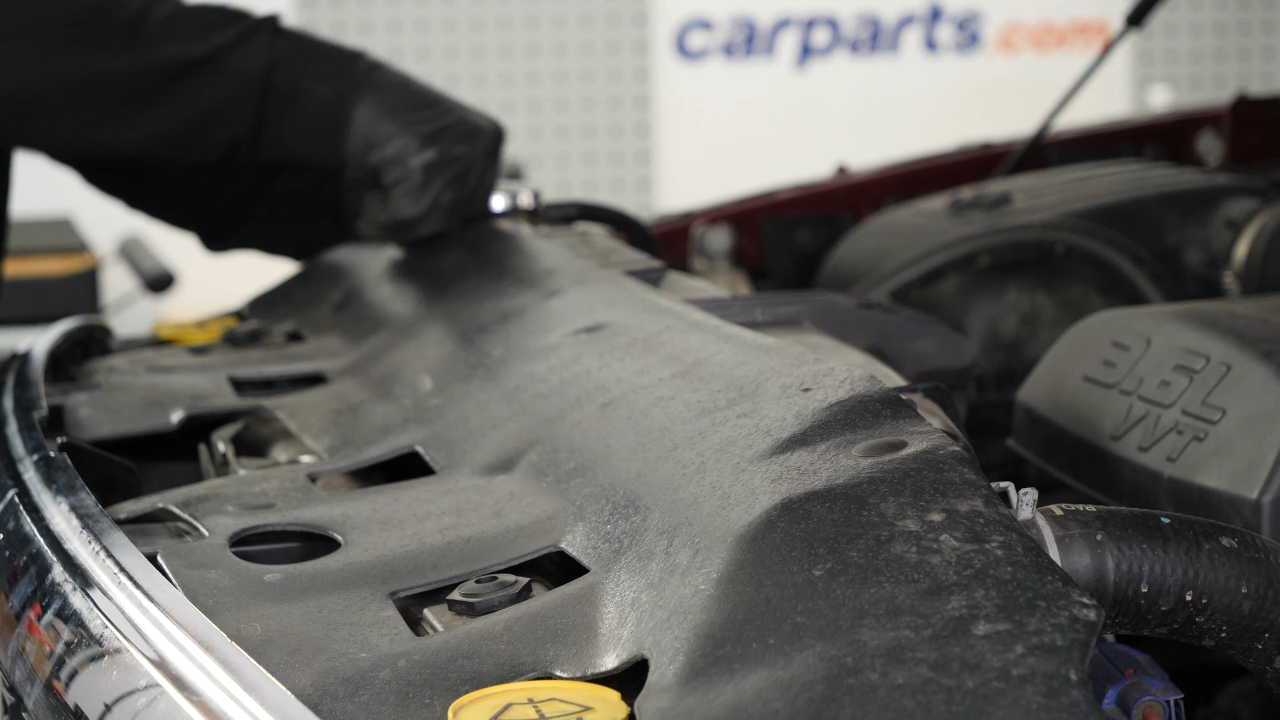

Refit the plastic cover and then the 6 rivets.

Chapter 9:

Step 2/2

Operation complete.
