How to replace the ignition coils 2009-2018 Dodge Ram 1500

Chapter 1:

Open the hood

Step 1/1

Turn off your vehicle’s ignition, set the parking brake, pull the hood release handle and open the hood.

Chapter 2:

Locate the coils

Step 1/2

You can now see the location of the ignition coils.

Chapter 2:

Step 2/2

There are 3 passenger side ignition coils located under the air duct and 3 coils located under the intake manifold.

Chapter 3:

Remove the ignition coil

Step 1/5

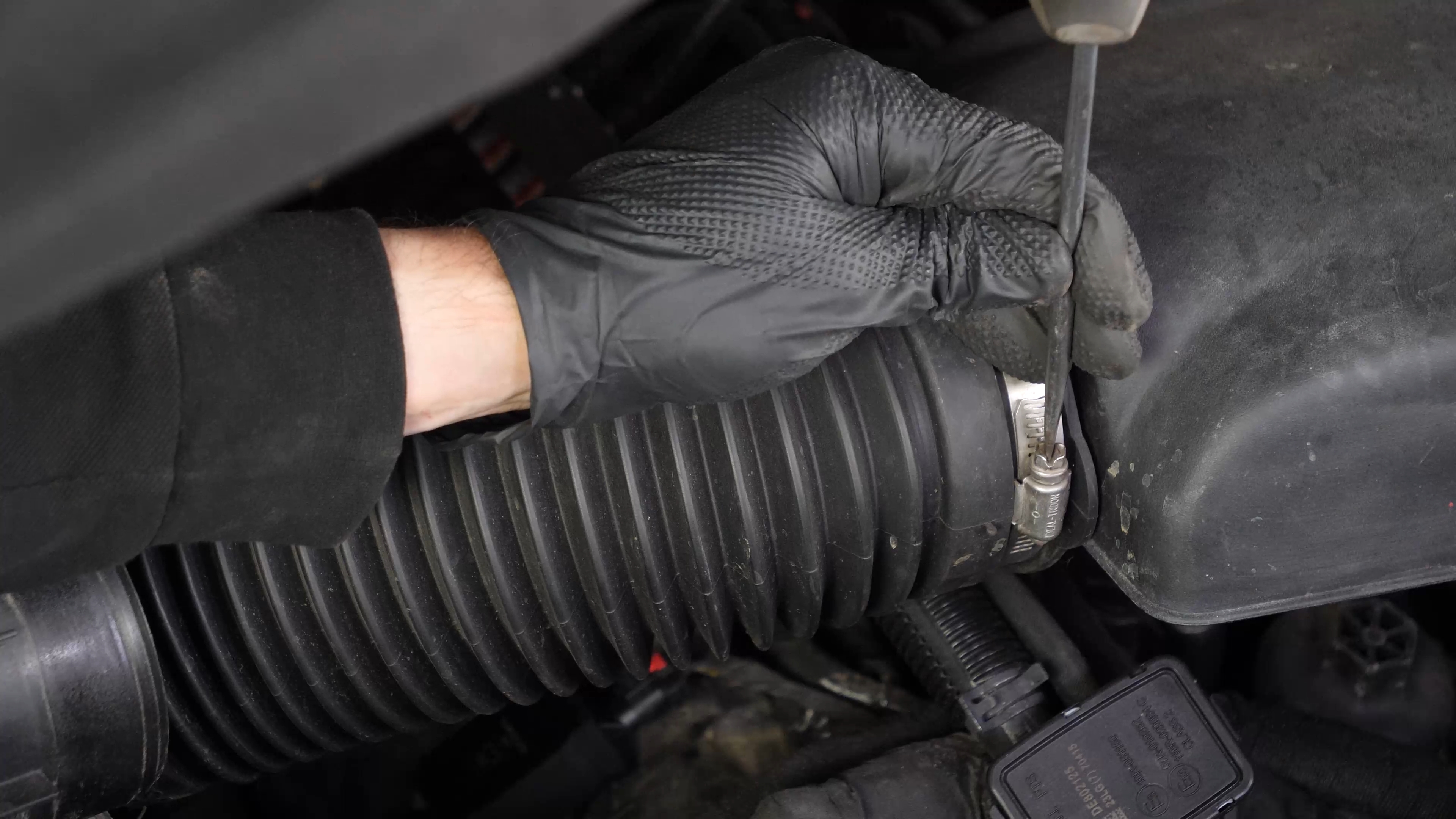

To access the passenger side coils, use a flat head screwdriver to unscrew the two holding clamps located on either side of the duct. Then, remove the hose.

Chapter 3:

Step 2/5

Disconnect the power from the ignition coil.

Chapter 3:

Step 3/5

To do this, push on the tab and pull on the connector.

Chapter 3:

Step 4/5

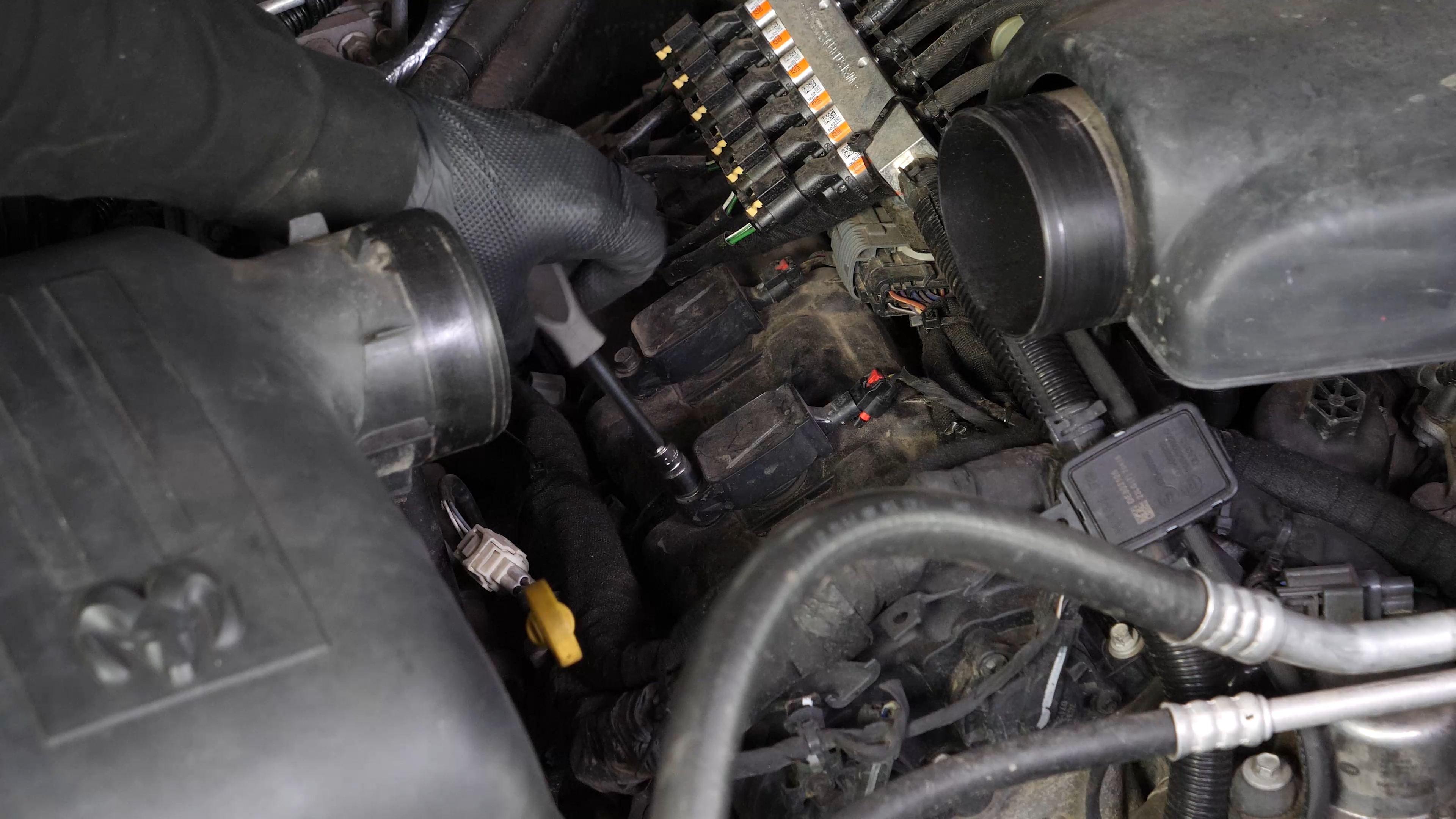

Using a ratchet, an extender and a 10 mm socket, remove the bolt holding the coil.

Chapter 3:

Step 5/5

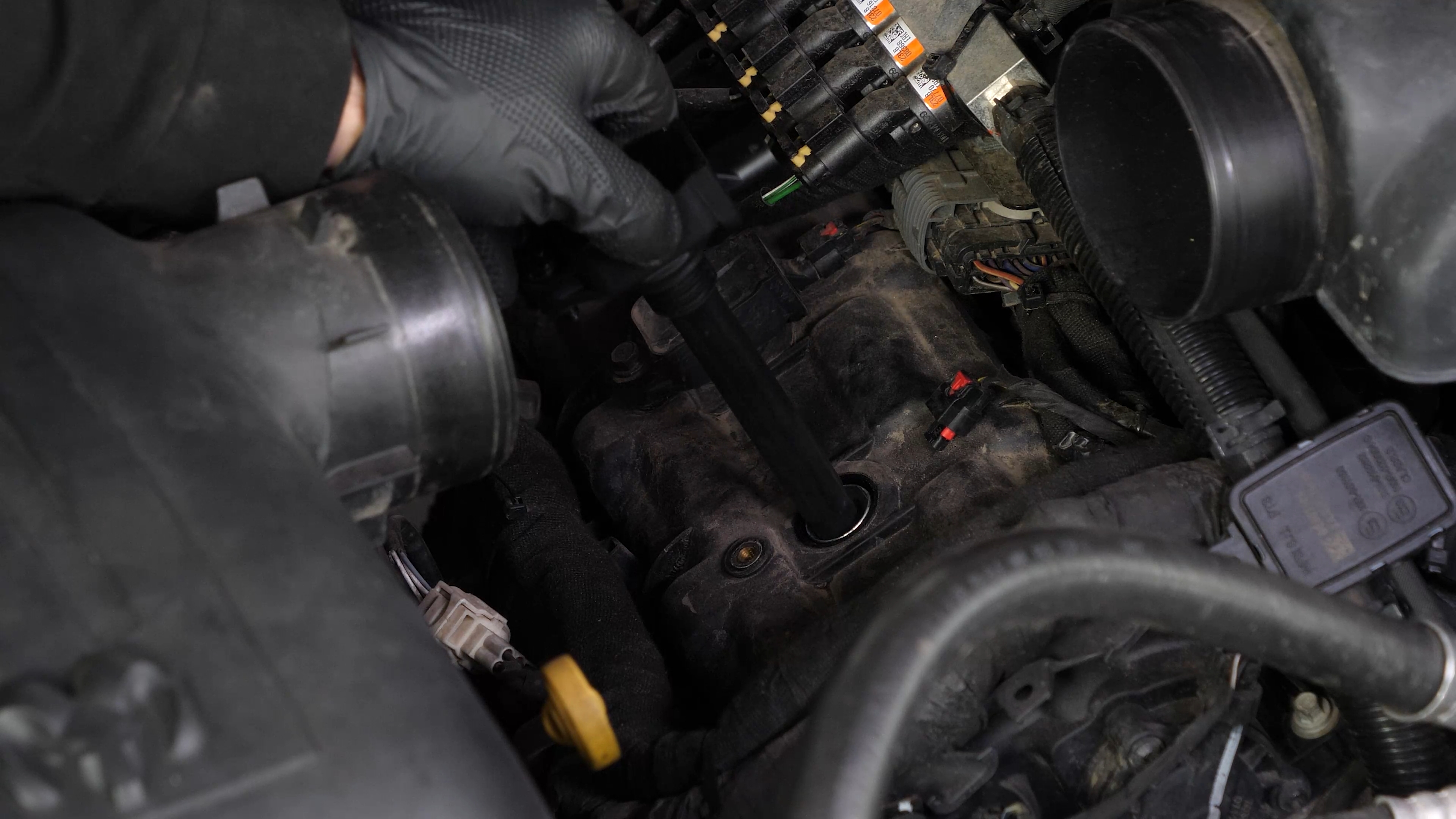

You can now carefully remove the coil, making small lateral back and forward movements.

Chapter 4:

Tips

Step 1/2

Tip: we recommend using a thin plastic tube taped to the end of a vacuum to properly clean around the spark plug.

Chapter 4:

Step 2/2

This prevents the dirt from falling into the motor.

Chapter 5:

Install the new ignition coil

Step 1/5

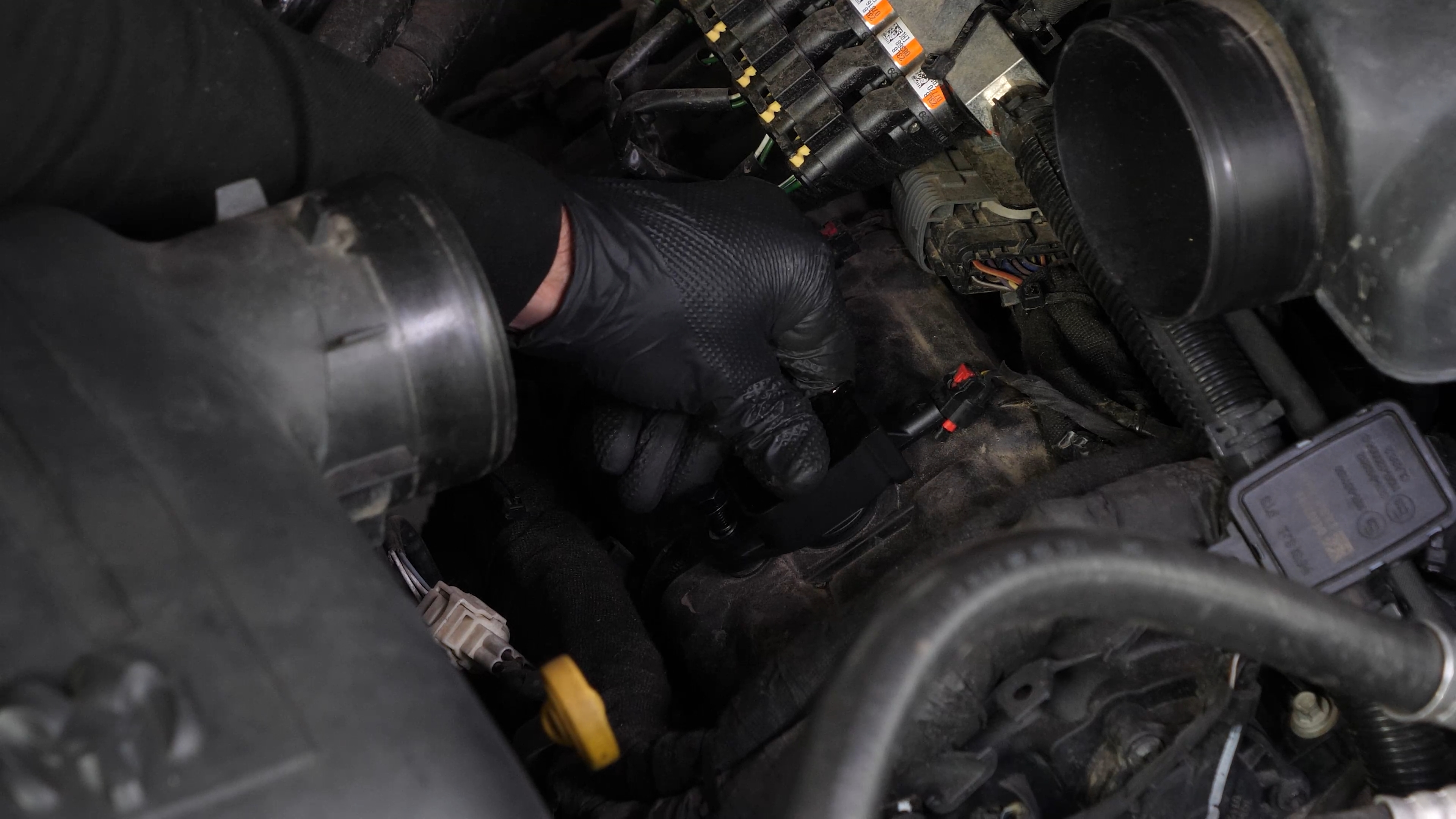

Put the coil back, pushing it in as far as possible.

Chapter 5:

Step 2/5

You can then screw the bolt back in using a ratchet.

Chapter 5:

Step 3/5

Finish tightening using a torque wrench.

Chapter 5:

Step 4/5

Reconnect the ignition coil. Then lock it.

Chapter 5:

Step 5/5

You can now repeat the process on the other ignition coils.

Chapter 6:

Finalise the reassembly

Step 1/3

Replace the air intake hose.

Chapter 6:

Step 2/3

Screw the two clamps back on.

Chapter 6:

Step 3/3

Operation complete.
