How to replace the radiator 2009-2018 Dodge Ram 1500

Chapter 1:

Open the hood

Step 1/1

Turn off your vehicle’s ignition, set the parking brake, pull the hood release handle and open the hood.

Chapter 2:

Informations

Step 1/3

For safety reasons, we advise you to disconnect the battery.

Chapter 2:

Step 2/3

You need to drain the coolant circuit.

Chapter 2:

Step 3/3

Get a fluid collection container to collect the coolant that will flow out.

Chapter 3:

Bleed the coolant

Step 1/7

On this vehicle, the radiator is equipped with a bleed screw, which you access from the underside of the vehicle, on the driver side.

Chapter 3:

Step 2/7

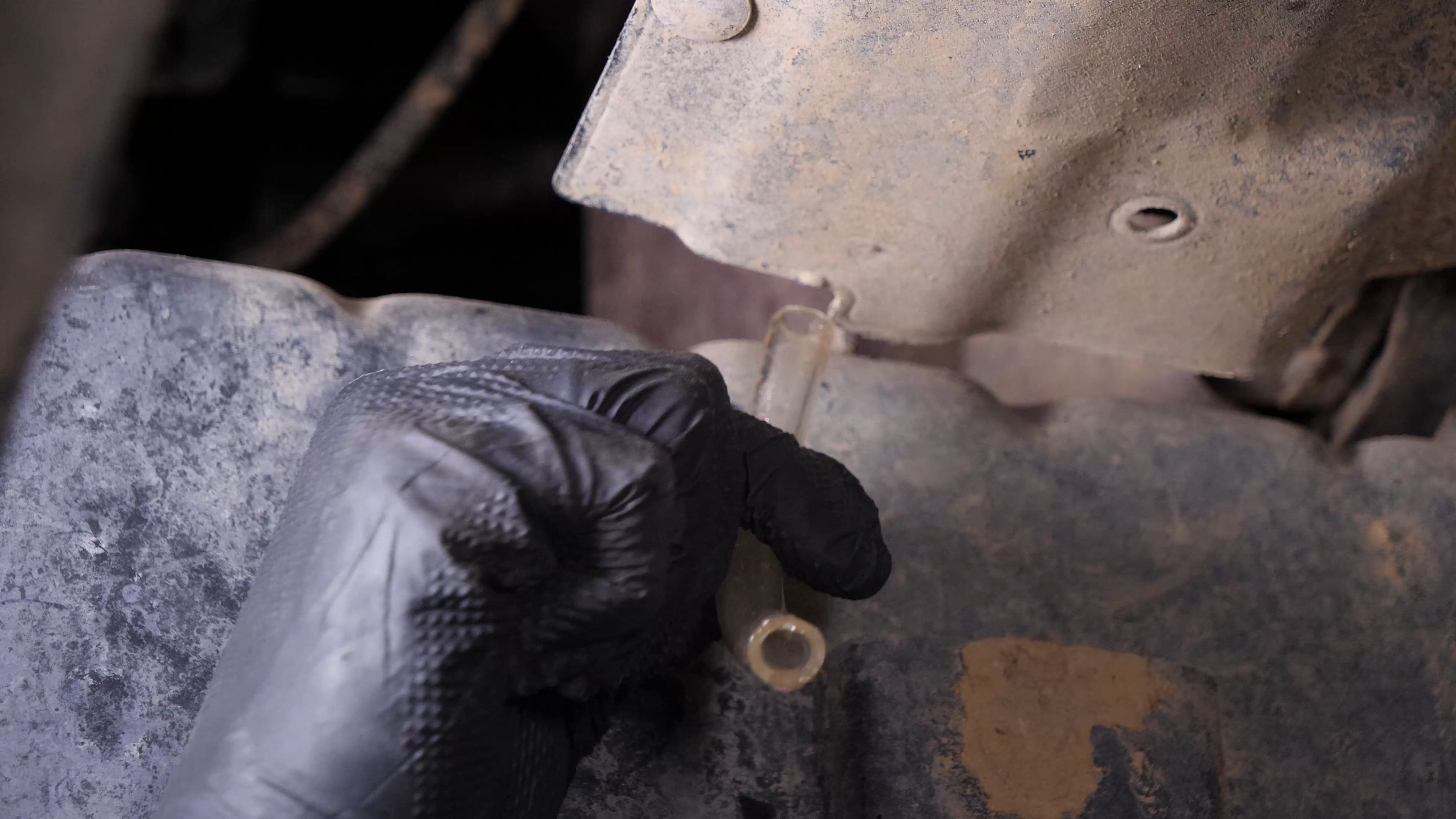

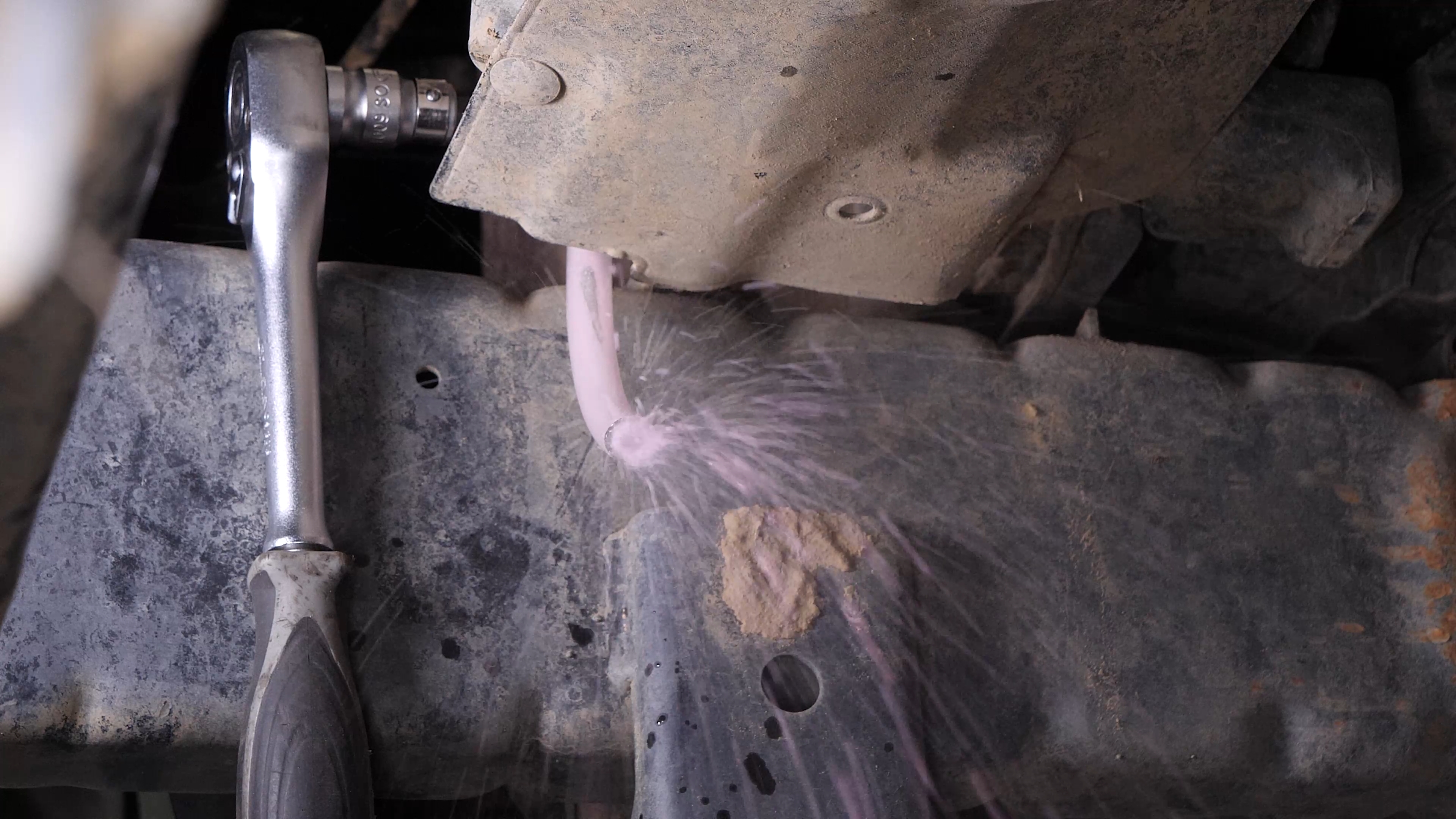

Connect a plastic tube to the bleed port to collect the coolant directly in the collection container.

Chapter 3:

Step 3/7

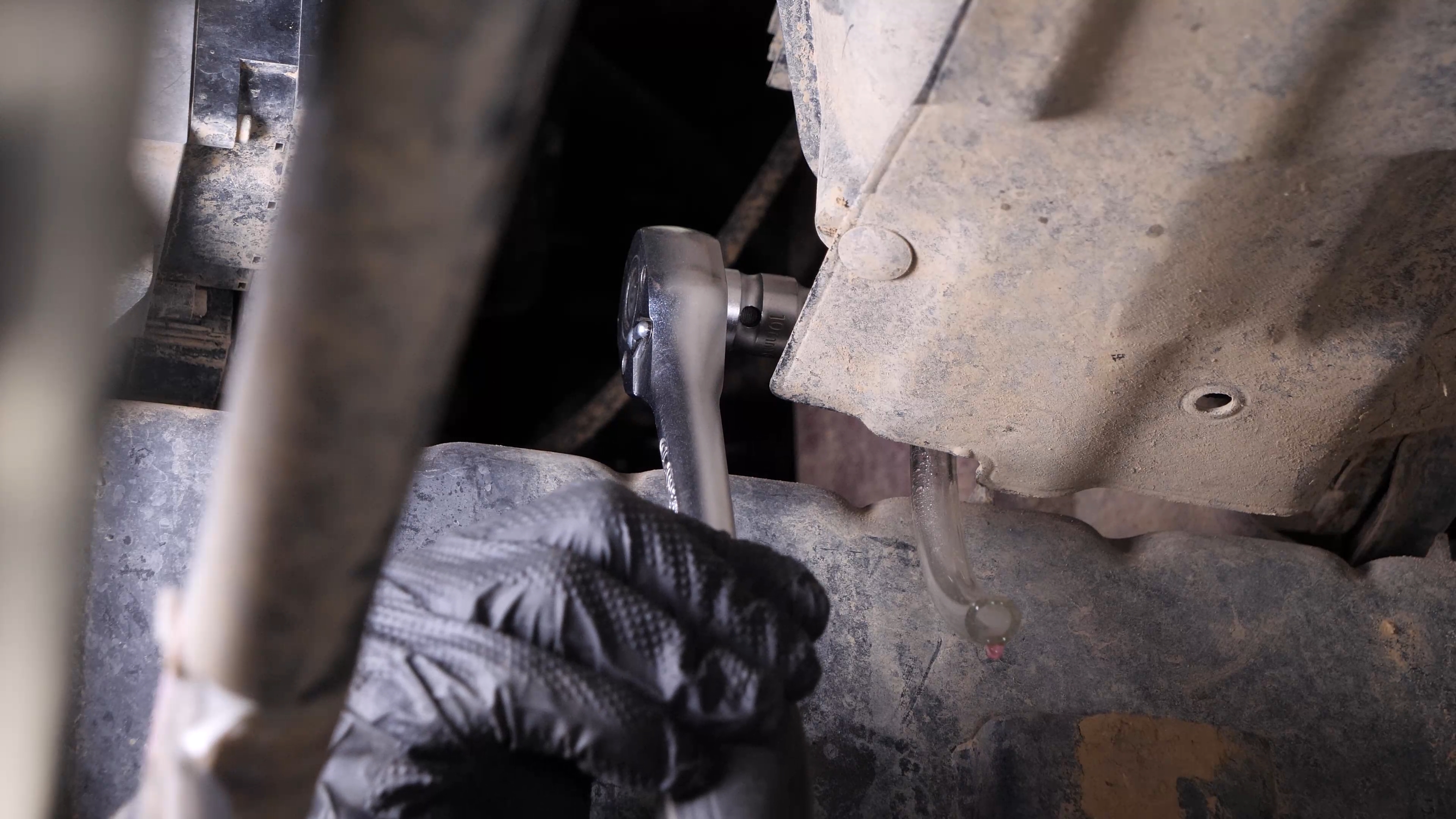

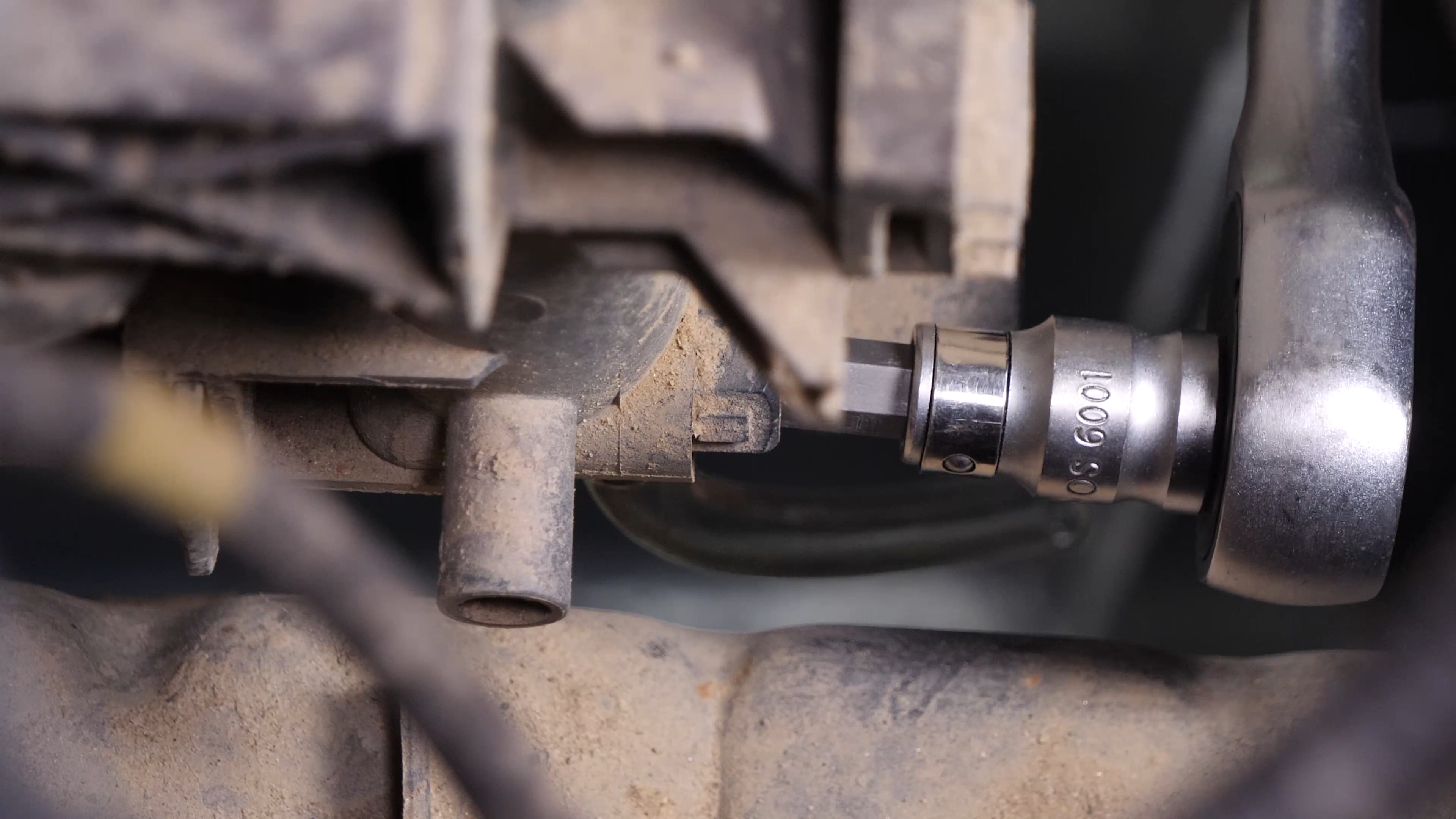

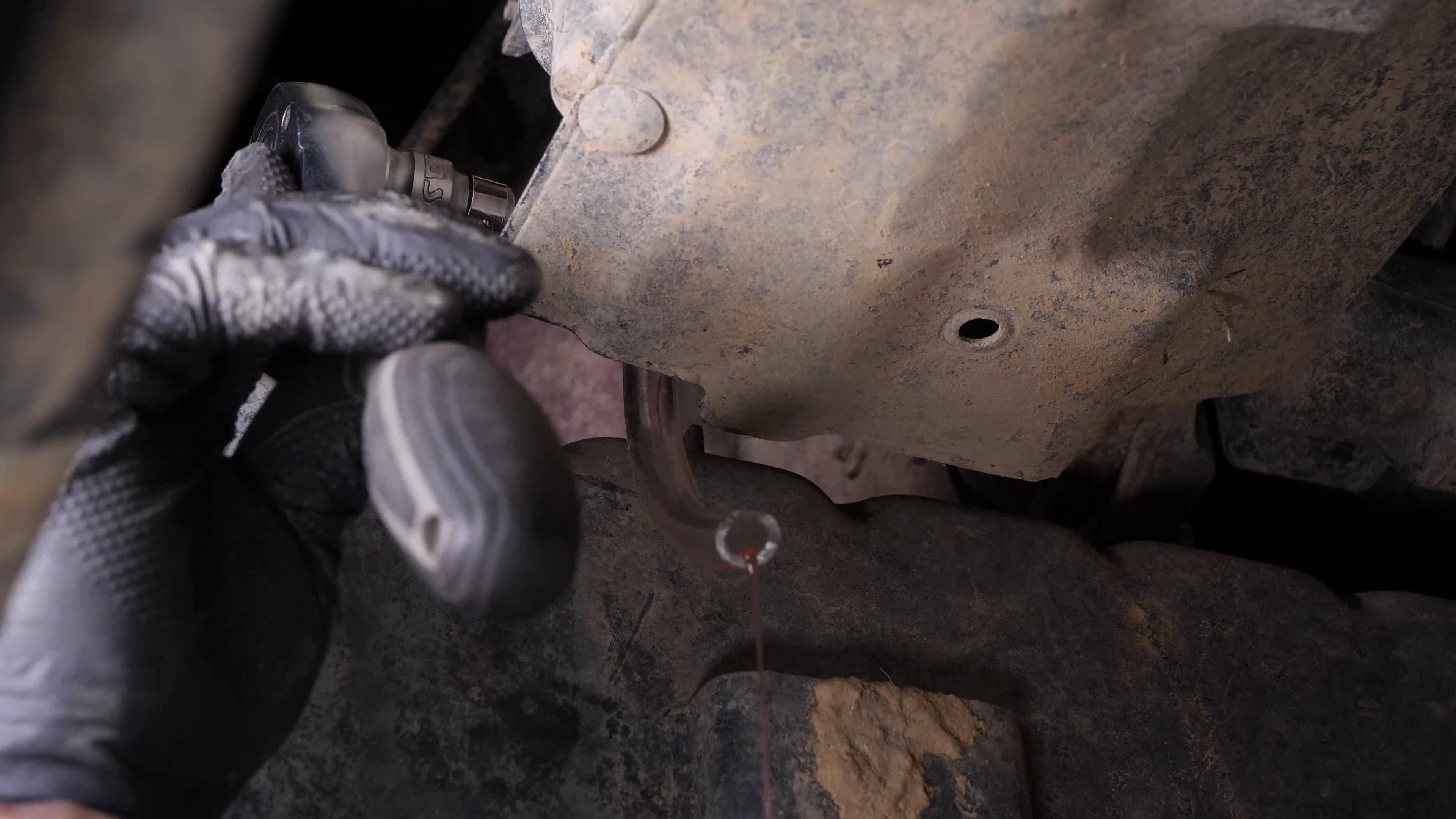

You can then unscrew the bleed screw using a ratchet and a 10 mm Allen socket to let the coolant flow.

Chapter 3:

Step 4/7

To facilitate the flow of coolant, open the cap of the coolant expansion tank.

Chapter 3:

Step 5/7

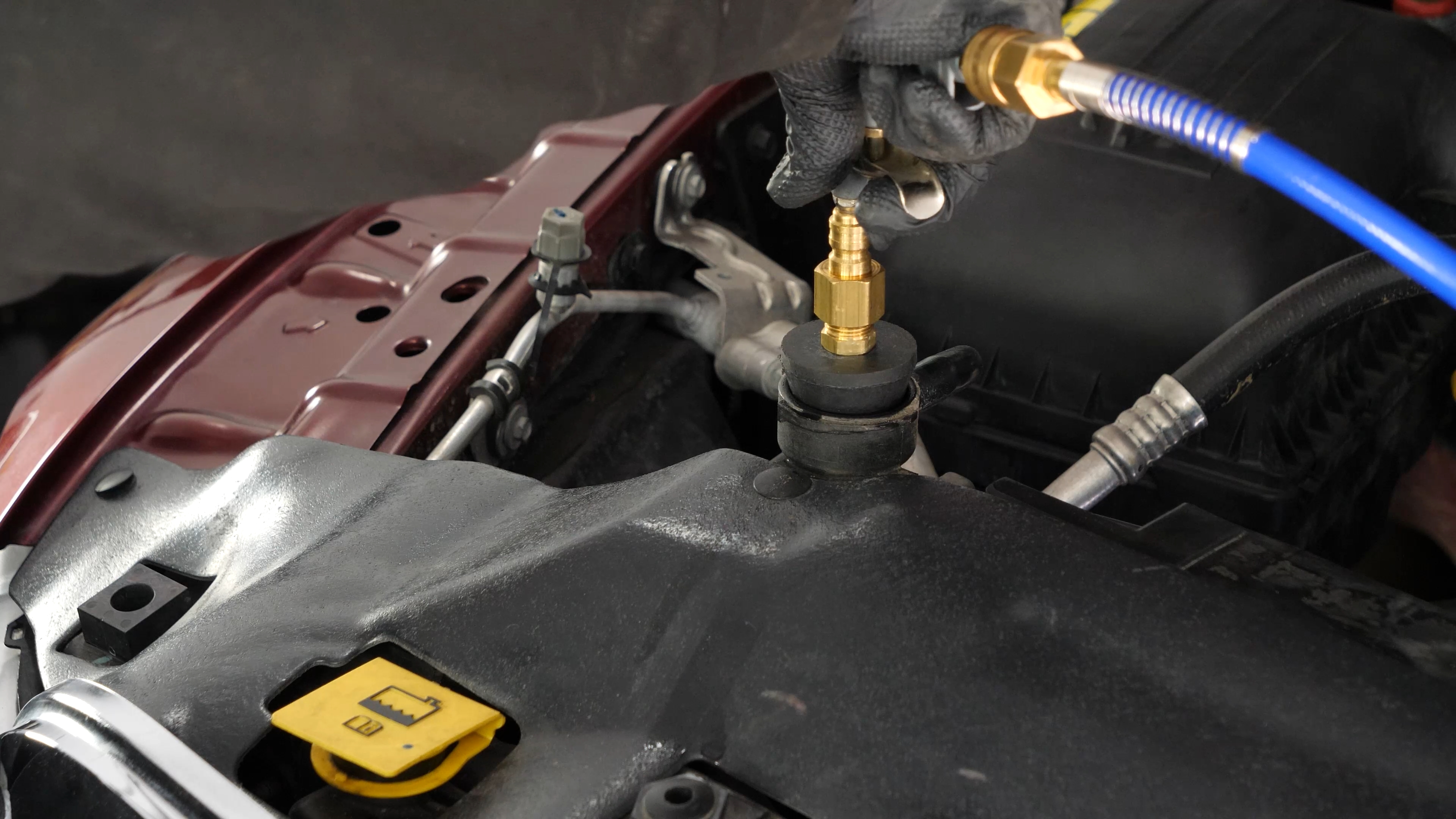

You can use special compressed air tools to effectively bleed your circuit.

Chapter 3:

Step 6/7

You can also rinse it with plenty of water to clean out grime from the expansion tank and circuit.

Chapter 3:

Step 7/7

Close the bleed screw. Remove the plastic tube.

Chapter 4:

Remove the fan assembly

Step 1/5

Disconnect the radiator fan power connector by pressing the tab and pulling on it.

Chapter 4:

Step 2/5

Using a ratchet and a 13 mm socket, unscrew the 2 bolts holding the fan assembly to the radiator.

Chapter 4:

Step 3/5

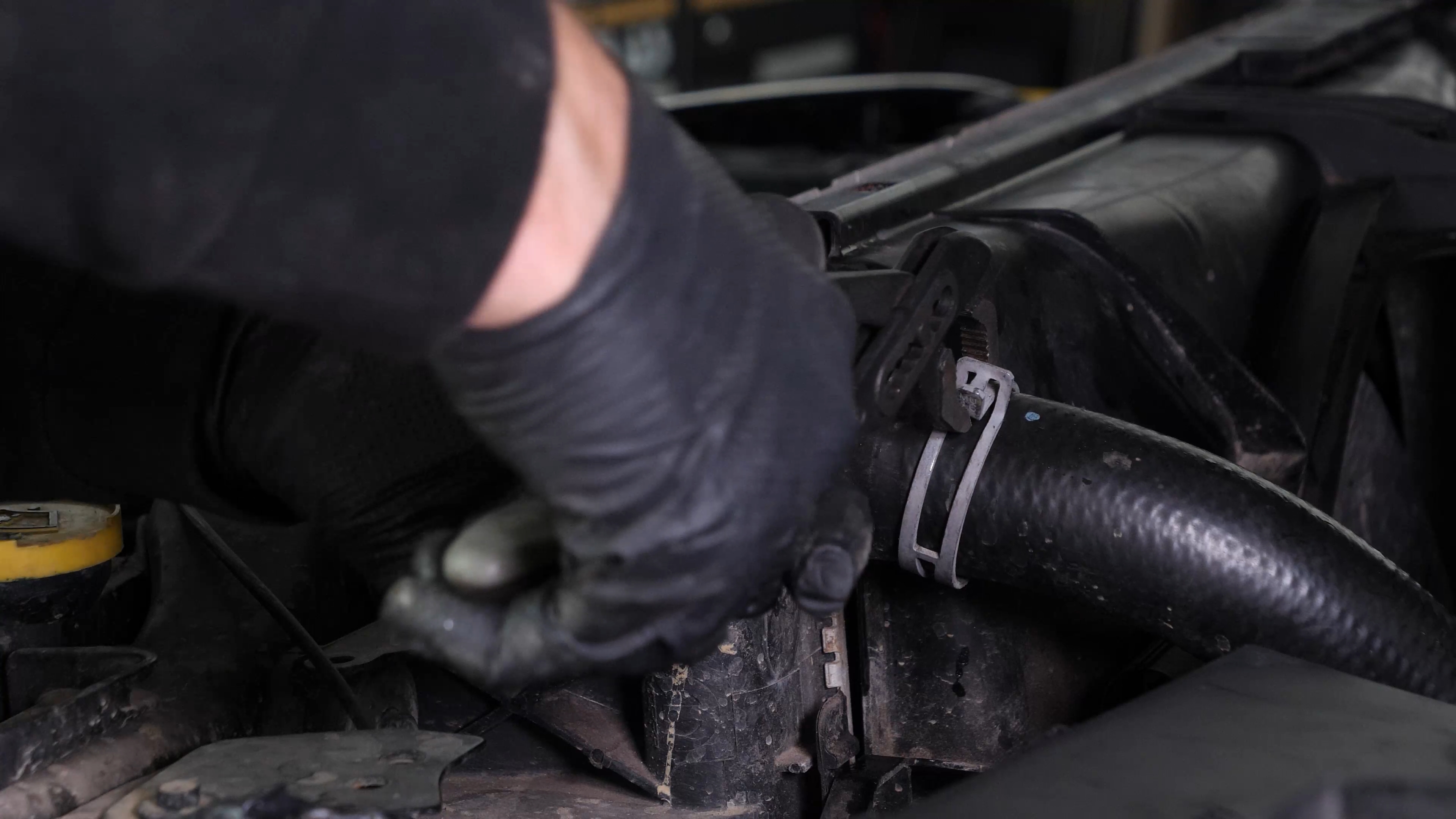

Next, using a pair of adjustable pliers, compress the retaining ring of the coolant hose, which is connected to the radiator.

Chapter 4:

Step 4/5

Then, remove the hose.

Chapter 4:

Step 5/5

You can now remove the fan assembly.

Chapter 5:

Remove the radiator

Step 1/11

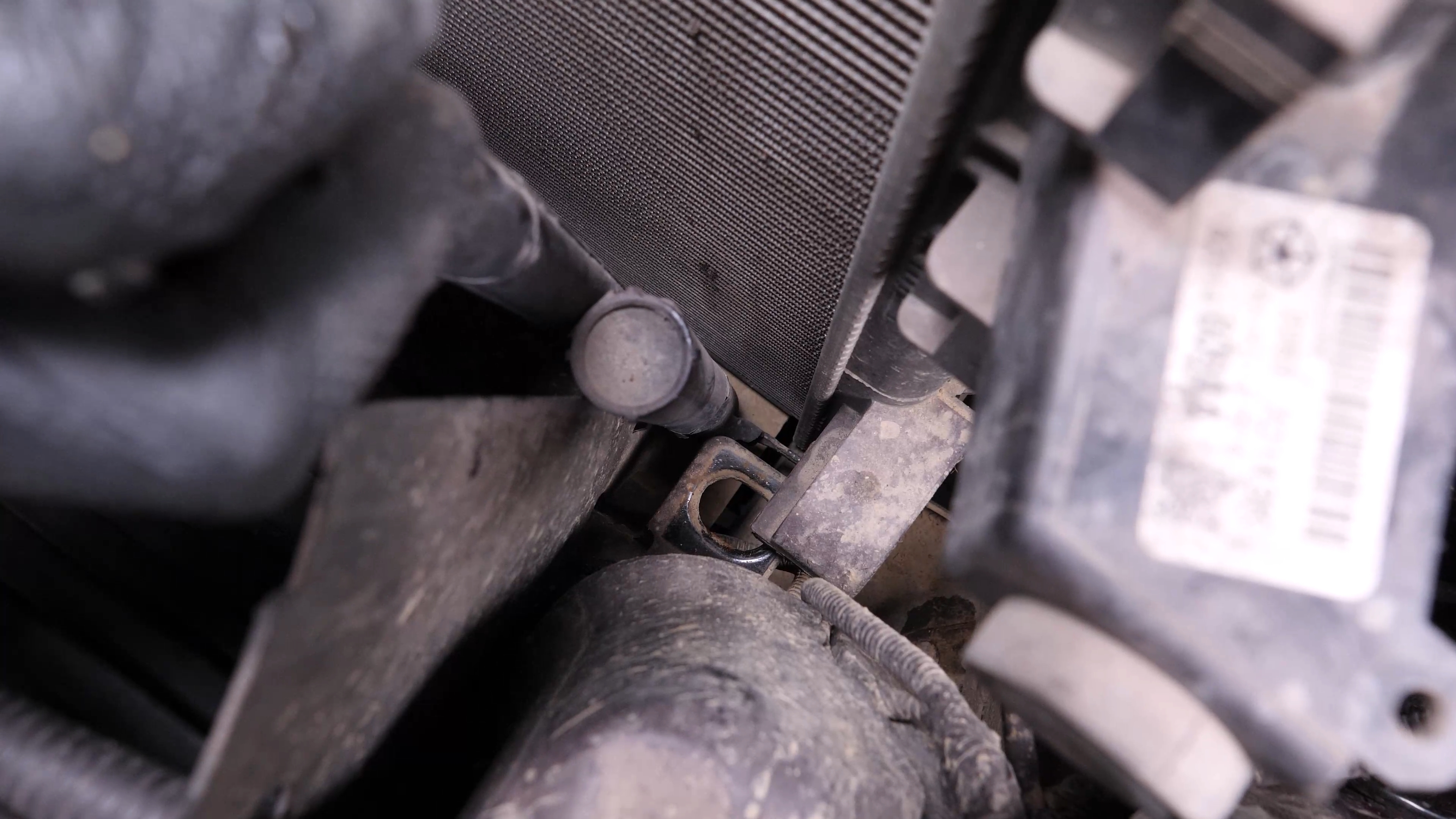

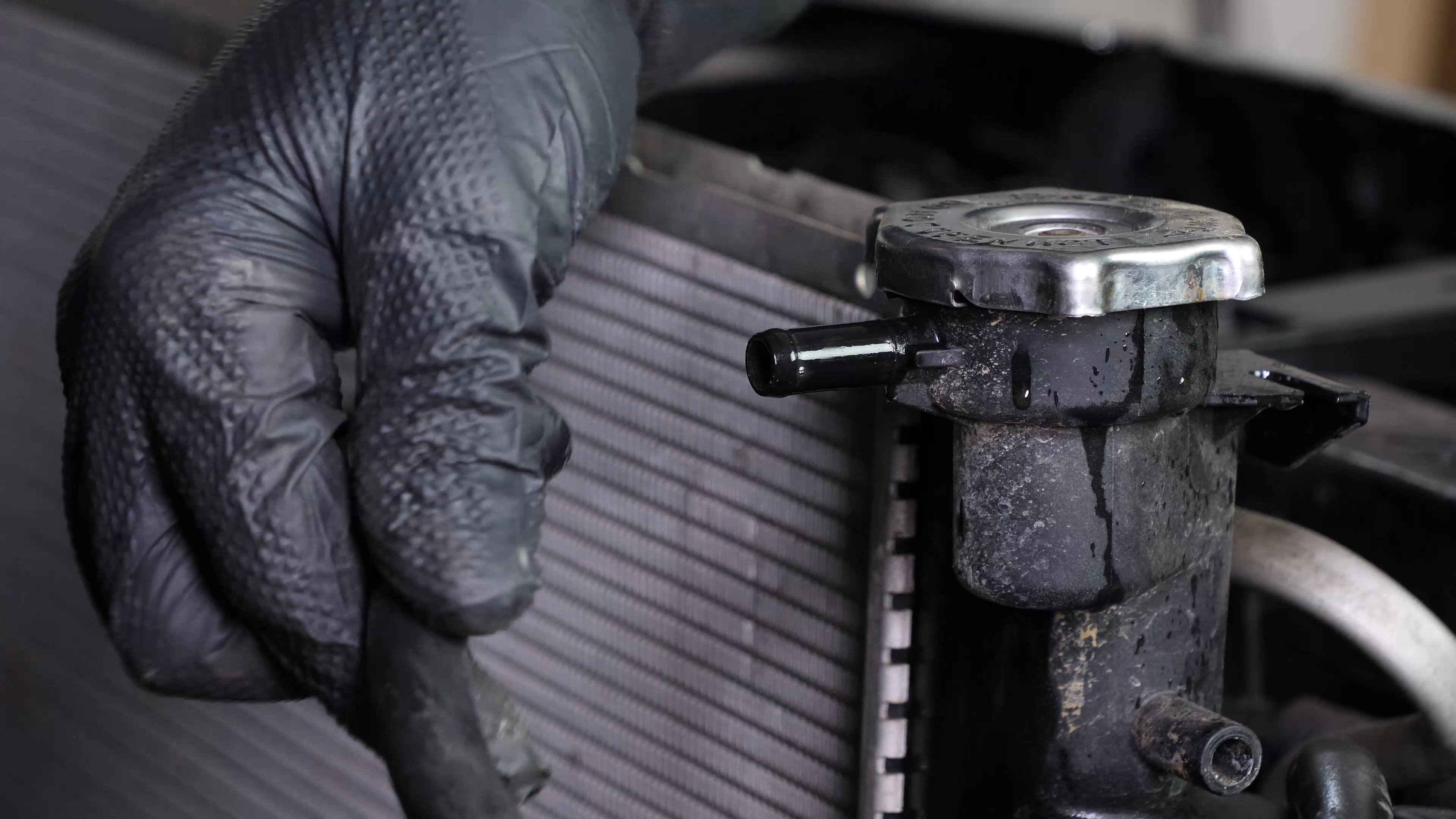

Then, remove the overflow hose.

Chapter 5:

Step 2/11

Before removing the lower hose, place a collection container under it, as coolant will flow out.

Chapter 5:

Step 3/11

Compress the coolant hose retaining ring located at the bottom of the radiator. Then, remove the hose.

Chapter 5:

Step 4/11

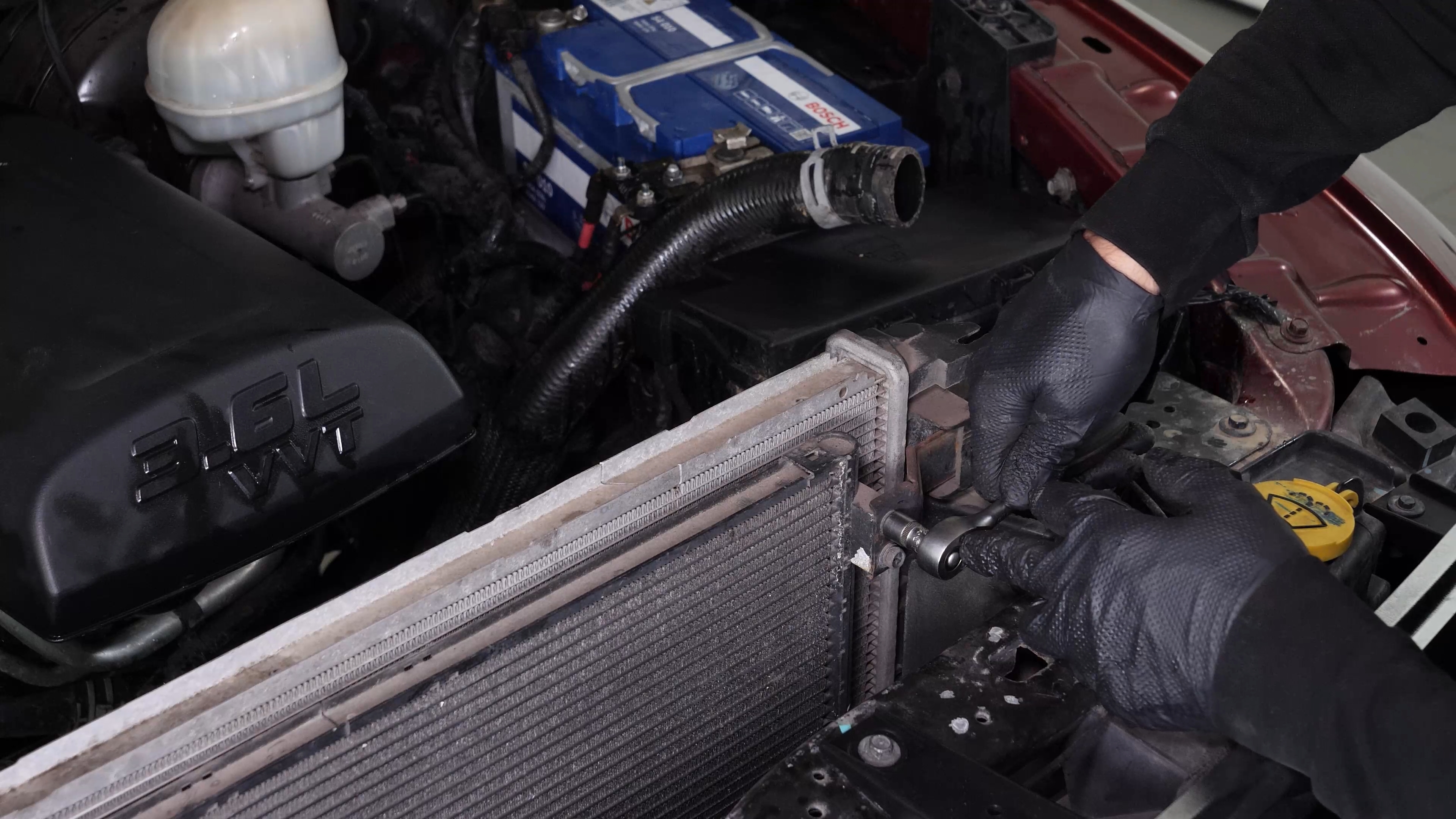

Then unscrew the two radiator retaining bolts on the engine side using a ratchet and a 13 mm socket.

Chapter 5:

Step 5/11

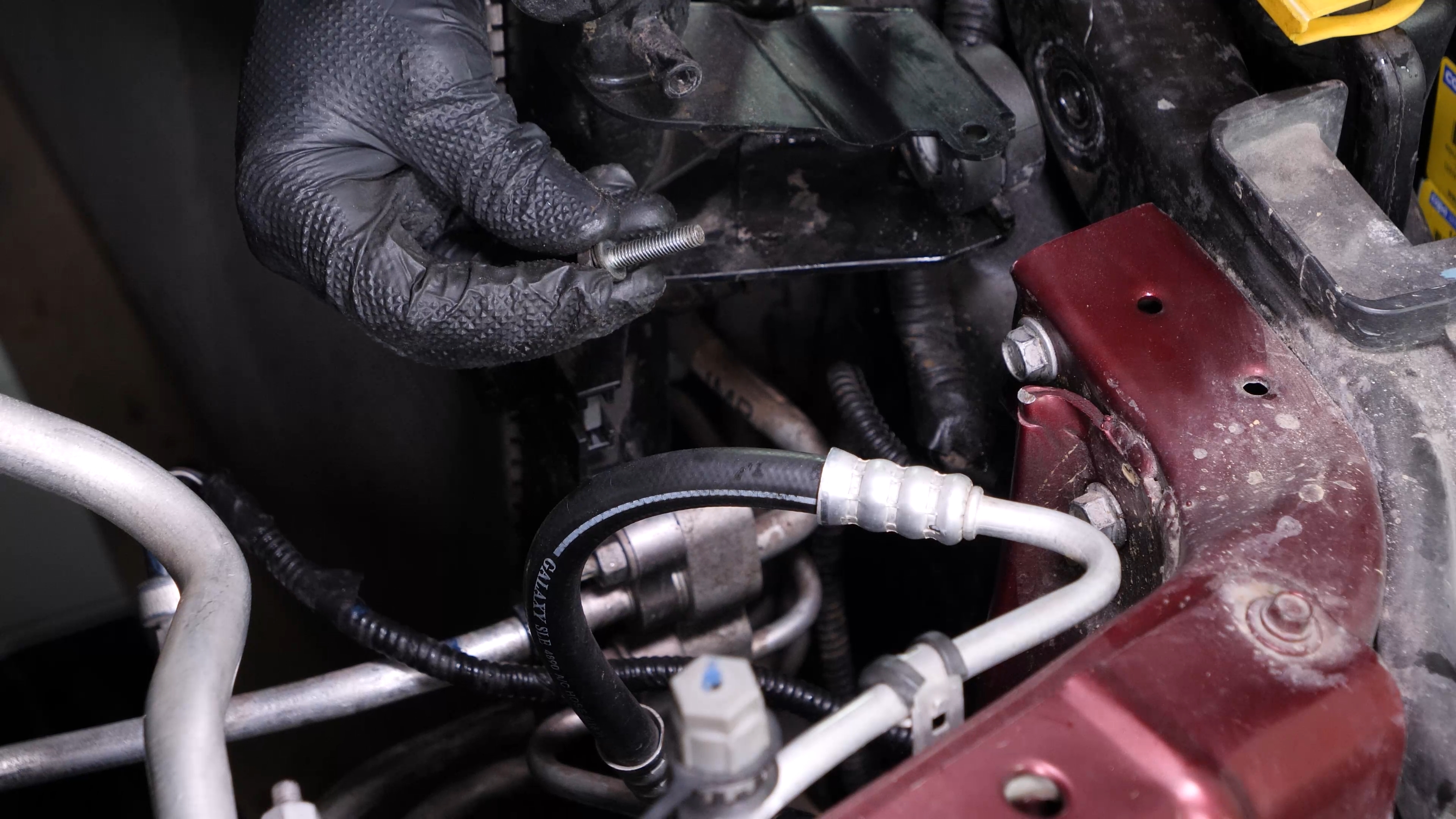

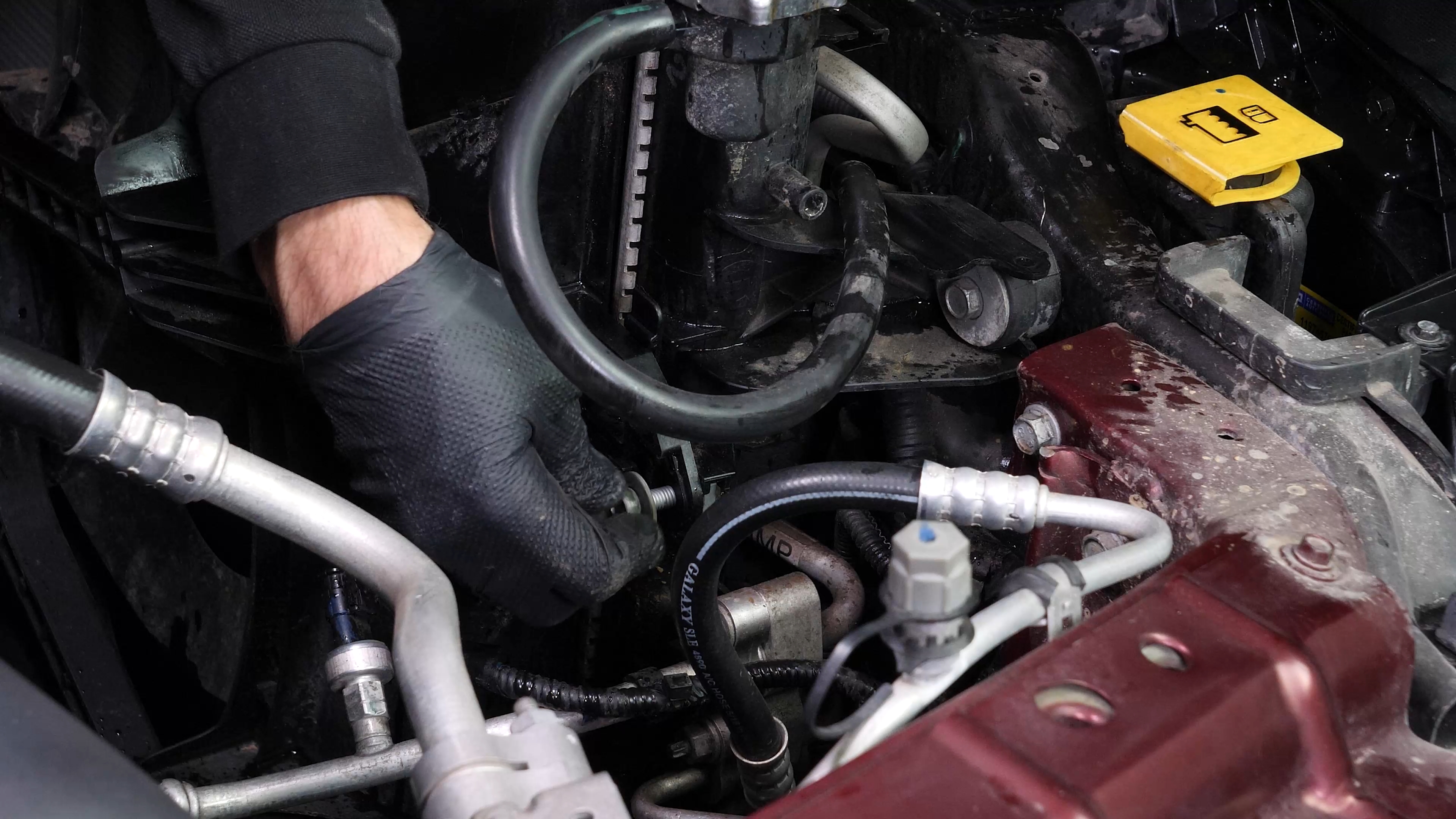

Next, using a ratchet and a 10 mm socket, unscrew the two bolts holding the air conditioning exchanger on the driver’s side. Then, remove the metal bracket.

Chapter 5:

Step 6/11

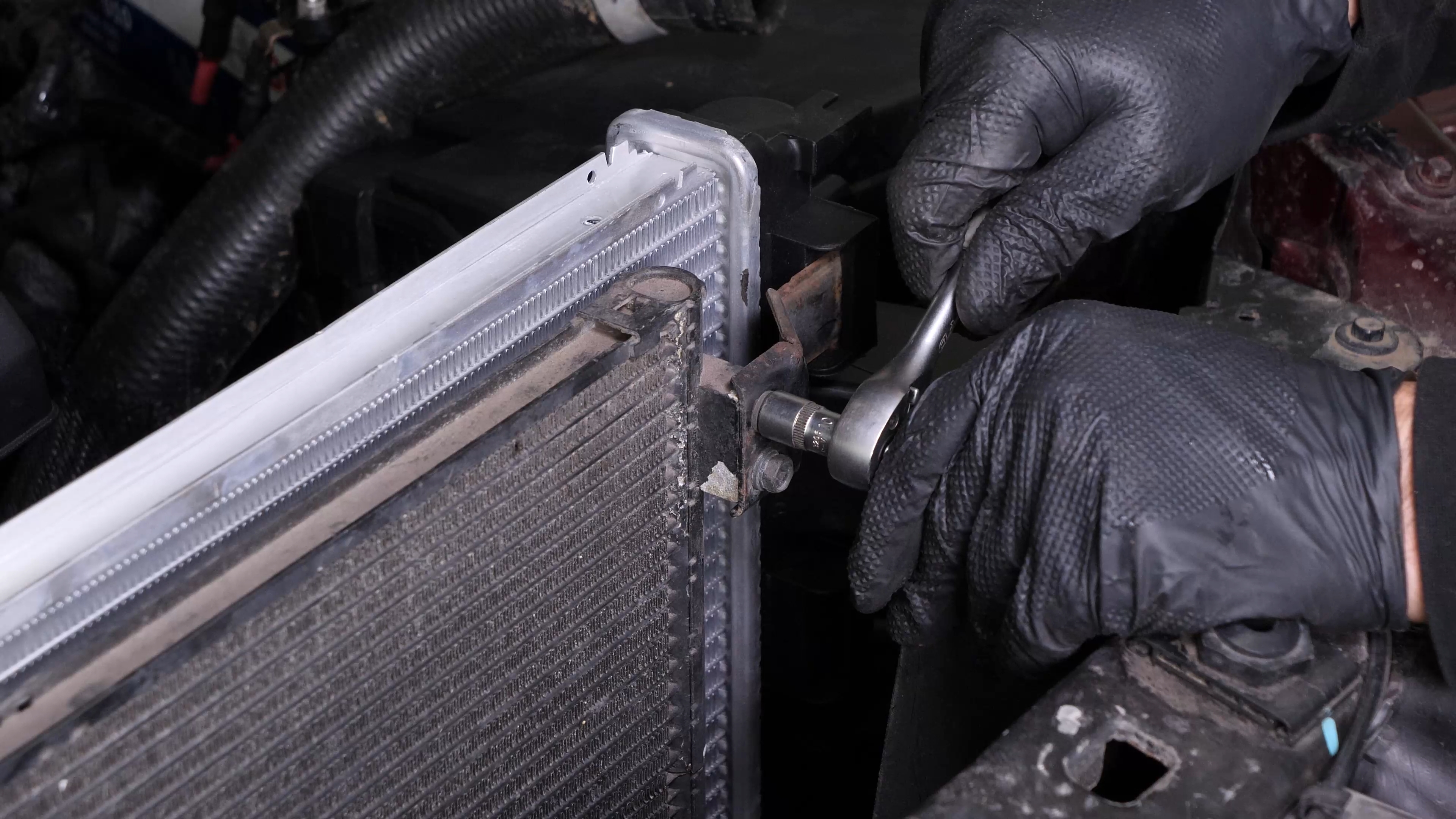

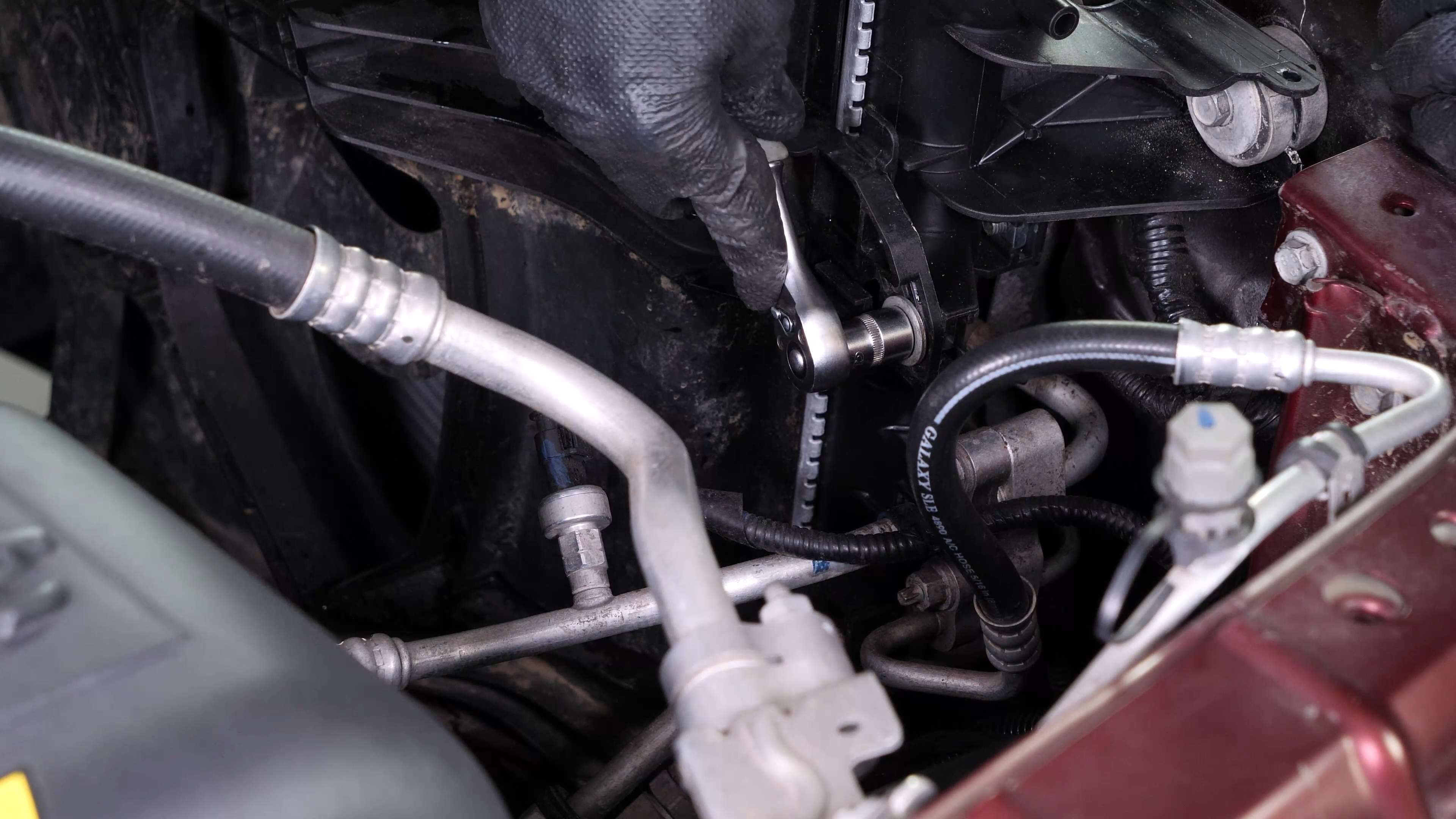

On the passenger side, unscrew the first bolt holding the exchanger to the radiator using a 12 mm wrench.

Chapter 5:

Step 7/11

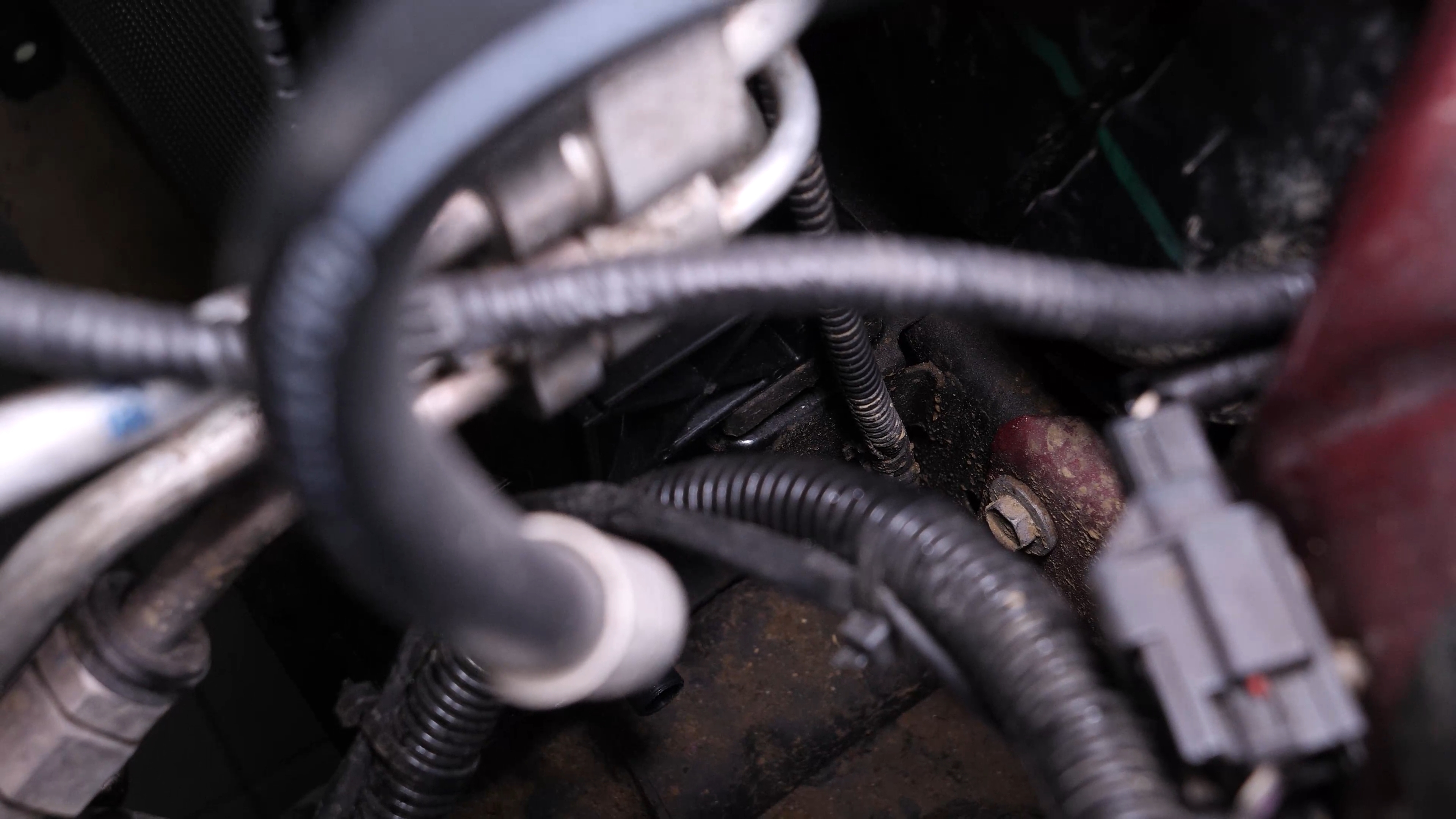

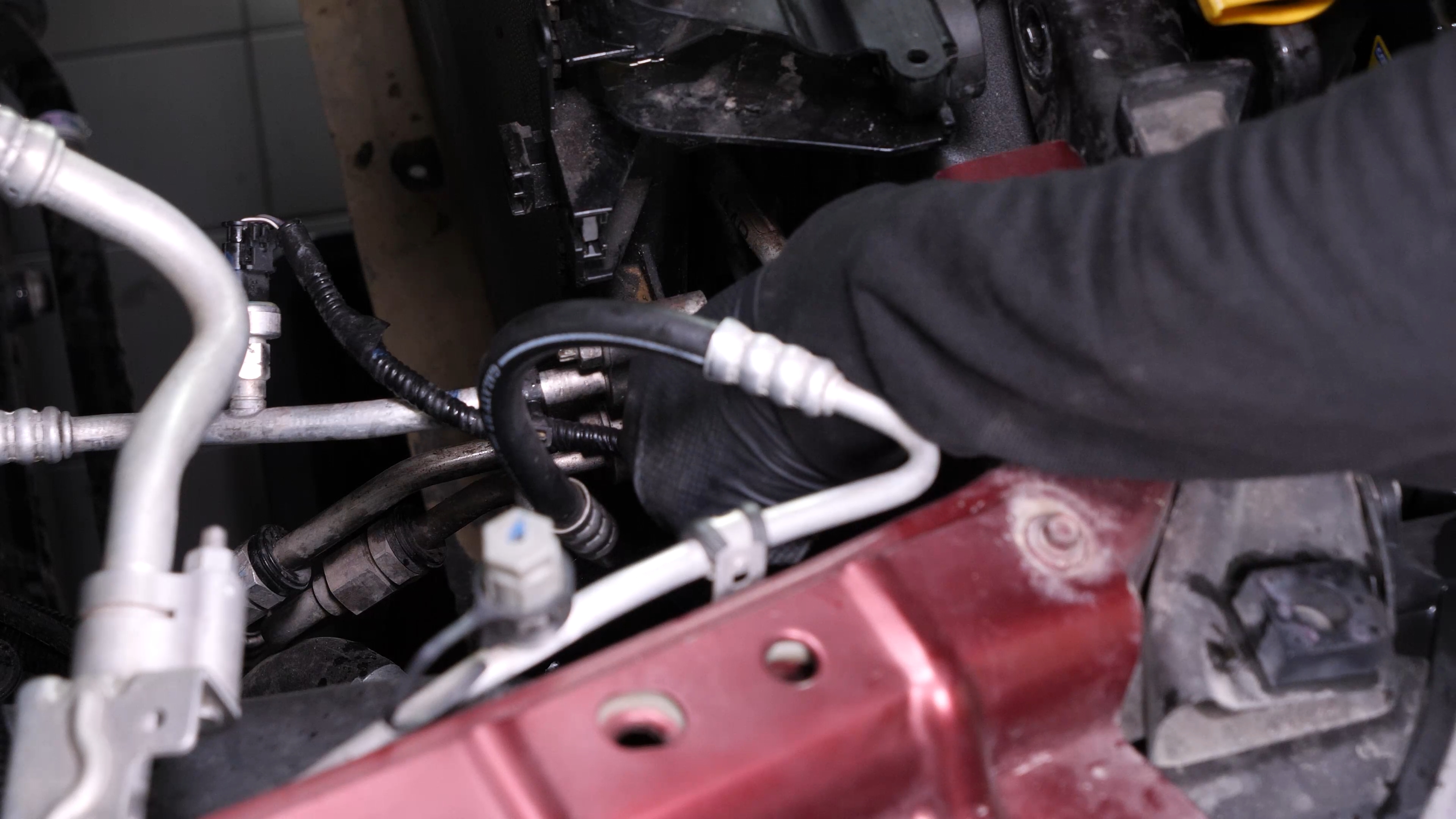

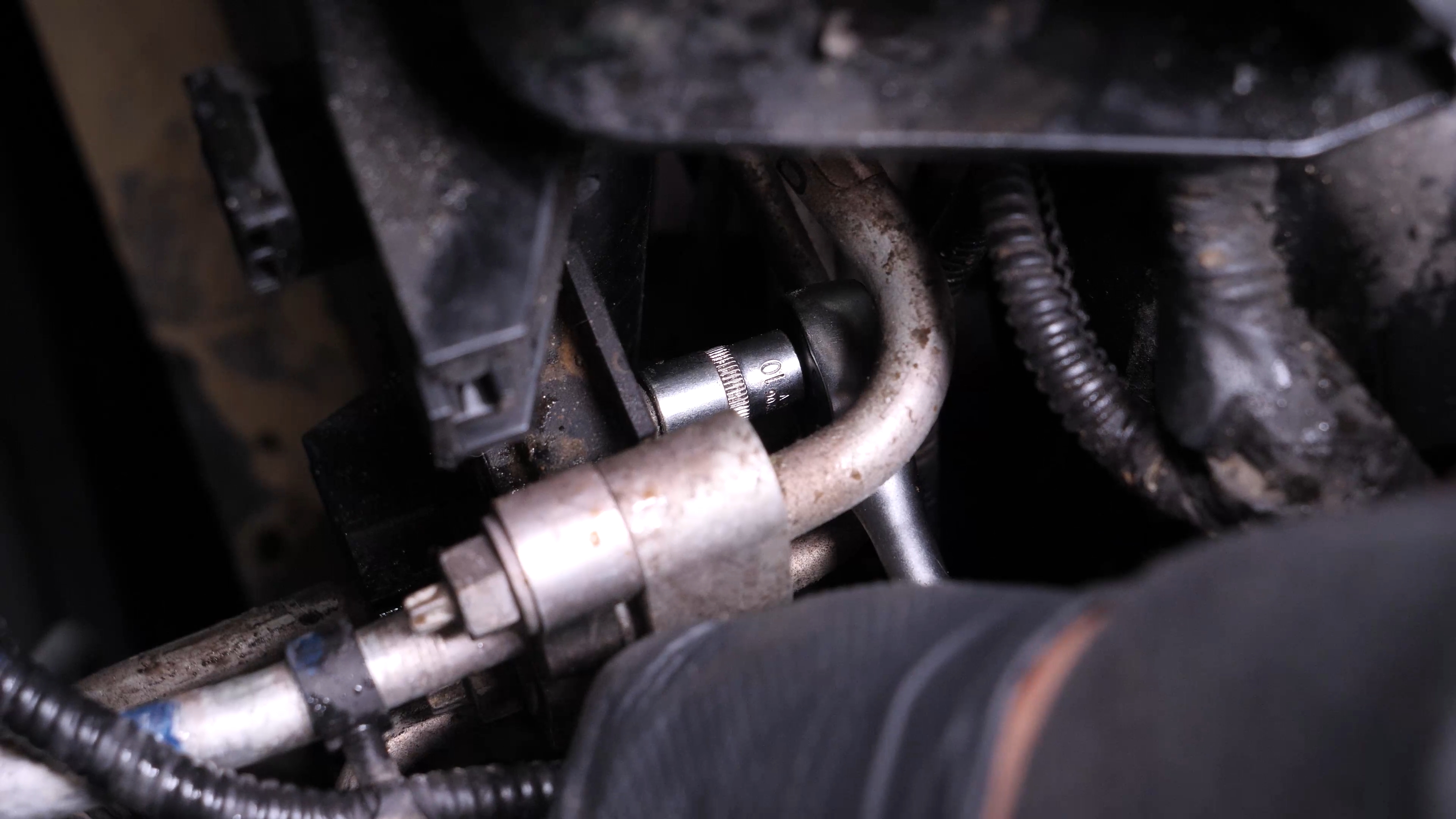

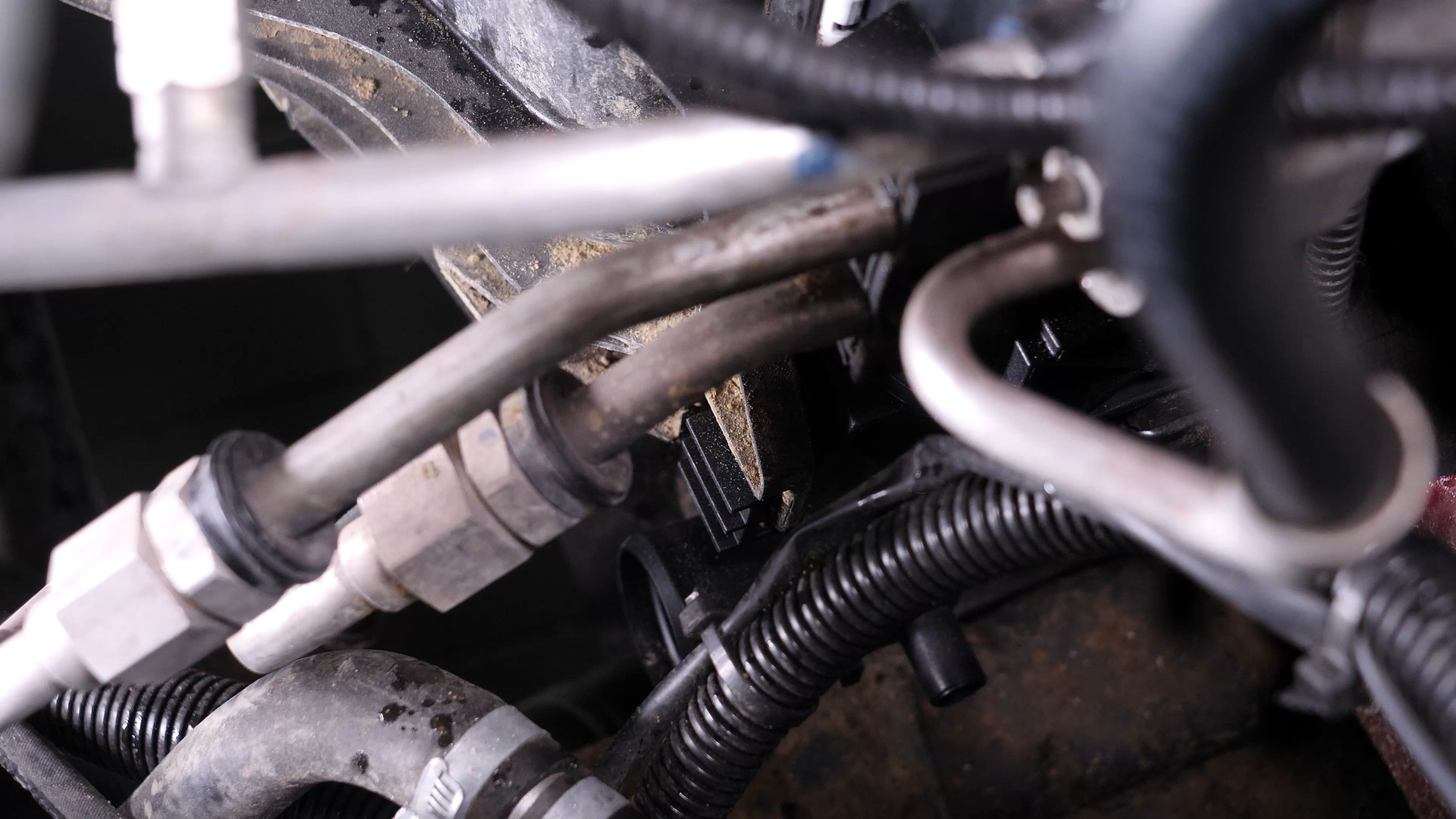

Using a ratchet and a 10 mm socket, unscrew the bolt holding the metal air conditioning hoses to the radiator.

Chapter 5:

Step 8/11

Finish unscrewing by hand.

Chapter 5:

Step 9/11

Then unscrew the last retaining bolt using the 12 mm wrench.

Chapter 5:

Step 10/11

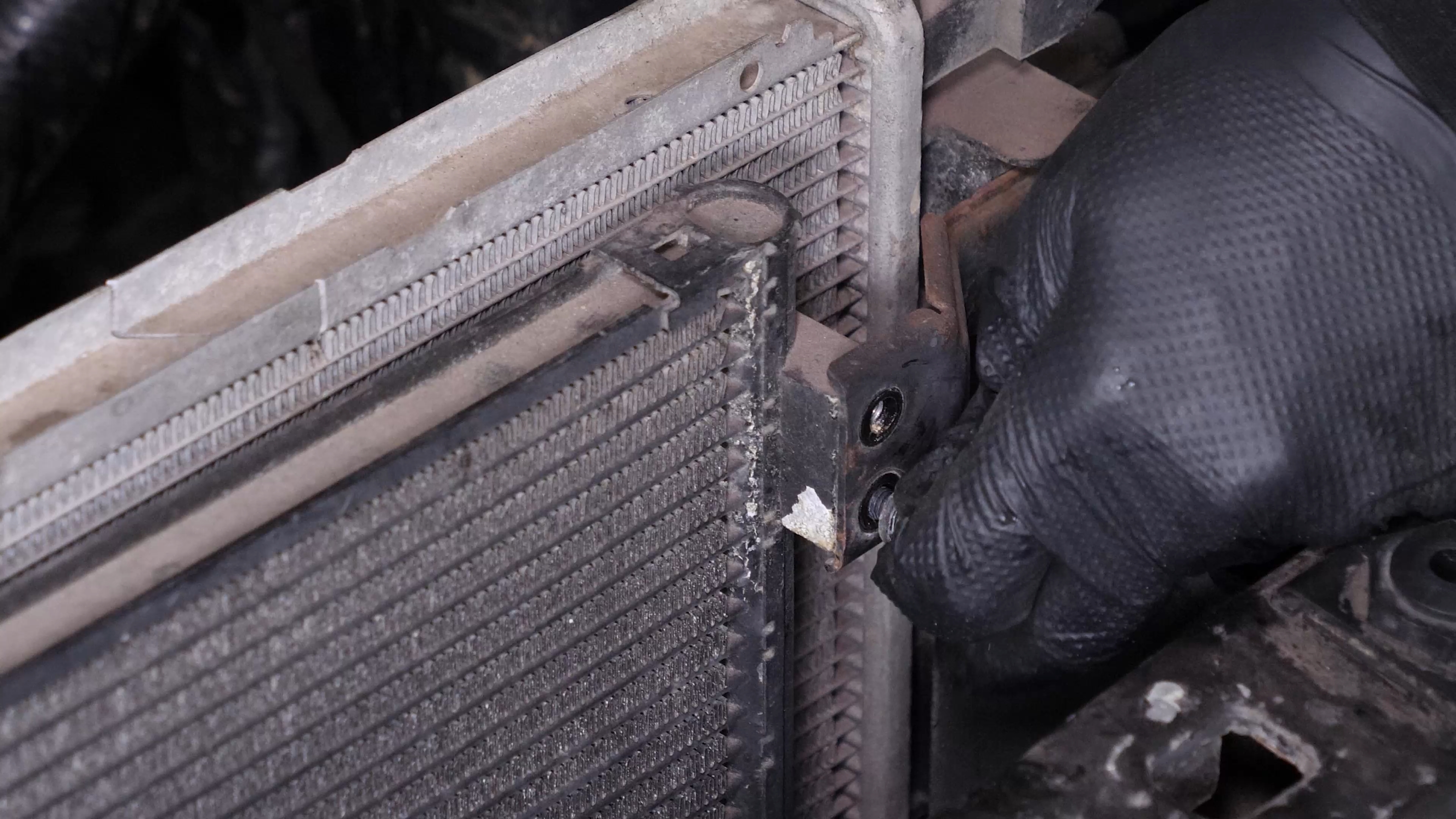

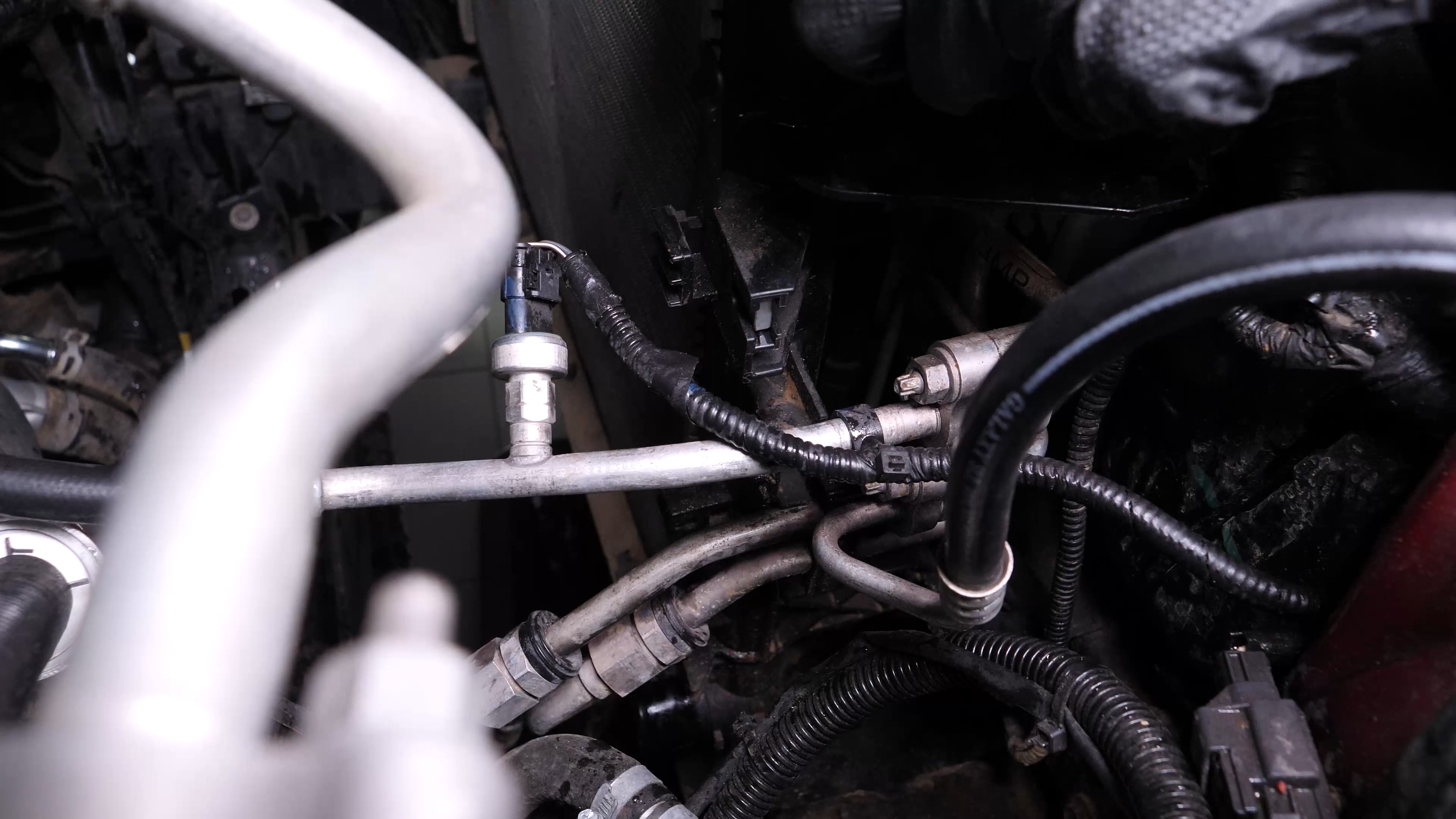

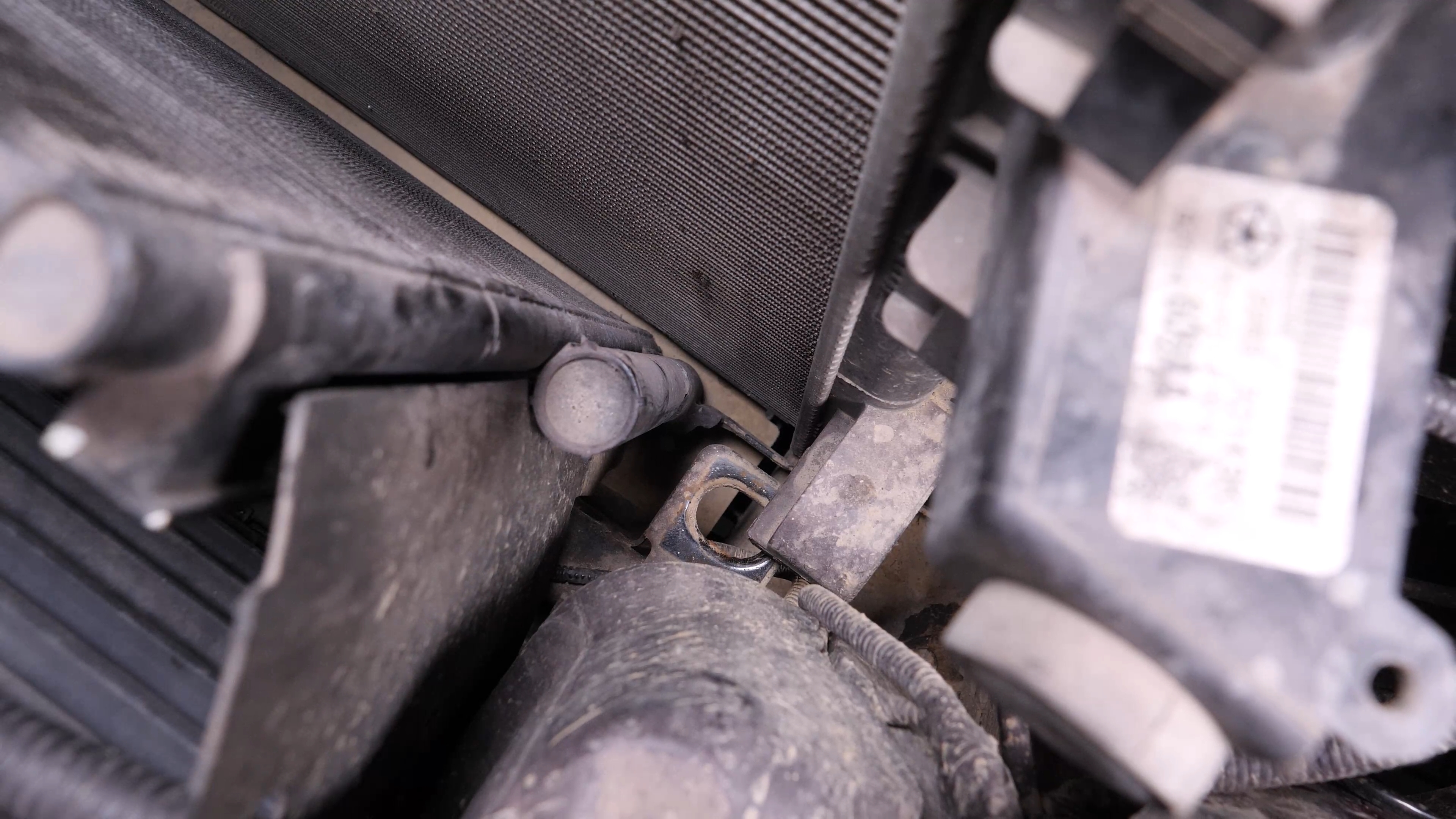

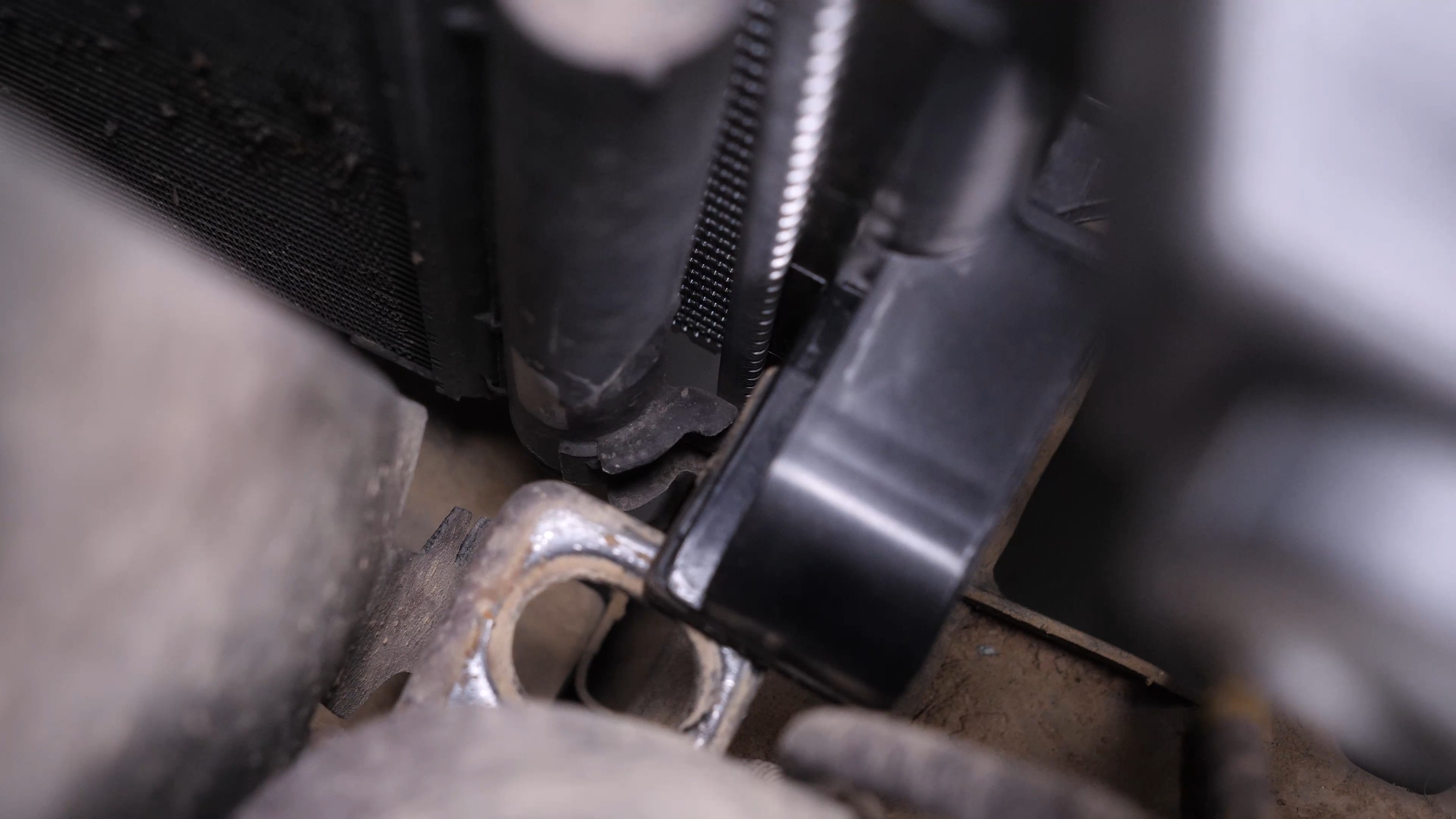

Shift the exchanger on the passenger side to extract the exchanger retaining tab from the radiator.

Chapter 5:

Step 11/11

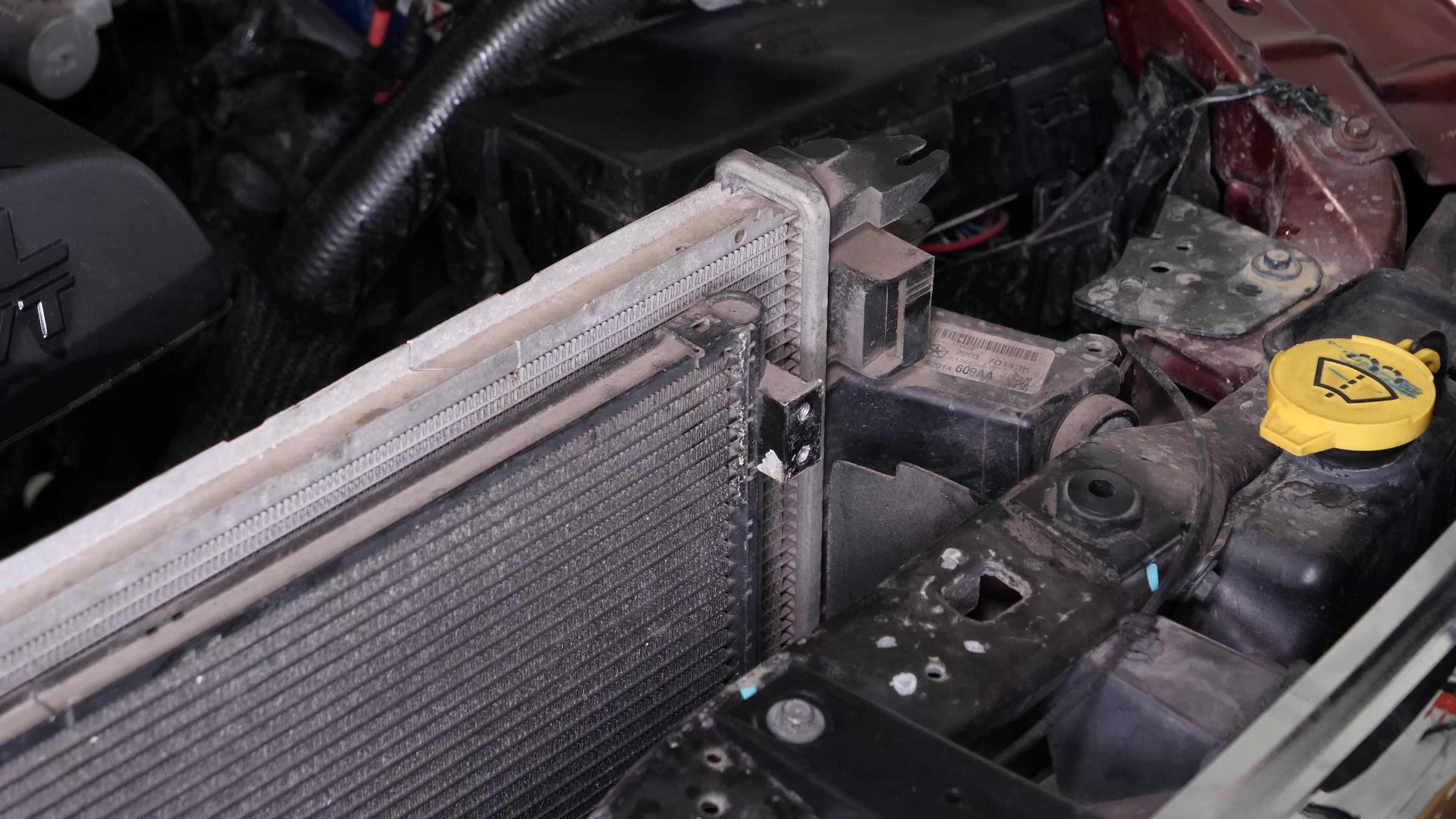

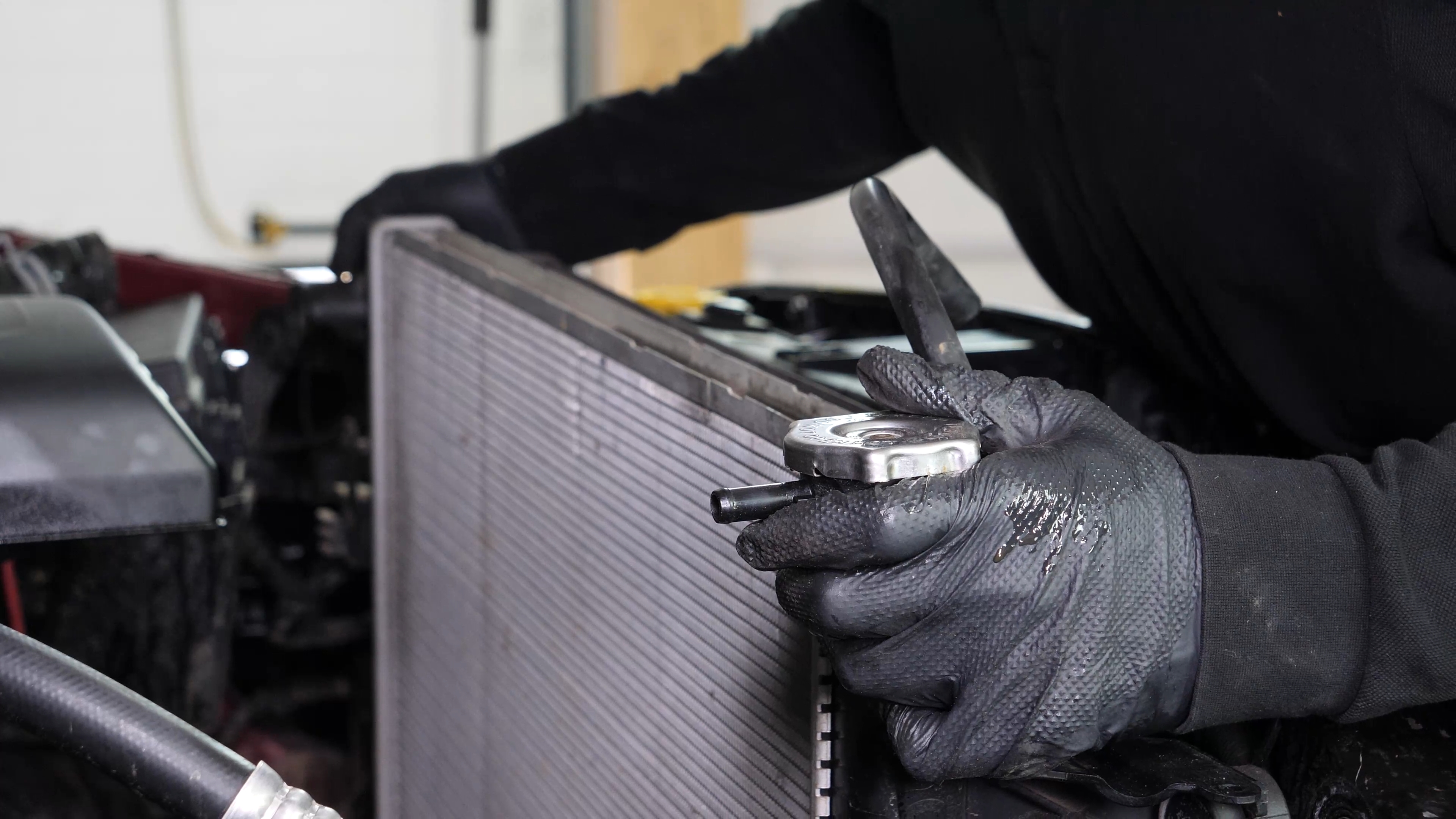

You can now lift the radiator to free the 2 rubber insulators at the bottom of the radiator and extract it through the top.

Chapter 6:

Set up

Step 1/3

Retrieve the 4 rubber insulators from the old radiator.

Chapter 6:

Step 2/3

Install them on the new radiator.

Chapter 6:

Step 3/3

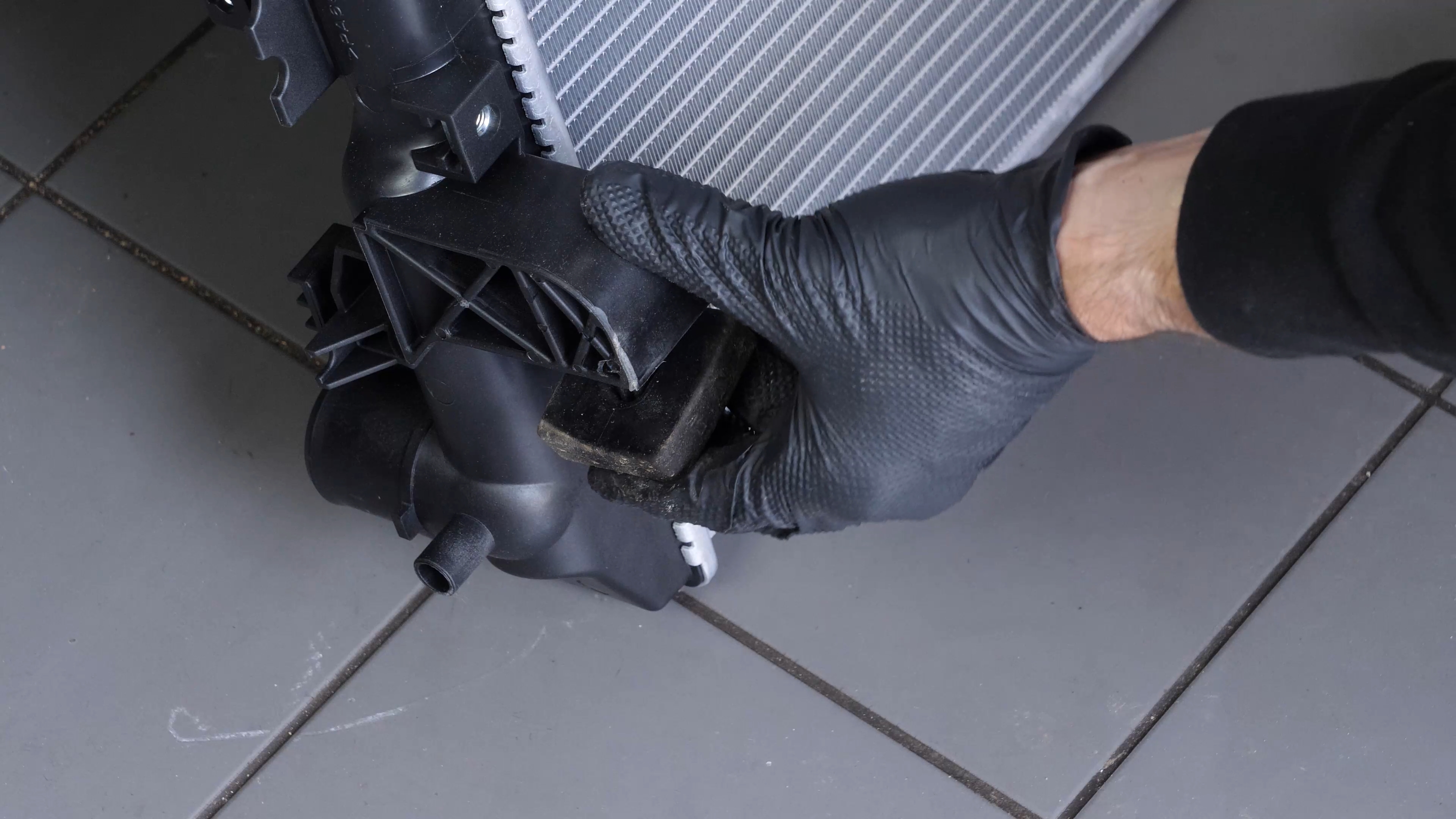

If they look worn, we recommend replacing them with new ones.

Chapter 7:

Put the radiator back

Step 1/8

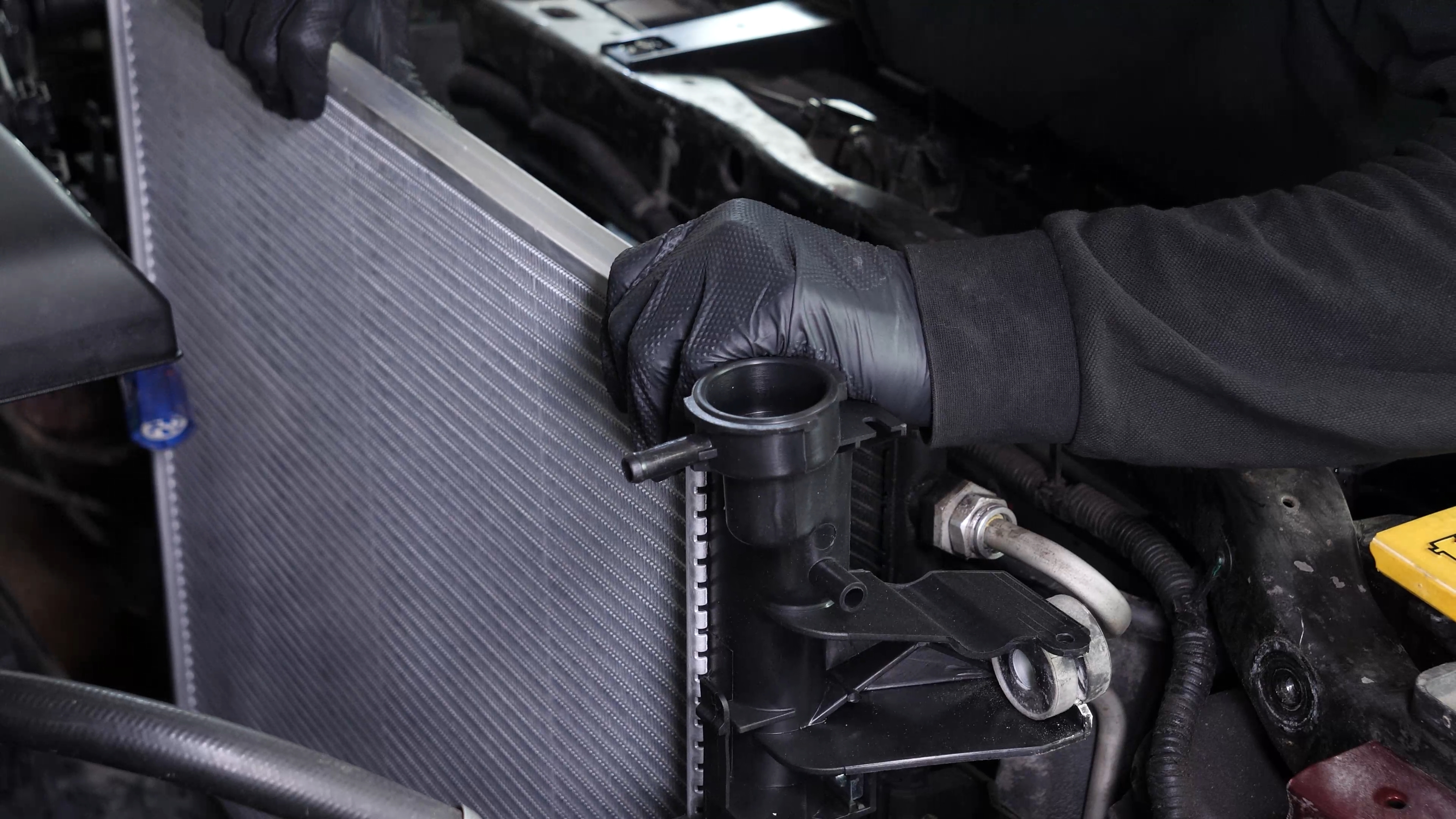

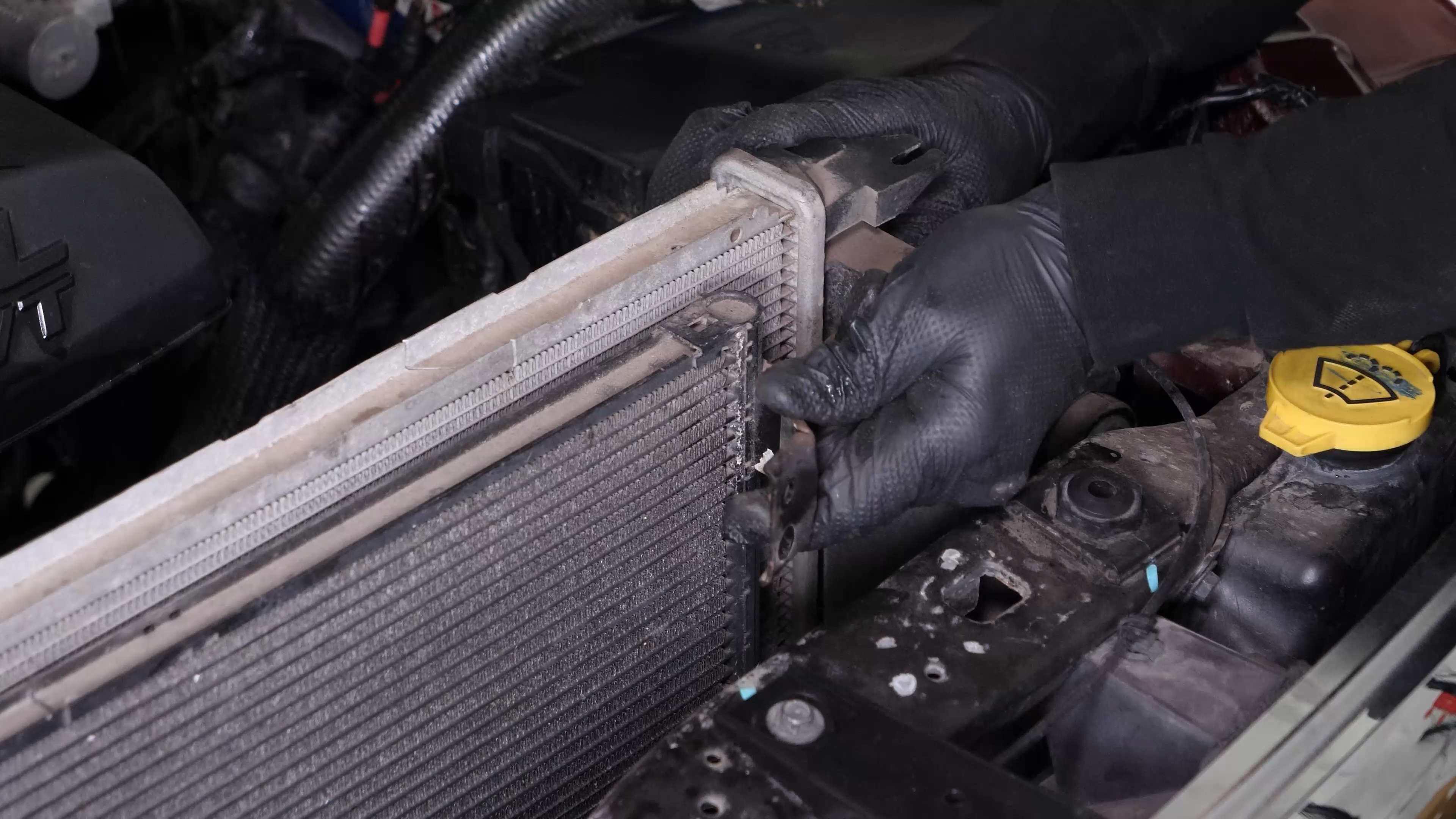

You can now slide the new radiator into its location.

Chapter 7:

Step 2/8

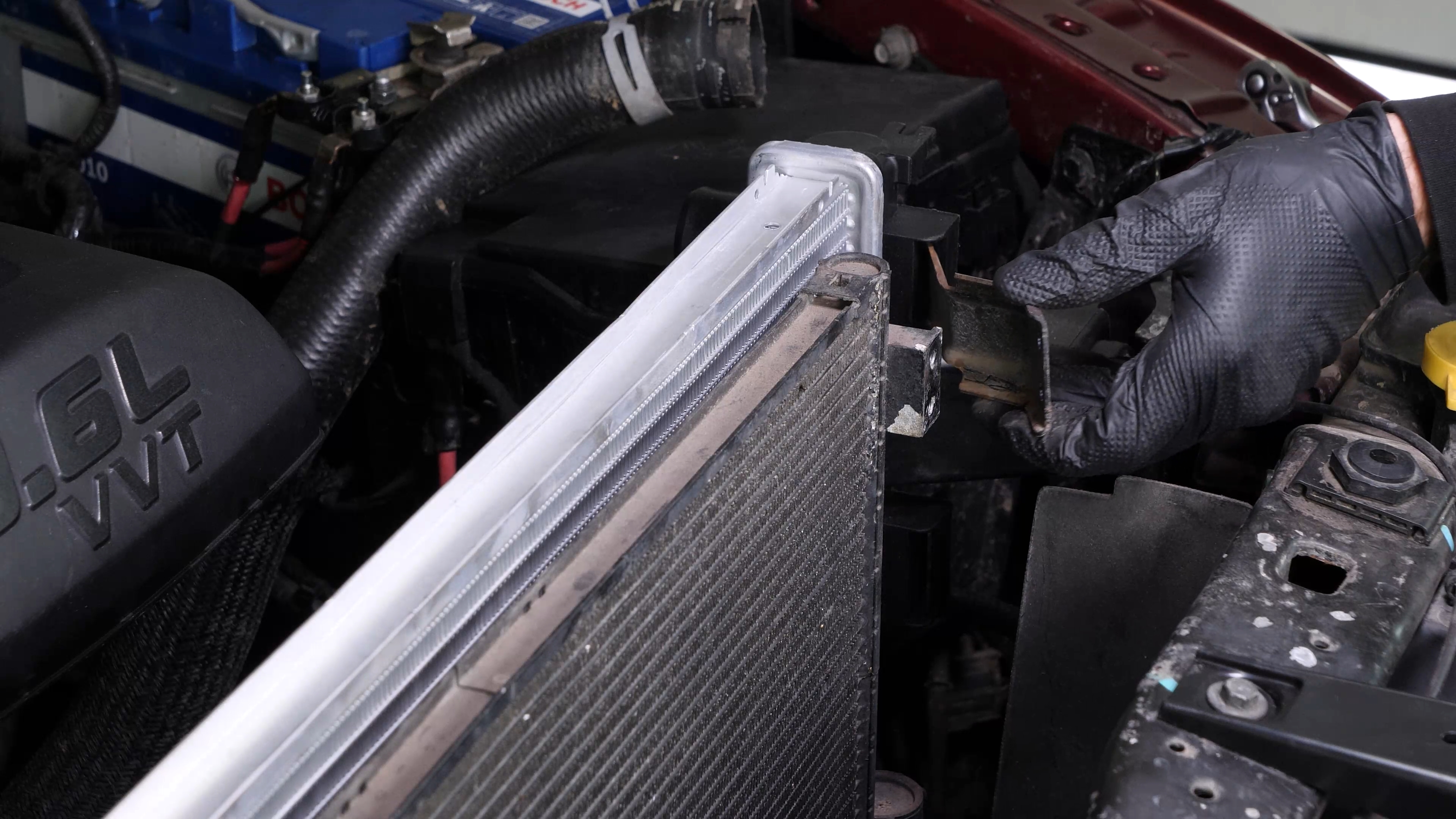

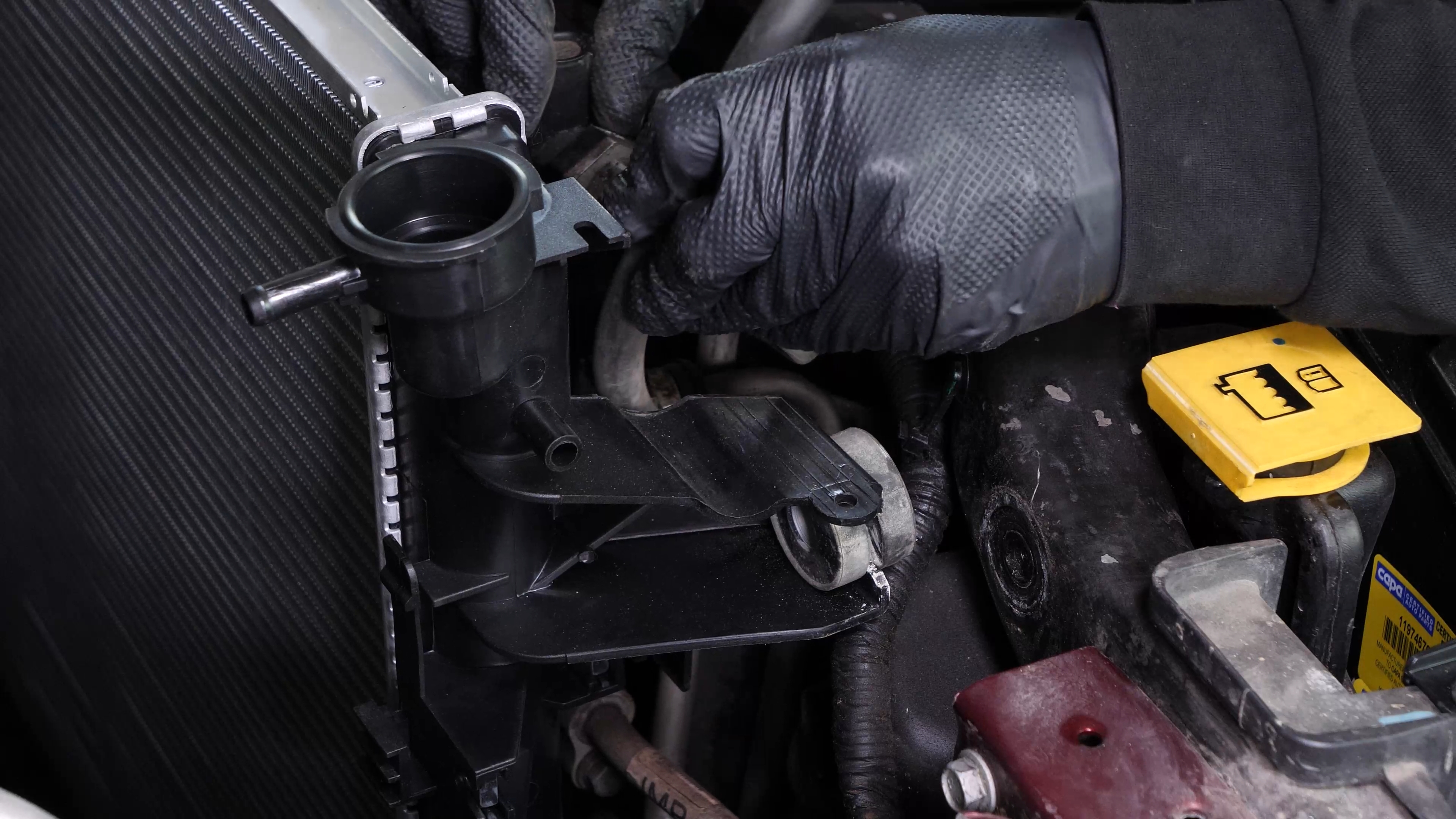

Insert the exchanger retaining tab into the radiator.

Chapter 7:

Step 3/8

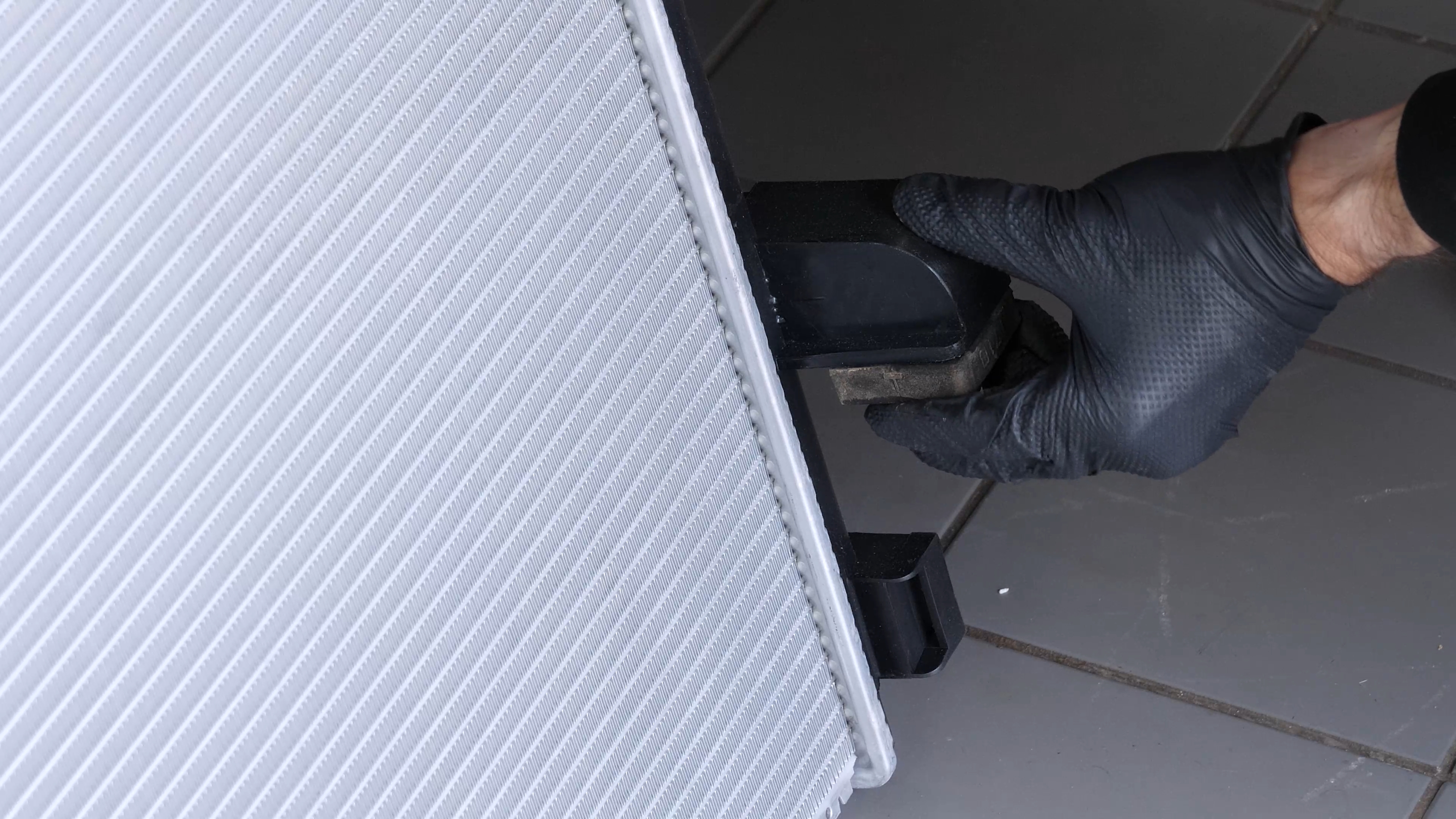

You can now put the radiator assembly in its final position by inserting the two rubber insulators into their slots.

Chapter 7:

Step 4/8

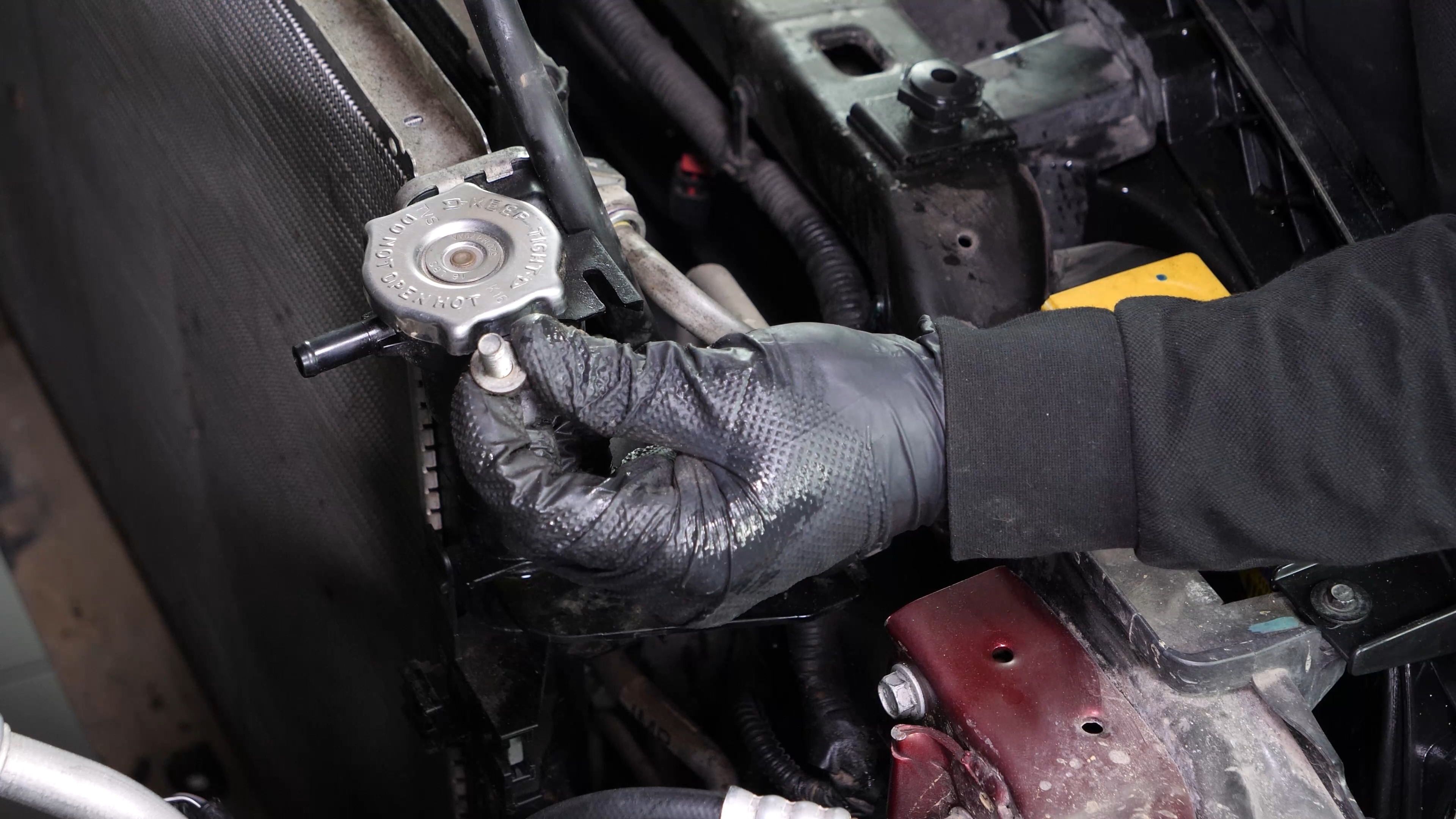

Pass the overflow hose between the radiator and the exchanger.

Chapter 7:

Step 5/8

Then screw the 3 exchanger retaining bolts back onto the passenger side radiator.

Chapter 7:

Step 6/8

Put the metal bracket back in place on the driver’s side.

Chapter 7:

Step 7/8

Then screw the 2 bolts back on.

Chapter 7:

Step 8/8

You can now screw the two bolts holding the radiator back on.

Chapter 8:

Put the fan assembly back

Step 1/6

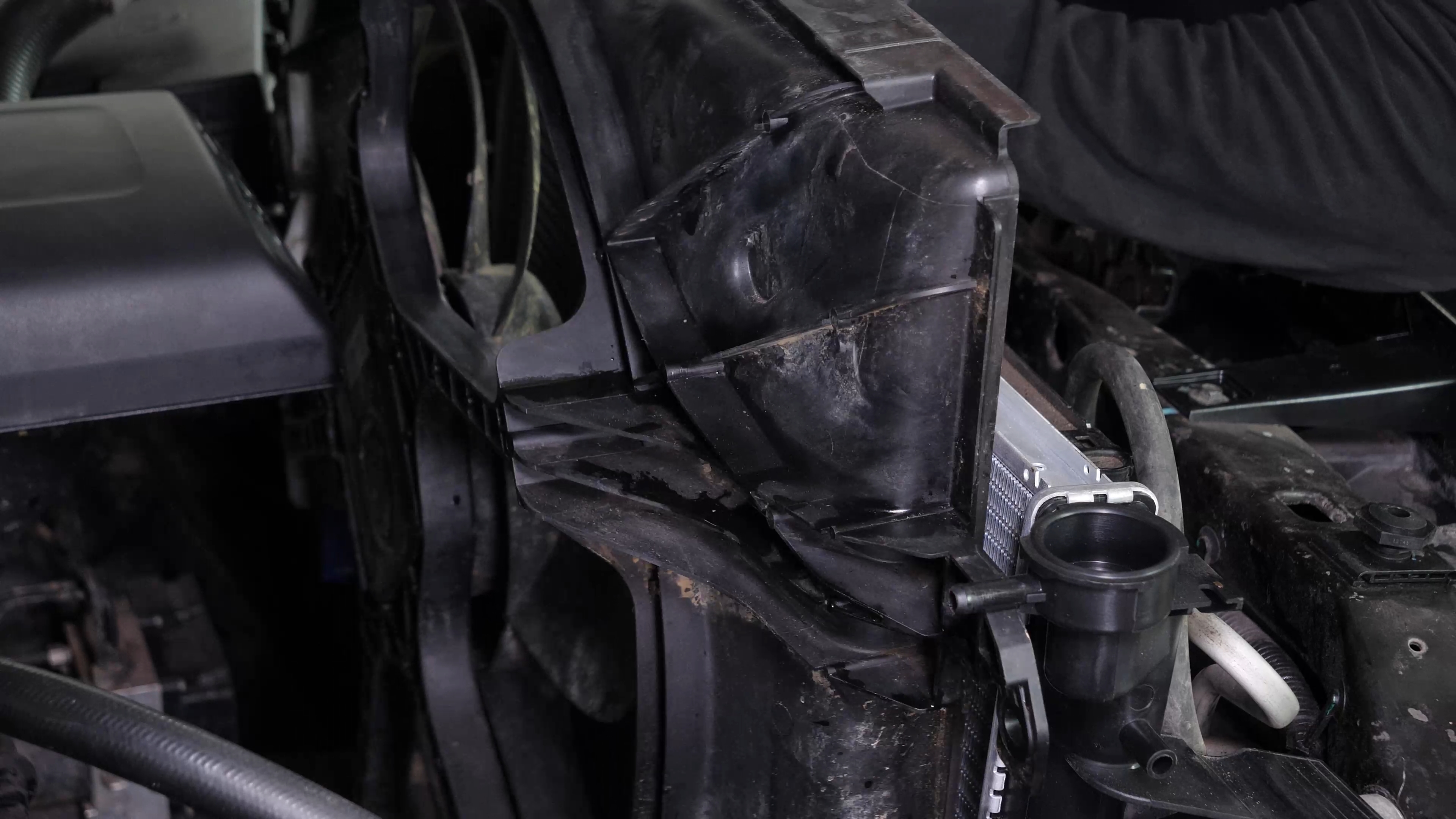

You can now slide the fan assembly onto the radiator.

Chapter 8:

Step 2/6

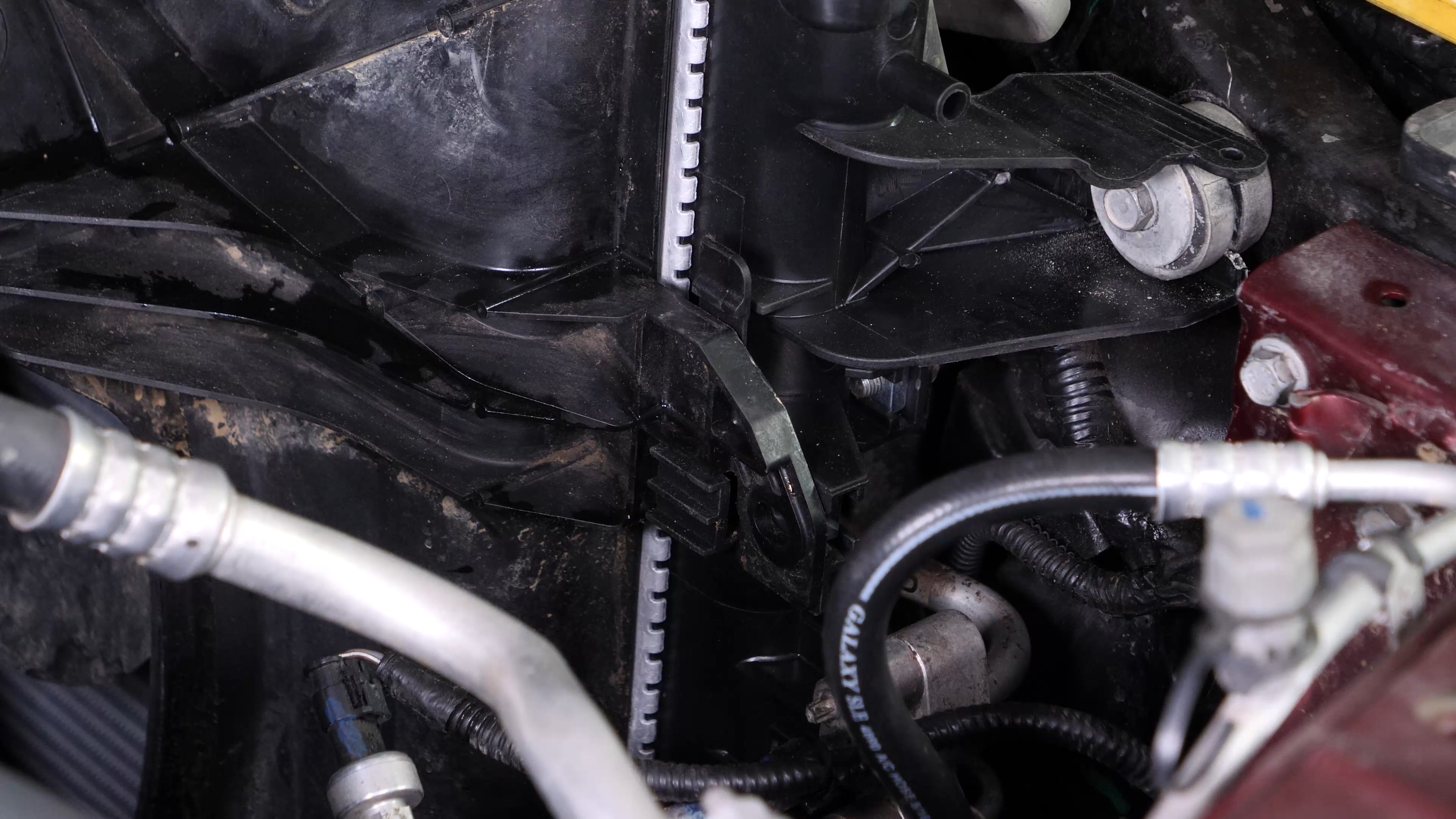

Make sure all attachments are in place on the radiator assembly.

Chapter 8:

Step 3/6

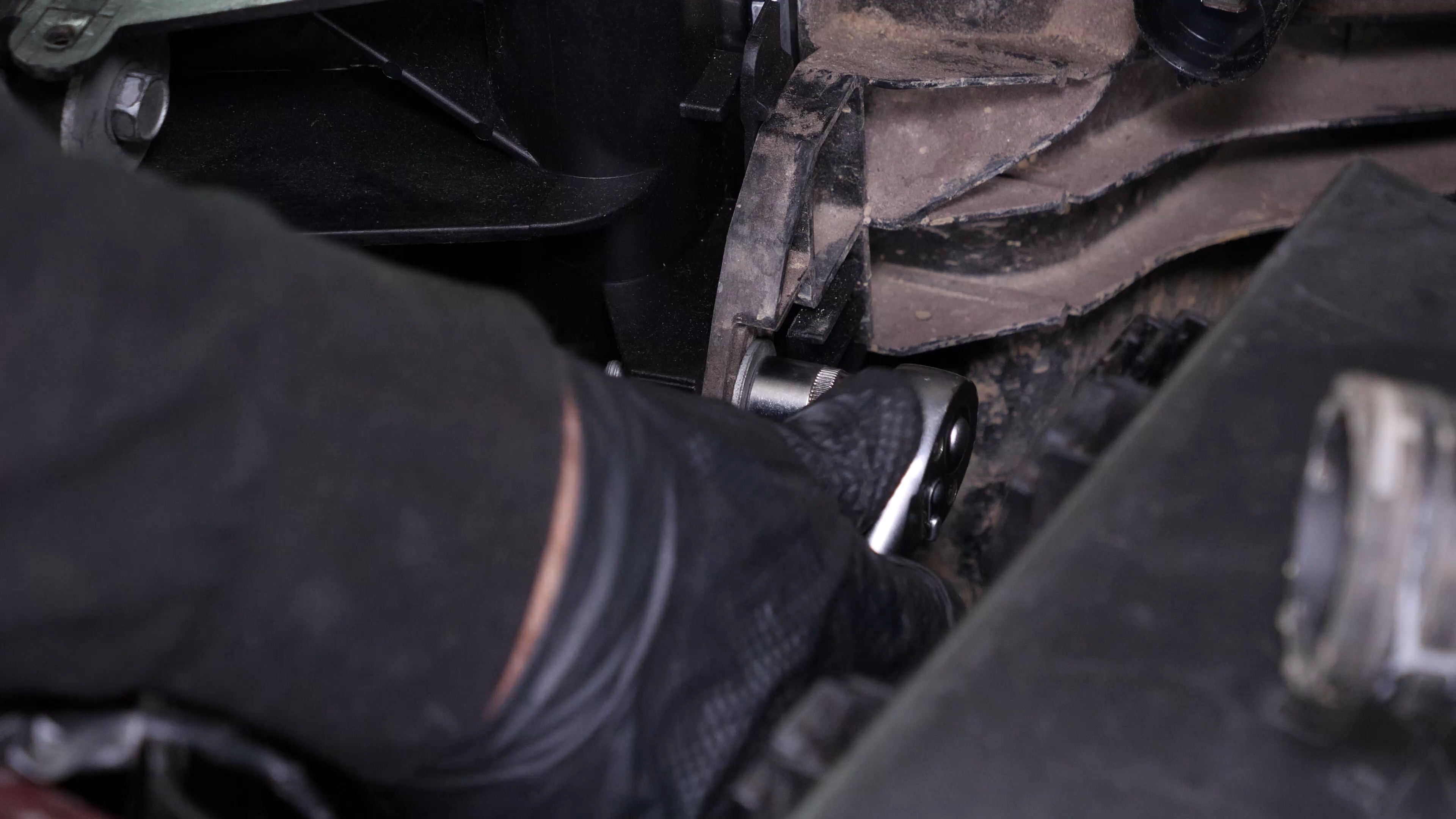

Next, screw the 2 retaining bolts back on.

Chapter 8:

Step 4/6

Reconnect the fan power connector.

Chapter 8:

Step 5/6

Using adjustable pliers or the tool used in the video, put the two hoses back in place on the radiator.

Chapter 8:

Step 6/6

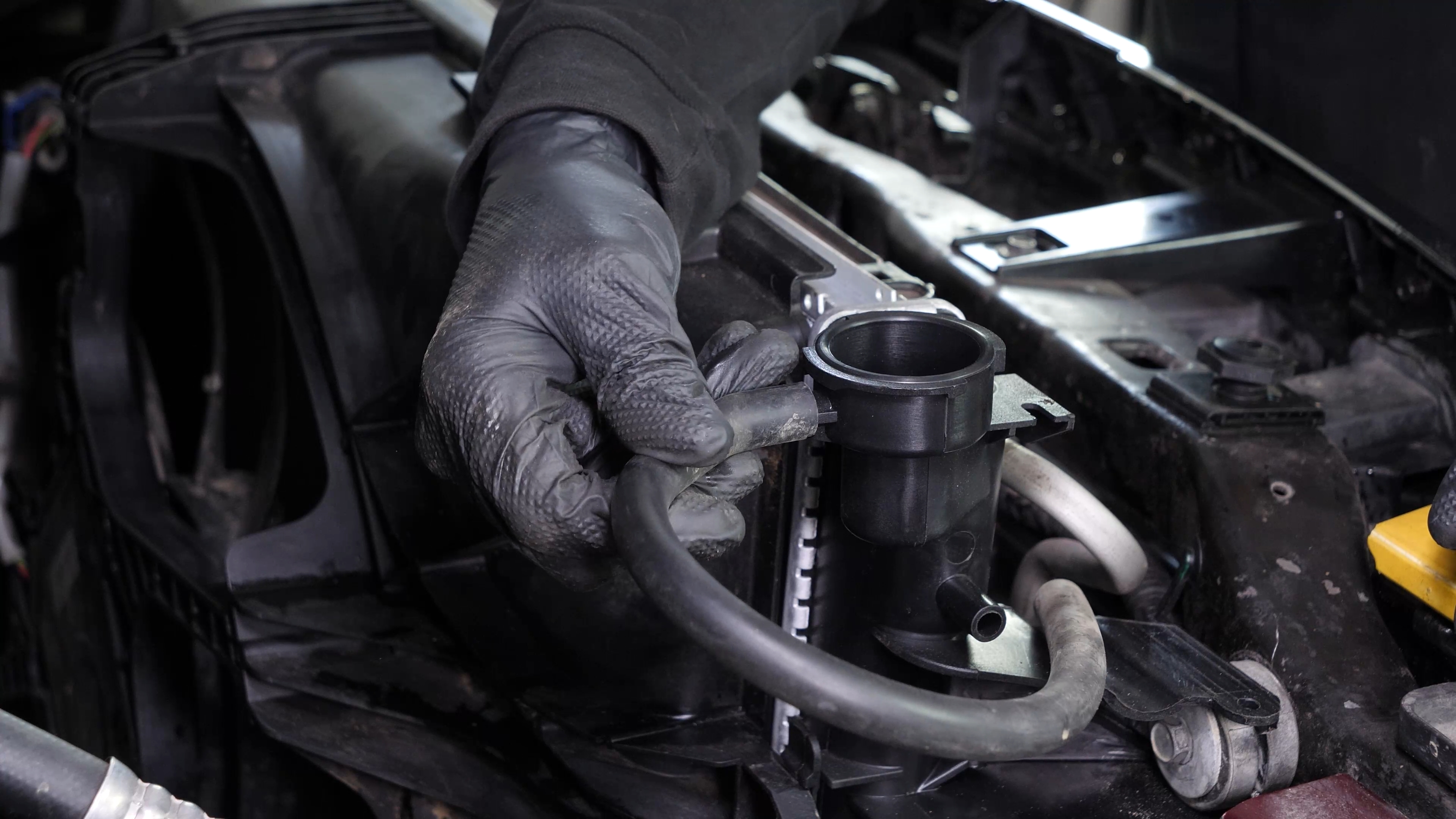

Reconnect the overflow hose.

Chapter 9:

Reconnect the battery

Step 1/1

Reconnect the battery.

Chapter 10:

Add coolant

Step 1/2

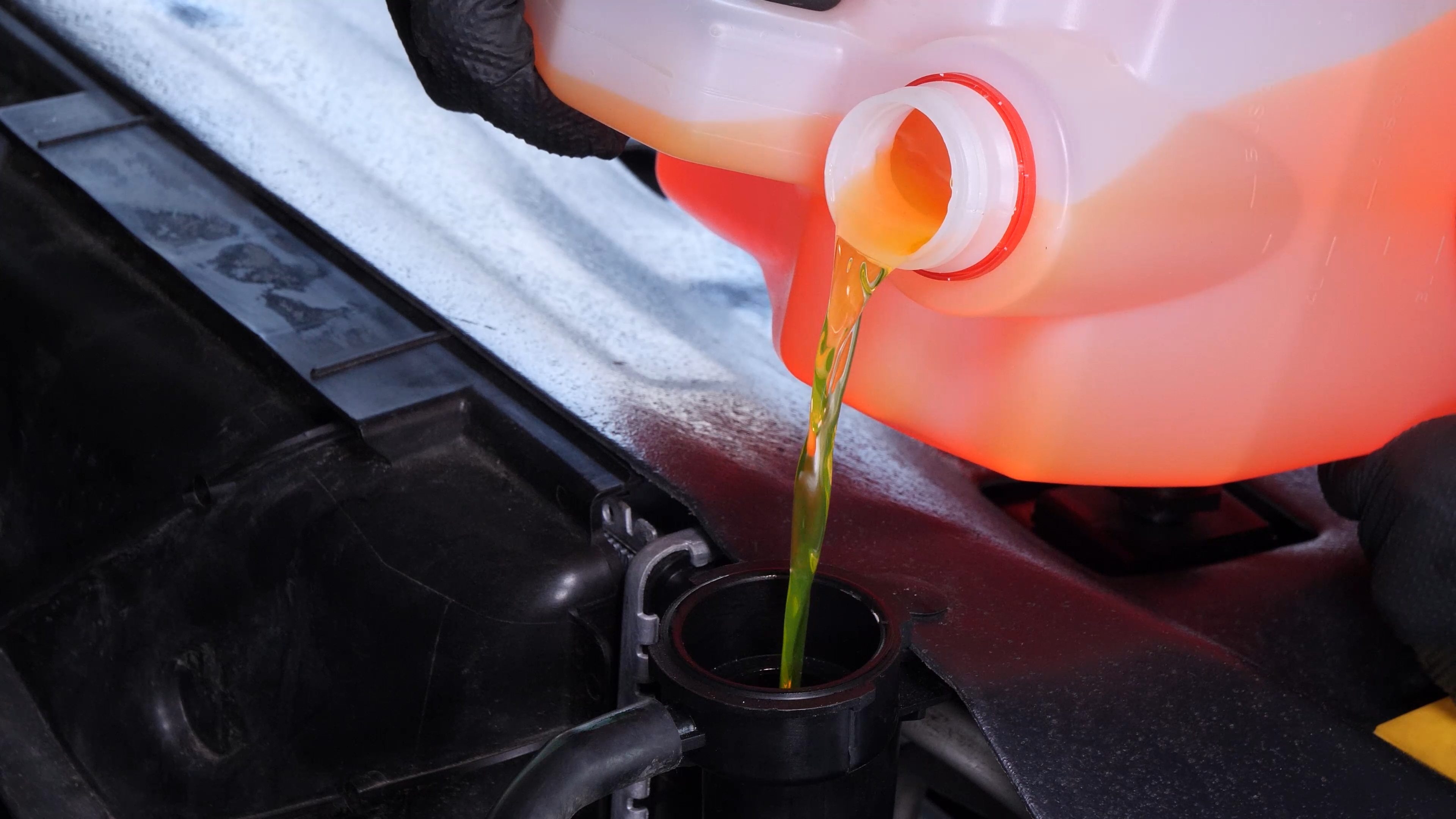

Now you need to refill the radiator with coolant and purge any air from the circuit.

Chapter 10:

Step 2/2

Operation complete.
