How to replace the rear brake pads 2009-2018 Dodge RAM 1500

Chapter 1:

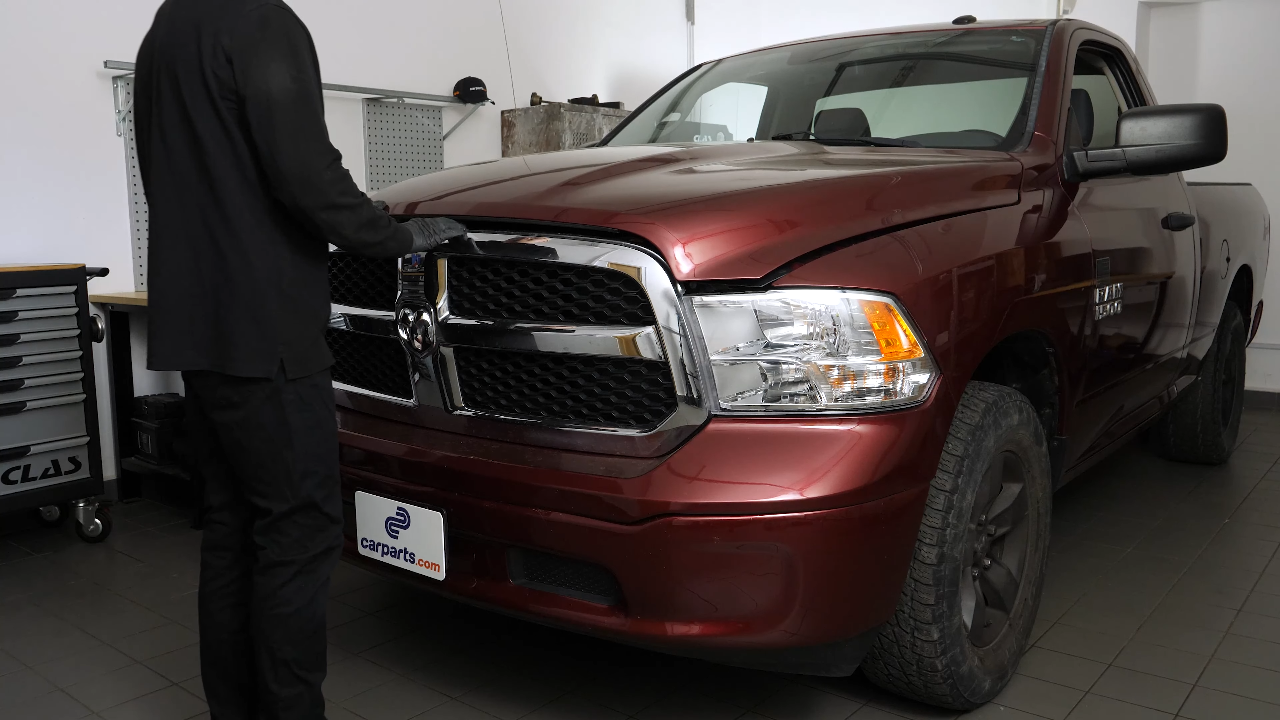

Open the brake fluid reservoir

Step 1/2

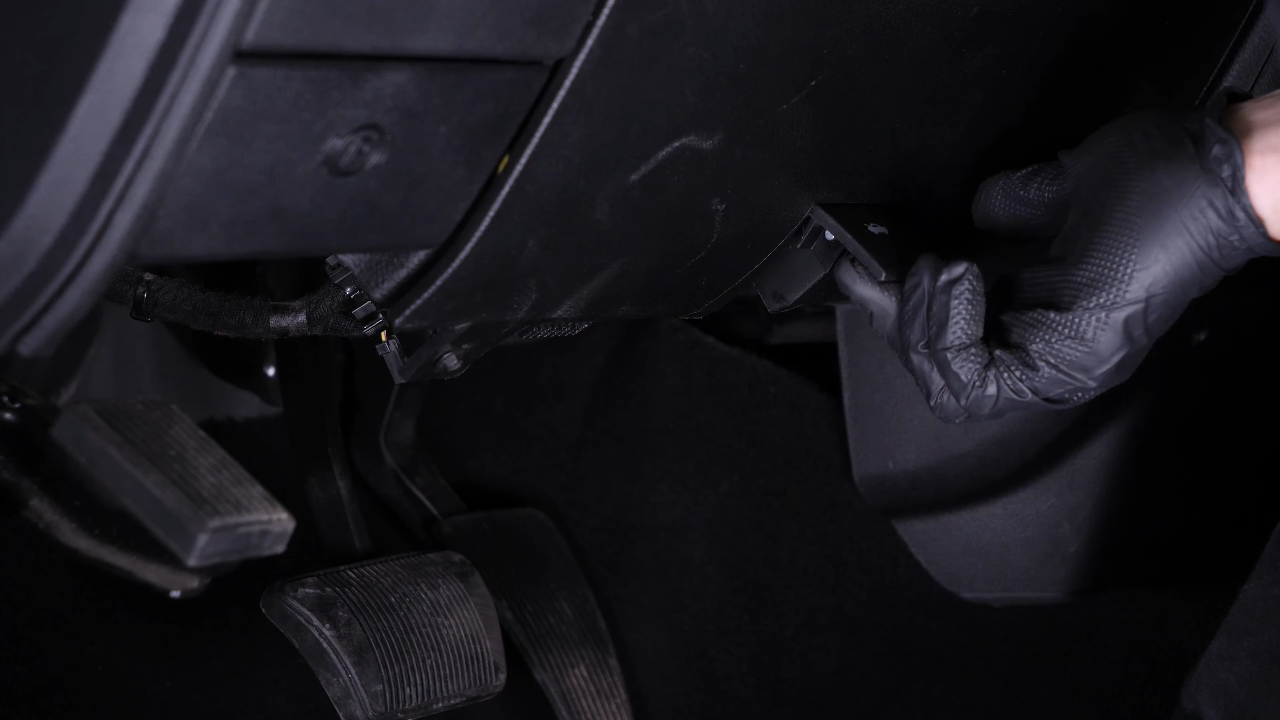

Turn off your vehicle’s ignition, set the parking brake, pull the hood release handle and open the hood.

Chapter 1:

Step 2/2

Open the brake fluid reservoir.

Chapter 2:

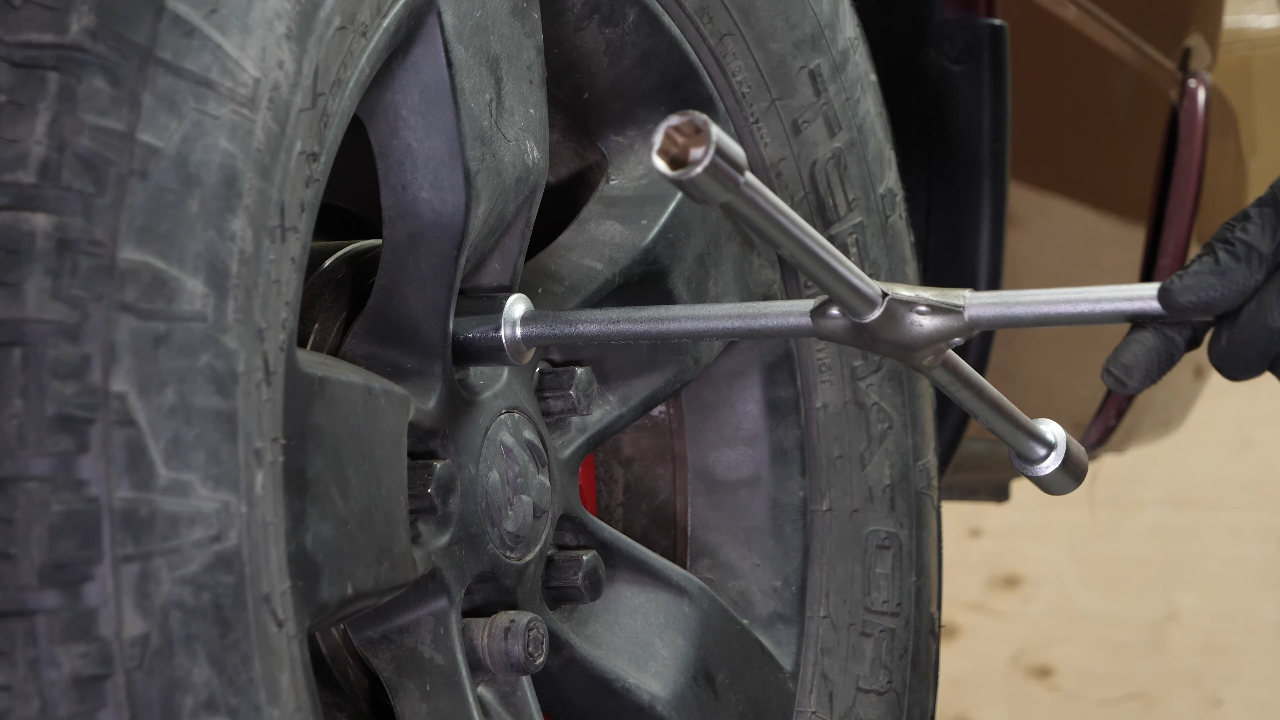

Lift the vehicle

Step 1/3

Loosen the wheel lug nuts on the rear wheels. Lift the rear of your vehicle.

Chapter 2:

Step 2/3

We strongly suggest watching our video on ‘How to jack your RAM 1500 safely” before carrying out this step.

Chapter 2:

Step 3/3

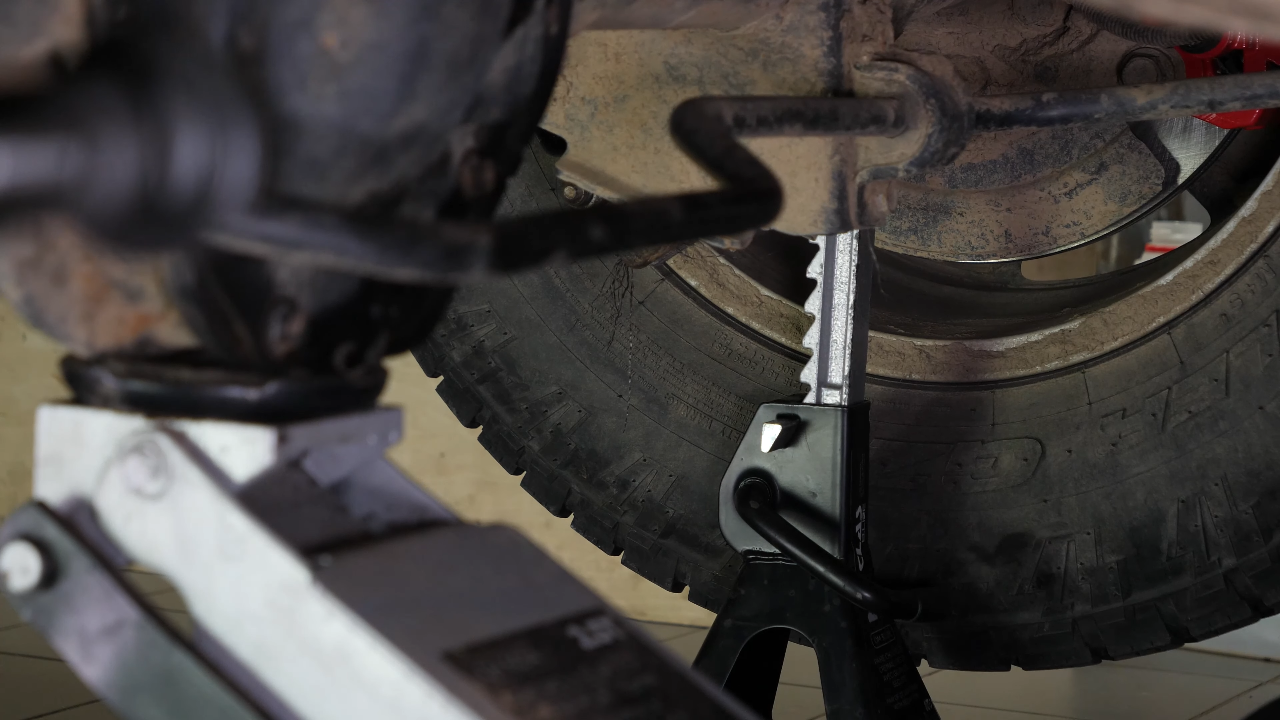

Place the vehicle on the jack stands.

Chapter 3:

Take off the wheels

Step 1/2

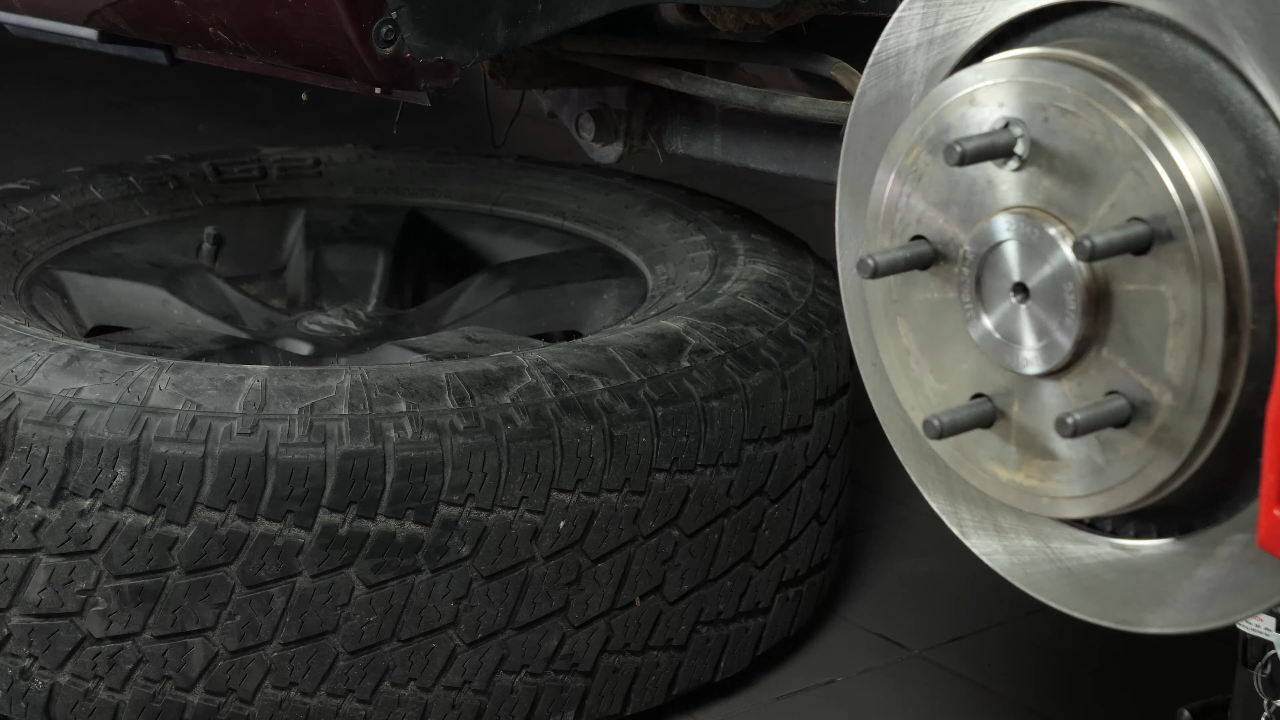

In order to change the rear brake pads on your vehicle, you will need to take off the wheels to have full access.

Chapter 3:

Step 2/2

Don’t forget to put the wheels under the vehicle!

Chapter 4:

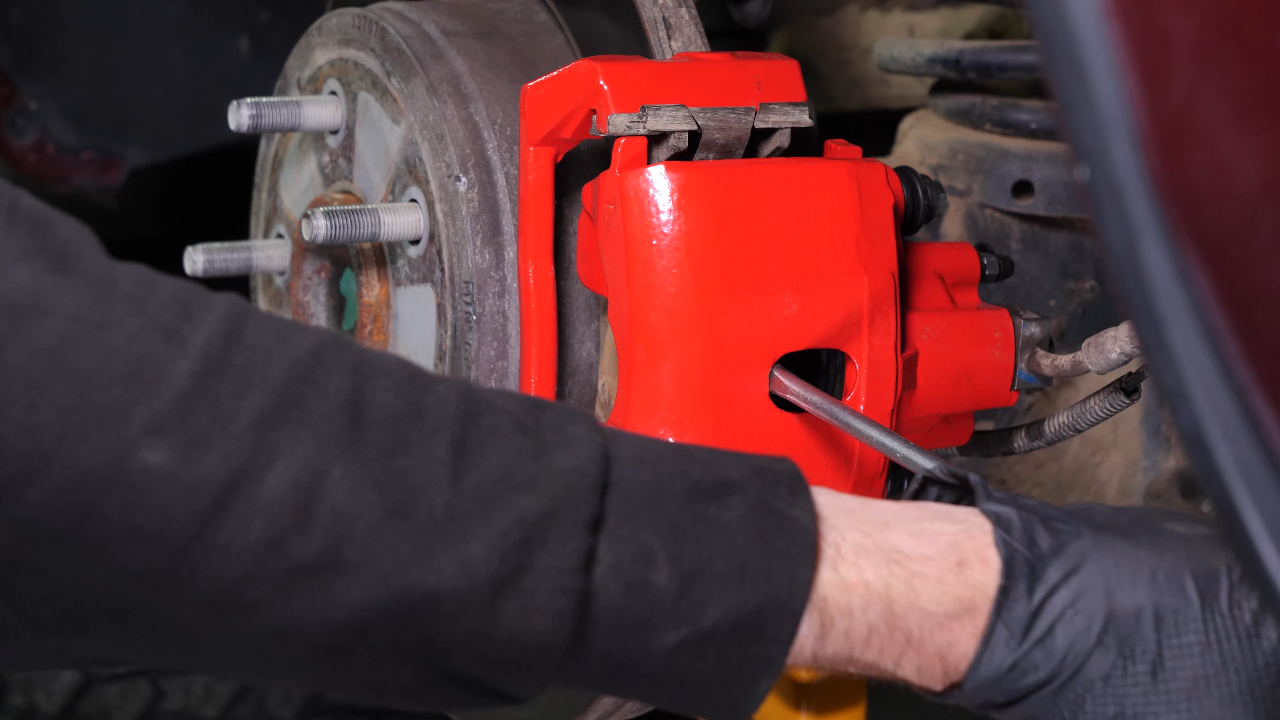

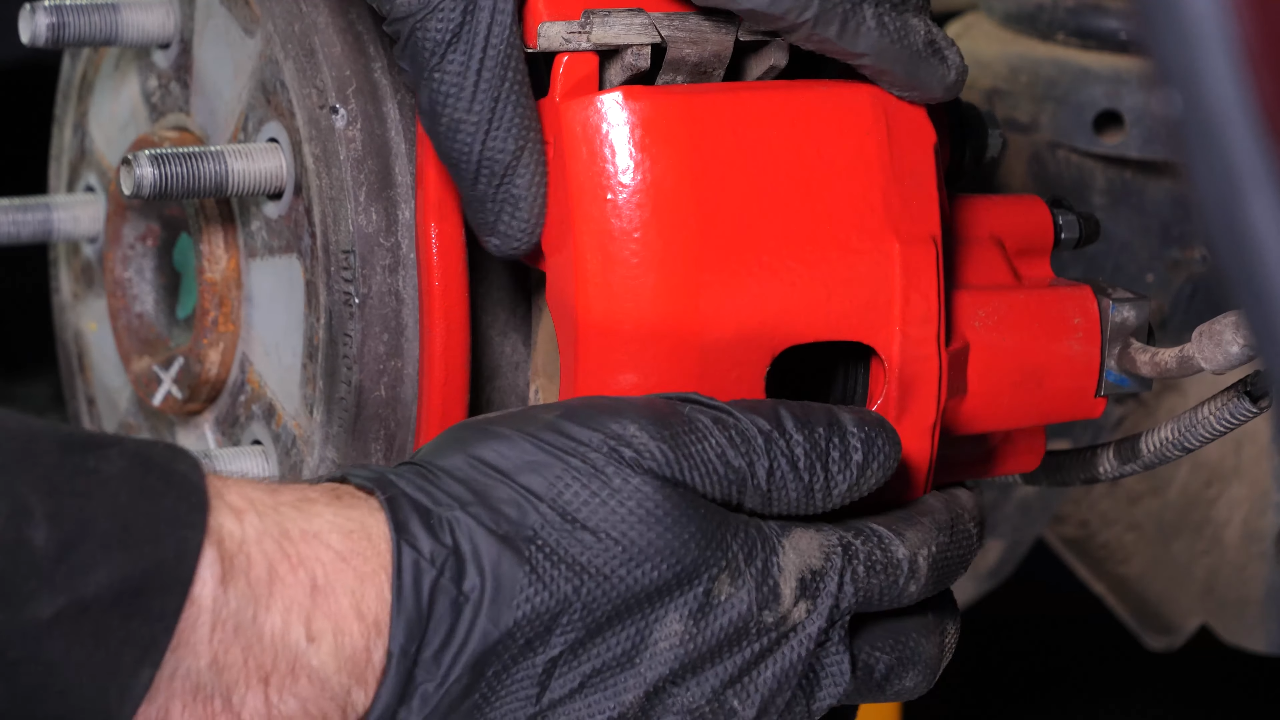

Retract the piston

Step 1/2

Insert a flathead screwdriver to the outer extremity of the oblong hole located on the front of the brake caliper. Lift it off using the screwdriver as a lever by pulling it towards you.

Chapter 4:

Step 2/2

This will cause the piston to retract slightly, so that the caliper can be removed more easily for the next steps.

Chapter 5:

Remove the brake caliper

Step 1/2

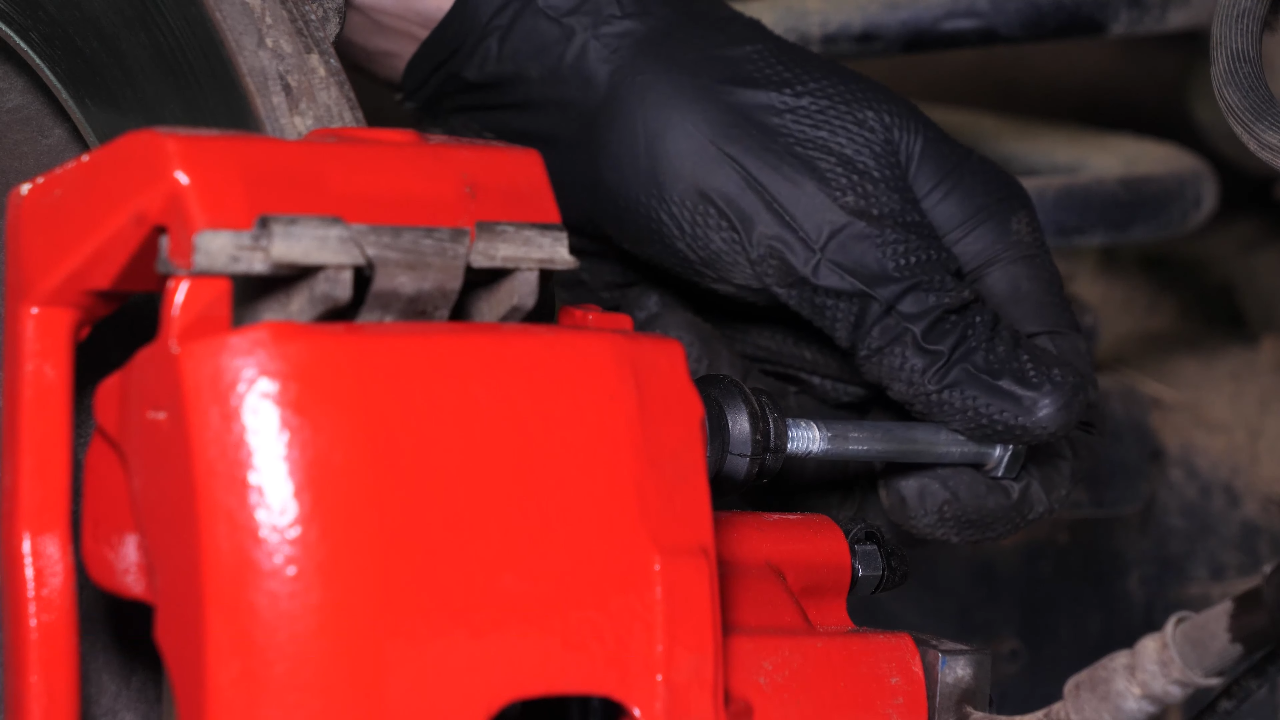

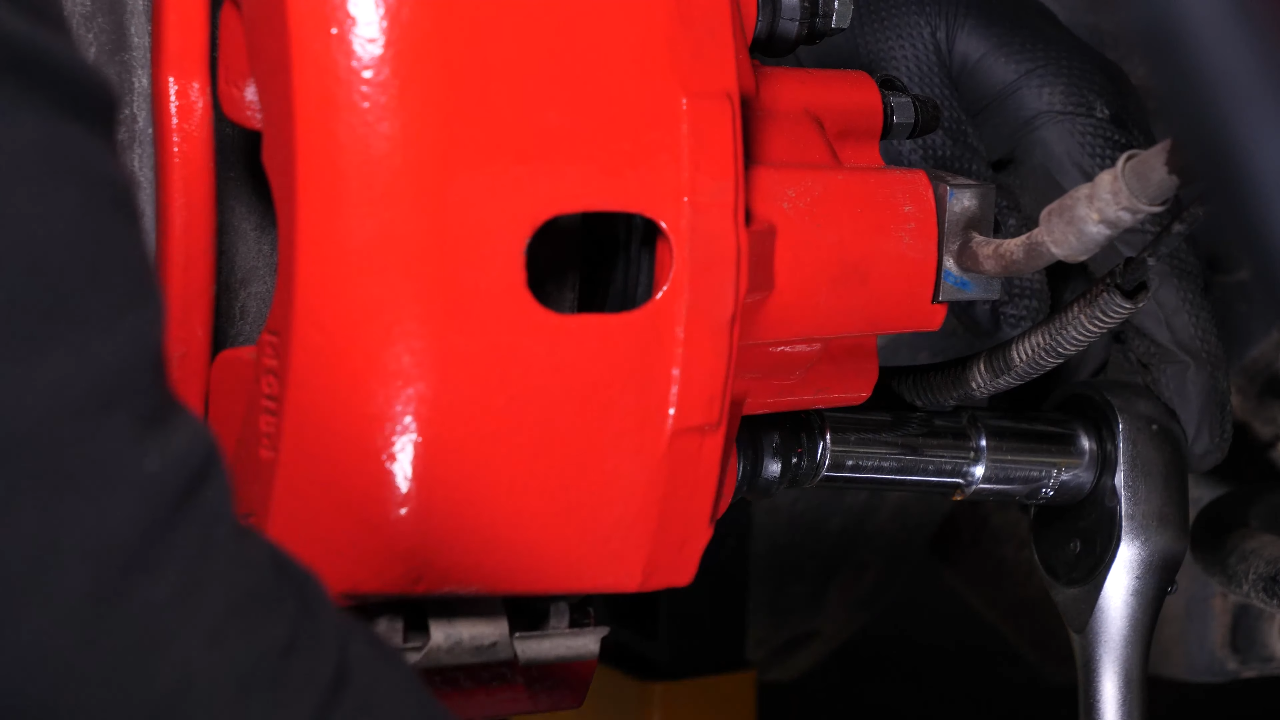

With a ratchet and a 13mm socket, unscrew the slide pins. Then, remove them.

Chapter 5:

Step 2/2

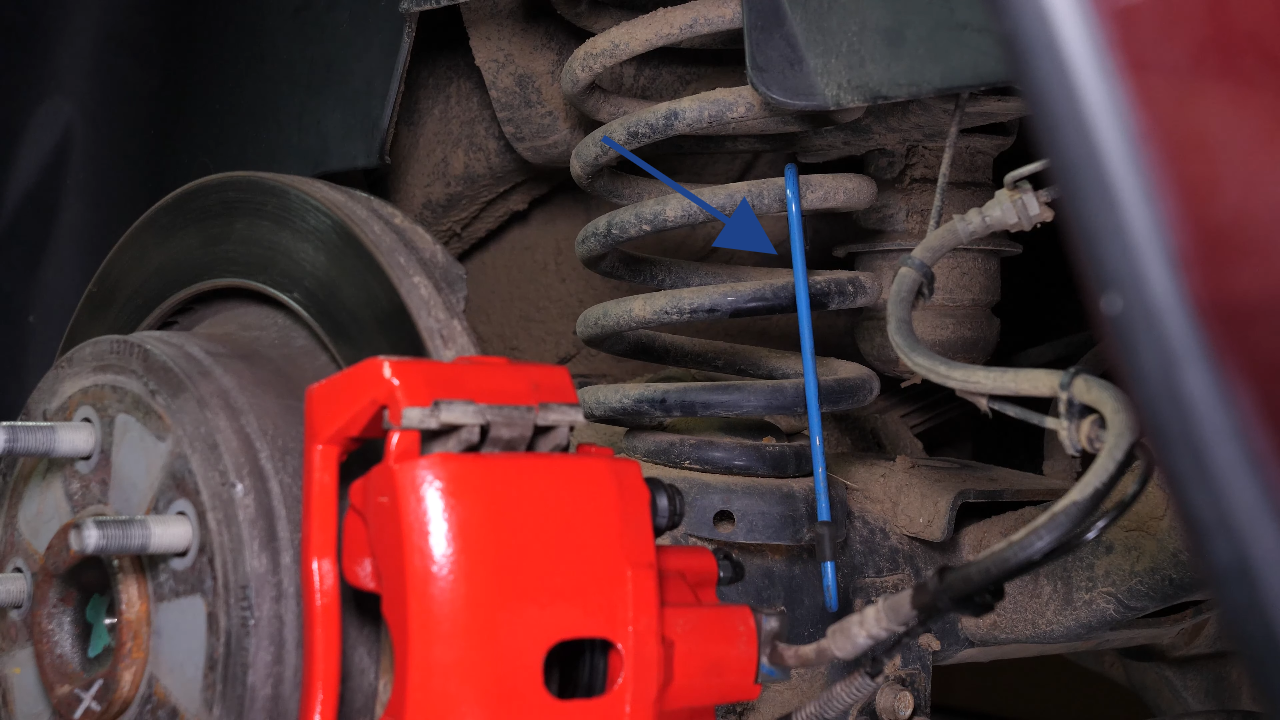

Tip: attach a piece of electrical cable, or a hook, to one of the strut spring coils You can now remove the brake caliper and hand it to the previously installed hook.

Chapter 6:

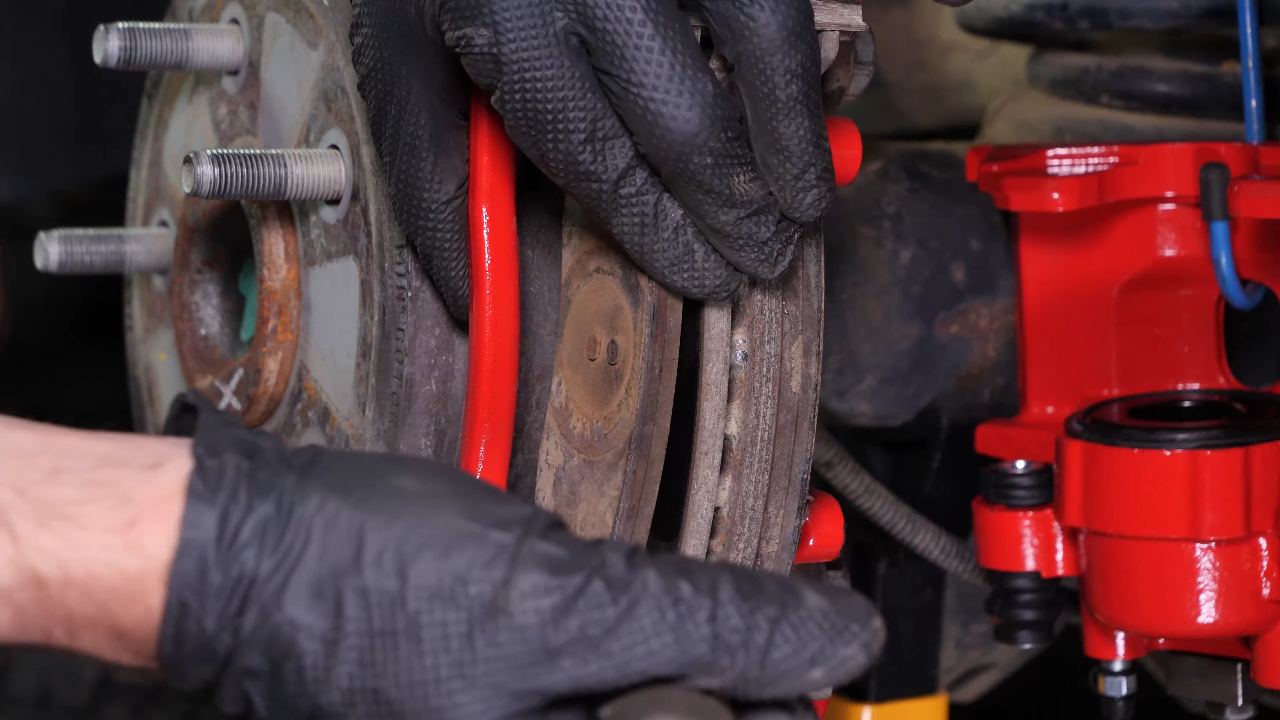

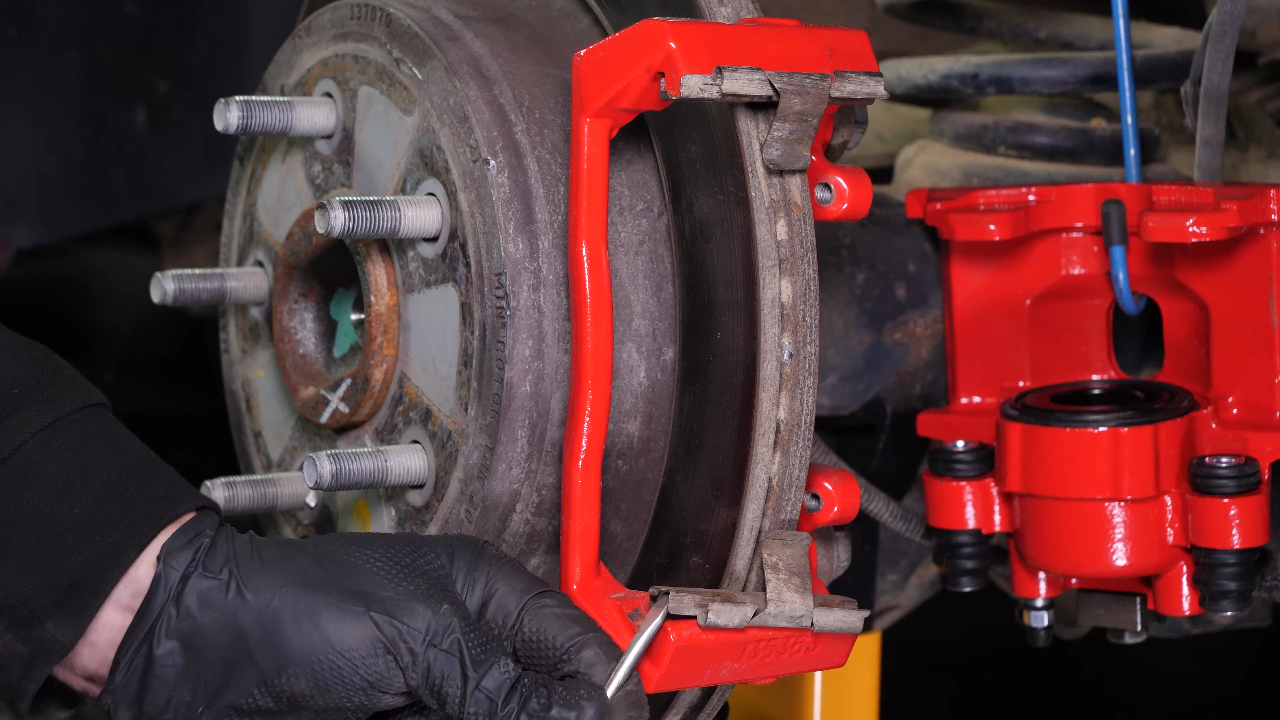

Remove the brake pads

Step 1/2

Remove the brake pads by prying them out with a flathead screwdriver.

Chapter 6:

Step 2/2

Using a flat head screwdriver, remove the anti-rattle clips.

Chapter 7:

Clean the brake caliper mount

Step 1/1

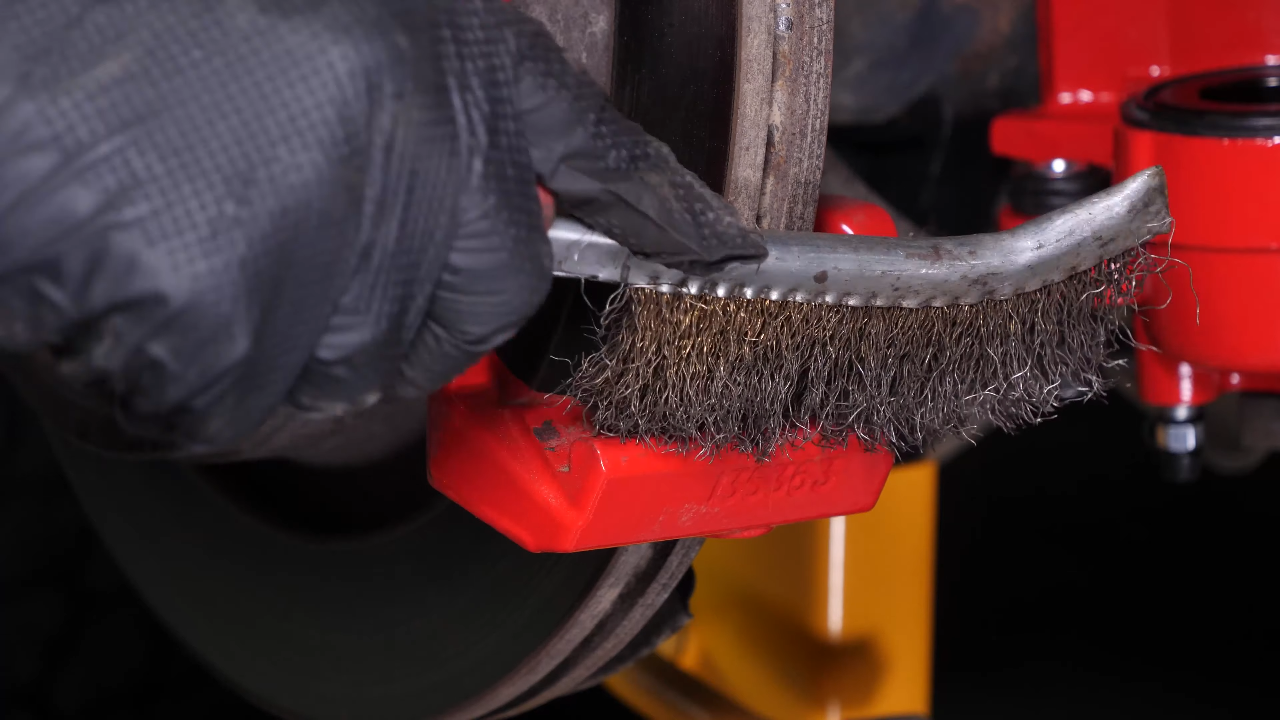

Brush the caliper mount around the pads to remove any extra rust that could prevent the pads from sliding.

Chapter 8:

Tips

Step 1/1

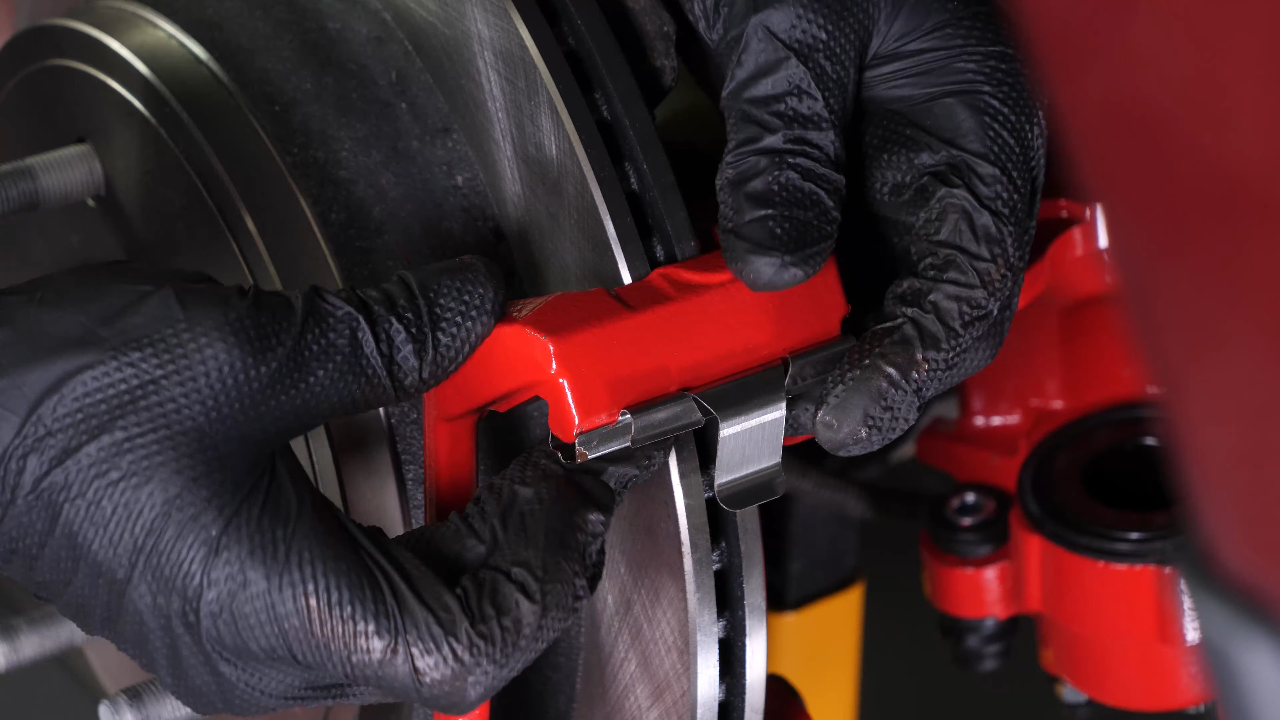

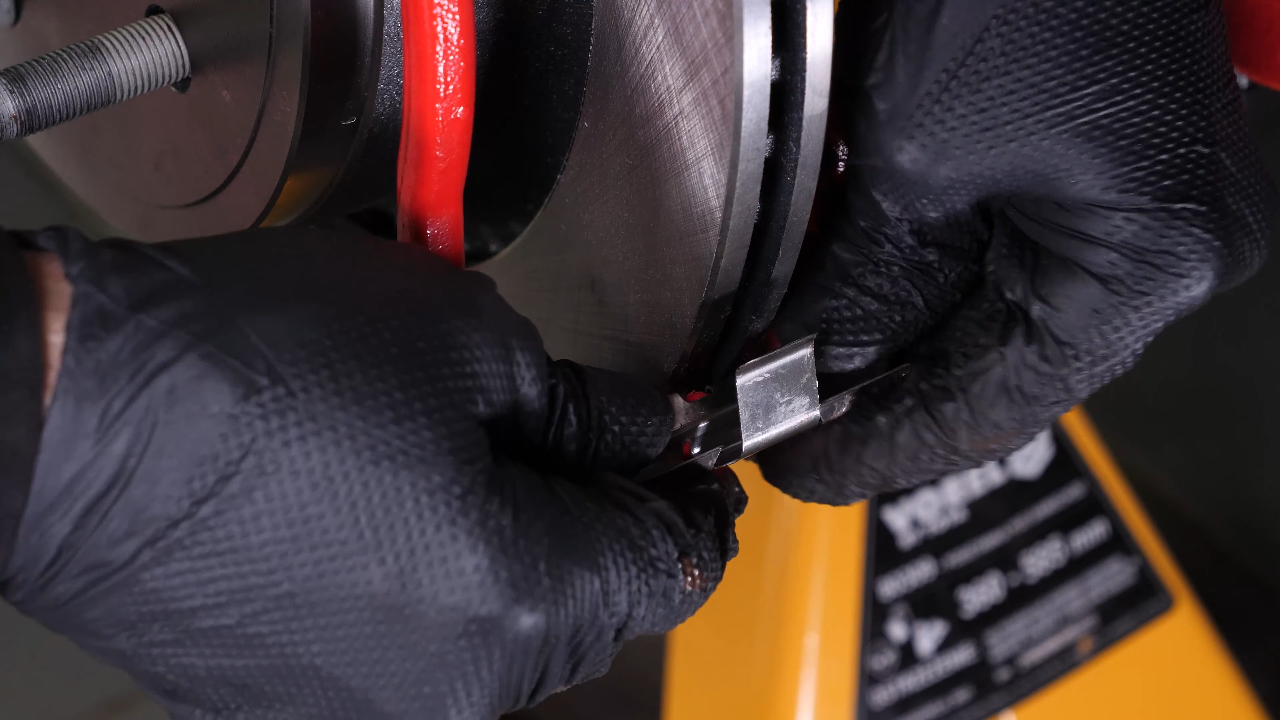

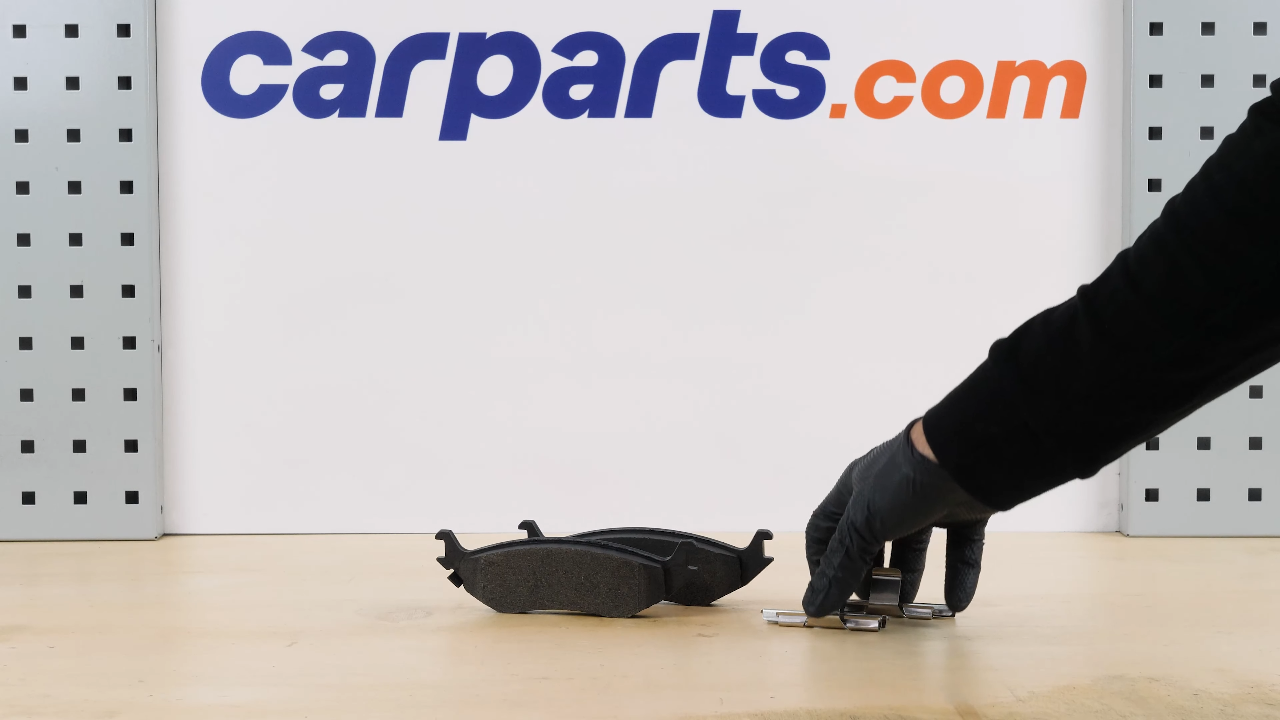

Carparts.com also recommends replacing the anti-rattle clips with new ones. Place the new anti-rattle clips on the caliper mount.

Chapter 9:

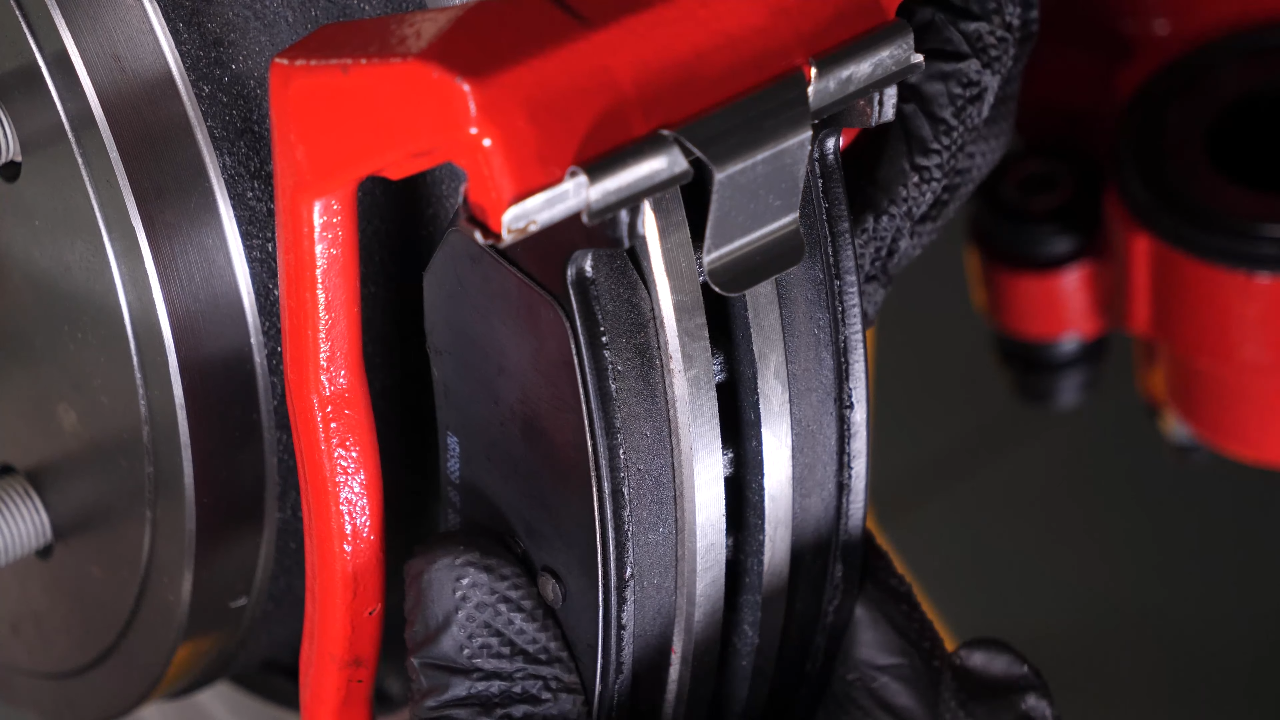

Prepare and insert the new pads

Step 1/2

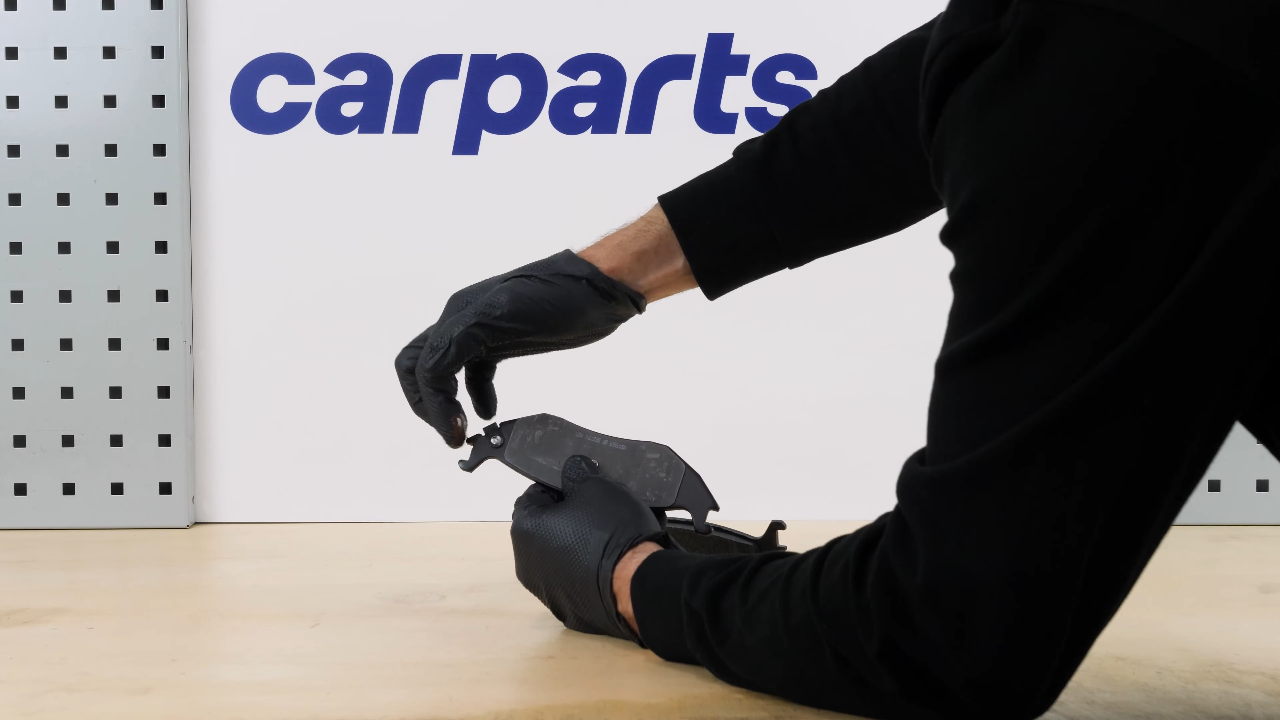

Grab the new pads, and lightly coat the ends with copper grease to help them slide more easily.

Chapter 9:

Step 2/2

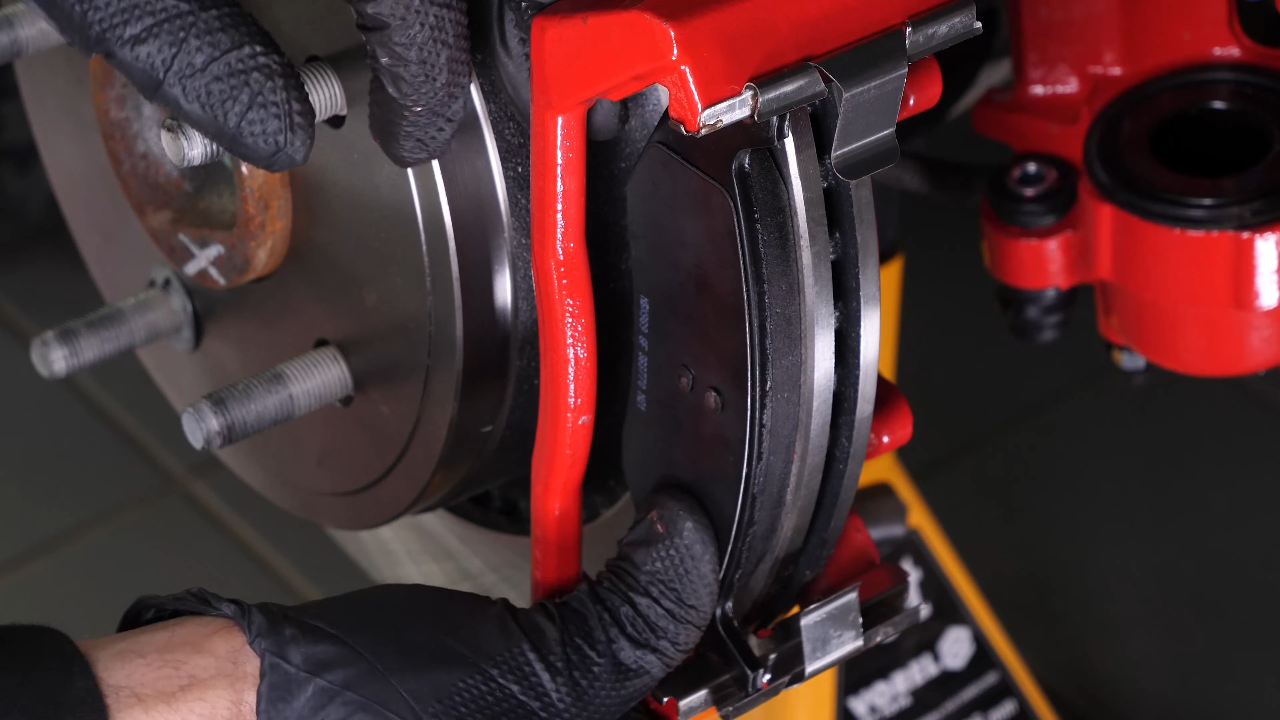

Insert the new pads into the caliper mount by sliding them in.

Chapter 10:

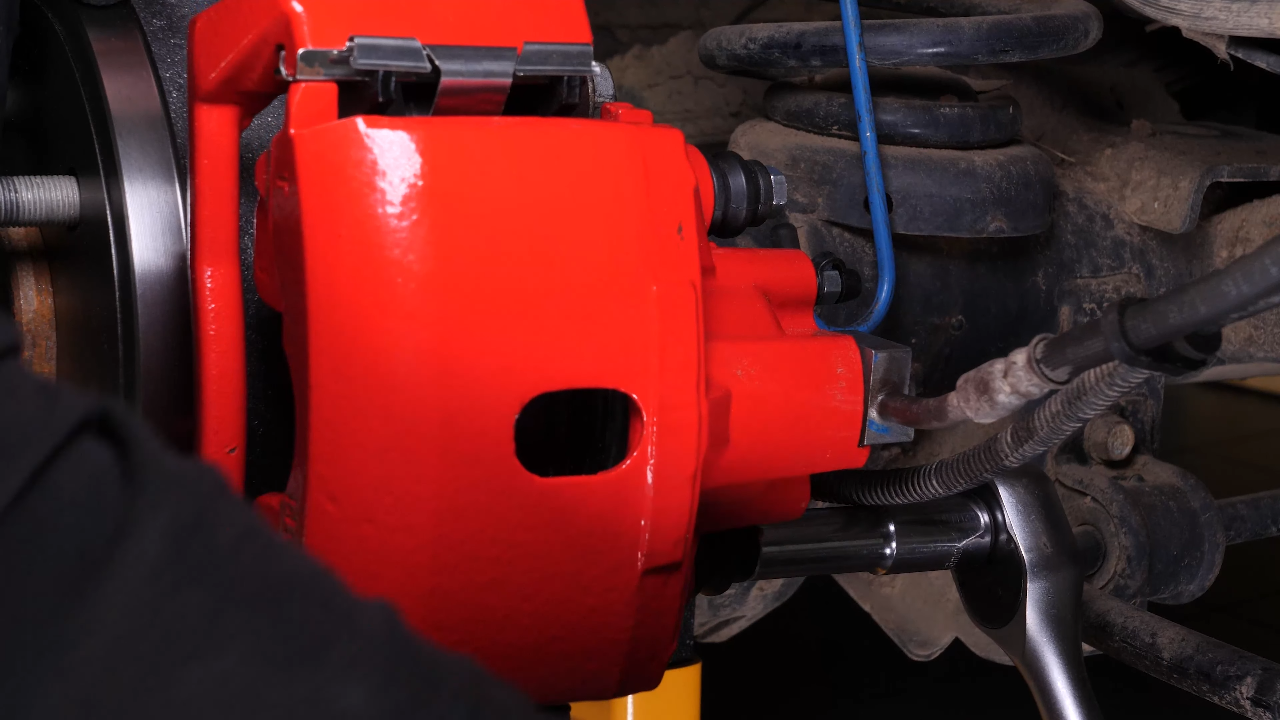

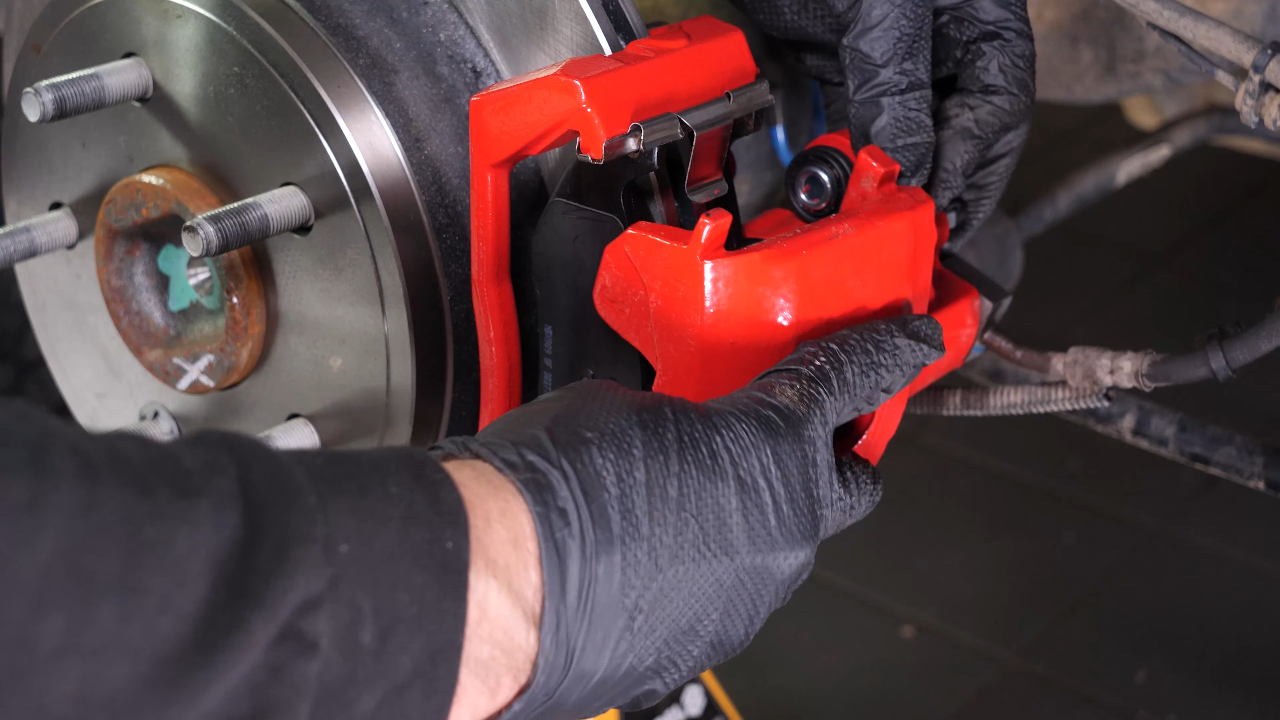

Put the brake caliper back

Step 1/2

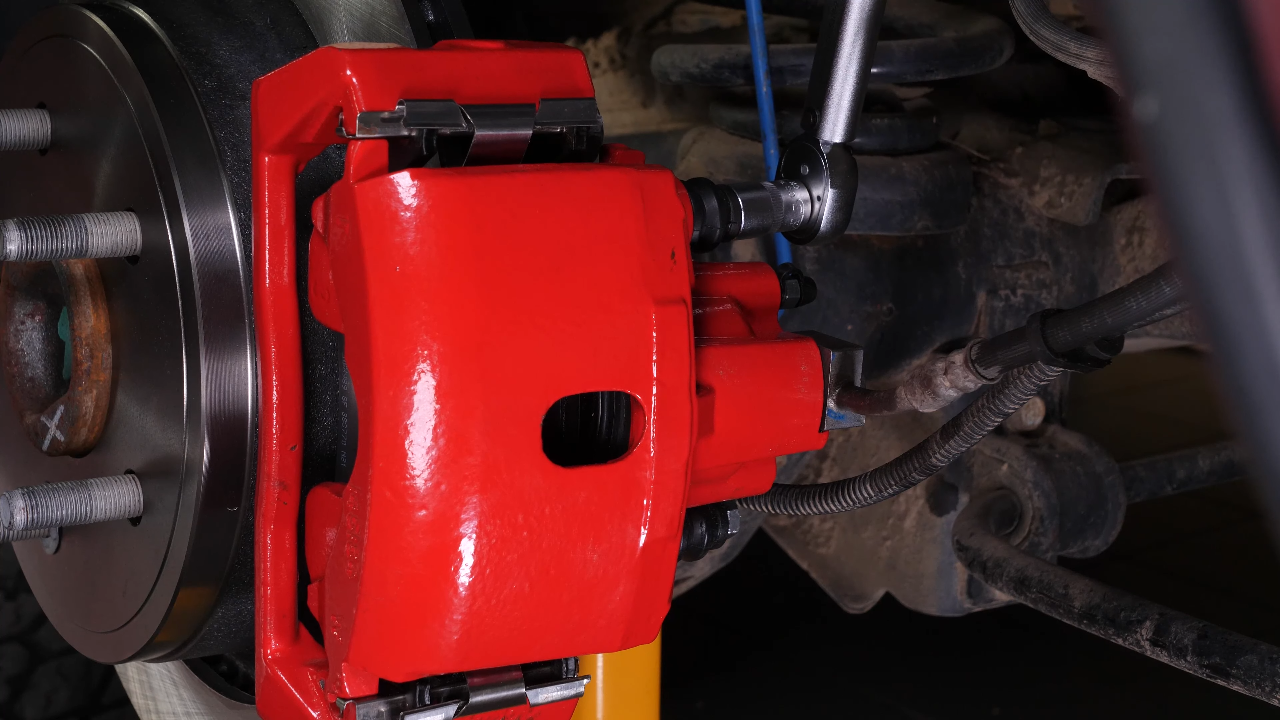

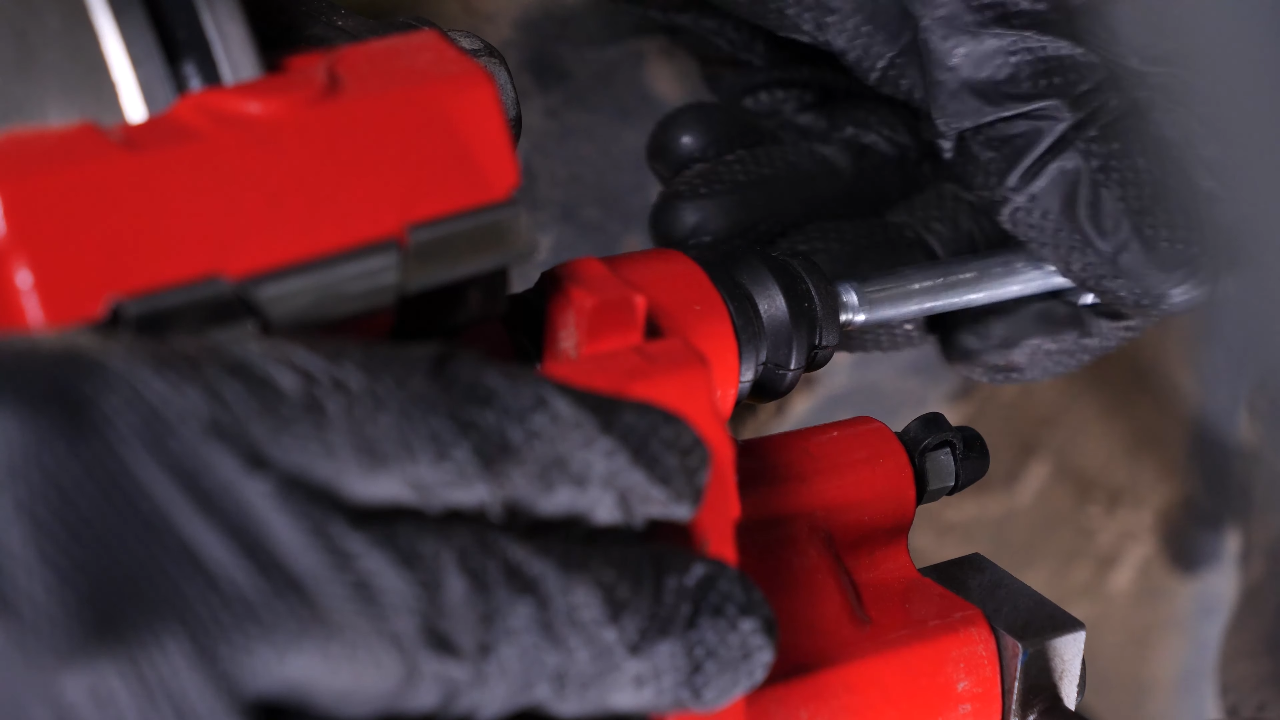

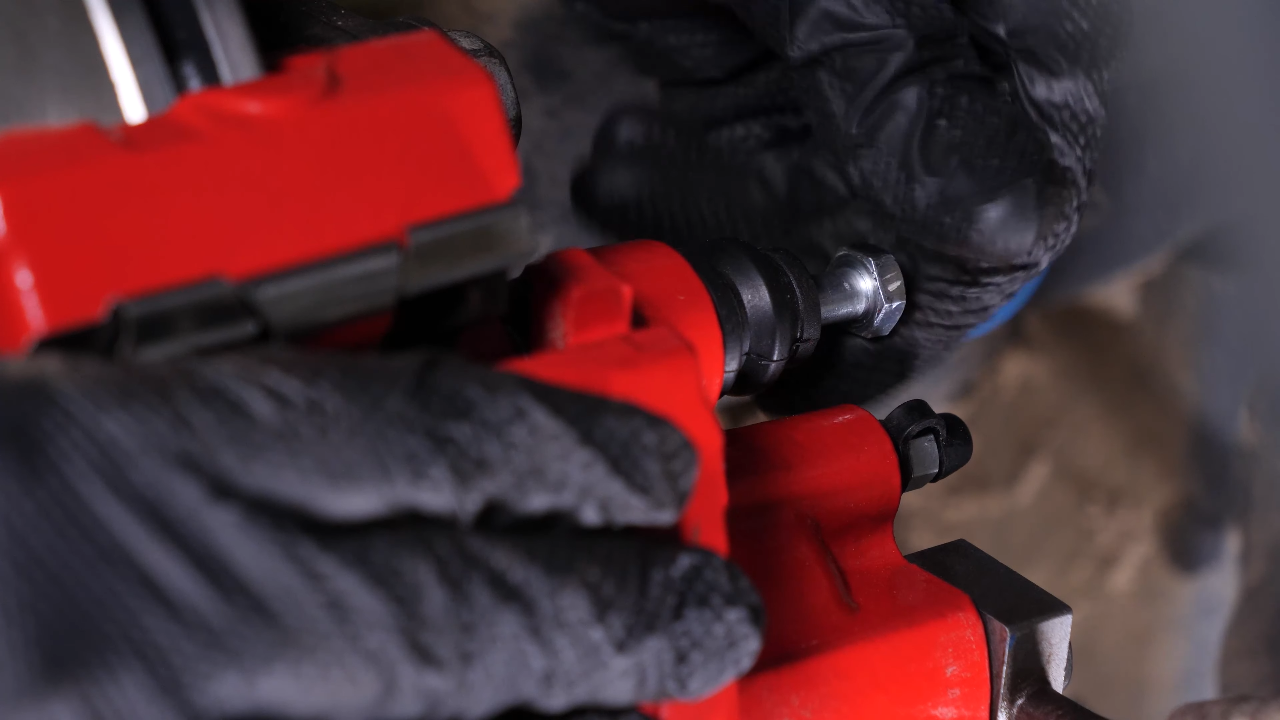

Grab the brake caliper. Put the brake caliper back in place and screw in the slide pins, by hand at first.

Chapter 10:

Step 2/2

Screw them in using a socket wrench and a 13mm socket. Finish tightening using a torque wrench.

Chapter 11:

Tips

Step 1/1

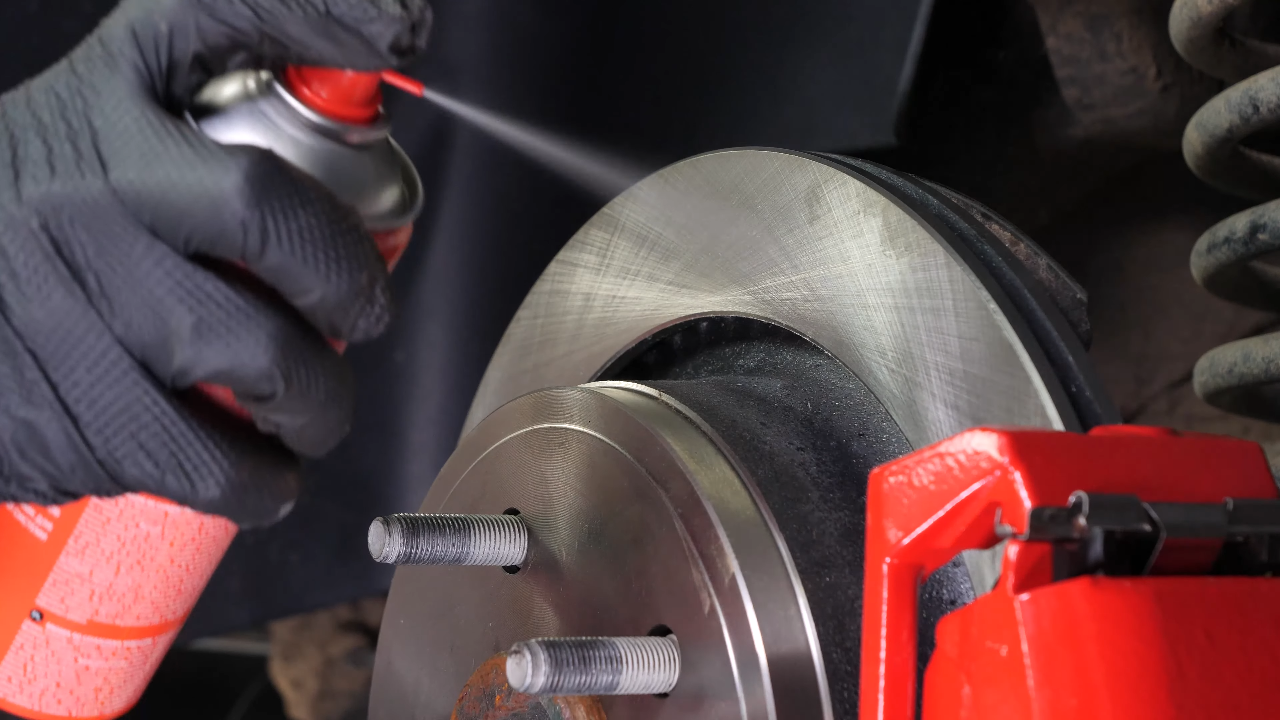

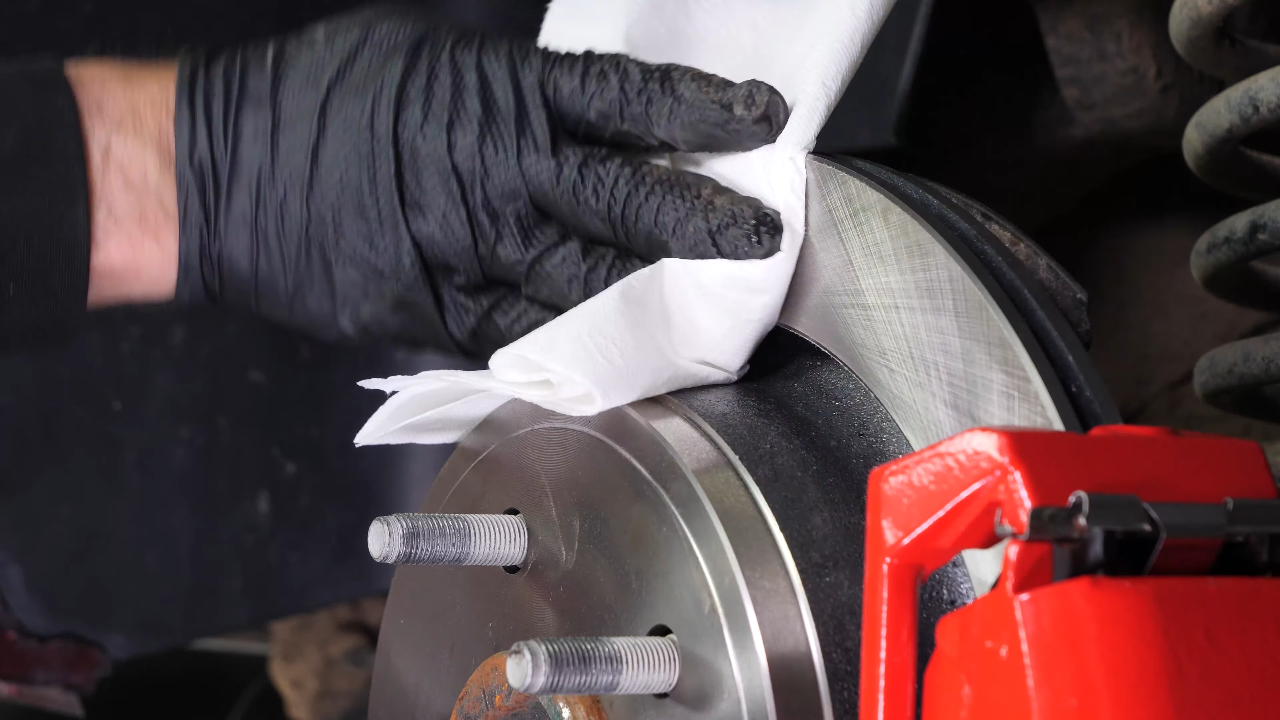

Clean both sides of the disc with brake cleaner and a cloth to remove the grease from the new pads.

Chapter 12:

Finalise the reassembly

Step 1/3

You can now repeat the same process on the other side.

Chapter 12:

Step 2/3

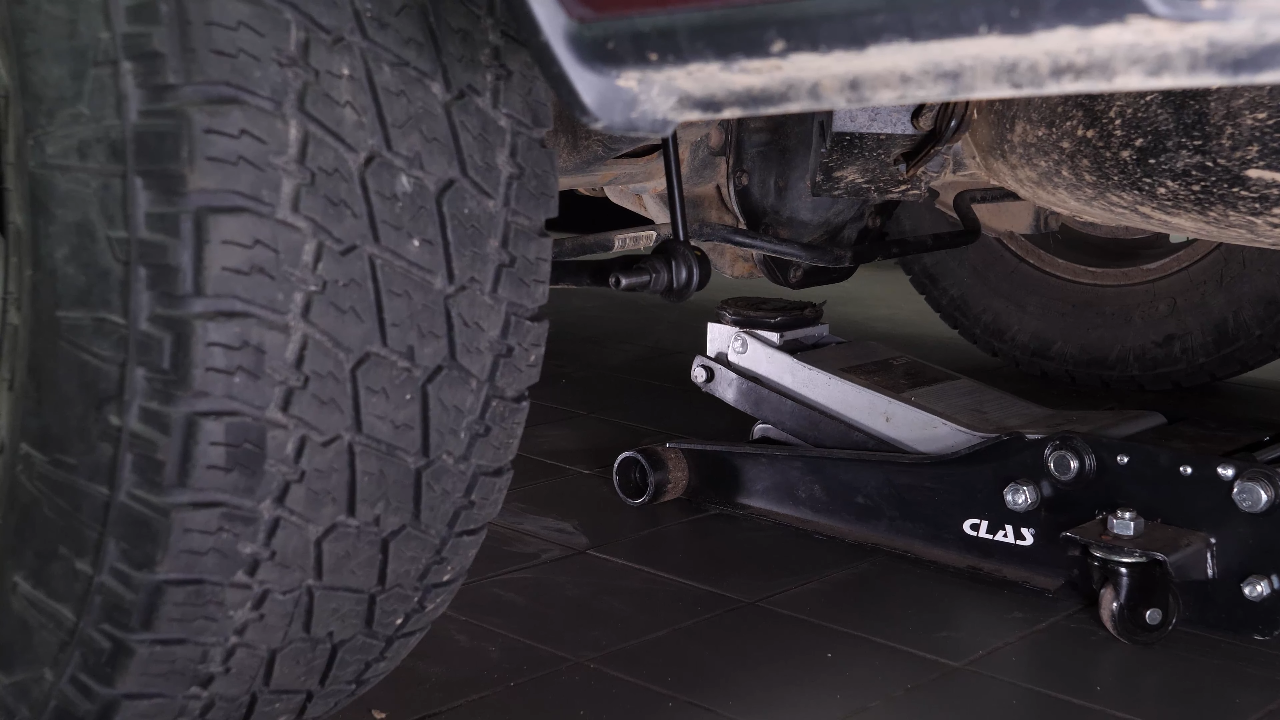

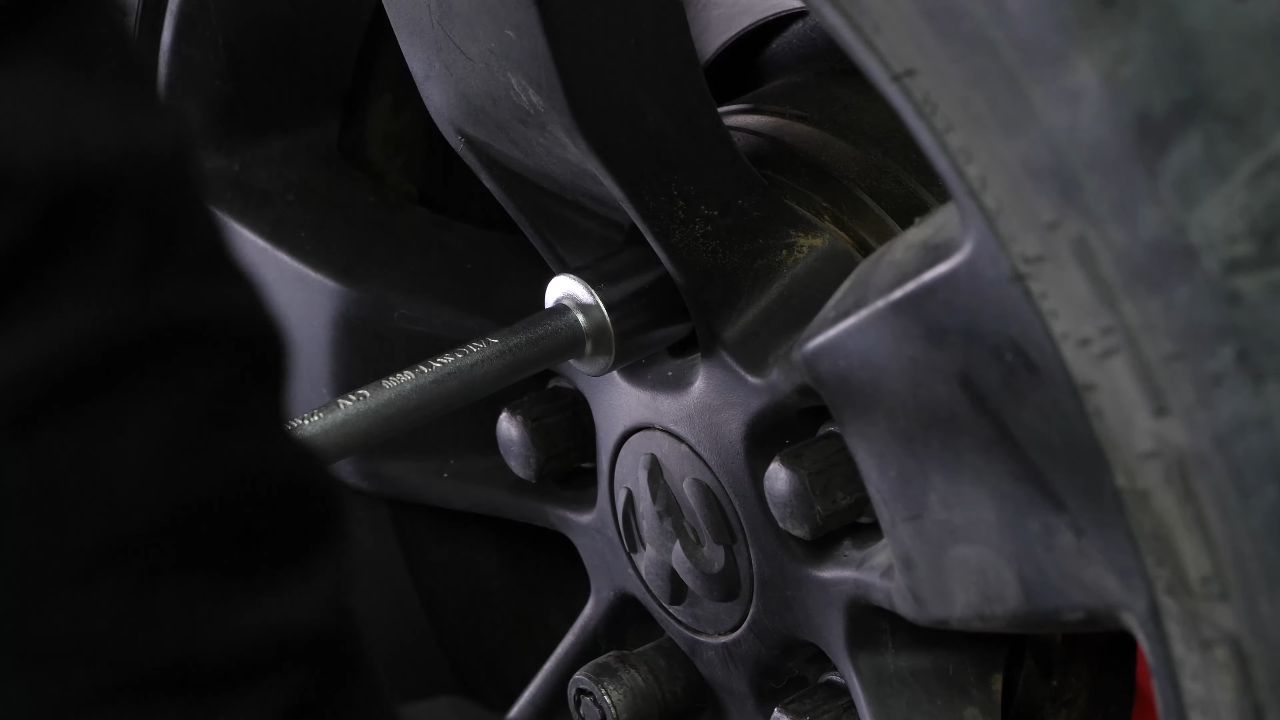

Then, you will be able to put the wheels back on your vehicle. Put the car back on the ground and block the wheels properly.

Chapter 12:

Step 3/3

Don’t forget to screw the brake fluid cap back on before starting the car.

Chapter 13:

Safety tips

Step 1/3

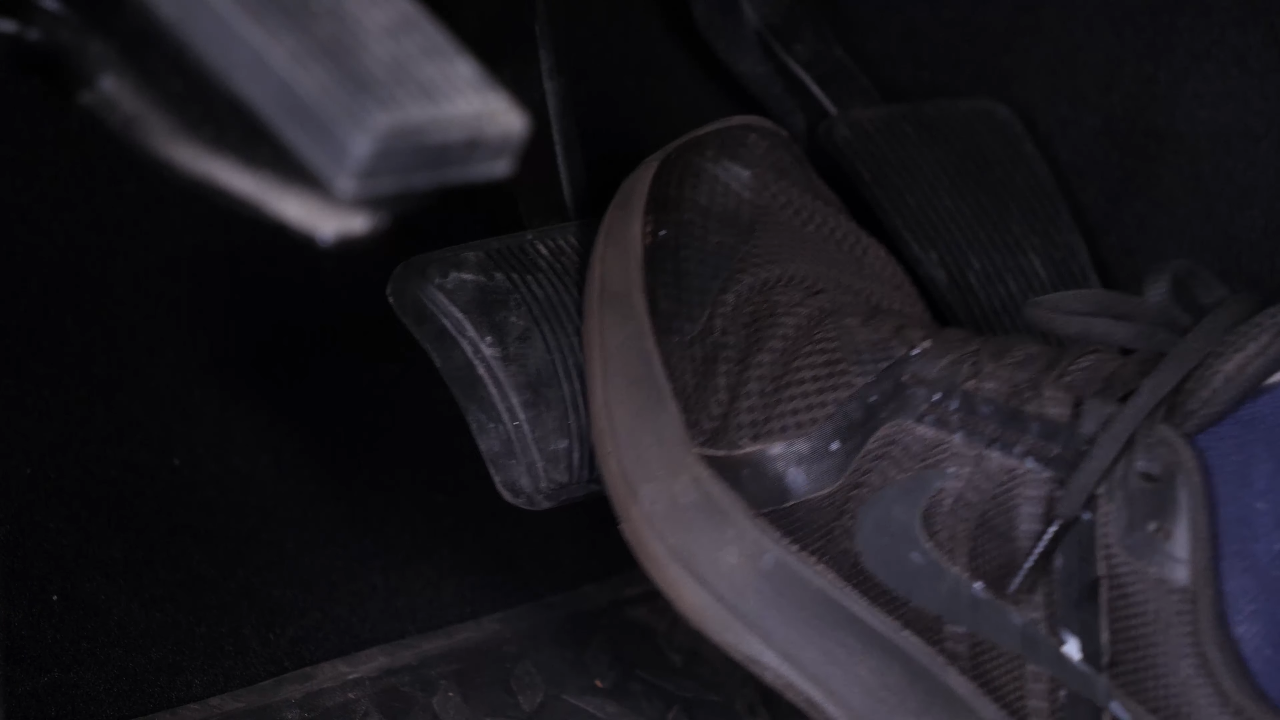

Attention! Before using your vehicle again, start your car, and pump the brake pedal a few times to push the brake pads together again.

Chapter 13:

Step 2/3

Try to drive smoothly and avoid sudden braking for the first 30 miles or so, to avoid glazing the new pads.

Chapter 13:

Step 3/3

Operation complete.
