How to replace the serpentine belt 2009-2018 Dodge Ram 1500
To replace the serpentine belt on your Ram 1500 it couldnt’ be easier. You will be asked to open the hood, disconnect the battery, remove the serpentine blet as well as carry out a few other steps. You can carry out this tutorial of 10 chapters in 70 minutes. Take your 10 mm socket and your torque wrench and let’s get started!
Duration
70 minutes
Number of steps
10
Difficulty out of 5
4
Average savings
$150
Parts You Will Need
Tools You Will Need
Step-by-Step Installation
Chapter 1:
Open the hood
Step 1/1

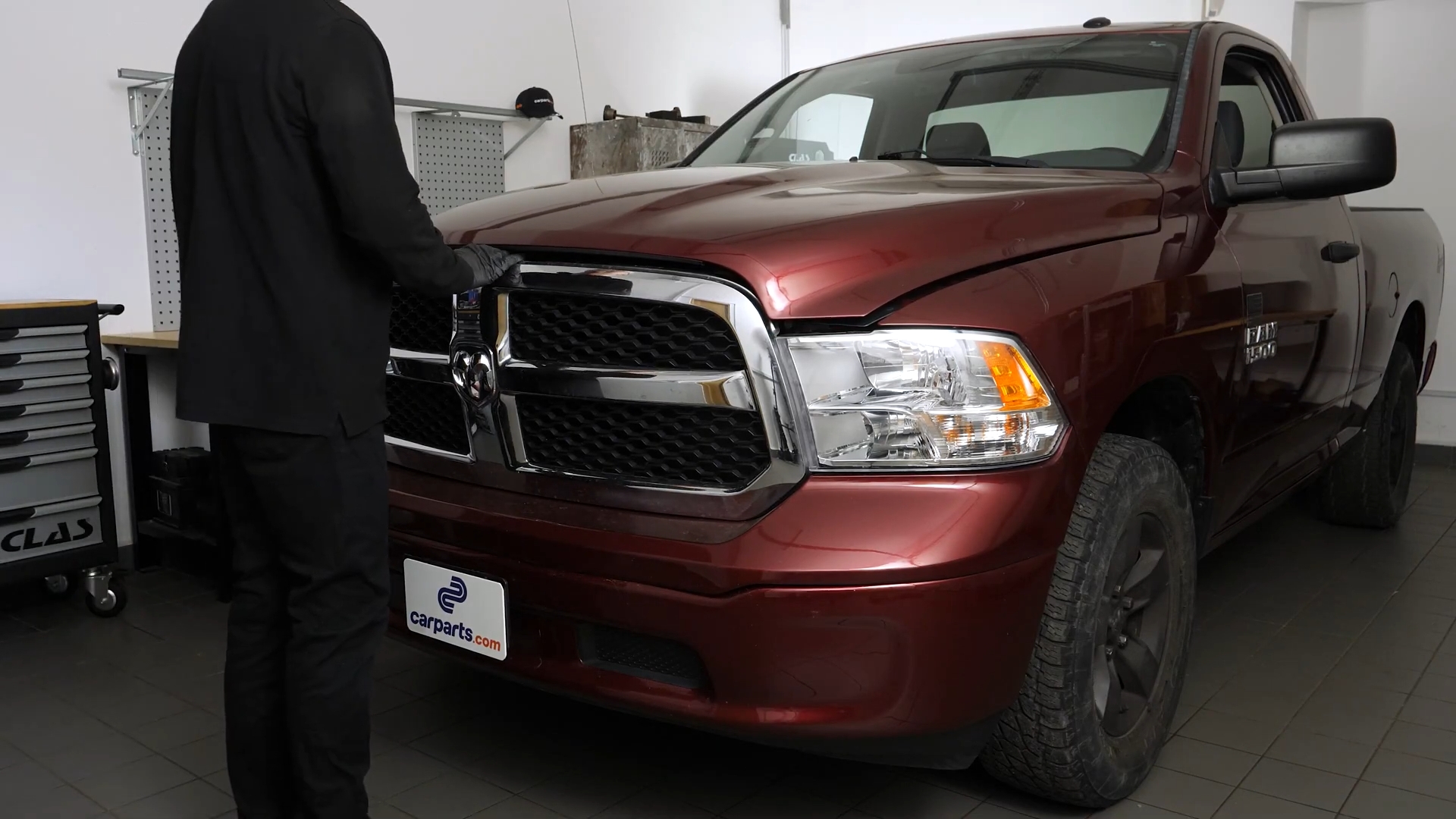

Turn your engine off, set the parking brake pull on the hood release handle, and open the hood.
Chapter 2:
Tips
Step 1/2
For safety reasons, we advise you to disconnect the battery.
Chapter 2:
Step 2/2
Before proceeding with the replacement of the serpentine belt, we recommend taking a picture or to draw the path of the belt around the different pulleys, in order to position it correctly later.
Chapter 3:
Remove the serpentine blet
Step 1/3

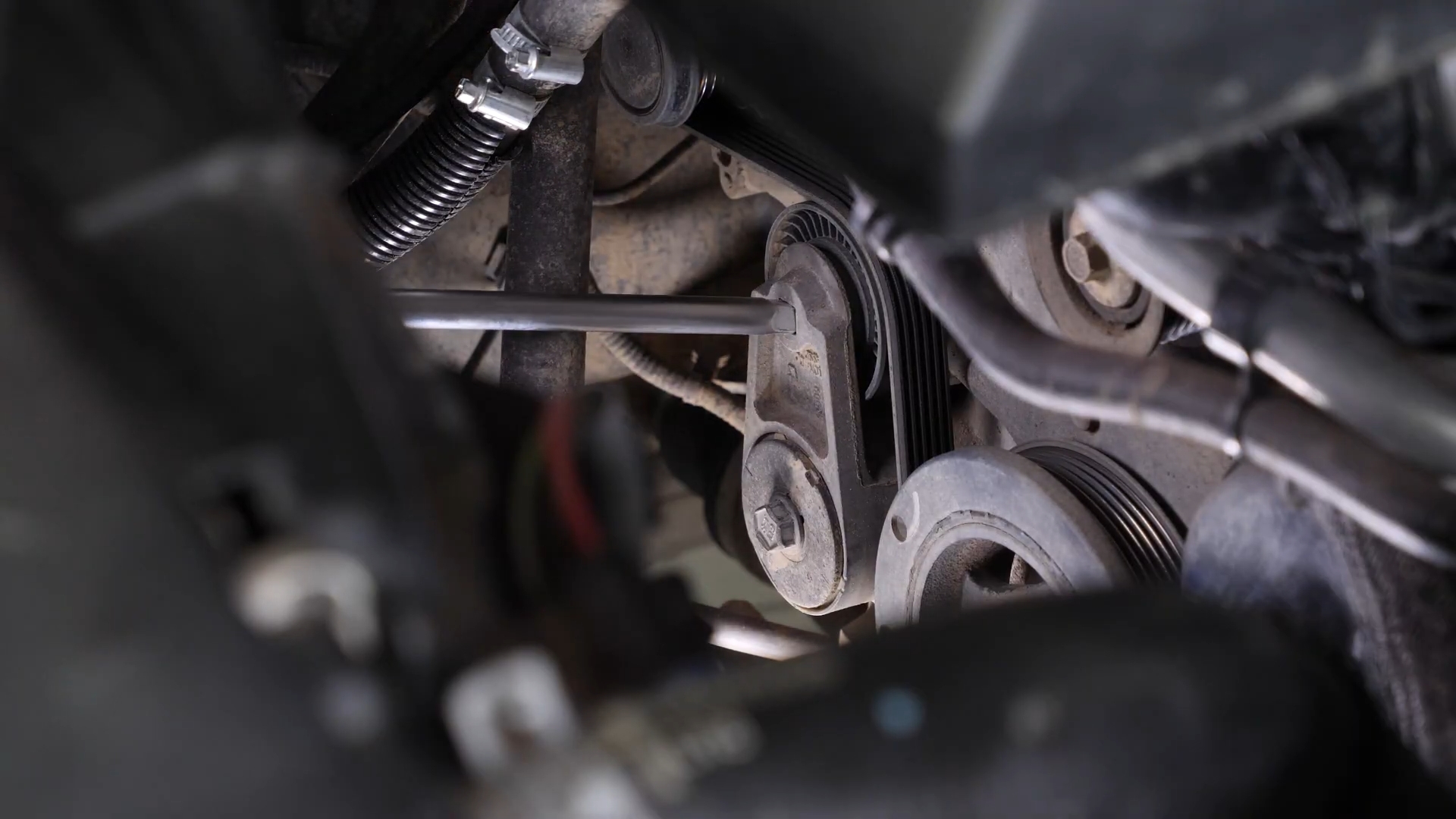

Using a breaker bar and a 1/2″ drive extension socket, loosen the belt by turning the serpentine belt tensioner counterclockwise.
Chapter 3:
Step 2/3
Meanwhile, remove the belt from the tensioner, then from the various pulleys.
Chapter 3:

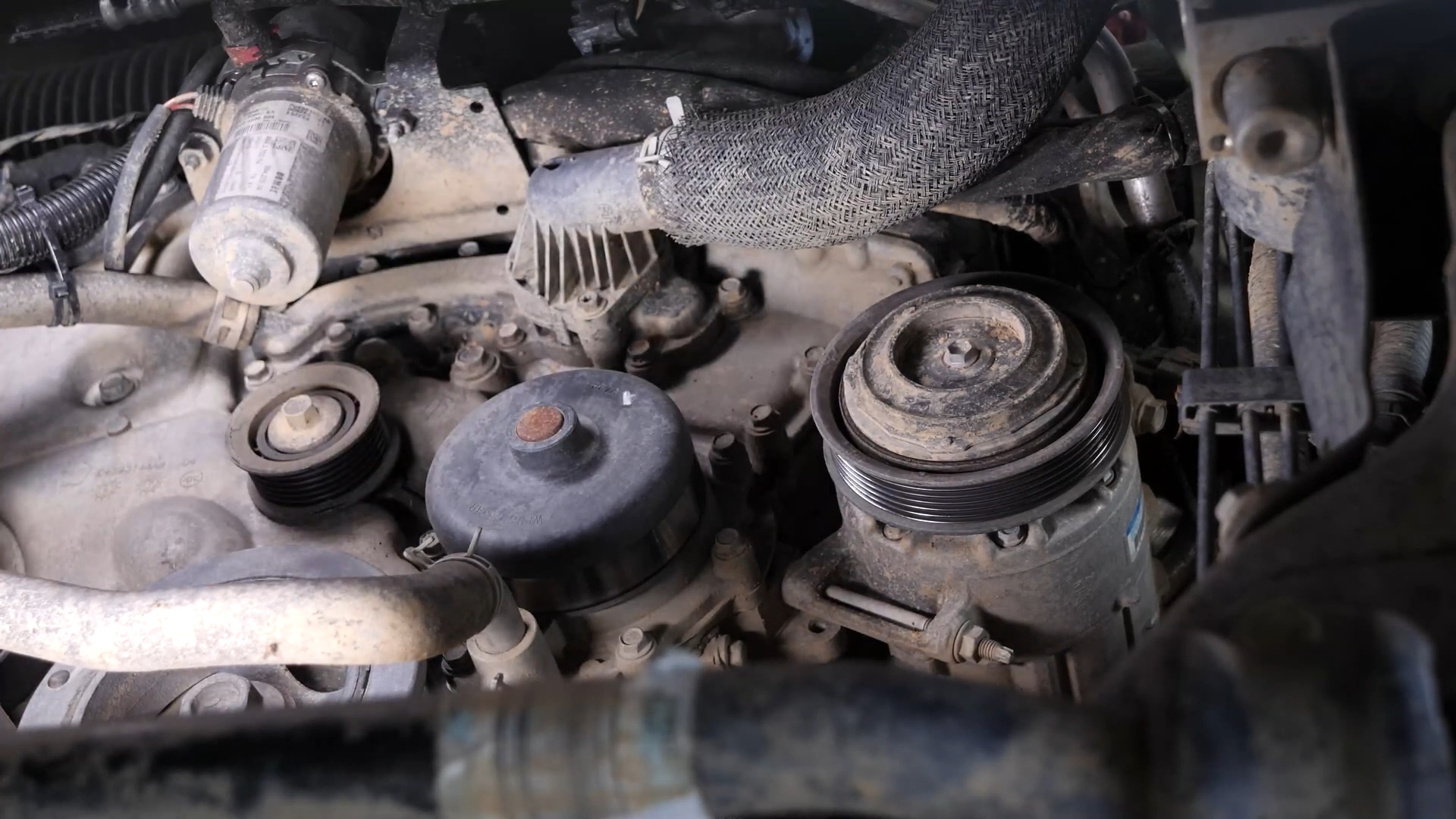

Step 3/3
You can now remove the belt.
Chapter 4:
Remove the tensioner pulley
Step 1/3
When changing the belt, you should also replace the tensioner pulley and the idler pulley.
Chapter 4:
Step 2/3

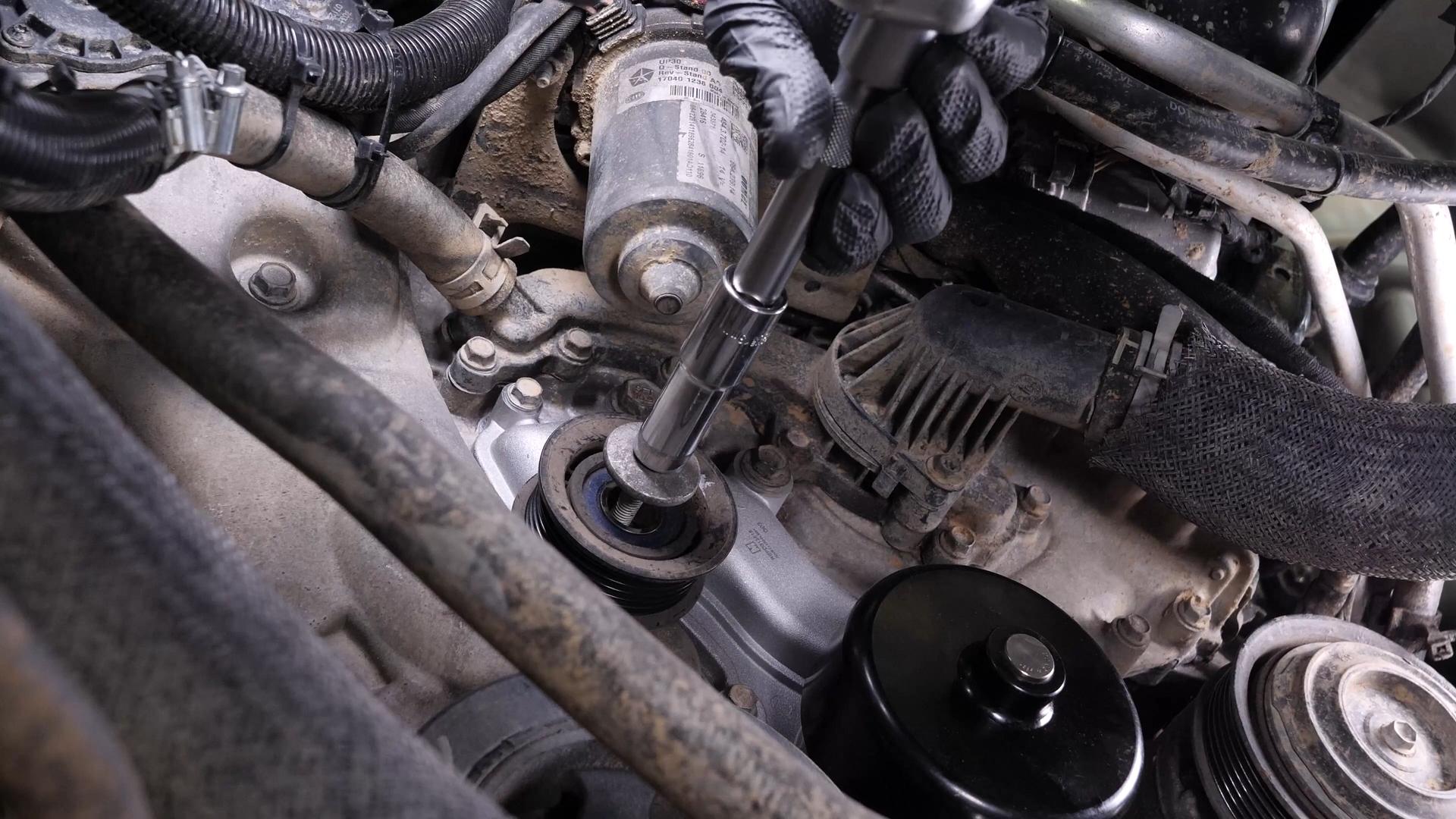

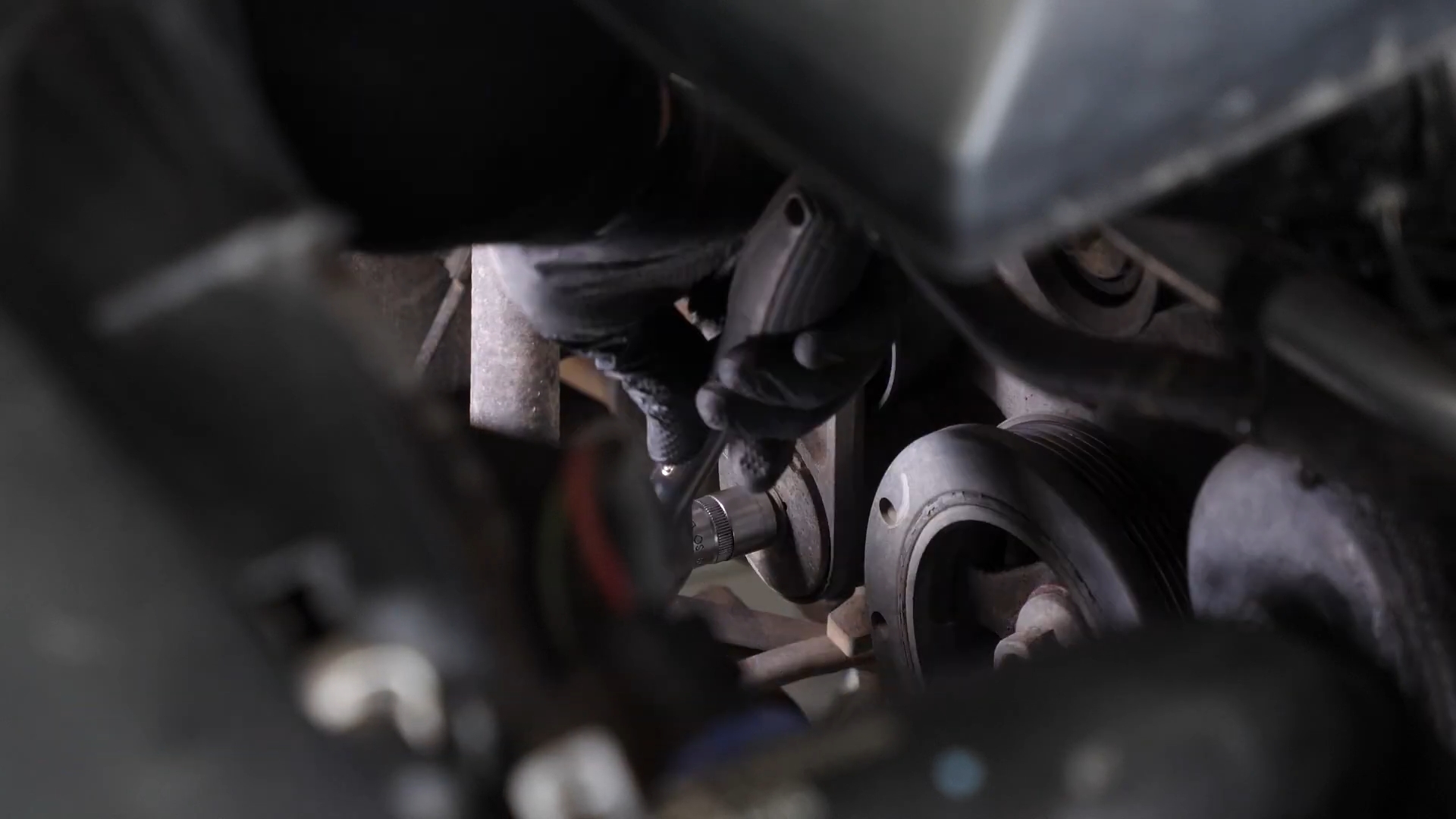

Using a ratchet and a 16mm socket, unscrew the bolt holding the serpentine belt tensioner.
Chapter 4:

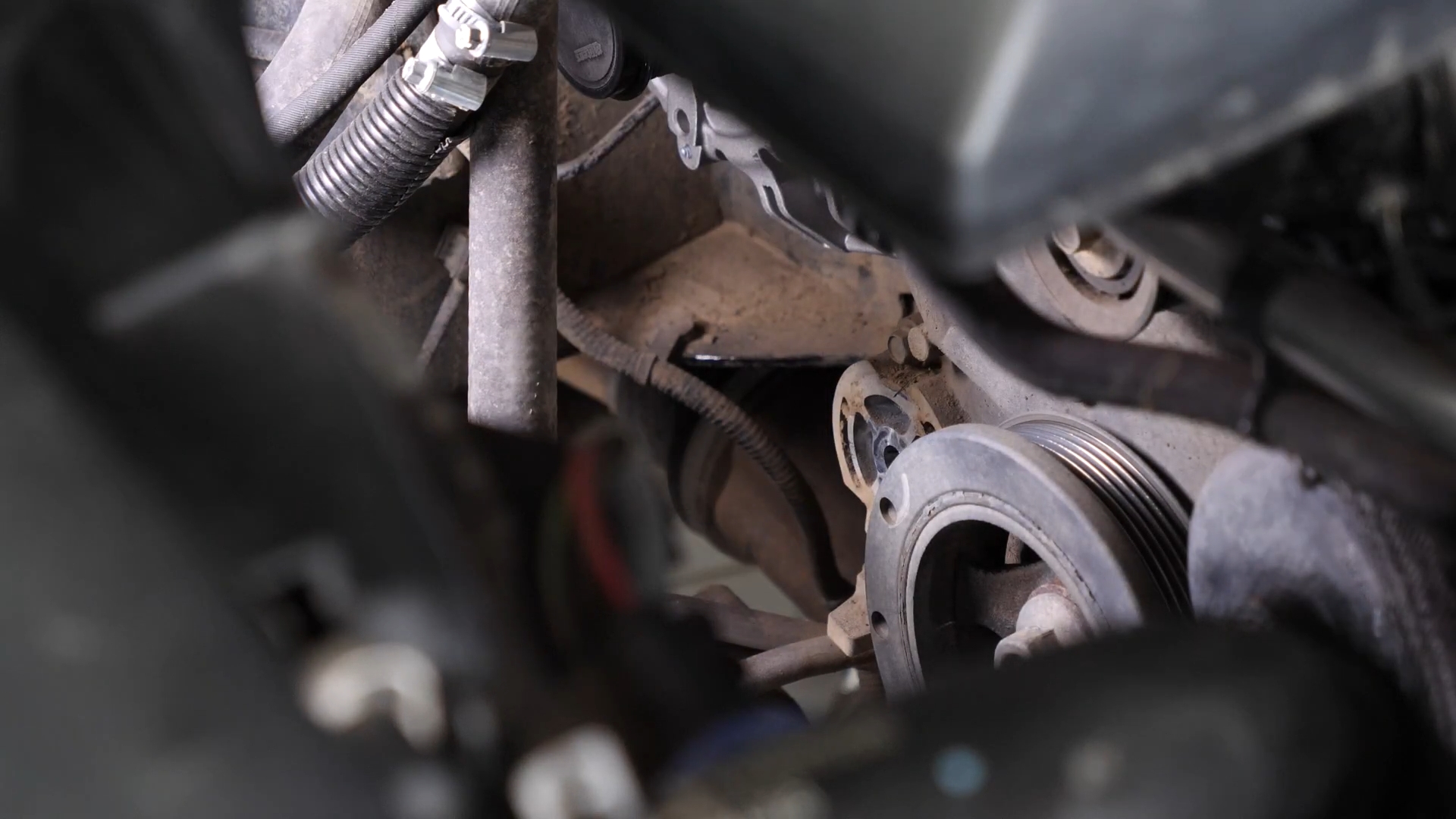

Step 3/3
Then remove the tensioner.
Chapter 5:
Remove the idler pulley
Step 1/3
Using a ratchet, an extender and a 13mm socket, unscrew the bolt holding the idler pulley located on the water pump.
Chapter 5:
Step 2/3
Finish unscrewing by hand.
Chapter 5:
Step 3/3
Next, remove the idler pulley.
Chapter 6:
Install the new tensioner pulley
Step 1/4

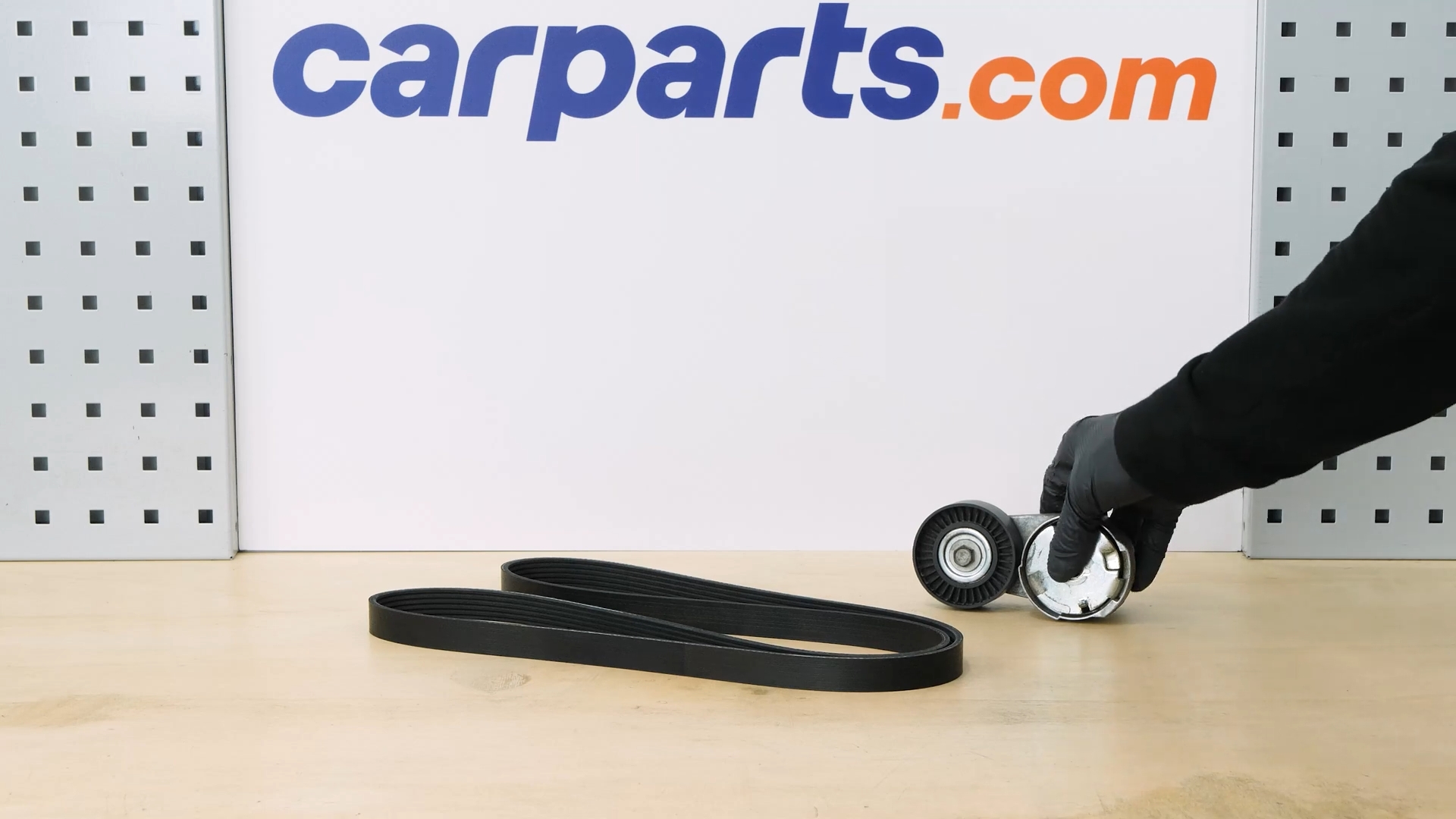

Take the belt tensioner.
Chapter 6:
Step 2/4
Put it back in its place, then screw the bolt back in roughly by hand.
Chapter 6:
Step 3/4
And screw it back in with a ratchet until it makes contact.
Chapter 6:
Step 4/4
Finish tightening using a torque wrench.
Chapter 7:
Install the idler pulley
Step 1/3
Take the idler pulley.
Chapter 7:
Step 2/3

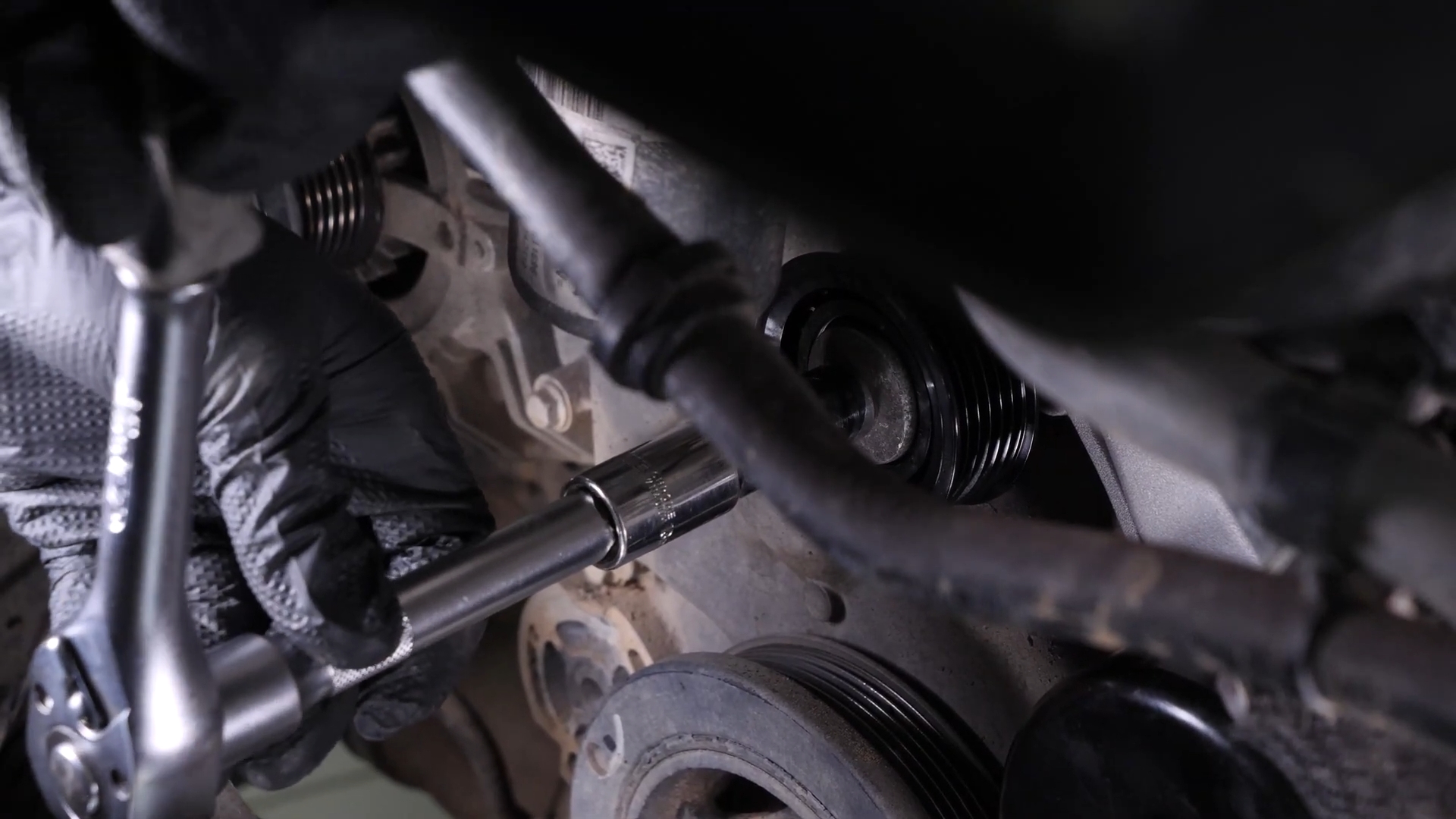

Next, screw it back in until it makes contact.
Chapter 7:
Step 3/3
Finish tightening using a torque wrench.
Chapter 8:
Put the belt back
Step 1/4
Take the new serpentine belt.
Chapter 8:
Step 2/4

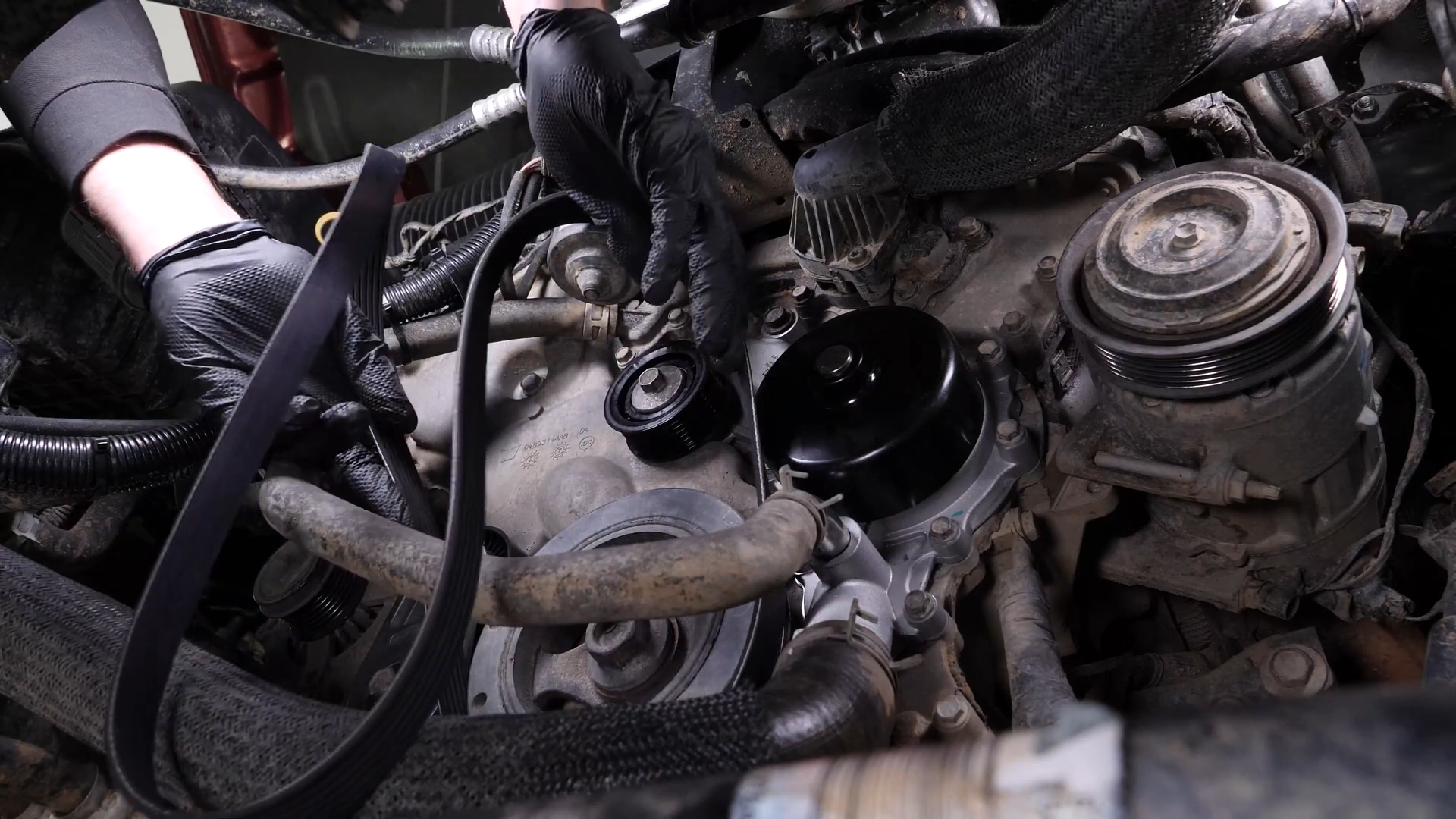

Pay careful attention to which way up you use it. The writing on the belt must turn clockwise.
Chapter 8:
Step 3/4

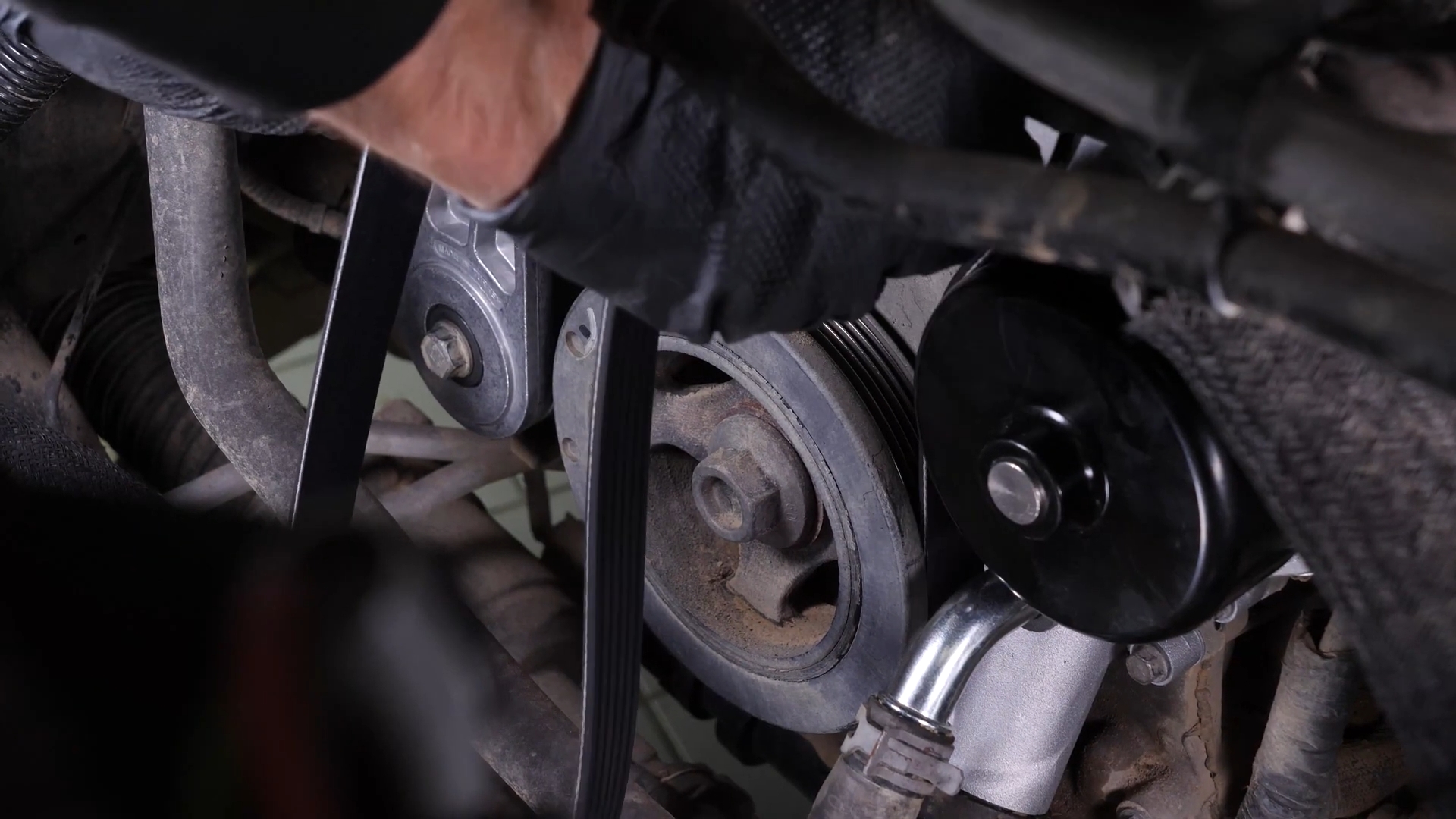

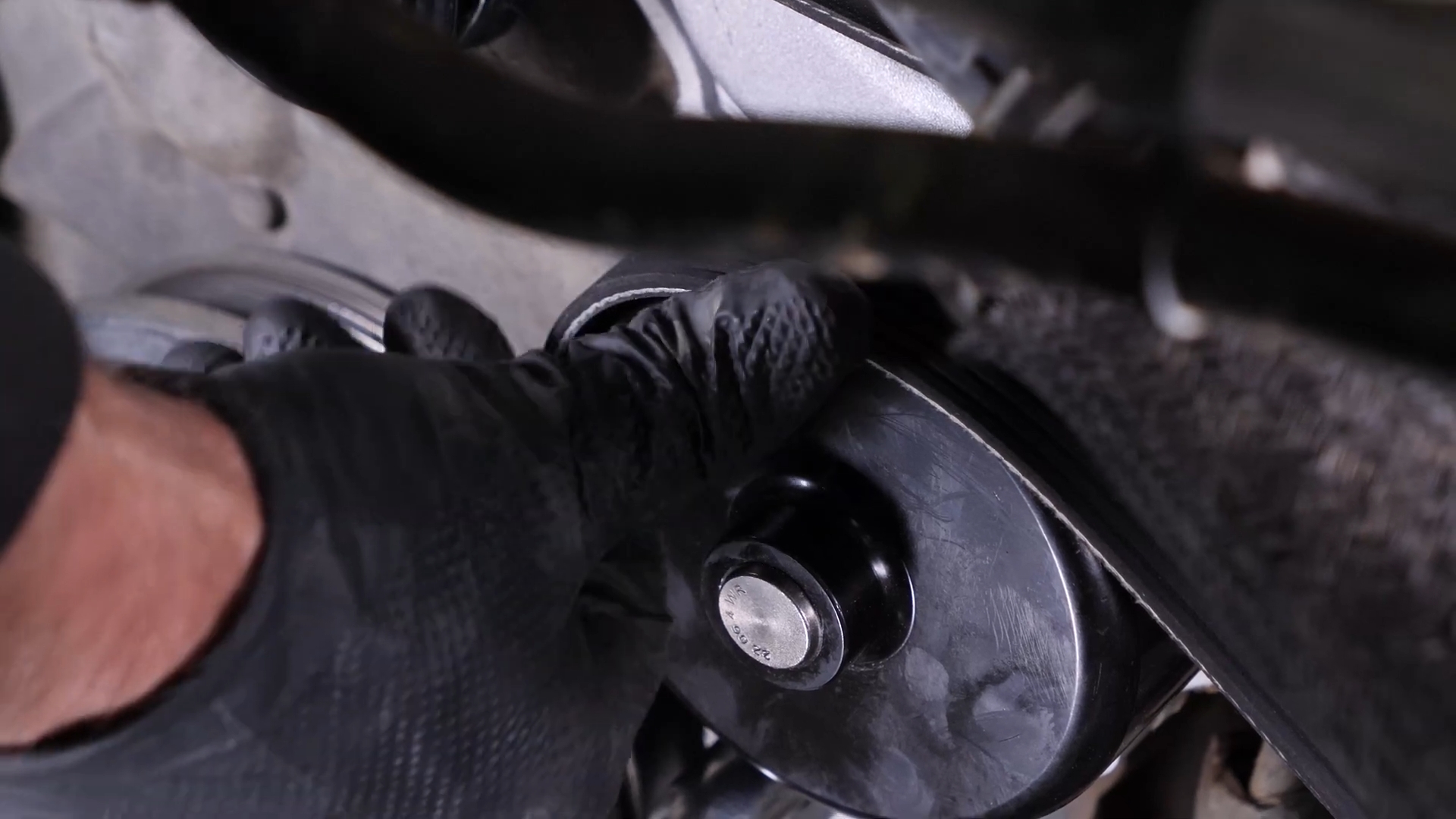

Slide the new belt around the different elements respecting the layout from the initial assembly.
Chapter 8:
Step 4/4
To put it completely back in place, it is sometimes necessary to get help.
Chapter 9:
Informations
Step 1/3
Turn the serpentine belt tensioner counterclockwise and secure the belt with both hands if necessary.
Chapter 9:
Step 2/3
Then release the belt tensioner to fully extend the belt.
Chapter 9:
Step 3/3
Before starting your car again, check that the belt is properly positioned in all the pulleys.
Chapter 10:
Reconnect the battery
Step 1/2
Reconnect the battery.
Chapter 10:
Step 2/2
Operation complete.
