How to safely jack your 2009-2018 Dodge Ram 1500
To safely jack your on your Ram 1500 it couldnt’ be easier. You’ll need to necessary tools, front lifting, rear lifting as well as carry out a few other steps. You can carry out this tutorial of 6 chapters in 15 minutes. Take your hydraulic jack and your jack stands and let’s get started!
Duration
15 minutes
Number of steps
6
Difficulty out of 5
2
Average savings
$0
Parts You Will Need
Tools You Will Need
Step-by-Step Installation
Chapter 1:
Necessary tools
Step 1/3
You will simply need:
Chapter 1:
Step 2/3

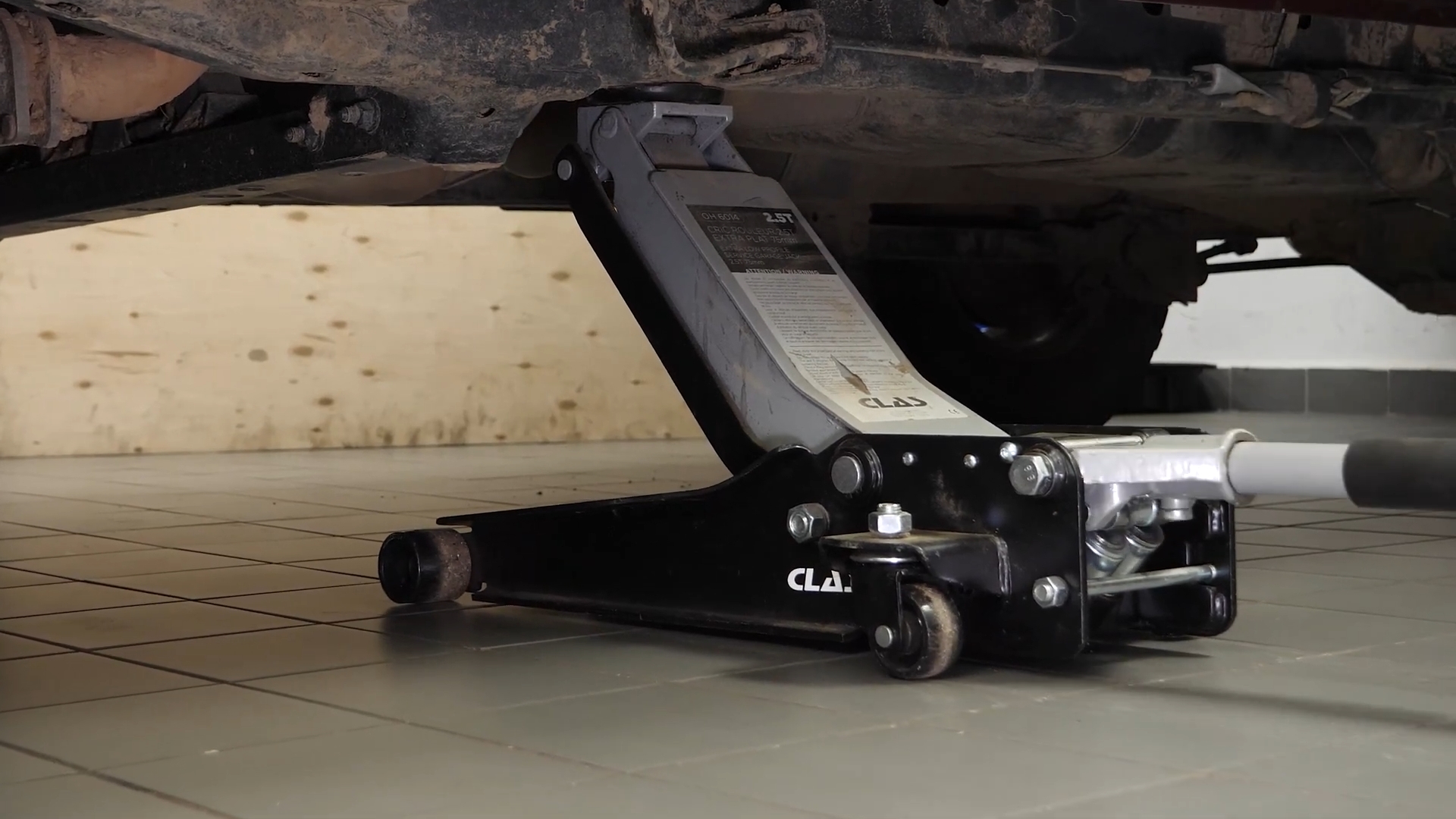

– a jack
Chapter 1:
Step 3/3

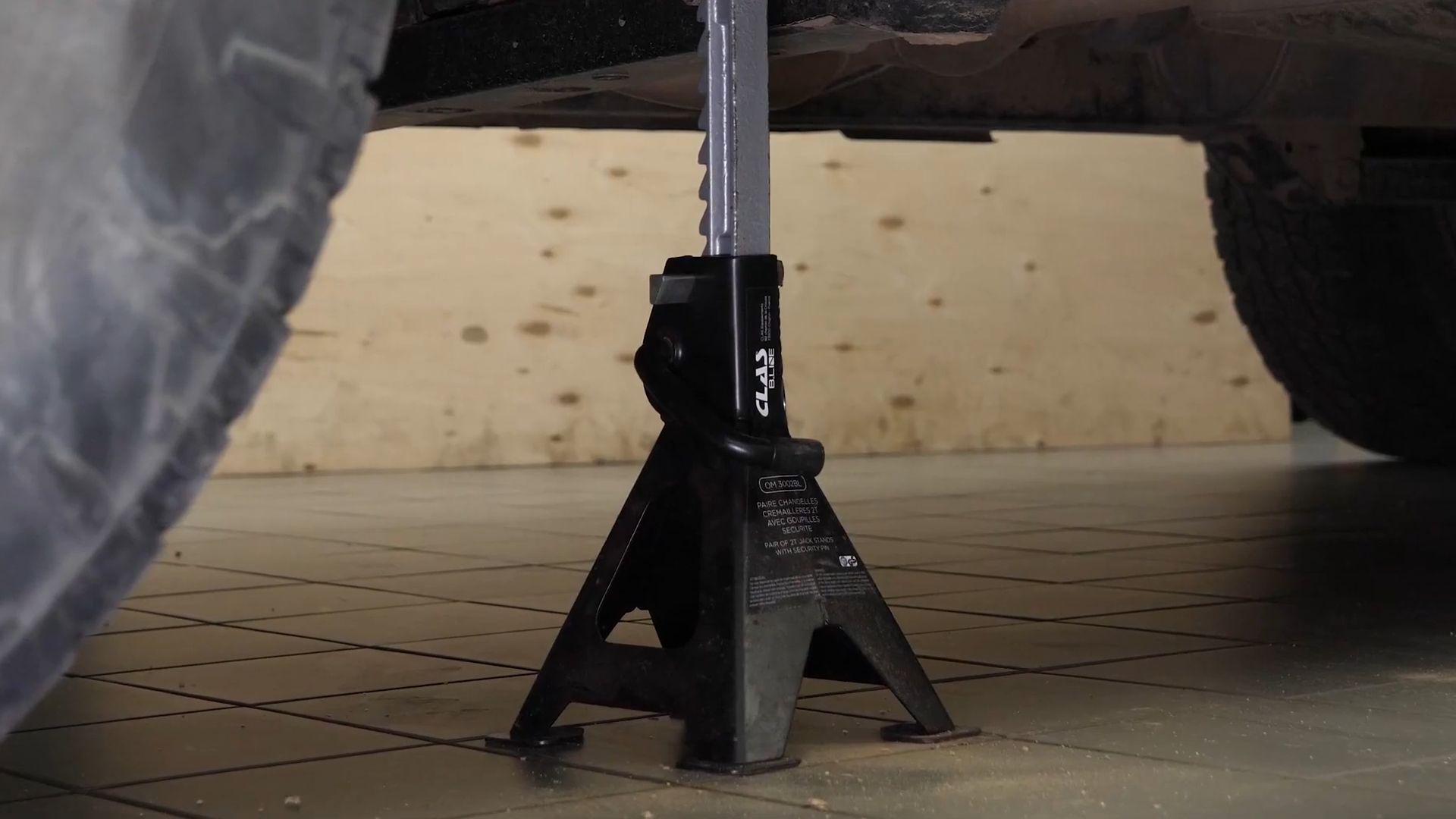

– a pair of jack stands
Chapter 2:
Informations
Step 1/4
Turn your engine off and set the parking brake.
Chapter 2:
Step 2/4
Your Dodge RAM 1500 must be on level, smooth ground.
Chapter 2:
Step 3/4
You must be on ground where your truck will be balanced, where the jack stands cannot slip and especially where your jack can accompany the movement of the truck at the same time as it lifts it.
Chapter 2:
Step 4/4
First of all, if the operation requires removing the wheels, start by loosening the wheel nuts before lifting the vehicle.
Chapter 3:
Front lifting
Step 1/5

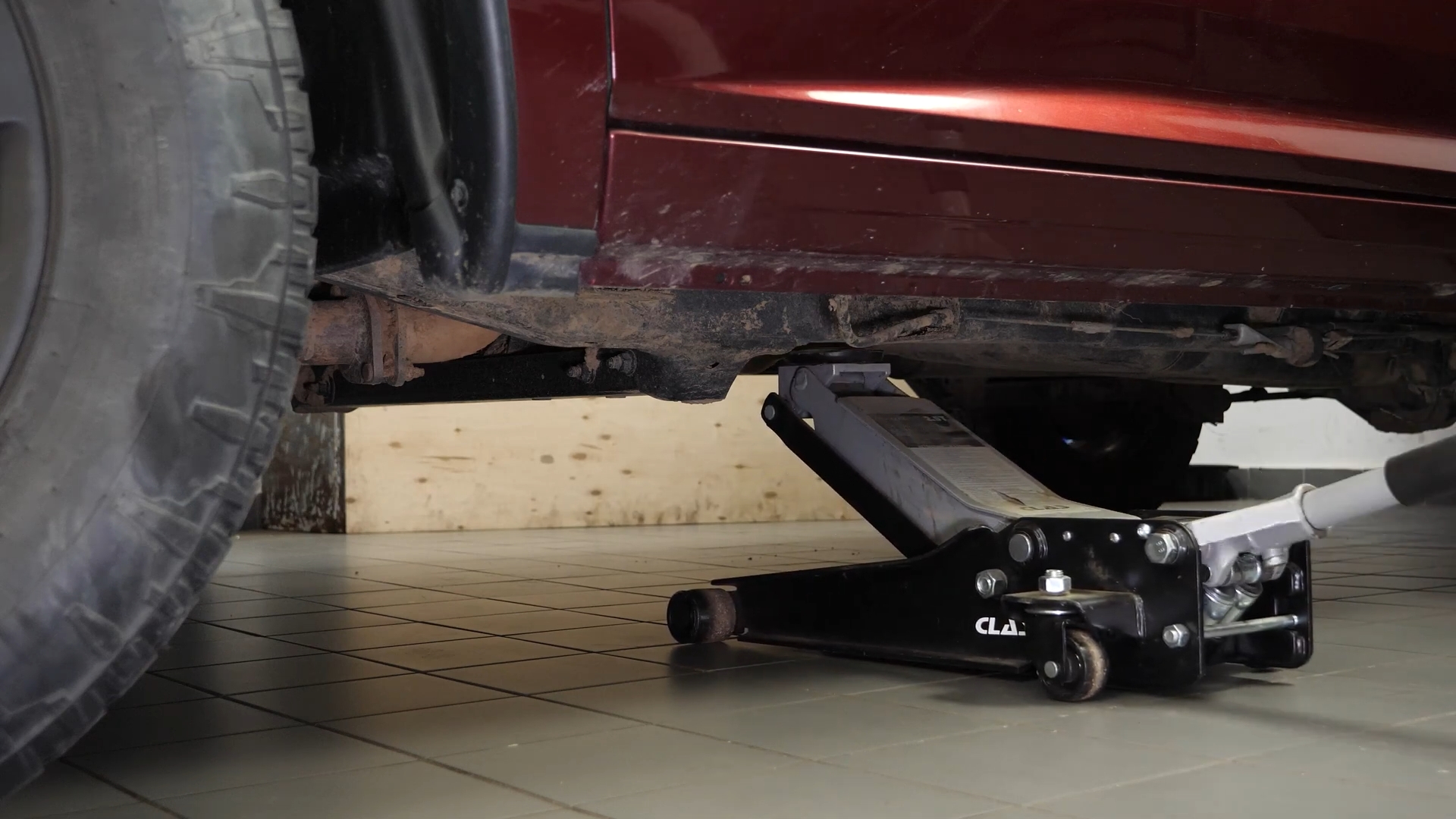

For front lifting, insert the jack under the vehicle at door level and rest on the frame rail, which is a solid base for lifting then securing your vehicle in complete safety.
Chapter 3:
Step 2/5

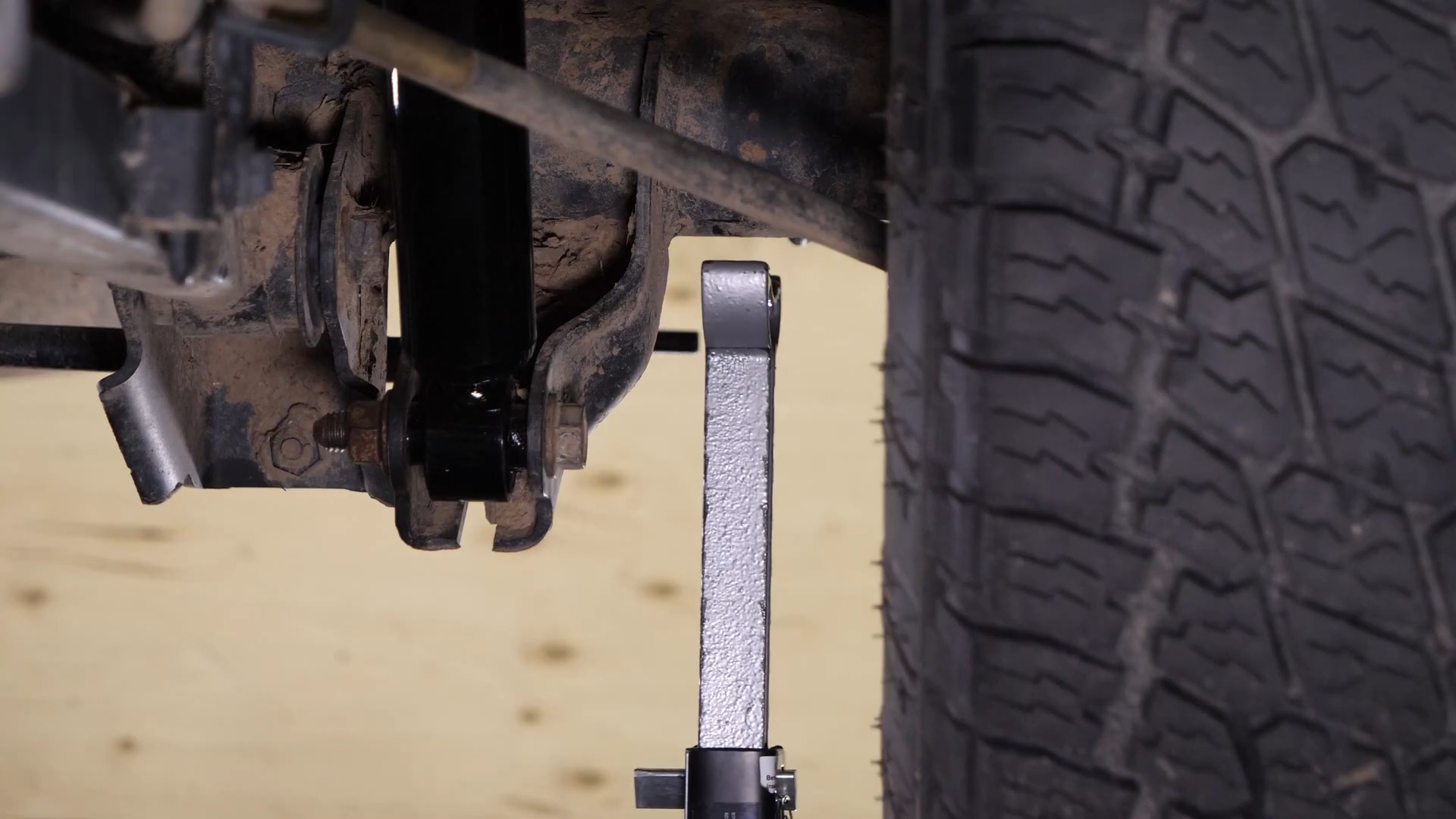

Place the jack stand under the frame rail, then slowly lower your vehicle until it is stable on the jack stand.
Chapter 3:
Step 3/5

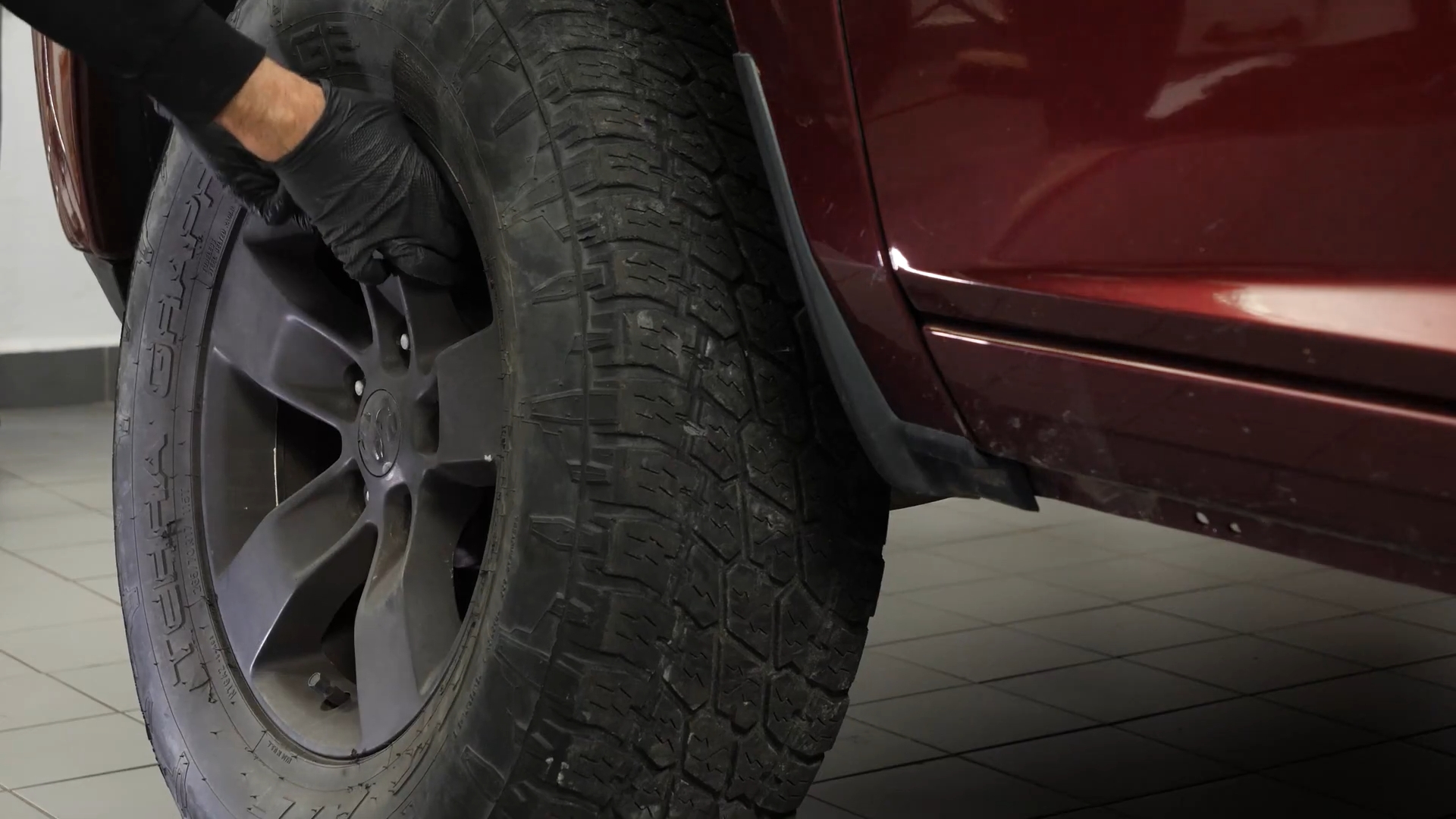

You can now remove the wheel if needed.
Chapter 3:
Step 4/5

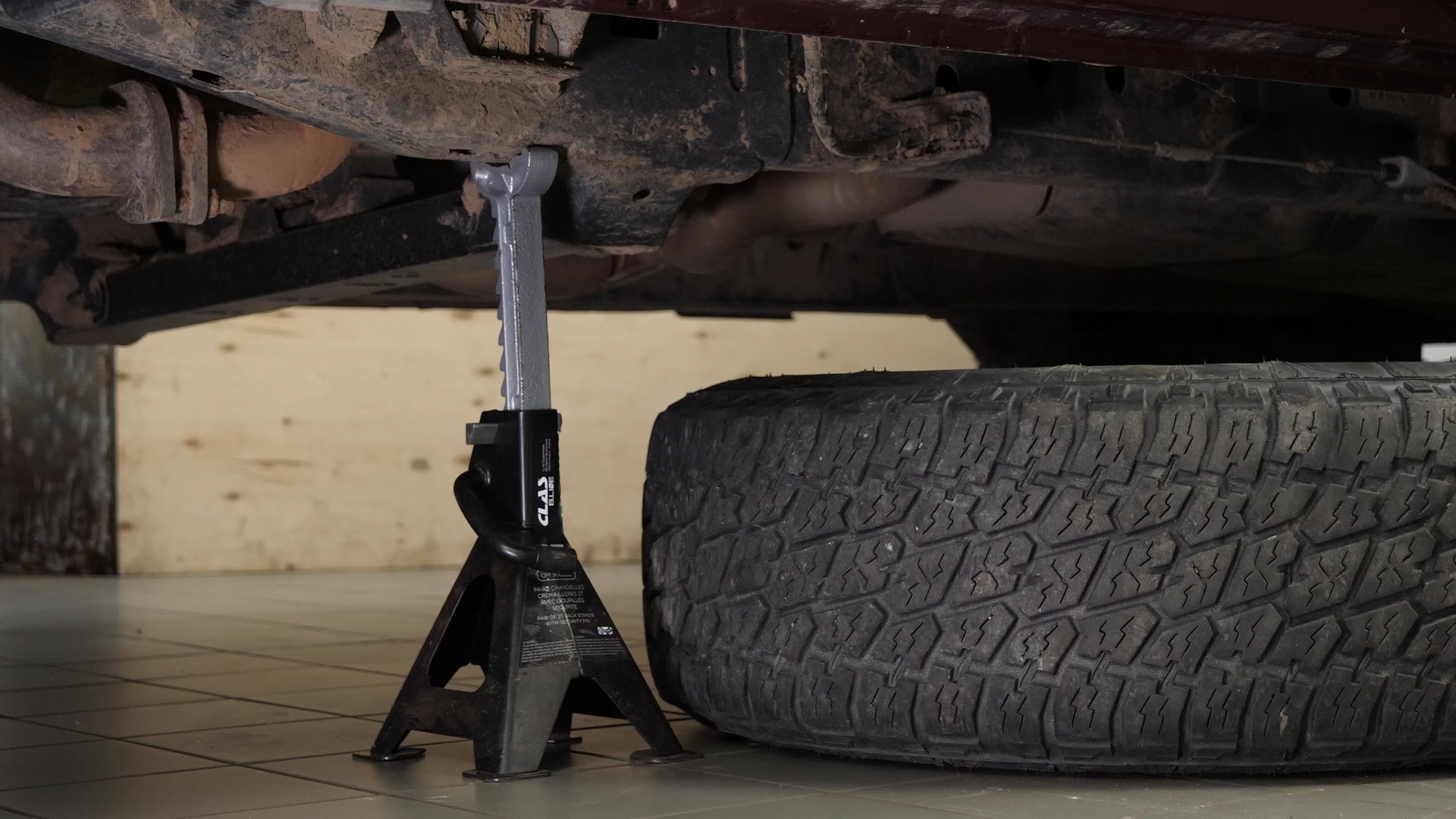

For safety, slip it under the vehicle, as additional protection.
Chapter 3:
Step 5/5
If you need to lift both sides of your RAM 1500, repeat the steps for the other side.
Chapter 4:
Put the vehicle back on the ground
Step 1/4
To put your RAM 1500 back on the ground, start by putting the wheel back on the wheel hub if necessary, and retighten the nuts until they make contact.
Chapter 4:
Step 2/4

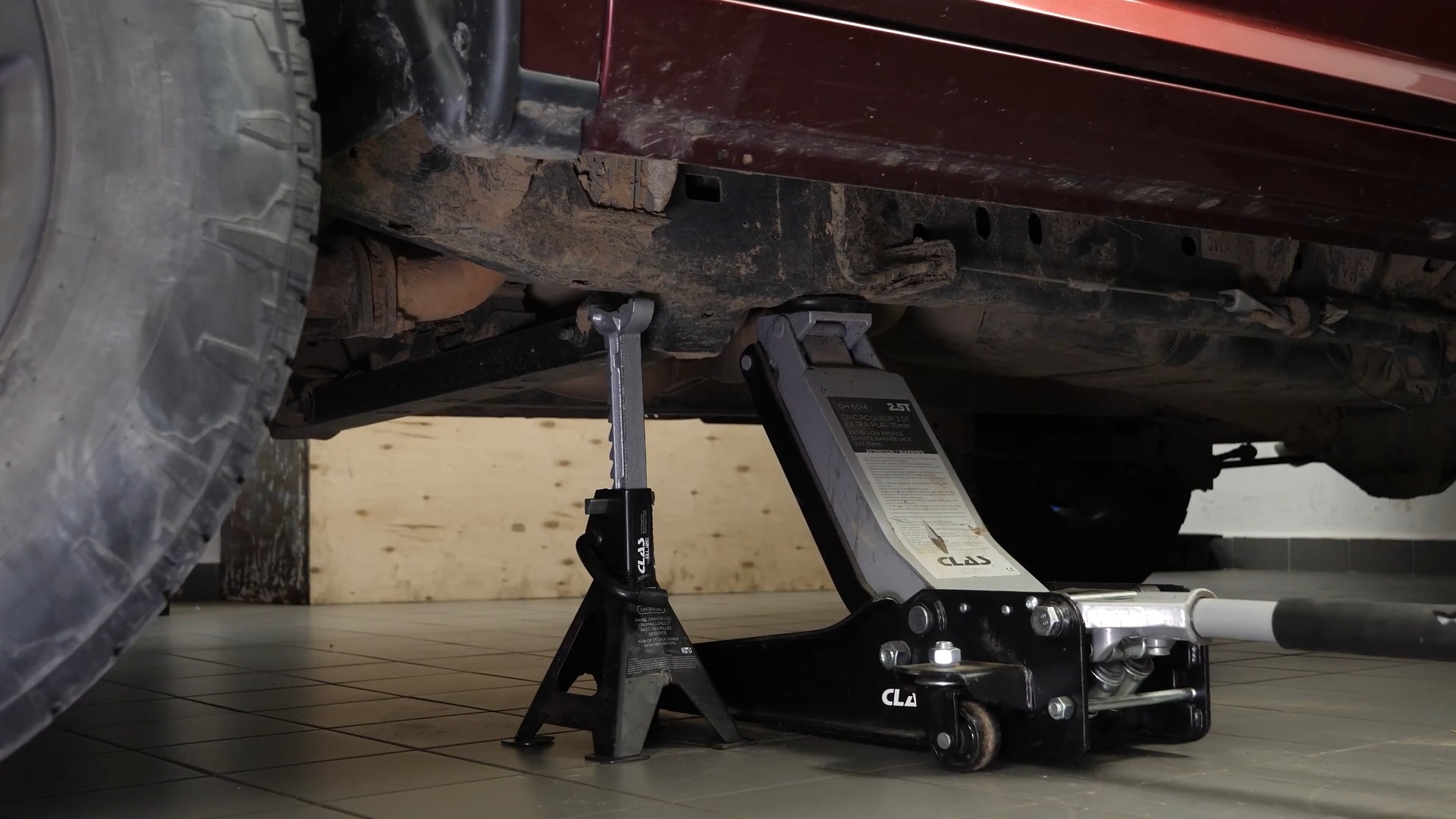

Reposition the jack, and lift your RAM 1500, until you can remove the jack stand.
Chapter 4:
Step 3/4

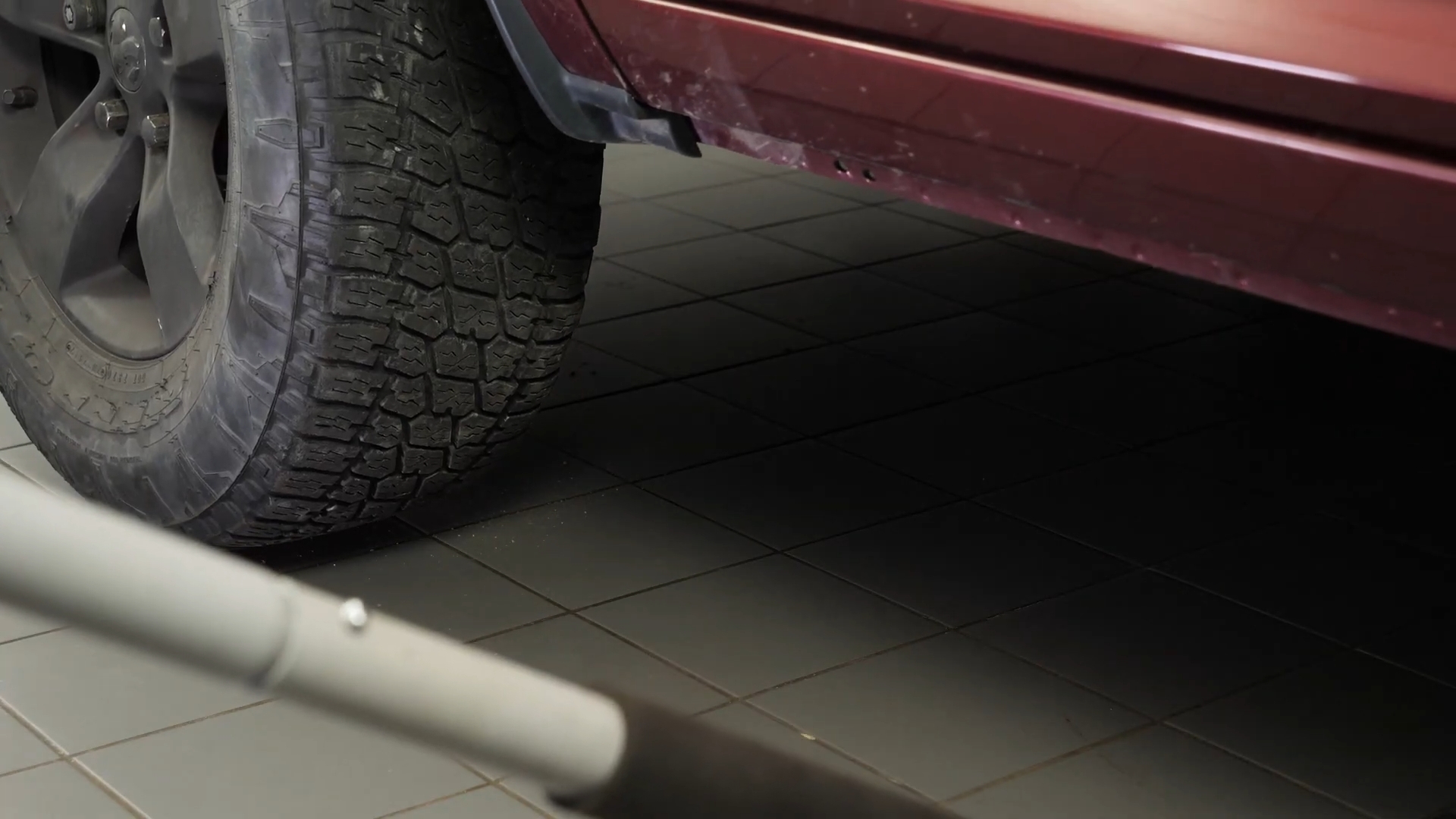

Then gently lower your vehicle to the ground.
Chapter 4:
Step 4/4
Finalize the tightening of the wheel if necessary.
Chapter 5:
Rear lifting
Step 1/3

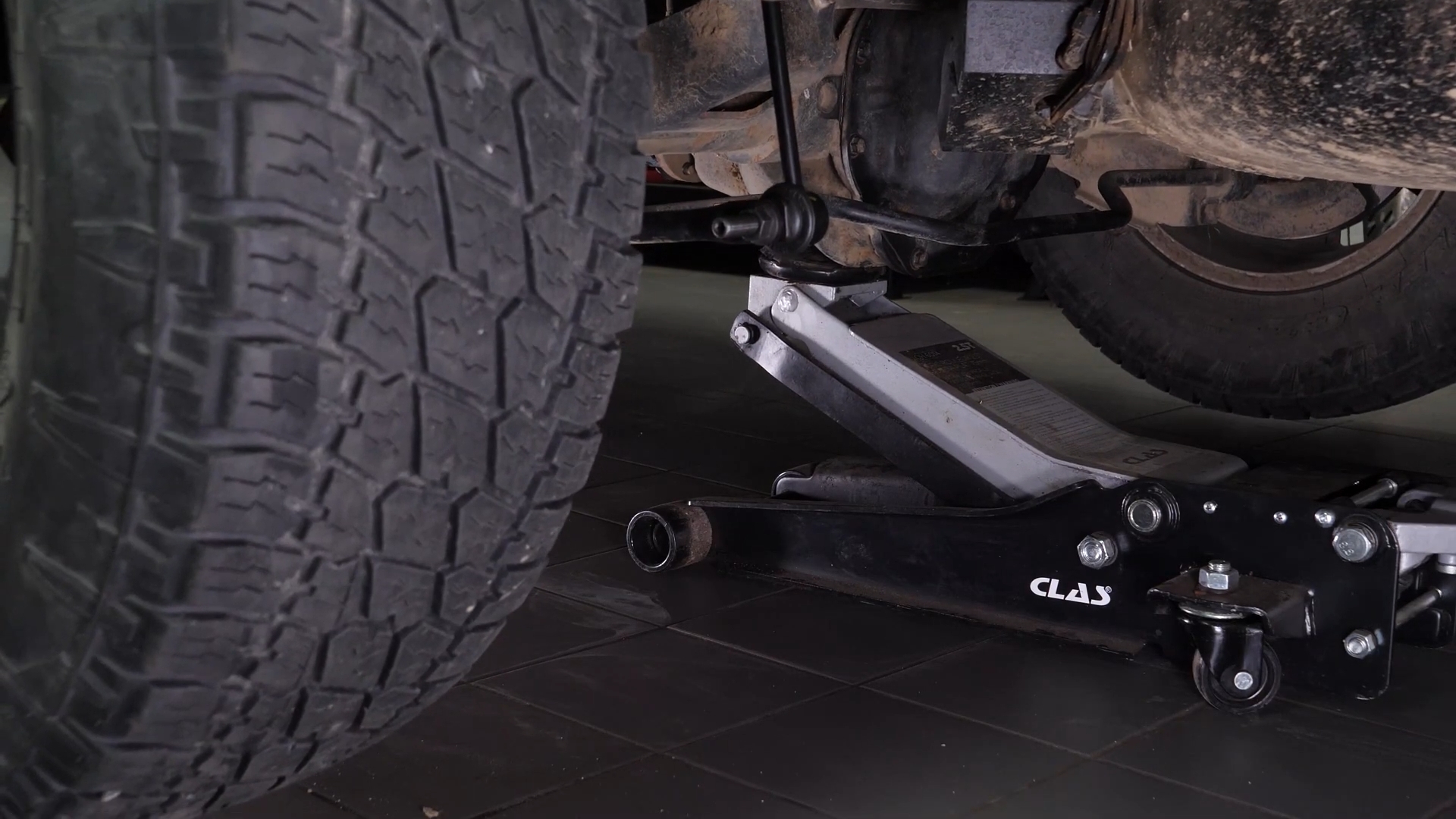

For rear lifting of your Dodge RAM 1500, you can place the jack under the differential, which has the advantage of lifting both sides simultaneously.
Chapter 5:
Step 2/3

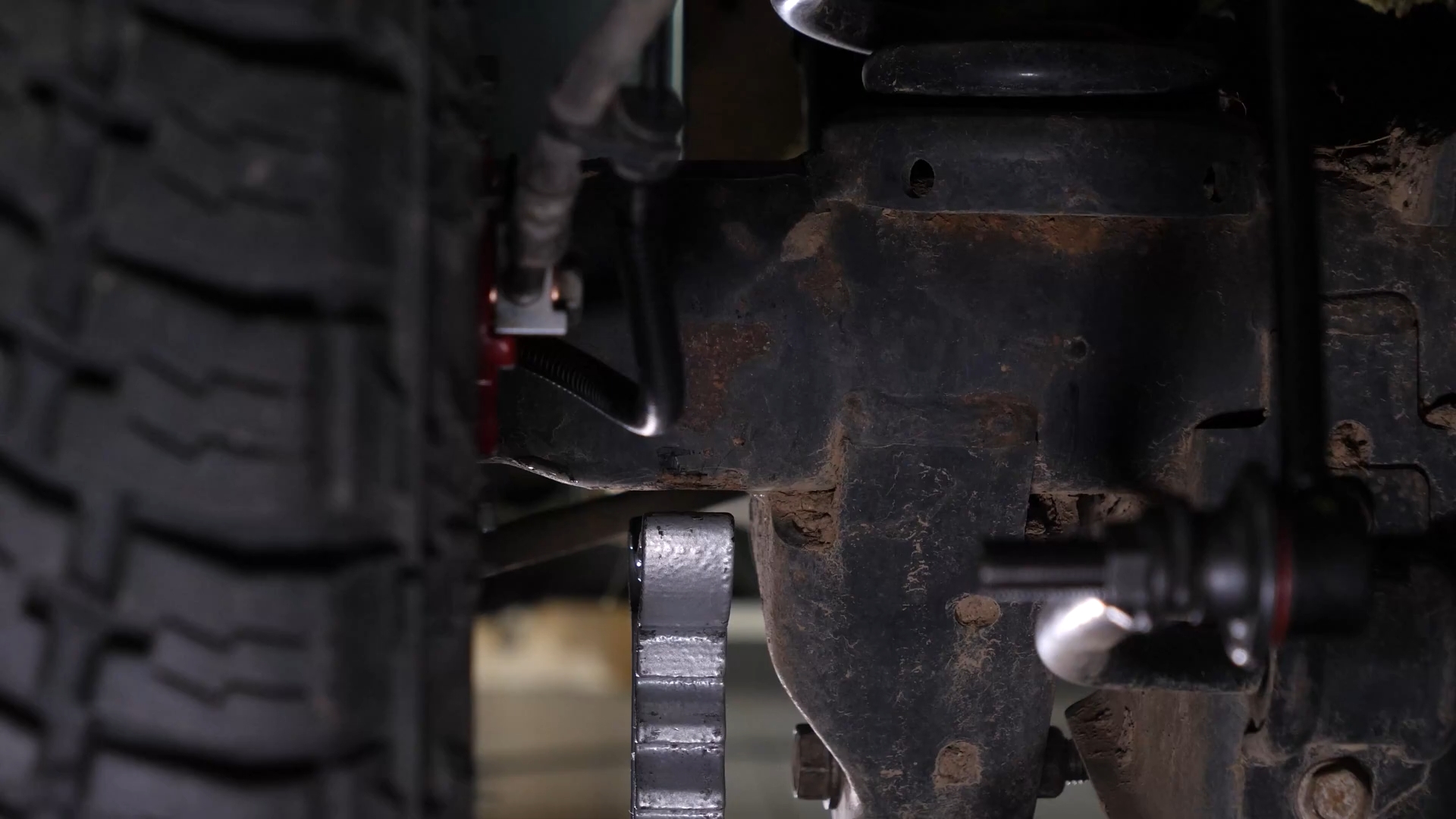

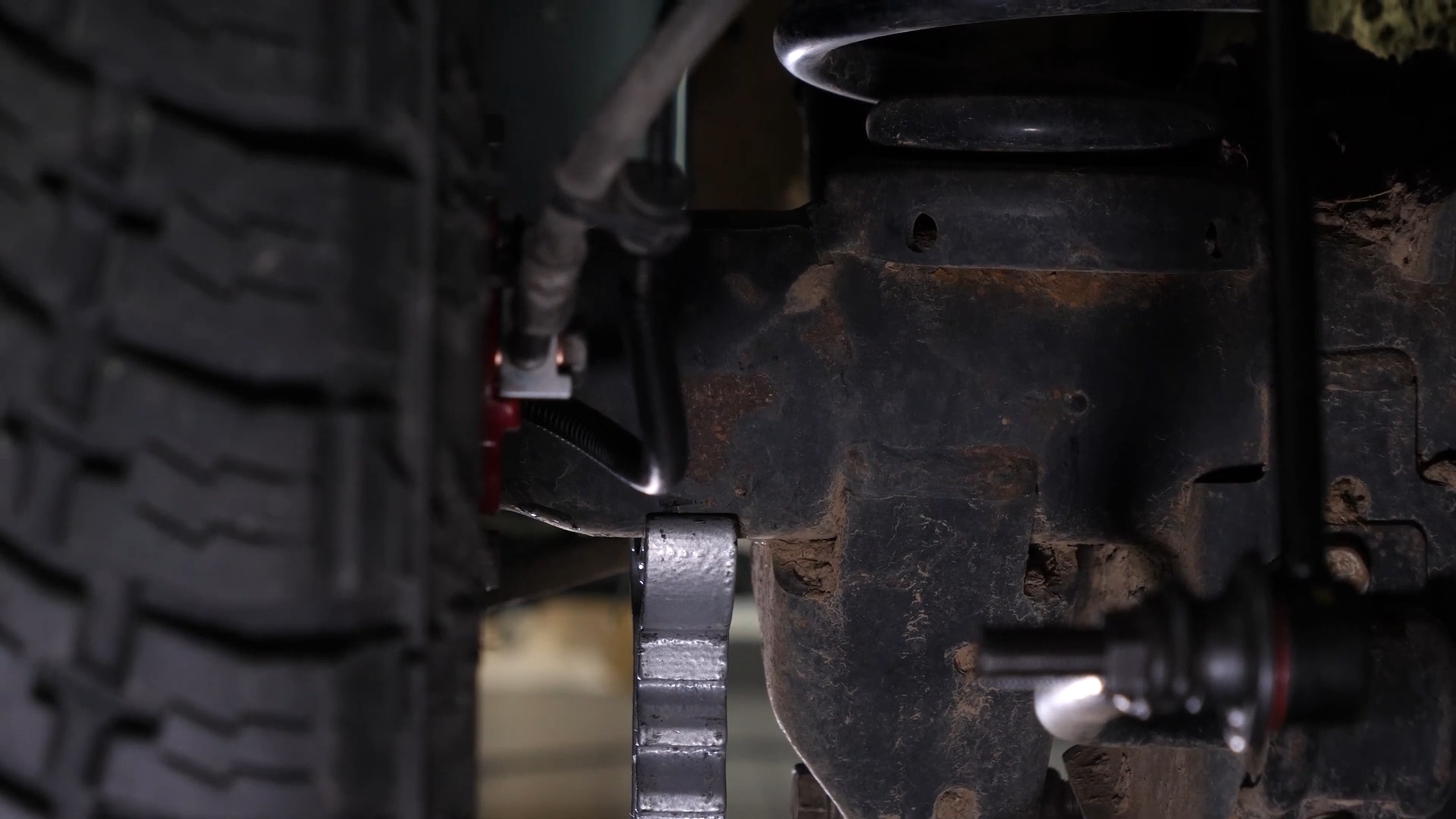

You can place the jack stand under the rear axle.
Chapter 5:
Step 3/3
Then slowly lower your vehicle until it is stable on the jack stand.
Chapter 6:
Put the vehicle back on the ground
Step 1/3
To lower the back of your RAM 1500 to the ground, reposition the jack, and raise your RAM 1500, until you can remove the jack stand.
Chapter 6:
Step 2/3
Then gently lower your vehicle to the ground.
Chapter 6:
Step 3/3
You can now safely perform many of the operations on your RAM 1500. Operation complete.
