2011-2017 Toyota Camry

Chapter 1:

Set up

Step 1/2

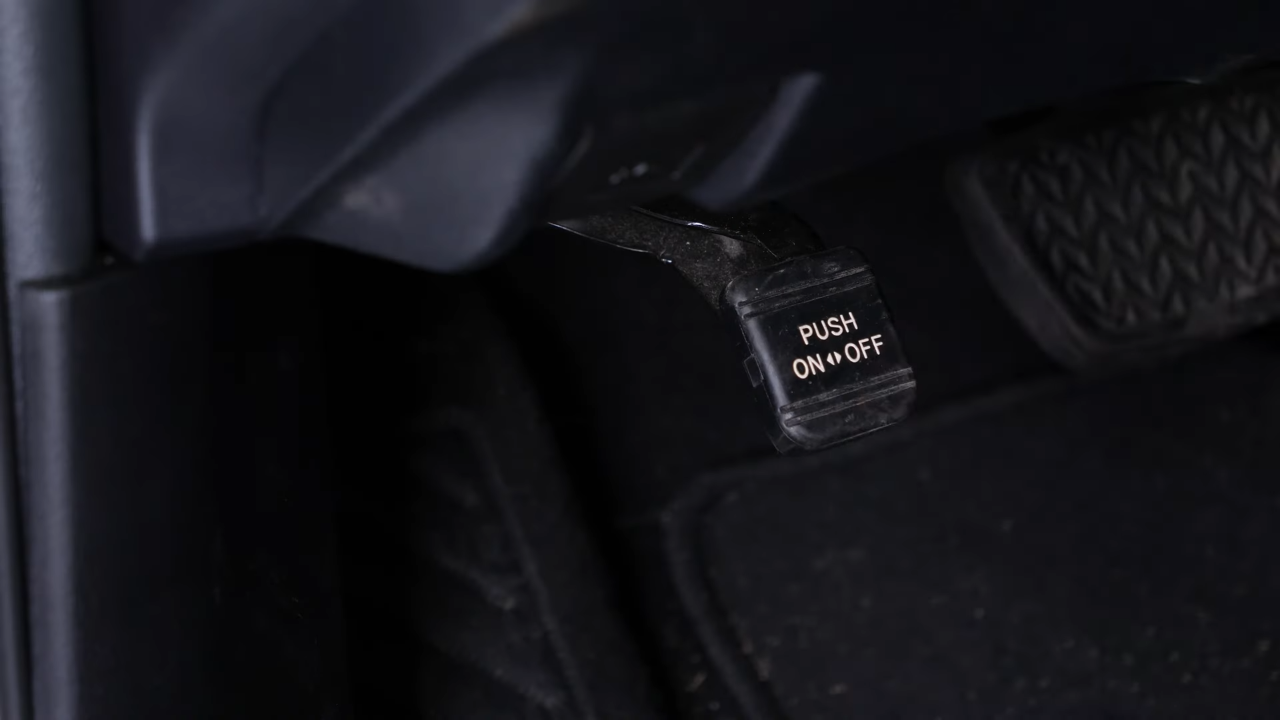

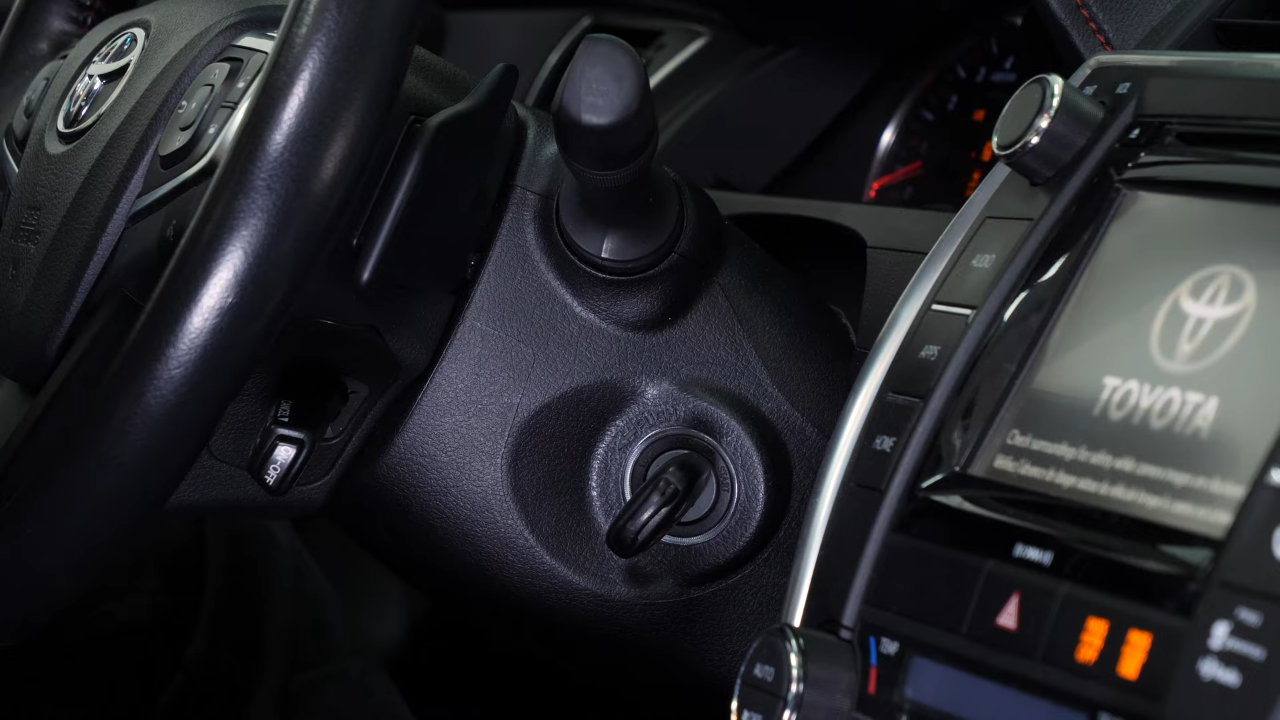

Turn your engine off and set the parking brake.

Chapter 1:

Step 2/2

Open the door.

Chapter 2:

Remove the door trim

Step 1/15

To change your car’s side view mirror, you have to take off the door trim.

Chapter 2:

Step 2/15

Using a car trim removal tool, remove the cover located in the door opening.

Chapter 2:

Step 3/15

Using the same tool, remove the plastic cover located in the door handle.

Chapter 2:

Step 4/15

Using a Phillips screwdriver, unscrew the first screw holding the door panel.

Chapter 2:

Step 5/15

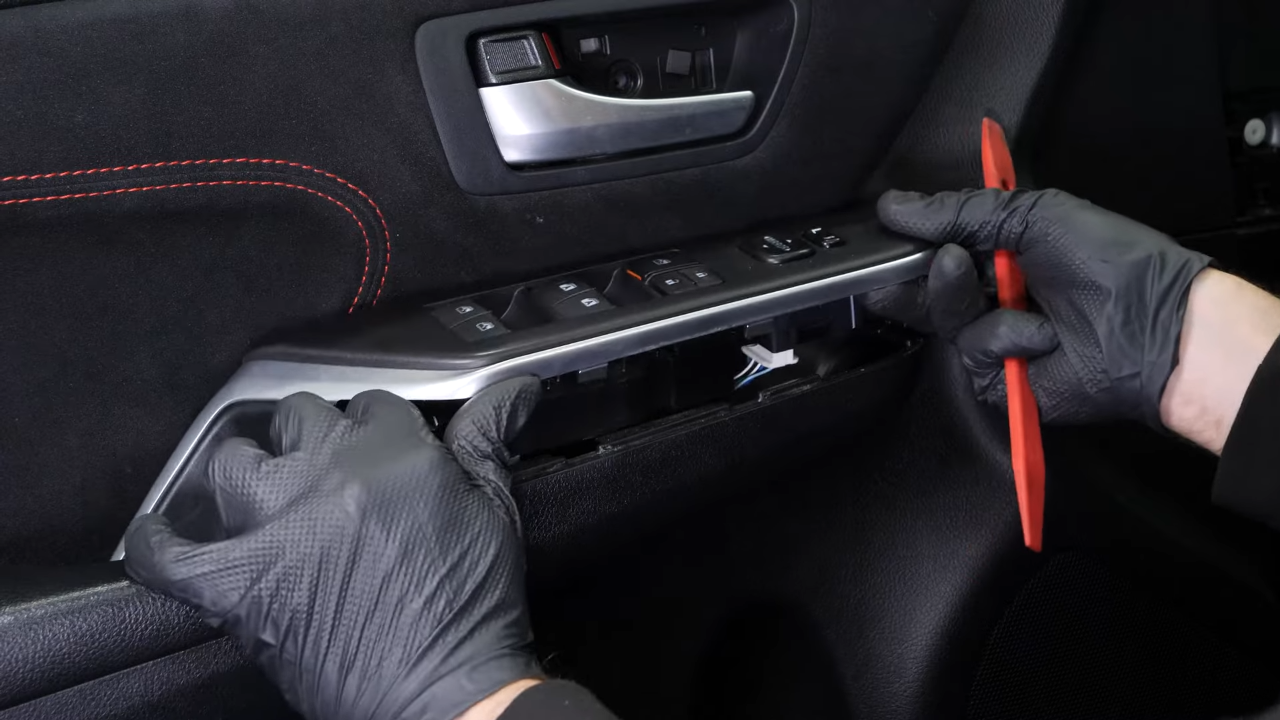

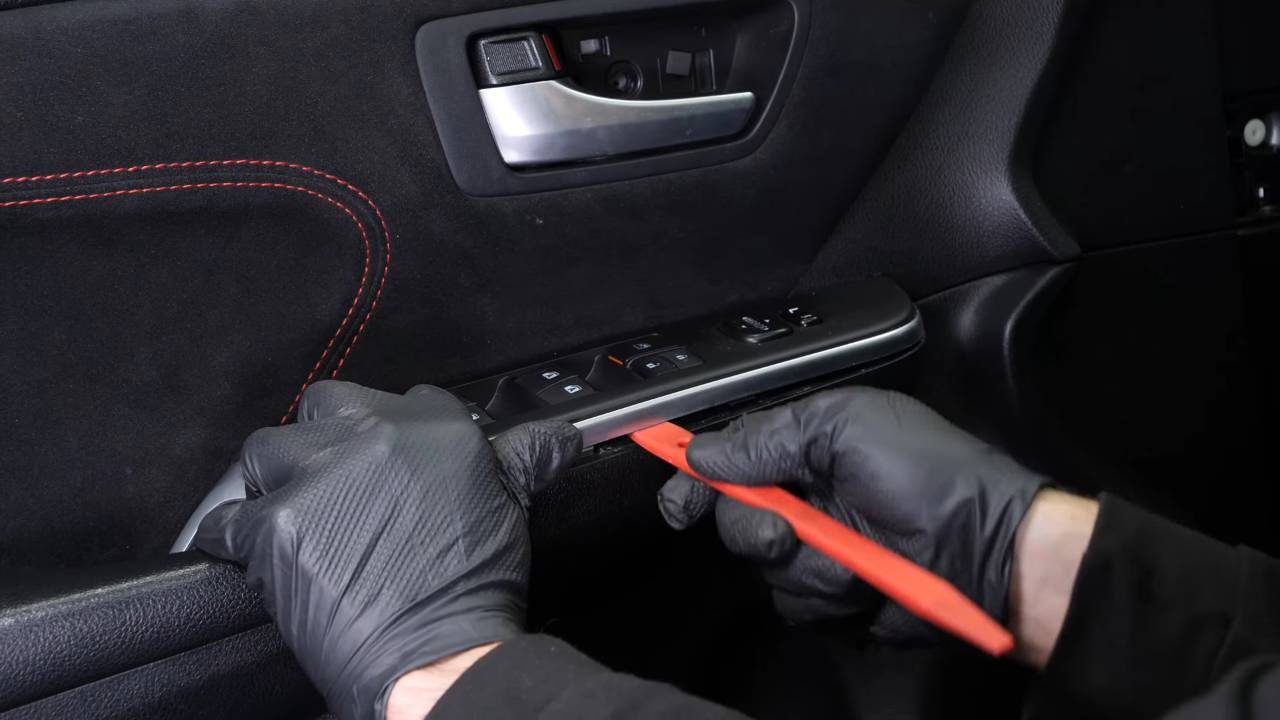

Using the fork, lift up the electric window and side mirror controls. Then shift them.

Chapter 2:

Step 6/15

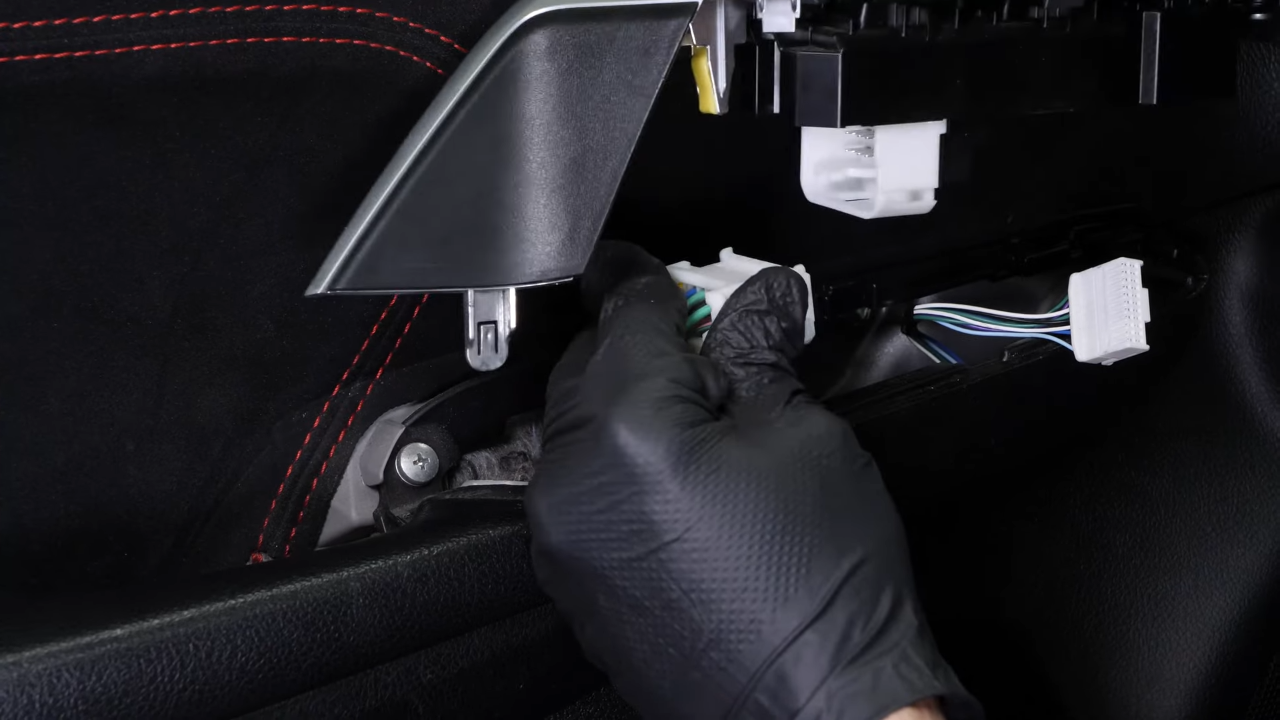

Remove the two power connectors from the controls.

Chapter 2:

Step 7/15

Then unscrew the second screw holding the door panel using the Phillips screwdriver.

Chapter 2:

Step 8/15

Using the car trim removal tool, pry off the armrest.

Chapter 2:

Step 9/15

Then unscrew the third screw holding the panel.

Chapter 2:

Step 10/15

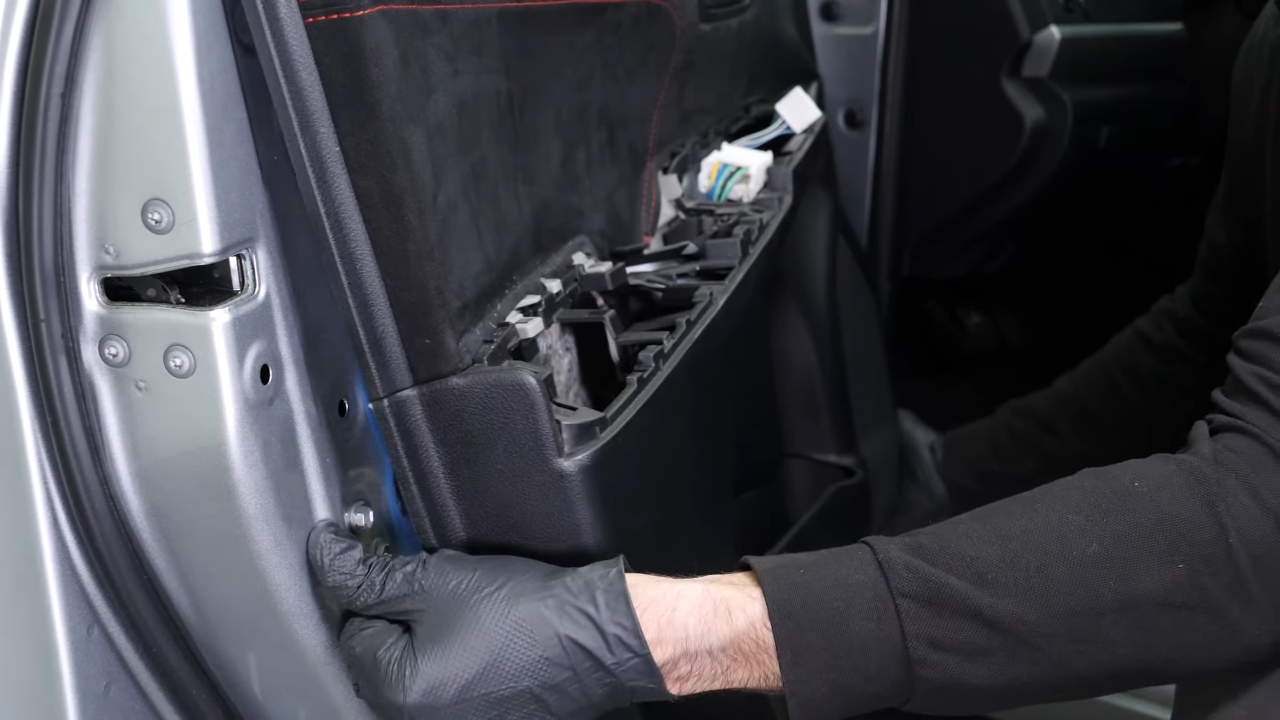

Unclip the door panel by pulling on its lower part.

Chapter 2:

Step 11/15

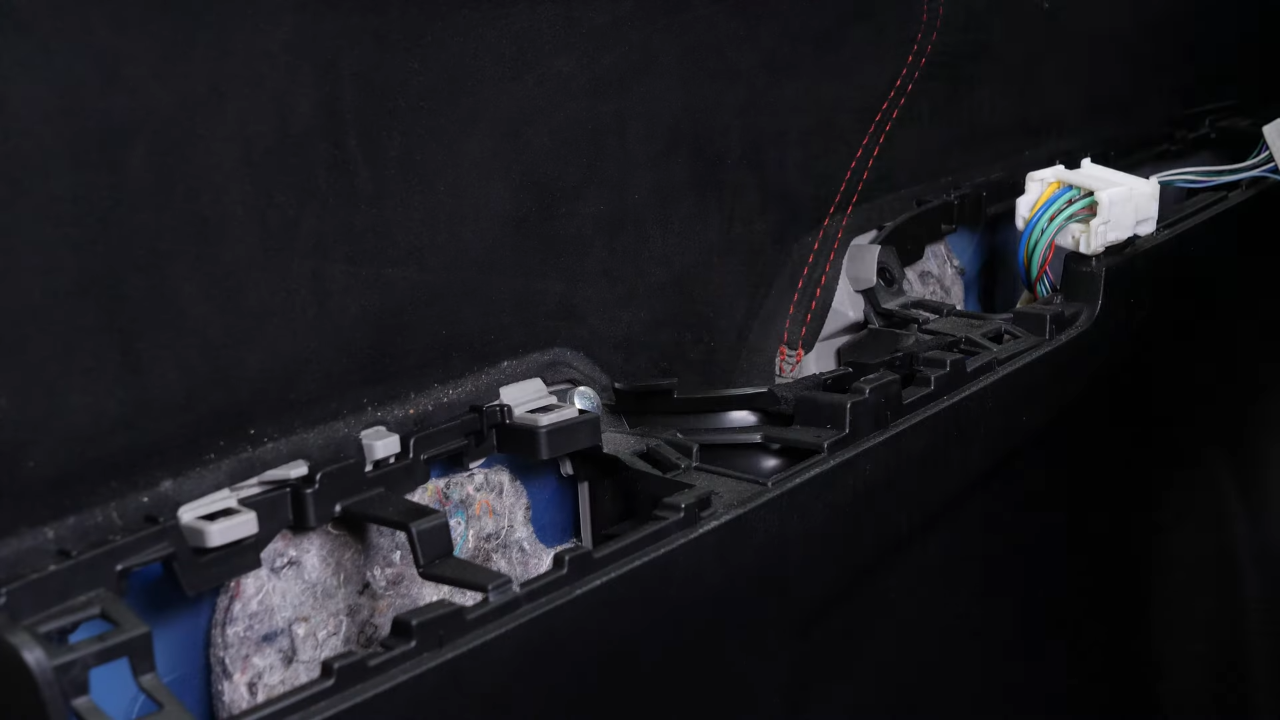

You can now remove the door panel by lifting it off the top track.

Chapter 2:

Step 12/15

Hold the panel so as not to pull on the various cables.

Chapter 2:

Step 13/15

Then remove the automatic door latch cable and the door release cable.

Chapter 2:

Step 14/15

Remove the electrical connector from the door sidelight.

Chapter 2:

Step 15/15

You can now remove the inner door panel.

Chapter 3:

Remove the side view mirror

Step 1/6

Unclip the power connector from the side view mirror.

Chapter 3:

Step 2/6

Remove the plastic covering the side view mirror retaining bolts.

Chapter 3:

Step 3/6

You now have access to the three retaining bolts of the side view mirror.

Chapter 3:

Step 4/6

Using a ratchet and a 10mm socket, unscrew the 3 holding bolts.

Chapter 3:

Step 5/6

Using a fork, remove the rivet holding the door seal.Then shift the seal.

Chapter 3:

Step 6/6

Take off the side view mirror.

Chapter 4:

Install the new side view mirror

Step 1/9

Take the new side view mirror.

Chapter 4:

Step 2/9

Insert the side view mirror into its housing.

Chapter 4:

Step 3/9

Then screw the 3 bolts back in, by hand at first.

Chapter 4:

Step 4/9

Finish off tightening with a ratchet.

Chapter 4:

Step 5/9

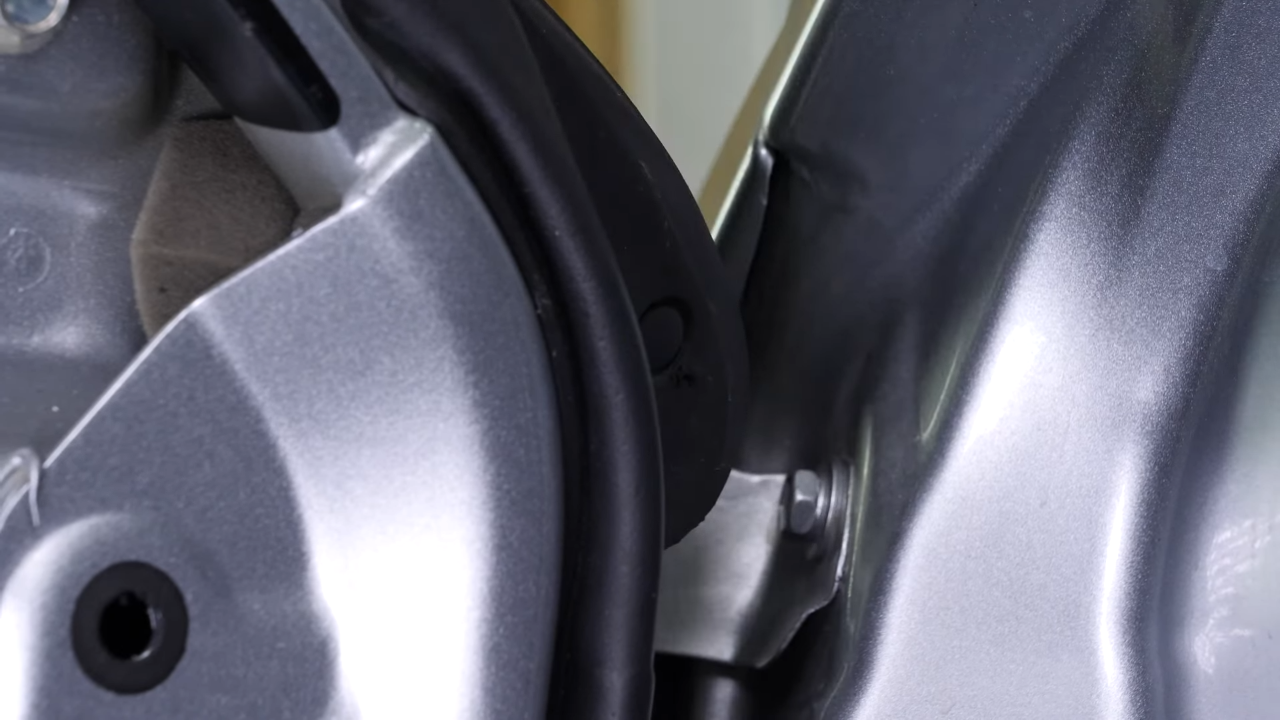

Put the door seal back in place. Then the plastic rivet.

Chapter 4:

Step 6/9

Put the plastic trim back on. Plug the electrical connector back in.

Chapter 4:

Step 7/9

If any door panel retaining rivets are left on the door, remove them using a fork.Then install them on the door panel.

Chapter 4:

Step 8/9

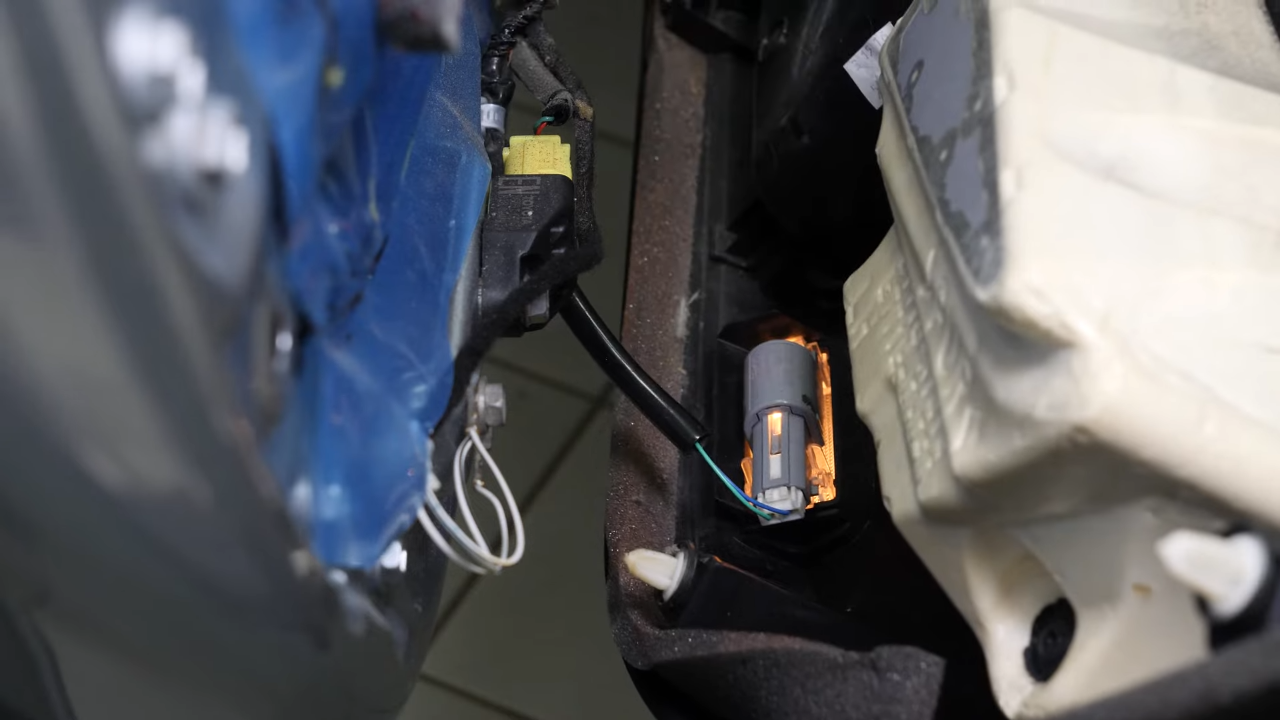

While holding the inner door panel, reconnect the sidelight electrical connector.

Chapter 4:

Step 9/9

Put the door release cable and the automatic door latch cable back in place.

Chapter 5:

Put the door trim back

Step 1/9

You can now put the door panel back in place, inserting it into the top track first.

Chapter 5:

Step 2/9

Pass the connectors of the electric window and side mirror controls through the opening in the door panel.

Chapter 5:

Step 3/9

You can now press the entire door panel against the door to lock all the clips.

Chapter 5:

Step 4/9

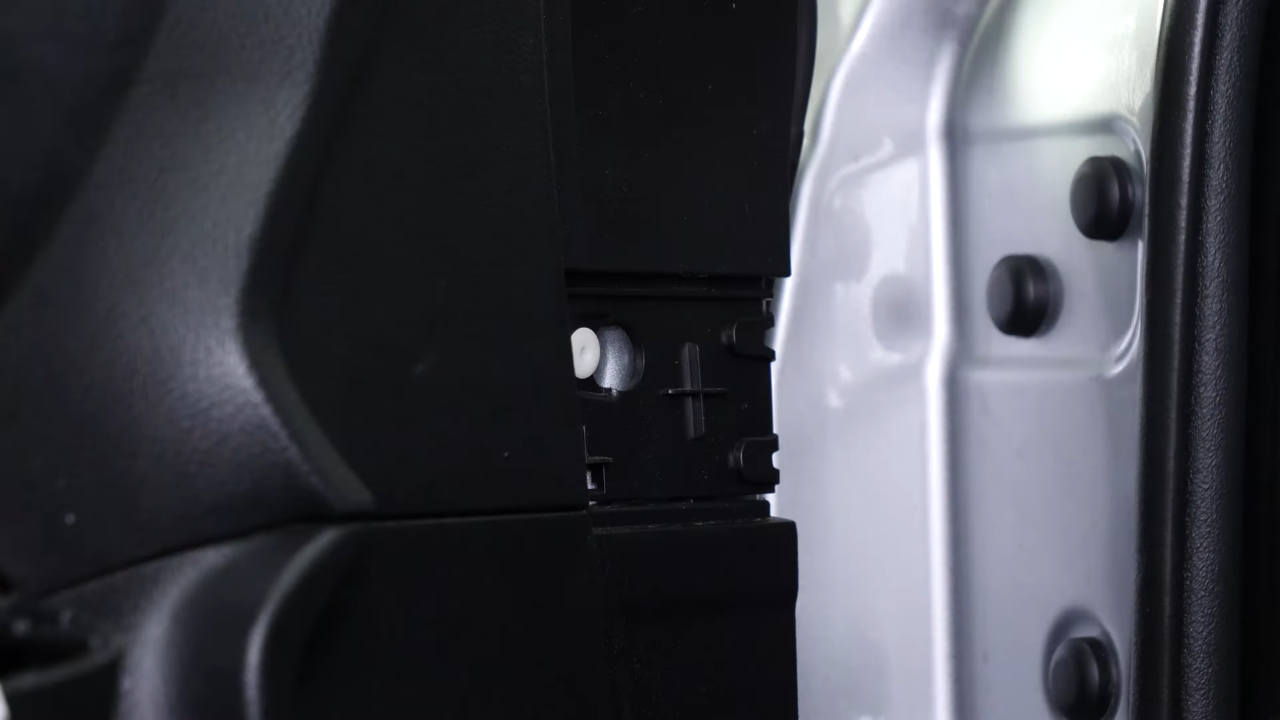

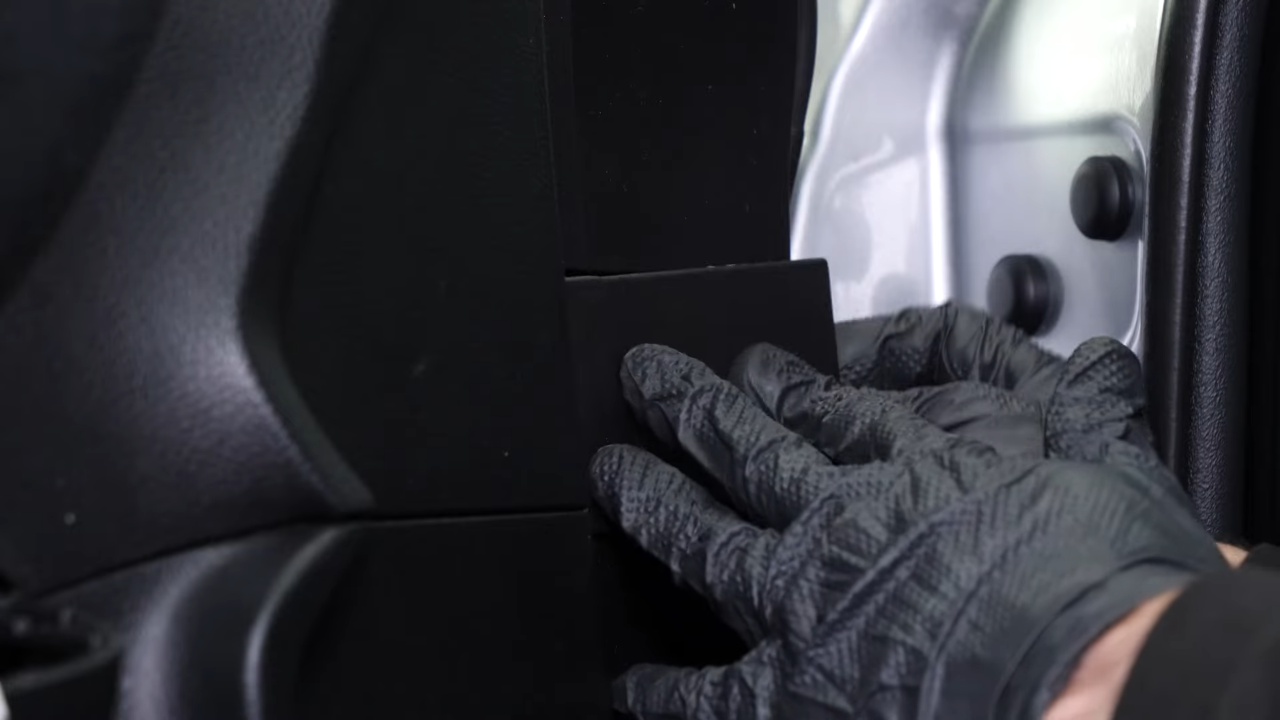

Reinstall the cover located in the door opening.

Chapter 5:

Step 5/9

Screw the two armrest screws back on.

Chapter 5:

Step 6/9

Put the armrest back in place.

Chapter 5:

Step 7/9

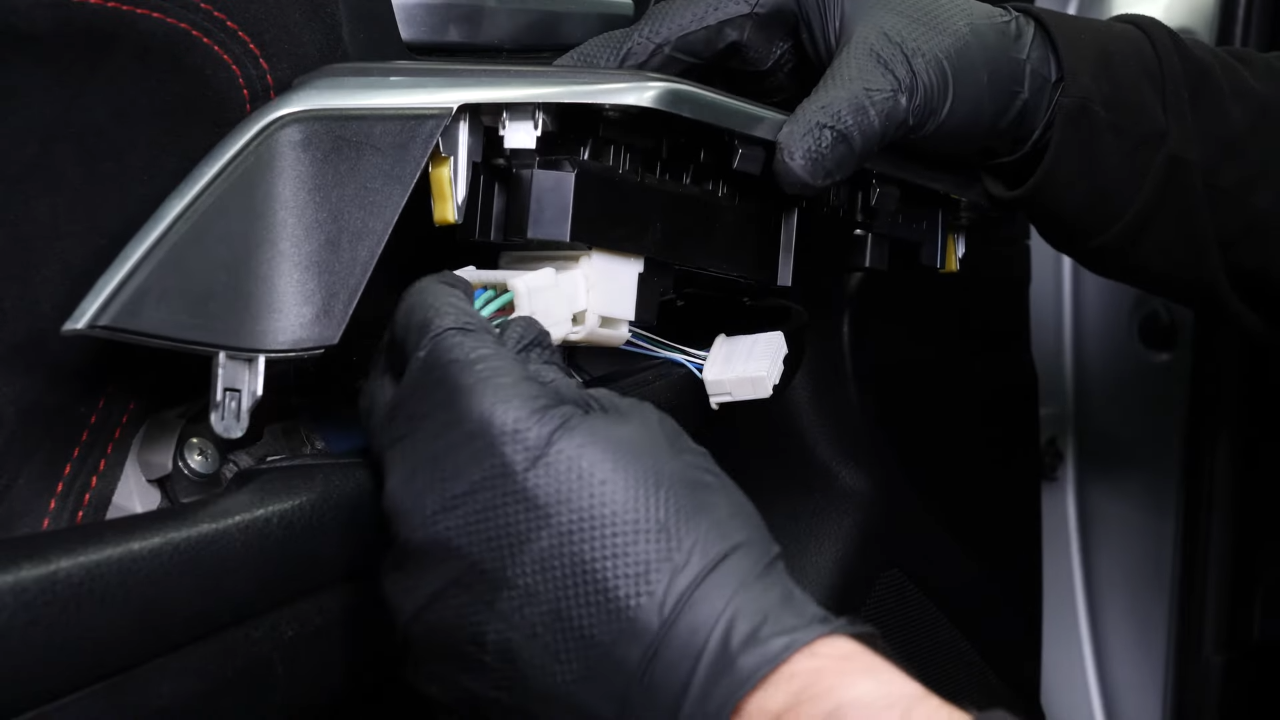

Reconnect the connectors of the electric window and side mirror controls. Then clip the assembly back on.

Chapter 5:

Step 8/9

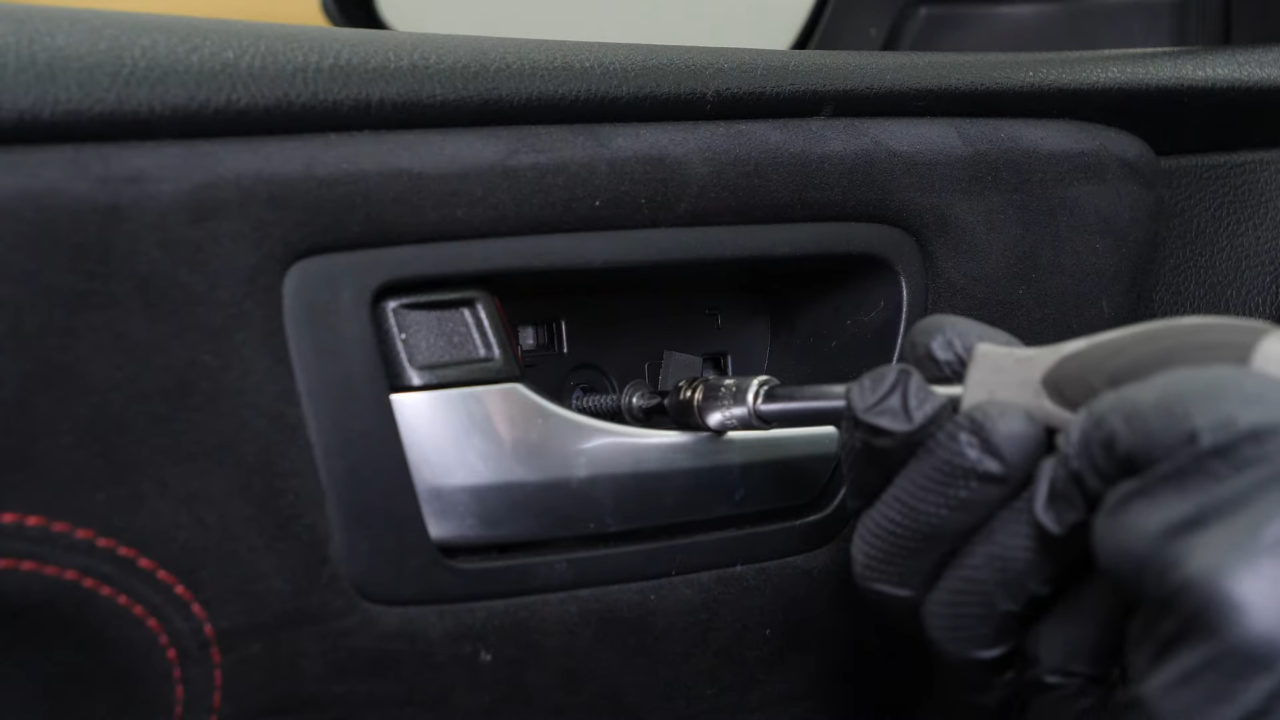

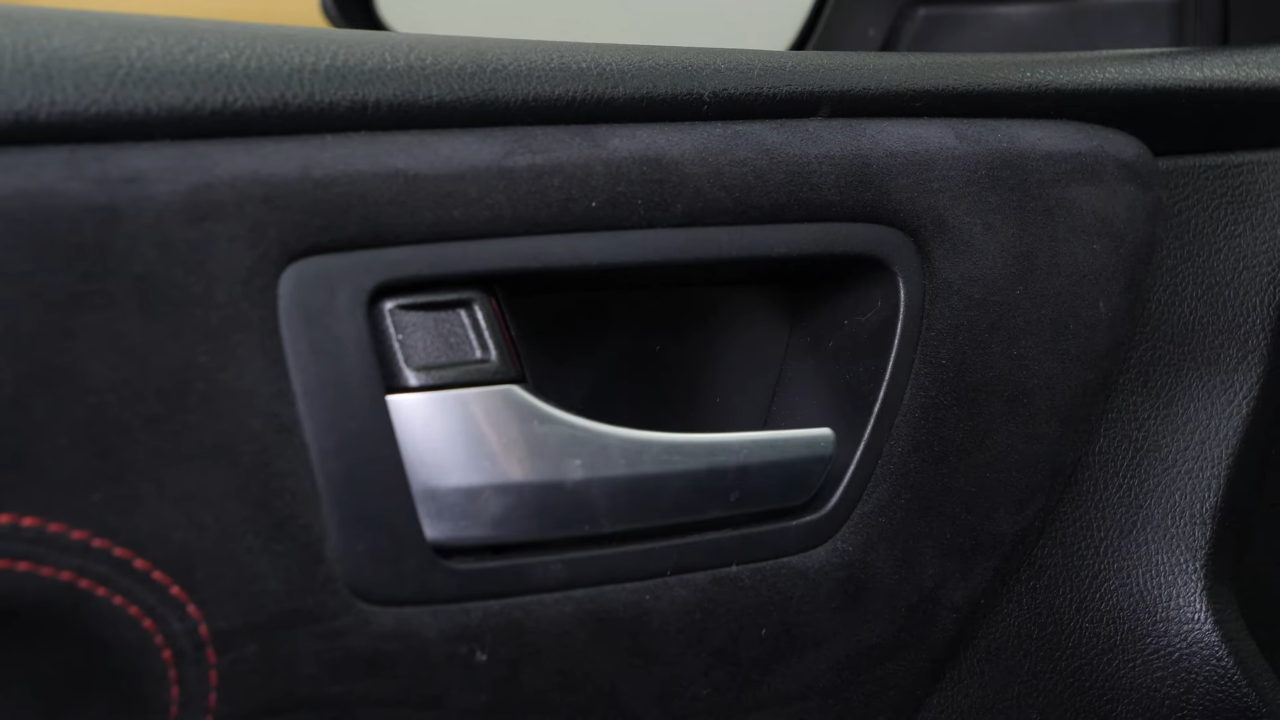

Tighten the screw back into the door handle. Then put the plastic cover back on.

Chapter 5:

Step 9/9

Operation complete.
