How to replace the headlight assembly 2011-2017 Toyota Camry

Chapter 1:

Open the hood

Step 1/5

Turn your engine off and set the parking brake.

Chapter 1:

Step 2/5

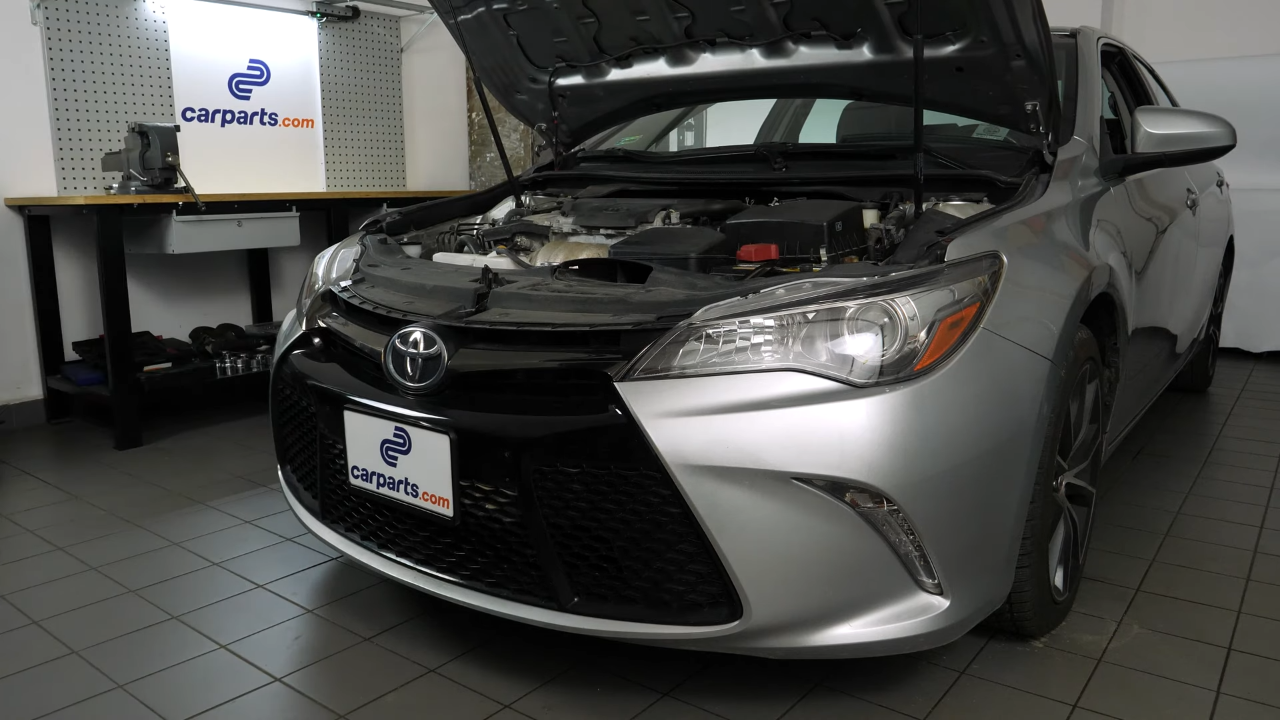

Pull on the hood release handle and open the hood.

Chapter 1:

Step 3/5

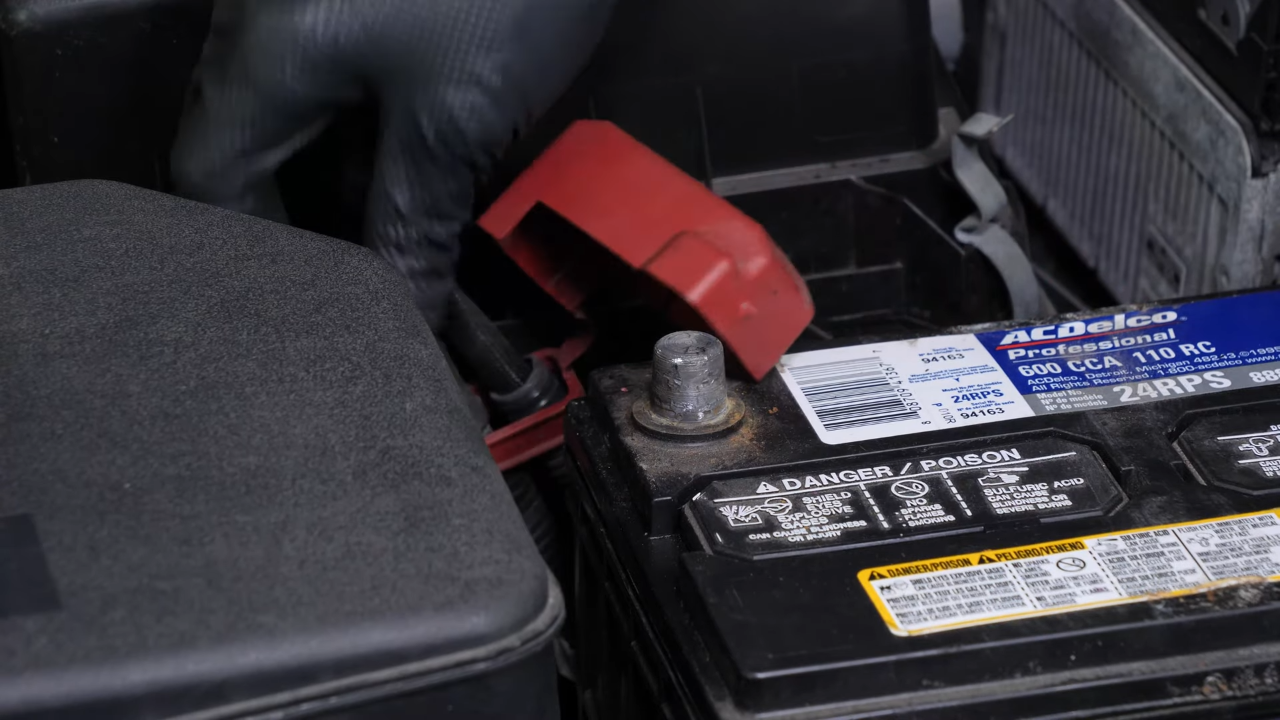

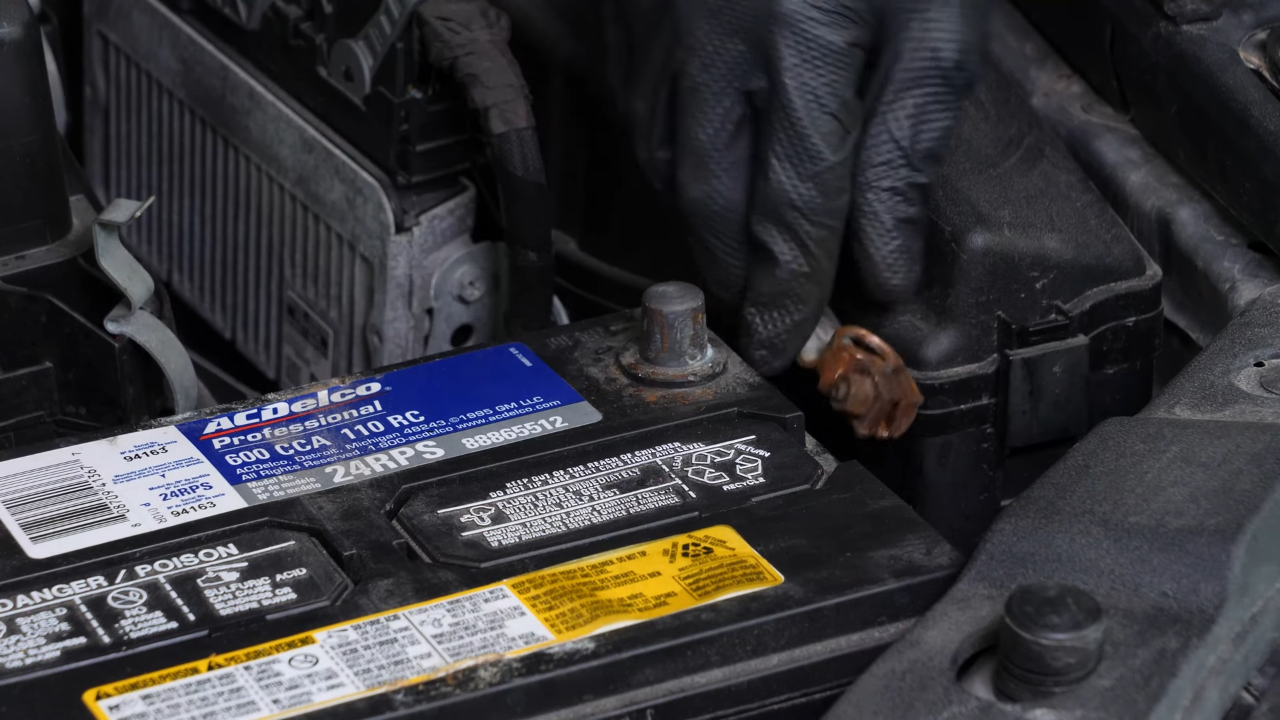

For safety reasons, we advise you to disconnect the battery.

Chapter 1:

Step 4/5

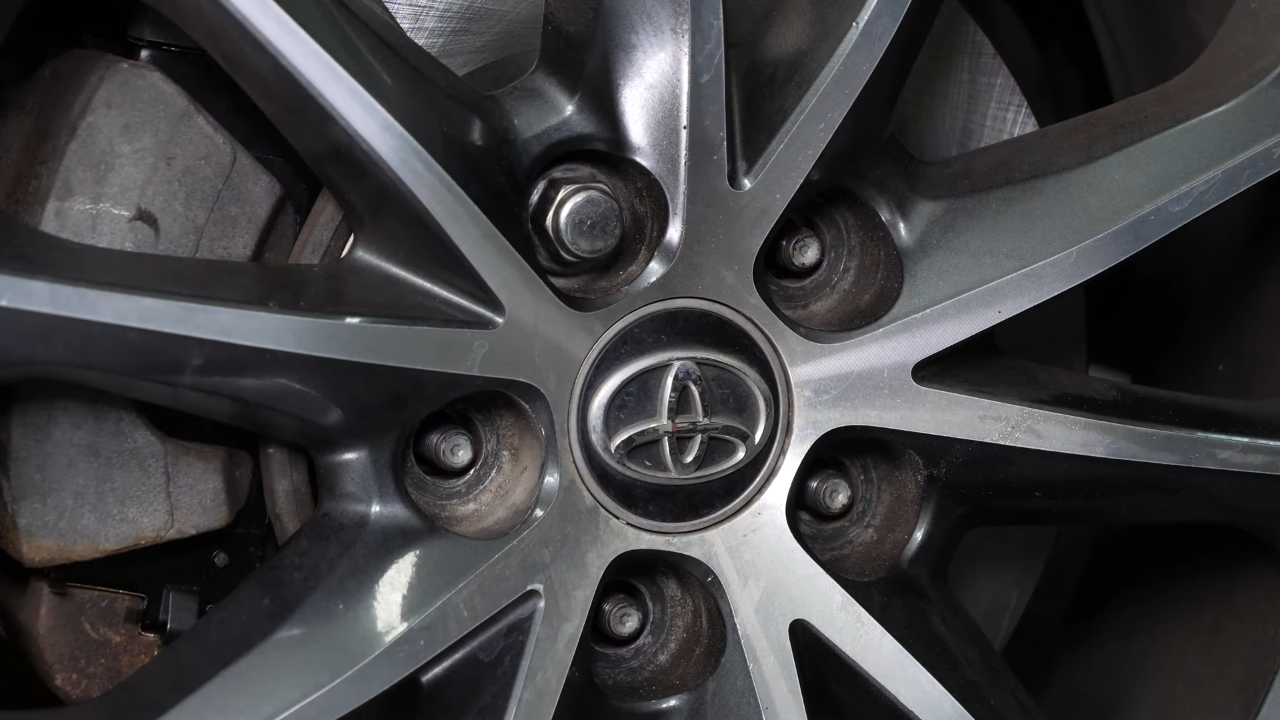

Loosen the stud bolts on the front wheels.

Chapter 1:

Step 5/5

In order to change the headlights on your vehicle, you will need to remove the front bumper cover to have full access.

Chapter 2:

Lift the vehicle

Step 1/3

Lift the front of your vehicle.

Chapter 2:

Step 2/3

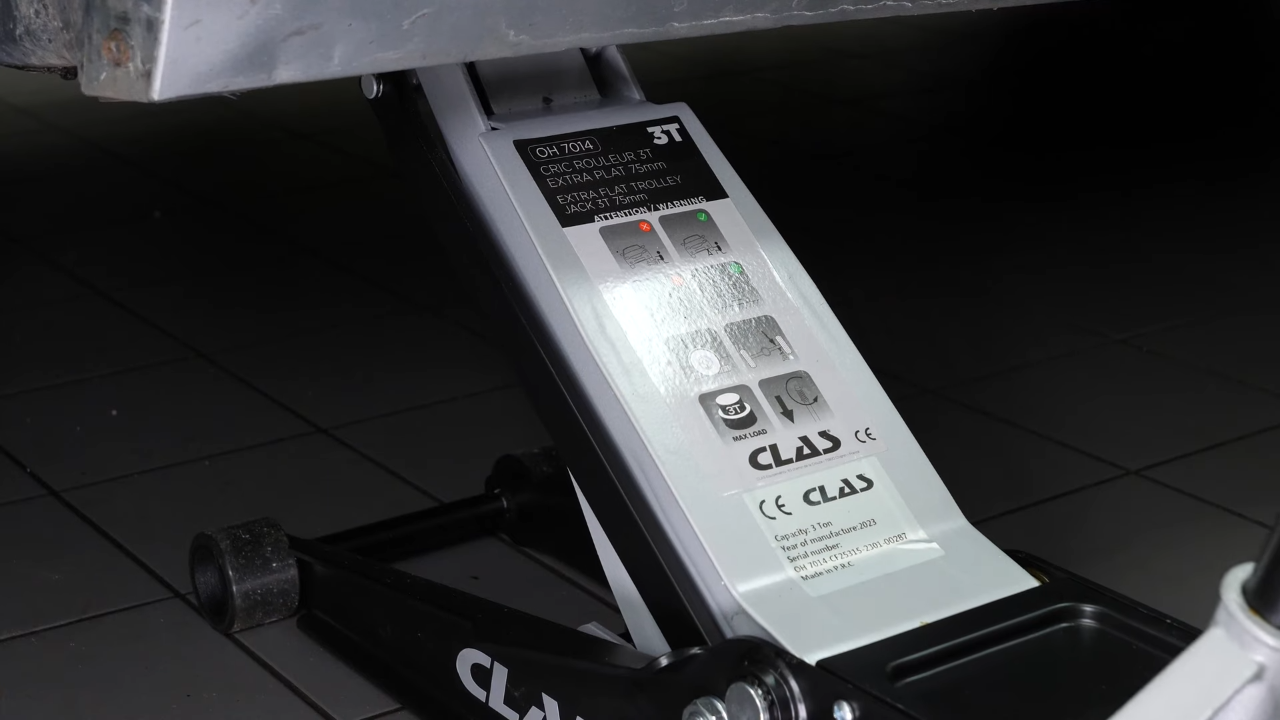

Place the vehicle on the jack stands.

Chapter 2:

Step 3/3

Don’t forget to put the wheels under the vehicle!

Chapter 3:

Set up

Step 1/4

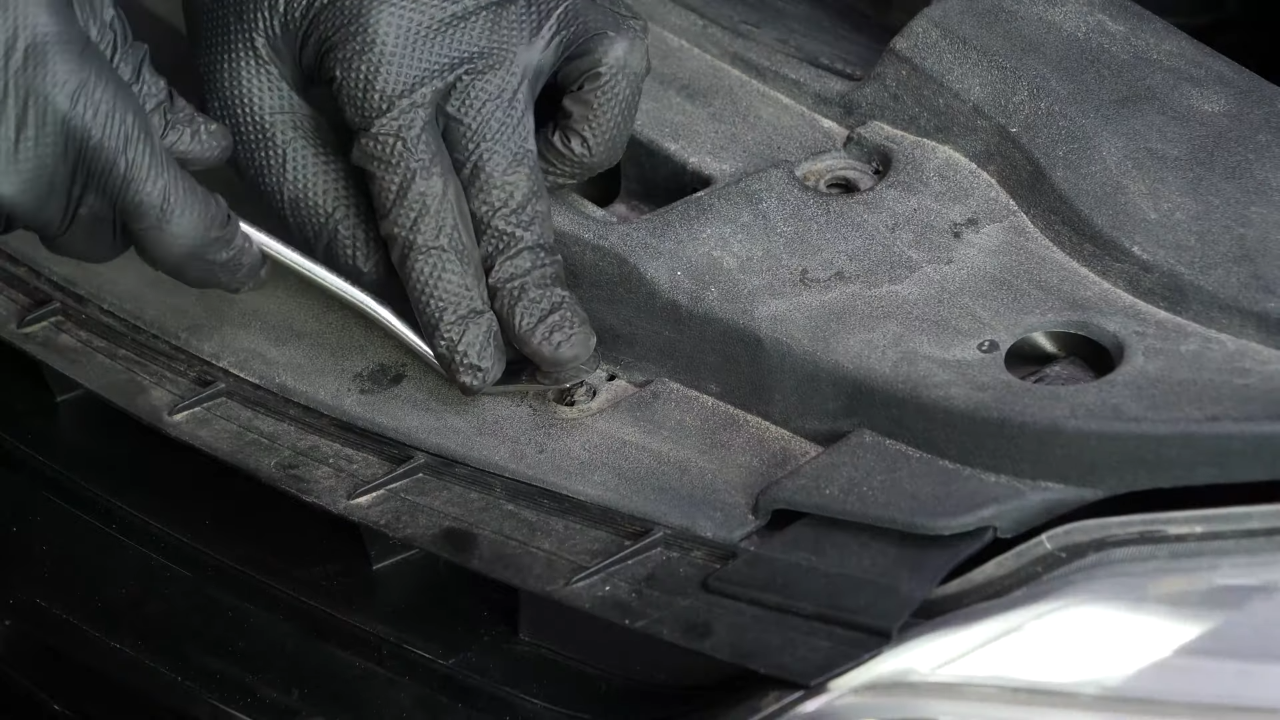

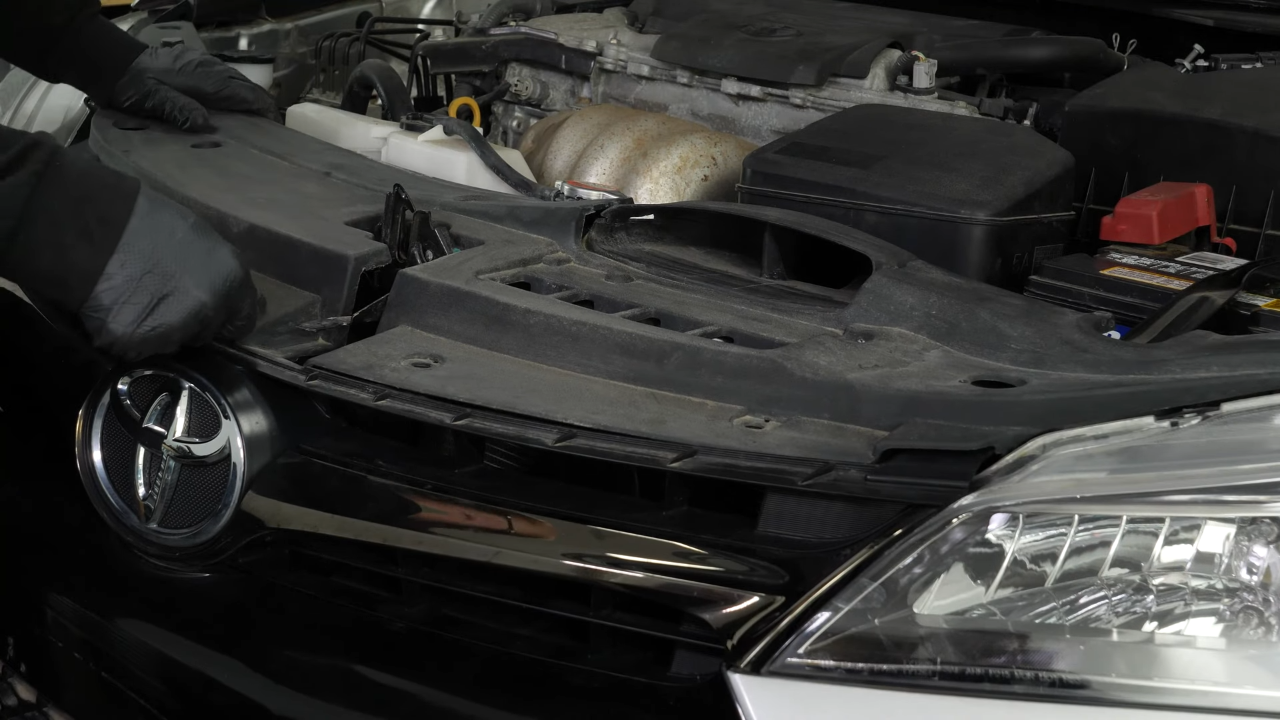

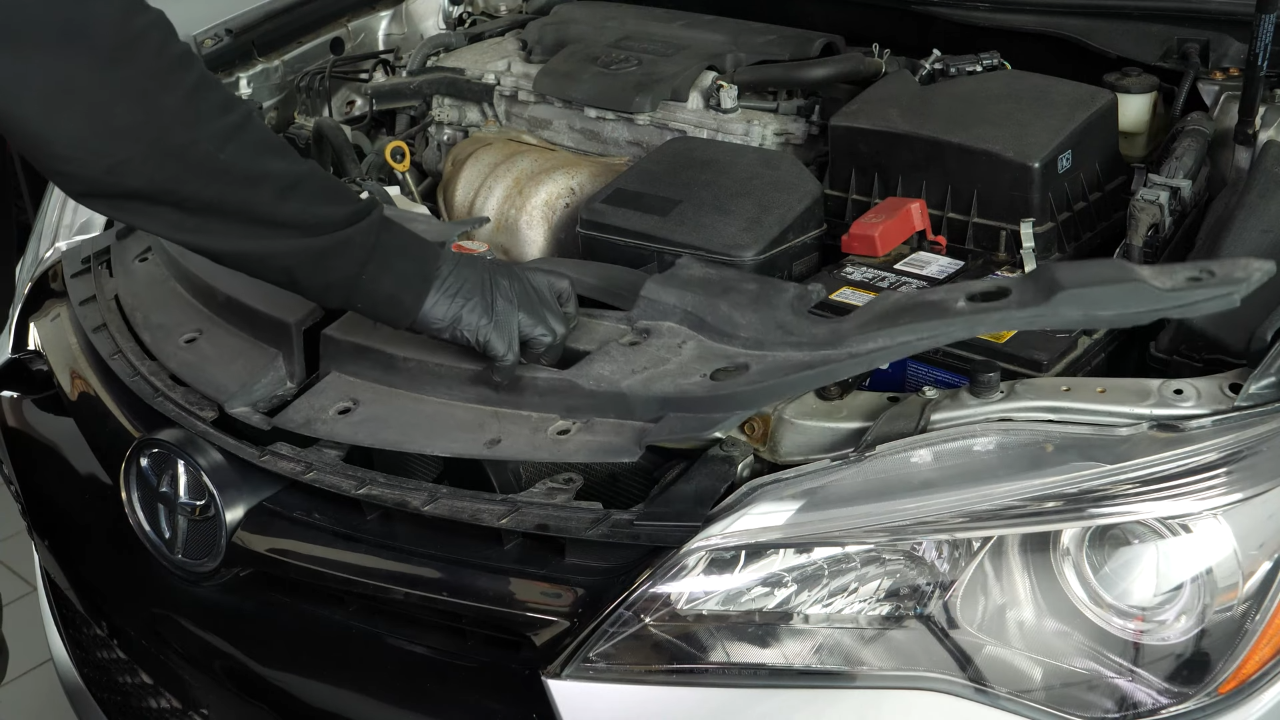

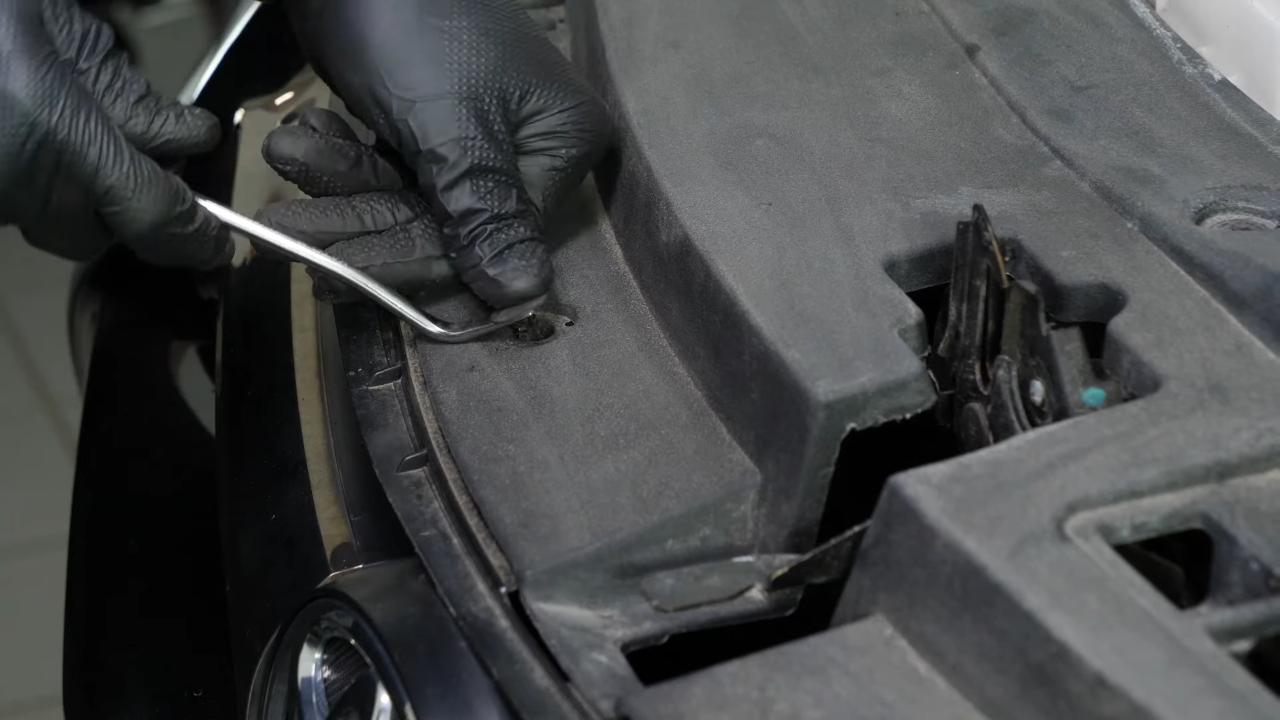

Start by removing the plastic cover by pulling on the 9 plastic rivets using a fork.Then remove the cover.

Chapter 3:

Step 2/4

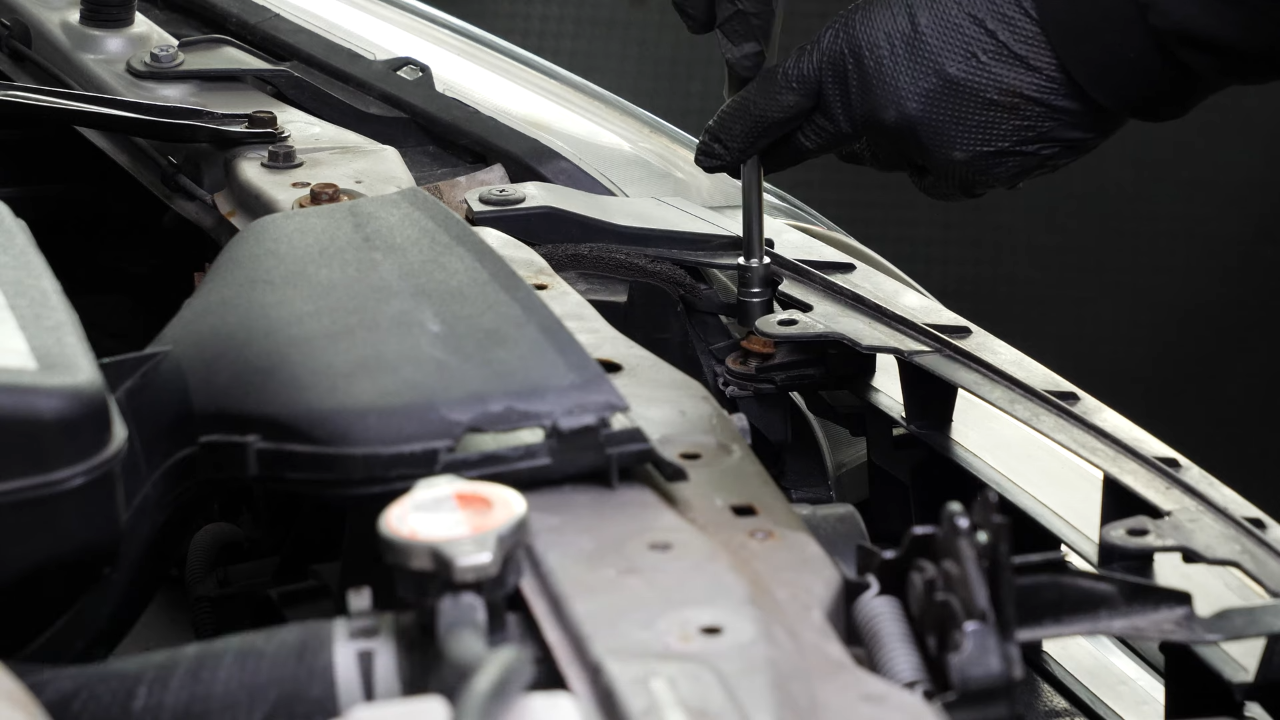

Using a multi-bit screwdriver and a 10 mm socket, unscrew the two bolts holding the grille.

Chapter 3:

Step 3/4

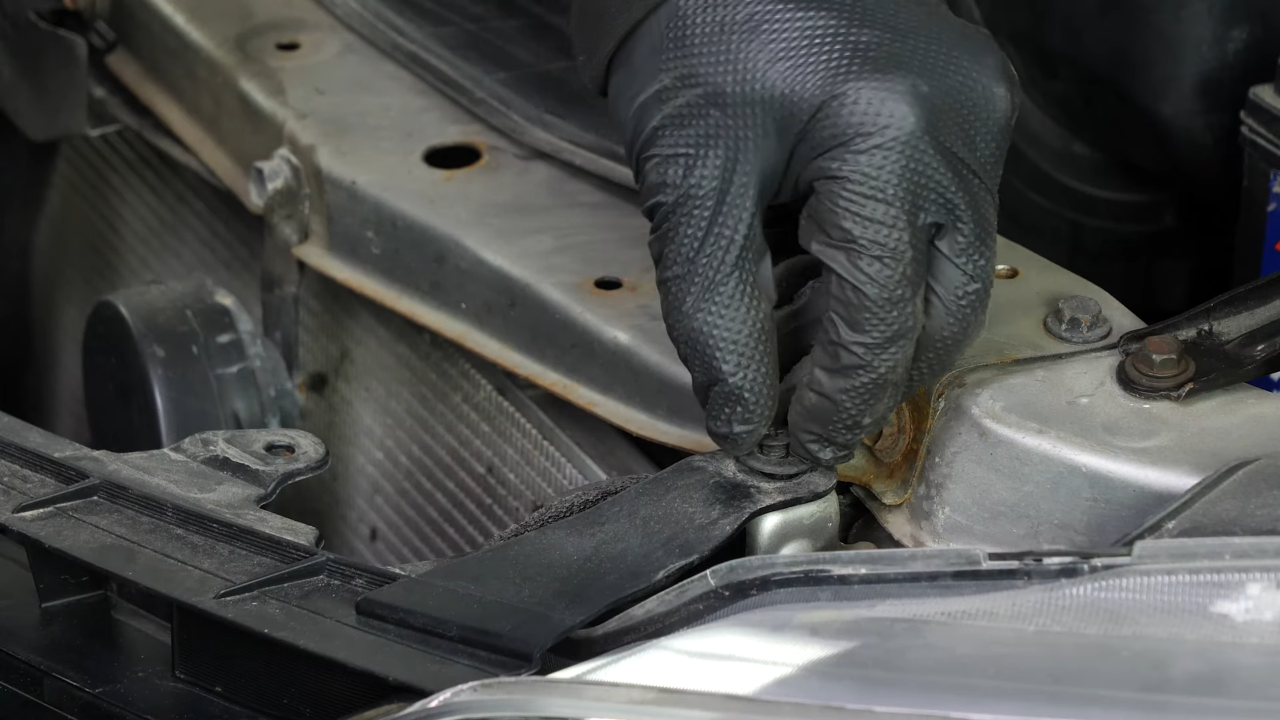

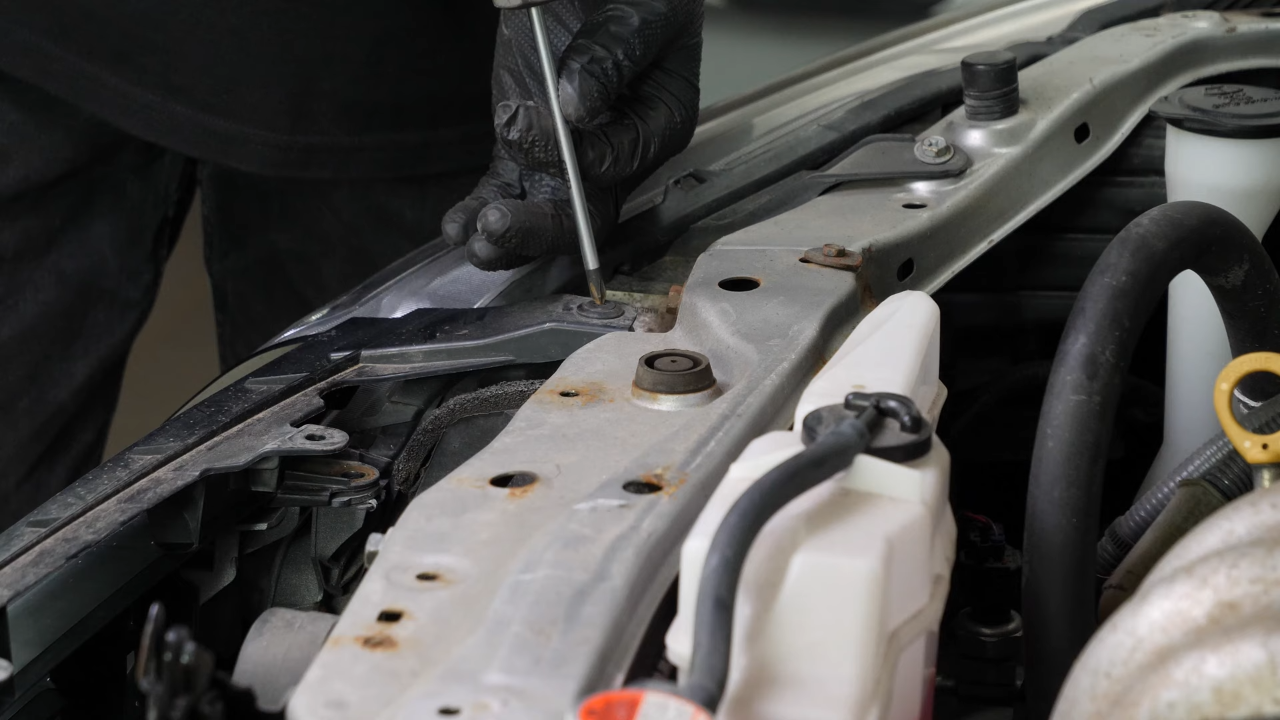

Then, using a Phillips screwdriver, unscrew the 3 plastic rivets holding the grille.

Chapter 3:

Step 4/4

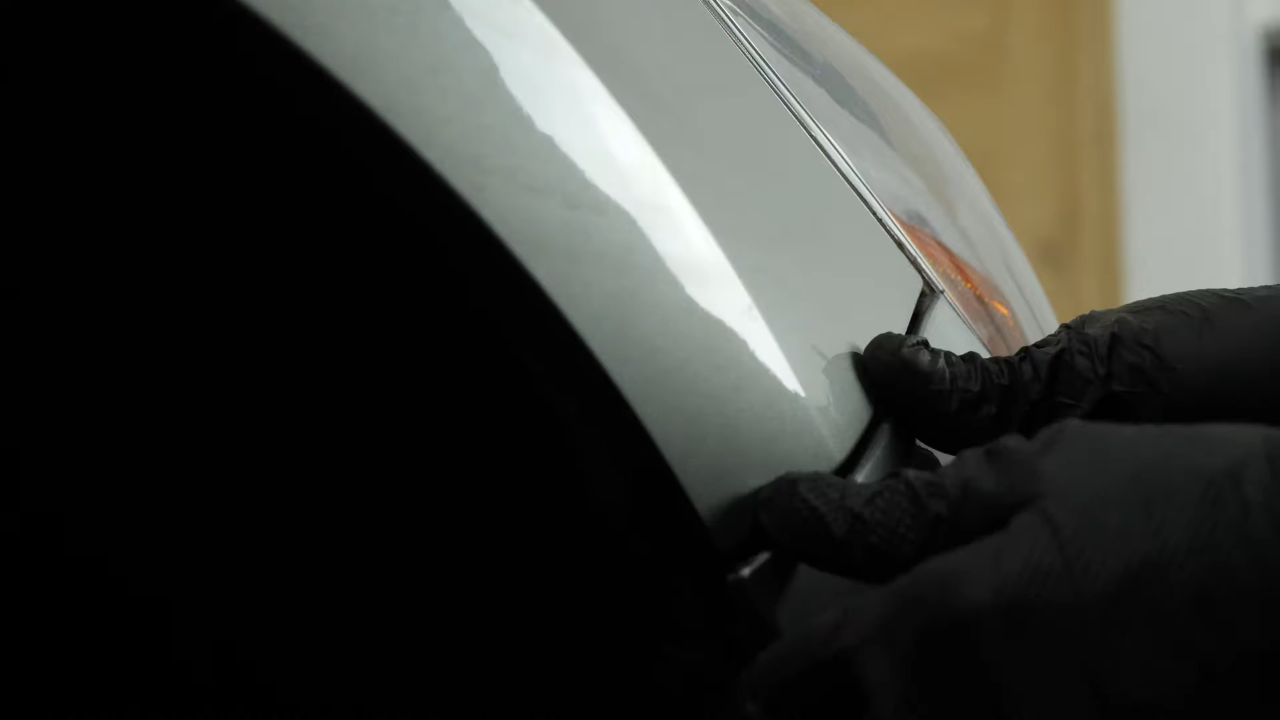

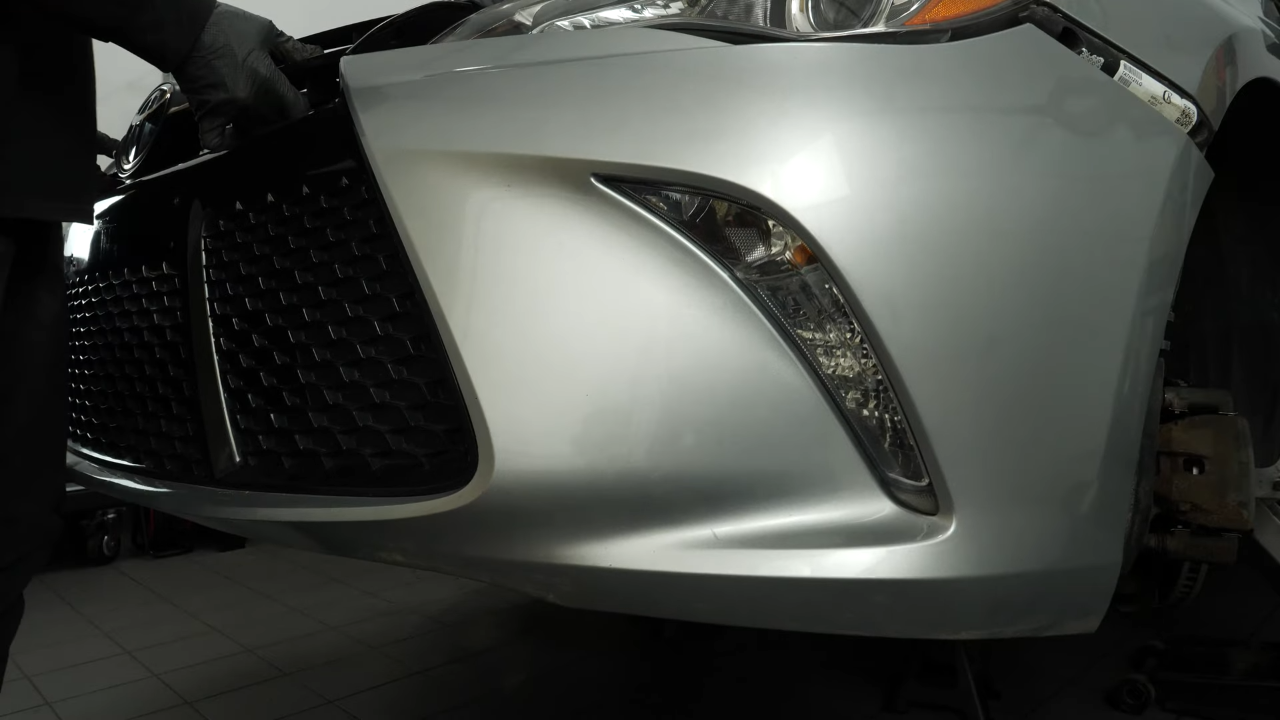

Now you need to remove the front bumper cover.

Chapter 4:

Disconnect the headlight assembly

Step 1/5

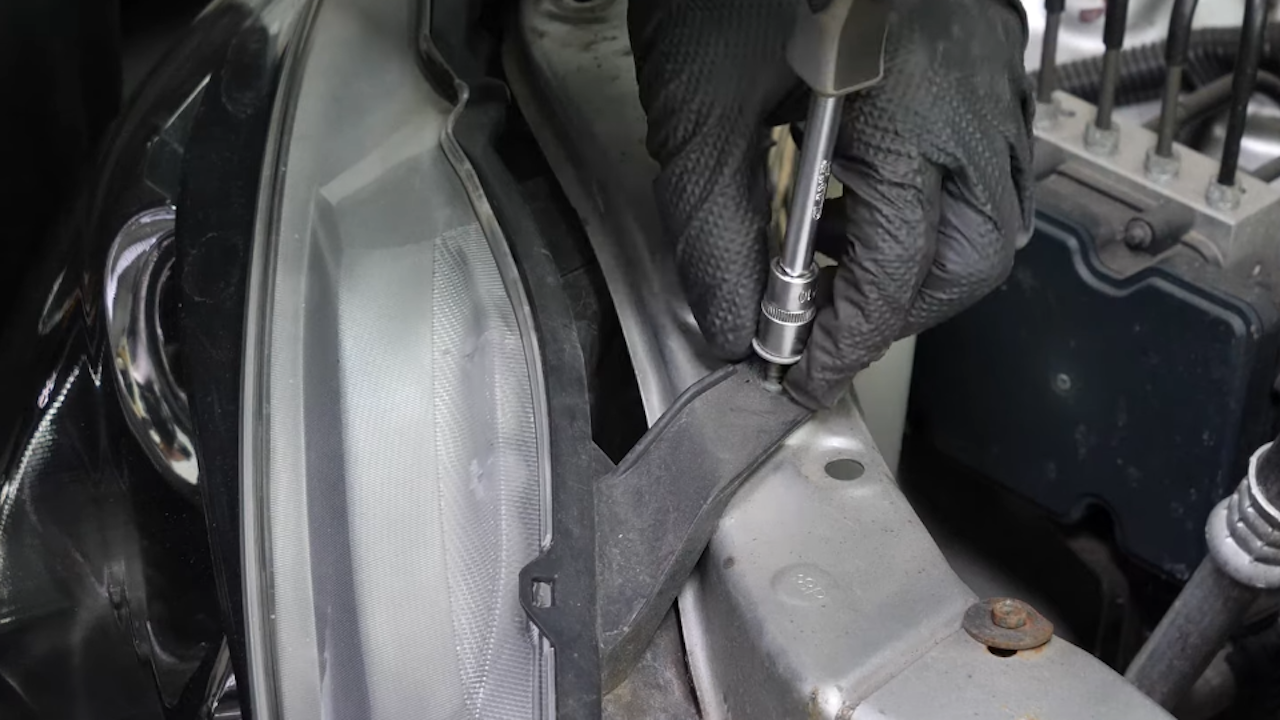

Using a multi-bit screwdriver and a 10 mm socket, unscrew the 3 bolts holding the head light.

Chapter 4:

Step 2/5

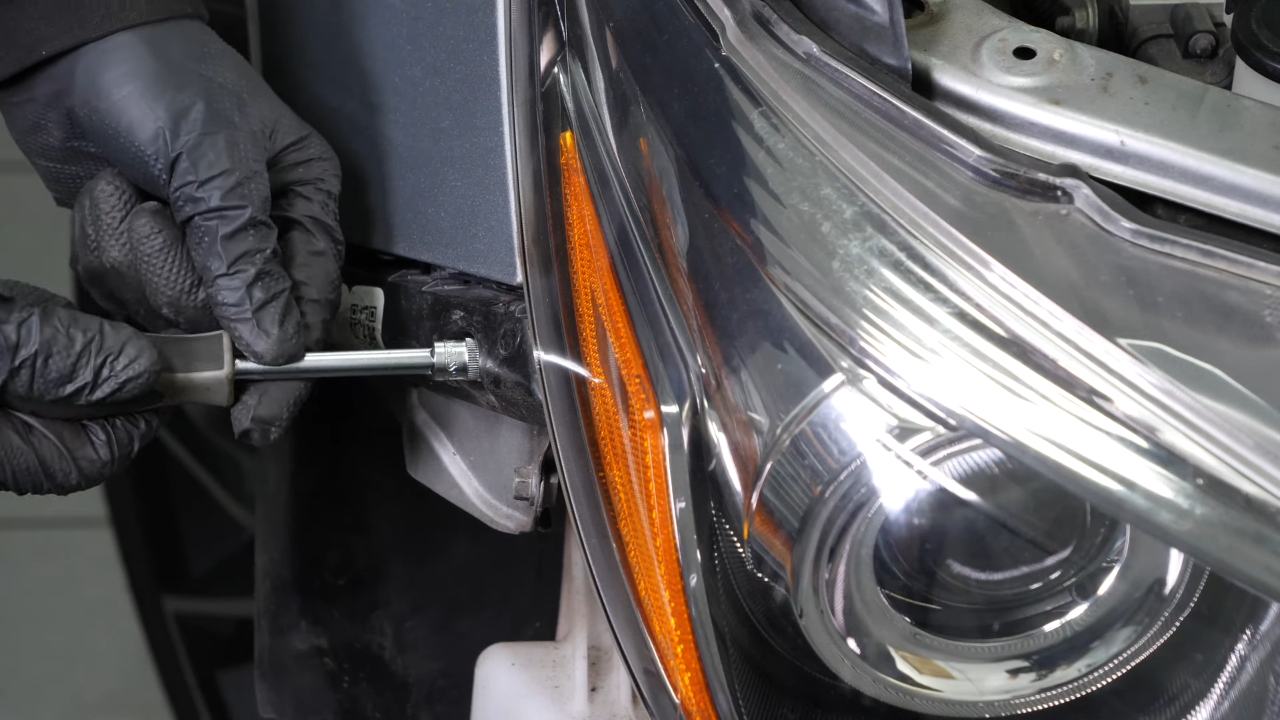

Then unscrew the front retaining bolt of the bumper cover retainer using the same tools.

Chapter 4:

Step 3/5

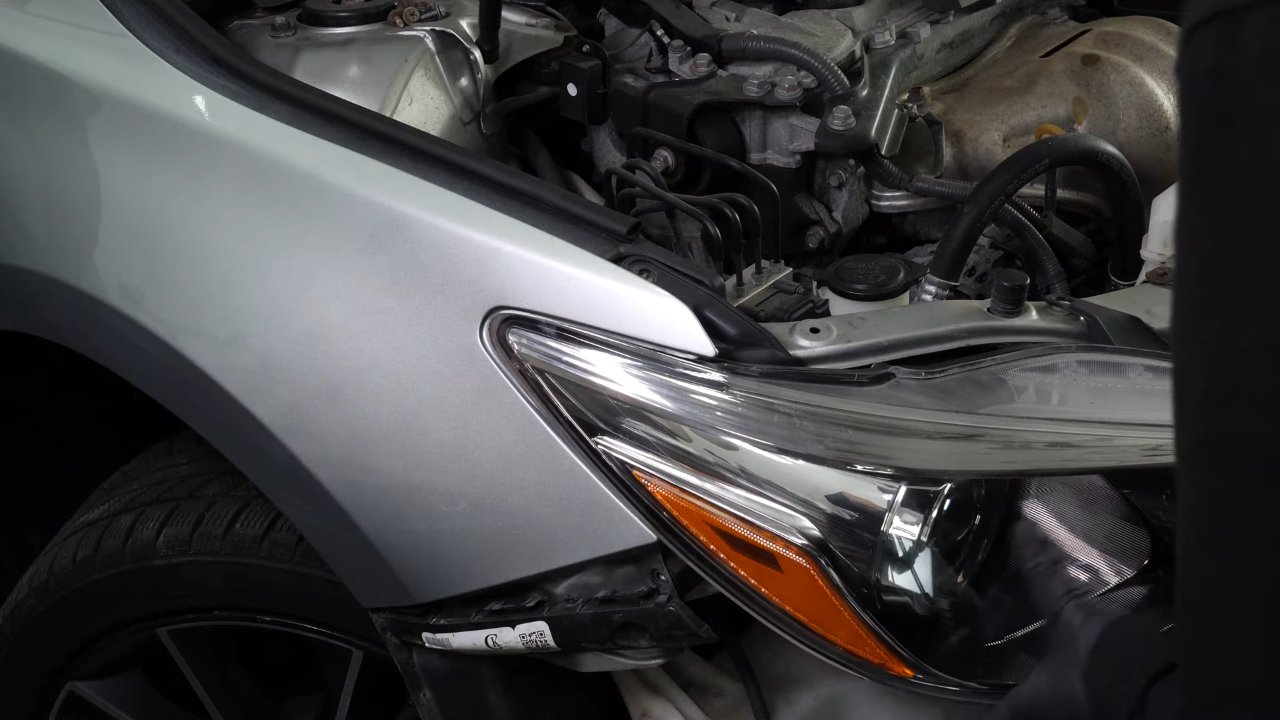

You can now extract the headlight from its location.

Chapter 4:

Step 4/5

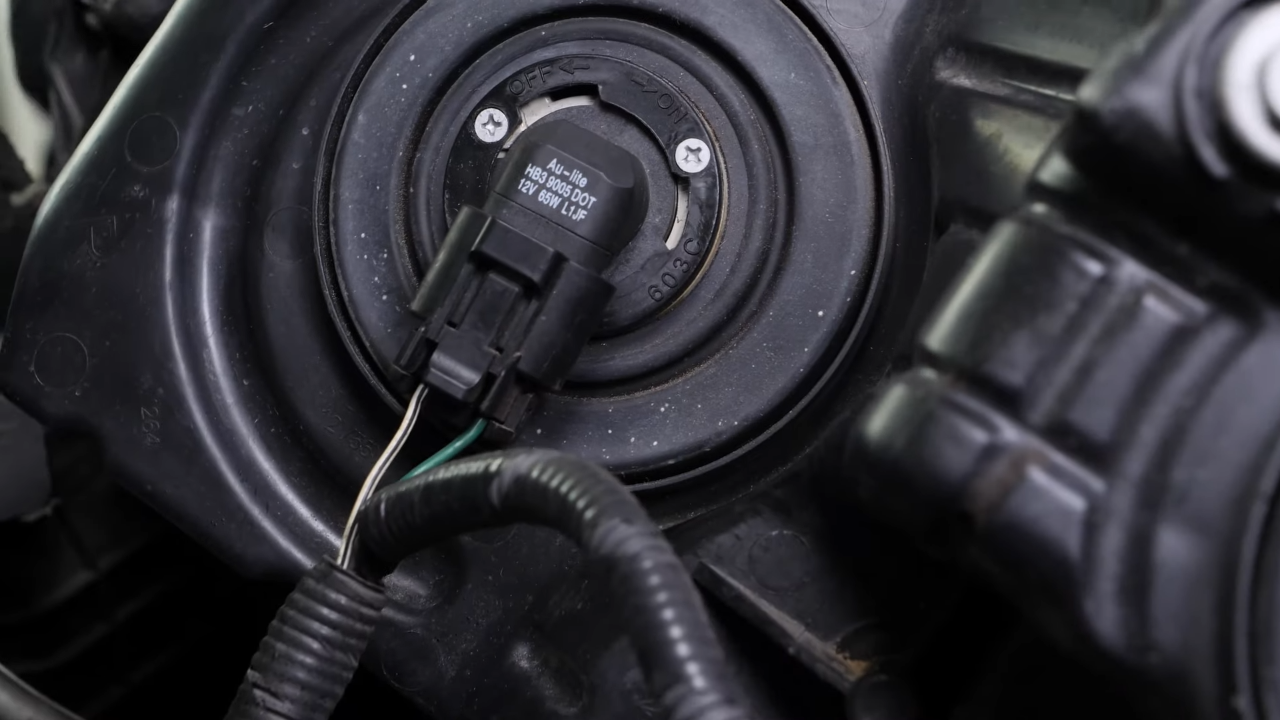

Remove the electrical connectors from the high beam lightbulb.Then unclip the electrical sheath from the headlight.

Chapter 4:

Step 5/5

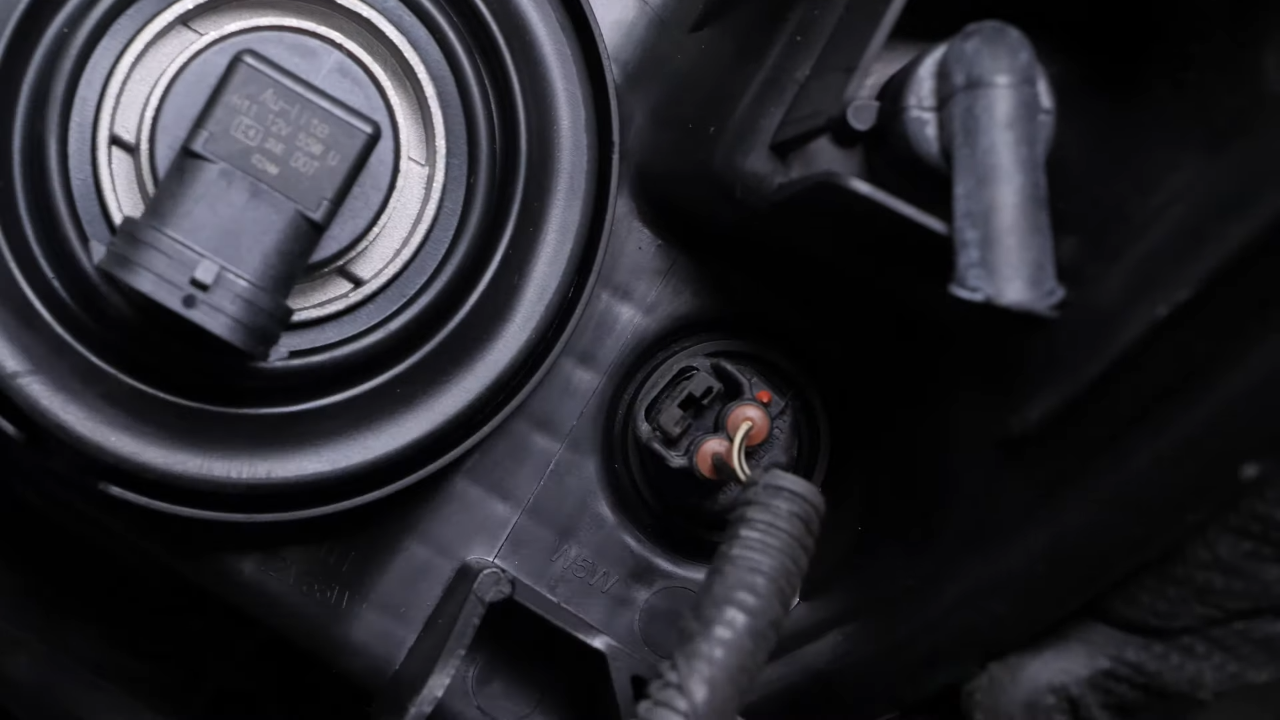

Then remove the electrical connectors from the low beam lightbulb and the parking lightbulb.

Chapter 5:

Reconnect the headlight assembly

Step 1/5

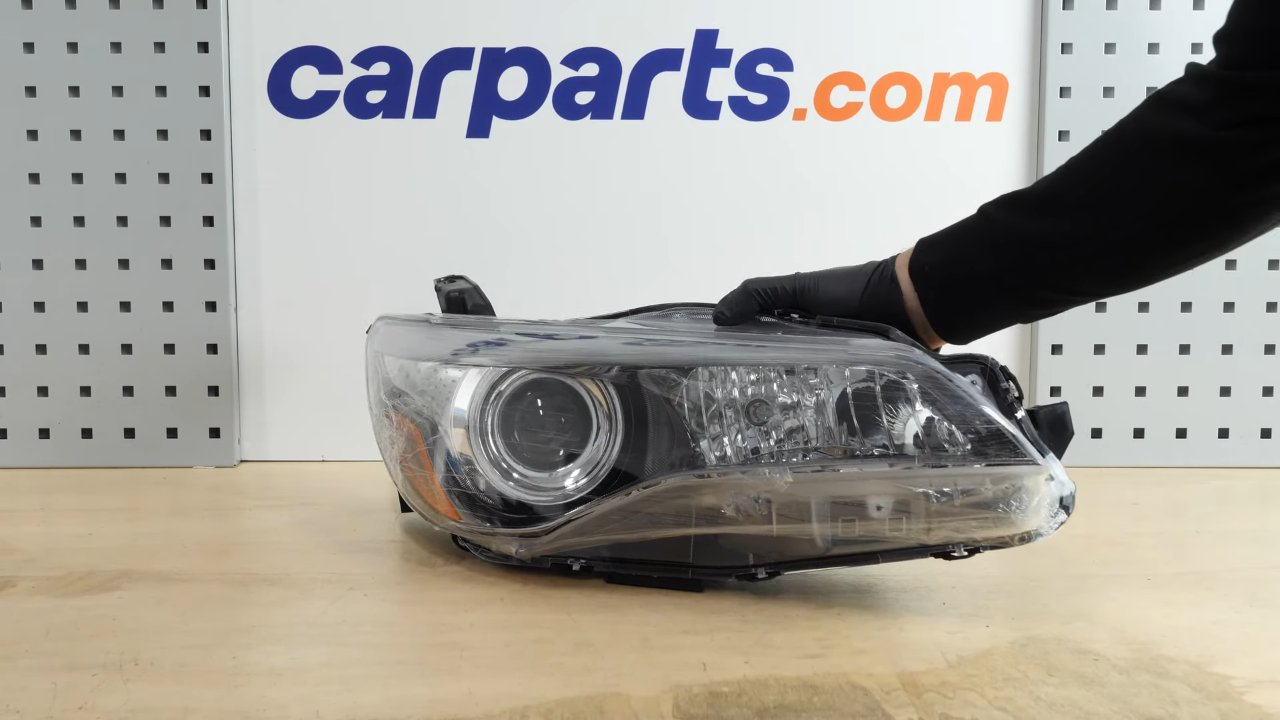

Take the new head light.All the bulbs are supplied with it.

Chapter 5:

Step 2/5

Put the electrical connectors of the lightbulbs and the electrical sheath back on.

Chapter 5:

Step 3/5

Put the light back in.

Chapter 5:

Step 4/5

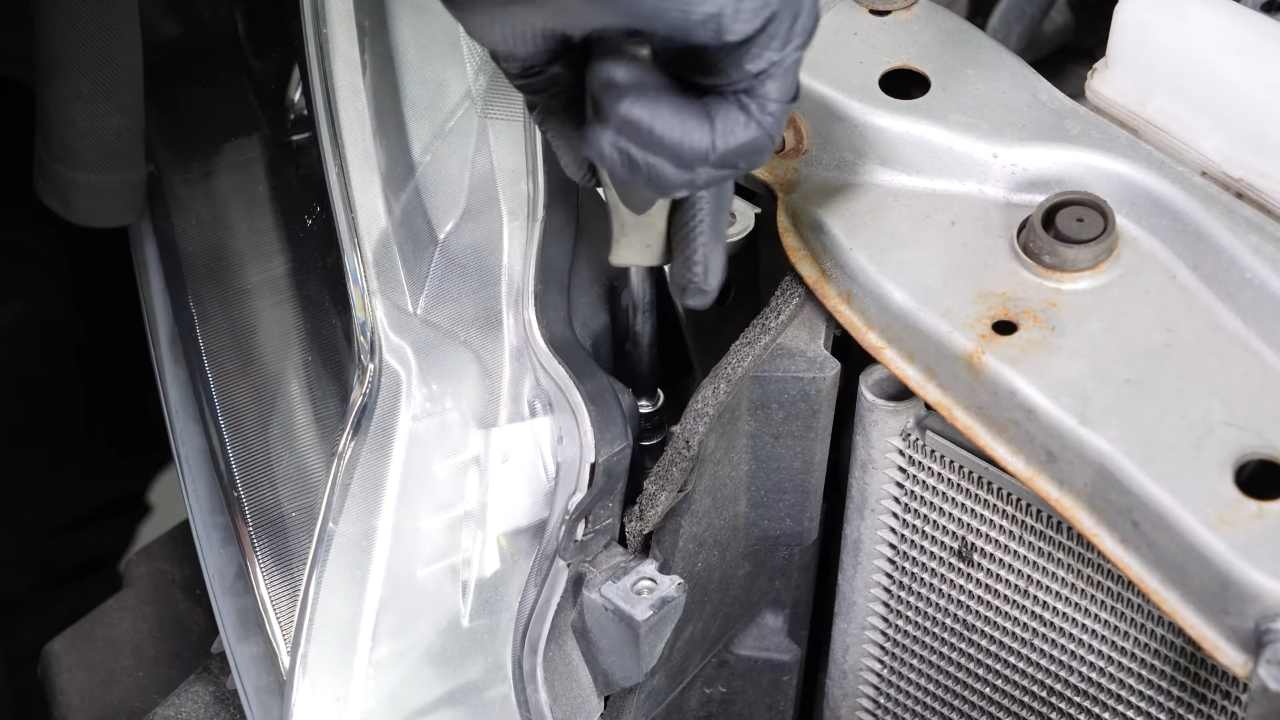

Screw the three headlight retaining bolts back on.

Chapter 5:

Step 5/5

Screw the bumper cover retainer bolt back on.

Chapter 6:

Finalise the reassembly

Step 1/3

Now you need to reinstall the front bumper cover.

Chapter 6:

Step 2/3

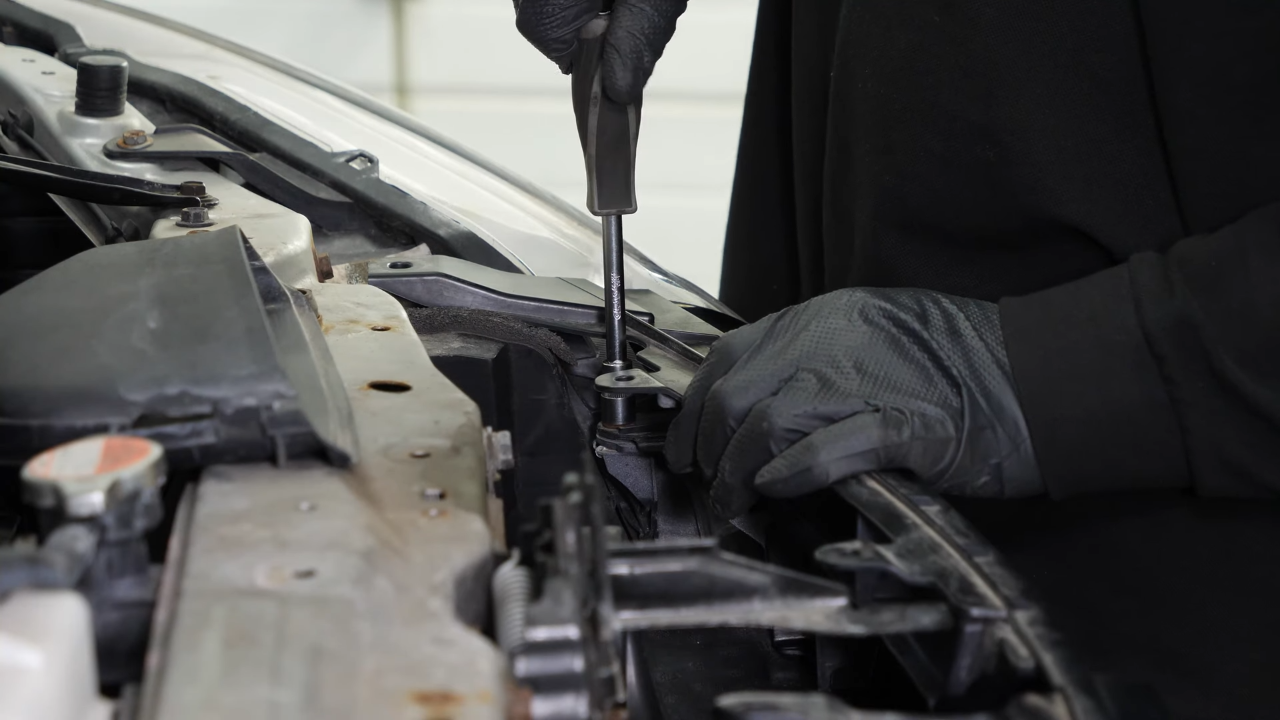

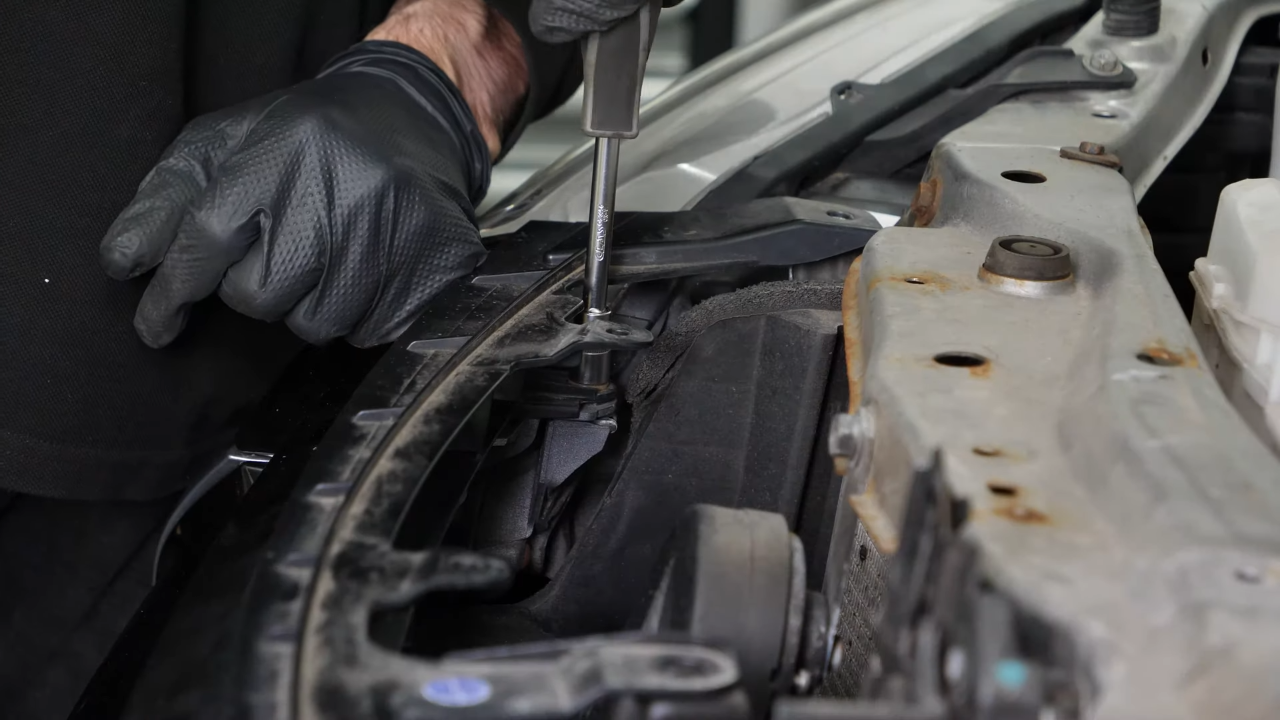

You can now screw the two bolts holding the grille back on.Then put the 3 rivets back in place.

Chapter 6:

Step 3/3

Put the plastic cover back on, then put the 9 rivets back on.

Chapter 7:

Put the vehicle back on the ground

Step 1/4

Then, you will be able to put the wheels back on your vehicle.

Chapter 7:

Step 2/4

Put your vehicle back on the ground before properly fixing the wheels in place.

Chapter 7:

Step 3/4

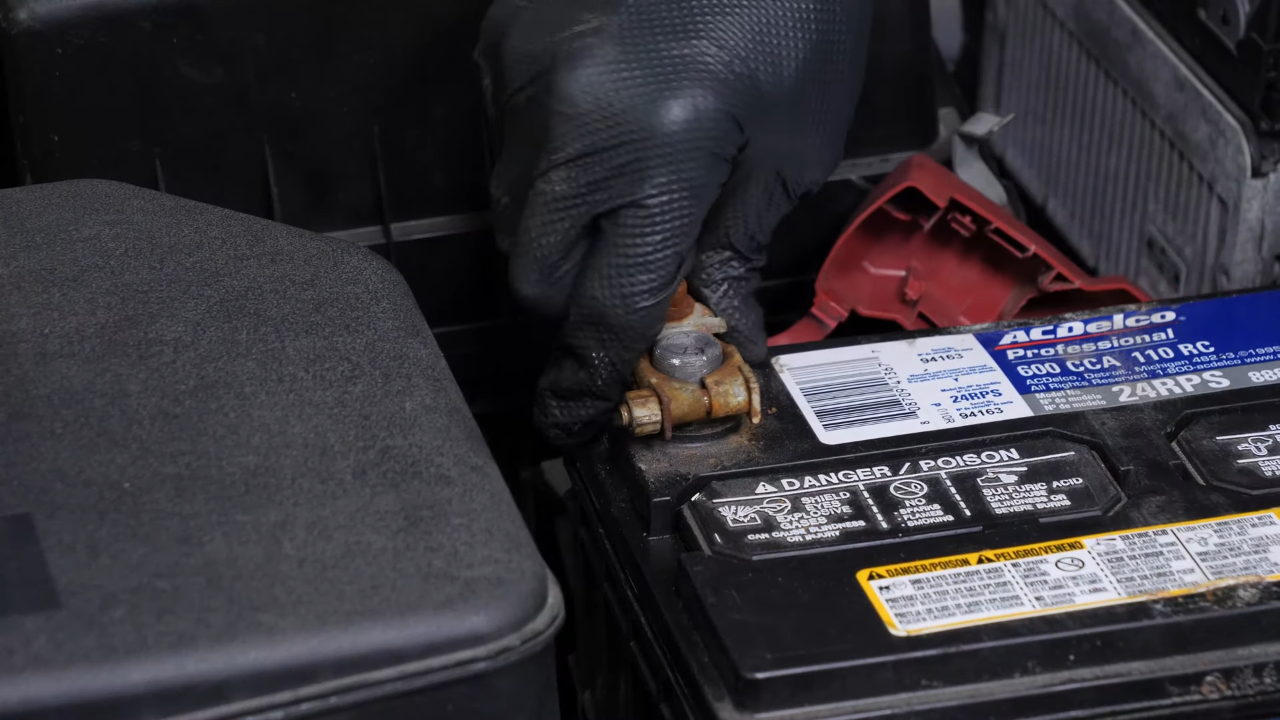

Reconnect the battery.

Chapter 7:

Step 4/4

Operation complete.
