How to replace the outer tie rod 2011-2017 Toyota Camry

To replace the outer tie rod on your Camry It’s easy. You will be asked to lift the vehicle, take off the wheels, loosen the locknut as well as carry out a few other steps. You can follow this tutorial of 12 chapters in 45 minutes. Take your 19 mm wrench and your ball joint puller and let’s get started!

Duration

45 minutes

Number of steps

12

Difficulty out of 5

2

Average savings

$60

Parts You Will Need

Tools You Will Need

Step-by-Step Installation

Chapter 1:

Set up

Step 1/2

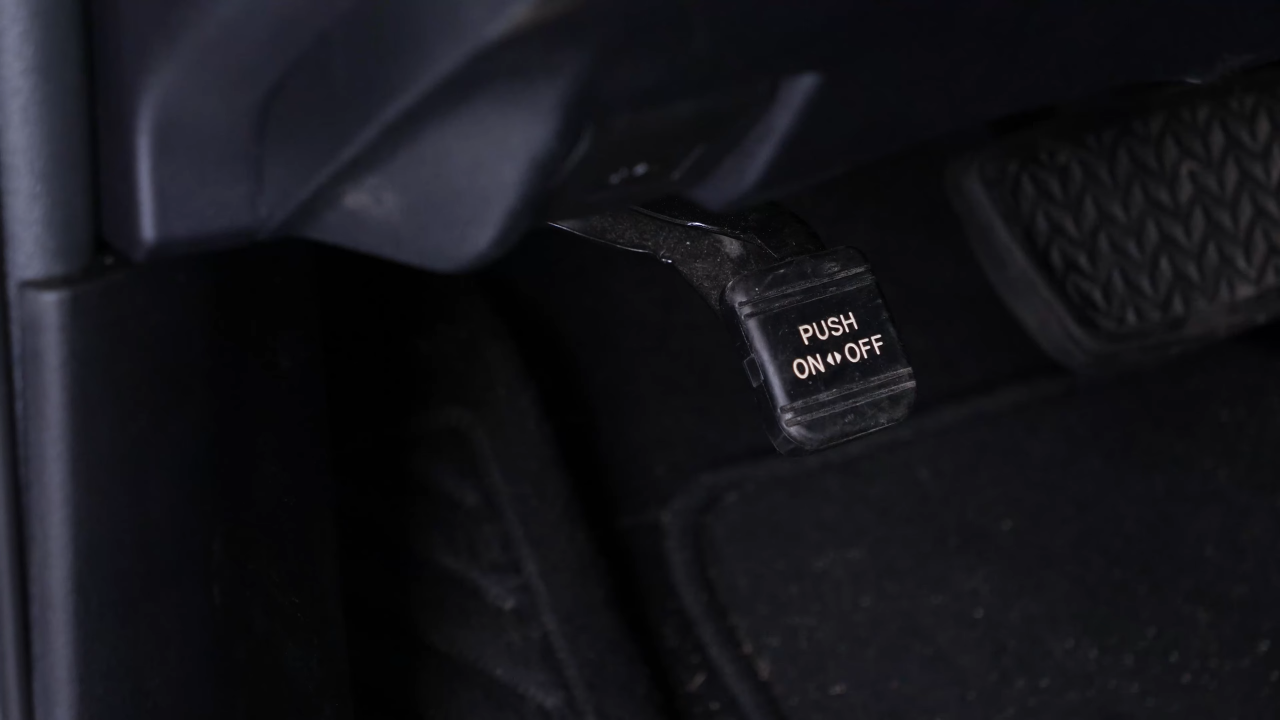

Turn your engine off and set the parking brake.

Chapter 1:

Step 2/2

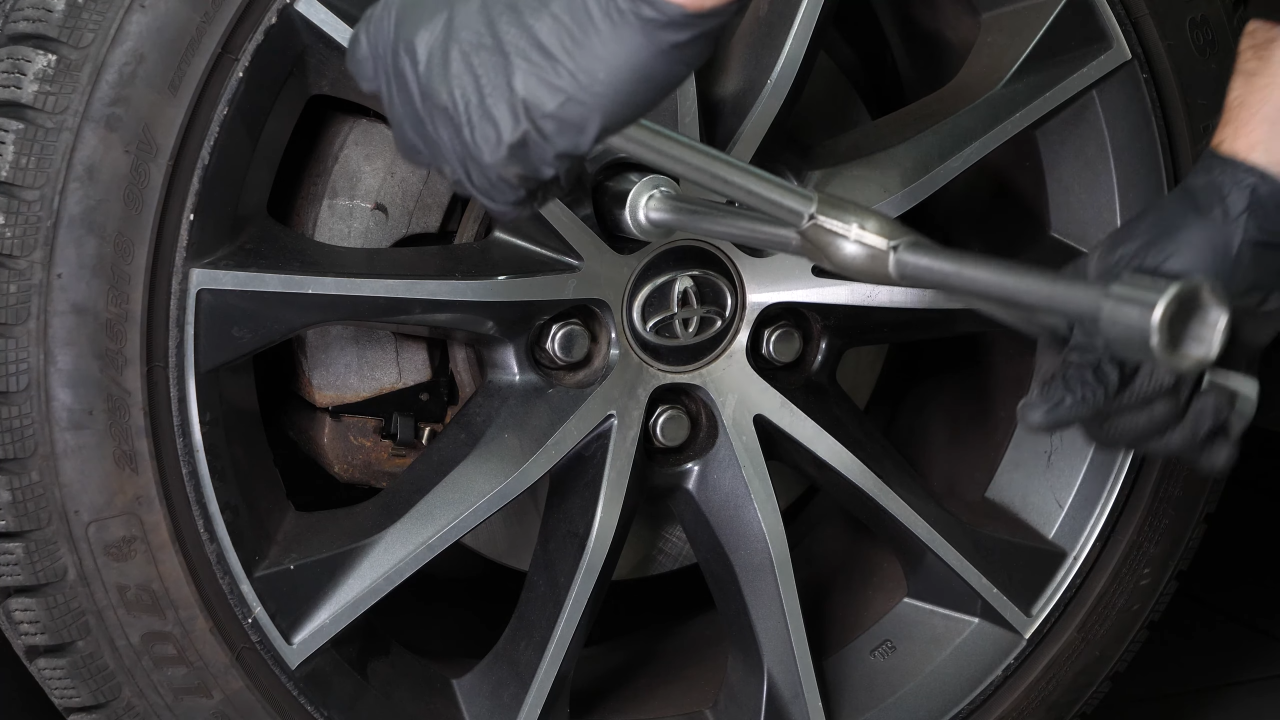

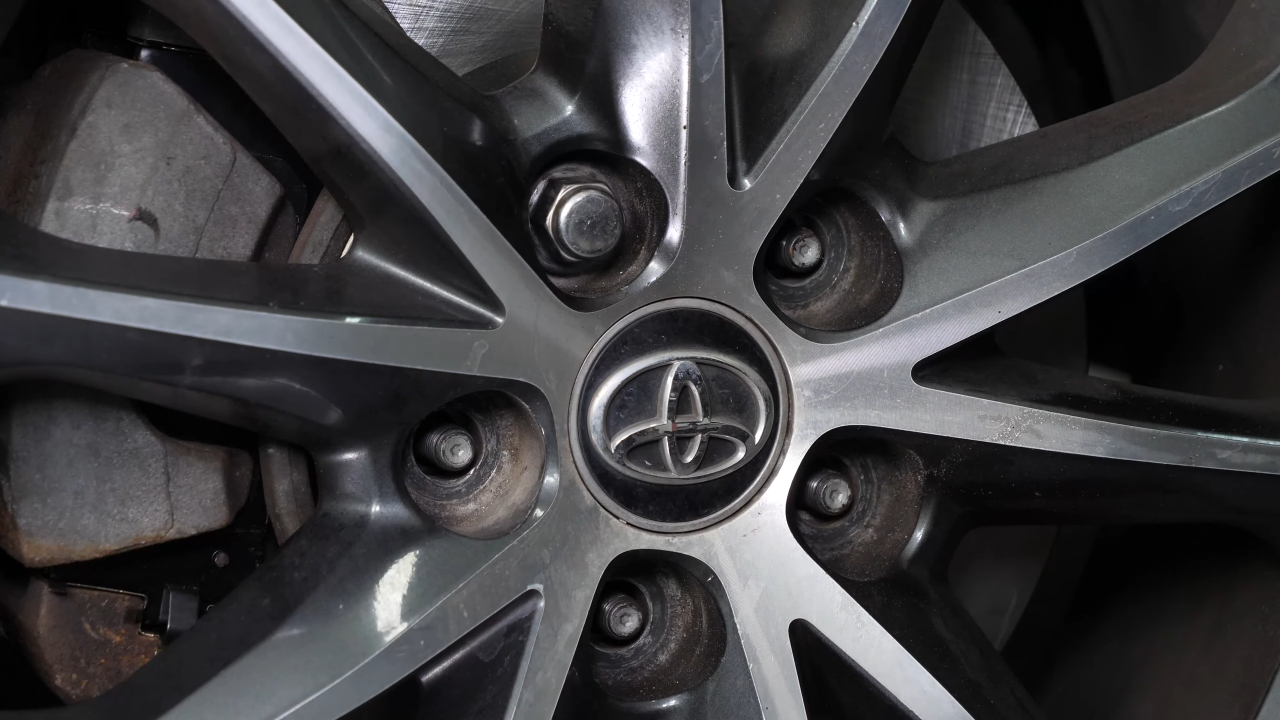

Loosen the stud bolts on the front wheels.

Chapter 2:

Lift the vehicle

Step 1/3

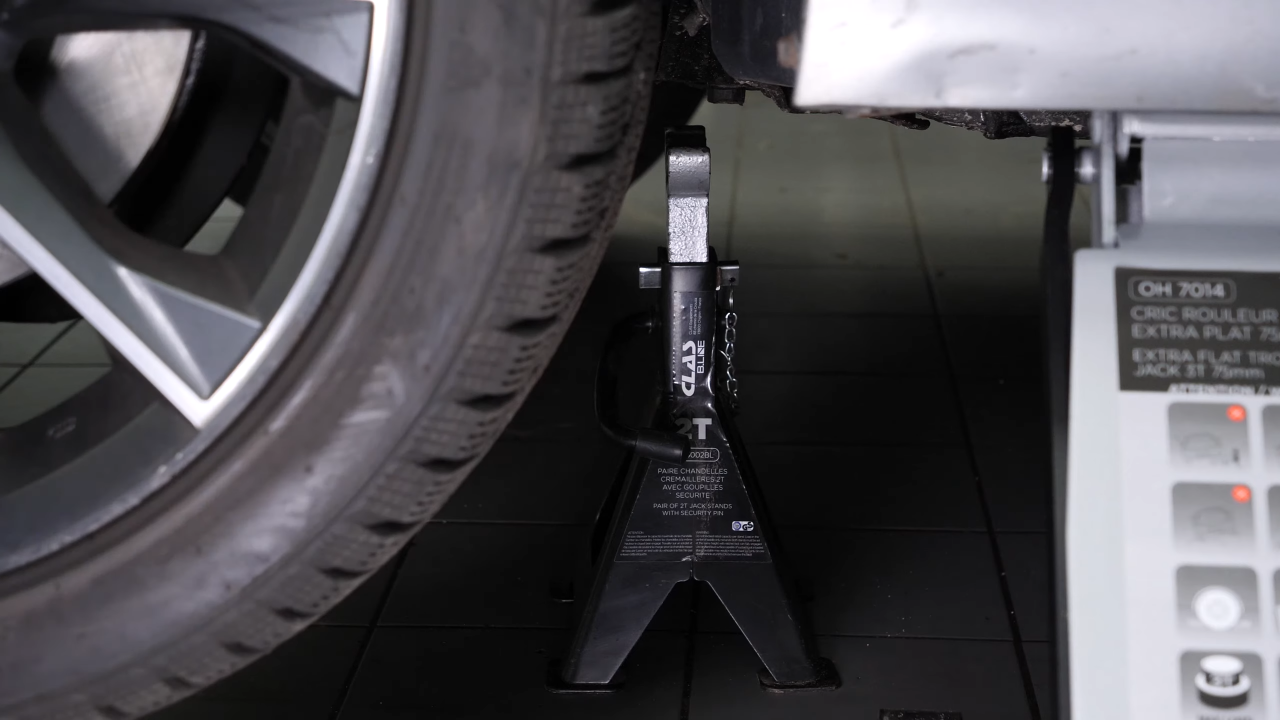

Lift the front of your vehicle. Place the vehicle on the jack stands.

Chapter 2:

Step 2/3

Don’t forget to put the wheels under the vehicle!

Chapter 2:

Step 3/3

Turn the brake disc inward to make this operation easier. You can now see the outer tie rod.

Chapter 3:

Tips

Step 1/2

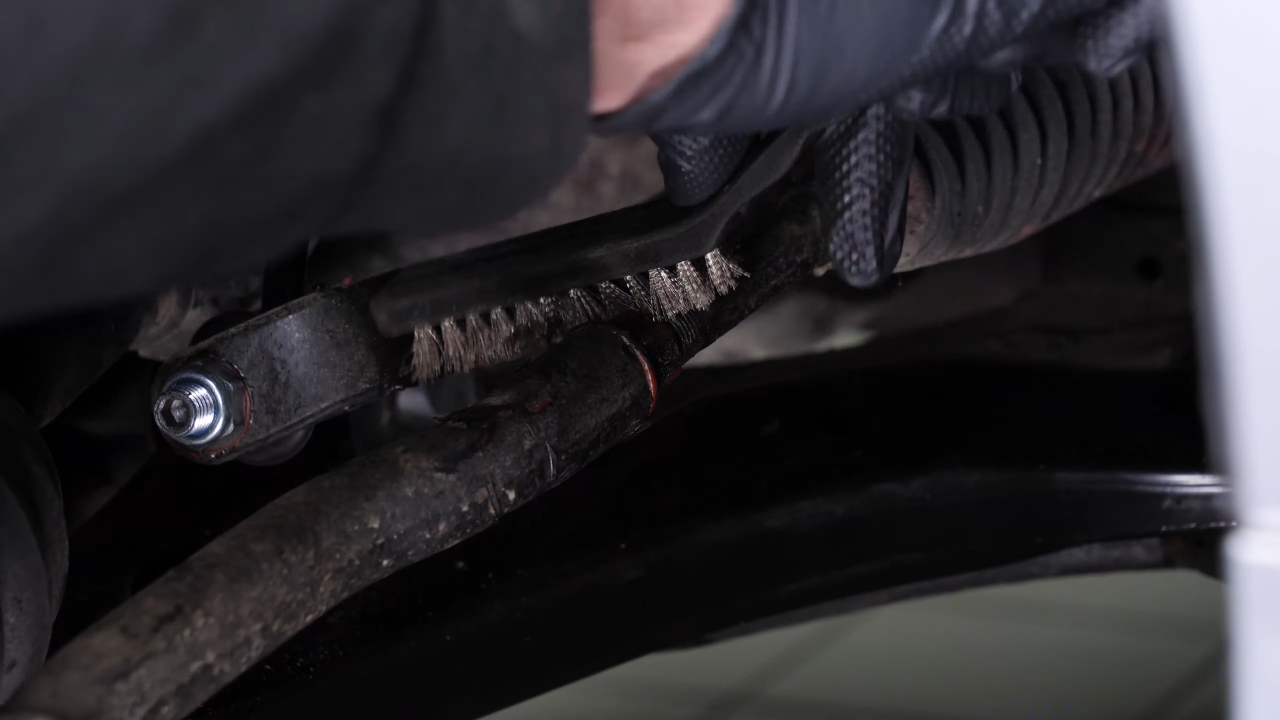

The components to be removed are very often seized up, so don’t hesitate to brush and to use penetrating oil to make removal easier.

Chapter 3:

Step 2/2

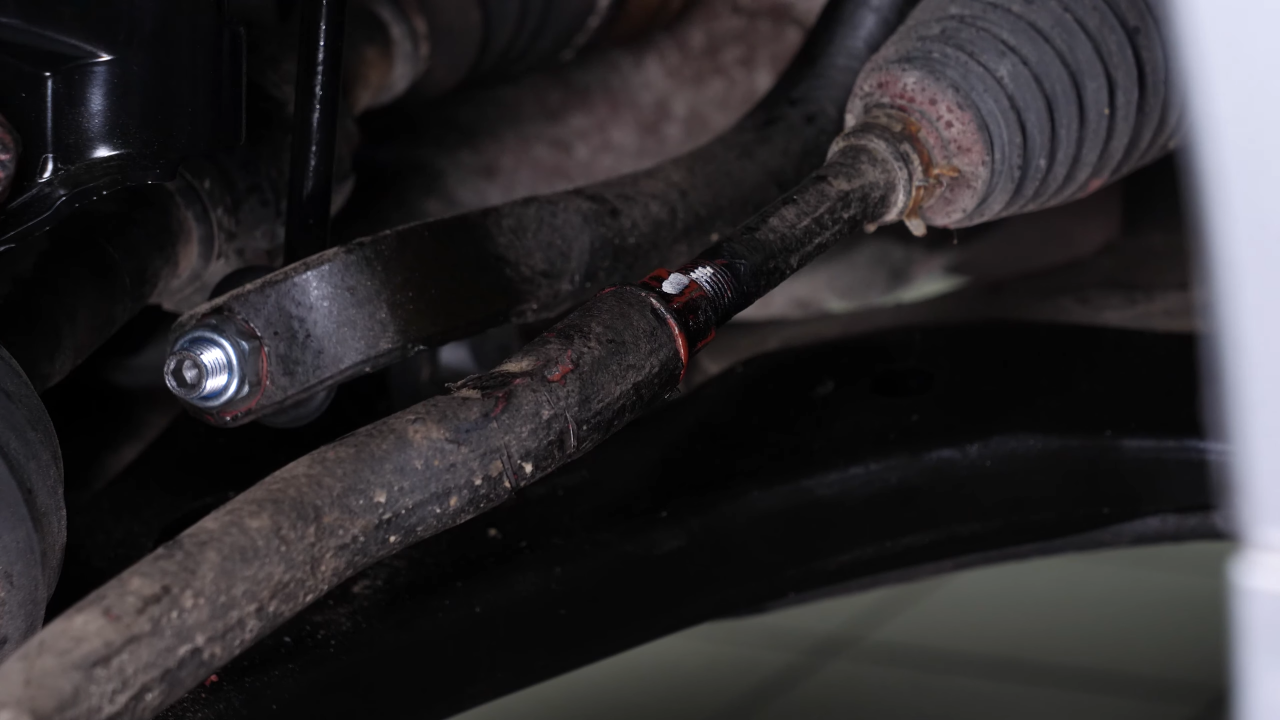

With a marker, trace a line between the inner tie rod and the outer tie rod.This will be useful later on during its assembly and disassembly.

Chapter 4:

Loosen the locknut

Step 1/2

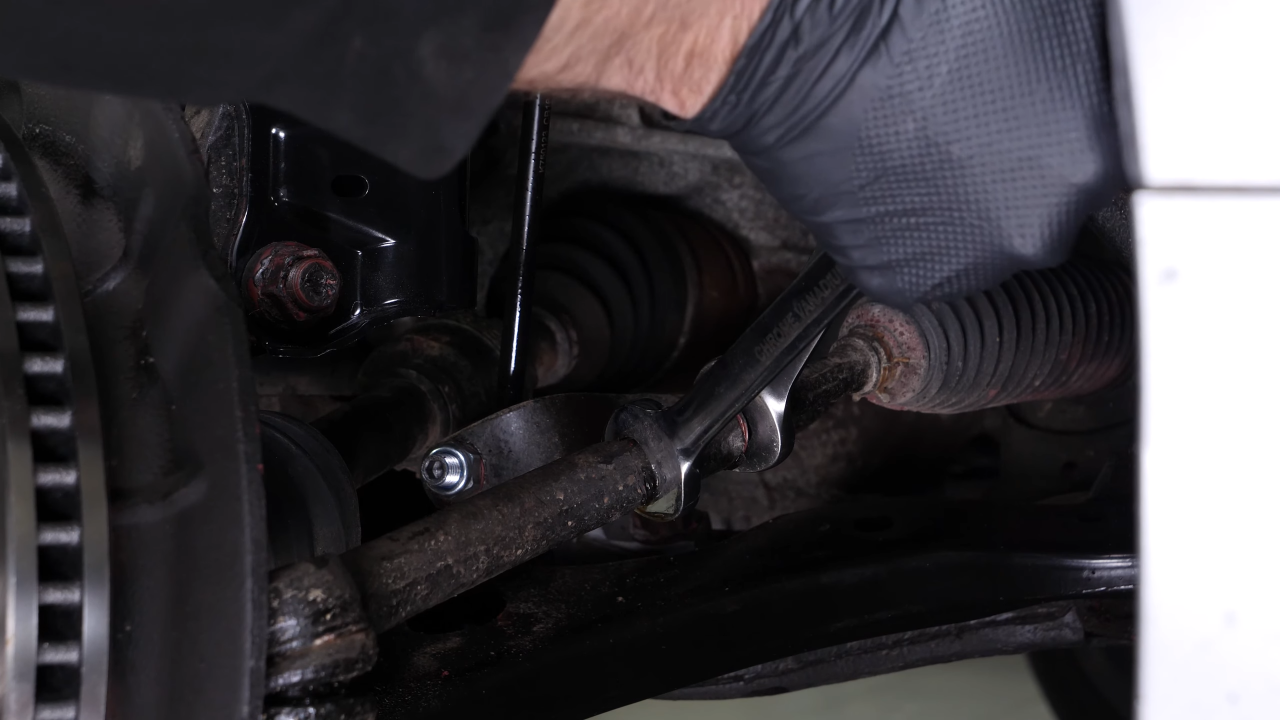

With a 19mm wrench, loosen the locknut on the outer tie rod. Hold the inner tie rod with a 20mm wrench to prevent it from turning.

Chapter 4:

Step 2/2

The locknut is there to prevent any rotation of the two parts towards each other which could have an impact on the wheel alignment of your vehicle.

Chapter 5:

Loosen the holding nut

Step 1/3

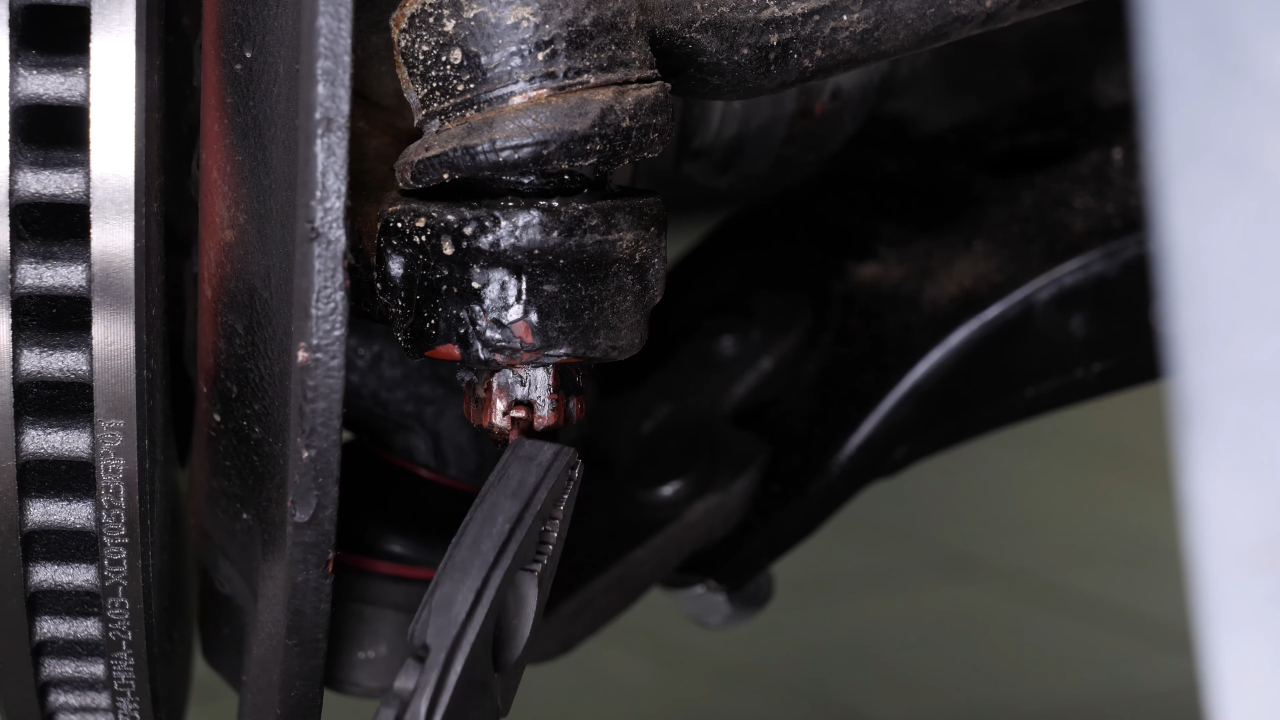

Remove the key from the castellated nut of the outer tie rod with pliers.

Chapter 5:

Step 2/3

Using a wire brush, brush the castellated nut and spray it with penetrating oil.

Chapter 5:

Step 3/3

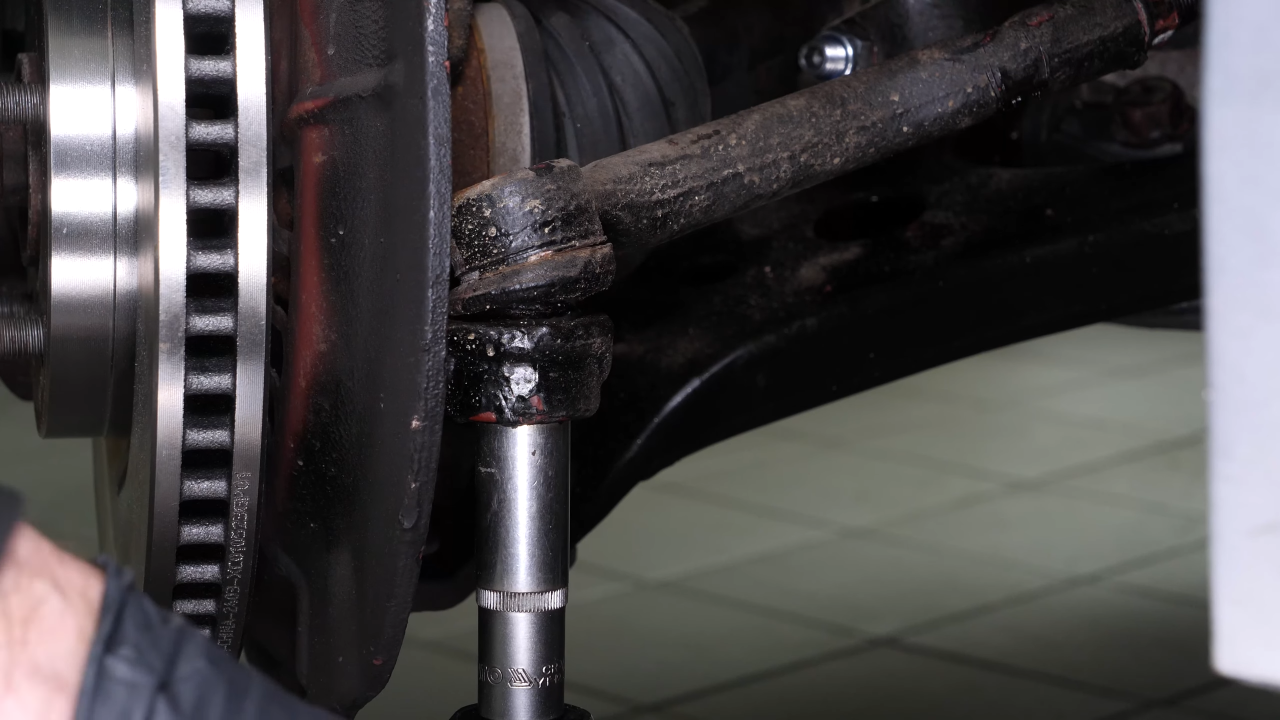

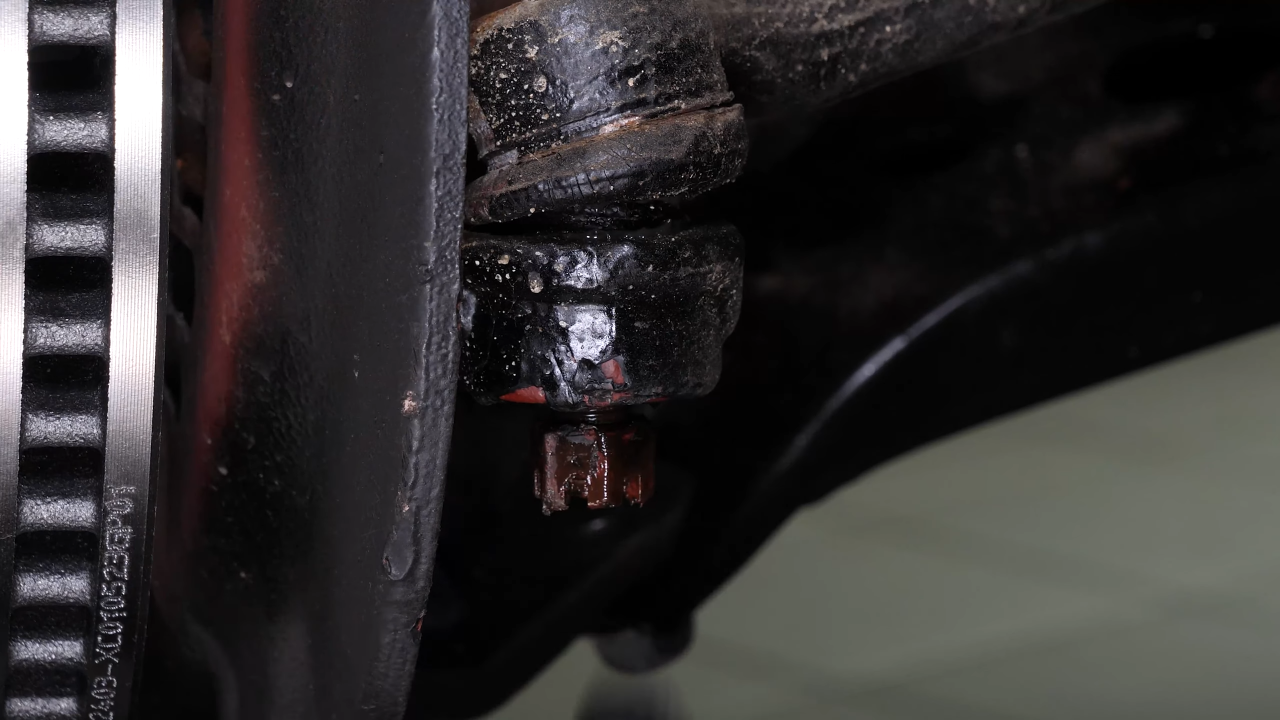

Using a socket wrench and a 17mm socket, unscrew the outer tie rod holding nut.

Chapter 6:

Remove the outer tie rod

Step 1/3

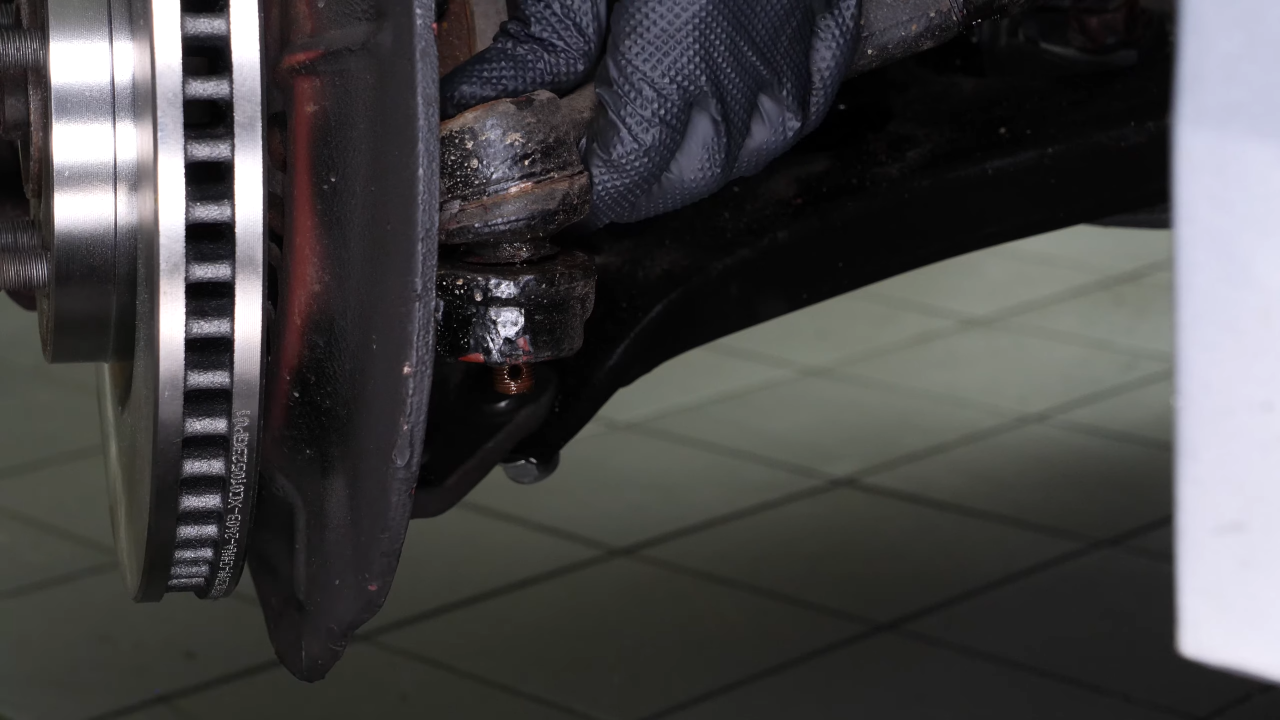

If you do not have a ball joint puller, a tool specifically designed for this task, take a hammer and hit the knuckle.

Chapter 6:

Step 2/3

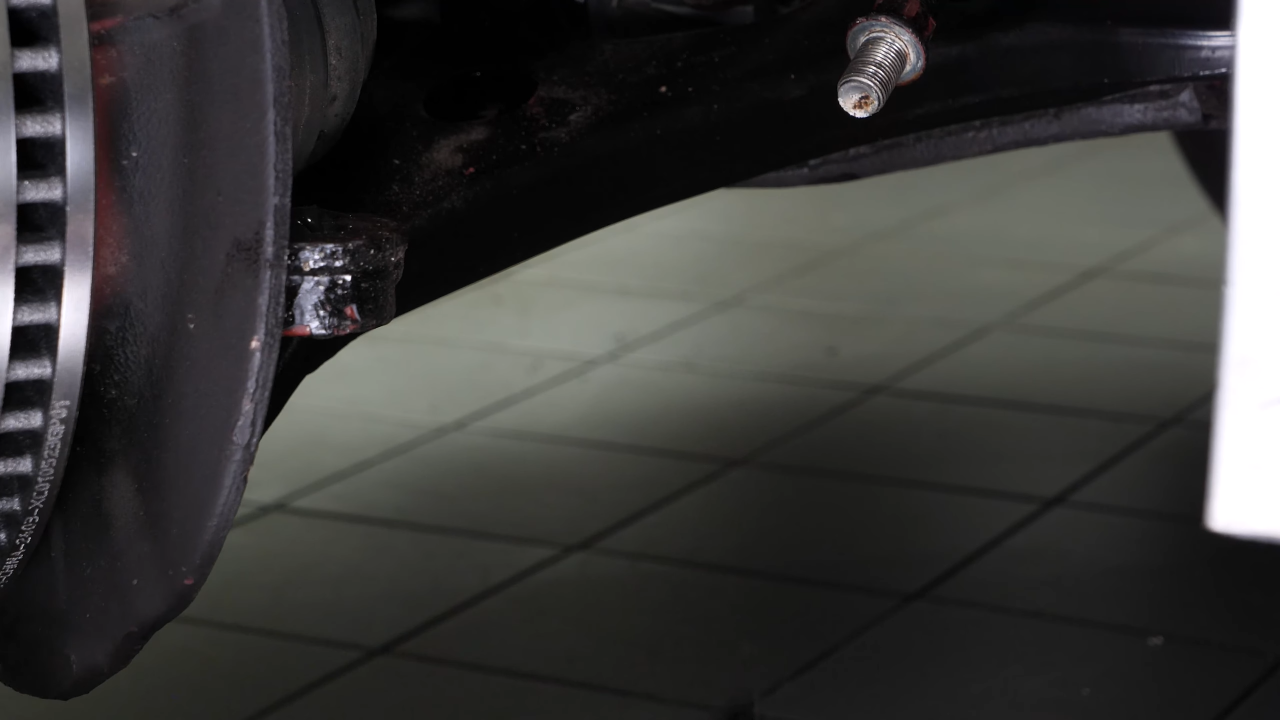

The ball joint should come out of the knuckle.

Chapter 6:

Step 3/3

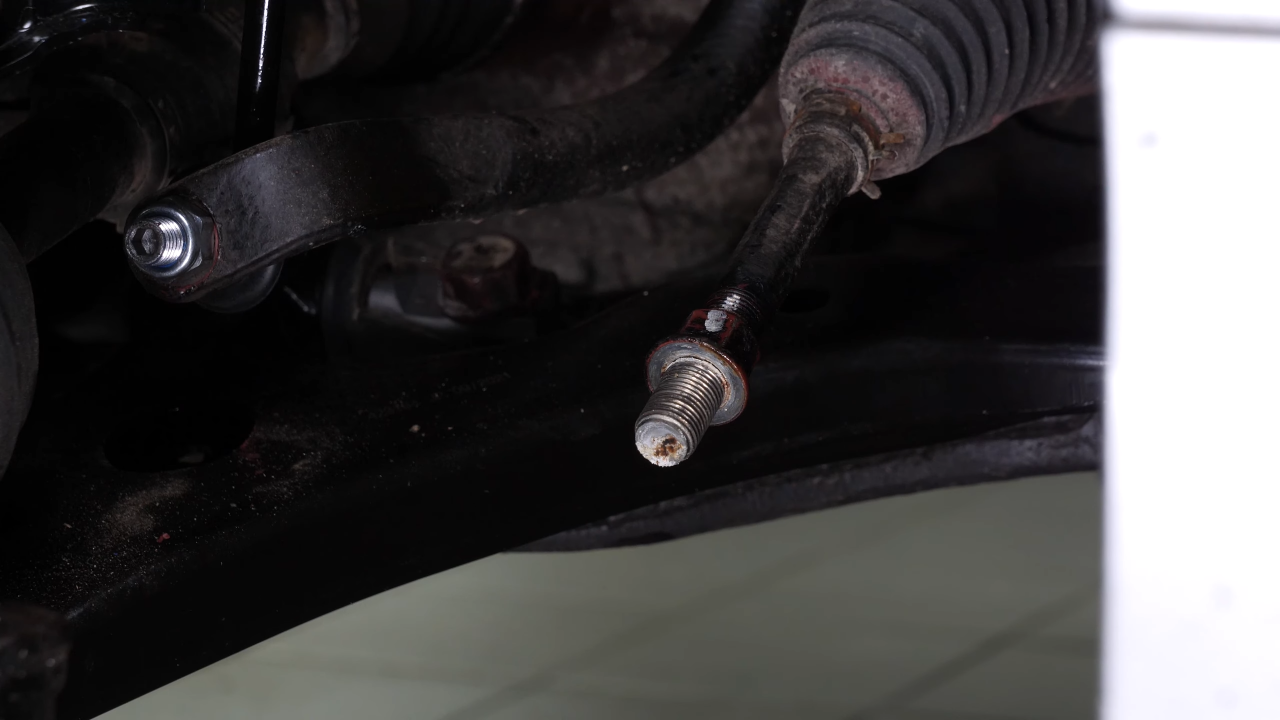

Unscrew the outer tie rod and remove it.

Chapter 7:

Measure

Step 1/2

Use the markings made with the marker to return the locknut to its original position.

Chapter 7:

Step 2/2

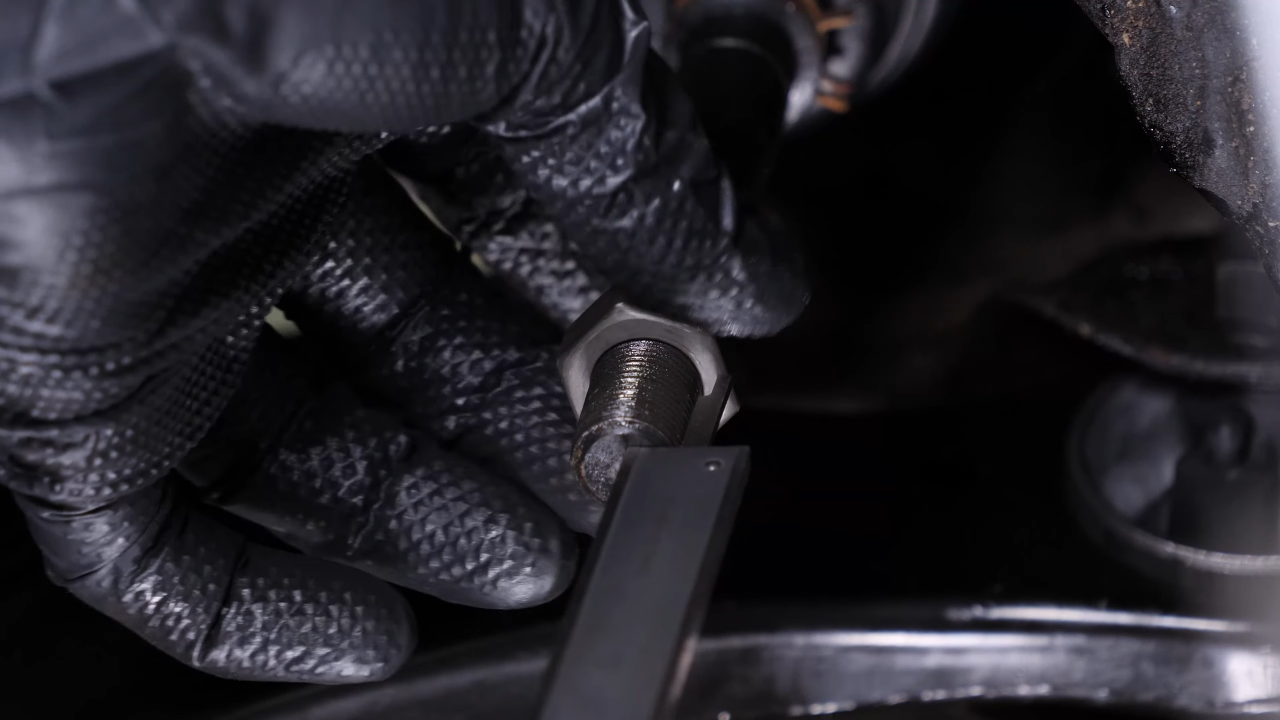

Then, measure the distance between the locknut and the end of the inner tie rod using a caliper.

Chapter 8:

Install the locknut

Step 1/2

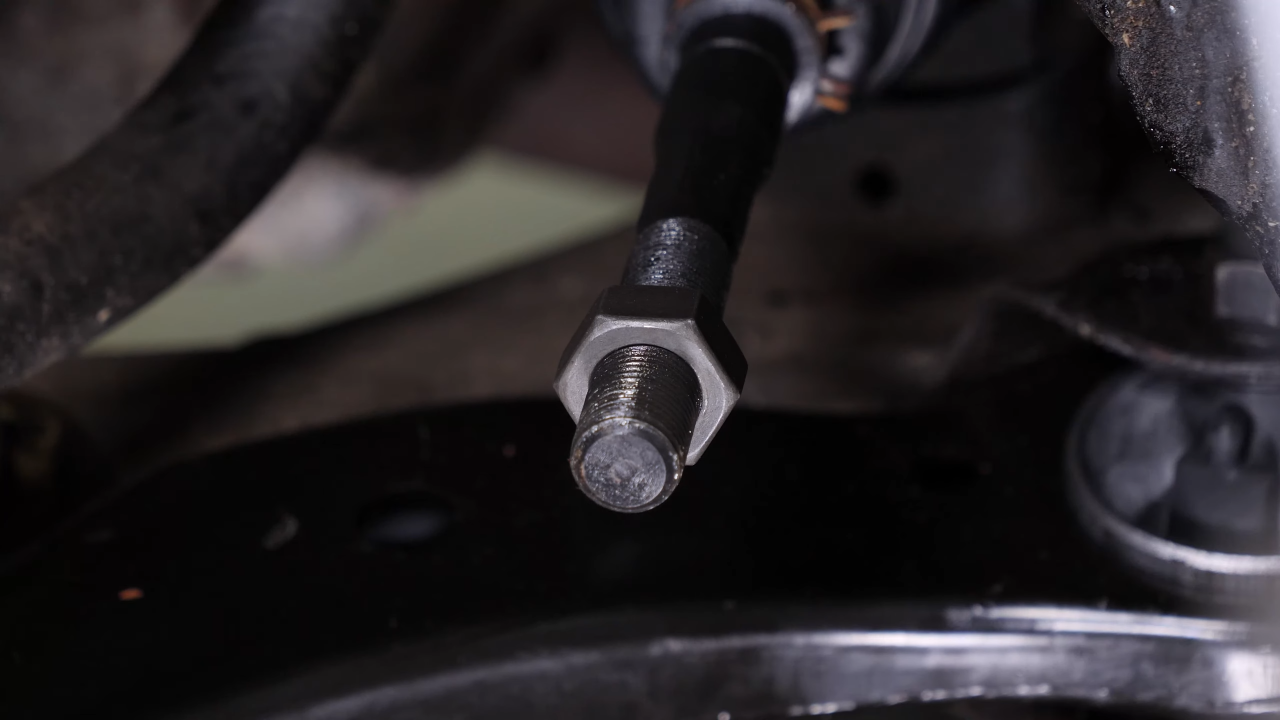

Screw the locknut back on until the distance measured with the caliper is reached.

Chapter 8:

Step 2/2

Apply silicone grease to the flat part that will be in contact with the sleeve of the outer tie rod.Do not grease the inside of the cone.

Chapter 9:

Put the outer tie rod back

Step 1/2

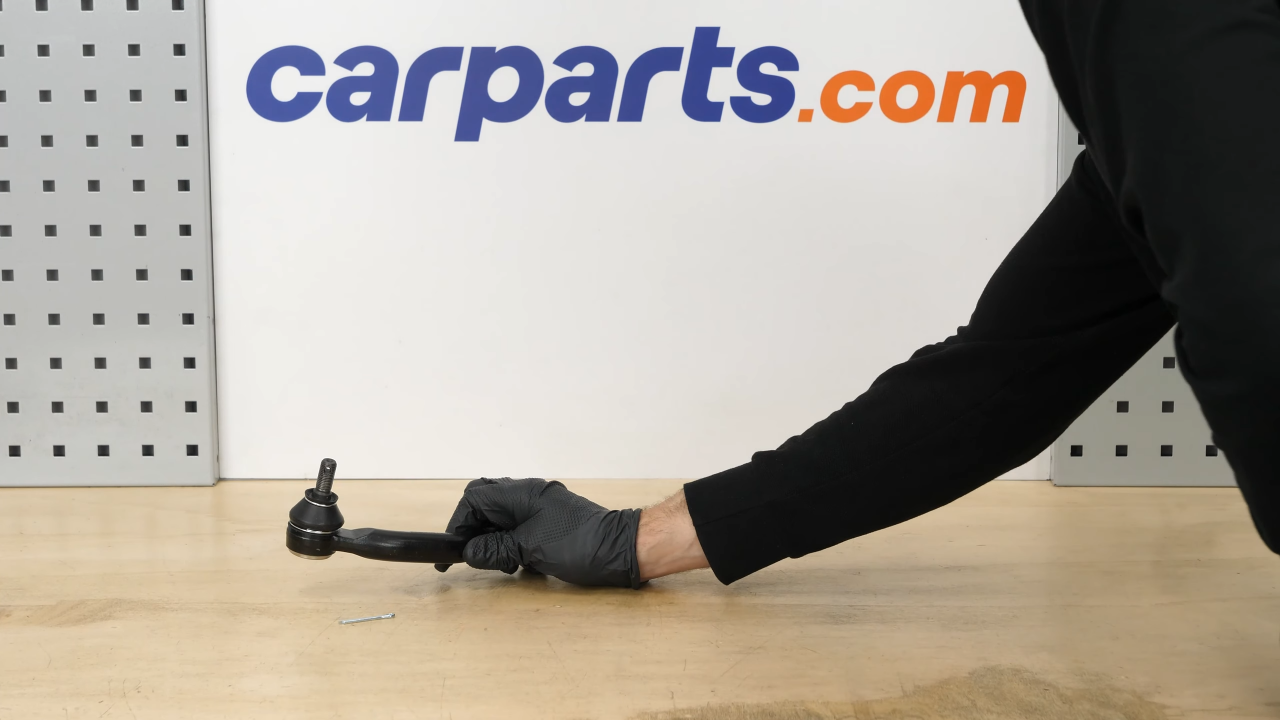

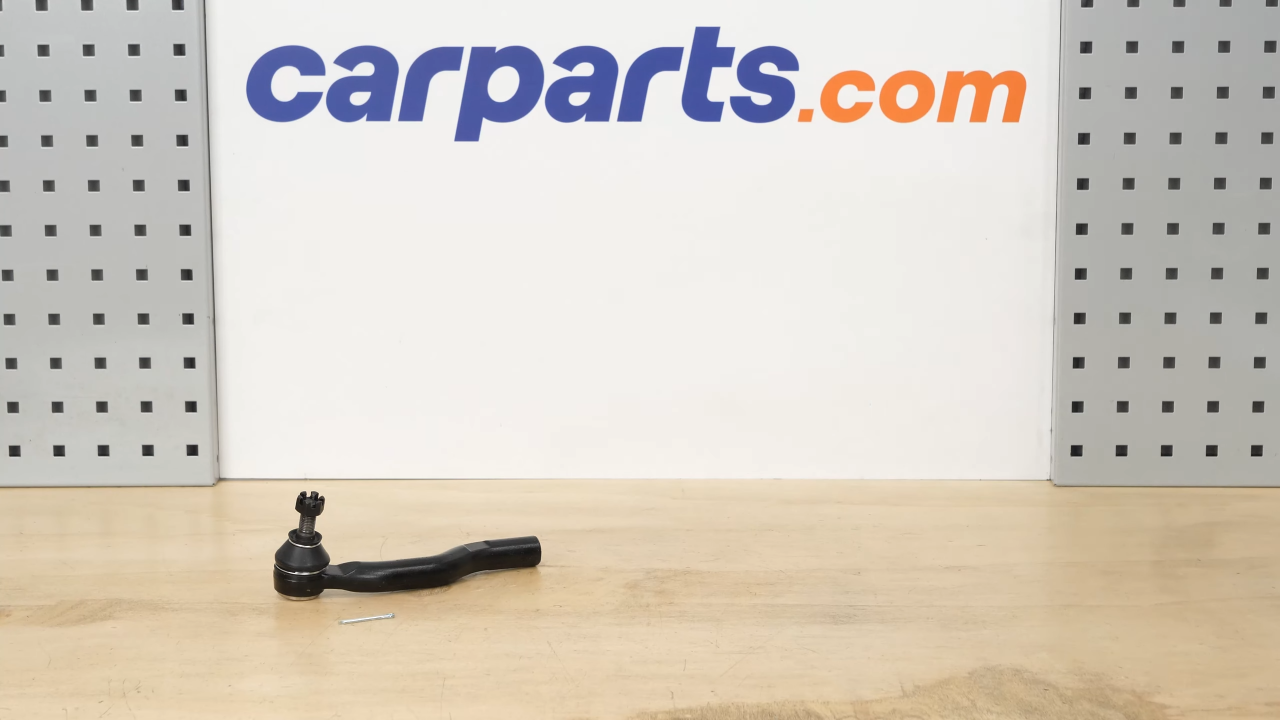

Take the new outer tie rod and unscrew the locknut supplied with it.

Chapter 9:

Step 2/2

Put the outer tie rod back in place until it touches the locknut.

Chapter 10:

Install the outer tie rod holding nut

Step 1/3

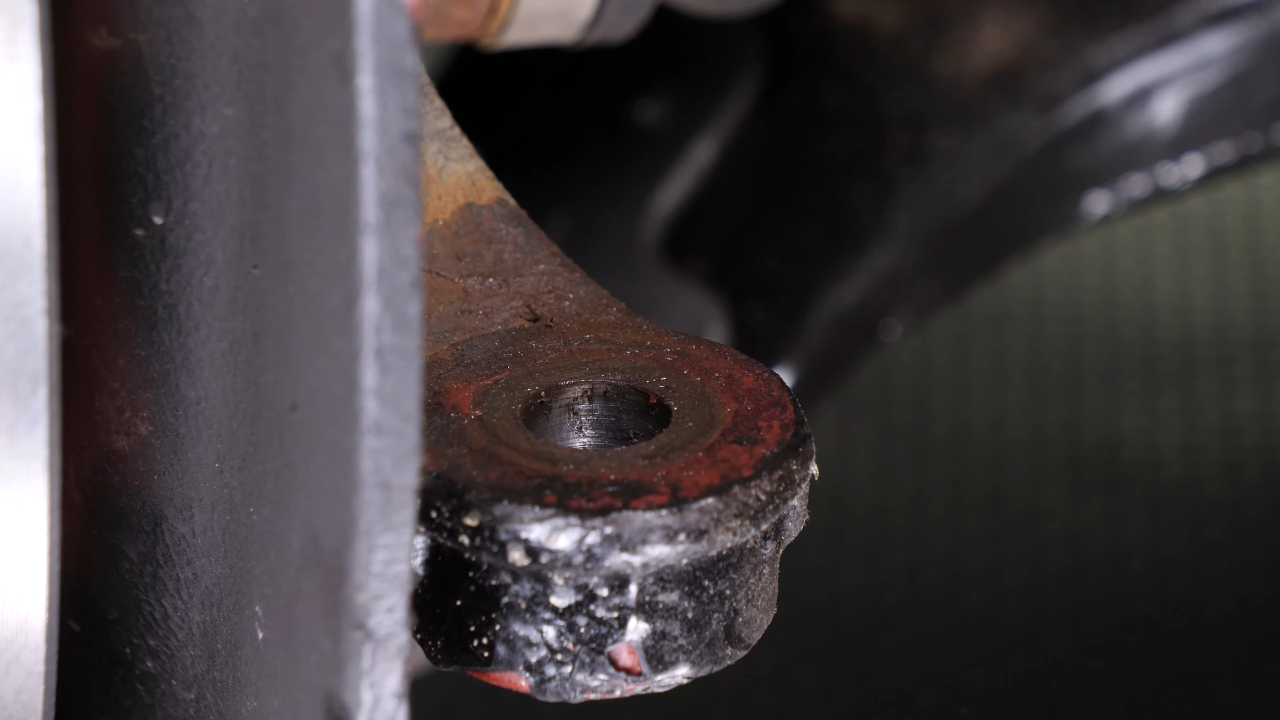

Put the outer tie rod back in place in the knuckle.

Chapter 10:

Step 2/3

Put the castellated nut supplied with the new part in place and tighten it using a 19mm wrench.

Chapter 10:

Step 3/3

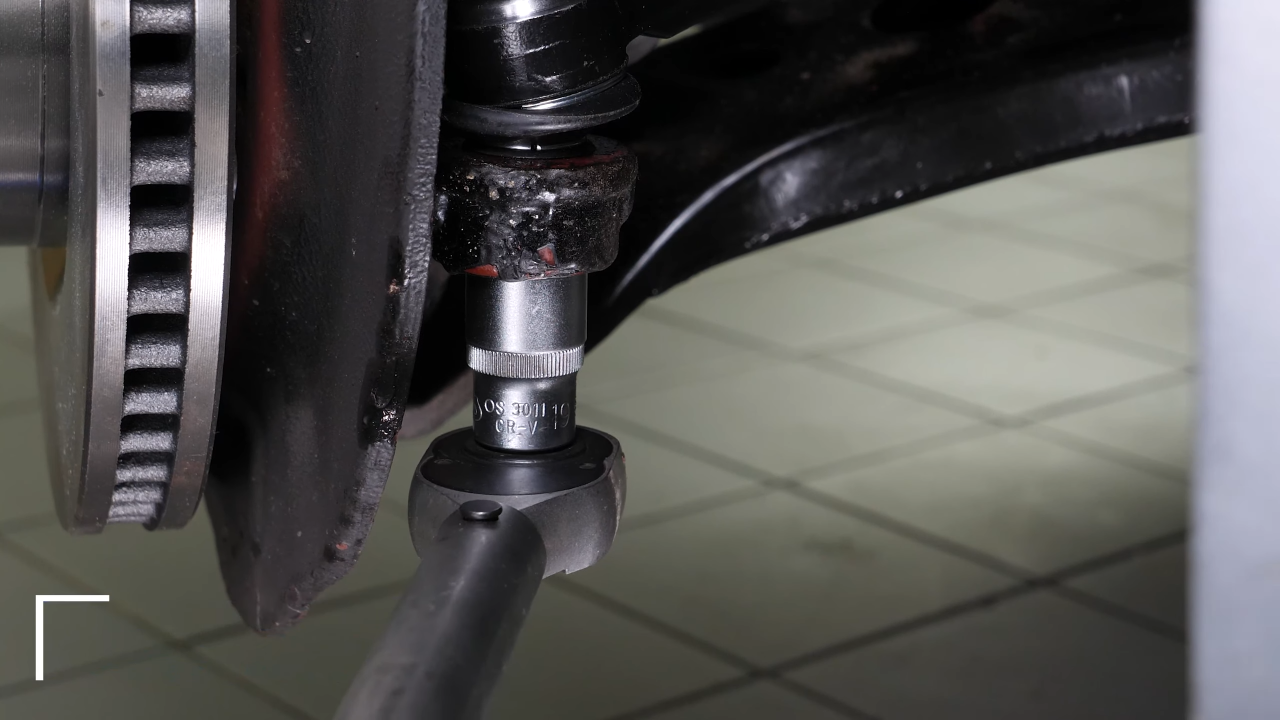

Finish tightening using a torque wrench.

Chapter 11:

Finalise the tightening of the locknut

Step 1/3

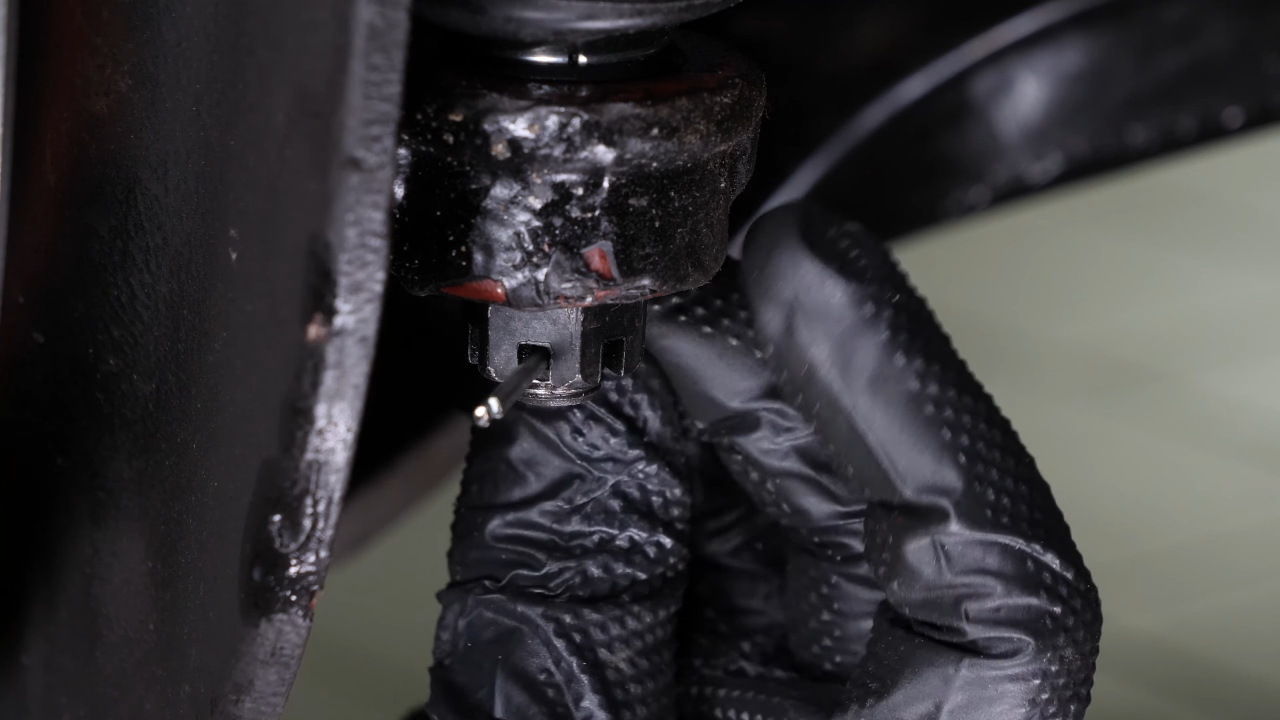

Take the cotter pin and fit it into the castle nut.

Chapter 11:

Step 2/3

Use a screwdriver to bend the cotter pin.

Chapter 11:

Step 3/3

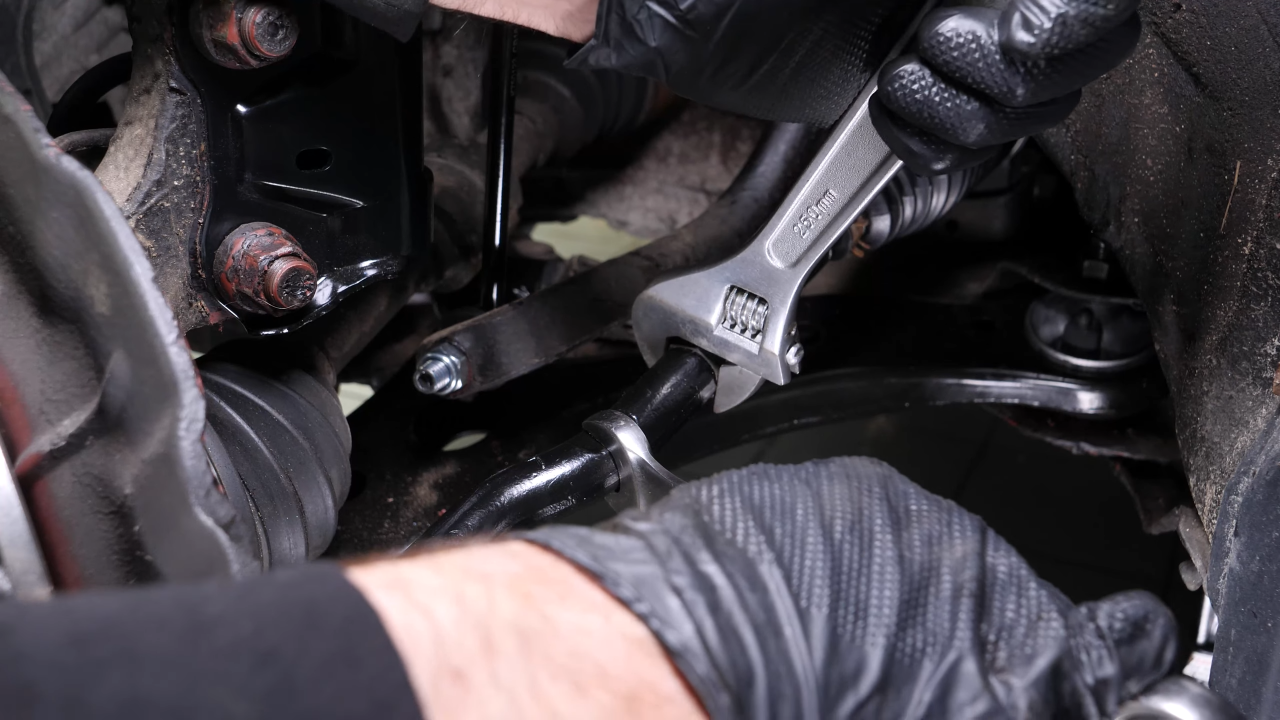

Finish tightening the locknut using an adjustable wrench by holding the inner tie rod still with the help of a 19mm wrench to avoid damaging the tie rod.

Chapter 12:

Put the vehicle back on the ground

Step 1/4

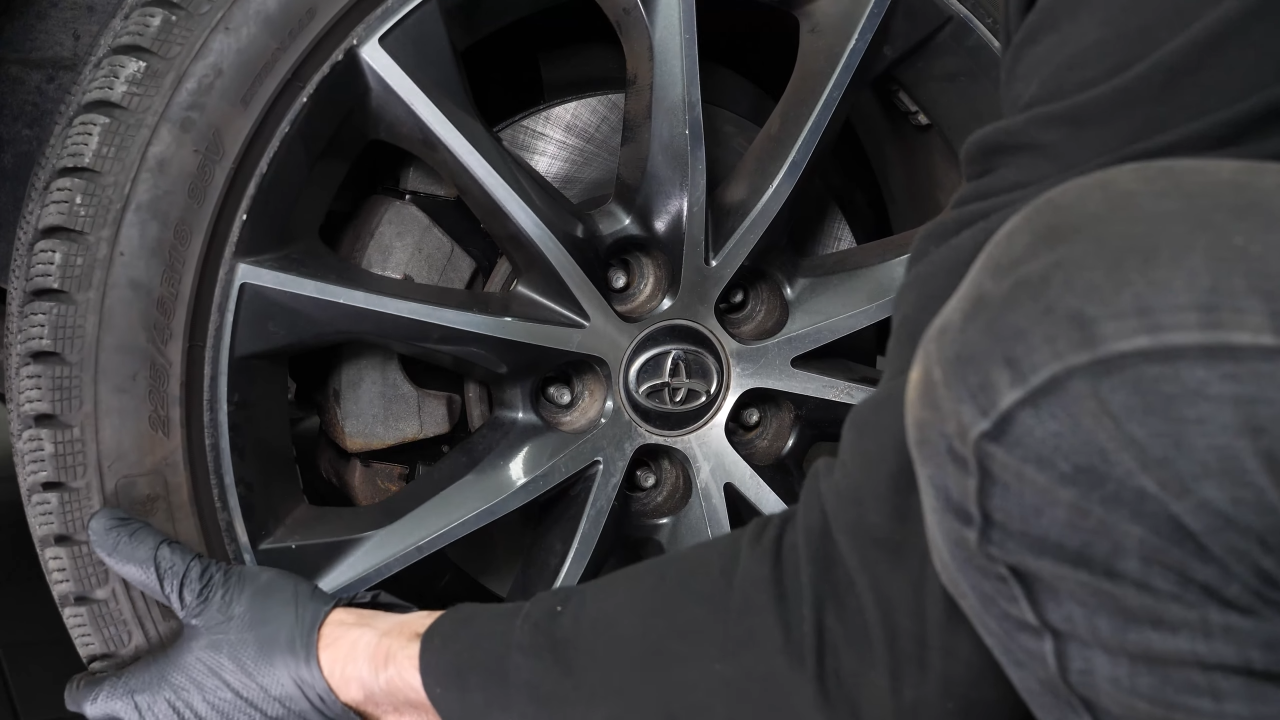

Then, you will be able to put the wheels back on your vehicle.

Chapter 12:

Step 2/4

Put the car back on the ground and block the wheels properly.

Chapter 12:

Step 3/4

During this operation, you will work on the steering system of your vehicle. A professional alignment check should be performed to ensure that your steering system is once again perfectly adjusted and functioning.

Chapter 12:

Step 4/4

Operation complete.
