How to replace the radiator 2011-2017 Toyota Camry

Chapter 1:

Lift the vehicle

Step 1/3

Turn off your vehicle’s ignition, set the parking brake, pull the hood release handle and open the hood.

Chapter 1:

Step 2/3

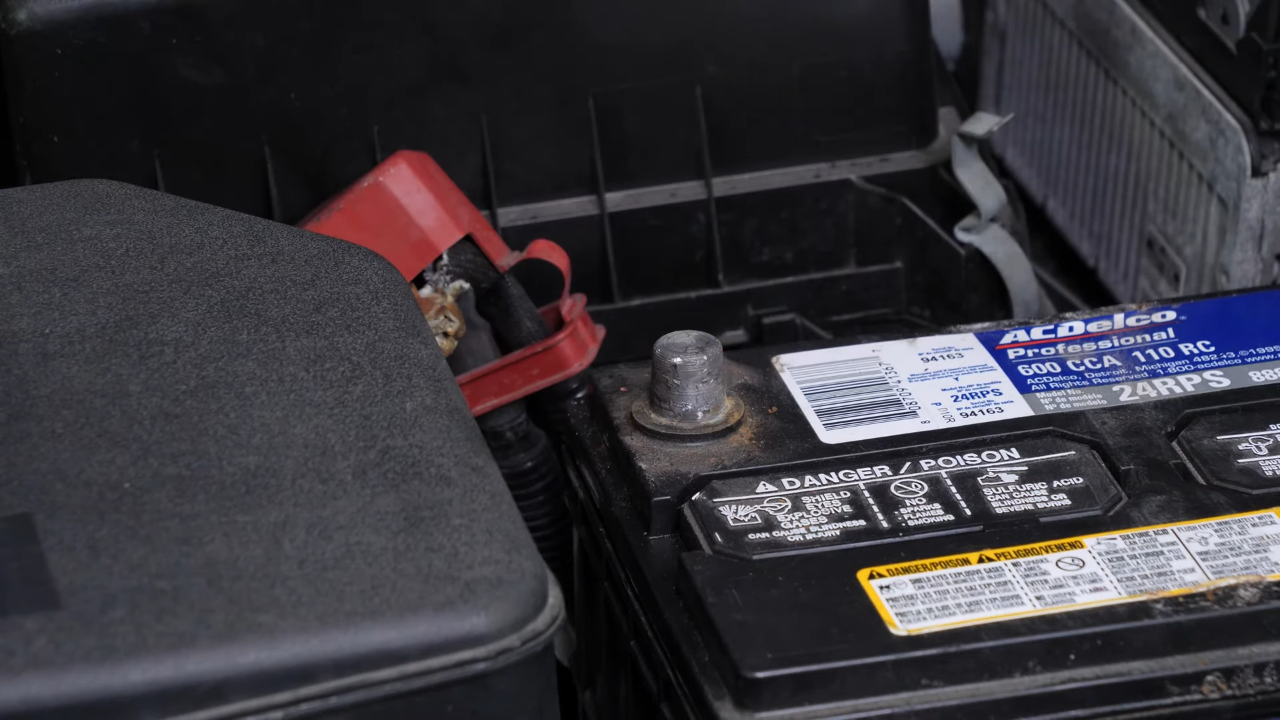

For safety reasons, we advise you to disconnect the battery.

Chapter 1:

Step 3/3

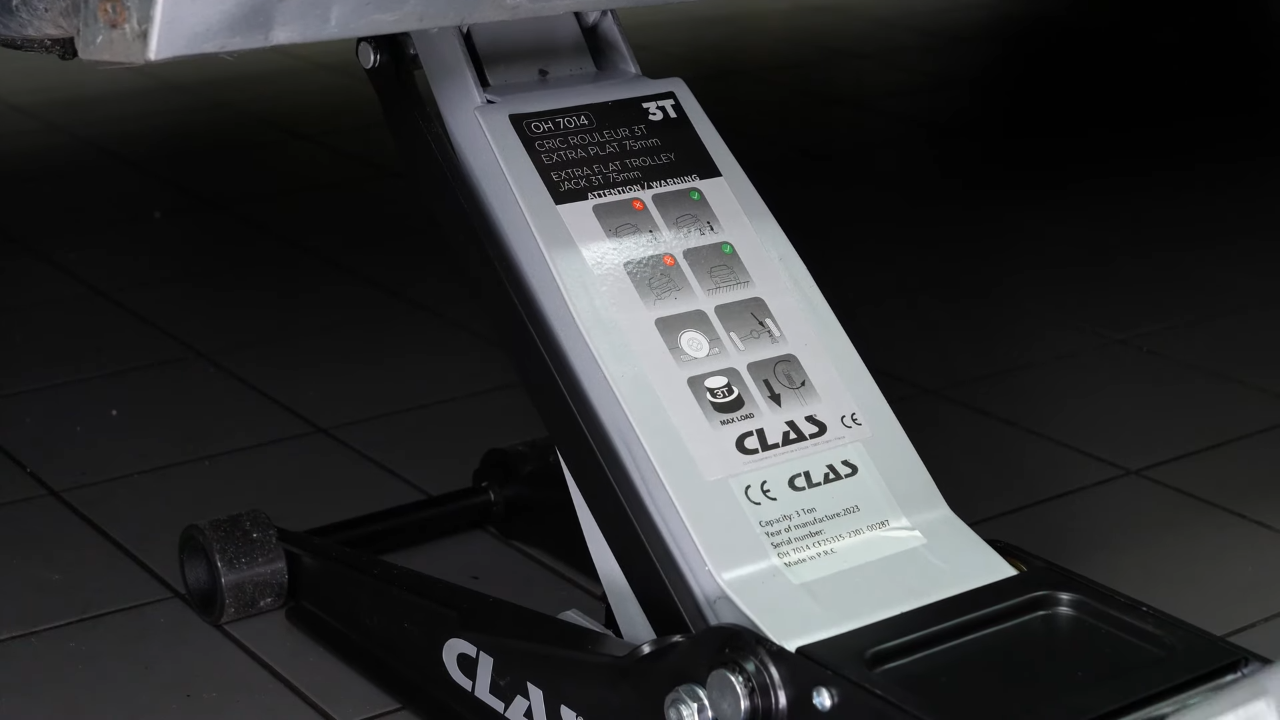

Lift the front of your vehicle. Place the vehicle on the jack stands.

Chapter 2:

Bleed the coolant

Step 1/4

You need to drain the coolant circuit. Get a fluid collection container to collect the coolant that will flow out.

Chapter 2:

Step 2/4

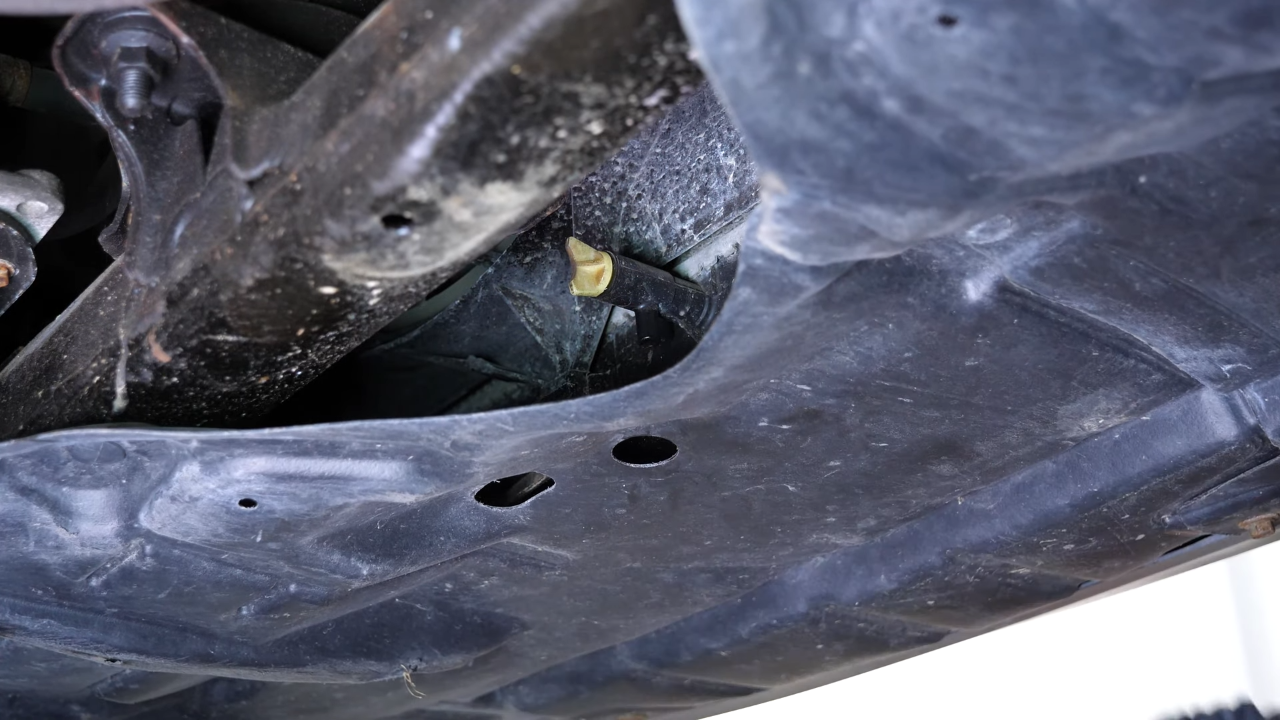

On this vehicle, the radiator is equipped with a bleed screw, which you access from the underside of the vehicle, on the driver side.

Chapter 2:

Step 3/4

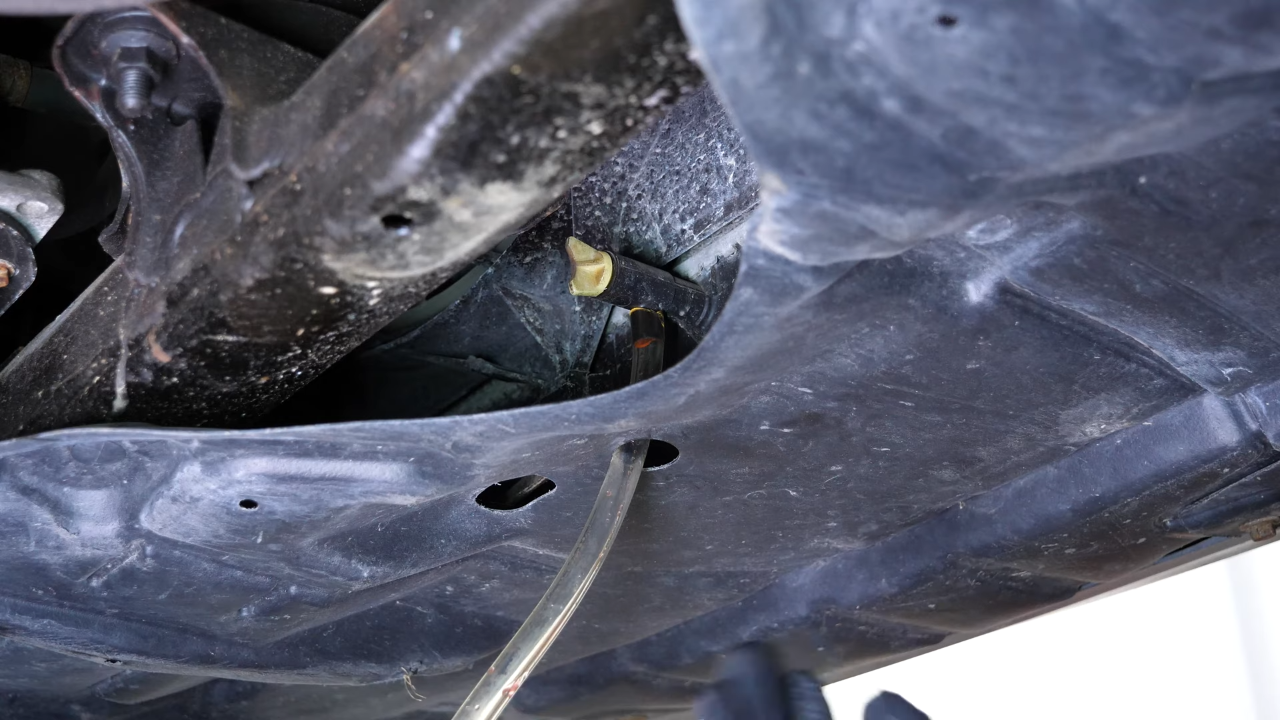

Connect a plastic tube to the bleed port to collect the coolant directly in the collection container. You can then unscrew the bleed screw to let the coolant flow.

Chapter 2:

Step 4/4

To facilitate the flow of coolant, open the cap of the coolant expansion tank.

Chapter 3:

Set up

Step 1/6

Using a ratchet and a 10mm socket, remove the 3 screws holding the mud flap on the passenger side.

Chapter 3:

Step 2/6

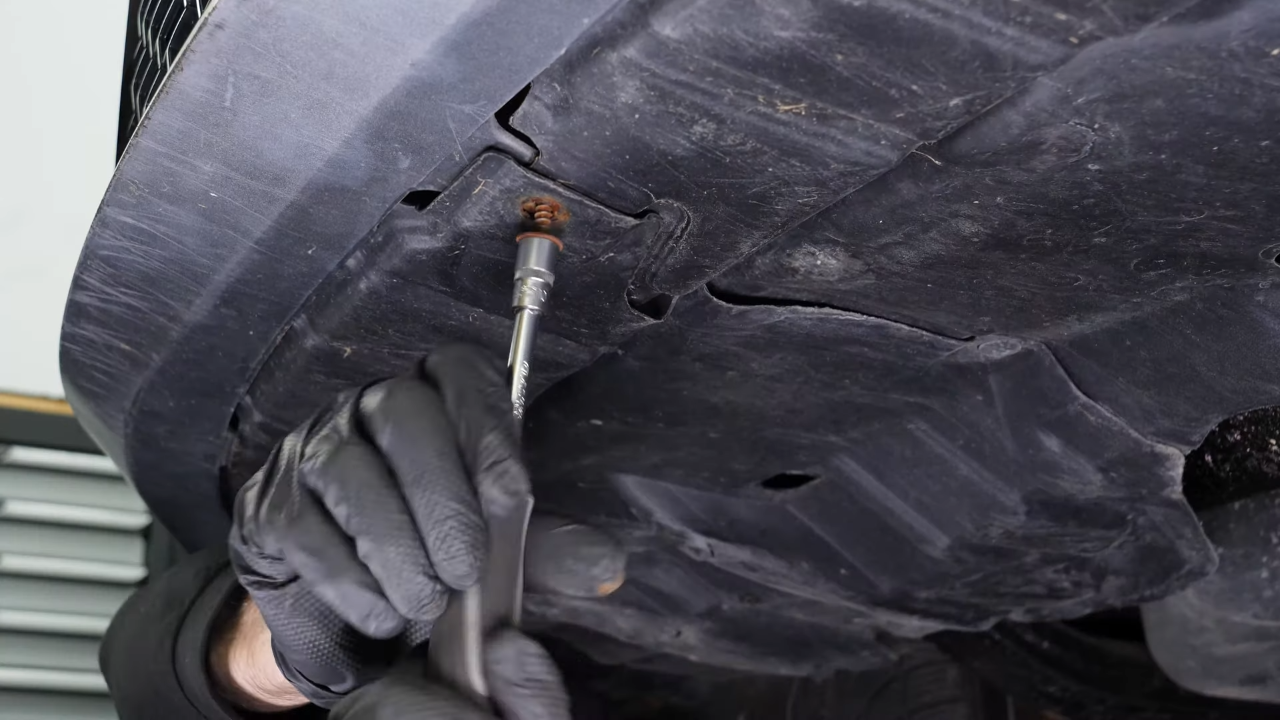

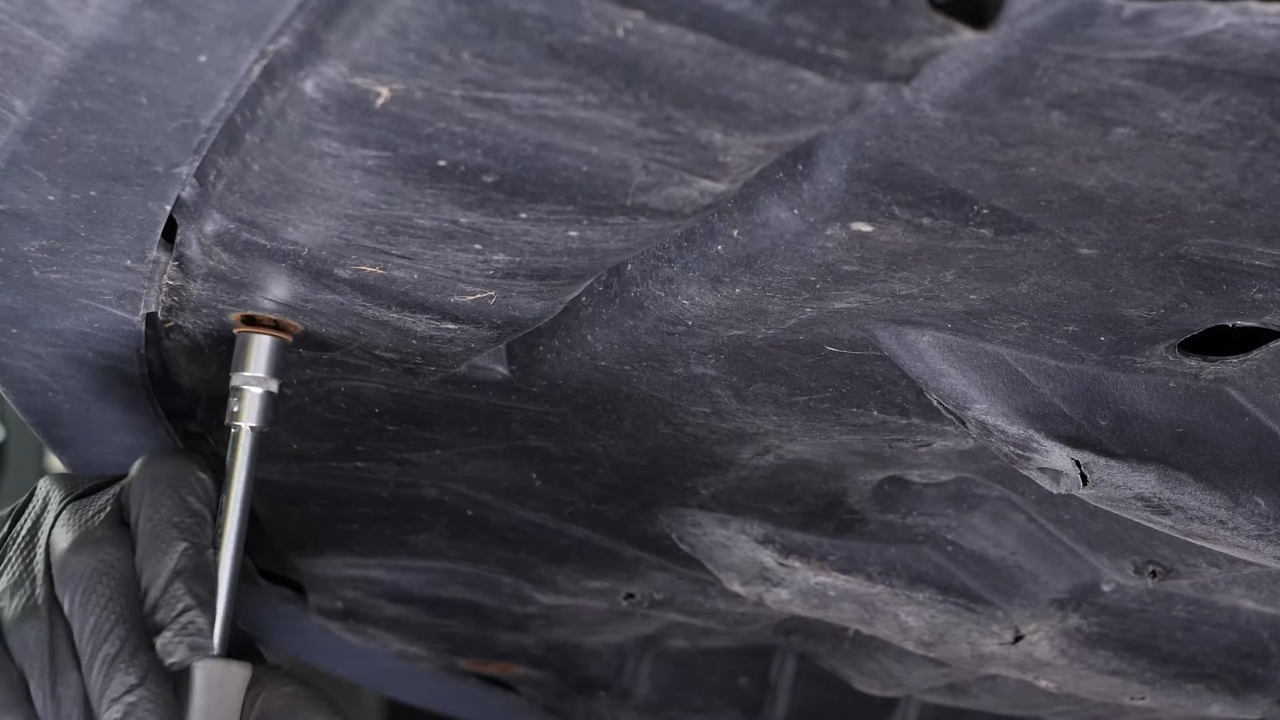

Using the same tools, unscrew the screws holding the two-piece engine splash shield.

Chapter 3:

Step 3/6

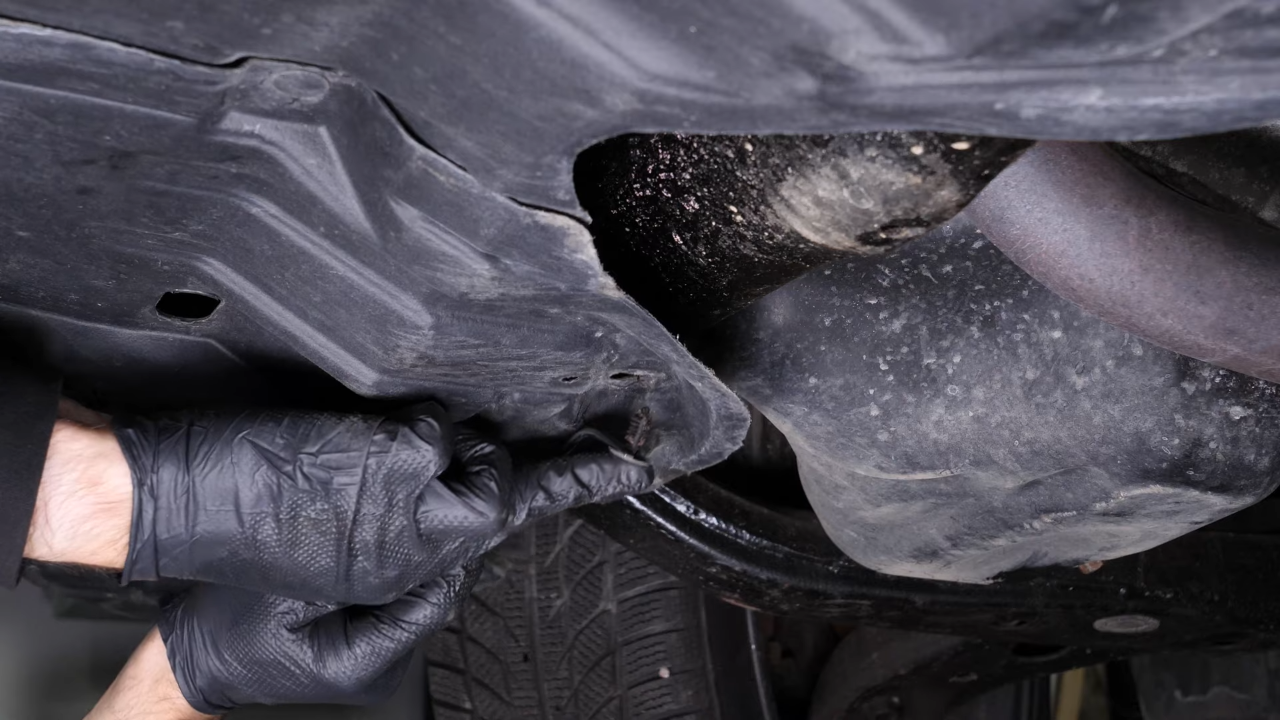

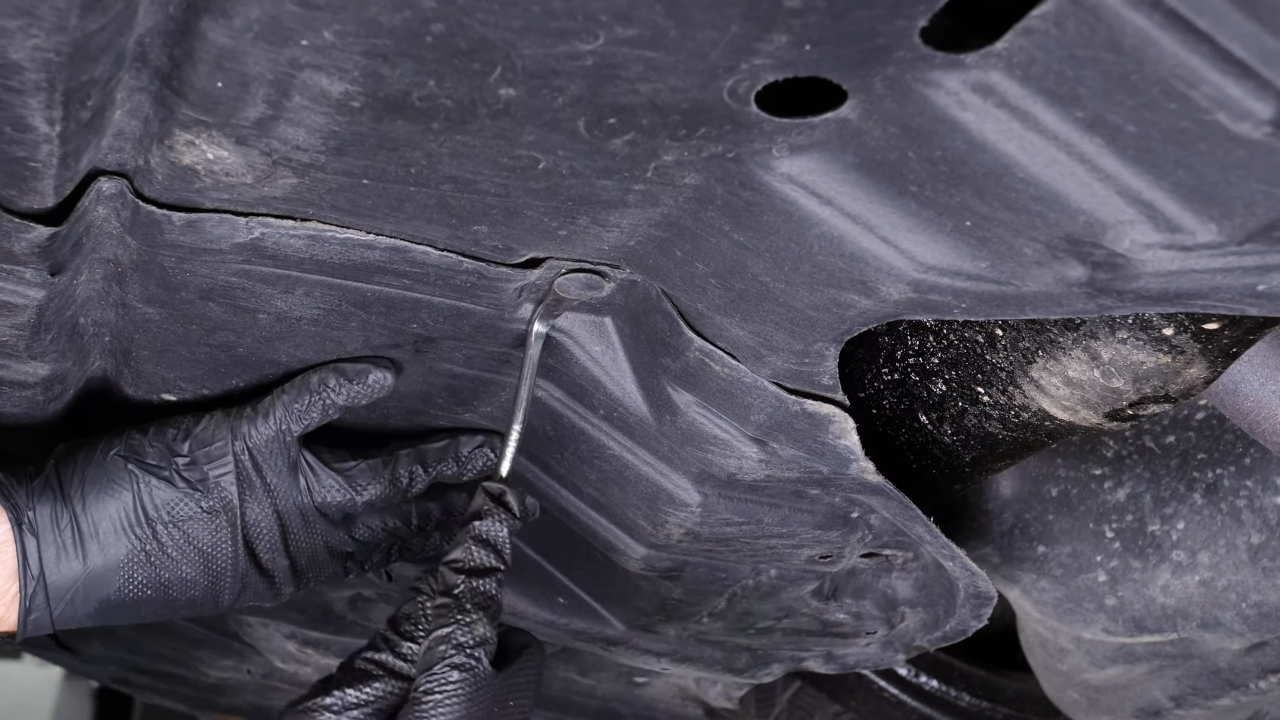

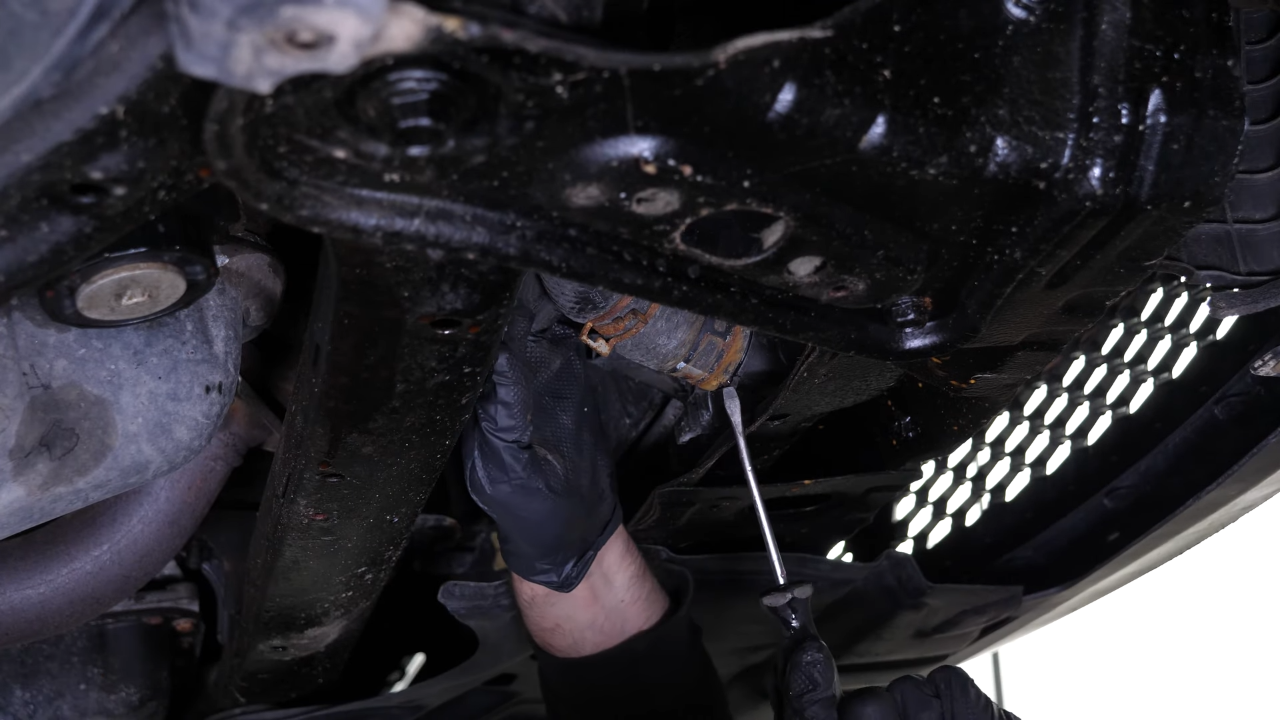

Using a fork, remove the 3 rivets holding the half-splash shield on the passenger side.

Chapter 3:

Step 4/6

Then remove it by sliding it towards the rear of the vehicle.

Chapter 3:

Step 5/6

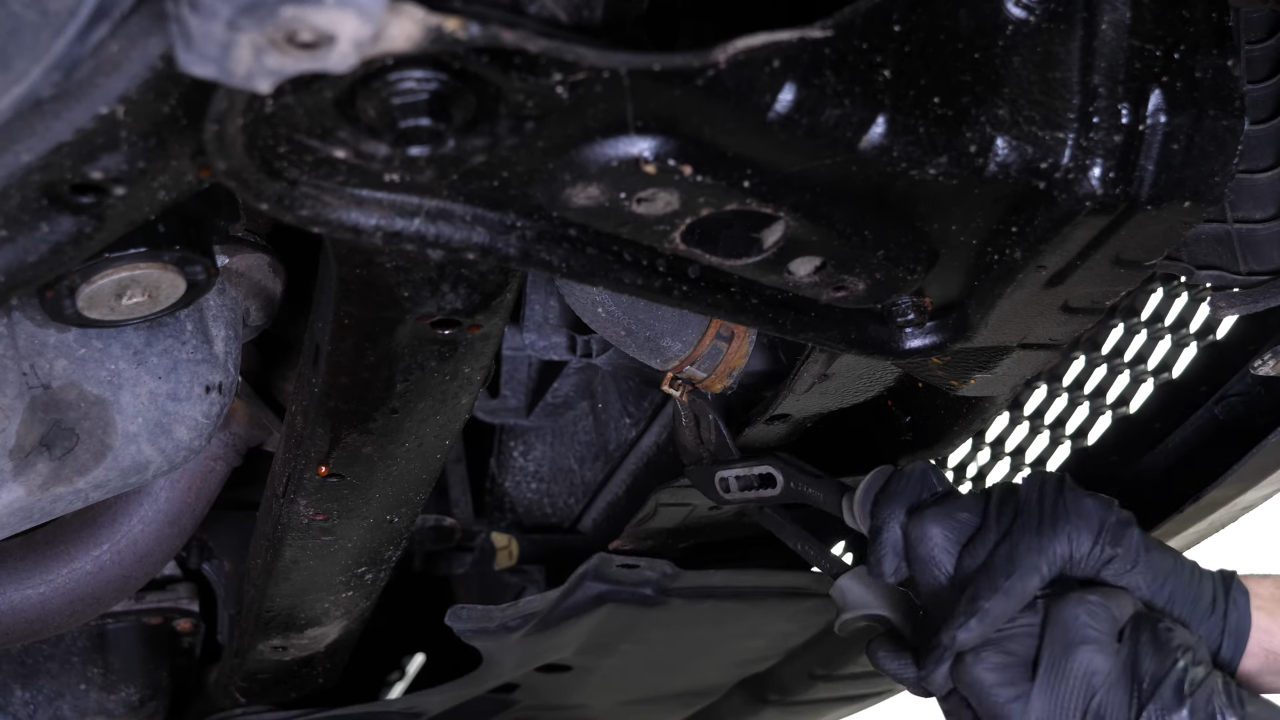

Next, using a pair of adjustable pliers, compress the retaining ring of the coolant hose, which is connected to the radiator. Then, remove the hose.

Chapter 3:

Step 6/6

Before removing the lower hose, place a collection container under it, as coolant will flow out.

Chapter 4:

Remove the airbox-expansion tank assembly

Step 1/4

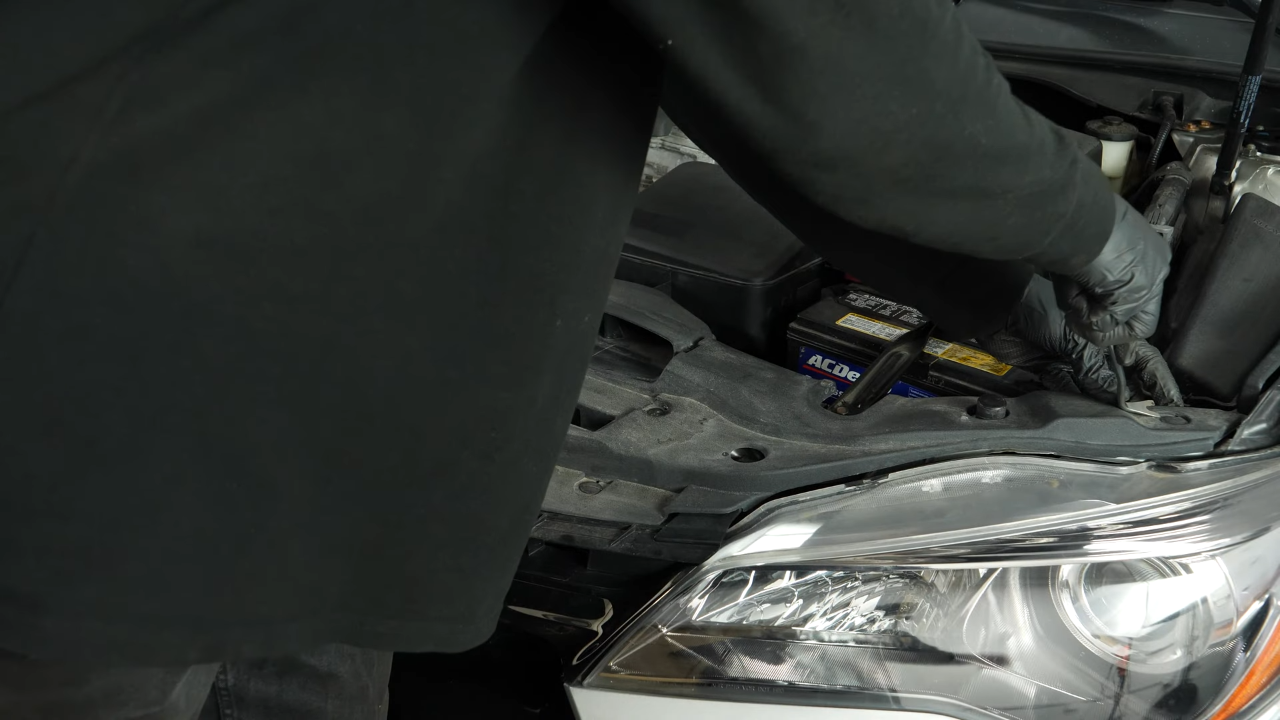

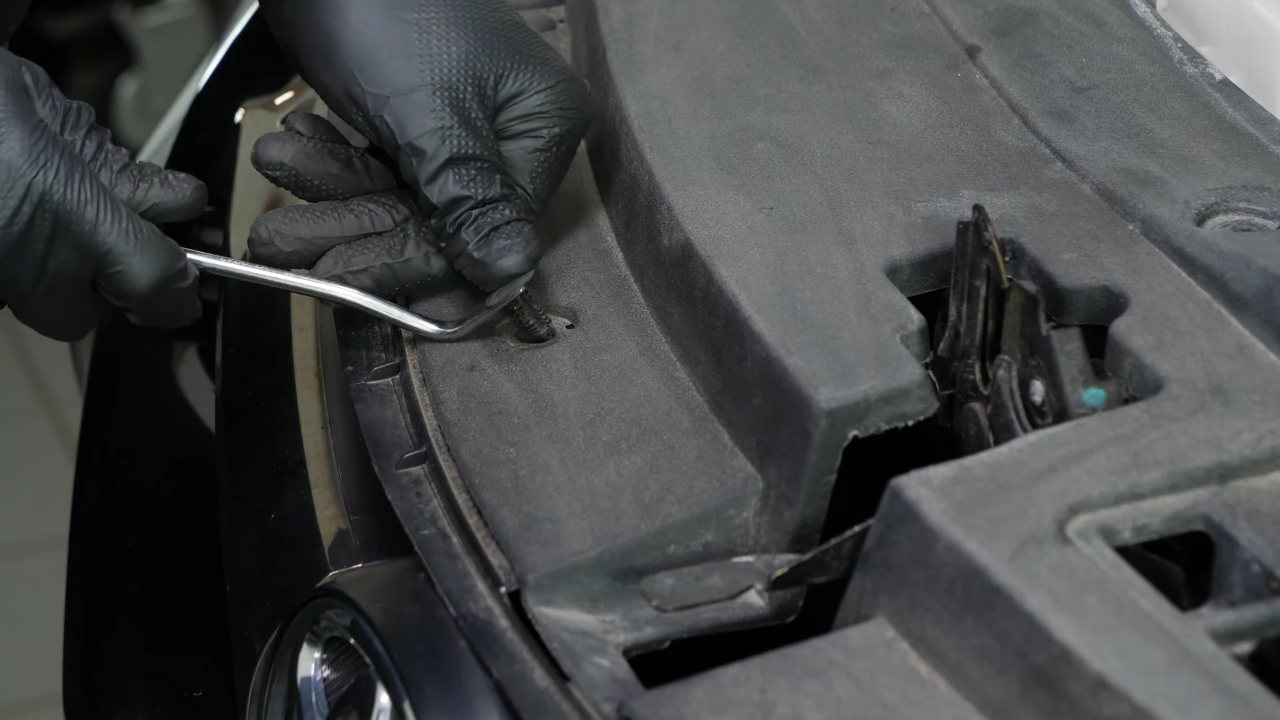

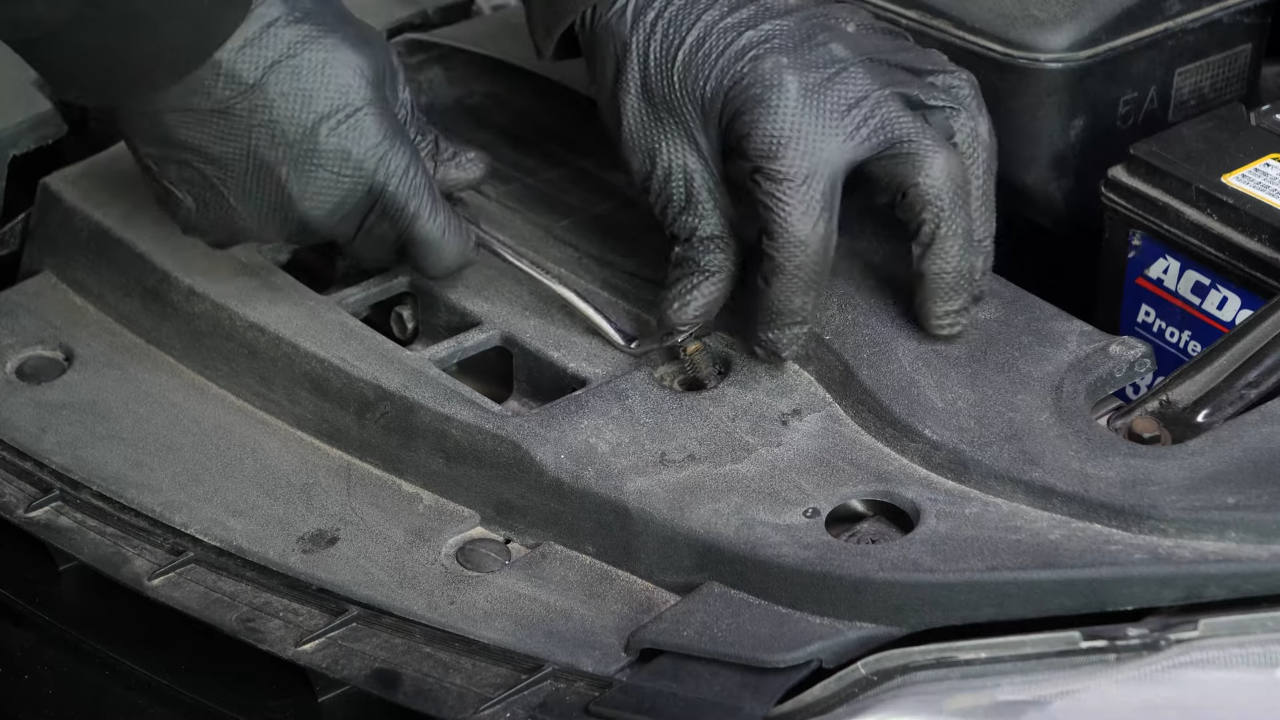

Start by removing the plastic cover by pulling on the 9 plastic rivets using a fork. Then remove the cover.

Chapter 4:

Step 2/4

Using a 10mm wrench, unscrew the air inlet duct bolt. Then remove the resonator.

Chapter 4:

Step 3/4

Next, using adjustable pliers, compress the retaining ring of the coolant hose which is connected to the radiator filler cap. Then, remove the hose.

Chapter 4:

Step 4/4

Using a ratchet, an extender and a 10mm socket, unscrew the two bolts holding the expansion tank. Then, remove the overflow hose. Then remove the expansion tank.

Chapter 5:

Disconnect the ventilation unit

Step 1/4

Using a flat head screwdriver, remove the power connector from the passenger side fan motor by pressing the tab and pulling on the connector.

Chapter 5:

Step 2/4

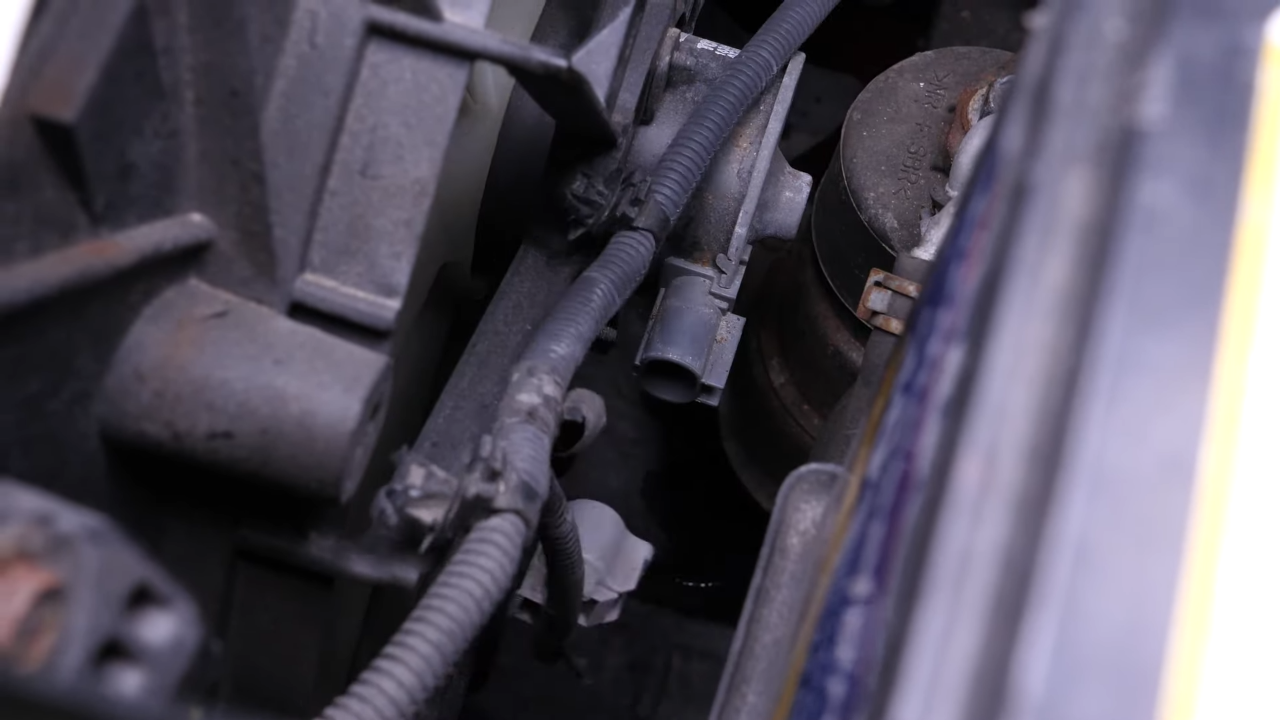

Next, using a fork, unclip the electrical harness located on the ventilation unit.

Chapter 5:

Step 3/4

Remove the power connector from the driver’s side fan motor.

Chapter 5:

Step 4/4

Unclip the coolant hose attached to the ventilation unit.

Chapter 6:

Remove the upper tie bar

Step 1/4

Using a 10mm wrench, unscrew the three bolts holding the hood hatch. Then shift it.

Chapter 6:

Step 2/4

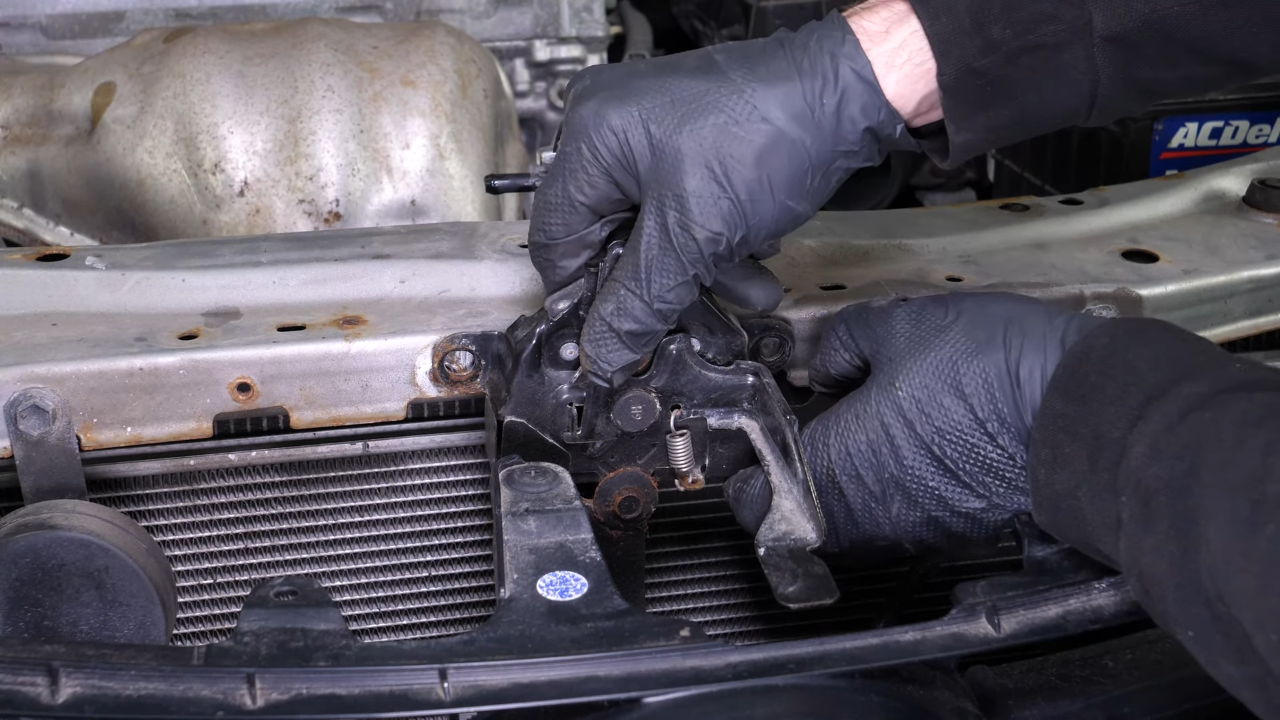

Then, using the same tool, unscrew the bolt holding the hood hatch support located on the radiator support upper tie bar.

Chapter 6:

Step 3/4

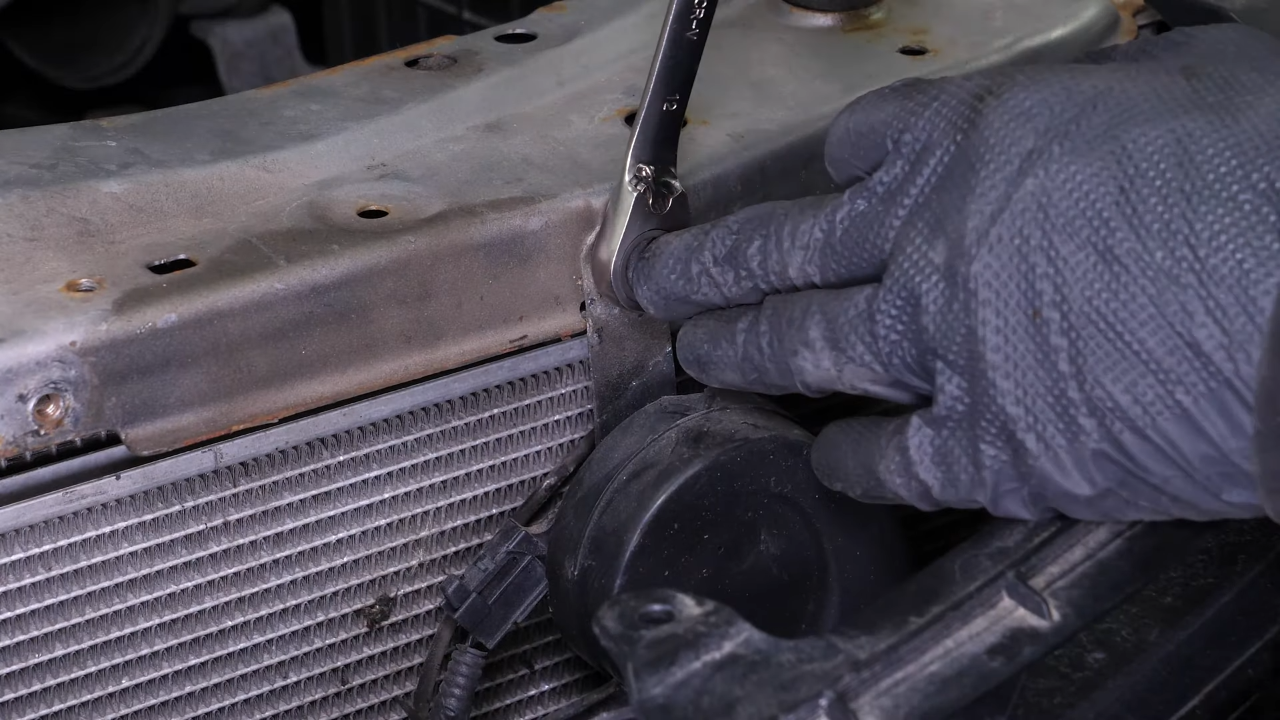

Unscrew the two bolts on the horn retaining brackets using a 12mm wrench. Then shift the horns.

Chapter 6:

Step 4/4

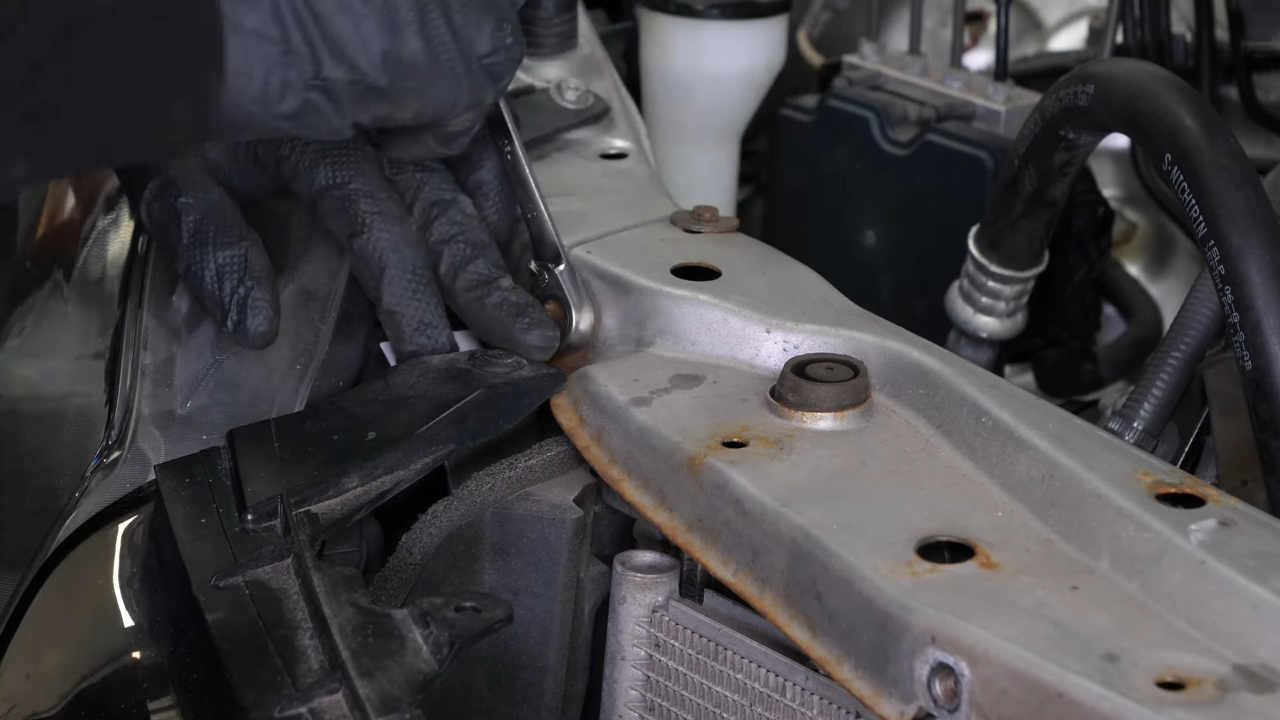

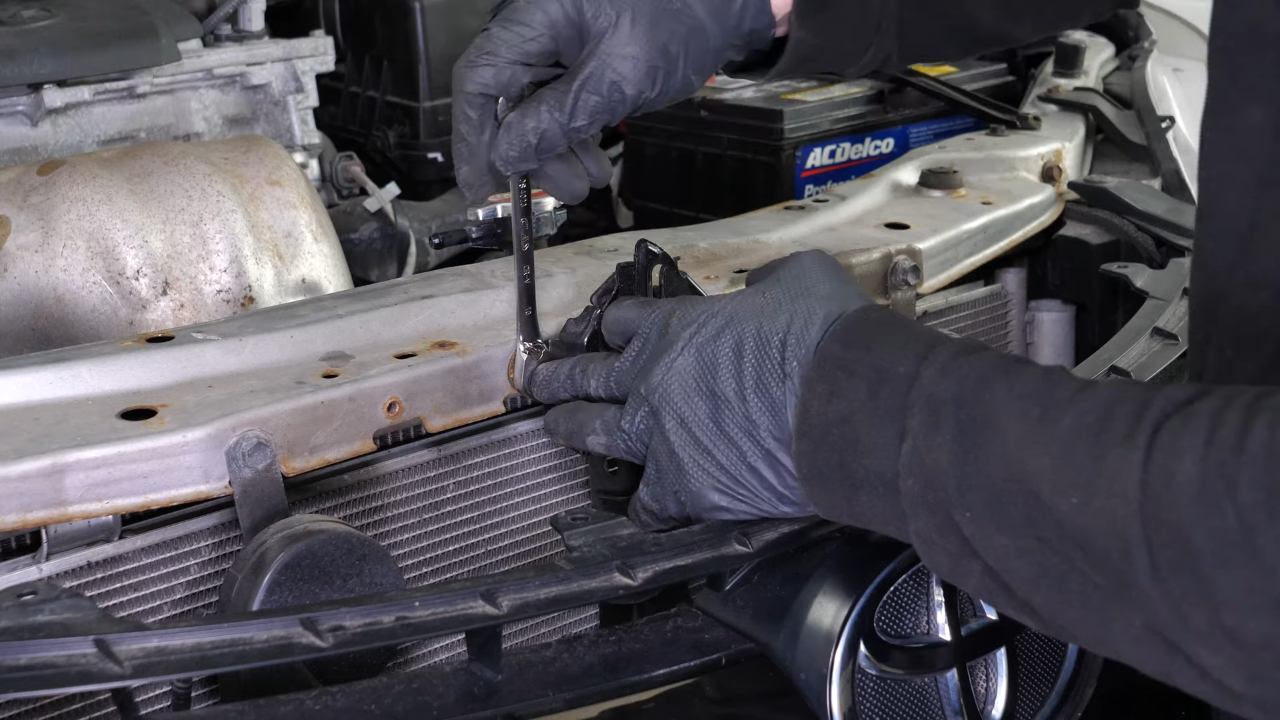

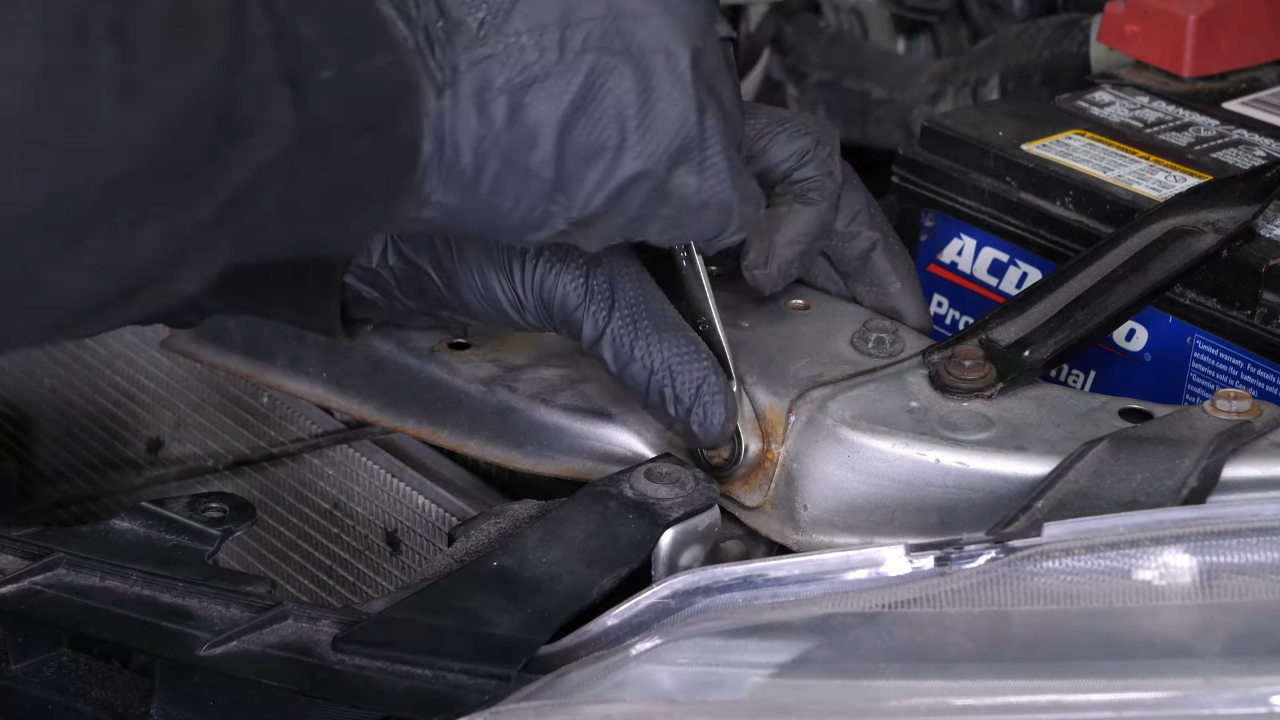

Using a 10mm wrench and an 8mm wrench, unscrew the four bolts holding the radiator support upper tie bar. Then remove the tie bar.

Chapter 7:

Remove the radiator

Step 1/6

Using a flat head screwdriver, remove the upper rubber insulators from the radiator.

Chapter 7:

Step 2/6

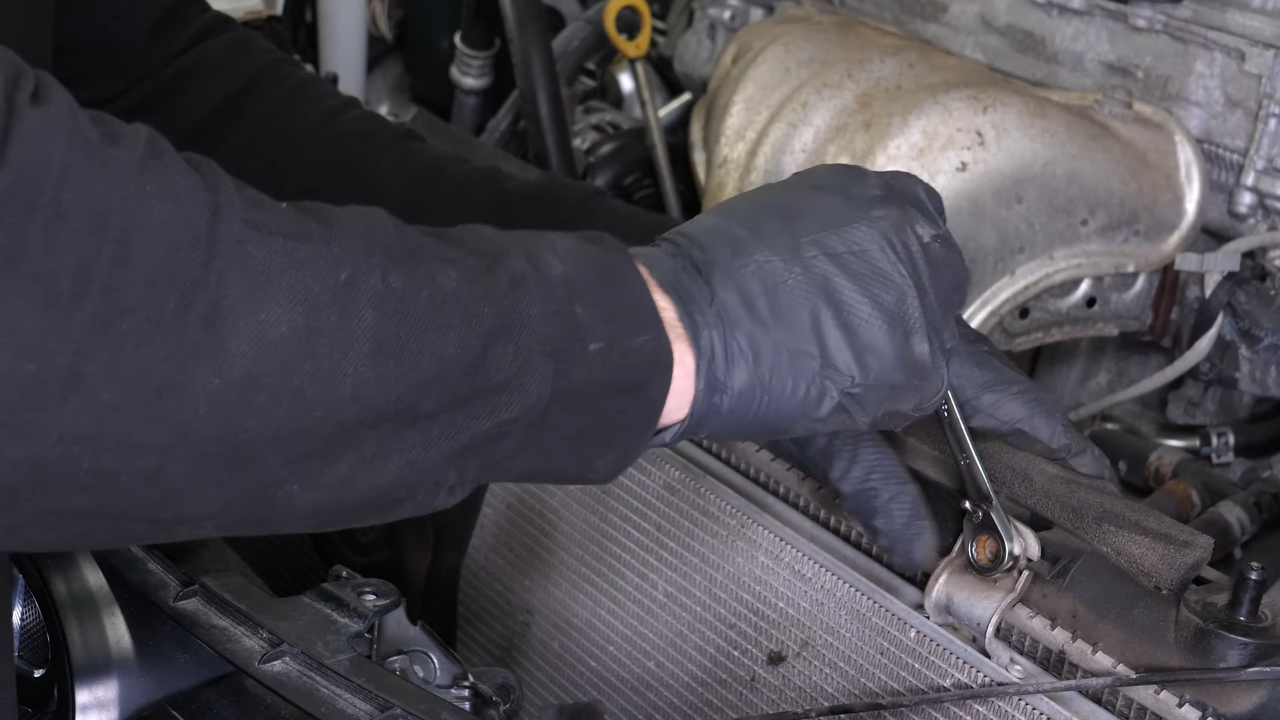

Using a 10mm wrench, unscrew the two upper retaining bolts of the air conditioning condenser on the radiator.

Chapter 7:

Step 3/6

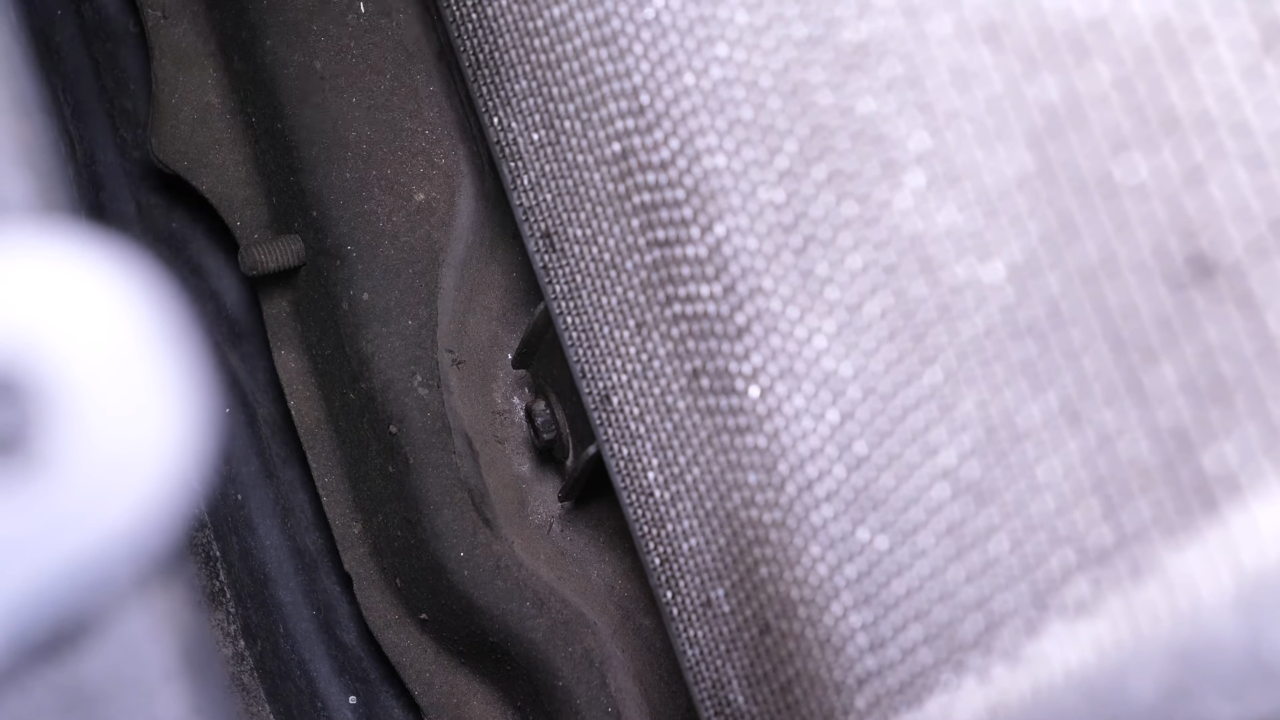

Followed by the two lower retaining bolts.

Chapter 7:

Step 4/6

You can now lift the radiator to free the 2 rubber insulators at the bottom of the radiator and extract it through the top.

Chapter 7:

Step 5/6

Place the radiator on the ground, and collect the lower rubber insulators from the radiator.

Chapter 7:

Step 6/6

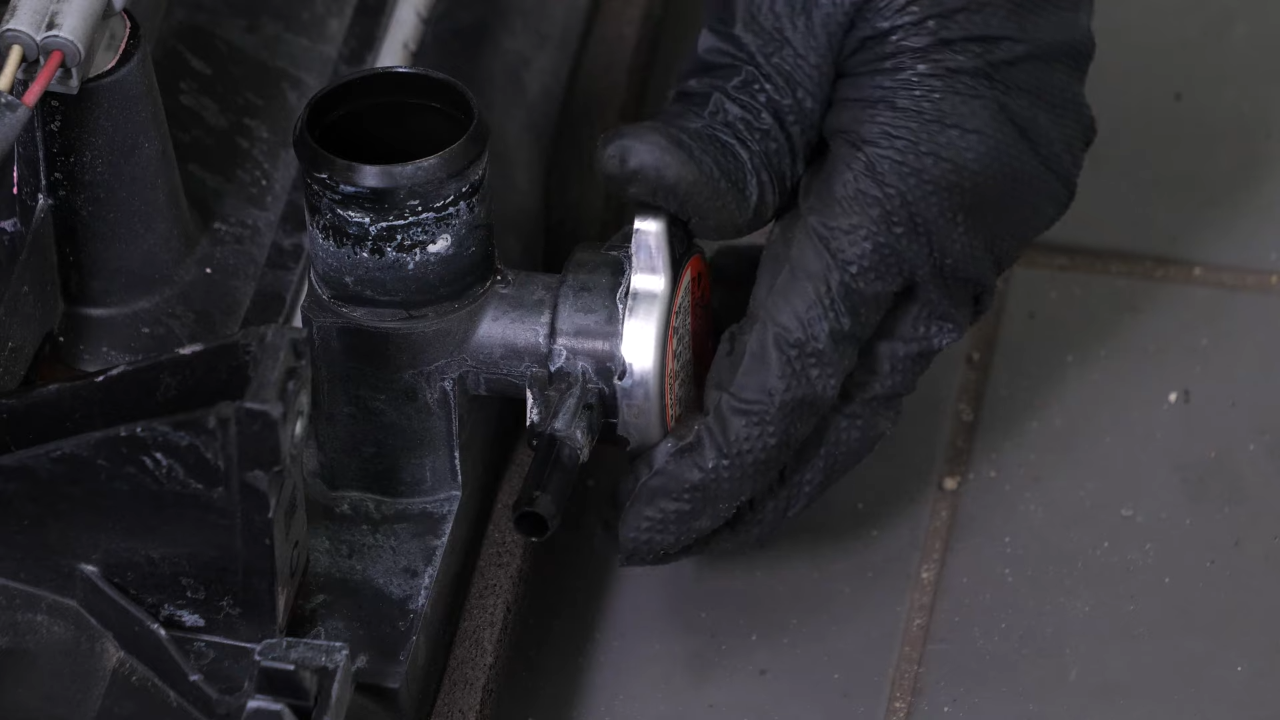

Remove the radiator cap.

Chapter 8:

Remove the fan assembly

Step 1/2

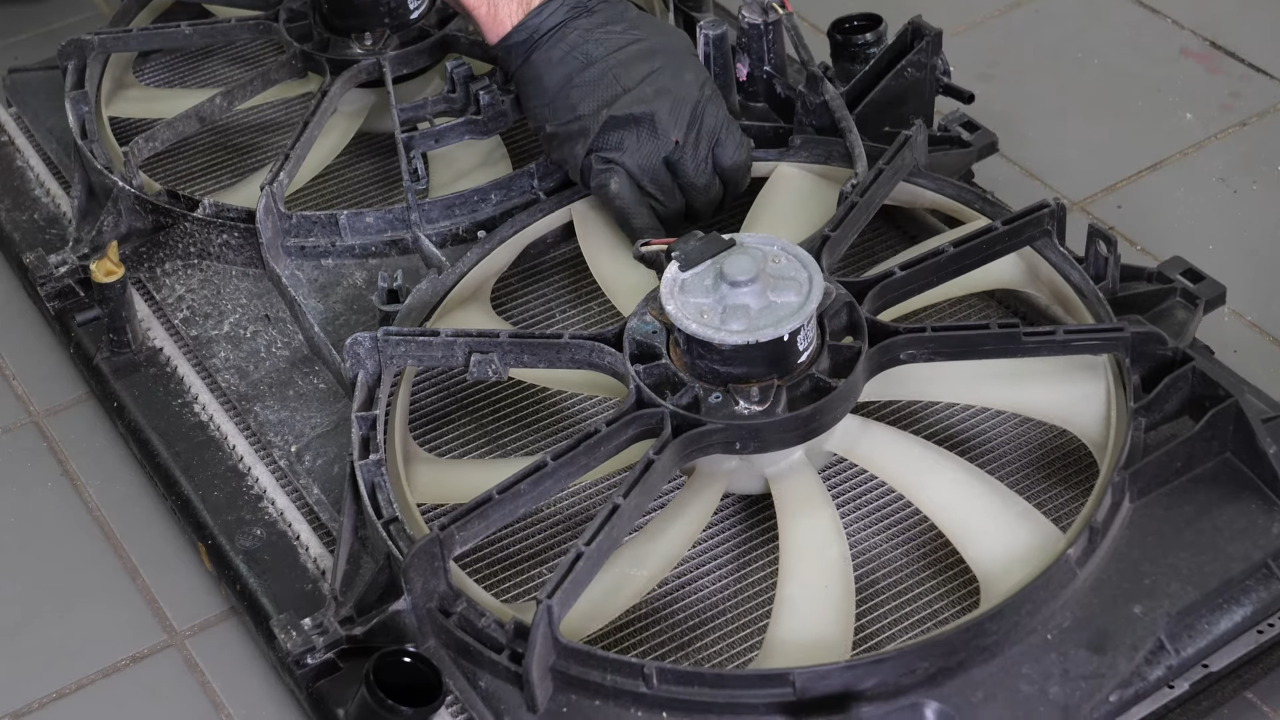

You now need to disengage the fan assembly from the radiator. To do this, use adjustable pliers to clamp the 3 retaining lugs.

Chapter 8:

Step 2/2

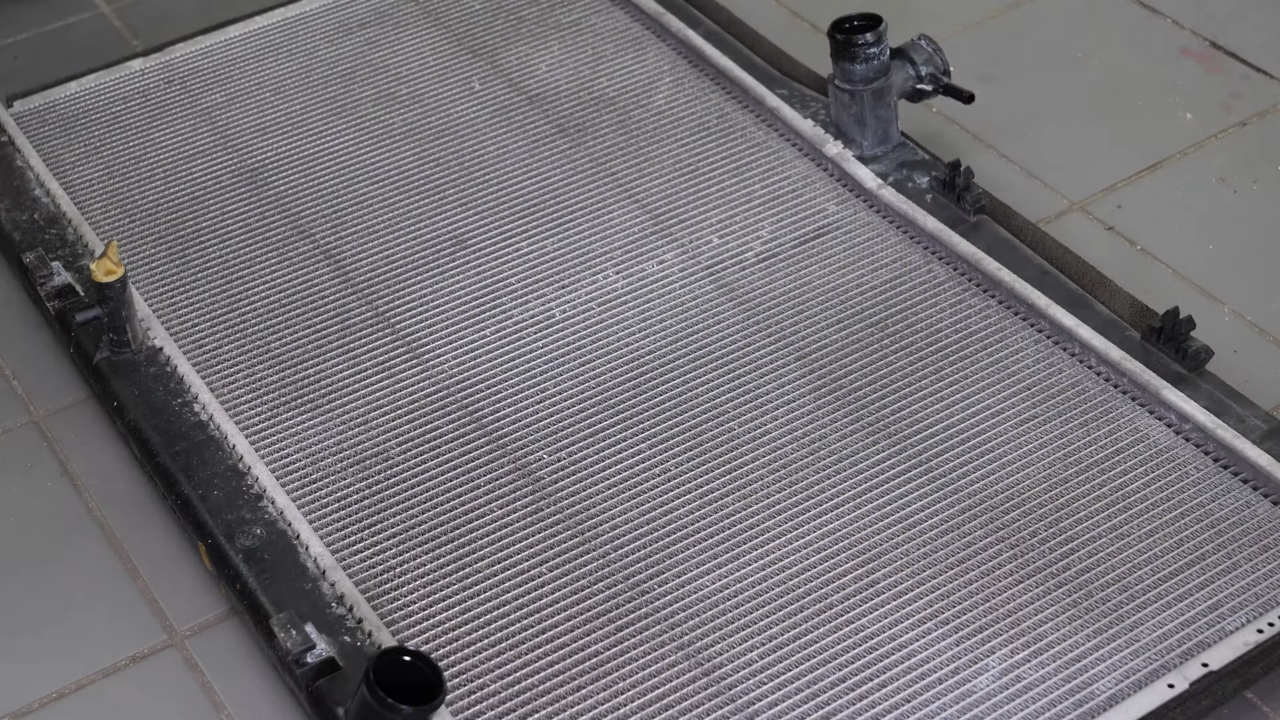

Then remove the fan assembly.

Chapter 9:

Put the fan assembly back

Step 1/5

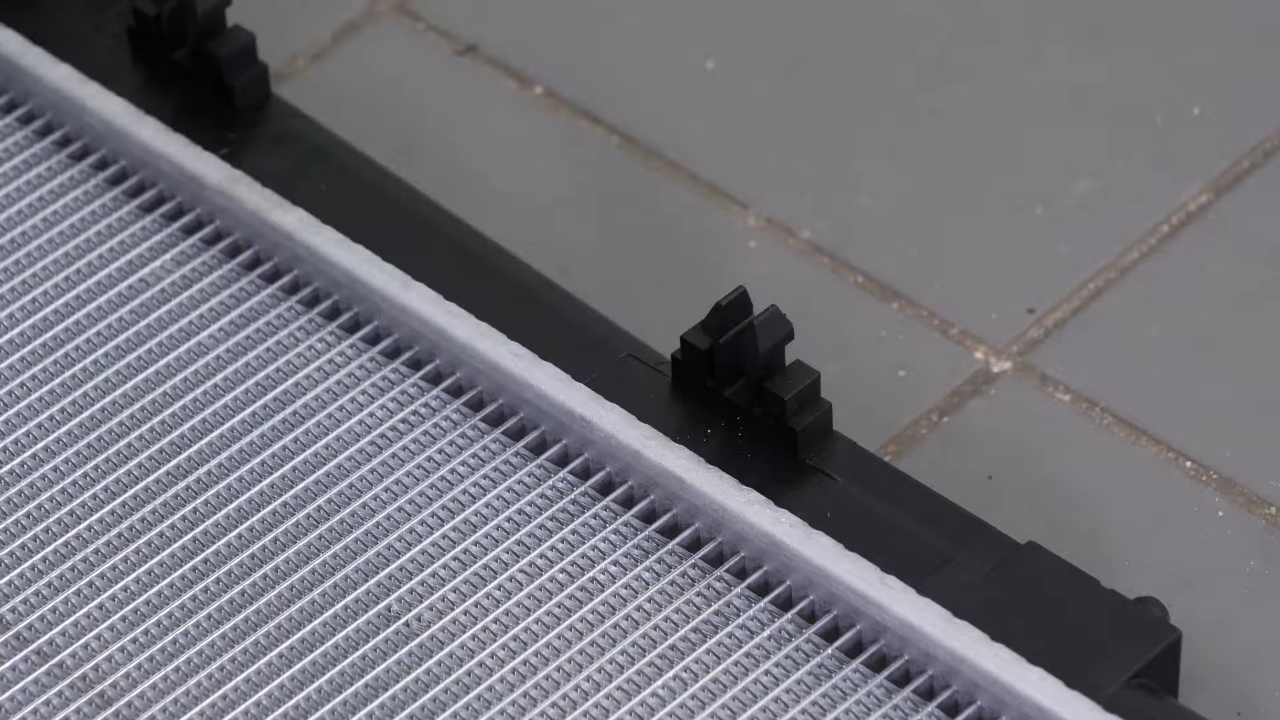

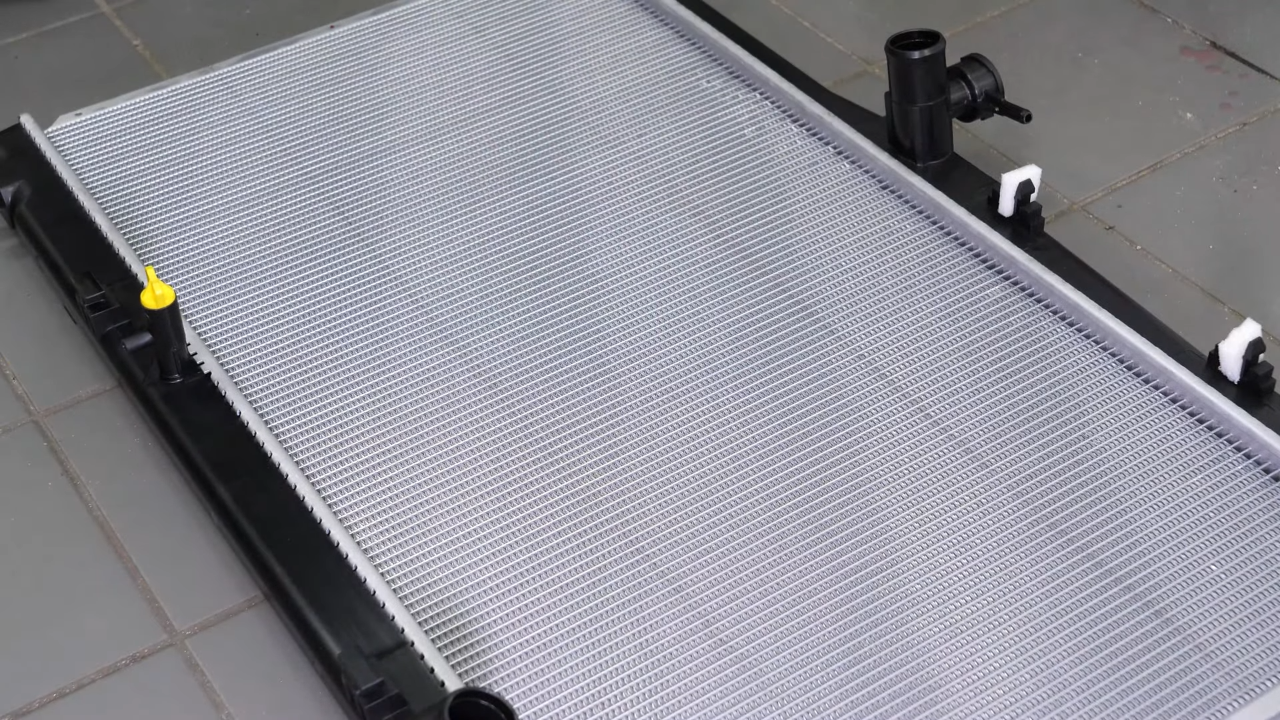

Take the new radiator and remove the covers from the fan assembly retaining lugs.

Chapter 9:

Step 2/5

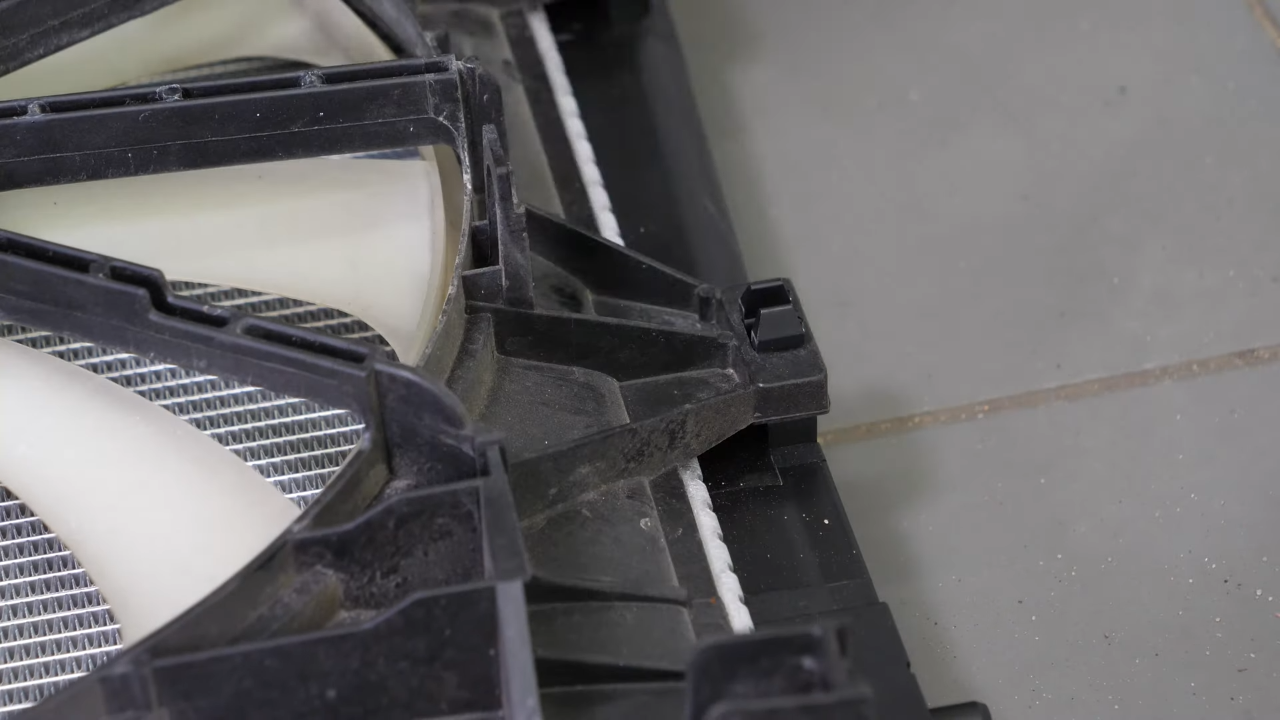

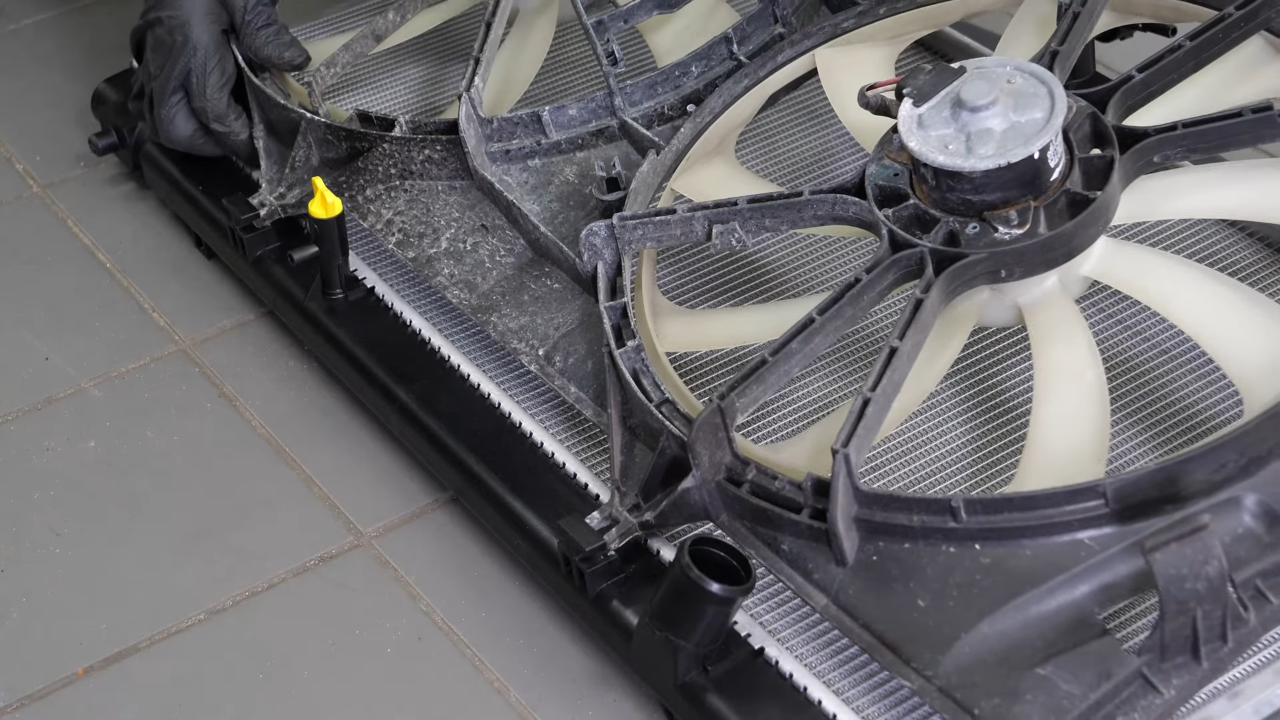

Place the fan assembly on the radiator and clip it in.

Chapter 9:

Step 3/5

Close the radiator cap.

Chapter 9:

Step 4/5

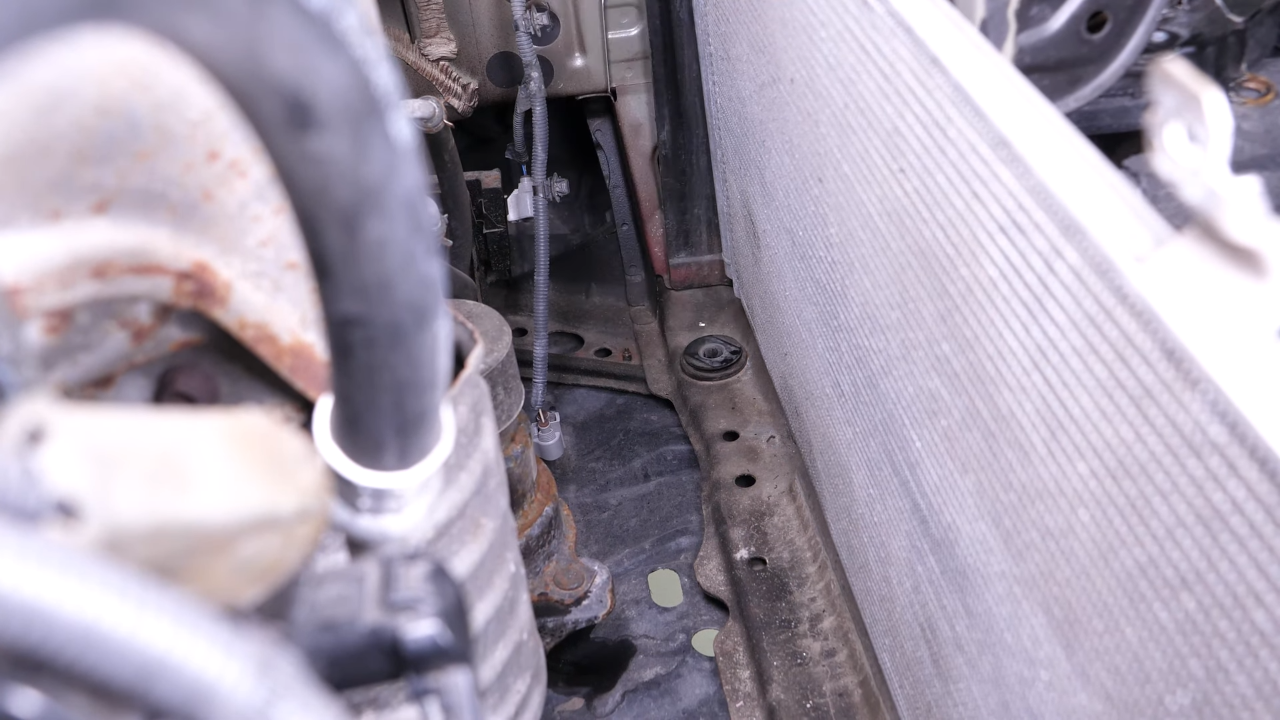

Place the 2 lower rubber insulators on their support.

Chapter 9:

Step 5/5

Then spray them with silicone grease to facilitate the installation of the radiator.

Chapter 10:

Put the radiator back

Step 1/4

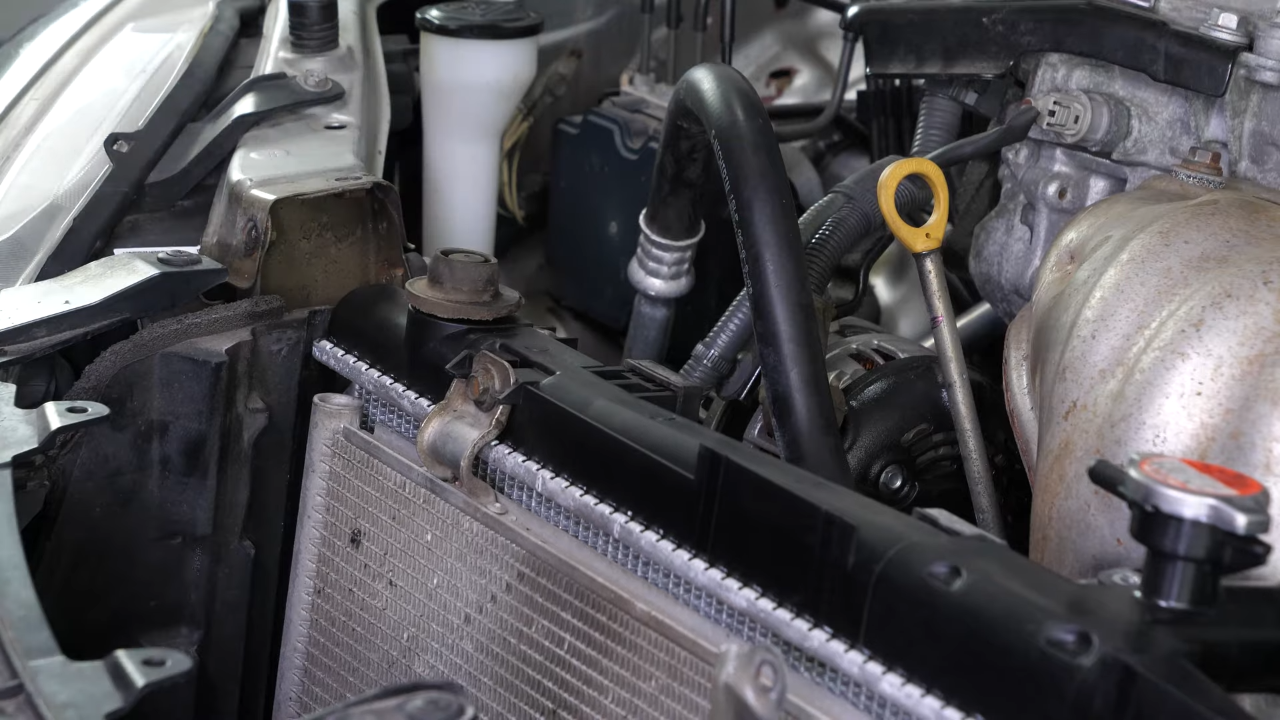

You can now install the radiator assembly by inserting it into the two rubber insulators.

Chapter 10:

Step 2/4

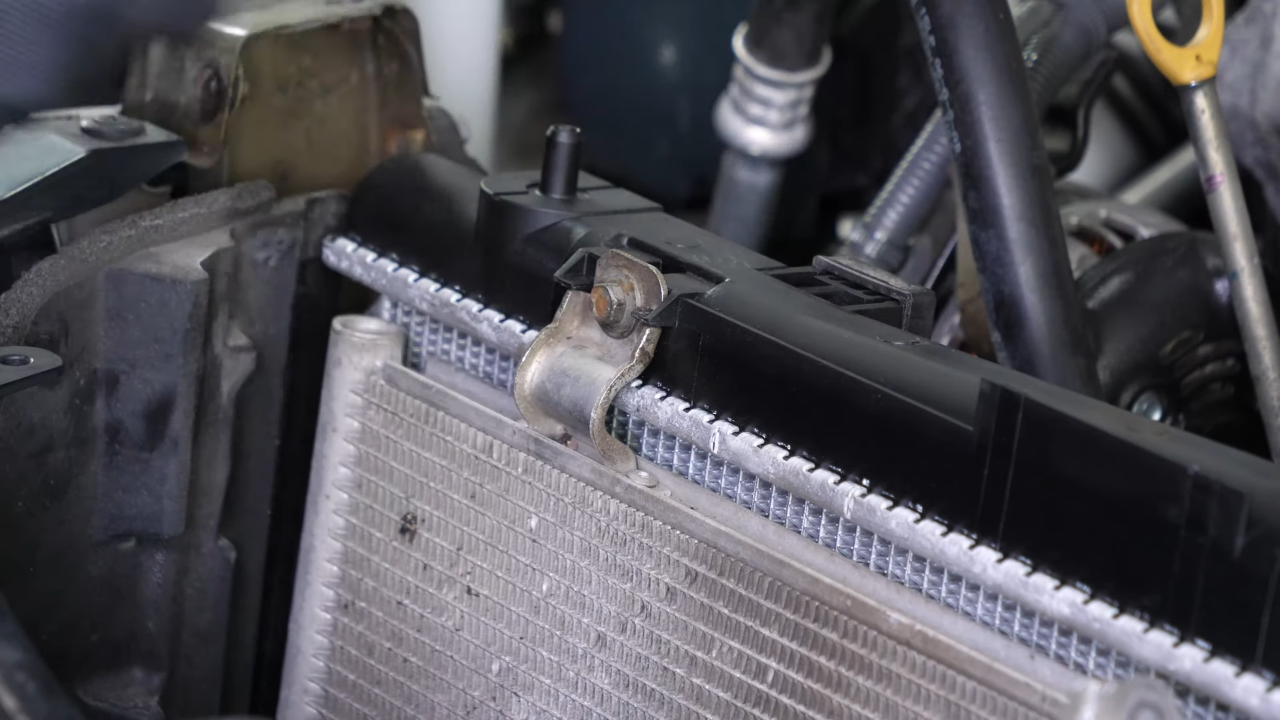

Put the air conditioning condenser back on the radiator assembly.

Chapter 10:

Step 3/4

Then screw the 4 bolts back on.

Chapter 10:

Step 4/4

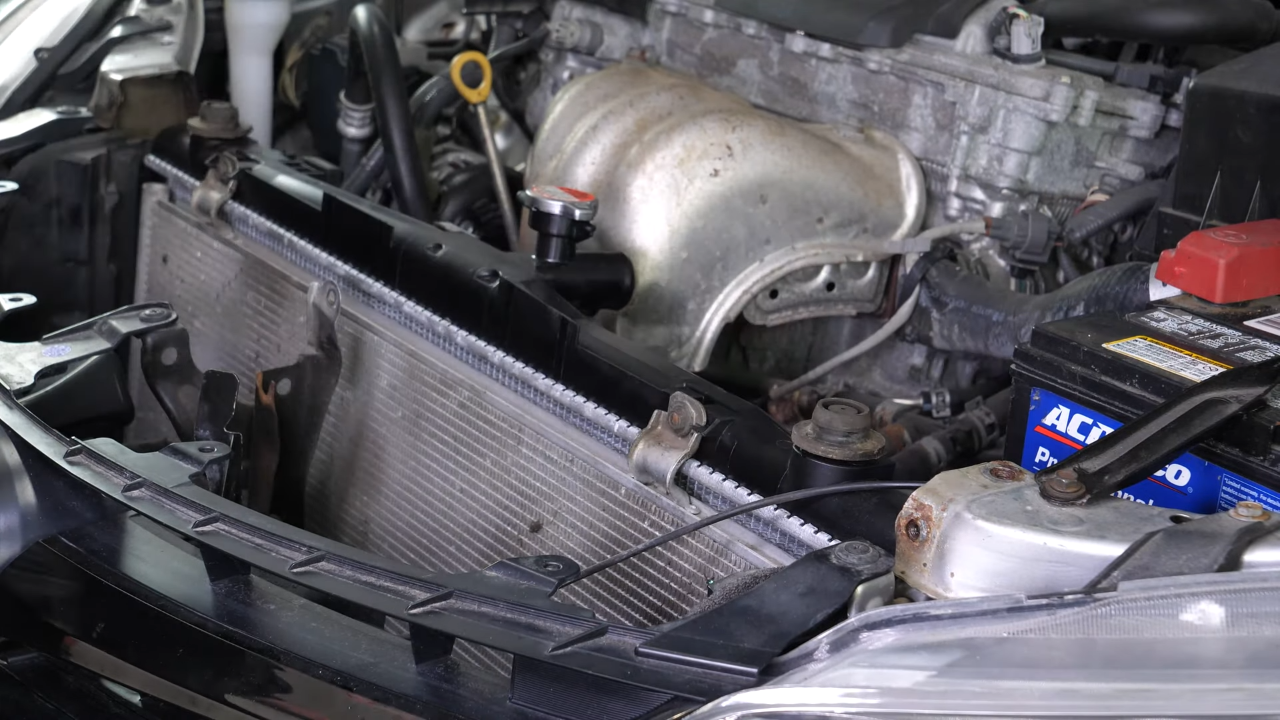

Place the 2 upper rubber insulators on the radiator.

Chapter 11:

Put the upper tie bar back

Step 1/3

Put the radiator support upper tie bar in place by inserting the 2 insulators. Then screw the 4 bolts back on.

Chapter 11:

Step 2/3

Screw the two horns back on. Then screw the hood hatch support back on.

Chapter 11:

Step 3/3

Put the hood hatch back in place. And screw it back on.

Chapter 12:

Reconnect the radiator

Step 1/5

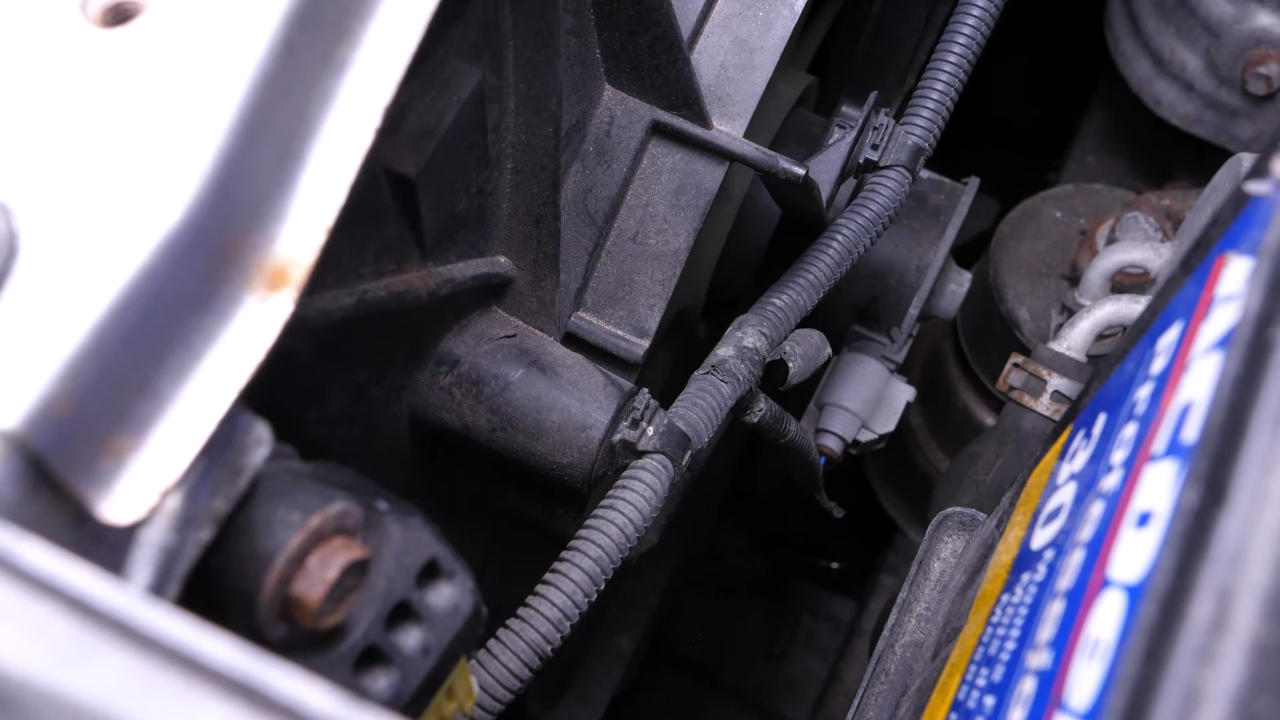

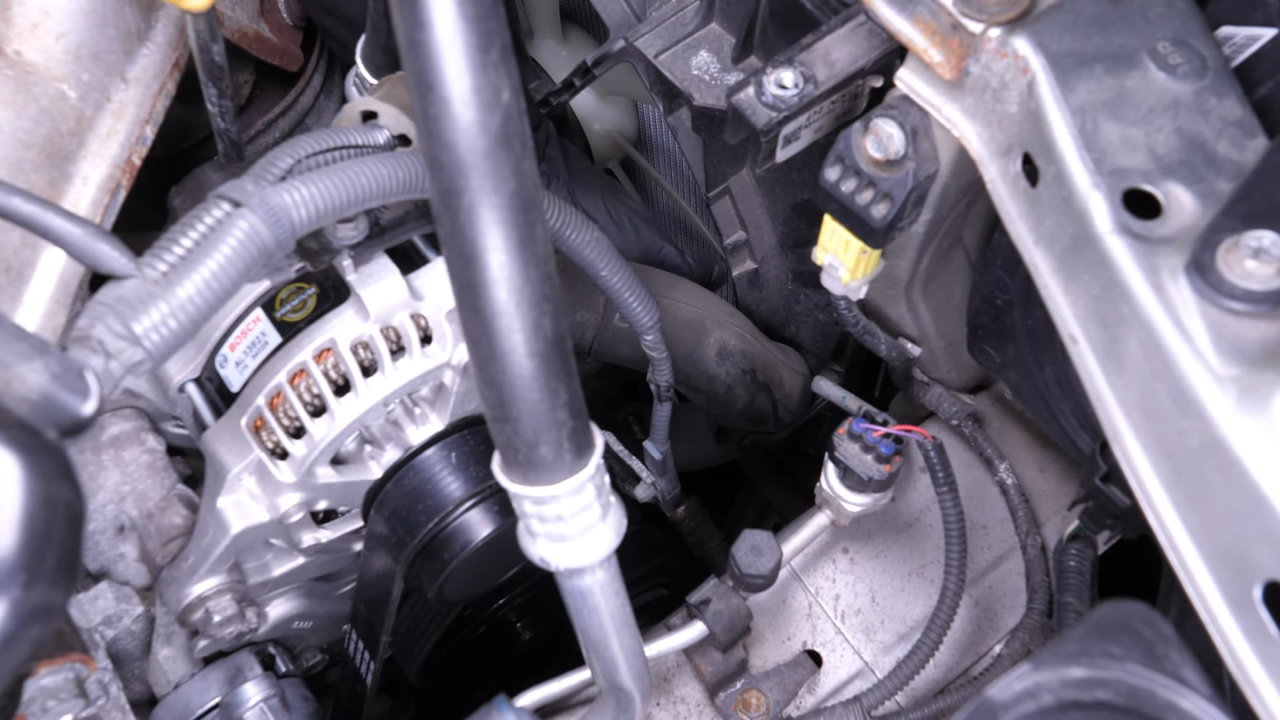

Reconnect the fan motor power connectors. Then clip the harness back on.

Chapter 12:

Step 2/5

Clip the coolant hose back into the fan assembly.

Chapter 12:

Step 3/5

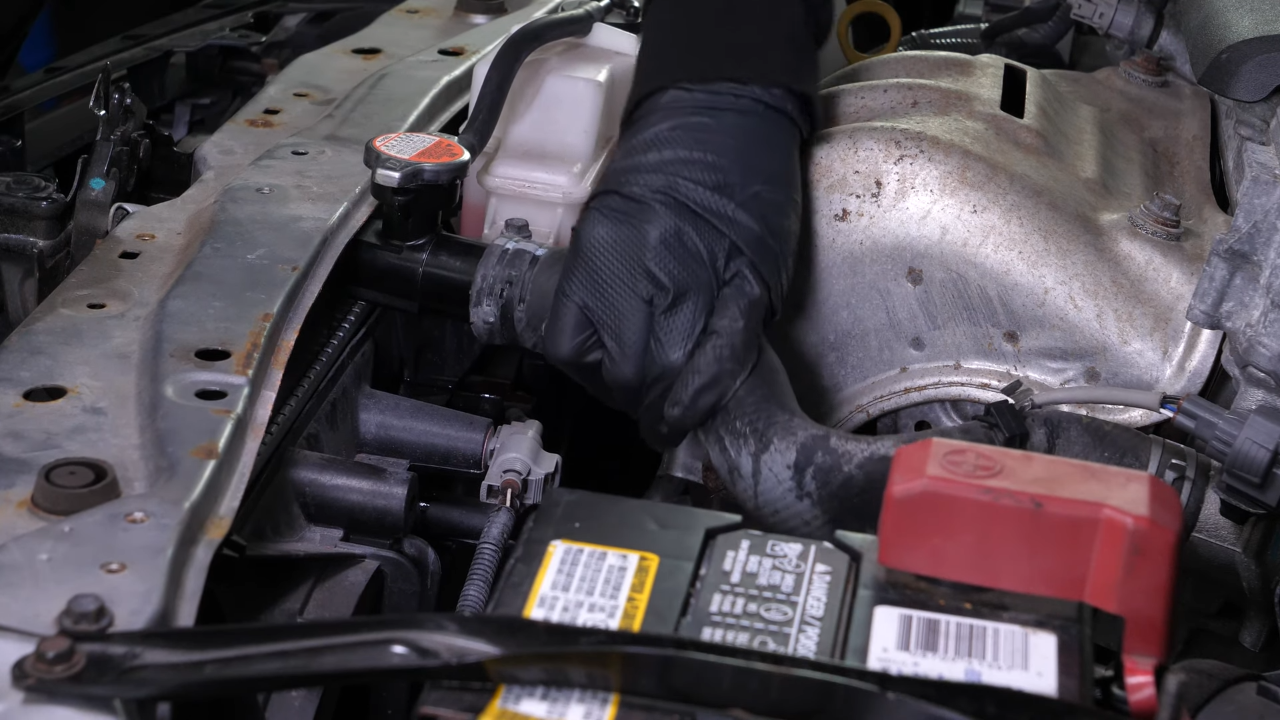

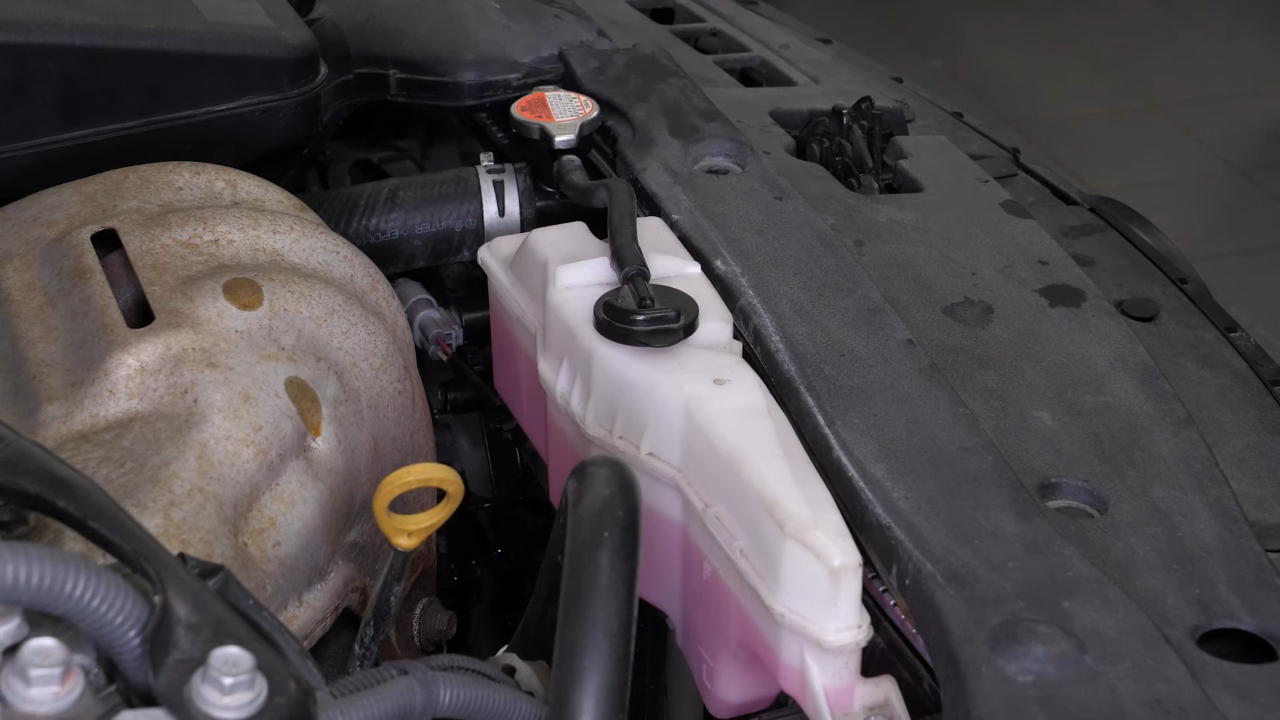

Put the expansion tank back in place. Next, screw the 2 retaining bolts back in.

Chapter 12:

Step 4/5

Reconnect the overflow hose.

Chapter 12:

Step 5/5

Reconnect the upper coolant hose. Then put the clamp back in place.

Chapter 13:

Put the airbox back

Step 1/2

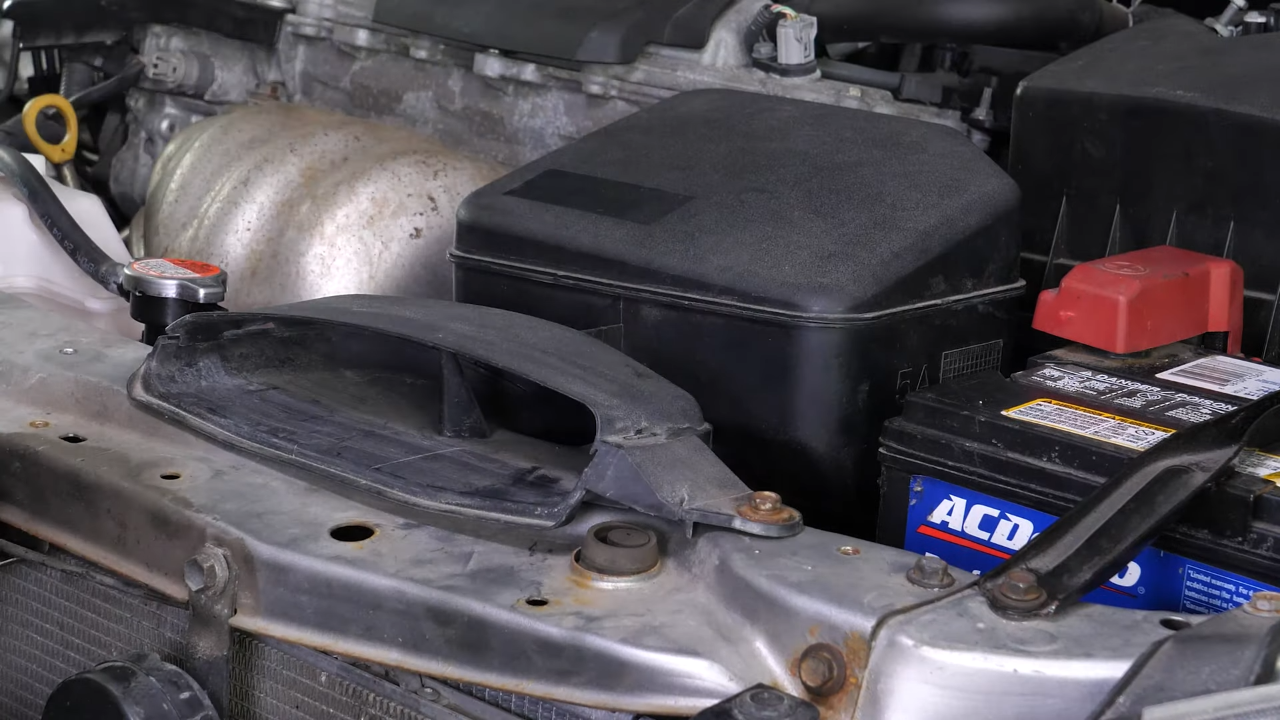

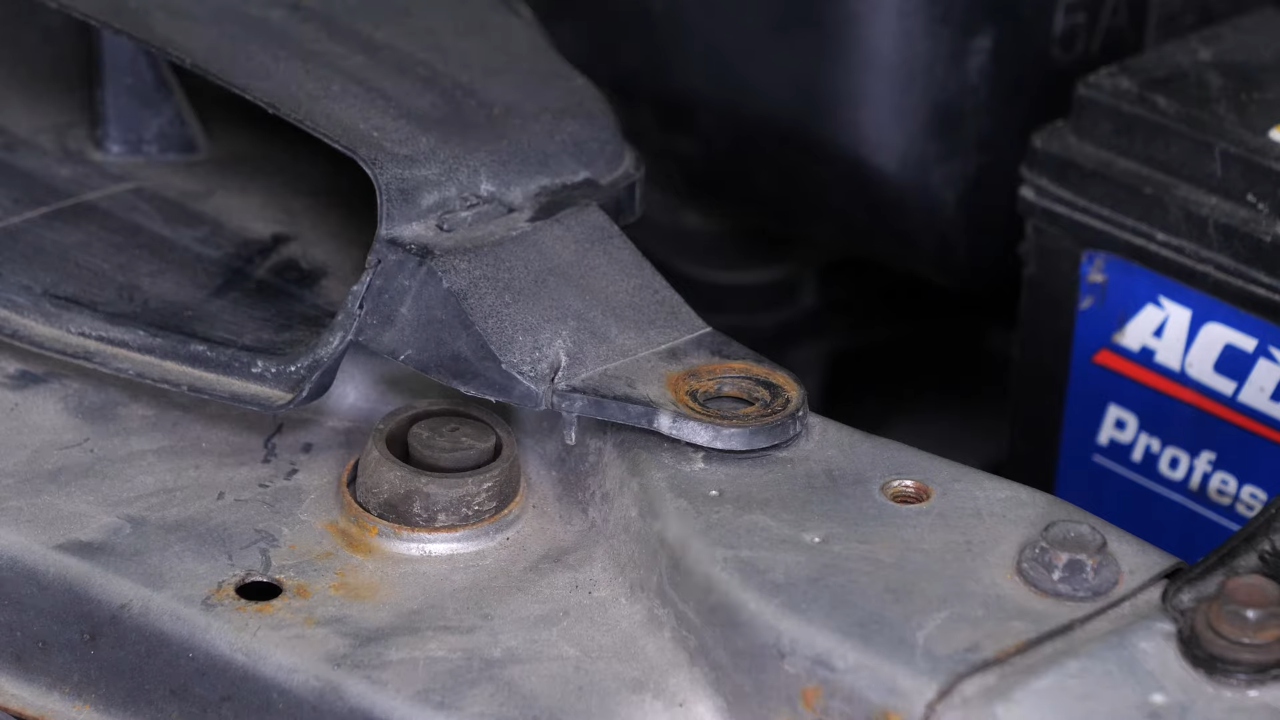

Put the resonator back in the airbox.

Chapter 13:

Step 2/2

Then screw the air inlet duct bolt back.

Chapter 14:

Put the elements back

Step 1/5

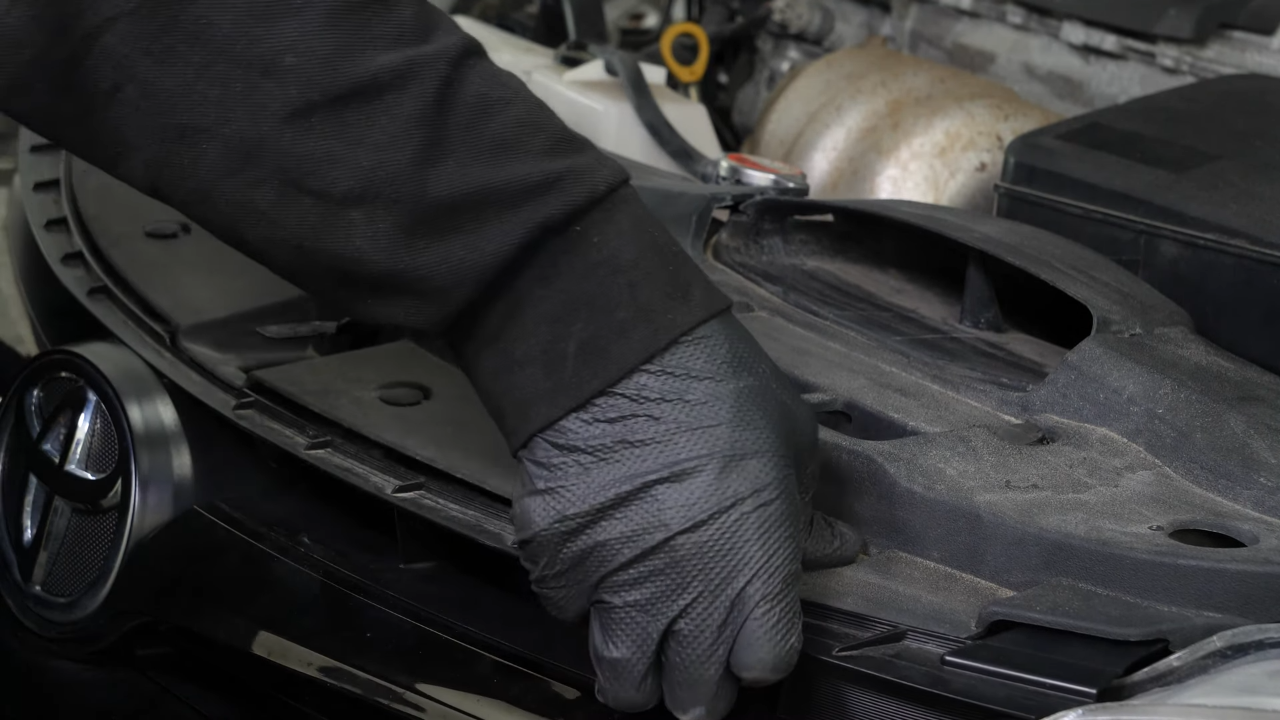

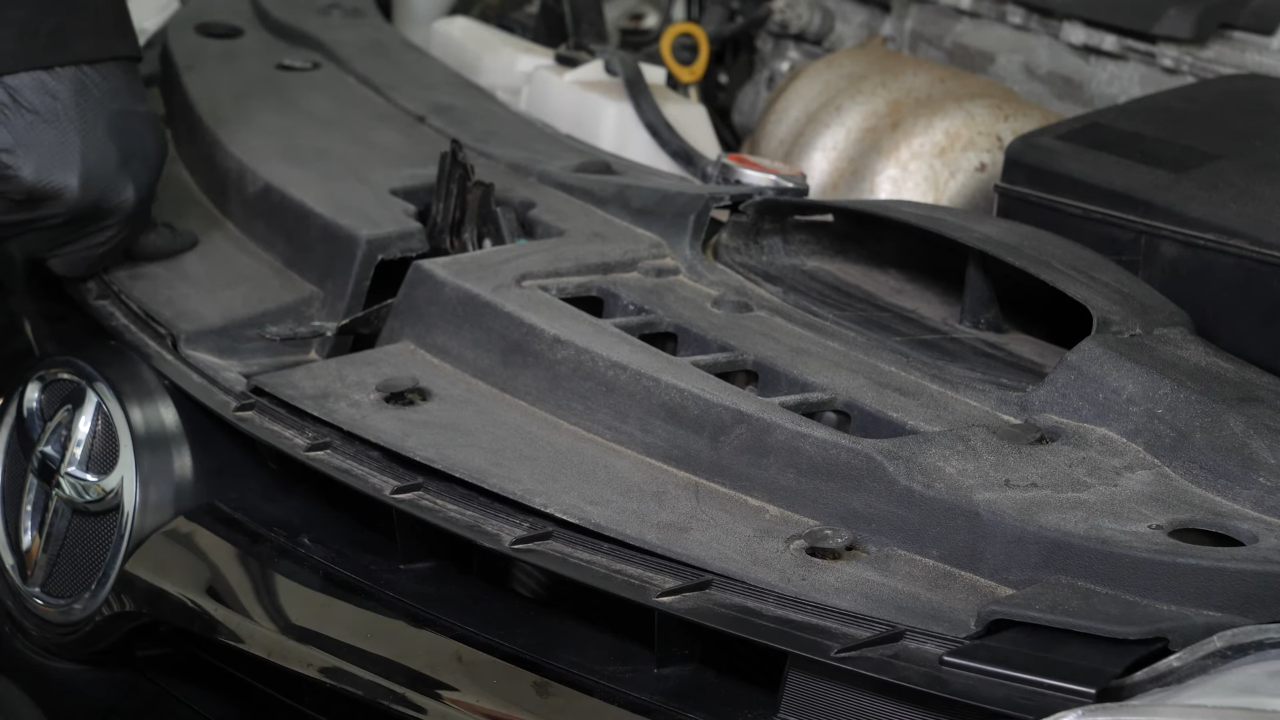

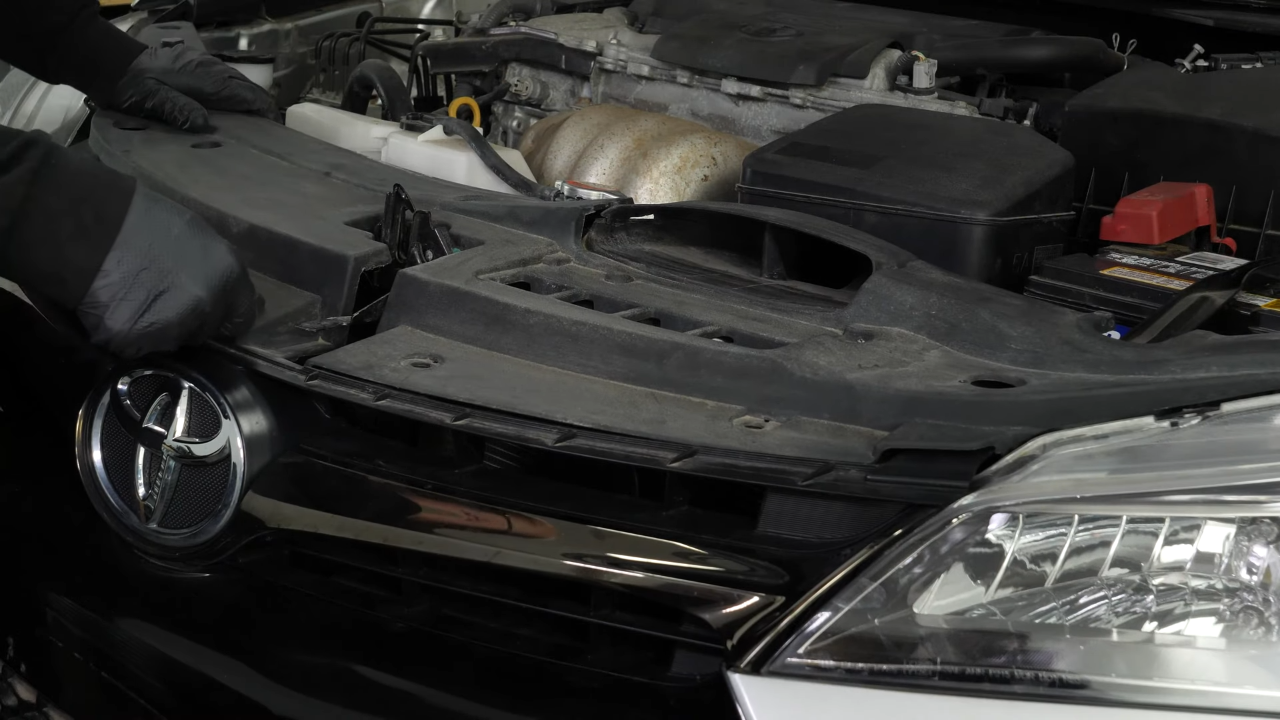

Put the plastic cover back on, then put the 9 rivets back on.

Chapter 14:

Step 2/5

Using adjustable pliers, put the lower hose back onto the radiator.

Chapter 14:

Step 3/5

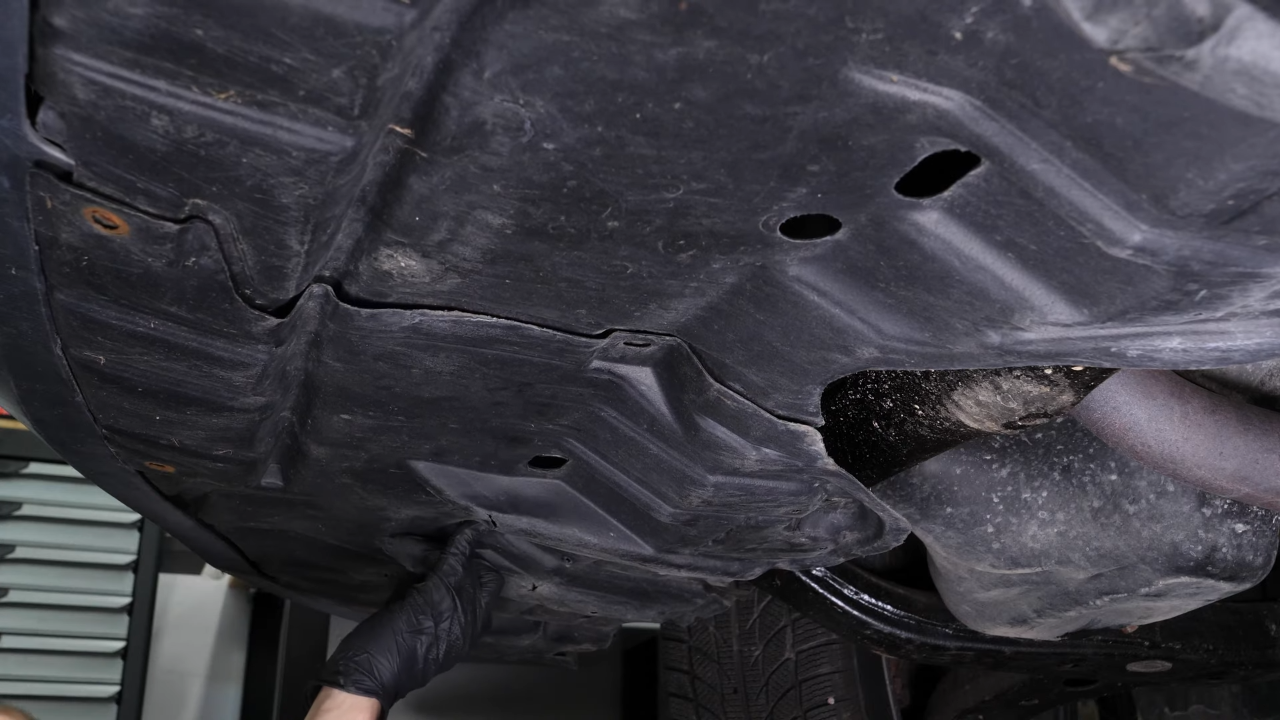

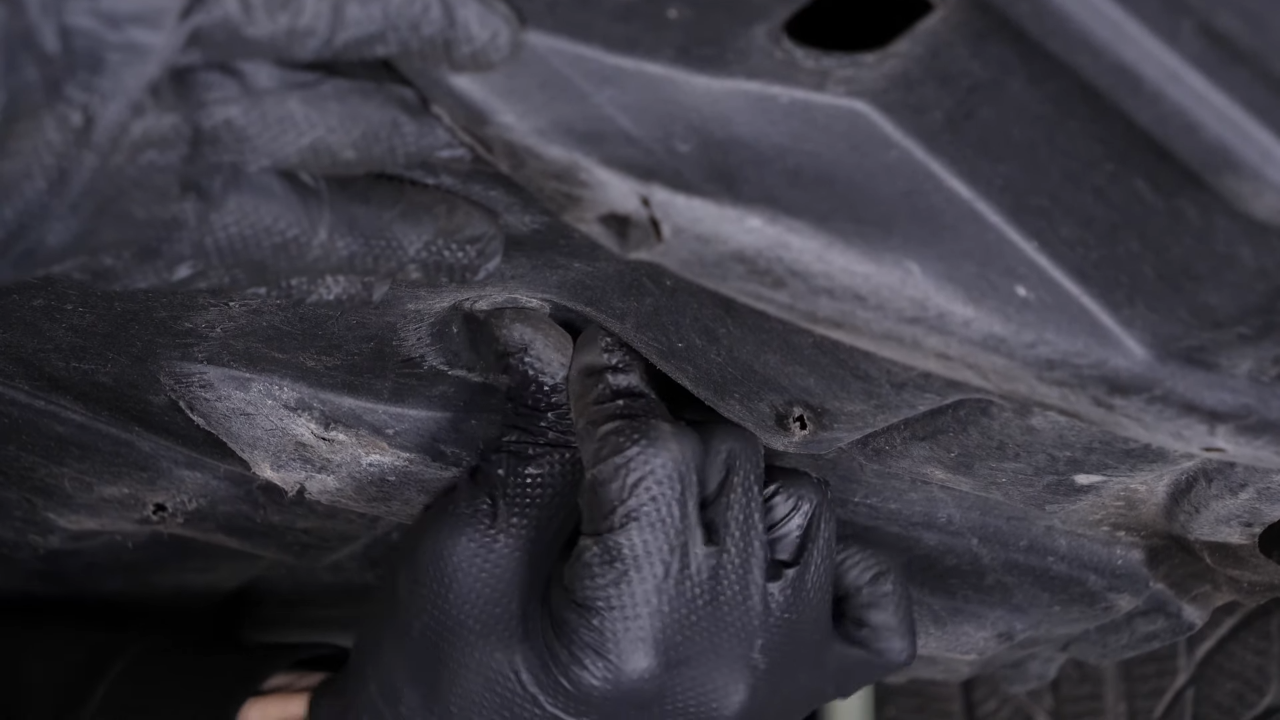

Install the splash shield on the passenger side. Then put the 3 rivets back in place.

Chapter 14:

Step 4/5

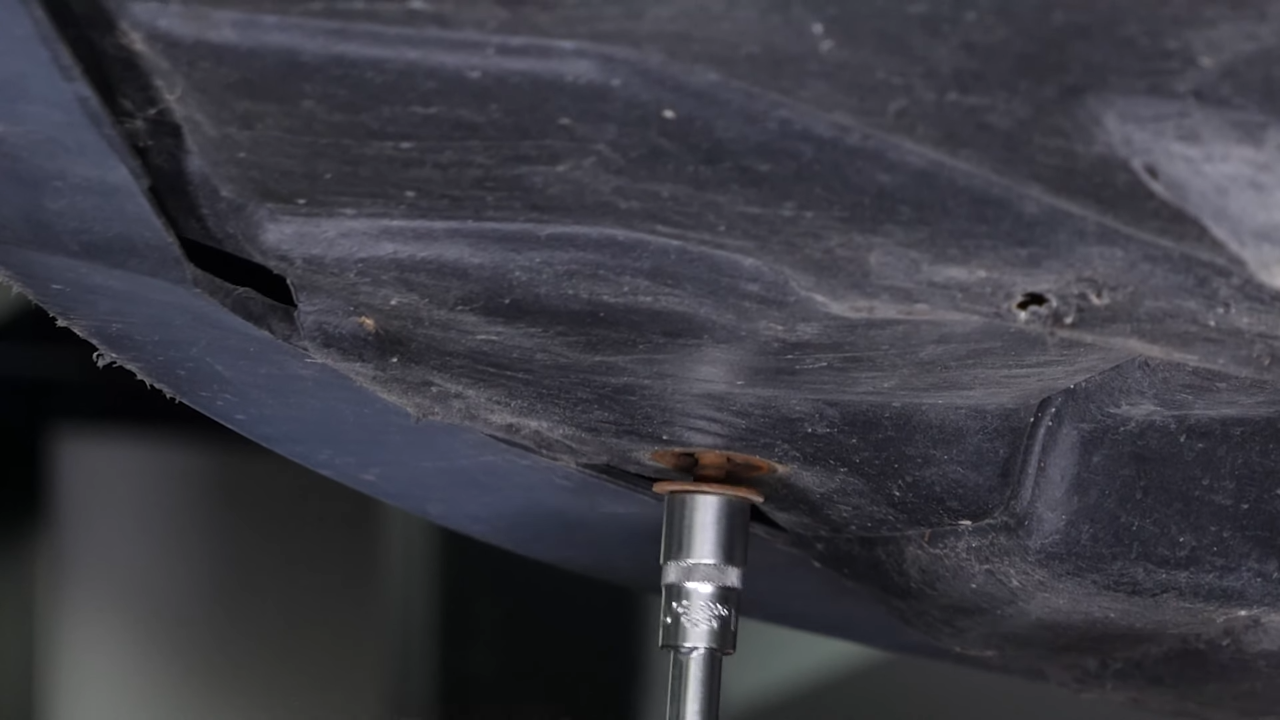

Replace the mud flap.Screw back in the three screws holding the mud flap.

Chapter 14:

Step 5/5

Then screw the 3 holding screws back in.

Chapter 15:

Finalise the reassembly

Step 1/4

Then you can rest your vehicle on the ground.

Chapter 15:

Step 2/4

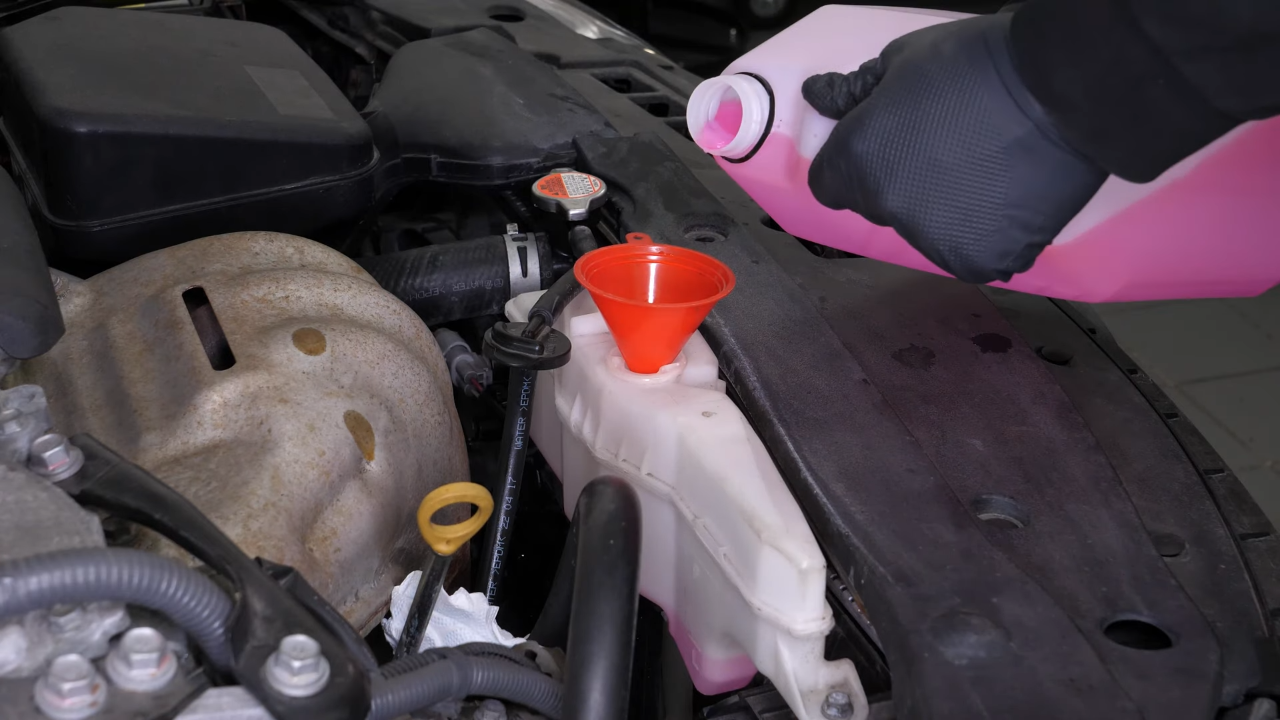

Now you need to refill the radiator with coolant and purge any air from the circuit.

Chapter 15:

Step 3/4

Reconnect the battery.

Chapter 15:

Step 4/4

Operation complete.
