How to replace the rear brake hose 2011-2017 Toyota Camry

Chapter 1:

Lift the vehicle

Step 1/4

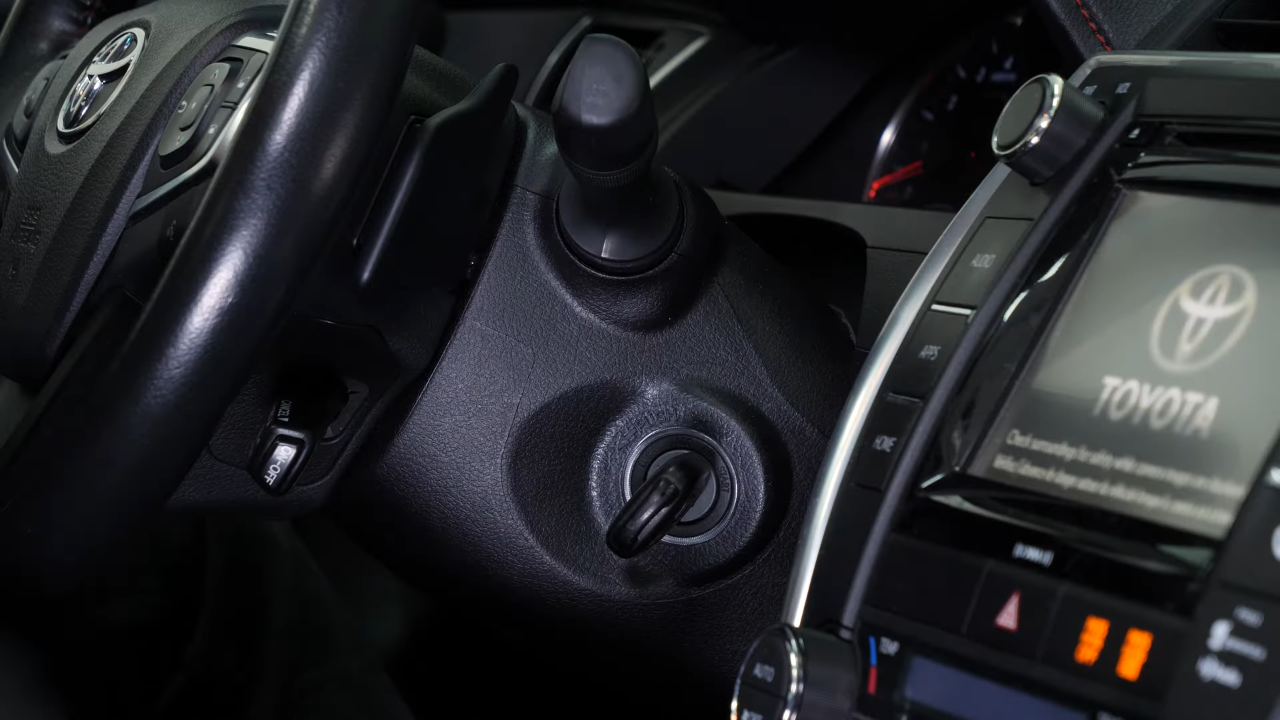

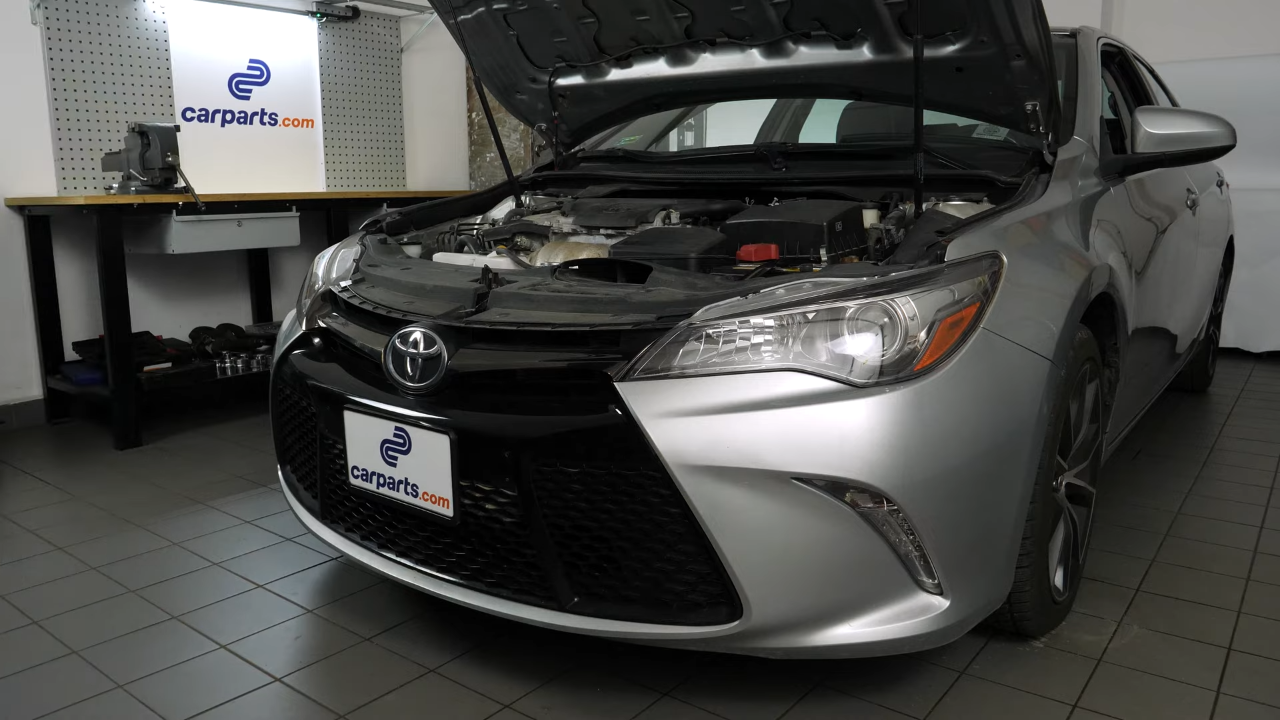

Turn off your vehicle’s ignition, set the parking brake, pull the hood release handle and open the hood.

Chapter 1:

Step 2/4

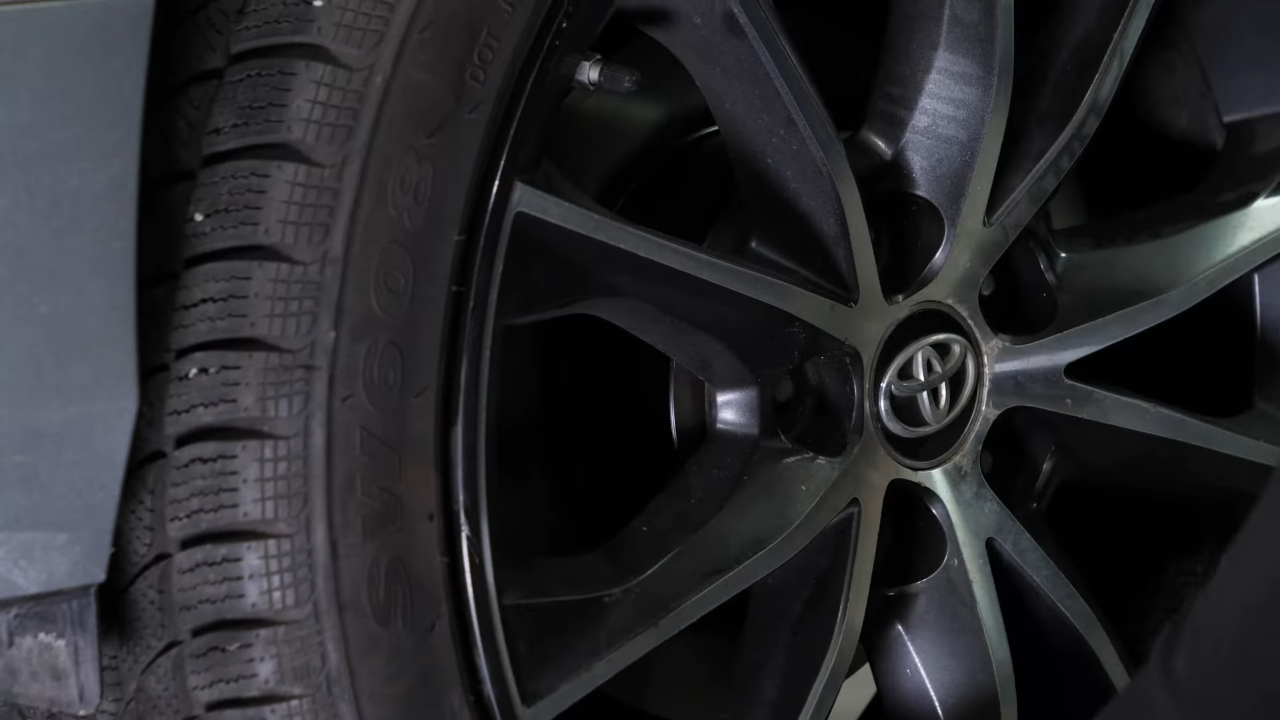

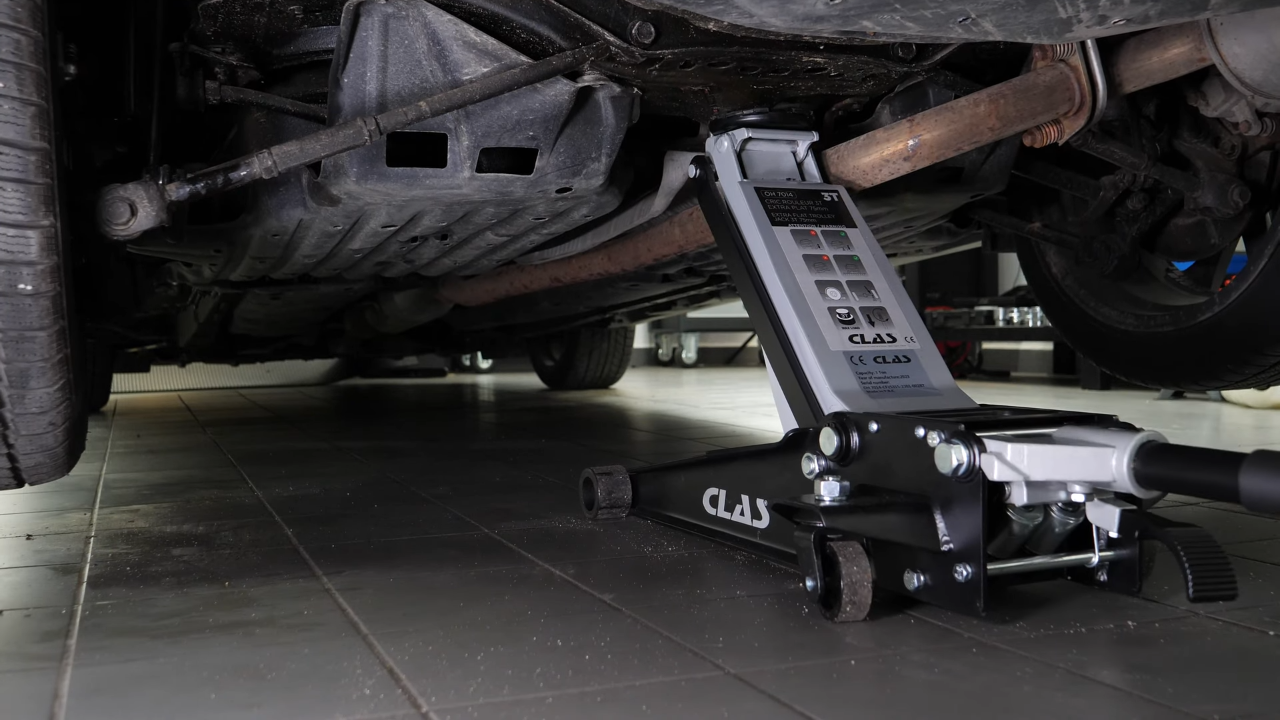

Loosen the stud bolts on the rear wheel.Lift the rear of your vehicle.

Chapter 1:

Step 3/4

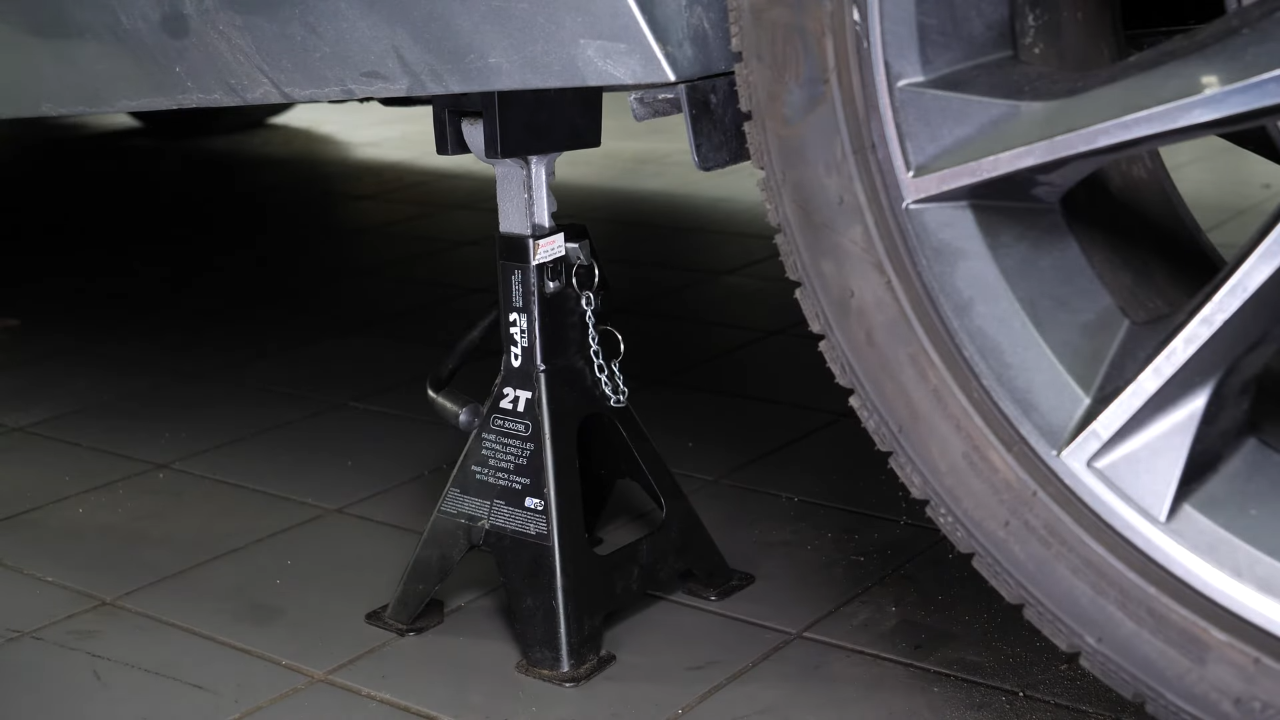

Place the vehicle on the jack stands.

Chapter 1:

Step 4/4

Don’t forget to put the wheel under the vehicle!

Chapter 2:

Tips

Step 1/1

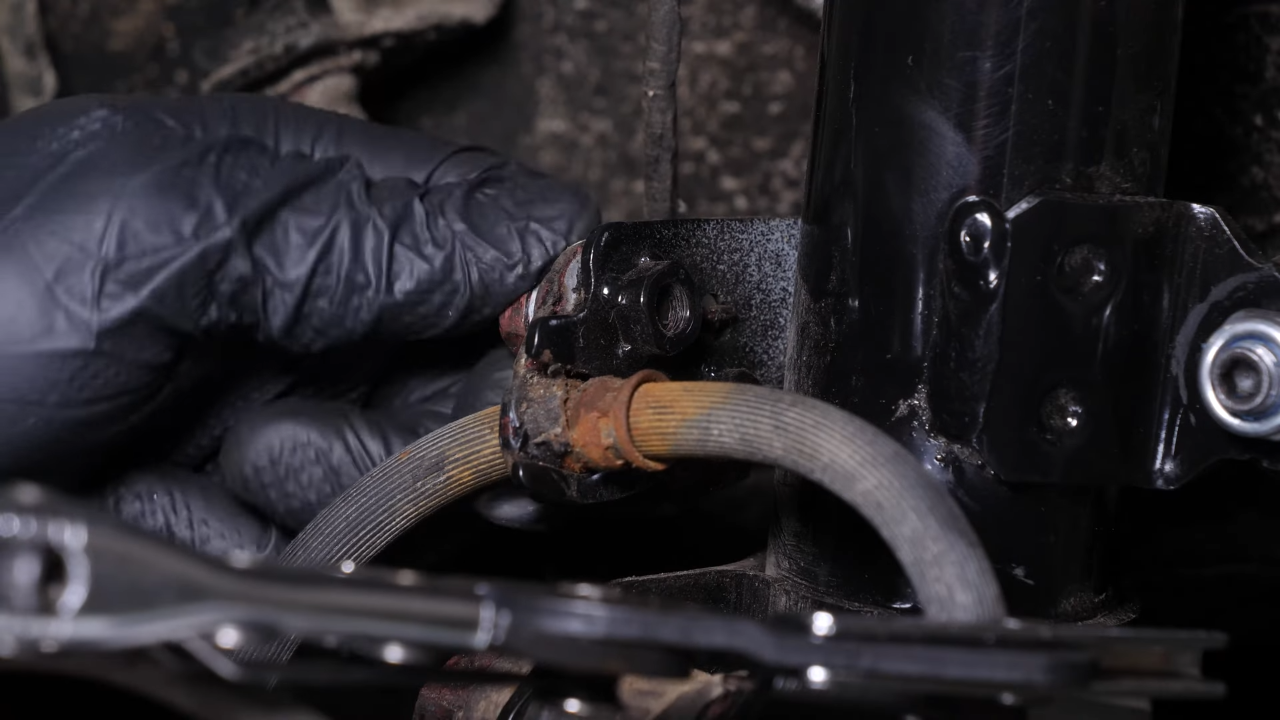

Here’s a tip! You can limit the amount of brake fluid leakage by clamping the brake hose with a brake hose clamp.

Chapter 3:

Set up

Step 1/2

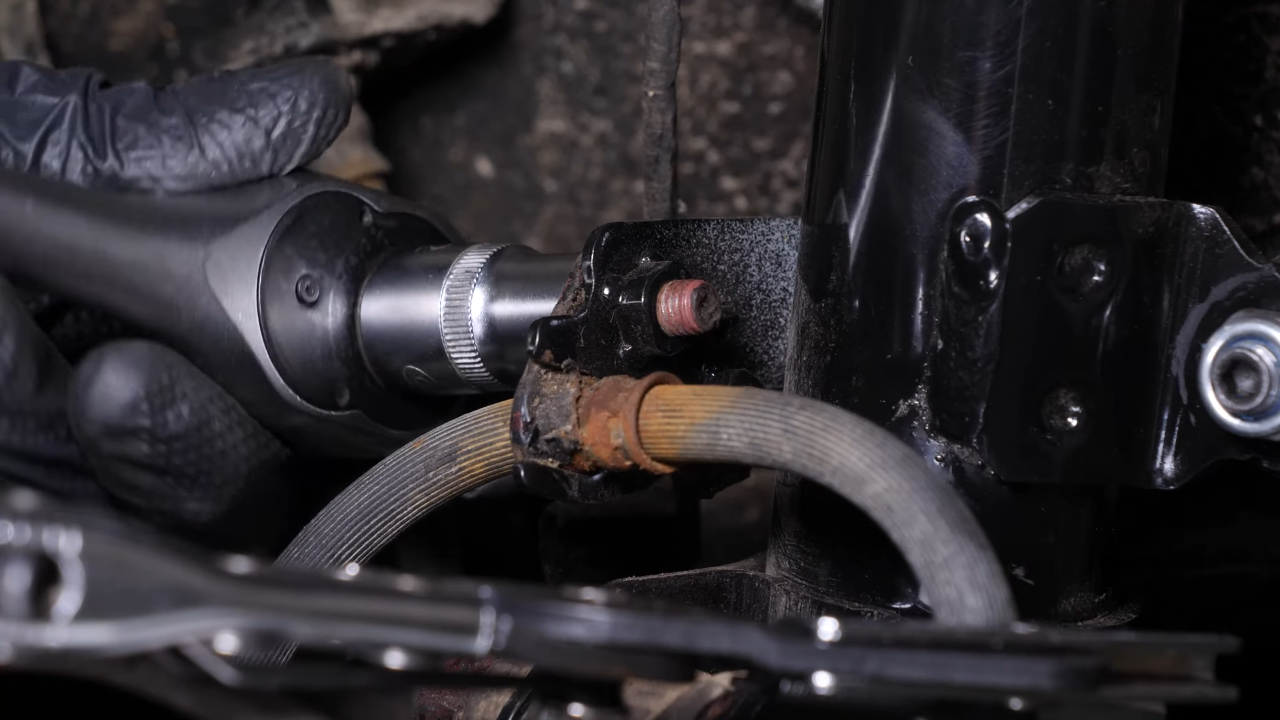

Using a ratchet and a 12 mm socket, unscrew the bolt securing the brake hose clamp. Next, remove the hose.

Chapter 3:

Step 2/2

Place a container to collect the fluid under the caliper, since the brake fluid may leak out.

Chapter 4:

Remove the hose

Step 1/5

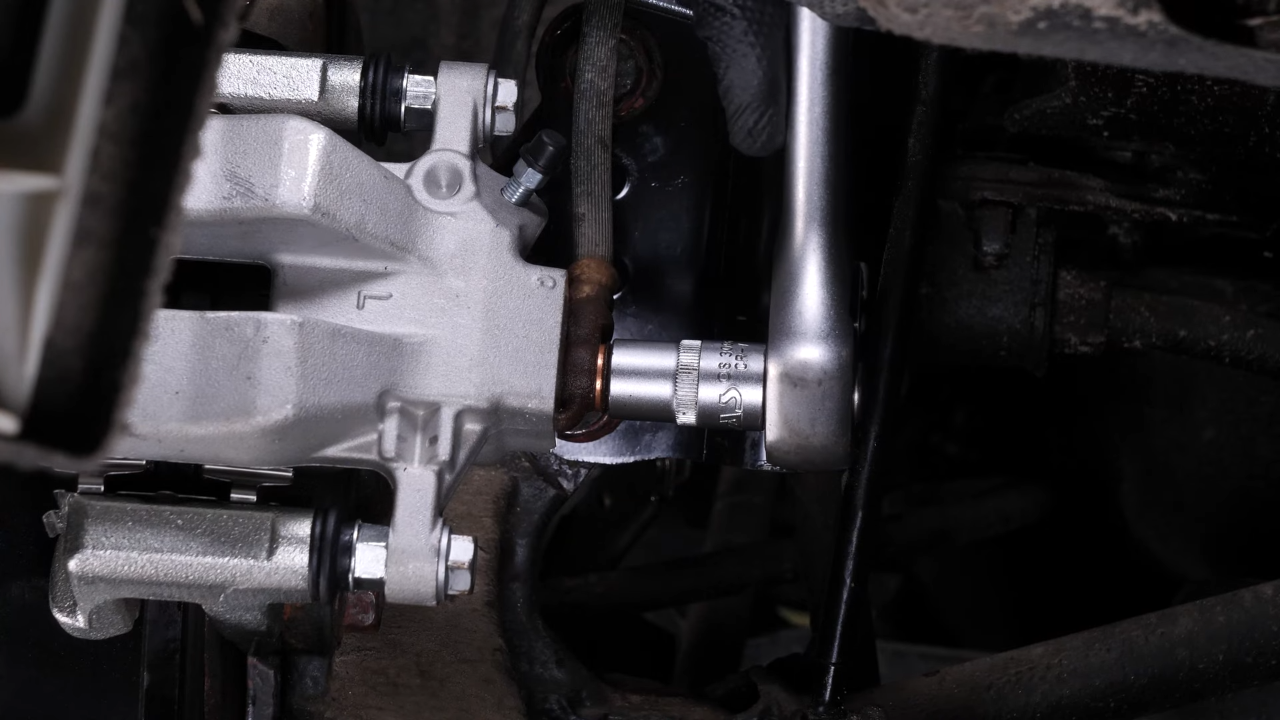

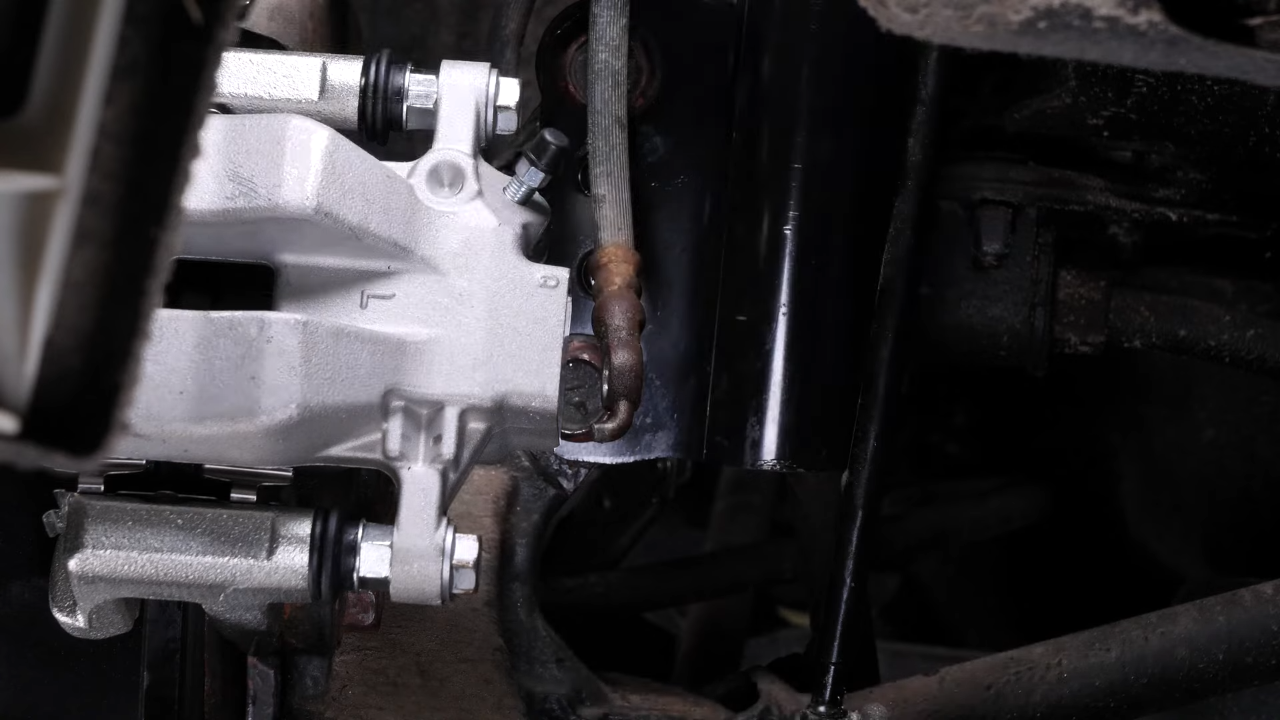

Using a ratchet and a 14 mm socket, unscrew the banjo screw connecting the hose to the caliper.

Chapter 4:

Step 2/5

Using a wire brush, start by brushing the metal hose connection of the brake hose and spray it with penetrating oil.

Chapter 4:

Step 3/5

Using a 10 mm open ring wrench, undo the metal hose connector from the brake hose while it is still on its support.

Chapter 4:

Step 4/5

Remove the brake hose retaining clip by prying it using a flat head screwdriver.

Chapter 4:

Step 5/5

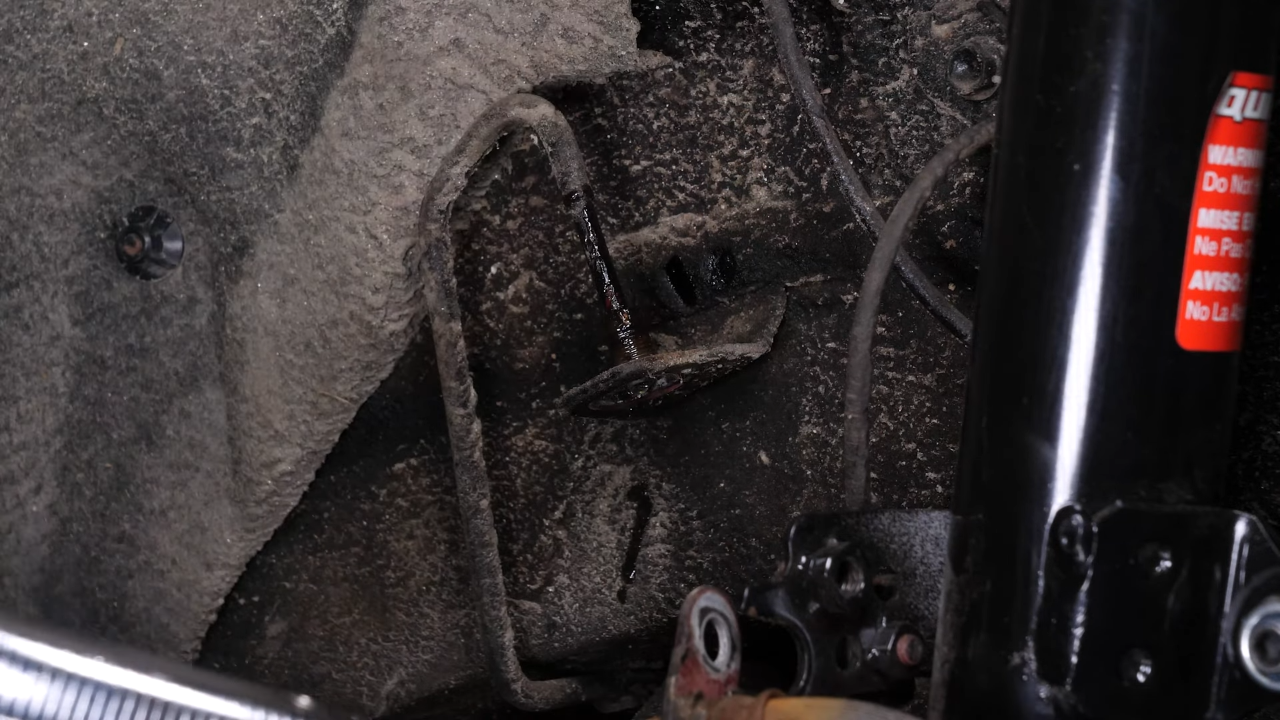

You can now finish unscrewing the connector between the metal hose and the brake hose.You can now remove the hose.

Chapter 5:

Reinstall the hose

Step 1/7

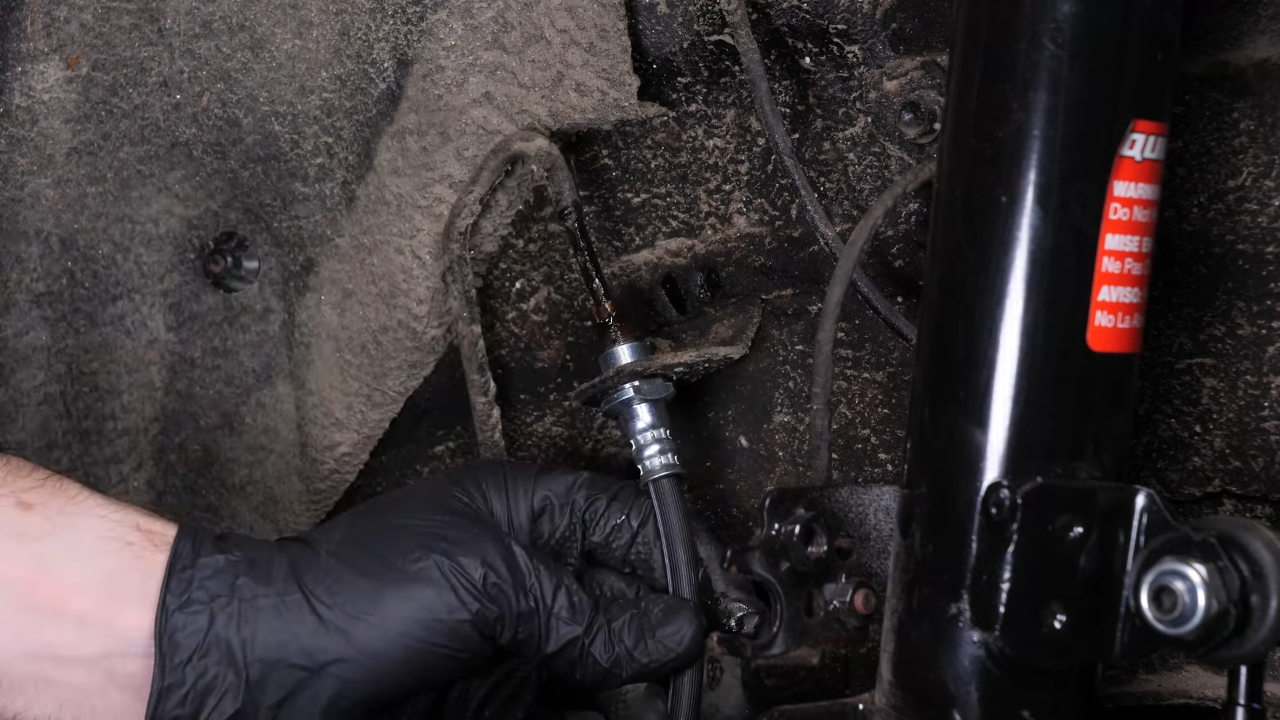

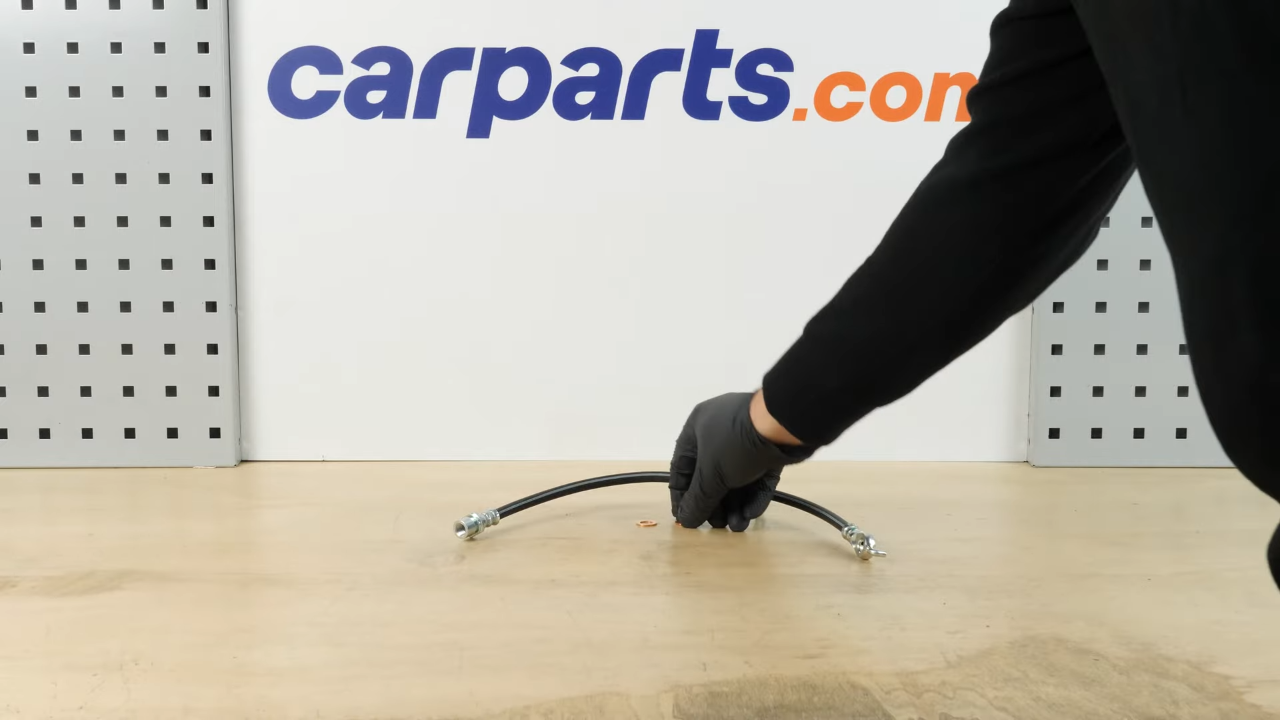

Take the new brake hose. Then insert it from its upper part.

Chapter 5:

Step 2/7

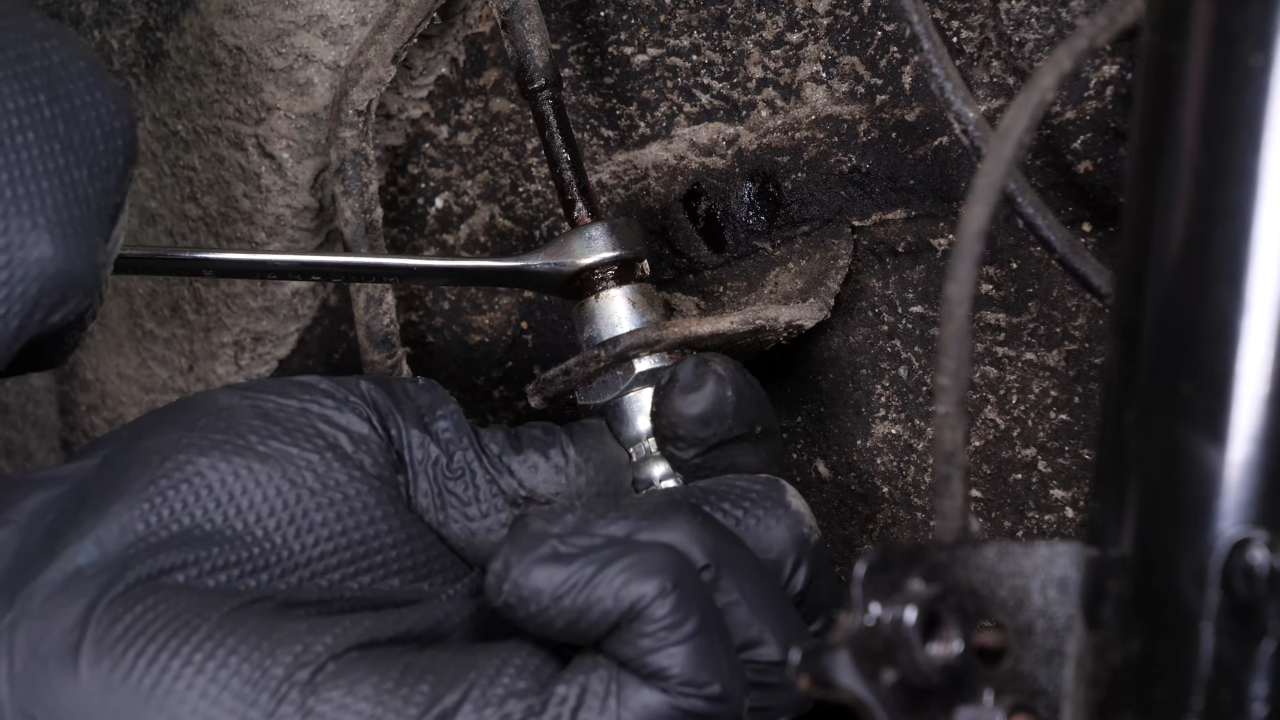

Screw the metal hose connector back on. Then put the retaining clip back in place.

Chapter 5:

Step 3/7

Get the new seals and the banjo screw.

Chapter 5:

Step 4/7

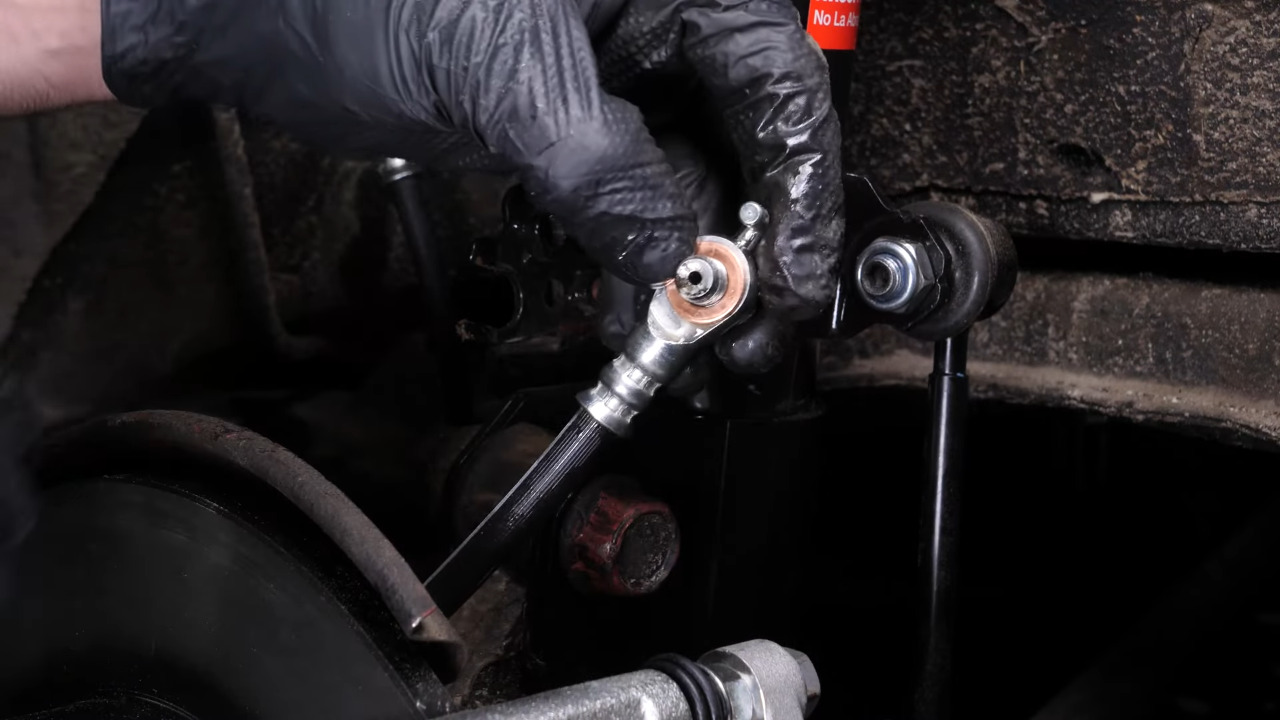

Put a seal on the banjo screw and install the assembly on the hose. Then put the second seal on the banjo screw.

Chapter 5:

Step 5/7

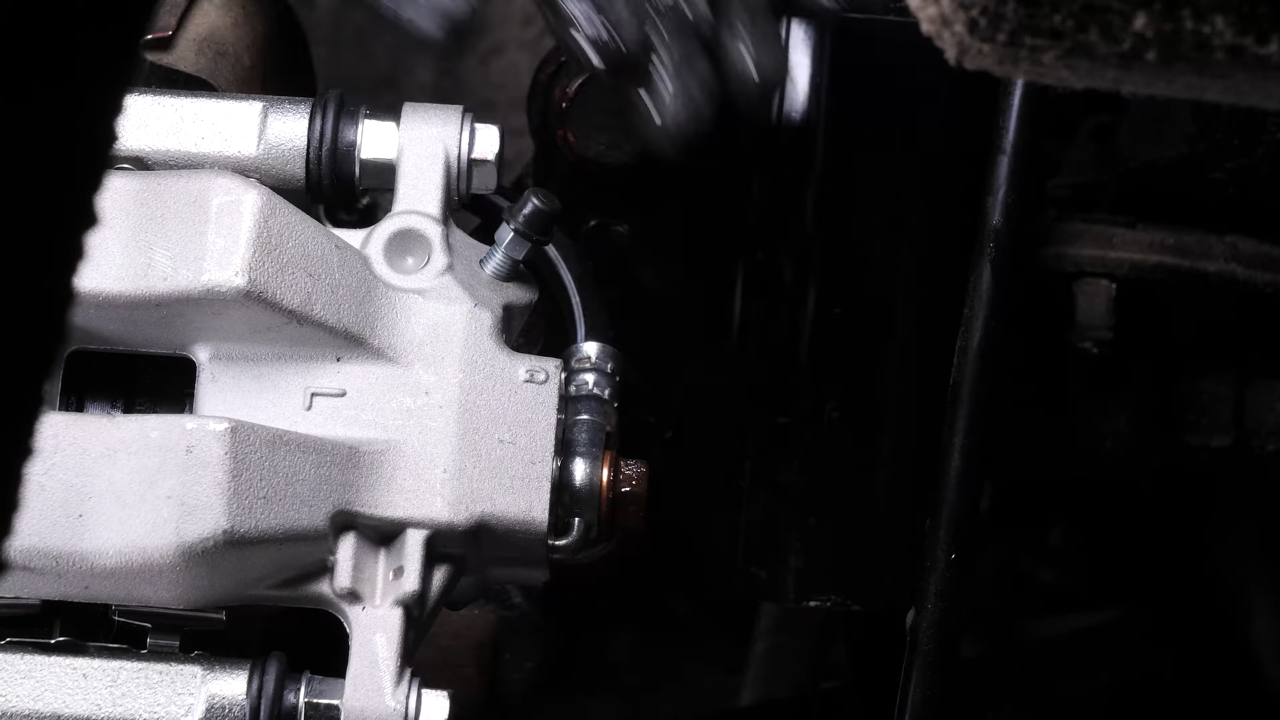

Screw the banjo screw, that connects the brake hose to the caliper, back in.

Chapter 5:

Step 6/7

Finish tightening the brake hose attachment with the torque wrench.

Chapter 5:

Step 7/7

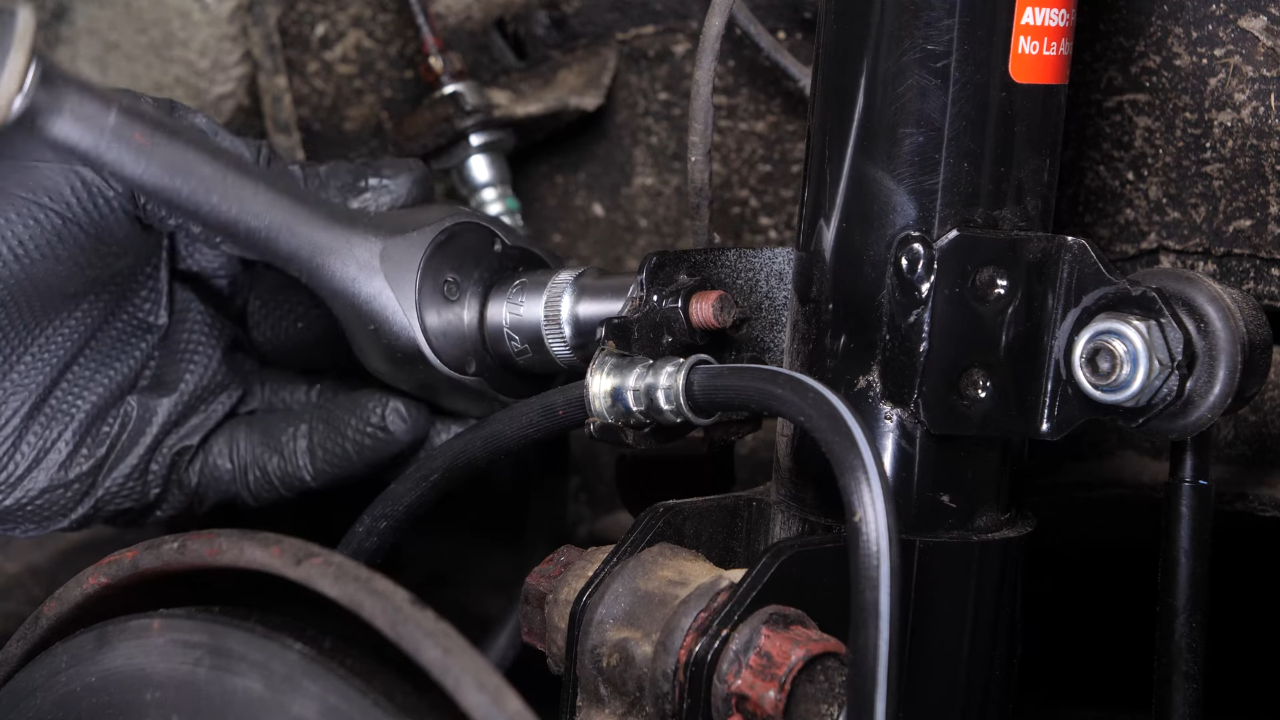

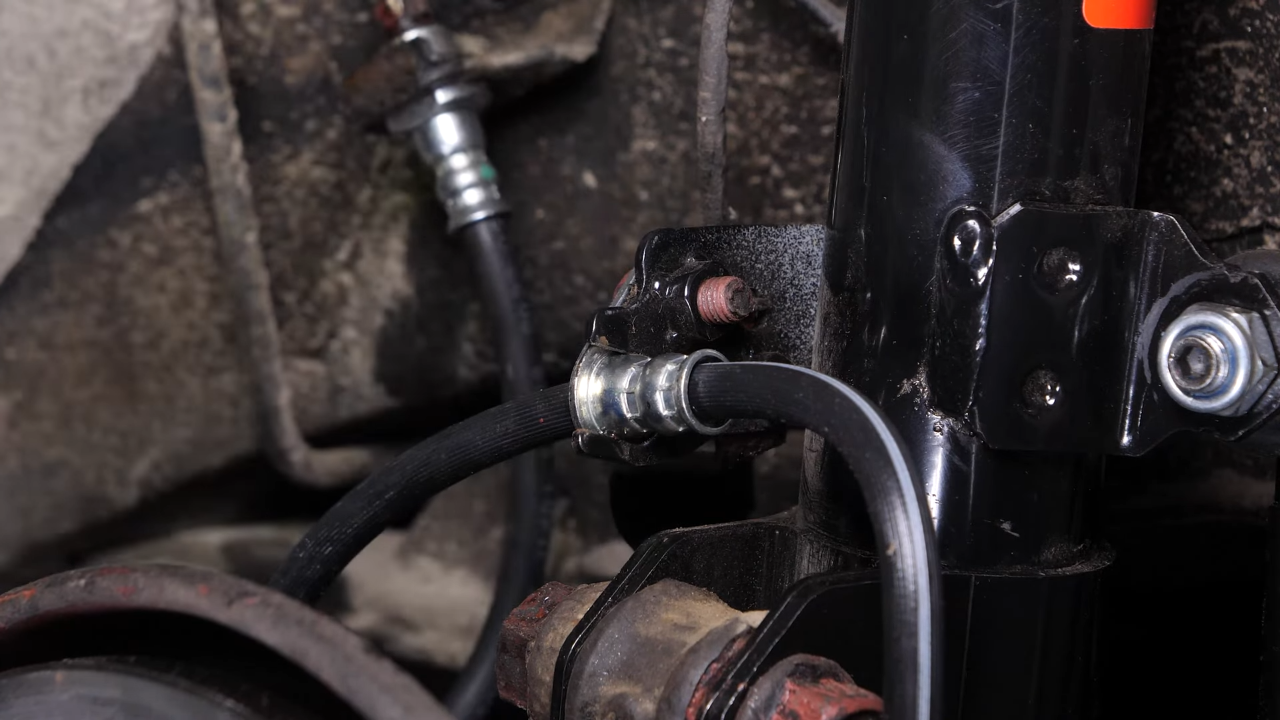

Screw the brake hose mounting bracket back on.

Chapter 6:

Bleed

Step 1/1

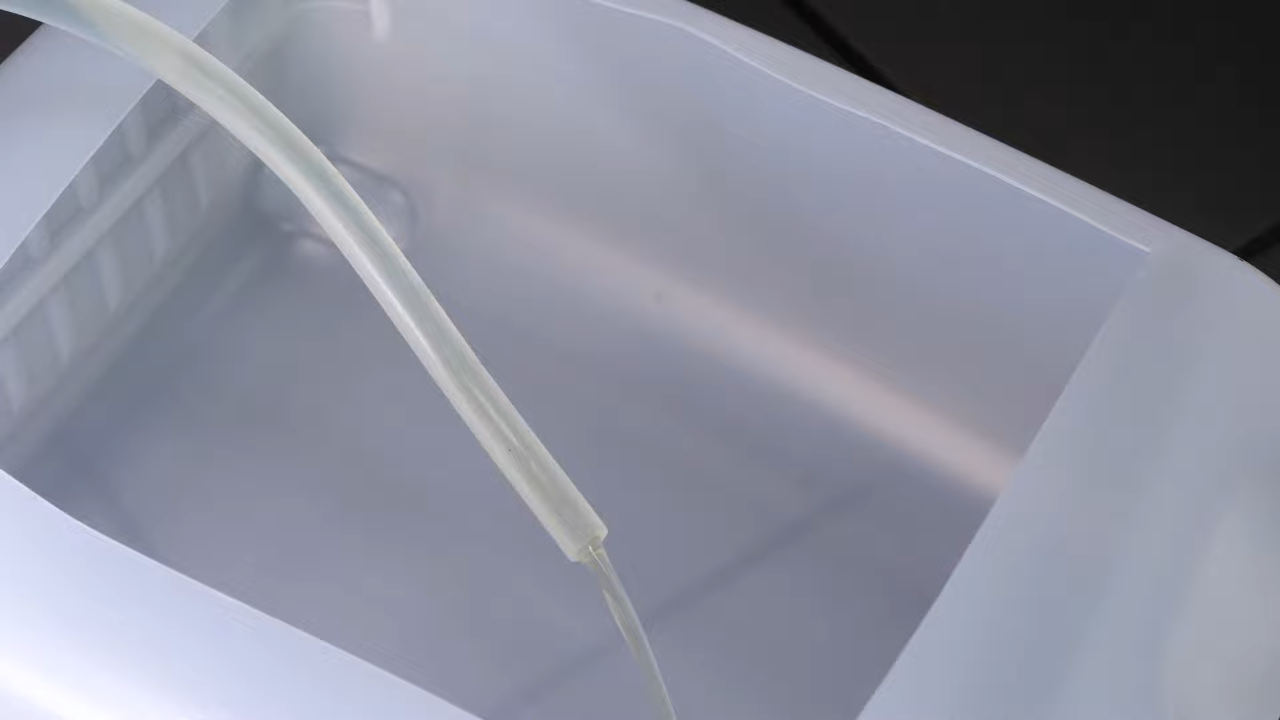

When replacing a brake hose, you need to bleed the brake fluid system to remove air from the system.

Chapter 7:

Clean

Step 1/4

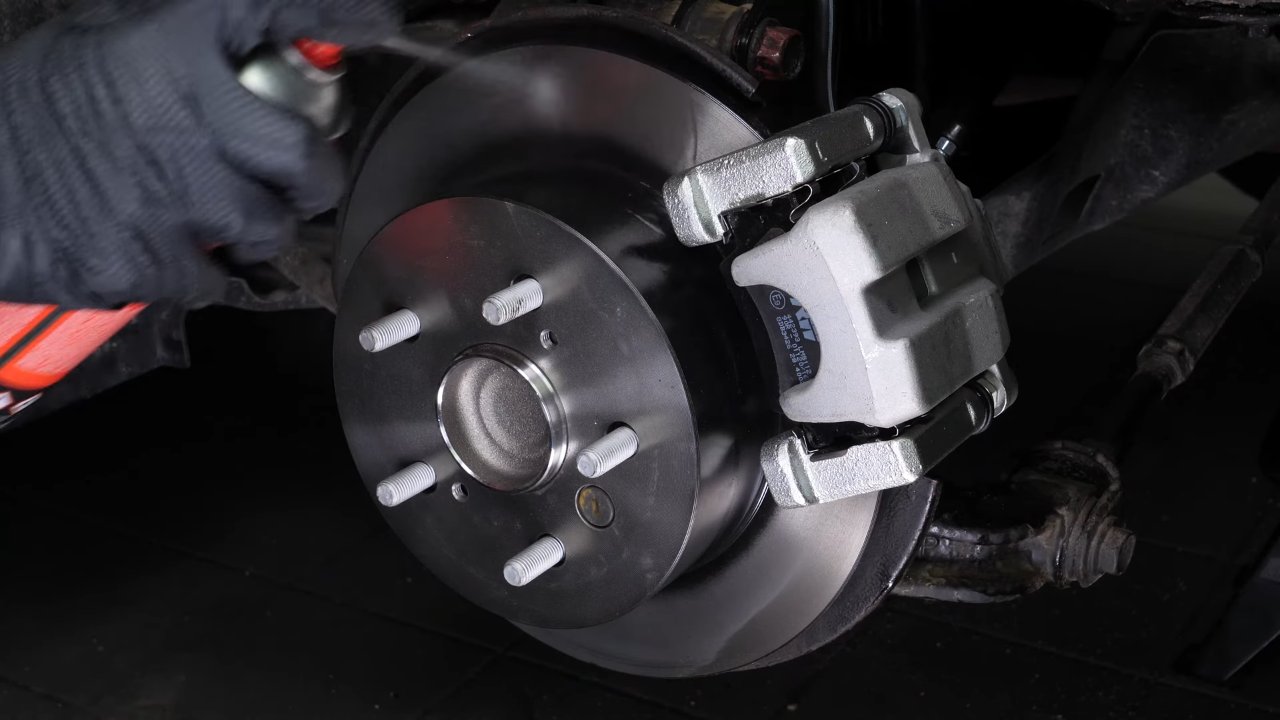

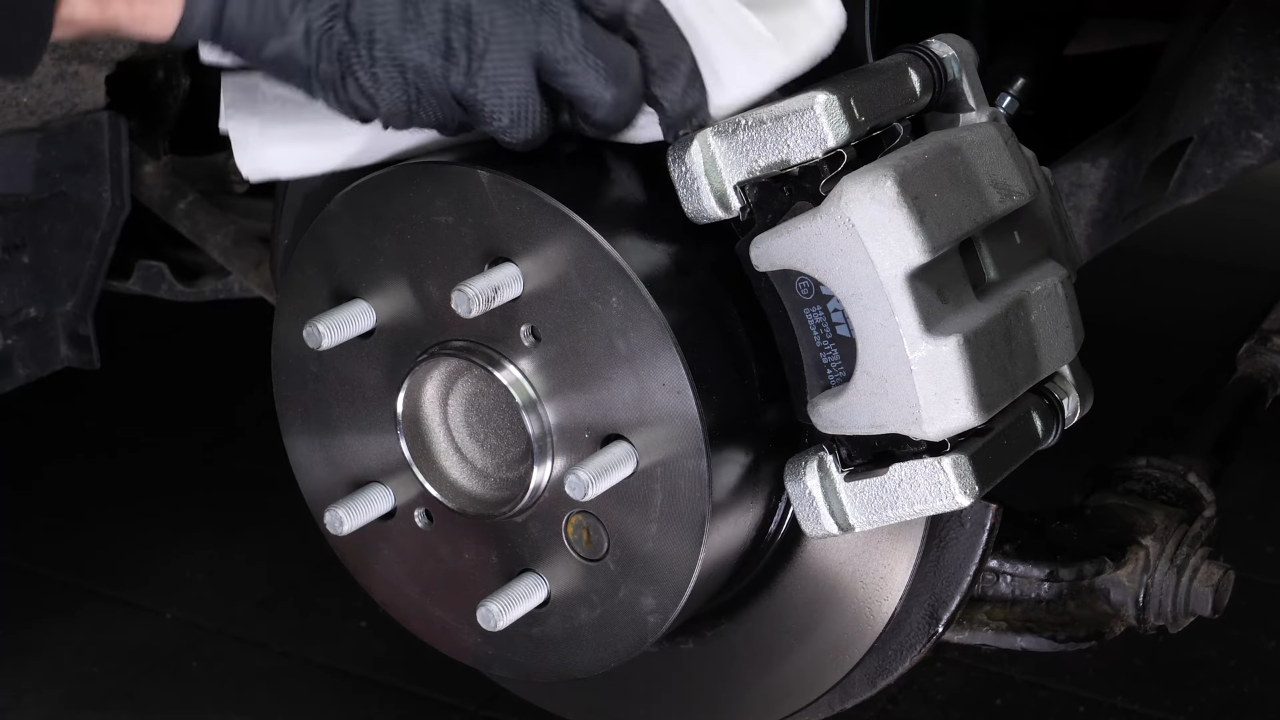

After bleeding, remember to clean the caliper-disc assembly with brake cleaner to remove the brake fluid which can be corrosive.

Chapter 7:

Step 2/4

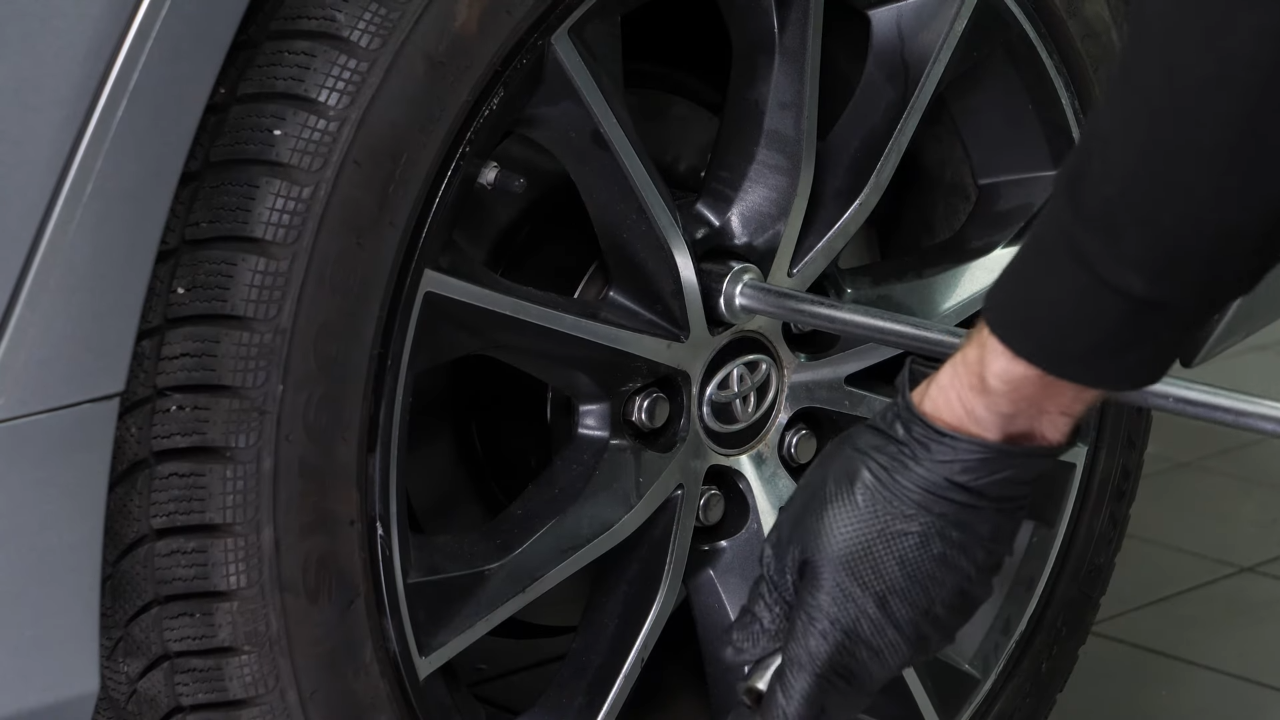

Then, you will be able to put the wheel back on your vehicle.

Chapter 7:

Step 3/4

Put the car back on the ground and block the wheels properly.

Chapter 7:

Step 4/4

Operation complete.
