How to replace the rear sway bar end Links 2011-2017 Toyota Camry

Chapter 1:

Lift the vehicle

Step 1/4

Turn your engine off and set the parking brake.

Chapter 1:

Step 2/4

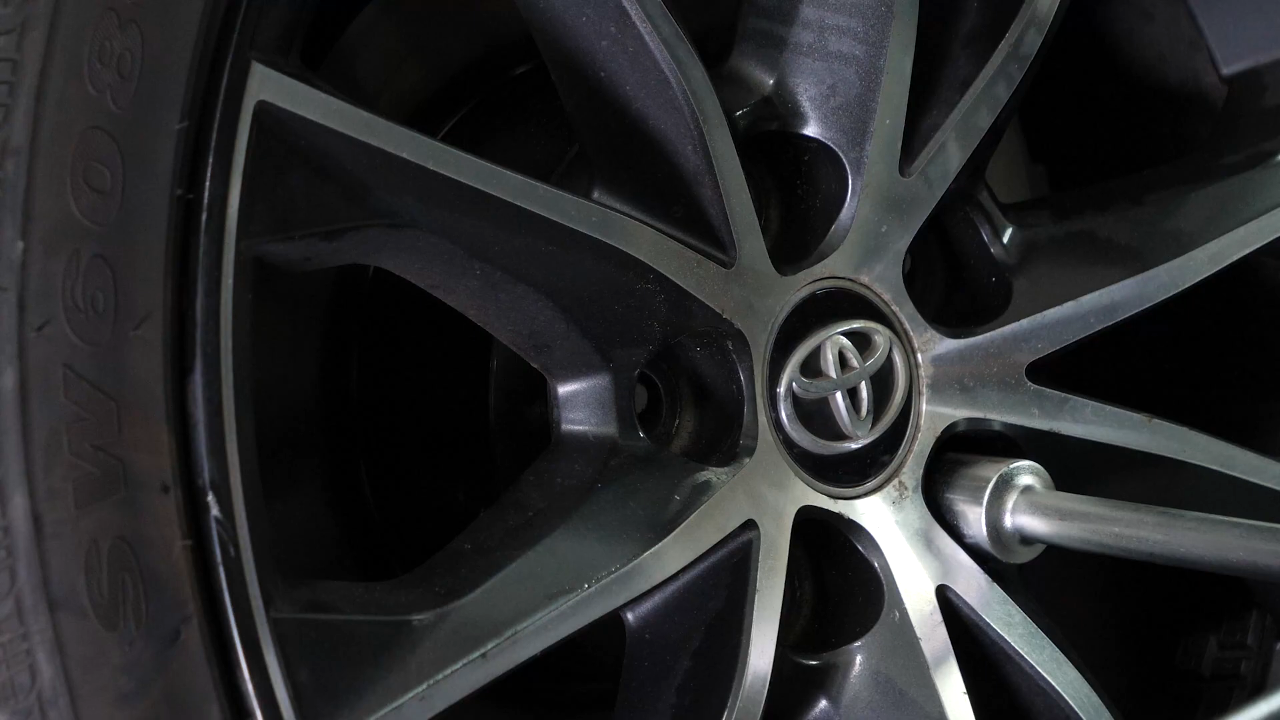

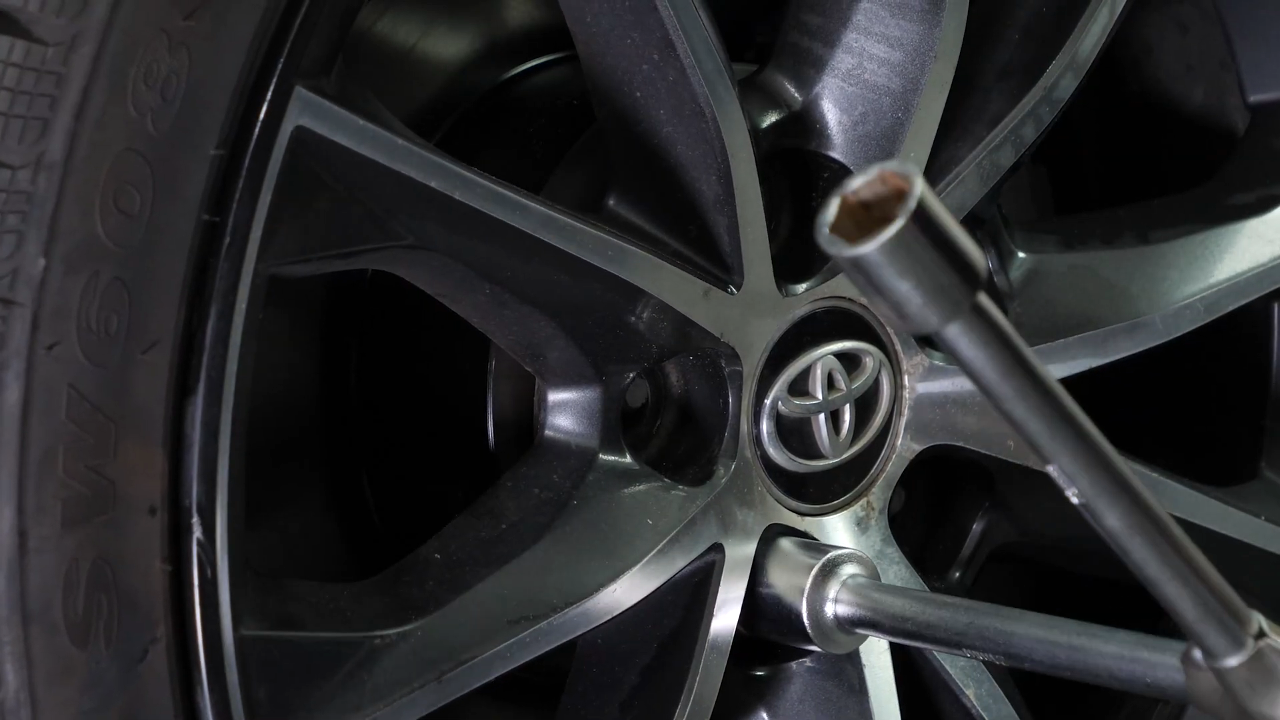

Loosen the wheel lug nuts on the rear wheels.

Chapter 1:

Step 3/4

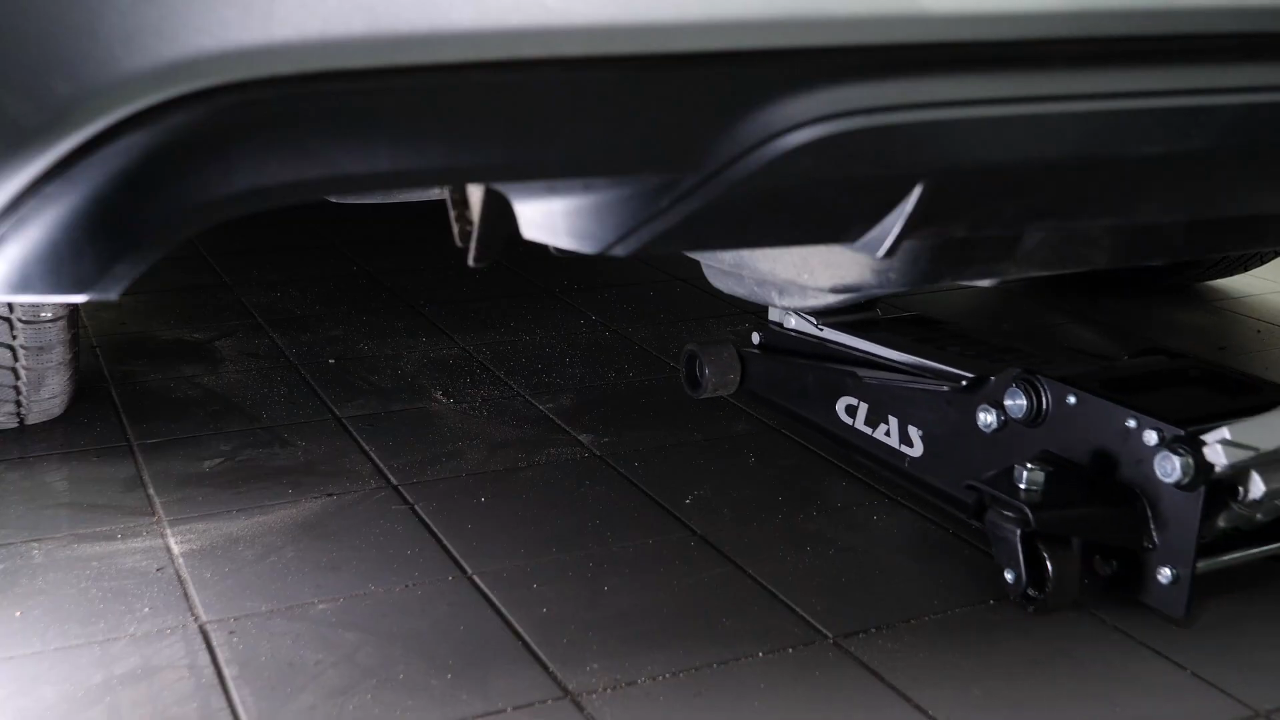

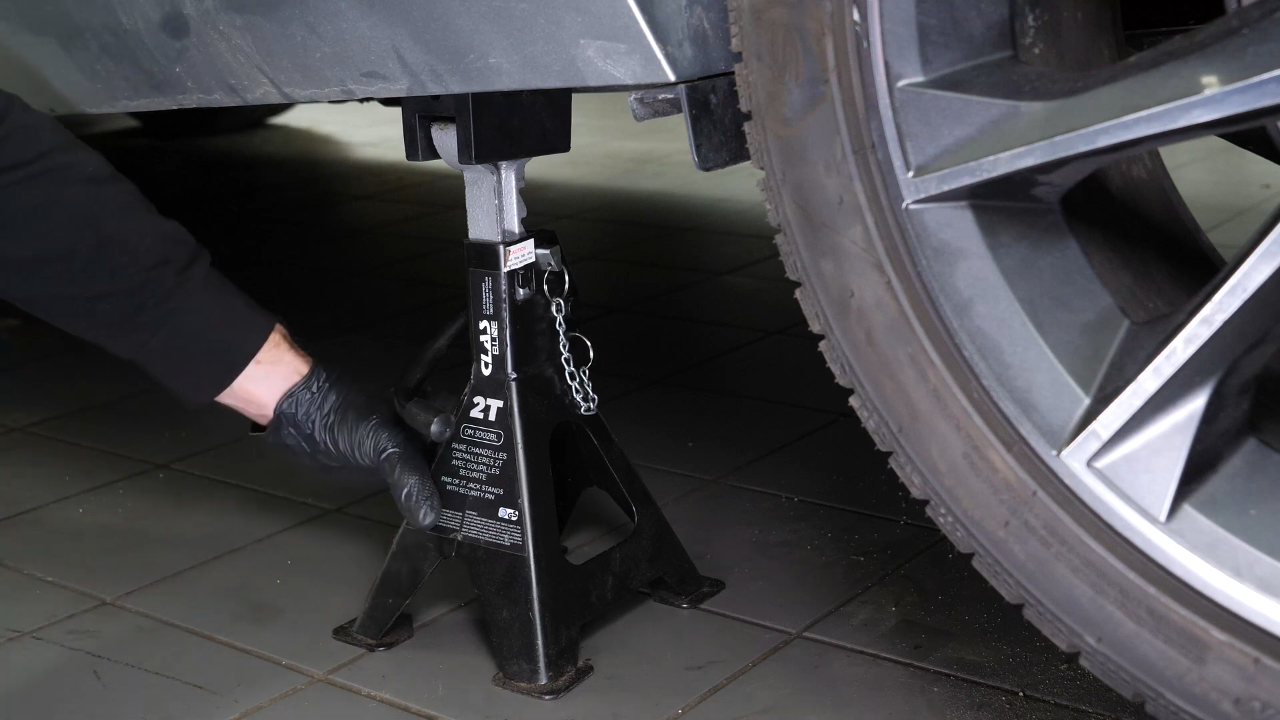

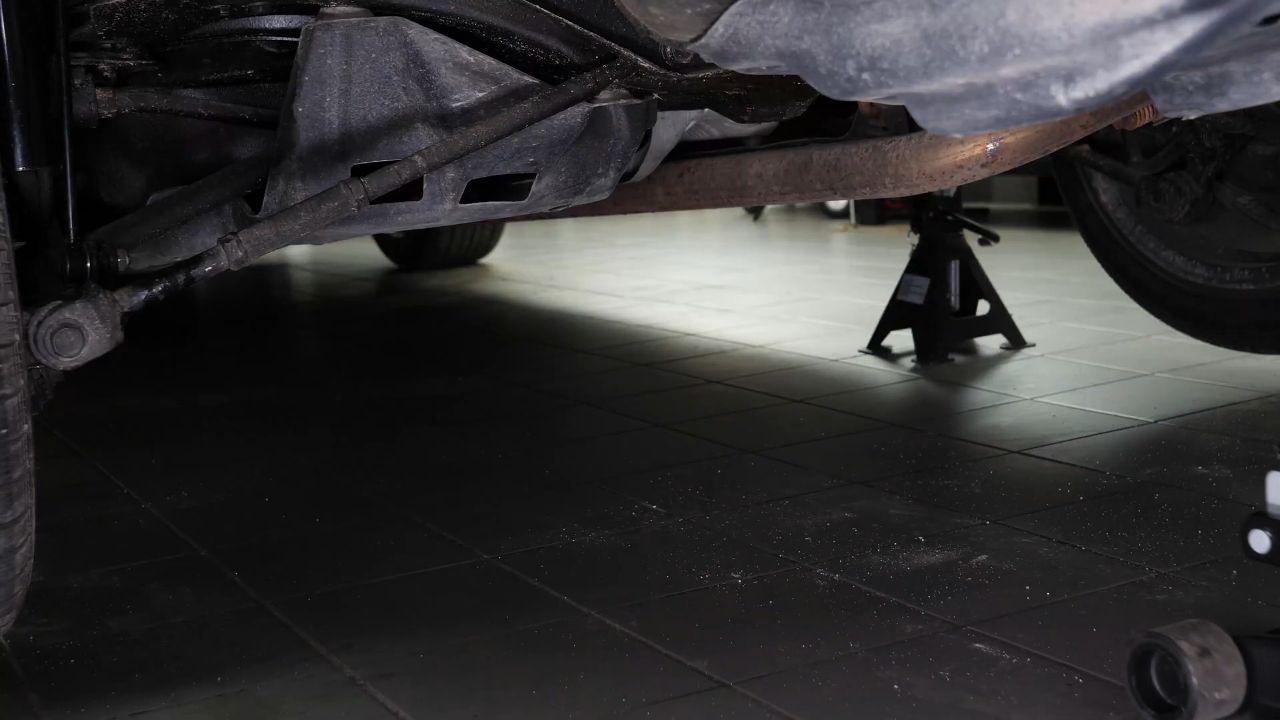

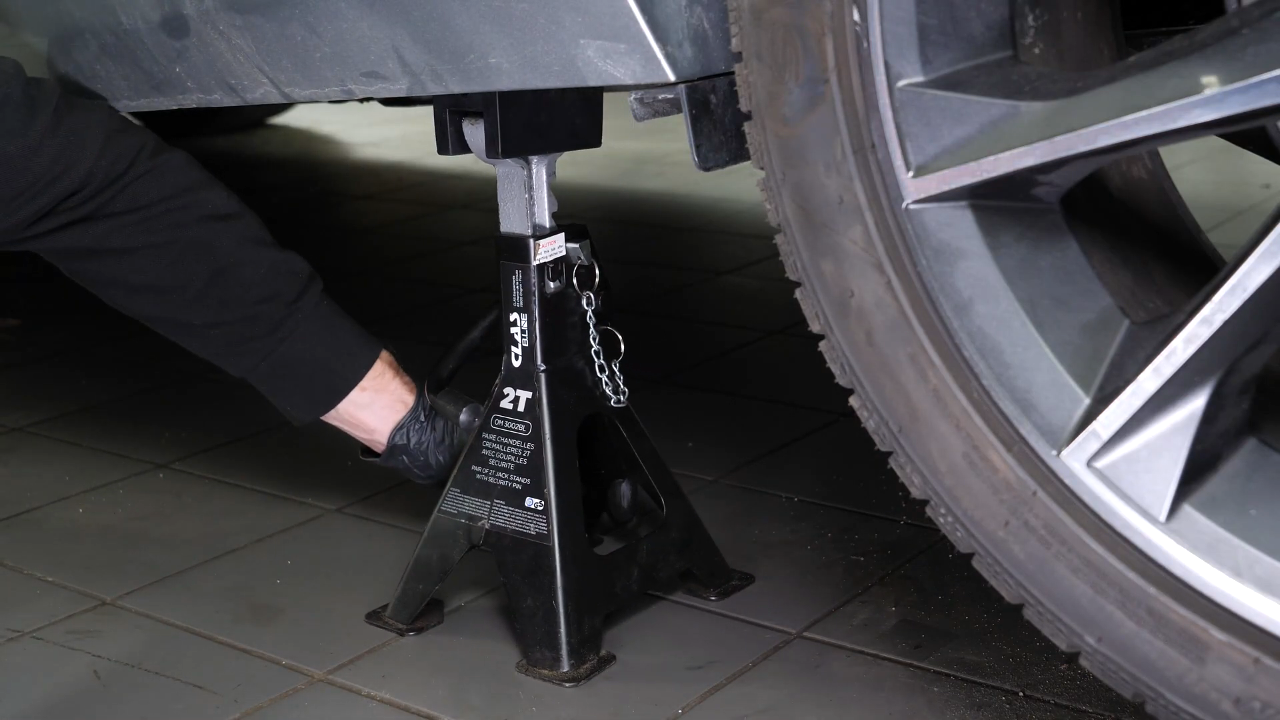

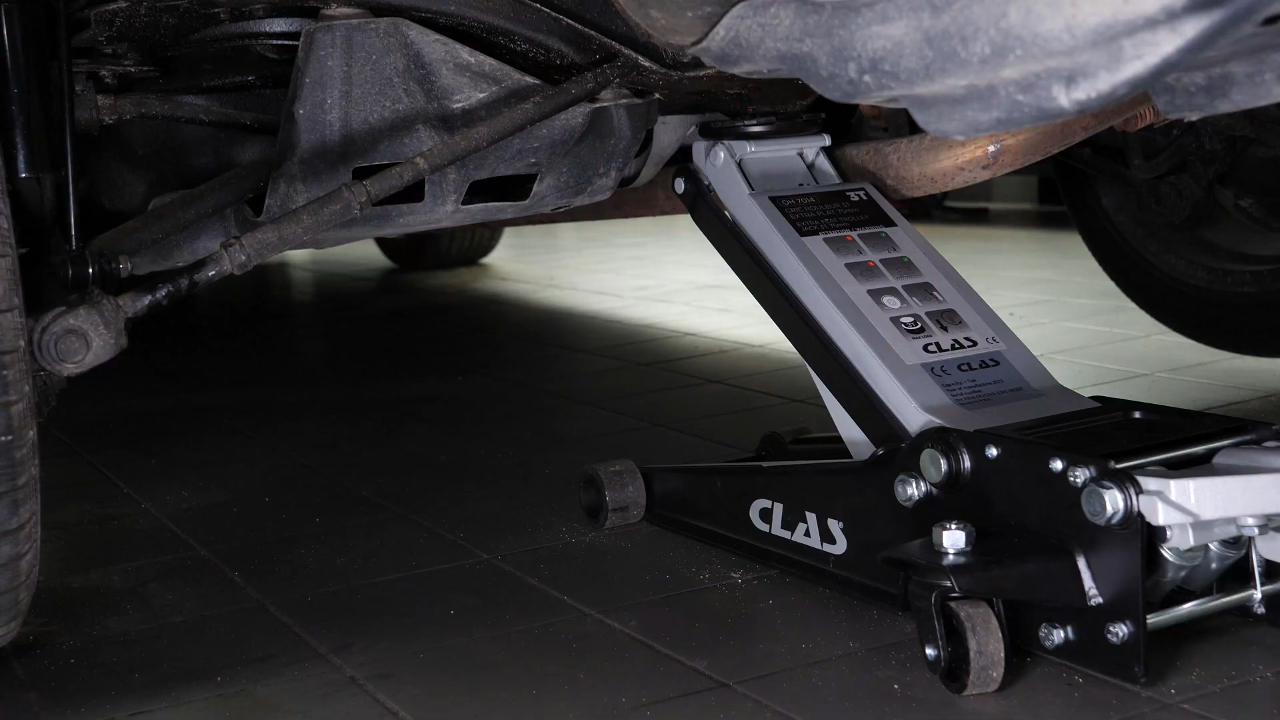

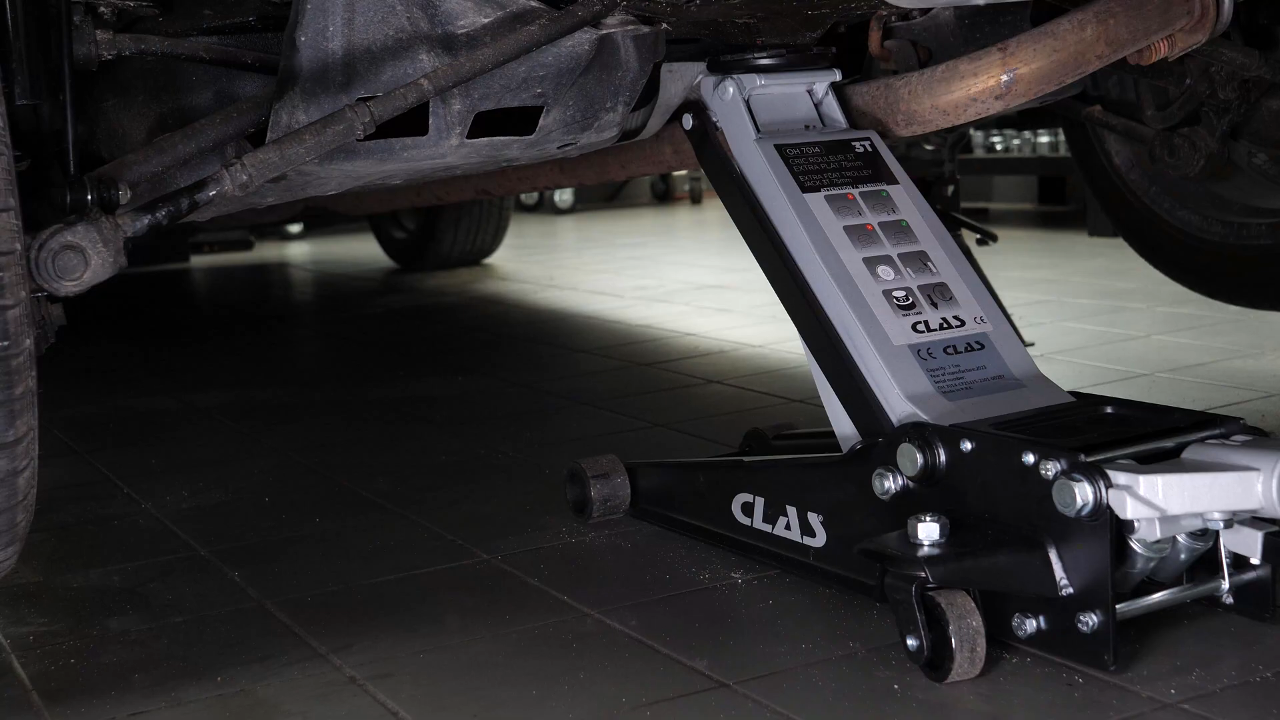

Lift the rear of your vehicle. Place the vehicle on the jack stands.

Chapter 1:

Step 4/4

Don’t forget to put the wheels under the vehicle!

Chapter 2:

Informations

Step 1/3

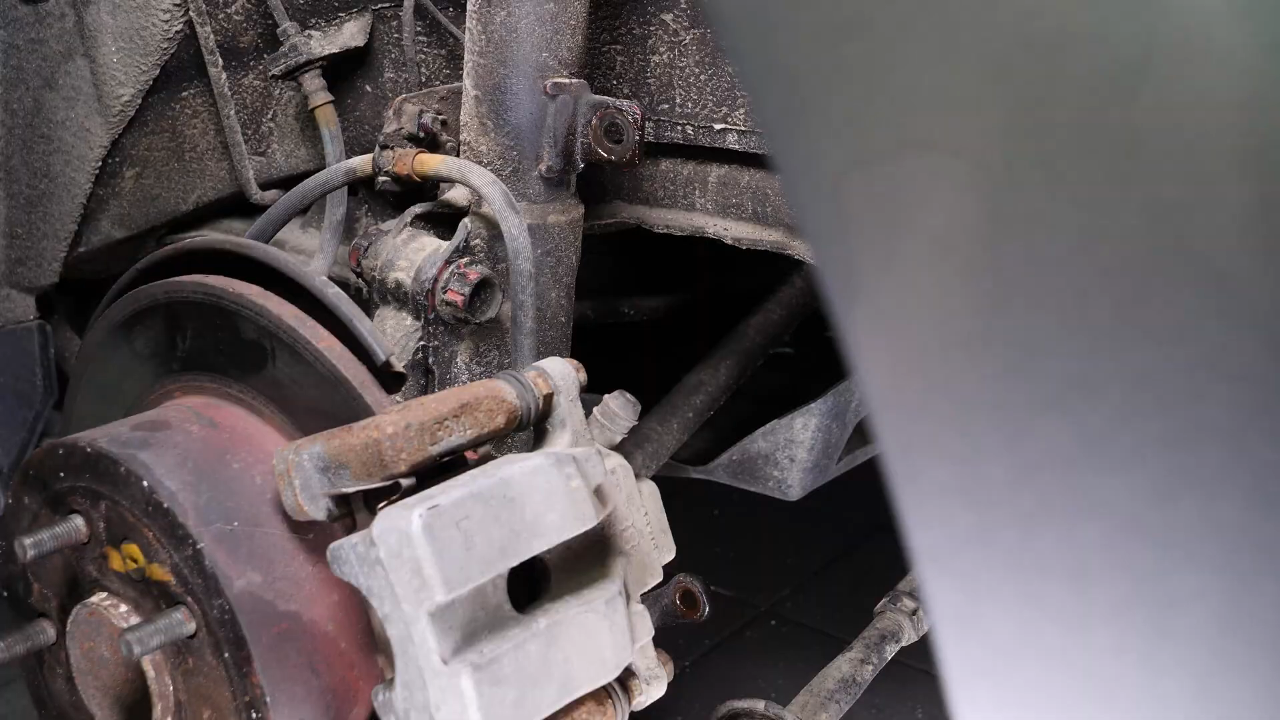

You can now see your car’s rear end link.

Chapter 2:

Step 2/3

The end link connects the rear sway bar to the struts to keep the wheels firmly on the ground at all times.

Chapter 2:

Step 3/3

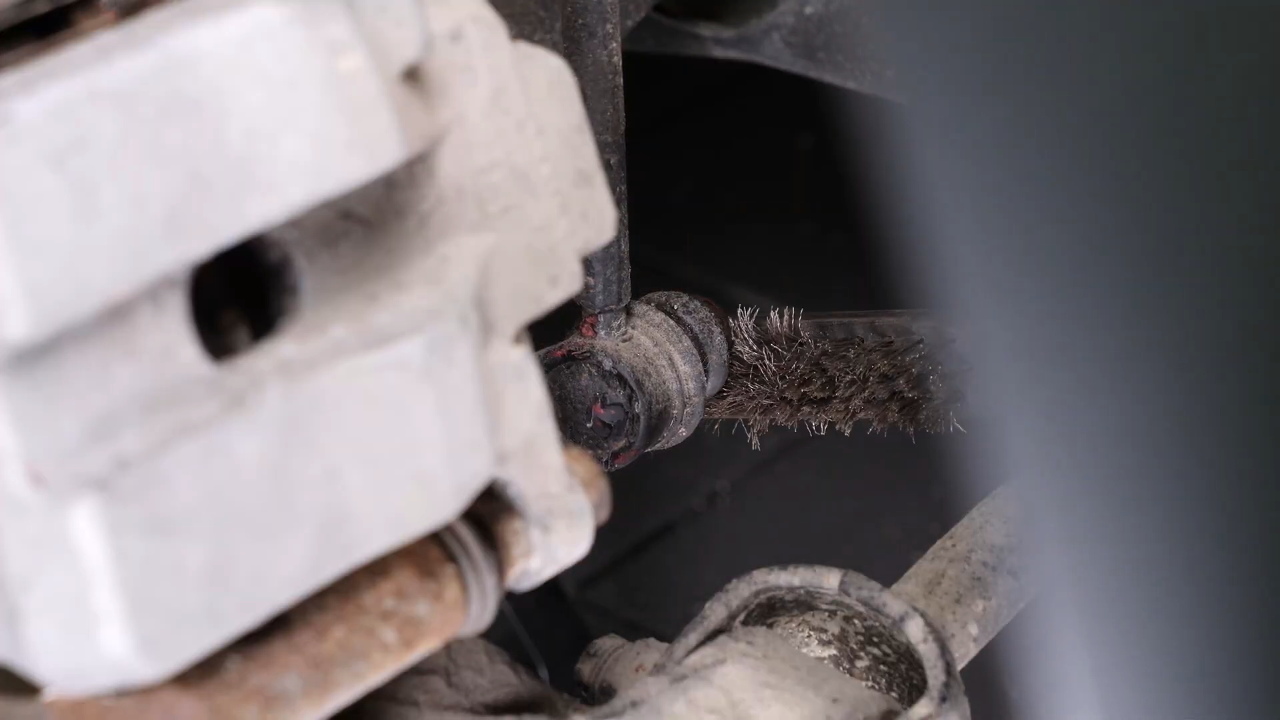

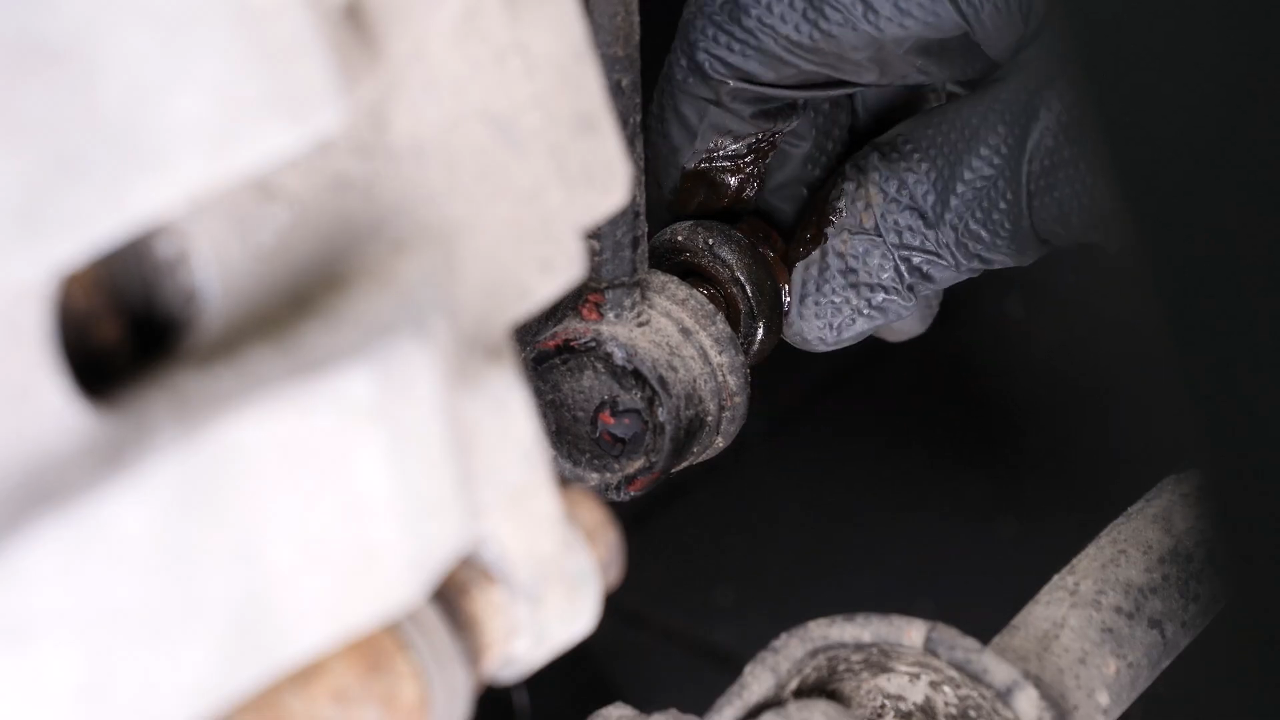

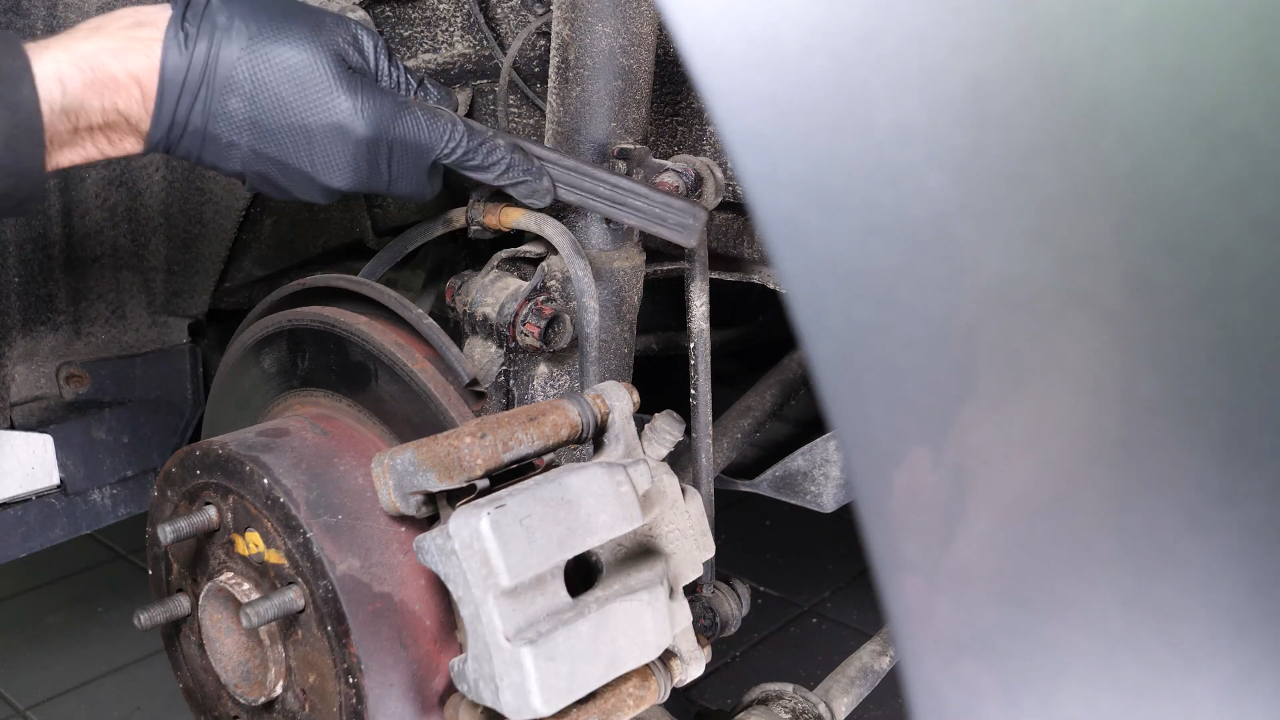

The components to be removed are very often seized up, so don’t hesitate to brush and to use penetrating oil to make removal easier.

Chapter 3:

Remove the lower ball joint

Step 1/3

Using a 14 mm wrench, a ratchet and a 5mm Allen socket, unscrew the lower ball joint nut.

Chapter 3:

Step 2/3

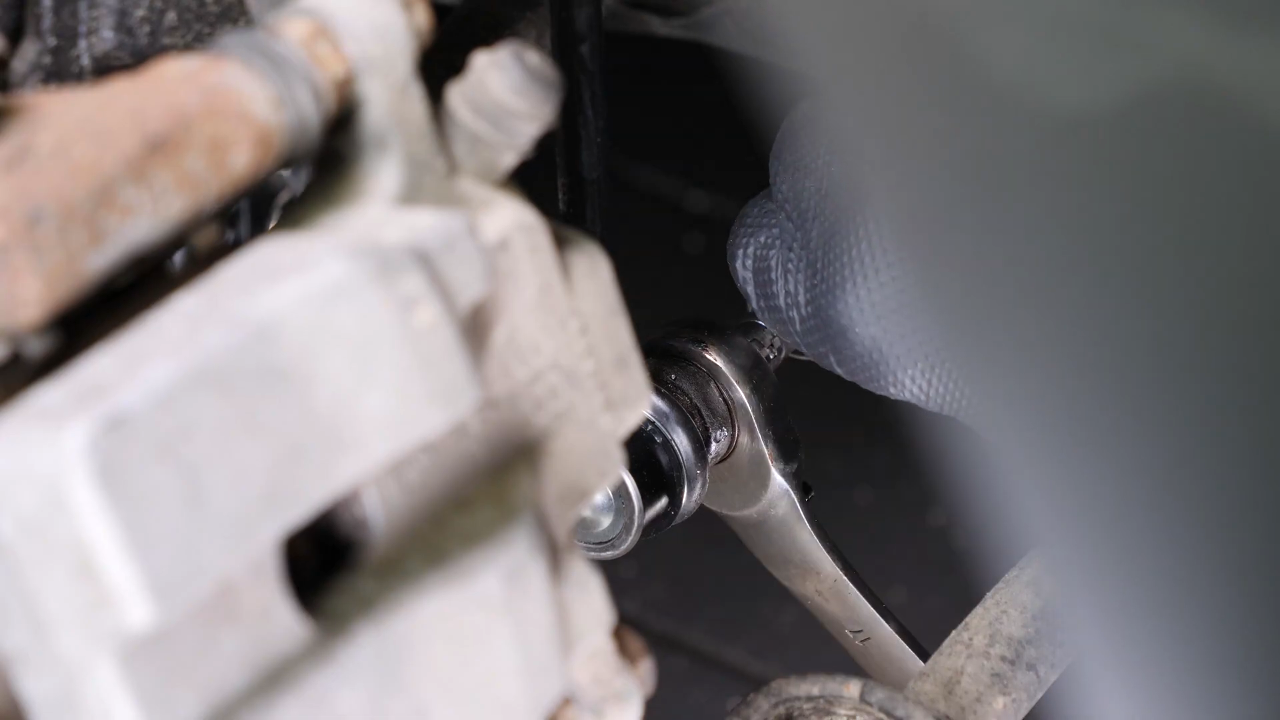

Keep the ball joint from rotating using the Allen socket and unscrew the nut with the wrench.

Chapter 3:

Step 3/3

Finish unscrewing by hand.

Chapter 4:

Remove the upper ball joint

Step 1/2

Repeat the operation on the upper ball joint.

Chapter 4:

Step 2/2

You can now remove the link.

Chapter 5:

Install the new sway bar end link

Step 1/5

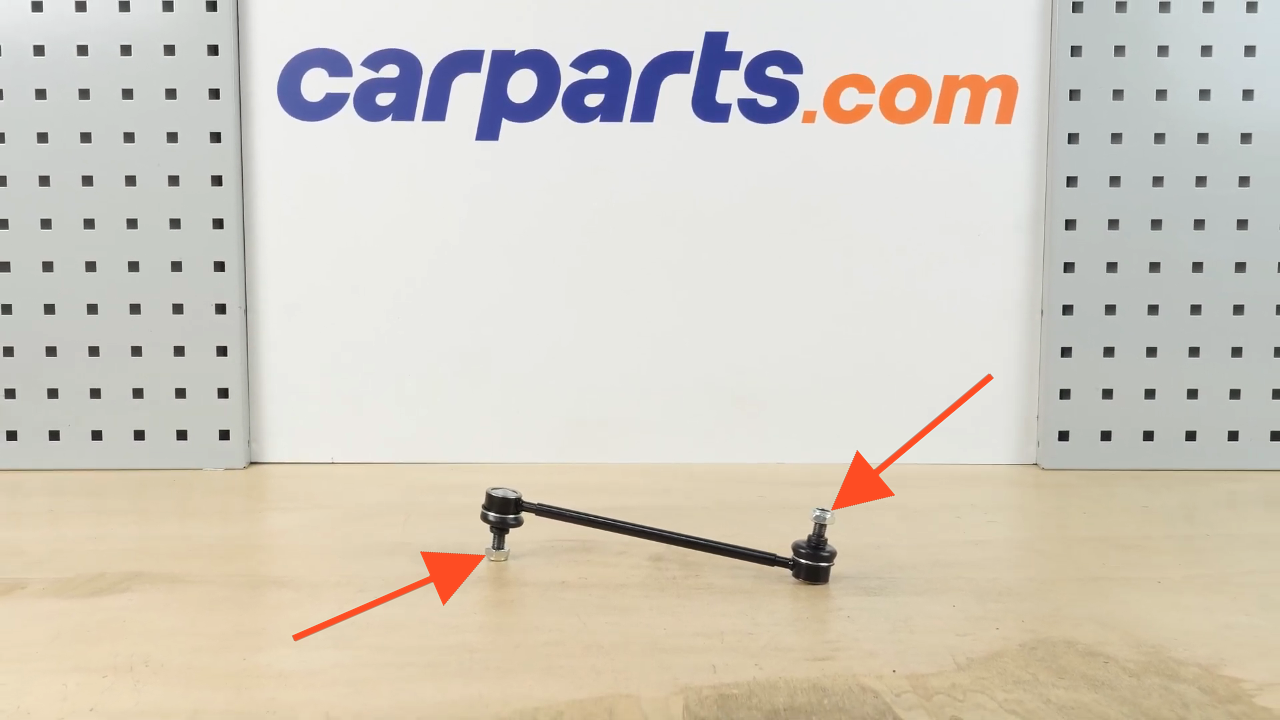

Take the new link and unscrew the nut supplied with it.

Chapter 5:

Step 2/5

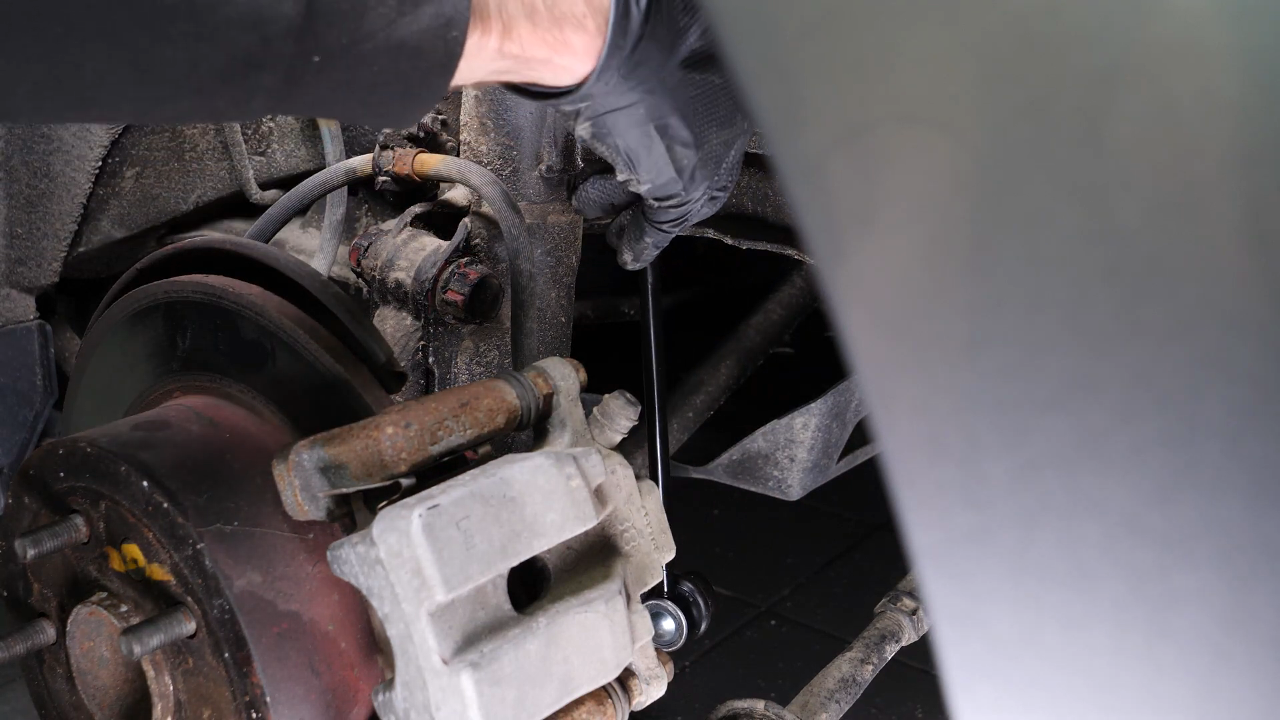

Install it in the sway bar, then in the strut.

Chapter 5:

Step 3/5

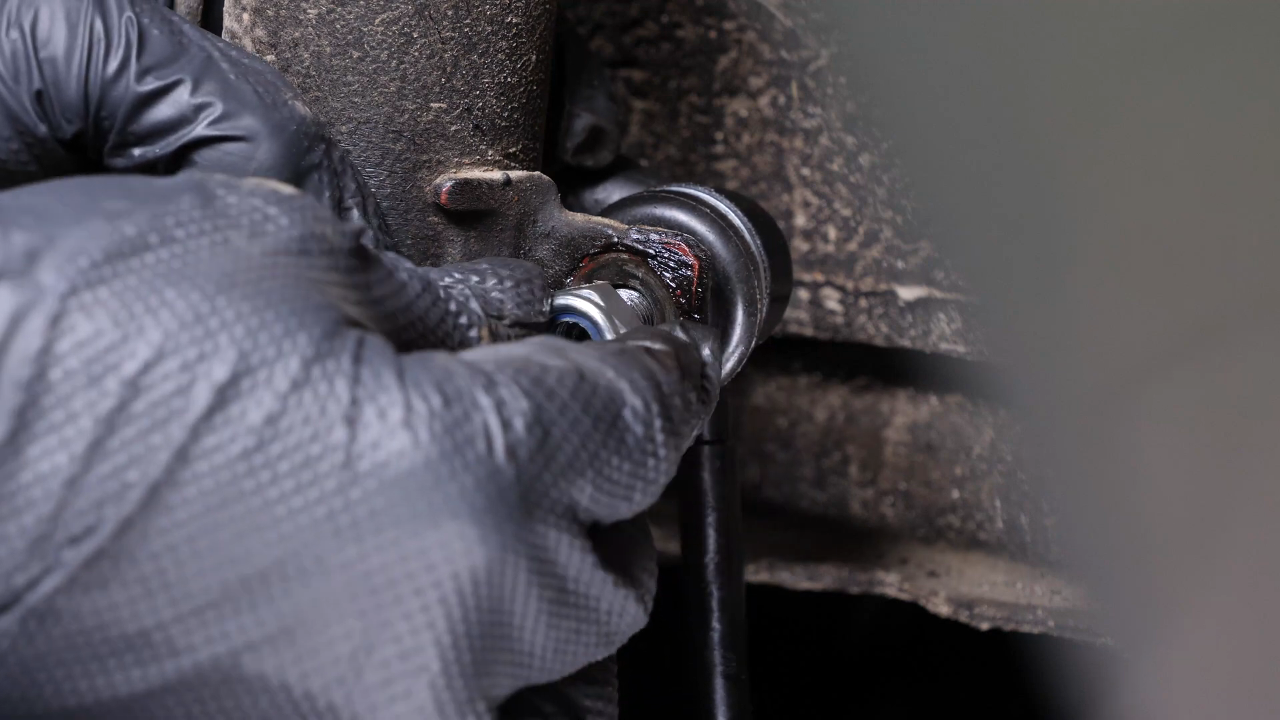

Then screw the nuts back in, by hand at first.

Chapter 5:

Step 4/5

Screw the nuts back in until it makes contact.

Chapter 5:

Step 5/5

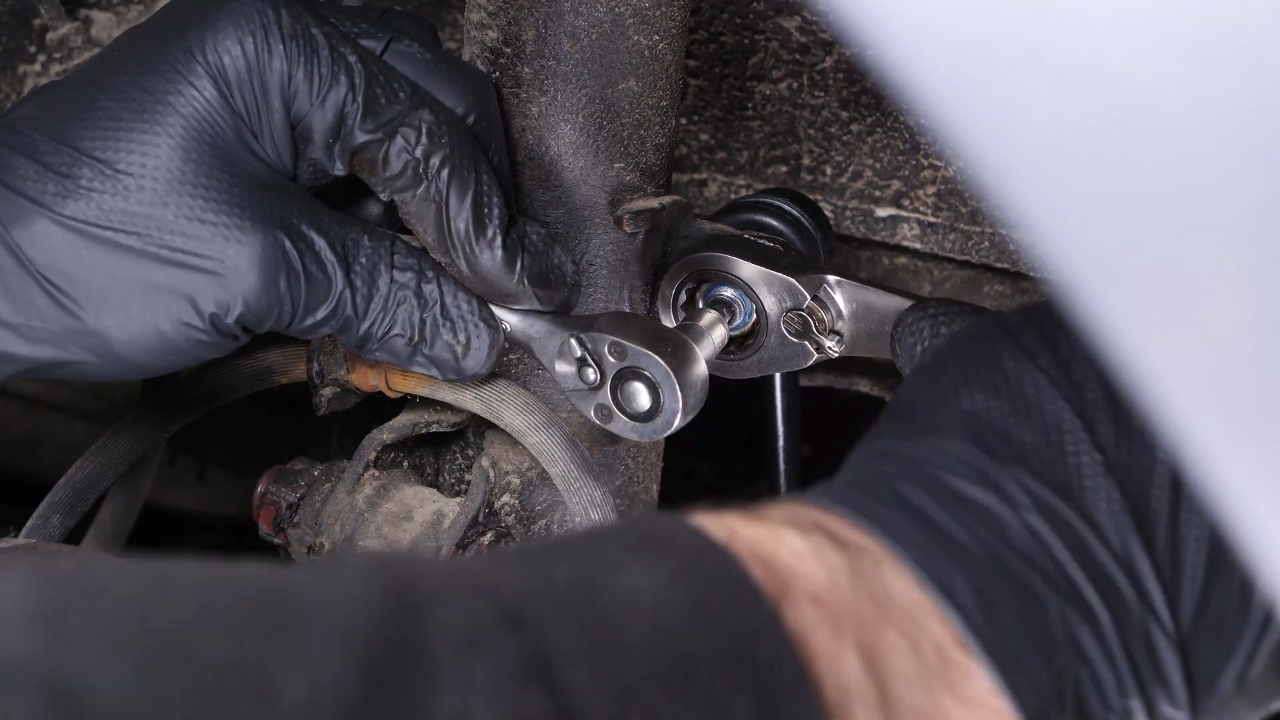

Tighten the nuts with a torque wrench.

Chapter 6:

Put the vehicle back on the ground

Step 1/3

Then, you will be able to put the wheels back on your vehicle.

Chapter 6:

Step 2/3

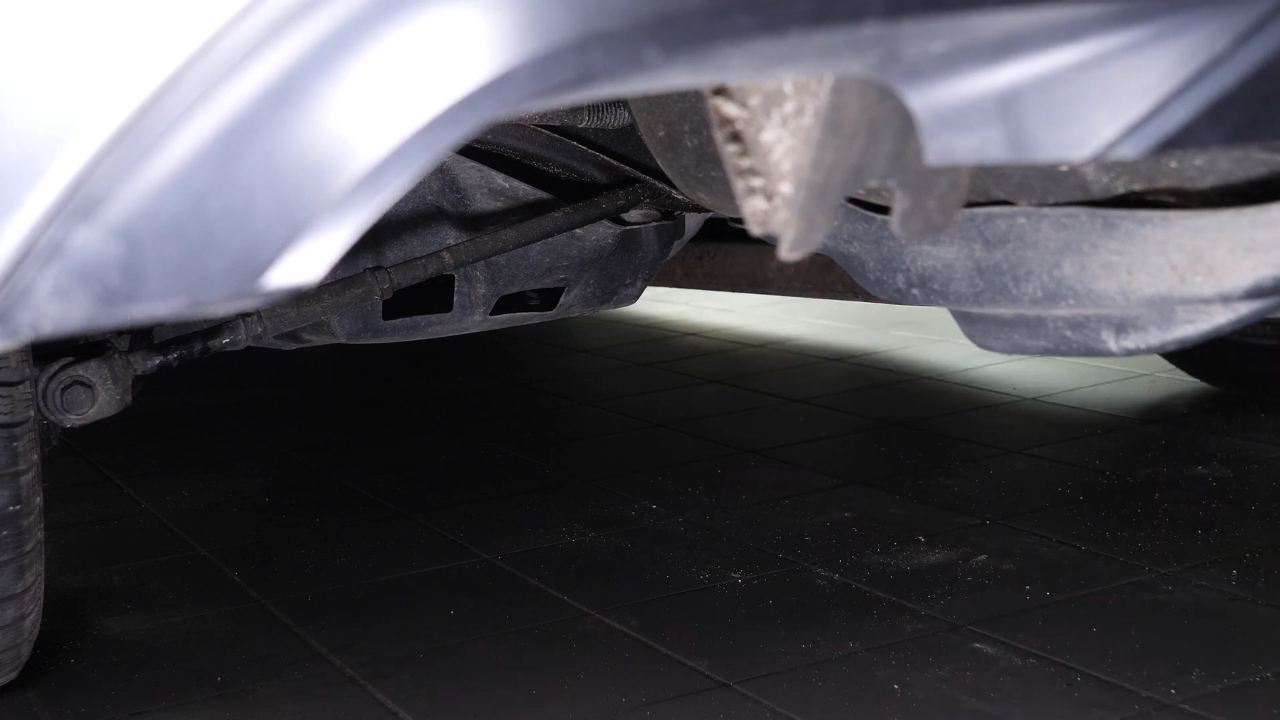

Put the car back on the ground and block the wheels properly.

Chapter 6:

Step 3/3

Operation complete.
