How to replace the spark plugs 2011-2017 Toyota Camry

Chapter 1:

Open the hood

Step 1/1

Turn off your vehicle’s ignition, set the parking brake, pull the hood release handle and open the hood.

Chapter 2:

Visualise

Step 1/2

Remove the engine cover.

Chapter 2:

Step 2/2

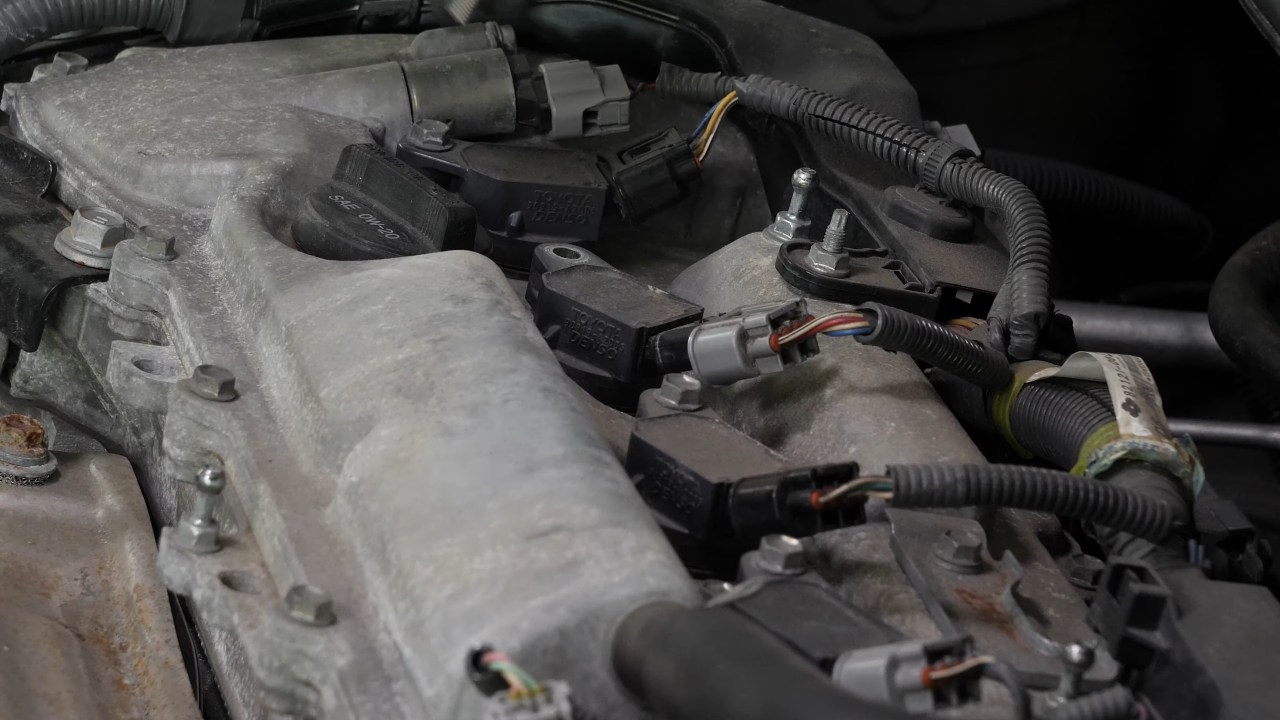

You should now be able to see where the spark plugs are located.

Chapter 3:

Remove the coil

Step 1/3

Disconnect the power from the ignition coil.To do this, push on the tab and pull on the connector.

Chapter 3:

Step 2/3

Using a ratchet and a 10 mm socket, remove the bolt holding the coil.

Chapter 3:

Step 3/3

You can now carefully remove the coil, making small lateral back and forward movements.

Chapter 4:

Clean

Step 1/1

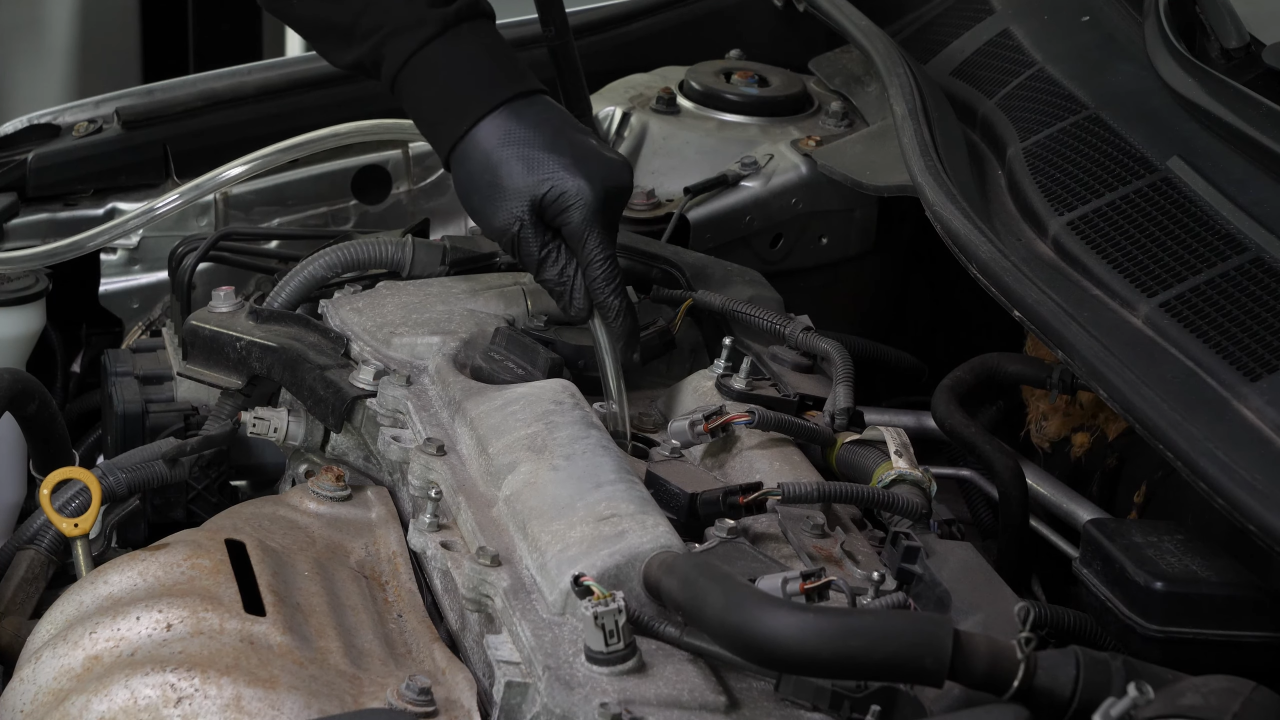

Tip: we recommend using a thin plastic tube taped to the end of a vacuum to properly clean around the spark plug.This prevents the dirt from falling into the motor.

Chapter 5:

Remove the spark plugs

Step 1/1

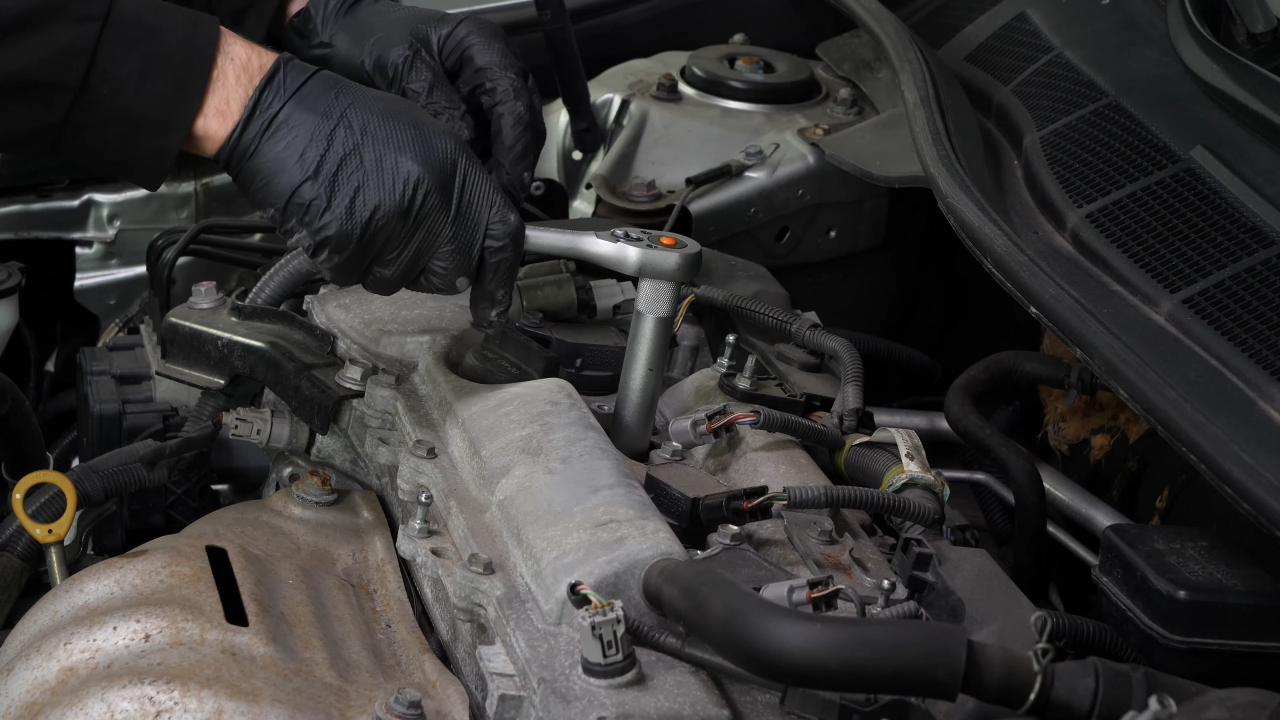

Using a socket wrench, an extender and a 16mm spark plug socket, loosen the spark plug. Finish unscrewing by hand.Remove the spark plug.

Chapter 6:

Install the new spark plugs

Step 1/3

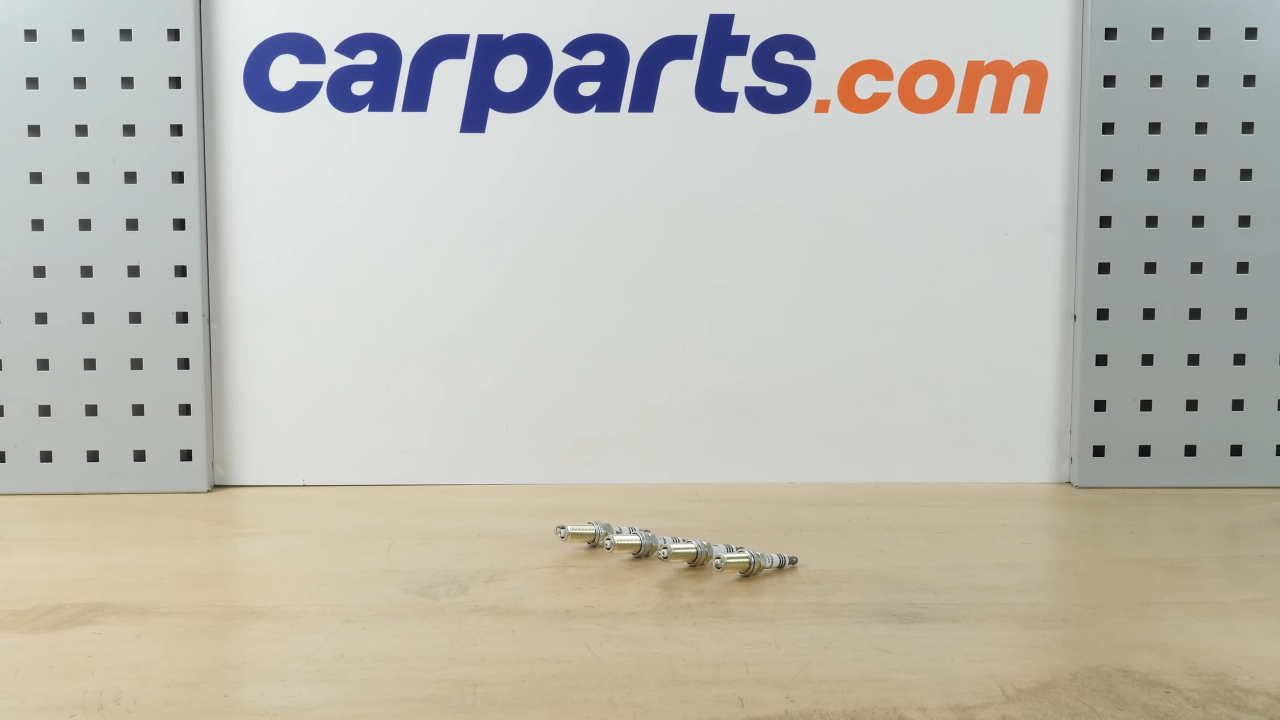

Grab the new spark plug.

Chapter 6:

Step 2/3

Put the new spark plug in place by inserting it directly into the spark plug socket, which will allow you to gently bring it to the screwing support.

Chapter 6:

Step 3/3

Always start screwing by hand, then finish by fixing it in place with a socket wrench.

Chapter 8:

Install the coil

Step 1/3

Put the coil back, pushing it in as far as possible.

Chapter 8:

Step 2/3

You can then screw the bolt back in using a ratchet.

Chapter 8:

Step 3/3

Reconnect the ignition coil.

Chapter 9:

Finish the operation

Step 1/3

You can now repeat the process on the other spark plugs.

Chapter 9:

Step 2/3

Put the engine cover back on.

Chapter 9:

Step 3/3

Operation complete.
