How to safely jack your 2011-2017 Toyota Camry

Chapter 1:

Intro

Step 1/2

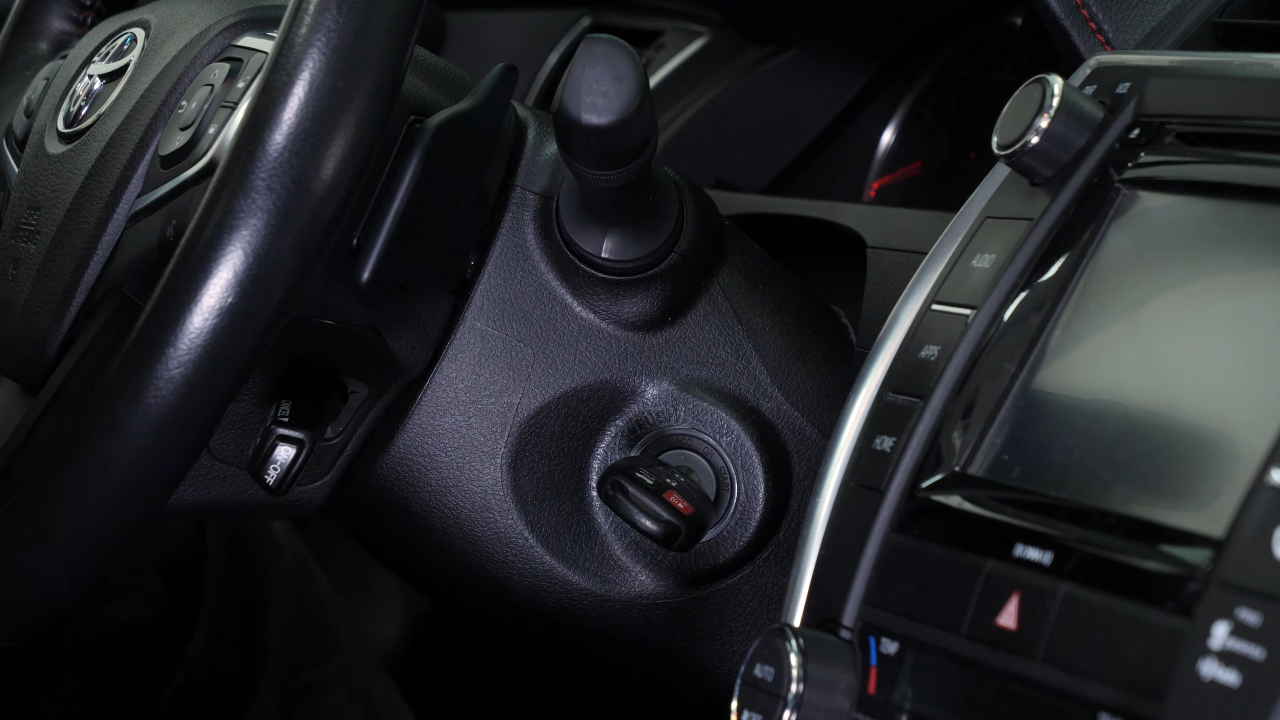

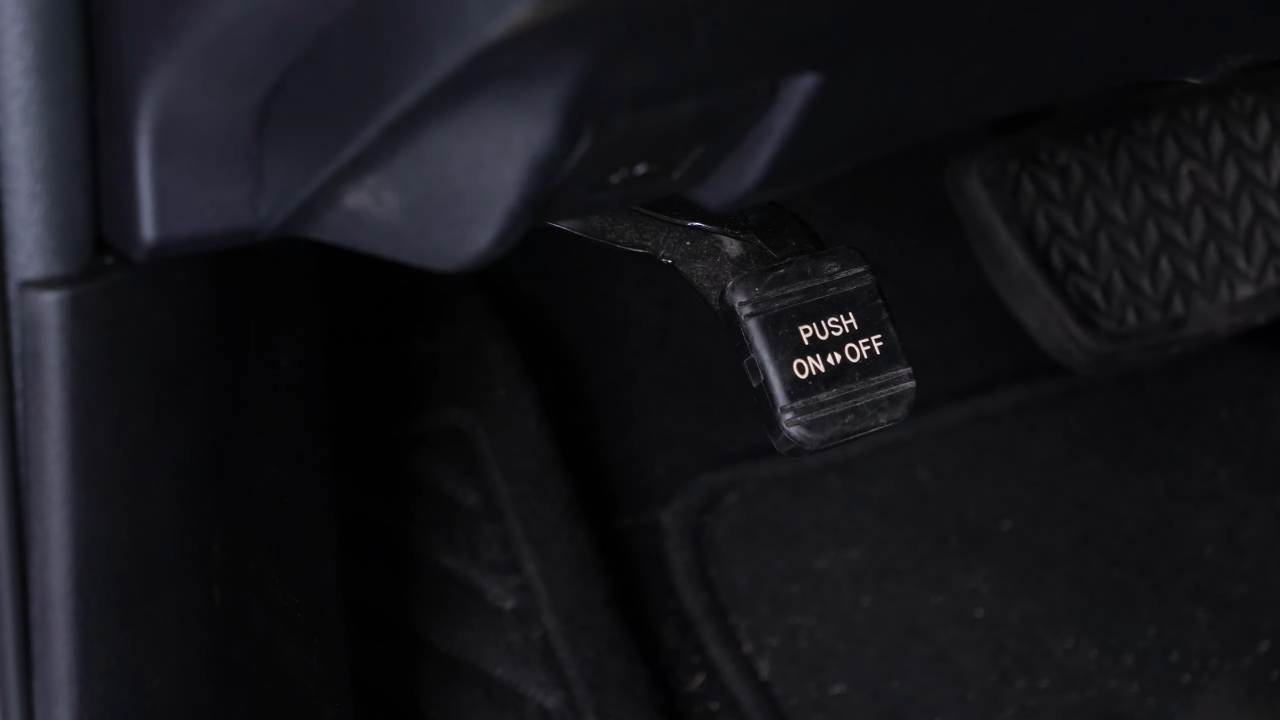

Turn your engine off and set the parking brake.

Chapter 1:

Step 2/2

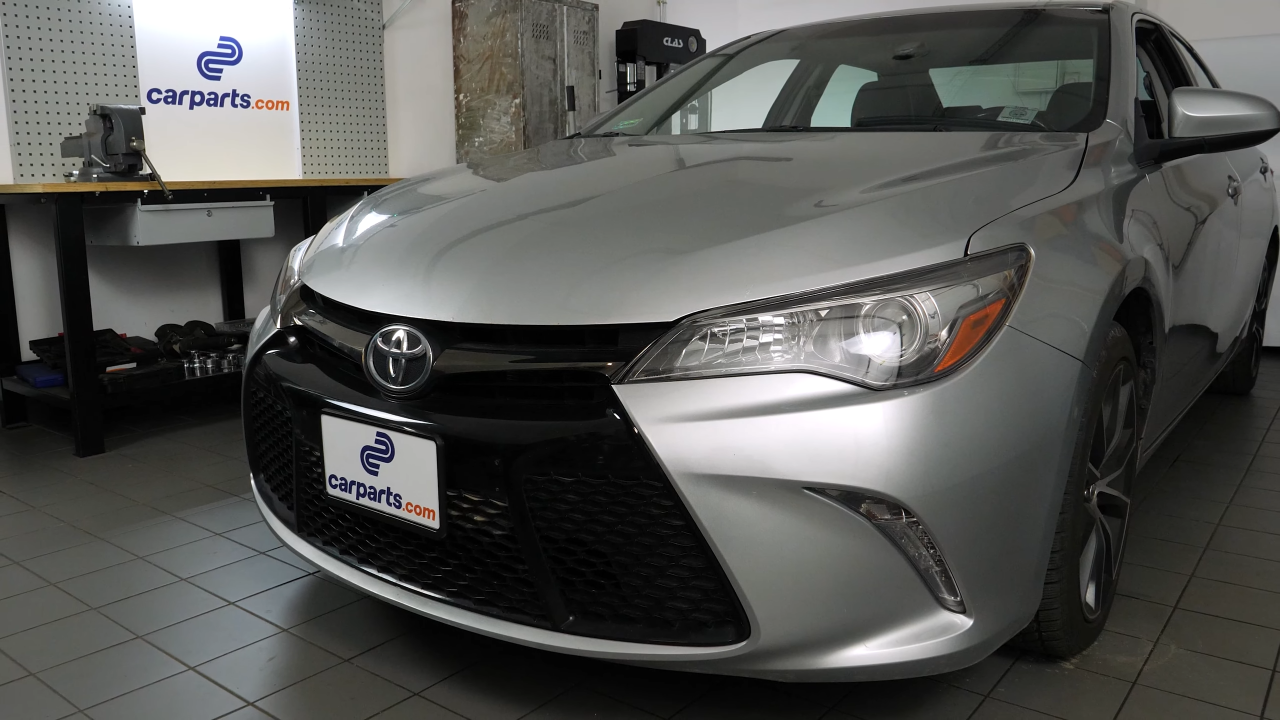

In this video, we’ll show you how to safely lift the front and back of your Toyota Camry using standard lifting tools.

Chapter 2:

Necessary tools

Step 1/3

You will simply need:

Chapter 2:

Step 2/3

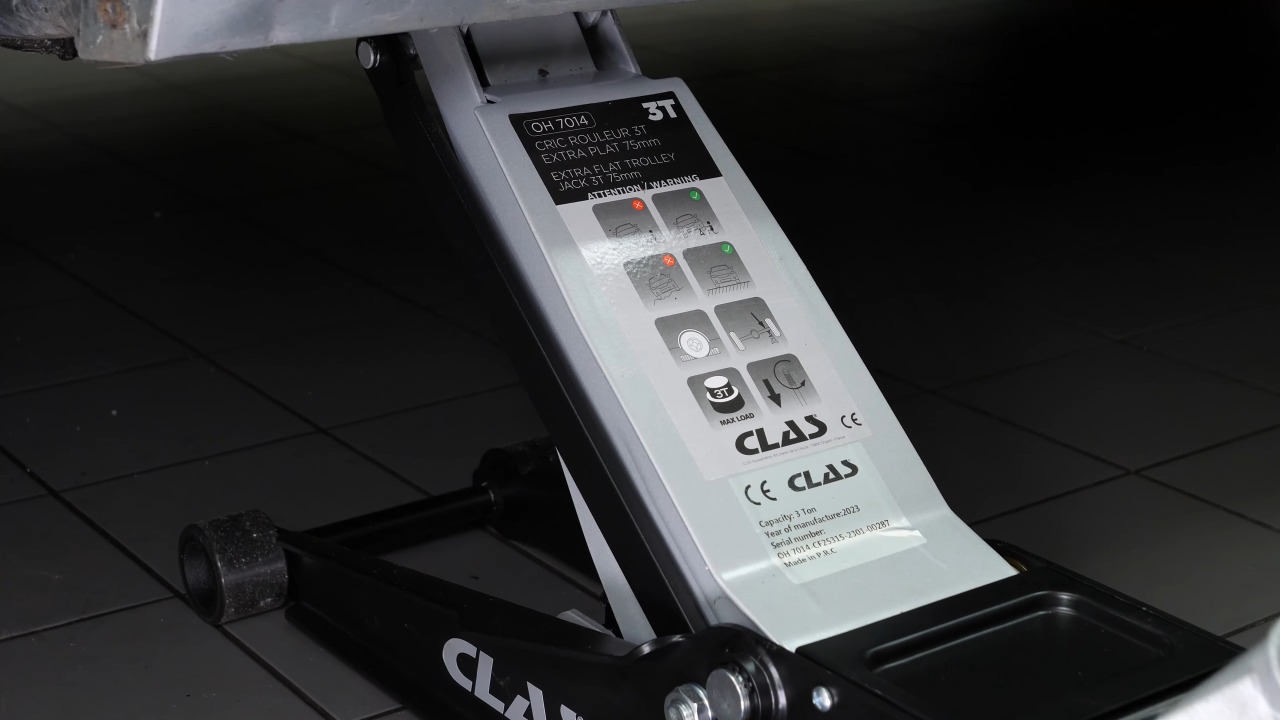

– a jack

Chapter 2:

Step 3/3

– a pair of jack stands

Chapter 3:

Tips

Step 1/3

Your Toyota Camry must be on level, smooth ground.

Chapter 3:

Step 2/3

You must be on ground where your car will be balanced, where the jack stands cannot slip and especially where your jack can accompany the movement of the car at the same time as it lifts it.

Chapter 3:

Step 3/3

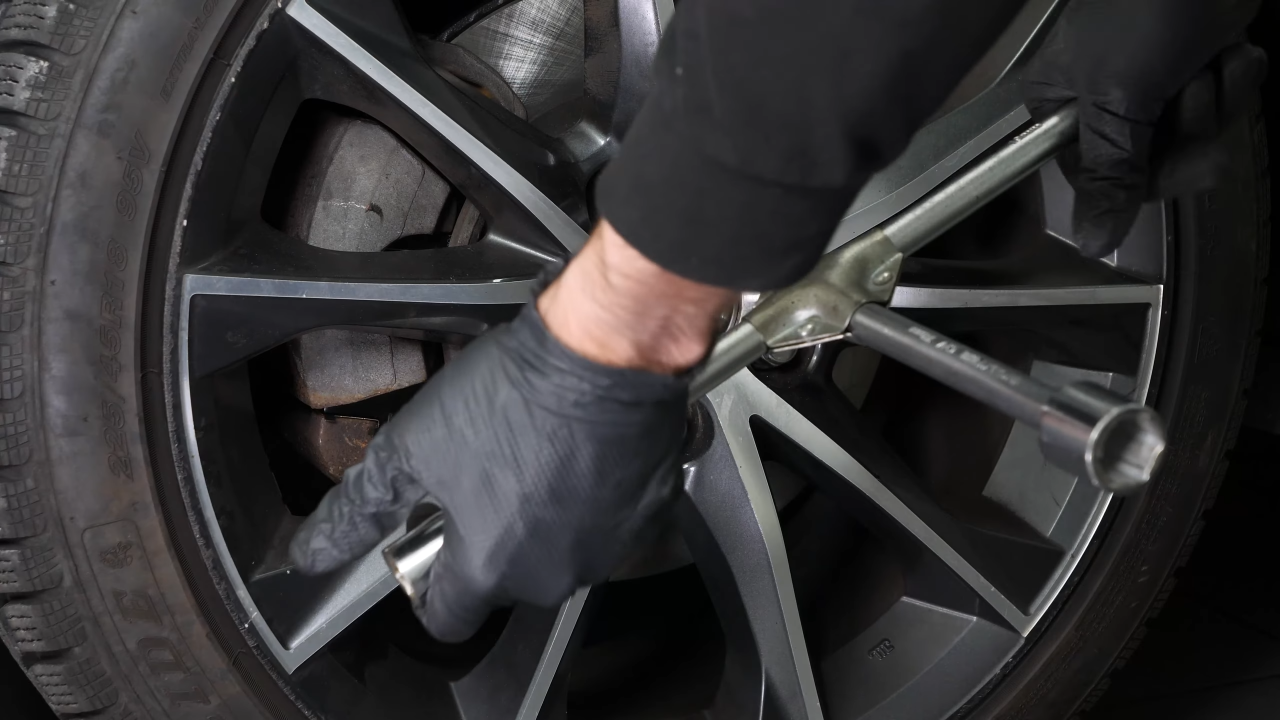

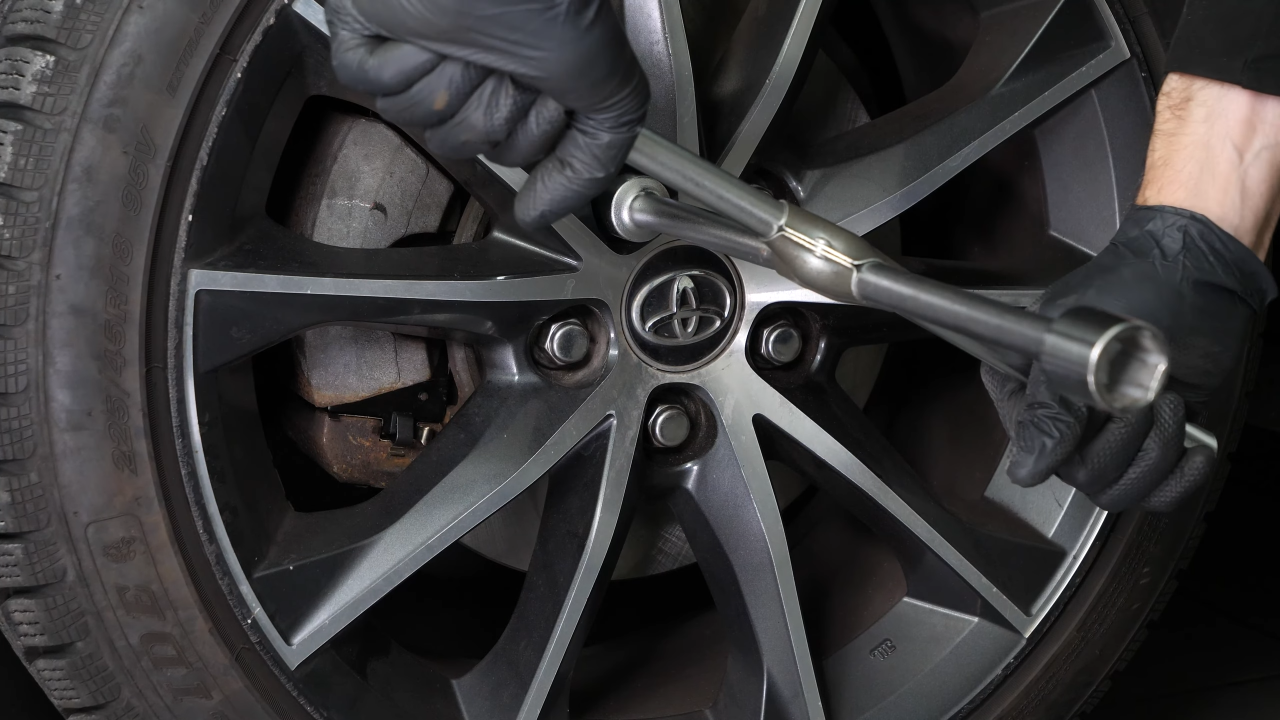

First of all, if the operation requires removing the wheels, start by loosening the wheel nuts before lifting the vehicle.

Chapter 4:

Front lifting

Step 1/6

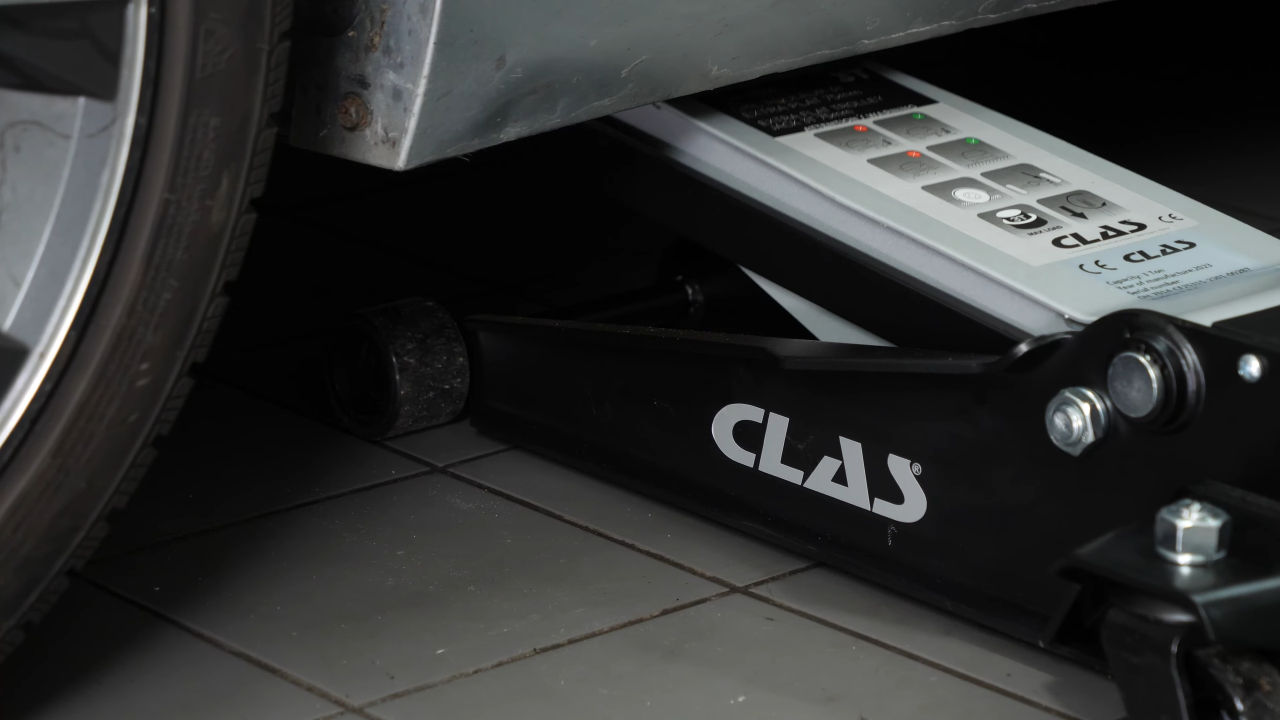

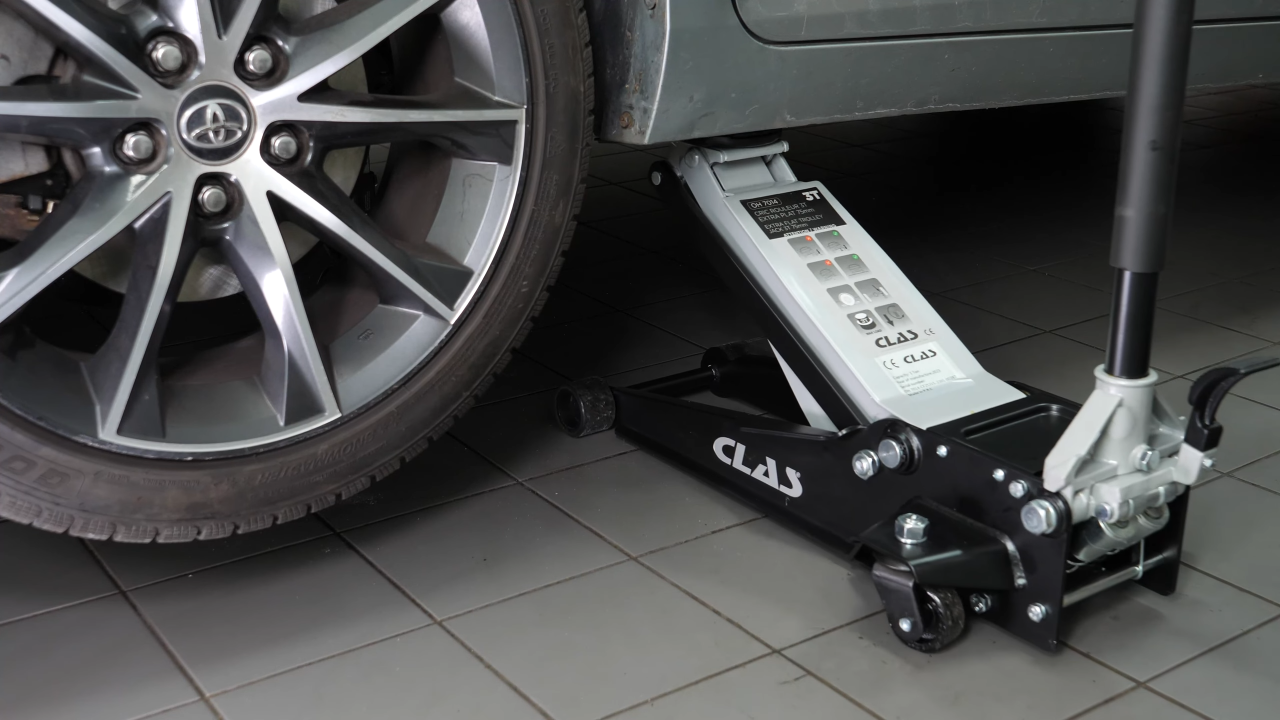

For front lifting, insert the jack under the vehicle at door level and rest on the lifting point, which is a solid base for lifting and then securing your vehicle in complete safety.

Chapter 4:

Step 2/6

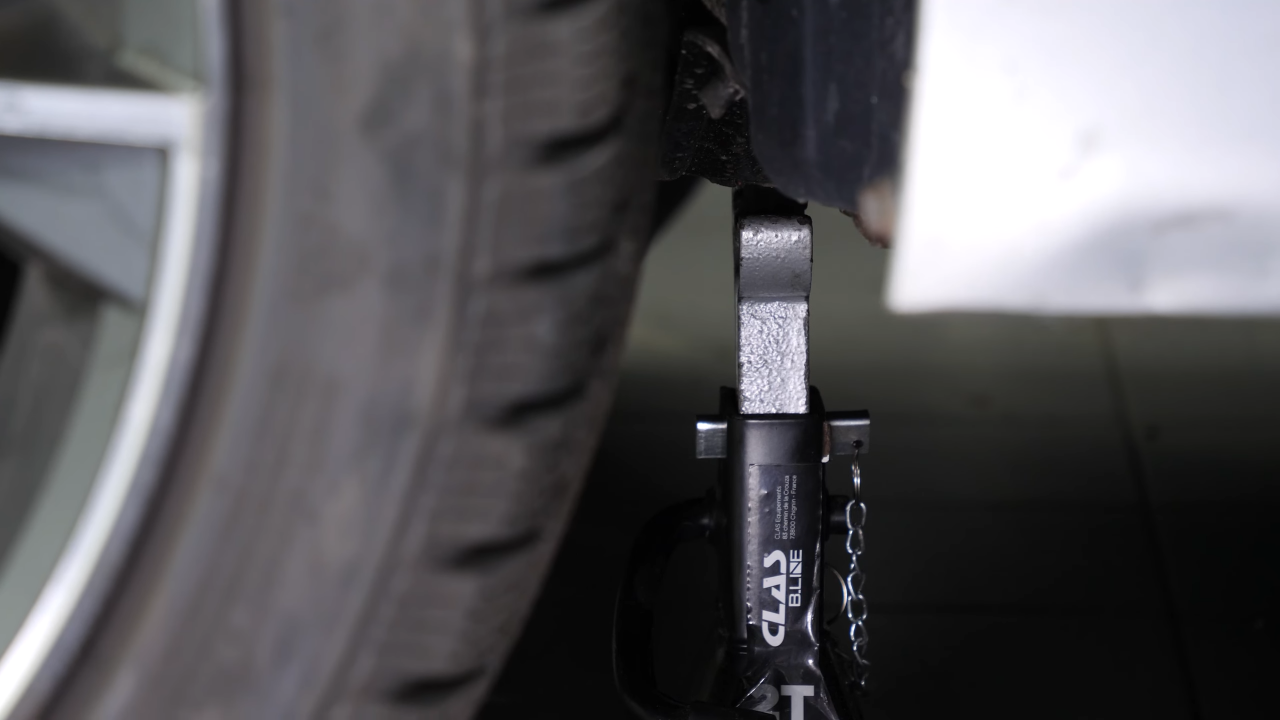

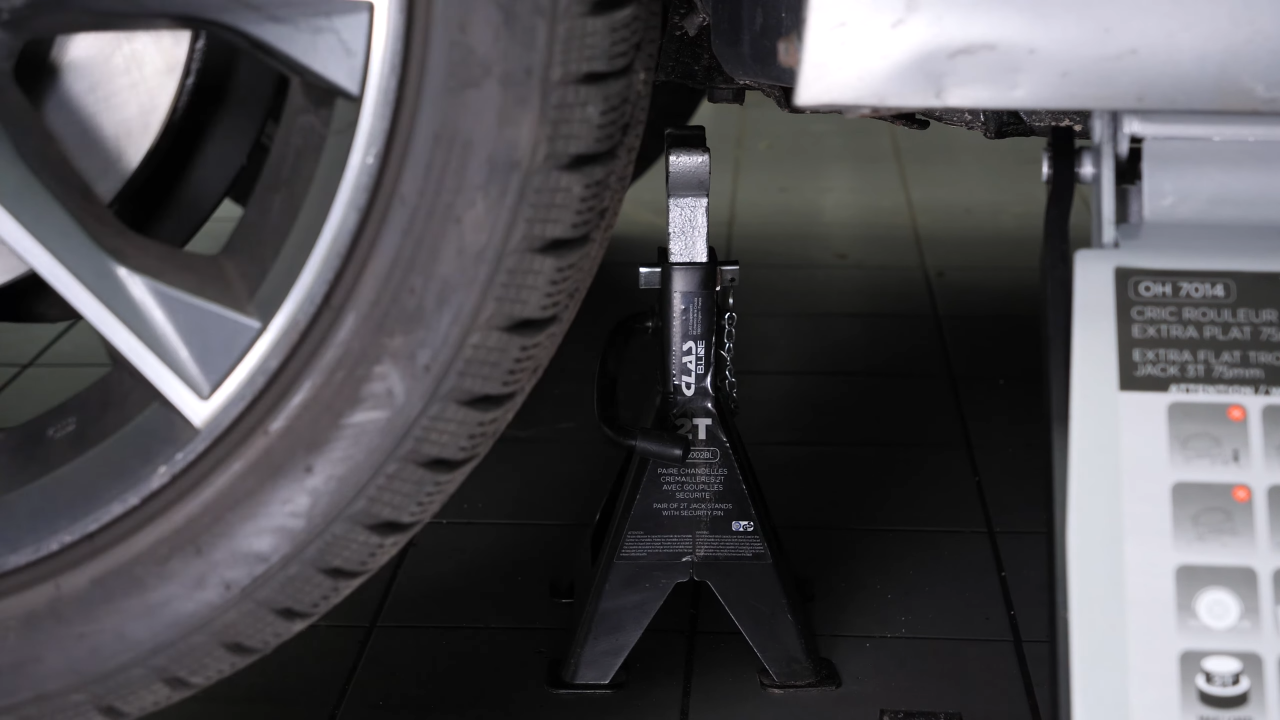

You can place the jack stand under a robust part of the chassis, such as the control arm rear bushing retaining screw.

Chapter 4:

Step 3/6

Then slowly lower your vehicle until it is stable on the jack stand.

Chapter 4:

Step 4/6

You can now remove the wheel if needed.

Chapter 4:

Step 5/6

For safety, slip it under the vehicle, as additional protection.

Chapter 4:

Step 5/6

If you need to lift both sides of your Camry, repeat the steps for the other side.

Chapter 5:

Put the vehicle back on the ground

Step 1/4

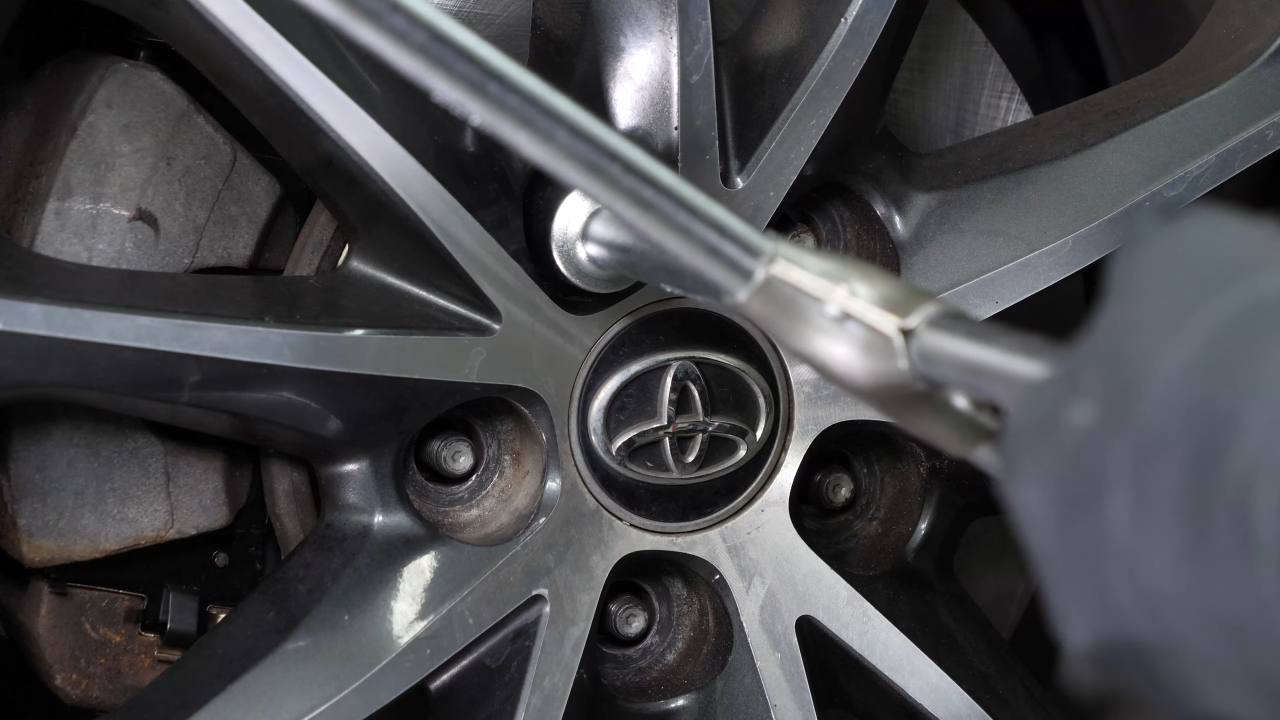

To put your Camry back on the ground, start by putting the wheel back on the wheel hub if necessary, and retighten the nuts until they make contact.

Chapter 5:

Step 2/4

Reposition the jack, and lift your Camry, until you can remove the jack stand.

Chapter 5:

Step 3/4

Then gently lower your vehicle to the ground.

Chapter 5:

Step 4/4

Finalize the tightening of the wheel if necessary.

Chapter 6:

Rear lifting

Step 1/3

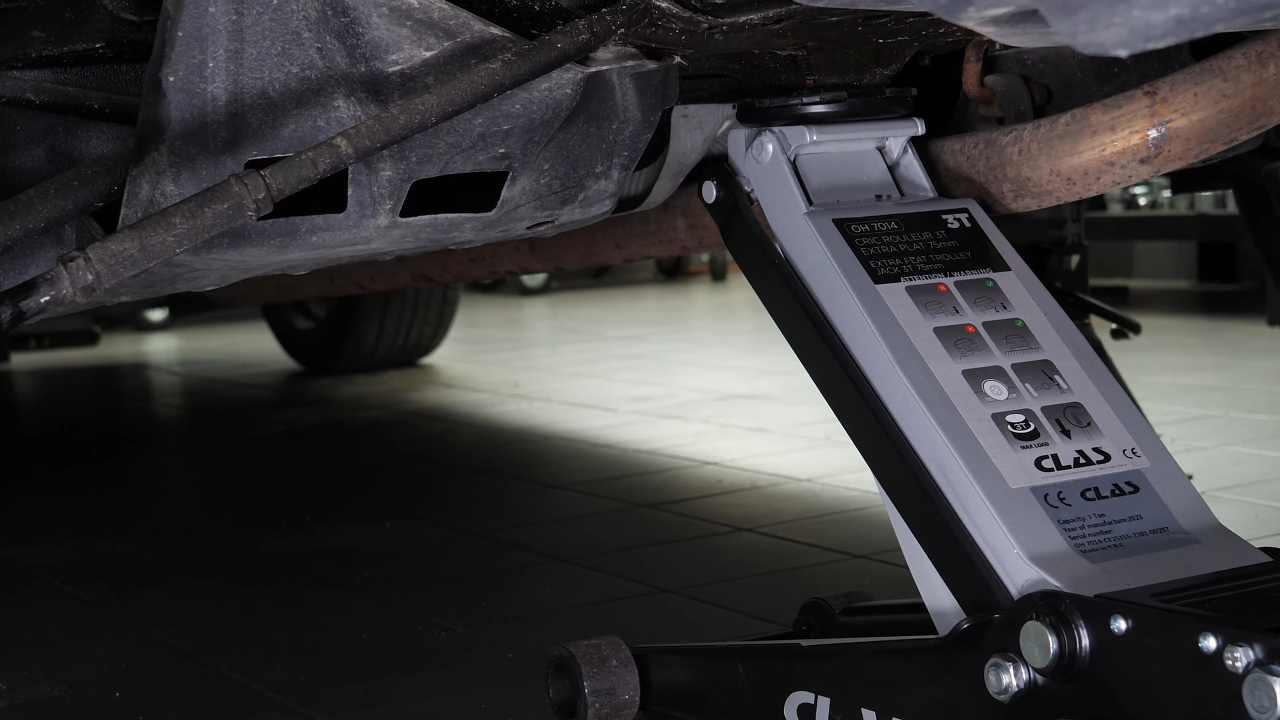

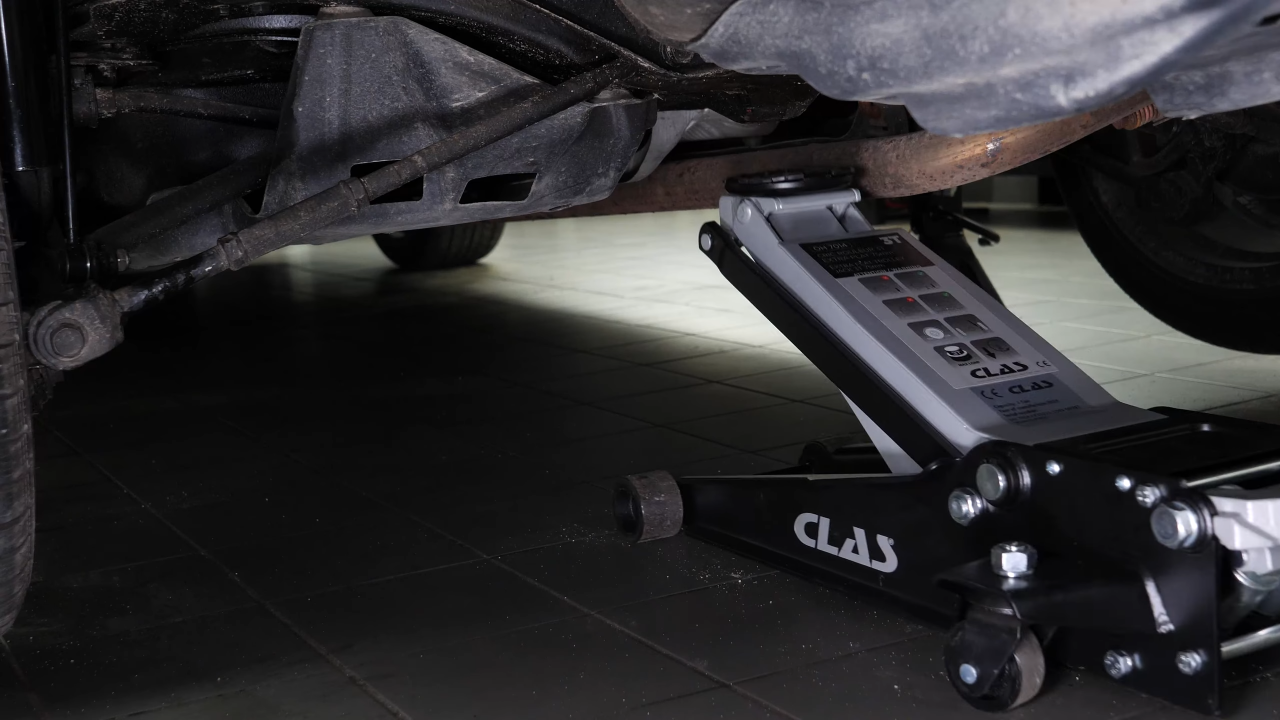

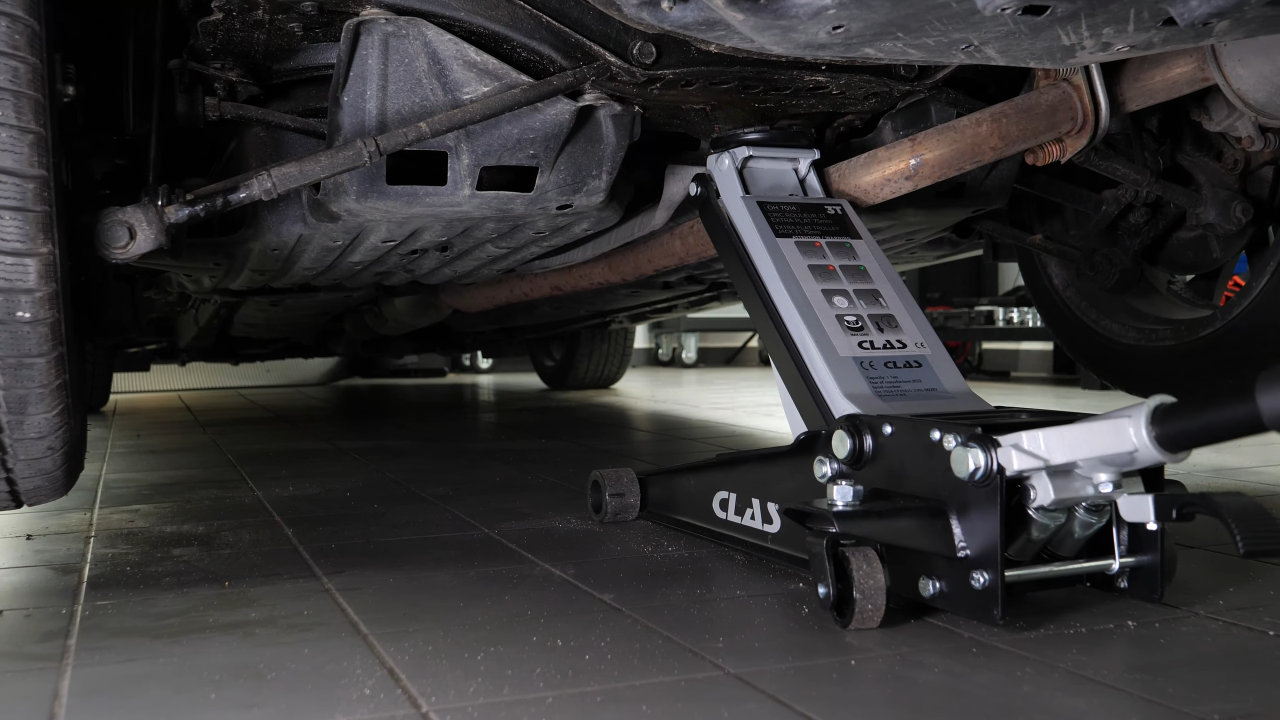

To lift the rear of your Toyota Camry, you can place the jack under the rear subframe, so that both sides can be lifted simultaneously.

Chapter 6:

Step 2/3

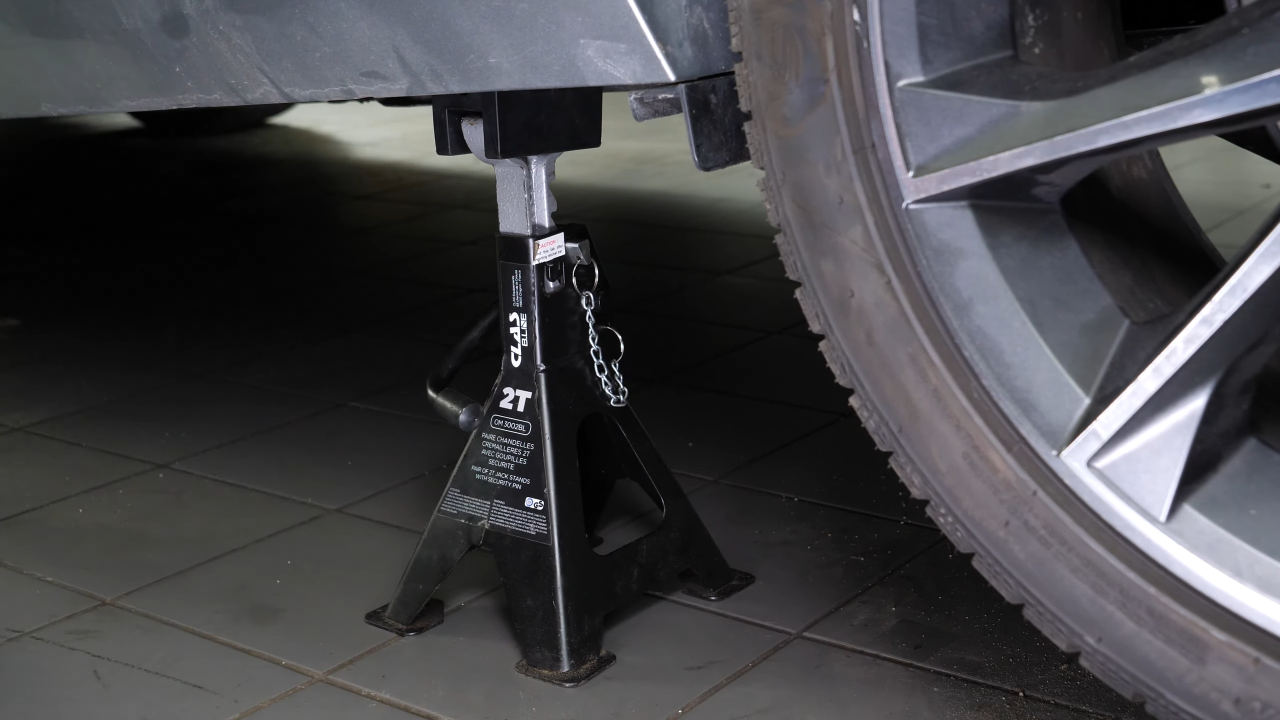

You can place the jack stand under the rear support points.

Chapter 6:

Step 3/3

Then slowly lower your vehicle until it is stable on the jack stand.

Chapter 7:

Put the vehicle back on the ground

Step 1/4

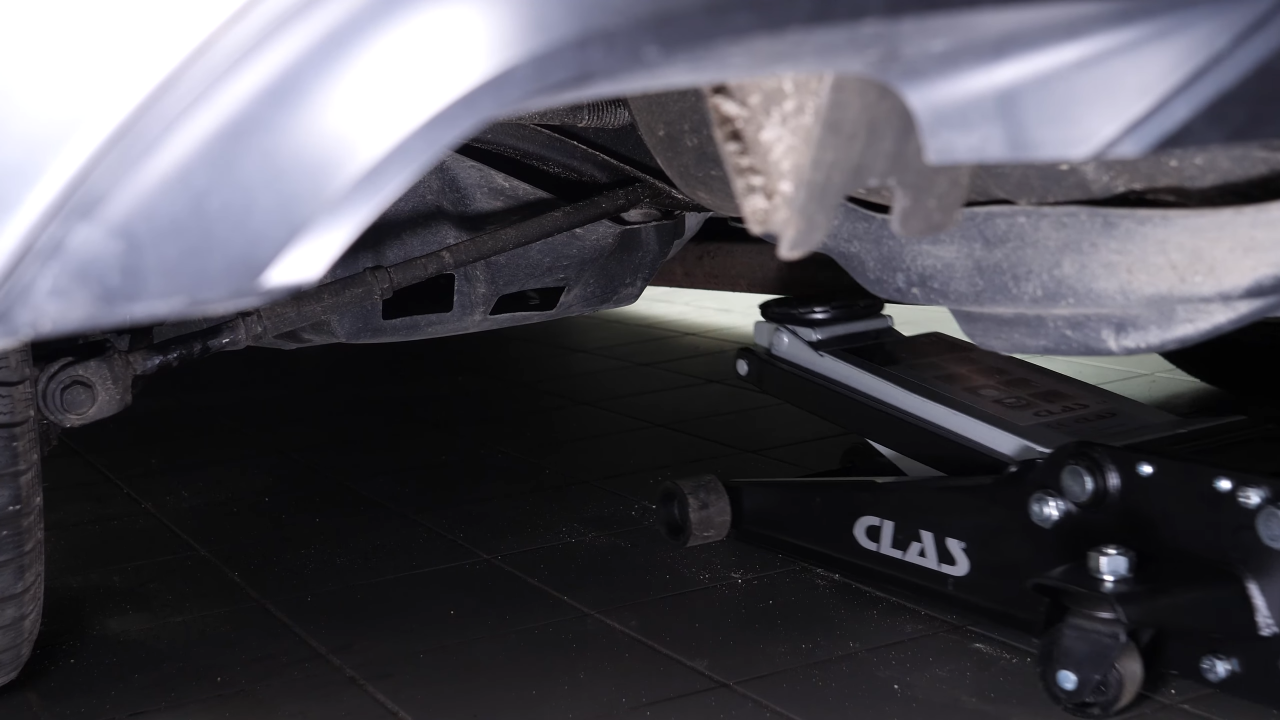

To lower the back of your Camry to the ground, reposition the jack, and raise your Camry, until you can remove the jack stand.

Chapter 7:

Step 2/4

Then gently lower your vehicle to the ground.

Chapter 7:

Step 3/4

You can now safely perform many of the operations on your Camry.

Chapter 7:

Step 4/4

Operation complete.
