  • The blend door has an electric actuator that helps control its position.
  • Most blend door actuators have a built-in feedback sensor that keeps the climate control apprised of the door’s position.
  • The most common symptoms of a bad blend door actuator include abnormal noises, incorrect climate control outlet temperature, and varying outlet temperatures.
  • Electrical faults and damaged gears are some of the reasons why the blend door actuator can fail.

Your car’s climate control system is more complex than you might think. In addition to the major heating and air conditioning (A/C) components, there’s an entire air management system tucked away behind the dashboard. Within that air management system, you’ll find one or more actuators that operate the blend door(s).

What Does a Blend Door Actuator Do?

How does a blend door actuator work? To better understand the role of a blend door actuator, it helps to have some knowledge of the climate control air management system. As you might guess, the air management system controls airflow into the passenger compartment. The system consists primarily of plastic cases—that house the A/C evaporator core, heater core, and blower motor—along with a collection of ducts and doors.

The evaporator cools and dehumidifies the air. The heater core warms the air. The blend door is adjusted to regulate the temperature you feel at the register.

diagram of a blend door actuator
Blend door actuator diagram | Source: Richard McCuistian

A typical air management system has three primary types of doors: an inlet door, a mode door, and one or more blend doors. The inlet door determines whether fresh air or recirculated air travels through the system. Meanwhile, the mode door controls the air discharge location (i.e., panel or floor).

Finally, the blend door, which is sometimes referred to as a temperature or mixture door, manages the air temperature by regulating airflow through the heater core.

sample diagram of a blend door managing the air flow
Diagram showing how the blend door manages air temperature by regulating airflow through the heater core | Image Source: Richard McCuistian

Most vehicles use an electric motor actuator to control the position of the blend door (though, some use a mechanical cable instead). You may be wondering, how many blend door actuators are there? Depending on the system design, there may be just one blend door actuator or multiple blend doors and actuators. More recent vehicles that have separate front and back climate control systems have two blend door actuators: one for the front and one for the back A truck like the Chevy Silverado can have between two to four blend door actuators.

When the driver operates the temperature knob or lever on the dash, power is sent to the actuator, causing the device to move the blend door in one direction or another. Many blend door actuators have a built-in feedback sensor that keeps the climate control module apprised of the door’s position.

What Are the Symptoms of a Bad Blend Door Actuator?

Do you think you might be dealing with a bad blend door actuator? If your vehicle is exhibiting one or more of the following symptoms, you might be right.

Note: Because other problems can present the same symptoms as a faulty blend door actuator, you’ll want to perform a thorough diagnosis of the vehicle before replacing any parts.

Incorrect Climate Control Outlet Temperature

Most climate control systems are designed so that all air flows through the evaporator core to remove moisture. Temperature control is obtained by routing air towards or away from the heater core using the blend door.

A faulty actuator can cause the blend door to be stuck in one position or another, resulting in an outlet temperature that’s hotter or colder than the desired setting.

Abnormal Noises

A bad blend door actuator may make a clicking sound when activated. You’ll hear the noise coming from behind the dashboard.

image showing broken car plastic gears

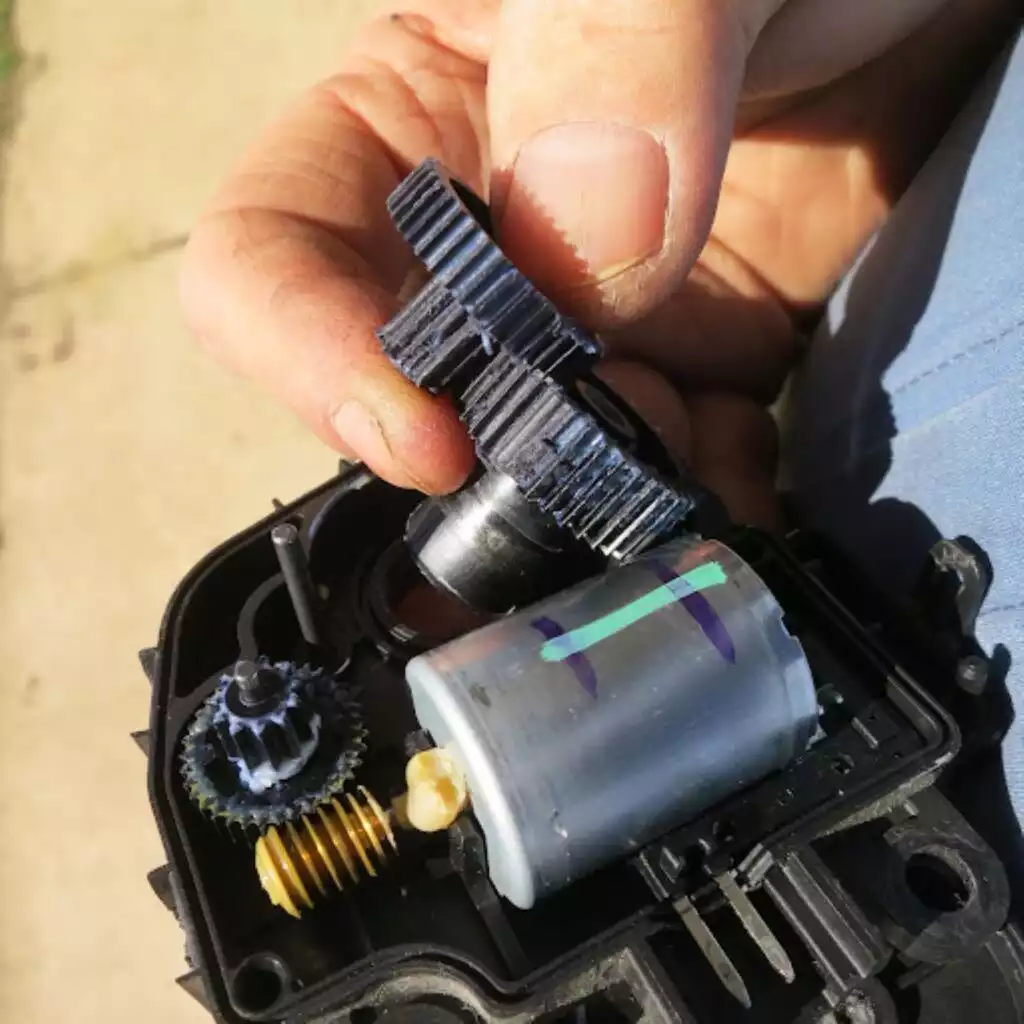

Typically, clicking noises will be due to the plastic gears having failed, such as you see in this photo. | Image Source: Richard McCuistian

Different Outlet Temperatures

In systems that have multiple blend doors and actuators, you might notice that one vent outlet temperature is different from the other. For example, if the system has dual-zone climate control, a failed right front blend door actuator could prevent the climate control from changing on the passenger side. However, note that this may not always be a blend door issue. On some vehicles, if the system is low on refrigerant, one side of the vehicle may cool better than the other.

How Do You Test a Blend Door Actuator?

Because many other issues can mimic a bad blend door actuator, you (or your mechanic) will need to do some troubleshooting to determine whether the actuator is faulty.

Usually, testing a blend door actuator involves directly applying power to the actuator to see if it moves the door. Whether the feedback sensor (if equipped) changes its output signal may also be taken into consideration.

Pro Tip: On higher end vehicles where a scan tool can be used to monitor the potentiometer in the actuator, you can operate the cold-warm selector and watch the readings on the scan tool. You can sometimes hear the door moving as well.

On higher end vehicles where a scan tool can be used to monitor the potentiometer in the actuator, you can operate the cold-warm selector and watch the readings on the scan tool. You can sometimes hear the door moving as well.

Richard McCuistian, ASE Certified Master Automobile Technician

Professionals often use OEM-level scan tools to test blend door actuators. A faulty blend door actuator will often set a diagnostic trouble code (DTC) that can be retrieved using a high-end scanner (code readers and generic scan tools will not work). What’s more, the scan tool can be used to activate the blend door actuator to check for proper operation. And in some cases, the scan tool can command the door actuator as part of the testing procedure.

Because the procedure for testing a blend door actuator will vary by vehicle, you’ll want to consult a repair manual or repair database before attempting any troubleshooting. You can find more information on accessing quality repair information in our article on repair manuals.

Blend Door Actuator FAQ

Where is My Blend Door Actuator?

The blend door actuator(s) are typically located on the climate control case behind the dashboard. Consult a repair manual or repair database for the exact location of your vehicle’s blend door actuator(s). These will usually have a diagram showing where the blend door actuator is located. Sometimes they’re easily accessed; other times, much of the instrument panel may need to be removed.

What Causes a Blend Door Actuator to Go Bad?

A blend door actuator can fail electrically (for example, a faulty motor) or mechanically (for example, broken gears). If some foreign object (like a pencil) falls into the ductwork through the defrost vents, the object may foul the blend door.

Pro Tip: The actuator isn’t the only thing about a blend door that fails. Sometimes the blend door itself breaks and the entire dash must be disassembled to replace it.

The video below demonstrates why blend door actuators fail on certain Ford models:

Can You Drive With a Bad Blend Door Actuator?

Although a faulty blend door actuator can prevent your climate control system from working properly, the problem will not stop your vehicle from running well. If you can stand the discomfort of the climate control not working correctly, there’s no reason why you can’t continue driving with a faulty blend door actuator.

How Do I Reset My Blend Door Actuator

On some vehicles, the blend door actuator must be calibrated upon installation. The exact calibration procedure will vary, so you’ll want to consult a repair manual or repair database to verify the steps for your application.

How Long Does it Take to Fix a Blend Door Actuator?

Exactly how long it takes to replace a blend door actuator will depend on several factors, including the actuator’s location. Some blend door actuators are easy to access, while others are buried behind many other components underneath the dashboard. For a temporary 10-second blend door actuator repair, you can try swinging out the glove box on the passenger side of your vehicle and pushing on the blend door hinge for heat or coldness. Keep in mind that this is only a temporary solution, and you’ll still need to inspect or replace a faulty blend door actuator.

How Much Does it Cost to Fix a Blend Door Actuator?

If you choose to have a professional replace your car’s blend door actuator, you can usually expect to pay somewhere between $200 and $500 to get the job done. Of course, the exact blend door acturator repair cost will depend on various factors, such as the year, make, and model of your vehicle.

You can save money by replacing the blend door actuator yourself if you have the tools and the know-how. has a wide variety of replacement blend door actuators available for various makes and models.
