A fuel filler neck may seem like a simple part, but it performs more than just a basic function. It forms the sealed path that carries fuel from the pump nozzle to the fuel tank. If it starts to leak, rust, or loosen, it can cause fuel loss, vapor emissions, and trigger check-engine alerts. Replacing it restores the integrity of the entire fuel system.

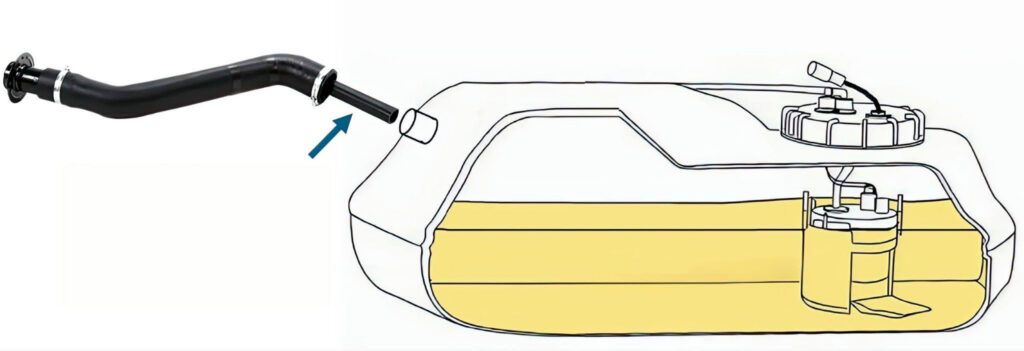

The filler neck sits between the fuel cap area and the tank, linking what you see at the pump to what happens under the car. It’s built to handle pressure, resist corrosion, and direct both fuel and vapors safely. When it weakens or breaks, the issue often affects not just fuel flow but also the emissions system, making it a repair worth addressing sooner rather than later.
How a Fuel Filler Neck Works
The fuel filler neck connects the external fuel inlet to the tank. As fuel flows down from the nozzle, the neck keeps the stream controlled and sealed, preventing spills or vapor leaks. Modern filler necks often include anti-siphon and rollover valves that stop fuel from escaping during sudden movement or an accident.
Many systems also route fuel vapors through a separate vent line to the charcoal canister, which traps fumes before they escape into the atmosphere
The shape and angle of the neck help reduce splashback and allow smooth filling. It’s both a passage and a safety feature, designed to keep liquid fuel and vapors contained at every step of the refueling process.
Types of Fuel Filler Necks
Not all filler necks are built the same. Their design depends on the vehicle’s age, layout, and emission requirements.
Standard (Threaded Cap) Filler Neck
This familiar design ends with a threaded rim that fits a screw-on cap. It’s durable, straightforward, and common in both older and modern vehicles. The threaded cap design also provides a dependable seal that limits vapor loss and prevents contaminants from entering the fuel system.
Capless Filler Neck
The capless fuel filler neck replaces the traditional removable cap with a spring-loaded flap that opens when the nozzle enters and closes when it’s withdrawn. This design reduces spillage, saves time at the pump, and eliminates the risk of forgetting or misplacing the cap. It also reduces wear on the sealing surface over time.
Flush-Mount or Pop-Up Neck
In some vehicles, the filler neck sits almost level with the body or pops up during fueling. This approach often appears in newer models where aesthetics or limited space drive the design. The flush construction also helps prevent dirt buildup around the filler area.
Universal or Aftermarket Filler Necks
These adjustable designs are made to fit a range of vehicle models. They often require trimming, bending, or other minor adjustments to match the car’s original mounting points and dimensions.
Materials vary across all these designs. Steel filler necks provide rigidity but are prone to corrosion. Aluminum and plastic versions offer lighter weight and better rust resistance.
When to Replace a Fuel Filler Neck
A failing filler neck usually reveals itself through smell, leaks, or fueling problems. Recognizing these early can prevent larger issues with the fuel or emissions system.
Fuel Odor Around the Filler Area
A strong fuel smell near the filler cap often points to cracks, worn seals, or loose connections that allow vapors to escape. Over time, these vapors can affect surrounding components or trigger emissions system alerts.
Visible Leaks or Stains Under the Vehicle
If you notice damp spots, dripping fuel, or dark stains near the neck or beneath the car, corrosion or damage has likely created a path for fuel to escape. These leaks can also increase the risk of fire or environmental harm.
Difficulty Refueling or Nozzle Shutoff Problems
A blocked or deformed filler neck may cause the pump nozzle to shut off early or prevent it from fitting properly. These issues often point to an internal obstruction or misalignment inside the neck.
Check-Engine Light or EVAP Codes
The evaporative emissions system relies on the filler neck to keep vapors sealed. Any breach in this system can cause the onboard diagnostics to trigger a check-engine light or store an EVAP leak code.
Corrosion or Rust
Exposure to road salt and moisture accelerates rust, especially on metal filler necks. Once corrosion weakens the metal, leaks often follow.
Loose or Shifting Filler Neck
Movement at the mounting points usually means broken brackets or worn bushings. A loose neck can cause further damage to connected hoses and seals if left unattended.
Once these signs appear, replacement is usually the most practical solution. Delaying the repair only increases the likelihood of leaks and more costly fuel system problems.
Tips on How to Replace a Fuel Filler Neck
Replacing a fuel filler neck doesn’t require advanced tools, but it does demand care and preparation. Taking time to organize the process helps prevent mistakes.
Confirm the Part Match
Before removing the old neck, compare the replacement’s length, bend angles, diameter, and vent fittings. Even small variations can affect the fit and alignment.
Work Safely and in Open Air
Fuel vapors can ignite easily. Always work in a well-ventilated area, away from sparks, flames, and smoking materials. Wear gloves and safety goggles for added protection.
Disconnect and Label Lines
Remove the vent and vapor hoses first. Label them or take pictures so you can reconnect everything correctly during reassembly.
Handle Fasteners with Care
Bolts and clamps may seize over time, especially in older vehicles. Apply penetrating oil to loosen them gradually instead of forcing them free.
Support the Tank if Needed
Some vehicles require partially lowering the fuel tank to make room for removal or installation. Use a jack or stand to hold the tank safely while working.
Install Fresh Hardware
Whenever possible, replace old clamps, hoses, or gaskets. New hardware improves sealing and reduces the chance of leaks later.
Check for Leaks
After installation, refill the tank partially and inspect every joint for signs of seepage or vapor. Also, monitor for any check-engine light that may appear afterward.
Document Your Work
Photographs taken before disassembly help you confirm hose routing and part orientation. Keeping these records can save time during reassembly or future maintenance.
A steady pace and attention to detail make the process smoother and safer from start to finish.
Replacing a fuel filler neck might not be complex, but it plays a direct role in safe refueling and emissions control. Understanding how it works, identifying failure signs early, and replacing it carefully prevent fuel waste and system damage. With a calm approach and the right part, a fuel filler neck replacement becomes a manageable task for any capable DIYer.
