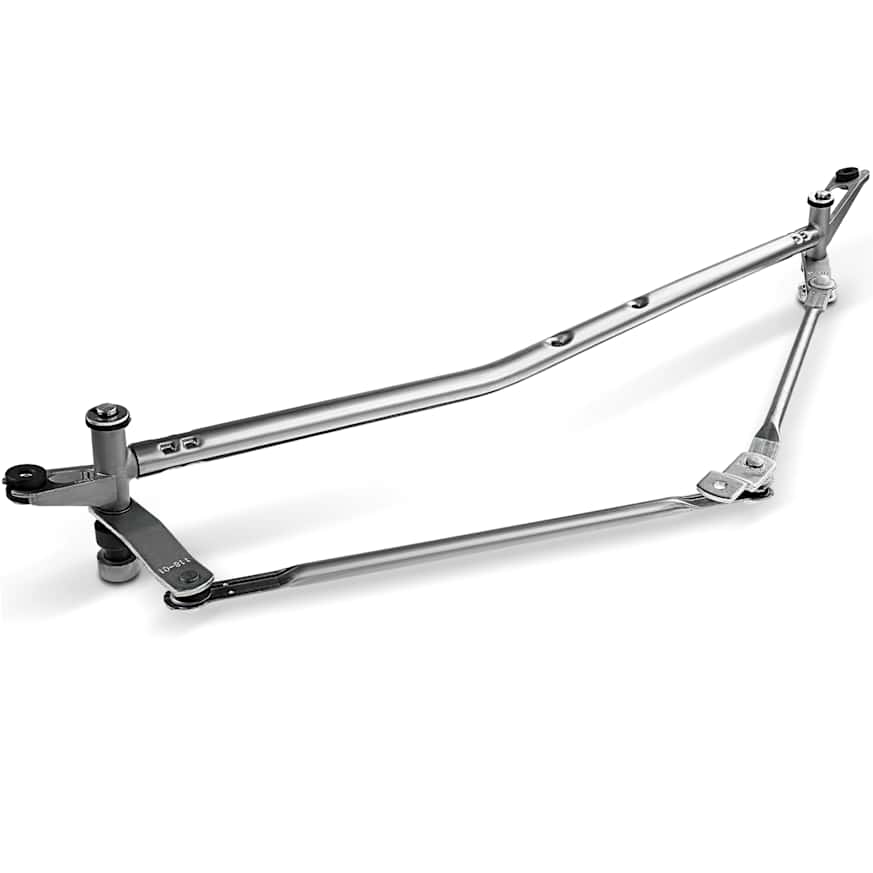

How to Change Wiper Linkage: Smart Buying and Installation Tips

Getting the right part matters more than getting the cheapest one. For most drivers, the best option is a vehicle-specific complete wiper linkage assembly. It restores original movement, removes the guesswork from worn joints, and usually gives you the best balance of price and install simplicity. On some vehicles, buying a pre-assembled linkage and motor unit makes more sense, especially if the motor is already old, noisy, or hard to reach once the cowl is off.

When Is a Wiper Linkage Replacement Needed?

Complete linkage assembly is the right call for daily drivers with loose pivots, bent arms, or uneven wiper sweep. Buy one if your car has over 100,000 miles, the wiper arms move unevenly, or there’s visible play in the linkage.

A linkage and motor assembly is the smarter buy when the motor sounds strained, pauses between cycles, or has a history of slow operation. Spending more upfront often saves you from doing the same teardown twice.

Bushings or repair clips are only worth it when the rest of the assembly is clearly in excellent shape, with no corrosion, bending, or pivot wear elsewhere.

Whatever you order, fitment data matters more than the brand name. Always verify year, make, model, and engine. Check whether the listing is for front or rear, and confirm left-hand-drive versus right-hand-drive. Make sure the listing clearly states whether a motor is included. If a listing says “may fit” or relies on you reusing multiple pieces of corroded old hardware, move on.

Signs the Wiper Linkage Needs Replacing

The most reliable indicator is a motion problem. The motor runs, but the arms don’t behave correctly. Streaking, smearing, or poor wipe quality usually points to worn blades or dirty glass, not a failing wiper transmission linkage. Look for these instead:

• One wiper moves and the other doesn’t. Often caused by a disconnected rod, a failed joint, or a worn attachment point.
• The wipers stop mid-sweep. Binding, bent arms, or excessive pivot wear can leave blades stranded in your line of sight.
• The arms move out of sync. When left and right no longer track together, the linkage geometry is compromised.
• The motor runs, but the arms barely move. A stripped or separated linkage can let the motor spin without transferring enough motion.
• The wipers park in the wrong position. This can come from damaged parts, prior misalignment, or arms that were reinstalled incorrectly.
• Clicking, popping, or binding under the cowl. A worn joint or bent linkage rod is forcing the system through a bad motion path.

If both the linkage and the motor show signs of wear, replacing only one can leave you pulling the cowl again sooner than you’d like.

Tools and Parts to Have Ready

Gather everything before you remove the cowl. The job stalls fast if you realize mid-disassembly that the new part doesn’t match the old pivot spacing, or that the wiper arms are seized and you don’t have a puller.

• Ratchet and socket set, flat screwdriver, trim clip removal tool. The core hand tools. A torque wrench is helpful if your service information gives a spec.
• Wiper arm puller. Worth having on hand. Seized arms on splined pivots can turn the removal step into the hardest part of the job.
• Masking tape or a marker. Use these to mark the parked position of both wiper arms on the windshield before you remove anything.
• Safety glasses and gloves. Cowl panels and corroded hardware can be surprisingly unforgiving.
• New cowl clips, replacement nuts, and penetrating oil. Small things, but having them ready prevents a parts run mid-job.

How to Change Wiper Linkage: Removal Steps

Most vehicles follow the same basic sequence, even though cowl shape and fastener count vary by model.

1. Park on level ground and shut the wipers off in their normal rest position.
2. Disconnect the negative battery cable if your service procedure calls for it.
3. Mark the parked position of both wiper arms on the glass with tape.
4. Remove the caps and nuts from the wiper arms, then pull the arms off the splined pivots. Use a puller if they’re seized.
5. Remove the weatherstrip and cowl panel fasteners, then lift the cowl carefully and reroute any washer hoses as needed.
6. Unplug the wiper motor connector.
7. Remove the bolts or nuts holding the linkage assembly in place.
8. Maneuver the old linkage out through the cowl opening.

Take a photo before unplugging or unbolting anything. It makes harness routing and bracket orientation much easier during reassembly. And don’t pry against the windshield edge or force the cowl. Broken plastic clips add cost fast.

How to Install the New Assembly

The biggest post-replacement headache usually isn’t the wrenching. It’s installing the wiper arms when the motor isn’t in its parked position. That one mistake can cause the blades to sweep too high, strike the A-pillar, or slam into the cowl.

1. Compare the new assembly to the old one before you install it. Check pivot spacing and overall geometry.
2. Transfer the motor if your new linkage doesn’t include one.
3. Bolt the new linkage in place loosely if the design allows for minor adjustment.
4. Connect the motor electrical plug.
5. Cycle the motor once without the wiper arms attached so it returns to its park position.
6. Tighten the assembly hardware to spec.
7. Reinstall the cowl panel and weatherstrip.
8. Refit the wiper arms using the tape marks on the glass as your guide.
9. Test the washers and all wiper speeds before calling the job done.

If the new part sits differently from the old one, stop and compare part numbers and pivot geometry before forcing anything. And if there’s rust around the cowl mounting points, inspect them closely. A straight new linkage will still bind if the bracket surface is distorted.

Red Flags to Avoid When Buying Online

Used salvage-yard linkage

It’s tempting when the price is right, but skip it if the pivots already feel loose. Used assemblies often carry the same wear that caused the original failure, so you may be back to square one sooner than expected.

No-name listings without fitment data

A low price doesn’t help if the geometry is wrong. Look for OE or interchange reference numbers and clear application notes. If the listing can’t tell you exactly what it fits, that’s a problem.

Single bushing repair on a worn assembly

If the rods are corroded or the pivots show any play, one small repair part rarely holds up for long. A partial fix on a worn assembly usually just delays the full replacement by a few months.

Vague inclusion details

Before you order, confirm whether the motor, hardware, and brackets are part of the package. Getting this wrong means either a second order or paying for parts you didn’t need.

Trust the reviews and the price gap

If reviews mention incorrect park angle, bracket hole mismatch, or short service life, take those seriously. And if one listing is significantly cheaper than everything comparable, find out what’s missing before you place the order.

How Much Does a Wiper Linkage Replacement Cost?

Parts alone generally run $15 to $150 for most replacement linkage assemblies. Bundled motor-and-linkage assemblies often land between $80 and $180, sometimes higher for specialty fitments. Labor adds roughly $50 to $130, depending on local rates and cowl access.

For budget-focused repairs with a healthy motor, a basic complete assembly usually covers the need at the lower end of that range. If you’re planning to keep the car or the motor is showing its age, a combo unit is often the better value, especially when the cowl is hard to access.

When shopping online, confirm fitment tools, warranty terms, and return policy before committing. Established aftermarket brands generally offer clear fitment data and return support, which matters a lot when you’re ordering by year, make, and model.

Common Mistakes That Ruin a Simple Job

Not marking the original arm position

Without reference marks on the glass before disassembly, you can easily reinstall the arms too high, too low, or out of sync with each other. You won’t know until the wipers are running and something looks off.

Installing the arms before the motor is parked

This is one of the fastest ways to create a sweep problem after the job looks finished. Always cycle the motor once without the arms attached so it settles into its park position first, then mount the arms.

Assuming the motor is included

Listings vary, and getting this wrong means either paying for a part you didn’t need or waiting on a second order. Check the inclusion details on every listing before you commit.

Skipping the first test sweep

Run the wipers through all speeds and test the washers before you button everything up. If the blades move unevenly or park in the wrong spot, it’s much easier to correct now than after the cowl is back on.

Overtightening trim fasteners

The cowl area is full of plastic clips and panels that crack easily under too much torque. Tighten only as needed.

Misdiagnosing the problem

Streaking and poor wipe quality are almost always a blade or glass issue, not a sign of linkage failure. If the arms are moving correctly and in sync, start with the blades before pulling the cowl.

One more thing worth mentioning: running wipers while they’re frozen to the glass puts serious strain on both the motor and the linkage. That kind of repeated stress can shorten the life of a brand-new assembly just as quickly as it wore out the old one.

Getting the Best Deals Online

When you’re ready to shop, CarParts.com is a solid starting point for finding a replacement wiper linkage. It offers broad catalog coverage, built-in fitment tools, and options from trusted aftermarket lines like Replacement and JC Whitney, making it easier to compare linkage-only parts against full motor-and-linkage assemblies before you buy. Clear application data, straightforward returns, and competitive pricing mean you’re less likely to deal with a wrong-part headache on the back end.
