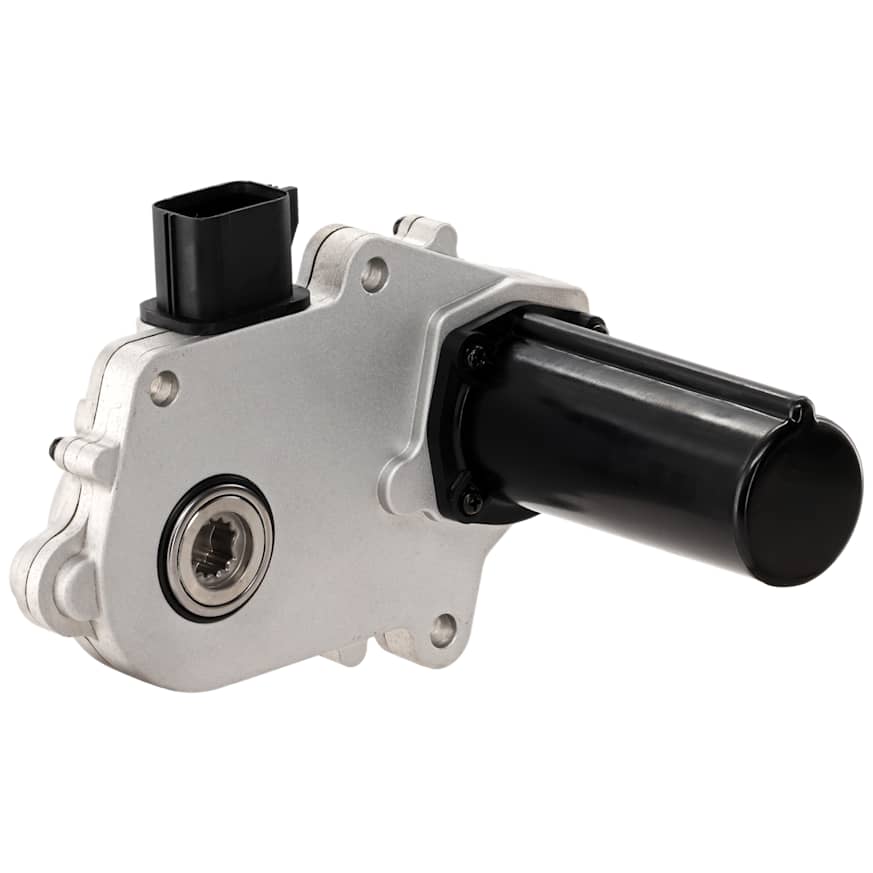

How to Reset a Transfer Case Motor

Modern 4WD systems treat range selection like a closed loop control problem. The module sends a shift command, reads position feedback, monitors current draw, and waits to confirm the target detent before it stops driving the actuator. When drivers search for how to reset a transfer case motor, they’re almost always dealing with a mismatch between the range the module commanded and the position it actually confirmed. A proper reset brings the control module’s stored position logic back into sync with the actual mechanical state inside the transfer case.

Think of a reset as a tiered recovery plan rather than a single magic step. The first tier clears temporary software faults and forces a fresh initialization. The next tier cuts keep-alive power so the module releases latched states and reboots its logic. The most thorough tier runs a full learn or calibration routine that drives the actuator through its entire range of travel and remaps the endpoints.

How to Reset a Transfer Case Motor

Start with the least invasive option and only move up if your validation checks fail. Before you do anything, stabilize the conditions that probably caused the fault. Charge a weak battery and make sure the terminals clamp down tight, because voltage sag during a shift can stall the actuator and recreate the same error all over again. Park on level ground, hold the brake, and let torque windup bleed off before you command any range change.

Turn the ignition off and wait at least 30 seconds so the modules fully power down. Then turn the ignition to ON without starting the engine and wait 10 to 20 seconds while the 4WD system initializes. Command the default mode, usually 2HI, and wait for the indicator to stop flashing. If it goes steady and engagement completes quickly, start the engine and recheck the selected mode without changing ranges right away.

Hard Reset: Pulling the Plug the Right Way

A hard reset may be needed when the module keeps a latched fault state or refuses to exit an incomplete shift after multiple key cycles. Cutting battery power forces a full reboot and clears non-permanent logic errors that a normal shutdown doesn’t always release.

Disconnect the negative battery cable and tuck it away so it can’t spring back onto the terminal. Wait a few minutes for capacitors to discharge, reconnect and tighten the clamp, then turn the ignition to ON and watch whether the indicator stabilizes without the actuator cycling repeatedly.

Relearn and Calibration: When You Need a Full Position Map

A relearn helps when the actuator and the module disagree about where the detents actually sit, which happens often after you replace the actuator, repair wiring, or run into repeated range correlation faults. Some platforms provide a scan tool routine that commands a motor learn sequence, while others use a switch-based procedure that holds a neutral request long enough to trigger the learn cycle.

If your vehicle supports a learn routine, treat it as the most durable reset method available because it forces full travel and realigns feedback counts to physical endpoints. Follow the exact sequence and hold times for your specific platform, so you don’t accidentally command the wrong state.

What a Reset Can Fix and What It Can’t

A reset can clear a transient logic problem, release a non-permanent fault latch, or recover from a lost indexing event caused by a voltage hiccup during a shift. It can also bring things back after a battery replacement or a one-time stall that left the actuator caught between detents.

What it cannot do is overcome mechanical resistance that stops the range fork from reaching its detent, fix stripped gears, or repair water intrusion. If a reset fails repeatedly under the same conditions, treat that pattern as evidence that a root cause is still sitting there waiting to be found.

Fix Your Voltage and Grounding Before You Reset Again

Repeated 4WD faults often come from electrical integrity problems rather than one-time glitches. Low battery voltage and high-resistance connections can stall the actuator, trigger current spikes, and throw range position correlation errors.

Check charging voltage under load, test battery health, and keep your grounds and power feeds clean and tight. If your symptoms show up after rain or a car wash, add connector inspection to your reset workflow rather than treating it as optional.

Reading Codes and Dash Behavior After a Reset

A blinking indicator that never goes solid usually means the module never confirmed the target position. A mode that briefly engages and then drops back often means the module detected implausible feedback or excessive current draw and aborted the shift.

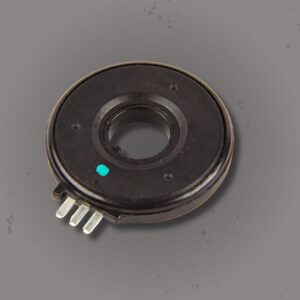

A scan tool can pull stored and pending trouble codes, show commanded position, and sometimes display encoder counts. Codes tied to motor circuits usually point toward wiring, fuses, or internal actuator failure, while codes tied to position correlation tend to point toward encoder feedback issues or a failed learn.

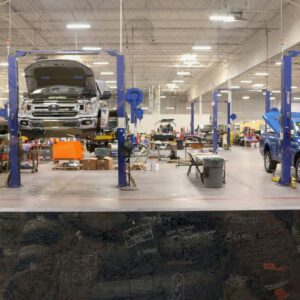

When Buying a New Actuator Makes More Sense Than Recalibrating

Some failures keep coming back because the actuator can no longer complete full travel under load. If you hear repeated attempts, clicking, grinding, or short bursts of movement followed by a fault, the assembly may have failed mechanically or electrically even if a learn routine seems to finish. You should also suspect something deeper when resets only work temporarily and the same codes return quickly. If you confirm solid power and ground integrity and the fault pattern doesn’t budge, replacement becomes the smarter call than running the reset procedure one more time.

Validate Your Reset

Verify a reset with repeatable checks rather than one lucky engagement. Confirm the default range engages quickly with a steady indicator after a cold start, then confirm the system can transition to the range that used to fail and return without repeated flashing or delays. After you run your validation, scan for codes one more time so you can catch a pending fault before it turns into a roadside situation. That final scan is often what separates a real fix from a symptom that’s just hiding for now.
