What Does an Air Bag Clockspring Do: A Buying Guide

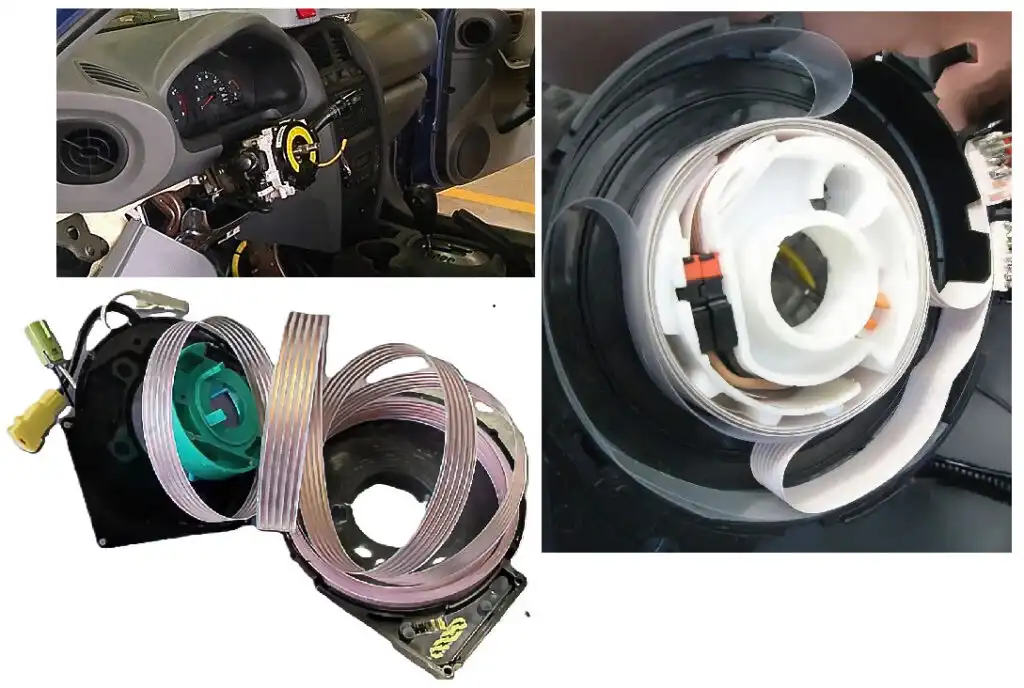

There’s a small but critical component tucked between the steering wheel and the steering column that most drivers never think about until something goes wrong. The air bag clockspring is a spiral-wound flat ribbon cable inside a plastic disc housing. It keeps the driver’s air bag, horn, and every steering-mounted control connected to the rest of the vehicle while the wheel rotates freely.

How Does the Air bag Clockspring Work?

Every time the steering wheel turns, that ribbon cable coils and uncoils inside the housing. It’s the only practical solution to a wiring problem that’s existed since manufacturers started putting buttons and air bags on steering wheels. A fixed wire connection would bind and snap. The clockspring solves that by giving the wiring enough range of motion to follow the wheel through its full travel, typically plus or minus 720 degrees, which covers two full turns in either direction.

What Else Does It Control?

Beyond the air bag circuit, the same ribbon cable carries current for the car horn, cruise control buttons, audio controls, and hands-free phone functions. On most modern vehicles, the clockspring also integrates a steering angle sensor. That sensor feeds real-time wheel position data to the Electronic Stability Control (ESC) and traction control systems, which use it to calculate the correct response during hard cornering or a skid. That sensor reports wheel position in degrees, and the stability system uses those readings to modulate braking and power during cornering.

The clockspring typically supports plus or minus 720 degrees of rotation, which covers two full turns in each direction. That range matches the steering lock-to-lock travel on most passenger vehicles.

What Are the Signs of a Failing Clockspring?

The SRS warning light is the most serious signal. When the ribbon cable breaks or loses contact, the air bag control module detects the open circuit and lights up the supplemental restraint system warning immediately. Warning: with that light on, the driver air bag won’t deploy in a crash. That’s not a light to defer.

Other symptoms often show up before or alongside the SRS light:

• Horn works only at certain steering wheel positions, or goes silent entirely
• Steering wheel buttons for audio, cruise, or phone functions become intermittent or stop working
• Traction control or stability control warning lights appear
• A rubbing or scratching sound from the steering column during turns
• Air bag light flickers only when the wheel’s in a specific position

Note: If the air bag light is on but the horn still works, don’t assume the clockspring is fine. The circuits are separate paths inside the ribbon, and one can fail while others stay intact.

Why Do Clocksprings Fail?

Constant flexing is what eventually does them in. Every steering input cycles the ribbon through an expand-and-contract motion, and over tens of thousands of miles the conductors thin out and develop micro-fractures. Urban drivers who do a lot of full-lock parking maneuvers tend to wear clocksprings faster than highway drivers. Heat and age degrade the plastic housing and internal contacts over time, too.

Some vehicles have known manufacturing defects in the ribbon welds, so it’s worth checking the NHTSA website with your VIN before ordering a replacement to see if an open recall applies.

What Should Buyers Check Before Ordering an Air bag Clockspring?

Fitment is everything with clocksprings. The connector pin count, pin gender, and wiring pinout have to match the original unit exactly. A clockspring listed for a slightly different trim level or model year can have a different terminal count, and that mismatch will trigger persistent warning lights even after a clean installation.

Before ordering, confirm:

• Year, make, model, and specific trim level
• Whether the vehicle has steering-mounted controls, since some base trims don’t
• Whether the vehicle has ESC or a steering angle sensor integrated into the clockspring
• The OEM part number from the old unit or the vehicle’s service manual

Always confirm fitment using the year, make, model, and trim. Don’t rely on make and model alone.

OEM vs. Aftermarket: Which One to Buy?

OEM clocksprings guarantee factory-spec fitment and ribbon tolerances. They make the most sense when the vehicle’s still under warranty, when the air bag system has recently been serviced, or when the trim level includes advanced driver-assistance features that depend on the steering angle sensor.

Quality aftermarket clocksprings are a solid, cost-effective choice for most other situations. Reputable suppliers like Standard Motor Products design their OE Replacement units to direct-fit specs with comparable ribbon construction. Standard’s clocksprings, for example, carry a 3-year/36,000-mile limited warranty and are engineered to restore full SRS function. For a well-maintained daily driver that’s out of warranty, a quality aftermarket unit makes good financial sense without cutting corners on safety.

How Do You Install a Clockspring Without Breaking It?

Getting the centering step right is what separates a clean install from a repeat repair job. If the ribbon isn’t centered when the steering wheel goes back on, it’ll bind at the limits of steering travel and fail prematurely.

Warning: Disconnect the battery and wait at least 10 minutes before touching anything near the air bag system. The SRS capacitor holds charge after disconnection, and accidental deployment causes serious injury.

Here’s how to center a clockspring before installation:

• Point the front wheels straight ahead before removing the steering wheel.
• Remove the old unit and place the new clockspring face-up on a flat surface.
• Rotate the inner rotor clockwise until you feel resistance. Stop.
• Rotate counterclockwise and count the full turns until resistance in the other direction.
• Divide that number in half and rotate the inner rotor back to center.
• Tape the inner rotor to the housing to hold the centered position during installation.

Tip: Mark the steering wheel’s position relative to the column before pulling it off. Reinstalling it off-center stresses the ribbon and can trigger a new fault code within a few thousand miles.

After reinstalling and reconnecting the battery, verify the SRS light clears. Vehicles with an integrated steering angle sensor may also need an angle reset. That usually means driving in a slow figure-eight to let the stability control module relearn the center position. Some vehicles require a scan tool to complete the reset, so check the service manual for the specific procedure.

Is It Worth Buying a Clockspring Online?

Absolutely, as long as fitment’s confirmed with a VIN or exact OEM part number match. Online pricing for a quality aftermarket clockspring typically runs 40 to 60 percent less than dealership pricing for the same application. Look for listings that specify connector type, terminal count, and warranty terms. A 1-year or longer warranty is a reasonable baseline for a safety-critical component.
