Can You Reuse Cylinder Head Bolts? Check This Before You Decide

The short answer is: usually no, but it depends on your engine. For most modern vehicles, replacing cylinder head bolts after removal is the right call. The longer answer involves knowing what type of bolts your engine uses, what the manufacturer actually says about reuse, and whether the money saved is worth the risk of redoing the job.

Most vehicles today are equipped with engines with torque-to-yield head bolts. These fasteners stretch during installation to create a precise, consistent clamping load across the head gasket. Once that stretch happens, the bolt does not return to its original dimensions.

Putting it back in and torquing it again produces unpredictable clamping force, and that is exactly the kind of variable you do not want in a head gasket job. A replacement bolt set for most passenger cars runs anywhere from $25 to $80, which is a small cost compared to pulling the head a second time.

When Can Cylinder Head Bolts Be Reused?

Reuse makes sense only under a specific set of conditions: the factory service manual for your exact engine allows it, the bolts are standard reusable fasteners rather than TTY hardware, and every bolt passes a thorough visual and dimensional inspection. Some manufacturers, like Mercedes-Benz, actually publish a maximum bolt length before reuse becomes unsafe, which takes the guesswork out of the decision. Most do not.

If the tightening procedure for your engine involves torquing to a value and then rotating an additional number of degrees, treat that as a strong indicator that the bolts are TTY and should not go back in. The torque-plus-angle method is closely associated with stretch-type fasteners, though not exclusively.

Premium aftermarket fasteners operate differently. These are engineered for repeated service and higher clamping loads, which makes them popular for turbocharged builds, performance engines, or any application that sees regular disassembly. They are not a drop-in swap for stock hardware, and they require the torque specs and lubrication instructions from the fastener manufacturer, not the factory service manual.

How to Inspect Head Bolts Before Reuse

If your service information permits reuse, inspection still needs to be thorough. Reject any bolt that shows thread galling, rust, pitting, polished bands on the shank, or visible necking where the diameter has narrowed. Check the bolt head for tool damage or rounding. Look at the threads closely for debris, old sealant, or embedded material.

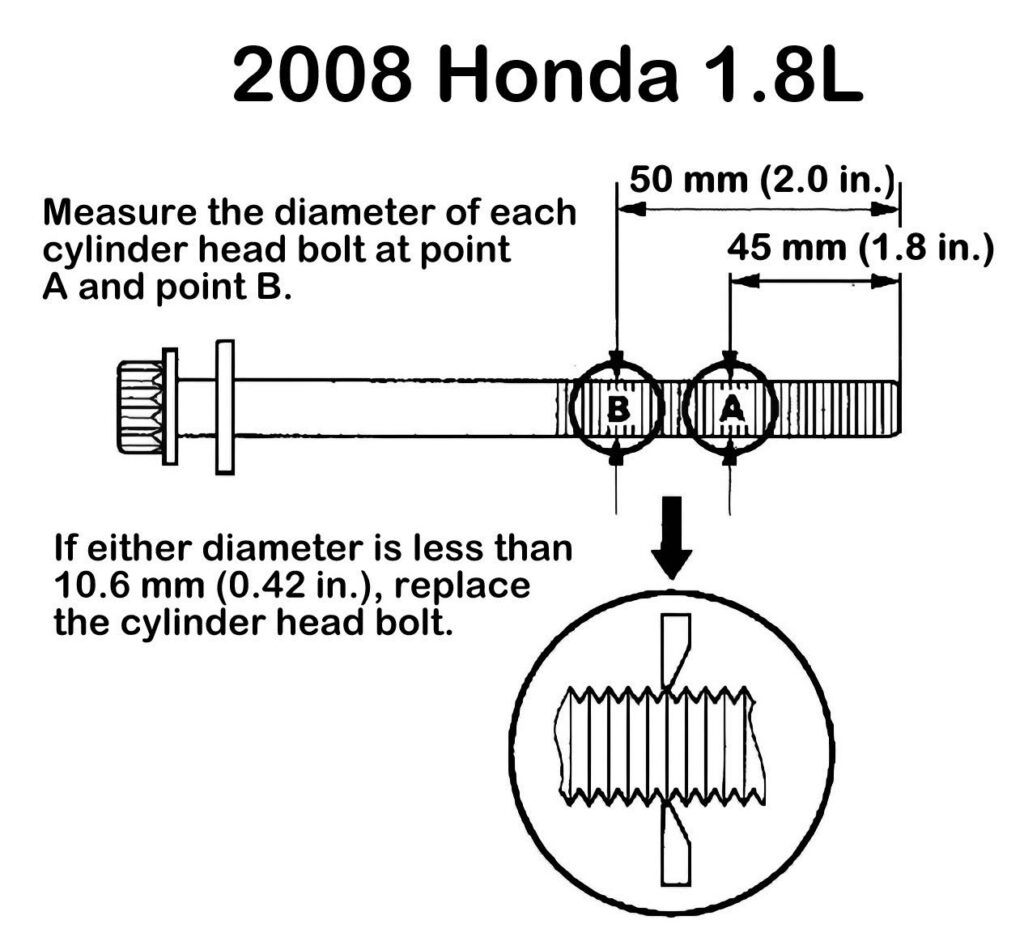

Where the manual provides a service length limit, measure every bolt against it. If one bolt exceeds the limit, replace the full set. Mixing new bolts with marginal old ones creates uneven clamp load, which undermines the whole point of replacing them at all.

Bolt holes in the block deserve just as much attention. Oil, coolant, or debris sitting at the bottom of a blind hole can hydraulically resist tightening, giving a false torque reading and potentially cracking the block. Clean the holes thoroughly before installation.

Situations Where Replacement Is the Right Move

Some circumstances are too high-risk that reuse does not make sense even if the bolts would technically pass inspection. Replace the head bolts if the engine overheated severely, if the gasket failed from combustion gas leakage, if the bolts came out of an engine with an unknown rebuild history, or if the block threads needed any kind of repair work. Turbocharged engines and vehicles used for heavy towing fall into this category as well.

The value calculation here is straightforward. Head gasket jobs involve significant labor time and often machine shop work for resurfacing. Saving $40 to $80 on bolts while putting hundreds of dollars in labor at risk is not a trade most experienced mechanics would take.

What to Buy and What It Costs

Replacement head bolt sets vary in price depending on engine size and complexity. Standard sets for most passenger vehicles fall in the $25 to $80 range. More involved applications, including larger displacement or diesel engines, typically run $80 to $200 or more. Performance stud kits from ARP can exceed $300 depending on the application.

Before ordering, confirm the exact year, make, model, and engine code. On V-configuration engines, check whether the set covers one head or both. Verify that bolt lengths, washer requirements, and torque specs match your specific application, not just the general engine family. Some engines within the same platform use different bolt configurations depending on the model year or production revision.

Installation Mistakes That Ruin Head Gaskets

New bolts cannot save a sloppy install. Head gasket failures often trace back to process errors rather than bad parts. It’s important for the head and block surfaces to be clean and flat. Bolt holes need to be cleared of any fluid or debris. Lubrication, sealant, or dry installation depends on what the service information specifies for that fastener. Tighten in the correct sequence using the exact torque and angle values for your engine, not numbers pulled from a general guide or forum thread.

If the engine suffered serious overheating, the inspection scope should extend beyond the gasket and bolts to include the head surface, block deck, cooling passages, and thread condition in the block.
