Oxygen sensors send different voltage signals depending on the amount of oxygen present in the engine exhaust. These sensors emit a high voltage signal for a fuel-rich mixture with little oxygen and another signal with lower voltage to indicate a lean mixture.
As the oxygen levels in the engine’s exhaust shift up and down, the sensor signal fluctuates ,with any sensor failing to change enough likely suffering from a malfunction.
What Does the P2270 Code Mean?
Diagnostic Trouble Code (DTC) P2270 stands for “O2 Sensor Signal Biased/Stuck Lean (Bank 1, Sensor 2).” It warns that the #2 oxygen sensor on bank 1 continually sends the voltage signal for a lean air mixture instead of the proper air to fuel ratio calculated by the power control module or PCM.
Bank 1 is where the #1 spark plug is. O2 sensor 1/1 is the upstream sensor on Bank 1 (different for a Ford than for a Chevy or a Dodge), and O2 sensor 1/2 is the downstream sensor on Bank 1. O2 2/1 is upstream on Bank 2 and O2 2/2 is downstream on Bank 2.
Always make sure you know which bank is which before you do any hands-on testing.
Code P2270 triggers when the PCM detects that the signal from sensor 2 on Bank 1 is below a specific value for a certain amount of time. Remember, low voltage typically means more O2 in the exhaust stream, but it can be the result of a shorted O2 signal wire, which would also pull the voltage low. A cut signal wire won’t typically have zero voltage because the ECM/PCM can read any whisper of induced voltage on a non-shorted signal wire.
To learn more about how the ECM/PCM detects issues with sensors using “rationality checks,” you can read our technical explanation here.
Continue reading below to find out the most probable causes of P2270.
Note: The Society of Automotive Engineers (SAE) set the generic code P2270. This trouble code can follow a different definition according to the manufacturer of the vehicle. For example, Ford refers to the post-catalytic oxygen sensor as “catalyst monitor sensors.”
What are the Possible Causes of the P2270 Code?
The PCM can get a biased lean signal from the post-catalytic oxygen sensor 2 because of these problems:
- Bad or failing oxygen sensor

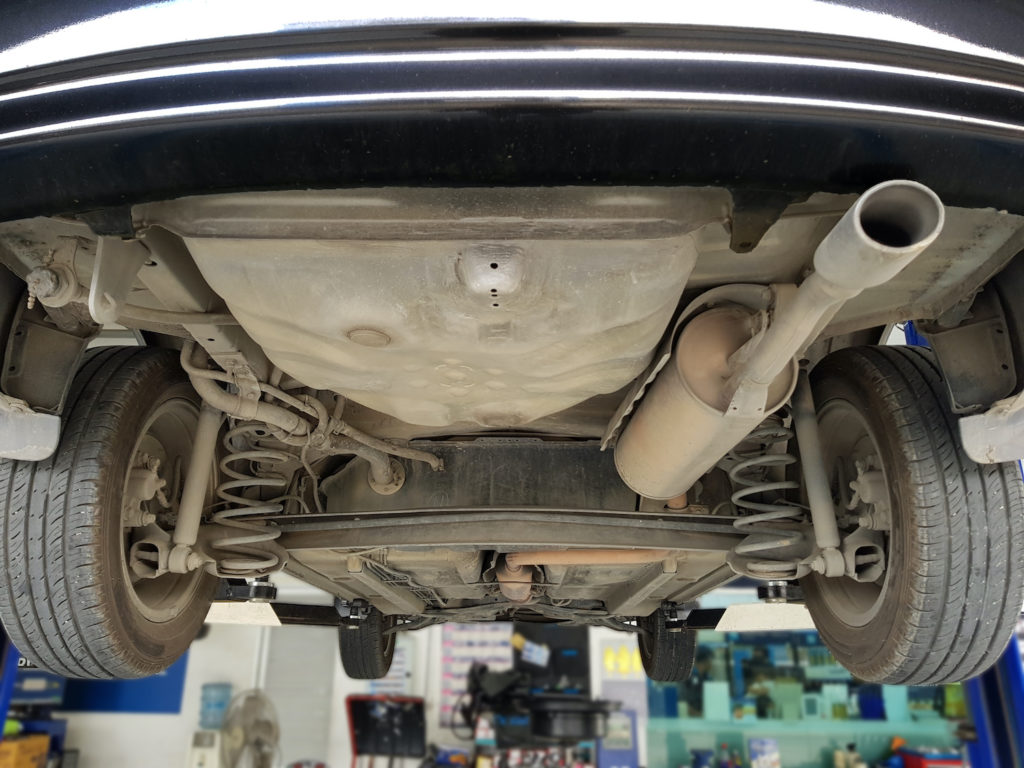

- Exhaust leak upstream of the downstream sensor, such as a breach in the catalyst shell
- Lean running condition (which will have set other codes besides this one)
- Corroded or damaged wiring
- Failing PCM (rare) or PCM software in need of an update (almost never)
What are the Common Symptoms of the P2270 Code?
The PCM primarily uses the readings from the post-catalytic oxygen sensors to make sure the catalytic converter works as designed. Code P2270 and its counterpart P2271 won’t affect the vehicle’s drivability. As such, typically, the only symptom you’ll notice is an illuminated check engine light.
How to Diagnose the P2270 Code
The specific steps of diagnosing and repairing this DTC can vary depending on the year, make, and model of your vehicle.
You can let a mechanic do the diagnosis for you or you can try to do it yourself. If you do decide to troubleshoot the P2270 code on your own, check out the following video to get an idea of what the diagnostic process might involve:
How to Fix the P2270 Code
Fixing the P2270 code, as with any code, is likely not a straightforward affair. Many people leave the job to their mechanic to avoid the hassle of figuring out the right fix. You can choose to do the job yourself if you have the right tools, automotive DIY skills, and access to repair guides or manuals.
Just keep in mind that a fix that may work for one particular make and model may not work for another vehicle. For example, replacing the affected oxygen sensor is a common fix that works on a 2005 Ford Escape, XLT 3.0L, V6. Doing the same on other Ford models could also work, but perhaps not on vehicles from other manufacturers.
Other Notes About P2270
In vehicles fitted with three post-catalytic oxygen sensors instead of two, the PCM will log a different code, P2274, if the third downstream O2 sensor becomes biased for the lean mixture signal.
More About O2 Sensors and Rationality Checks
O2 sensors have been around since 1975 but became the order of things by the early 80s with feedback fuel systems – and the O2 is the feedback element of the system.

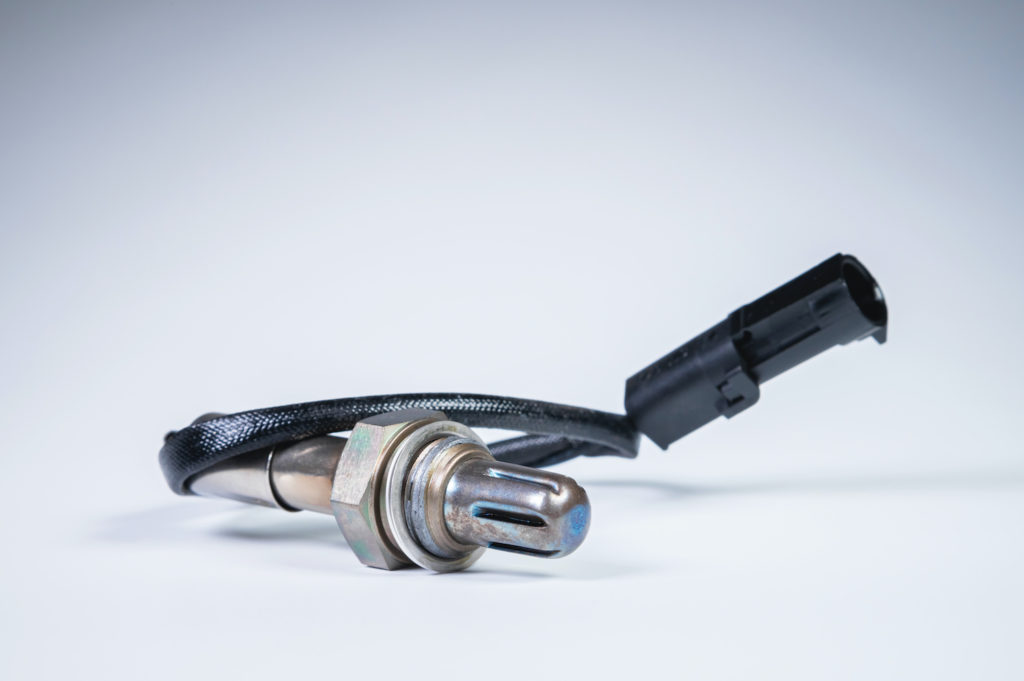

The inside area of the ceramic zirconia bulb within the conventional O2 sensor is exposed to the atmosphere by way of a small vent where the wires enter the sensor. The outside surface of the bulb is exposed to exhaust gas, and since ceramic zirconia is an electrolyte, the conventional O2 sensor literally creates its own voltage as the O2 levels within the bulb and the O2 in the exhaust fluctuate, providing a a 0.2-0.8 volt signal which the ECM/PCM interprets. The O2 sensor reacts very quickly to very minor changes in O2 in the exhaust stream.
The more O2 that is in the exhaust stream, the lower the voltage. The less O2 in the exhaust, the higher the voltage (again, this range is about 0.2-0.8).
With the advent of OBD2, it became evident that the catalyst needed a sensor to monitor its ability to store oxygen – which is what the downstream O2 sensor is there for. Code P2270 points to an issue with the downstream O2 sensor on bank 1 having flatlined; meaning, it has stopped producing voltage.
Comparing inputs, i.e., “rationality checks” is what the ECM/PCM does to find problems with sensors that should be operating together in a certain pattern.
If the downstream sensor goes low and stays low for a predetermined window of time while the upstream O2 sensor is operating within acceptable parameters (there are other criteria the ECM/PCM uses as well), the P2270 is stored.
