What’s a Carburetor? How It Works, Common Types, and DIY Diagnostics

A carburetor is a mechanical fuel-metering device that mixes gasoline with air so a spark-ignition engine can burn the mixture in its cylinders. It uses airflow through a narrowed passage to pull fuel from a small reservoir, then meters that fuel across idle, cruise, and acceleration conditions.

What’s a carburetor?

A carburetor is the fuel mixer that prepares the air and gasoline charge before it enters the intake manifold. In short, the carburetor controls mixture strength and total airflow so the engine can start, idle, cruise, and make power on demand.

A carbureted engine accomplishes this without an engine computer, relying instead on pressure differences, calibrated passages, and mechanical linkages. You will typically find a carburetor on classic cars and trucks, many motorcycles, and most small equipment engines. Some older vehicles used multiple carburetors or specialized designs for racing, off-road, or emissions-era drivability, but the goal is always the same: deliver the right mixture, evenly, at the right time.

Quick reality check for DIY diagnosis: a carburetor can only meter what it is given. Weak ignition, low compression, vacuum leaks, and incorrect fuel pressure can all mimic carburetor problems, and starting with jet swaps before checking these will waste a weekend.

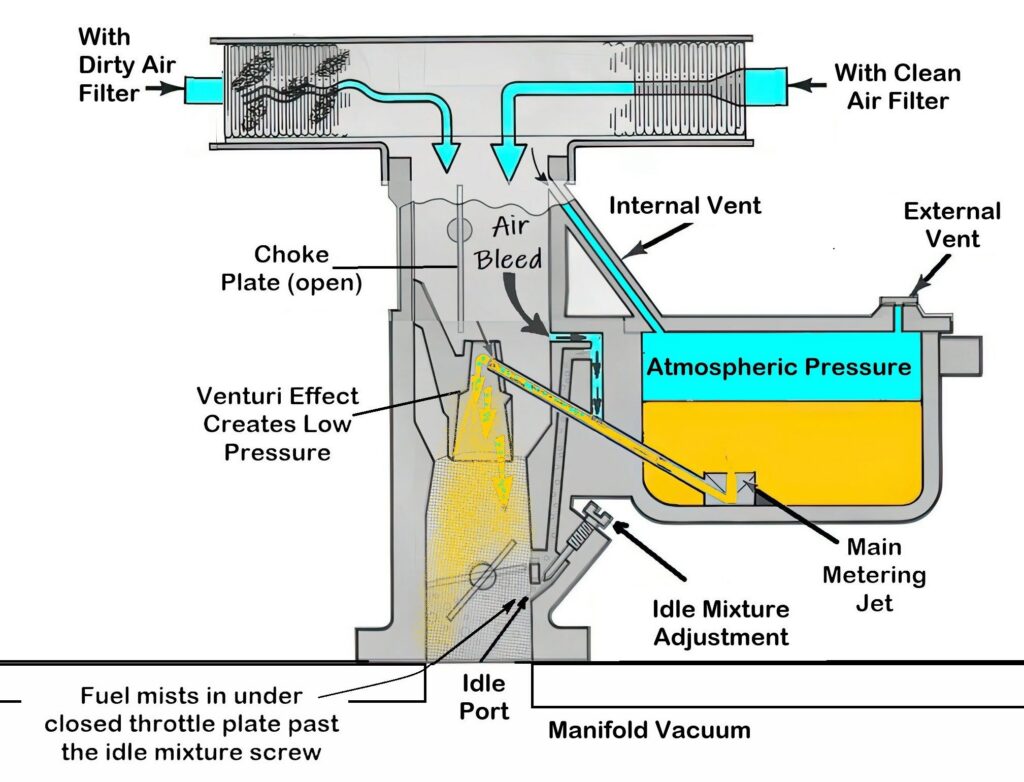

Carburetor function and the parts that actually meter fuel

A carburetor has two core jobs: move air, and add the correct amount of fuel for that airflow. Most automotive carbs accomplish this with a venturi, a float bowl, and multiple fuel circuits that hand off to one another as throttle angle and engine load change.

Core components you will hear about in manuals and rebuild kits

• Air horn and venturi: Air speeds up through the venturi, pressure drops, and fuel is drawn into the airstream.
• Float bowl, float chamber, float, needle, and seat: These parts maintain a set fuel level so jetting stays consistent. A level that is too high floods the engine and runs rich; too low and the engine starves on acceleration.
• Idle circuit and idle, slow jet, or restrictions: This circuit feeds fuel at closed throttle and light throttle, when airflow is too low for the main system to pull fuel reliably.
• Main metering jets and boosters: These take over as airflow increases and the main system can atomize fuel consistently.
• Throttle plates: These control how much mixture the engine can ingest, which directly controls torque and rpm under load.
• Choke plate or choke system: The choke richens the mixture for cold starts by limiting incoming air, then opens progressively as the engine warms.
• Accelerator pump: This adds a brief shot of fuel when the throttle opens quickly, covering the momentary lean condition that would otherwise cause a stumble.

Tip: Before tuning anything, confirm fuel pressure is within spec for your carb. Many performance four-barrel carbs are happiest around 5 to 7.5 psi, while many street carburetors call for lower pressure at idle and generally want a fuel pressure regulator set around the mid-5 psi range. Excessive pressure can overpower the needle and seat and create what looks like a rich jetting problem.

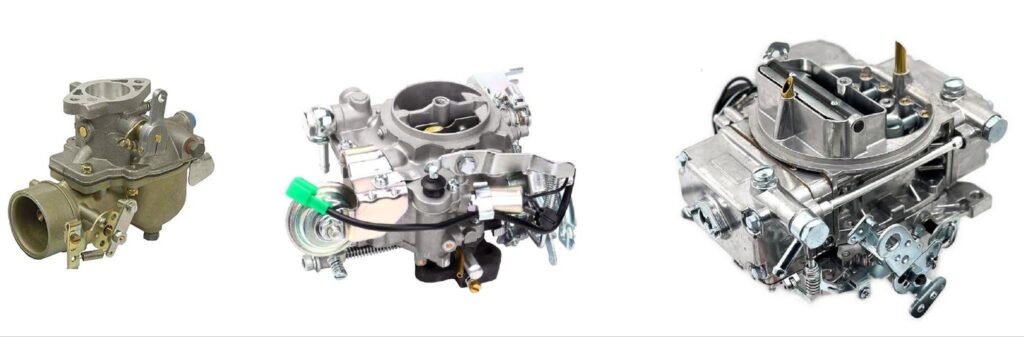

Types of carburetor layouts you will run into

Carburetor designs can be grouped by how they create and control the pressure drop that pulls fuel into the airstream. Understanding which family you are dealing with makes the tuning logic much easier to follow.

• Fixed-venturi, most American V8 and many downdraft carbs: The venturi size is fixed, and fuel flow changes via jets, air bleeds, boosters, power enrichment circuits, and pump circuits. These carbs are straightforward to service and respond well to methodical tuning.
• Variable-venturi or constant-depression, common on many European and British applications: A movable piston or diaphragm changes the effective venturi area to keep the pressure drop more consistent, which improves mixture control across a wide range of airflow.
• Downdraft vs. sidedraft: Downdraft carbs sit above the intake and feed downward, while sidedrafts feed sideways and are common where packaging or intake runner layout favors them.
• Single-carb vs. multi-carb setups: Multiple carburetors can improve distribution and throttle response on certain engines, but synchronization becomes a regular part of the maintenance routine.

Warning: Carburetor tuning will not fix uneven cylinder distribution caused by manifold mismatch, incorrect spacer choice, or an intake vacuum leak at one runner. Fix sealing and alignment before tuning.

Four-barrels, CFM, and what changes when secondaries come in

A four-barrel carburetor has two primary throttle bores for normal driving and two secondary throttle bores that open when the engine demands more airflow. Think of it as a carb that behaves like a small unit at part throttle and a much larger one under heavy throttle demand.

What matters for DIY decisions:

• Primary side: Handles idle, cruise, and moderate acceleration.
• Secondary side: Adds airflow and fuel when load and throttle demand increase.
• Secondary actuation: Vacuum secondaries open progressively and are forgiving on street cars. Mechanical secondaries open more directly and often suit aggressive gearing, manual transmissions, or track use.
• Airflow rating, CFM: Bigger is not automatically better. Oversizing can soften throttle response and create tuning headaches because the signal at the boosters becomes weaker.

Example application note: A 383 stroker often runs well on a properly sized four-barrel because the extra displacement can use the additional airflow at higher load. Even so, camshaft, rpm range, gearing, and vehicle weight all factor into choosing the ideal CFM and secondary strategy.

Carburetor vs fuel injection in the real world

The carburetor versus fuel injection debate is less about which system makes more power and more about how precisely the system can hit the target mixture under changing conditions. Fuel injection uses sensors and an ECU to calculate fuel delivery, while a carburetor relies on airflow signal and mechanical calibration.

The classic carburetor benefits

• Simple mechanical architecture with no ECU dependency
• Serviceable with basic hand tools and careful cleaning
• Behavior can be changed for a specific combination of cam, compression, altitude, and fuel once you understand the circuits

Where fuel injection wins for most drivers

• Better cold-start behavior and automatic compensation for temperature and altitude
• More consistent mixture control cylinder to cylinder on many manifolds
• Easier emissions control because the system can keep the mixture very close to stoichiometric when needed

Throttle body vs carburetor: how to tell what you are looking at

A throttle body controls airflow using a throttle plate, but it does not meter fuel the way a carburetor does. The key difference is where and how fuel is added. A carburetor meters fuel inside the carb body itself, while a throttle body in a fuel-injected system is primarily an air valve and a mounting point for sensors, and sometimes for injectors in throttle body injection setups.

Fast identification tips

• Carburetor: Typically has fuel bowls, mechanical linkages for the choke and pump, and calibrated jets or metering rods inside.
• Throttle body injection: Often resembles a carb from the outside but uses one or two injectors spraying fuel above the throttle plates.
• Multi-port injection: The throttle body feeds air only, and fuel injectors are located at each intake port.

Parts ordering warning: On older platforms and imports from the transition era, confirm the actual system on the vehicle rather than relying on the model year alone. Some parts catalogs for vehicles like the Nissan S-Cargo even show separate groups for carburetion and injection components, so a quick look under the hood can prevent buying the wrong gasket set or chasing the wrong diagnosis.

Symptoms, failure modes, and quick diagnostics before you tear it apart

Most carburetor complaints trace back to a handful of repeat offenders: incorrect fuel level, incorrect fuel pressure, clogged passages from old fuel, vacuum leaks, choke problems, or a mismatched accelerator pump shot. Any carburetor job should start with verification tests before moving to cleaning, a rebuild, or replacement.

Quick diagnostic flow that prevents random jet changes

1. Verify ignition health first. Set base timing to the engine’s spec and confirm that both mechanical and vacuum advance work correctly.
2. Check for vacuum leaks. Inspect the carb base gasket, intake gaskets, brake booster hose, and any capped ports.
3. Measure fuel pressure at the carb inlet. Compare the reading to the carb manufacturer’s spec and correct it with a regulator if needed.
4. Set float level. On designs with sight plugs or clear procedures, set the fuel level to the manufacturer’s wet specification.
5. Confirm accelerator pump action. With the engine off and air cleaner removed, crack the throttle and verify an immediate, solid pump shot.
6. Confirm choke operation. When cold, the choke should provide enrichment and a stable fast idle, then open as the engine warms.
7. Only then tune mixture. Adjust idle mixture and idle speed, then address cruise and power enrichment circuits.

Safety warning: Fuel and backfires are a dangerous combination. Work in a ventilated area, keep rags away from the intake, and keep a class B fire extinguisher within reach whenever the air cleaner is off and the engine is running.

Example scenario: The engine idles fine after warm-up but stumbles badly when pulling away from a stop. After verifying timing and confirming that fuel pressure is within spec, you remove the air cleaner and notice that the pump shot is delayed until after the throttle moves. That points to an accelerator pump adjustment, cam profile, or clearance issue, and you should address that long before touching the main jets.

Mixture targets and baseline tuning that actually works on the street

Mixture targets vary by engine, camshaft, fuel type, and whether the vehicle needs to keep a catalytic converter happy, but there are solid starting points. At cruising speeds on gasoline, a well-tuned carburetor typically targets something close to stoichiometric, commonly in the high-14s to low-15s air-fuel ratio, provided the engine stays smooth and cool.

Practical idle and off-idle setup steps

1. Warm the engine fully and verify the choke is completely open.
2. Set curb idle speed to spec, or to a stable baseline that keeps the engine smooth in gear for automatics.
3. Adjust idle mixture screws evenly, aiming for the highest steady vacuum or most stable rpm.
4. Re-check idle speed after mixture changes, then repeat both adjustments until they are stable.
5. Road test for tip-in stumble and steady cruise surging before changing jets.
6. If a wideband is available, log idle, light cruise, and a short moderate pull before making any calibration changes.

Tip: If leaning the cruise mixture improves fuel mileage but the engine runs hotter, pings, or surges, the mixture setting is not the only variable at play. The ignition timing curve, coolant temperature, and vacuum advance strategy all factor into whether a lean cruise setup is safe and comfortable over the long run.
