Reading Time: 2 minutes
Summary
  • The brake pads are typically inside the brake calipers that surround the brake discs.
  • They slow down the rotors when the brake system is used.
  • Park your vehicle on a flat and even surface when accessing the brake pads to keep your vehicle from wobbling.

Q: Where Are Brake Pads Typically Located?

A: Brake pads are crucial components in a disc brake system. They’re usually inside the caliper that surrounds the brake disc.

In a disc brake, each rotor has two brake pads. If your vehicle uses disc brakes for both the front and rear wheels, you might have eight brake pads in total installed on your ride. A caliper attached to the wheel hub holds these pads in place and controls their movements.

Tips on How to Access the Brake Pads

image of a 2007 ford f 150 brake pads and caliper

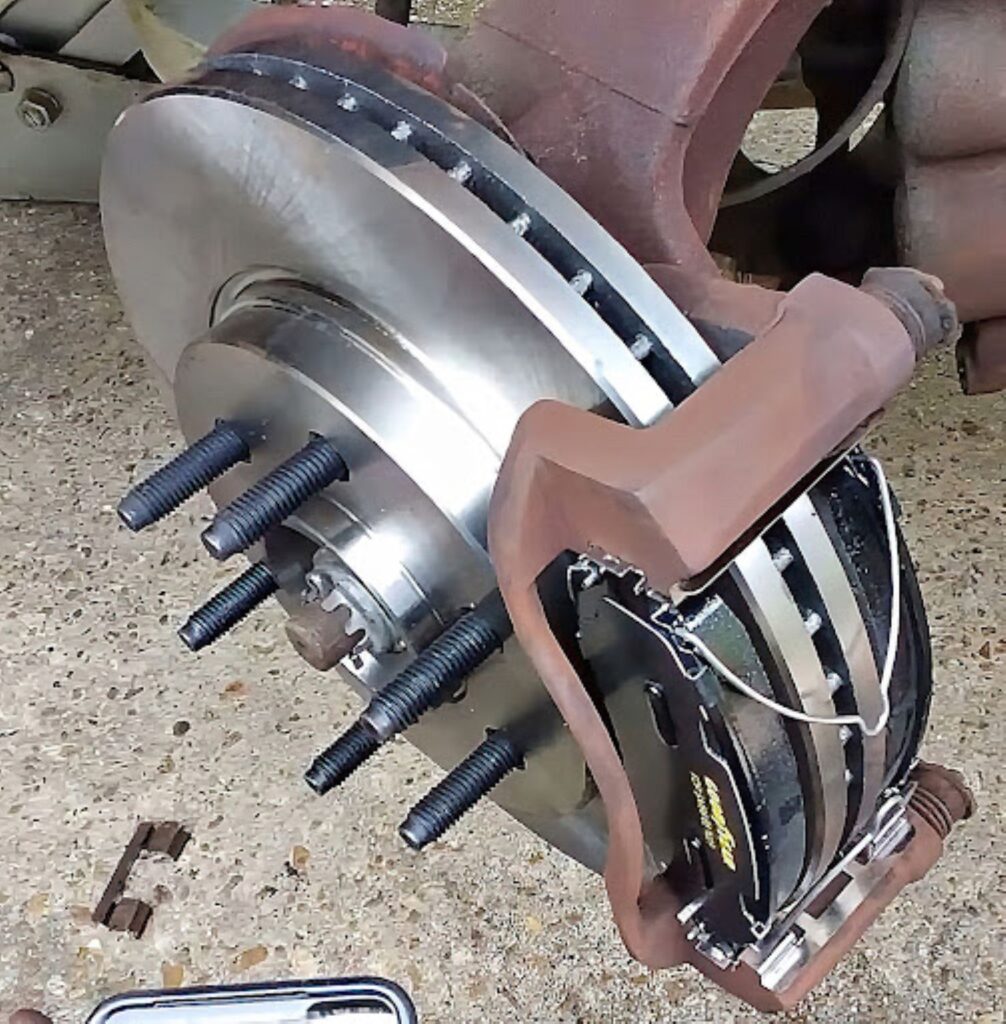

This is a photo of a new set of brake pads in place before the caliper was reinstalled on a 2007 F-150. The part in which the pads are mounted is called the “caliper bracket,” which provides support for the pads as they pinch the rotor to slow the vehicle. | Image Source: Richard McCuistian

Before trying to access the brake pads, park your vehicle on a dry and flat surface. Otherwise, it might move or wobble while you’re accessing the brake pads. Put wheel chocks on the wheels you’re not working on for extra precaution.

See also  Bad Brake Caliper Symptoms: 7 Signs to Watch Out For

Here’s another tip: check the brake fluid level. If it’s full to the brim, you must remove some of the fluid to prevent spills when you compress the brake caliper piston.

The pistons extend as the pads wear, which makes adding more fluid necessary, and when you retract the pistons to make way for the new pads, the fluid is forced back into the master cylinder reservoir, which usually causes the reservoir to overflow. This isn’t really a big deal, but if you don’t want fluid dribbling all over the area under the master cylinder, remove some fluid first.

If you don’t want brake fluid dribbling all over the area under the master cylinder, remove some fluid first.

Citations
Richard McCuistian, ASE Certified Master Automobile Technician

Once you’re ready, you have to raise the vehicle with a hydraulic jack and remove the wheel. You’ll also have to remove certain bolts and the caliper to gain access to the brake pads.
