What Does a Steering Box Brace Do?

A steering box brace gives the steering box a second anchor point so it can’t twist the frame rail every time you turn the wheel. Most designs support the bottom of the sector shaft, which cuts flex at the box mount, sharpens steering response, and lowers the stress that leads to cracks around the mounting bolts. It’s most useful for solid-axle off-road vehicles with bigger tires and on hard-driven performance cars.

Key Takeaways

• A steering brace adds a second support point so the box and frame rail flex less under load.
• The most effective location is the lower end of the sector shaft, where leverage and stress peak.
• It reduces unibody stress but doesn’t make the mount crack-proof, especially without a track bar brace.
• It won’t fix worn tie rods, ball joints, or bushings, so it won’t cure death wobble on its own.

How a Steering Brace Works

A steering brace spreads steering loads across more of the vehicle’s structure. Many steering boxes bolt to a single frame rail, and on unibody vehicles like the 1984 to 2001 Jeep Cherokee XJ, that rail is part of the body shell.

When you turn the wheel, the box swings the pitman arm, which moves the drag link and front wheels. The tires resist, and that resistance tries to twist the box against its mount. Bigger tires, more grip, and rocky terrain multiply the force.

Why the Sector Shaft Matters

The sector shaft is the output shaft that exits the bottom of the box and holds the pitman arm. Because the pitman arm hangs under the box, the shaft’s lowest point sees the most leverage and movement. Supporting this point keeps your steering effort going into the wheels instead of the mount.

Most braces tie the box or sector shaft to the opposite frame rail or a nearby crossmember. Mounting points vary by vehicle, so confirm fitment for your vehicle’s year, make, and model.

Common Steering Brace Designs

Steering braces come in three main styles. Whether a listing calls it a steering gear box brace or a sector shaft brace, the design matters more than the name.

Sector Shaft Supports

These support only the lower end of the sector shaft, usually through a bearing. Some builders consider this the most effective location because it targets the point of highest stress. Many remanufactured and OEM boxes use a bronze bushing here instead of a needle bearing, so they can carry noticeable play even after a rebuild.

Housing Clamps

Older-style braces clamp around the lower steering box housing. They’re simple, but they might not reduce much play because stress still travels through the sector shaft. Some builders also warn that U-bolt clamps can stress the cast housing over time.

Combination Braces

Some kits support both the sector shaft and the housing. But opinions vary on this design. Some vehicle owners say that once the shaft has proper support and the mount is sound, extra clamping adds little and could create a stress point in the box.

What a Steering Brace Won’t Fix

A steering brace reduces flex, but it doesn’t solve every front-end problem.

It Won’t Make the Unibody Crack-Proof

A brace reduces the shear stress the box sends into the sheet metal, but the unibody still takes major force at the track bar bracket.

It Won’t Cure Death Wobble

Death wobble usually traces back to loose or worn parts such astie rods, track bar bushings, and ball joints. A brace helps keep the front end tighter, but it doesn’t replace worn components or stop internal box wear.

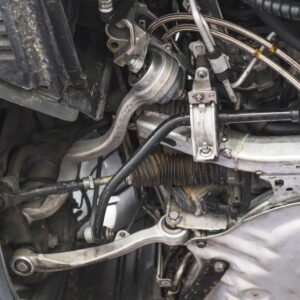

Why the Track Bar Also Matters

The track bar shares steering loads with the box, so bracing one without the other can move cracks rather than prevent them. On a solid front axle that isn’t a triangulated four-link, the track bar (also called a Panhard bar) keeps the axle centered and carries lateral and steering forces.

With only a track bar brace, cracks can show up around the steering box. With only a steering brace, cracks can form around the upper track bar bracket. Bracing both gives you a tighter front end that’s less prone to cracking.

What Benefits Most From a Steering Brace

Vehicles that load the steering hard and often will gain the most.

Built Off-Road Rigs

Lifted Jeeps and SUVs on larger tires put the most strain on the box mount, especially with rock crawling or regular trail use. Owners of the XJ Cherokee and the 1993 to 1998 ZJ Grand Cherokee often add a brace when upgrading tires or replacing a steering box.

Performance and Track Cars

Hard cornering on sticky tires can flex the box mount on older unibody cars. Some vintage Datsun owners report sharper steering after bracing.

Stock Daily Drivers

A stock vehicle on factory-size tires that stays on pavement might not need one. A brace rarely hurts, but replacing worn steering parts comes first.

Signs Your Steering Box Mount Needs Attention

Mount problems usually show up as vague steering or visible movement:

• Delayed response or a loose, wandering feel
• The box shifting while a helper turns the wheel with the engine running and the vehicle parked
• Cracked paint, rust lines, or torn metal around the mounting bolts
• Mounting bolts that keep working loose

Steering problems affect control. If you spot cracks or movement at the mount, have the frame rail and steering system inspected before you drive hard or head off-road, and repair cracked metal before adding a brace.

What To Check Before Installation

Confirm the kit matches your vehicle’s exact year, make, model, and steering box, since aftermarket boxes and lift components can change clearances. Check whether it bolts on or needs drilling or welding. Then inspect the mount area, replace worn spacers, and check the box, tie rods, and track bar for play.
